Digital signage is emerging as a versatile advertising solution for major companies. It allows automatic updating of content on all signs from a web-based system, eliminating the hassle of physically changing static signs. Digital signs from DigiSite can display video, images, charts, and social media feeds. They use latest display technologies for clear, accurate images without physical replacements needed. DigiSite provides full digital signage solutions tailored for various industries and environments.

1. Digital
Screen Solutions
www.digisite.com.au | 1300 20 12 20

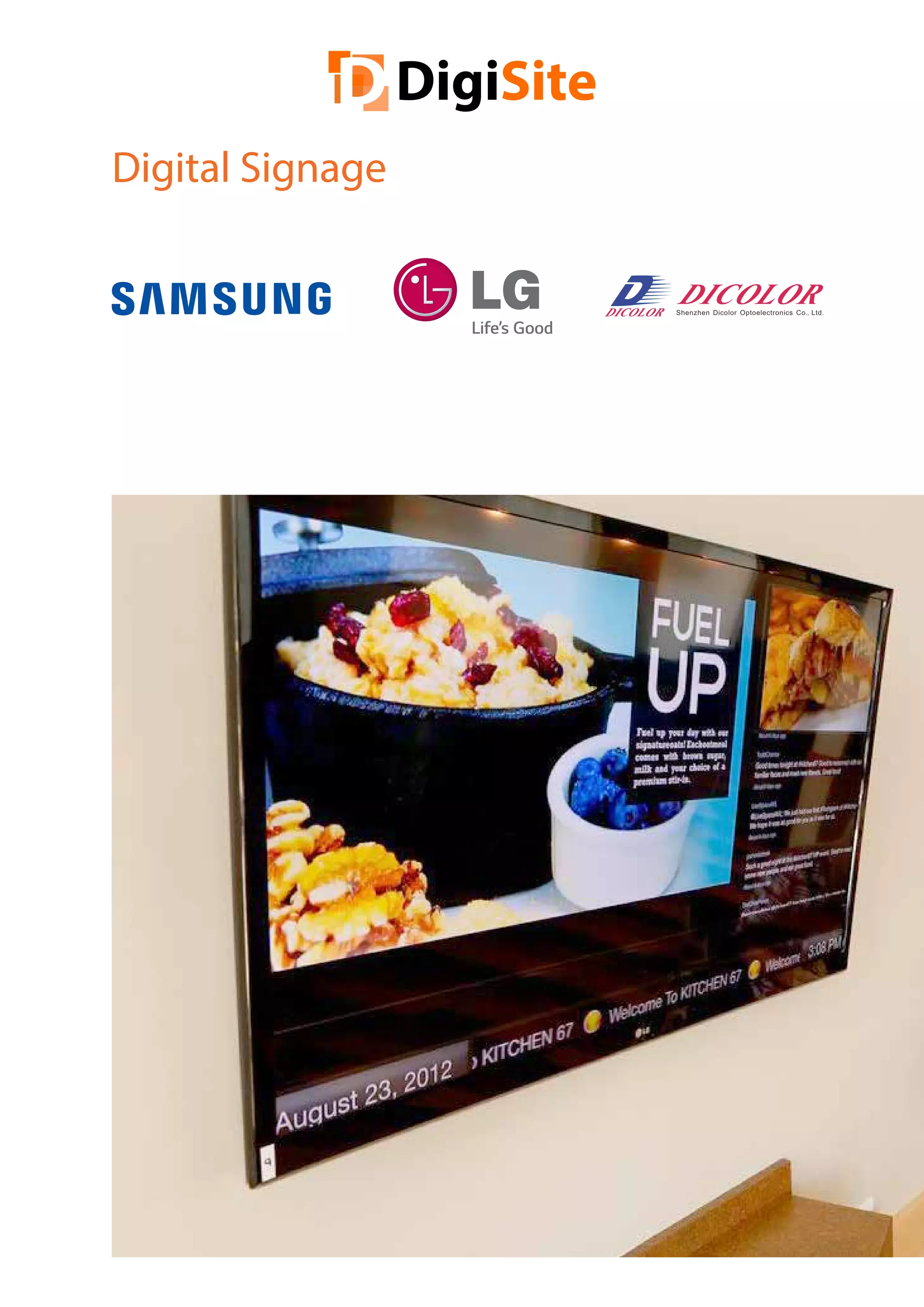

2. Digital Signage

3. 3

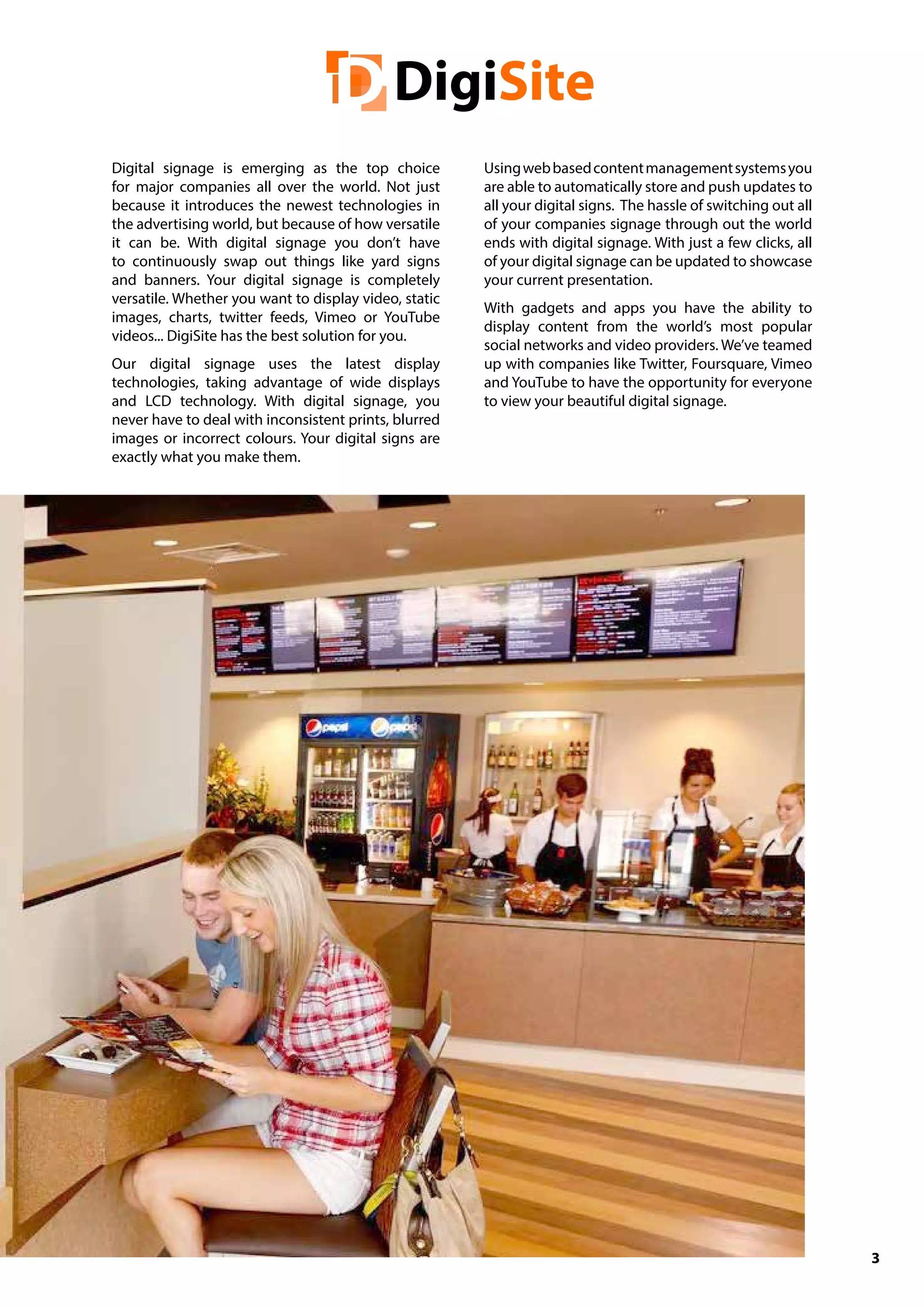

Digital signage is emerging as the top choice
for major companies all over the world. Not just
because it introduces the newest technologies in
the advertising world, but because of how versatile
it can be. With digital signage you don’t have
to continuously swap out things like yard signs
and banners. Your digital signage is completely
versatile. Whether you want to display video, static
images, charts, twitter feeds, Vimeo or YouTube
videos... DigiSite has the best solution for you.
Our digital signage uses the latest display
technologies, taking advantage of wide displays
and LCD technology. With digital signage, you
never have to deal with inconsistent prints, blurred
images or incorrect colours. Your digital signs are
exactly what you make them.
Usingwebbasedcontentmanagementsystemsyou
are able to automatically store and push updates to
all your digital signs. The hassle of switching out all
of your companies signage through out the world
ends with digital signage. With just a few clicks, all
of your digital signage can be updated to showcase
your current presentation.
With gadgets and apps you have the ability to
display content from the world’s most popular
social networks and video providers. We’ve teamed
up with companies like Twitter, Foursquare, Vimeo
and YouTube to have the opportunity for everyone
to view your beautiful digital signage.

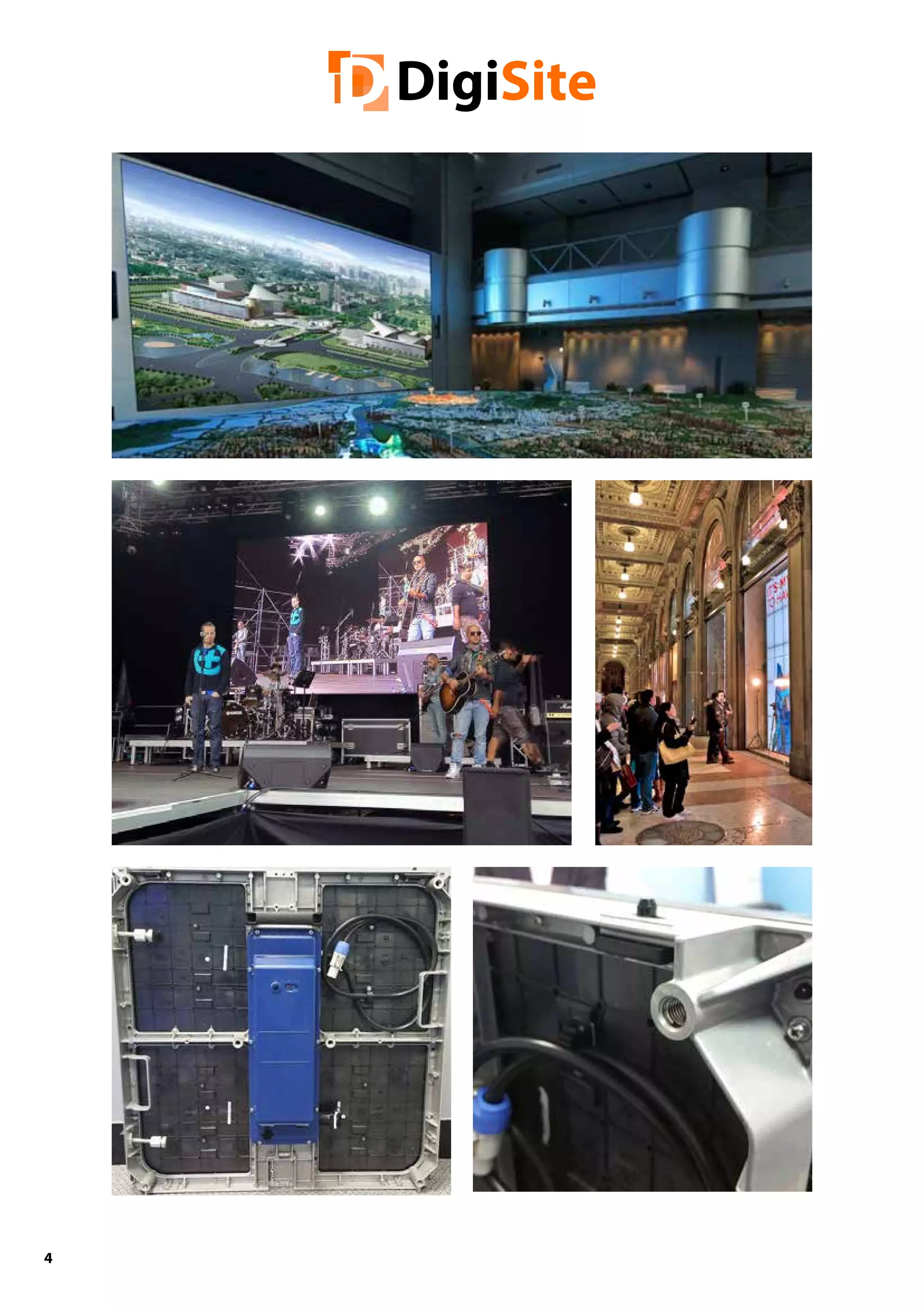

4. 4

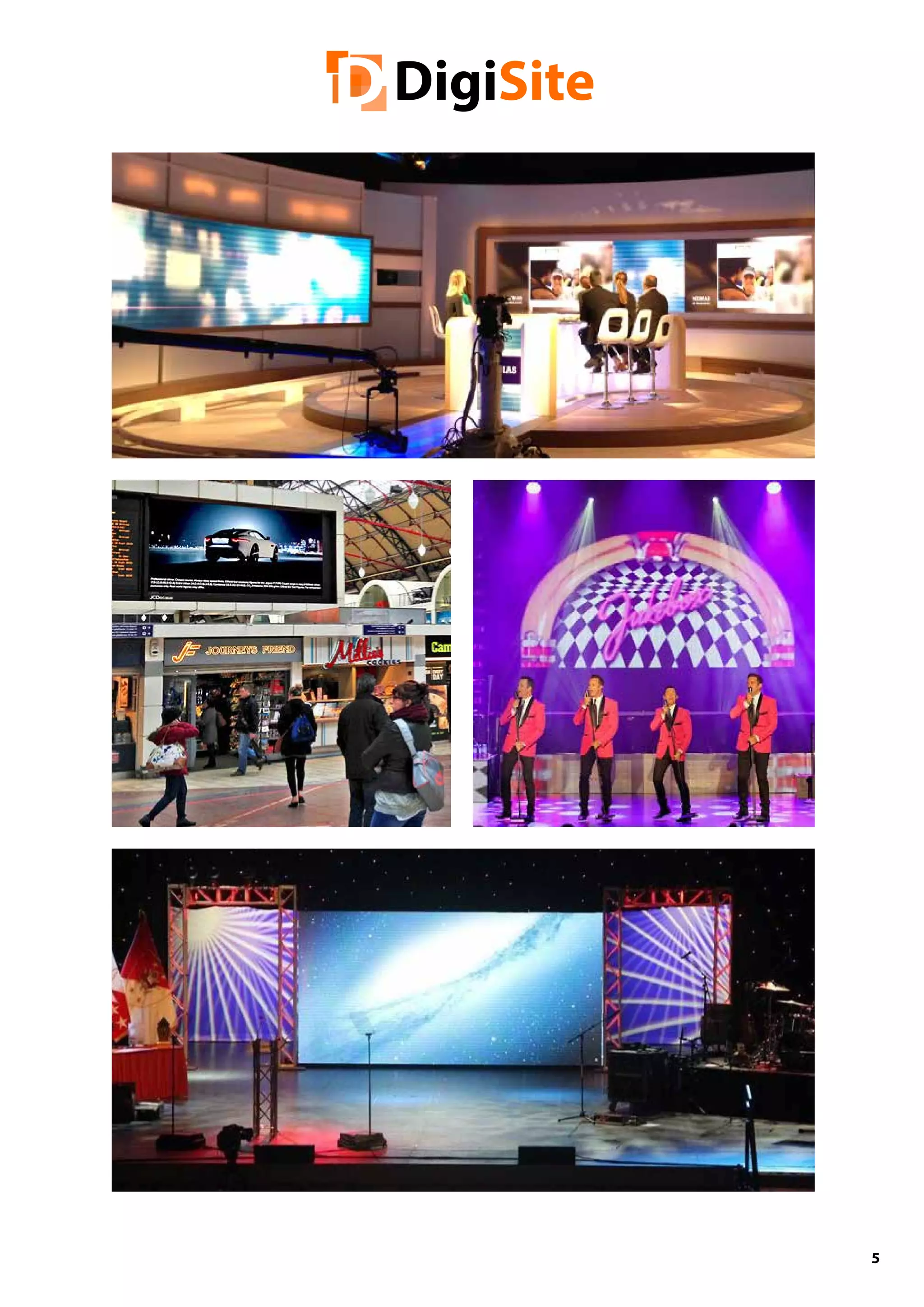

5. 5

6. 6

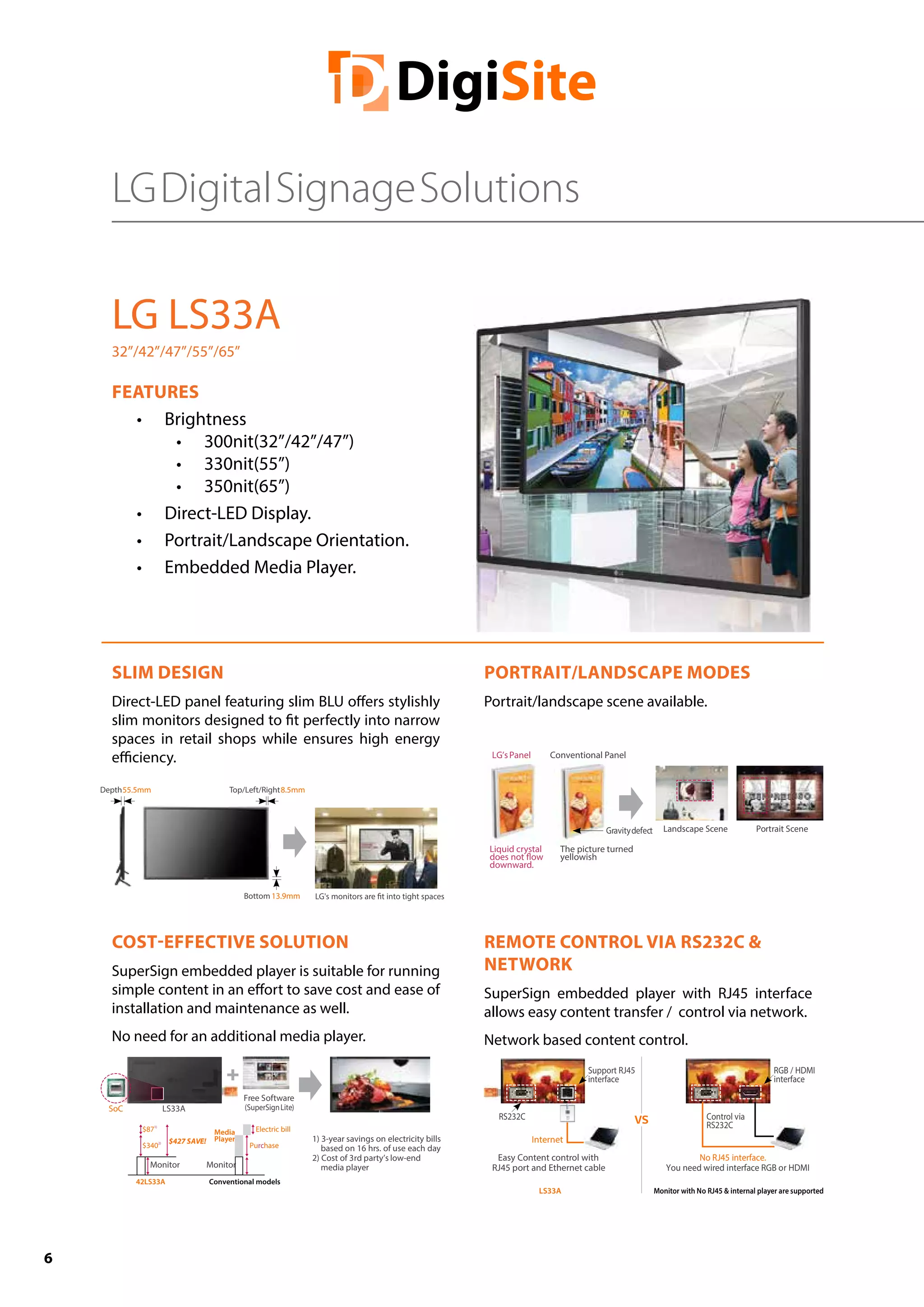

LG LS33A
32”/42”/47”/55”/65”
FEATURES
• Brightness
• 300nit(32”/42”/47”)
• 330nit(55”)
• 350nit(65”)
• Direct-LED Display.
• Portrait/Landscape Orientation.
• Embedded Media Player.
SLIM DESIGN
Direct-LED panel featuring slim BLU offers stylishly
slim monitors designed to fit perfectly into narrow
spaces in retail shops while ensures high energy
efficiency.
PORTRAIT/LANDSCAPE MODES
Portrait/landscape scene available.
COST-EFFECTIVE SOLUTION
SuperSign embedded player is suitable for running
simple content in an effort to save cost and ease of
installation and maintenance as well.
No need for an additional media player.
REMOTE CONTROL VIA RS232C &
NETWORK
SuperSign embedded player with RJ45 interface
allows easy content transfer / control via network.
Network based content control.
Depth55.5mm Top/Left/Right8.5mm
Bottom 13.9mm
Liquid crystal
downward.
The picture turned
yellowish
Gravitydefect Landscape Scene Portrait Scene
LG’sPanel Conventional Panel
SoC LS33A
Free Software
(SuperSignLite)
$871)
$3402)
Purchase
Electric bill
42LS33A
Media
Player
Conventional models
Monitor Monitor
$427 SAVE! 1) 3-year savings on electricity bills
based on 16 hrs. of use each day
2) Cost of 3rd party’s low-end
media player
Support RJ45
interface
Easy Content control with
RJ45 port and Ethernet cable
RGB / HDMI
interface
Control via
RS232C
RS232C
Internet
No RJ45 interface.
You need wired interface RGB or HDMI
LS33A Monitor with No RJ45 & internal player are supported
LGDigitalSignageSolutions

7. 7

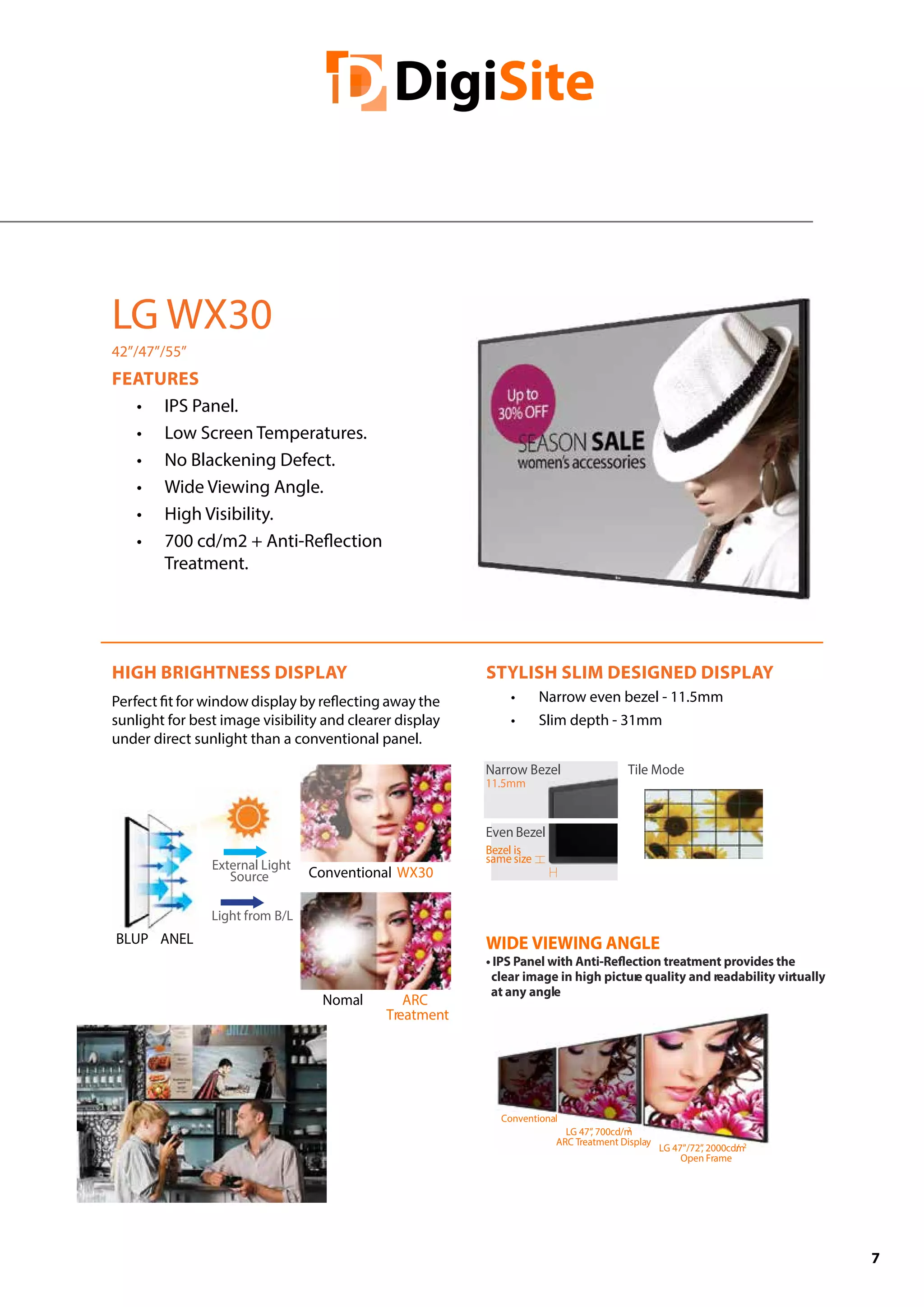

HIGH BRIGHTNESS DISPLAY
Perfect fit for window display by reflecting away the
sunlight for best image visibility and clearer display
under direct sunlight than a conventional panel.
STYLISH SLIM DESIGNED DISPLAY
• Narrow even bezel - 11.5mm
• Slim depth - 31mm
LG WX30
42”/47”/55”
FEATURES
• IPS Panel.
• Low Screen Temperatures.
• No Blackening Defect.
• Wide Viewing Angle.
• High Visibility.
• 700 cd/m2 + Anti-Reflection
Treatment.
BLUP ANEL
External Light
Source
Light from B/L
Conventional
Nomal
WX30
ARC
Treatment
LG 47”/72”, 2000cd/m2
Open Frame
LG 47”, 700cd/m2
ARC Treatment Display
Conventional
WIDE VIEWING ANGLE
clear image in high picture quality and readability virtually
at any angle
Narrow Bezel
11.5mm
Tile Mode
Even Bezel
Bezel is
same size

8. 8

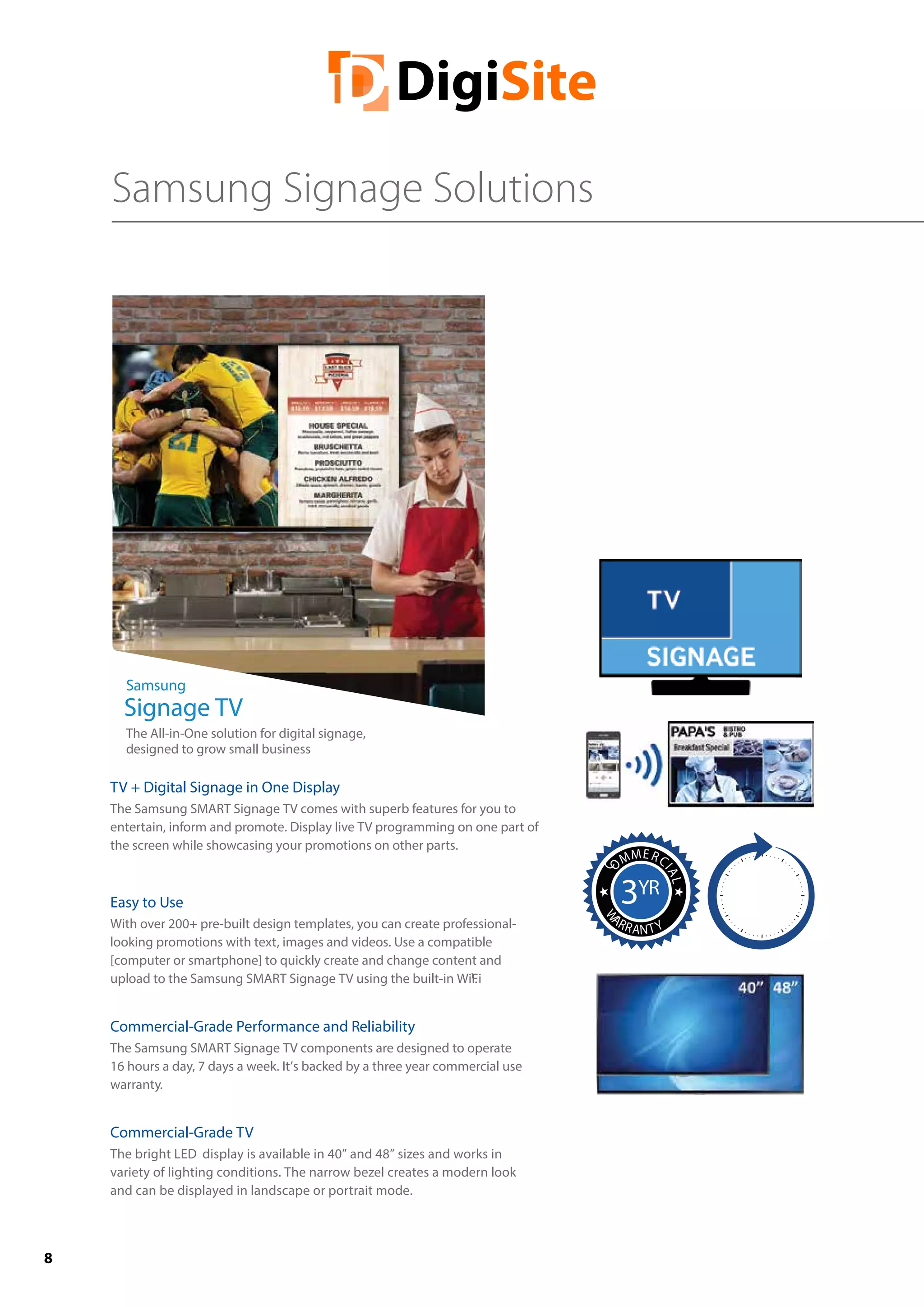

Samsung Signage Solutions

9. 9

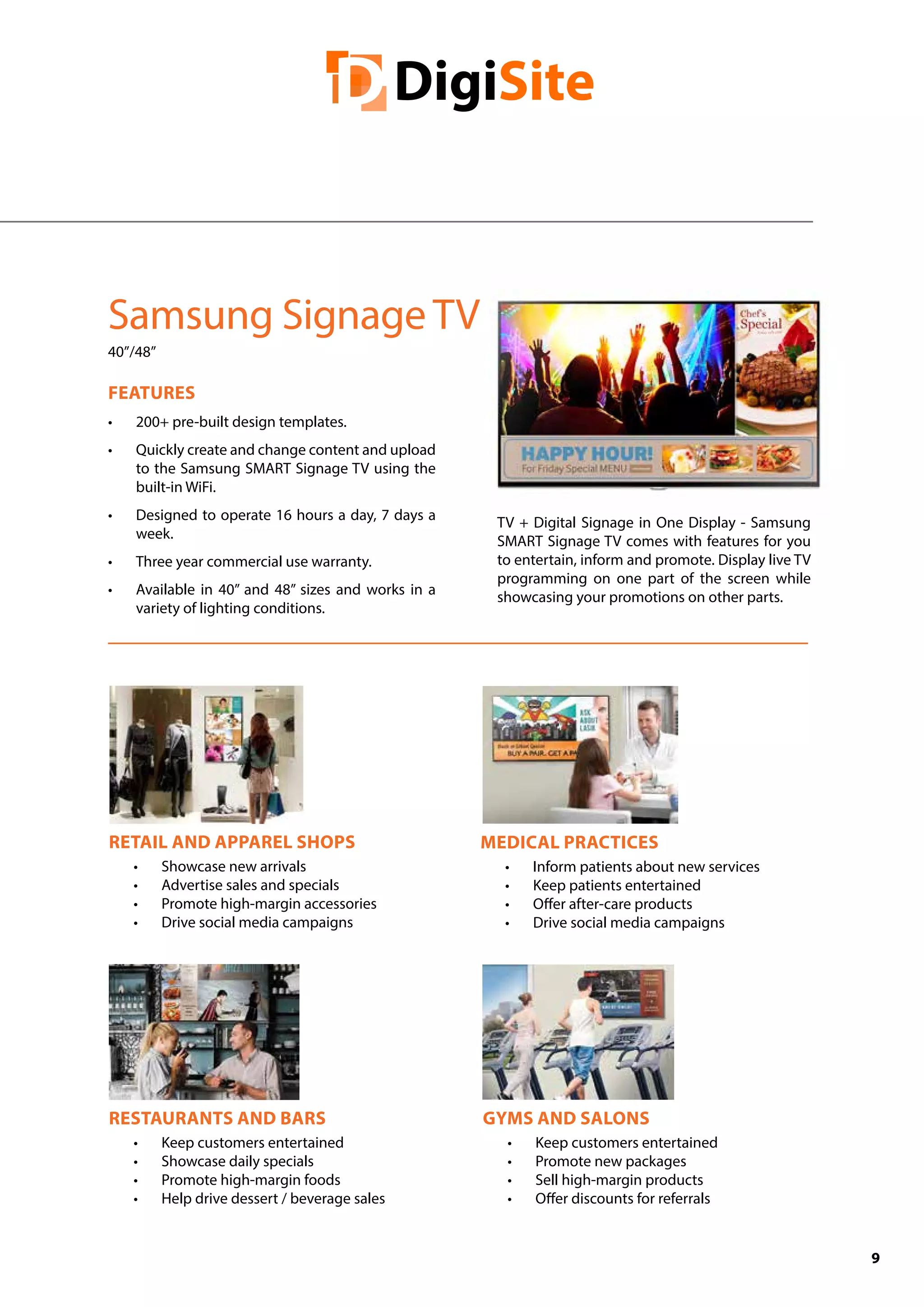

Samsung Signage TV
40”/48”
FEATURES
• 200+ pre-built design templates.
• Quickly create and change content and upload
to the Samsung SMART Signage TV using the
built-in WiFi.
• Designed to operate 16 hours a day, 7 days a
week.
• Three year commercial use warranty.
• Available in 40” and 48” sizes and works in a
variety of lighting conditions.
RESTAURANTS AND BARS
• Keep customers entertained
• Showcase daily specials
• Promote high-margin foods
• Help drive dessert / beverage sales
MEDICAL PRACTICES
• Inform patients about new services
• Keep patients entertained
• Offer after-care products
• Drive social media campaigns
RETAIL AND APPAREL SHOPS
• Showcase new arrivals
• Advertise sales and specials
• Promote high-margin accessories
• Drive social media campaigns
GYMS AND SALONS
• Keep customers entertained
• Promote new packages
• Sell high-margin products
• Offer discounts for referrals
TV + Digital Signage in One Display - Samsung
SMART Signage TV comes with features for you
to entertain, inform and promote. Display live TV
programming on one part of the screen while
showcasing your promotions on other parts.

10. 10
MODELS
Model Pixel Pitch Brightness Cabinet Size Refresh Rate Colour Depth IP Level
I-501 5mm 1800
640x640mm ≥1200 14 IP30
I-641 6.4mm 1800
I-801 8mm 1600
I-101 10mm 1600
I-100D 10mm 6500 (nit)
640x640mm ≥1200 14 IP65
I-120D 12.8mm 5000 (nit)
I-160D 16mm 7000 (nit)
I-200D 20mm 6000 (nit)

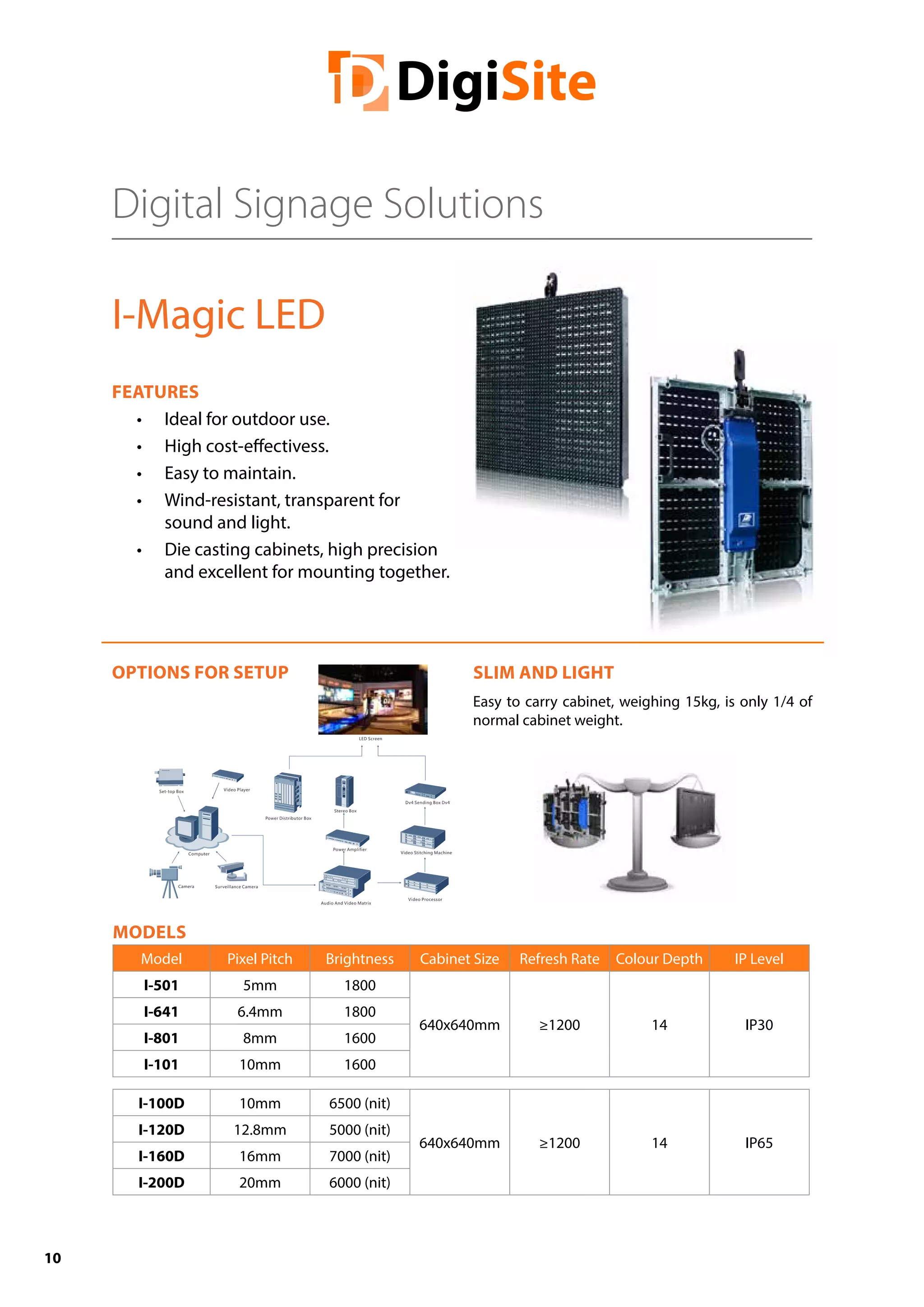

I-Magic LED
FEATURES
• Ideal for outdoor use.
• High cost-effectivess.
• Easy to maintain.
• Wind-resistant, transparent for
sound and light.
• Die casting cabinets, high precision
and excellent for mounting together.
OPTIONS FOR SETUP
Digital Signage Solutions
SLIM AND LIGHT
Easy to carry cabinet, weighing 15kg, is only 1/4 of
normal cabinet weight.

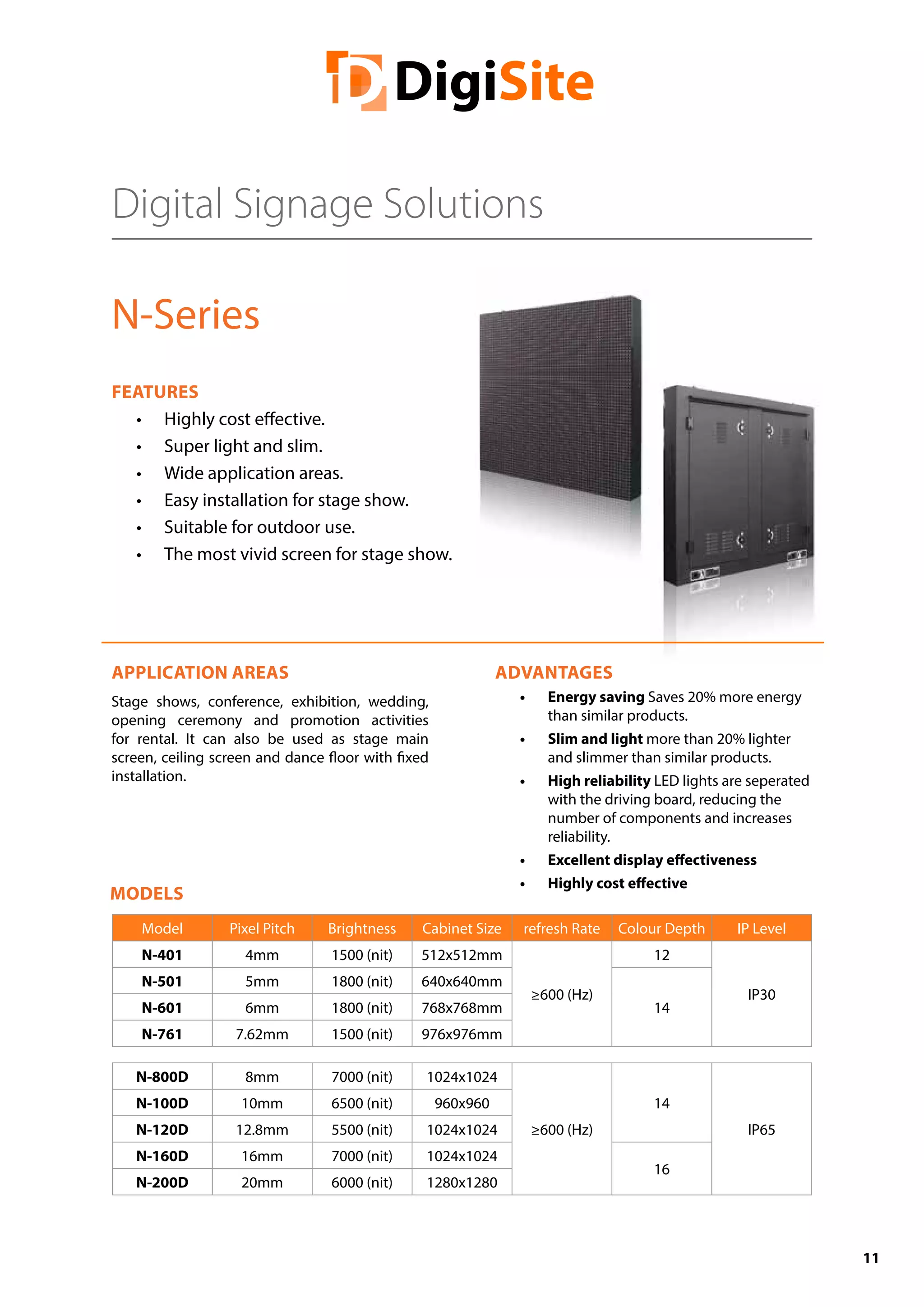

11. N-Series
FEATURES
• Highly cost effective.
• Super light and slim.
• Wide application areas.
• Easy installation for stage show.
• Suitable for outdoor use.
• The most vivid screen for stage show.
APPLICATION AREAS
Stage shows, conference, exhibition, wedding,
opening ceremony and promotion activities
for rental. It can also be used as stage main
screen, ceiling screen and dance floor with fixed
installation.
ADVANTAGES
• Energy saving Saves 20% more energy
than similar products.
• Slim and light more than 20% lighter
and slimmer than similar products.
• High reliability LED lights are seperated
with the driving board, reducing the
number of components and increases
reliability.
• Excellent display effectiveness
• Highly cost effective
Model Pixel Pitch Brightness Cabinet Size refresh Rate Colour Depth IP Level
N-401 4mm 1500 (nit) 512x512mm
≥600 (Hz)
12
IP30
N-501 5mm 1800 (nit) 640x640mm
14N-601 6mm 1800 (nit) 768x768mm
N-761 7.62mm 1500 (nit) 976x976mm
N-800D 8mm 7000 (nit) 1024x1024
≥600 (Hz)
14
IP65
N-100D 10mm 6500 (nit) 960x960
N-120D 12.8mm 5500 (nit) 1024x1024
N-160D 16mm 7000 (nit) 1024x1024
16
N-200D 20mm 6000 (nit) 1280x1280
MODELS
Digital Signage Solutions
11

12. 12
NO LEFT AND RIGHT MODULES
Digital Signage Solutions

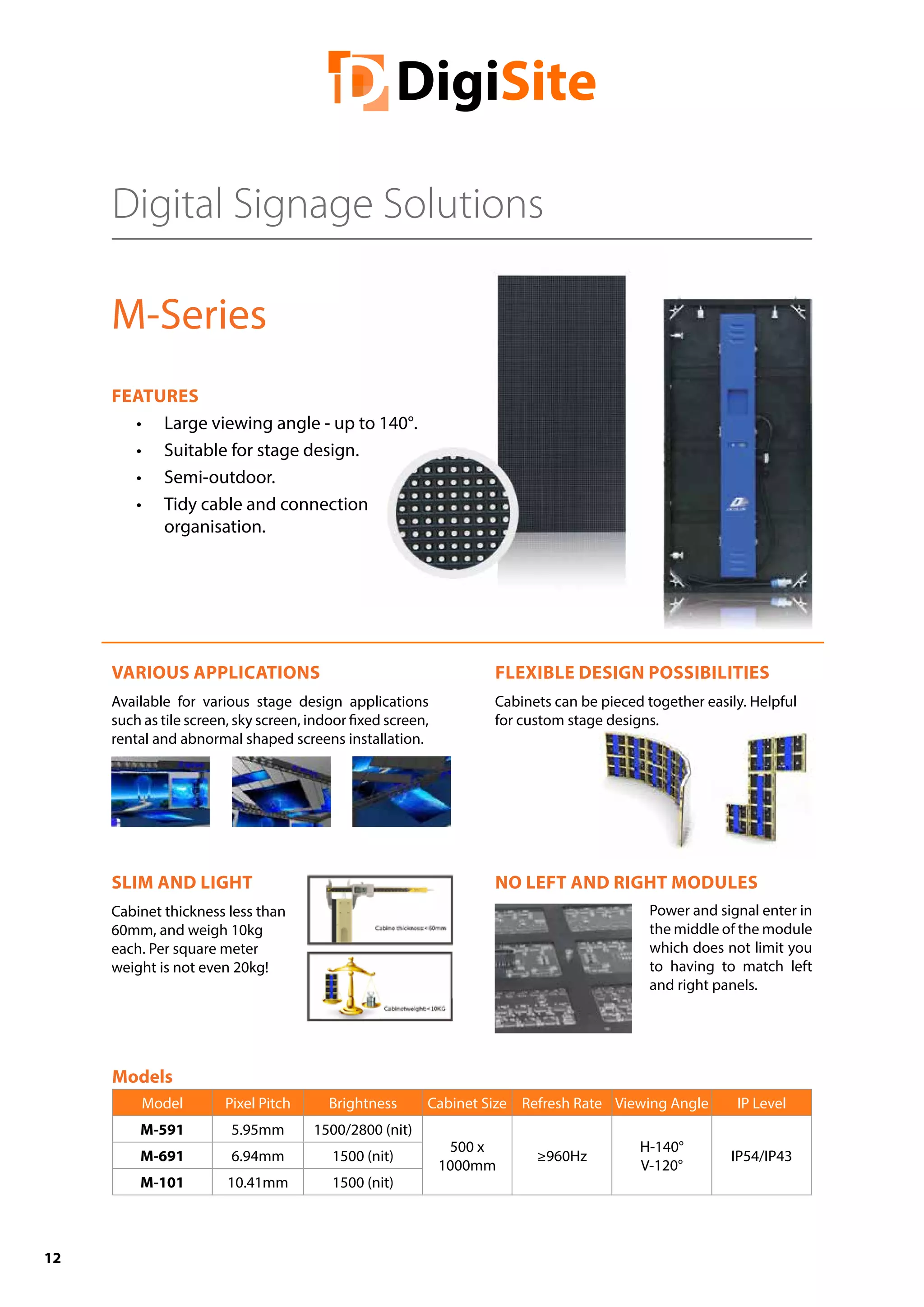

M-Series
FEATURES
• Large viewing angle - up to 140°.
• Suitable for stage design.
• Semi-outdoor.
• Tidy cable and connection
organisation.
VARIOUS APPLICATIONS
Available for various stage design applications
such as tile screen, sky screen, indoor fixed screen,
rental and abnormal shaped screens installation.
SLIM AND LIGHT
Cabinet thickness less than
60mm, and weigh 10kg
each. Per square meter
weight is not even 20kg!
Models
Model Pixel Pitch Brightness Cabinet Size Refresh Rate Viewing Angle IP Level
M-591 5.95mm 1500/2800 (nit)
500 x
1000mm
≥960Hz
H-140°
V-120°
IP54/IP43M-691 6.94mm 1500 (nit)
M-101 10.41mm 1500 (nit)
FLEXIBLE DESIGN POSSIBILITIES
Cabinets can be pieced together easily. Helpful
for custom stage designs.
Power and signal enter in
the middle of the module
which does not limit you
to having to match left
and right panels.

13. 13
Digital Signage Solutions

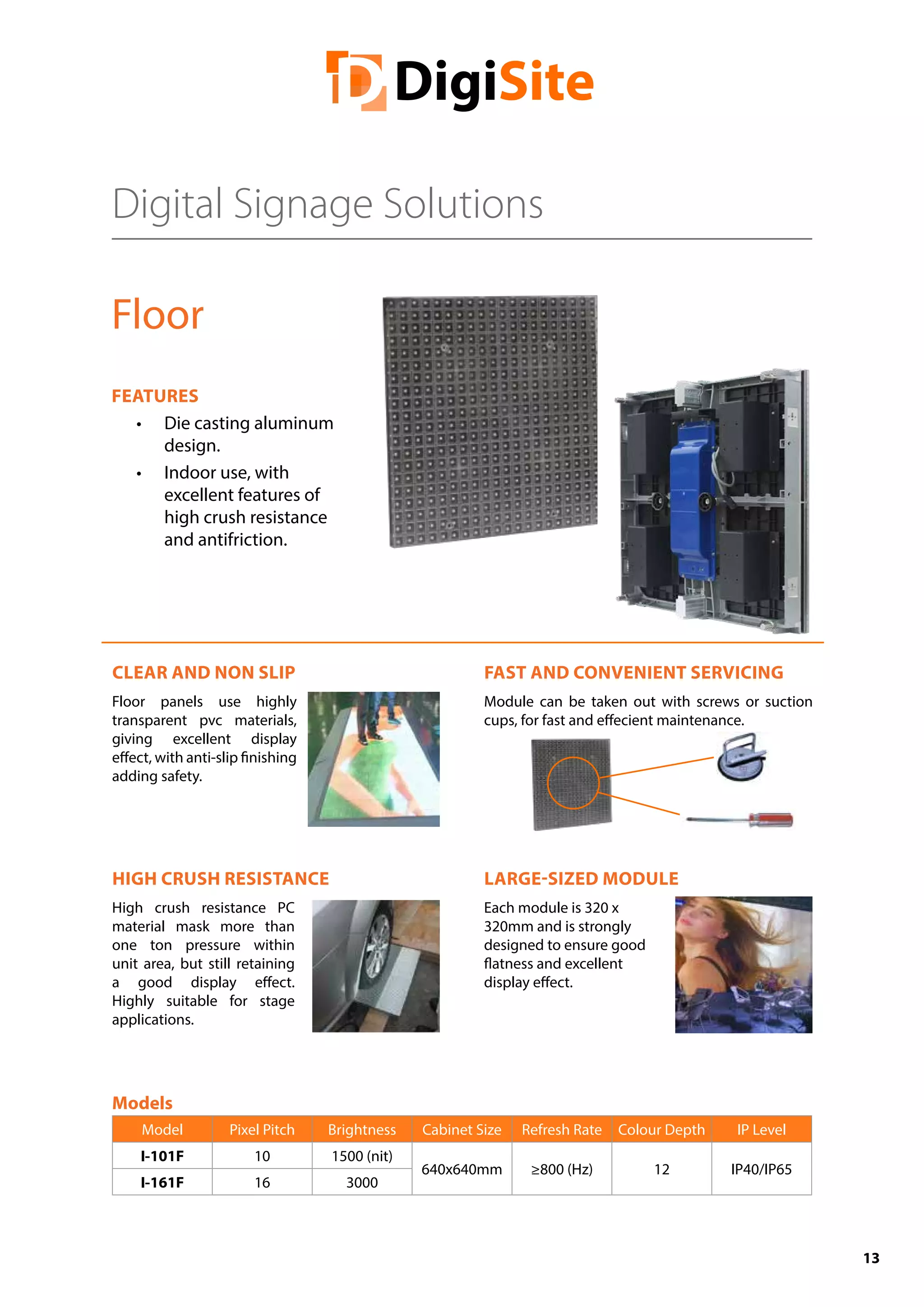

Floor
FEATURES
• Die casting aluminum
design.
• Indoor use, with
excellent features of
high crush resistance
and antifriction.
CLEAR AND NON SLIP
Floor panels use highly
transparent pvc materials,
giving excellent display
effect, with anti-slip finishing
adding safety.
HIGH CRUSH RESISTANCE
High crush resistance PC
material mask more than
one ton pressure within
unit area, but still retaining
a good display effect.
Highly suitable for stage
applications.
FAST AND CONVENIENT SERVICING
Module can be taken out with screws or suction
cups, for fast and effecient maintenance.
LARGE-SIZED MODULE
Each module is 320 x
320mm and is strongly
designed to ensure good
flatness and excellent
display effect.
Models
Model Pixel Pitch Brightness Cabinet Size Refresh Rate Colour Depth IP Level
I-101F 10 1500 (nit)
640x640mm ≥800 (Hz) 12 IP40/IP65
I-161F 16 3000

14. 14

15. 15

16. 16

17. 17

18. 18

19. 19

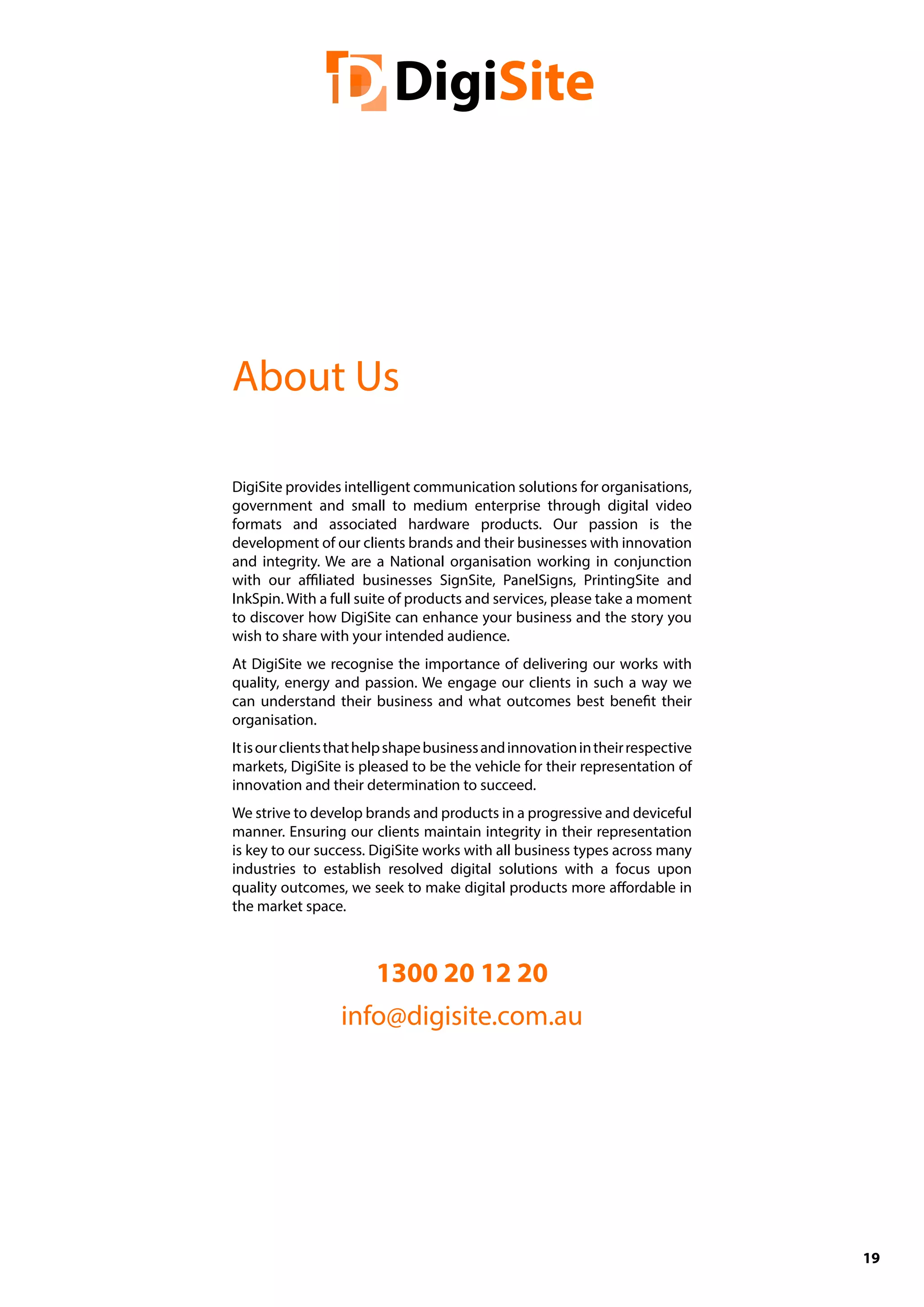

DigiSite provides intelligent communication solutions for organisations,
government and small to medium enterprise through digital video
formats and associated hardware products. Our passion is the
development of our clients brands and their businesses with innovation
and integrity. We are a National organisation working in conjunction
with our affiliated businesses SignSite, PanelSigns, PrintingSite and
InkSpin. With a full suite of products and services, please take a moment
to discover how DigiSite can enhance your business and the story you
wish to share with your intended audience.
At DigiSite we recognise the importance of delivering our works with
quality, energy and passion. We engage our clients in such a way we
can understand their business and what outcomes best benefit their
organisation.
Itisourclientsthathelpshapebusinessandinnovationintheirrespective
markets, DigiSite is pleased to be the vehicle for their representation of
innovation and their determination to succeed.
We strive to develop brands and products in a progressive and deviceful
manner. Ensuring our clients maintain integrity in their representation
is key to our success. DigiSite works with all business types across many
industries to establish resolved digital solutions with a focus upon
quality outcomes, we seek to make digital products more affordable in
the market space.
1300 20 12 20
info@digisite.com.au
About Us

20. 1300 20 12 20
www.digisite.com.au
