The document discusses object-oriented programming concepts in Java including defining classes and objects, using abstraction and encapsulation to simplify problems, and utilizing inheritance, polymorphism, abstract classes, and interfaces. It provides examples of modeling classes with UML diagrams, implementing accessors and mutators, using inheritance and polymorphism through method overloading and overriding, and defining abstract classes and interfaces to simulate multiple inheritance. The document is intended to teach learners object-oriented programming fundamentals in Java.

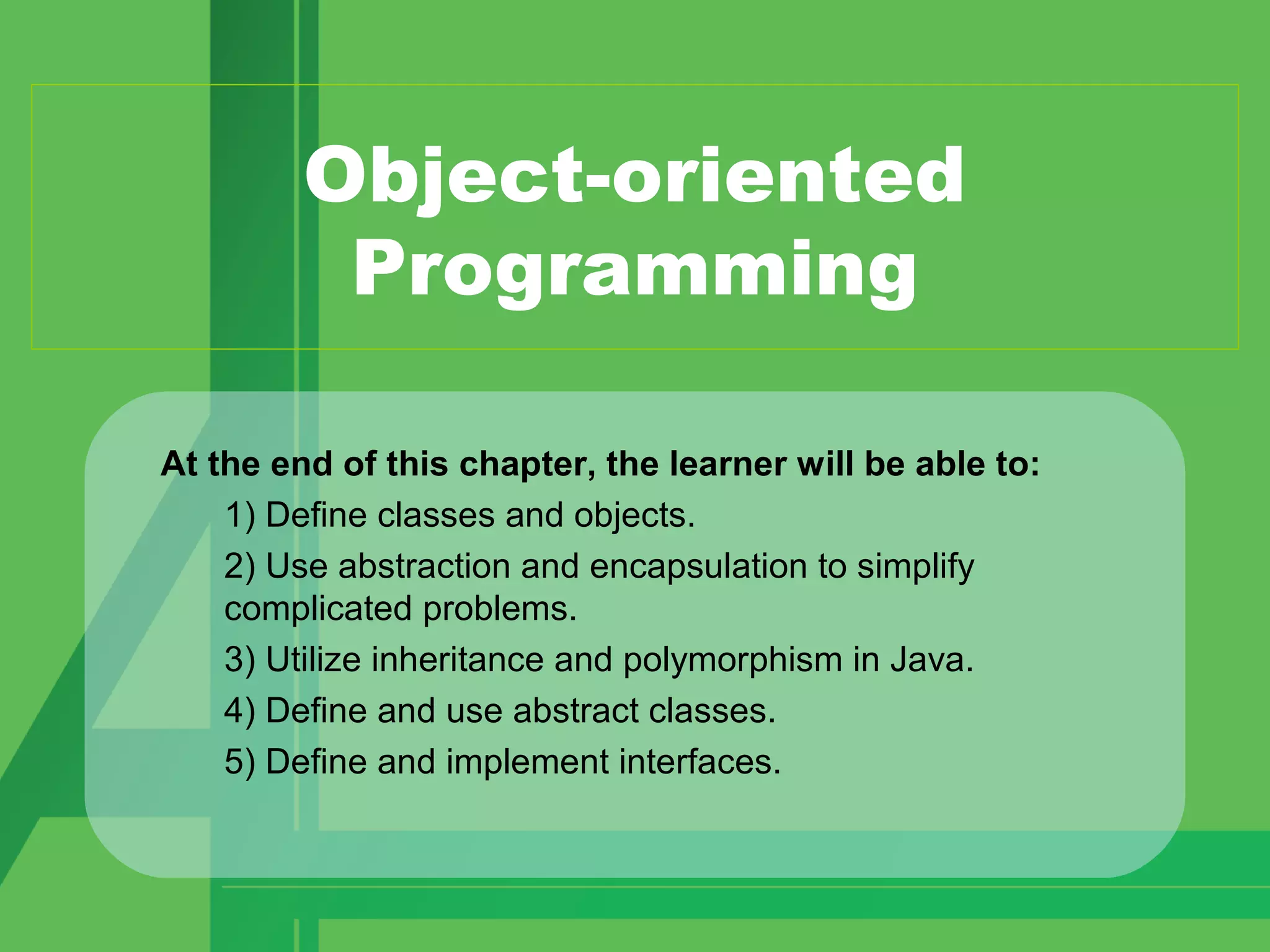

1. Object-oriented
Programming
At the end of this chapter, the learner will be able to:
1) Define classes and objects.
2) Use abstraction and encapsulation to simplify
complicated problems.
3) Utilize inheritance and polymorphism in Java.
4) Define and use abstract classes.
5) Define and implement interfaces.

2. A L ABELEE IT LearningSeries Your First Java Book ©2009

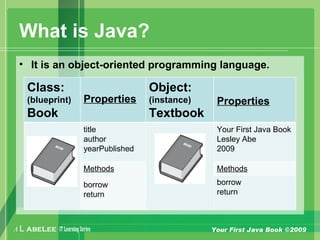

What is Java?
• It is an object-oriented programming language.
Class:
(blueprint)
Book
Properties
Object:
(instance)
Textbook
Properties
title
author
yearPublished
Your First Java Book
Lesley Abe
2009
Methods Methods
borrow
return
borrow
return

3. A L ABELEE IT LearningSeries Your First Java Book ©2009

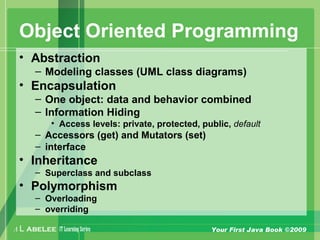

Object Oriented Programming
• Abstraction
– Modeling classes (UML class diagrams)
• Encapsulation
– One object: data and behavior combined
– Information Hiding
• Access levels: private, protected, public, default
– Accessors (get) and Mutators (set)
– interface
• Inheritance
– Superclass and subclass
• Polymorphism
– Overloading
– overriding

4. A L ABELEE IT LearningSeries Your First Java Book ©2009

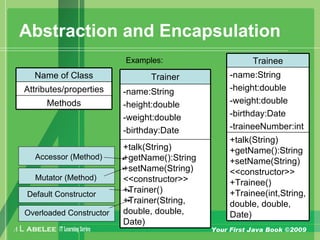

Abstraction and Encapsulation
Trainer
-name:String
-height:double
-weight:double
-birthday:Date
+talk(String)
+getName():String
+setName(String)
<<constructor>>
+Trainer()
+Trainer(String,
double, double,
Date)
Name of Class
Attributes/properties
Methods
Trainee
-name:String
-height:double
-weight:double
-birthday:Date
-traineeNumber:int
+talk(String)
+getName():String
+setName(String)
<<constructor>>
+Trainee()
+Trainee(int,String,
double, double,
Date)
Examples:
Accessor (Method)
Mutator (Method)
Default Constructor
Overloaded Constructor

5. A L ABELEE IT LearningSeries Your First Java Book ©2009

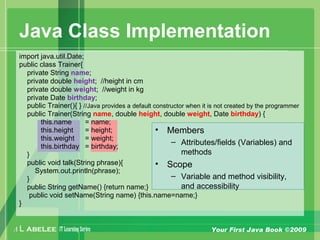

Java Class Implementation
import java.util.Date;
public class Trainer{
private String name;
private double height; //height in cm
private double weight; //weight in kg
private Date birthday;
public Trainer(){ } //Java provides a default constructor when it is not created by the programmer
public Trainer(String name, double height, double weight, Date birthday) {
this.name = name;
this.height = height;
this.weight = weight;
this.birthday = birthday;
}
public void talk(String phrase){
System.out.println(phrase);
}
public String getName() {return name;}
public void setName(String name) {this.name=name;}
}
• Members
– Attributes/fields (Variables) and
methods
• Scope
– Variable and method visibility,
and accessibility

6. A L ABELEE IT LearningSeries Your First Java Book ©2009

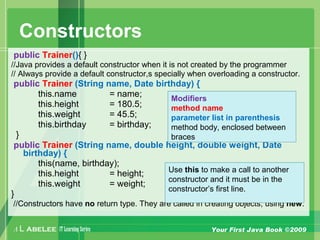

Constructors
public Trainer(){ }
//Java provides a default constructor when it is not created by the programmer
// Always provide a default constructor,s specially when overloading a constructor.
public Trainer (String name, Date birthday) {
this.name = name;
this.height = 180.5;
this.weight = 45.5;
this.birthday = birthday;
}
public Trainer (String name, double height, double weight, Date
birthday) {
this(name, birthday);
this.height = height;
this.weight = weight;
}
//Constructors have no return type. They are called in creating objects, using new.
Modifiers
method name
parameter list in parenthesis
method body, enclosed between
braces
Use this to make a call to another
constructor and it must be in the
constructor’s first line.

7. A L ABELEE IT LearningSeries Your First Java Book ©2009

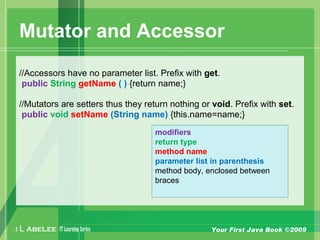

Mutator and Accessor
//Accessors have no parameter list. Prefix with get.
public String getName ( ) {return name;}
//Mutators are setters thus they return nothing or void. Prefix with set.
public void setName (String name) {this.name=name;}
modifiers
return type
method name
parameter list in parenthesis
method body, enclosed between
braces

8. A L ABELEE IT LearningSeries Your First Java Book ©2009

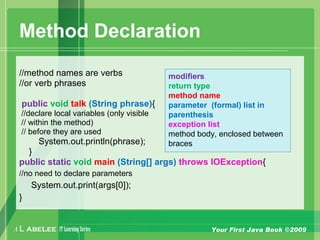

Method Declaration
//method names are verbs
//or verb phrases
public void talk (String phrase){
//declare local variables (only visible
// within the method)
// before they are used
System.out.println(phrase);
}
public static void main (String[] args) throws IOException{
//no need to declare parameters
System.out.print(args[0]);
}
modifiers
return type
method name
parameter (formal) list in
parenthesis
exception list
method body, enclosed between
braces

9. A L ABELEE IT LearningSeries Your First Java Book ©2009

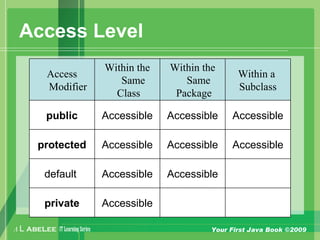

Access Level
Access
Modifier
Within the
Same
Class
Within the
Same
Package
Within a
Subclass
public Accessible Accessible Accessible
protected Accessible Accessible Accessible
default Accessible Accessible
private Accessible

10. A L ABELEE IT LearningSeries Your First Java Book ©2009

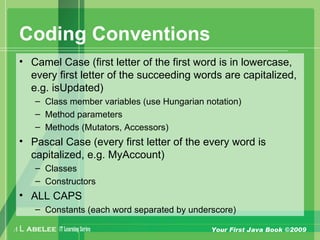

Coding Conventions
• Camel Case (first letter of the first word is in lowercase,
every first letter of the succeeding words are capitalized,
e.g. isUpdated)
– Class member variables (use Hungarian notation)
– Method parameters
– Methods (Mutators, Accessors)
• Pascal Case (every first letter of the every word is
capitalized, e.g. MyAccount)
– Classes
– Constructors
• ALL CAPS
– Constants (each word separated by underscore)

11. A L ABELEE IT LearningSeries Your First Java Book ©2009

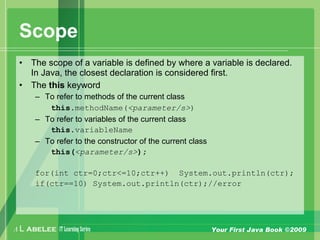

Scope
• The scope of a variable is defined by where a variable is declared.
In Java, the closest declaration is considered first.
• The this keyword
– To refer to methods of the current class
this.methodName(<parameter/s>)
– To refer to variables of the current class
this.variableName
– To refer to the constructor of the current class
this(<parameter/s>);
for(int ctr=0;ctr<=10;ctr++) System.out.println(ctr);
if(ctr==10) System.out.println(ctr);//error

12. A L ABELEE IT LearningSeries Your First Java Book ©2009

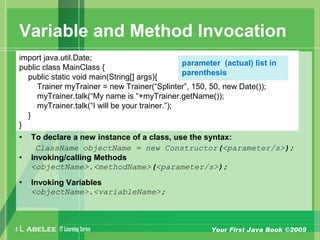

Variable and Method Invocation
• To declare a new instance of a class, use the syntax:
ClassName objectName = new Constructor(<parameter/s>);
• Invoking/calling Methods
<objectName>.<methodName>(<parameter/s>);
• Invoking Variables
<objectName>.<variableName>;
import java.util.Date;
public class MainClass {
public static void main(String[] args){
Trainer myTrainer = new Trainer(“Splinter”, 150, 50, new Date());
myTrainer.talk(“My name is “+myTrainer.getName());
myTrainer.talk(“I will be your trainer.”);
}
}
parameter (actual) list in
parenthesis

13. A L ABELEE IT LearningSeries Your First Java Book ©2009

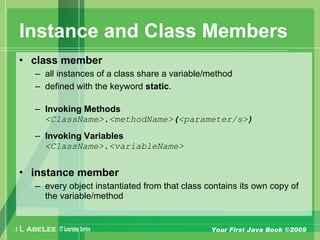

Instance and Class Members
• class member
– all instances of a class share a variable/method
– defined with the keyword static.
– Invoking Methods
<ClassName>.<methodName>(<parameter/s>)
– Invoking Variables
<ClassName>.<variableName>
• instance member
– every object instantiated from that class contains its own copy of
the variable/method

14. A L ABELEE IT LearningSeries Your First Java Book ©2009
Inheritance
Trainer
<<constructor>>
Trainer(String, double,
double, Date)
Trainee
traineeNumber:int
+getTraineeNumber():int
<<constructor>>
Trainee(String, double,
double, Date)
Human
#name:String
#height:double
#weight:double
#birthday:Date
+talk(String)
+getName():String
+setName(String)
<<constructor>>
Human(String,double
,double,int)

15. A L ABELEE IT LearningSeries Your First Java Book ©2009

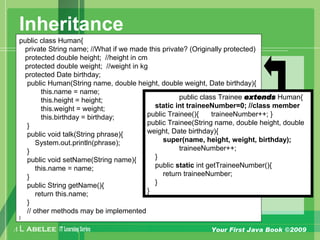

Inheritance
public class Human{
private String name; //What if we made this private? (Originally protected)
protected double height; //height in cm
protected double weight; //weight in kg
protected Date birthday;
public Human(String name, double height, double weight, Date birthday){
this.name = name;
this.height = height;
this.weight = weight;
this.birthday = birthday;
}
public void talk(String phrase){
System.out.println(phrase);
}
public void setName(String name){
this.name = name;
}
public String getName(){
return this.name;
}
// other methods may be implemented
}
public class Trainee extends Human{
static int traineeNumber=0; //class member
public Trainee(){ traineeNumber++; }
public Trainee(String name, double height, double
weight, Date birthday){
super(name, height, weight, birthday);
traineeNumber++;
}
public static int getTraineeNumber(){
return traineeNumber;
}
}

16. A L ABELEE IT LearningSeries Your First Java Book ©2009

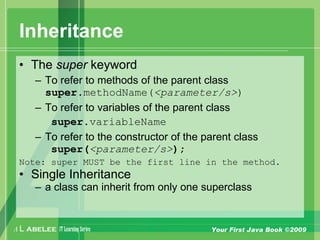

Inheritance
• The super keyword
– To refer to methods of the parent class
super.methodName(<parameter/s>)
– To refer to variables of the parent class
super.variableName
– To refer to the constructor of the parent class
super(<parameter/s>);
Note: super MUST be the first line in the method.
• Single Inheritance
– a class can inherit from only one superclass

17. A L ABELEE IT LearningSeries Your First Java Book ©2009
Polymorphism
public double computeIdealBodyWeight(){
return 50 + 2.3 *( height/2.4 - 60 );
}
}
package Chapter8.inheritance;
public class Human{
protected String name;
protected double height; //height in cm
protected double weight; //weight
protected Date birthday;
public Human(String name, double height,
double weight, Date birthday)
{
this.name = name;
this.height = height;
this.weight = weight;
this.birthday = birthday;
}
public void talk(String phrase){
System.out.println(phrase);
}
public void setName(String name){
this.name = name;
}
public String getName(){
return this.name;
}
package Chapter8.inheritance;
public class Woman extends Human
{
public Woman(String name, double height, double
weight, int birthday){
super(name, height, weight, birthday);
}
public double computeIdealBodyWeight(){
return 45.5 + 2.3 *(getHeight()/2.4 - 60 );
}
}
Method
Overriding
Although they may have the
same method signature,
Overriding method cannot be
less accessible than the method
it is overriding.

18. A L ABELEE IT LearningSeries Your First Java Book ©2009

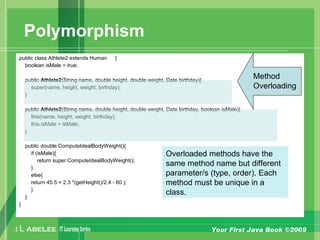

Polymorphism
public class Athlete2 extends Human {
boolean isMale = true;
public Athlete2(String name, double height, double weight, Date birthday){
super(name, height, weight, birthday);
}
public Athlete2(String name, double height, double weight, Date birthday, boolean isMale){
this(name, height, weight, birthday);
this.isMale = isMale;
}
public double ComputeIdealBodyWeight(){
if (isMale){
return super.ComputeIdealBodyWeight();
}
else{
return 45.5 + 2.3 *(getHeight()/2.4 - 60 );
}
}
}
Method
Overloading
Overloaded methods have the
same method name but different
parameter/s (type, order). Each
method must be unique in a
class.

19. A L ABELEE IT LearningSeries Your First Java Book ©2009
Abstract class
Trainer
<<constructor>>
Trainer(String,
double, double,
Date)
computeIdealBodyWeight():
double
Trainee
traineeNumber:int
+getTraineeNumber():int
<<constructor>>
Trainee(String, double,
double, Date)
computeIdealBodyWeight():double
{abstract}
Human
-name:String
-height:double
-weight:double
-birthday:Date
+talk(String)
+getName():String
+setName(String)
+{abstract}
computeIdealBodyWeight(
):double
<<constructor>>
Human(String,double,dou
ble,int)

20. A L ABELEE IT LearningSeries Your First Java Book ©2009

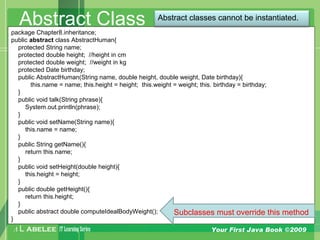

Abstract Classpackage Chapter8.inheritance;
public abstract class AbstractHuman{
protected String name;
protected double height; //height in cm
protected double weight; //weight in kg
protected Date birthday;
public AbstractHuman(String name, double height, double weight, Date birthday){
this.name = name; this.height = height; this.weight = weight; this. birthday = birthday;
}
public void talk(String phrase){
System.out.println(phrase);
}
public void setName(String name){
this.name = name;
}
public String getName(){
return this.name;
}
public void setHeight(double height){
this.height = height;
}
public double getHeight(){
return this.height;
}
public abstract double computeIdealBodyWeight();
}
Subclasses must override this method
Abstract classes cannot be instantiated.

21. A L ABELEE IT LearningSeries Your First Java Book ©2009

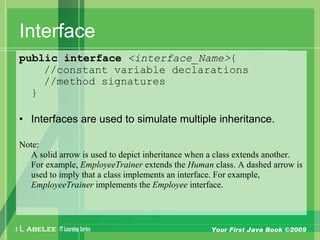

Interface
public interface <interface_Name>{
//constant variable declarations
//method signatures
}
• Interfaces are used to simulate multiple inheritance.
Note:
A solid arrow is used to depict inheritance when a class extends another.
For example, EmployeeTrainer extends the Human class. A dashed arrow is
used to imply that a class implements an interface. For example,
EmployeeTrainer implements the Employee interface.

22. A L ABELEE IT LearningSeries Your First Java Book ©2009

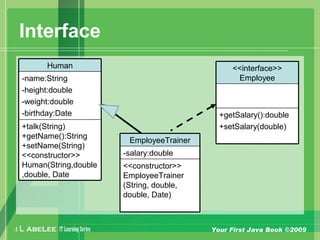

Interface
EmployeeTrainer
-salary:double
<<constructor>>
EmployeeTrainer
(String, double,
double, Date)
<<interface>>
Employee
+getSalary():double
+setSalary(double)
Human
-name:String
-height:double
-weight:double
-birthday:Date
+talk(String)
+getName():String
+setName(String)
<<constructor>>
Human(String,double
,double, Date

23. A L ABELEE IT LearningSeries Your First Java Book ©2009

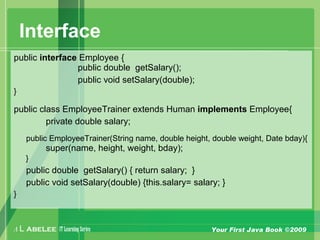

Interface
public interface Employee {
public double getSalary();
public void setSalary(double);
}
public class EmployeeTrainer extends Human implements Employee{
private double salary;
public EmployeeTrainer(String name, double height, double weight, Date bday){
super(name, height, weight, bday);
}
public double getSalary() { return salary; }
public void setSalary(double) {this.salary= salary; }
}

24. A L ABELEE IT LearningSeries Your First Java Book ©2009

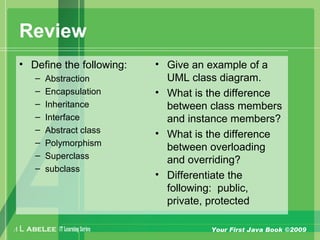

Review
• Define the following:
– Abstraction
– Encapsulation
– Inheritance
– Interface
– Abstract class
– Polymorphism
– Superclass
– subclass
• Give an example of a
UML class diagram.
• What is the difference
between class members
and instance members?
• What is the difference
between overloading
and overriding?
• Differentiate the
following: public,
private, protected
