Communications Lab :: Web Lecture 3: Sinatra

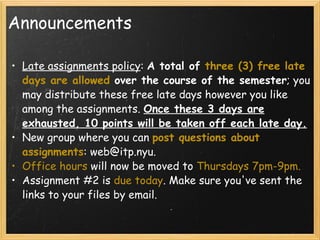

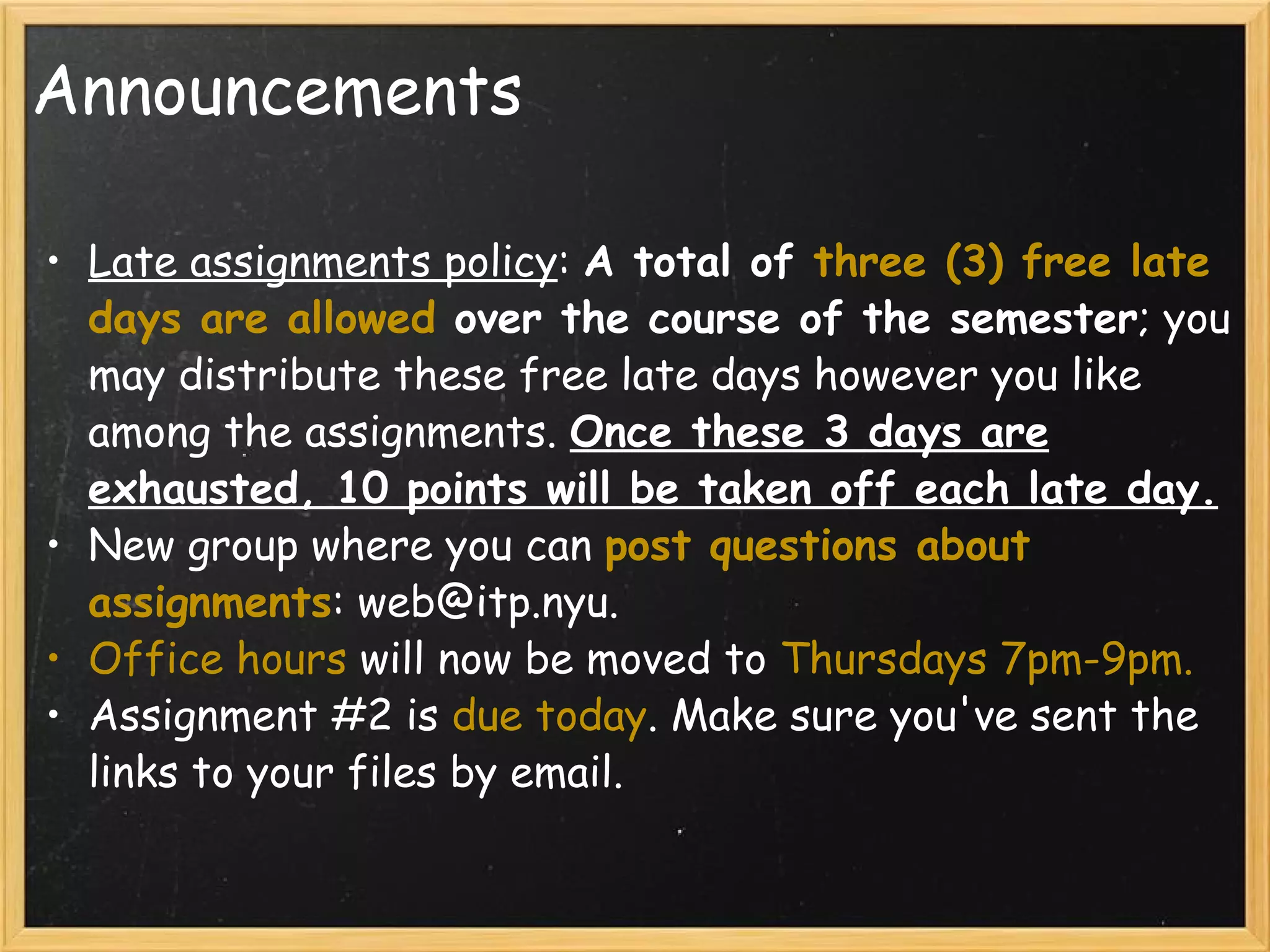

Announcements Late assignments policy : A total of three (3) free late days are allowed over the course of the semester ; you may distribute these free late days however you like among the assignments. Once these 3 days are exhausted, 10 points will be taken off each late day. New group where you can post questions about assignments : web@itp.nyu. Office hours will now be moved to Thursdays 7pm-9pm. Assignment #2 is due today . Make sure you've sent the links to your files by email.

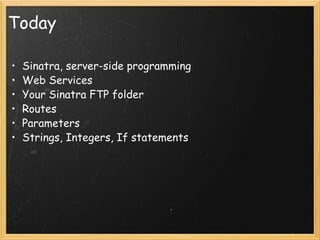

Today Sinatra, server-side programming Web Services Your Sinatra FTP folder Routes Parameters Strings, Integers, If statements

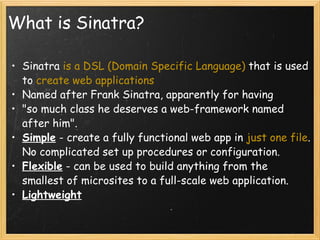

What is Sinatra? Sinatra is a DSL (Domain Specific Language) that is used to create web applications Named after Frank Sinatra, apparently for having "so much class he deserves a web-framework named after him". Simple - create a fully functional web app in just one file . No complicated set up procedures or configuration. Flexible - can be used to build anything from the smallest of microsites to a full-scale web application. Lightweight

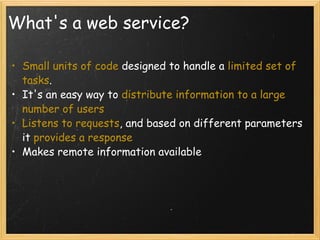

What's a web service? Small units of code designed to handle a limited set of tasks . It's an easy way to distribute information to a large number of users Listens to requests , and based on different parameters it provides a response Makes remote information available

How does a web service work? The web service provider defines a format for requests for its service and the response the service will generate -- we do this in app.rb A computer makes a request for the web services across the network The web service performs some action, and sends the response back

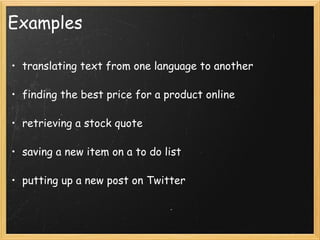

Examples translating text from one language to another finding the best price for a product online retrieving a stock quote saving a new item on a to do list putting up a new post on Twitter

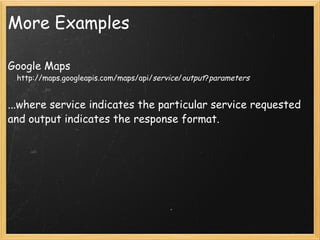

More Examples Google Maps http://maps.googleapis.com/maps/api/ service / output ? parameters ...where service indicates the particular service requested and output indicates the response format.

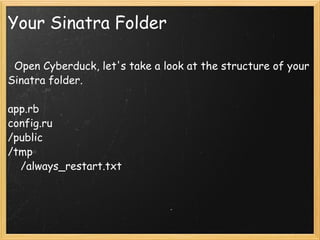

Your Sinatra Folder Open Cyberduck, let's take a look at the structure of your Sinatra folder. app.rb config.ru /public /tmp /always_restart.txt

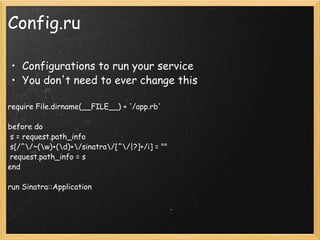

Config.ru Configurations to run your service You don't need to ever change this require File.dirname(__FILE__) + '/app.rb' before do s = request.path_info s[/^\/~(\w)+(\d)+\/sinatra\/[^\/|?]+/i] = "" request.path_info = s end run Sinatra::Application

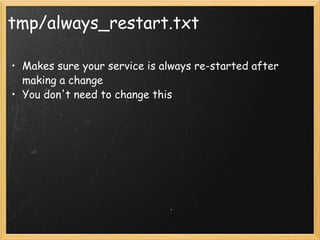

tmp/always_restart.txt Makes sure your service is always re-started after making a change You don't need to change this

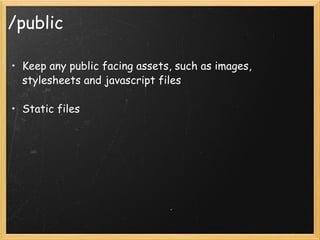

/public Keep any public facing assets, such as images, stylesheets and javascript files Static files

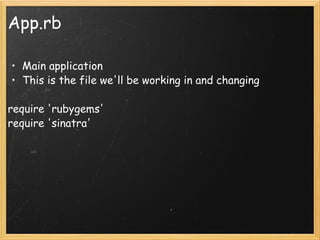

App.rb Main application This is the file we'll be working in and changing require 'rubygems' require 'sinatra'

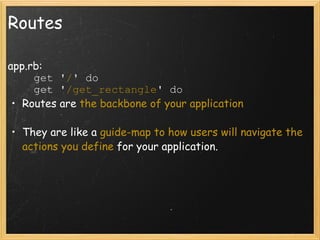

Routes app.rb: get ' / ' do get ' /get_rectangle ' do Routes are the backbone of your application They are like a guide-map to how users will navigate the actions you define for your application.

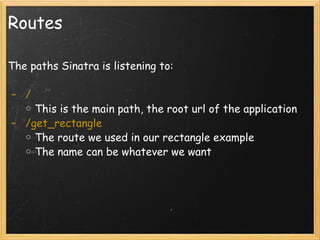

Routes The paths Sinatra is listening to: / This is the main path, the root url of the application /get_rectangle The route we used in our rectangle example The name can be whatever we want

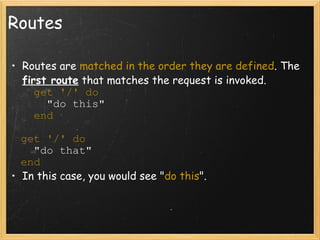

Routes Routes are matched in the order they are defined . The first route that matches the request is invoked. get '/' do "do this" end get '/' do "do that" end In this case, you would see " do this ".

Redirect to route get '/foo' do redirect to('/bar') end Use this to redirect from one route to another.

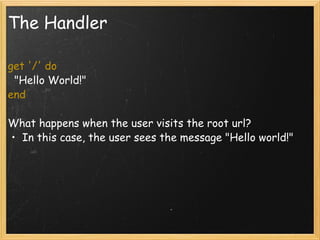

The Handler get '/' do "Hello World!" end What happens when the user visits the root url? In this case, the user sees the message "Hello world!"

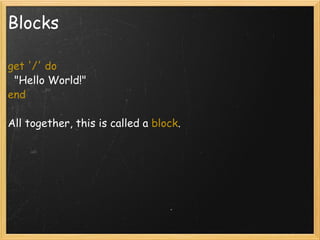

Blocks get '/' do "Hello World!" end All together, this is called a block .

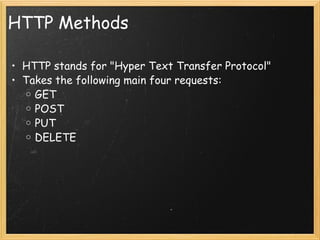

HTTP Methods HTTP stands for "Hyper Text Transfer Protocol" Takes the following main four requests: GET POST PUT DELETE

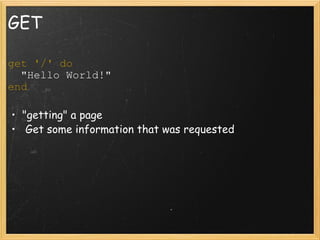

GET get '/' do "Hello World!" end "getting" a page Get some information that was requested

POST post '/' do "Hello World!" end "posting" TO a page Create a new entry

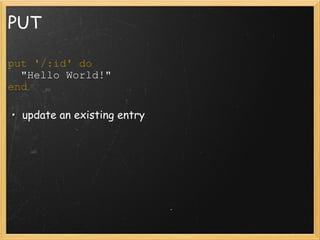

PUT put '/:id' do "Hello World!" end update an existing entry

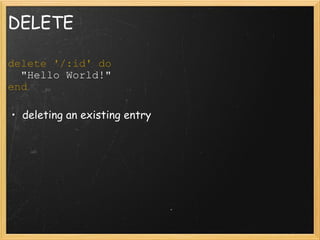

DELETE delete '/:id' do "Hello World!" end deleting an existing entry

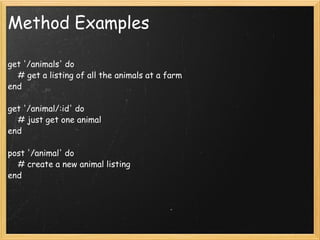

Method Examples get '/animals' do # get a listing of all the animals at a farm end get '/animal/:id' do # just get one animal end post '/animal' do # create a new animal listing end

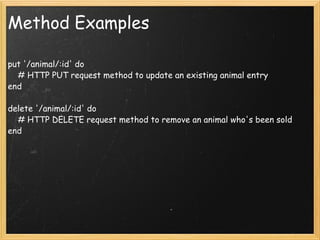

Method Examples put '/animal/:id' do # HTTP PUT request method to update an existing animal entry end delete '/animal/:id' do # HTTP DELETE request method to remove an animal who's been sold end

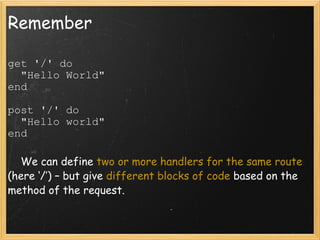

Remember get '/' do "Hello World" end post '/' do "Hello world" end We can define two or more handlers for the same route (here ‘/’) – but give different blocks of code based on the method of the request.

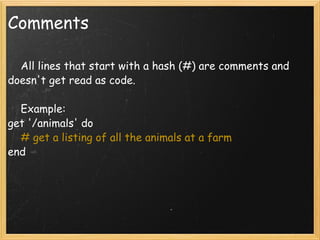

Comments All lines that start with a hash (#) are comments and doesn't get read as code. Example: get '/animals' do # get a listing of all the animals at a farm end

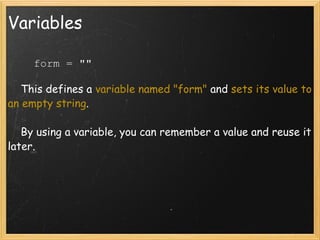

Variables form = "" This defines a variable named "form" and sets its value to an empty string . By using a variable, you can remember a value and reuse it later.

Strings "Hello World!" Strings are a series of text between double quotes or single quotes . Strings are a type of variable Strings can be empty: form = ""

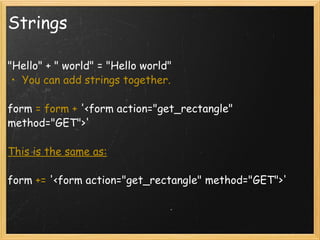

Strings "Hello" + " world" = "Hello world" You can add strings together. form = form + '<form action="get_rectangle" method="GET">' This is the same as: form += '<form action="get_rectangle" method="GET">'

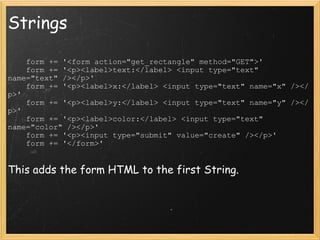

Strings form += '<form action="get_rectangle" method="GET">' form += '<p><label>text:</label> <input type="text" name="text" /></p>' form += '<p><label>x:</label> <input type="text" name="x" /></p>' form += '<p><label>y:</label> <input type="text" name="y" /></p>' form += '<p><label>color:</label> <input type="text" name="color" /></p>' form += '<p><input type="submit" value="create" /></p>' form += '</form>' This adds the form HTML to the first String.

Strings <form action="/~irs221/sinatra/example1/get_rectangle" method="GET"> <p><label>text:</label> <input type="text" name="text" /></p> <p><label>x:</label> <input type="text" name="x" /></p> <p><label>y:</label> <input type="text" name="y" /></p> <p><label>color:</label> <input type="text" name="color" /></p> <p><input type="submit" value="create" /></p> </form>

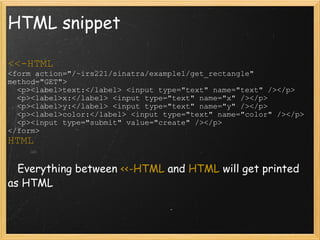

HTML snippet <<-HTML <form action="/~irs221/sinatra/example1/get_rectangle" method="GET"> <p><label>text:</label> <input type="text" name="text" /></p> <p><label>x:</label> <input type="text" name="x" /></p> <p><label>y:</label> <input type="text" name="y" /></p> <p><label>color:</label> <input type="text" name="color" /></p> <p><input type="submit" value="create" /></p> </form> HTML Everything between <<-HTML and HTML will get printed as HTML

Remember The last line in a block always get returned! Since the last line is the variable form , and form contains all the Strings with HTML added together, they will get returned.

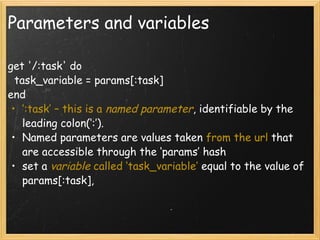

Parameters and variables get '/:task' do task_variable = params[:task] end ‘ :task’ – this is a named parameter , identifiable by the leading colon(‘:’). Named parameters are values taken from the url that are accessible through the ‘params’ hash set a variable called ‘task_variable’ equal to the value of params[:task],

Parameters Params contains all of the information that has been sent as parameters - either through a form or via the url Route patterns may include named parameters , accessible via the params hash: get '/cars/:name' do # matches "GET /cars/ford" and "GET /cars/volvo" # params[:name] is 'ford' or 'volvo' "I want a #{params[:name]}!" end

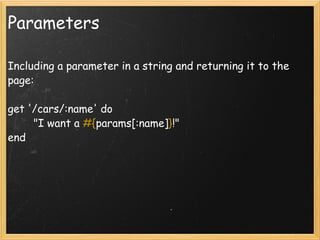

Parameters Including a parameter in a string and returning it to the page: get '/cars/:name' do "I want a #{ params[:name] } !" end

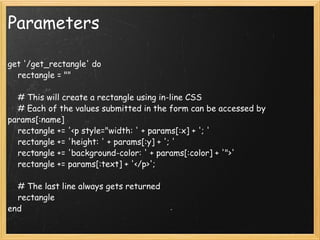

Parameters get '/get_rectangle' do rectangle = "" # This will create a rectangle using in-line CSS # Each of the values submitted in the form can be accessed by params[:name] rectangle += '<p style="width: ' + params[:x] + '; ' rectangle += 'height: ' + params[:y] + '; ' rectangle += 'background-color: ' + params[:color] + '">' rectangle += params[:text] + '</p>'; # The last line always gets returned rectangle end

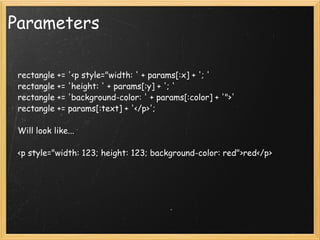

Parameters rectangle += '<p style="width: ' + params[:x] + '; ' rectangle += 'height: ' + params[:y] + '; ' rectangle += 'background-color: ' + params[:color] + '">' rectangle += params[:text] + '</p>'; Will look like... <p style="width: 123; height: 123; background-color: red">red</p>

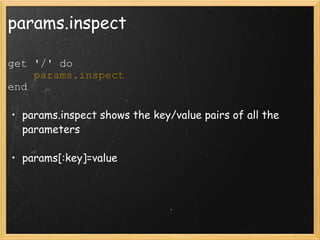

params.inspect get '/' do params.inspect end params.inspect shows the key/value pairs of all the parameters params[:key]=value

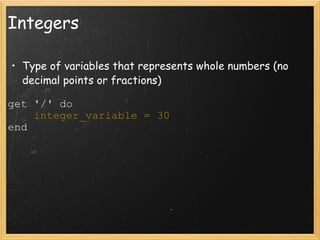

Integers Type of variables that represents whole numbers (no decimal points or fractions) get '/' do integer_variable = 30 end

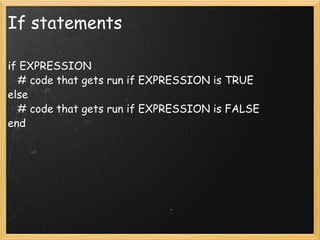

If statements if EXPRESSION # code that gets run if EXPRESSION is TRUE else # code that gets run if EXPRESSION is FALSE end

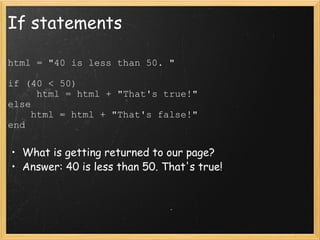

If statements html = "40 is less than 50. " if (40 < 50) html = html + "That's true!" else html = html + "That's false!" end What is getting returned to our page? Answer: 40 is less than 50. That's true!

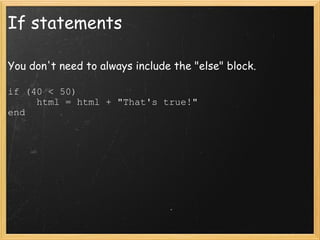

If statements You don't need to always include the "else" block. if (40 < 50) html = html + "That's true!" end

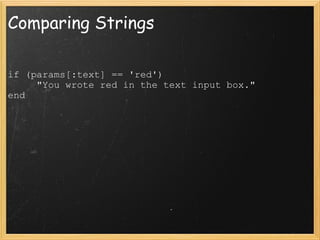

Comparing Strings if (params[:text] == 'red') "You wrote red in the text input box." end

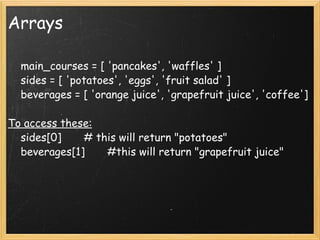

Arrays main_courses = [ 'pancakes', 'waffles' ] sides = [ 'potatoes', 'eggs', 'fruit salad' ] beverages = [ 'orange juice', 'grapefruit juice', 'coffee'] To access these: sides[0] # this will return "potatoes" beverages[1] #this will return "grapefruit juice"

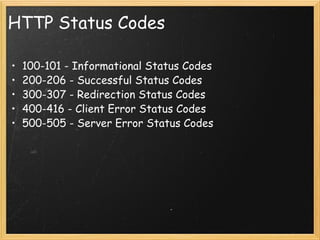

HTTP Status Codes 100-101 - Informational Status Codes 200-206 - Successful Status Codes 300-307 - Redirection Status Codes 400-416 - Client Error Status Codes 500-505 - Server Error Status Codes

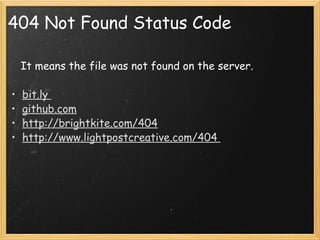

404 Not Found Status Code It means the file was not found on the server. bit.ly github.com http://brightkite.com/404 http://www.lightpostcreative.com/404

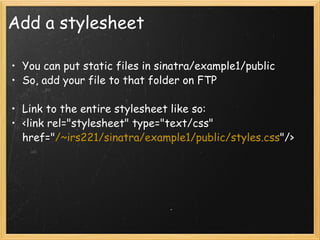

Add a stylesheet You can put static files in sinatra/example1/public So, add your file to that folder on FTP Link to the entire stylesheet like so: <link rel="stylesheet" type="text/css" href=" /~irs221/sinatra/example1/public/styles.css "/>

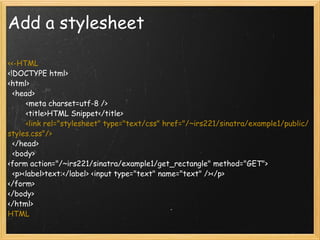

Add a stylesheet <<-HTML <!DOCTYPE html> <html> <head> <meta charset=utf-8 /> <title>HTML Snippet</title> <link rel="stylesheet" type="text/css" href="/~irs221/sinatra/example1/public/styles.css"/> </head> <body> <form action="/~irs221/sinatra/example1/get_rectangle" method="GET"> <p><label>text:</label> <input type="text" name="text" /></p> </form> </body> </html> HTML

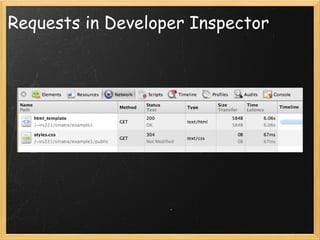

Requests in Developer Inspector

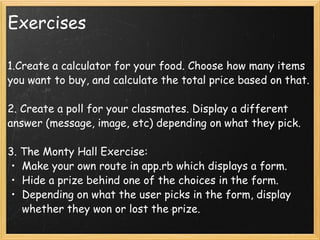

Exercises 1.Create a calculator for your food. Choose how many items you want to buy, and calculate the total price based on that. 2. Create a poll for your classmates. Display a different answer (message, image, etc) depending on what they pick. 3. The Monty Hall Exercise: Make your own route in app.rb which displays a form. Hide a prize behind one of the choices in the form. Depending on what the user picks in the form, display whether they won or lost the prize.

Next week How to create more applications in Sinatra Datamapper and Sinatra - we'll take a look at how to store and retrieve data Assignment #3 is due at the beginning of next class. Get the assignment on ruxystaicut.com/itp
