Kamaelia Grey

Relevant disclosure? - Kamaelia came out of my day work @ BBC Research - Kamaelia grey came out of my personal frustration, and has nothing to do with the BBC :-) Michael Sparks , [email_address] Kamaelia Grey

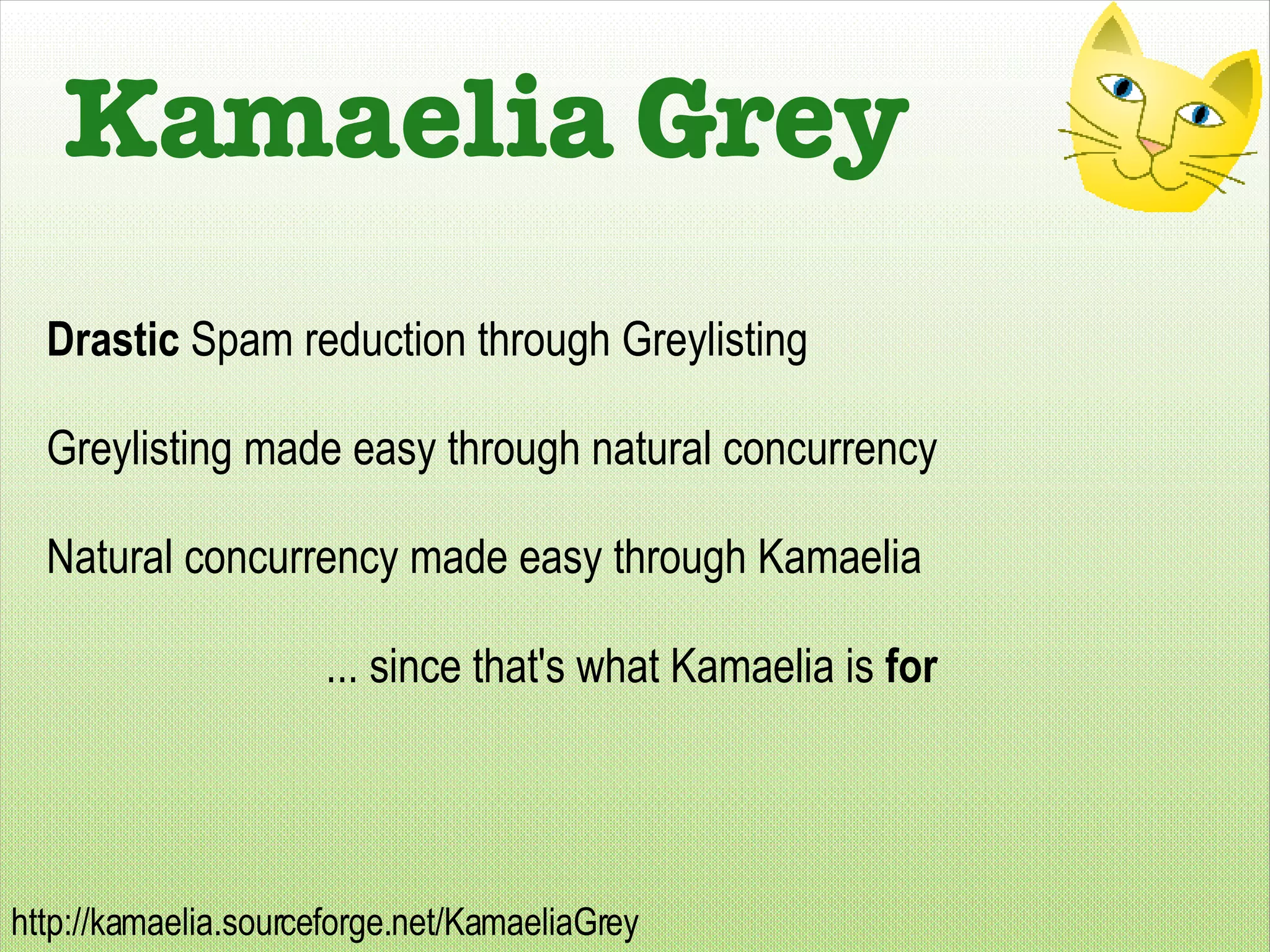

Drastic Spam reduction through Greylisting Greylisting made easy through natural concurrency Natural concurrency made easy through Kamaelia ... since that's what Kamaelia is for Kamaelia Grey

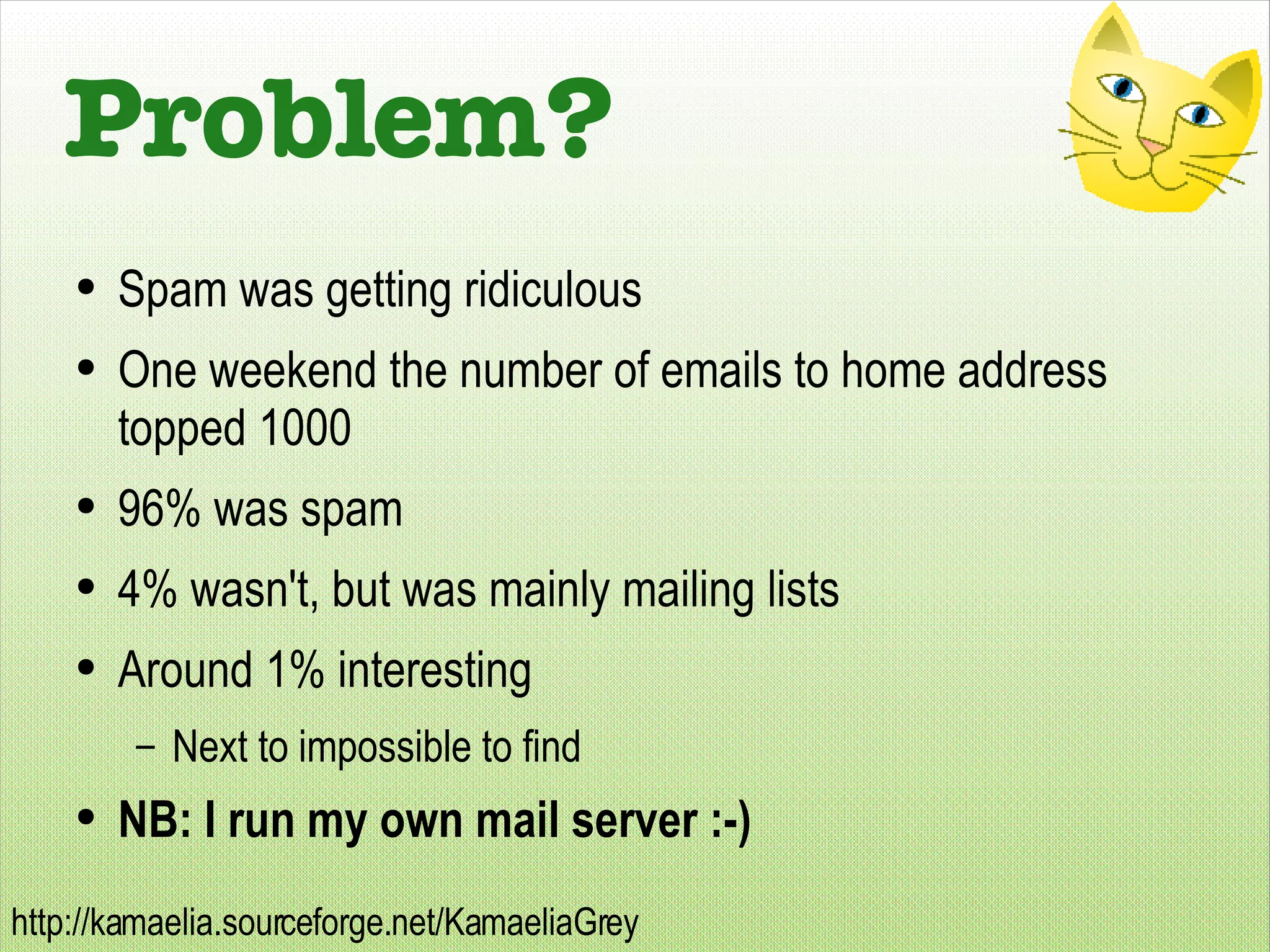

Problem? Spam was getting ridiculous One weekend the number of emails to home address topped 1000 96% was spam 4% wasn't, but was mainly mailing lists Around 1% interesting Next to impossible to find NB: I run my own mail server :-)

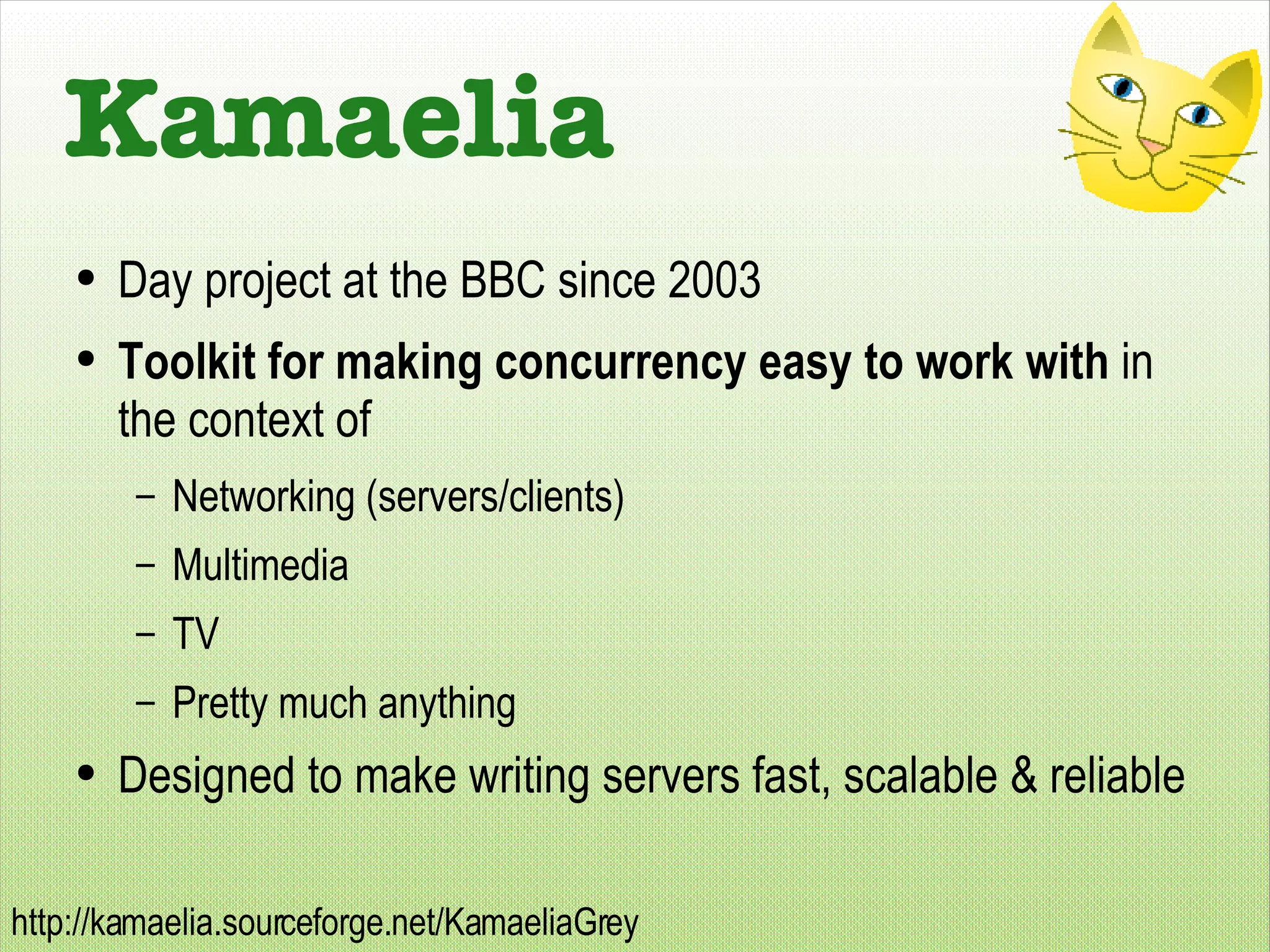

Kamaelia Day project at the BBC since 2003 Toolkit for making concurrency easy to work with in the context of Networking (servers/clients) Multimedia TV Pretty much anything Designed to make writing servers fast, scalable & reliable

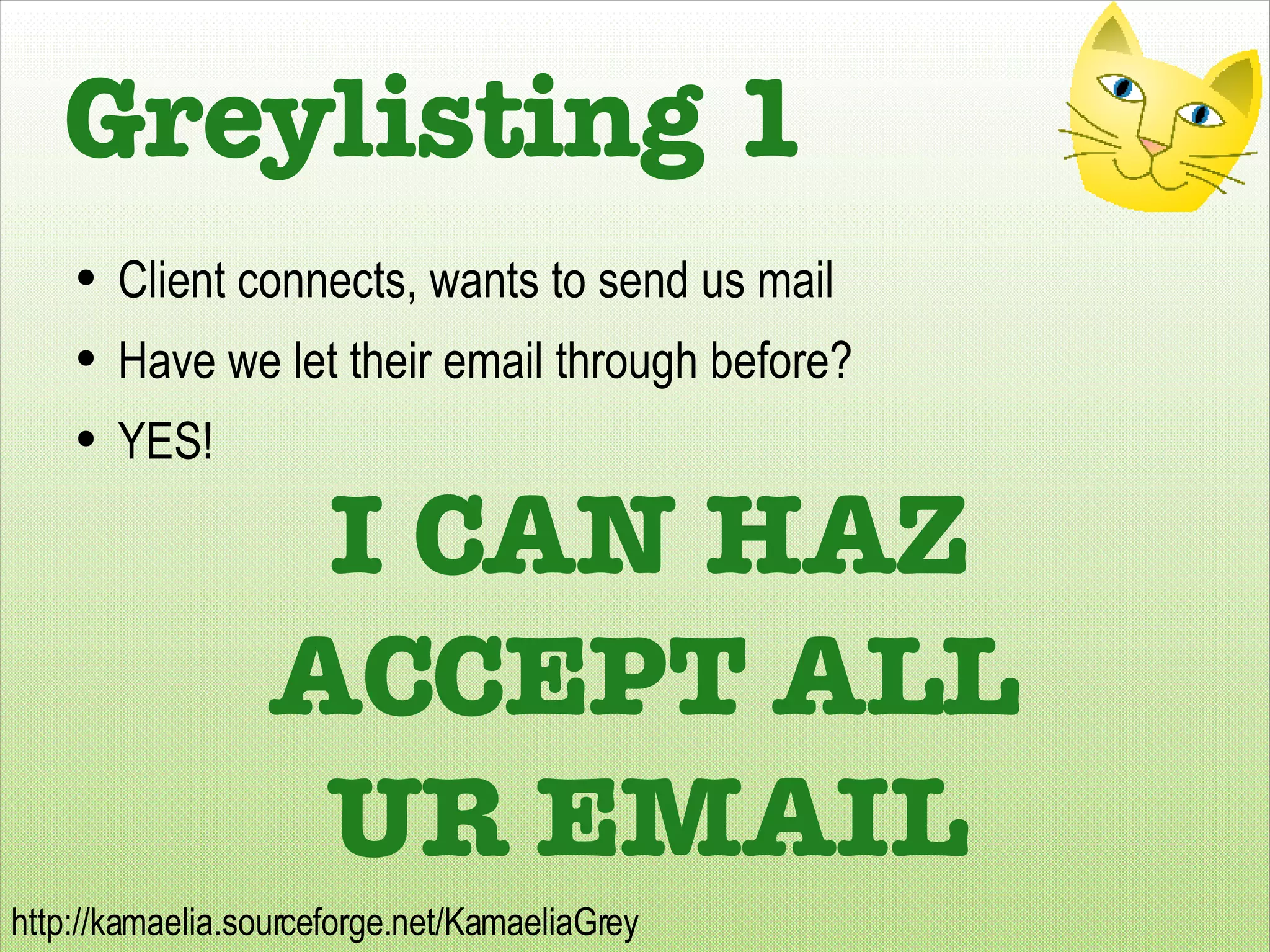

Greylisting 1 Client connects, wants to send us mail Have we let their email through before? YES! I CAN HAZ ACCEPT ALL UR EMAIL

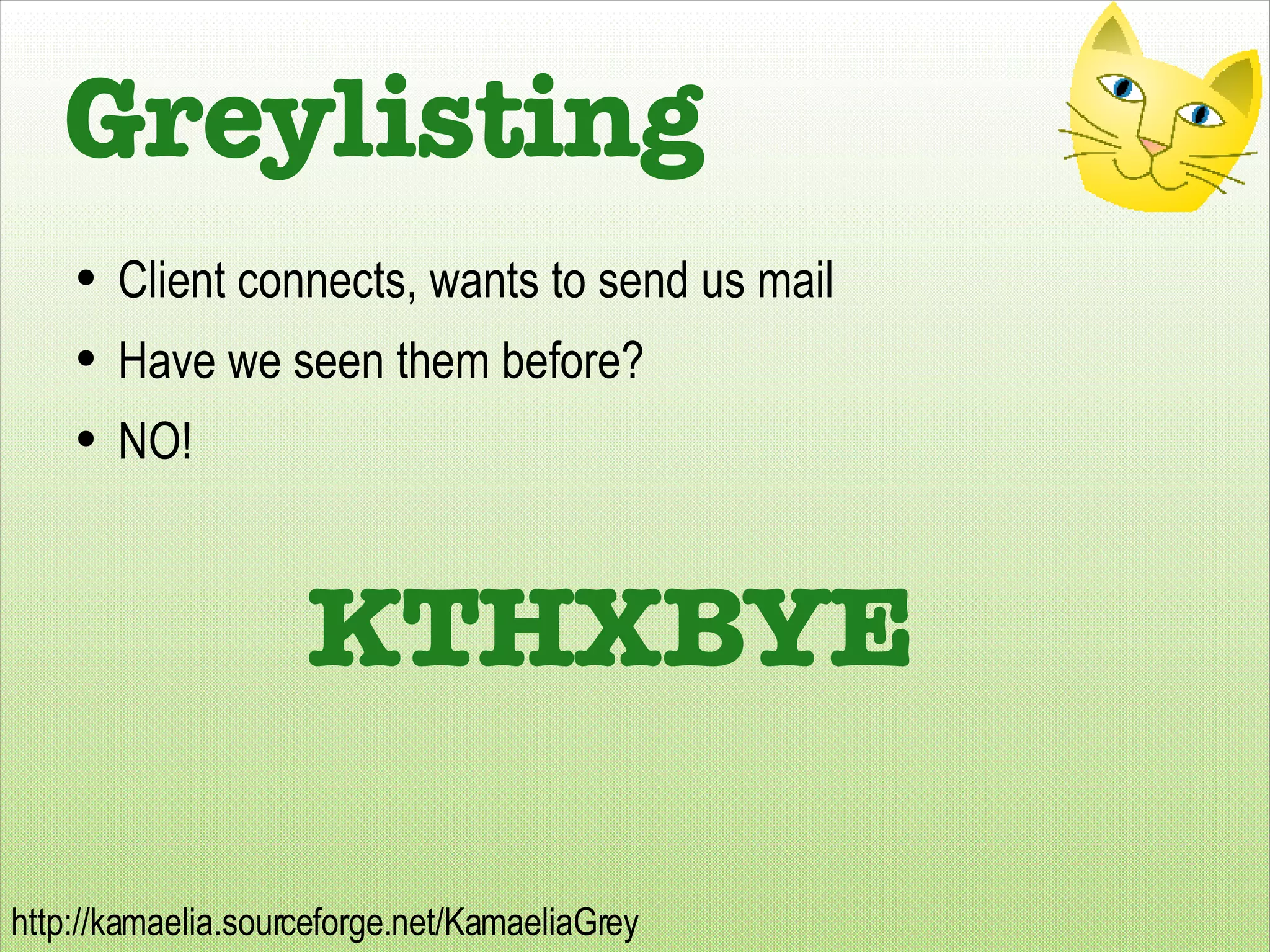

Greylisting Client connects, wants to send us mail Have we seen them before? NO! KTHXBYE

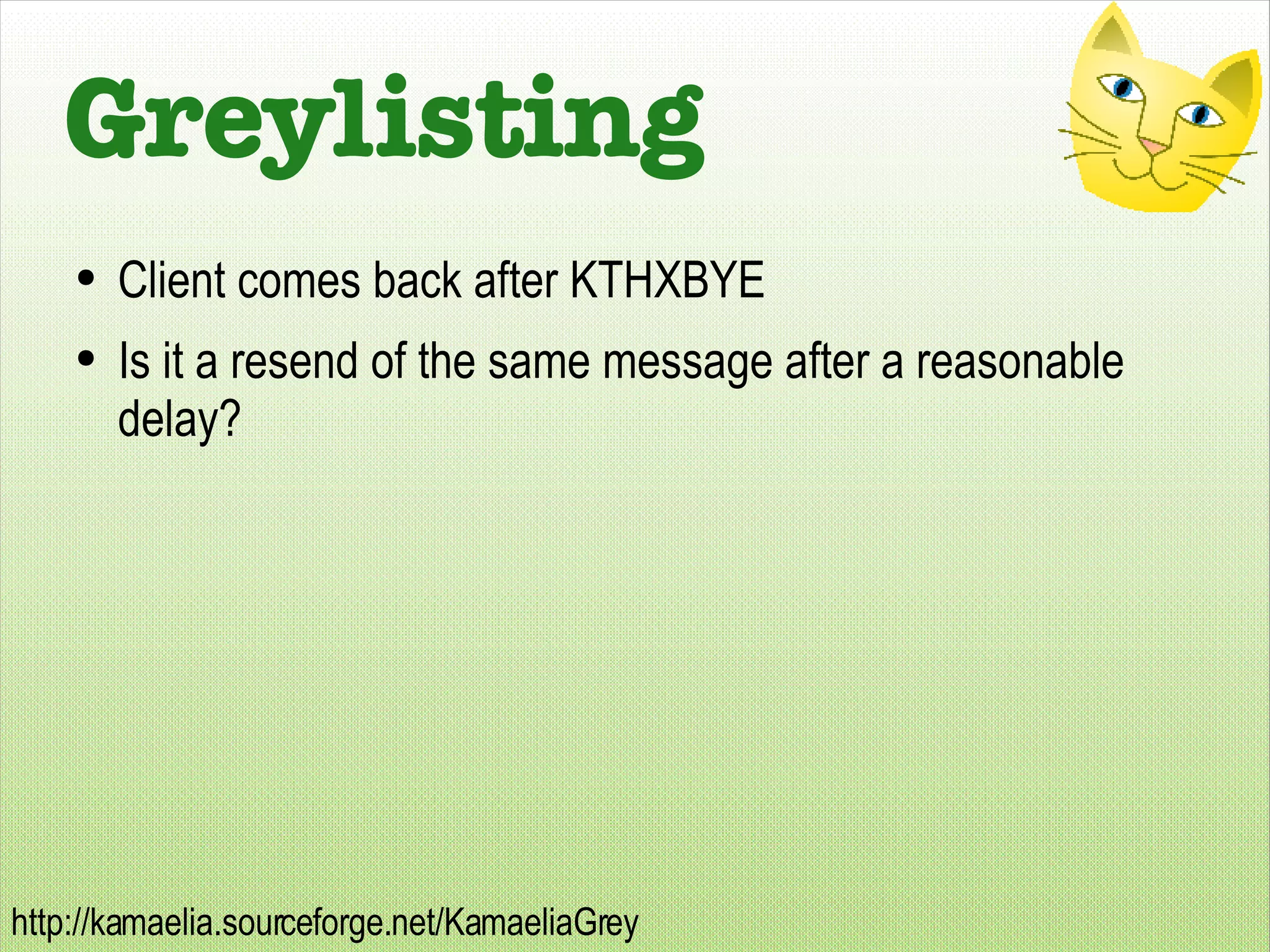

Greylisting Client comes back after KTHXBYE Is it a resend of the same message after a reasonable delay?

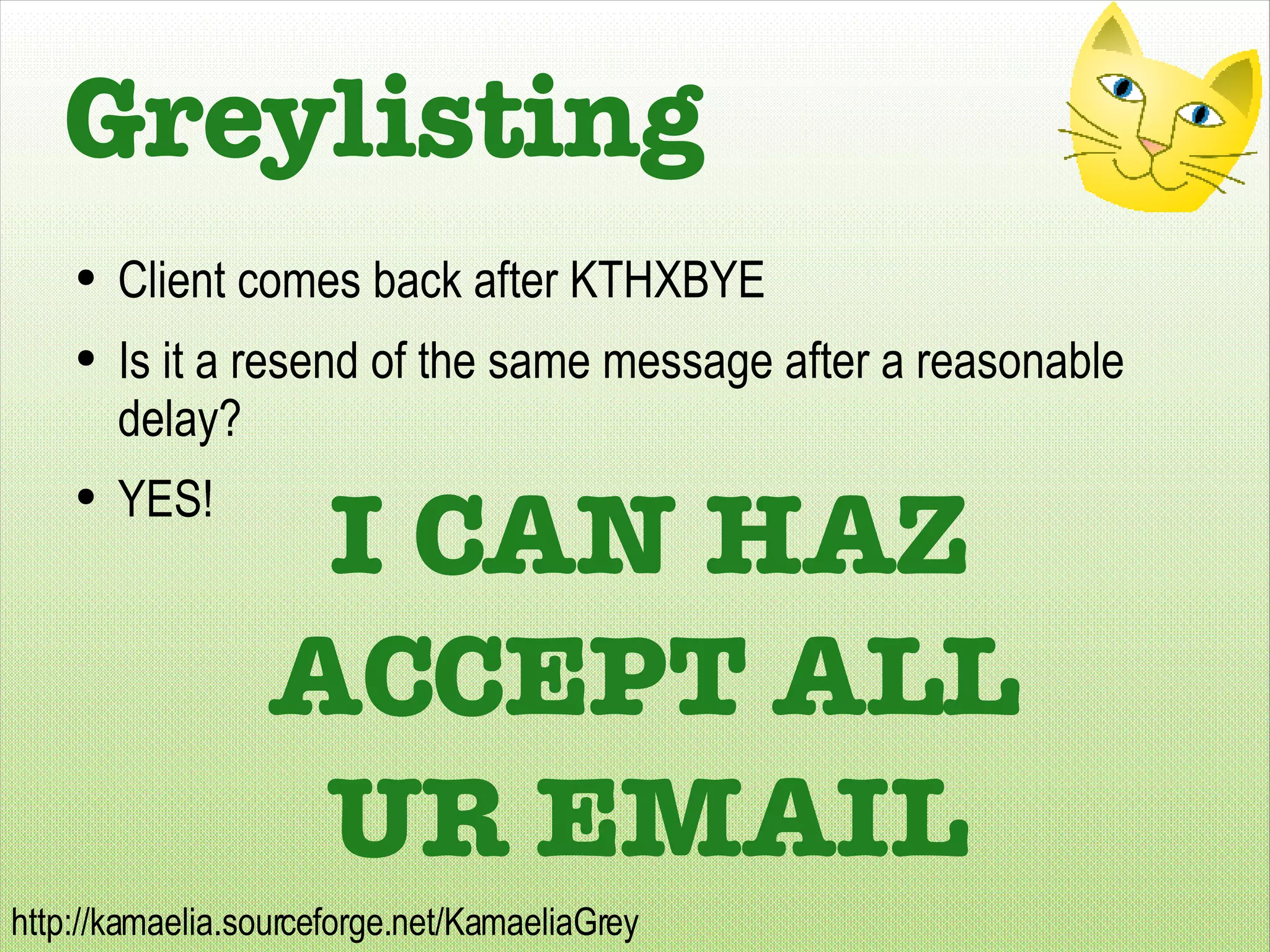

Greylisting Client comes back after KTHXBYE Is it a resend of the same message after a reasonable delay? YES! I CAN HAZ ACCEPT ALL UR EMAIL

Greylisting Client comes back after KTHXBYE Is it a resend of the same message after a reasonable delay? NO! KTHXBYE

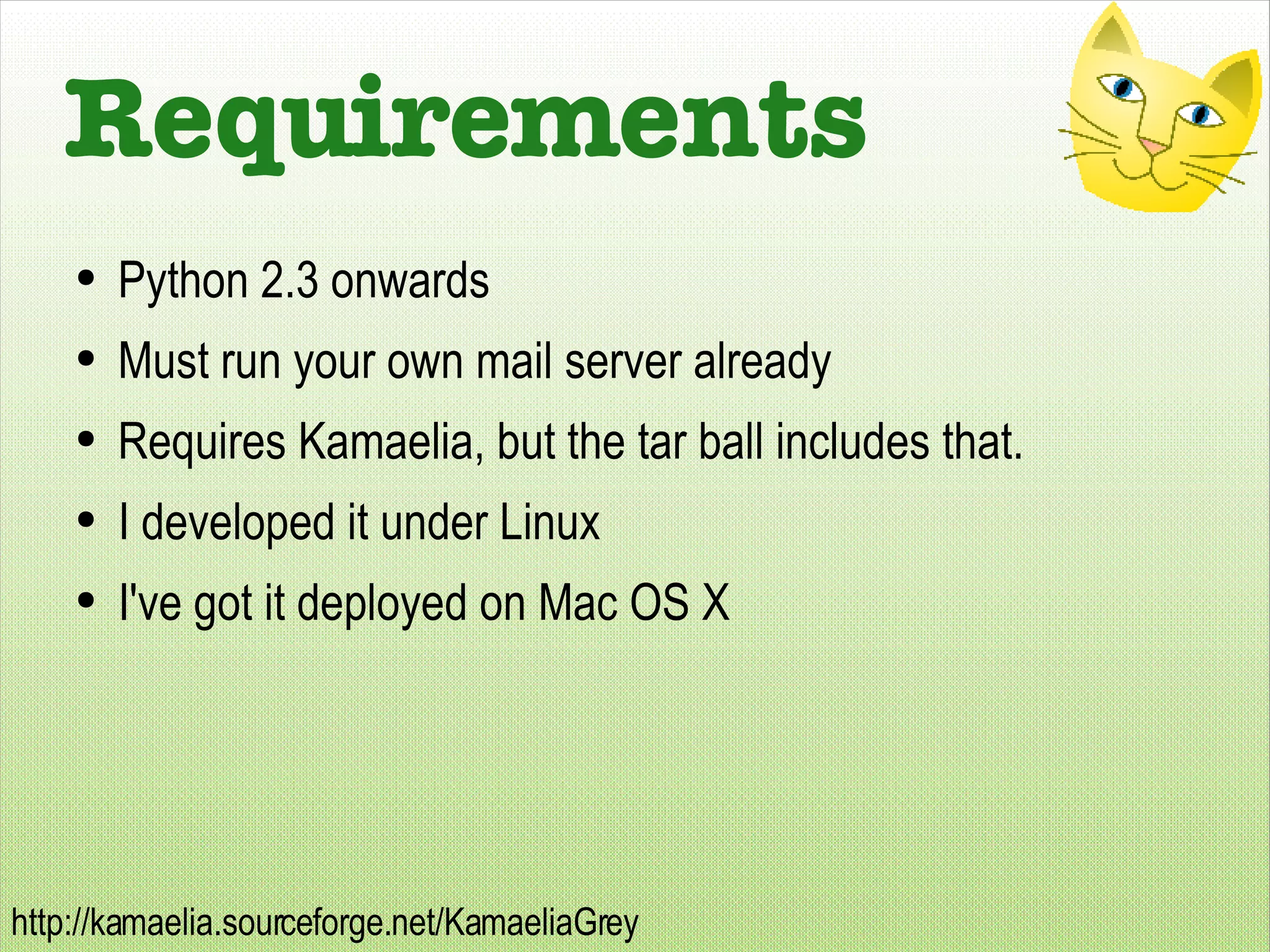

Requirements Python 2.3 onwards Must run your own mail server already Requires Kamaelia, but the tar ball includes that. I developed it under Linux I've got it deployed on Mac OS X

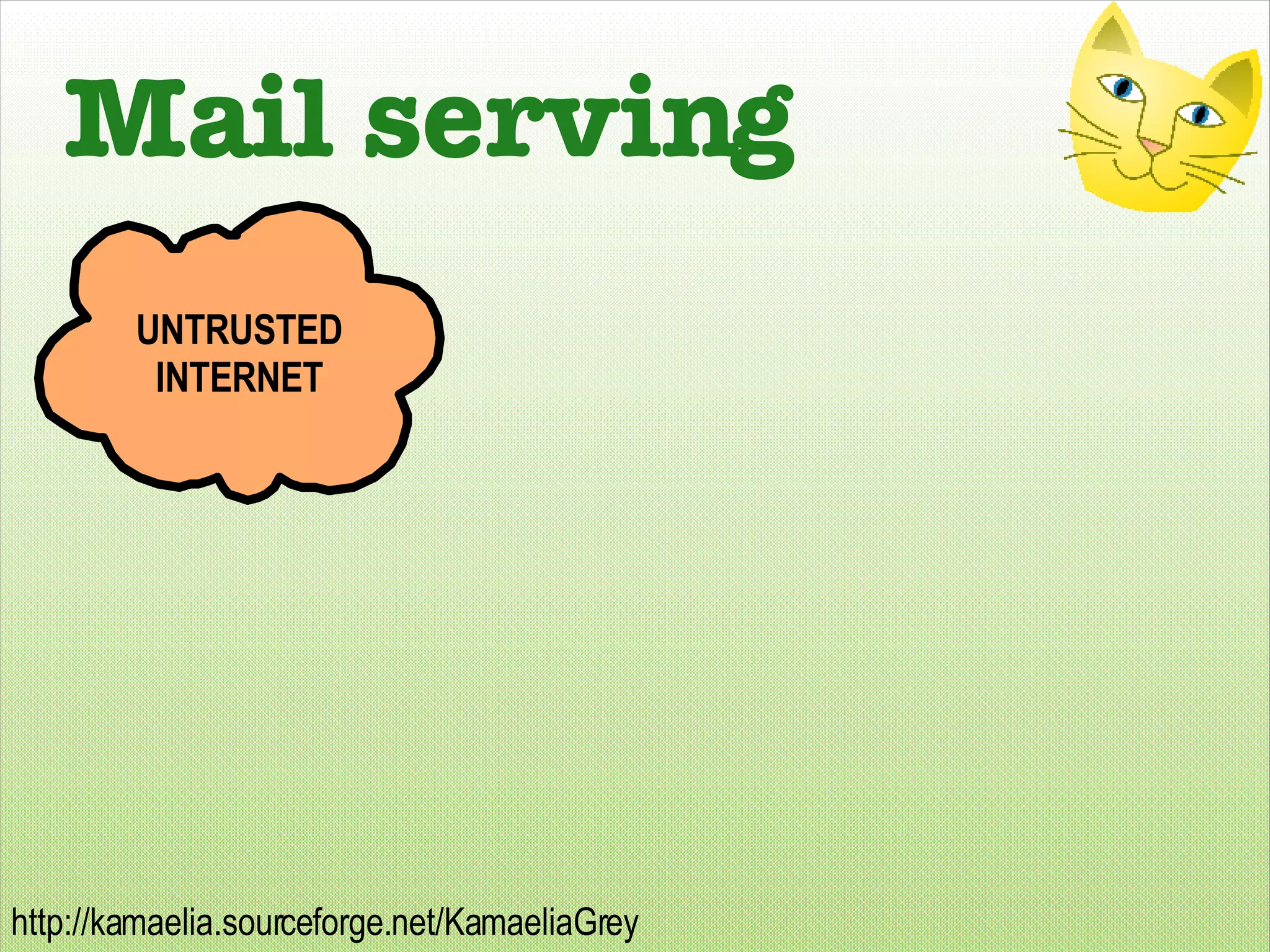

Mail serving UNTRUSTED INTERNET

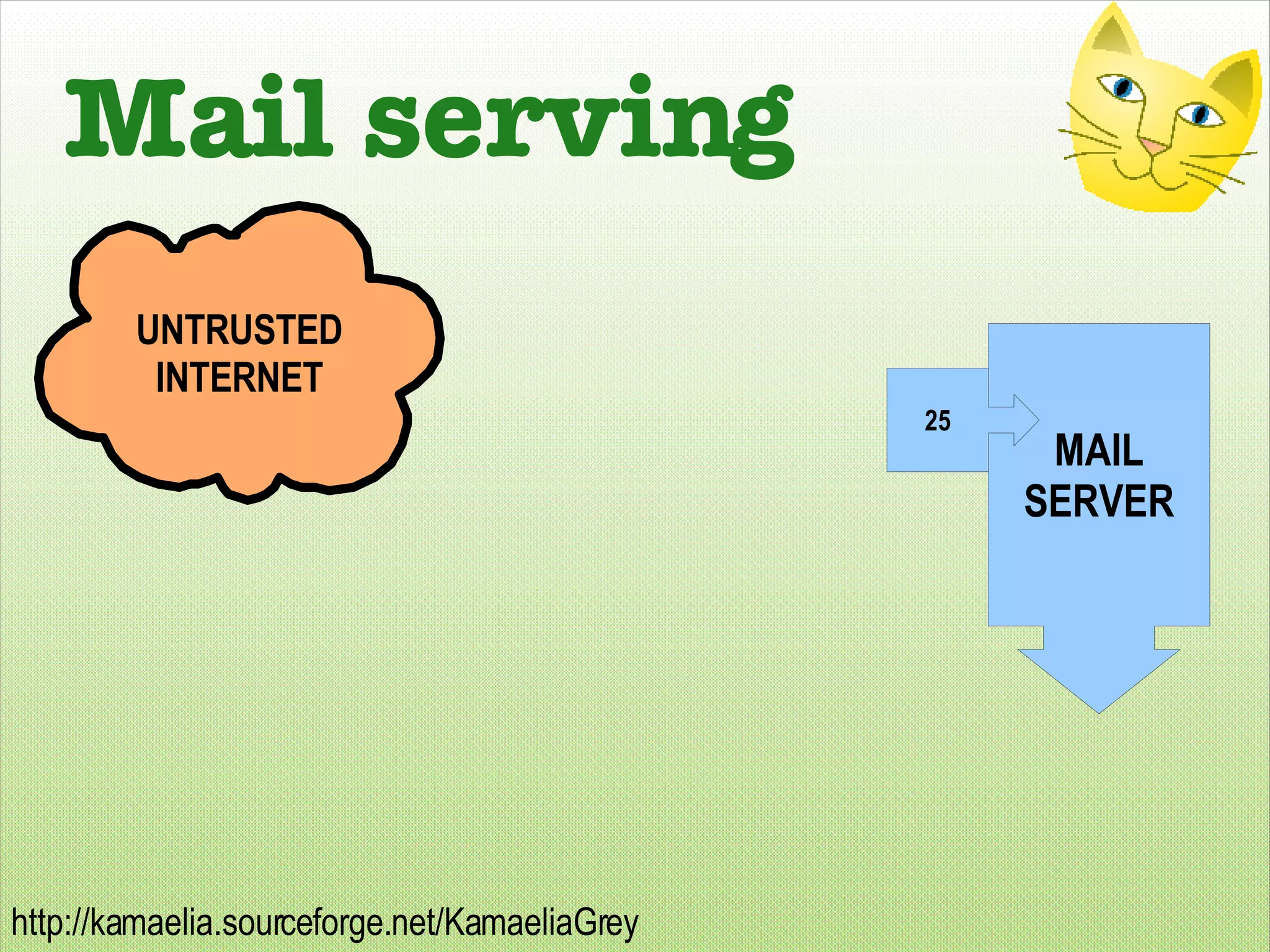

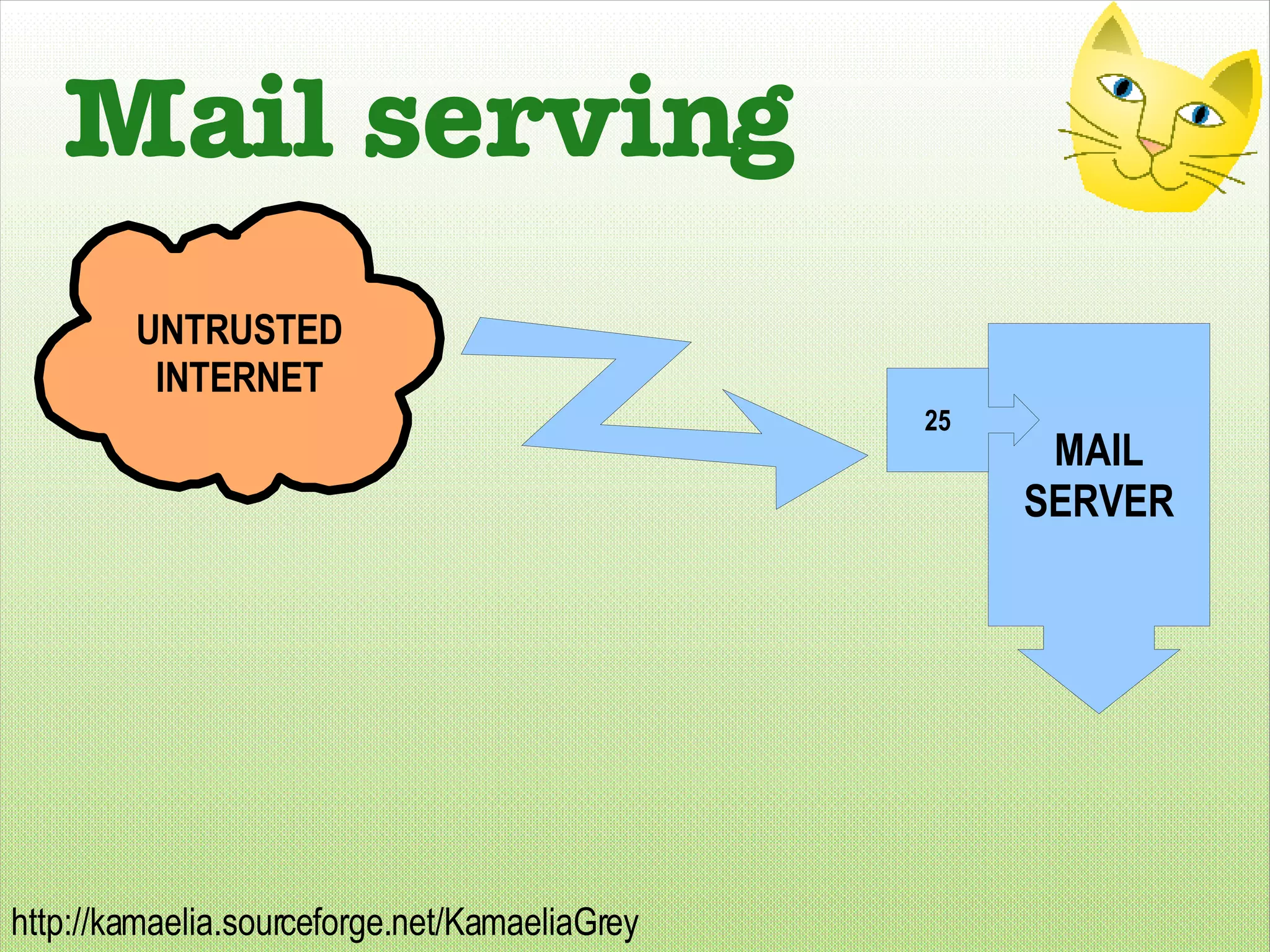

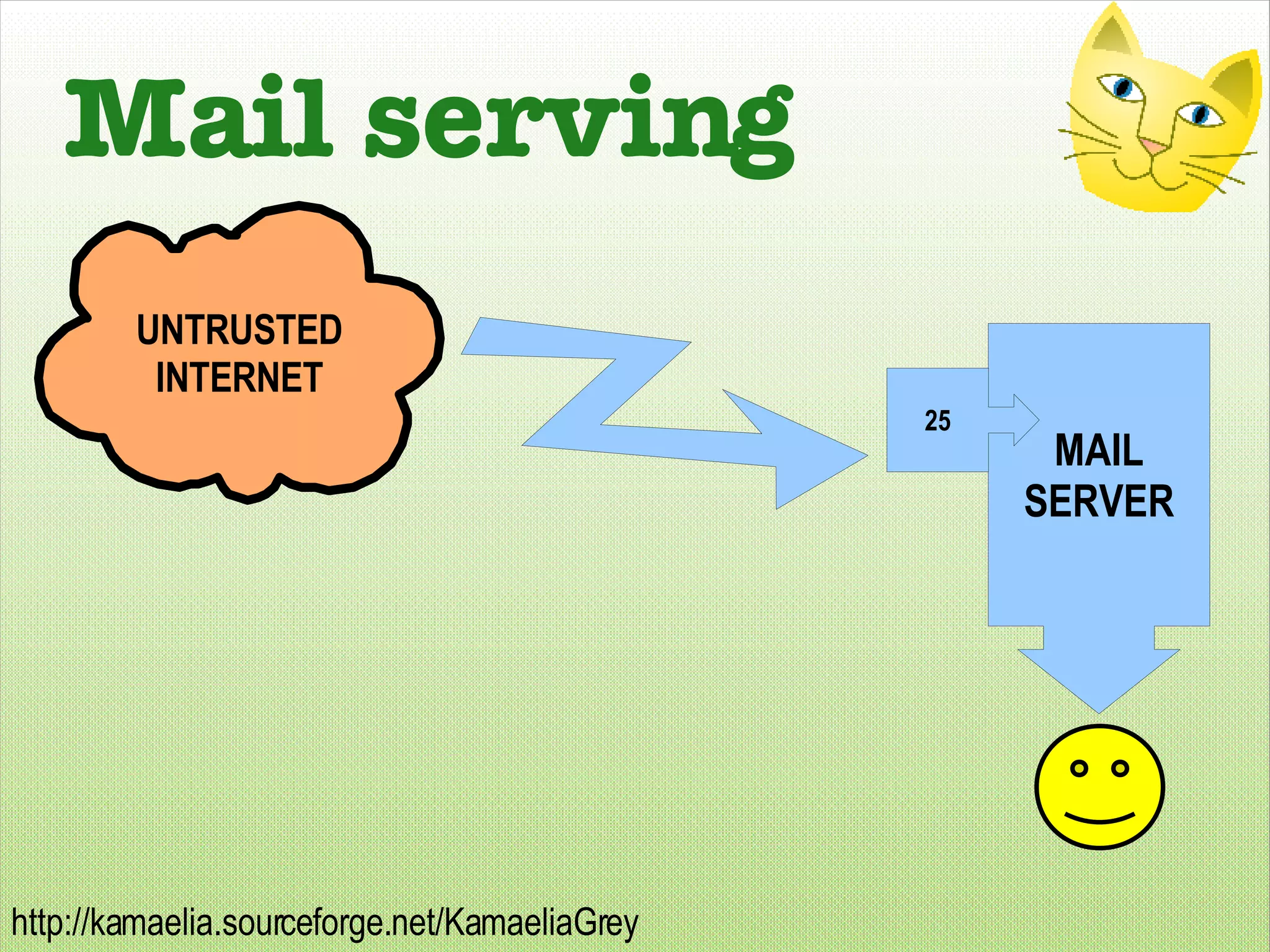

Mail serving UNTRUSTED INTERNET MAIL SERVER 25

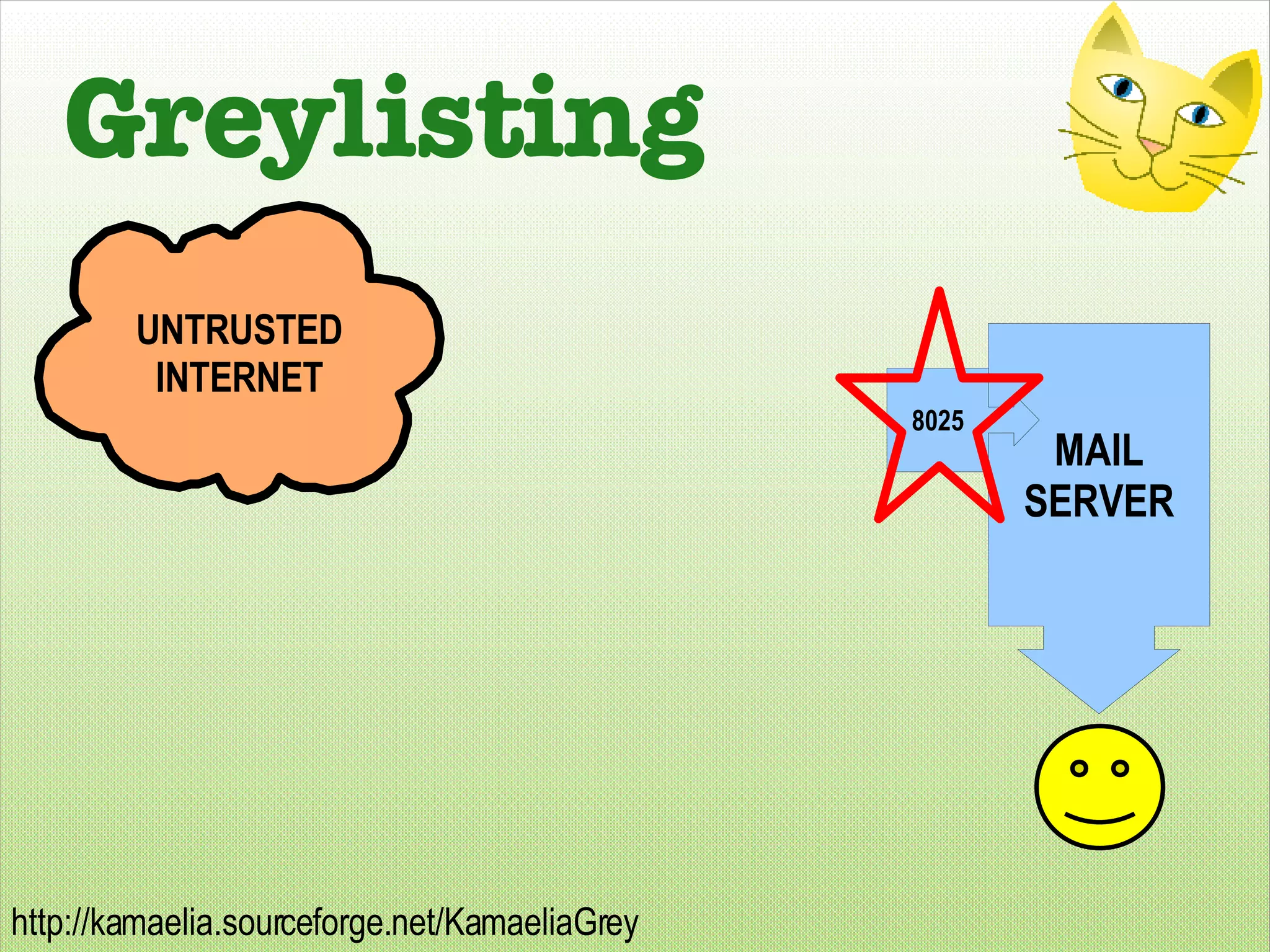

Greylisting UNTRUSTED INTERNET MAIL SERVER 8025

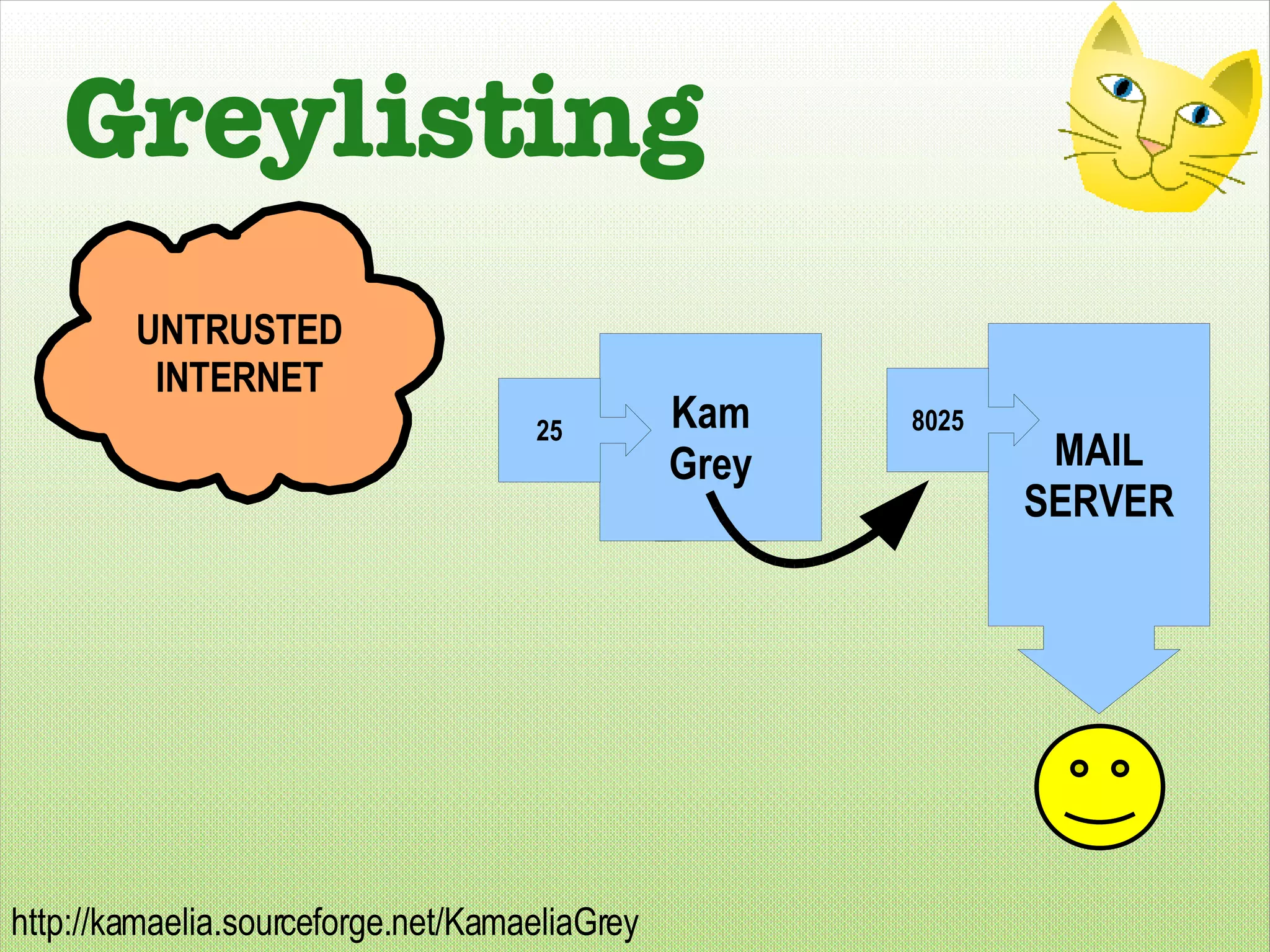

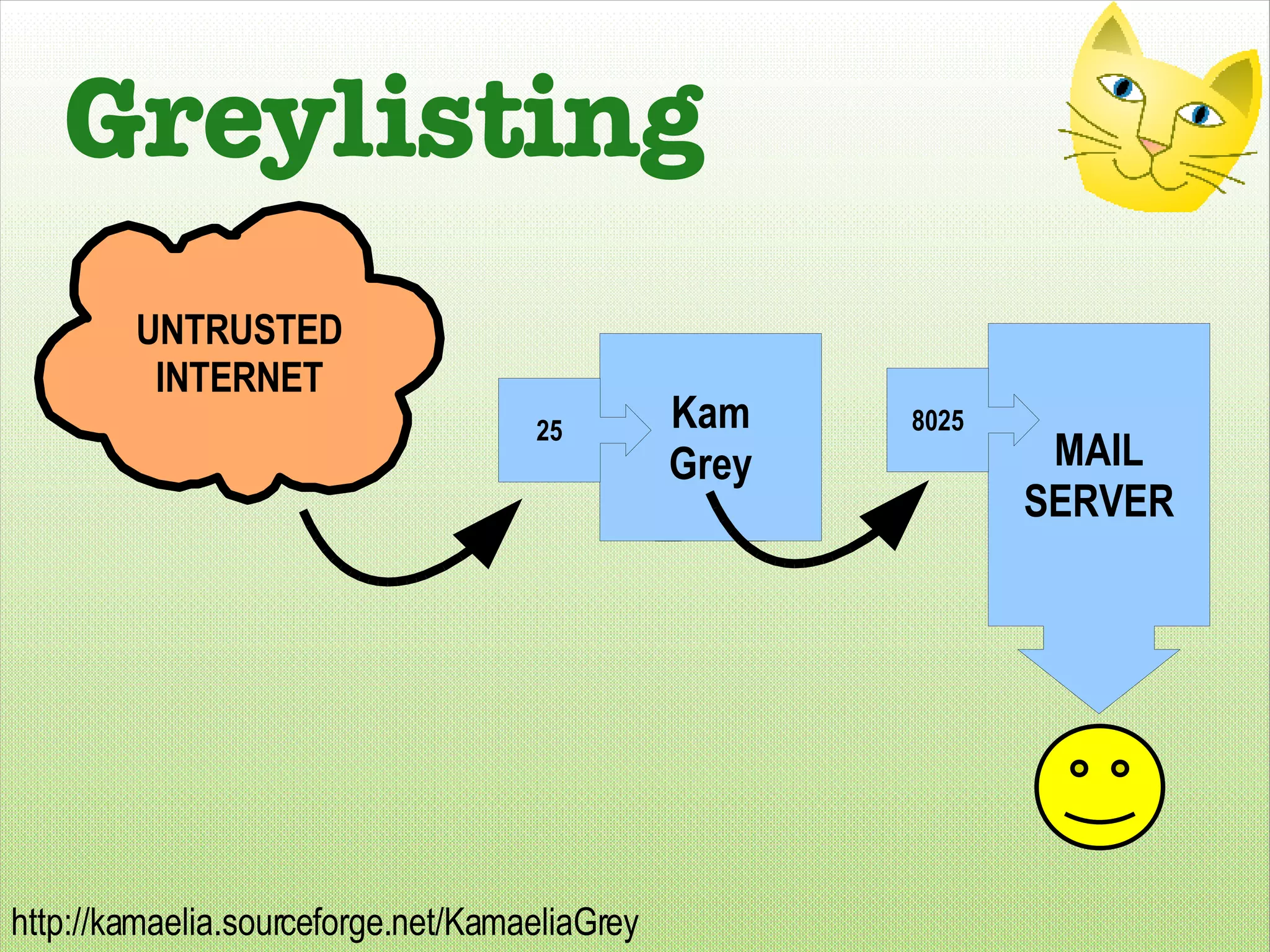

Greylisting UNTRUSTED INTERNET MAIL SERVER 8025 Kam Grey 25

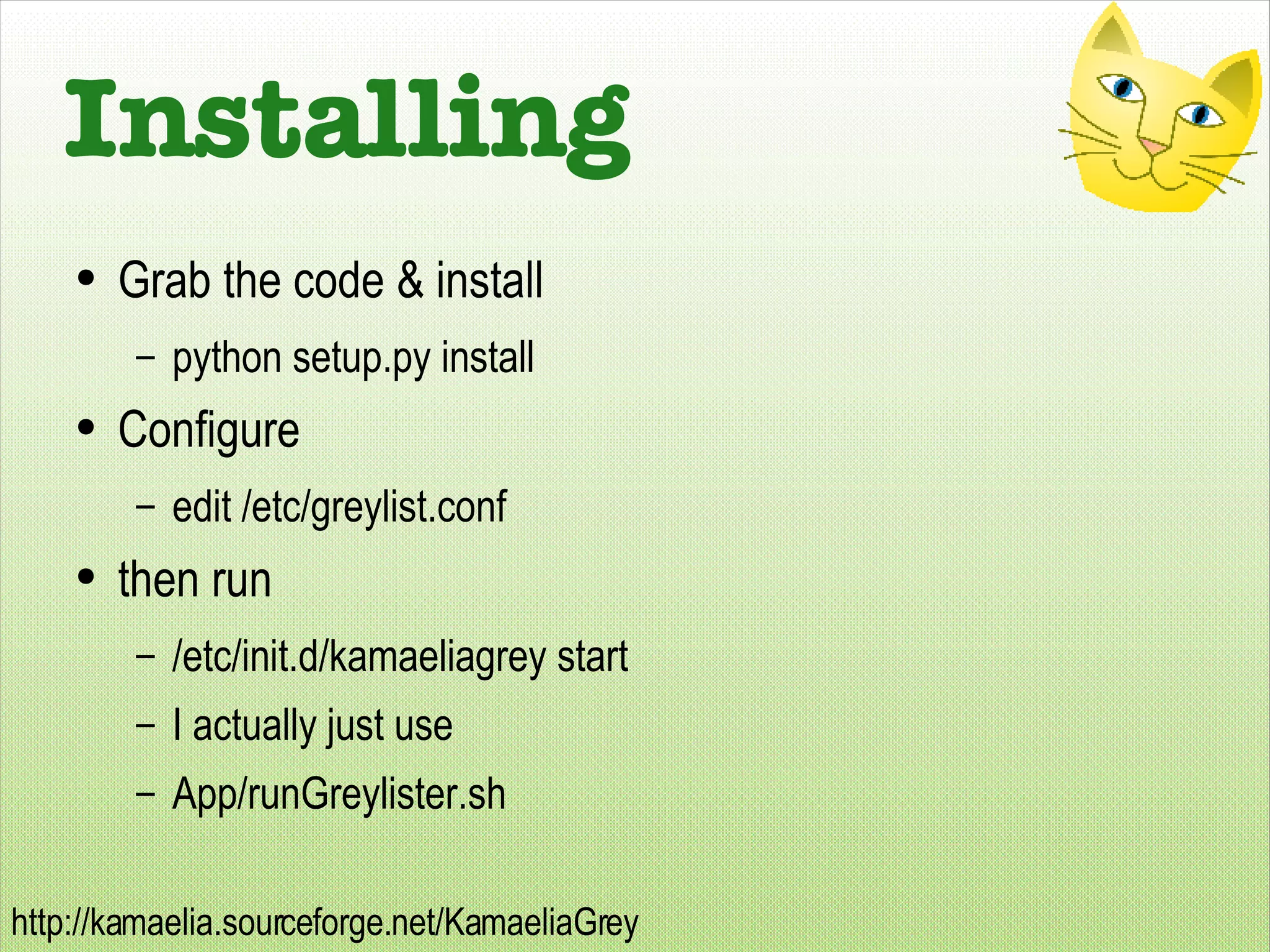

Installing Grab the code & install python setup.py install Configure edit /etc/greylist.conf then run /etc/init.d/kamaeliagrey start I actually just use App/runGreylister.sh

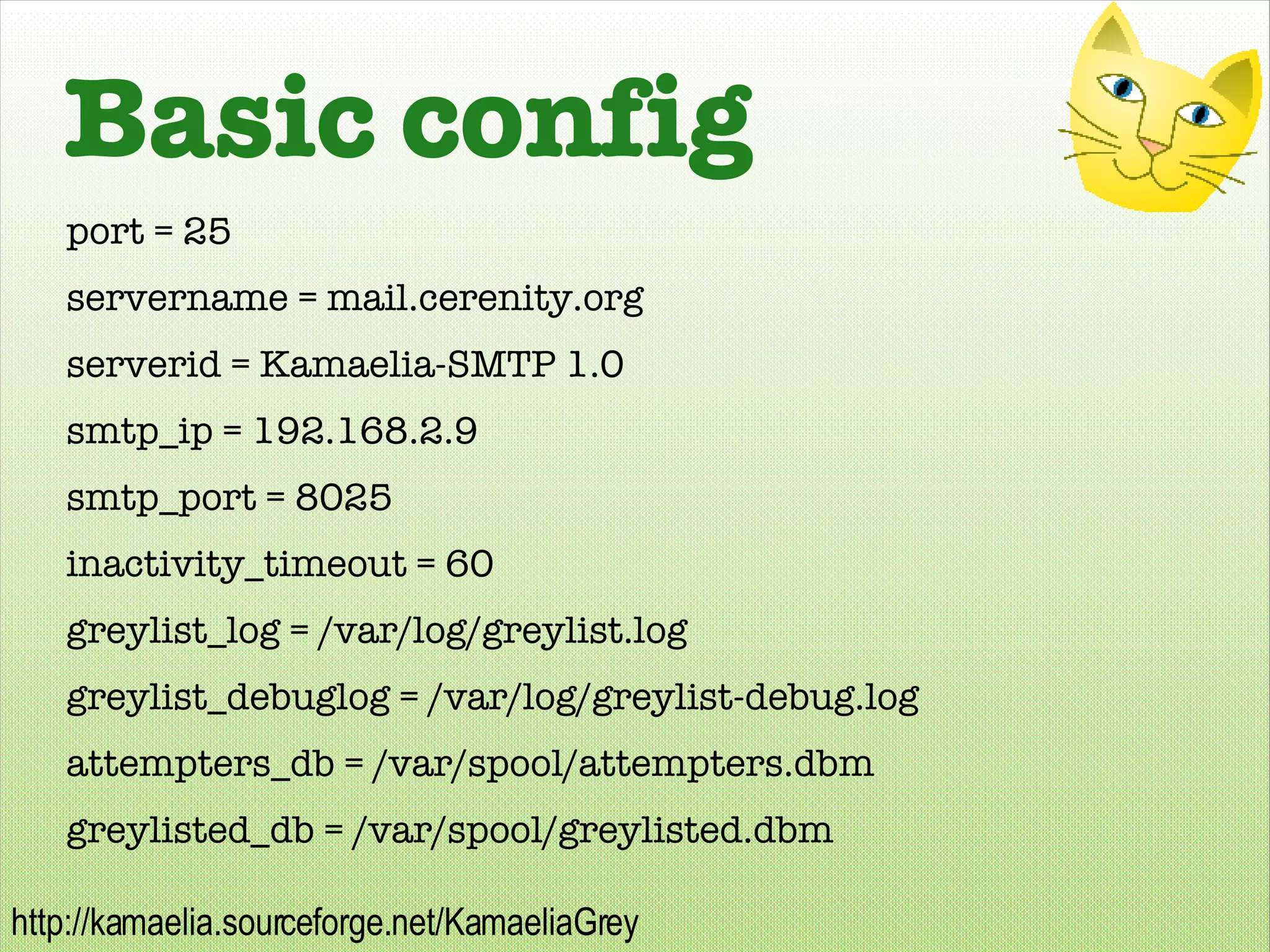

Basic config port = 25 servername = mail.cerenity.org serverid = Kamaelia-SMTP 1.0 smtp_ip = 192.168.2.9 smtp_port = 8025 inactivity_timeout = 60 greylist_log = /var/log/greylist.log greylist_debuglog = /var/log/greylist-debug.log attempters_db = /var/spool/attempters.dbm greylisted_db = /var/spool/greylisted.dbm

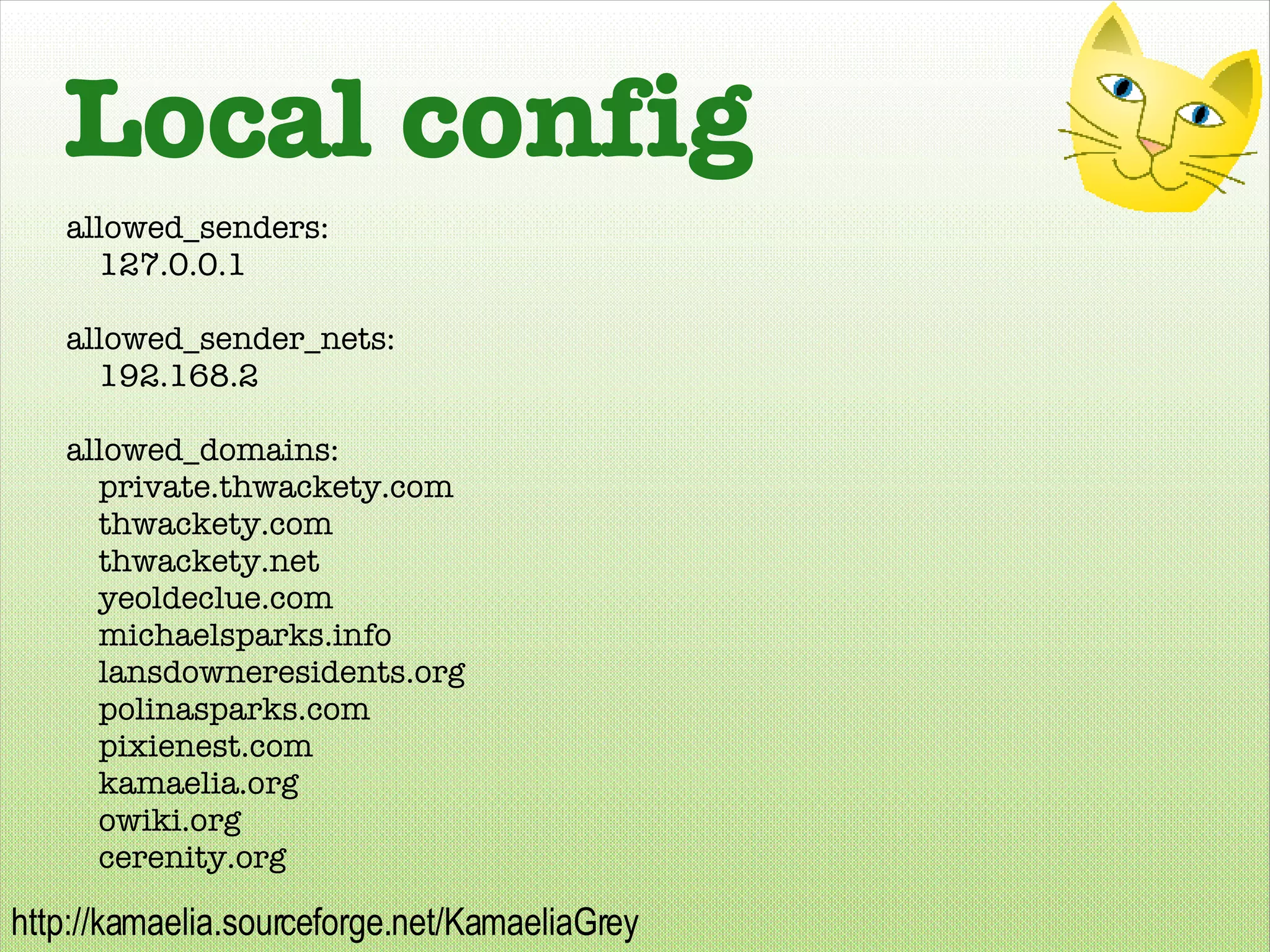

Local config allowed_senders: 127.0.0.1 allowed_sender_nets: 192.168.2 allowed_domains: private.thwackety.com thwackety.com thwackety.net yeoldeclue.com michaelsparks.info lansdowneresidents.org polinasparks.com pixienest.com kamaelia.org owiki.org cerenity.org

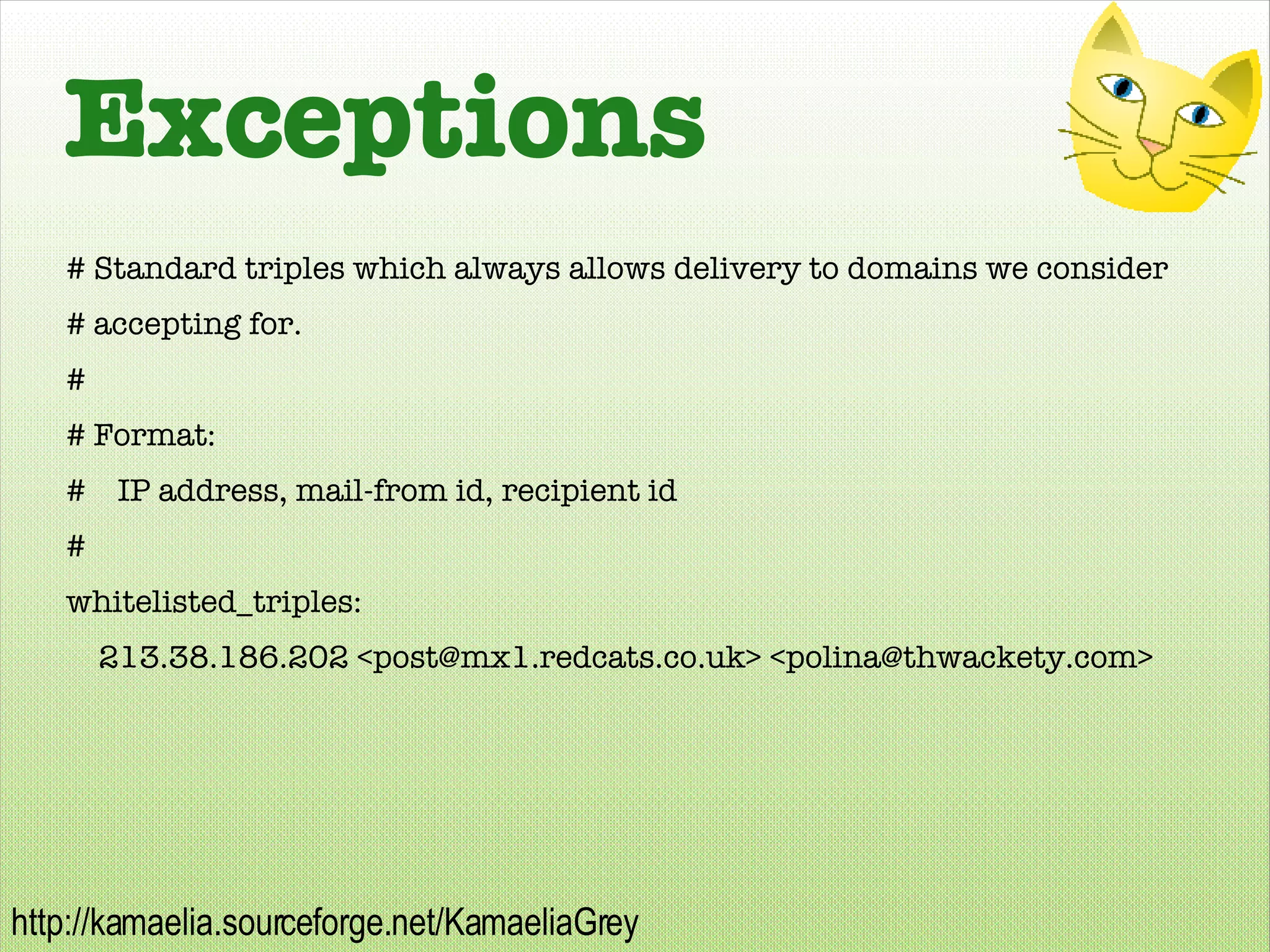

Exceptions # Standard triples which always allows delivery to domains we consider # accepting for. # # Format: # IP address, mail-from id, recipient id # whitelisted_triples: 213.38.186.202 <post@mx1.redcats.co.uk> <polina@thwackety.com>

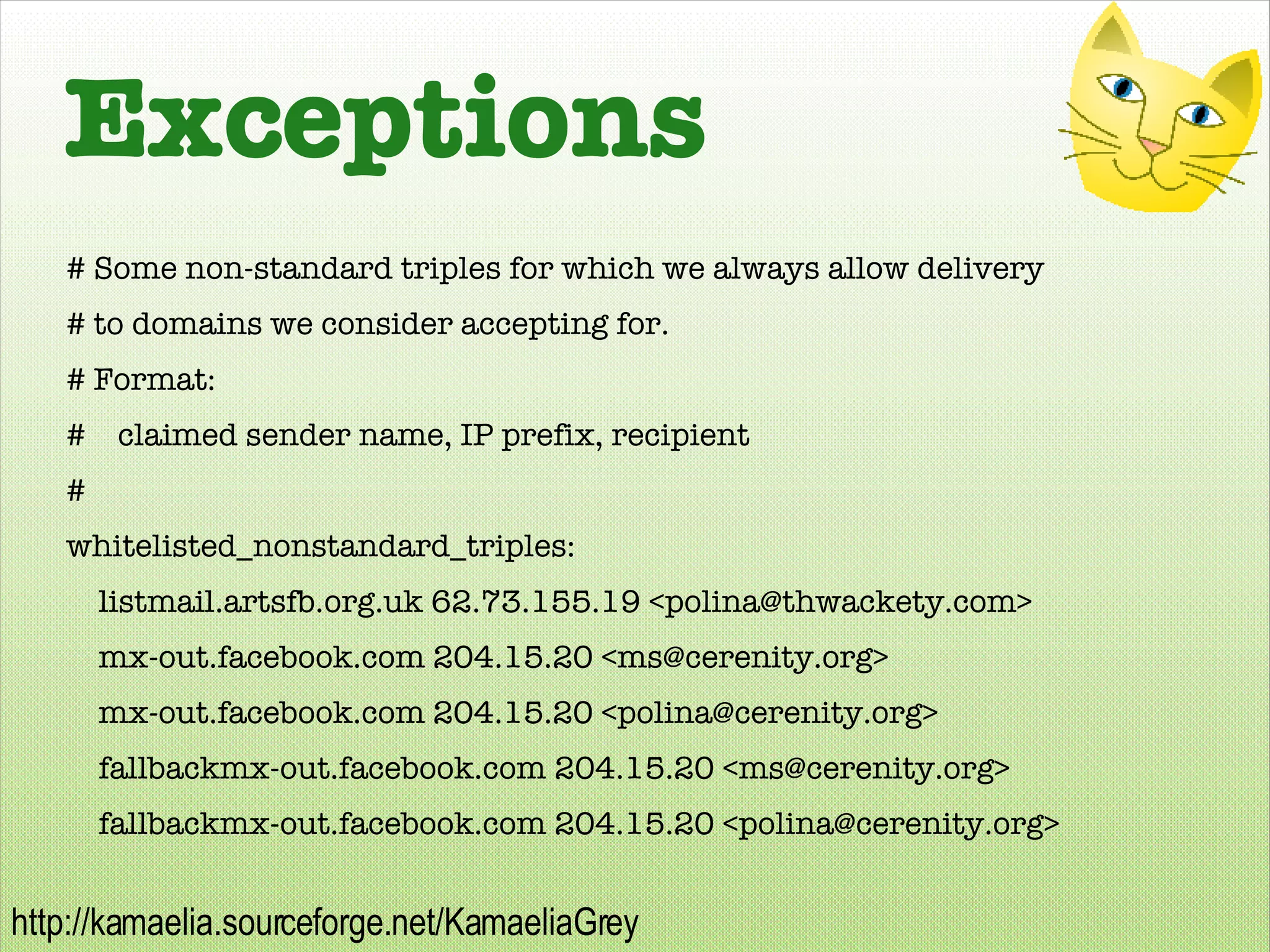

Exceptions # Some non-standard triples for which we always allow delivery # to domains we consider accepting for. # Format: # claimed sender name, IP prefix, recipient # whitelisted_nonstandard_triples: listmail.artsfb.org.uk 62.73.155.19 <polina@thwackety.com> mx-out.facebook.com 204.15.20 <ms@cerenity.org> mx-out.facebook.com 204.15.20 <polina@cerenity.org> fallbackmx-out.facebook.com 204.15.20 <ms@cerenity.org> fallbackmx-out.facebook.com 204.15.20 <polina@cerenity.org>

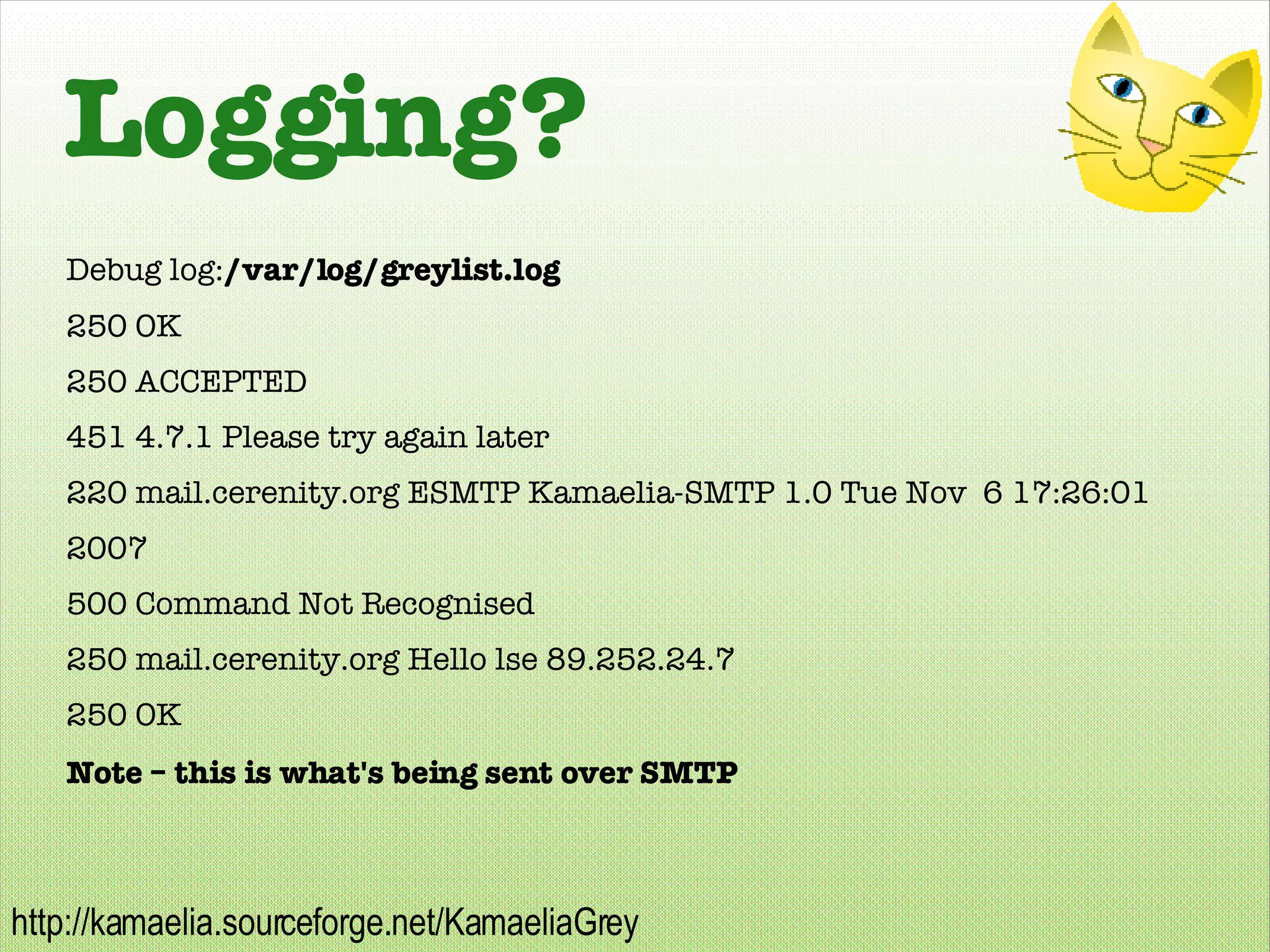

Logging? Debug log: /var/log/greylist.log 250 OK 250 ACCEPTED 451 4.7.1 Please try again later 220 mail.cerenity.org ESMTP Kamaelia-SMTP 1.0 Tue Nov 6 17:26:01 2007 500 Command Not Recognised 250 mail.cerenity.org Hello lse 89.252.24.7 250 OK Note – this is what's being sent over SMTP

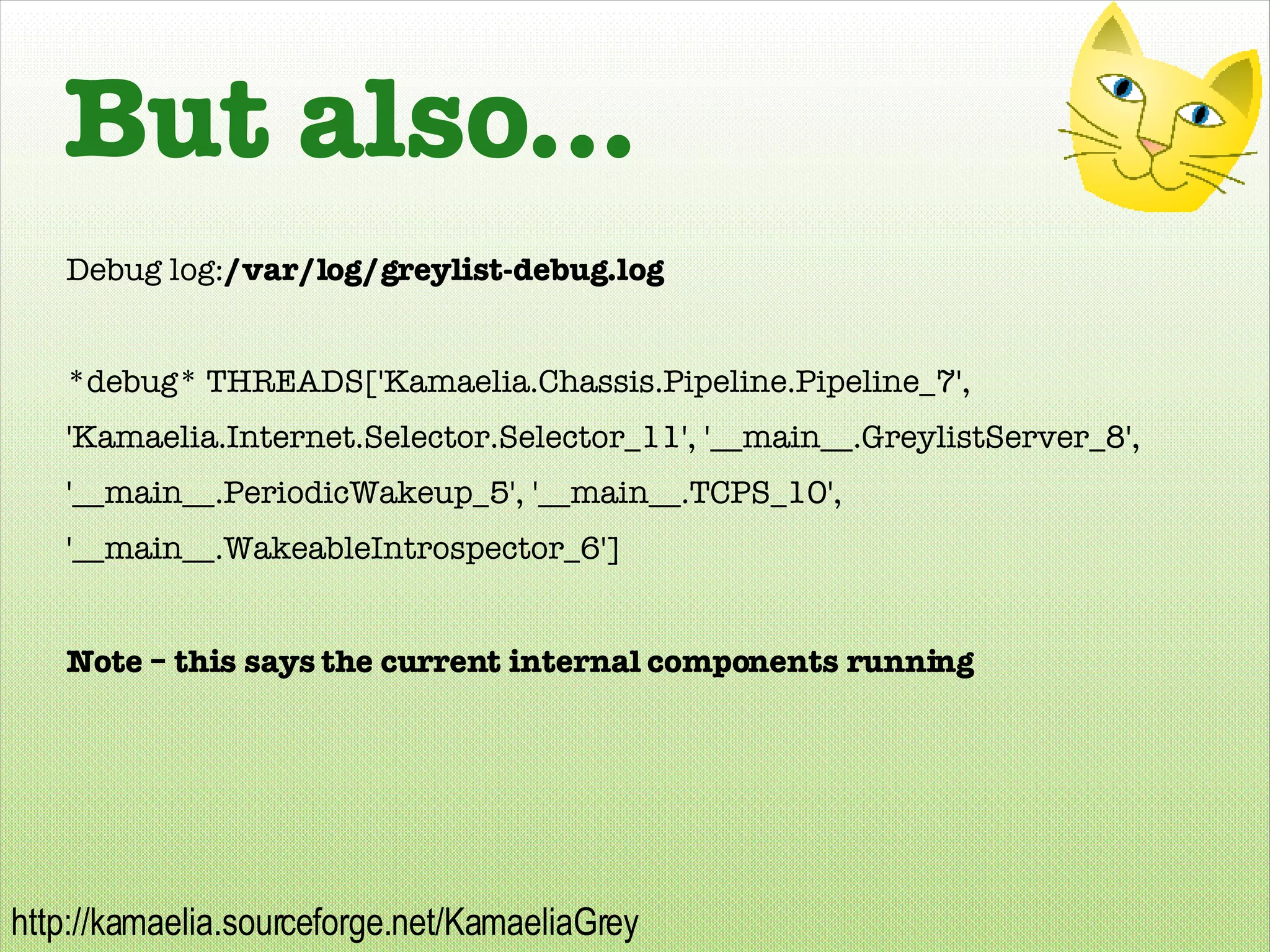

But also... Debug log: /var/log/greylist-debug.log *debug* THREADS['Kamaelia.Chassis.Pipeline.Pipeline_7', 'Kamaelia.Internet.Selector.Selector_11', '__main__.GreylistServer_8', '__main__.PeriodicWakeup_5', '__main__.TCPS_10', '__main__.WakeableIntrospector_6'] Note – this says the current internal components running

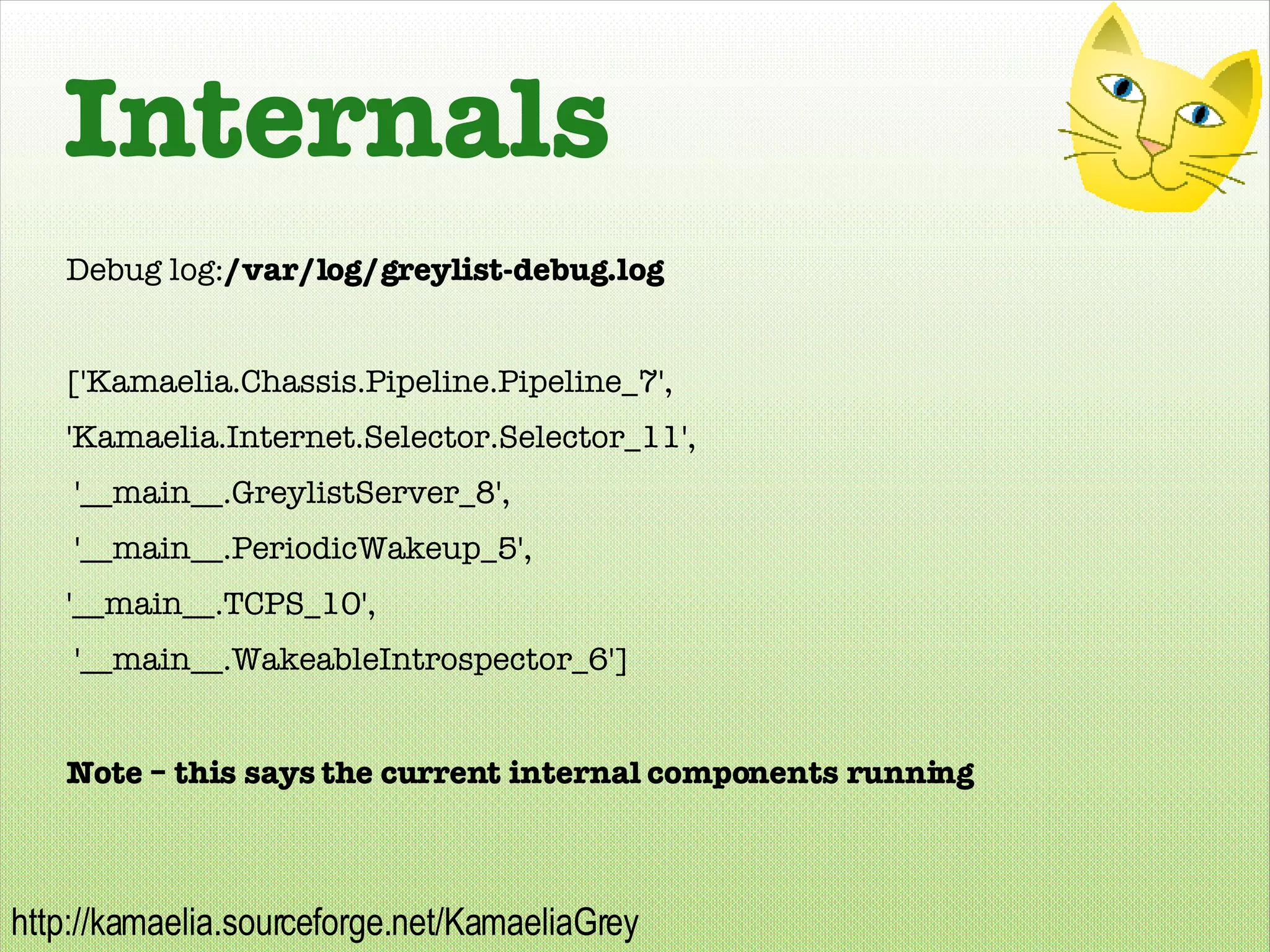

Internals Debug log: /var/log/greylist-debug.log ['Kamaelia.Chassis.Pipeline.Pipeline_7', 'Kamaelia.Internet.Selector.Selector_11', '__main__.GreylistServer_8', '__main__.PeriodicWakeup_5', '__main__.TCPS_10', '__main__.WakeableIntrospector_6'] Note – this says the current internal components running

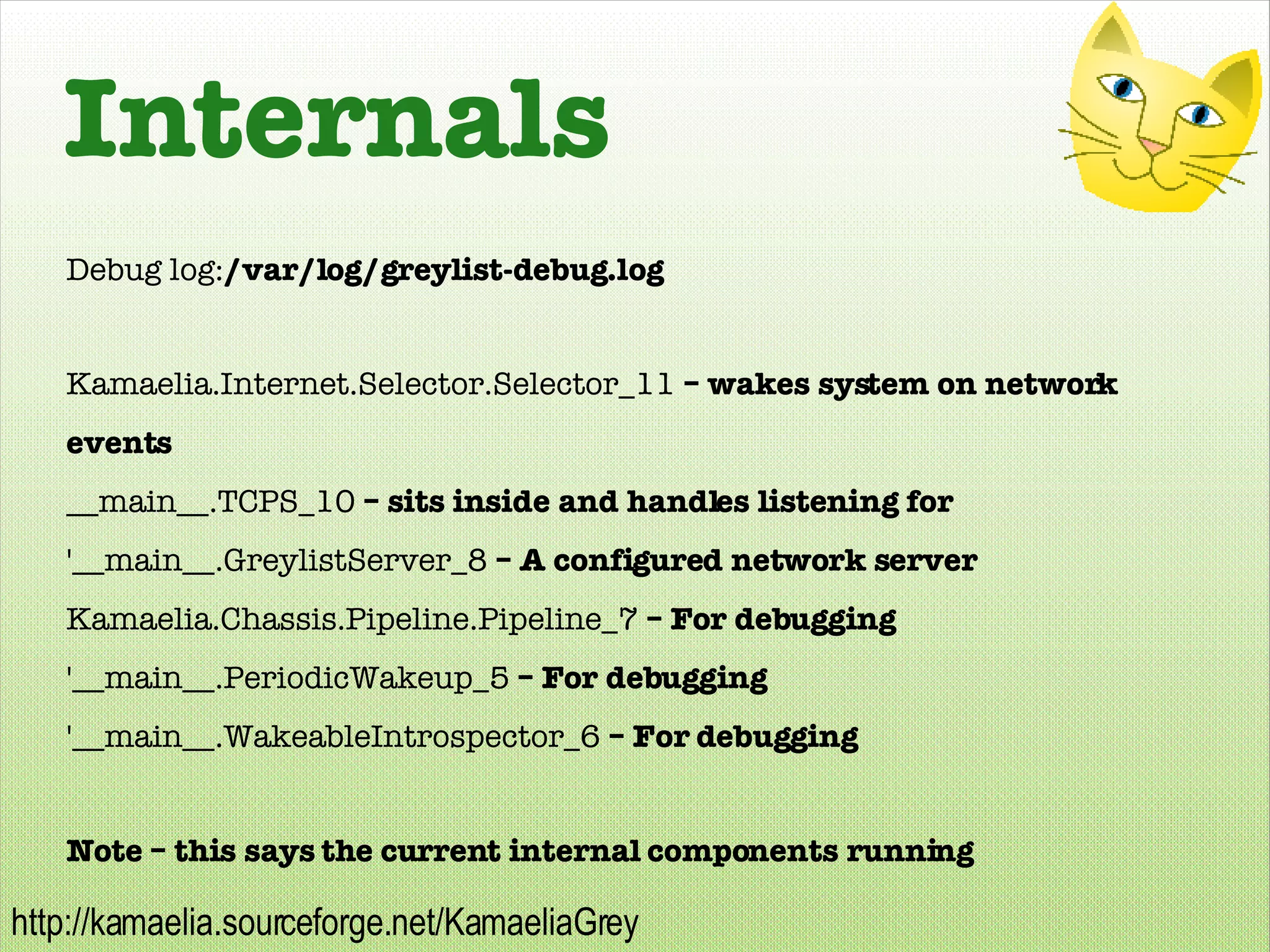

Internals Debug log: /var/log/greylist-debug.log Kamaelia.Internet.Selector.Selector_11 – wakes system on network events __main__.TCPS_10 – sits inside and handles listening for '__main__.GreylistServer_8 – A configured network server Kamaelia.Chassis.Pipeline.Pipeline_7 – For debugging '__main__.PeriodicWakeup_5 – For debugging '__main__.WakeableIntrospector_6 – For debugging Note – this says the current internal components running

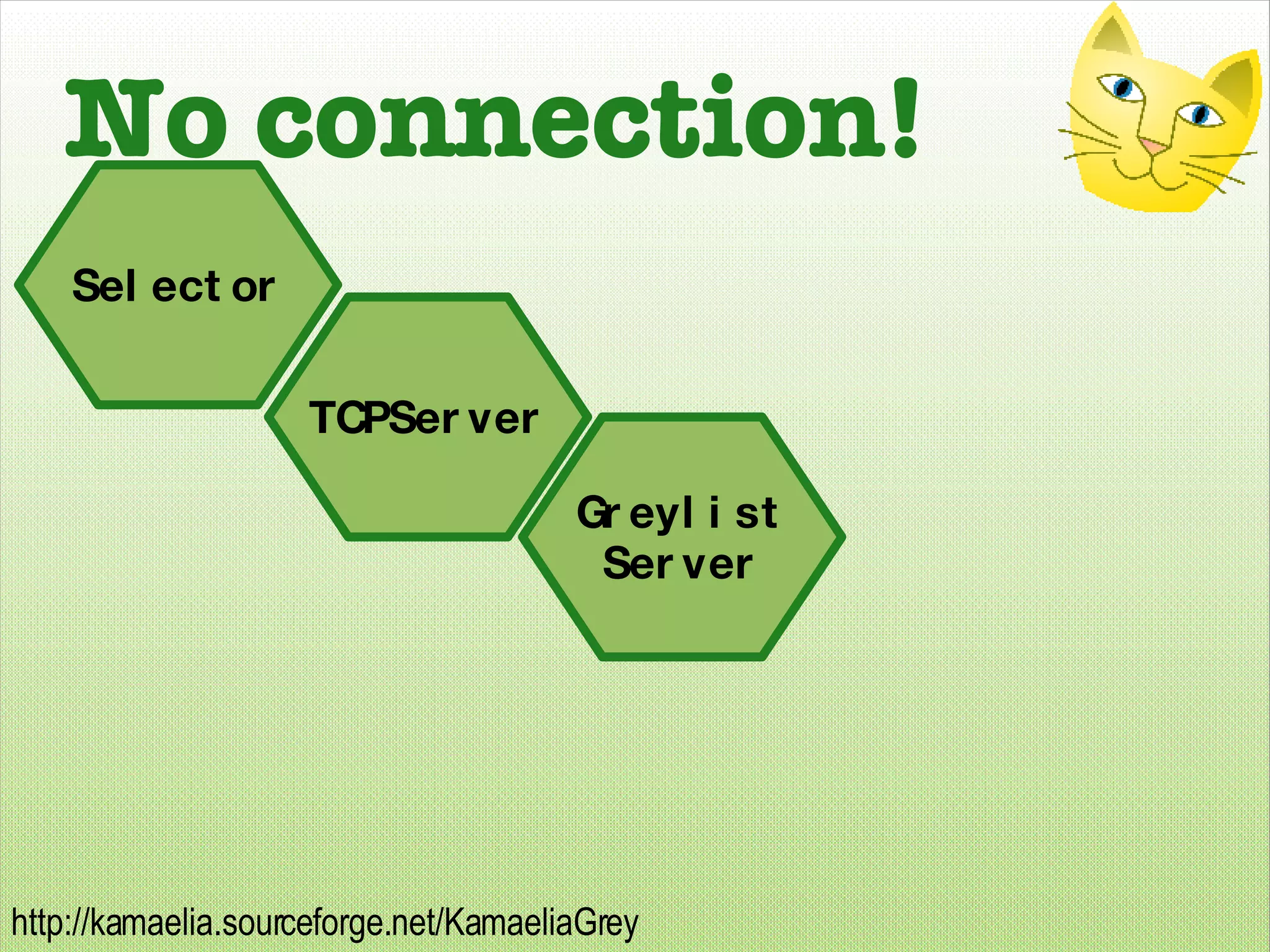

No connection! TCPServer Greylist Server Selector

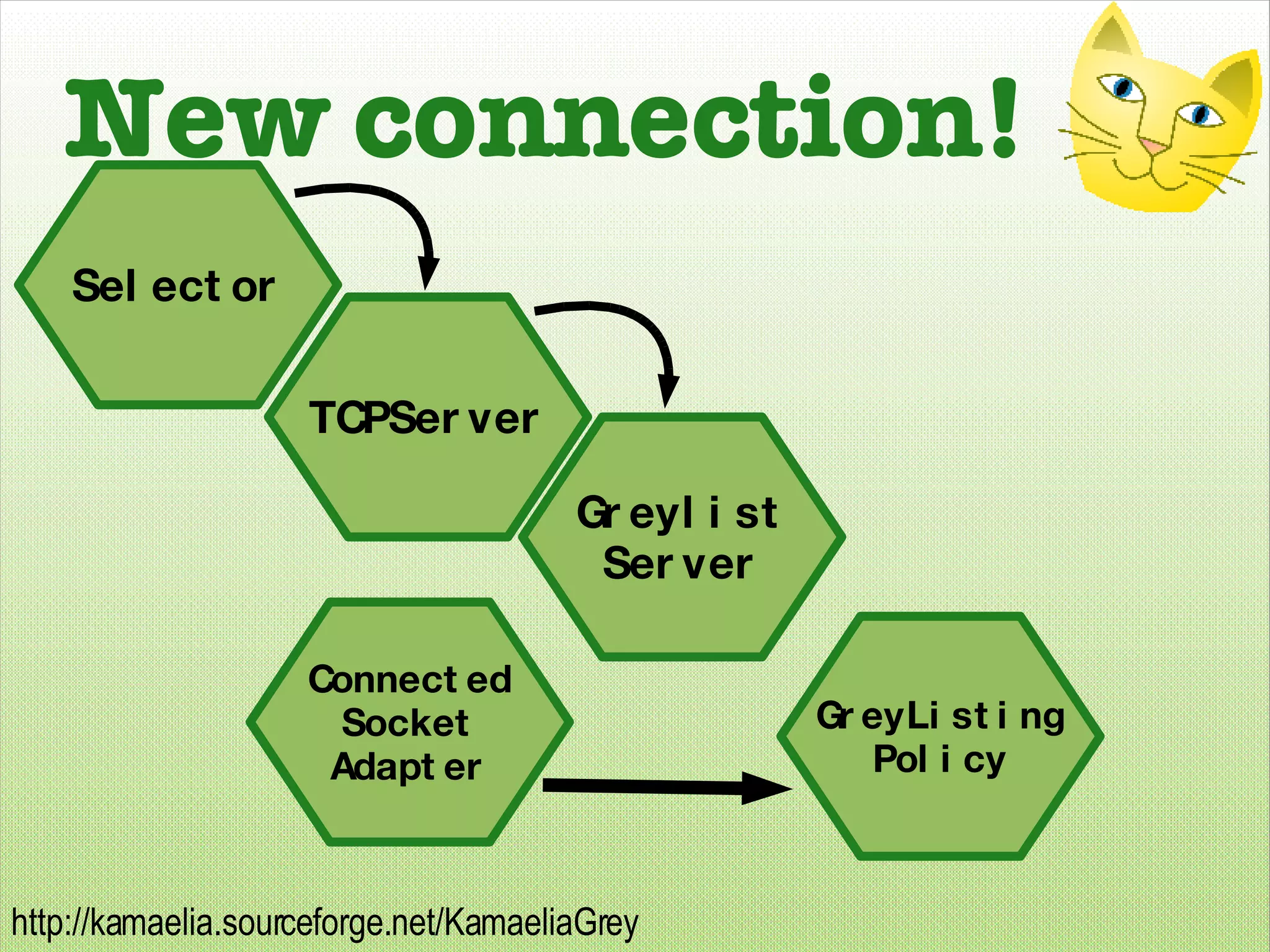

New connection! TCPServer Greylist Server Selector Connected Socket Adapter GreyListing Policy

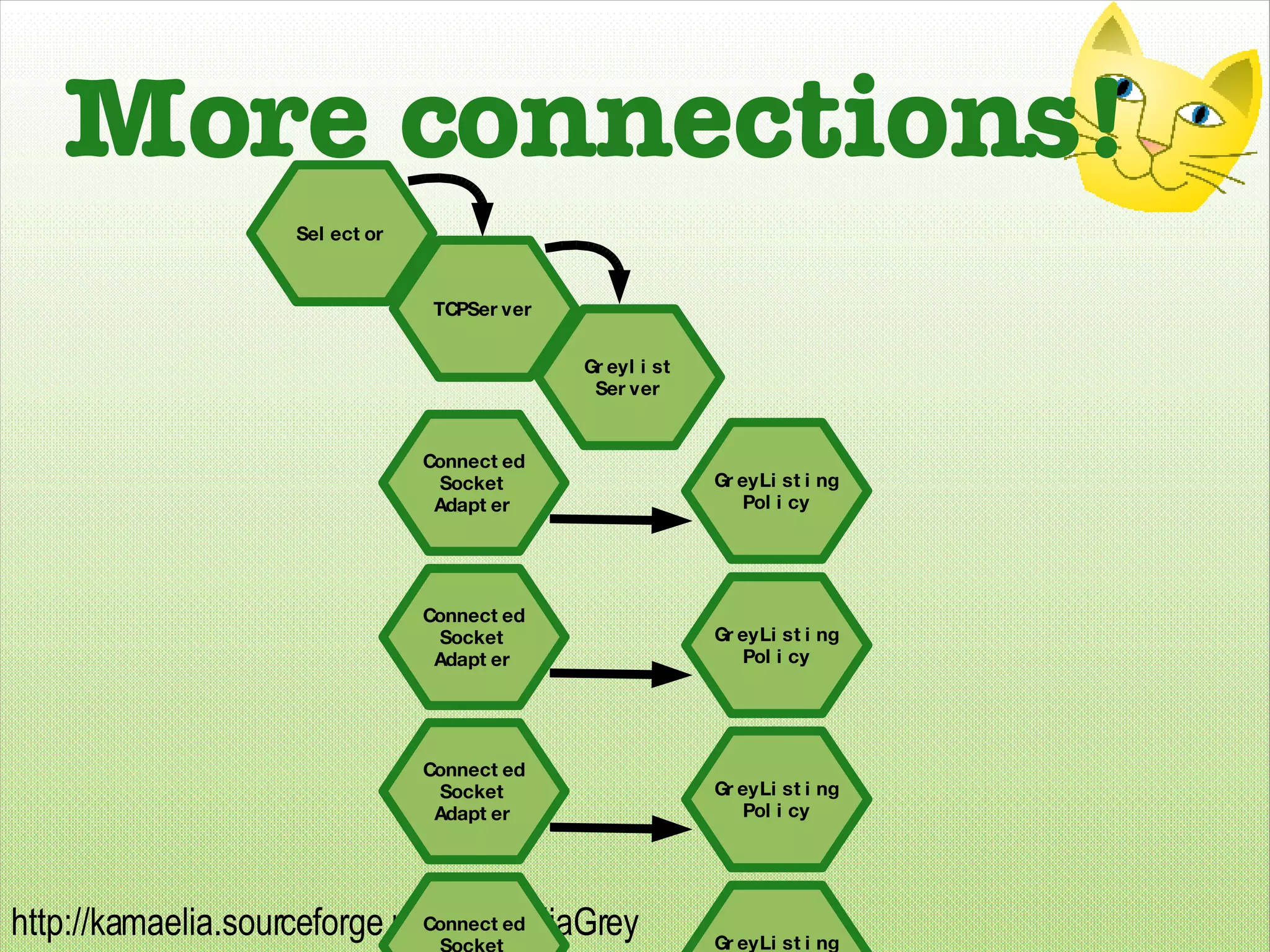

More connections! TCPServer Greylist Server Selector Connected Socket Adapter GreyListing Policy Connected Socket Adapter GreyListing Policy Connected Socket Adapter GreyListing Policy Connected Socket Adapter GreyListing Policy

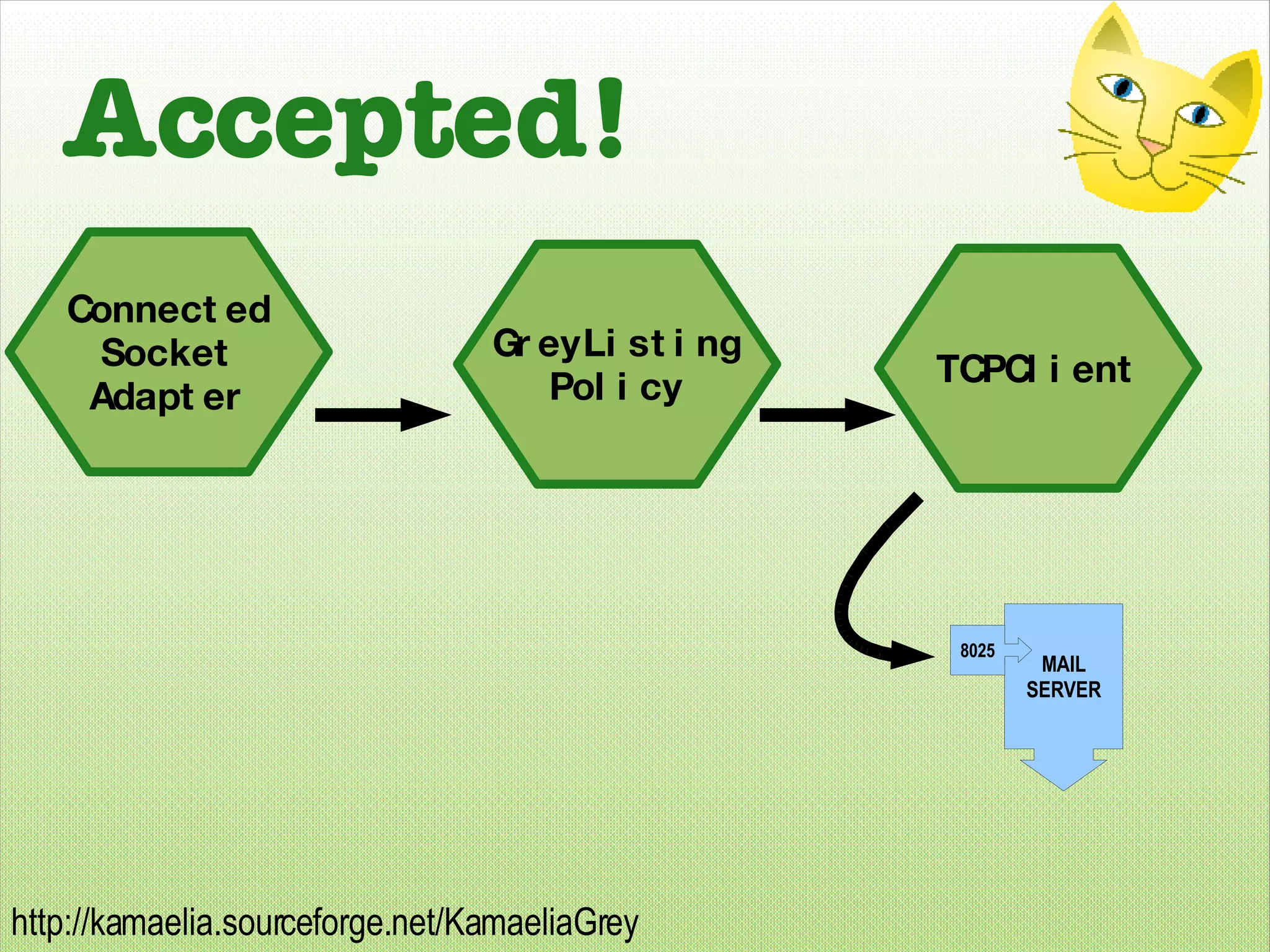

Accepted! GreyListing Policy TCPClient Connected Socket Adapter MAIL SERVER 8025

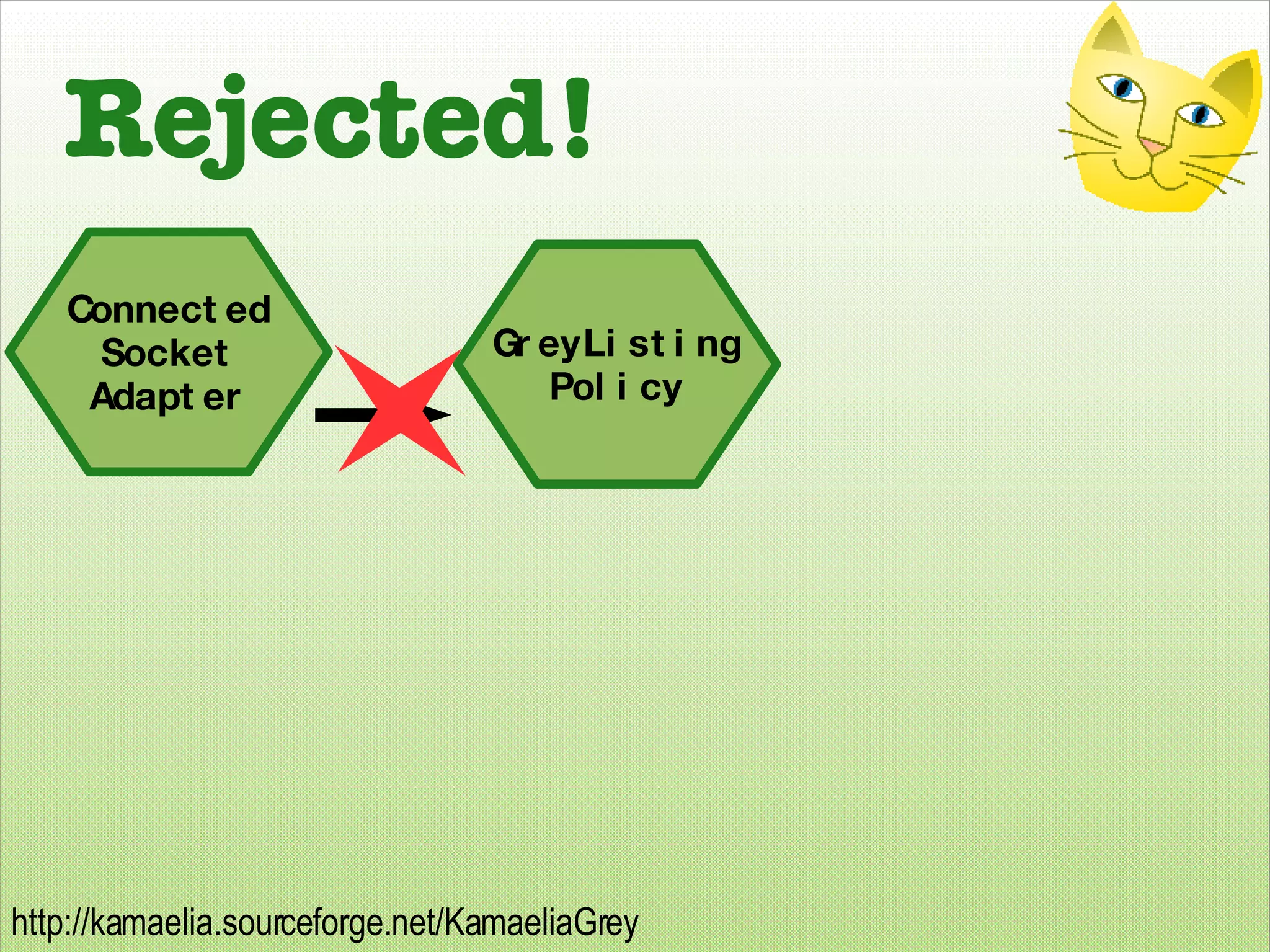

Rejected! Connected Socket Adapter GreyListing Policy

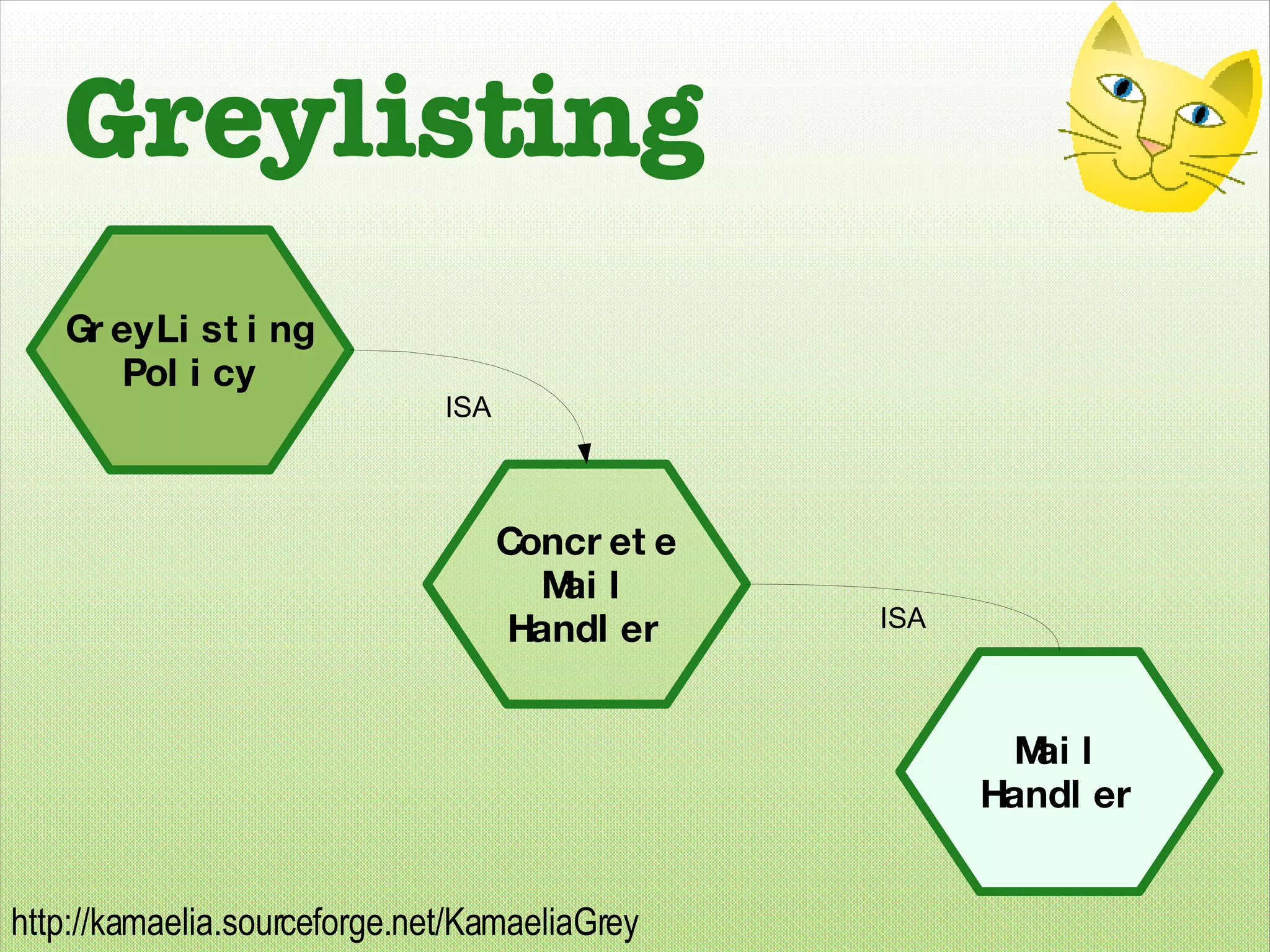

Greylisting GreyListing Policy Concrete Mail Handler Mail Handler

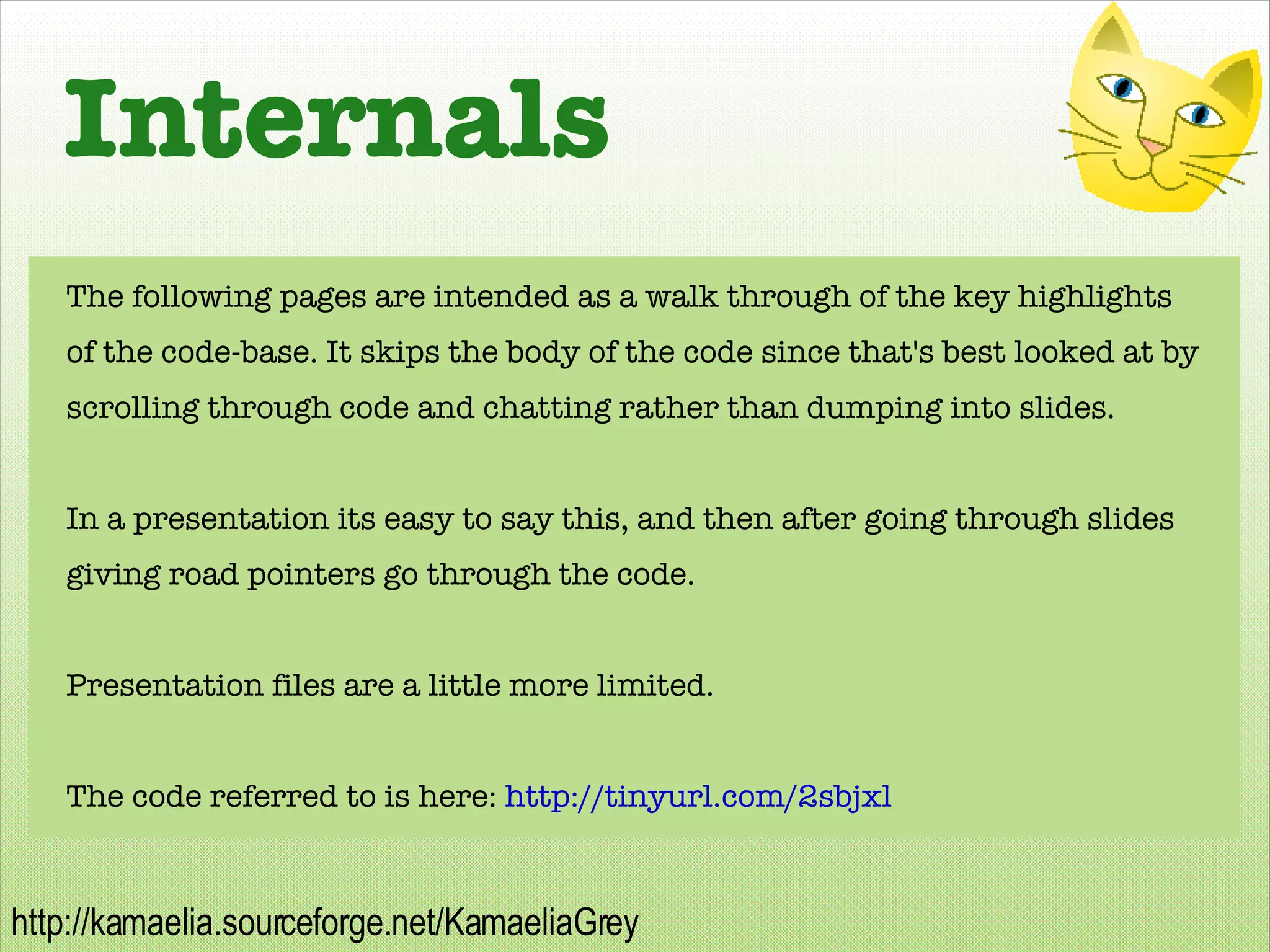

Internals The following pages are intended as a walk through of the key highlights of the code-base. It skips the body of the code since that's best looked at by scrolling through code and chatting rather than dumping into slides. In a presentation its easy to say this, and then after going through slides giving road pointers go through the code. Presentation files are a little more limited. The code referred to is here: http://tinyurl.com/2sbjxl

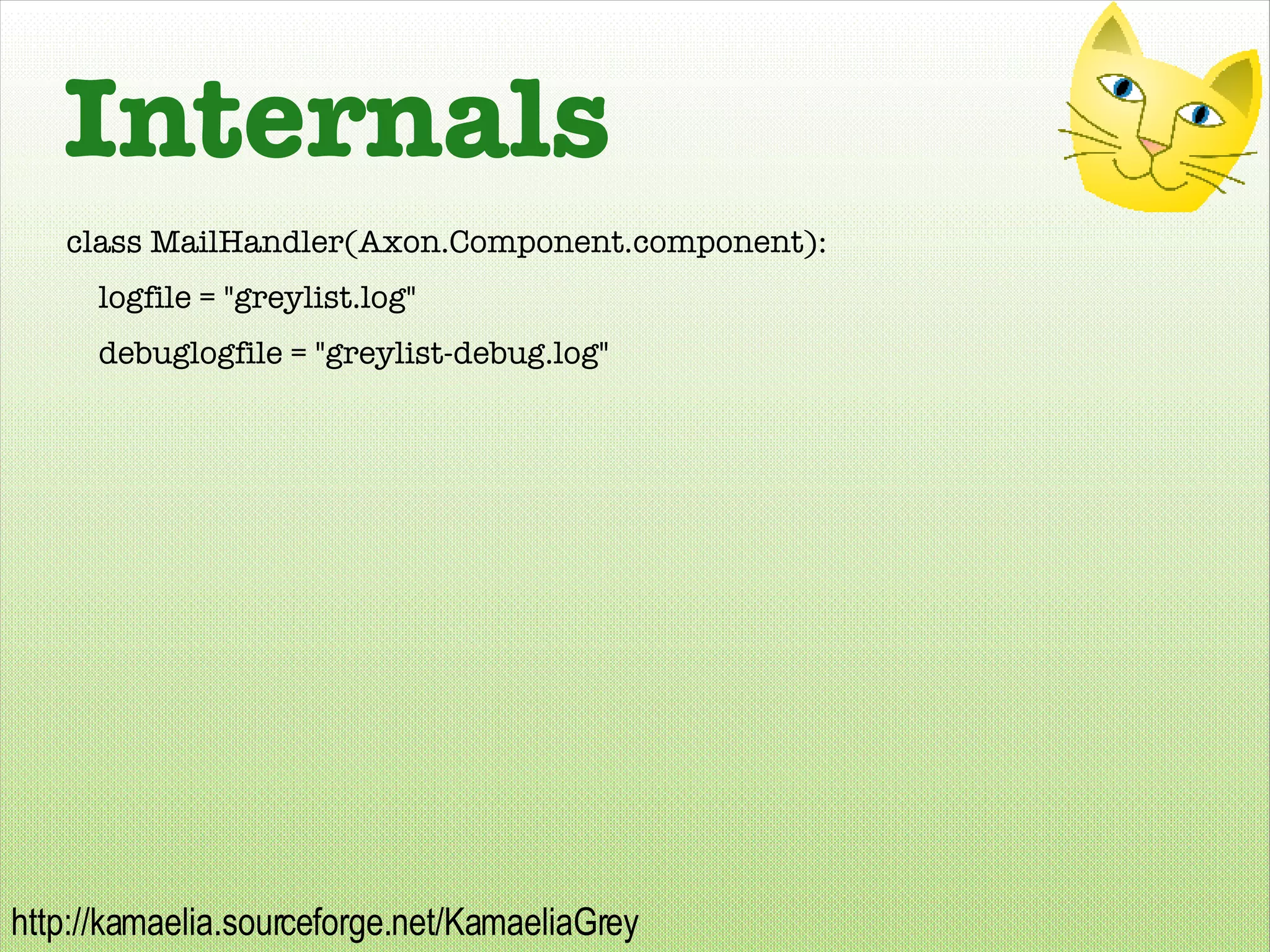

Internals class MailHandler(Axon.Component.component): logfile = "greylist.log" debuglogfile = "greylist-debug.log"

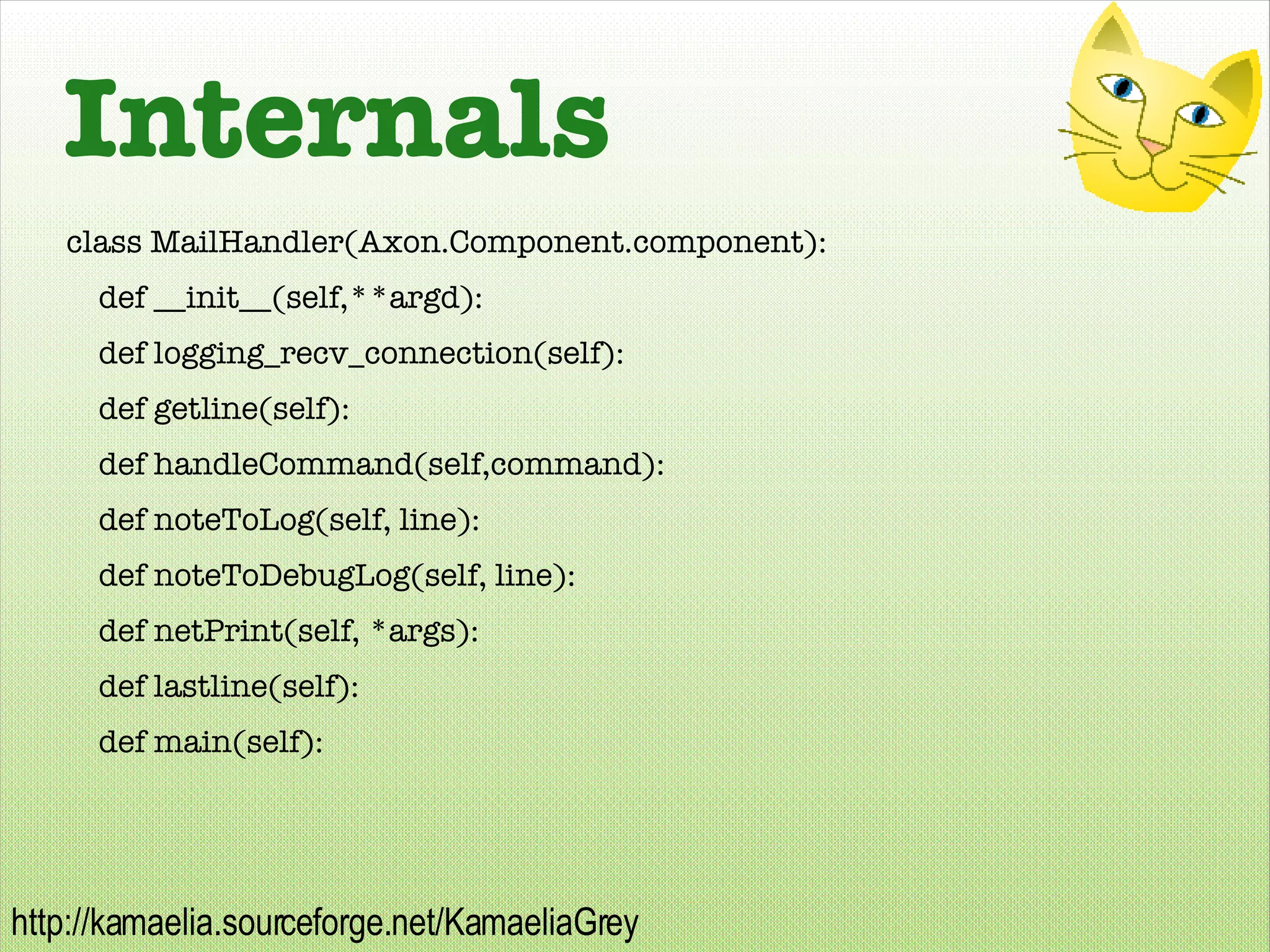

Internals class MailHandler(Axon.Component.component): def __init__(self,**argd): def logging_recv_connection(self): def getline(self): def handleCommand(self,command): def noteToLog(self, line): def noteToDebugLog(self, line): def netPrint(self, *args): def lastline(self): def main(self):

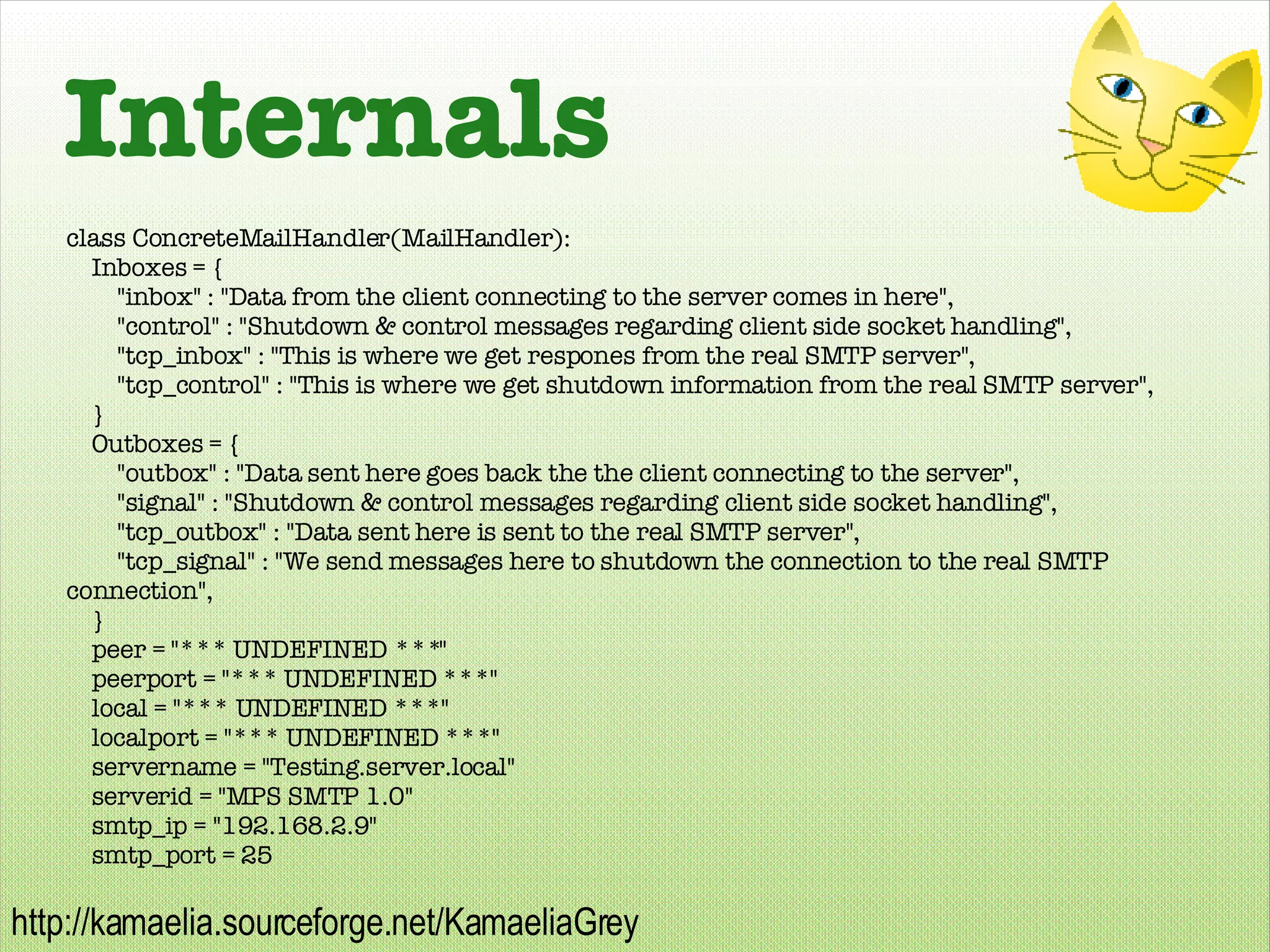

Internals class ConcreteMailHandler(MailHandler): Inboxes = { "inbox" : "Data from the client connecting to the server comes in here", "control" : "Shutdown & control messages regarding client side socket handling", "tcp_inbox" : "This is where we get respones from the real SMTP server", "tcp_control" : "This is where we get shutdown information from the real SMTP server", } Outboxes = { "outbox" : "Data sent here goes back the the client connecting to the server", "signal" : "Shutdown & control messages regarding client side socket handling", "tcp_outbox" : "Data sent here is sent to the real SMTP server", "tcp_signal" : "We send messages here to shutdown the connection to the real SMTP connection", } peer = "*** UNDEFINED ***" peerport = "*** UNDEFINED ***" local = "*** UNDEFINED ***" localport = "*** UNDEFINED ***" servername = "Testing.server.local" serverid = "MPS SMTP 1.0" smtp_ip = "192.168.2.9" smtp_port = 25

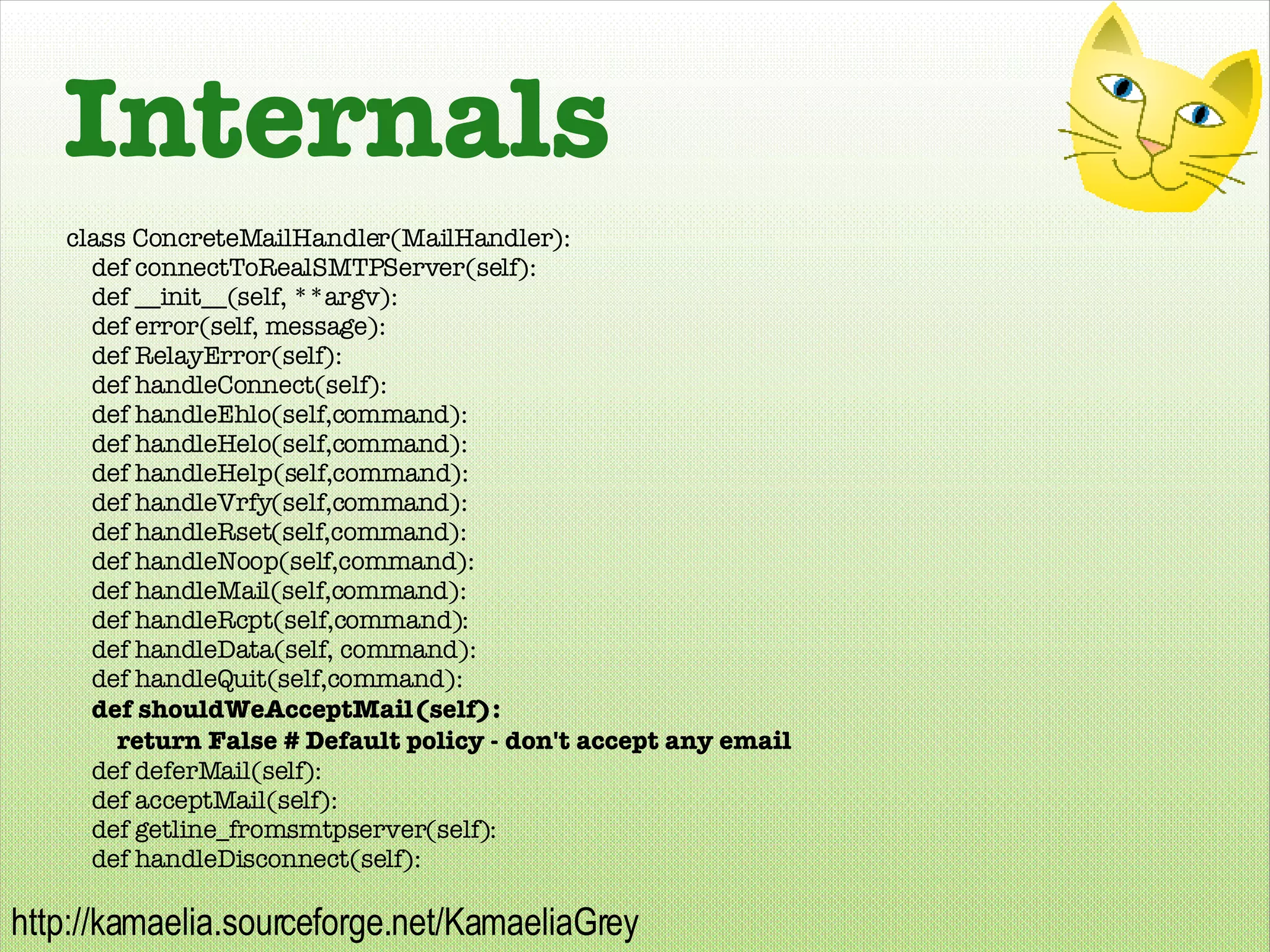

Internals class ConcreteMailHandler(MailHandler): def connectToRealSMTPServer(self): def __init__(self, **argv): def error(self, message): def RelayError(self): def handleConnect(self): def handleEhlo(self,command): def handleHelo(self,command): def handleHelp(self,command): def handleVrfy(self,command): def handleRset(self,command): def handleNoop(self,command): def handleMail(self,command): def handleRcpt(self,command): def handleData(self, command): def handleQuit(self,command): def shouldWeAcceptMail(self): return False # Default policy - don't accept any email def deferMail(self): def acceptMail(self): def getline_fromsmtpserver(self): def handleDisconnect(self):

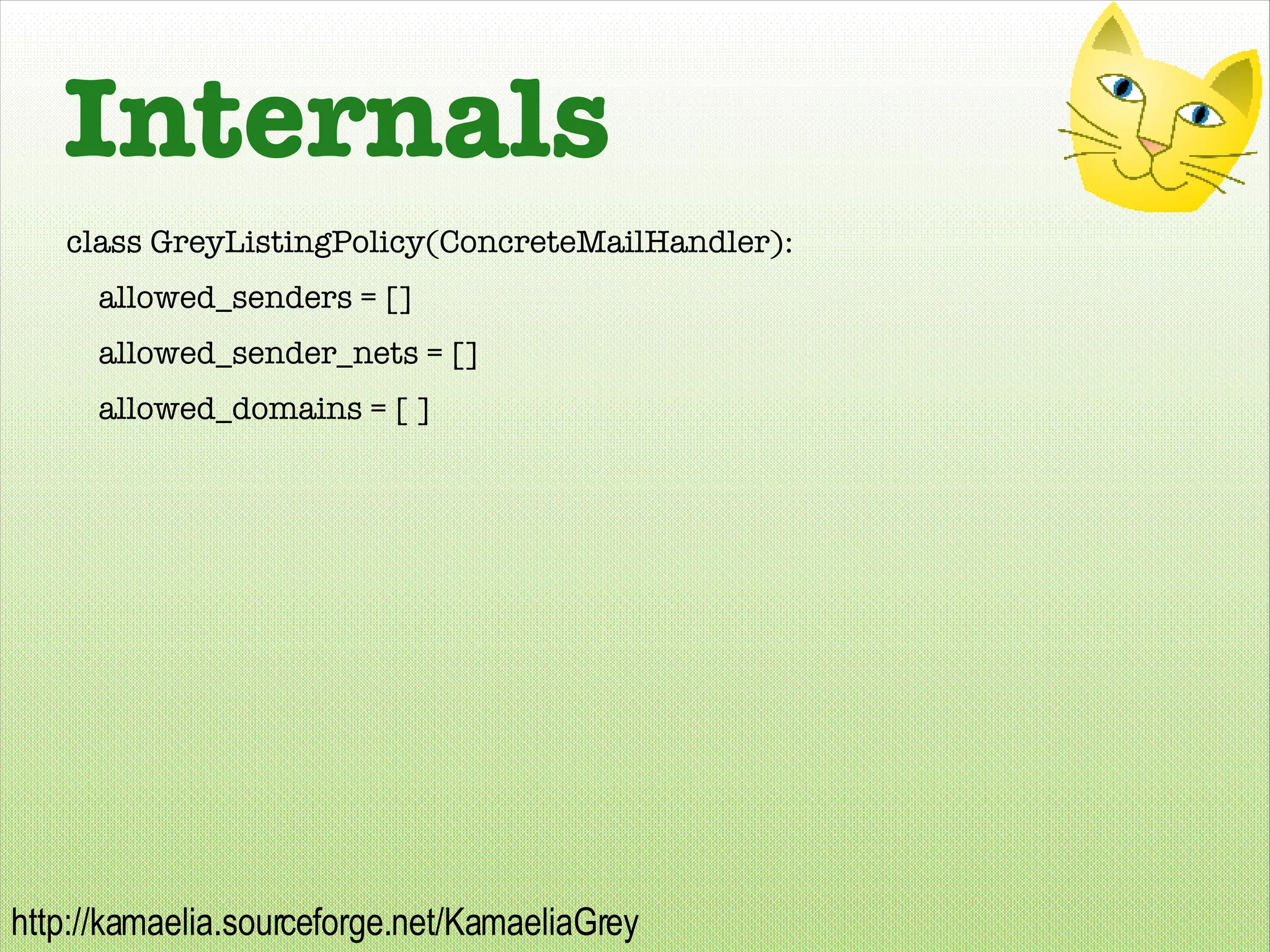

Internals class GreyListingPolicy(ConcreteMailHandler): allowed_senders = [] allowed_sender_nets = [] allowed_domains = [ ]

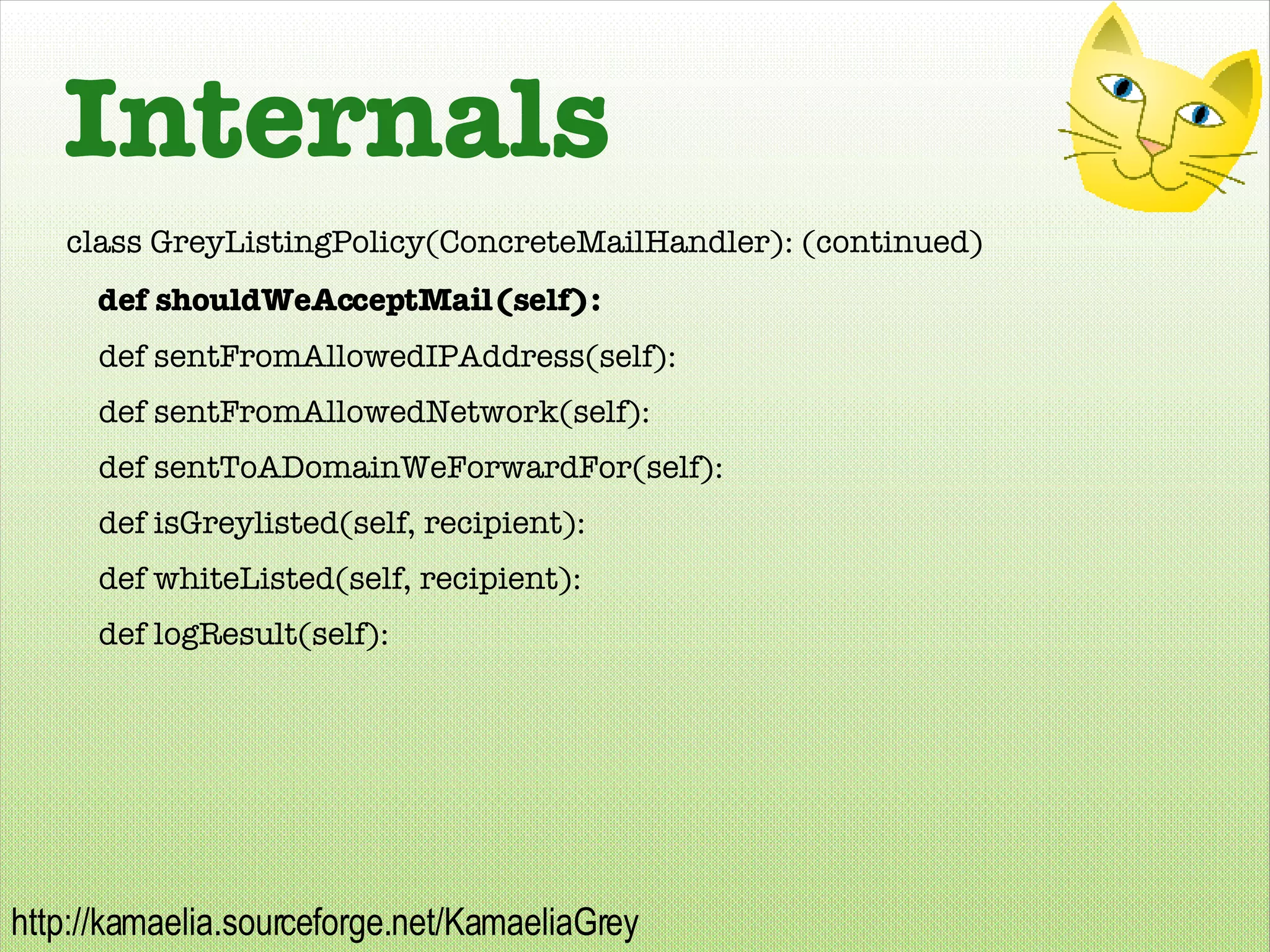

Internals class GreyListingPolicy(ConcreteMailHandler): (continued) def shouldWeAcceptMail(self): def sentFromAllowedIPAddress(self): def sentFromAllowedNetwork(self): def sentToADomainWeForwardFor(self): def isGreylisted(self, recipient): def whiteListed(self, recipient): def logResult(self):

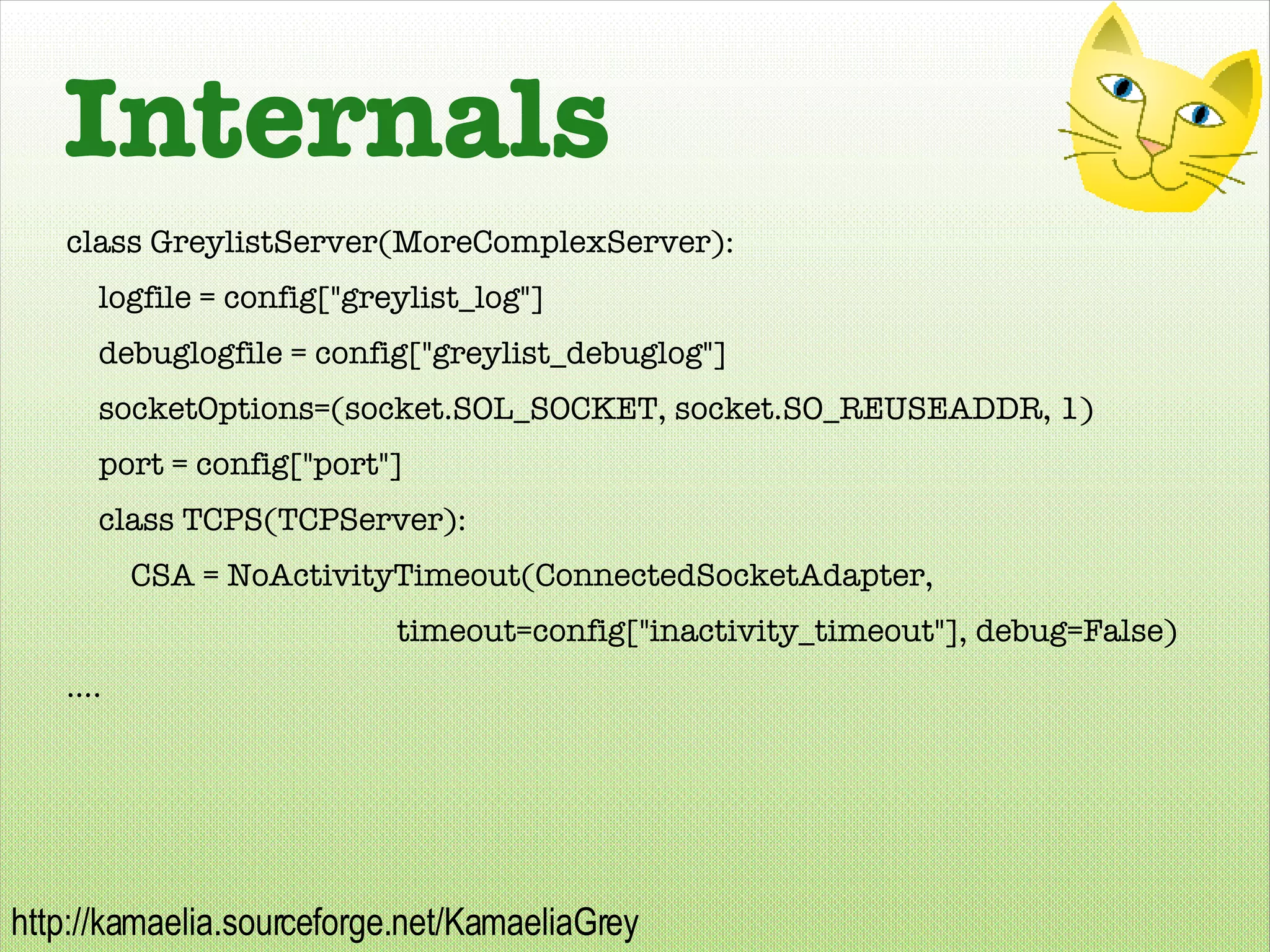

Internals class GreylistServer(MoreComplexServer): logfile = config["greylist_log"] debuglogfile = config["greylist_debuglog"] socketOptions=(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1) port = config["port"] class TCPS(TCPServer): CSA = NoActivityTimeout(ConnectedSocketAdapter, timeout=config["inactivity_timeout"], debug=False) ....

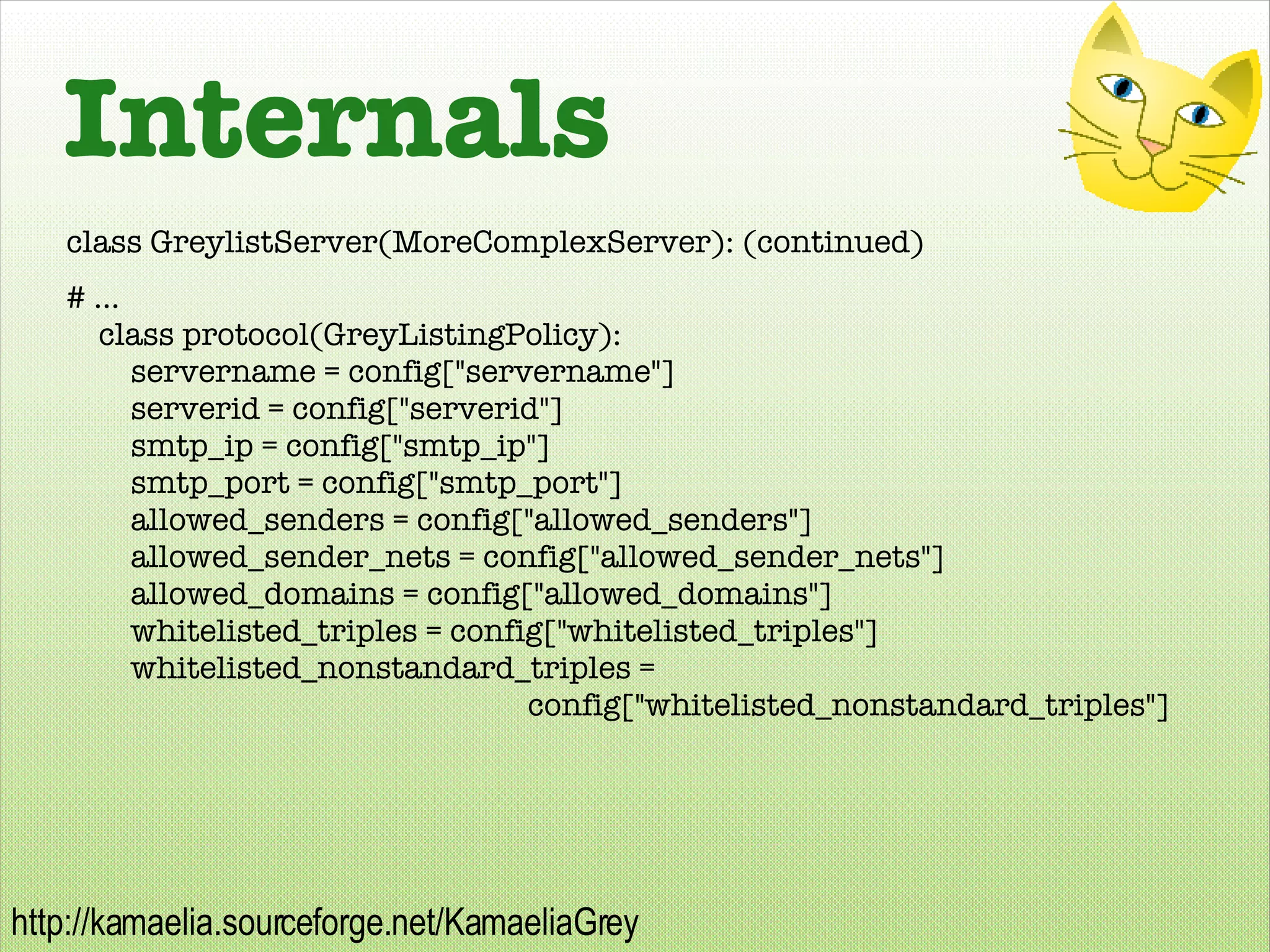

Internals class GreylistServer(MoreComplexServer): (continued) # ... class protocol(GreyListingPolicy): servername = config["servername"] serverid = config["serverid"] smtp_ip = config["smtp_ip"] smtp_port = config["smtp_port"] allowed_senders = config["allowed_senders"] allowed_sender_nets = config["allowed_sender_nets"] allowed_domains = config["allowed_domains"] whitelisted_triples = config["whitelisted_triples"] whitelisted_nonstandard_triples = config["whitelisted_nonstandard_triples"]

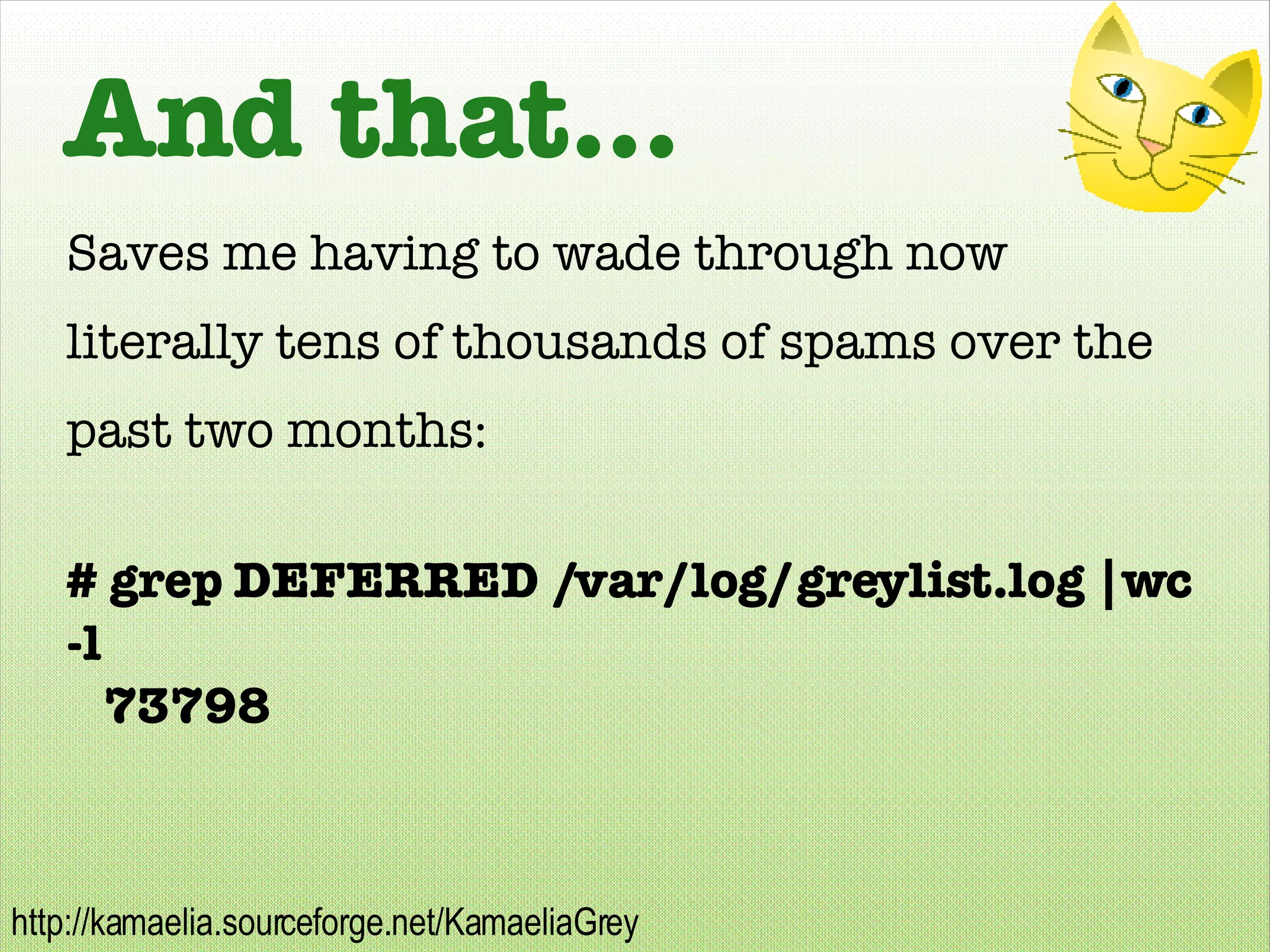

And that... Saves me having to wade through now literally tens of thousands of spams over the past two months: # grep DEFERRED /var/log/greylist.log |wc -l 73798

Time to write? 2 days start to finish including protocol Bug fixes ~1-2 days tops

Questions? Thank you :-) I hope it's useful to you :)
