1. Introduction
to
W3C Linked Data Platform (LDP)
Nandana Mihindukulasooriya,
W3C Linked Data Platform WG,
Ontology Engineering Group,
Universidad Politécnica de Madrid,
Spain.
@nandanamihindu
LDAC 2016 - June 21st, 2016 – Madrid, Spain

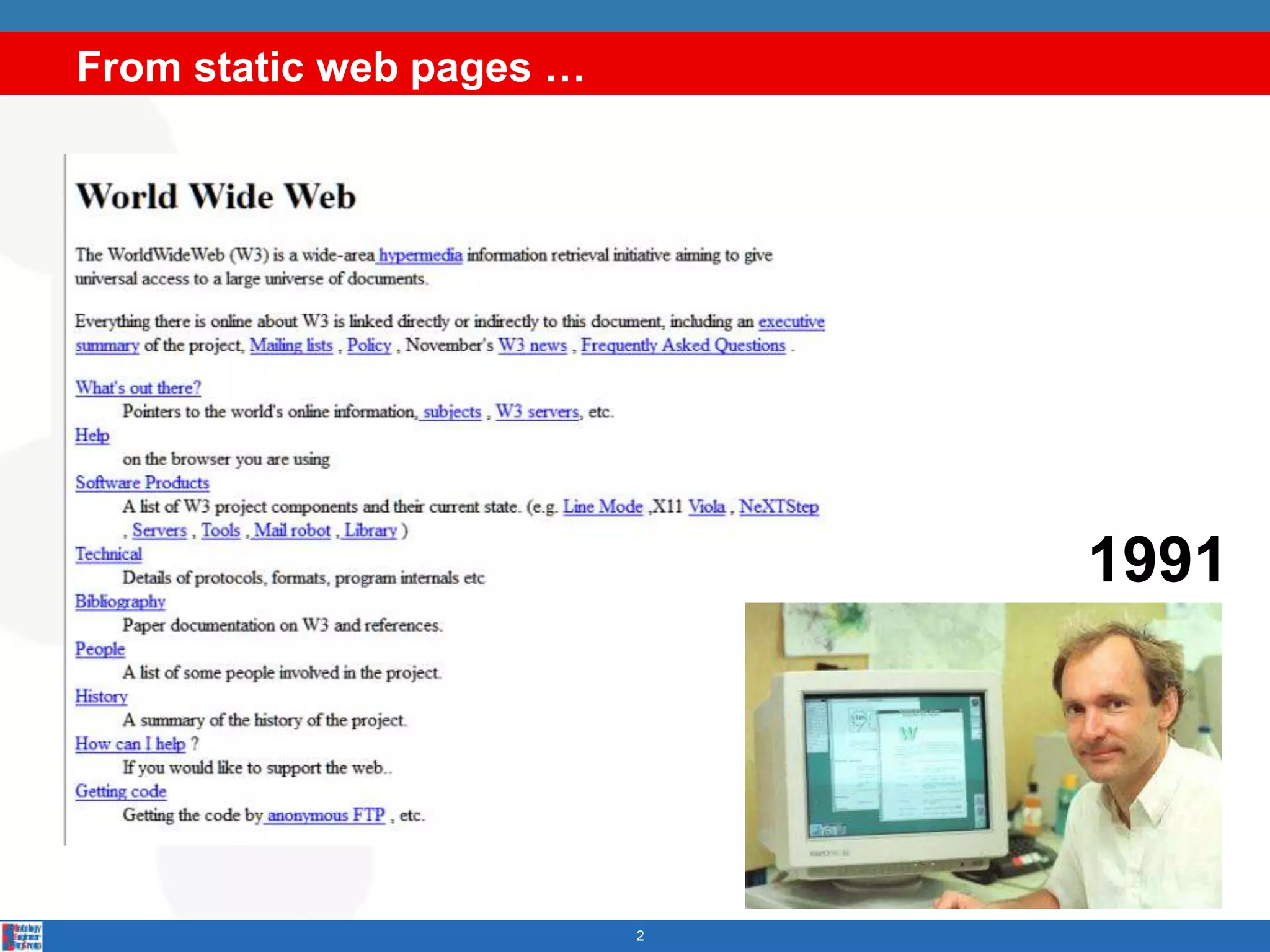

2. From static web pages …
2
1991

3. To Web 2.0, Web APIs, etc …
3
2004

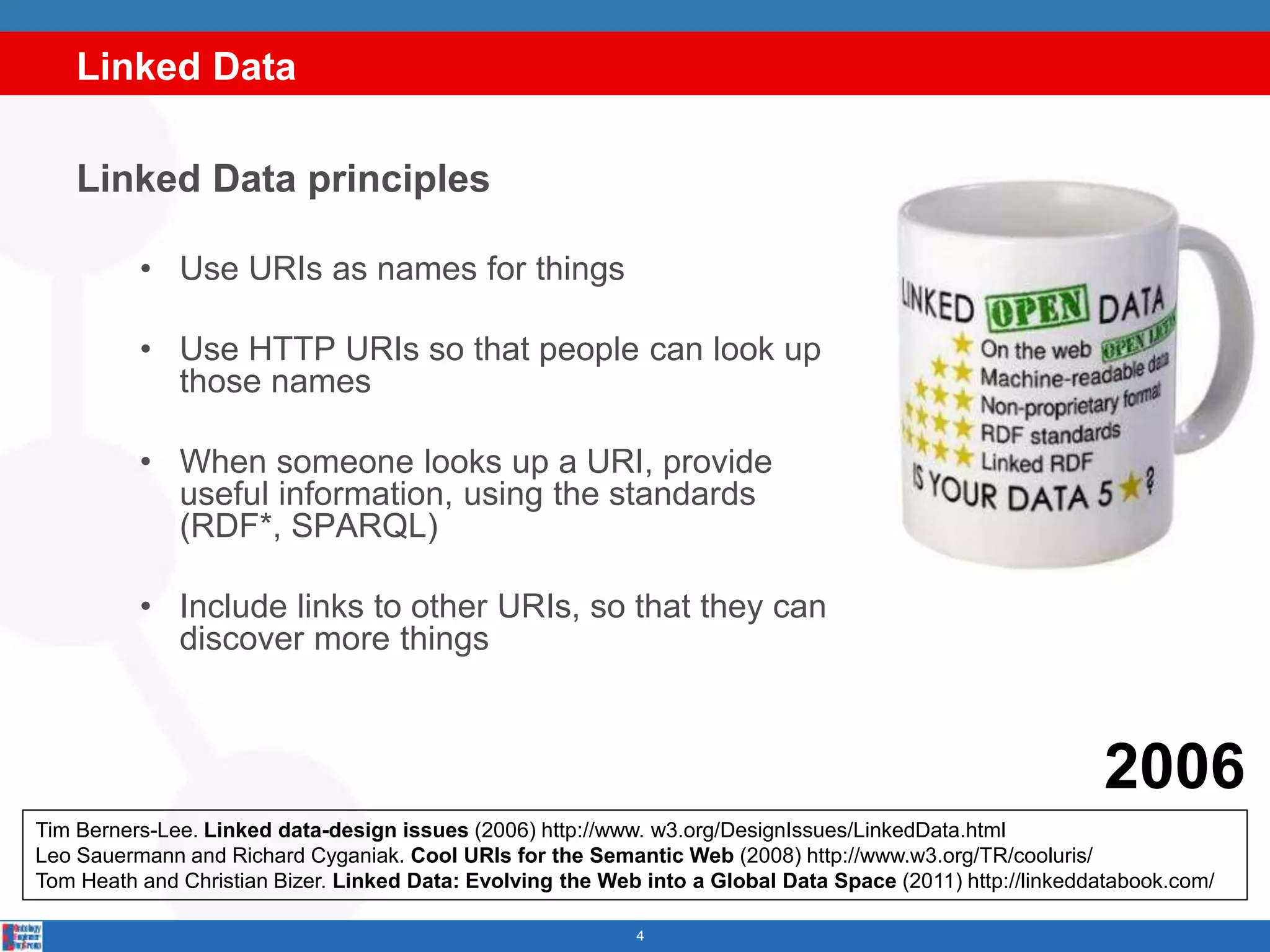

4. Linked Data
4
Linked Data principles
• Use URIs as names for things
• Use HTTP URIs so that people can look up
those names
• When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL)
• Include links to other URIs, so that they can
discover more things
Tim Berners-Lee. Linked data-design issues (2006) http://www. w3.org/DesignIssues/LinkedData.html
Leo Sauermann and Richard Cyganiak. Cool URIs for the Semantic Web (2008) http://www.w3.org/TR/cooluris/
Tom Heath and Christian Bizer. Linked Data: Evolving the Web into a Global Data Space (2011) http://linkeddatabook.com/
2006

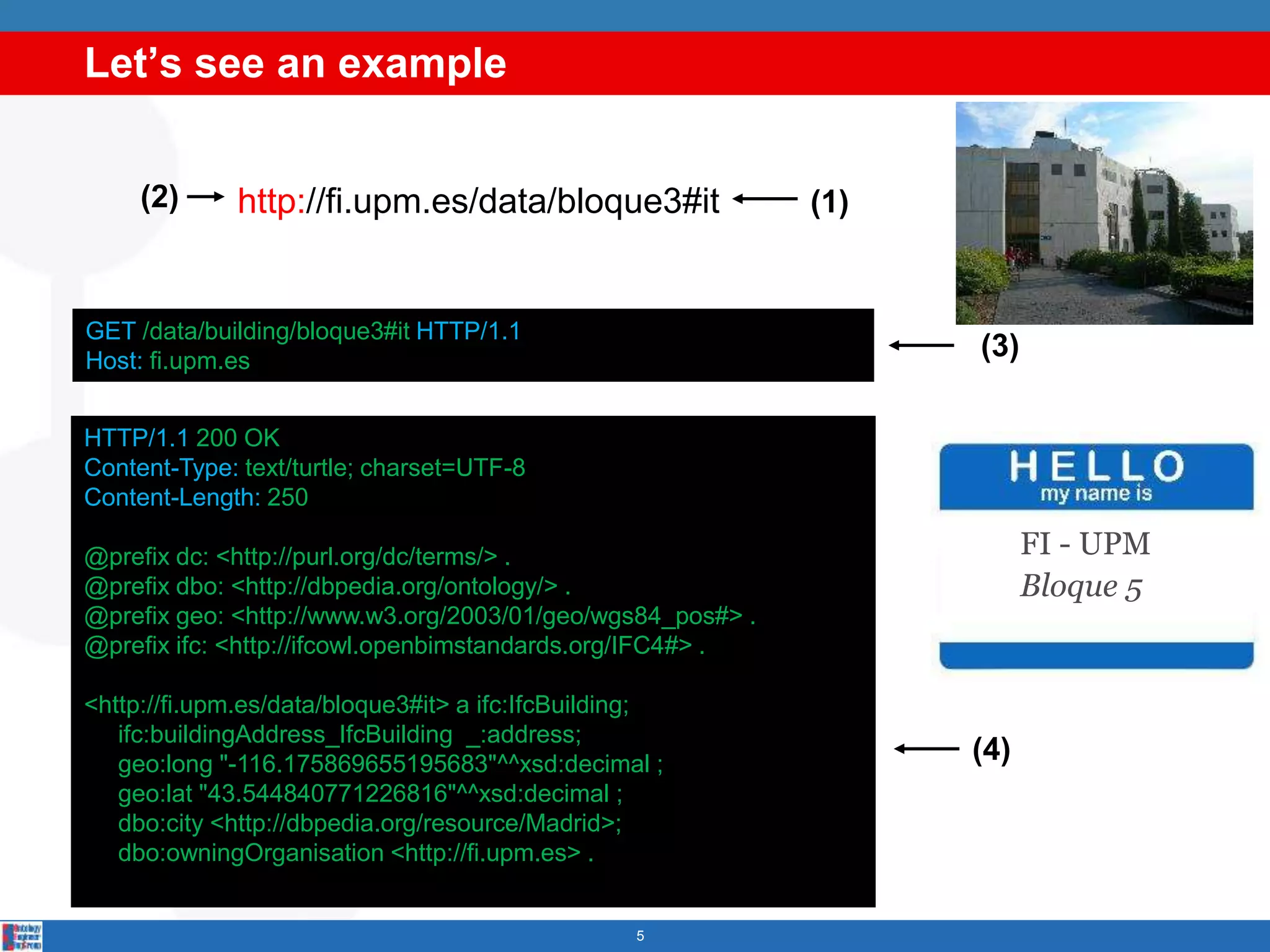

5. Let’s see an example
5
FI - UPM
Bloque 5
GET /data/building/bloque3#it HTTP/1.1
Host: fi.upm.es
HTTP/1.1 200 OK
Content-Type: text/turtle; charset=UTF-8
Content-Length: 250
@prefix dc: <http://purl.org/dc/terms/> .
@prefix dbo: <http://dbpedia.org/ontology/> .
@prefix geo: <http://www.w3.org/2003/01/geo/wgs84_pos#> .
@prefix ifc: <http://ifcowl.openbimstandards.org/IFC4#> .
<http://fi.upm.es/data/bloque3#it> a ifc:IfcBuilding;
ifc:buildingAddress_IfcBuilding _:address;
geo:long "-116.175869655195683"^^xsd:decimal ;
geo:lat "43.544840771226816"^^xsd:decimal ;
dbo:city <http://dbpedia.org/resource/Madrid>;
dbo:owningOrganisation <http://fi.upm.es> .
(1)
(3)
(4)
(2) http://fi.upm.es/data/bloque3#it

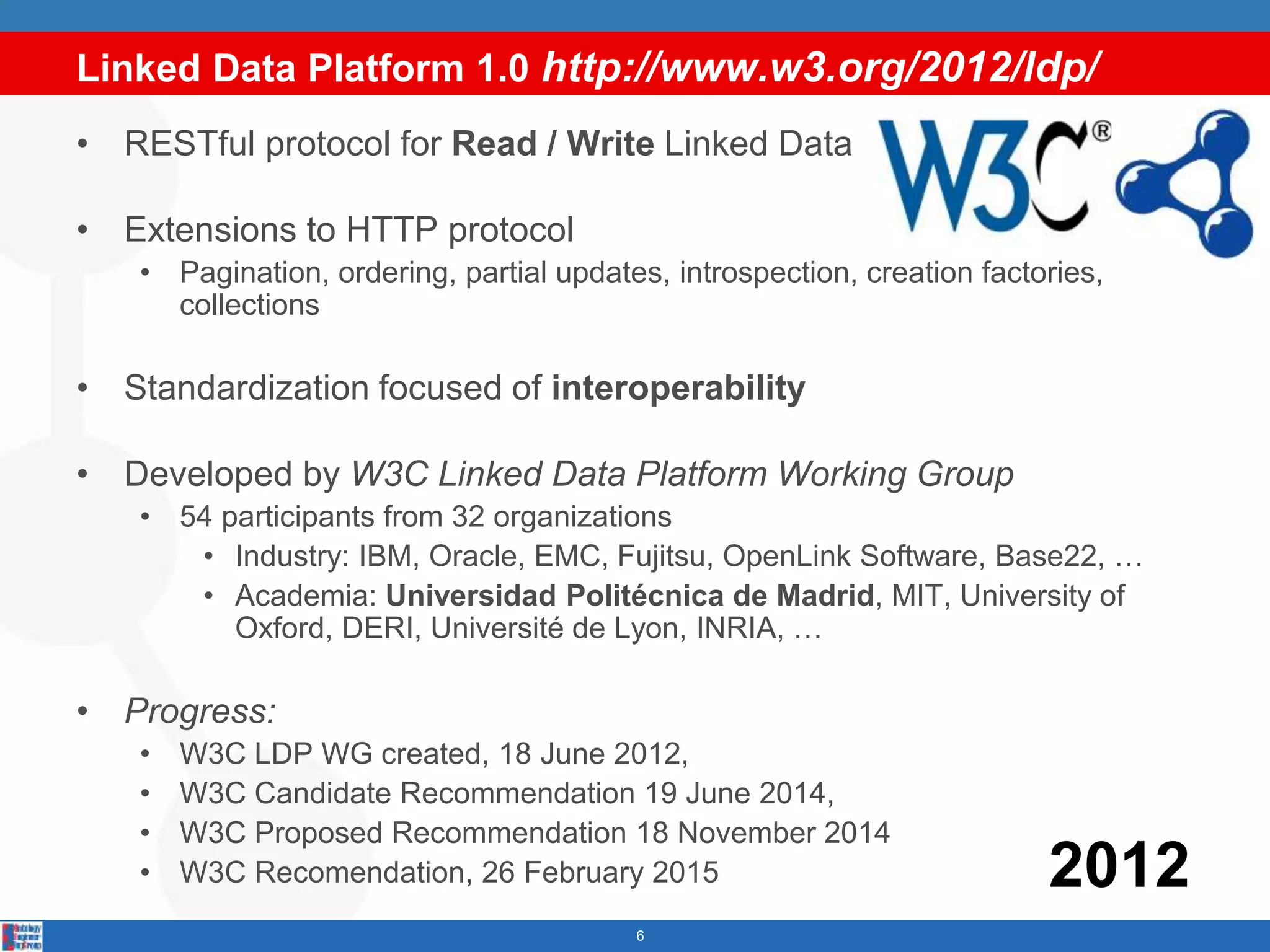

6. Linked Data Platform 1.0 http://www.w3.org/2012/ldp/
6
• RESTful protocol for Read / Write Linked Data
• Extensions to HTTP protocol
• Pagination, ordering, partial updates, introspection, creation factories,
collections
• Standardization focused of interoperability
• Developed by W3C Linked Data Platform Working Group
• 54 participants from 32 organizations
• Industry: IBM, Oracle, EMC, Fujitsu, OpenLink Software, Base22, …
• Academia: Universidad Politécnica de Madrid, MIT, University of
Oxford, DERI, Université de Lyon, INRIA, …
• Progress:
• W3C LDP WG created, 18 June 2012,
• W3C Candidate Recommendation 19 June 2014,
• W3C Proposed Recommendation 18 November 2014
• W3C Recomendation, 26 February 2015 2012

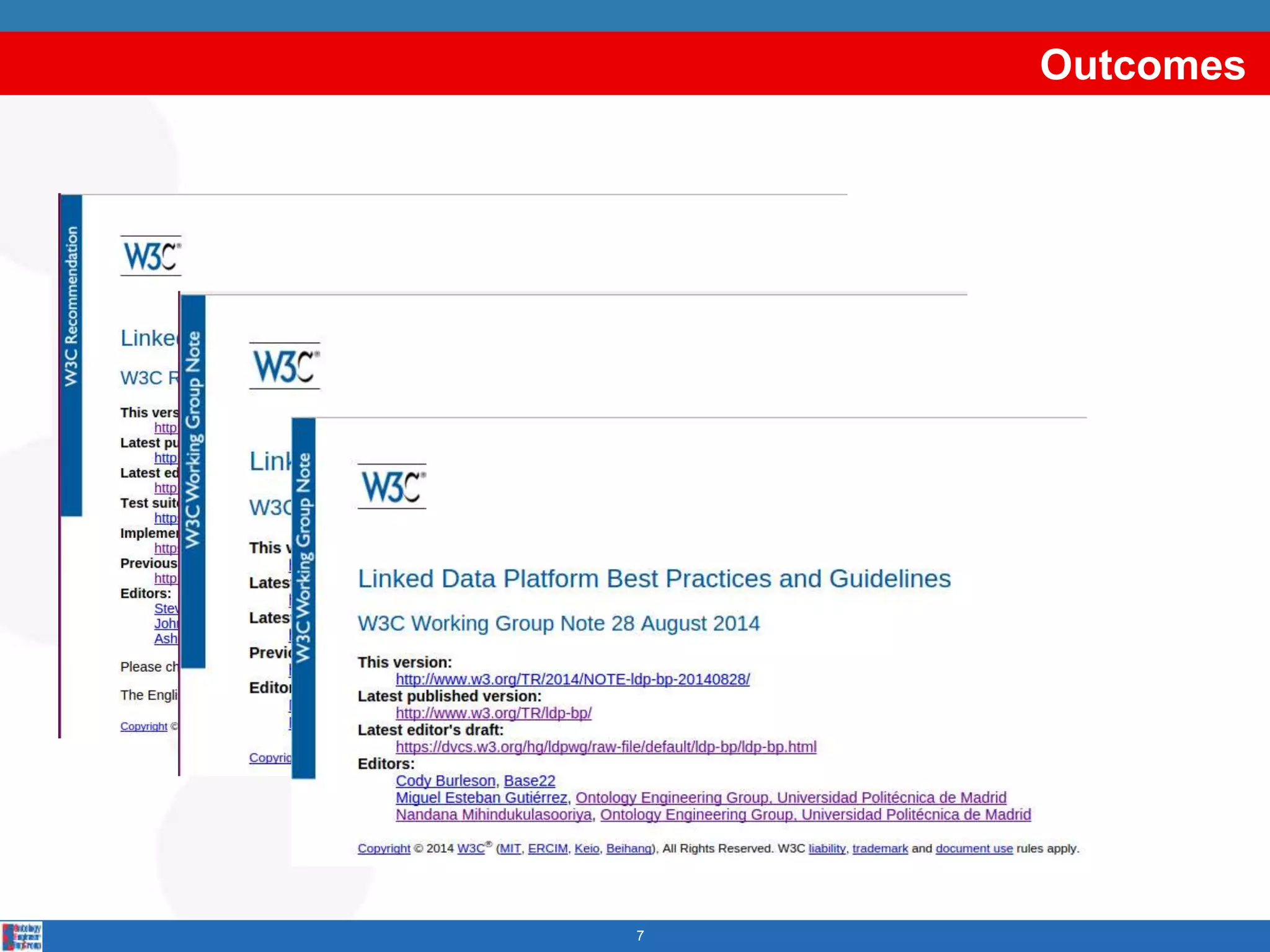

7. Outcomes
7

8. LDP Implementations
8
• 22 implementations
• https://www.w3.org/wiki/LDP_Implementations
• https://www.w3.org/2012/ldp/hg/tests/reports/ldp.html

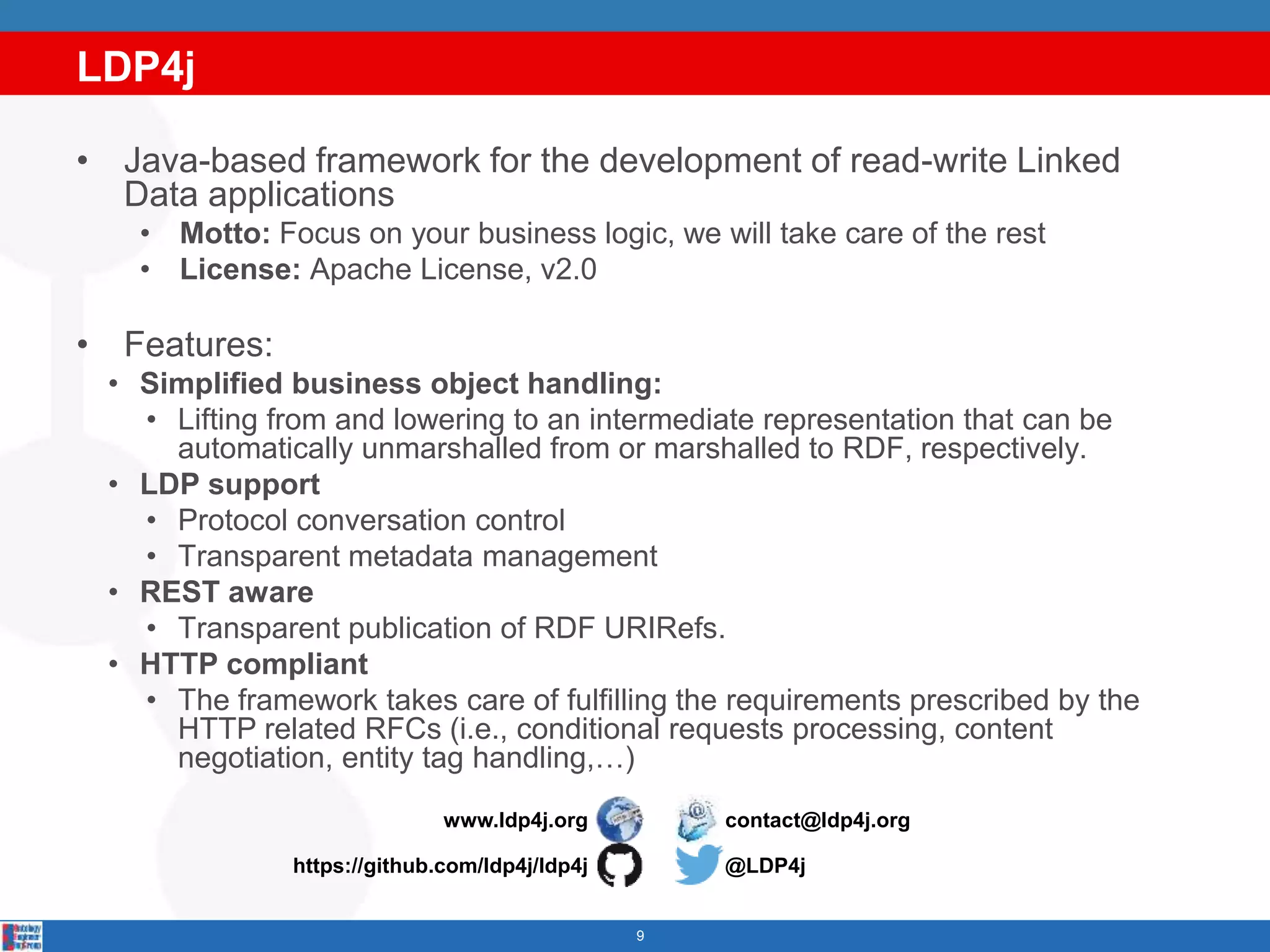

9. LDP4j
9
• Java-based framework for the development of read-write Linked
Data applications
• Motto: Focus on your business logic, we will take care of the rest
• License: Apache License, v2.0
• Features:
• Simplified business object handling:
• Lifting from and lowering to an intermediate representation that can be
automatically unmarshalled from or marshalled to RDF, respectively.
• LDP support
• Protocol conversation control
• Transparent metadata management
• REST aware
• Transparent publication of RDF URIRefs.
• HTTP compliant
• The framework takes care of fulfilling the requirements prescribed by the
HTTP related RFCs (i.e., conditional requests processing, content
negotiation, entity tag handling,…)
www.ldp4j.org
https://github.com/ldp4j/ldp4j @LDP4j
contact@ldp4j.org

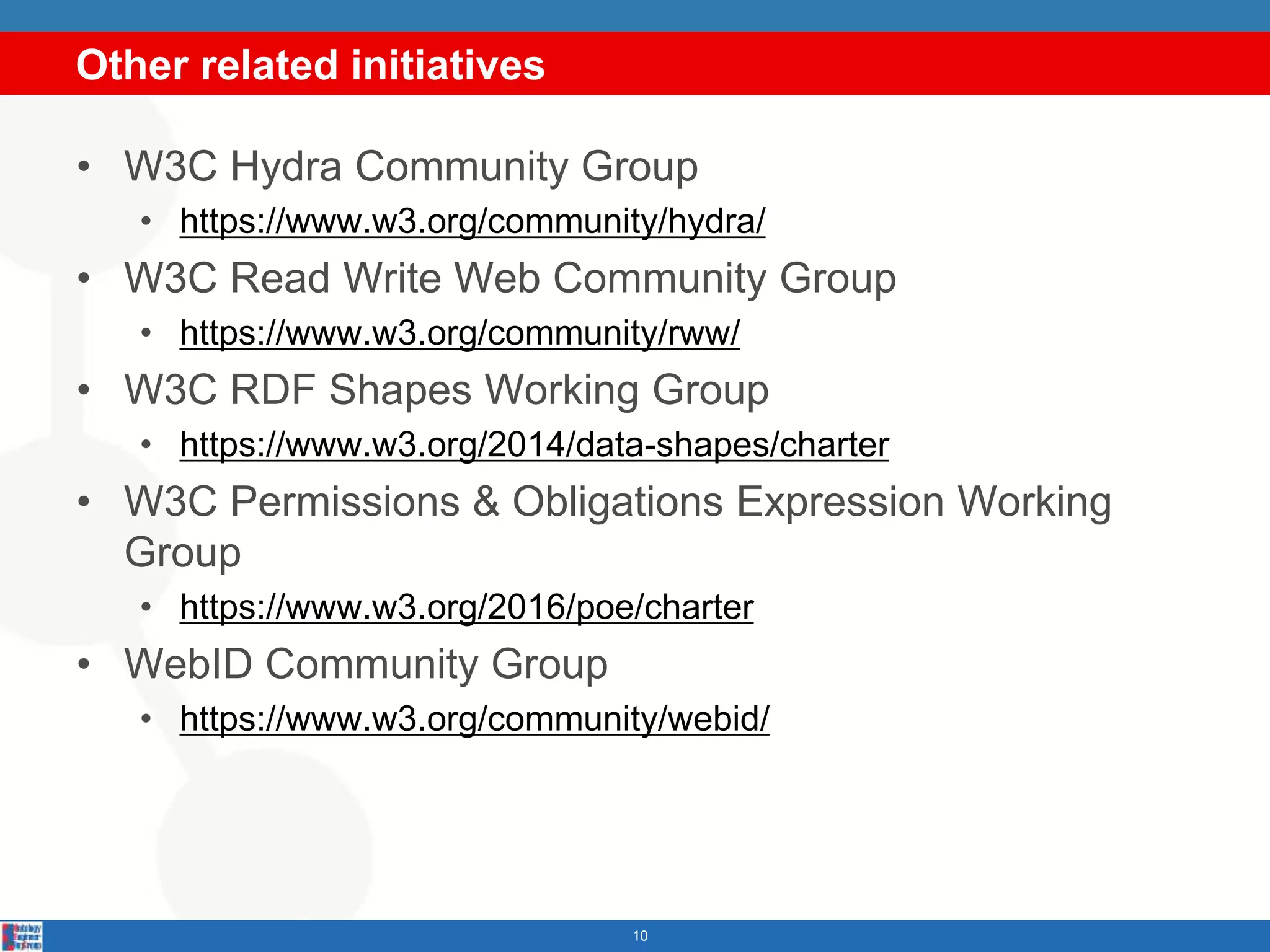

10. Other related initiatives
10
• W3C Hydra Community Group
• https://www.w3.org/community/hydra/
• W3C Read Write Web Community Group
• https://www.w3.org/community/rww/
• W3C RDF Shapes Working Group
• https://www.w3.org/2014/data-shapes/charter
• W3C Permissions & Obligations Expression Working
Group
• https://www.w3.org/2016/poe/charter
• WebID Community Group
• https://www.w3.org/community/webid/

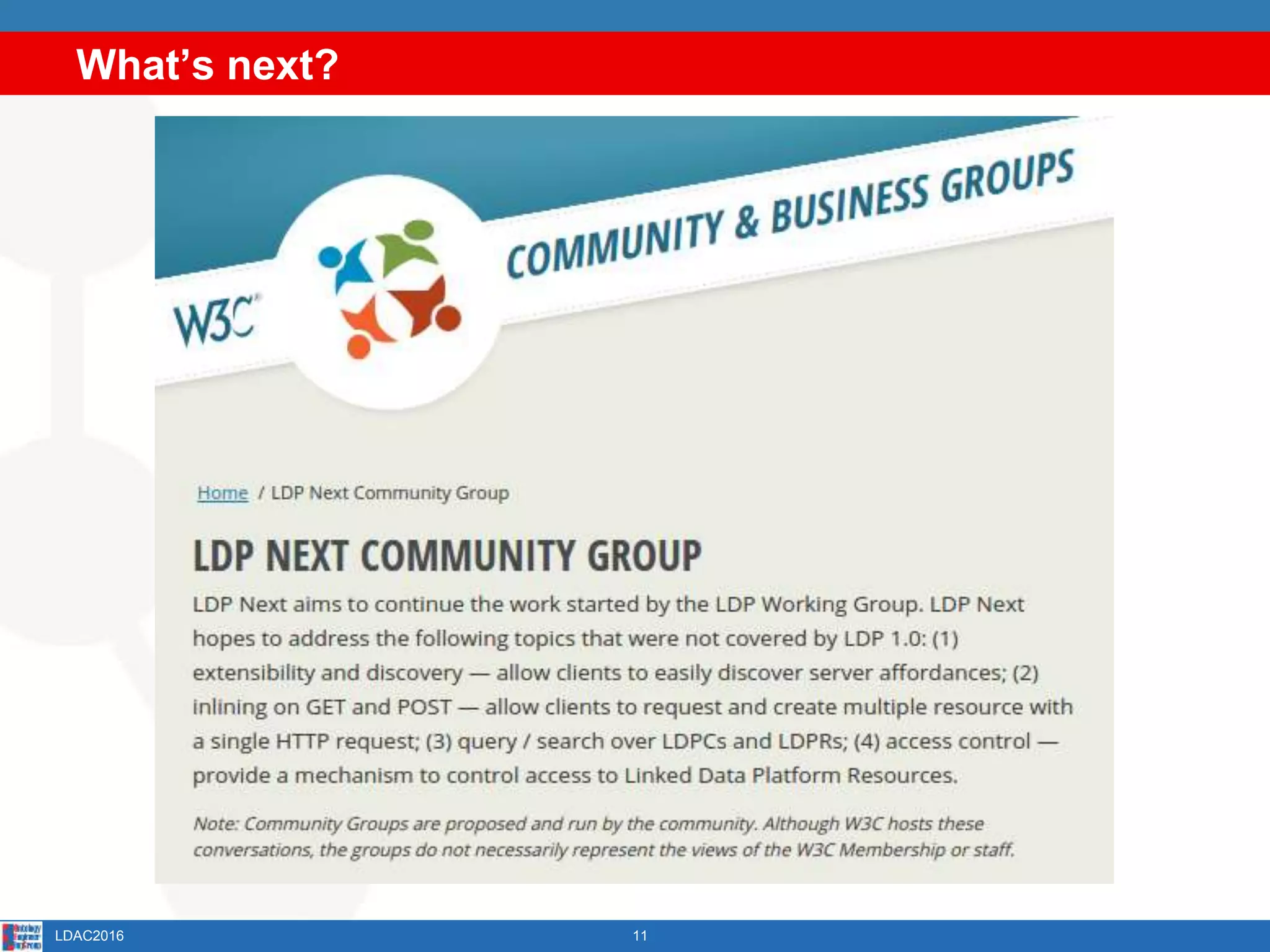

11. What’s next?
LDAC2016 11

12. LDP IN USE
LDP high-level overview
12

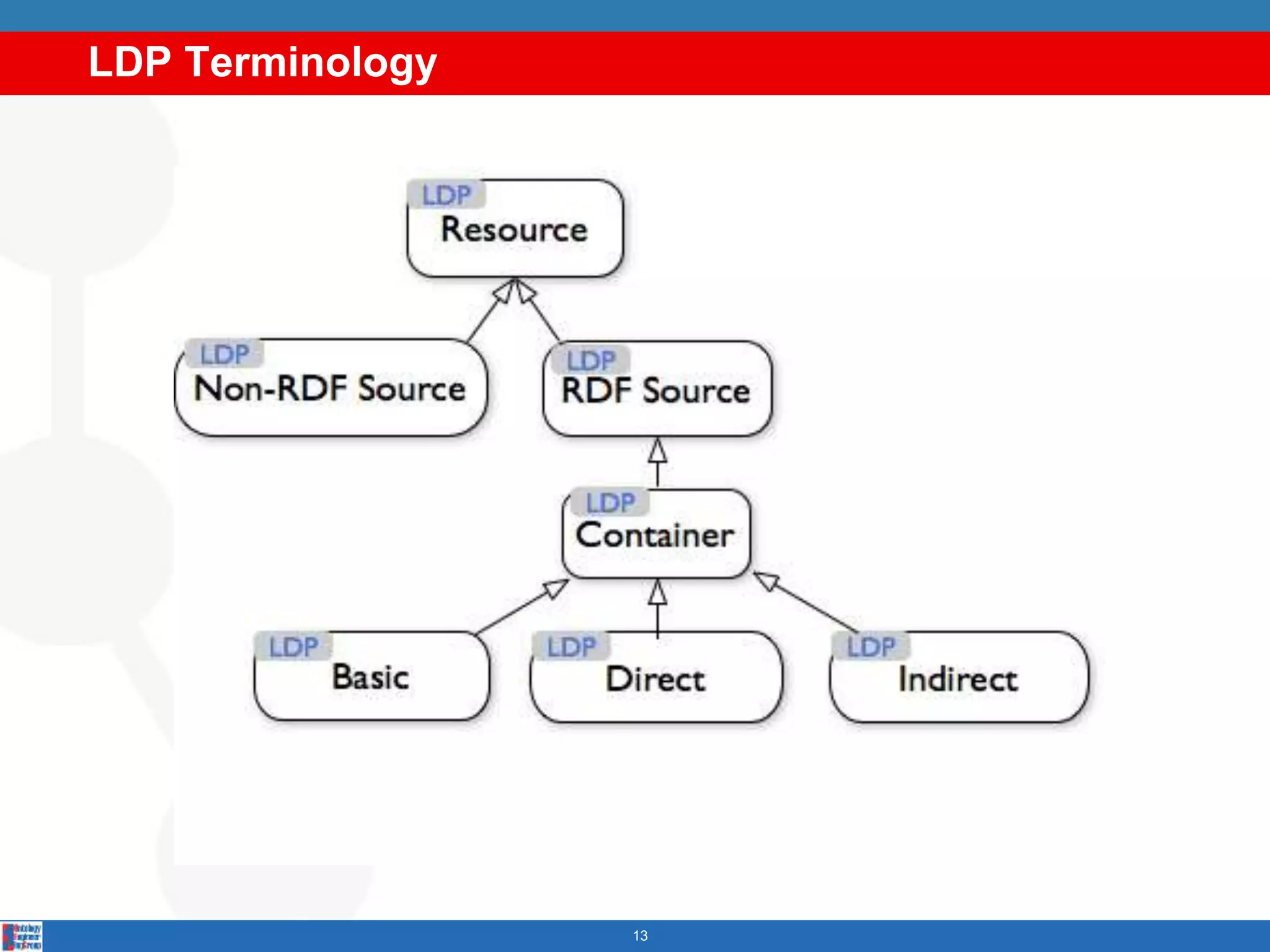

13. LDP Terminology
13

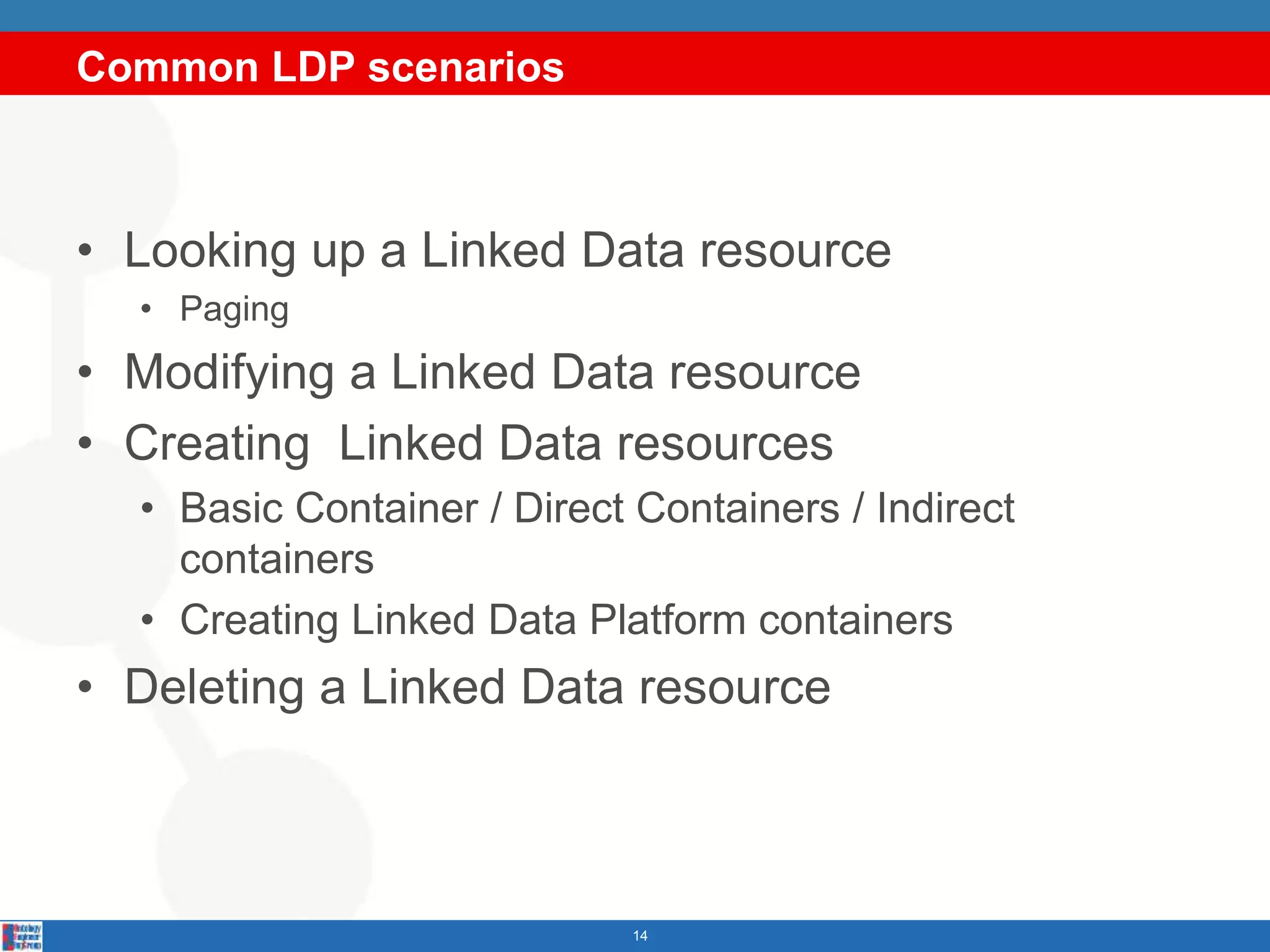

14. Common LDP scenarios
14
• Looking up a Linked Data resource
• Paging
• Modifying a Linked Data resource
• Creating Linked Data resources
• Basic Container / Direct Containers / Indirect
containers
• Creating Linked Data Platform containers
• Deleting a Linked Data resource

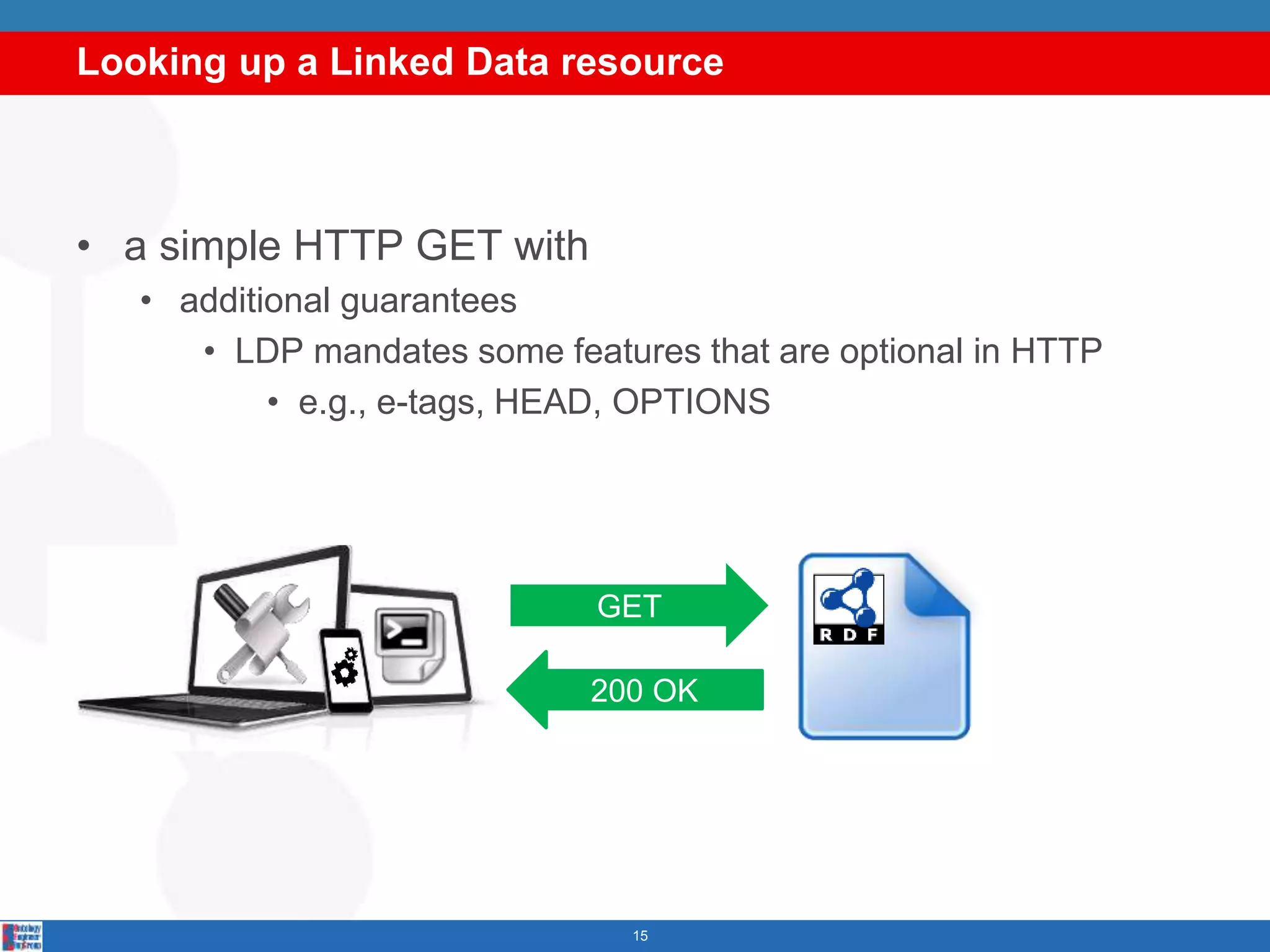

15. Looking up a Linked Data resource
15
• a simple HTTP GET with
• additional guarantees
• LDP mandates some features that are optional in HTTP
• e.g., e-tags, HEAD, OPTIONS
GET
200 OK
GET

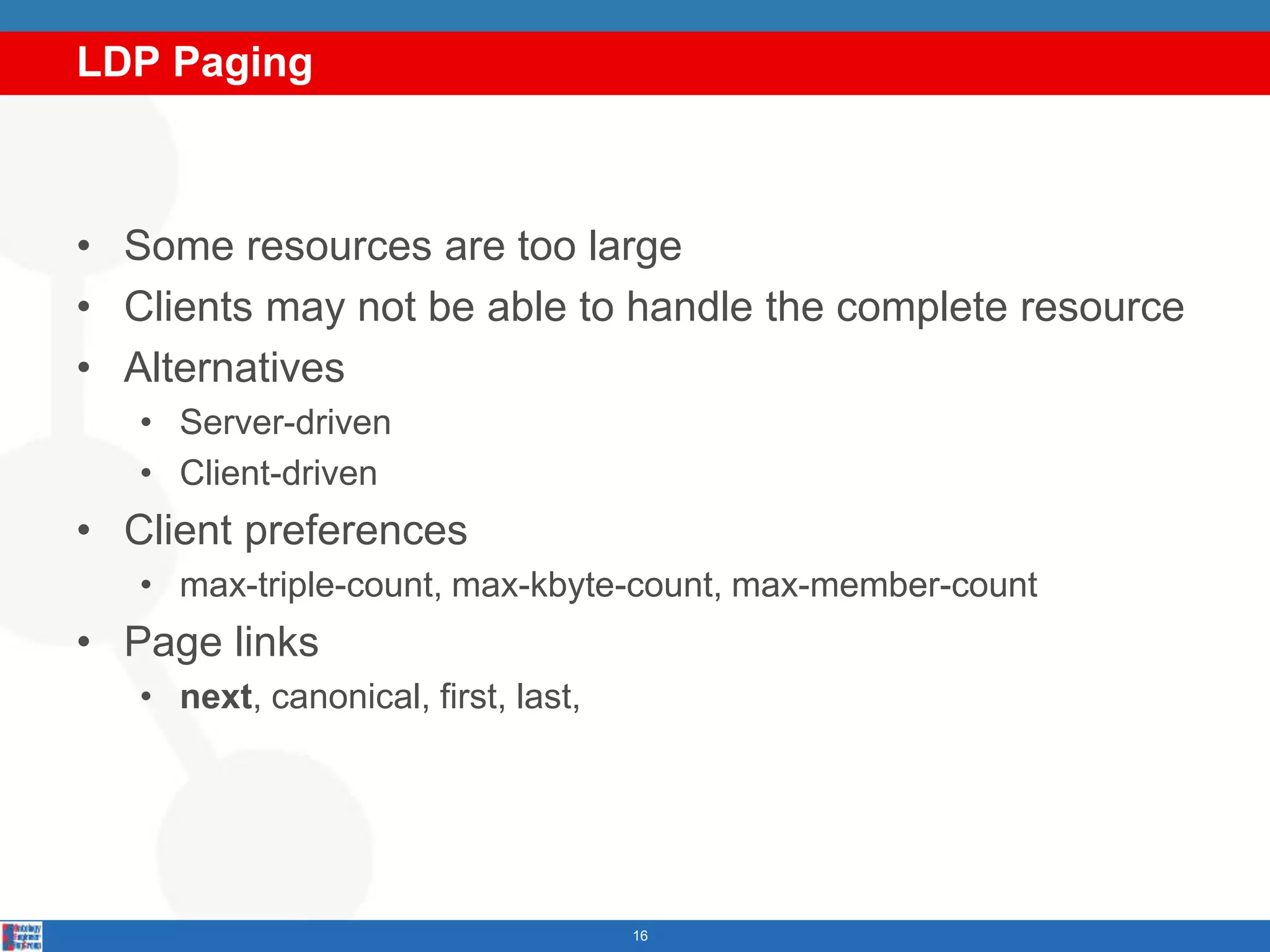

16. LDP Paging
16
• Some resources are too large
• Clients may not be able to handle the complete resource
• Alternatives
• Server-driven
• Client-driven
• Client preferences
• max-triple-count, max-kbyte-count, max-member-count
• Page links
• next, canonical, first, last,

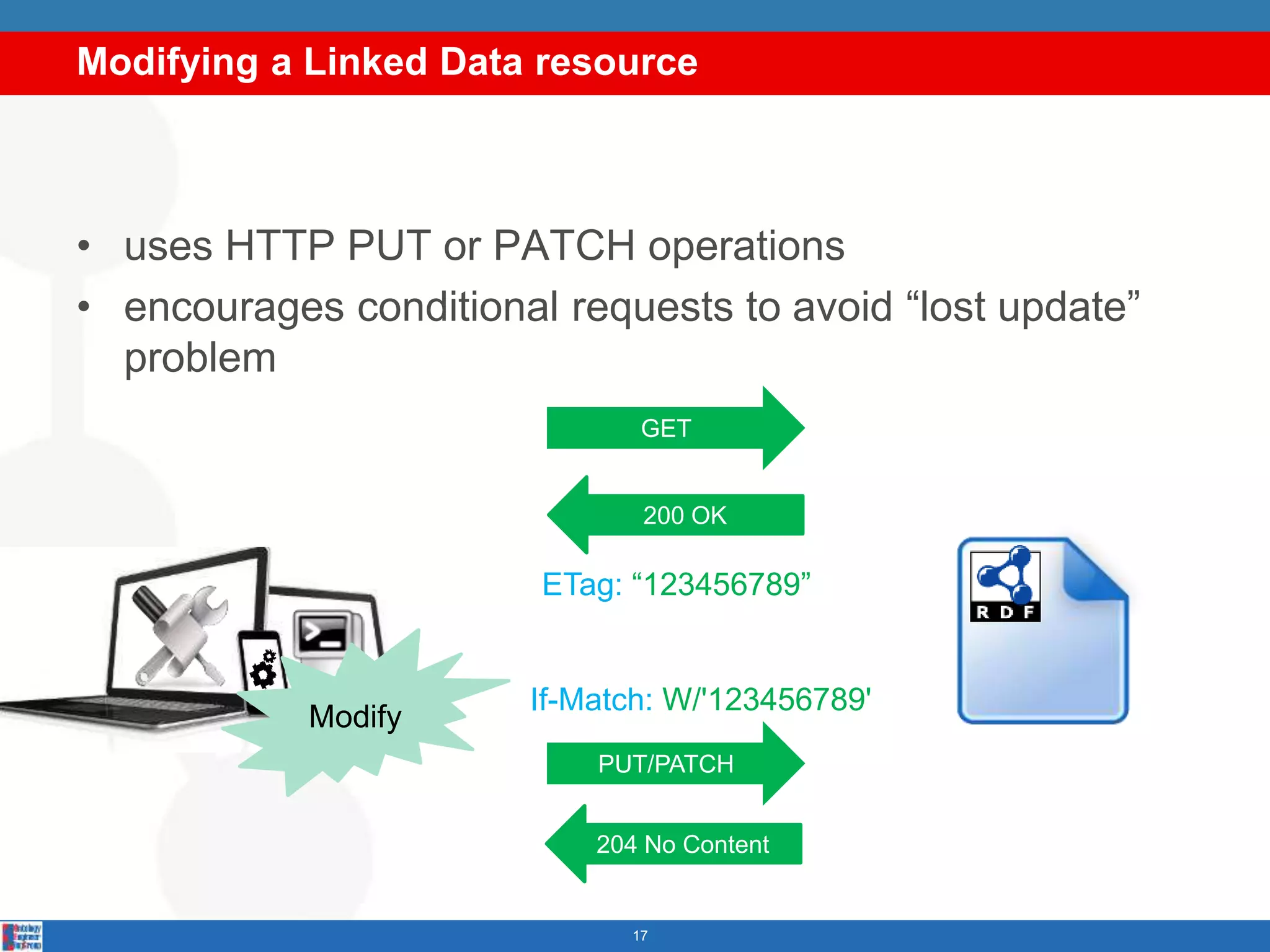

17. Modifying a Linked Data resource
17
200 OK
PUT/PATCH
ETag: “123456789”
If-Match: W/'123456789'
GET
204 No Content
GET
Modify
• uses HTTP PUT or PATCH operations
• encourages conditional requests to avoid “lost update”
problem

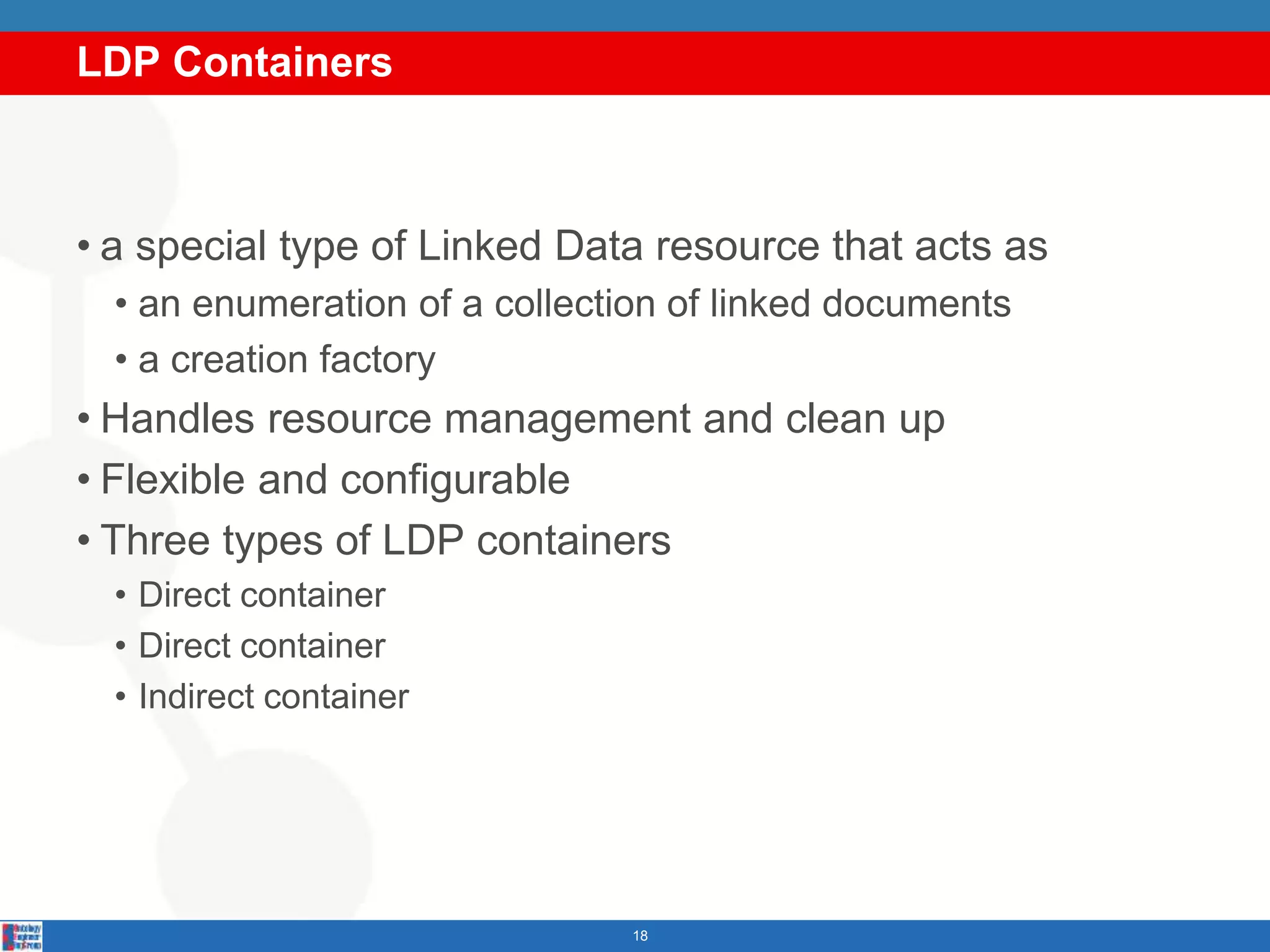

18. LDP Containers
18
• a special type of Linked Data resource that acts as
• an enumeration of a collection of linked documents
• a creation factory
• Handles resource management and clean up
• Flexible and configurable
• Three types of LDP containers
• Direct container
• Direct container
• Indirect container

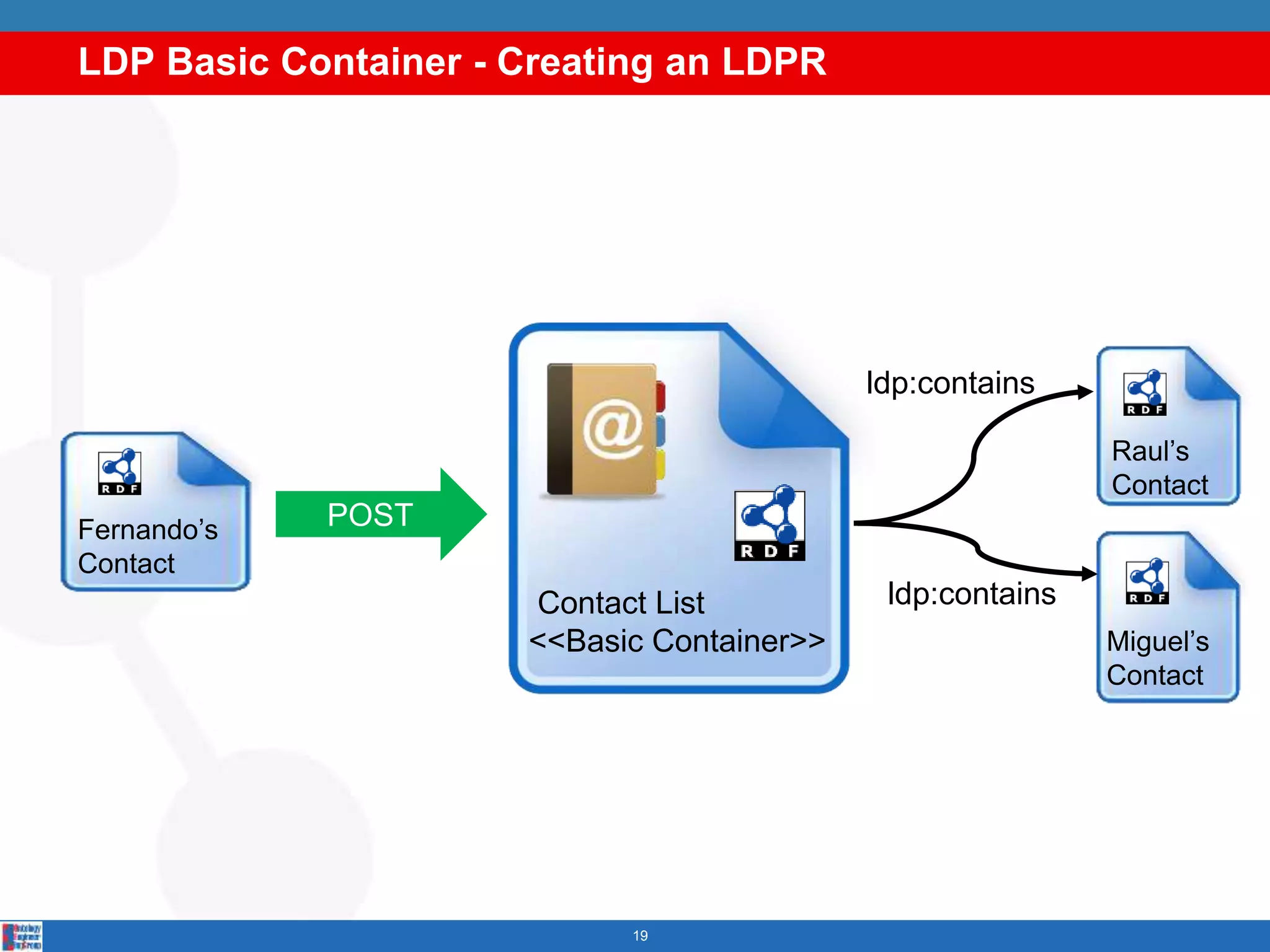

19. LDP Basic Container - Creating an LDPR
19
Contact List
<<Basic Container>>
Raul’s
Contact
Miguel’s
Contact
ldp:contains
ldp:contains
Fernando’s
Contact
POST

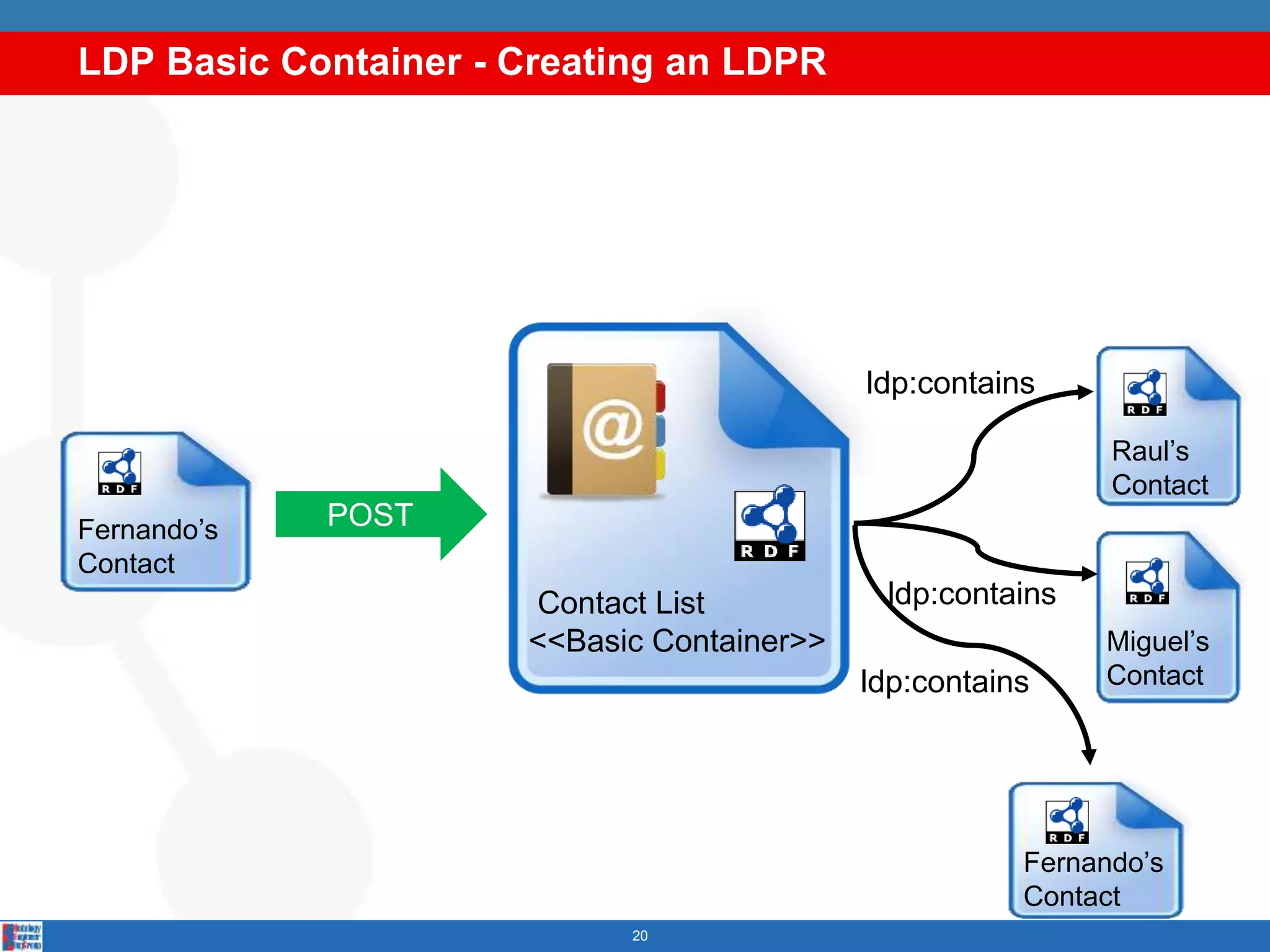

20. LDP Basic Container - Creating an LDPR
20
Raul’s
Contact
Miguel’s
Contact
ldp:contains
ldp:contains
Fernando’s
Contact
POST
Fernando’s
Contact
ldp:contains
Contact List
<<Basic Container>>

21. LDP IN USE
LDP4j in practice
21

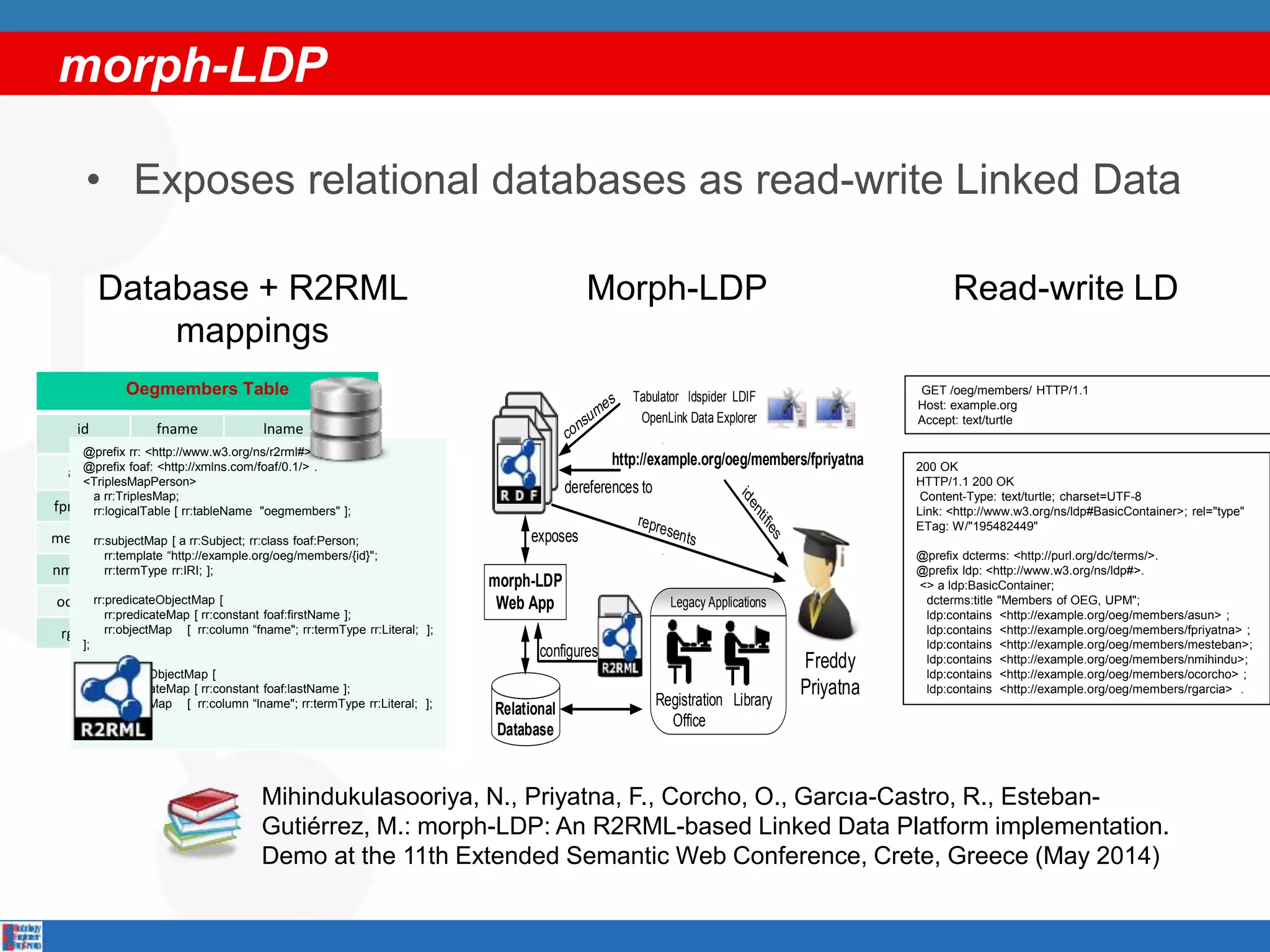

22. morph-LDP
22
• Exposes relational databases as read-write Linked Data
Oegmembers Table
id fname lname
asun Asunción Gómez Pérez
fpriyatna Freddy Priyatna
mesteban Miguel Estebam
nmihindu Nandana Mihindukulas
ocorcho Oscar Corcho
rgarcia Raul Garcia Castro
@prefix rr: <http://www.w3.org/ns/r2rml#> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
<TriplesMapPerson>
a rr:TriplesMap;
rr:logicalTable [ rr:tableName "oegmembers" ];
rr:subjectMap [ a rr:Subject; rr:class foaf:Person;
rr:template “http://example.org/oeg/members/{id}";
rr:termType rr:IRI; ];
rr:predicateObjectMap [
rr:predicateMap [ rr:constant foaf:firstName ];
rr:objectMap [ rr:column “fname"; rr:termType rr:Literal; ];
];
rr:predicateObjectMap [
rr:predicateMap [ rr:constant foaf:lastName ];
rr:objectMap [ rr:column “lname"; rr:termType rr:Literal; ];
];
…
http://example.org/oeg/members/fpriyatna
Registration
Office
morph-LDP
Web App
Relational
Database
Library
Legacy Applications
configures
exposes
Tabulator
OpenLink Data Explorer
ldspider LDIF
Freddy
Priyatna
dereferences to
GET /oeg/members/ HTTP/1.1
Host: example.org
Accept: text/turtle
200 OK
HTTP/1.1 200 OK
Content-Type: text/turtle; charset=UTF-8
Link: <http://www.w3.org/ns/ldp#BasicContainer>; rel="type"
ETag: W/"195482449"
@prefix dcterms: <http://purl.org/dc/terms/>.
@prefix ldp: <http://www.w3.org/ns/ldp#>.
<> a ldp:BasicContainer;
dcterms:title "Members of OEG, UPM";
ldp:contains <http://example.org/oeg/members/asun> ;
ldp:contains <http://example.org/oeg/members/fpriyatna> ;
ldp:contains <http://example.org/oeg/members/mesteban>;
ldp:contains <http://example.org/oeg/members/nmihindu>;
ldp:contains <http://example.org/oeg/members/ocorcho> ;
ldp:contains <http://example.org/oeg/members/rgarcia> .
Read-write LDMorph-LDPDatabase + R2RML
mappings
Mihindukulasooriya, N., Priyatna, F., Corcho, O., Garcıa-Castro, R., Esteban-
Gutiérrez, M.: morph-LDP: An R2RML-based Linked Data Platform implementation.
Demo at the 11th Extended Semantic Web Conference, Crete, Greece (May 2014)

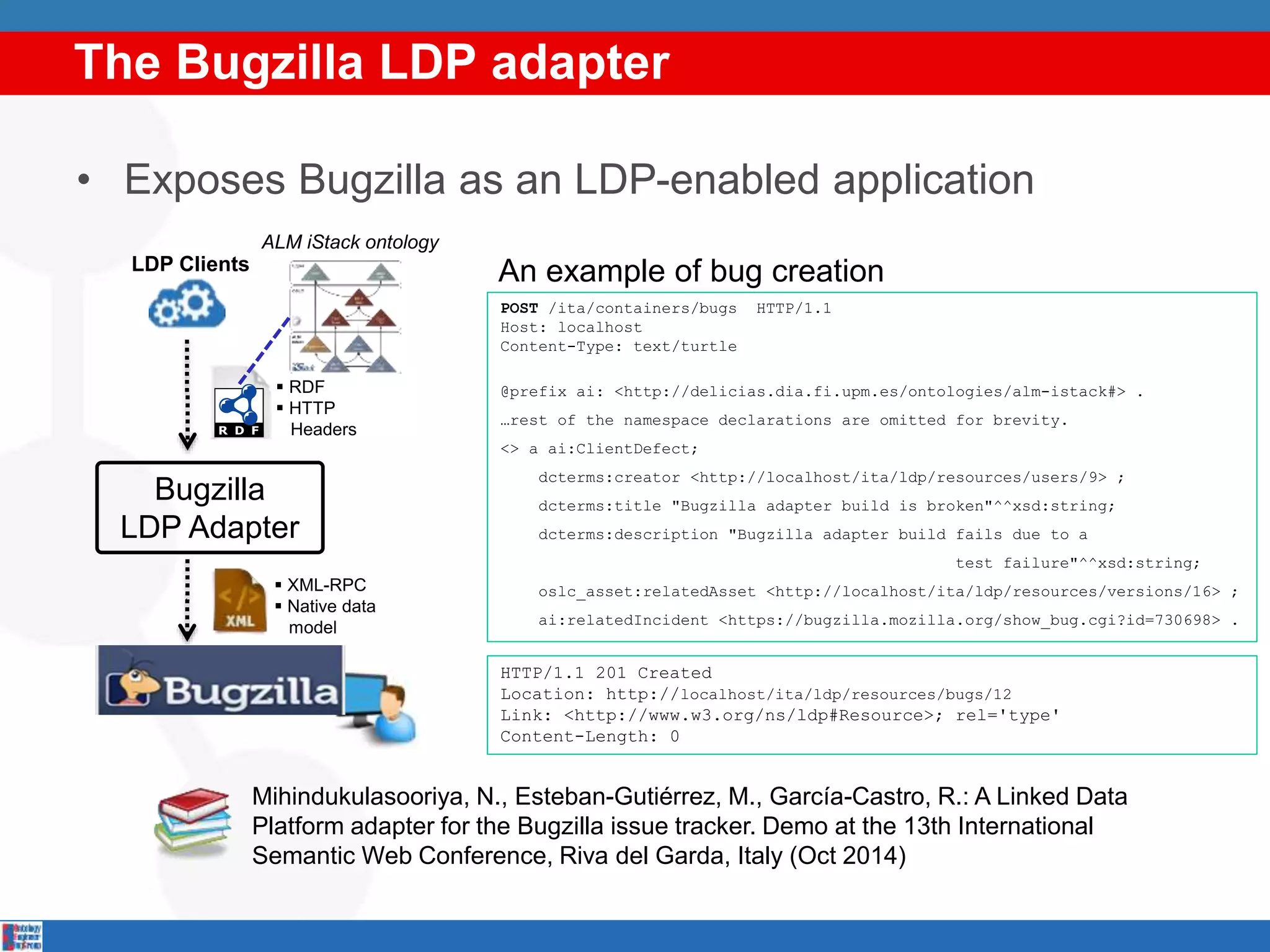

23. The Bugzilla LDP adapter
23
• Exposes Bugzilla as an LDP-enabled application
 RDF
 HTTP
Headers
LDP Clients
Bugzilla
LDP Adapter
 XML-RPC
 Native data
model
ALM iStack ontology
POST /ita/containers/bugs HTTP/1.1
Host: localhost
Content-Type: text/turtle
@prefix ai: <http://delicias.dia.fi.upm.es/ontologies/alm-istack#> .
…rest of the namespace declarations are omitted for brevity.
<> a ai:ClientDefect;
dcterms:creator <http://localhost/ita/ldp/resources/users/9> ;
dcterms:title "Bugzilla adapter build is broken"^^xsd:string;
dcterms:description "Bugzilla adapter build fails due to a
test failure"^^xsd:string;
oslc_asset:relatedAsset <http://localhost/ita/ldp/resources/versions/16> ;
ai:relatedIncident <https://bugzilla.mozilla.org/show_bug.cgi?id=730698> .
HTTP/1.1 201 Created
Location: http://localhost/ita/ldp/resources/bugs/12
Link: <http://www.w3.org/ns/ldp#Resource>; rel='type'
Content-Length: 0
An example of bug creation
Mihindukulasooriya, N., Esteban-Gutiérrez, M., García-Castro, R.: A Linked Data
Platform adapter for the Bugzilla issue tracker. Demo at the 13th International
Semantic Web Conference, Riva del Garda, Italy (Oct 2014)

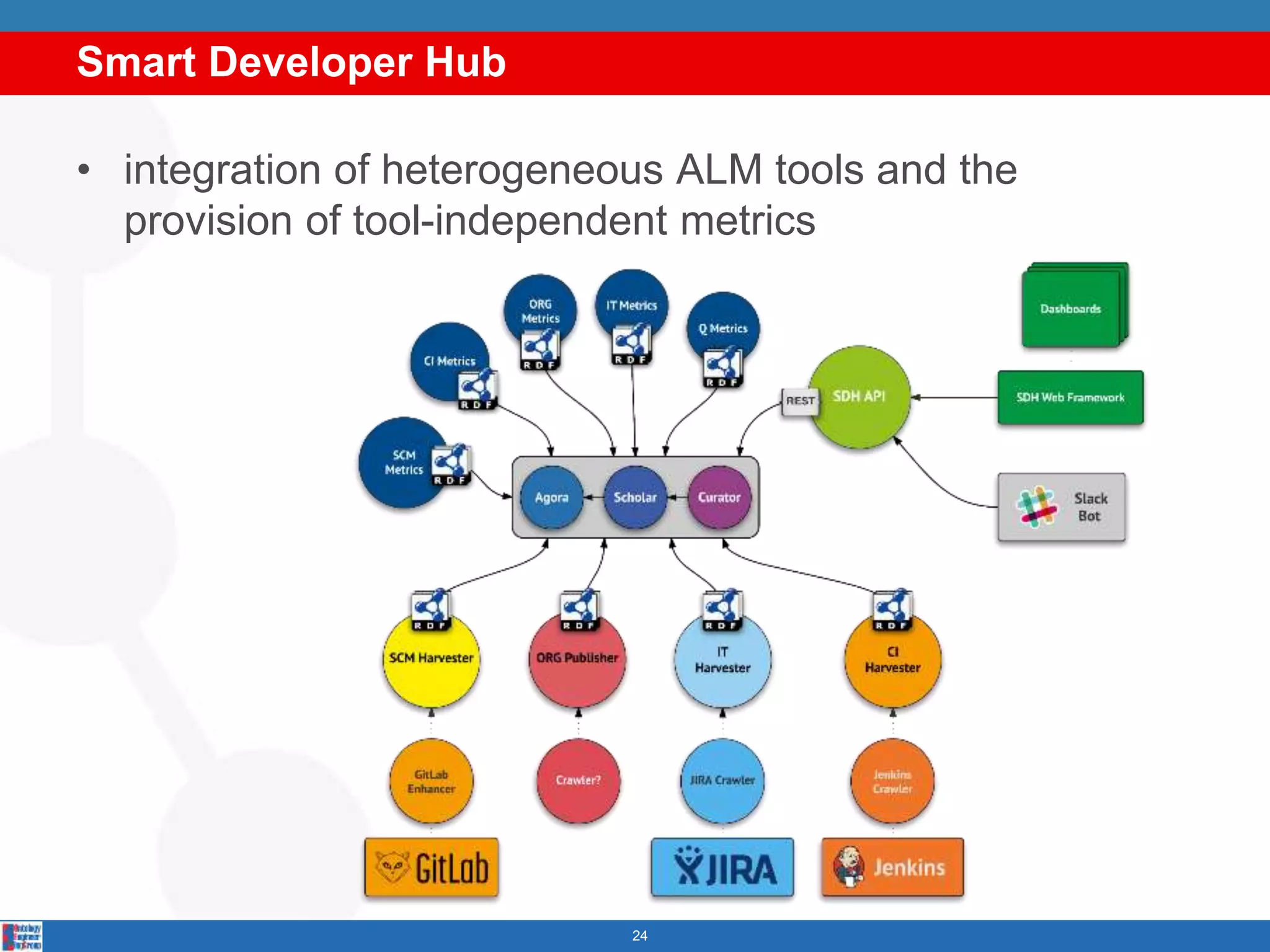

24. Smart Developer Hub
24
• integration of heterogeneous ALM tools and the
provision of tool-independent metrics

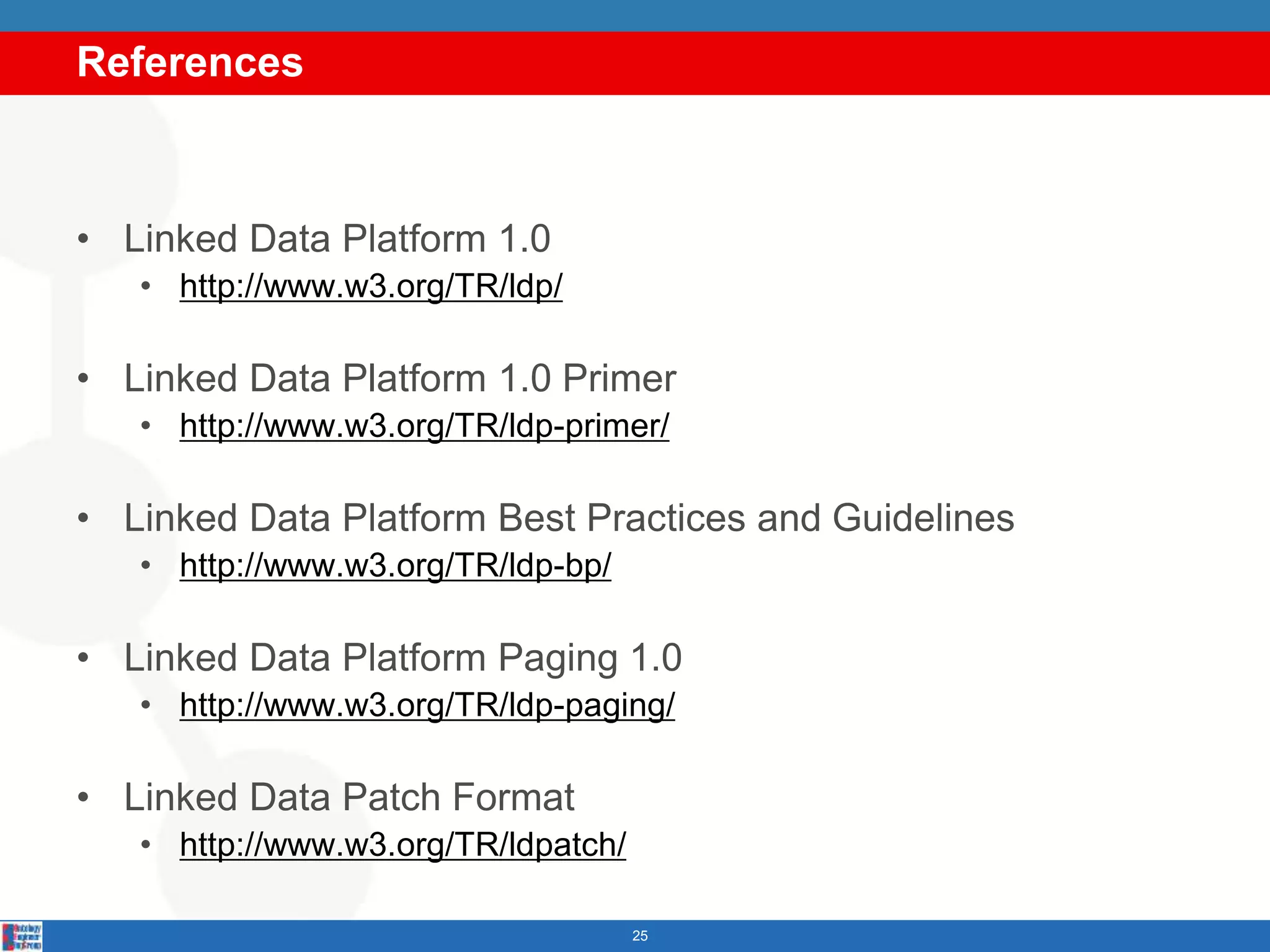

25. References
25
• Linked Data Platform 1.0
• http://www.w3.org/TR/ldp/
• Linked Data Platform 1.0 Primer
• http://www.w3.org/TR/ldp-primer/
• Linked Data Platform Best Practices and Guidelines
• http://www.w3.org/TR/ldp-bp/
• Linked Data Platform Paging 1.0
• http://www.w3.org/TR/ldp-paging/
• Linked Data Patch Format
• http://www.w3.org/TR/ldpatch/

26. Questions?
Nandana Mihindukulasooriya,
W3C Linked Data Platform WG,
Ontology Engineering Group,
Universidad Politécnica de Madrid,
Spain.
@nandanamihindu
