1. Layar code examples
for developers
Creating augmented reality experiences for the world’s leading platform
August 2011

2. Note!
• Please note that the code examples in this presentation are
based on Layar GetPOIs API version 6.0
• Please check our wiki for more information about the changes
• The Complete API version 6.0 can be found here
© Layar 2011

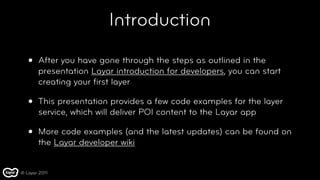

3. Introduction
• After you have gone through the steps as outlined in the
presentation Layar introduction for developers, you can start
creating your first layer
• This presentation provides a few code examples for the layer
service, which will deliver POI content to the Layar app
• More code examples (and the latest updates) can be found on
the Layar developer wiki
© Layar 2011

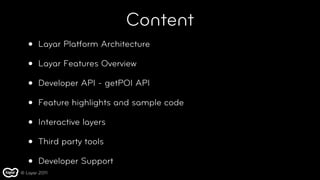

4. Content
• Layar Platform Architecture
• Layar Features Overview
• Developer API - getPOI API
• Feature highlights and sample code
• Interactive layers

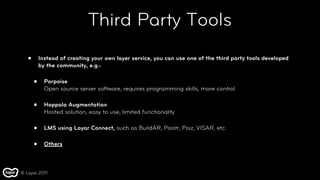

• Third party tools
• Developer Support
© Layar 2011

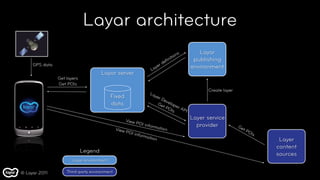

5. Layar architecture
ns Layar
n itio publishing
fi
de
GPS data y er environment
La
Layar server
Get layers
Get POIs
Create layer
La
Fixed yer
De
v
data Ge elop
tP e
OIs r AP
I
View
Layer service
POI in
forma
tion
provider Ge
View tP
POI i OI
nform s
ation
Layer
content
Legend
sources
Layar environment
© Layar 2011 Third-party environment

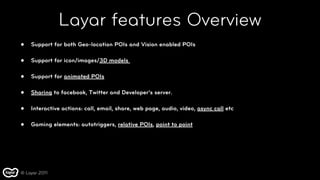

6. Layar features Overview
• Support for both Geo-location POIs and Vision enabled POIs
• Support for icon/images/3D models
• Support for animated POIs
• Sharing to facebook, Twitter and Developer’s server.
• Interactive actions: call, email, share, web page, audio, video, async call etc
• Gaming elements: autotriggers, relative POIs, point to point
© Layar 2011

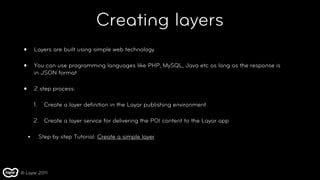

7. Creating layers
• Layers are built using simple web technology
• You can use programming languages like PHP, MySQL, Java etc as long as the response is
in JSON format
• 2 step process:
1. Create a layer definition in the Layar publishing environment
2. Create a layer service for delivering the POI content to the Layar app
• Step by step Tutorial: Create a simple layer
© Layar 2011

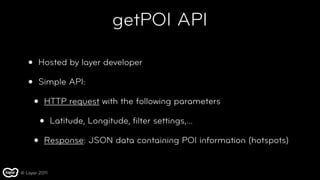

8. getPOI API
• Hosted by layer developer
• Simple API:
• HTTP request with the following parameters
• Latitude, Longitude, filter settings,...
• Response: JSON data containing POI information (hotspots)
© Layar 2011

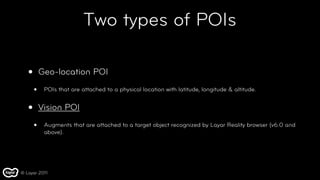

9. Two types of POIs
• Geo-location POI
• POIs that are attached to a physical location with latitude, longitude & altitude.
• Vision POI
• Augments that are attached to a target object recognized by Layar Reality browser (v6.0 and
above).
© Layar 2011

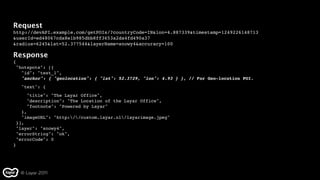

10. Request
http://devAPI.example.com/getPOIs/?countryCode=IN&lon=4.887339&timestamp=1249226148713
&userId=ed48067cda8e1b985dbb8ff3653a2da4fd490a37
&radius=6245&lat=52.377544&layerName=snowy4&accuracy=100
Response
{
"hotspots": [{
"id": "test_1",
"anchor": { "geolocation": { "lat": 52.3729, "lon": 4.93 } }, // For Geo-location POI.
"text": {
"title": "The Layar Office",
"description": "The Location of the Layar Office",
"footnote": "Powered by Layar"
},
"imageURL": "http://custom.layar.nl/layarimage.jpeg"
}],
"layer": "snowy4",
"errorString": "ok",
"errorCode": 0
}
© Layar 2011

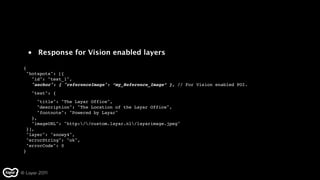

11. • Response for Vision enabled layers
{
"hotspots": [{
"id": "test_1",
"anchor": { "referenceImage": “my_Reference_Image” }, // For Vision enabled POI.
"text": {
"title": "The Layar Office",
"description": "The Location of the Layar Office",
"footnote": "Powered by Layar"
},
"imageURL": "http://custom.layar.nl/layarimage.jpeg"
}],
"layer": "snowy4",
"errorString": "ok",
"errorCode": 0
}
© Layar 2011

12. 3D
© Layar 2011
Layer developed by Hoppala

13. Response
{
"hotspots": [{
"id": "test_1",
"anchor": { "geolocation": { "lat": 52.3729, "lon": 4.93 } }, // For Geo-location POI.
"text": {
"title": "The Layar Office",
"description": "The Location of the Layar Office",
"footnote": "Powered by Layar"
},
"imageURL": "http://custom.layar.nl/layarimage.jpeg",
"object": {
"contentType": "model/vnd.layar.l3d",
"url": "http://example.com/example_full.l3d",
"reducedURL": "http://example_reduced.l3d",
"size": 2},
"transform": {
"rotate": {
"rel": true,
"axis": { "x": 0, "y": 0, "z": 1 },
"angle": 0 },
"translate": { "x": 0, "y": -0.075, "z": 0 },
"scale": 0.01}
}],
"layer": "snowy4",
"errorString": "ok",
"errorCode": 0
} © Layar 2011

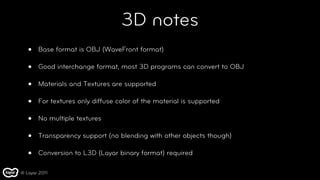

14. 3D notes
• Base format is OBJ (WaveFront format)
• Good interchange format, most 3D programs can convert to OBJ
• Materials and Textures are supported
• For textures only diffuse color of the material is supported
• No multiple textures
• Transparency support (no blending with other objects though)
• Conversion to L3D (Layar binary format) required
© Layar 2011

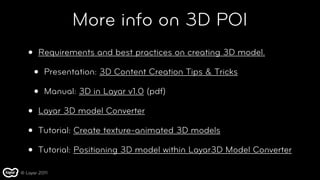

15. More info on 3D POI
• Requirements and best practices on creating 3D model.
• Presentation: 3D Content Creation Tips & Tricks
• Manual: 3D in Layar v1.0 (pdf)
• Layar 3D model Converter
• Tutorial: Create texture-animated 3D models
• Tutorial: Positioning 3D model within Layar3D Model Converter
© Layar 2011

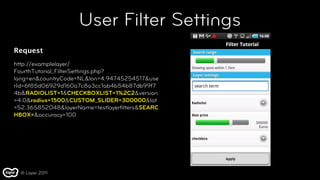

16. User Filter Settings
Request
http://examplelayer/
FourthTutorial_FilterSettings.php?
lang=en&countryCode=NL&lon=4.94745254517&use
rId=6f85d06929d160a7c8a3cc1ab4b54b87db99f7
4b&RADIOLIST=1&CHECKBOXLIST=1%2C2&version
=4.0&radius=1500&CUSTOM_SLIDER=300000&lat
=52.365852048&layerName=testlayerfilters&SEARC
HBOX=&accuracy=100
© Layar 2011

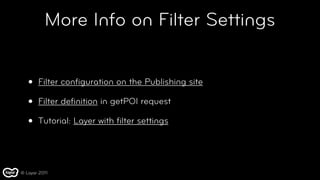

17. More Info on Filter Settings
• Filter configuration on the Publishing site
• Filter definition in getPOI request
• Tutorial: Layer with filter settings
© Layar 2011

18. POI & Layer Actions
There’s audio...
© Layar 2011
http://www.flickr.com/photos/suzanneandsimon/886401250/

19. POI & Layer Actions
There’s audio...
“uri”: “http://mylayer.com/surroundsound.mp3”
© Layar 2011
http://www.flickr.com/photos/suzanneandsimon/886401250/

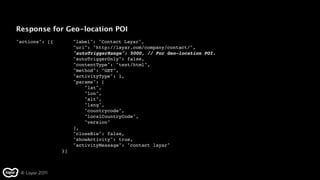

20. Response for Geo-location POI
"actions": [{" " "label": "Contact Layar",
"uri": "http://layar.com/company/contact/",
"autoTriggerRange": 5000, // For Geo-location POI.
"autoTriggerOnly": false,
"contentType": "text/html",
"method": "GET",
"activityType": 1,
"params": [
"lat",
"lon",
"alt",
"lang",
"countrycode",
"localCountryCode",
"version"
],
"closeBiw": false,
"showActivity": true,
"activityMessage": "contact layar"
}]
© Layar 2011

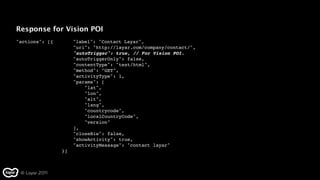

21. Response for Vision POI
"actions": [{" " "label": "Contact Layar",
"uri": "http://layar.com/company/contact/",
"autoTrigger": true, // For Vision POI.
"autoTriggerOnly": false,
"contentType": "text/html",
"method": "GET",
"activityType": 1,
"params": [
"lat",
"lon",
"alt",
"lang",
"countrycode",
"localCountryCode",
"version"
],
"closeBiw": false,
"showActivity": true,
"activityMessage": "contact layar"
}]
© Layar 2011

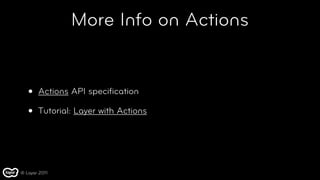

22. More Info on Actions
• Actions API specification
• Tutorial: Layer with Actions
© Layar 2011

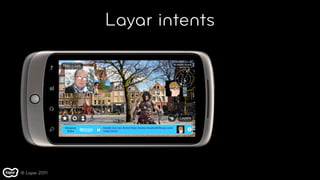

23. Layar intents
© Layar 2011

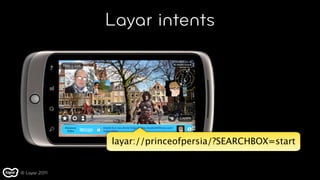

24. Layar intents
layar://princeofpersia/?SEARCHBOX=start
© Layar 2011

25. Layar Intents
• Three types of intents:
• Layar://<layername>/?action=<value>&<custom_param>=<value>&<filter>=<value>
• http://m.layar.com/open/<layername>
• layarshare://<layername>/?<parameters>
• Use cases: interactive layer and point-to-point layer
• Layar intents API documentation
© Layar 2011

26. Animations
© Layar 2011

27. Animations
Texture animations
© Layar 2011

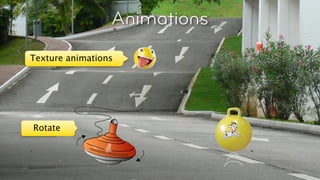

28. Animations
Texture animations
Rotate
© Layar 2011

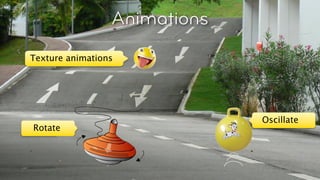

29. Animations
Texture animations
Oscillate
Rotate
© Layar 2011

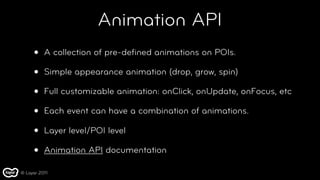

30. Animation API
• A collection of pre-defined animations on POIs.
• Simple appearance animation (drop, grow, spin)
• Full customizable animation: onClick, onUpdate, onFocus, etc
• Each event can have a combination of animations.
• Layer level/POI level
• Animation API documentation
© Layar 2011

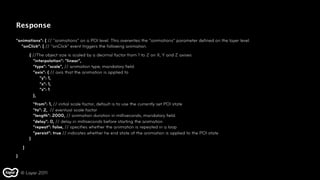

31. Response
"animations": { // "animations" on a POI level. This overwrites the "animations" parameter defined on the layer level.
"onClick": [ // "onClick" event triggers the following animation.
.{ //The object size is scaled by a decimal factor from 1 to 2 on X, Y and Z axises
"interpolation": "linear",
"type": "scale", // animation type, mandatory field.
"axis": { // axis that the animation is applied to
"y": 1,
"x": 1,
"z": 1
},
"from": 1, // initial scale factor, default is to use the currently set POI state
"to": 2, // eventual scale factor
"length": 2000, // animation duration in milliseconds, mandatory field.
"delay": 0, // delay in milliseconds before starting the animation
"repeat": false, // specifies whether the animation is repeated in a loop
"persist": true // indicates whether he end state of the animation is applied to the POI state
}
]
}
© Layar 2011

32. Refresh rate
moving POIs
© 2010, Layar B.V.
http://www.flickr.com/photos/whiteoakart/143472785/

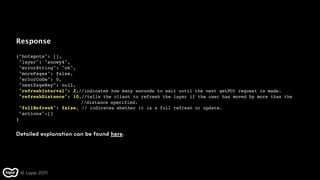

33. Response
{"hotspots": [],
"layer": "snowy4",
"errorString": "ok",
"morePages": false,
"errorCode": 0,
"nextPageKey": null,
"refreshInterval": 2,//indicates how many seconds to wait until the next getPOI request is made.
"refreshDistance": 10,//tells the client to refresh the layer if the user has moved by more than the
//distance specified.
"fullRefresh": false, // indicates whether it is a full refresh or update.
"actions":[]
}
Detailed explanation can be found here.
© Layar 2011

34. Auto-triggers
© Layar 2011

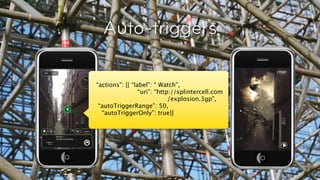

35. Auto-triggers
“actions”: [{ “label”: “ Watch”,
“uri”: “http://splintercell.com
/explosion.3gp”,
“autoTriggerRange”: 50,
“autoTriggerOnly”: true}]
© Layar 2011

36. User authentication
Cookies!
http://www.flickr.com/photos/mache/166940673

37. User authentication
• Layar AR view behaves like a browser view
• Cookies belonging to the getPOI URL domain are stored and
sent
• Implement your layer webservice like for a normal browser
• Alternatively: UserId is anonymous ID of user (linked to phone
ID)
• User Authentication Documentation
© Layar 2011

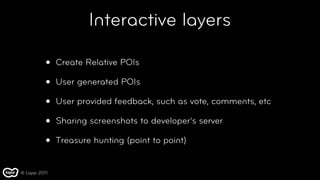

38. Interactive layers
• Create Relative POIs
• User generated POIs
• User provided feedback, such as vote, comments, etc
• Sharing screenshots to developer’s server
• Treasure hunting (point to point)
© Layar 2011

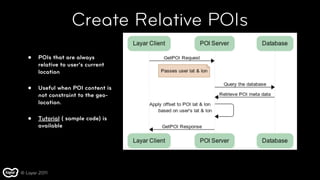

39. Create Relative POIs
• POIs that are always
relative to user’s current
location
• Useful when POI content is
not constraint to the geo-
location.
• Tutorial ( sample code) is
available
© Layar 2011

40. User Generated POIs
• Dynamic layer where users can
create a POI in it.
• Normally POI’s location is
relevant to user’s location.
• More info on Layar intent and
actions
• The Sequence Diagram
explains how to insert a POI by
filling in a web form within the
layer.
© Layar 2011

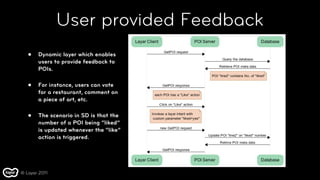

41. User provided Feedback
• Dynamic layer which enables
users to provide feedback to
POIs.
• For instance, users can vote
for a restaurant, comment on
a piece of art, etc.
• The scenario in SD is that the
number of a POI being “liked”
is updated whenever the “like”
action is triggered.
© Layar 2011

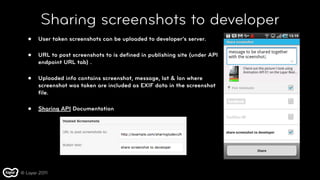

42. Sharing screenshots to developer
• User taken screenshots can be uploaded to developer’s server.
• URL to post screenshots to is defined in publishing site (under API
endpoint URL tab) .
• Uploaded info contains screenshot, message, lat & lon where
screenshot was taken are included as EXIF data in the screenshot
file.
• Sharing API Documentation
© Layar 2011

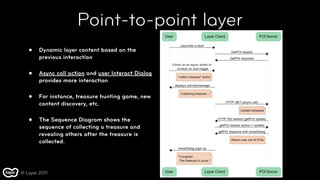

43. Point-to-point layer
• Dynamic layer content based on the
previous interaction
• Async call action and user Interact Dialog
provides more interaction
• For instance, treasure hunting game, new
content discovery, etc.
• The Sequence Diagram shows the
sequence of collecting a treasure and
revealing others after the treasure is
collected.
© Layar 2011

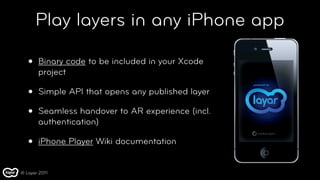

44. Play layers in any iPhone app
• Binary code to be included in your Xcode
project
• Simple API that opens any published layer
• Seamless handover to AR experience (incl.
authentication)
• iPhone Player Wiki documentation
© Layar 2011

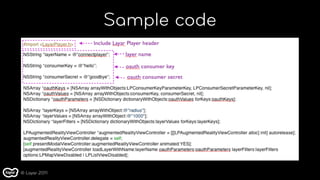

45. Sample code
© Layar 2011

46. Third Party Tools
• Instead of creating your own layer service, you can use one of the third party tools developed
by the community, e.g.:
• Porpoise
Open source server software, requires programming skills, more control
• Hoppala Augmentation
Hosted solution, easy to use, limited functionality
• LMS using Layar Connect, such as BuildAR, Poistr, Poiz, VISAR, etc.
• Others
© Layar 2011

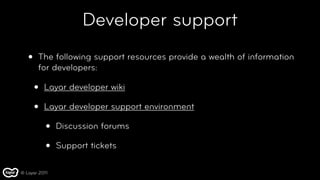

47. Developer support
• The following support resources provide a wealth of information
for developers:
• Layar developer wiki
• Layar developer support environment
• Discussion forums
• Support tickets
© Layar 2011

48. Thank you
