- The document provides painting specifications for the exterior of a home, including colors and locations for trim, field, doors, and natural wood accents. - It also specifies stone veneer details like manufacturer, style, color, and location of stone on the exterior. - Finally, the document includes an elevation of the south side of the home showing existing features to remain and new additions like fencing and trellises.

1. -X-
FINISH LEGEND
2
PAINT
MFR: BENJAMIN MOORE
T.O. CHIMNEY PTE-1
STYLE: 2 COATS "SOFT GLOSS" OVER PRIMER
EXIST COLOR: #OC-­83;; ANTIQUE WHITE
LOCATION: TRIM COLOR (MOST LOCATIONS)
8
T.O. ROOF CONTACT: CONNIE MESKO (303) 588-­5232
PTE-1 3772 E. Kerry Lane
EXIST MFR: BENJAMIN MOORE Phoenix, Arizona 85050
PTE-2
T.O. ROOF PTE-1 STYLE: 2 COATS "LOW-­LUSTRE" OVER PRIMER 602.748.9016
COLOR: HC-­44;; LENOX TAN
EXIST T.O. ROOF LOCATION: FIELD COLOR (MOST LOCATIONS)
EXIST CONTACT: CONNIE MESKO (303) 588-­5232
3 PTE-2 PTE-1 MFR: BENJAMIN MOORE
PTE-3
STYLE: 2 COATS "LOW-­LUSTRE" OVER PRIMER
COLOR: 1302;; SWEET ROSY BROWN
1 PTE-1 LOCATION: FRONT ENTRANCE DOOR(S)
7
CONTACT: CONNIE MESKO (303) 588-­5232
PTE-4 MFR: BENJAMIN MOORE
PTE-4 PTE-2
TYPE: #638 -­ ARBOR COAT (SEMI-­TRANSPARENT)
STYLE: MATCH CLOSELY HC-­67;; CLINTON BROWN
PTE-4
LOCATION: TRIM (NATURAL WOOD ACCENTS)
1 CONTACT: CONNIE MESKO (303) 588-­5232 5131 S. College Ave. Suite A
7 STONE VENEER Fort Collins, CO 80525
970.223.2664
PTE-1
MFR: OWENS CORNING
ST-1
STYLE: OLD COUNTRY FIELDSTONE
PTE-4 COLOR: #2042;; CHARDONNAY
PTE-4
10 PTE-4 PTE-1 GROUT: OVER GROUTED MORTAR JOINTS
04.06.10
LOCATION: VARIES, SEE EXTERIOR ELEVATIONS
DATE
PTE-3 CONTACT: KATHY MANNEN (800) 255-­1727
T.O. TRELLIS
PTE-2
5 7'-11" AFF PTE-2
T.O. WALL T.O. WINDOW ST-1
7'-0" AFF 7'-0 1/2" AFF 1
T.O. WALL 1
6'-0" AFF
PTE-1
PTE-2 PTE-2
FINISH FLOOR
0'-0" AFF MAIN
HOA SUBMITTAL
PTE-1
ISSUE RECORD
FINISH FLOOR KEYNOTES -X-
0'-0" AFF GARAGE
4 4 1. EXISTING SIDING PATCH AND REPAIR AS REQUIRED
PTE-4 ST-1 ST-1 PTE-1 ST-1
1 9 - PAINT
2. NEW COPPER CHIMNEY CAP
0
3. NEW WEATHERVANE BY OWNER - INSTALLED BY
CONTRACTOR
4. NEW WROUGHT IRON RAILING

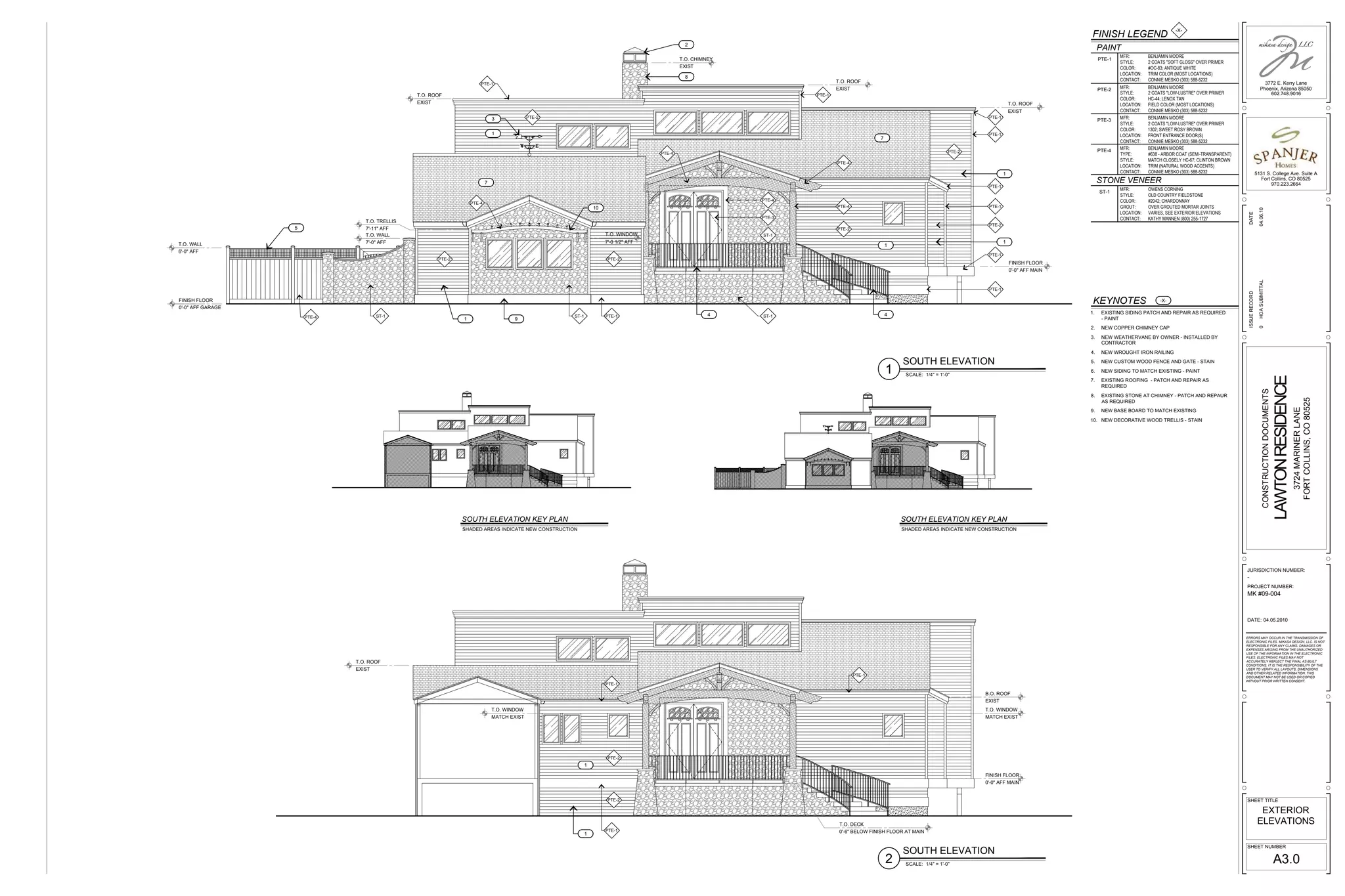

SOUTH ELEVATION 5. NEW CUSTOM WOOD FENCE AND GATE - STAIN
1 SCALE: 1/4" = 1'-0"
6. NEW SIDING TO MATCH EXISTING - PAINT
7. EXISTING ROOFING - PATCH AND REPAIR AS
REQUIRED
CONSTRUCTION DOCUMENTS
8. EXISTING STONE AT CHIMNEY - PATCH AND REPAUR
FORT COLLINS, CO 80525
AS REQUIRED
3724 MARINER LANE
9. NEW BASE BOARD TO MATCH EXISTING
10. NEW DECORATIVE WOOD TRELLIS - STAIN
SOUTH ELEVATION KEY PLAN SOUTH ELEVATION KEY PLAN
SHADED AREAS INDICATE NEW CONSTRUCTION SHADED AREAS INDICATE NEW CONSTRUCTION
JURISDICTION NUMBER:
-
PROJECT NUMBER:
MK #09-004
DATE: 04.05.2010
ERRORS MAY OCCUR IN THE TRANSMISSION OF
ELECTRONIC FILES. MIKASA DESIGN, LLC. IS NOT
RESPONSIBLE FOR ANY CLAIMS, DAMAGES OR
EXPENSES ARISING FROM THE UNAUTHORIZED
USE OF THE INFORMATION IN THE ELECTRONIC
FILES. ELECTRONIC FILES MAY NOT
T.O. ROOF ACCURATELY REFLECT THE FINAL AS-­BUILT
CONDITIONS. IT IS THE RESPONSIBILITY OF THE
EXIST USER TO VERIFY ALL LAYOUTS, DIMENSIONS
AND OTHER RELATED INFORMATION. THIS
PTE-1 DOCUMENT MAY NOT BE USED OR COPIED
WITHOUT PRIOR WRITTEN CONSENT.
PTE-1
B.O. ROOF
EXIST
T.O. WINDOW T.O. WINDOW
MATCH EXIST MATCH EXIST
PTE-2
1
FINISH FLOOR
0'-0" AFF MAIN
PTE-2 SHEET TITLE
EXTERIOR
T.O. DECK ELEVATIONS
PTE-1 0'-6" BELOW FINISH FLOOR AT MAIN
1
SHEET NUMBER
SOUTH ELEVATION
2 SCALE: 1/4" = 1'-0"
A3.0
