1. FormaTK presents
Multi-Care System
All in One Platform

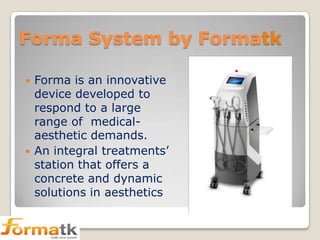

2. Forma System by Formatk


Forma is an innovative
device developed to
respond to a large
range of medicalaesthetic demands.
An integral treatments’
station that offers a
concrete and dynamic
solutions in aesthetics

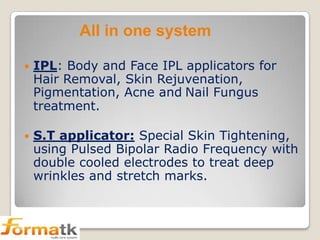

3. All in one system

IPL: Body and Face IPL applicators for
Hair Removal, Skin Rejuvenation,
Pigmentation, Acne and Nail Fungus
treatment.

S.T applicator: Special Skin Tightening,
using Pulsed Bipolar Radio Frequency with
double cooled electrodes to treat deep
wrinkles and stretch marks.

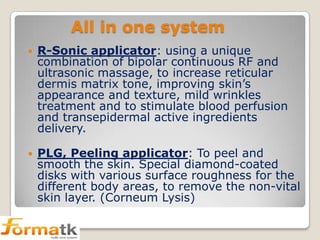

4. All in one system

R-Sonic applicator: using a unique
combination of bipolar continuous RF and
ultrasonic massage, to increase reticular
dermis matrix tone, improving skin’s
appearance and texture, mild wrinkles
treatment and to stimulate blood perfusion
and transepidermal active ingredients
delivery.

PLG, Peeling applicator: To peel and
smooth the skin. Special diamond-coated
disks with various surface roughness for the
different body areas, to remove the non-vital
skin layer. (Corneum Lysis)

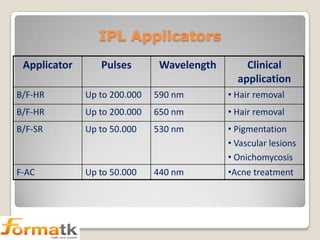

5. IPL Applicators
Applicator
Pulses
Wavelength
Clinical
application
B/F-HR
Up to 200.000
590 nm
• Hair removal
B/F-HR
Up to 200.000
650 nm
• Hair removal
B/F-SR
Up to 50.000
530 nm
• Pigmentation
• Vascular lesions
• Onichomycosis
F-AC
Up to 50.000
440 nm
•Acne treatment

6. RF/Peeling applicators
Applicator
Life span
Energy level
Clinical
application
R-sonic
150 hours
3-30 j/cm3
• Skin revitalization
• Transepidermal
delivery
ST
500 hours
20-100
j/cm3
• Skin tightening
• Striae treatment
• Deep wrinkle
treatment
D-Peel
500 Hours
•Peeling
•Skin polishing

7. All in one system
Hair removal Face and Body treatments
F/B HR 590 nm wavelength for photo types I-IV
Effective on fair facial hair and red hair
F/B*HR 650 nm wavelength for photo types I-VI
General pigmentation treatments
F/B-SR
Sun spots treatments
530 nm
Vascular lesions
Onychomycosis

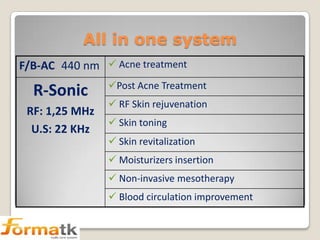

8. All in one system
F/B-AC 440 nm  Acne treatment
R-Sonic
RF: 1,25 MHz
U.S: 22 KHz
Post Acne Treatment
 RF Skin rejuvenation
 Skin toning
 Skin revitalization
 Moisturizers insertion
 Non-invasive mesotherapy
 Blood circulation improvement

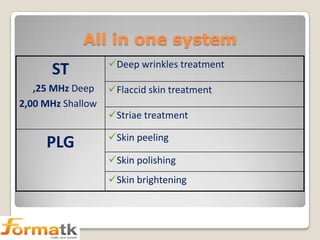

9. All in one system
ST
,25 MHz Deep
2,00 MHz Shallow
PLG
Deep wrinkles treatment
Flaccid skin treatment
Striae treatment
Skin peeling
Skin polishing
Skin brightening

10. Intense Pulse Light and Thermal Relaxation Time
*Represents the time taken for heated tissue to lose 50% of
its heat through diffusion.
If the light energy persists longer than TRT of the target,
heat is conduced to the surrounding tissue leading to
unwanted thermal injury. (Katsambas & Lotti, 2003).

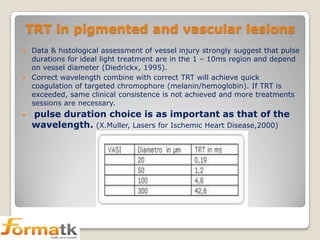

11. TRT in pigmented and vascular lesions
Data & histological assessment of vessel injury strongly suggest that pulse
durations for ideal light treatment are in the 1 – 10ms region and depend
on vessel diameter (Diedrickx, 1995).
 Correct wavelength combine with correct TRT will achieve quick
coagulation of targeted chromophore (melanin/hemoglobin). If TRT is
exceeded, same clinical consistence is not achieved and more treatments
sessions are necessary.


pulse duration choice is as important as that of the
wavelength. (X.Muller, Lasers for Ischemic Heart Disease,2000)

12. TRT in Onychomycosis treatments
An innovative method based on delivering a beam of
radiation to a target chromophore area, to deactivate an
unwanted organism. The beam of radiation can have a
wavelength between 400nm ~ 1100nm, fluency range
~20Joule cm² and pulse width < 10ms (C. Demetrieu &
J.C. Hsia, U.S Patent application publication
2006/0212098, Sep. 21, 2006)

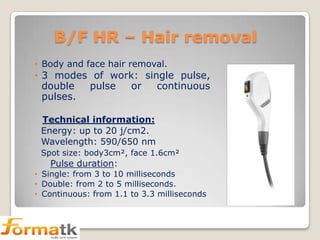

13. B/F HR – Hair removal
• Body and face hair removal.
• 3 modes of work: single pulse,
double
pulse
or
continuous
pulses.
Technical information:
Energy: up to 20 j/cm2.
Wavelength: 590/650 nm
Spot size: body3cm², face 1.6cm²
Pulse duration:
• Single: from 3 to 10 milliseconds
• Double: from 2 to 5 milliseconds.
• Continuous: from 1.1 to 3.3 milliseconds

14. Results after three treatments
Before
After

15. Results after one treatment
Before
After (one month)

16. Results after three treatments
Before
After

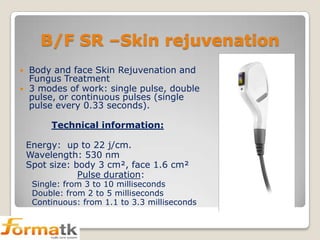

17. B/F SR –Skin rejuvenation


Body and face Skin Rejuvenation and
Fungus Treatment
3 modes of work: single pulse, double
pulse, or continuous pulses (single
pulse every 0.33 seconds).
Technical information:
Energy: up to 22 j/cm.
Wavelength: 530 nm
Spot size: body 3 cm², face 1.6 cm²
Pulse duration:
Single: from 3 to 10 milliseconds
Double: from 2 to 5 milliseconds
Continuous: from 1.1 to 3.3 milliseconds

18. Pigmentation & skin rejuvenation
Before
After (3 treat.)

19. Pigmentation & Skin rejuvenation
Before
After (3 treat.)

20. Combination of Peeling and
IPL - 3 treatments
Before
After

21. Hands pigmentation
one treatment

22. Onychomycosis treatment
Before
After

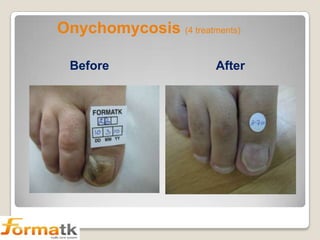

23. Onychomycosis (4 treatments)
Before
After

24. Onychomycosis
Before
(4 treatments)
After

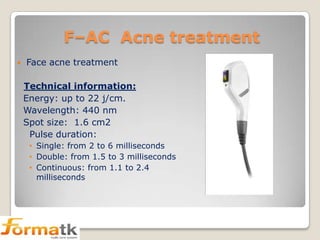

25. F–AC Acne treatment

Face acne treatment
Technical information:
Energy: up to 22 j/cm.
Wavelength: 440 nm
Spot size: 1.6 cm2
Pulse duration:
• Single: from 2 to 6 milliseconds
• Double: from 1.5 to 3 milliseconds
• Continuous: from 1.1 to 2.4
milliseconds

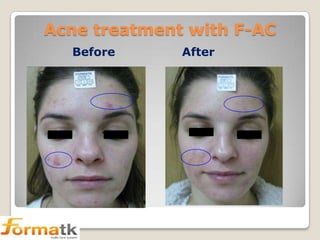

26. Acne treatment with F-AC
Before
After

27. Acne treatment with IPL
Before
After

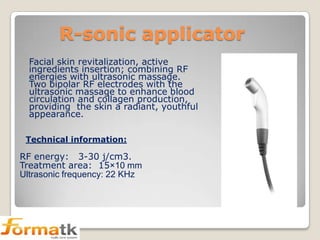

28. R-sonic applicator
Facial skin revitalization, active
ingredients insertion; combining RF
energies with ultrasonic massage.
Two bipolar RF electrodes with the
ultrasonic massage to enhance blood
circulation and collagen production,
providing the skin a radiant, youthful
appearance.
Technical information:
RF energy: 3-30 j/cm3.
Treatment area: 15×10 mm
Ultrasonic frequency: 22 KHz

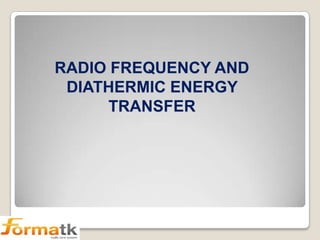

29. RADIO FREQUENCY AND
DIATHERMIC ENERGY
TRANSFER

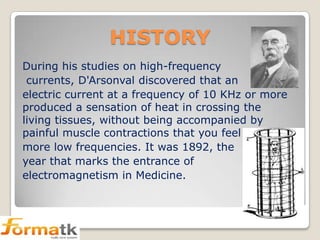

30. HISTORY
During his studies on high-frequency
currents, D'Arsonval discovered that an
electric current at a frequency of 10 KHz or more
produced a sensation of heat in crossing the
living tissues, without being accompanied by
painful muscle contractions that you feel
more low frequencies. It was 1892, the
year that marks the entrance of
electromagnetism in Medicine.

31. DIATHERMY
The term diathermy (dia = through, therme
= heat) was coined in 1907 by
Nagelshmidt to indicate the heating of
living tissue produce by the conversion of
high frequency currents in heat.

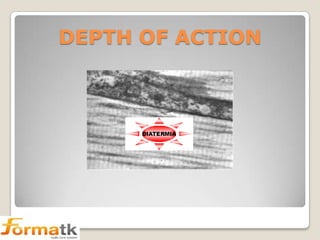

32. DEPTH OF ACTION

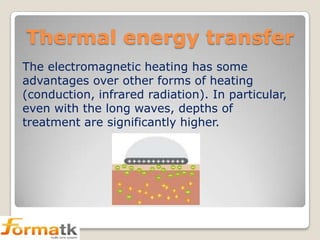

33. Thermal energy transfer
The electromagnetic heating has some
advantages over other forms of heating
(conduction, infrared radiation). In particular,
even with the long waves, depths of
treatment are significantly higher.

34. While in the heat by the temperature within the
tissue decays exponentially to the physiological
value (37 ° C) in a few millimeters,
electromagnetic heating allows for a smoother
temperature distribution can also be of interest
to depths of several centimeters that can not be
reached with other external means.

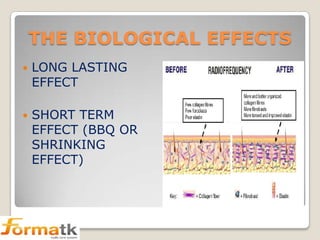

35. THE BIOLOGICAL EFFECTS

LONG LASTING
EFFECT

SHORT TERM
EFFECT (BBQ OR
SHRINKING
EFFECT)

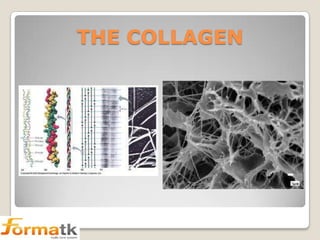

36. THE COLLAGEN

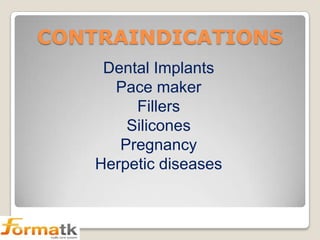

37. CONTRAINDICATIONS
Dental Implants
Pace maker
Fillers
Silicones
Pregnancy
Herpetic diseases

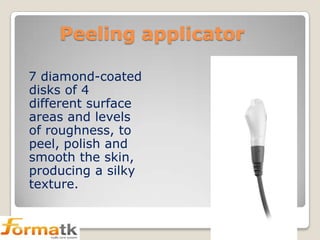

38. Peeling applicator
7 diamond-coated
disks of 4
different surface
areas and levels
of roughness, to
peel, polish and
smooth the skin,
producing a silky
texture.

39. Peeling and R-sonic treatment
Immediate results
Before
After

40. Peeling and R-sonic treatment Immediate results
Before
After

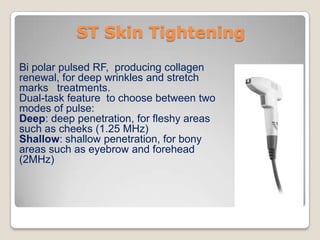

41. ST Skin Tightening
Bi polar pulsed RF, producing collagen
renewal, for deep wrinkles and stretch
marks treatments.
Dual-task feature to choose between two
modes of pulse:
Deep: deep penetration, for fleshy areas
such as cheeks (1.25 MHz)
Shallow: shallow penetration, for bony
areas such as eyebrow and forehead
(2MHz)

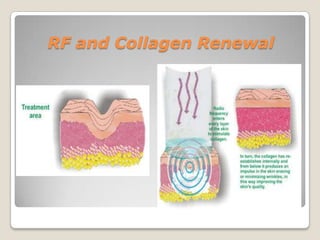

42. RF and Collagen Renewal

43. Combination of Peeling, ST and
IPL treatments – two treatments
Before
After

44. ST + R-Sonic 1 Treatment

45. FORMA System by Formatk

46. Thank you
Dr. E. Krieger
Scientific & Medical director
Formatk
