Landscape Project
Student Name : Salman ALtuwariki
NO. 428102630
Supervisor : prof. Isam Eldine Othman

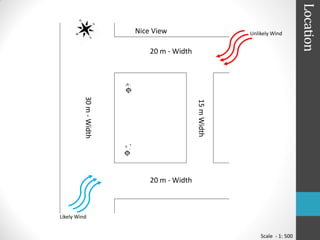

Location
                                 Nice View                       Unlikely Wind


                                     20 m - Width



                         ‫- 5م‬

                             ‫ذ‬
          30 m - Width




                                                    15 m Width
                             +
                         0
                             -
                         ‫ذ‬


                                     20 m - Width



Likely Wind


                                                                     Scale - 1: 500

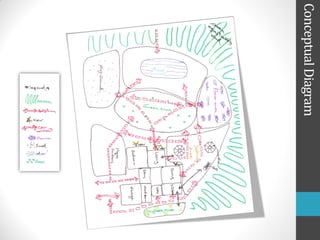

Conceptual Diagram

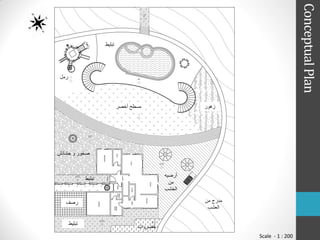

‫‪Conceptual Plan‬‬
                       ‫تبليط‬




 ‫رمل‬




                               ‫مسطح أخصر‬               ‫زهور‬




‫صخور و حشائش‬


                                               ‫أرضيه‬
               ‫تبليط‬
                                                 ‫من‬
                                               ‫الخشب‬

   ‫رصف‬                                                 ‫مدرج من‬
                                                        ‫العشب‬

       ‫تبليط‬
                                      ‫خضروات‬
                                                                 ‫002 : 1 - ‪Scale‬‬

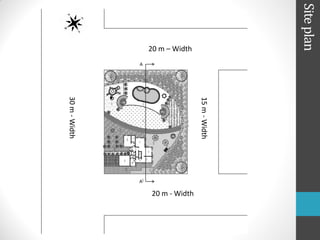

Site plan
                          15 m - Width
                                              20 m - Width
       20 m – Width




                                         A‫أ‬
                      A
                          30 m - Width

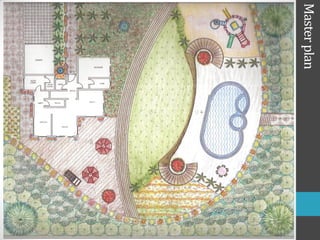

Master plan

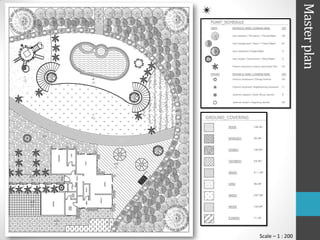

Master plan
GROUND_COVERING




                  Scale – 1 : 200

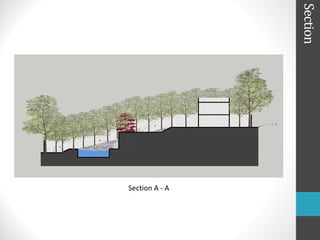

Section
Section A - A
Plantation Elemnts
                        Trident Maple

    Black Maple                                                         Acer campestre

                                                 Florida Maple




                   Angelwing Jasmine




Orange Cestrum                            Nightblooming Jessamine

                  South African Jasmine                             Canary Island Date Palm
Ground Covering Elemtns
         Interlock    WOOD


Stone




Grass
                      Flowers




         Vegetables

 Water                Sand
