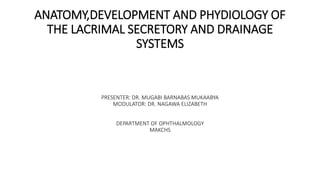

1. ANATOMY,DEVELOPMENT AND PHYDIOLOGY OF
THE LACRIMAL SECRETORY AND DRAINAGE
SYSTEMS
PRESENTER: DR. MUGABI BARNABAS MUKAABYA
MODULATOR: DR. NAGAWA ELIZABETH
DEPARTMENT OF OPHTHALMOLOGY
MAKCHS

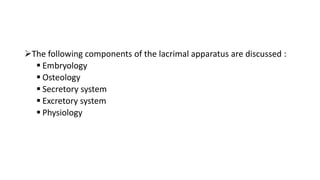

2. The following components of the lacrimal apparatus are discussed :
 Embryology
 Osteology
 Secretory system
 Excretory system
 Physiology

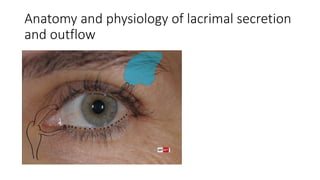

3. Anatomy and physiology of lacrimal secretion
and outflow

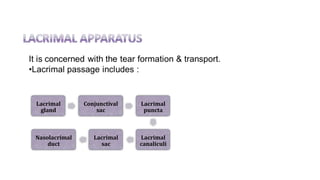

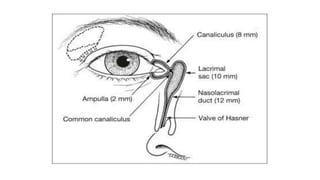

4. Lacrimal
gland
Conjunctival
sac
Lacrimal
puncta
Lacrimal
canaliculi
Lacrimal
sac
Nasolacrimal
duct

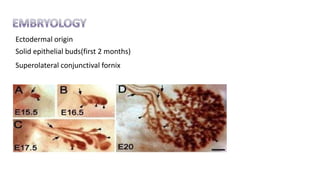

6. Ectodermal origin
Solid epithelial buds(first 2 months)
Superolateral conjunctival fornix

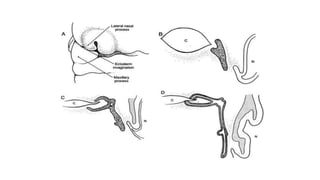

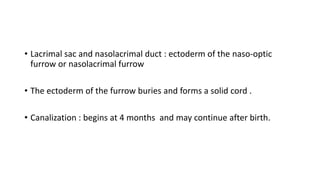

7. • Lacrimal sac and nasolacrimal duct : ectoderm of the naso-optic
furrow or nasolacrimal furrow
• The ectoderm of the furrow buries and forms a solid cord .
• Canalization : begins at 4 months and may continue after birth.

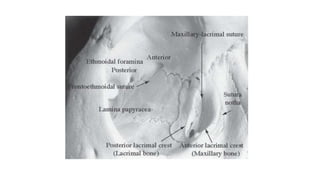

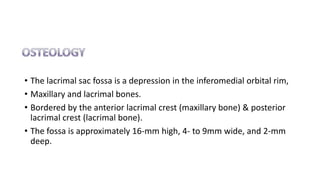

9. • The lacrimal sac fossa is a depression in the inferomedial orbital rim,
• Maxillary and lacrimal bones.
• Bordered by the anterior lacrimal crest (maxillary bone) & posterior
lacrimal crest (lacrimal bone).
• The fossa is approximately 16-mm high, 4- to 9mm wide, and 2-mm
deep.

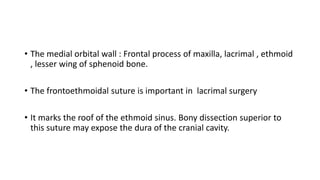

11. • The medial orbital wall : Frontal process of maxilla, lacrimal , ethmoid
, lesser wing of sphenoid bone.
• The frontoethmoidal suture is important in lacrimal surgery
• It marks the roof of the ethmoid sinus. Bony dissection superior to
this suture may expose the dura of the cranial cavity.

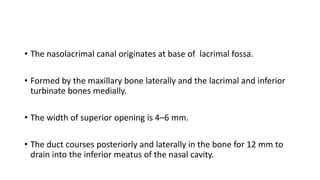

12. • The nasolacrimal canal originates at base of lacrimal fossa.
• Formed by the maxillary bone laterally and the lacrimal and inferior
turbinate bones medially.
• The width of superior opening is 4–6 mm.
• The duct courses posteriorly and laterally in the bone for 12 mm to
drain into the inferior meatus of the nasal cavity.

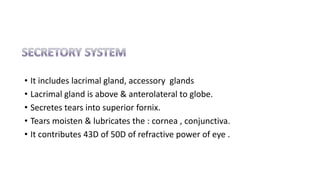

13. • It includes lacrimal gland, accessory glands
• Lacrimal gland is above & anterolateral to globe.
• Secretes tears into superior fornix.
• Tears moisten & lubricates the : cornea , conjunctiva.
• It contributes 43D of 50D of refractive power of eye .

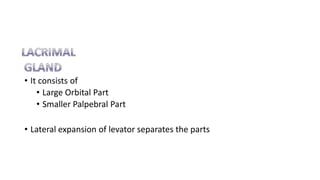

14. • It consists of
• Large Orbital Part
• Smaller Palpebral Part
• Lateral expansion of levator separates the parts

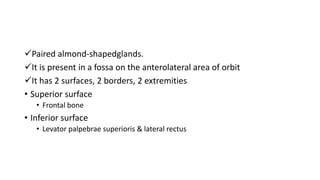

15. Paired almond-shapedglands.
It is present in a fossa on the anterolateral area of orbit
It has 2 surfaces, 2 borders, 2 extremities
• Superior surface
• Frontal bone
• Inferior surface
• Levator palpebrae superioris & lateral rectus

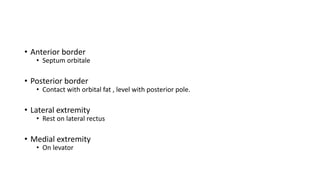

16. • Anterior border
• Septum orbitale
• Posterior border
• Contact with orbital fat , level with posterior pole.
• Lateral extremity
• Rest on lateral rectus
• Medial extremity
• On levator

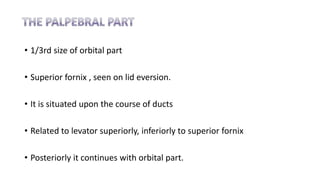

17. • 1/3rd size of orbital part
• Superior fornix , seen on lid eversion.
• It is situated upon the course of ducts
• Related to levator superiorly, inferiorly to superior fornix
• Posteriorly it continues with orbital part.

18. • Are small, compound, branched, tubular glands
• Located in the middle of lid (Wolfring glands) or superior & inferior
fornices (Krause glands).
• Ectopic portions of lacrimal gland tissue.

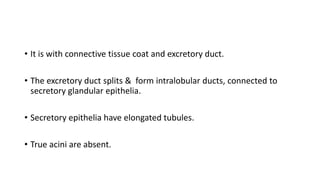

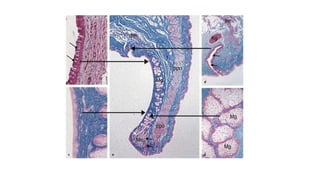

19. • It is with connective tissue coat and excretory duct.
• The excretory duct splits & form intralobular ducts, connected to
secretory glandular epithelia.
• Secretory epithelia have elongated tubules.
• True acini are absent.

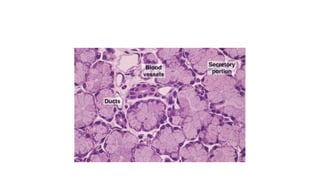

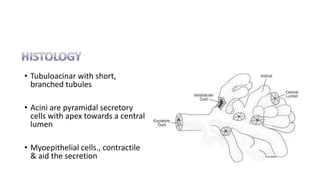

22. • Tubuloacinar with short,
branched tubules
• Acini are pyramidal secretory
cells with apex towards a central
lumen
• Myoepithelial cells., contractile
& aid the secretion

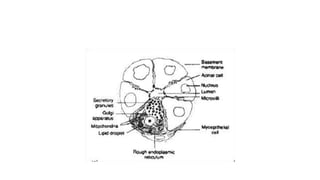

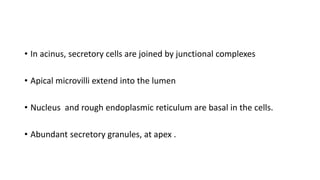

23. • In acinus, secretory cells are joined by junctional complexes
• Apical microvilli extend into the lumen
• Nucleus and rough endoplasmic reticulum are basal in the cells.
• Abundant secretory granules, at apex .

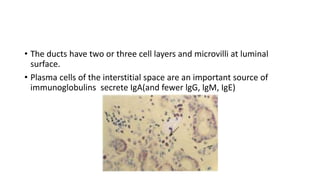

25. • The ducts have two or three cell layers and microvilli at luminal
surface.
• Plasma cells of the interstitial space are an important source of
immunoglobulins secrete IgA(and fewer lgG, lgM, IgE)

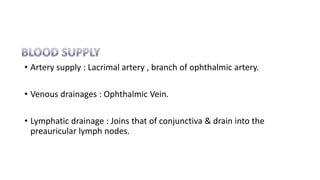

27. • Artery supply : Lacrimal artery , branch of ophthalmic artery.
• Venous drainages : Ophthalmic Vein.
• Lymphatic drainage : Joins that of conjunctiva & drain into the
preauricular lymph nodes.

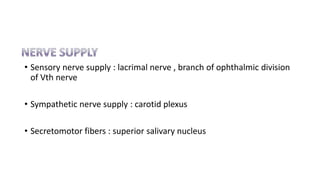

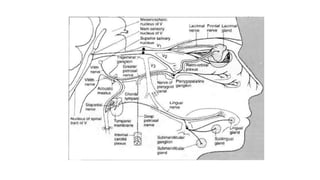

28. • Sensory nerve supply : lacrimal nerve , branch of ophthalmic division
of Vth nerve
• Sympathetic nerve supply : carotid plexus
• Secretomotor fibers : superior salivary nucleus

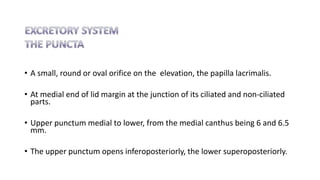

31. • A small, round or oval orifice on the elevation, the papilla lacrimalis.
• At medial end of lid margin at the junction of its ciliated and non-ciliated
parts.
• Upper punctum medial to lower, from the medial canthus being 6 and 6.5
mm.
• The upper punctum opens inferoposteriorly, the lower superoposteriorly.

33. • First vertical and then horizontal
• Vertical part is 2 mm & turns medially at right-angle to become horizontal 8 mm
• At angle -dilatation or ampulla.
• The canaliculi pierce the fascia (i.e. the periorbita covering the lacrimal sac)
separately,
• Uniting to enter lacrimal sac.
• Stratified squamous epithelium supported by elastic tissue.

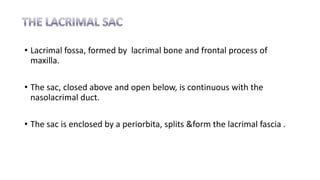

34. • Lacrimal fossa, formed by lacrimal bone and frontal process of
maxilla.
• The sac, closed above and open below, is continuous with the
nasolacrimal duct.
• The sac is enclosed by a periorbita, splits &form the lacrimal fascia .

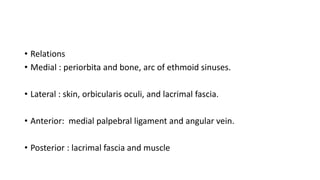

35. • Relations
• Medial : periorbita and bone, arc of ethmoid sinuses.
• Lateral : skin, orbicularis oculi, and lacrimal fascia.
• Anterior: medial palpebral ligament and angular vein.
• Posterior : lacrimal fascia and muscle

36. • The nasolacrimal duct, continuation of lacrimal sac to the inferior
meatus.
• 15 mm.
• It lies in a canal formed by the maxilla, lacrimal bone and lacrimal
process of inferior concha.
• It descends posterolaterally, a surface indication a line from medial
canthus to first upper molar.

37. • The valves
• They are folds of mucous
• membrane with no
• valvular function.
• The most constant is the
• 'valve' of Hasner at the lower
• end.
• It prevents sudden blast of air
• (when blowing the nose) from
• entenng the lacrimal sac.

38. • Structure
• Double-layered Epithelium
• The superficial layer composed of columnar cells, the deeper cells
being flatter.
• The membranous wall of the sac is of fibroelastic tissue, the elastic
element being continued around the canaliculi.

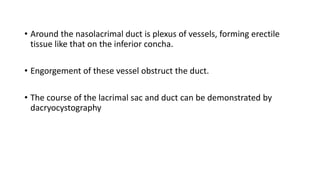

39. • Around the nasolacrimal duct is plexus of vessels, forming erectile
tissue like that on the inferior concha.
• Engorgement of these vessel obstruct the duct.
• The course of the lacrimal sac and duct can be demonstrated by
dacryocystography

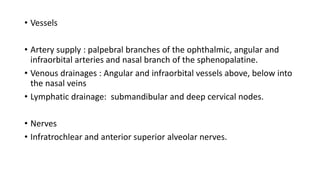

40. • Vessels
• Artery supply : palpebral branches of the ophthalmic, angular and
infraorbital arteries and nasal branch of the sphenopalatine.
• Venous drainages : Angular and infraorbital vessels above, below into
the nasal veins
• Lymphatic drainage: submandibular and deep cervical nodes.
• Nerves
• Infratrochlear and anterior superior alveolar nerves.

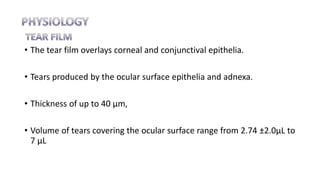

41. • The tear film overlays corneal and conjunctival epithelia.
• Tears produced by the ocular surface epithelia and adnexa.
• Thickness of up to 40 µm,
• Volume of tears covering the ocular surface range from 2.74 ±2.0µL to
7 µL

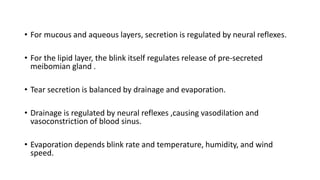

42. • For mucous and aqueous layers, secretion is regulated by neural reflexes.
• For the lipid layer, the blink itself regulates release of pre-secreted
meibomian gland .
• Tear secretion is balanced by drainage and evaporation.
• Drainage is regulated by neural reflexes ,causing vasodilation and
vasoconstriction of blood sinus.
• Evaporation depends blink rate and temperature, humidity, and wind
speed.

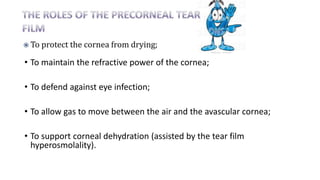

43. • To maintain the refractive power of the cornea;
• To defend against eye infection;
• To allow gas to move between the air and the avascular cornea;
• To support corneal dehydration (assisted by the tear film
hyperosmolality).

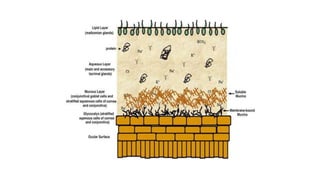

44.  Glycocalyx Mucous
layer
 Aqueous layer.
 Lipid layers

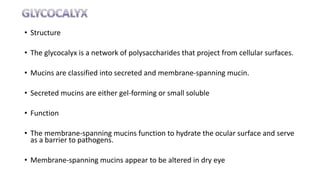

46. • Structure
• The glycocalyx is a network of polysaccharides that project from cellular surfaces.
• Mucins are classified into secreted and membrane-spanning mucin.
• Secreted mucins are either gel-forming or small soluble
• Function
• The membrane-spanning mucins function to hydrate the ocular surface and serve
as a barrier to pathogens.
• Membrane-spanning mucins appear to be altered in dry eye

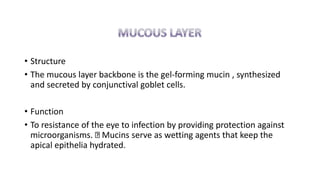

47. • Structure
• The mucous layer backbone is the gel-forming mucin , synthesized
and secreted by conjunctival goblet cells.
• Function
• To resistance of the eye to infection by providing protection against
microorganisms. Mucins serve as wetting agents that keep the
apical epithelia hydrated.

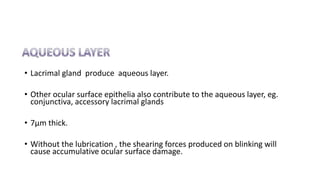

48. • Lacrimal gland produce aqueous layer.
• Other ocular surface epithelia also contribute to the aqueous layer, eg.
conjunctiva, accessory lacrimal glands
• 7µm thick.
• Without the lubrication , the shearing forces produced on blinking will
cause accumulative ocular surface damage.

49. • Composed of water, with many solutes, including dissolved mucins,
electrolyte sand proteins.
• The osmotic pressure : concentrations of sodium, potassium and chloride
ions.
• The tear film’s osmotic pressure is important in the control of cornea–tear
film water flux.
• Bicarbonate and carbonate : pH buffering, maintaining the pH at 7.3–7.6
when the eyes open & 6.8 eyes closed.

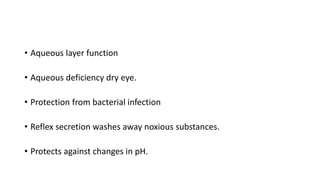

50. • Aqueous layer function
• Aqueous deficiency dry eye.
• Protection from bacterial infection
• Reflex secretion washes away noxious substances.
• Protects against changes in pH.

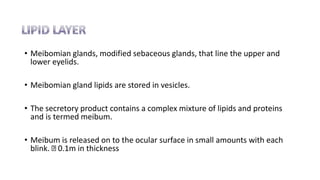

51. • Meibomian glands, modified sebaceous glands, that line the upper and
lower eyelids.
• Meibomian gland lipids are stored in vesicles.
• The secretory product contains a complex mixture of lipids and proteins
and is termed meibum.
• Meibum is released on to the ocular surface in small amounts with each
blink. 0.1m in thickness

52. • Function
• Hydrophobic barrier to prevent tear overflow.
• The meibomforms a water-tight seal of the apposed lid margins during
sleep.
• Reduce tear evaporation .
• Lipids enhance the stability of the tear film and provide a smooth optical.

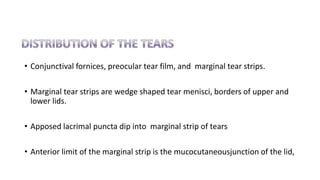

54. • Conjunctival fornices, preocular tear film, and marginal tear strips.
• Marginal tear strips are wedge shaped tear menisci, borders of upper and
lower lids.
• Apposed lacrimal puncta dip into marginal strip of tears
• Anterior limit of the marginal strip is the mucocutaneousjunction of the lid,

56. • Tears are lost from the conjunctiva sac by absorption, evaporation,
and nasolacrimal system.
• This is related to the size of the palpebral aperture, the blink rate,
ambient temperature and humidity.

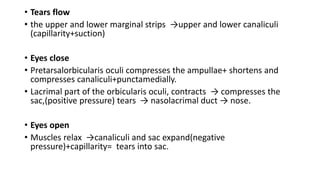

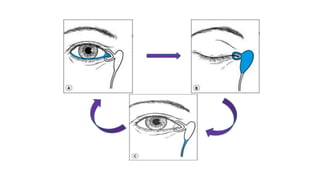

57. • Tears flow
• the upper and lower marginal strips →upper and lower canaliculi
(capillarity+suction)
• Eyes close
• Pretarsalorbicularis oculi compresses the ampullae+ shortens and
compresses canaliculi+punctamedially.
• Lacrimal part of the orbicularis oculi, contracts → compresses the
sac,(positive pressure) tears → nasolacrimal duct → nose.
• Eyes open
• Muscles relax →canaliculi and sac expand(negative
pressure)+capillarity= tears into sac.

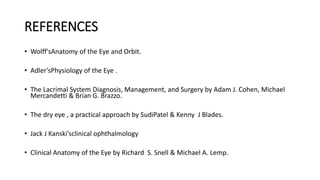

59. REFERENCES
