The Seri Wawasan Bridge is located in Putrajaya, Malaysia and connects Precinct 8 to Precinct 2. It is a 240m long asymmetric cable-stayed bridge with a single span supported by stayed cables from a leaning concrete pylon. The bridge carries six lanes of traffic and pedestrian walkways on both sides. It was inspired by the design of a Bugis schooner and is an iconic landmark in Putrajaya.

1. TOPIC
SERI WAWASAN BRIGE
MALAYSIA
BRIDGES_ SERI WAWASAN BRIDGE_MALAYSIA_ FORTH YR ARCHITECTURE_0828_CONSTRUCTION TECHNOLOGY AND STRUCTURES_BSSA_NMIMS

2. TOPIC
Seri Wawasan Bridge links Precinct 2 to Precinct 8.
BRIDGES_ SERI WAWASAN BRIDGE_MALAYSIA_ FORTH YR ARCHITECTURE_0828_CONSTRUCTION TECHNOLOGY AND STRUCTURES_BSSA_NMIMS

3. TOPIC
LOCATION
1.The Seri Wawasan Bridge, which is located in Putrajaya Main Island Area, is one of the cable‐
stayed bridges available in Malaysia
2.Single span cable stayed bridge with single tower
3.This bridge is connecting Precinct 8 and the mixed development at Precinct 2

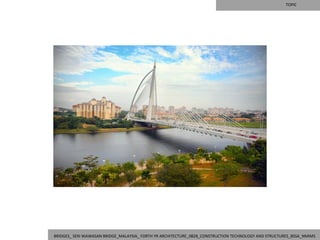

Seri Wawasan Bridge , is a cable-stayed bridge in Putrajaya, the Malaysian federal
administrative capital.
BRIDGES_ SERI WAWASAN BRIDGE_MALAYSIA_ FORTH YR ARCHITECTURE_0828_CONSTRUCTION TECHNOLOGY AND STRUCTURES_BSSA_NMIMS

4. TOPIC

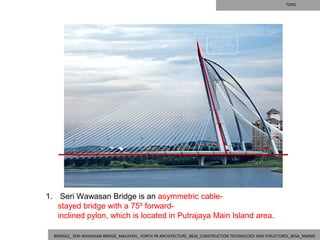

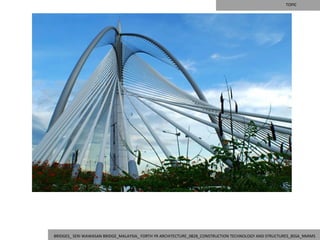

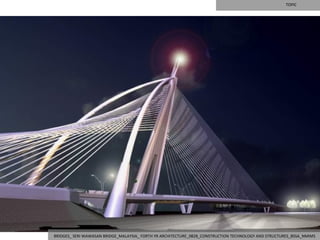

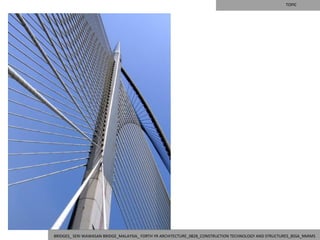

1. Seri Wawasan Bridge is an asymmetric cable‐
stayed bridge with a 75º forward‐
inclined pylon, which is located in Putrajaya Main Island area.
BRIDGES_ SERI WAWASAN BRIDGE_MALAYSIA_ FORTH YR ARCHITECTURE_0828_CONSTRUCTION TECHNOLOGY AND STRUCTURES_BSSA_NMIMS

5. TOPIC
Construction

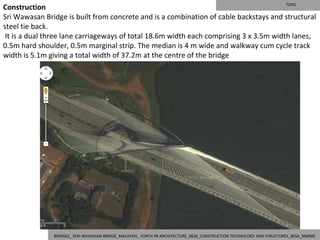

Sri Wawasan Bridge is built from concrete and is a combination of cable backstays and structural
steel tie back.
It is a dual three lane carriageways of total 18.6m width each comprising 3 x 3.5m width lanes,
0.5m hard shoulder, 0.5m marginal strip. The median is 4 m wide and walkway cum cycle track
width is 5.1m giving a total width of 37.2m at the centre of the bridge
BRIDGES_ SERI WAWASAN BRIDGE_MALAYSIA_ FORTH YR ARCHITECTURE_0828_CONSTRUCTION TECHNOLOGY AND STRUCTURES_BSSA_NMIMS

6. TOPIC

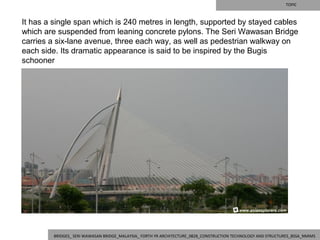

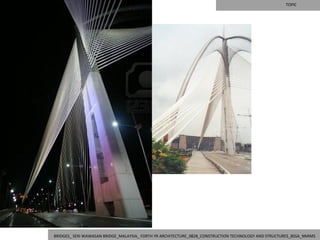

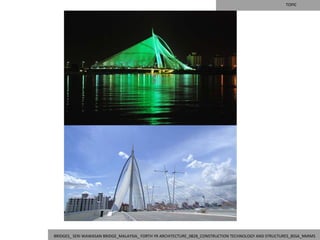

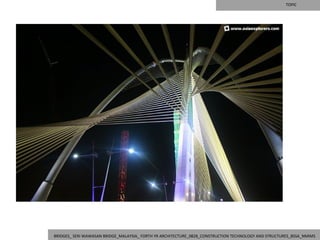

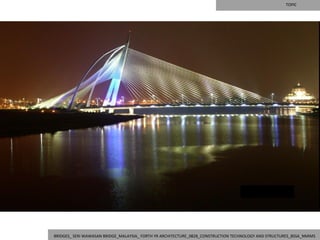

It has a single span which is 240 metres in length, supported by stayed cables
which are suspended from leaning concrete pylons. The Seri Wawasan Bridge
carries a six-lane avenue, three each way, as well as pedestrian walkway on
each side. Its dramatic appearance is said to be inspired by the Bugis
schooner
