Jheel bhandari erasmus bridge

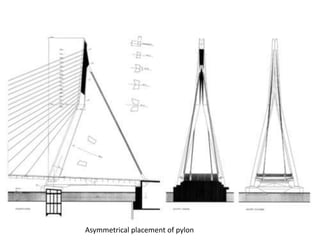

The Erasmus Bridge in Rotterdam is a cable-stayed bridge completed in 1996 that crosses the Meuse River. It has a main span of 280 meters, total length of 802 meters, and height of 139 meters. The bridge uses steel for its cables, pylon, and deck and features an asymmetrical placement of its pylon.
Jheel bhandari erasmus bridge
- 1. ERASMUS BRIDGE- ROTTERDAM - UNSTUDIO

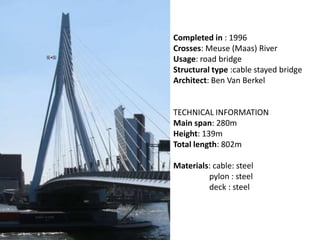

- 2. Completed in :1996 Crosses: Meuse (Maas) River Usage: road bridge Structural type :cable stayed bridge Architect: Ben Van Berkel TECHNICAL INFORMATION Main span: 280m Height: 139m Total length: 802m Materials: cable: steel pylon : steel deck : steel
- 3.
Editor's Notes

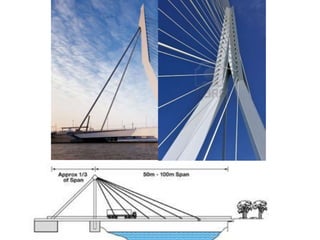

- #5 Although expensive, stayed bridges may be the only viable alternative when: there is no access to the gap, on which temporary or permanent piers could be built; when there is no staright level run up to the gap which would permit cantilever launching; when the span is too big for regular through truss bridges. And, in particular, one-tower bridges are useful if there is no good access to the far bank, as they can be built from one side only. But please note: you stll need enough space for the large counterweights, which may need to be one fifth of the spann for a two tower bridge.Long span (50m - 200m)Very strong, but also flexibleEconomical as allow a slender and lighter structure which is still able to span large distancesLight weight is an advantage in earthquake-prone areasModern and simple design makes attractive and distinct landmarksEasy to build in segments where in-situ construction or cantilever launch on rollers is not possible. This requires substantial piers and large counterweightsLess suitable for very windy places due to its lightness
