Kemal gezmis rail one
1. Riyadh / KSA | May 6th, 2014 11
| RHEDA 2000®
For every application, the optimal solution
Kemal Gezmis, Rail.One GmbH
Riyadh, May 6th, 2014
2. Riyadh / KSA | May 6th, 2014 2
Company profile
RHEDA 2000® - System design and components
RHEDA 2000® - Unique solution for different structures
RHEDA 2000® - Ideal system for dessert regions
RHEDA 2000® - Modifications
RHEDA MRT
RHEDA City

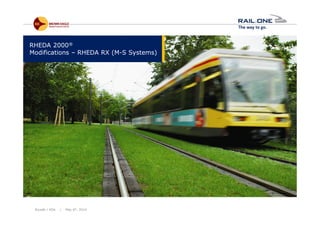

RHEDA RX
References
Topics
3. Riyadh / KSA | May 6th, 2014 3
Rail.One

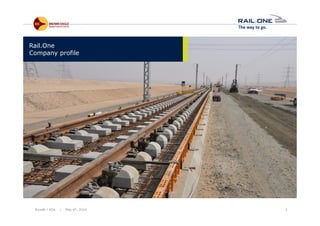

Company profile
4. Riyadh / KSA | May 6th, 2014 4
We offer a broad portfolio of products and services involving all aspects of railways and
infrastructure, tailored to individual requirements.
RAIL.ONE – Your one-stop provider
5. Riyadh / KSA | May 6th, 2014 5
New markets
United
States
South
Africa
India
China
Russia
Algeria
UAE
Kazakhstan
Greece
Poland
Oman

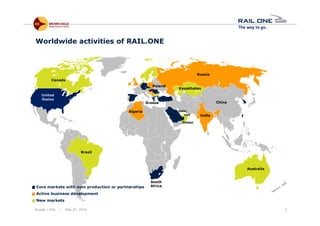

Worldwide activities of RAIL.ONE
Core markets with own production or partnerships
Active business development
Canada
Australia
Brazil
Qatar
6. Riyadh / KSA | May 6th, 2014
RHEDA 2000®

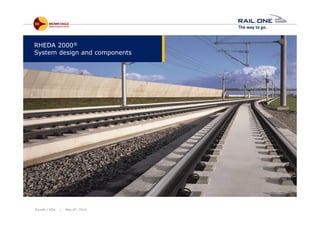

System design and components

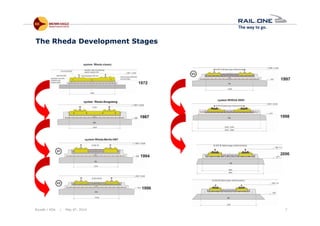

7. Riyadh / KSA | May 6th, 2014 7
The Rheda Development Stages
8. Riyadh / KSA | May 6th, 2014 8

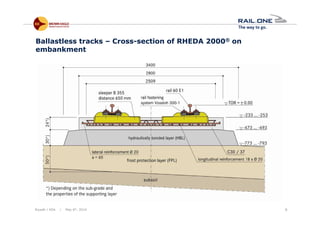

Ballastless tracks – Cross-section of RHEDA 2000® on
embankment
9. Riyadh / KSA | May 6th, 2014 9

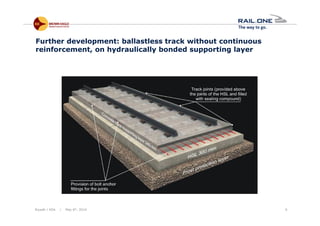

Further development: ballastless track without continuous
reinforcement, on hydraulically bonded supporting layer
10. Riyadh / KSA | May 6th, 2014 10

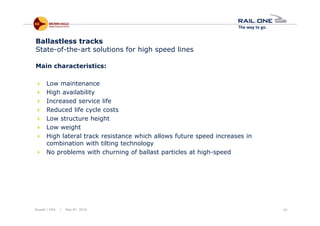

Ballastless tracks
State-of-the-art solutions for high speed lines
Main characteristics:
Low maintenance
High availability
Increased service life
Reduced life cycle costs
Low structure height
Low weight
High lateral track resistance which allows future speed increases in
combination with tilting technology
No problems with churning of ballast particles at high-speed
11. Riyadh / KSA | May 6th, 2014 11
Ballastless tracks

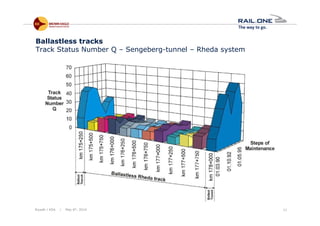

Track Status Number Q – Sengeberg-tunnel – Rheda system
12. Riyadh / KSA | May 6th, 2014 12

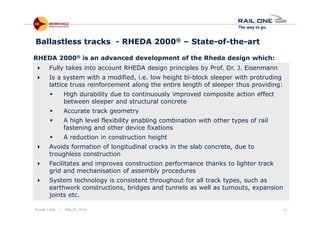

Fully takes into account RHEDA design principles by Prof. Dr. J. Eisenmann
Is a system with a modified, i.e. low height bi-block sleeper with protruding
lattice truss reinforcement along the entire length of sleeper thus providing:
High durability due to continuously improved composite action effect
between sleeper and structural concrete
Accurate track geometry
A high level flexibility enabling combination with other types of rail
fastening and other device fixations
A reduction in construction height
Avoids formation of longitudinal cracks in the slab concrete, due to
troughless construction
Facilitates and improves construction performance thanks to lighter track
grid and mechanisation of assembly procedures
System technology is consistent throughout for all track types, such as
earthwork constructions, bridges and tunnels as well as turnouts, expansion
joints etc.
Ballastless tracks - RHEDA 2000® – State-of-the-art
RHEDA 2000® is an advanced development of the Rheda design which:
13. Riyadh / KSA | May 6th, 2014
RHEDA 2000®

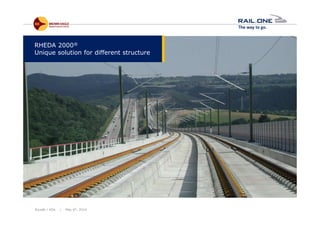

Unique solution for different structure
14. Riyadh / KSA | May 6th, 2014 14

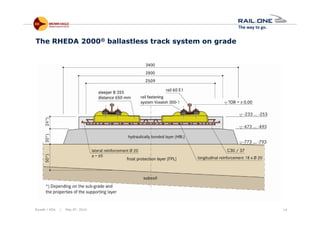

The RHEDA 2000® ballastless track system on grade
15. Riyadh / KSA | May 6th, 2014 15

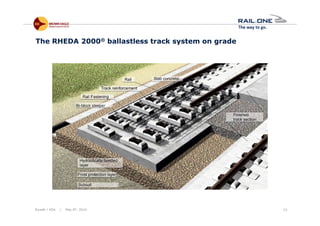

The RHEDA 2000® ballastless track system on grade

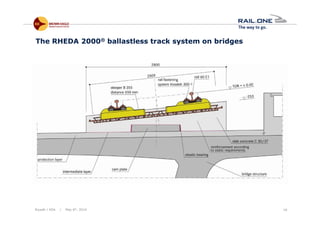

16. Riyadh / KSA | May 6th, 2014 16

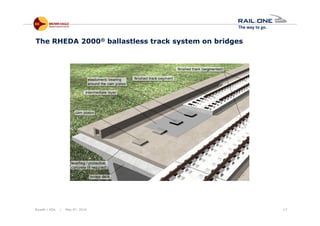

The RHEDA 2000® ballastless track system on bridges
17. Riyadh / KSA | May 6th, 2014 17
The RHEDA 2000® ballastless track system on bridges
18. Riyadh / KSA | May 6th, 2014 18

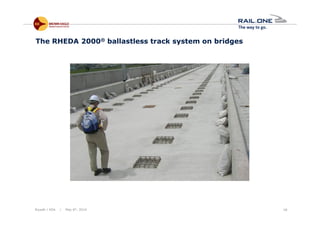

The RHEDA 2000® ballastless track system on bridges
19. Riyadh / KSA | May 6th, 2014 19

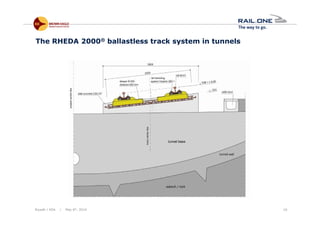

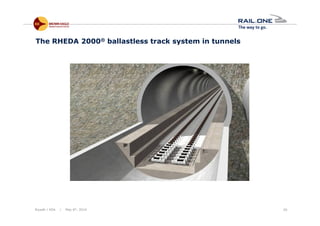

The RHEDA 2000® ballastless track system in tunnels
20. Riyadh / KSA | May 6th, 2014 20
The RHEDA 2000® ballastless track system in tunnels
21. Riyadh / KSA | May 6th, 2014 21

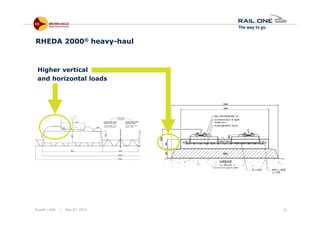

Higher vertical
and horizontal loads
RHEDA 2000® heavy-haul
22. Riyadh / KSA | May 6th, 2014 22

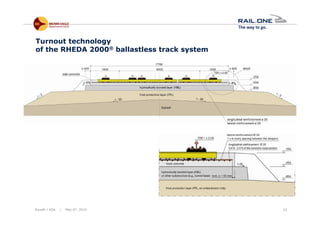

Turnout technology
of the RHEDA 2000® ballastless track system
23. Riyadh / KSA | May 6th, 2014 23

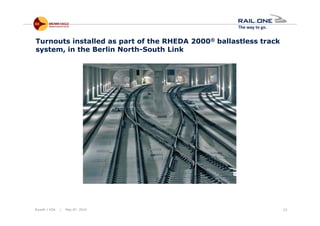

Turnouts installed as part of the RHEDA 2000® ballastless track
system, in the Berlin North-South Link
24. Riyadh / KSA | May 6th, 2014
RHEDA 2000®
Ideal system for dessert areas
25. Riyadh / KSA | May 6th, 2014 25

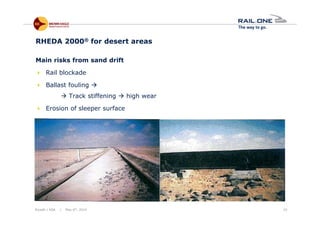

Main risks from sand drift
Rail blockade
Ballast fouling
Track stiffening high wear
Erosion of sleeper surface
RHEDA 2000® for desert areas

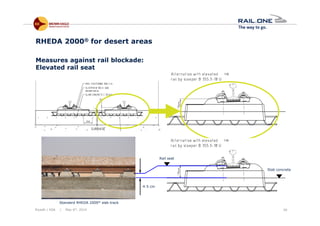

26. Riyadh / KSA | May 6th, 2014 26
Measures against rail blockade:
Elevated rail seat
RHEDA 2000® for desert areas
4-5 cm
Standard RHEDA 2000® slab track
Rail seat
Slab concrete

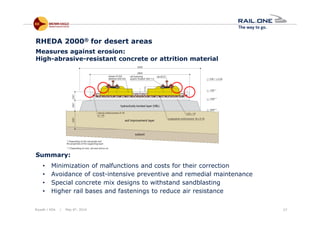

27. Riyadh / KSA | May 6th, 2014 27
Measures against erosion:
High-abrasive-resistant concrete or attrition material
RHEDA 2000® for desert areas
• Minimization of malfunctions and costs for their correction
• Avoidance of cost-intensive preventive and remedial maintenance
• Special concrete mix designs to withstand sandblasting
• Higher rail bases and fastenings to reduce air resistance
Summary:
29. Riyadh / KSA | May 6th, 2014 29

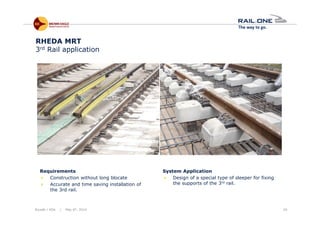

RHEDA MRT
3rd Rail application
Requirements
Construction without long blocate
Accurate and time saving installation of
the 3rd rail.
System Application
Design of a special type of sleeper for fixing
the supports of the 3rd rail.
30. Riyadh / KSA | May 6th, 2014
RHEDA 2000®
Modifications – RHEDA City

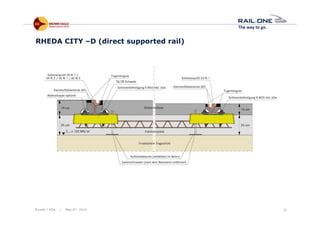

31. Riyadh / KSA | May 6th, 2014 31
RHEDA CITY –D (direct supported rail)
32. Riyadh / KSA | May 6th, 2014 32

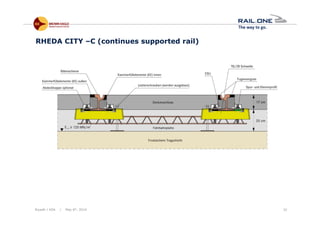

RHEDA CITY –C (continues supported rail)
33. Riyadh / KSA | May 6th, 2014 33

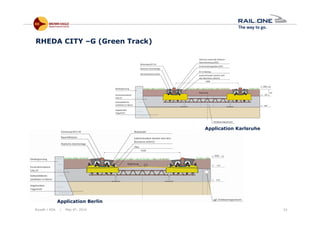

RHEDA CITY –G (Green Track)
Application Karlsruhe
Application Berlin

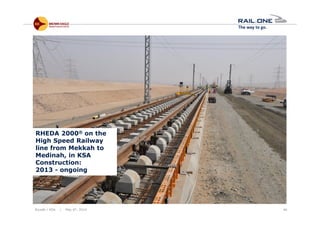

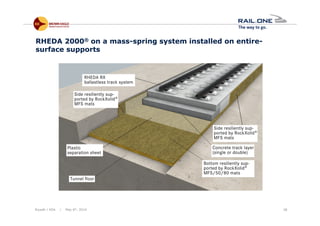

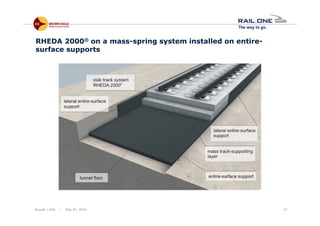

40. Riyadh / KSA | May 6th, 2014 40
RHEDA 2000® on the
High Speed Railway
line from Mekkah to
Medinah, in KSA
Construction:
2013 - ongoing
41. Riyadh / KSA | May 6th, 2014 41

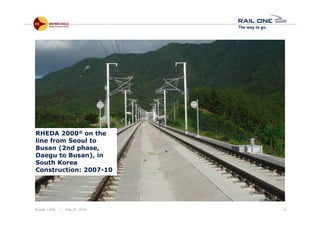

RHEDA 2000® on the
line from Seoul to
Busan (2nd phase,
Daegu to Busan), in
South Korea
Construction: 2007-10

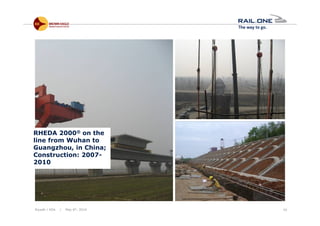

42. Riyadh / KSA | May 6th, 2014 42
RHEDA 2000® on the
line from Wuhan to
Guangzhou, in China;
Construction: 2007-
2010
43. Riyadh / KSA | May 6th, 2014 43

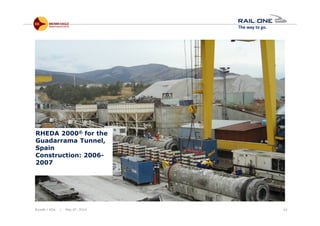

RHEDA 2000® for the
Guadarrama Tunnel,
Spain
Construction: 2006-
2007
44. Riyadh / KSA | May 6th, 2014 44
RHEDA 2000® on the
line from Nuremberg
to Ingolstadt,
Germany
Construction: 2004-
2005
45. Riyadh / KSA | May 6th, 2014 45

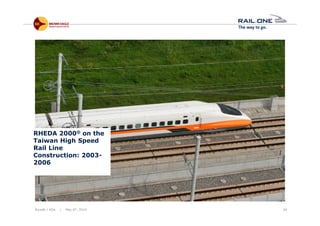

RHEDA 2000® on the
Taiwan High Speed
Rail Line
Construction: 2003-
2006
46. Riyadh / KSA | May 6th, 2014 46

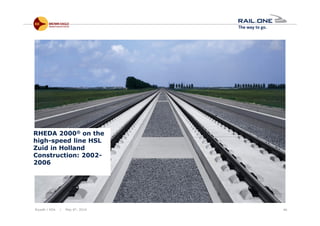

RHEDA 2000® on the
high-speed line HSL
Zuid in Holland
Construction: 2002-
2006
47. Riyadh / KSA | May 6th, 2014 47

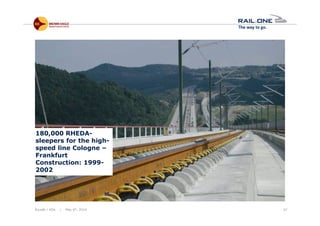

180,000 RHEDA-
sleepers for the high-
speed line Cologne –
Frankfurt
Construction: 1999-
2002
48. Riyadh / KSA | May 6th, 2014 48

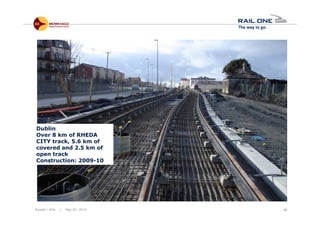

Dublin
Over 8 km of RHEDA
CITY track, 5.6 km of
covered and 2.5 km of
open track
Construction: 2009-10
49. Riyadh / KSA | May 6th, 2014 49

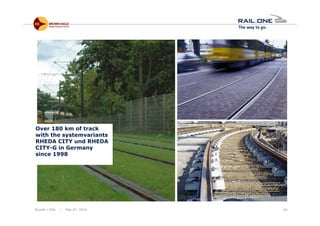

Over 180 km of track
with the systemvariants
RHEDA CITY und RHEDA
CITY-G in Germany
since 1998
50. Riyadh / KSA | May 6th, 2014 50

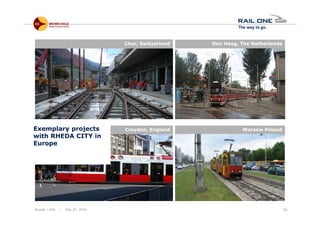

Den Haag, The NetherlandsChur, Switzerland
Croydon, England Warsaw PolandExemplary projects
with RHEDA CITY in
Europe
51. Riyadh / KSA | May 6th, 2014 51
Contact
Kemal Gezmis
Sales Manager Middle East &
North Africa (MENA)
RAIL.ONE GmbH
Ingolstaedter Strasse 51
92318 Neumarkt
Tel +49 9181 8952-254
Fax +49 9181 8952-5050
Mobile +49 172 8818825
kemal.gezmis@railone.com
www.railone.com
