JIRA 7 for Developers - Bartek Gatz Filip Rogaczewski Ian Grunert
The document discusses the evolution and features of Jira, focusing on the development of add-on platforms such as Atlassian Connect and the Jira REST API. It highlights the importance of cloud solutions, customer trends favoring cloud usage, and technical challenges in integrating add-ons. Additionally, it outlines ongoing developments, including user interface integrations and project navigation enhancements for Jira developers.
More Related Content
Similar to JIRA 7 for Developers - Bartek Gatz Filip Rogaczewski Ian Grunert
JIRA 7 for Developers - Bartek Gatz Filip Rogaczewski Ian Grunert
- 1.
- 2. BARTEK GATZ PRODUCTMANAGER FILIP ROGACZEWSKI DEVELOPER ATLASSIAN IAN GRUNERT SENIOR DEVELOPER JIRA 7 for Developers building cool stuff with JIRA platforms
- 3. What we willtalk about

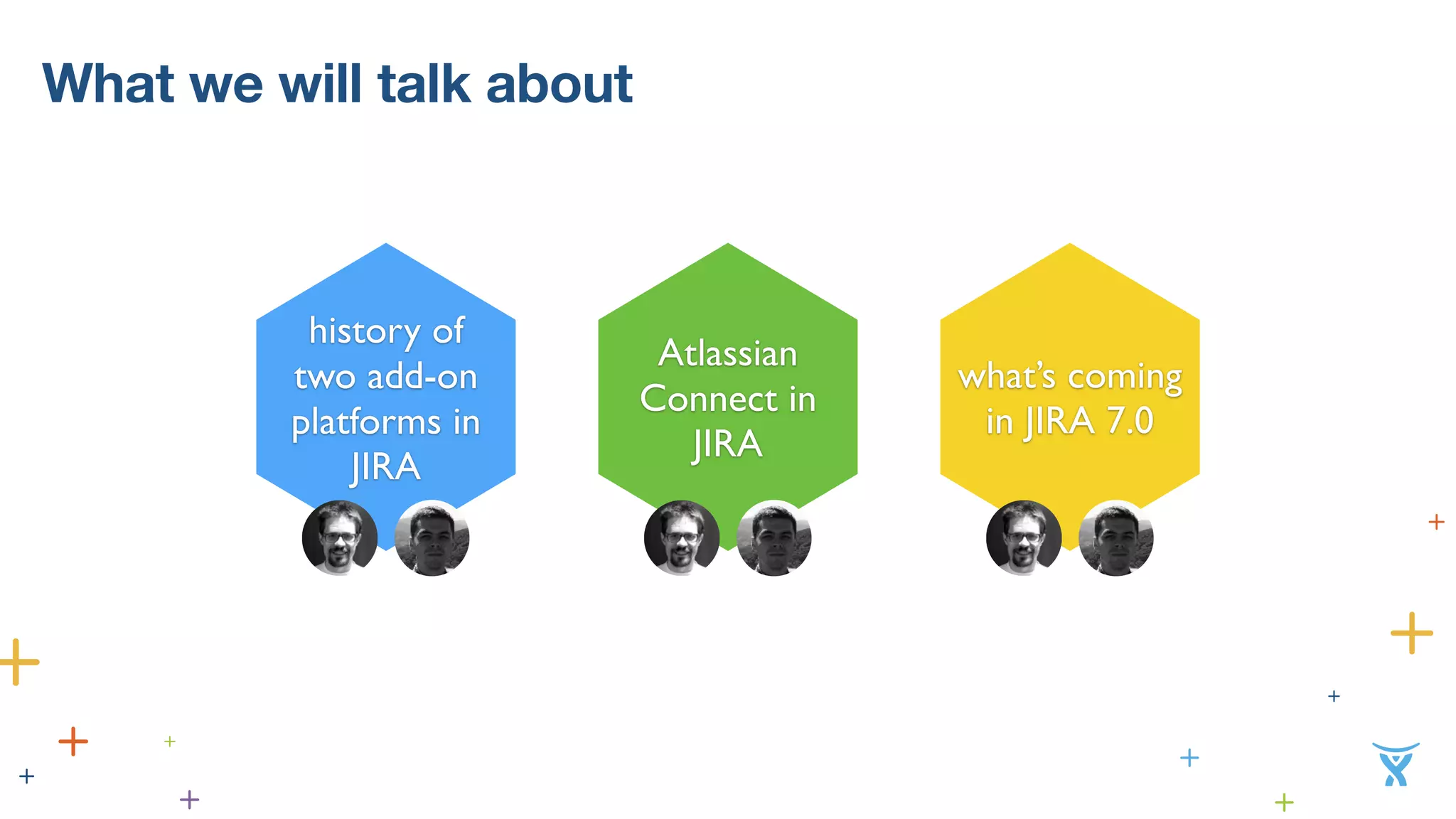

- 4. What we willtalk about history of two add-on platforms in JIRA Atlassian Connect in JIRA what’s coming in JIRA 7.0
- 5. What we willtalk about JIRA Data Center web resources keeping in the loop

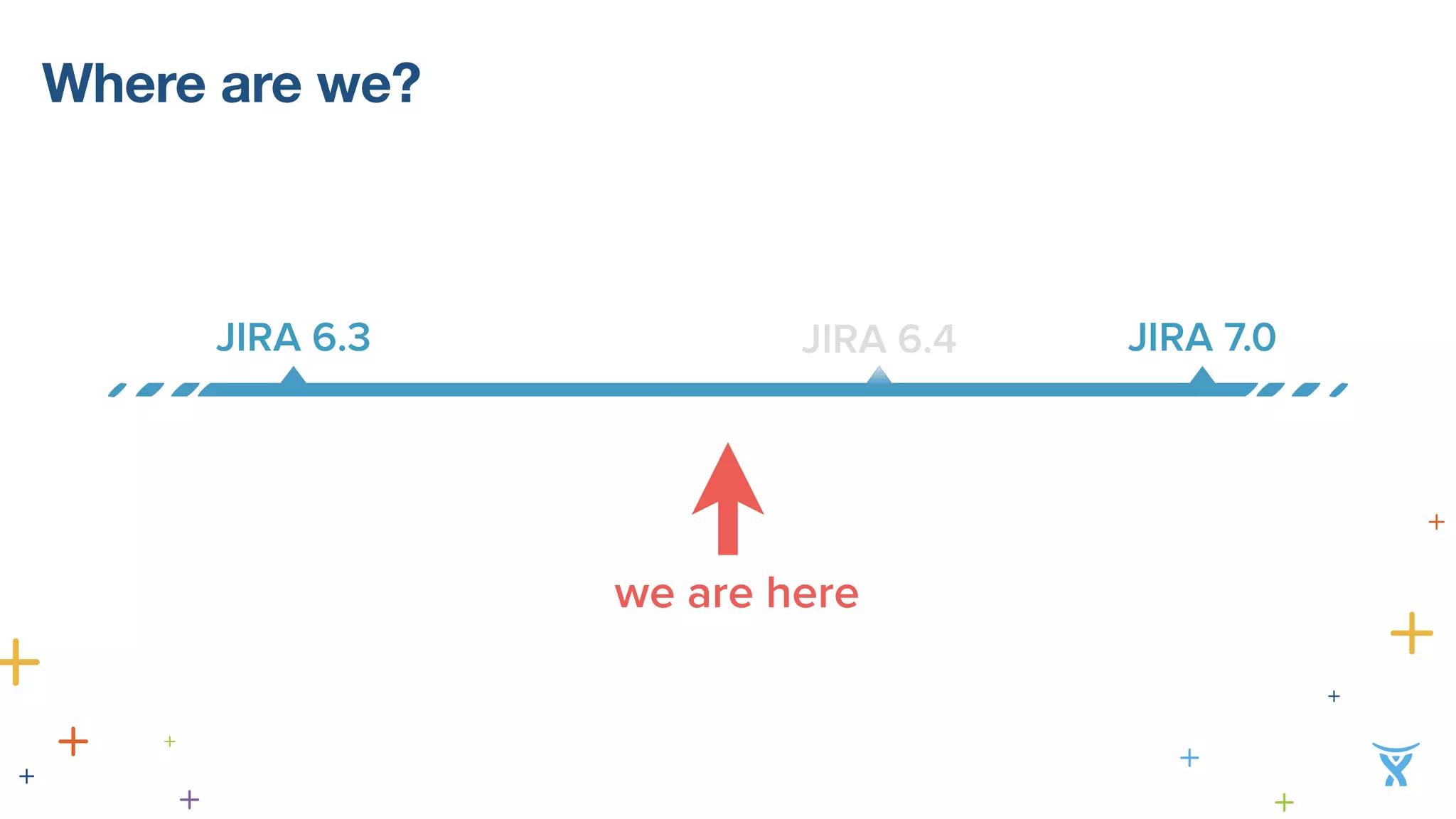

- 6. Where are we? JIRA 7.0 JIRA 6.3 JIRA 6.4 we are here

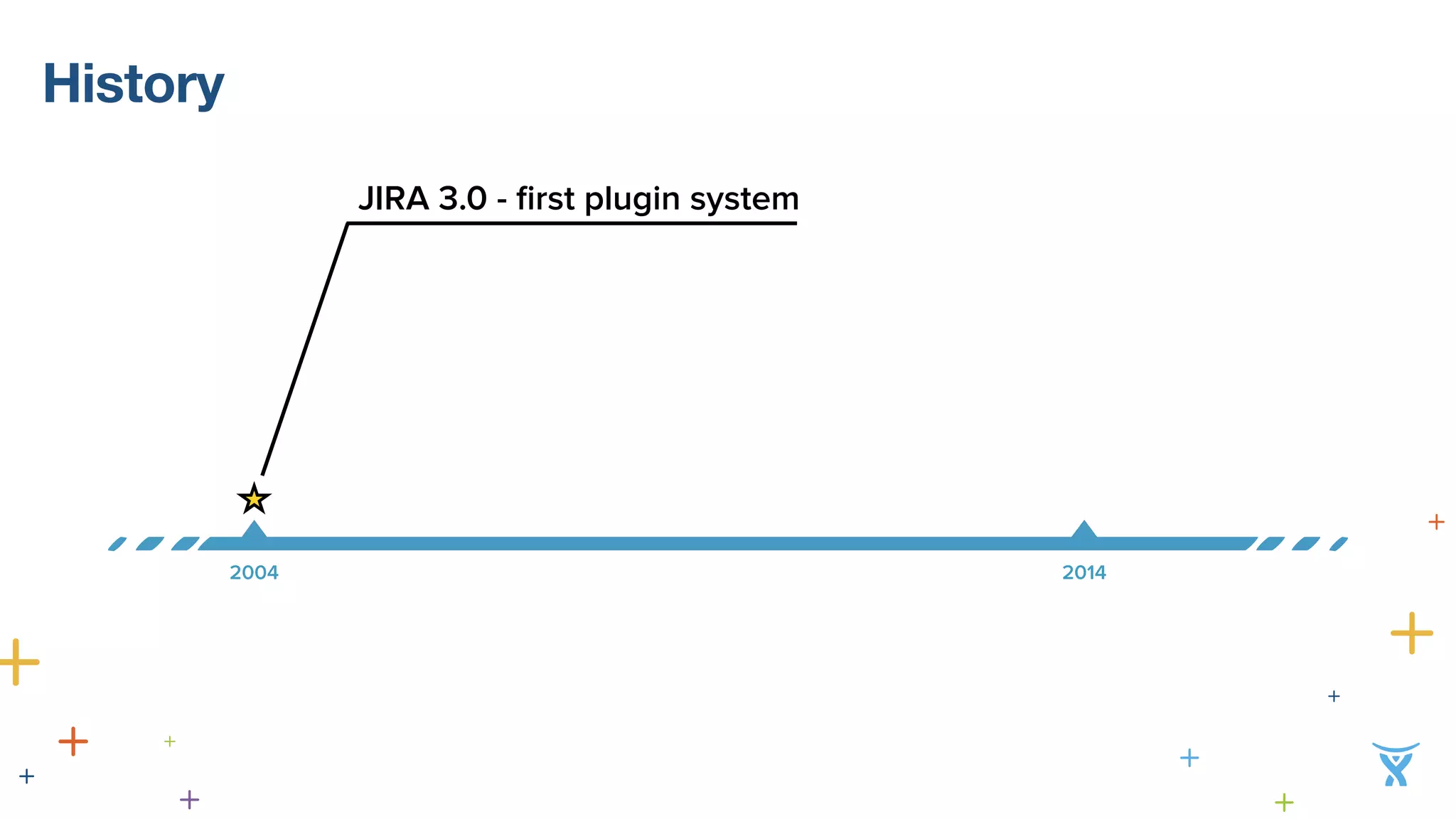

- 7. History JIRA 3.0- first plugin system 2004 2014
- 8. there are over P2 add-ons for JIRA on Marketplace
- 9. there are over660 P2 add-ons for JIRA on Marketplace

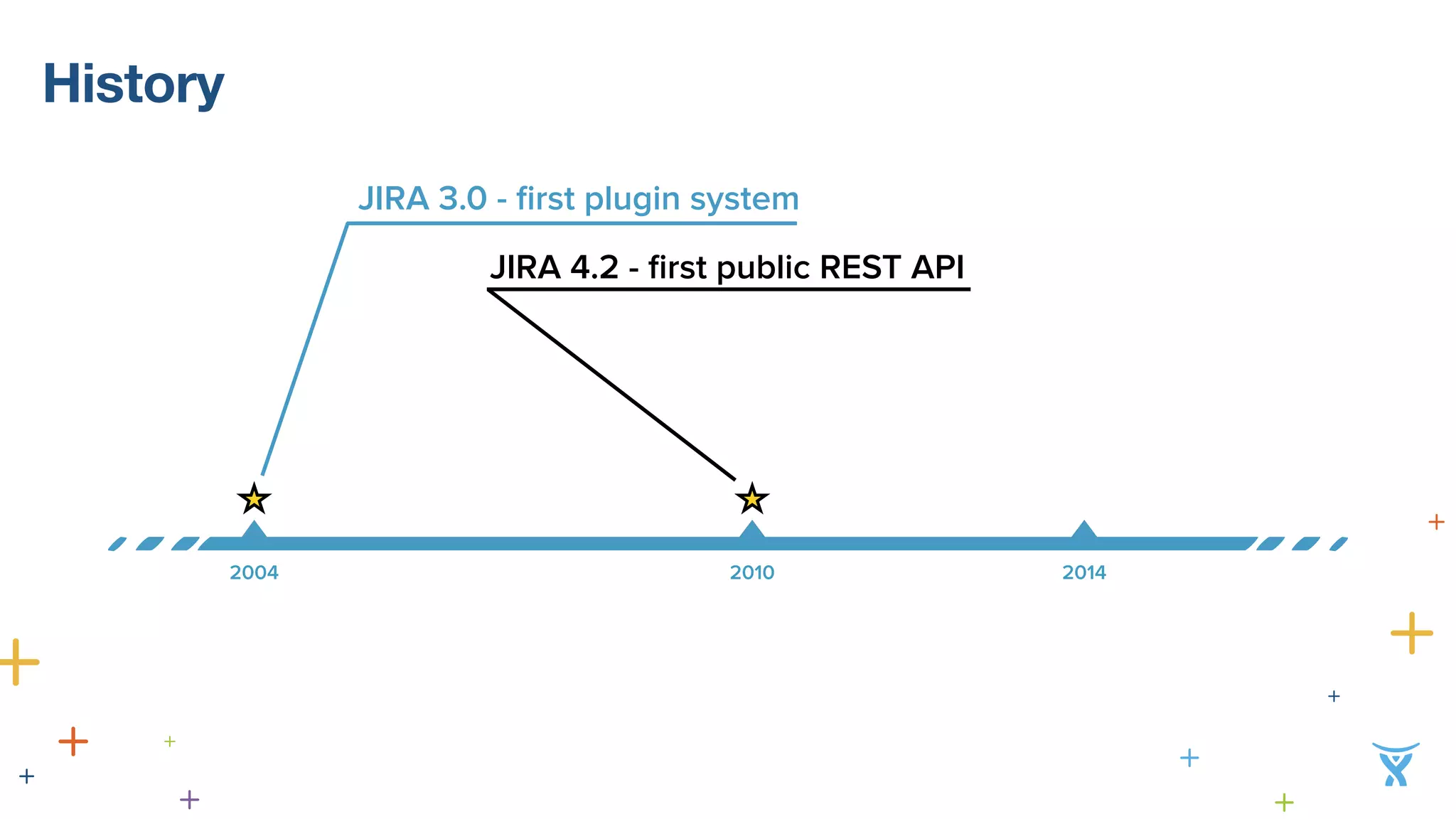

- 10. History JIRA 3.0- first plugin system JIRA 4.2 - first public REST API 2004 2010 2014

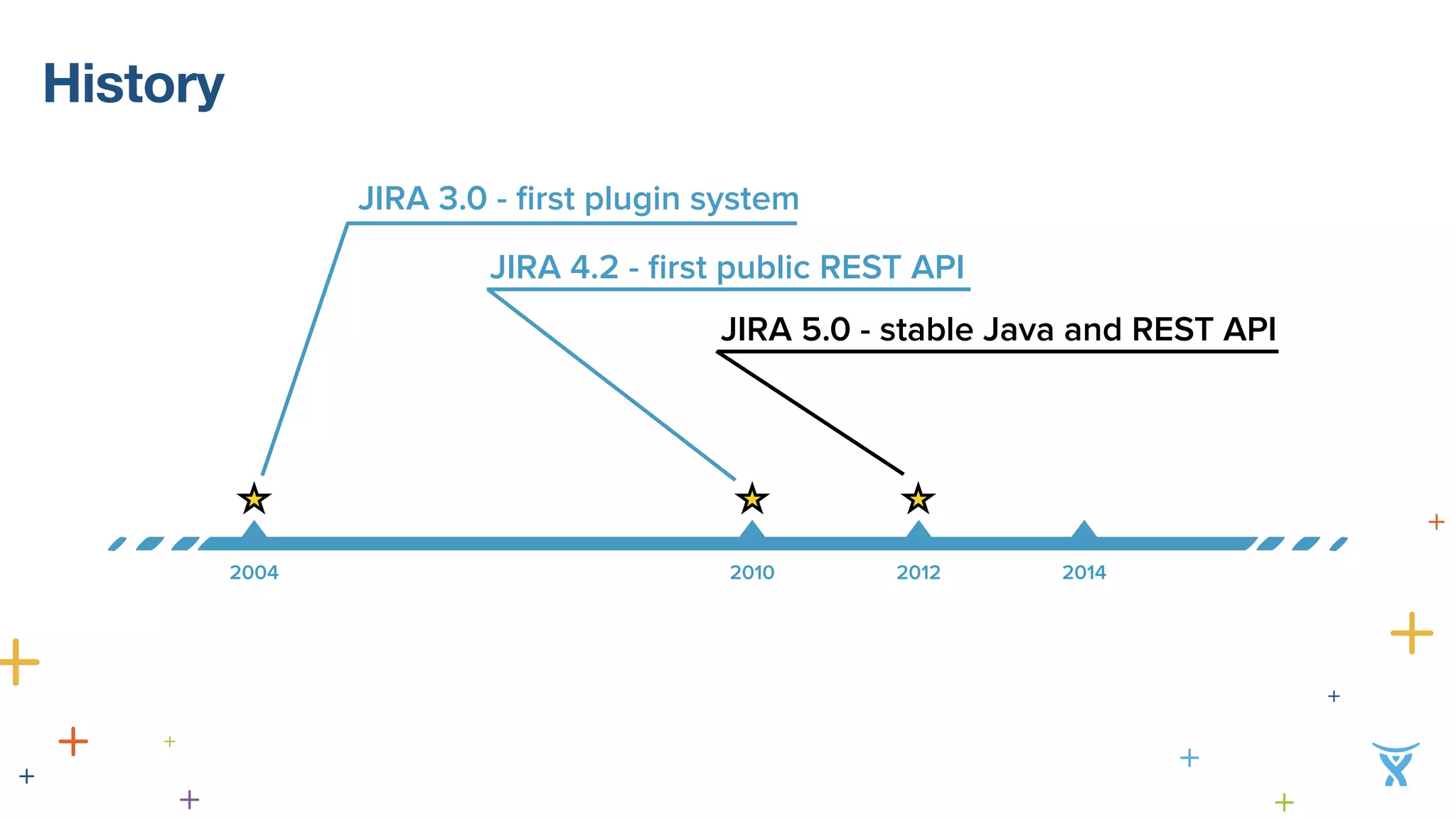

- 11. History JIRA 3.0- first plugin system JIRA 4.2 - first public REST API JIRA 5.0 - stable Java and REST API 2004 2010 2012 2014

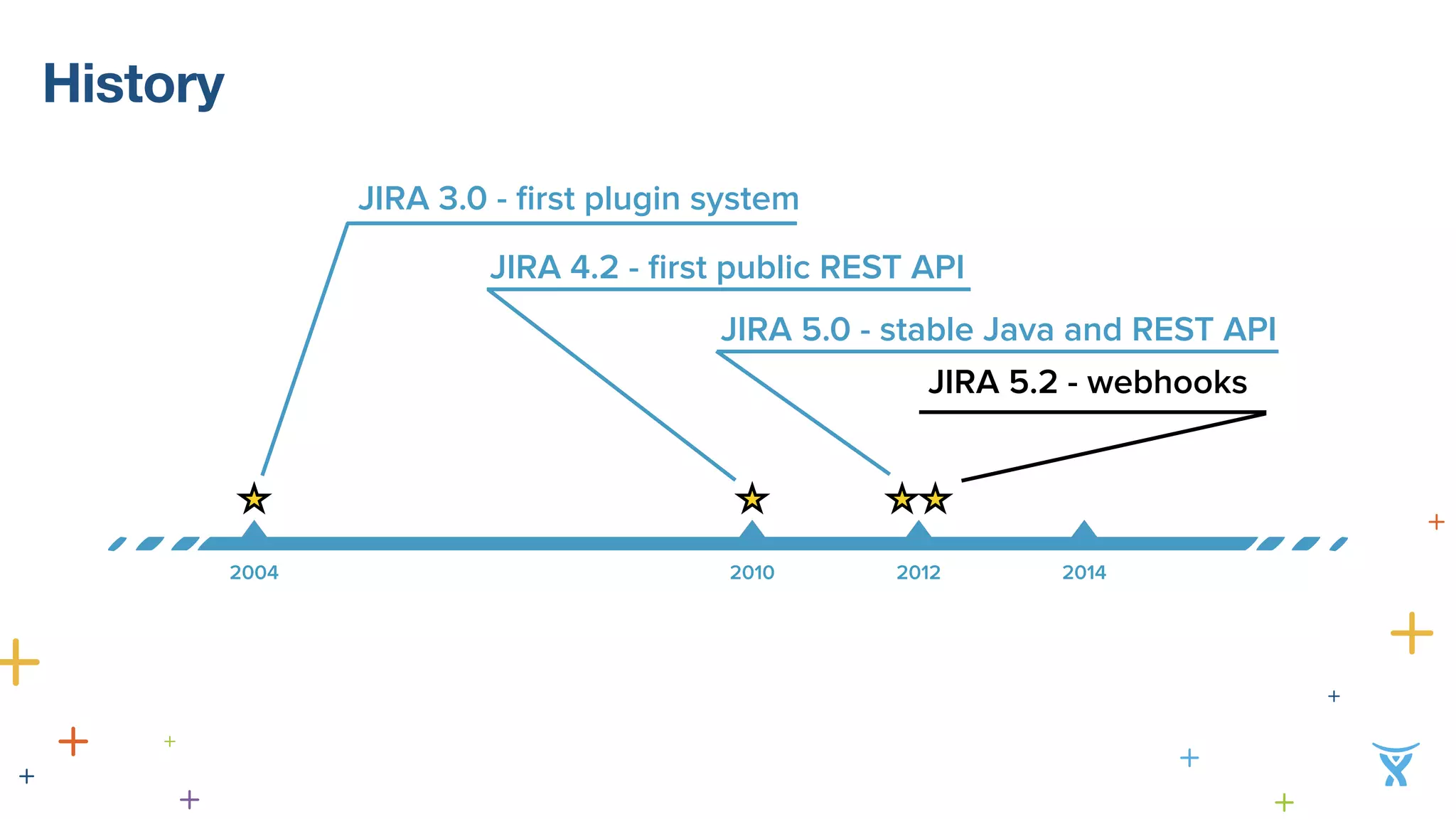

- 12. History JIRA 4.2- first public REST API JIRA 5.0 - stable Java and REST API JIRA 5.2 - webhooks JIRA 3.0 - first plugin system 2004 2010 2012 2014
- 13. JIRA in theCloud

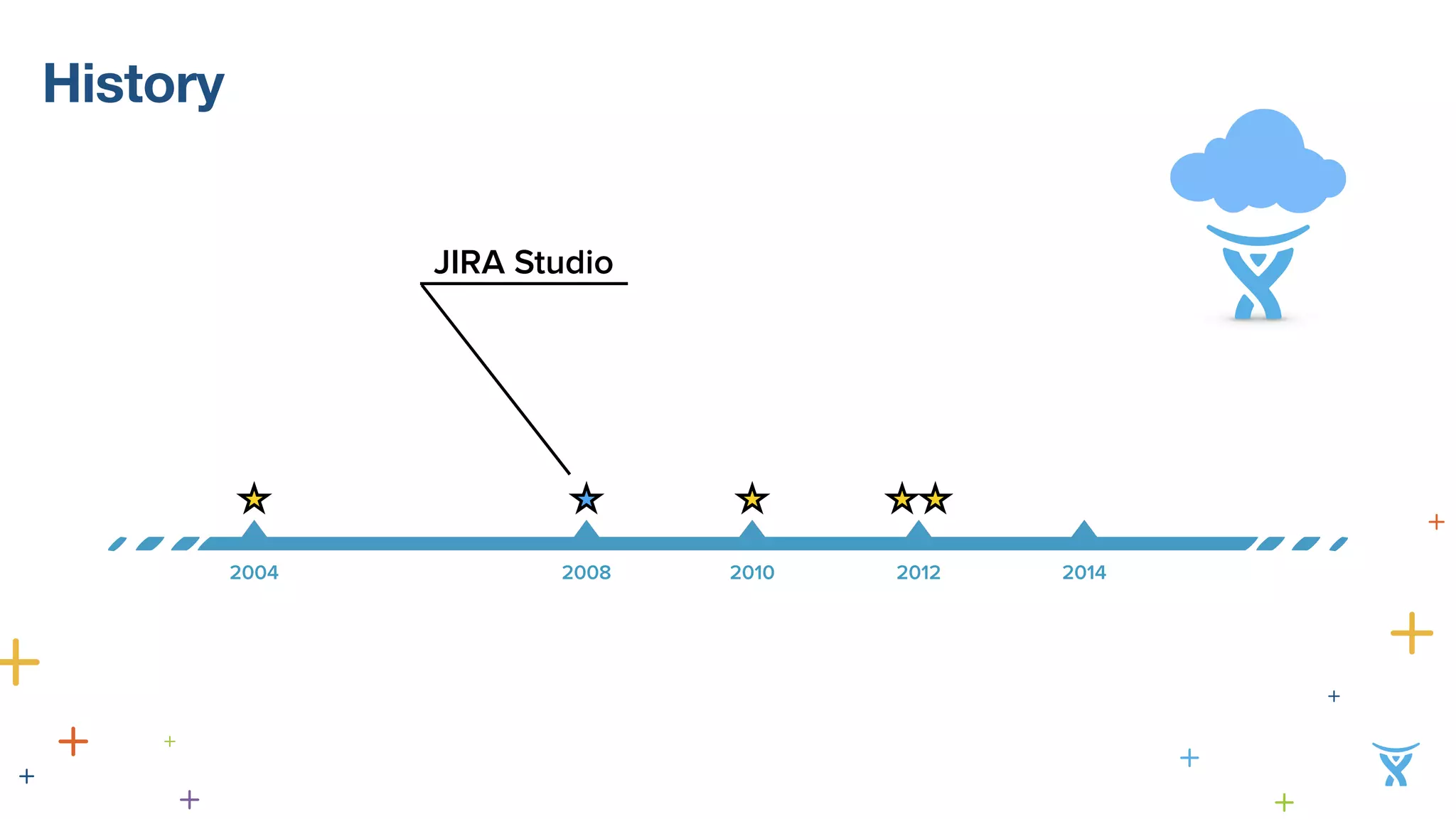

- 14. History JIRA Studio 2004 2008 2010 2012 2014

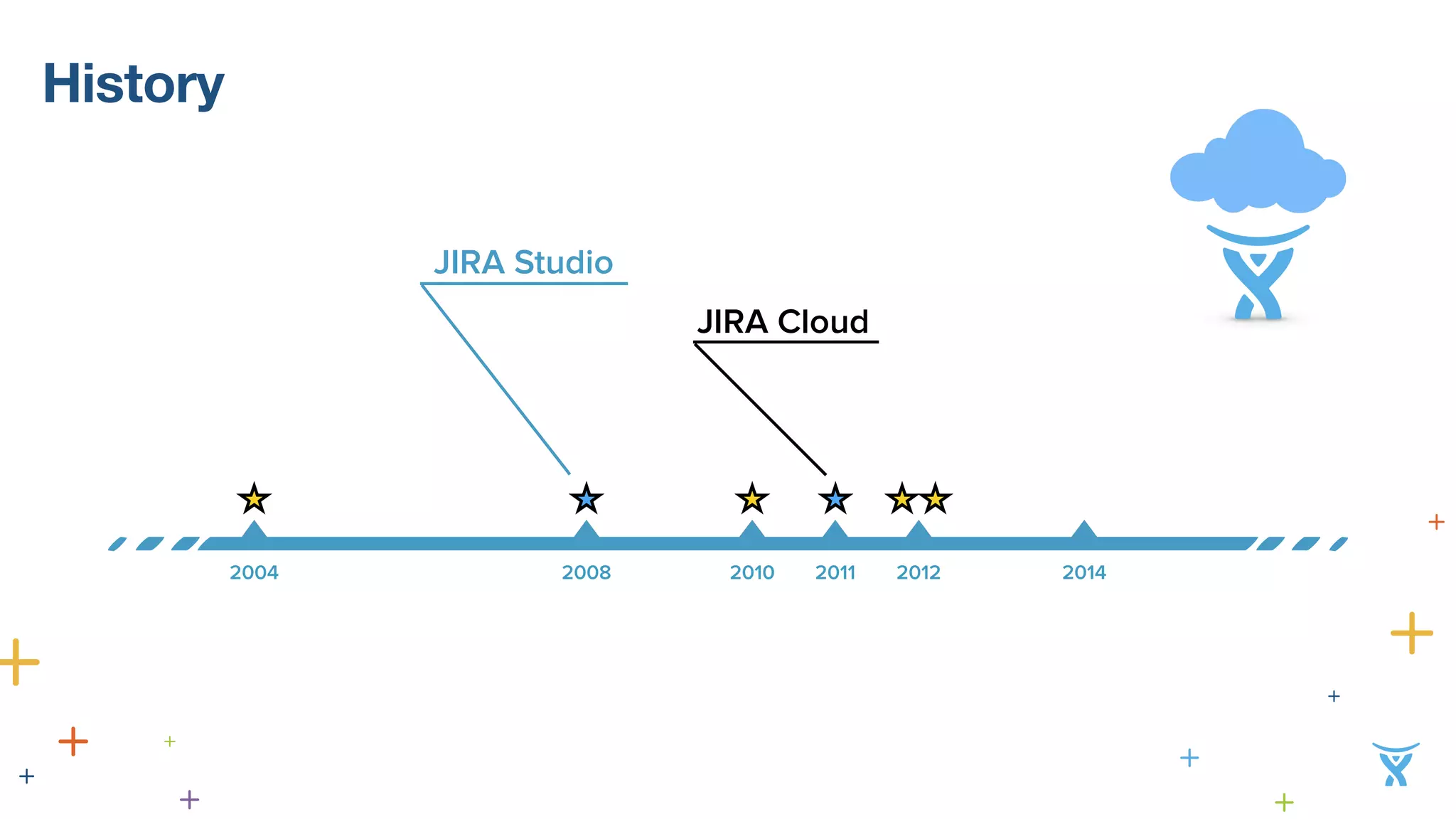

- 15. History JIRA Cloud JIRA Studio 2004 2008 2010 2011 2012 2014

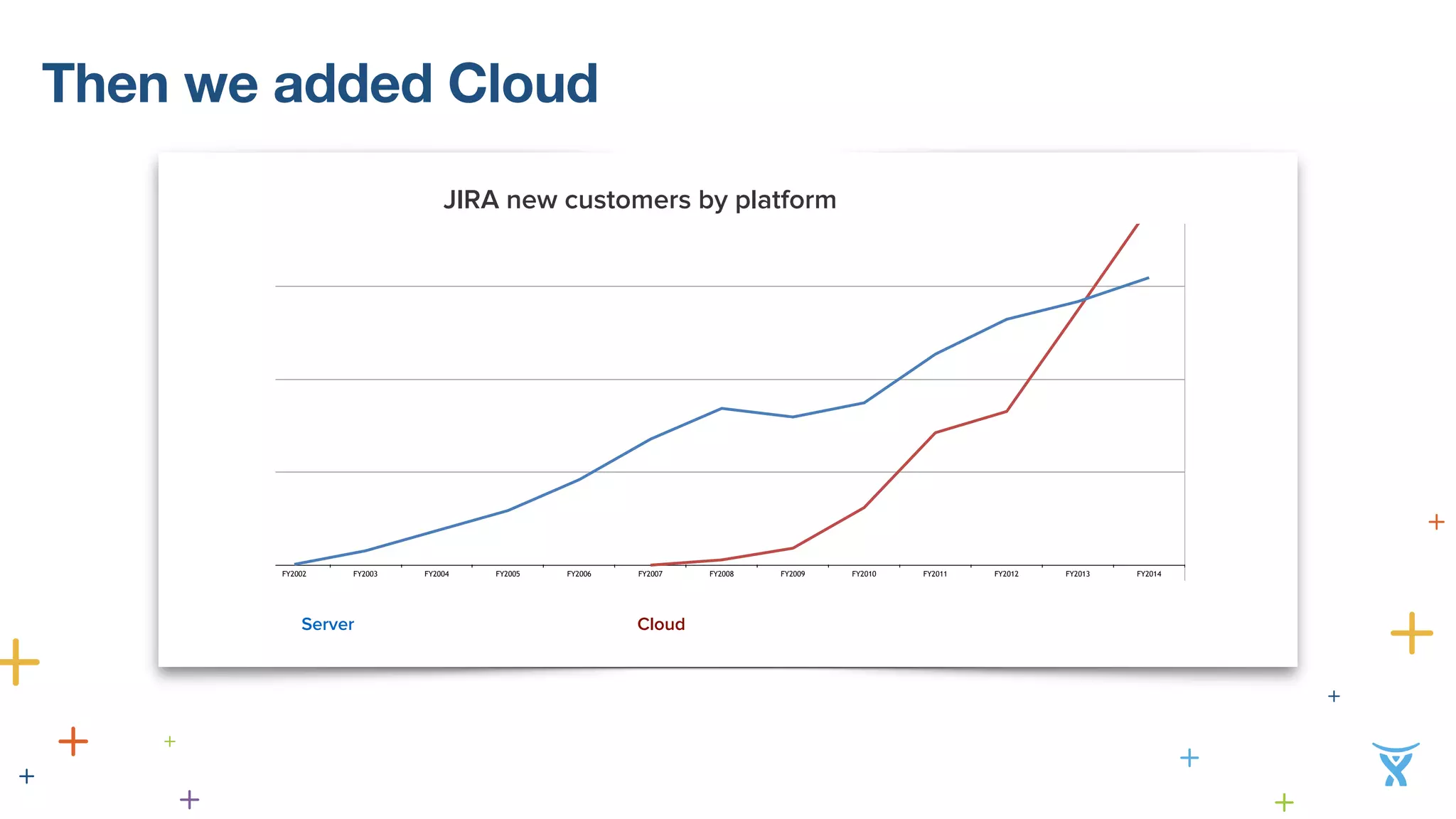

- 16. Then we addedCloud JIRA - New Sales by Platform 8,000 6,000 4,000 2,000 -00 JIRA new customers by platform FY2002 FY2003 FY2004 FY2005 FY2006 FY2007 FY2008 FY2009 FY2010 FY2011 FY2012 FY2013 FY2014 Server Cloud BTF OnDemand
- 17. today of newcustomers are choosing Cloud

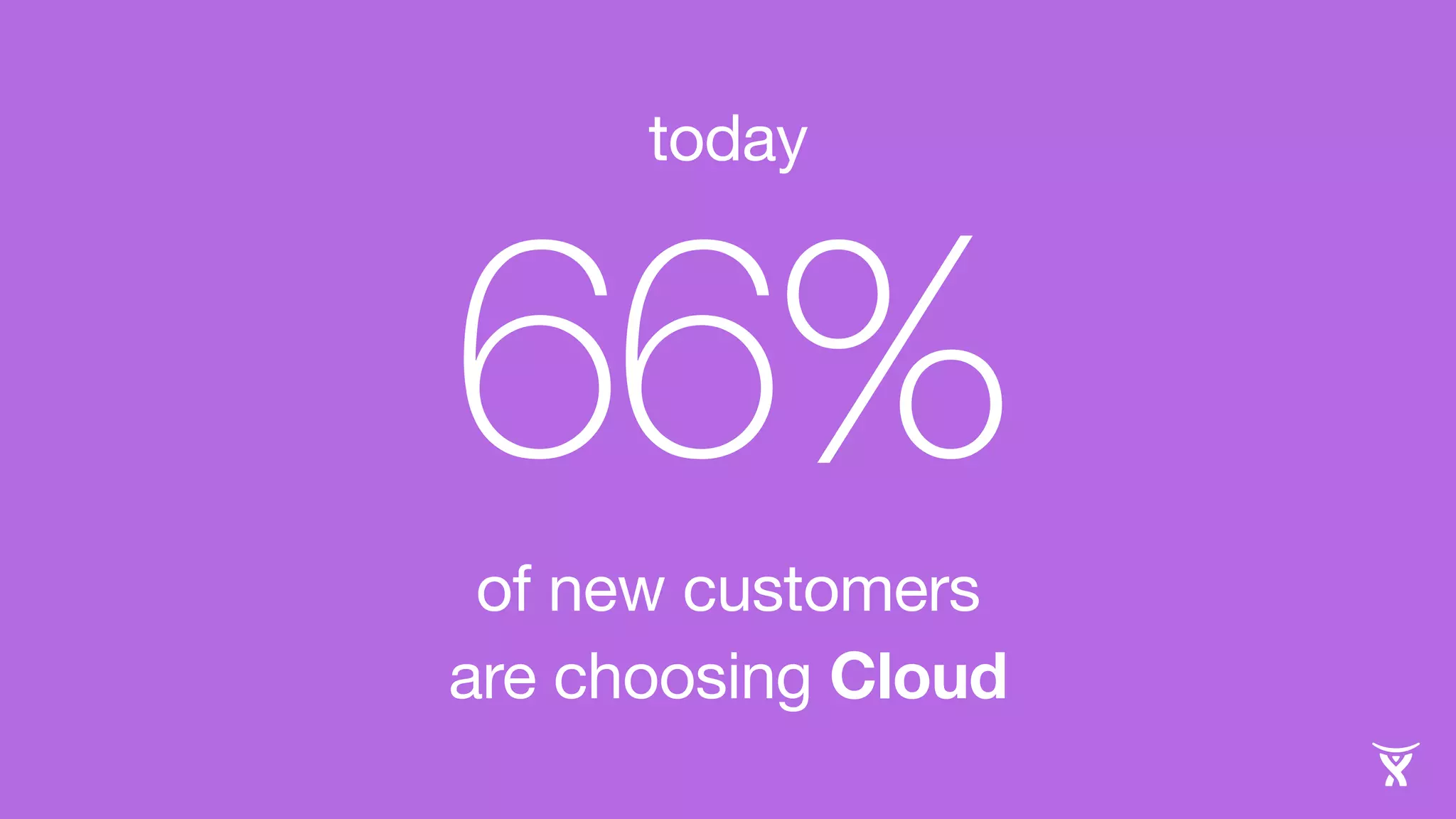

- 18. today 66% ofnew customers are choosing Cloud
- 19. Then we addedCloud JIRA available for Cloud • continuously growing popularity ! !

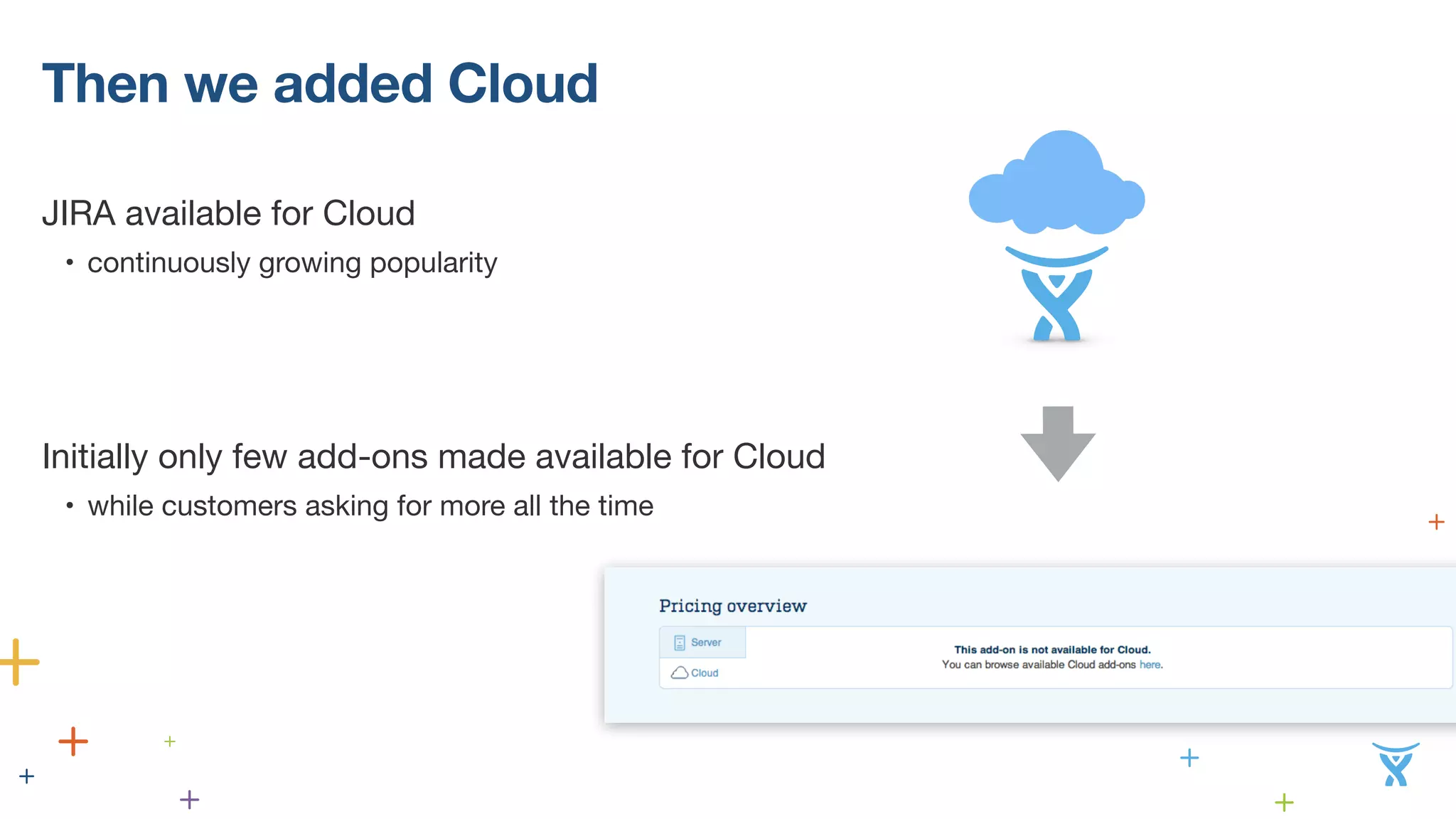

- 20. Then we addedCloud JIRA available for Cloud • continuously growing popularity ! ! Initially only few add-ons made available for Cloud • while customers asking for more all the time ! !

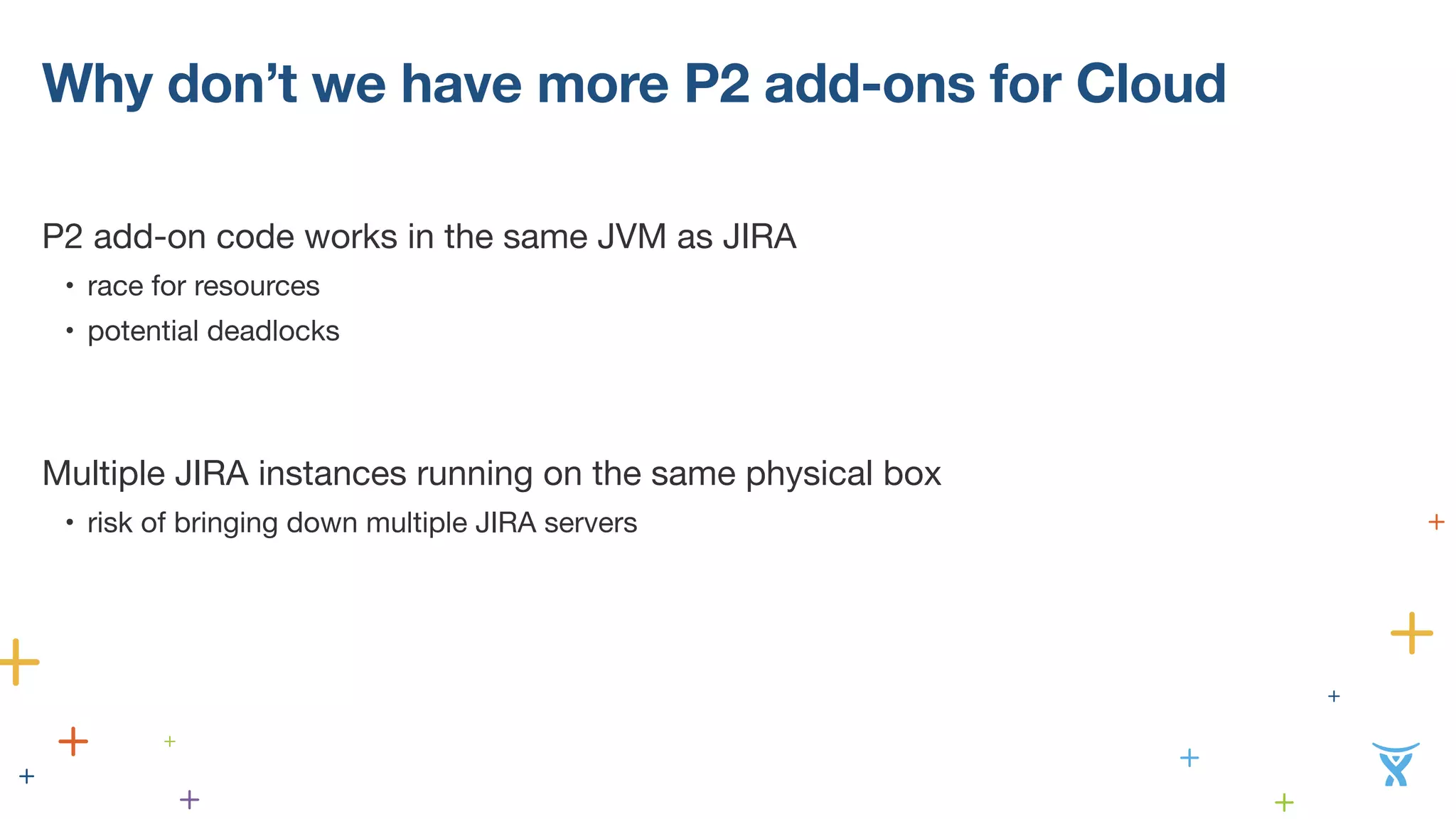

- 21. Why don’t wehave more P2 add-ons for Cloud P2 add-on code works in the same JVM as JIRA • race for resources • potential deadlocks ! ! Mu!ltiple JIRA instances running on the same physical box • risk of bringing down multiple JIRA servers ! !
- 22. Why don’t wehave more P2 add-ons for Cloud P2 add-on code works in the same JVM as JIRA • race for resources • potential deadlocks ! ! Mu!ltiple JIRA instances running on the same physical box • risk of bringing down multiple JIRA servers ! ! RISK
- 23. so what didwe do?

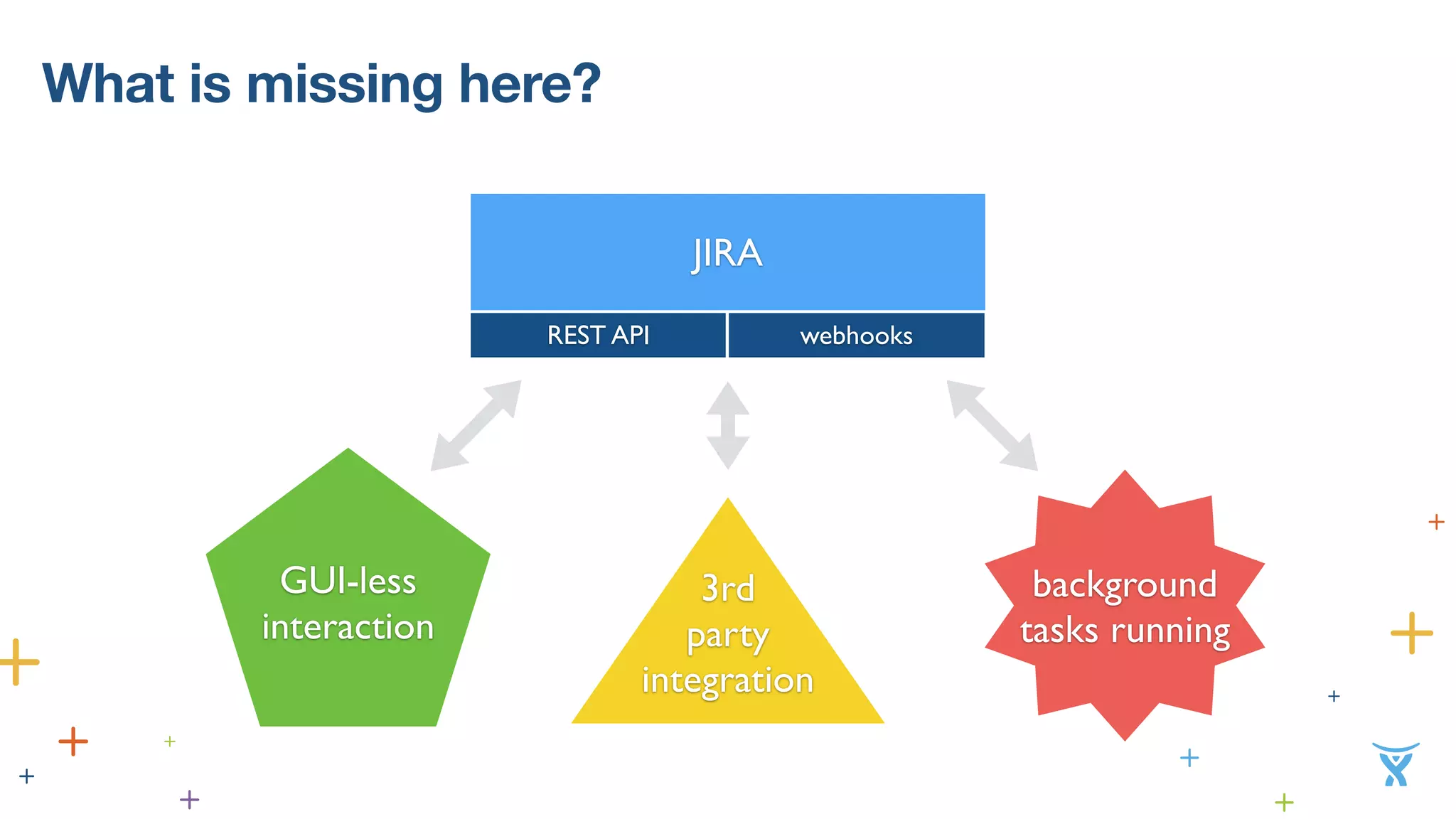

- 24. What is missinghere? JIRA REST API GUI-less interaction ! 3rd party integration background tasks running webhooks

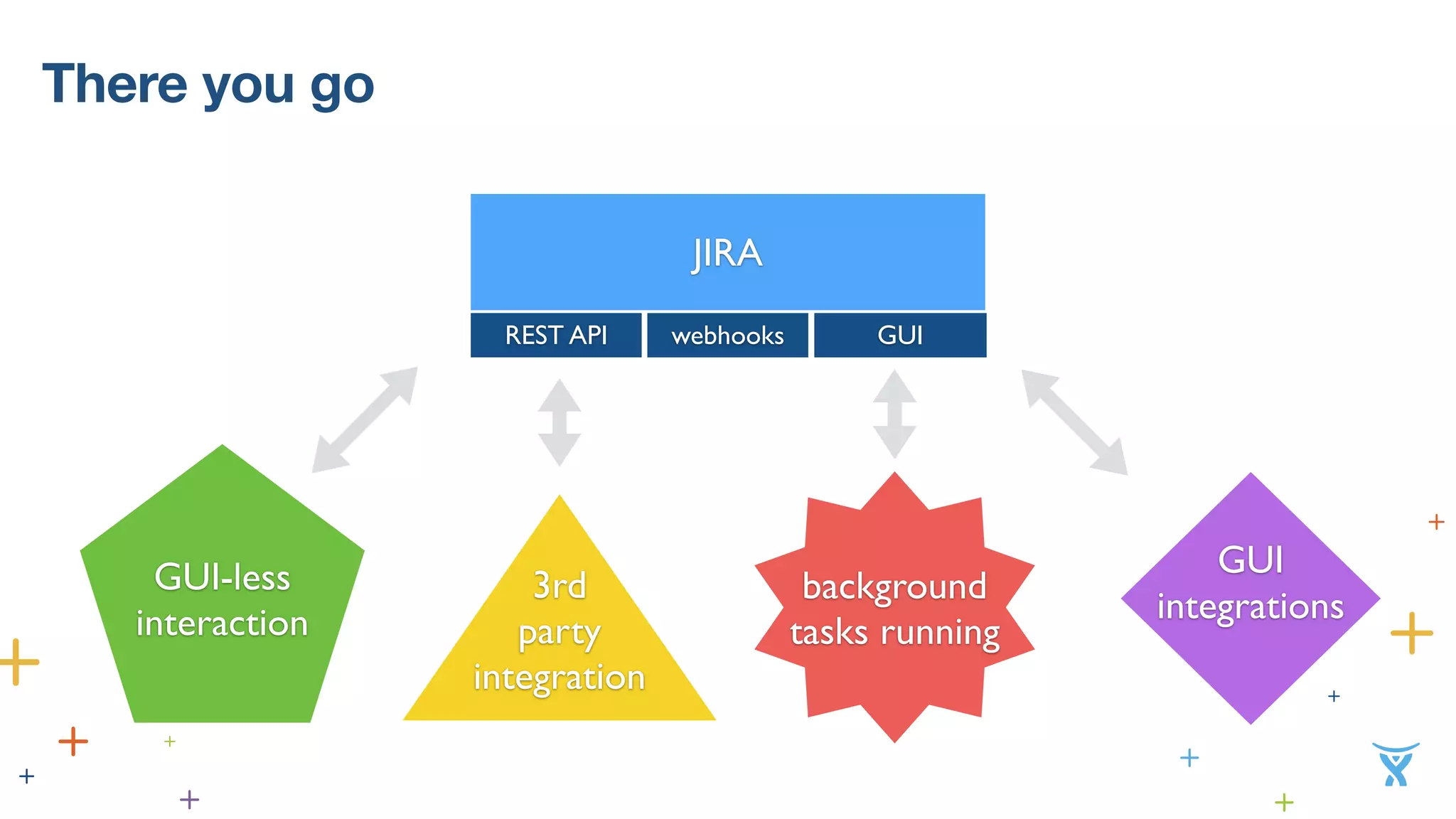

- 25. There you go JIRA REST API GUI-less interaction ! 3rd party integration webhooks GUI background tasks running GUI integrations
- 26. There you go JIRA REST API GUI-less interaction ! 3rd party integration webhooks GUI background tasks running GUI integrations

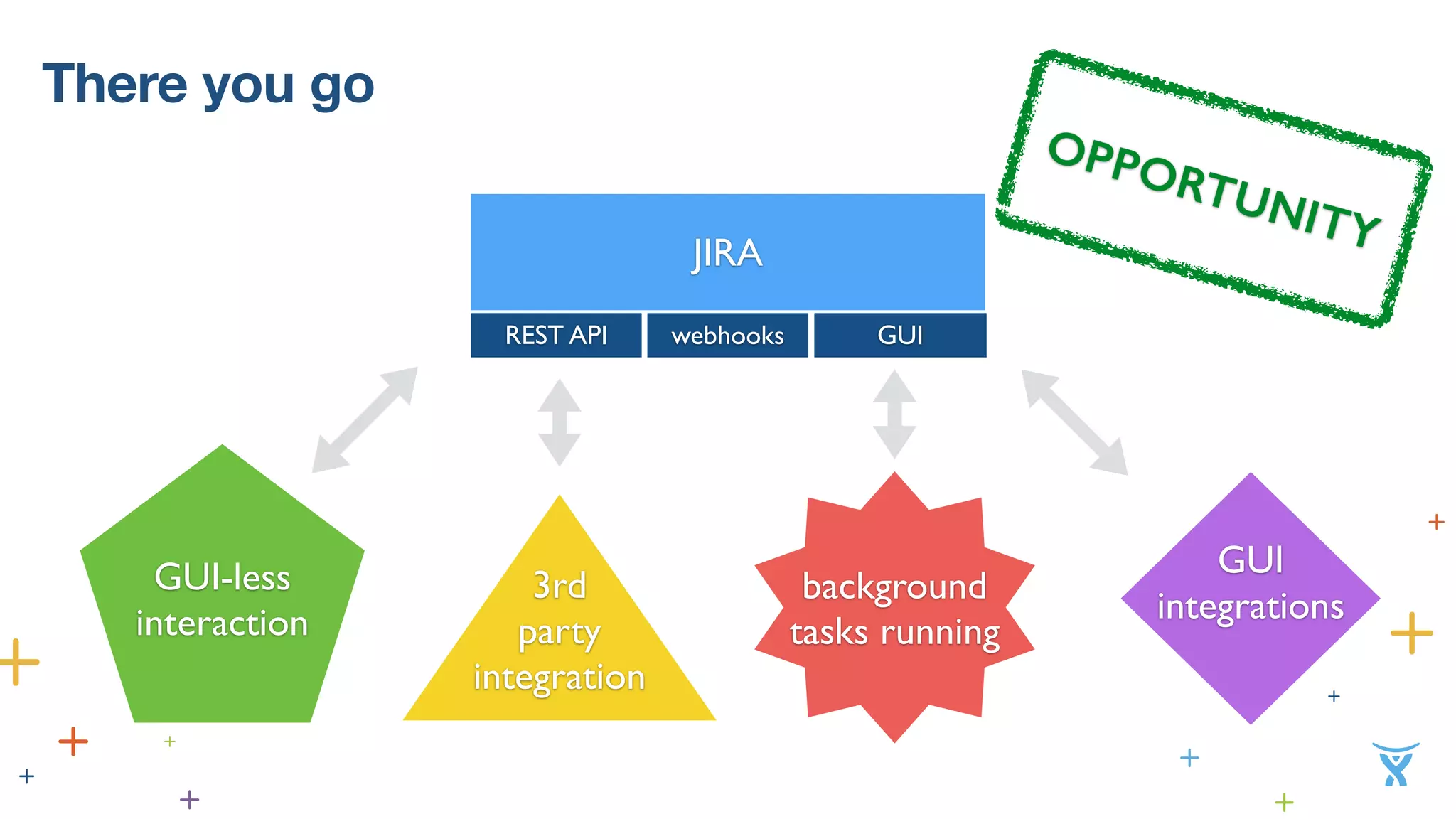

- 27. There you go JIRA REST API GUI-less interaction ! 3rd party integration webhooks GUI background tasks running OPPORTUNITY GUI integrations
- 28. There you goOPPORTUNITY Opportunities • resource independence • free choice of development stack • ability to integrate multiple services ! ! !
- 29. and this ishow…

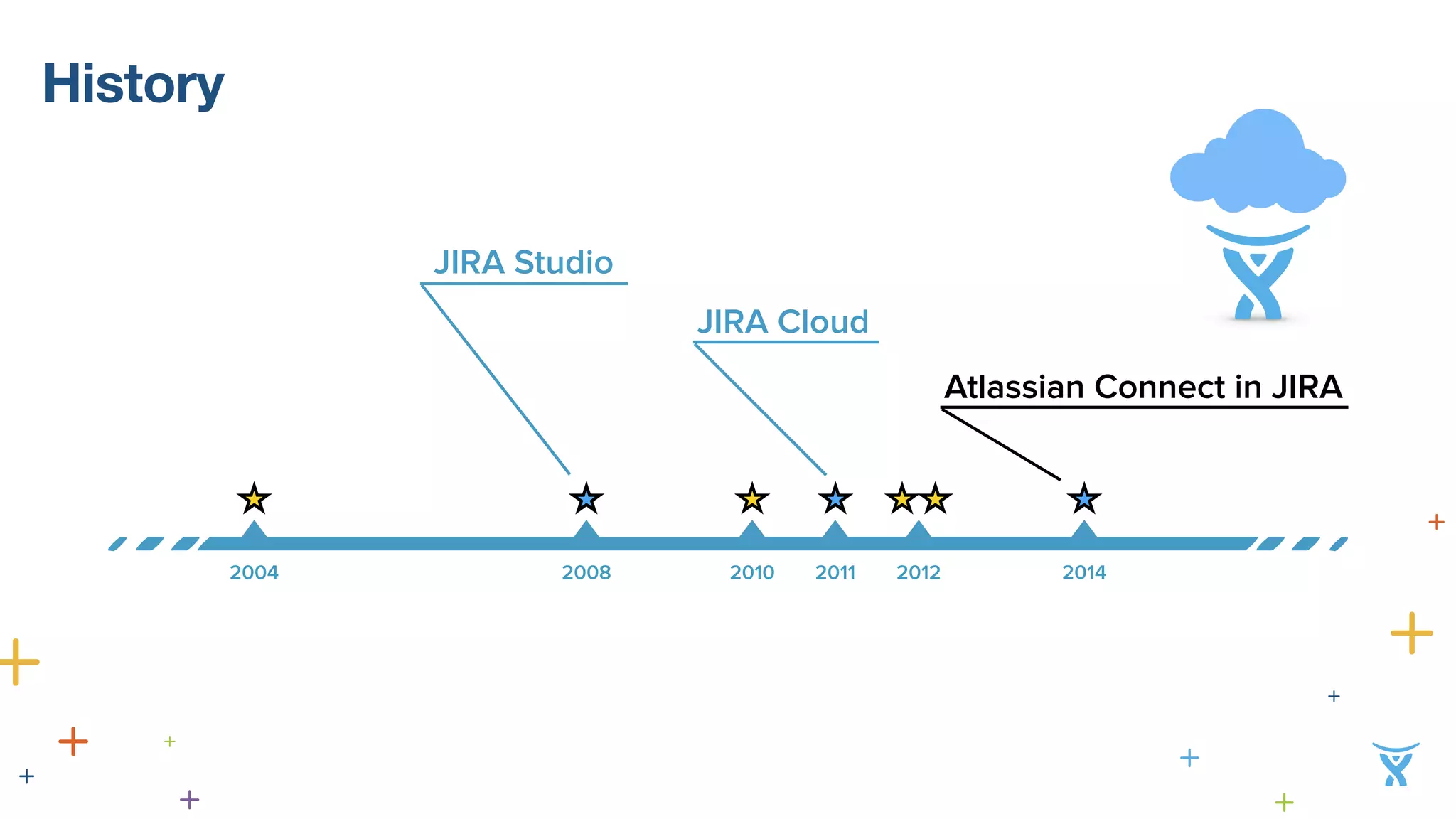

- 31. History JIRA Cloud JIRA Studio Atlassian Connect in JIRA 2004 2008 2010 2011 2012 2014
- 32. Atlassian Connect add-onsin JIRA

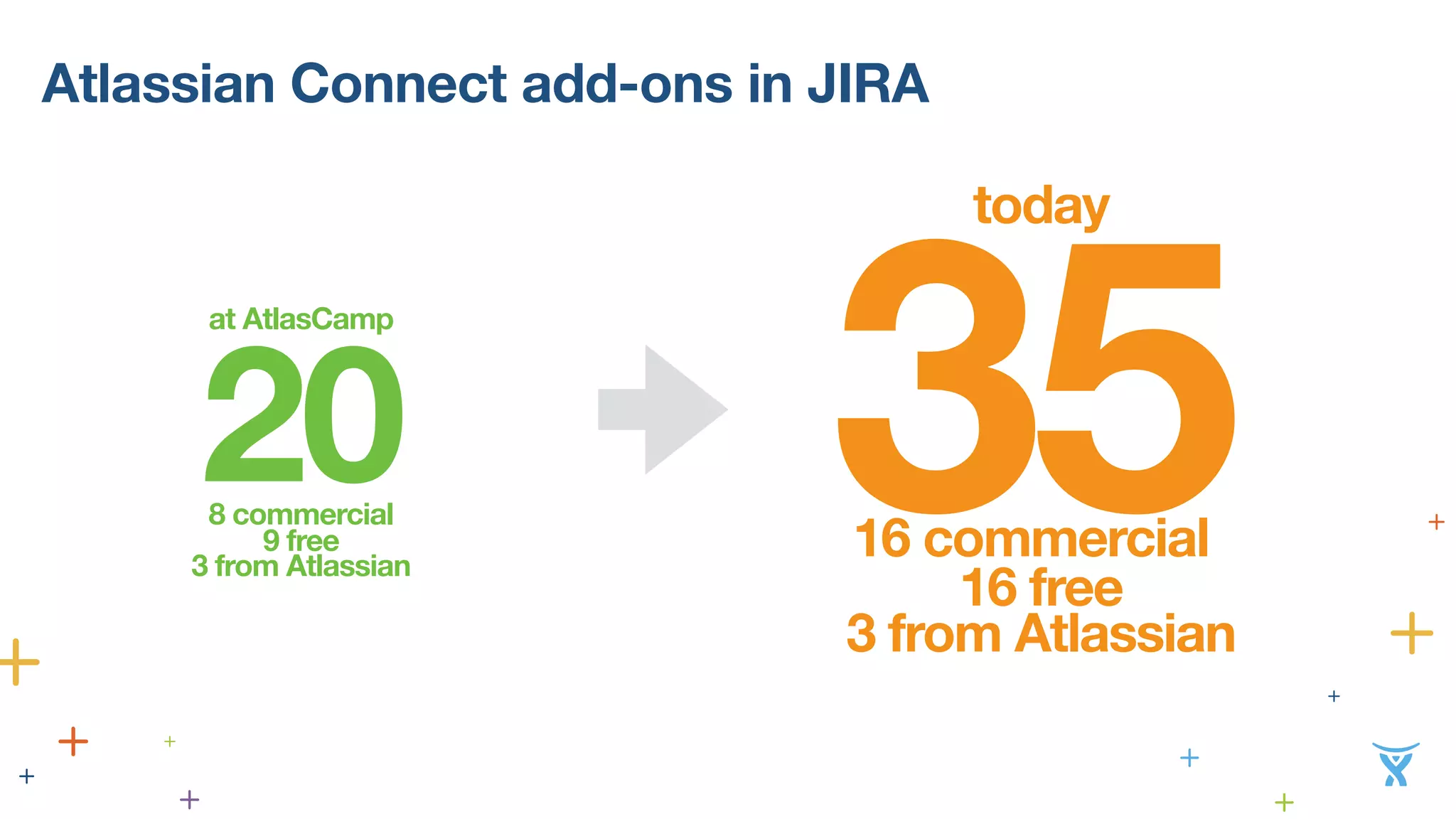

- 33. Atlassian Connect add-onsin JIRA 20 8 commercial at AtlasCamp 35 9 free 16 commercial 3 from Atlassian today 16 free 3 from Atlassian

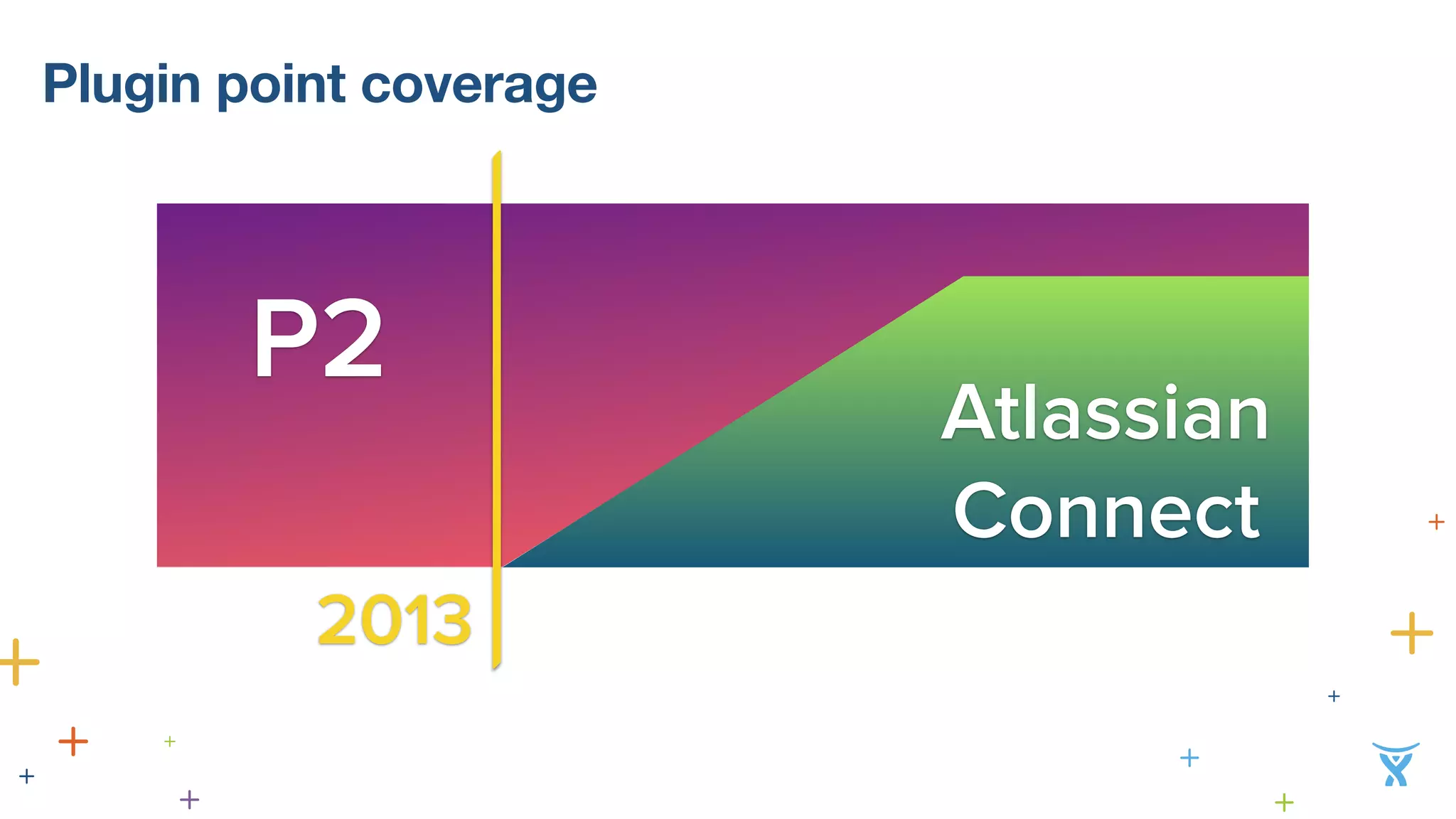

- 34. Plugin point coverage P2 Atlassian Connect 2013

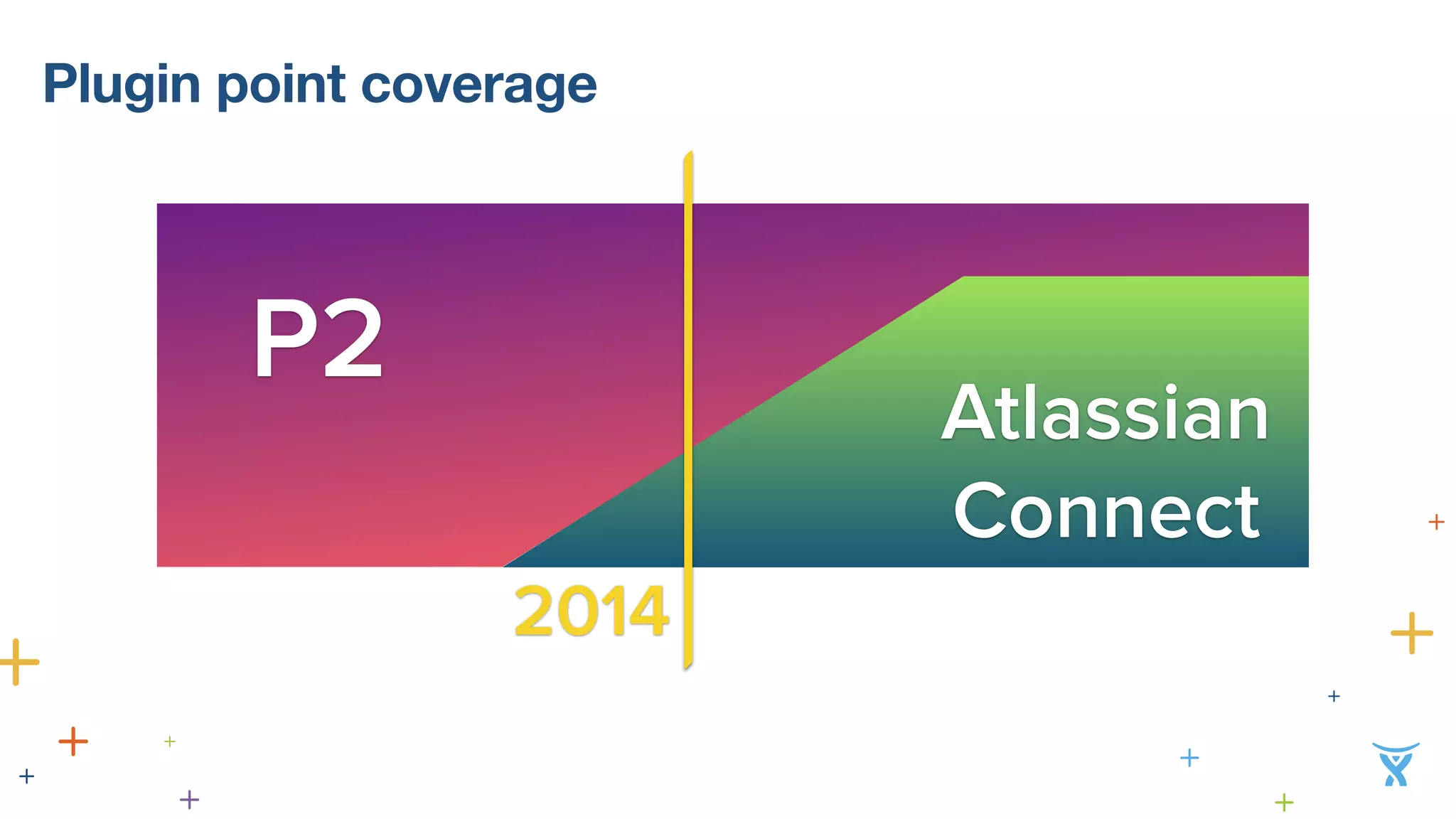

- 35. Plugin point coverage P2 Atlassian Connect 2014

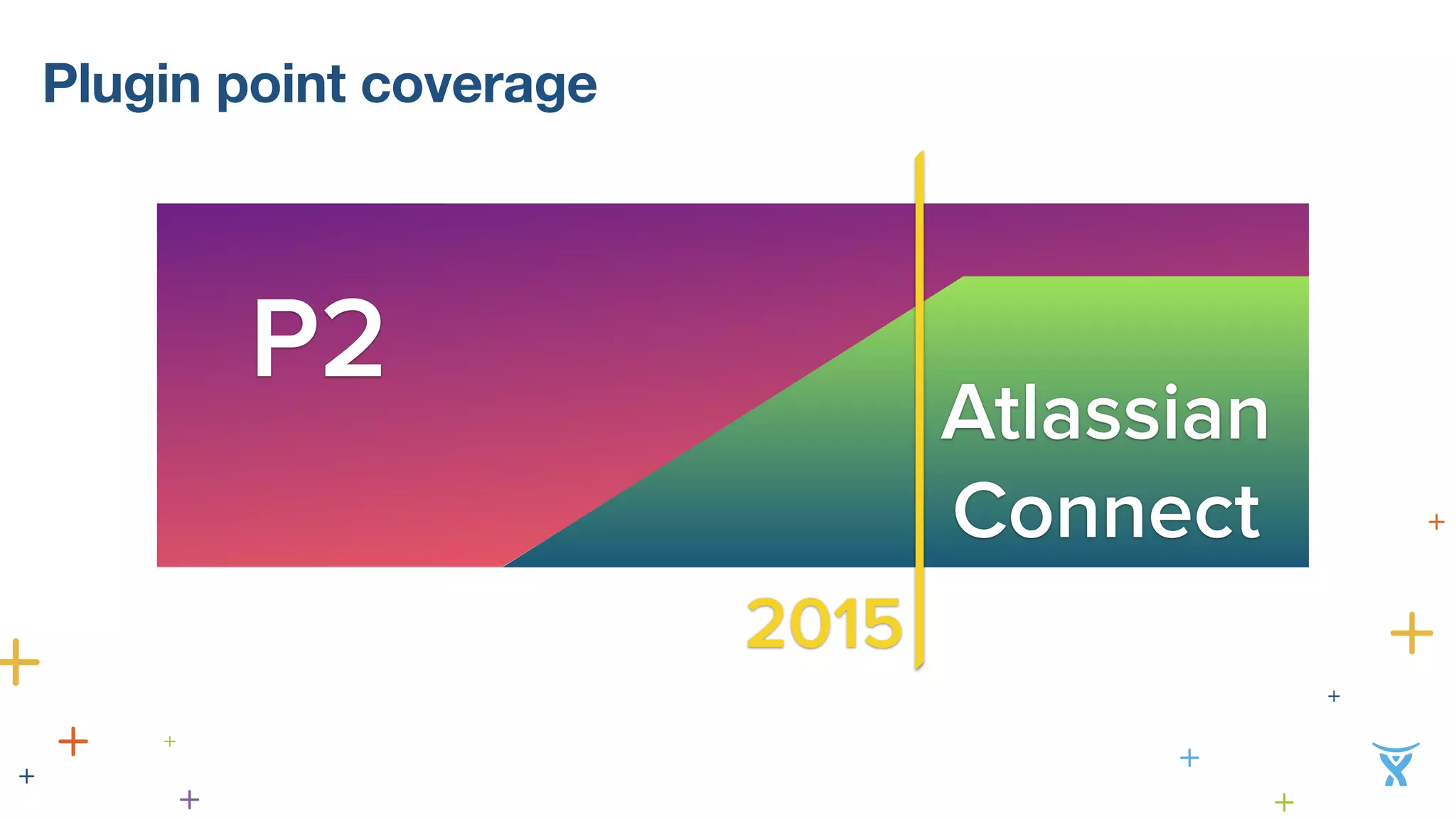

- 36. P2 Atlassian Connect 2015 Plugin point coverage
- 37. Atlassian Connect isthe biggest strategic opportunity for JIRA Ecosystem
- 38.

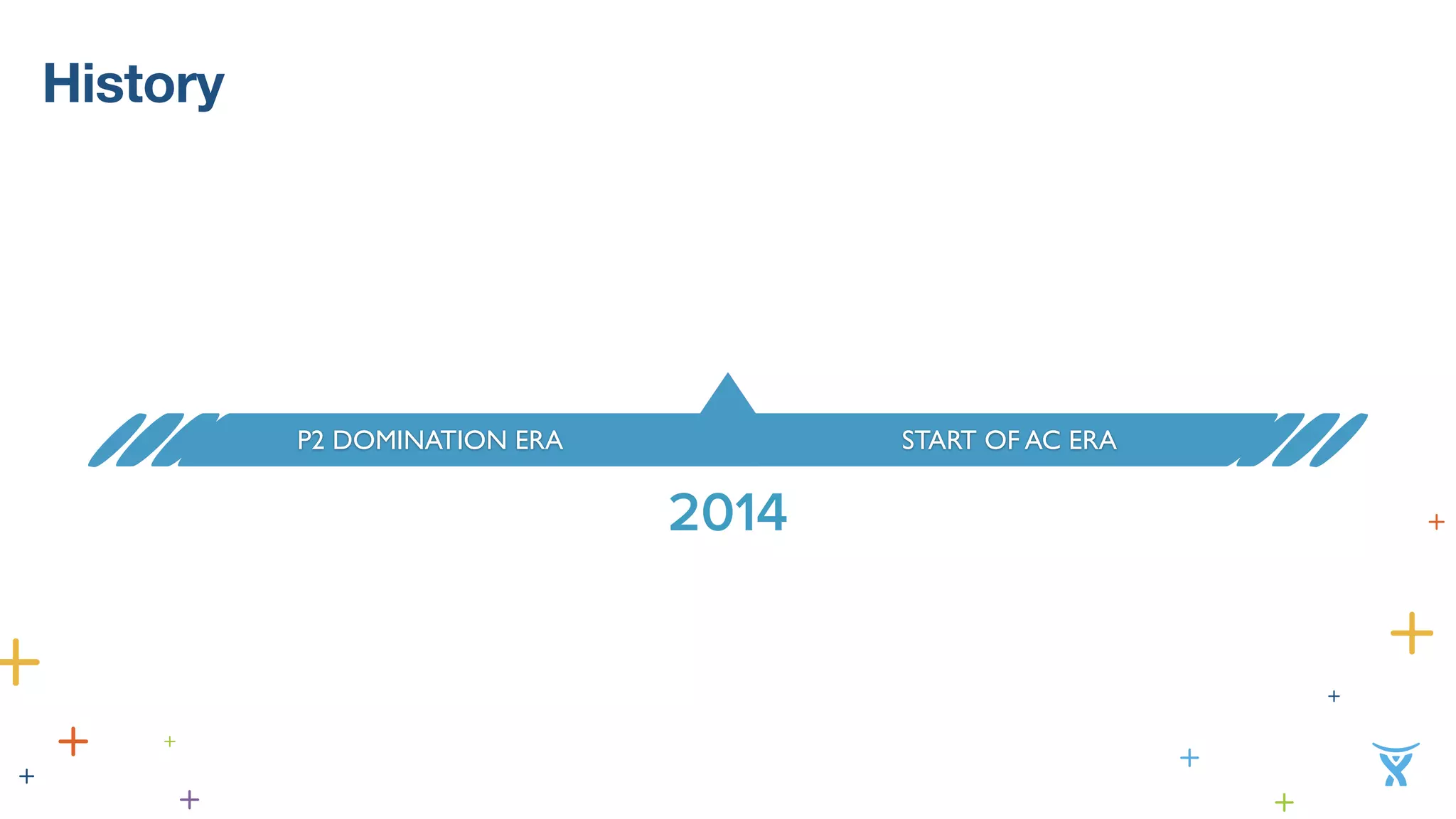

- 39. History P2 DOMINATIONERA START OF AC ERA 2014
- 40. what do wehave in JIRA Atlassian Connect today?

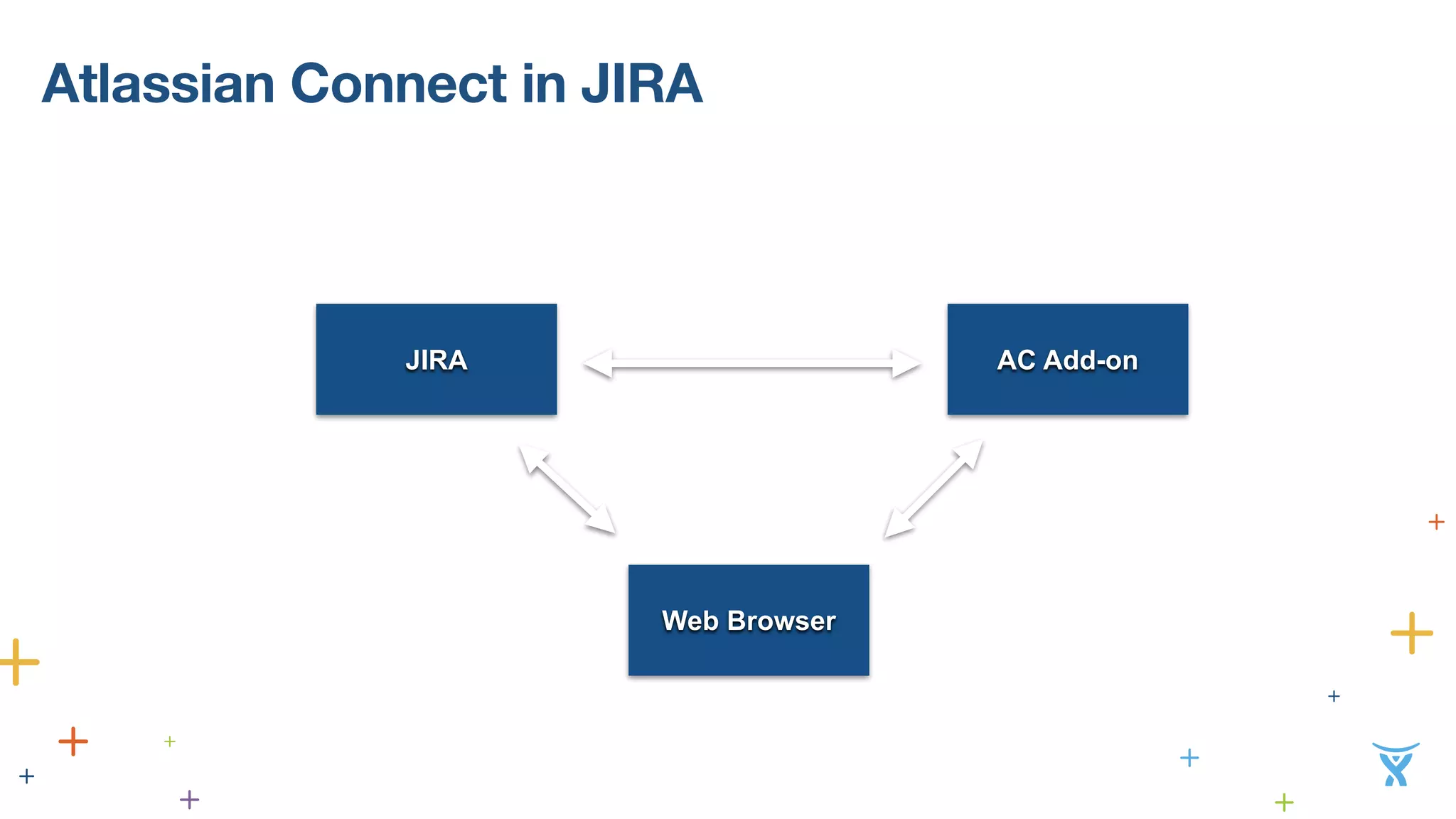

- 41. Atlassian Connect inJIRA JIRA AC Add-on Web Browser

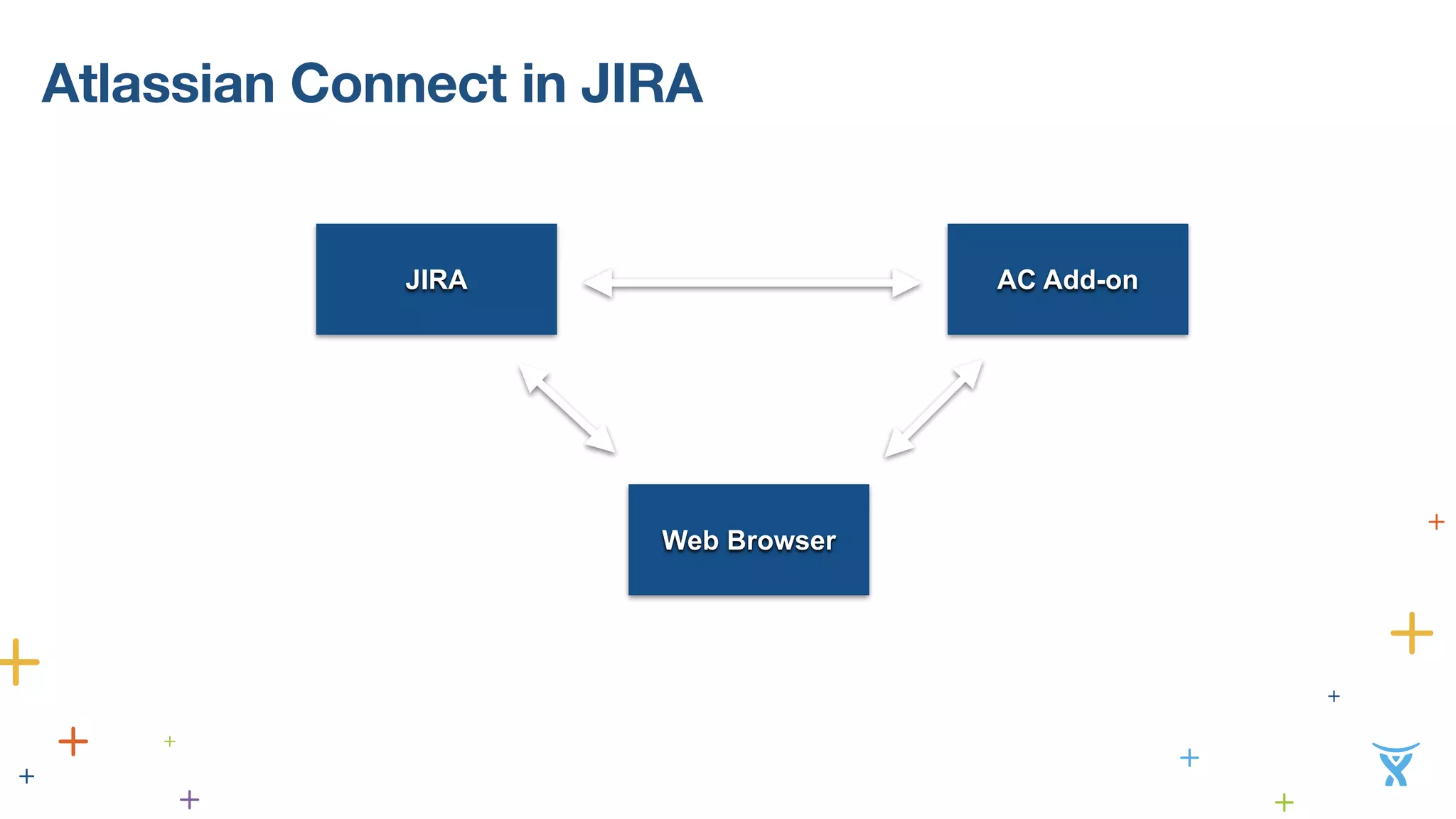

- 42. Atlassian Connect inJIRA JIRA AC Add-on Web Browser
- 43. Atlassian Connect inJIRA JIRA AC Add-on Web Browser

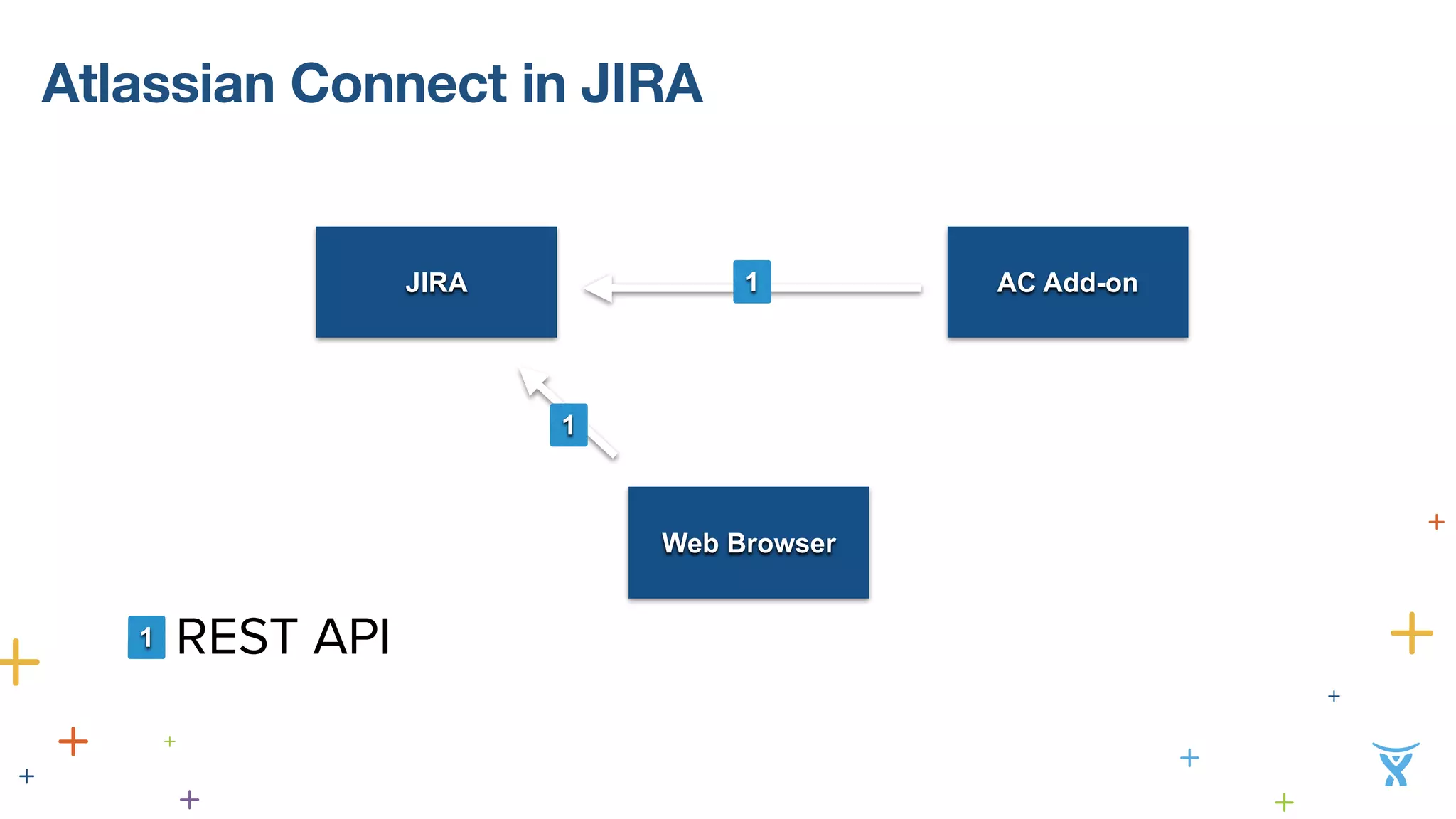

- 44. Atlassian Connect inJIRA ! 1• REST API 1 JIRA AC Add-on Web Browser 1

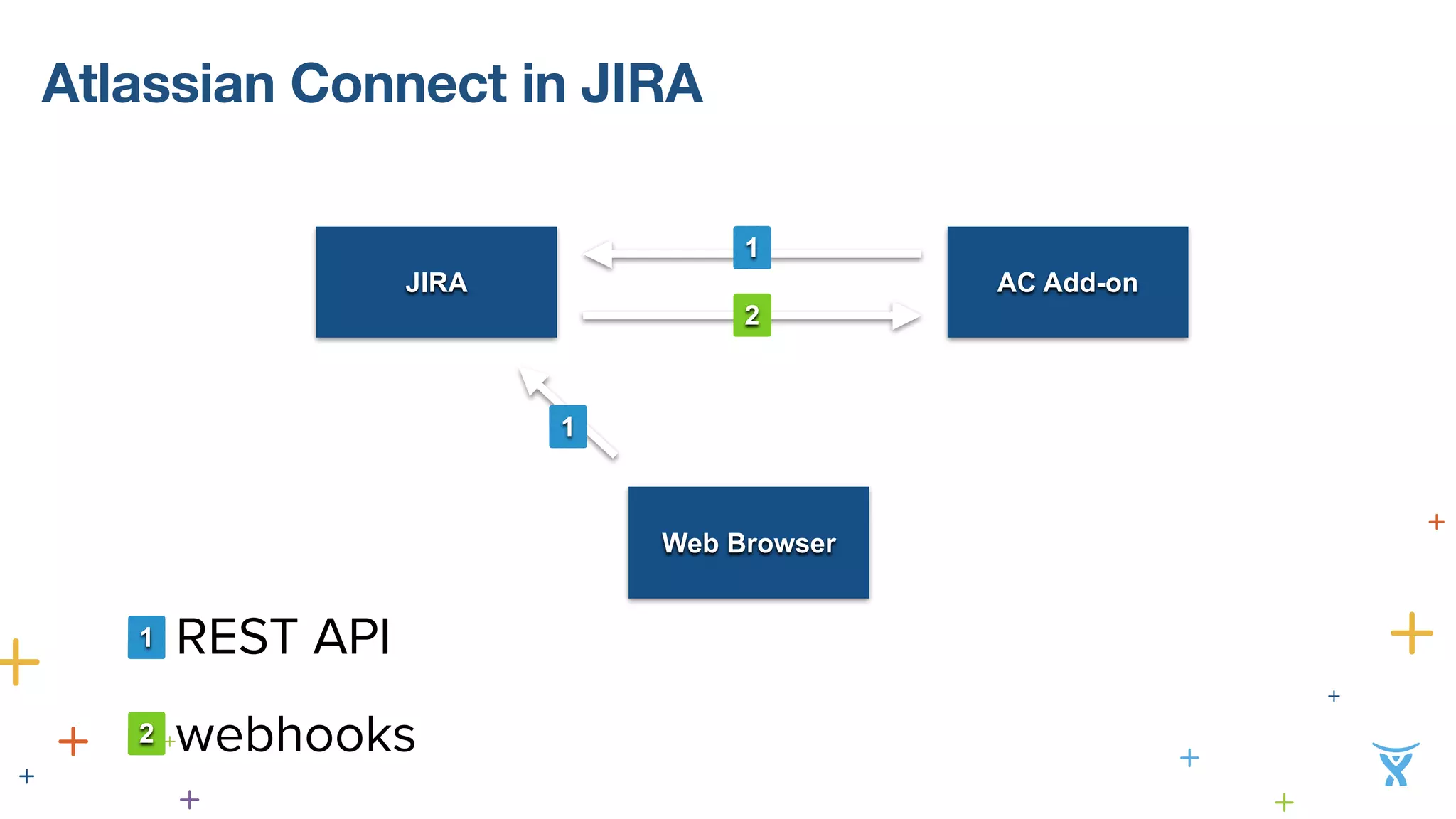

- 45. Atlassian Connect inJIRA 1 2 JIRA AC Add-on 2•webhooks Web Browser 1 ! 1• REST API

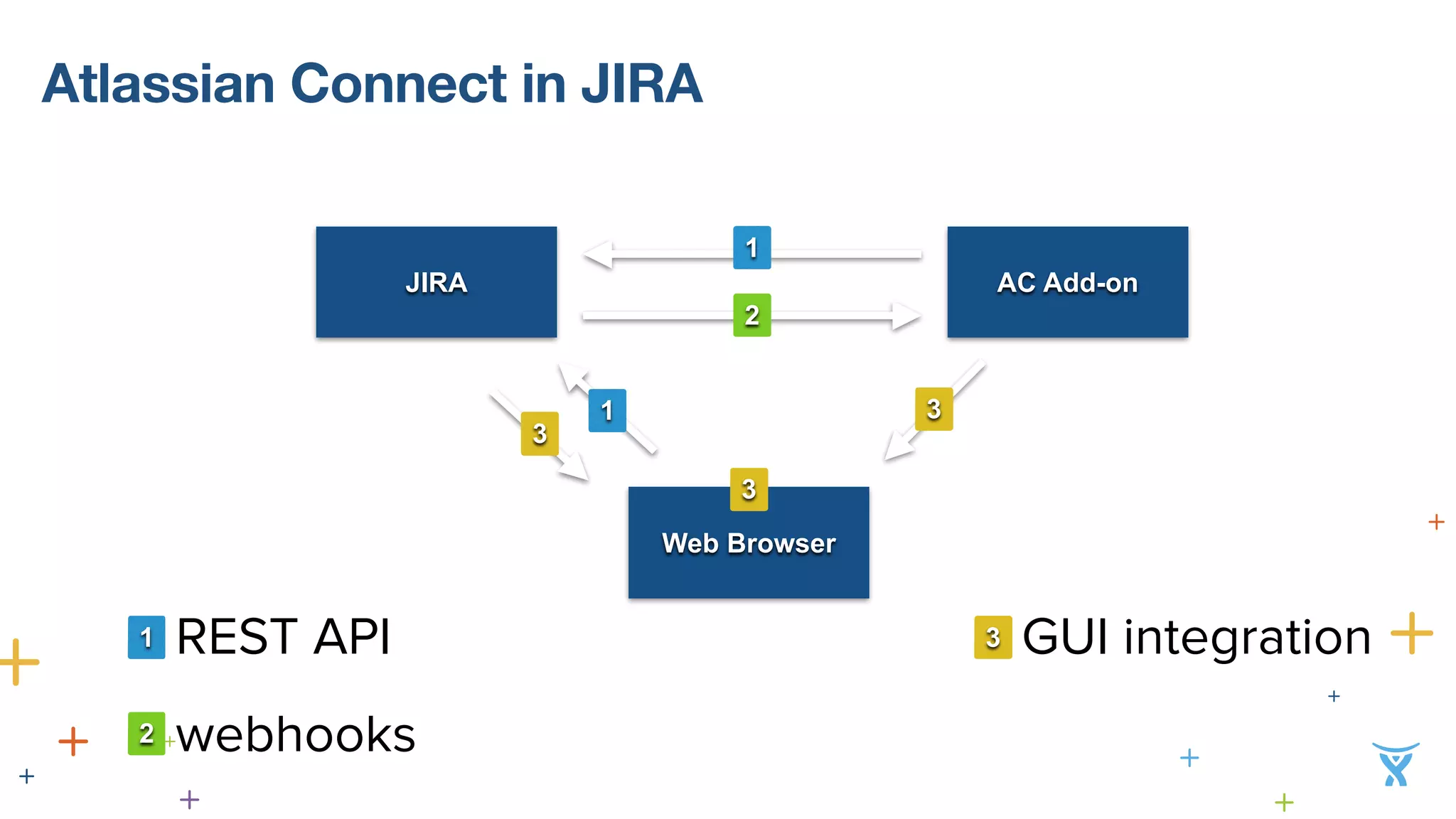

- 46. Atlassian Connect inJIRA JIRA AC Add-on Web Browser ! 3• GUI integration 1 2 3 3 3 1 ! 1• REST API 2•webhooks

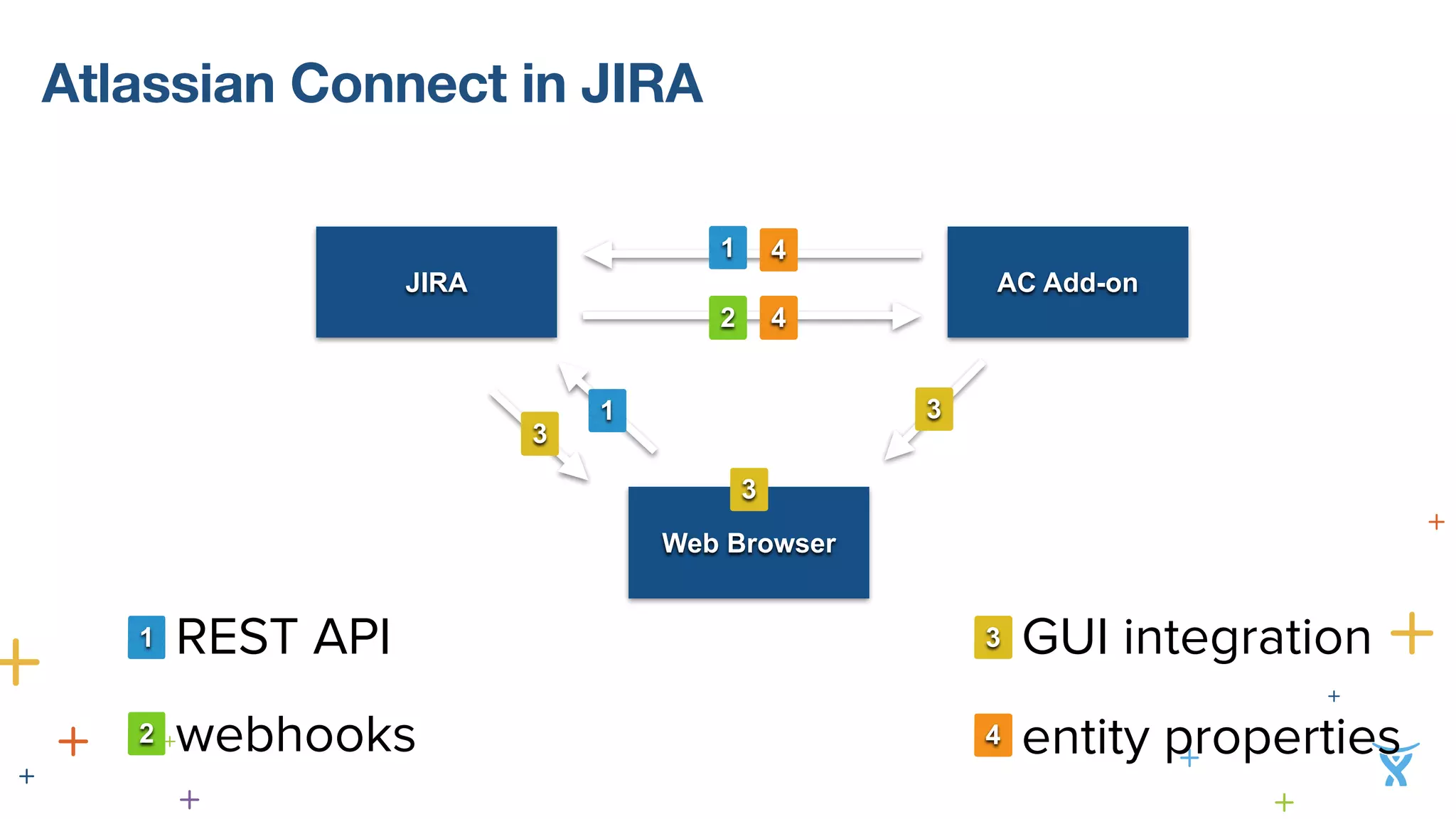

- 47. Atlassian Connect inJIRA JIRA AC Add-on • entity properties 4 Web Browser 4 1 2 4 3 3 1 3 ! 1• REST API 2•webhooks ! 3• GUI integration

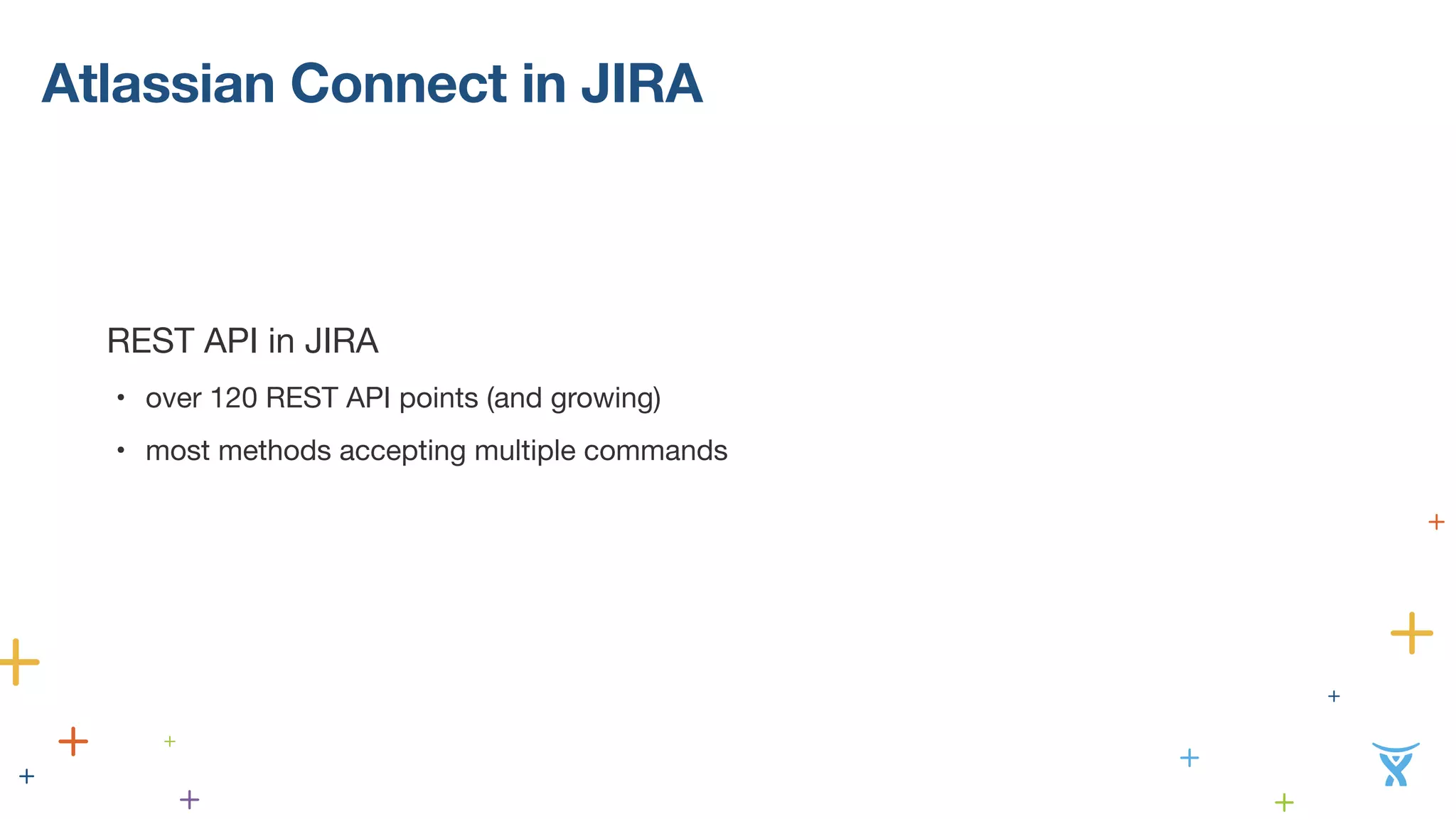

- 48. Atlassian Connect inJIRA REST API in JIRA • over 120 REST API points (and growing) • most methods accepting multiple commands
- 49. Atlassian Connect inJIRA REST API in JIRA • over 120 REST API points (and growing) • most methods accepting multiple commands
- 50. Atlassian Connect inJIRA SOAP RESTification in JIRA • 84% of SOAP methods already covered in REST • took longer than expected • we plan to remove SOAP in JIRA 8.0 • do not wait until the last moment ! ! ! SOAP 84%

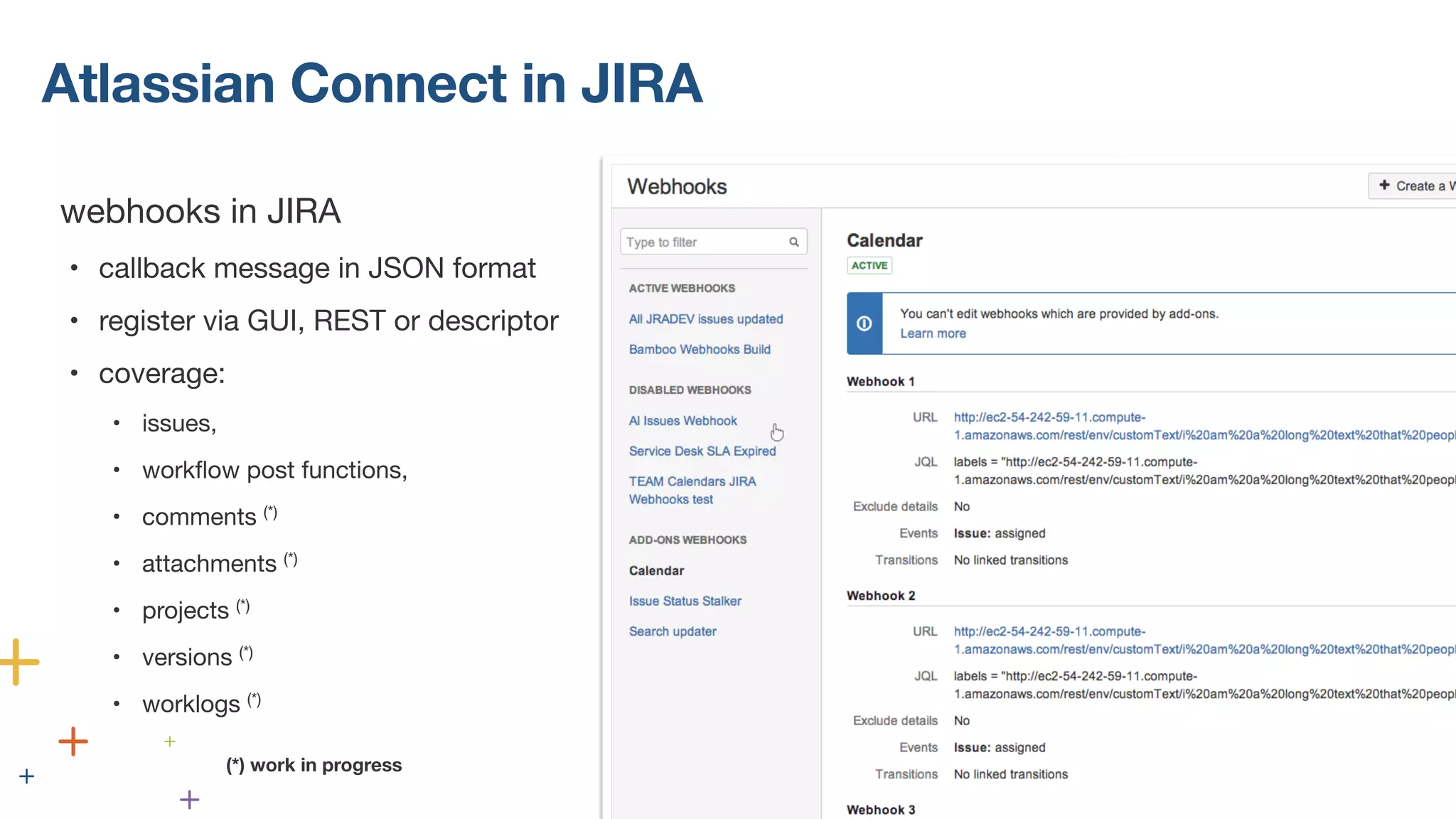

- 51. Atlassian Connect inJIRA webhooks in JIRA • callback message in JSON format • register via GUI, REST or descriptor • coverage: • issues, • workflow post functions, • comments (*) • attachments (*) • projects (*) • versions (*) • worklogs (*) ! ! (*) work in progress

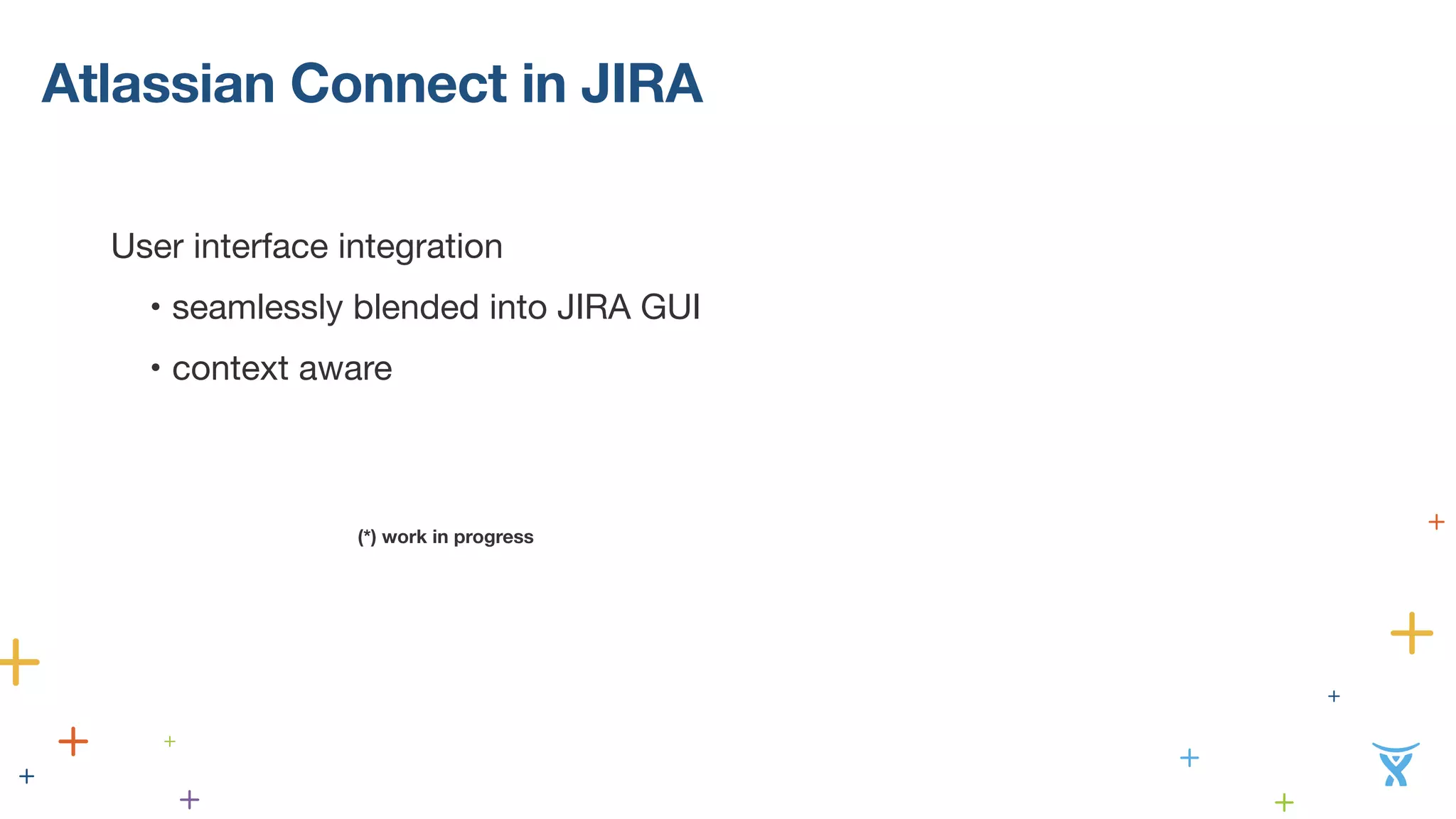

- 52. Atlassian Connect inJIRA ! User interface integration • seamlessly blended into JIRA GUI • context aware (*) work in progress

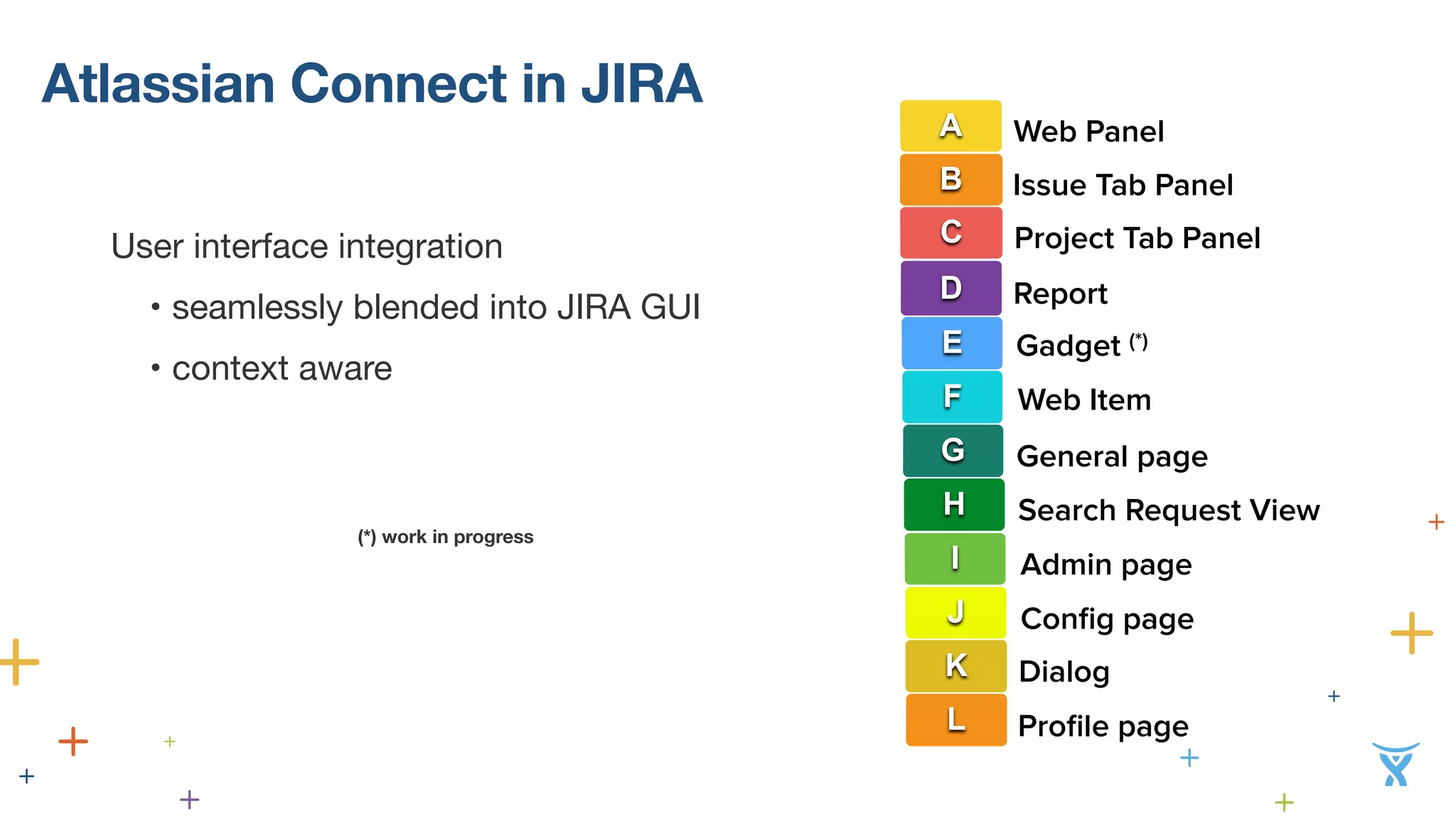

- 53. Atlassian Connect inJIRA ! User interface integration • seamlessly blended into JIRA GUI • context aware A Web Panel B Issue Tab Panel C Project Tab Panel D Report E Gadget (*) F Web Item G General page H Search Request View I Admin page J Config page K Dialog L Profile page (*) work in progress

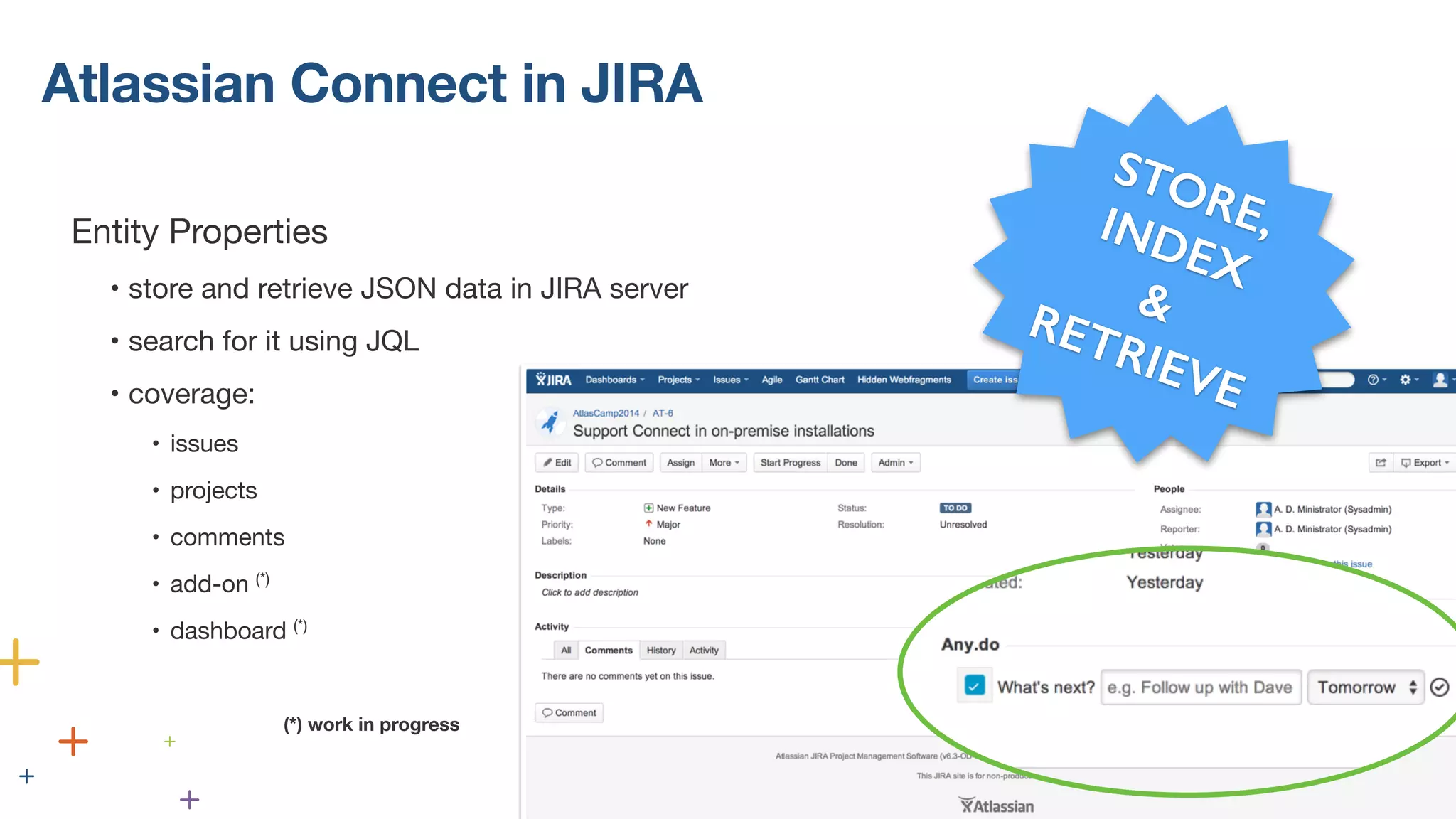

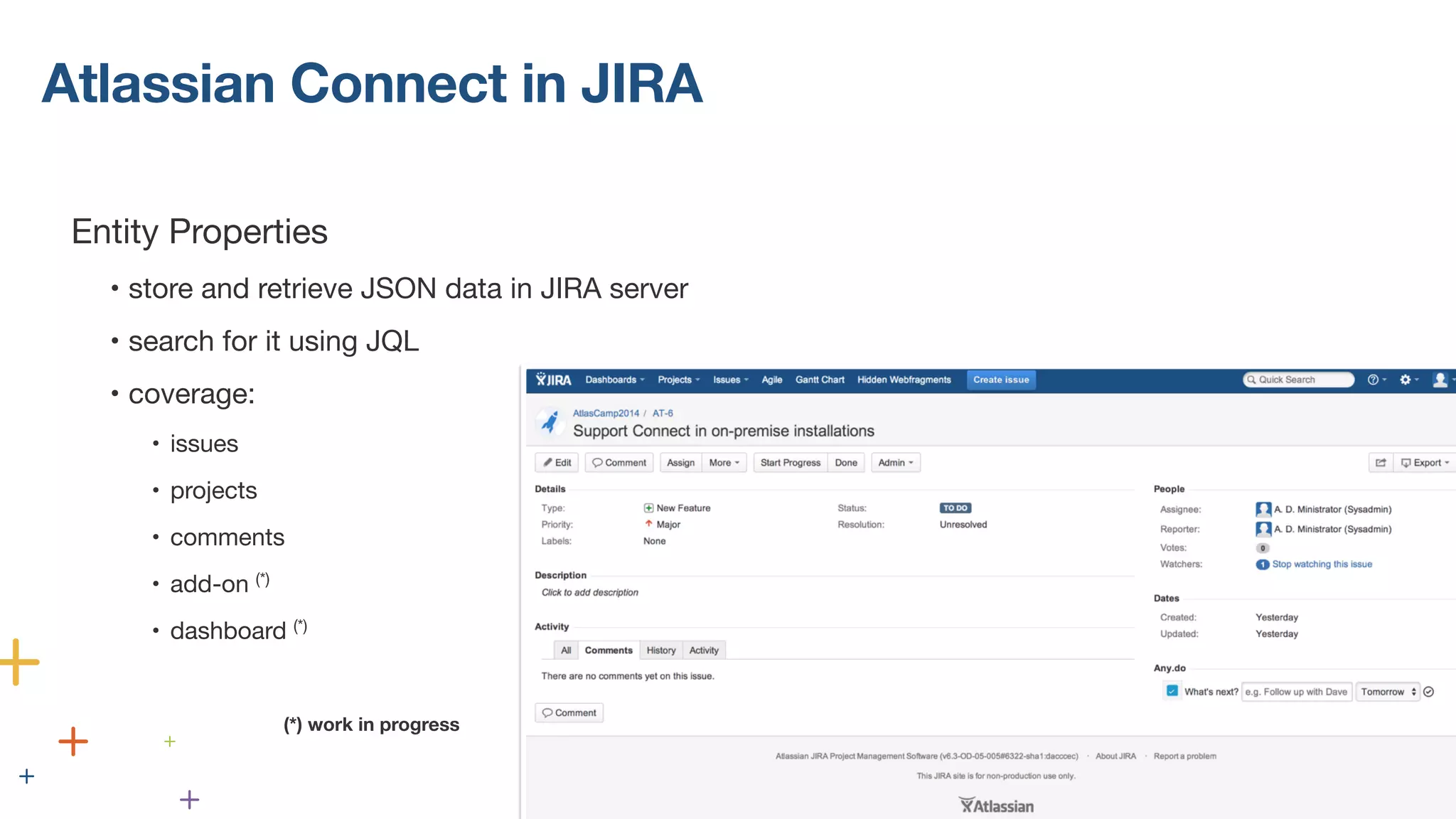

- 54. Atlassian Connect inJIRA ! Entity Properties • store and retrieve JSON data in JIRA server • search for it using JQL • coverage: • issues • projects • comments • add-on (*) • dashboard (*) (*) work in progress (*) work in progress
- 55. Atlassian Connect inJIRA ! Entity Properties • store and retrieve JSON data in JIRA server • search for it using JQL • coverage: • issues • projects • comments • add-on (*) • dashboard (*) (*) work in progress STORE, INDEX & RETRIEVE (*) work in progress
- 56. what are we working on in JIRA?
- 57. LEGAL MUMBO JUMBO The following is intended to outline our general product direction for informational purposes only. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described herein remains at the sole discretion of Atlassian.

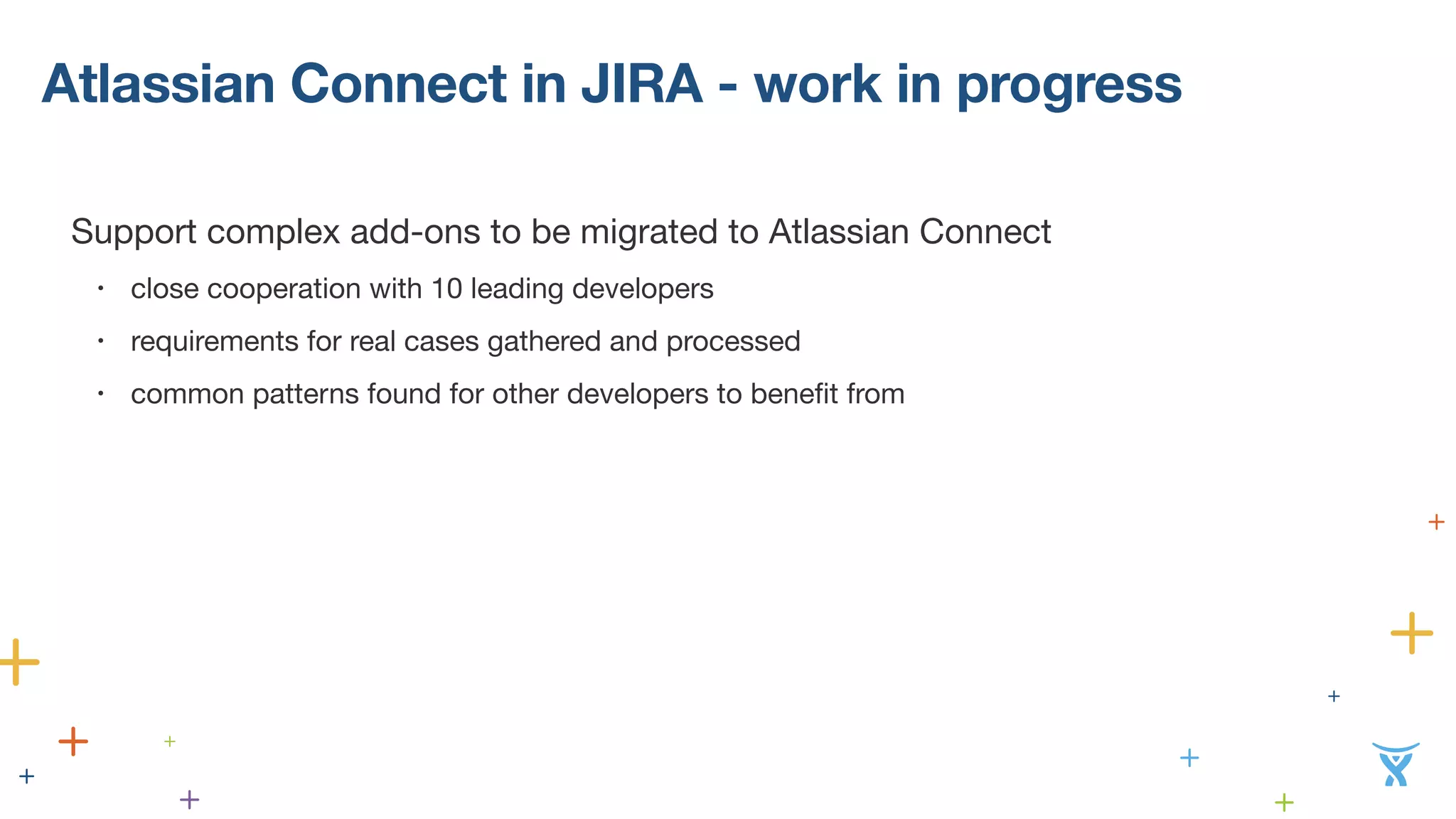

- 58. Atlassian Connect inJIRA - work in progress ! Support complex add-ons to be migrated to Atlassian Connect • close cooperation with 10 leading developers • requirements for real cases gathered and processed • common patterns found for other developers to benefit from

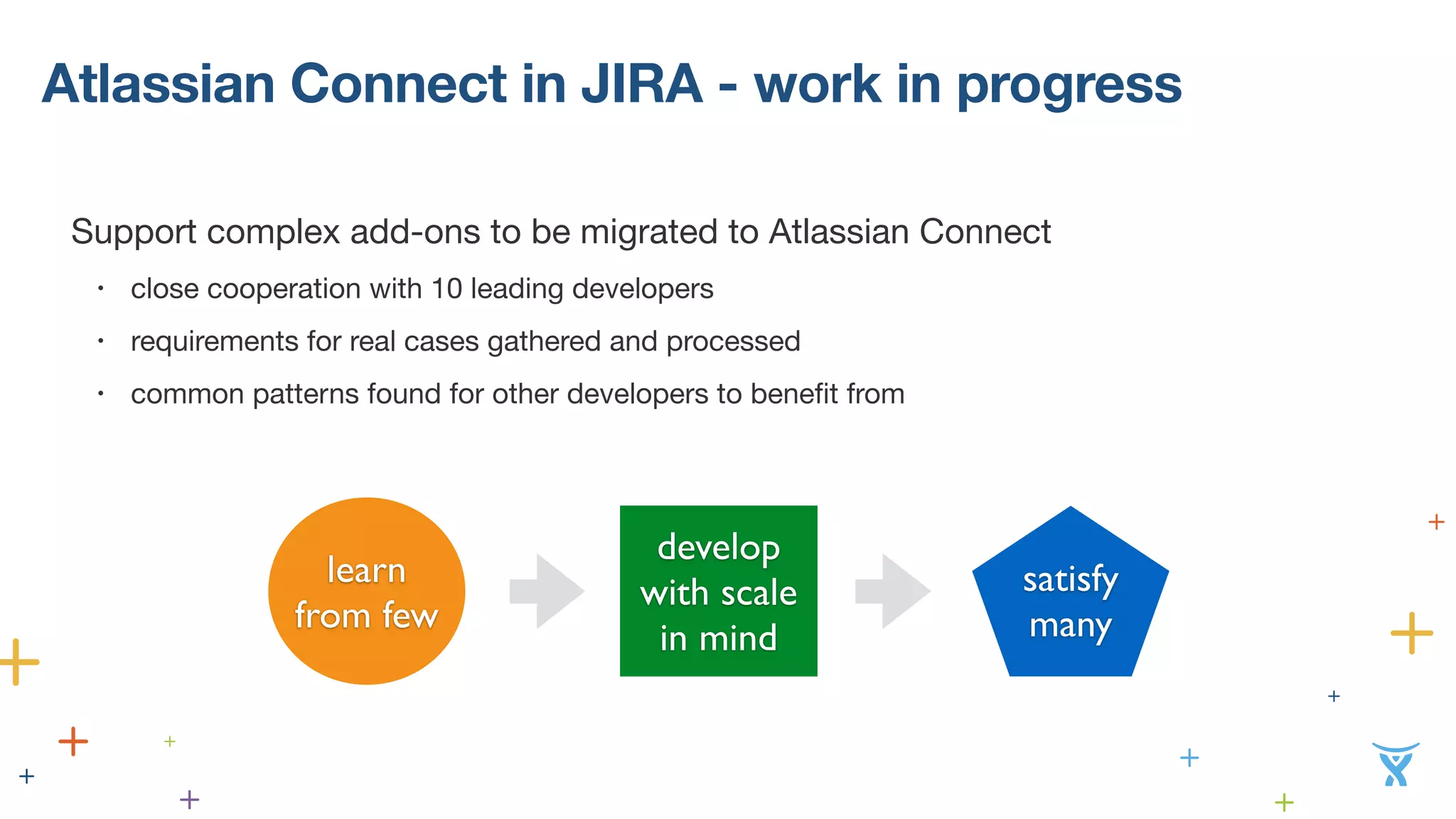

- 59. Atlassian Connect inJIRA - work in progress ! Support complex add-ons to be migrated to Atlassian Connect • close cooperation with 10 leading developers • requirements for real cases gathered and processed • common patterns found for other developers to benefit from learn from few develop with scale in mind satisfy many

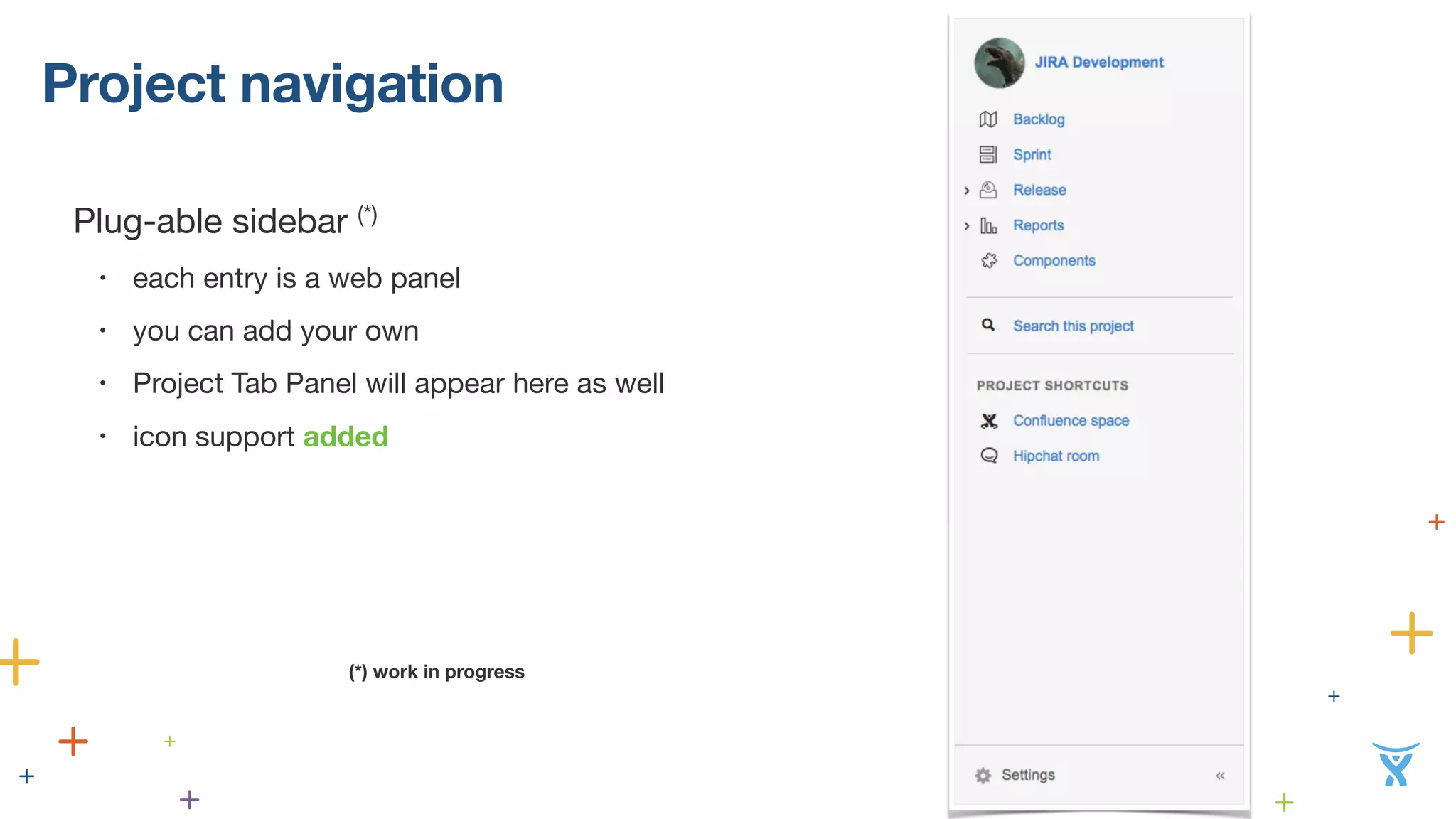

- 60. Project navigation Plug-ablesidebar (*) • each entry is a web panel • you can add your own • Project Tab Panel will appear here as well • icon support added ! ! ! ! (*) work in progress

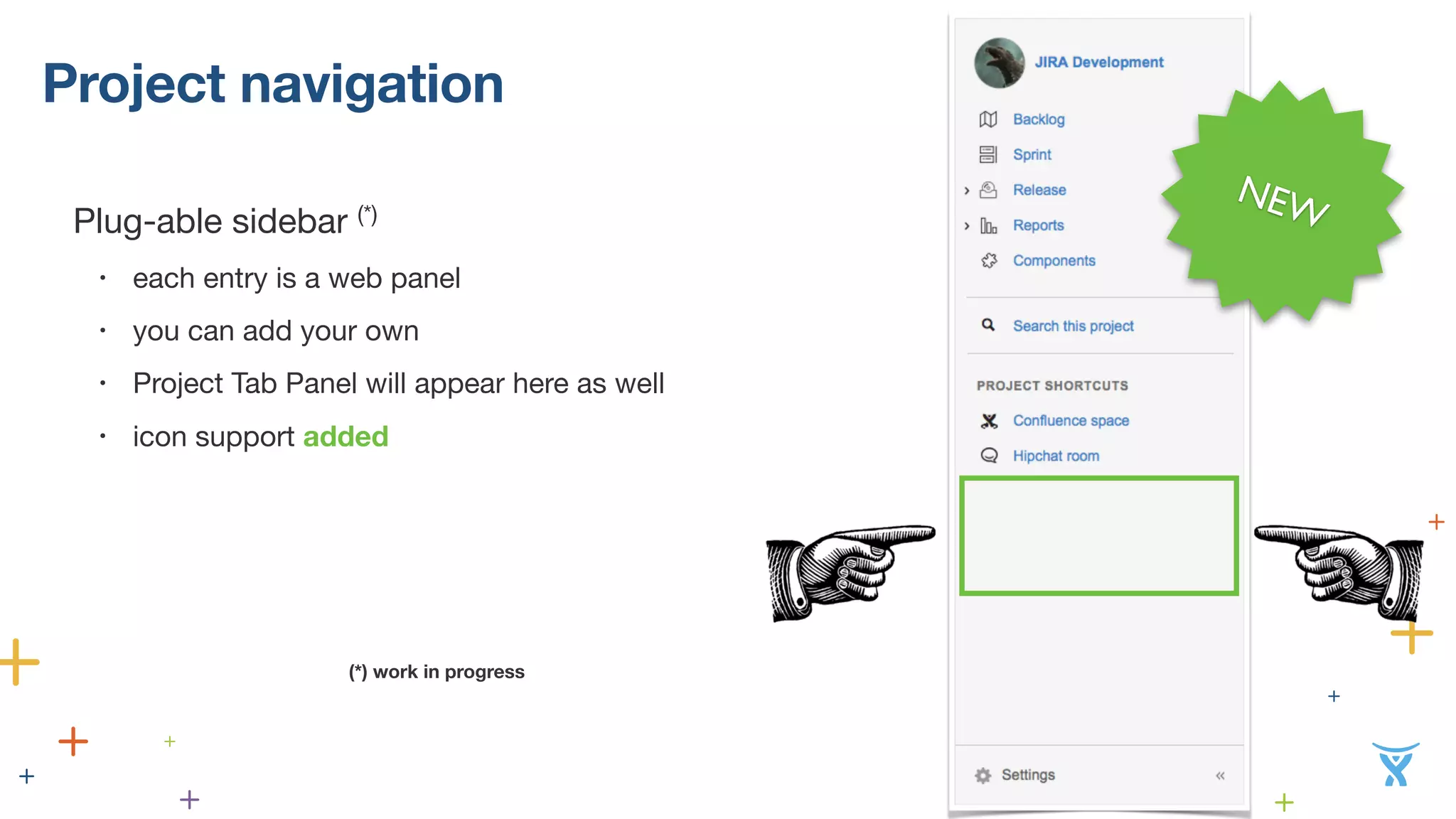

- 61. Project navigation Plug-ablesidebar (*) • each entry is a web panel • you can add your own • Project Tab Panel will appear here as well • icon support added ! ! ! ! NEW (*) work in progress

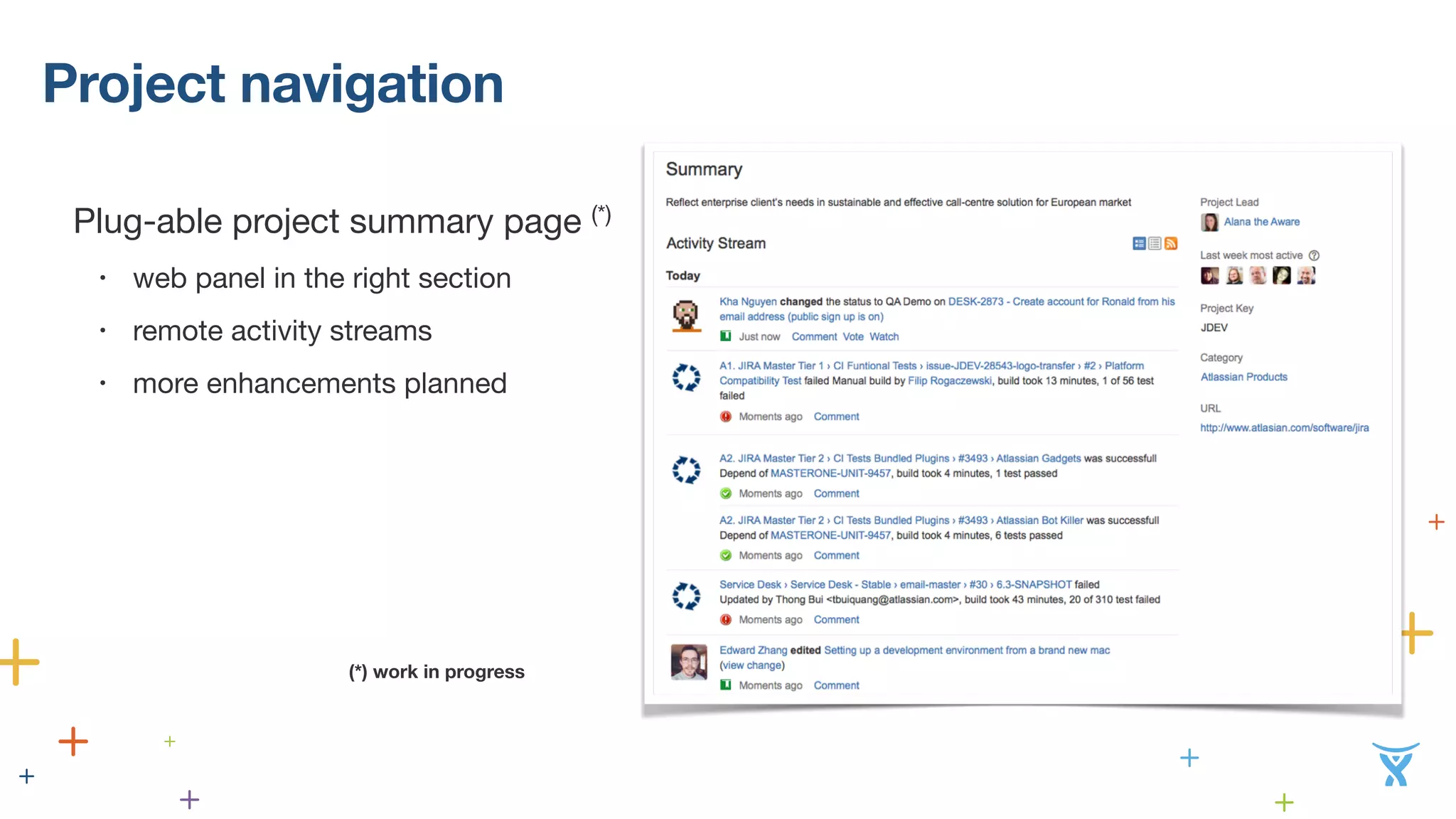

- 62. Project navigation Plug-ableproject summary page (*) • web panel in the right section • remote activity streams • more enhancements planned ! ! ! ! (*) work in progress

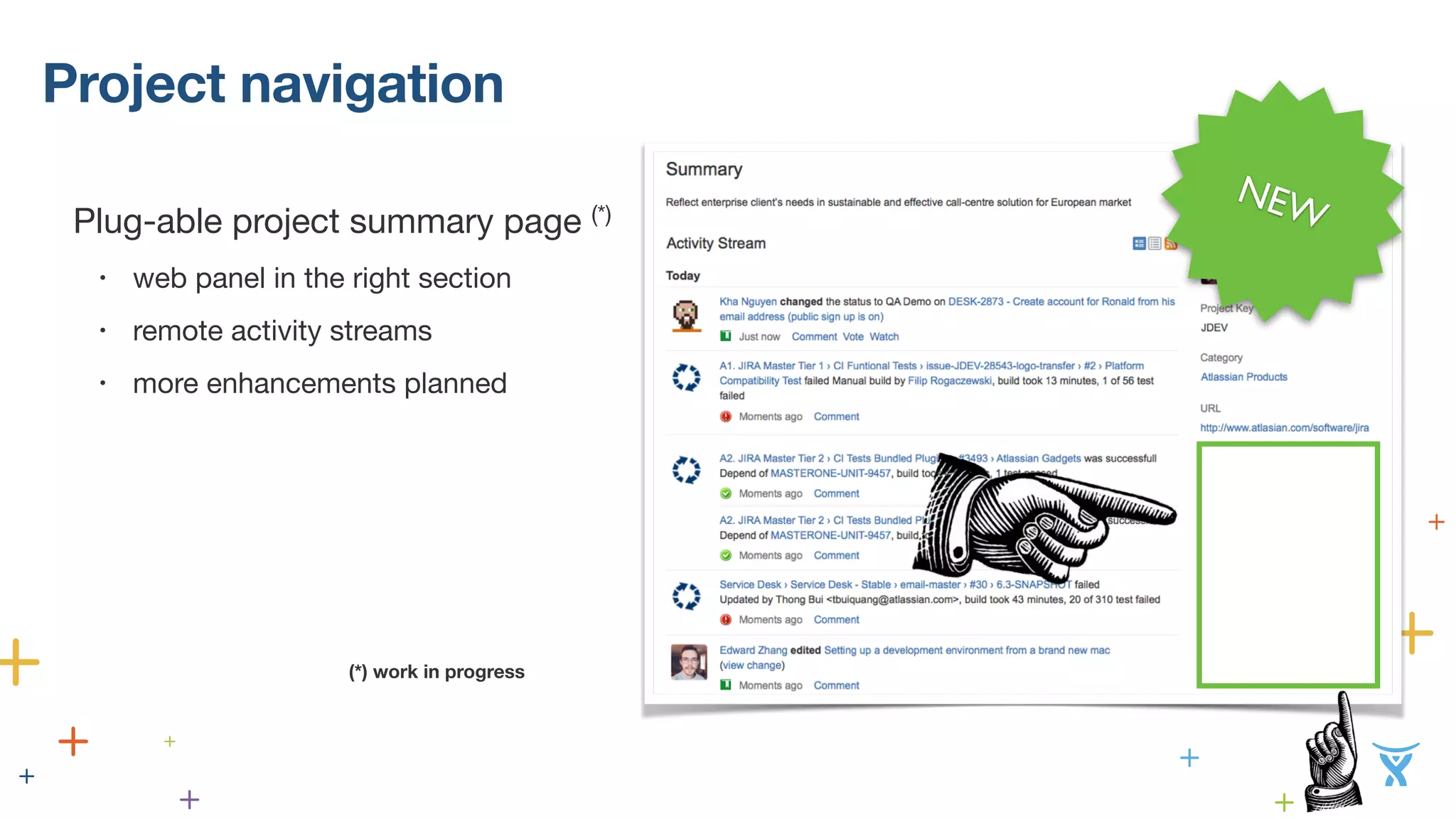

- 63. Project navigation Plug-ableproject summary page (*) • web panel in the right section • remote activity streams • more enhancements planned ! ! ! ! NEW (*) work in progress

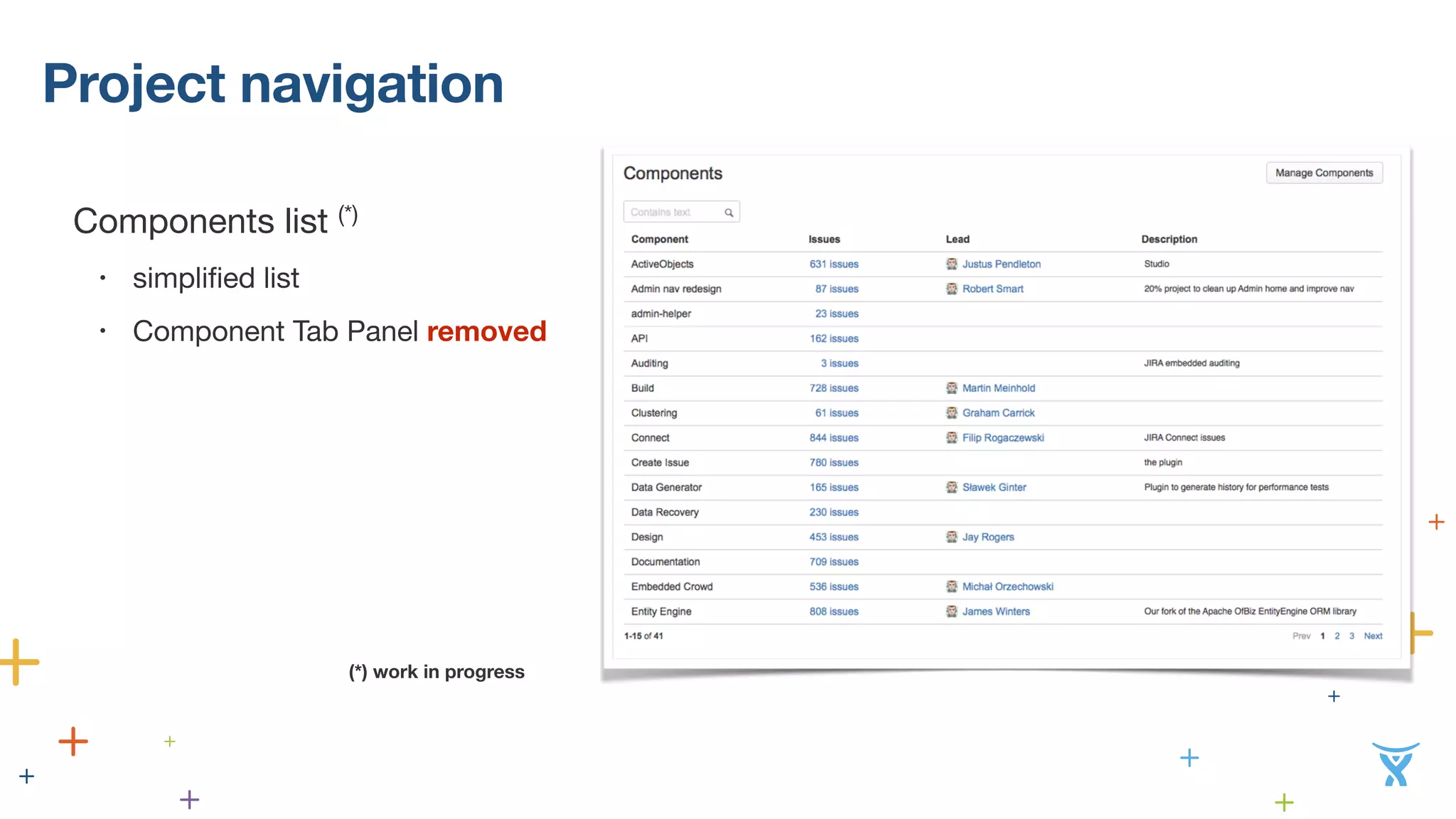

- 64. Project navigation Componentslist (*) • simplified list • Component Tab Panel removed ! ! ! ! (*) work in progress

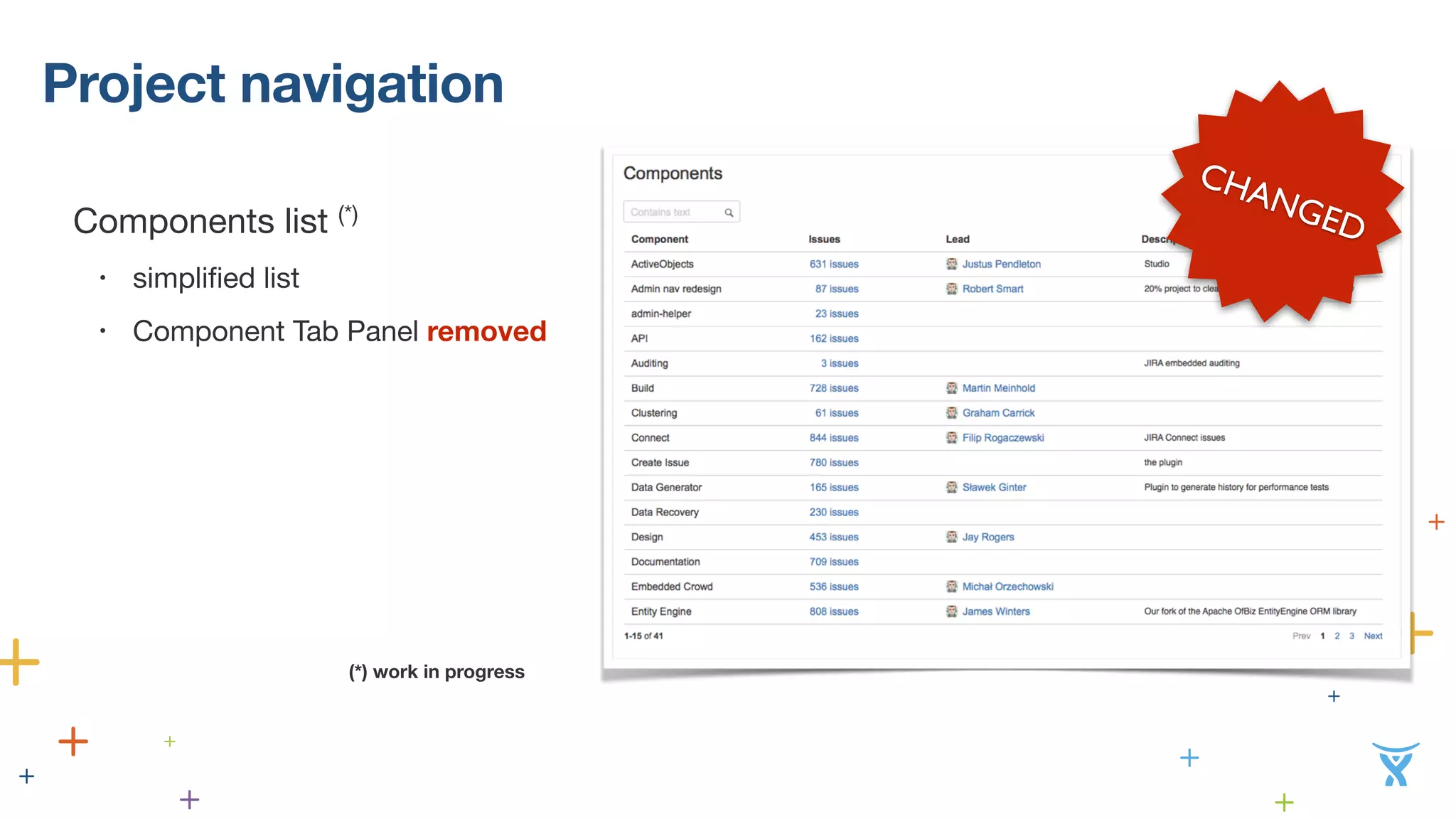

- 65. Project navigation Componentslist (*) • simplified list • Component Tab Panel removed ! ! ! ! CHANGED (*) work in progress

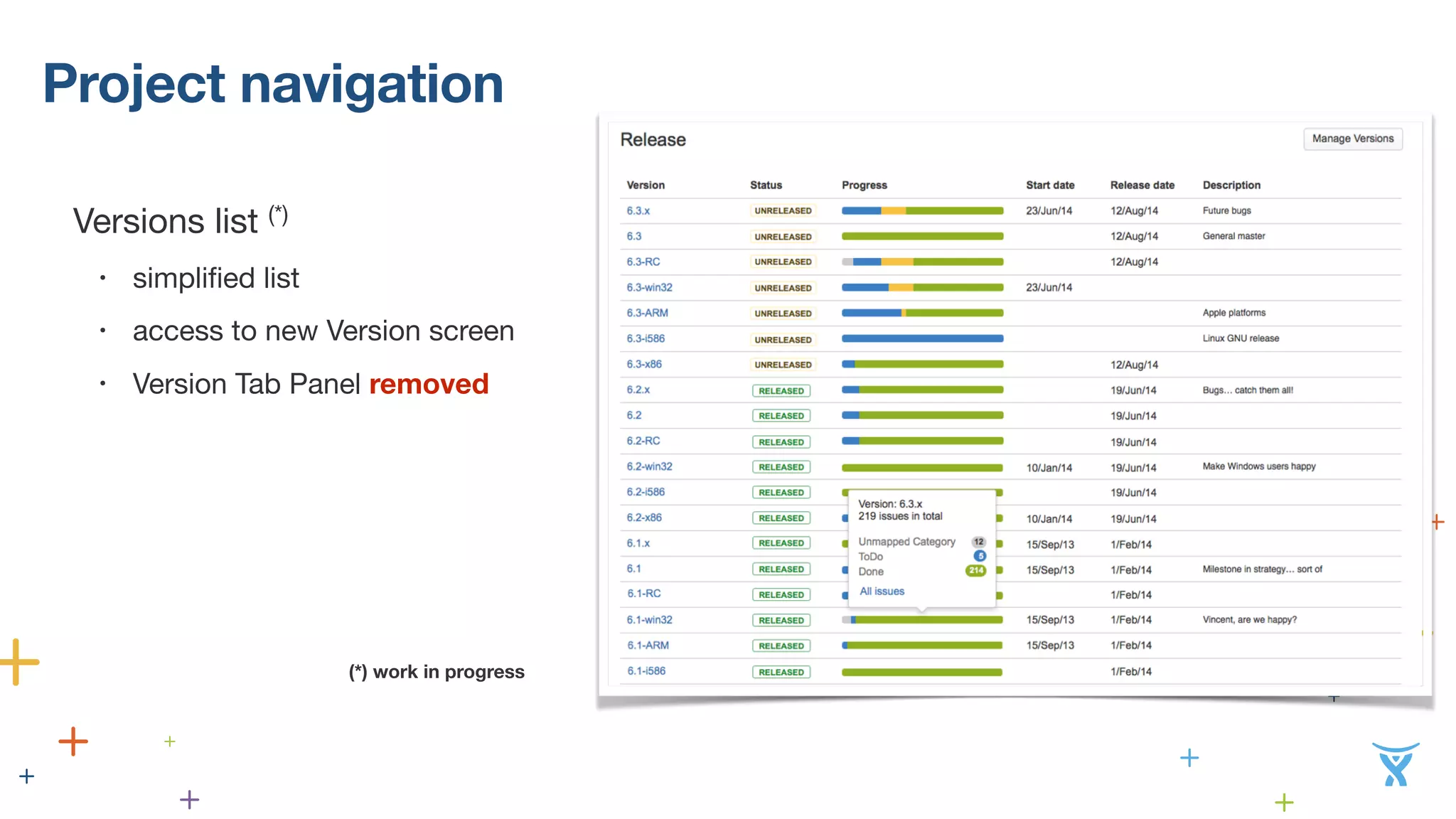

- 66. Project navigation Versionslist (*) • simplified list • access to new Version screen • Version Tab Panel removed ! ! ! ! (*) work in progress

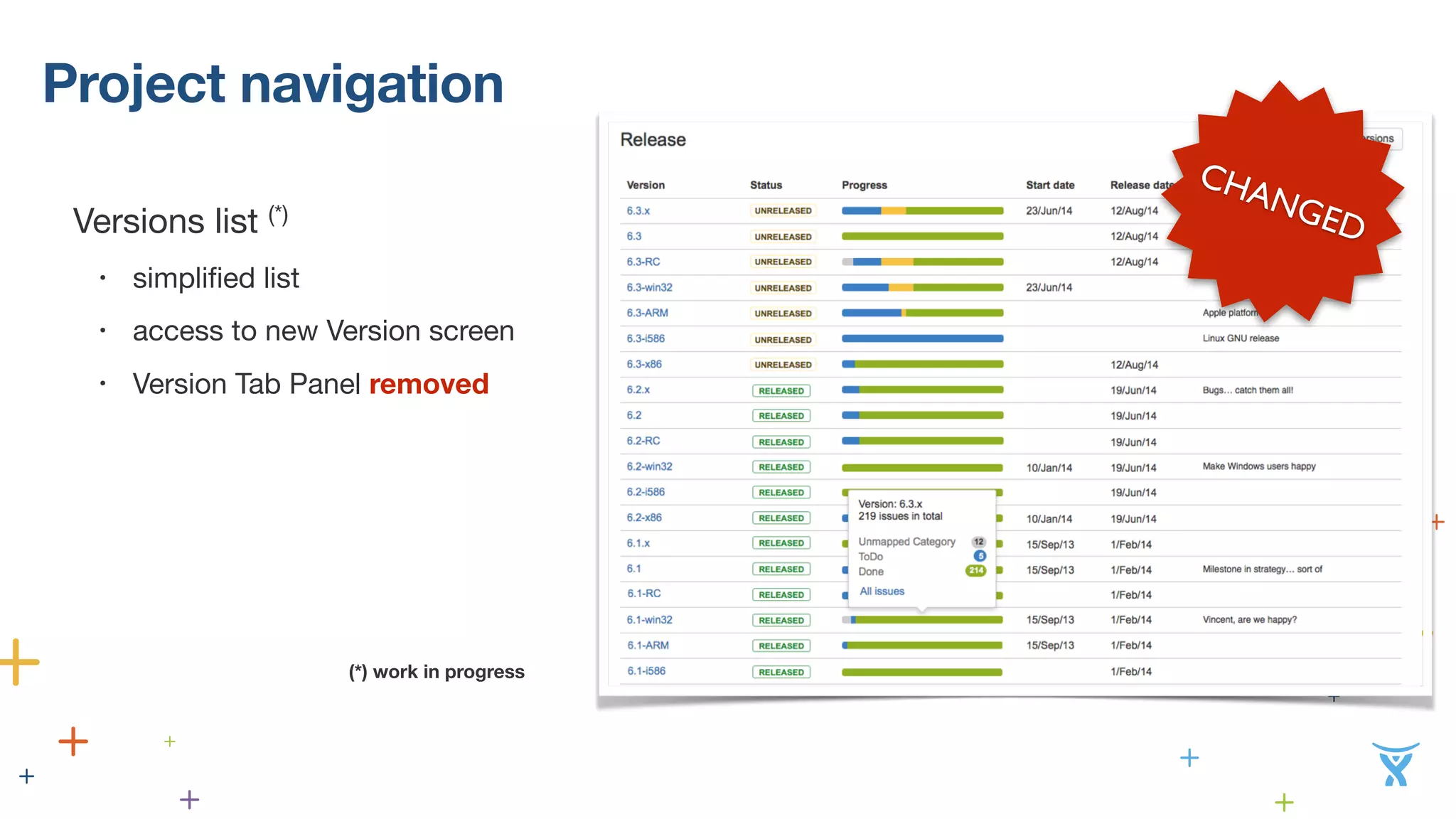

- 67. Project navigation Versionslist (*) • simplified list • access to new Version screen • Version Tab Panel removed ! ! ! ! CHANGED (*) work in progress

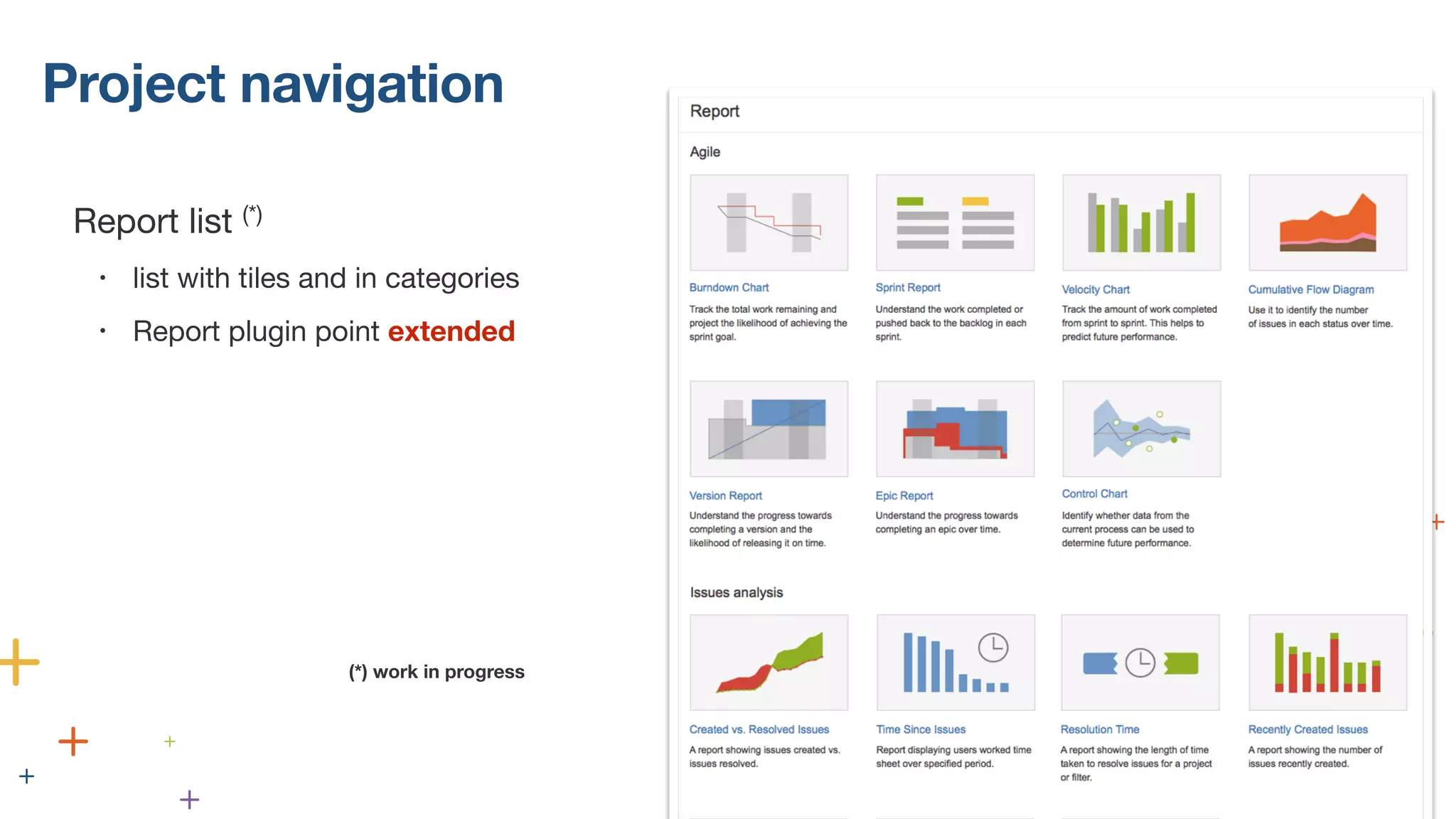

- 68. Project navigation Reportlist (*) • list with tiles and in categories • Report plugin point extended ! ! ! ! (*) work in progress

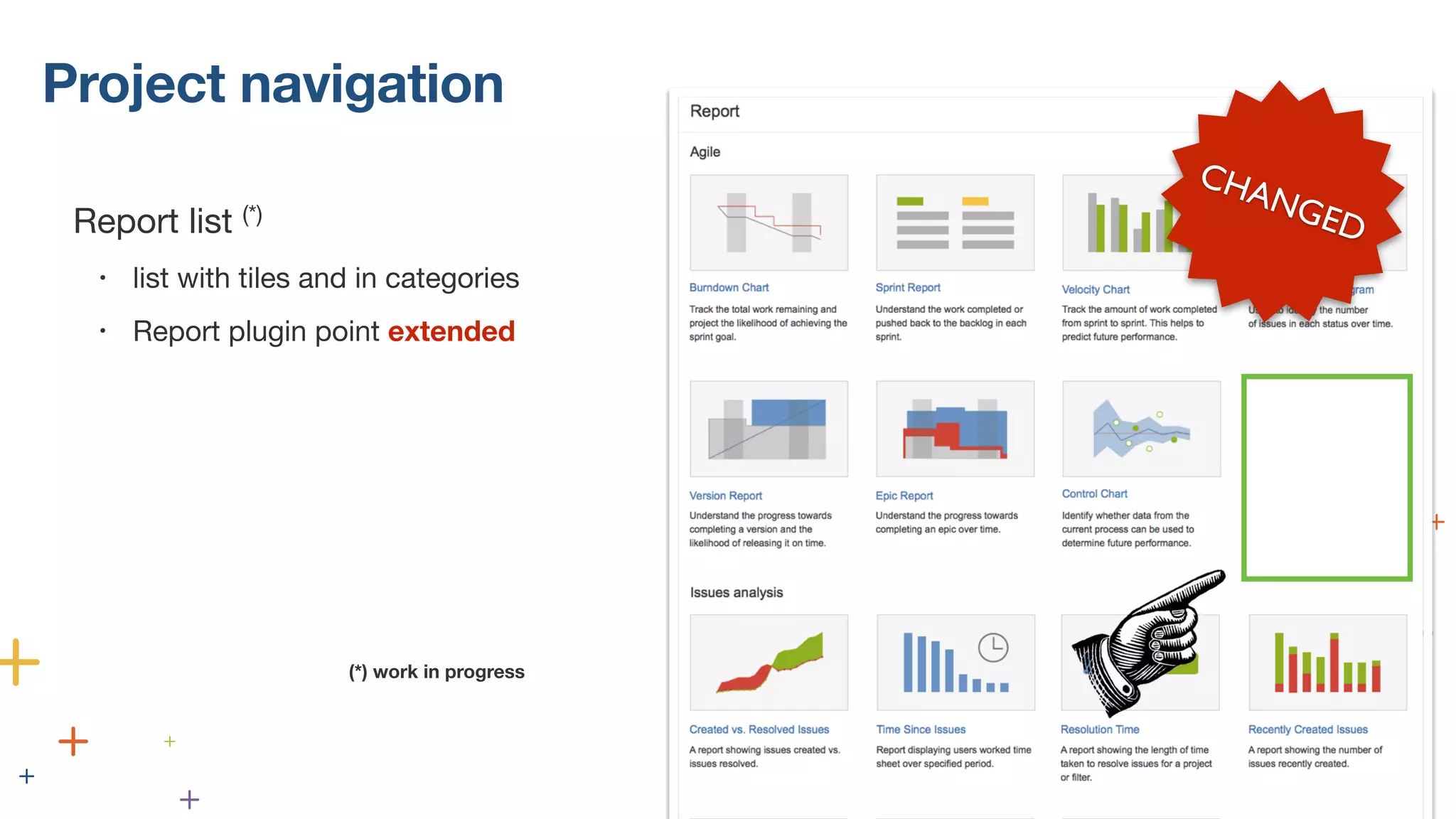

- 69. Project navigation Reportlist (*) • list with tiles and in categories • Report plugin point extended ! ! ! ! CHANGED (*) work in progress

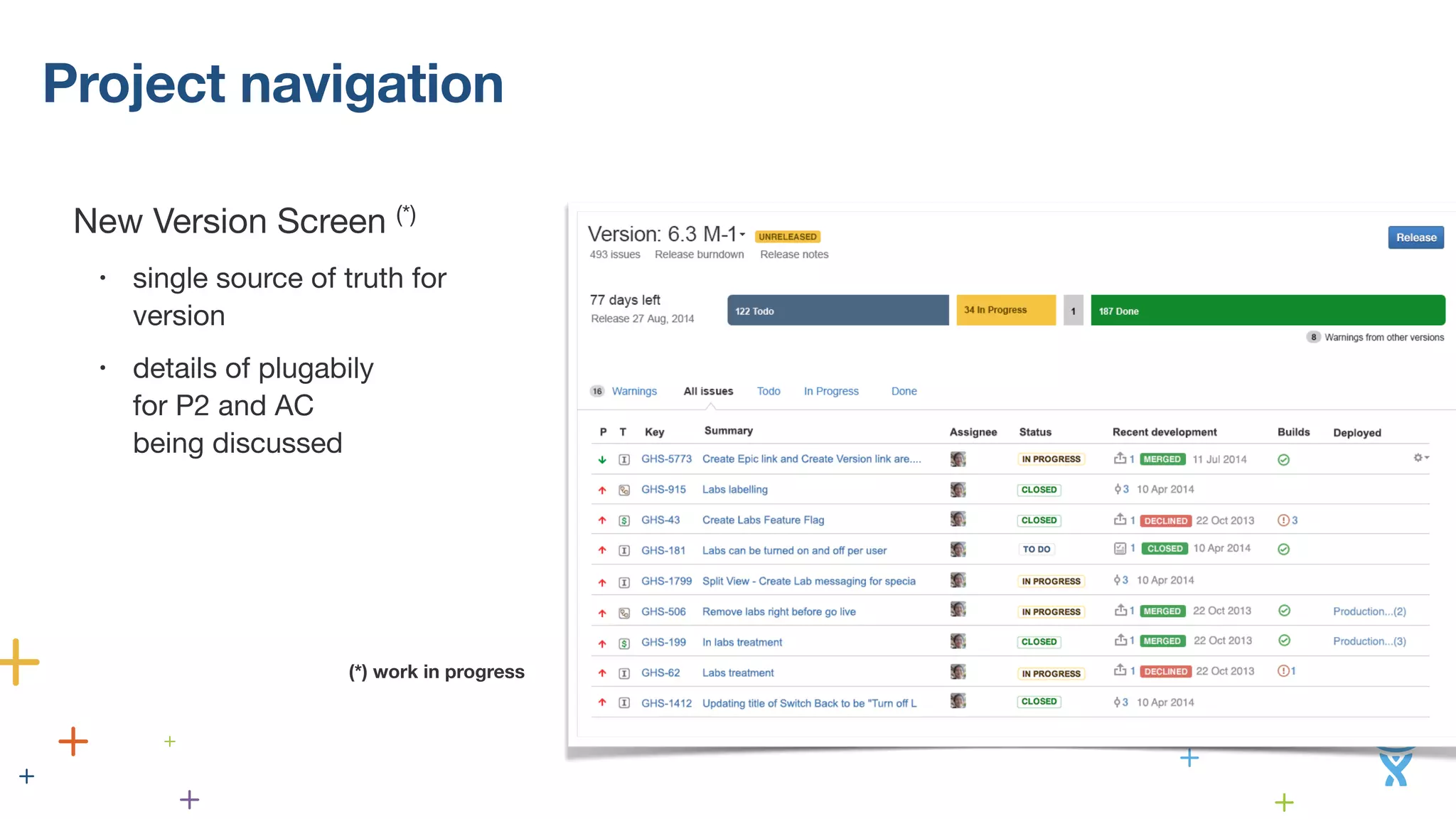

- 70. Project navigation NewVersion Screen (*) • single source of truth for version • details of plugabily for P2 and AC being discussed ! ! ! ! (*) work in progress

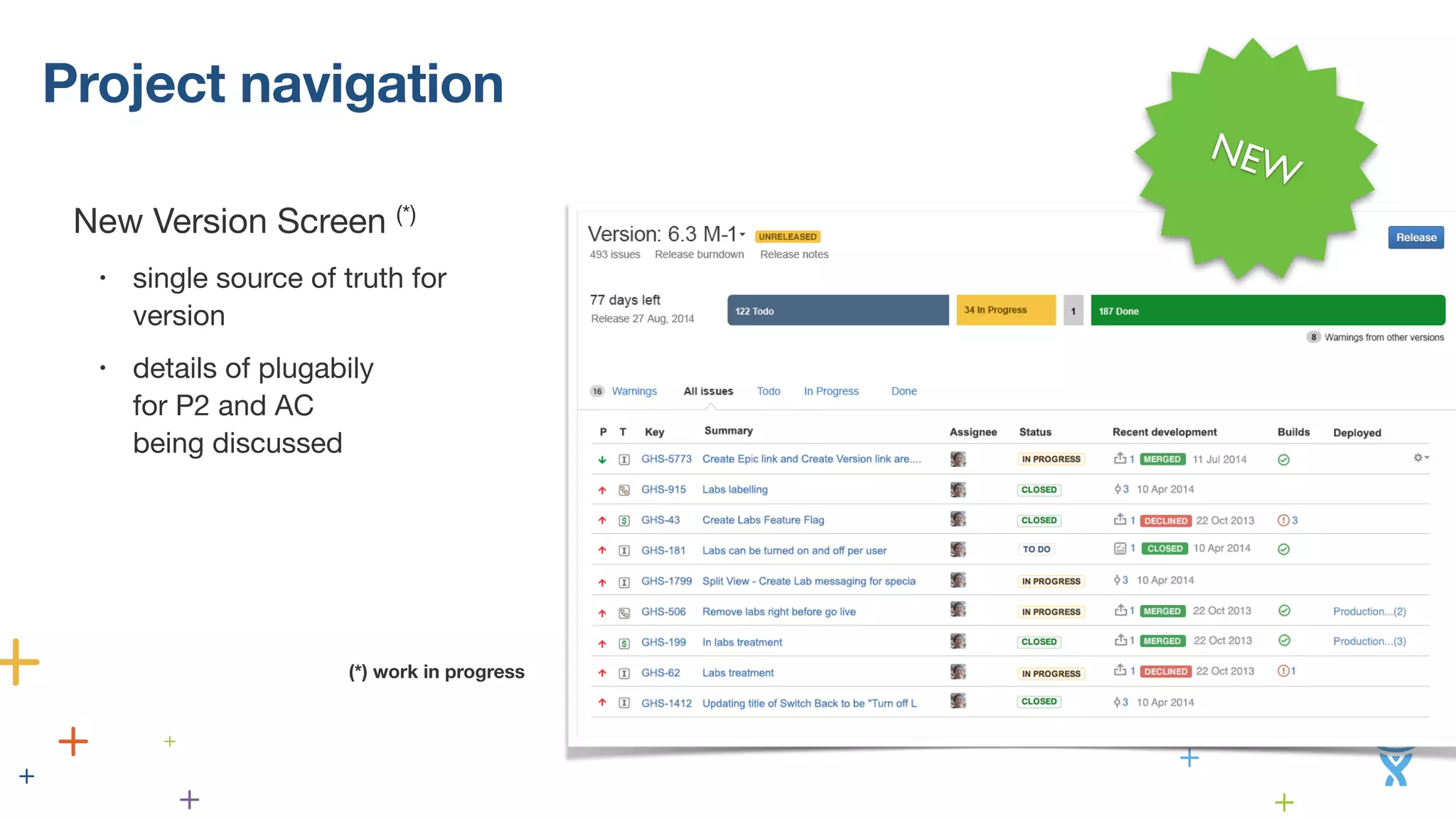

- 71. Project navigation NewVersion Screen (*) • single source of truth for version • details of plugabily for P2 and AC being discussed ! ! ! ! NEW (*) work in progress
- 72. talk to us! Bartek Gatz Filip Rogaczewski
- 73. please welcome IanGrunert
- 74. JIRA 7 ForDevelopers Things to know and how to know them IAN GRUNERT • SENIOR DEVELOPER • ATLASSIAN • @iangrunert
- 75. JIRA 7 ForDevelopers Data Center Web Resources Keeping in the loop
- 76.

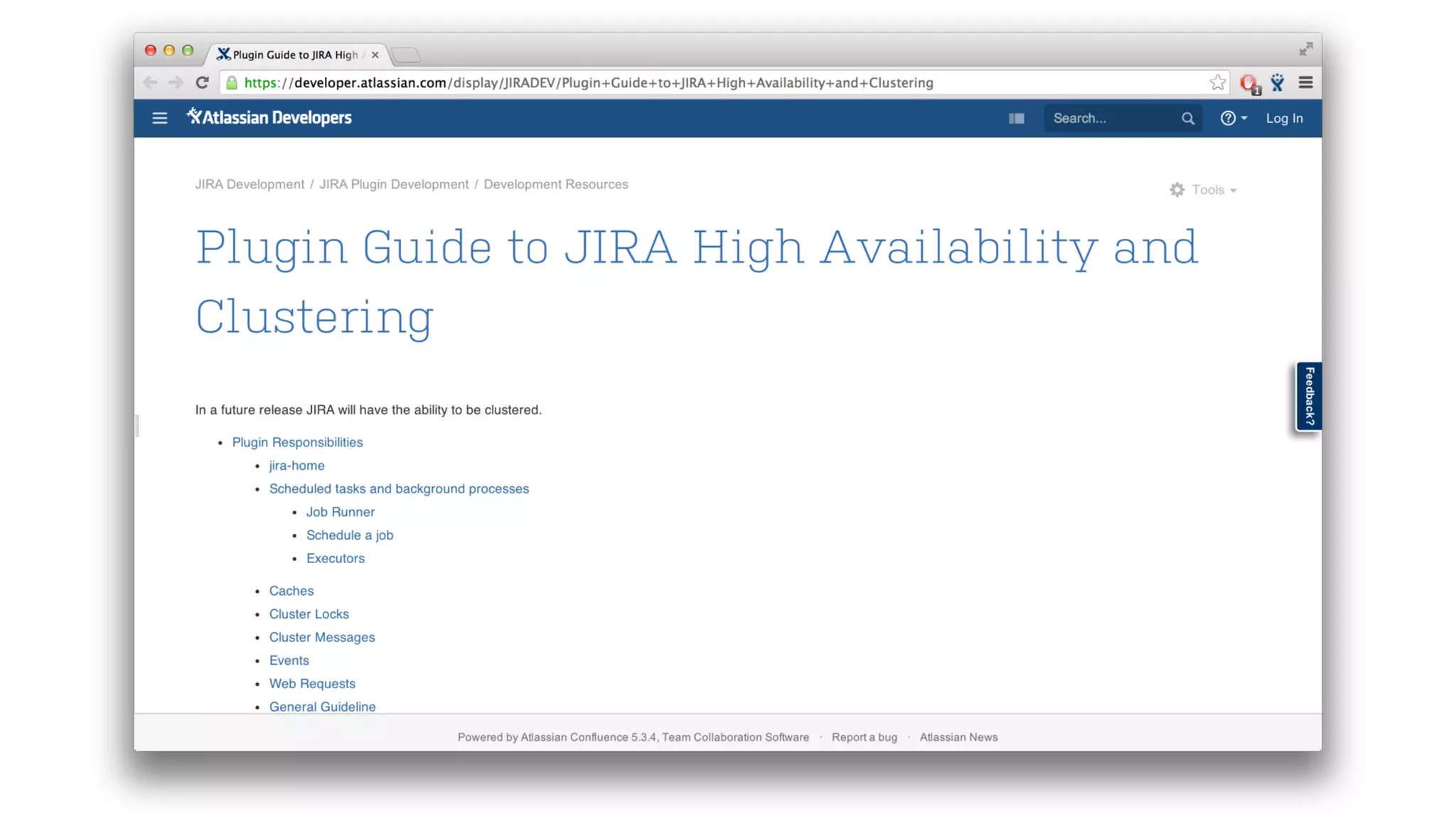

- 79. Cache sparingly andcache smarter

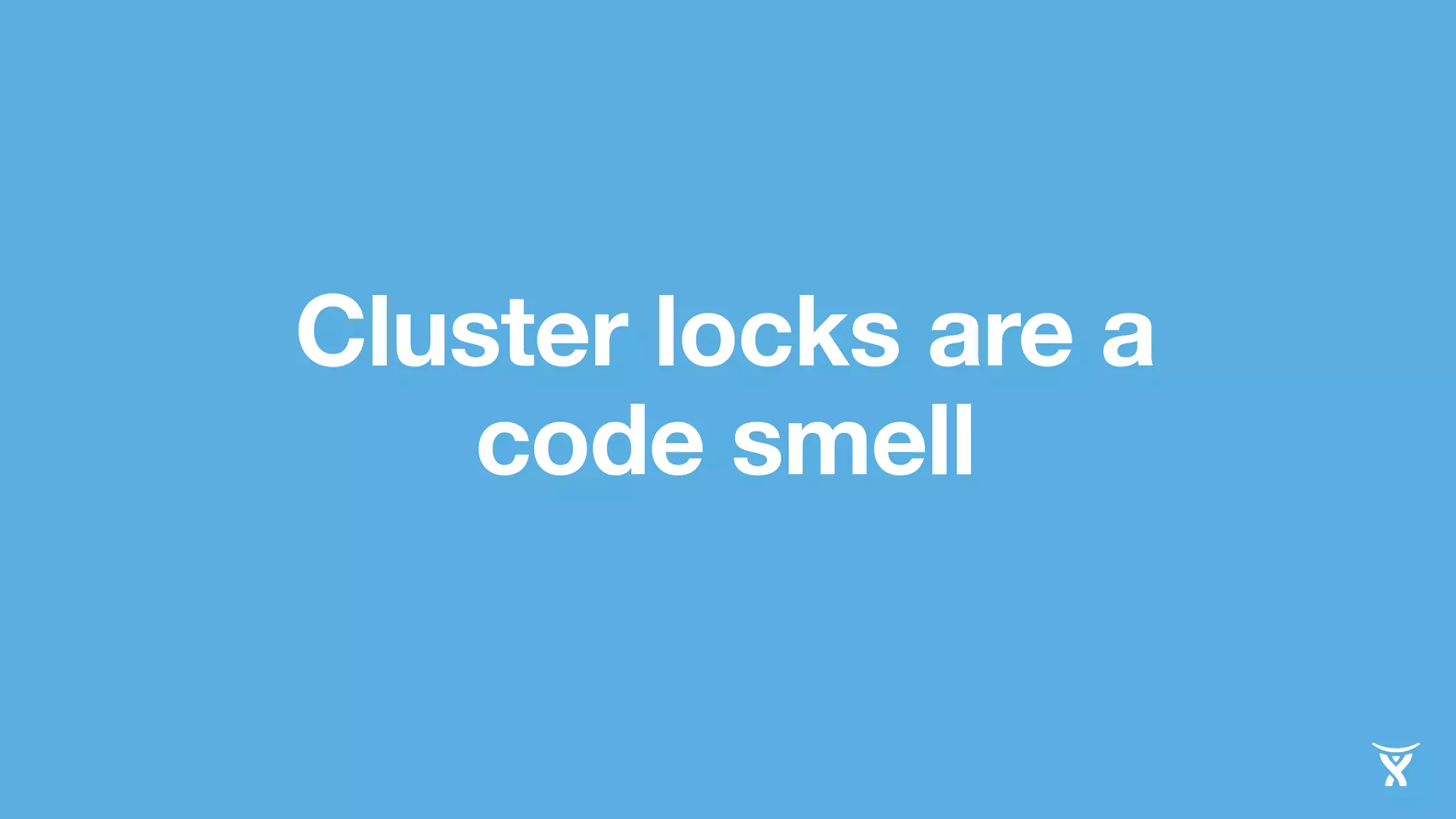

- 80. Cluster locks area code smell
- 81. Background tasks? Atlassian Scheduler
- 83. JIRA 7 ForDevelopers Data Center Web Resources Keeping in the loop
- 84.
- 85.
- 86. Watch your batch size

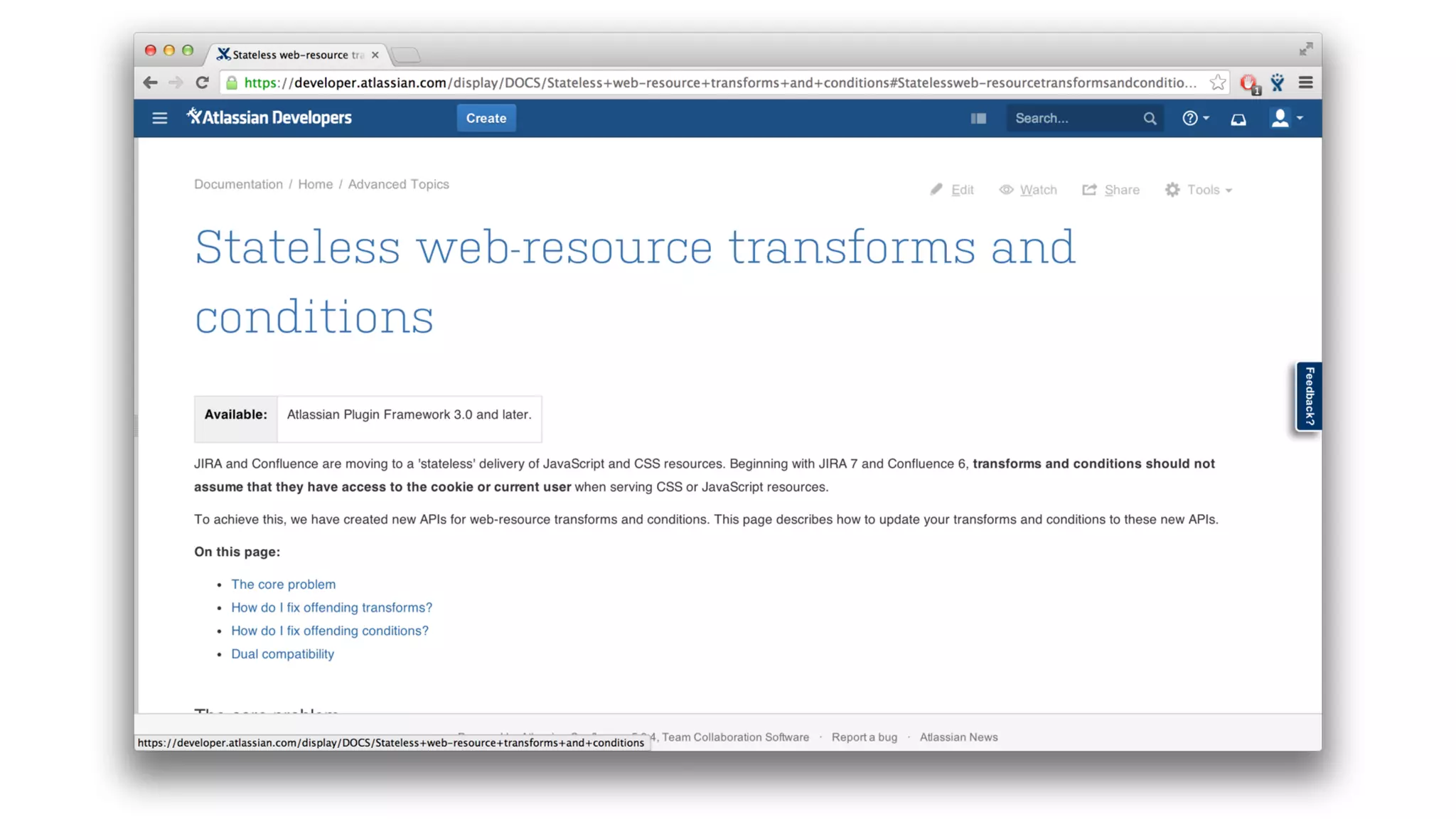

- 87. Make static resourcesmore static!
- 89. JIRA 7 ForDevelopers Data Center Web Resources Keeping in the loop
- 90.
- 91.

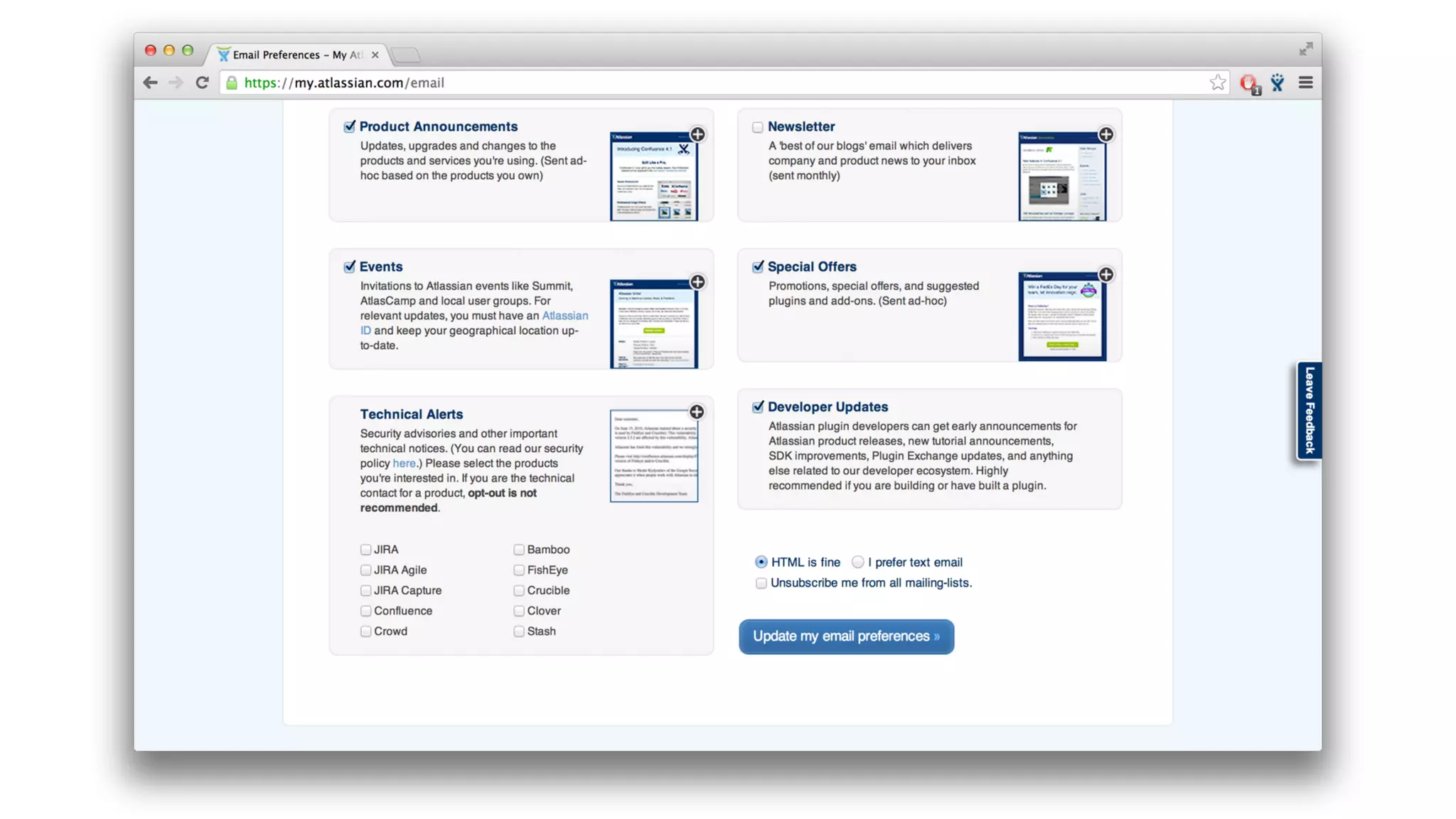

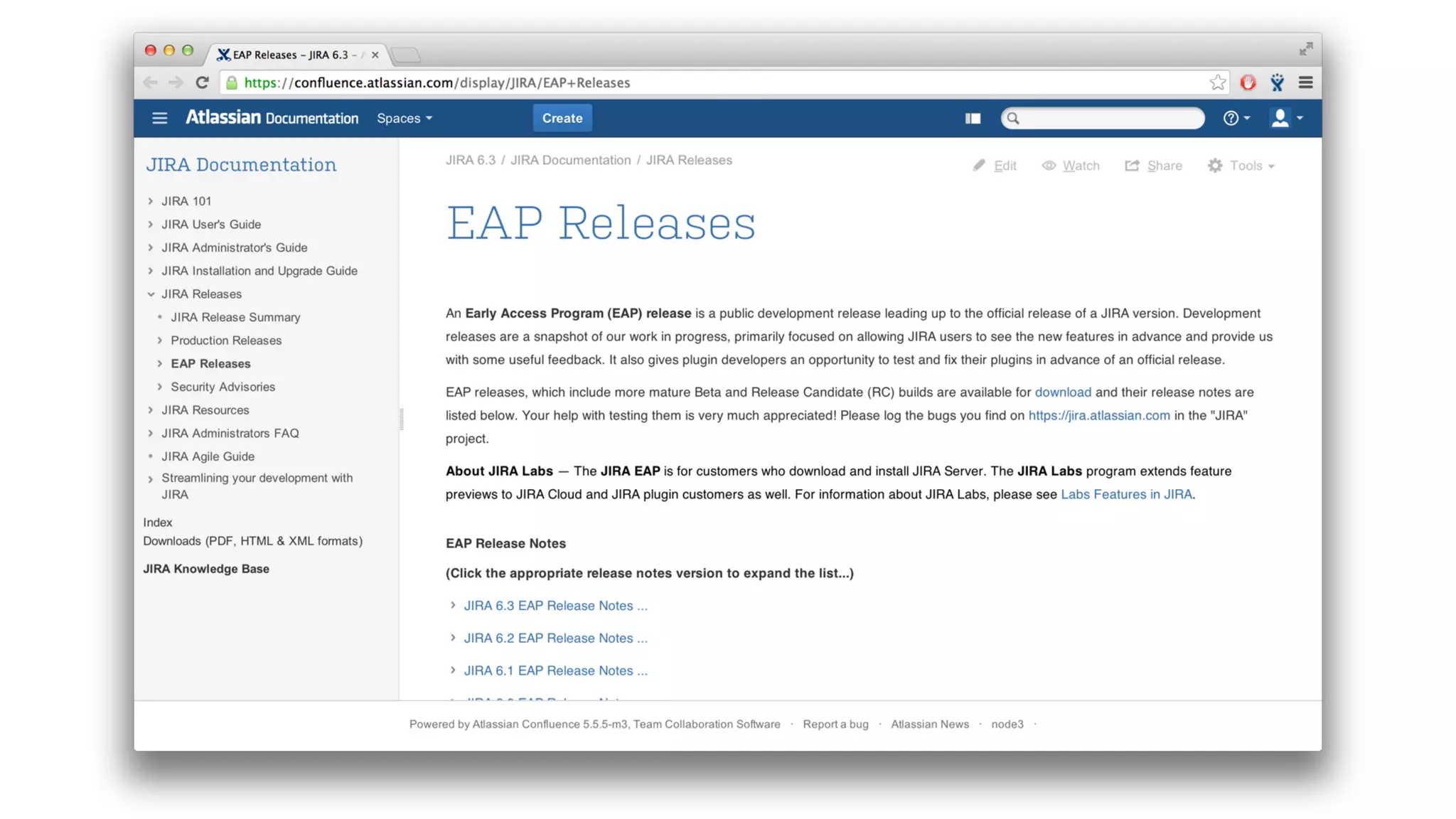

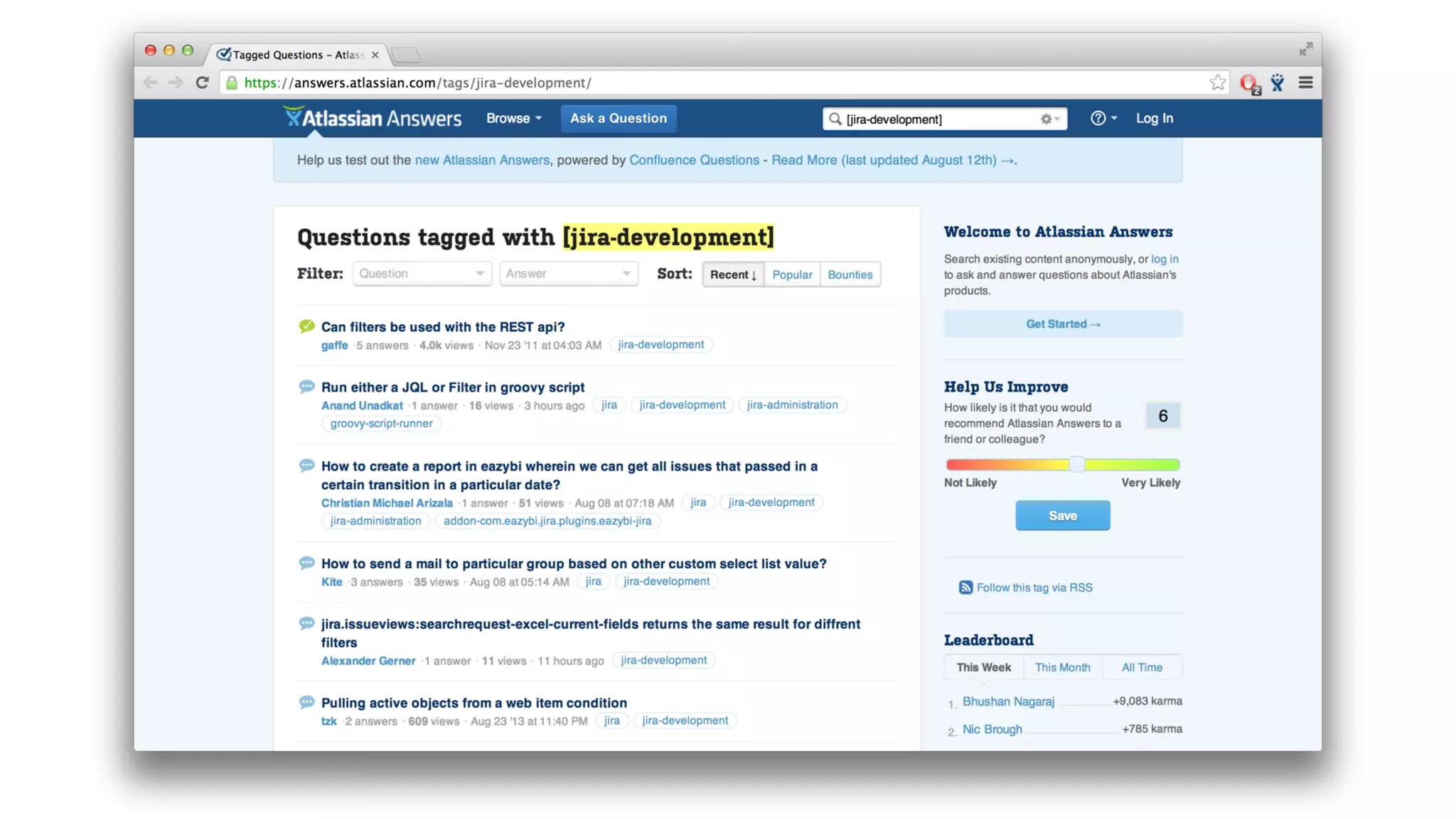

- 92. Keeping in theloop
- 98.
- 99. Thank you! IANGRUNERT • SENIOR DEVELOPER • ATLASSIAN • @iangrunert
