My lecture slides in Advanced Programming with Java course in K.N. Toosi University of Technology about JavaFX. In this slides I described the basic concept of JavaFX like Shapes, Observer Pattern, Even-Driven Programming and more. In the Part II I'll describe more advanced topic like FXML applications and CSS styling and more... .

1. 1

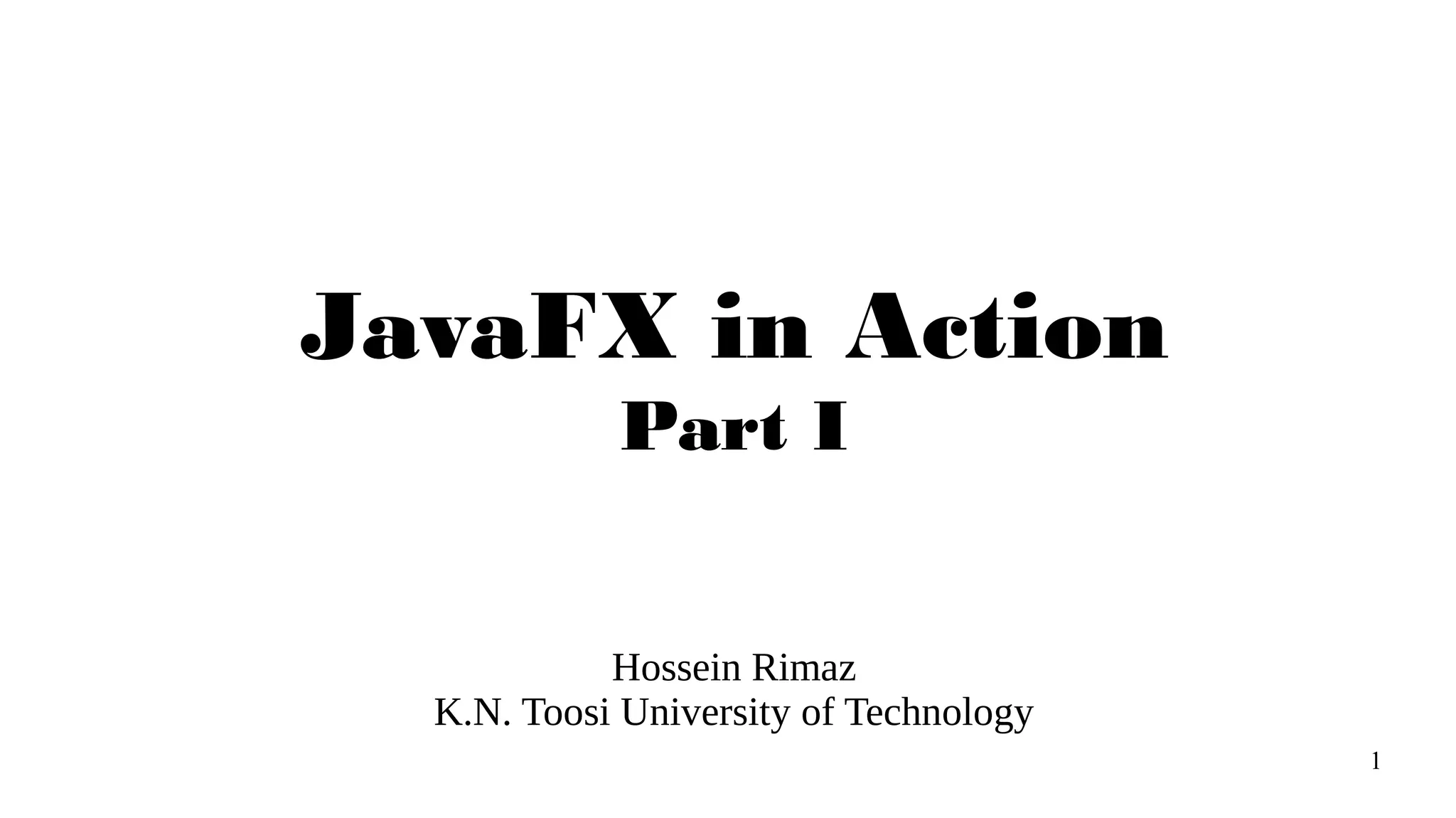

JavaFX in Action
Part I
Hossein Rimaz
K.N. Toosi University of Technology

2. 2

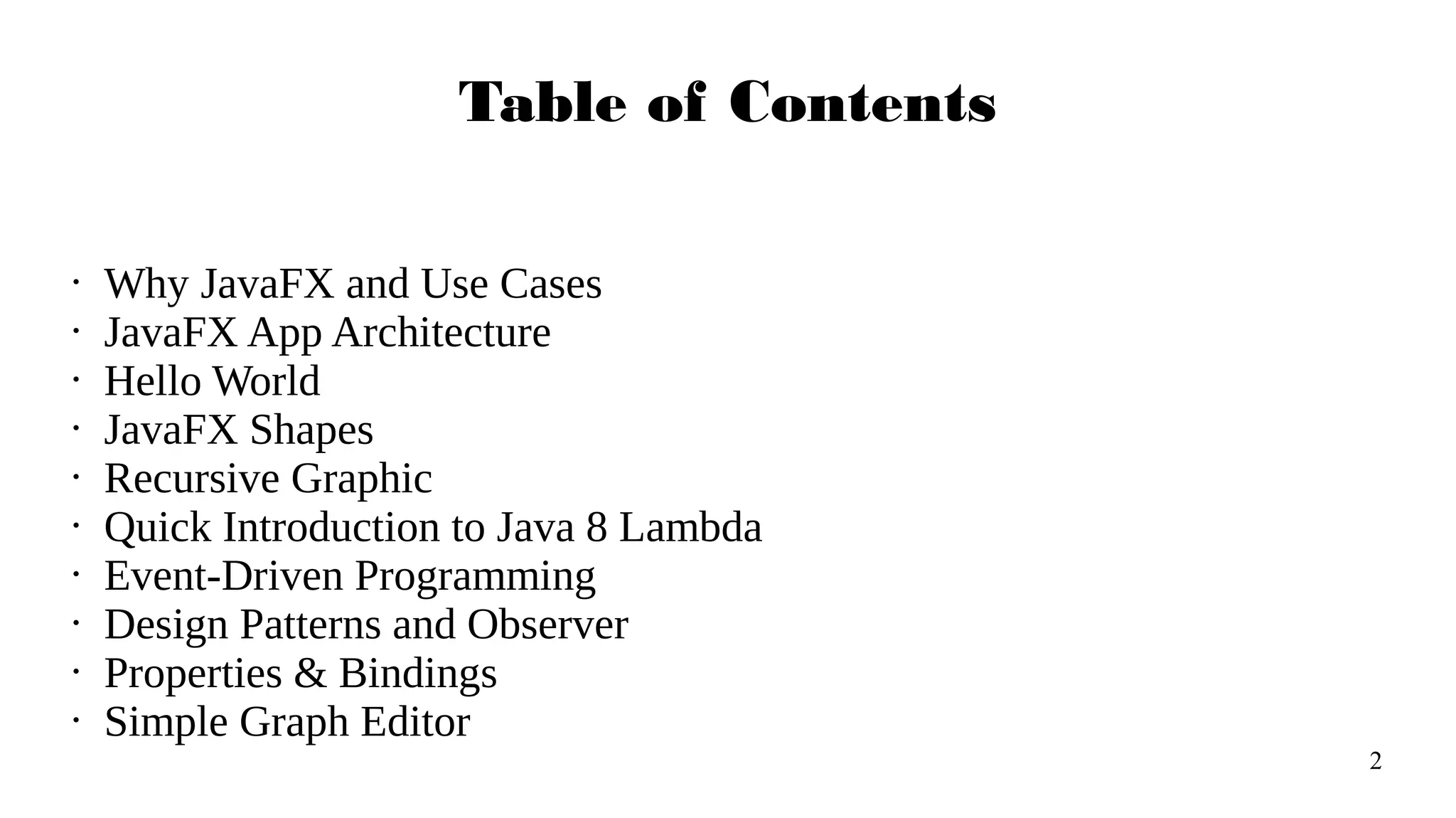

Table of Contents
• Why JavaFX and Use Cases
• JavaFX App Architecture
• Hello World
• JavaFX Shapes
• Recursive Graphic
• Quick Introduction to Java 8 Lambda
• Event-Driven Programming
• Design Patterns and Observer
• Properties & Bindings
• Simple Graph Editor

3. 3
Why JavaFX and Use Cases

4. 4
History of JavaFX Using Google Trends
JavaFX Script
1.0
JavaFX
2.0
JavaFX
8

5. 5
Where can you use JavaFX?
Basically everywhere!
● Desktop Applications
● Mobile (with Gluon Mobile)
● Web Application (require plug-ins but JPro doesn’t need any!)
● Embedded System (even ARM)

6. 6
JavaFX App Architecture

7. 7
JavaFX Application Life cycle
Each JavaFX application needs to extend the javafx.application.Application
class, which defines the life cycle of an application.
• Application.init() can be used to define and prepare everything before the
application starts.
• Application.start(Stage stage) is called to start the application. This
method should be used to define the complete application and its view by
adding a scene that defines the main window of the application.
• Application.stop() is called once the application is closed.

8. 8
Structure of a JavaFX Application

9. 9
Strange Names?
Not at all!
Think about it as a theater stage!
You have a stage; actors (Nodes) come into the scene
and going out of it.
And well this is a play, scene goes in and goes out!
Just as simple as it is!

10. 10
Hello World

11. 11
Creating a JavaFX Application

12. 12

13. 13

14. 14
Final Result
That was a simple hello world that probably you have no idea about
it!
But the result is actually pretty!

15. 15
JavaFX Shapes

16. 16
JavaFX Shapes
Well, let’s start a little bit simpler.
● Let’s just draw lines!

17. 17
Be careful about what
package you are importing!

18. 18
JavaFX Shapes
How about adding some loops?

19. 19
Final Result

20. 20
More Shapes

21. 21
Recursive Graphics

22. 22
Recursive Graphics
● You learned recursive programming and now you can apply those
techniques to achieve stunning visual arts!

23. 23
Drawing a Tree
Source code at: https://github.com/mhrimaz/RecursiveTreeFX

24. 24
Sierpinski Carpet
Source code at : https://github.com/mhrimaz/SierpinskiCarpetFX

25. 25
Quick Introduction to Java 8 Lambda

26. 26
Java 8 New Features
● Lambda expressions
● Method references
● Default Methods (Defender methods)
● A new Stream API.
● Optional
● A new Date/Time API.
● Nashorn, the new JavaScript engine
● Removal of the Permanent Generation
● and more…

27. 27
Lambda Expression
● A primary goal of lambdas is to help address the lack in the Java
language of a good way to express functional programming concepts.

28. 28
Syntax
● There are two ways to specify lambda expressions. The following
simple examples illustrate the general forms:
(param1, param2, ...) -> expression;
(param1, param2, ...) -> { /* code statements */ };
● Another thing to note is that parameters can be optionally typed. The
compiler will infer the type of the parameters depending on the
context.

29. 29
Why Lambda?
● In event handling lambda expressions will makes our codes shorter
and more expressive.
● Now you can understand NetBeans starter code better.

30. 30
Event-Driven Programming

31. 31
What is Event-Driven Programming?
● Until now, you may only wrote your programs in imperative way.
Your code flow was deterministic and run line after another.
● Event-driven programming is a programming paradigm in which the
flow of the program is determined by events such as user actions
(mouse clicks, key presses), sensor outputs, or messages from other
programs/threads.
● Event-driven programming is the dominant paradigm used in
graphical user interfaces and other applications that are centered on
performing certain actions in response to user input.

32. 32
Simple Example
● Simple scenario: mouse goes in,
performs a double click and goes out.

33. 33
Design Patterns and Observer

34. 34
What is Design Pattern?
● In software engineering, a design pattern is a general repeatable
solution to a commonly occurring problem in software design.
A design pattern isn't a finished design that can be transformed
directly into code. It is a description or template for how to solve a
problem that can be used in many different situations.
● Design patterns can speed up the development process by providing
tested, proven development paradigms.
● In addition, patterns allow developers to communicate using well-
known, well understood names for software interactions.

35. 35
GoF 23 Design Patterns
Creational
patterns
– Abstract Factory
– Builder
– Factory Method
– Prototype
– Singleton
Structural patterns
– Adapter
– Bridge
– Composite
– Decorator
– Façade
– Flyweight
– Proxy
Behavioral patterns
– Chain of responsibility
– Command
– Interpreter
– Iterator
– Mediator
– Memento
– Observer
– State
– Strategy
– Template method
– Visitor

36. 36
Design Pattern and JavaFX
● Well you’ve used many of them in your development without
knowing their names.
● Knowing about observer design pattern
can help you to understand
JavaFX Properties & Bindings and It’s
Observable collections better.
● If you want to learn more
Please read this book:
Java Design Patterns by Vaskaran Sarcar

37. 37
Observer Design Pattern
● GoF Definition: Define a one-to-many dependency between
objects so that when one object changes state, all its dependents are
notified and updated automatically.
● Concept: In this pattern, there are many observers (objects) which
are observing a particular subject (object). Observers are basically
interested and want to be notified when there is a change made inside
that subject. So, they register themselves to that subject. When they
lose interest in the subject they simply unregister from the subject.
Sometimes this model is also referred to as the Publisher-Subscriber
model.

38. 38
Computer World Example
● In the world of computer science, consider a simple UI-based
example, where this UI is connected with some database (or business
logic).
A user can execute some query through that UI and after searching the
database, the result is reflected back in the UI. In most of the cases we
segregate the UI with the database.
If a change occurs in the database, the UI should be notified so that it
can update its display according to the change.

39. 39
UI Patterns
● Graphical user interfaces have become a familiar part of our software
landscape, both as users and as developers. Looking at it from a
design perspective they represent a particular set of problems in
system design - problems that have led to a number of different but
similar solutions.
● When developing GUI applications you will inevitably encounter UI
architectural framework concepts such as model view controller
(MVC), model view presenter (MVP), or model view view-model
(MVVM).

40. 40
Properties & Bindings

41. 41
Properties & Bindings
● Properties are basically wrapper objects for JavaFX-based object
attributes such as String or Integer. Properties allow developers to add
listener code to respond when the wrapped value of an object has
changed or is flagged as invalid. Also, property objects can be bound
to one another.
● Binding behavior allows properties to update or synchronize their
values based on a changed value from another property.

42. 42
Types of JavaFX Properties
● Read/Writable
● Read-Only
● JavaFX’s properties are wrapper objects holding actual values while providing
change support, invalidation support, and binding capabilities.
● Some Property Classes:
– javafx.beans.property.SimpleIntegerProperty
– javafx.beans.property.ReadOnlyIntegerWrapper
– javafx.beans.property.SimpleDoubleProperty
– javafx.beans.property.ReadOnlyDoubleWrapper
– javafx.beans.property.SimpleStringProperty
– javafx.beans.property.ReadOnlyStringWrapper

43. 43
Example
Output:
StringProperty Value = password1
observable = StringProperty [value: 1234]
oldValue = password1
newValue = 1234

44. 44
Bindings
● binding has the idea of at least two values (properties) being
synchronized. This means that when a dependent variable changes, the
other variable changes.
● JavaFX provides many binding options that enable the developer to
synchronize between properties in domain objects and GUI controls.

45. 45
Types of JavaFX Bindings
● Simple Binding
● Bidirectional Binding

46. 46
Example
● Binding String length to a Integer Property

47. 47
Simple Graph Editor
Source code at: https://github.com/mhrimaz/JavaFXWorkshop_01
