1. #JavaEE @alextheedom
Professional Java EE Design
PatternsAlex Theedom
@alextheedom
alextheedom.com

2. @alextheedom#JavaEE

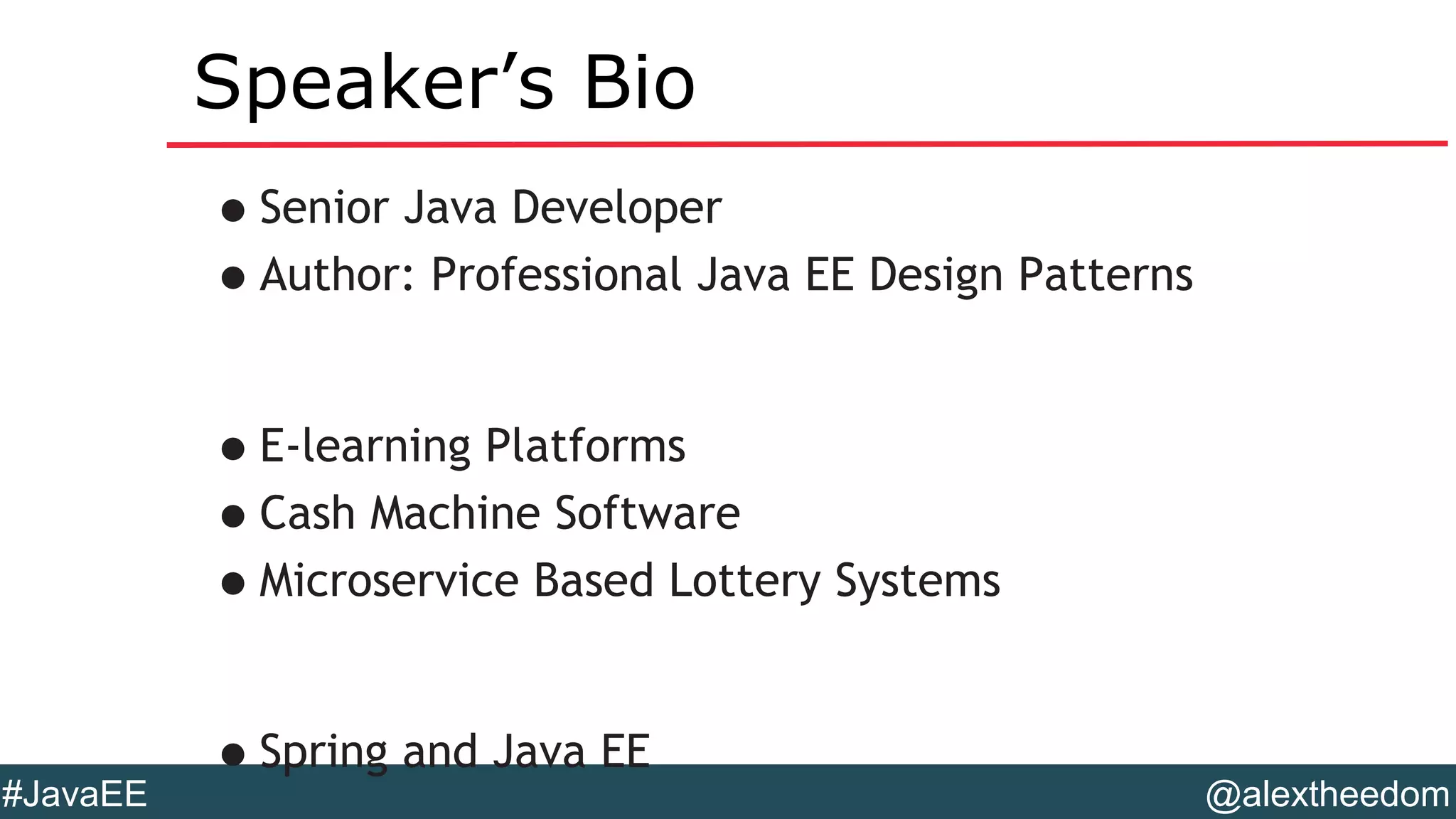

Speaker’s Bio
•Senior Java Developer
•Author: Professional Java EE Design Patterns
•E-learning Platforms
•Cash Machine Software
•Microservice Based Lottery Systems
•Spring and Java EE

3. @alextheedom#JavaEE

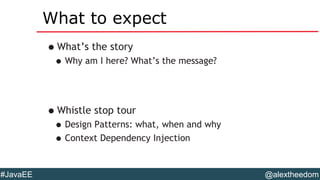

What to expect
•What’s the story
•Why am I here? What’s the message?
•Whistle stop tour
•Design Patterns: what, when and why
•Context Dependency Injection

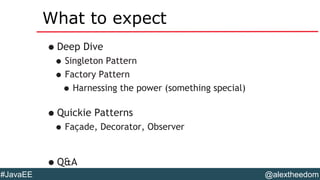

4. @alextheedom#JavaEE
What to expect
•Deep Dive
•Singleton Pattern
•Factory Pattern
•Harnessing the power (something special)
•Quickie Patterns
•Façade, Decorator, Observer
•Q&A

5. @alextheedom#JavaEE

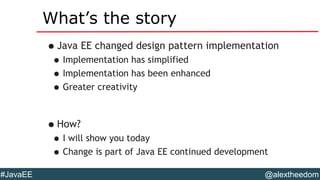

What’s the story
•Java EE changed design pattern implementation
•Implementation has simplified
•Implementation has been enhanced
•Greater creativity
•How?
•I will show you today
•Change is part of Java EE continued development

6. @alextheedom#JavaEE

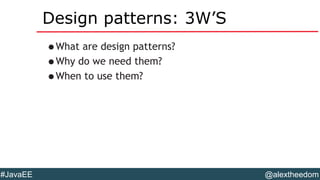

Design patterns: 3W’S
•What are design patterns?
•Why do we need them?
•When to use them?

7. @alextheedom#JavaEE

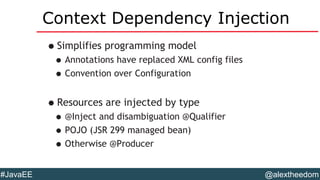

Context Dependency Injection
•Simplifies programming model
•Annotations have replaced XML config files
•Convention over Configuration
•Resources are injected by type
•@Inject and disambiguation @Qualifier
•POJO (JSR 299 managed bean)
•Otherwise @Producer

8. @alextheedom#JavaEE

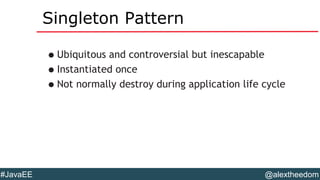

Singleton Pattern
•Ubiquitous and controversial but inescapable
•Instantiated once
•Not normally destroy during application life cycle

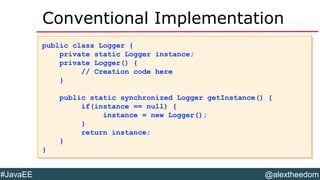

9. @alextheedom#JavaEE
Conventional Implementation
public class Logger {
private static Logger instance;
private Logger() {
// Creation code here
}
public static synchronized Logger getInstance() {
if(instance == null) {
instance = new Logger();
}
return instance;
}
}
public class Logger {
private static Logger instance;
private Logger() {
// Creation code here
}
public static synchronized Logger getInstance() {
if(instance == null) {
instance = new Logger();
}
return instance;
}
}

10. @alextheedom#JavaEE

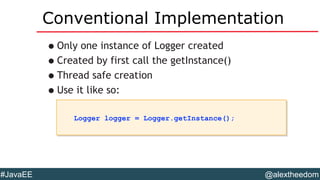

Conventional Implementation
•Only one instance of Logger created
•Created by first call the getInstance()
•Thread safe creation
•Use it like so:
Logger logger = Logger.getInstance();Logger logger = Logger.getInstance();

11. @alextheedom#JavaEE

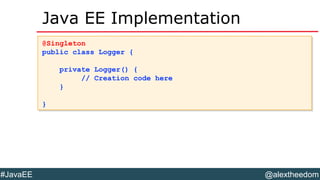

Java EE Implementation
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
}
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
}

12. @alextheedom#JavaEE

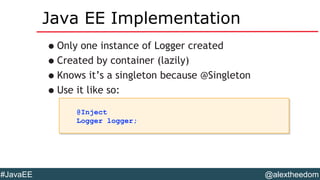

Java EE Implementation
•Only one instance of Logger created
•Created by container (lazily)
•Knows it’s a singleton because @Singleton
•Use it like so:
@Inject
Logger logger;
@Inject
Logger logger;

13. @alextheedom#JavaEE

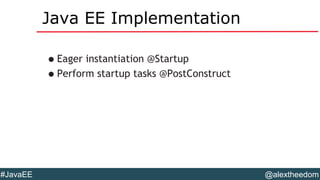

Java EE Implementation
•Eager instantiation @Startup
•Perform startup tasks @PostConstruct

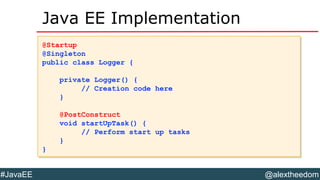

14. @alextheedom#JavaEE
Java EE Implementation
@Startup
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
@PostConstruct
void startUpTask() {
// Perform start up tasks
}
}
@Startup
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
@PostConstruct
void startUpTask() {
// Perform start up tasks
}
}

15. @alextheedom#JavaEE

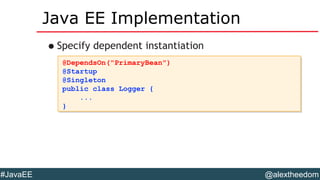

Java EE Implementation
•Specify dependent instantiation
@DependsOn("PrimaryBean")
@Startup
@Singleton
public class Logger {
...
}
@DependsOn("PrimaryBean")
@Startup
@Singleton
public class Logger {
...
}

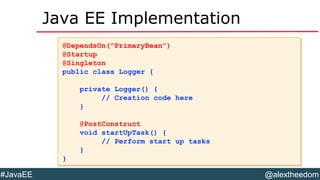

16. @alextheedom#JavaEE
Java EE Implementation
@DependsOn("PrimaryBean")
@Startup
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
@PostConstruct
void startUpTask() {
// Perform start up tasks
}
}
@DependsOn("PrimaryBean")
@Startup
@Singleton
public class Logger {
private Logger() {
// Creation code here
}
@PostConstruct
void startUpTask() {
// Perform start up tasks
}
}

17. @alextheedom#JavaEE

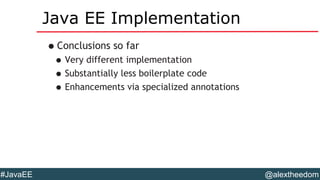

Java EE Implementation
•Conclusions so far
•Very different implementation
•Substantially less boilerplate code
•Enhancements via specialized annotations

18. @alextheedom#JavaEE

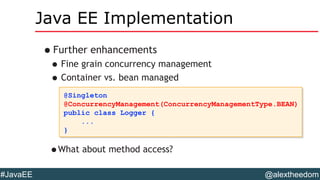

Java EE Implementation
•Further enhancements
•Fine grain concurrency management
•Container vs. bean managed
@Singleton
@ConcurrencyManagement(ConcurrencyManagementType.BEAN)
public class Logger {
...
}
@Singleton
@ConcurrencyManagement(ConcurrencyManagementType.BEAN)
public class Logger {
...
}
•What about method access?

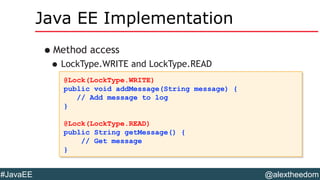

19. @alextheedom#JavaEE
Java EE Implementation
•Method access
•LockType.WRITE and LockType.READ
@Lock(LockType.WRITE)
public void addMessage(String message) {
// Add message to log
}
@Lock(LockType.READ)
public String getMessage() {
// Get message
}
@Lock(LockType.WRITE)
public void addMessage(String message) {
// Add message to log
}
@Lock(LockType.READ)
public String getMessage() {
// Get message
}

20. @alextheedom#JavaEE
Java EE Implementation
•Method access timeout
•ConcurrentAccessTimeoutException
•Defined by annotation @AccessTimeout
•Class and method level
@AccessTimeout(value = 30, unit=TimeUnit.SECONDS)
@Lock(LockType.WRITE)
public void addMessage(String message) {
// Add message to log
}
@AccessTimeout(value = 30, unit=TimeUnit.SECONDS)
@Lock(LockType.WRITE)
public void addMessage(String message) {
// Add message to log
}

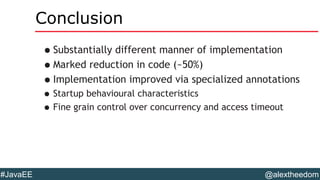

21. @alextheedom#JavaEE
Conclusion
•Substantially different manner of implementation
•Marked reduction in code (~50%)
•Implementation improved via specialized annotations
•Startup behavioural characteristics
•Fine grain control over concurrency and access timeout

22. @alextheedom#JavaEE

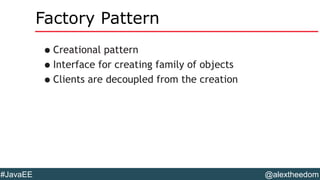

Factory Pattern
•Creational pattern
•Interface for creating family of objects
•Clients are decoupled from the creation

23. @alextheedom#JavaEE
Conventional Implementation
public class DrinksMachineFactory implements AbstractDrinksMachineFactory{
public DrinksMachine createCoffeeMachine() {
return new CoffeeMachine();
}
}
public class DrinksMachineFactory implements AbstractDrinksMachineFactory{
public DrinksMachine createCoffeeMachine() {
return new CoffeeMachine();
}
}
•Use it like so:
AbstractDrinksMachineFactory factory = new DrinksMachineFactory();
DrinksMachine coffeeMachine = factory.createCoffeeMachine();
AbstractDrinksMachineFactory factory = new DrinksMachineFactory();
DrinksMachine coffeeMachine = factory.createCoffeeMachine();
•Abstract factory

24. @alextheedom#JavaEE
Java EE Implementation
•CDI framework is a factory
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
•Use it like so:
@Inject
DrinksMachine drinksMachine;
@Inject
DrinksMachine drinksMachine;

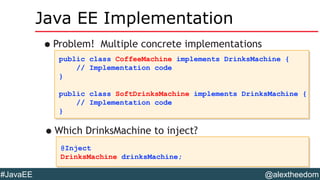

25. @alextheedom#JavaEE
Java EE Implementation
•Problem! Multiple concrete implementations
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
public class SoftDrinksMachine implements DrinksMachine {
// Implementation code
}
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
public class SoftDrinksMachine implements DrinksMachine {
// Implementation code
}
@Inject
DrinksMachine drinksMachine;
@Inject
DrinksMachine drinksMachine;
•Which DrinksMachine to inject?

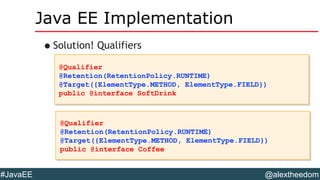

26. @alextheedom#JavaEE
Java EE Implementation
•Solution! Qualifiers
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD, ElementType.FIELD})
public @interface SoftDrink
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD, ElementType.FIELD})
public @interface SoftDrink
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD, ElementType.FIELD})
public @interface Coffee
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD, ElementType.FIELD})
public @interface Coffee

27. @alextheedom#JavaEE

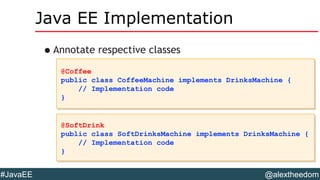

Java EE Implementation
•Annotate respective classes
@Coffee
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
@Coffee
public class CoffeeMachine implements DrinksMachine {
// Implementation code
}
@SoftDrink
public class SoftDrinksMachine implements DrinksMachine {
// Implementation code
}
@SoftDrink
public class SoftDrinksMachine implements DrinksMachine {
// Implementation code
}

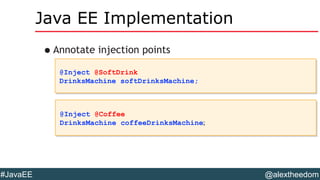

28. @alextheedom#JavaEE
Java EE Implementation
•Annotate injection points
@Inject @SoftDrink
DrinksMachine softDrinksMachine;
@Inject @SoftDrink
DrinksMachine softDrinksMachine;
@Inject @Coffee
DrinksMachine coffeeDrinksMachine;
@Inject @Coffee
DrinksMachine coffeeDrinksMachine;

29. @alextheedom#JavaEE

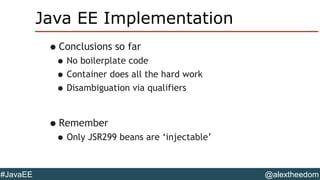

Java EE Implementation
•Conclusions so far
•No boilerplate code
•Container does all the hard work
•Disambiguation via qualifiers
•Remember
•Only JSR299 beans are ‘injectable’

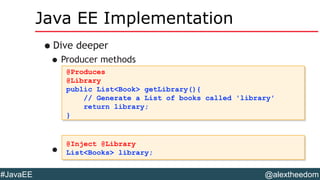

30. @alextheedom#JavaEE
Java EE Implementation
•Dive deeper
•Producer methods
•Use it like so:
@Produces
@Library
public List<Book> getLibrary(){
// Generate a List of books called 'library'
return library;
}
@Produces
@Library
public List<Book> getLibrary(){
// Generate a List of books called 'library'
return library;
}
@Inject @Library
List<Books> library;
@Inject @Library
List<Books> library;

31. @alextheedom#JavaEE
Java EE Implementation
•Scope
•Determines when method called
•Life of object: @RequestScoped -> @ApplicationScoped
@SessionScoped
@Produces
@Library
public List<Book> getLibrary(){
// Generate a List of books called 'library'
return library;
}
@SessionScoped
@Produces
@Library
public List<Book> getLibrary(){
// Generate a List of books called 'library'
return library;
}

32. @alextheedom#JavaEE

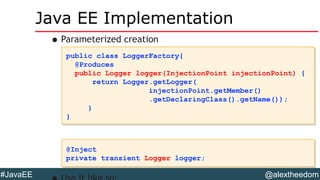

Java EE Implementation
•Parameterized creation
public class LoggerFactory{
@Produces
public Logger logger(InjectionPoint injectionPoint) {
return Logger.getLogger(
injectionPoint.getMember()
.getDeclaringClass().getName());
}
}
public class LoggerFactory{
@Produces
public Logger logger(InjectionPoint injectionPoint) {
return Logger.getLogger(
injectionPoint.getMember()
.getDeclaringClass().getName());
}
}
@Inject
private transient Logger logger;
@Inject
private transient Logger logger;

33. @alextheedom#JavaEE

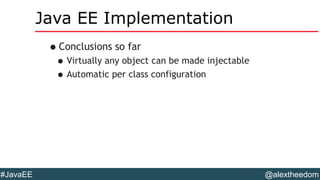

Java EE Implementation
•Conclusions so far
•Virtually any object can be made injectable
•Automatic per class configuration

34. @alextheedom#JavaEE

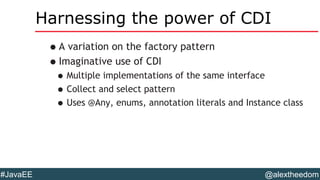

Harnessing the power of CDI
•A variation on the factory pattern
•Imaginative use of CDI
•Multiple implementations of the same interface
•Collect and select pattern
•Uses @Any, enums, annotation literals and Instance class

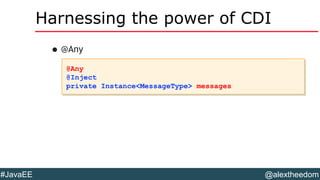

35. @alextheedom#JavaEE
Harnessing the power of CDI
•@Any
@Any
@Inject
private Instance<MessageType> messages
@Any
@Inject
private Instance<MessageType> messages

36. @alextheedom#JavaEE

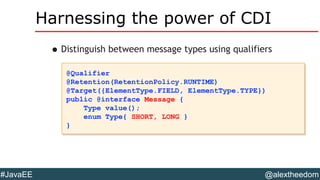

Harnessing the power of CDI
•Distinguish between message types using qualifiers
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.FIELD, ElementType.TYPE})
public @interface Message {
Type value();
enum Type{ SHORT, LONG }
}
@Qualifier
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.FIELD, ElementType.TYPE})
public @interface Message {
Type value();
enum Type{ SHORT, LONG }
}

37. @alextheedom#JavaEE

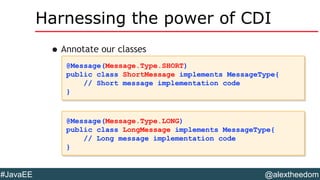

Harnessing the power of CDI
•Annotate our classes
@Message(Message.Type.SHORT)
public class ShortMessage implements MessageType{
// Short message implementation code
}
@Message(Message.Type.SHORT)
public class ShortMessage implements MessageType{
// Short message implementation code
}
@Message(Message.Type.LONG)
public class LongMessage implements MessageType{
// Long message implementation code
}
@Message(Message.Type.LONG)
public class LongMessage implements MessageType{
// Long message implementation code
}

38. @alextheedom#JavaEE

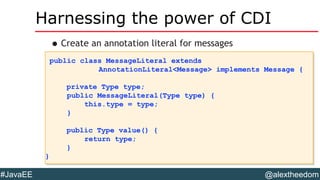

Harnessing the power of CDI
•Create an annotation literal for messages
public class MessageLiteral extends
AnnotationLiteral<Message> implements Message {
private Type type;
public MessageLiteral(Type type) {
this.type = type;
}
public Type value() {
return type;
}
}
public class MessageLiteral extends
AnnotationLiteral<Message> implements Message {
private Type type;
public MessageLiteral(Type type) {
this.type = type;
}
public Type value() {
return type;
}
}

39. @alextheedom#JavaEE

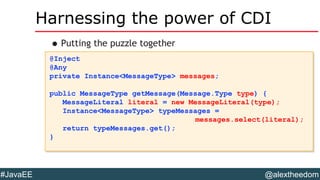

Harnessing the power of CDI
•Putting the puzzle together
@Inject
@Any
private Instance<MessageType> messages;
public MessageType getMessage(Message.Type type) {
MessageLiteral literal = new MessageLiteral(type);
Instance<MessageType> typeMessages =
messages.select(literal);
return typeMessages.get();
}
@Inject
@Any
private Instance<MessageType> messages;
public MessageType getMessage(Message.Type type) {
MessageLiteral literal = new MessageLiteral(type);
Instance<MessageType> typeMessages =
messages.select(literal);
return typeMessages.get();
}

40. @alextheedom#JavaEE
Harnessing the power of CDI
•Use it like so:
@Inject
private MessageFactory mf;
public void doMessage(){
MessageType m = mf.getMessage(Message.Type.SHORT);
}
@Inject
private MessageFactory mf;
public void doMessage(){
MessageType m = mf.getMessage(Message.Type.SHORT);
}

41. @alextheedom#JavaEE

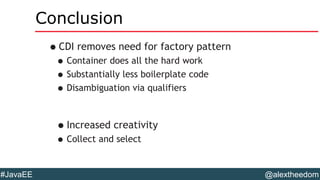

Conclusion
•CDI removes need for factory pattern
•Container does all the hard work
•Substantially less boilerplate code
•Disambiguation via qualifiers
•Increased creativity
•Collect and select

42. @alextheedom#JavaEE
Other Patterns
•Facade
•Decorator
•Observer

43. @alextheedom#JavaEE
Façade Pattern
•Encapsulates complicated logic
•@Stateless, @Stateful
@Stateless
public class BankServiceFacade{
@Inject
private AccountService accountService;
}
@Stateless
public class BankServiceFacade{
@Inject
private AccountService accountService;
}
@Stateless
public class AccountService{}
@Stateless
public class AccountService{}

44. @alextheedom#JavaEE
Decorator Pattern
•Dynamically adds logic to an object

45. @alextheedom#JavaEE
Decorator Pattern
@Decorator
@Priority(Interceptor.Priority.APPLICATION)
public class PriceDiscountDecorator implements Product {
@Any
@Inject
@Delegate
private Product product;
public String generateLabel() {
product.setPrice(product.getPrice() * 0.5);
return product.generateLabel();
}
}
@Decorator
@Priority(Interceptor.Priority.APPLICATION)
public class PriceDiscountDecorator implements Product {
@Any
@Inject
@Delegate
private Product product;
public String generateLabel() {
product.setPrice(product.getPrice() * 0.5);
return product.generateLabel();
}
}

46. @alextheedom#JavaEE

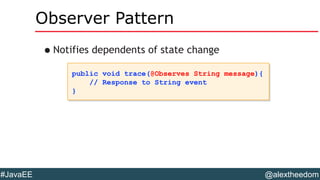

Observer Pattern
•Notifies dependents of state change
public void trace(@Observes String message){
// Response to String event
}
public void trace(@Observes String message){
// Response to String event
}

47. @alextheedom#JavaEE

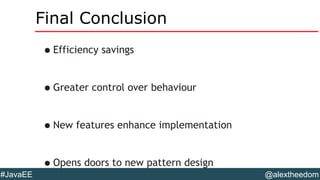

Final Conclusion
•Efficiency savings
•Greater control over behaviour
•New features enhance implementation
•Opens doors to new pattern design

48. #JavaEE @alextheedom
40% discount with promo code
VBK43
when ordering through
wiley.com
valid until 1st September

49. @YourTwitterHandle#DVXFR14{session hashtag} @alextheedom#JavaEE
Q & A

50. #JavaEE @alextheedom
Professional Java EE Design
PatternsAlex Theedom
@alextheedom
alextheedom.com
Thank You
