1. SFU Cascading with Janus
Lorenzo Miniero
@elminiero
IIT Real-Time Communication 2022 – WebRTC Track
October 11th 2022, Chicago, IL, USA

2. A few words about me
Lorenzo Miniero
• Ph.D @ UniNA
• Chairman @ Meetecho
• Main author of Janus®
Contacts and info
• lorenzo@meetecho.com
• https://twitter.com/elminiero
• https://www.slideshare.net/LorenzoMiniero
• https://lminiero.bandcamp.com

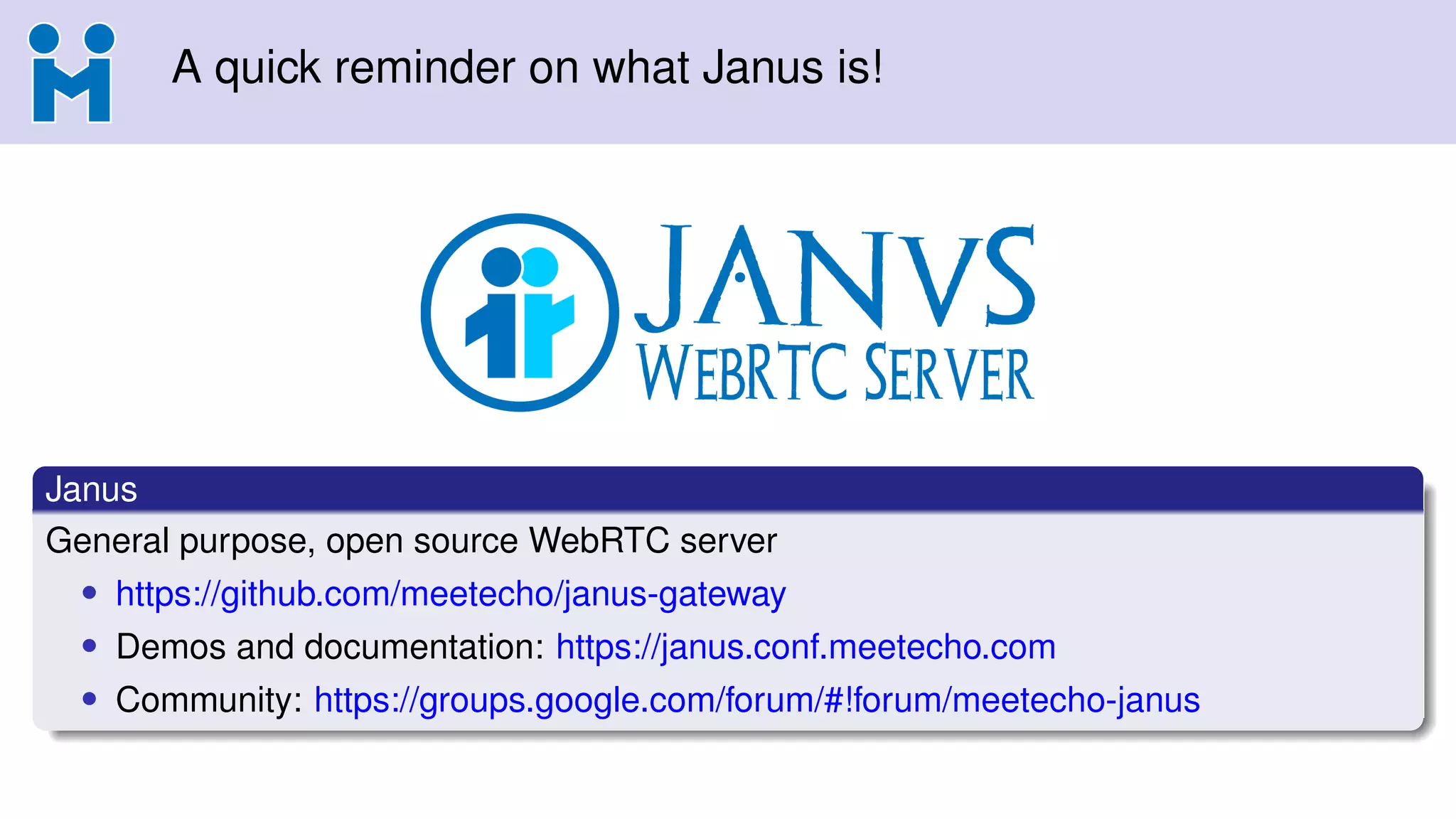

3. A quick reminder on what Janus is!
Janus
General purpose, open source WebRTC server
• https://github.com/meetecho/janus-gateway
• Demos and documentation: https://janus.conf.meetecho.com
• Community: https://groups.google.com/forum/#!forum/meetecho-janus

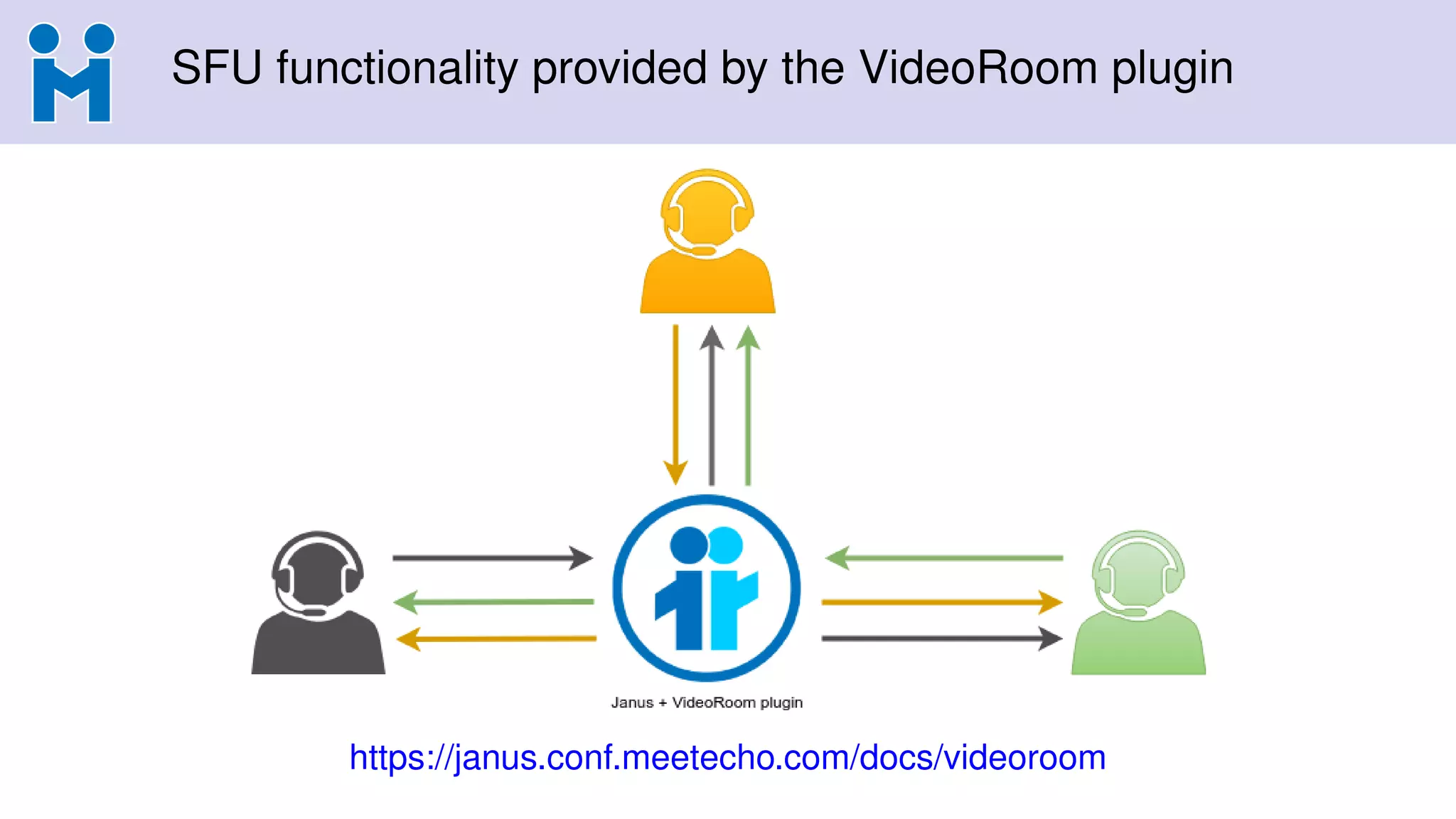

4. SFU functionality provided by the VideoRoom plugin
https://janus.conf.meetecho.com/docs/videoroom

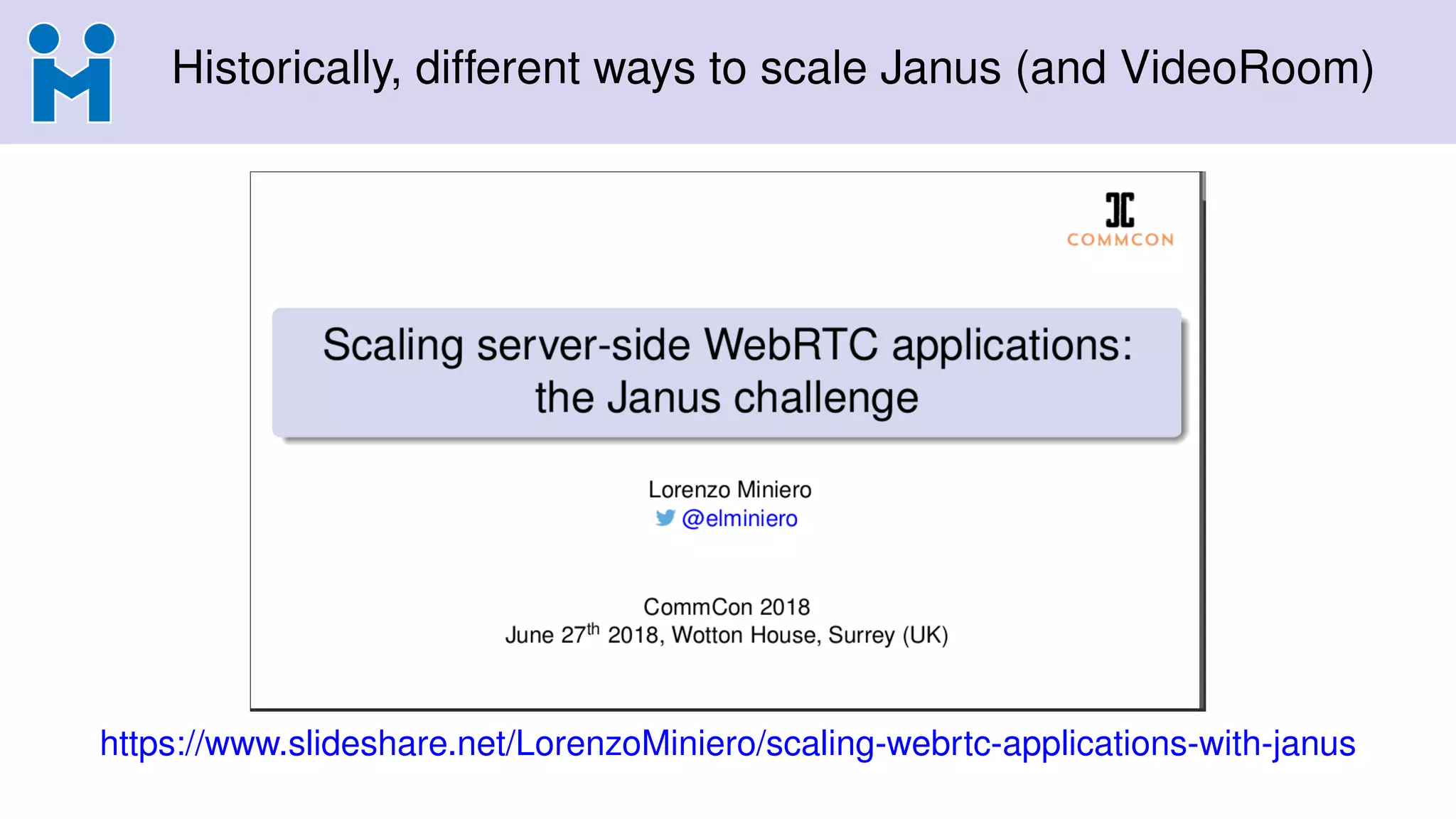

5. Historically, different ways to scale Janus (and VideoRoom)
https://www.slideshare.net/LorenzoMiniero/scaling-webrtc-applications-with-janus

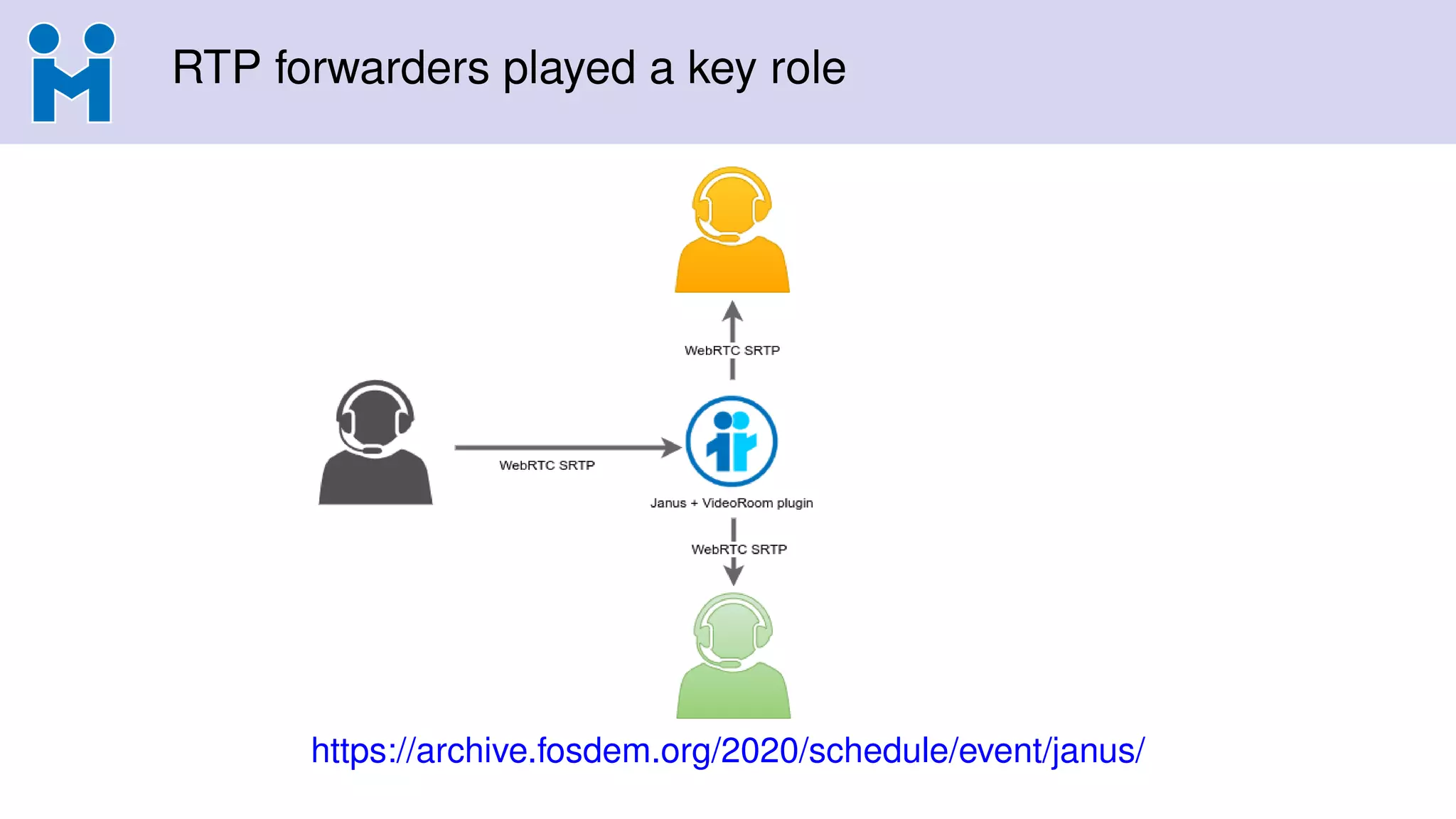

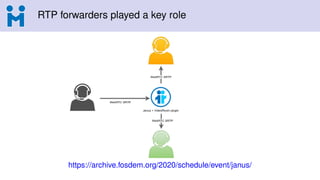

6. RTP forwarders played a key role
https://archive.fosdem.org/2020/schedule/event/janus/

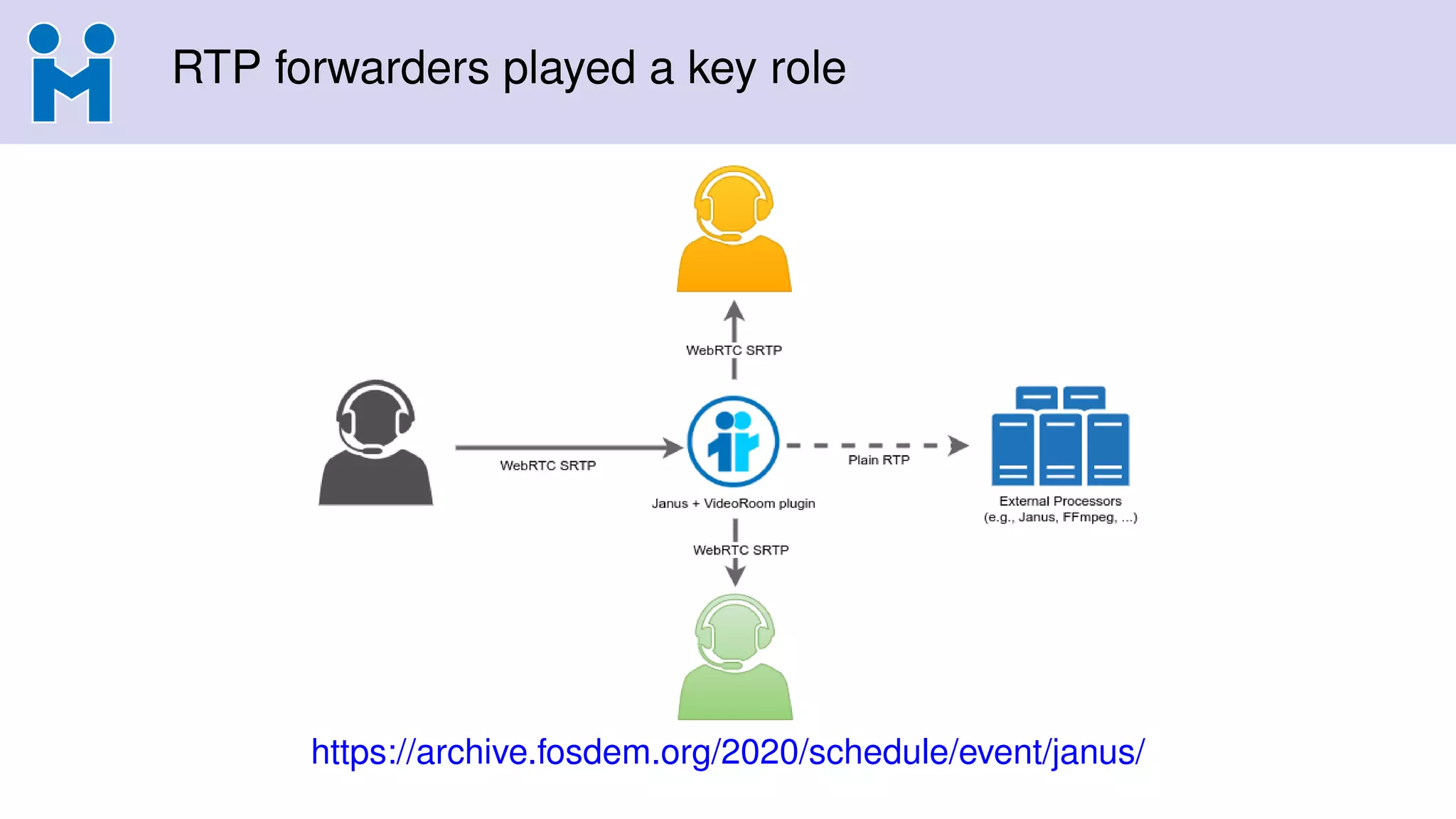

7. RTP forwarders played a key role
https://archive.fosdem.org/2020/schedule/event/janus/

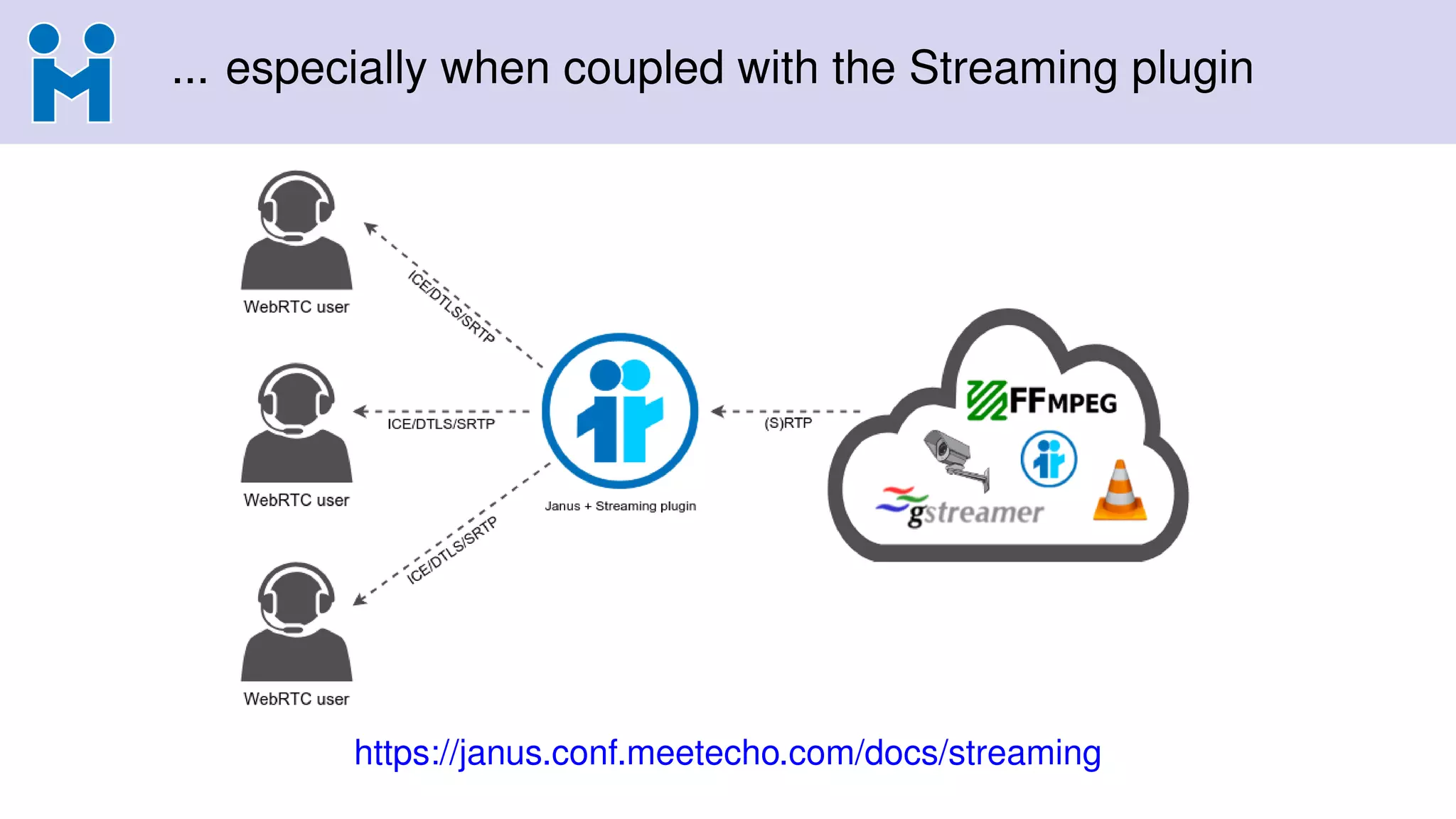

8. ... especially when coupled with the Streaming plugin
https://janus.conf.meetecho.com/docs/streaming

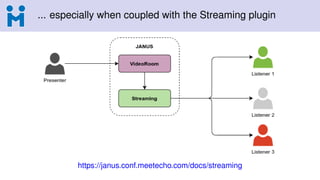

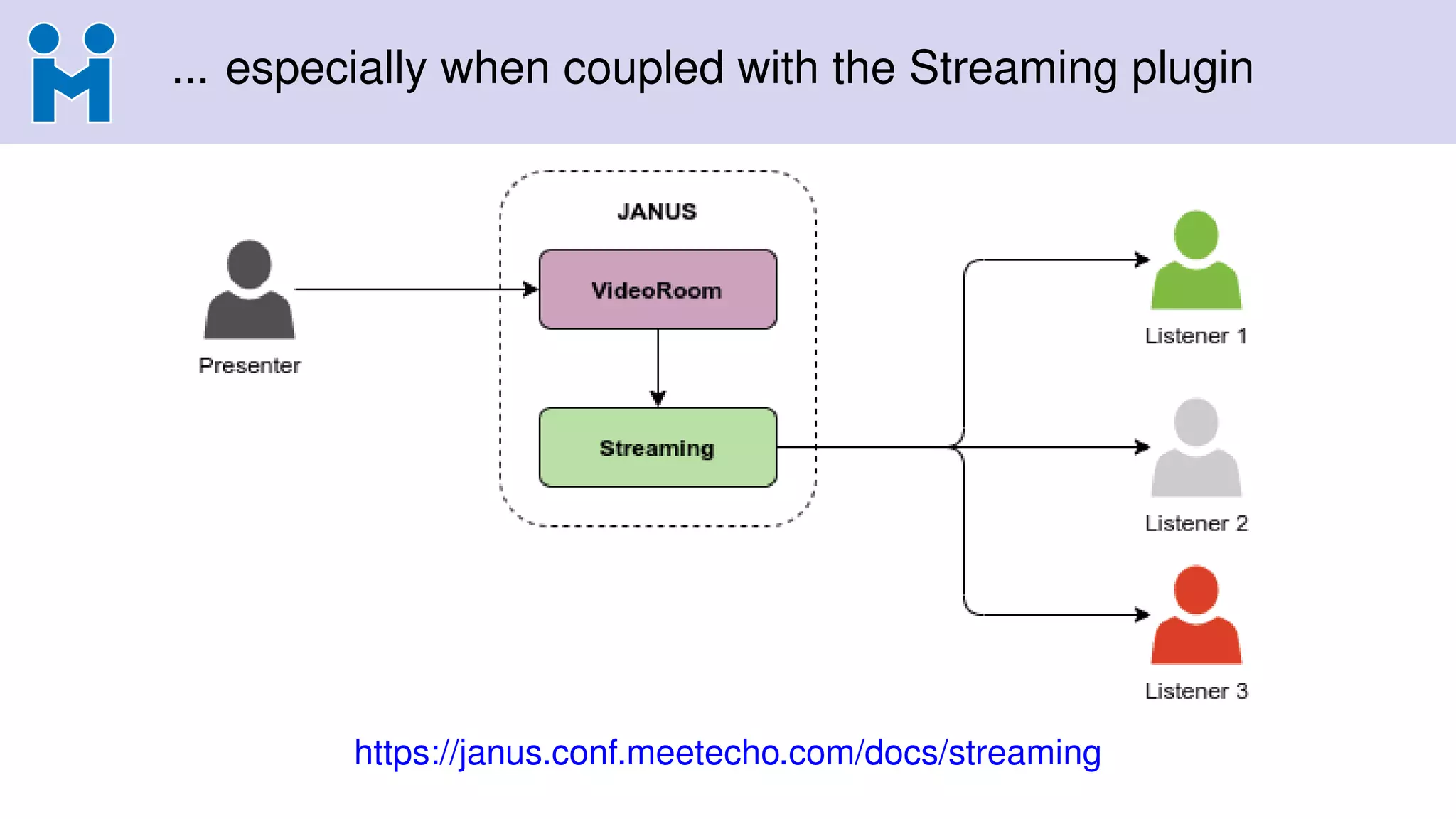

9. ... especially when coupled with the Streaming plugin
https://janus.conf.meetecho.com/docs/streaming

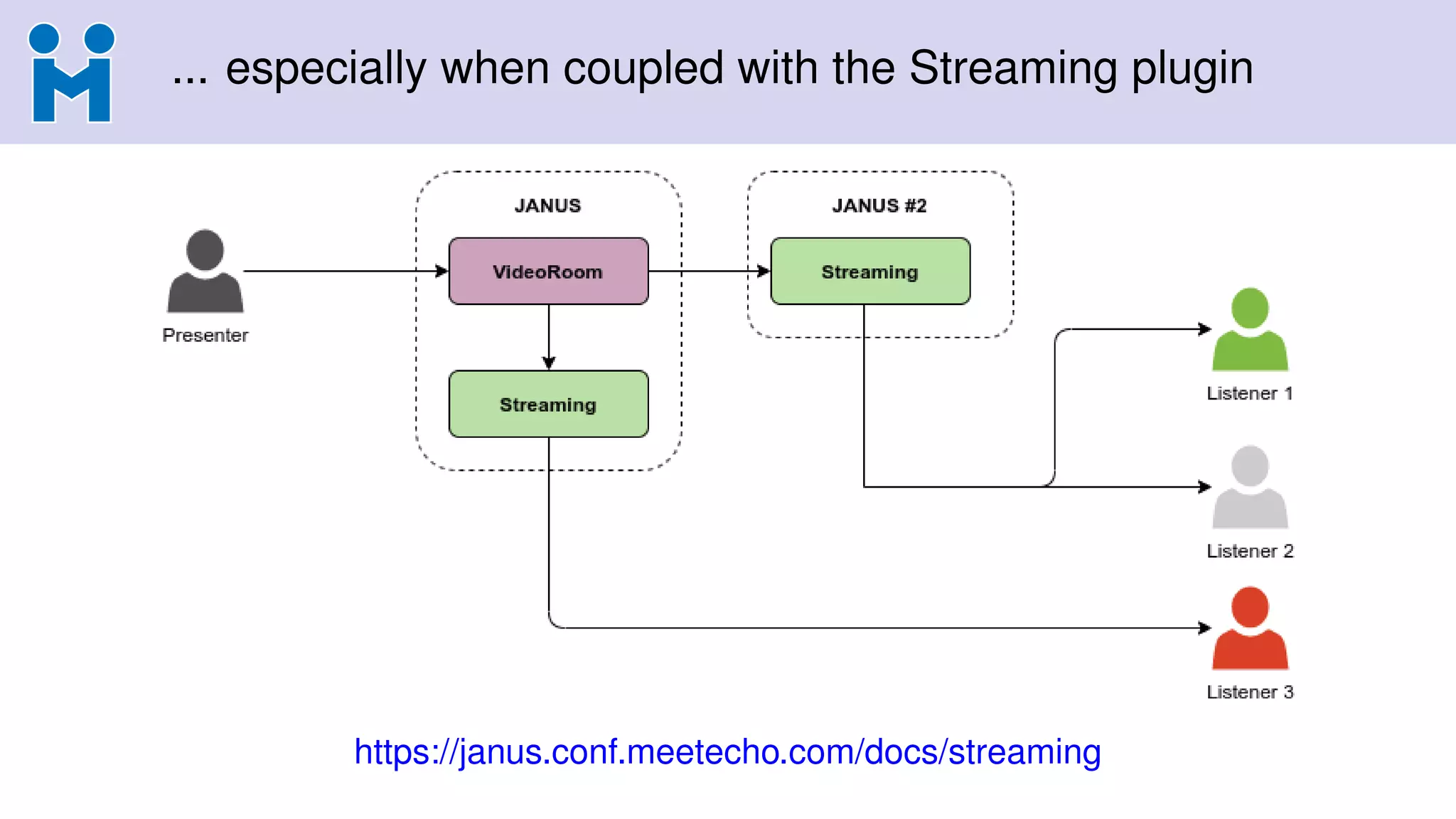

10. ... especially when coupled with the Streaming plugin
https://janus.conf.meetecho.com/docs/streaming

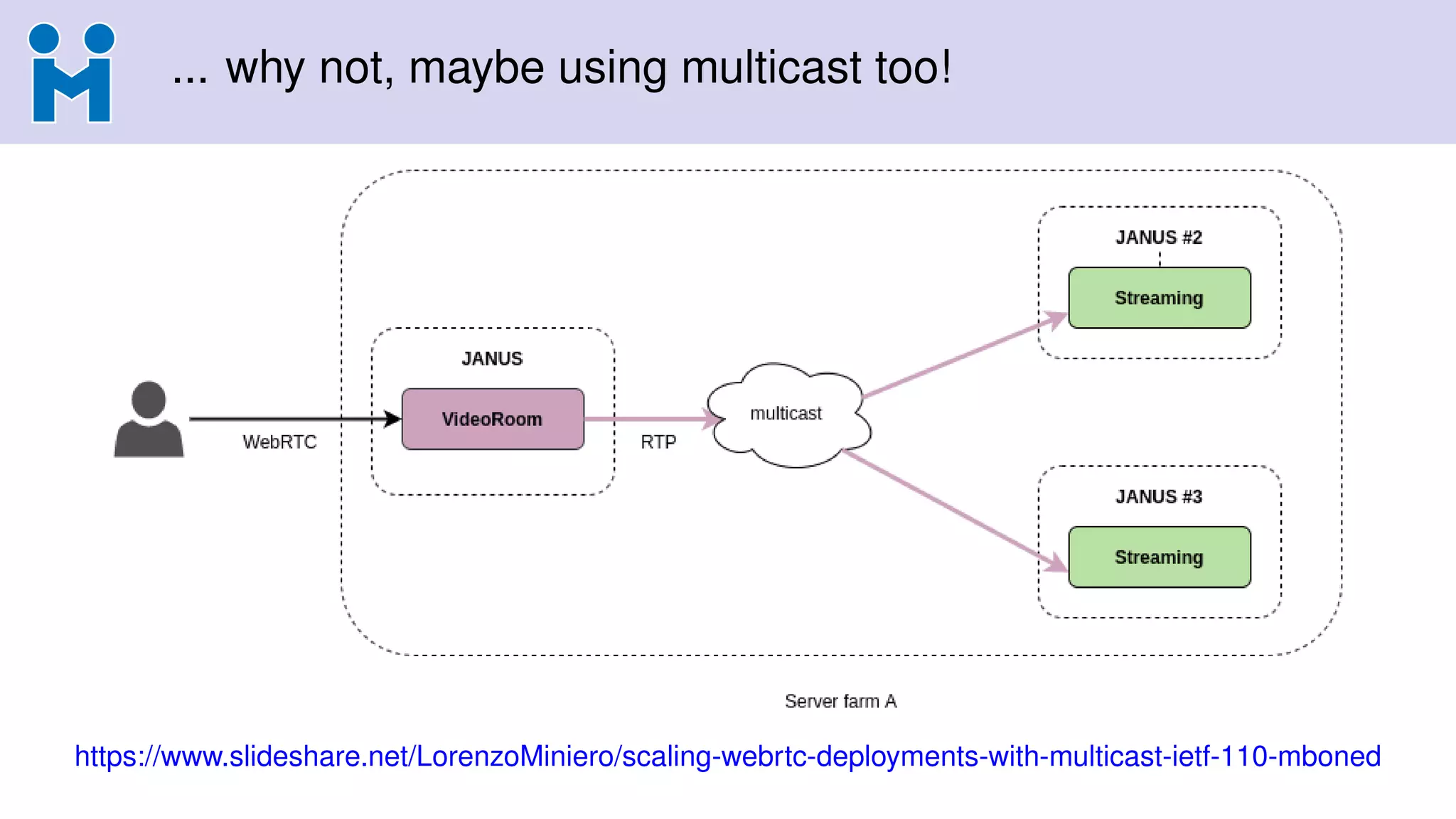

11. ... why not, maybe using multicast too!
https://www.slideshare.net/LorenzoMiniero/scaling-webrtc-deployments-with-multicast-ietf-110-mboned

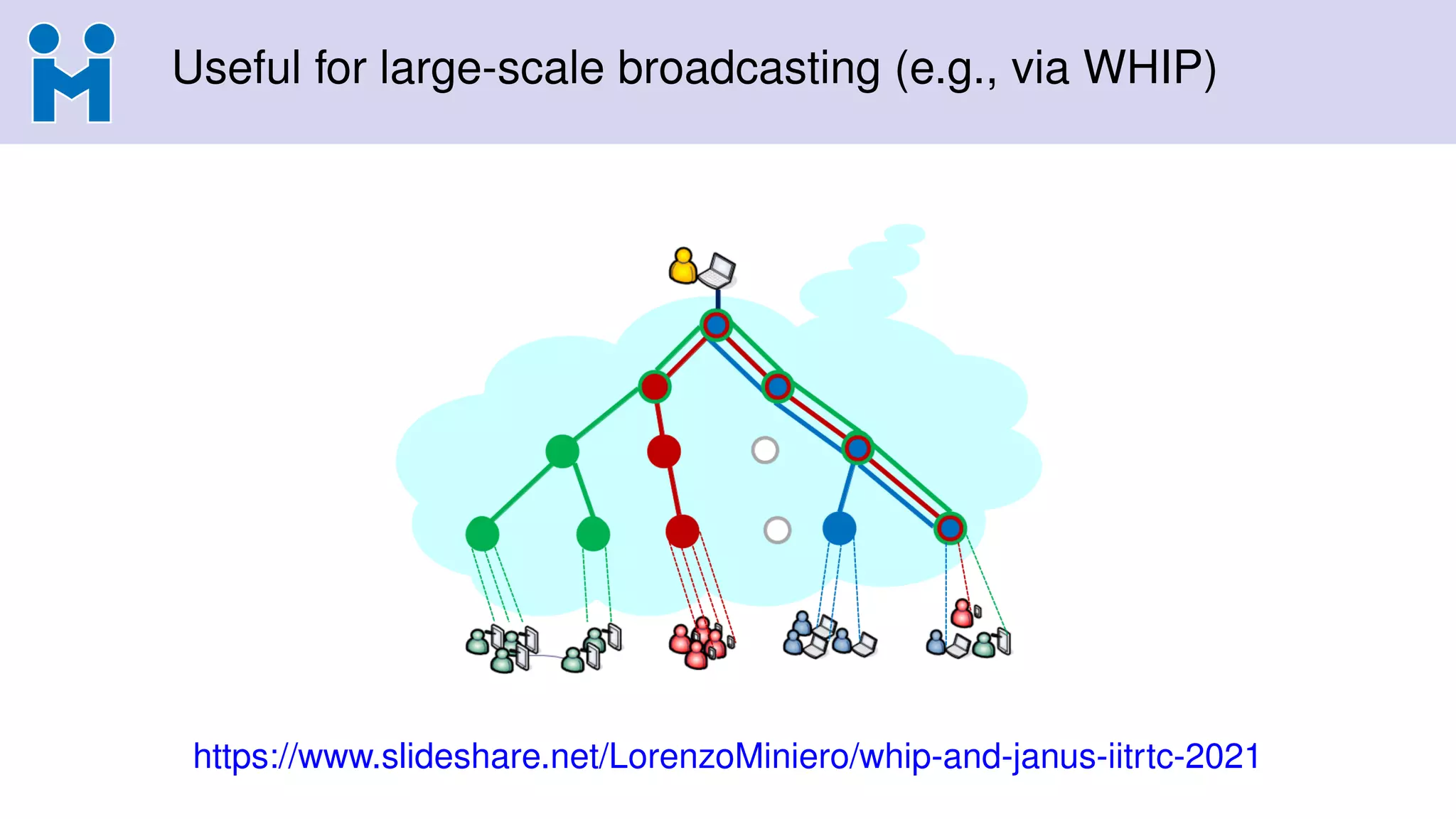

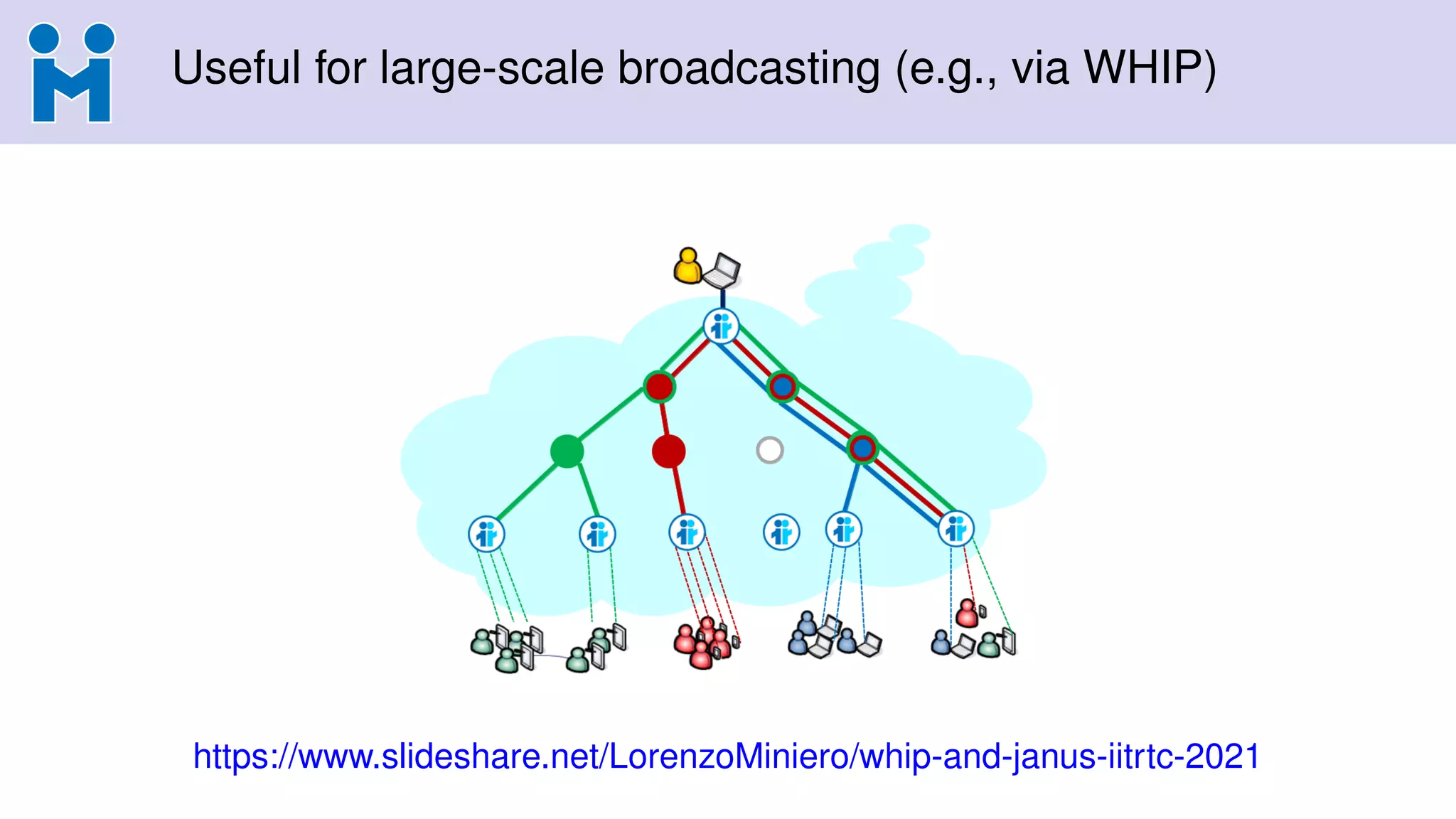

12. Useful for large-scale broadcasting (e.g., via WHIP)
https://www.slideshare.net/LorenzoMiniero/whip-and-janus-iitrtc-2021

13. Useful for large-scale broadcasting (e.g., via WHIP)
https://www.slideshare.net/LorenzoMiniero/whip-and-janus-iitrtc-2021

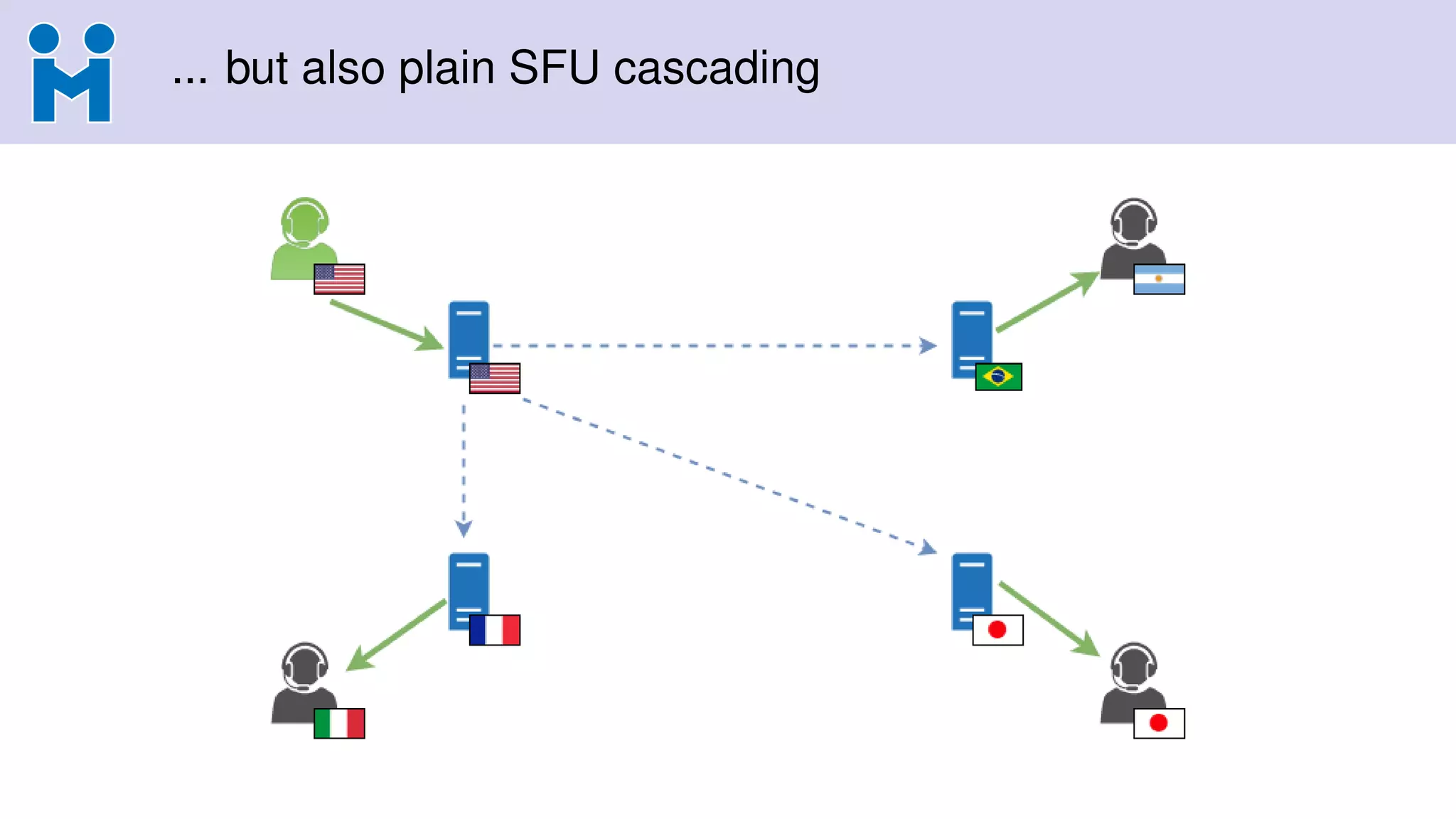

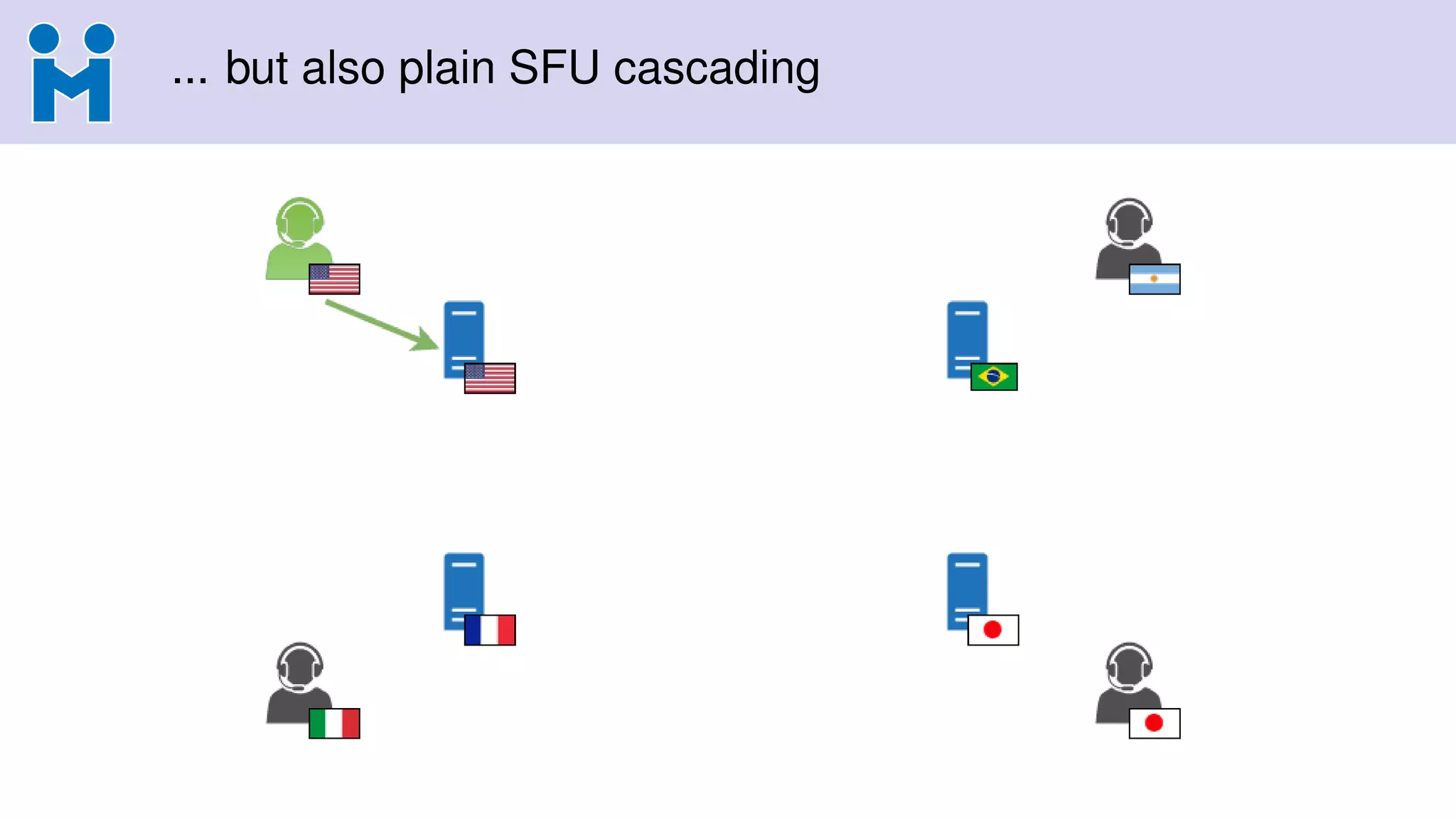

14. ... but also plain SFU cascading

15. ... but also plain SFU cascading

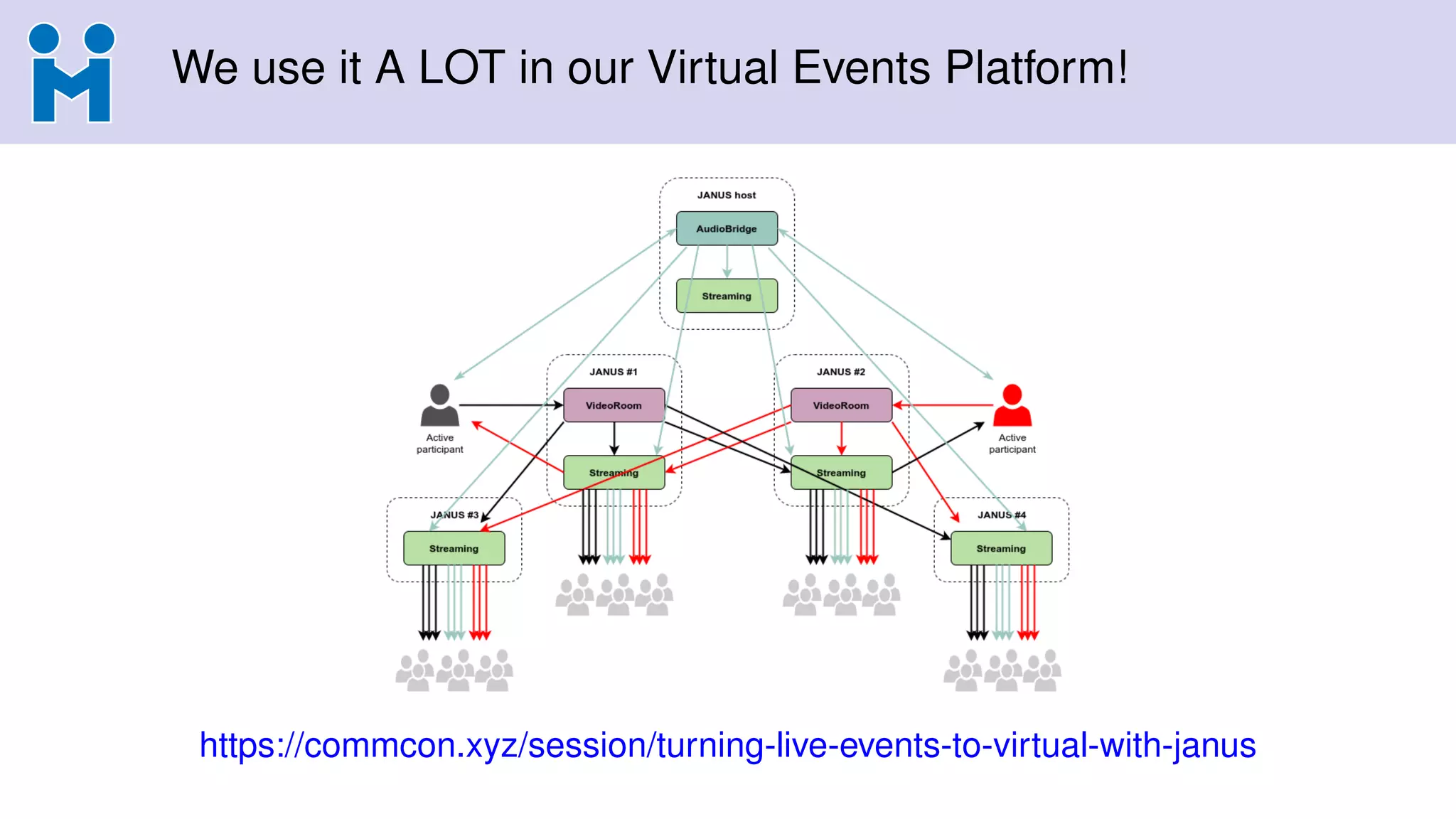

16. We use it A LOT in our Virtual Events Platform!
https://commcon.xyz/session/turning-live-events-to-virtual-with-janus

17. This works great with Janus 0.x, but what about multistream?
• The first version of Janus (now called 0.x) had a key “limitation”
• Each PeerConnection could contain 1 audio and 1 video stream at max
• Multiple PCs needed to serve content from different SFU participants
• Very simple and easy to manage, as far as cascading is concerned
• 1 VideoRoom publisher = 1 Streaming mountpoint
• Relatively easy to orchestrate and negotiate in web apps
• New version of Janus (1.x, a.k.a. multistream) removes this constraint
• VideoRoom can be told to only use 2 PCs per participant
• One PC to send everything, one to receive everything
• Much more flexibility in how subscriptions are handled

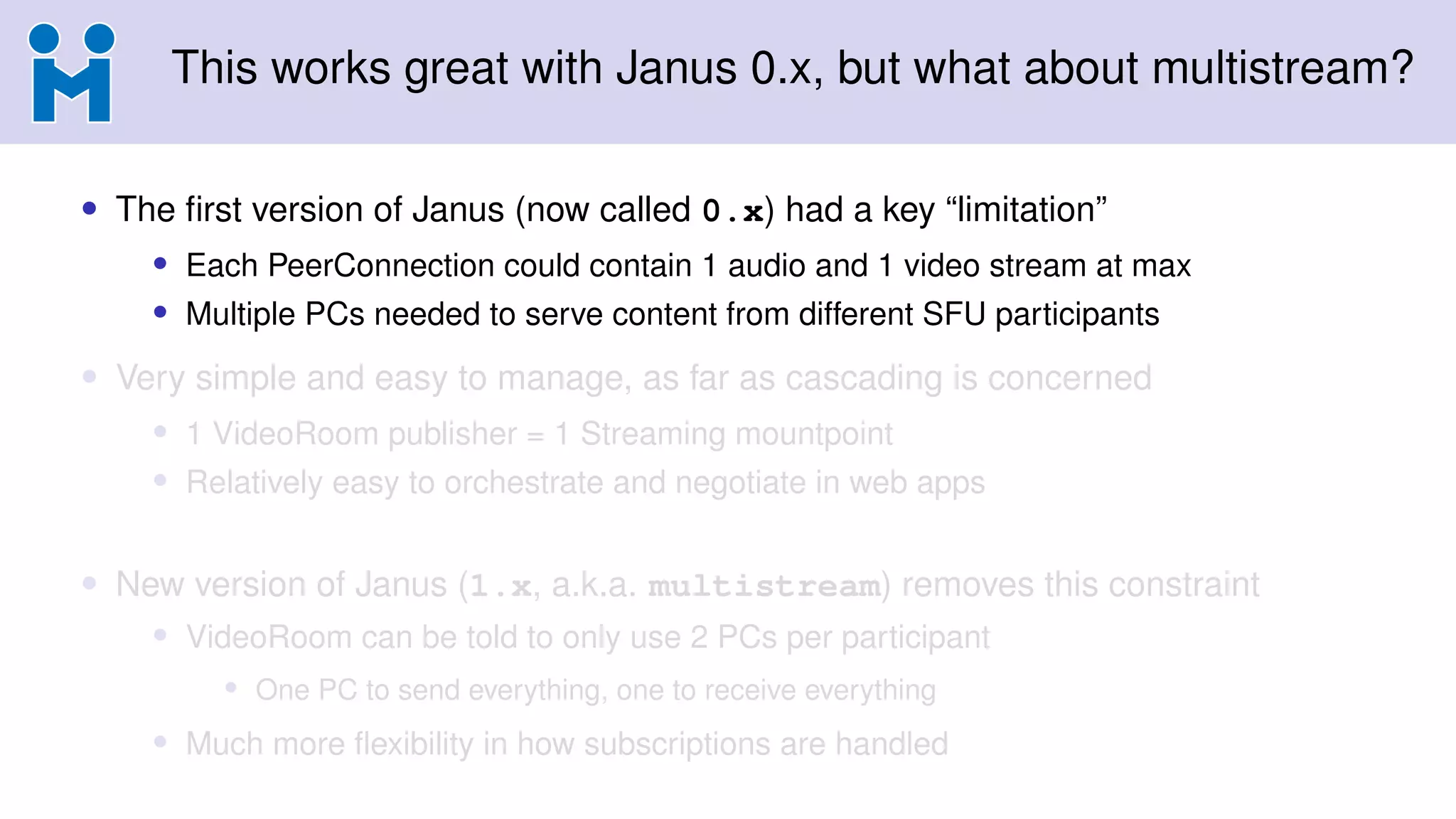

18. This works great with Janus 0.x, but what about multistream?
• The first version of Janus (now called 0.x) had a key “limitation”
• Each PeerConnection could contain 1 audio and 1 video stream at max
• Multiple PCs needed to serve content from different SFU participants
• Very simple and easy to manage, as far as cascading is concerned
• 1 VideoRoom publisher = 1 Streaming mountpoint
• Relatively easy to orchestrate and negotiate in web apps
• New version of Janus (1.x, a.k.a. multistream) removes this constraint
• VideoRoom can be told to only use 2 PCs per participant
• One PC to send everything, one to receive everything
• Much more flexibility in how subscriptions are handled

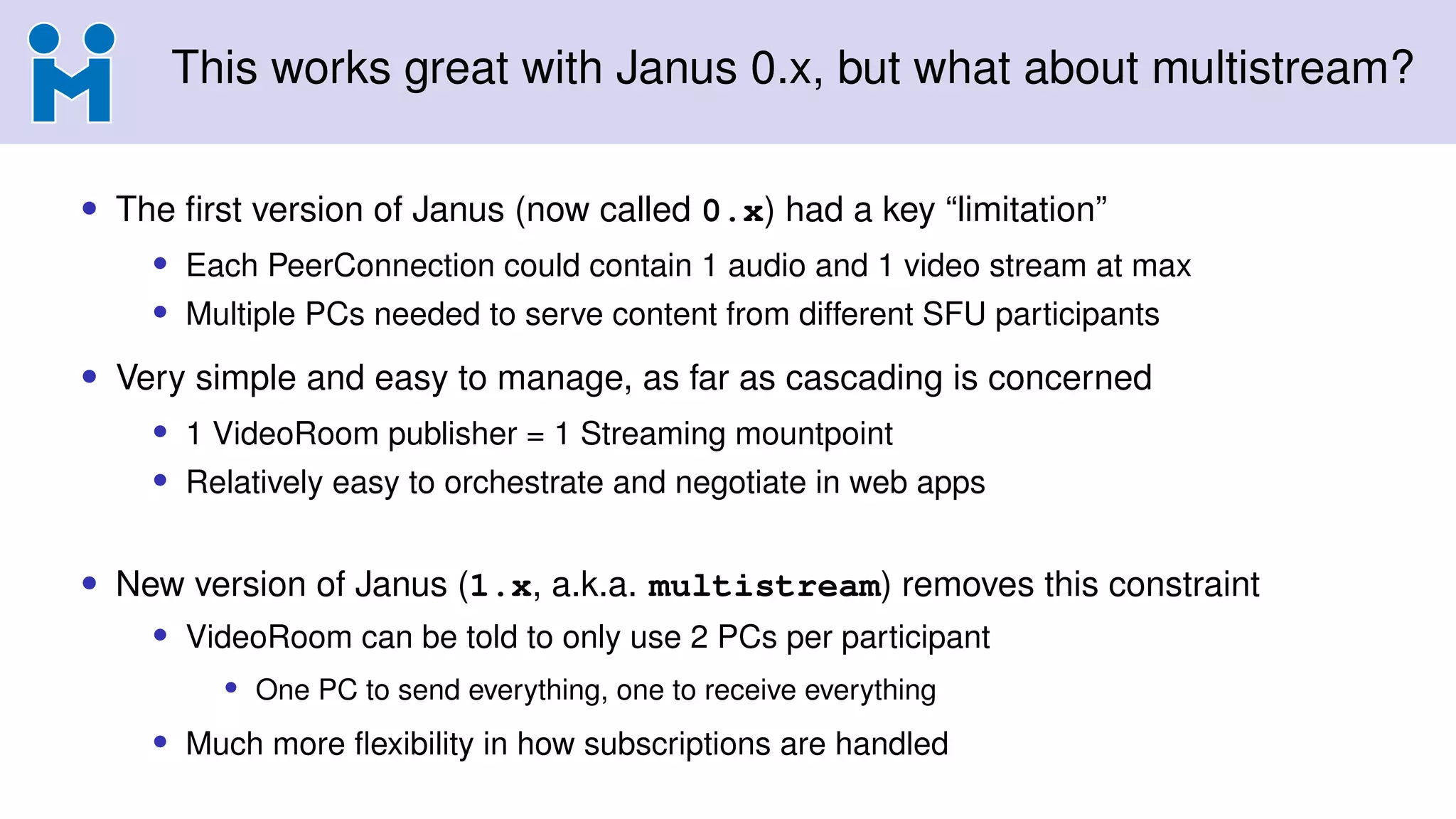

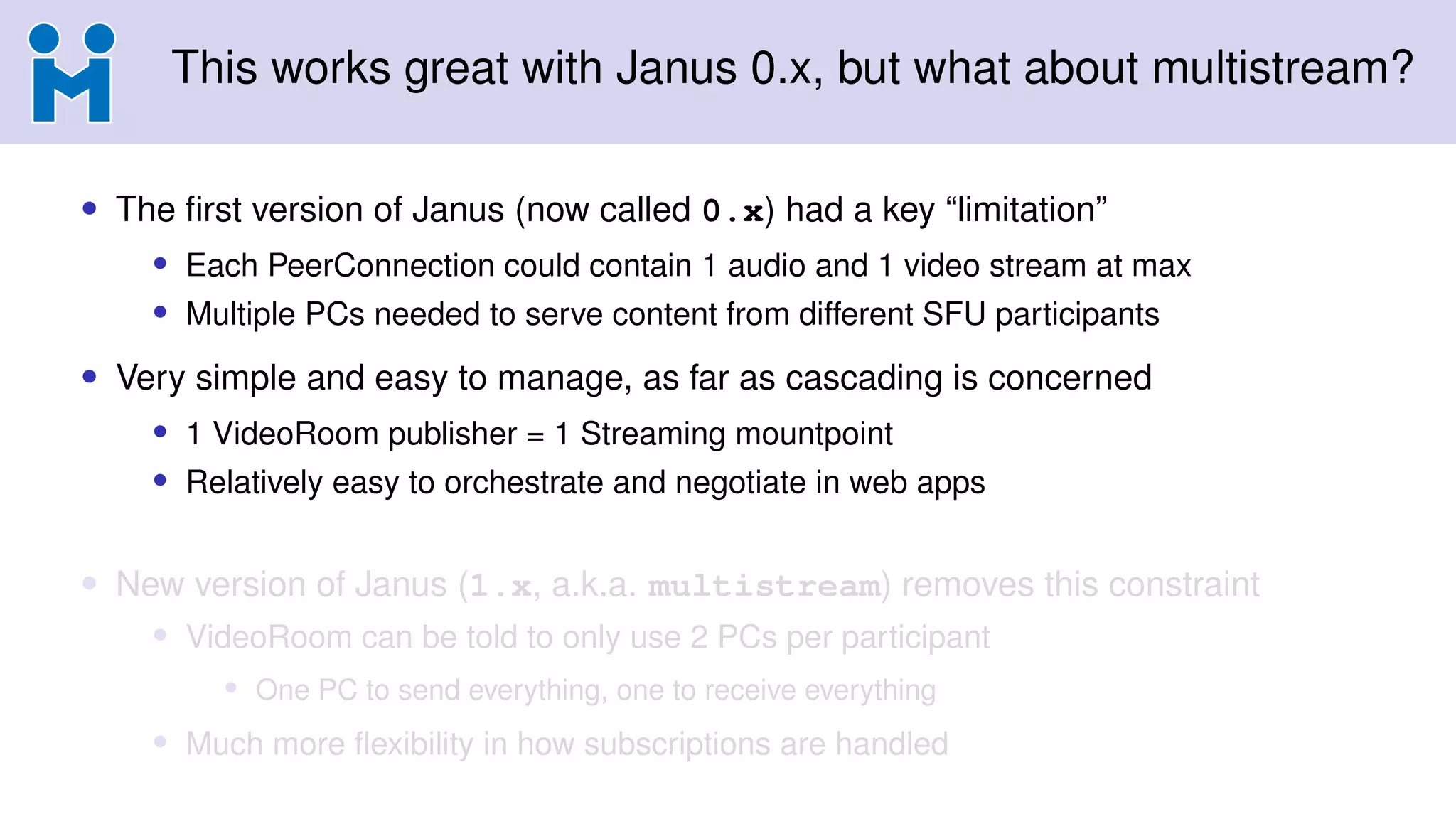

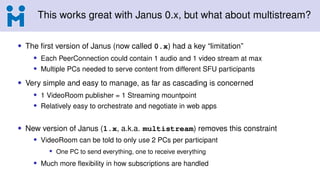

19. This works great with Janus 0.x, but what about multistream?
• The first version of Janus (now called 0.x) had a key “limitation”
• Each PeerConnection could contain 1 audio and 1 video stream at max
• Multiple PCs needed to serve content from different SFU participants
• Very simple and easy to manage, as far as cascading is concerned
• 1 VideoRoom publisher = 1 Streaming mountpoint
• Relatively easy to orchestrate and negotiate in web apps
• New version of Janus (1.x, a.k.a. multistream) removes this constraint
• VideoRoom can be told to only use 2 PCs per participant
• One PC to send everything, one to receive everything
• Much more flexibility in how subscriptions are handled

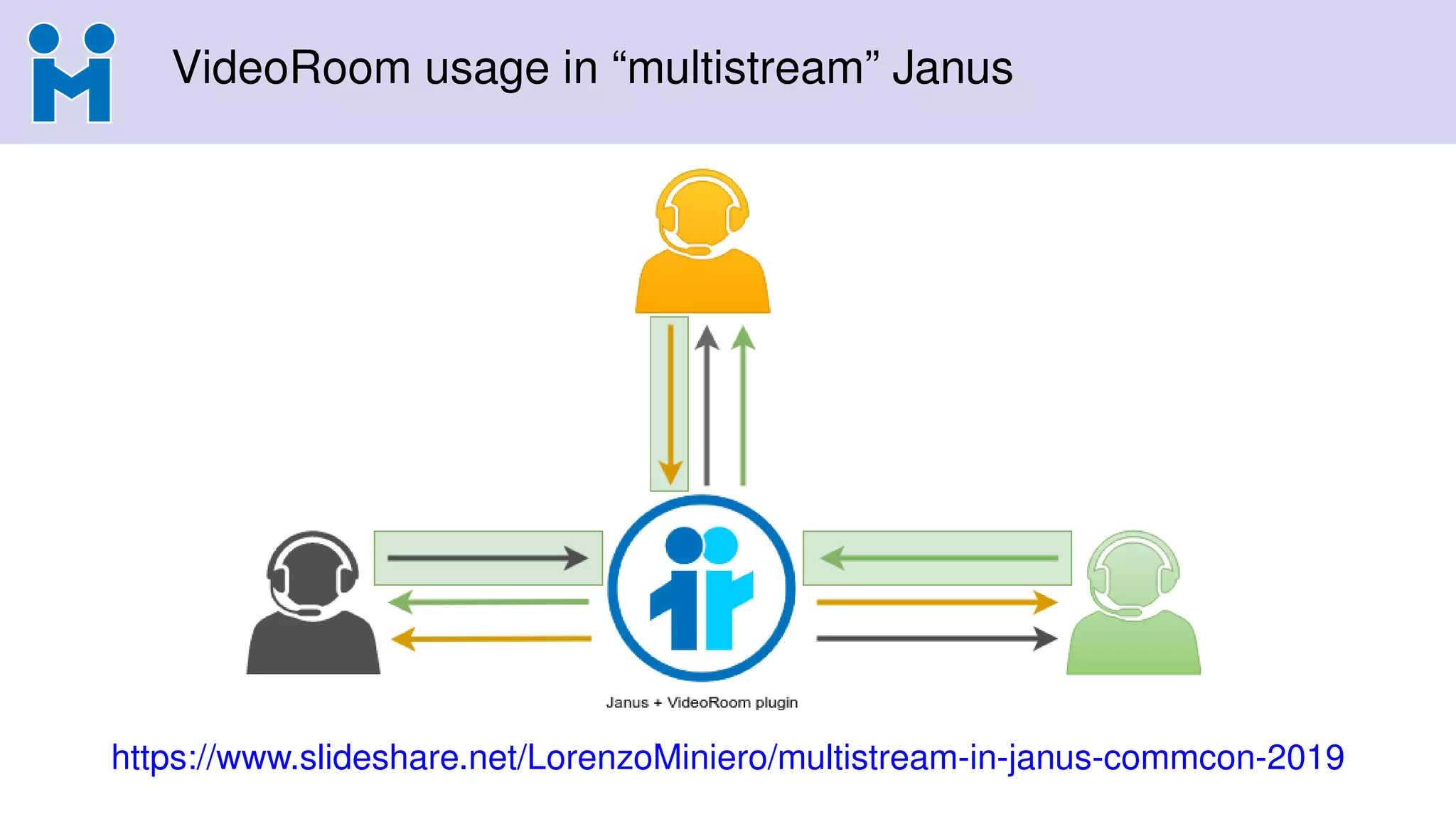

20. VideoRoom usage in “multistream” Janus
https://www.slideshare.net/LorenzoMiniero/multistream-in-janus-commcon-2019

21. VideoRoom usage in “multistream” Janus
https://www.slideshare.net/LorenzoMiniero/multistream-in-janus-commcon-2019

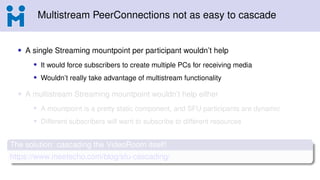

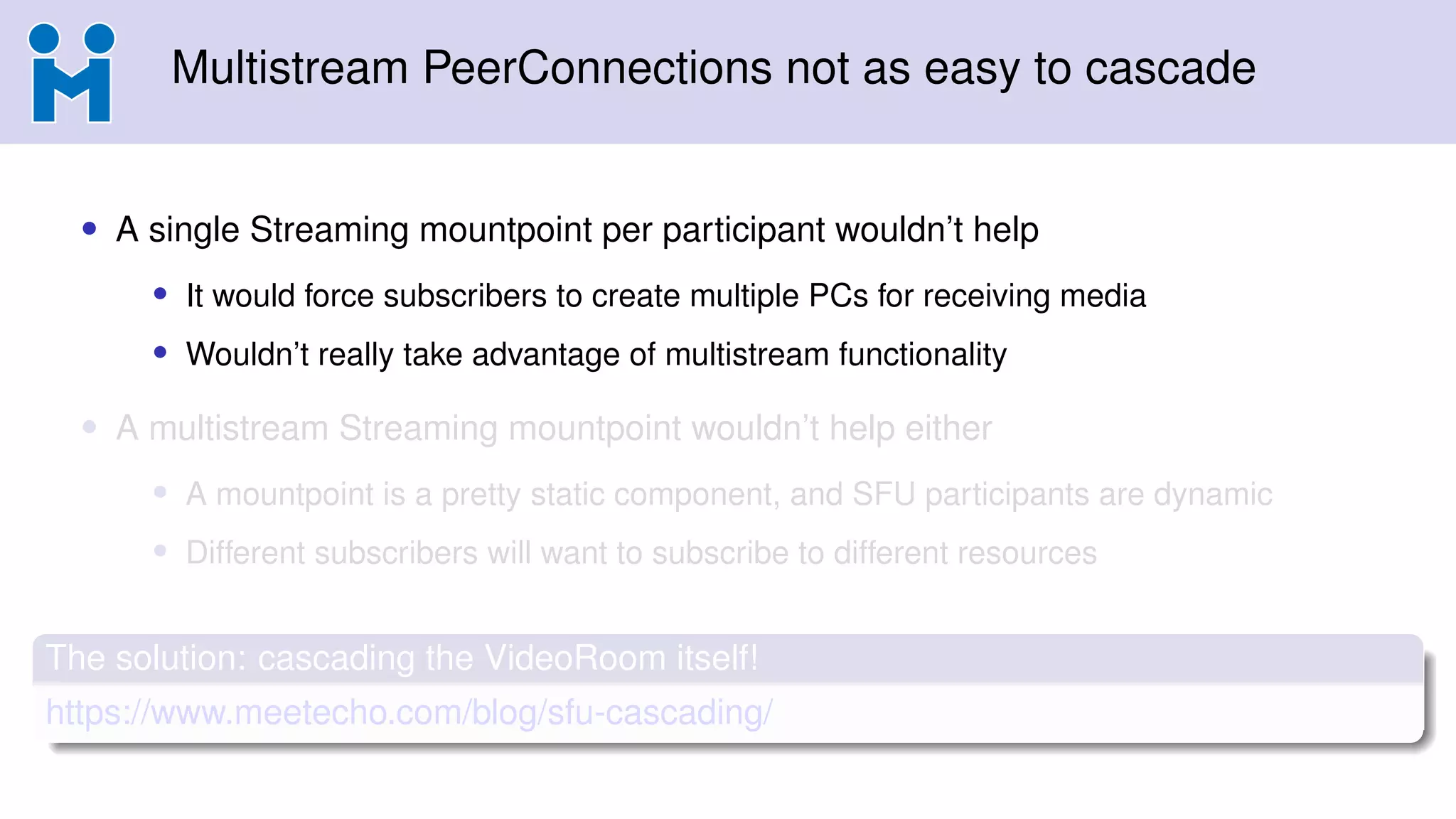

22. Multistream PeerConnections not as easy to cascade
• A single Streaming mountpoint per participant wouldn’t help
• It would force subscribers to create multiple PCs for receiving media
• Wouldn’t really take advantage of multistream functionality
• A multistream Streaming mountpoint wouldn’t help either
• A mountpoint is a pretty static component, and SFU participants are dynamic
• Different subscribers will want to subscribe to different resources
The solution: cascading the VideoRoom itself!
https://www.meetecho.com/blog/sfu-cascading/

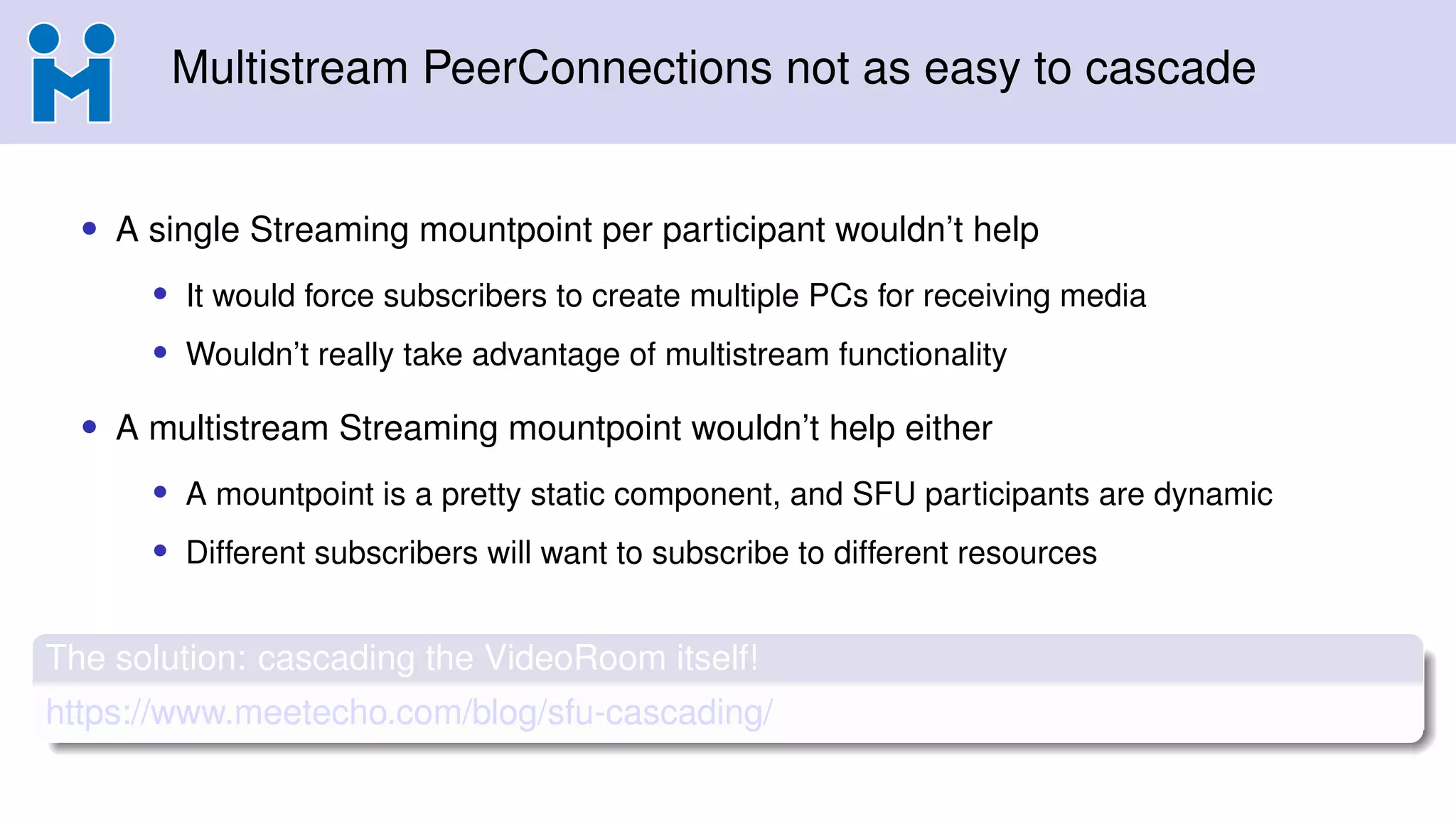

23. Multistream PeerConnections not as easy to cascade
• A single Streaming mountpoint per participant wouldn’t help
• It would force subscribers to create multiple PCs for receiving media
• Wouldn’t really take advantage of multistream functionality
• A multistream Streaming mountpoint wouldn’t help either
• A mountpoint is a pretty static component, and SFU participants are dynamic
• Different subscribers will want to subscribe to different resources
The solution: cascading the VideoRoom itself!
https://www.meetecho.com/blog/sfu-cascading/

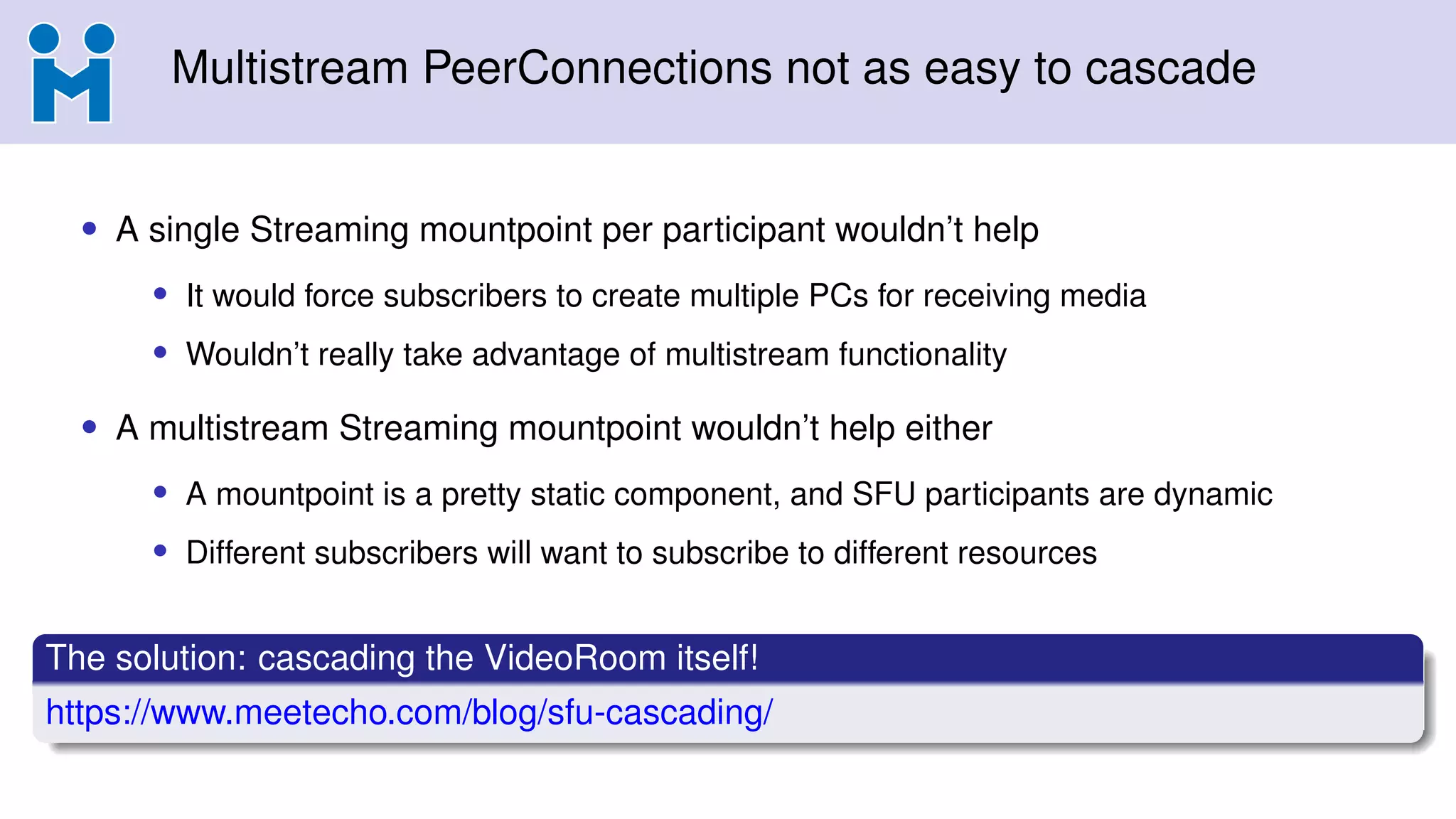

24. Multistream PeerConnections not as easy to cascade
• A single Streaming mountpoint per participant wouldn’t help
• It would force subscribers to create multiple PCs for receiving media
• Wouldn’t really take advantage of multistream functionality
• A multistream Streaming mountpoint wouldn’t help either
• A mountpoint is a pretty static component, and SFU participants are dynamic
• Different subscribers will want to subscribe to different resources
The solution: cascading the VideoRoom itself!
https://www.meetecho.com/blog/sfu-cascading/

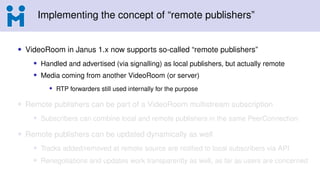

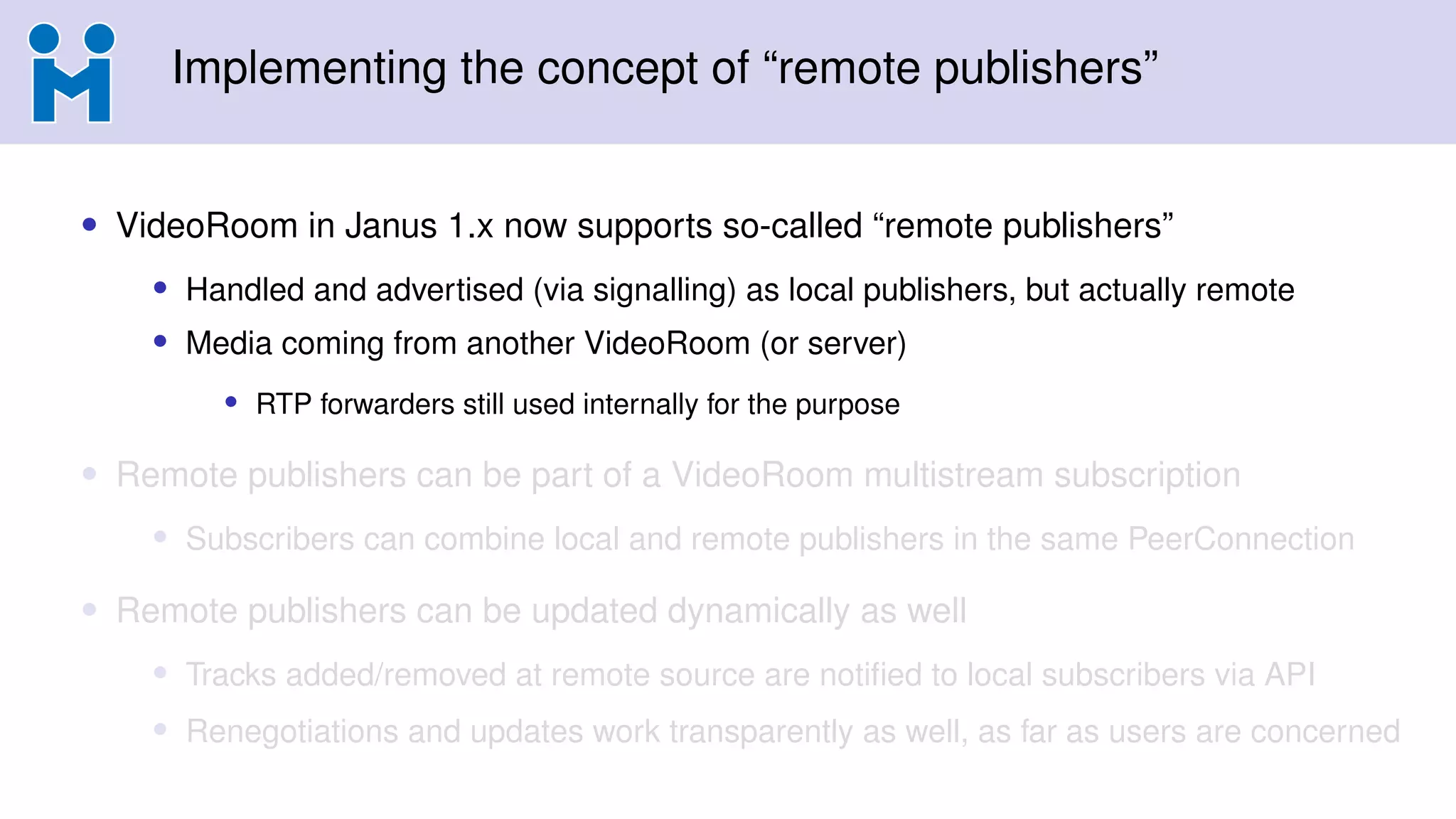

25. Implementing the concept of “remote publishers”
• VideoRoom in Janus 1.x now supports so-called “remote publishers”
• Handled and advertised (via signalling) as local publishers, but actually remote
• Media coming from another VideoRoom (or server)
• RTP forwarders still used internally for the purpose
• Remote publishers can be part of a VideoRoom multistream subscription
• Subscribers can combine local and remote publishers in the same PeerConnection
• Remote publishers can be updated dynamically as well
• Tracks added/removed at remote source are notified to local subscribers via API
• Renegotiations and updates work transparently as well, as far as users are concerned

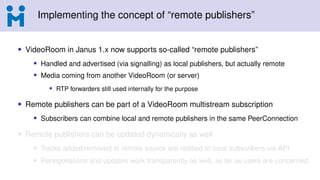

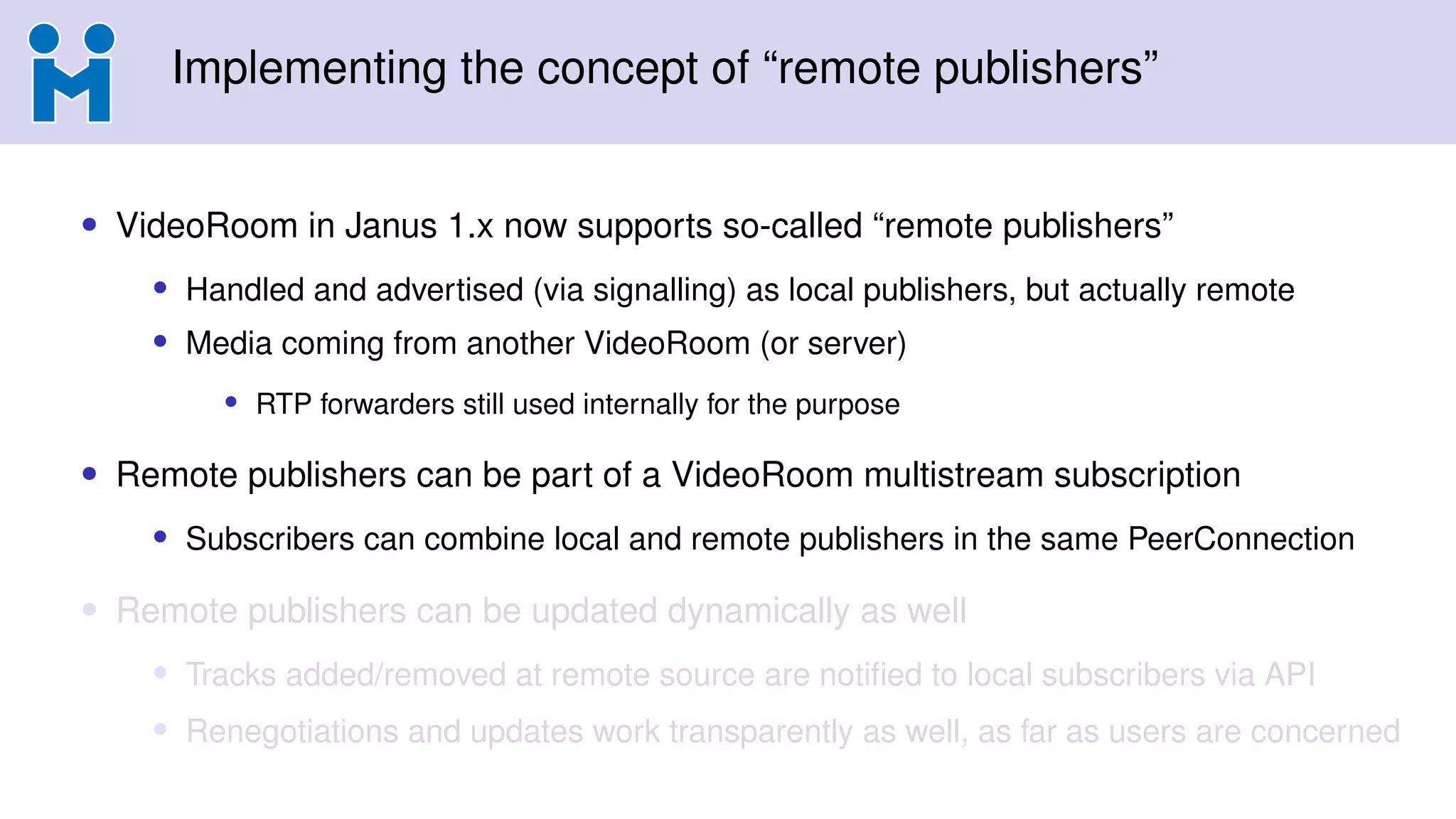

26. Implementing the concept of “remote publishers”
• VideoRoom in Janus 1.x now supports so-called “remote publishers”
• Handled and advertised (via signalling) as local publishers, but actually remote
• Media coming from another VideoRoom (or server)
• RTP forwarders still used internally for the purpose
• Remote publishers can be part of a VideoRoom multistream subscription
• Subscribers can combine local and remote publishers in the same PeerConnection
• Remote publishers can be updated dynamically as well
• Tracks added/removed at remote source are notified to local subscribers via API
• Renegotiations and updates work transparently as well, as far as users are concerned

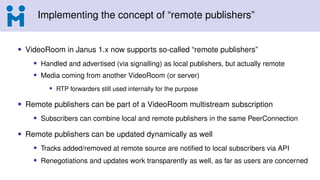

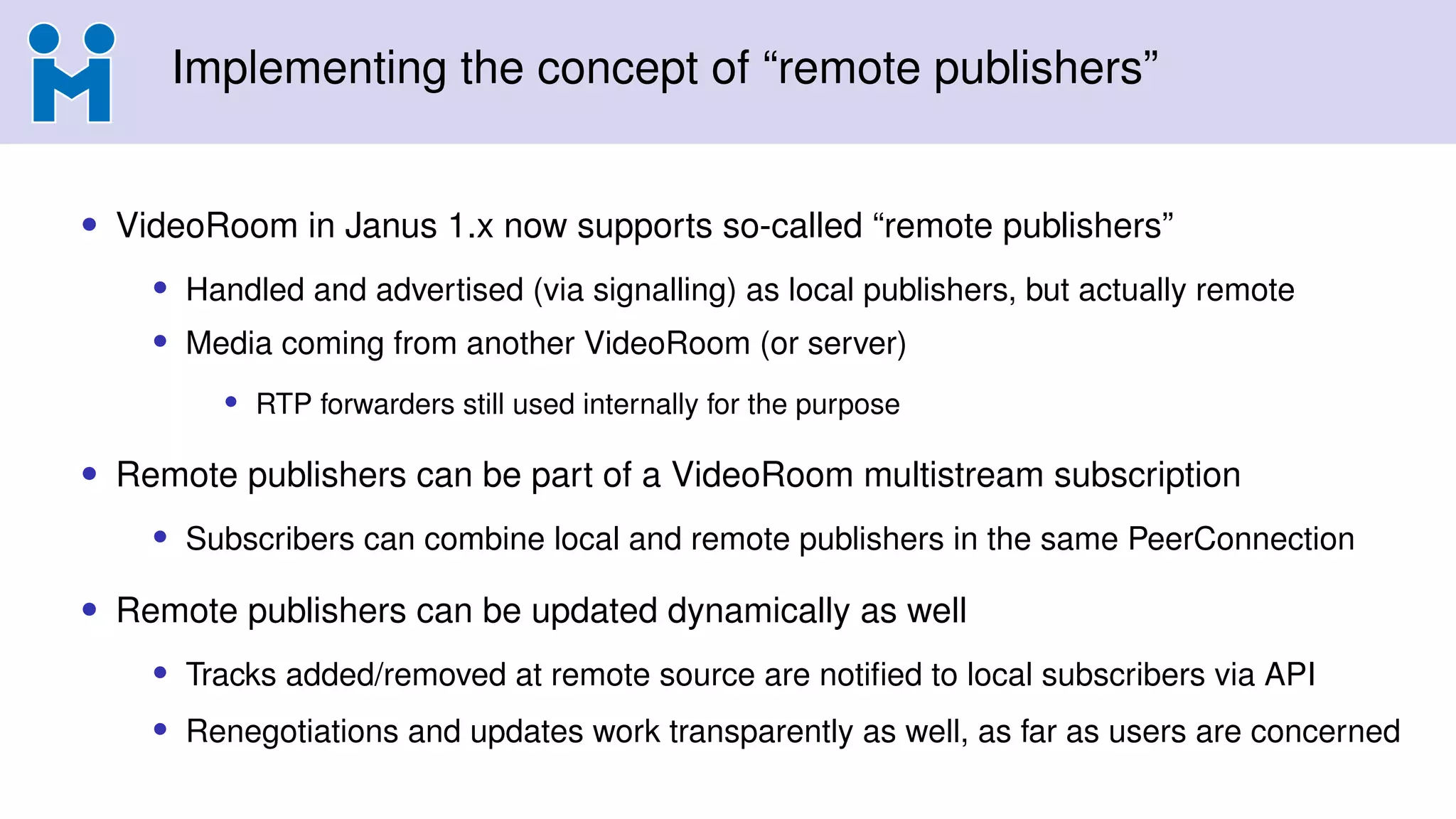

27. Implementing the concept of “remote publishers”
• VideoRoom in Janus 1.x now supports so-called “remote publishers”
• Handled and advertised (via signalling) as local publishers, but actually remote
• Media coming from another VideoRoom (or server)
• RTP forwarders still used internally for the purpose
• Remote publishers can be part of a VideoRoom multistream subscription
• Subscribers can combine local and remote publishers in the same PeerConnection
• Remote publishers can be updated dynamically as well
• Tracks added/removed at remote source are notified to local subscribers via API
• Renegotiations and updates work transparently as well, as far as users are concerned

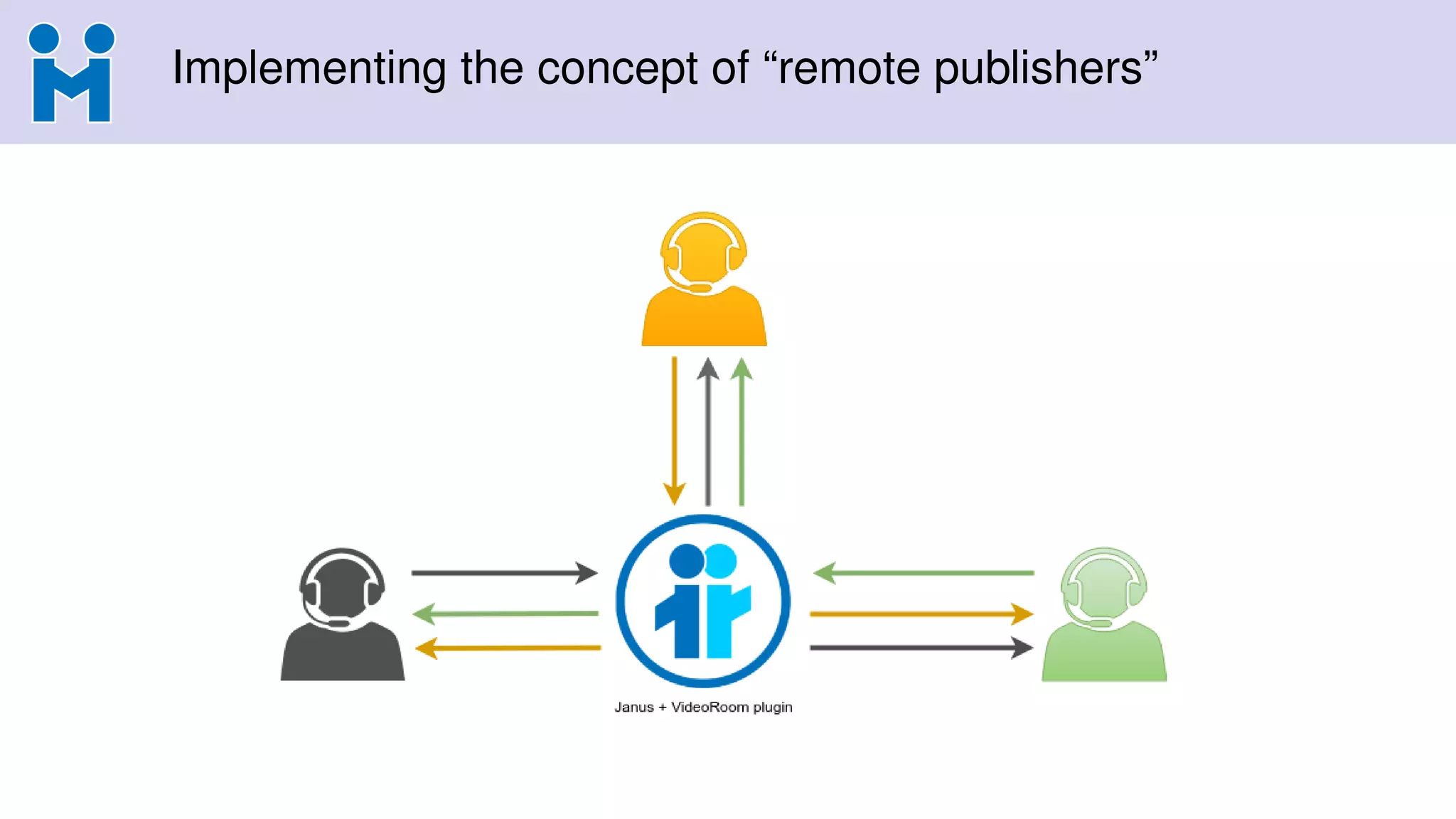

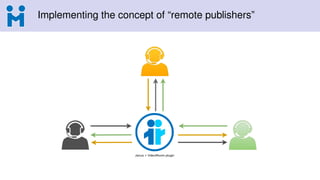

28. Implementing the concept of “remote publishers”

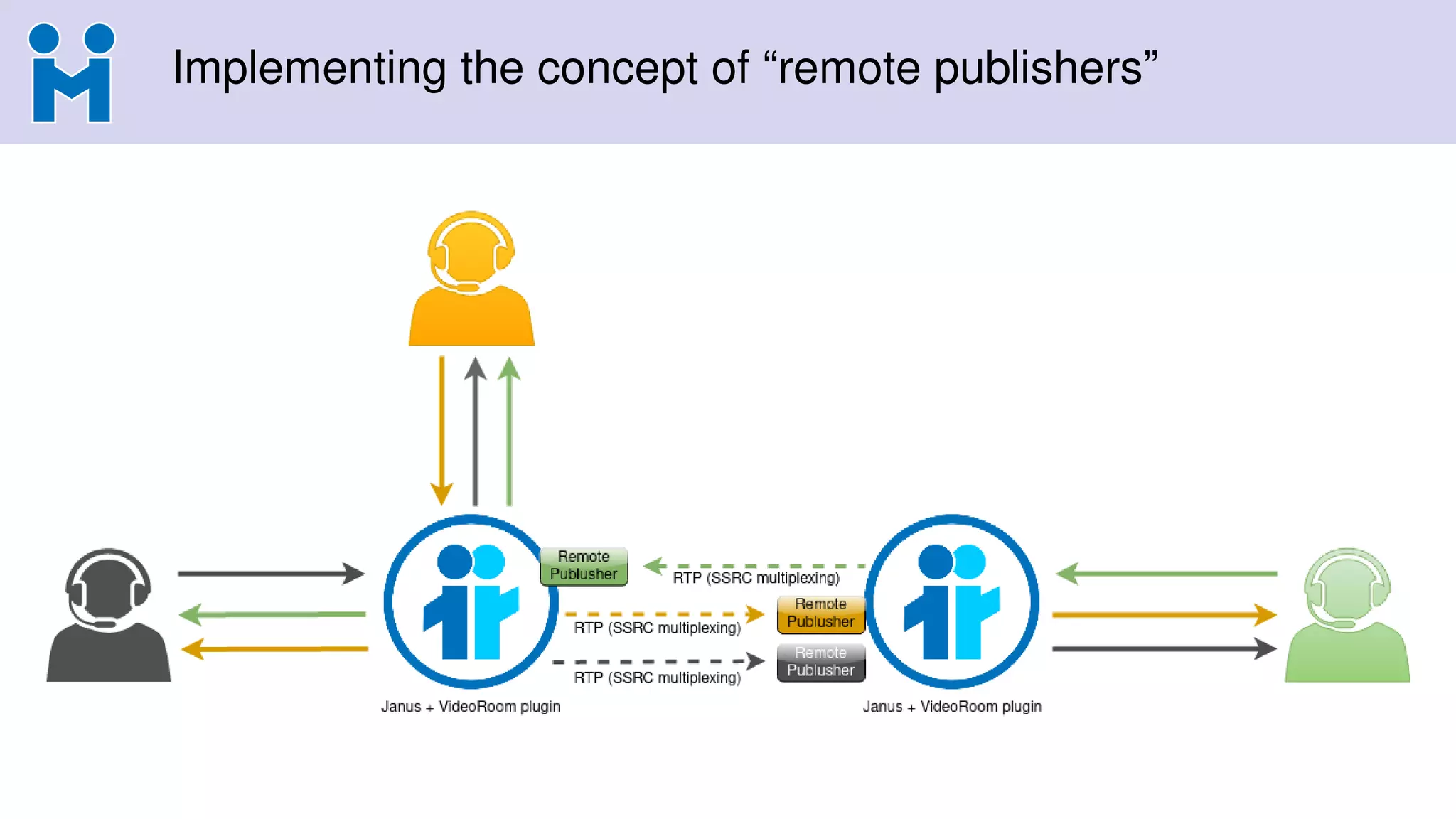

29. Implementing the concept of “remote publishers”

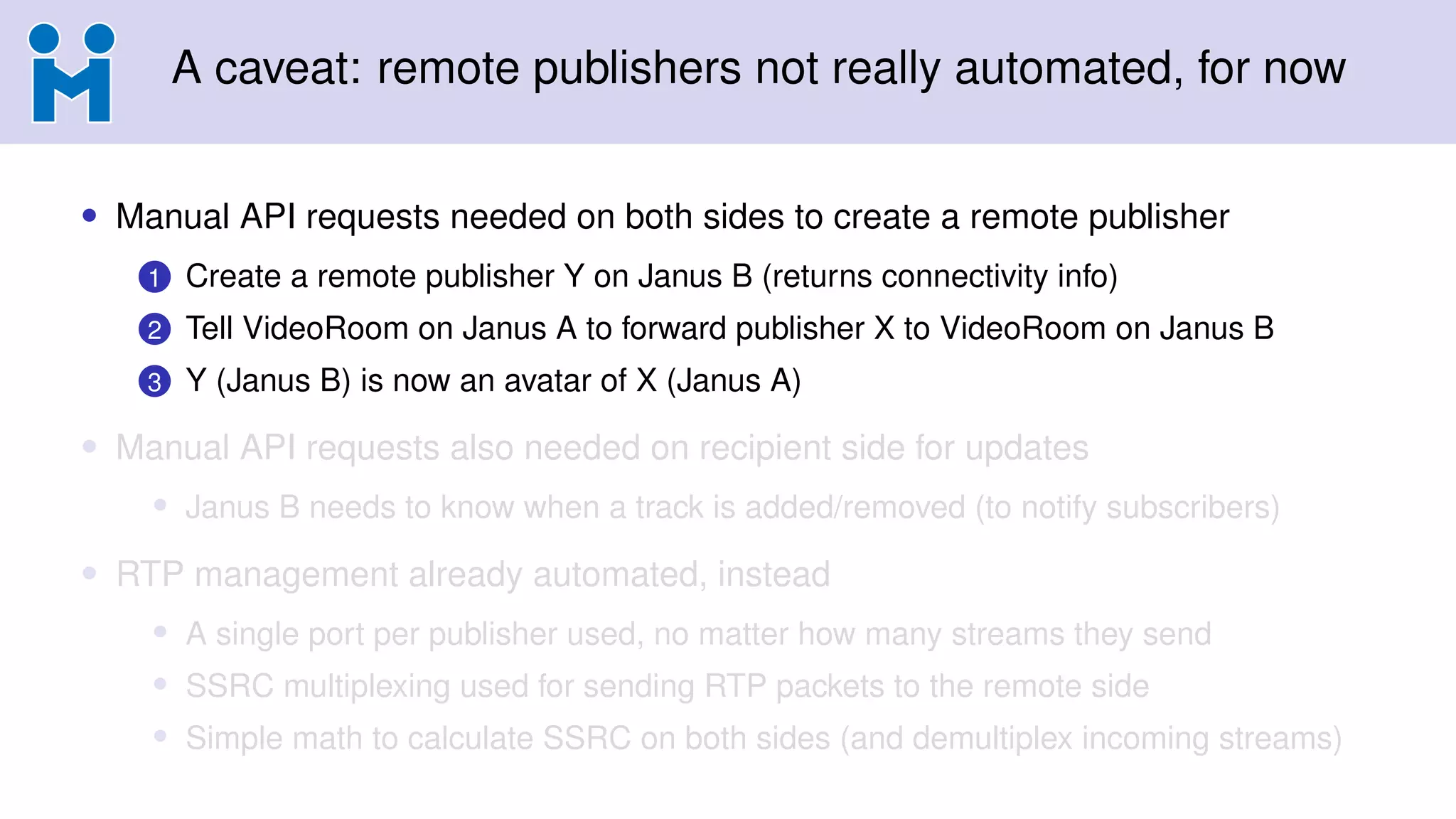

30. A caveat: remote publishers not really automated, for now
• Manual API requests needed on both sides to create a remote publisher
1 Create a remote publisher Y on Janus B (returns connectivity info)
2 Tell VideoRoom on Janus A to forward publisher X to VideoRoom on Janus B
3 Y (Janus B) is now an avatar of X (Janus A)
• Manual API requests also needed on recipient side for updates
• Janus B needs to know when a track is added/removed (to notify subscribers)
• RTP management already automated, instead
• A single port per publisher used, no matter how many streams they send
• SSRC multiplexing used for sending RTP packets to the remote side
• Simple math to calculate SSRC on both sides (and demultiplex incoming streams)

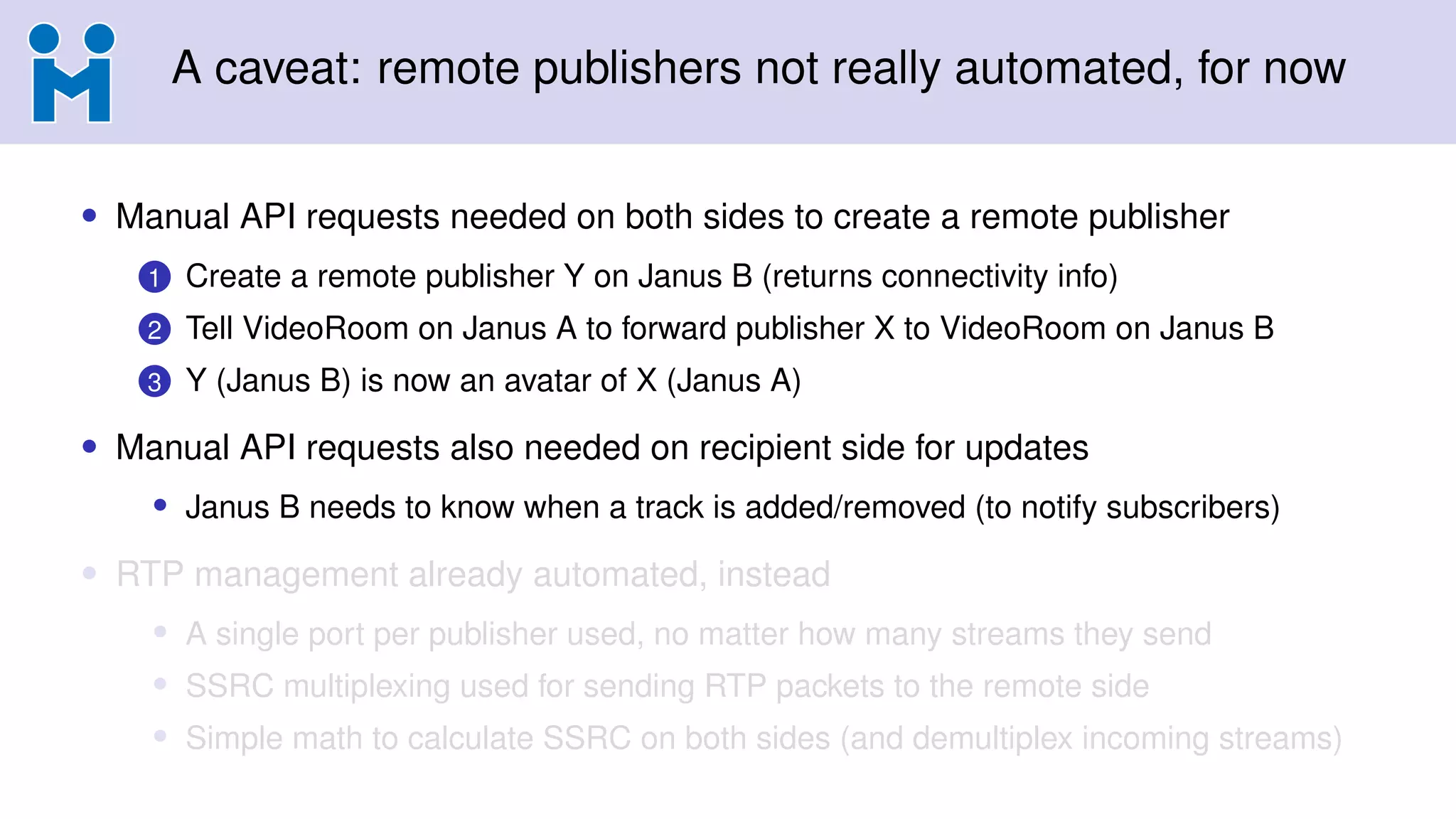

31. A caveat: remote publishers not really automated, for now
• Manual API requests needed on both sides to create a remote publisher
1 Create a remote publisher Y on Janus B (returns connectivity info)
2 Tell VideoRoom on Janus A to forward publisher X to VideoRoom on Janus B
3 Y (Janus B) is now an avatar of X (Janus A)
• Manual API requests also needed on recipient side for updates
• Janus B needs to know when a track is added/removed (to notify subscribers)
• RTP management already automated, instead
• A single port per publisher used, no matter how many streams they send
• SSRC multiplexing used for sending RTP packets to the remote side
• Simple math to calculate SSRC on both sides (and demultiplex incoming streams)

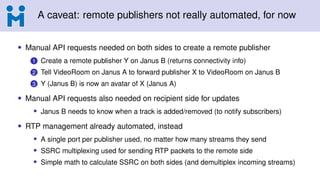

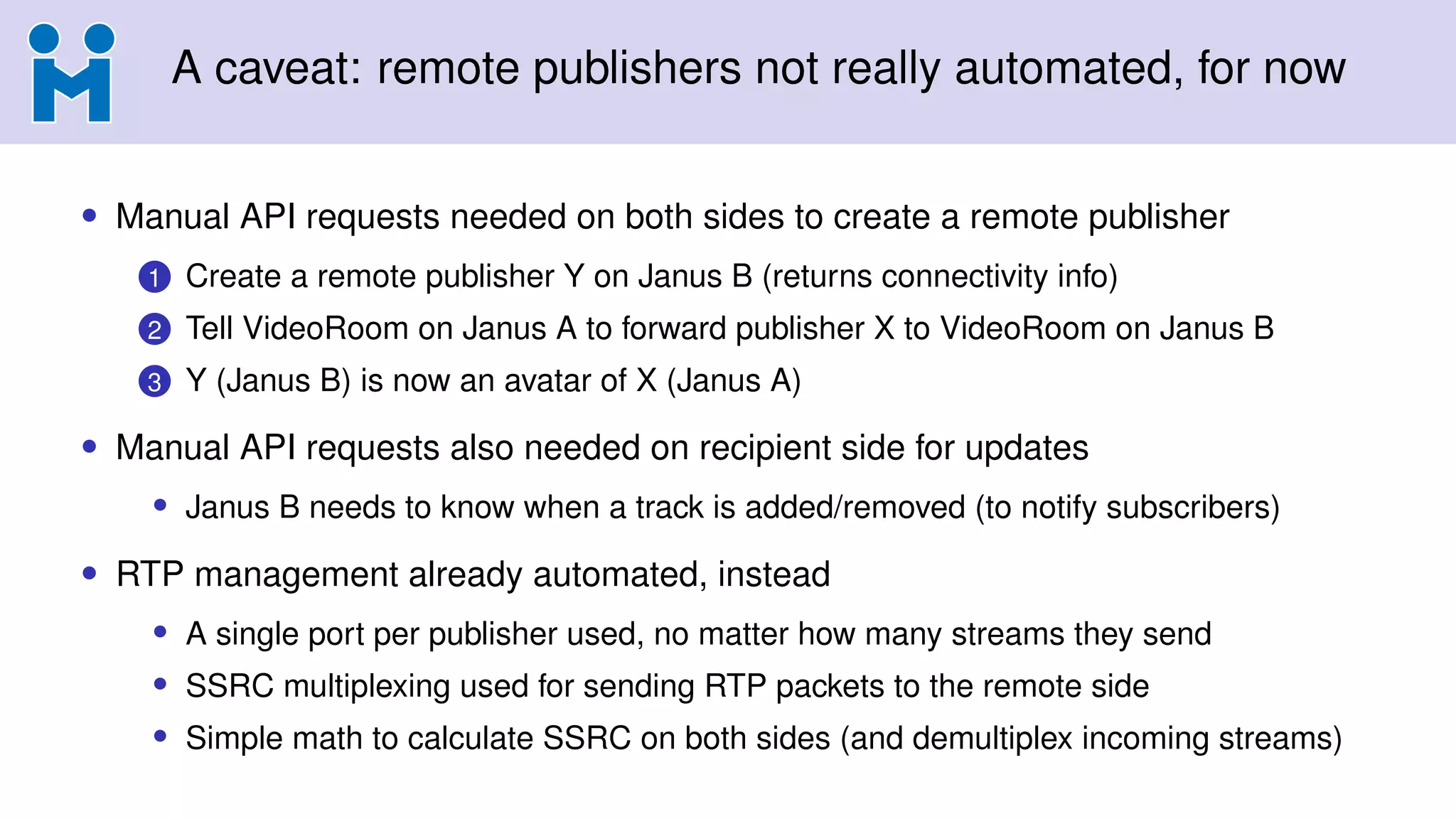

32. A caveat: remote publishers not really automated, for now
• Manual API requests needed on both sides to create a remote publisher
1 Create a remote publisher Y on Janus B (returns connectivity info)
2 Tell VideoRoom on Janus A to forward publisher X to VideoRoom on Janus B
3 Y (Janus B) is now an avatar of X (Janus A)
• Manual API requests also needed on recipient side for updates
• Janus B needs to know when a track is added/removed (to notify subscribers)
• RTP management already automated, instead
• A single port per publisher used, no matter how many streams they send
• SSRC multiplexing used for sending RTP packets to the remote side
• Simple math to calculate SSRC on both sides (and demultiplex incoming streams)

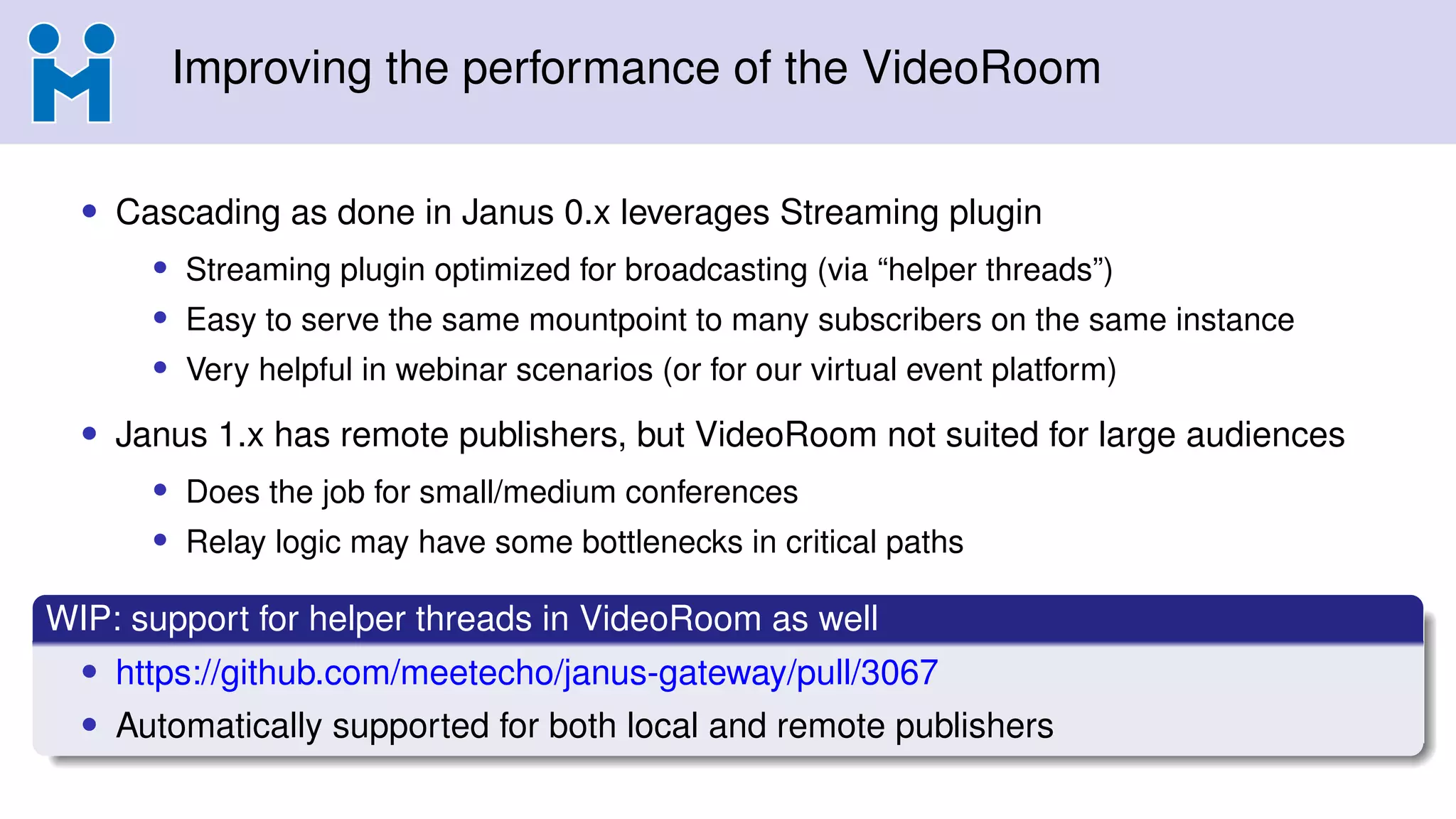

33. Improving the performance of the VideoRoom
• Cascading as done in Janus 0.x leverages Streaming plugin
• Streaming plugin optimized for broadcasting (via “helper threads”)
• Easy to serve the same mountpoint to many subscribers on the same instance
• Very helpful in webinar scenarios (or for our virtual event platform)
• Janus 1.x has remote publishers, but VideoRoom not suited for large audiences
• Does the job for small/medium conferences
• Relay logic may have some bottlenecks in critical paths
WIP: support for helper threads in VideoRoom as well
• https://github.com/meetecho/janus-gateway/pull/3067
• Automatically supported for both local and remote publishers

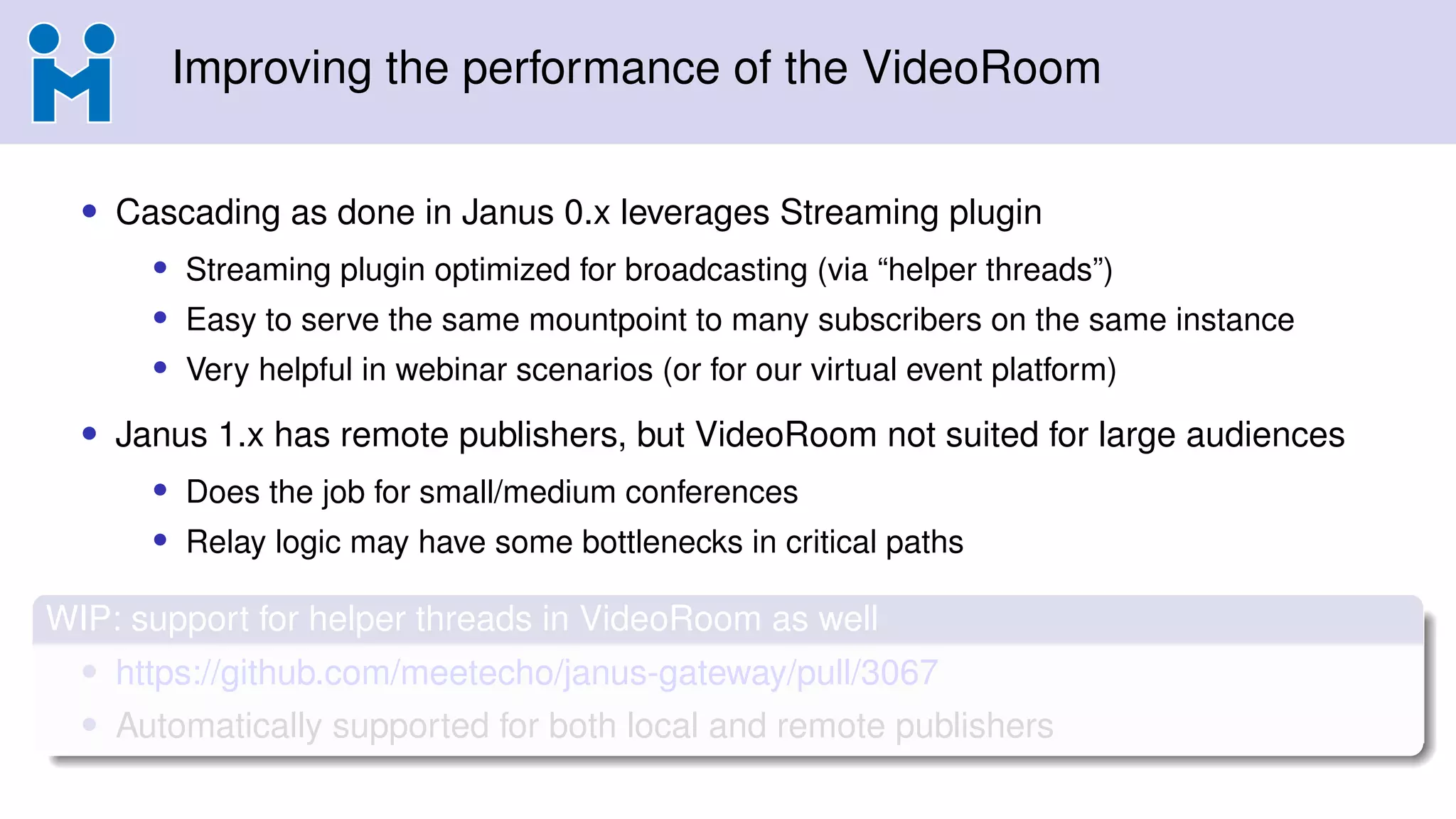

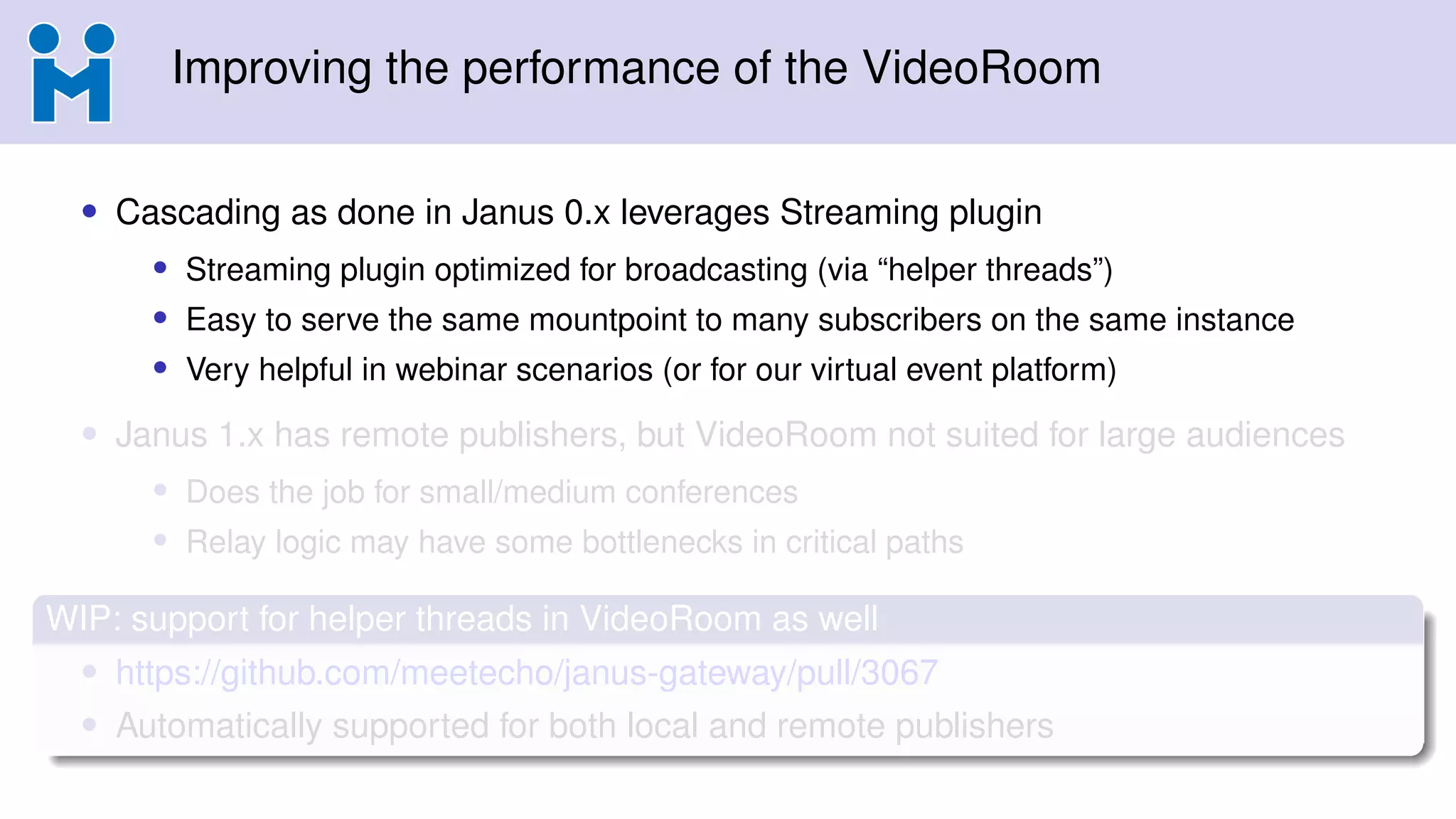

34. Improving the performance of the VideoRoom
• Cascading as done in Janus 0.x leverages Streaming plugin
• Streaming plugin optimized for broadcasting (via “helper threads”)
• Easy to serve the same mountpoint to many subscribers on the same instance
• Very helpful in webinar scenarios (or for our virtual event platform)
• Janus 1.x has remote publishers, but VideoRoom not suited for large audiences
• Does the job for small/medium conferences
• Relay logic may have some bottlenecks in critical paths
WIP: support for helper threads in VideoRoom as well
• https://github.com/meetecho/janus-gateway/pull/3067
• Automatically supported for both local and remote publishers

35. Improving the performance of the VideoRoom
• Cascading as done in Janus 0.x leverages Streaming plugin
• Streaming plugin optimized for broadcasting (via “helper threads”)
• Easy to serve the same mountpoint to many subscribers on the same instance
• Very helpful in webinar scenarios (or for our virtual event platform)
• Janus 1.x has remote publishers, but VideoRoom not suited for large audiences
• Does the job for small/medium conferences
• Relay logic may have some bottlenecks in critical paths
WIP: support for helper threads in VideoRoom as well
• https://github.com/meetecho/janus-gateway/pull/3067
• Automatically supported for both local and remote publishers

36. Thanks! Questions? Comments?
Get in touch!
• https://twitter.com/elminiero
• https://twitter.com/meetecho
• https://www.meetecho.com
