1. Spacebrew
2/1/14 + 2/2/14
Spacebrew Workshop - NYU ITP - Brett Renfer

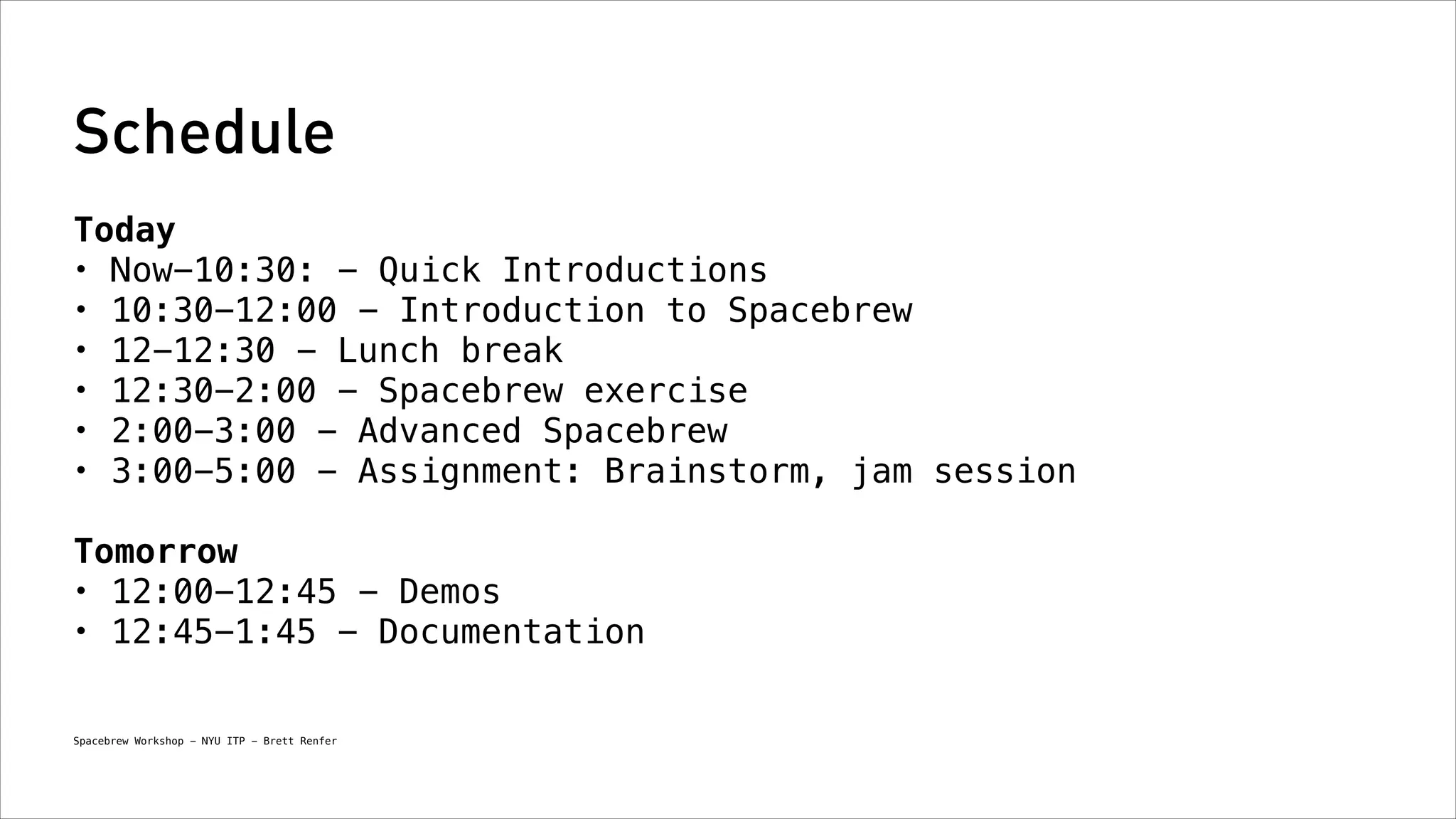

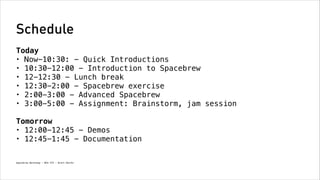

2. Schedule
Today
• Now-10:30: - Quick Introductions
• 10:30-12:00 - Introduction to Spacebrew
• 12-12:30 - Lunch break
• 12:30-2:00 - Spacebrew exercise
• 2:00-3:00 - Advanced Spacebrew
• 3:00-5:00 - Assignment: Brainstorm, jam session
!
Tomorrow
• 12:00-12:45 - Demos
• 12:45-1:45 - Documentation
Spacebrew Workshop - NYU ITP - Brett Renfer

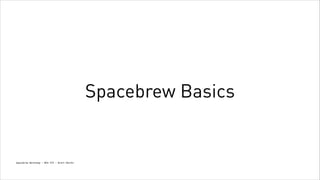

3. Spacebrew Basics
Spacebrew Workshop - NYU ITP - Brett Renfer

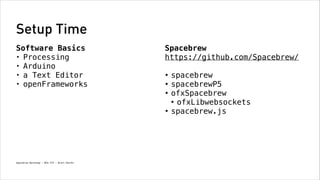

4. Setup Time
Software Basics
• Processing
• Arduino
• a Text Editor
• openFrameworks
Spacebrew
https://github.com/Spacebrew/
•
•
•
•
Spacebrew Workshop - NYU ITP - Brett Renfer
spacebrew
spacebrewP5
ofxSpacebrew
• ofxLibwebsockets
spacebrew.js

5. Obligatory hype video!
Spacebrew Workshop - NYU ITP - Brett Renfer

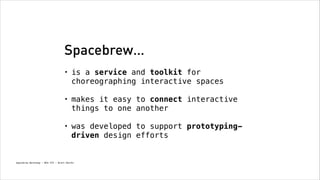

6. Spacebrew…
•
is a service and toolkit for
choreographing interactive spaces
!
•
makes it easy to connect interactive
things to one another
!
•
was developed to support prototypingdriven design efforts
Spacebrew Workshop - NYU ITP - Brett Renfer

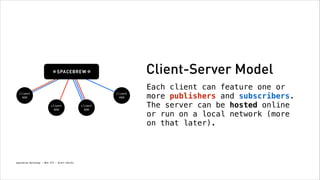

7. Client-Server Model
client
app
client
app
client
app
Spacebrew Workshop - NYU ITP - Brett Renfer
client
app
Each client can feature one or
more publishers and subscribers.
The server can be hosted online
or run on a local network (more
on that later).

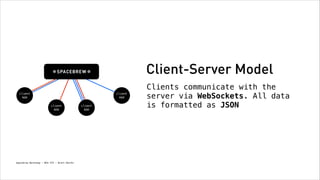

8. Client-Server Model
client
app
client
app
client
app
Spacebrew Workshop - NYU ITP - Brett Renfer
client
app
Clients communicate with the
server via WebSockets. All data
is formatted as JSON

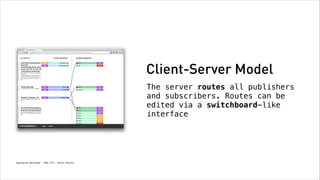

9. Client-Server Model
The server routes all publishers
and subscribers. Routes can be
edited via a switchboard-like
interface
Spacebrew Workshop - NYU ITP - Brett Renfer

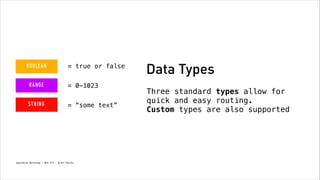

10. = true or false
= 0-1023
= “some text”
Spacebrew Workshop - NYU ITP - Brett Renfer
Data Types
Three standard types allow for
quick and easy routing.
Custom types are also supported

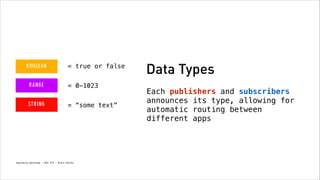

11. = true or false
= 0-1023
= “some text”
Spacebrew Workshop - NYU ITP - Brett Renfer
Data Types
Each publishers and subscribers
announces its type, allowing for
automatic routing between
different apps

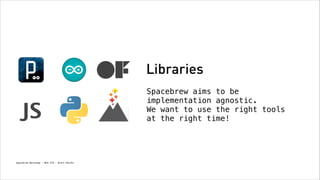

12. Libraries
JS
Spacebrew Workshop - NYU ITP - Brett Renfer
Spacebrew aims to be
implementation agnostic.
We want to use the right tools
at the right time!

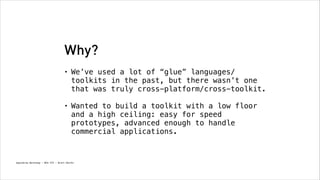

13. Why?
•
We’ve used a lot of “glue” languages/
toolkits in the past, but there wasn’t one
that was truly cross-platform/cross-toolkit.
•
Wanted to build a toolkit with a low floor
and a high ceiling: easy for speed
prototypes, advanced enough to handle
commercial applications.
Spacebrew Workshop - NYU ITP - Brett Renfer

14. Using Spacebrew
Spacebrew Workshop - NYU ITP - Brett Renfer

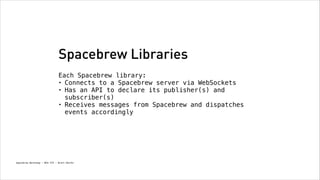

15. Spacebrew Libraries
Each Spacebrew library:
• Connects to a Spacebrew server via WebSockets
• Has an API to declare its publisher(s) and
subscriber(s)
• Receives messages from Spacebrew and dispatches
events accordingly
Spacebrew Workshop - NYU ITP - Brett Renfer

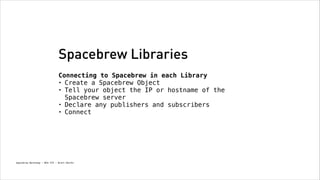

16. Spacebrew Libraries
Connecting to Spacebrew in each Library
• Create a Spacebrew Object
• Tell your object the IP or hostname of the
Spacebrew server
• Declare any publishers and subscribers
• Connect
Spacebrew Workshop - NYU ITP - Brett Renfer

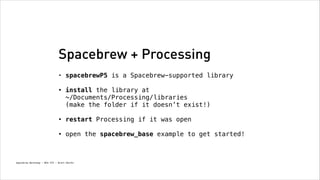

17. Spacebrew + Processing
•
spacebrewP5 is a Spacebrew-supported library
•
install the library at
~/Documents/Processing/libraries
(make the folder if it doesn’t exist!)
•
restart Processing if it was open
•
open the spacebrew_base example to get started!
Spacebrew Workshop - NYU ITP - Brett Renfer

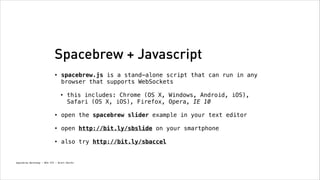

18. Spacebrew + Javascript
•
spacebrew.js is a stand-alone script that can run in any
browser that supports WebSockets
•
this includes: Chrome (OS X, Windows, Android, iOS),
Safari (OS X, iOS), Firefox, Opera, IE 10
•
open the spacebrew slider example in your text editor
•
open http://bit.ly/sbslide on your smartphone
•
also try http://bit.ly/sbaccel
Spacebrew Workshop - NYU ITP - Brett Renfer

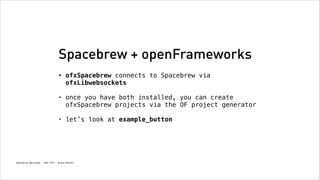

19. Spacebrew + openFrameworks
•
ofxSpacebrew connects to Spacebrew via
ofxLibwebsockets
•
once you have both installed, you can create
ofxSpacebrew projects via the OF project generator
•
let’s look at example_button
Spacebrew Workshop - NYU ITP - Brett Renfer

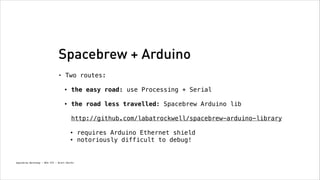

20. Spacebrew + Arduino
•
Two routes:
•
the easy road: use Processing + Serial
•
the road less travelled: Spacebrew Arduino lib
http://github.com/labatrockwell/spacebrew-arduino-library
•
•
Spacebrew Workshop - NYU ITP - Brett Renfer
requires Arduino Ethernet shield
notoriously difficult to debug!

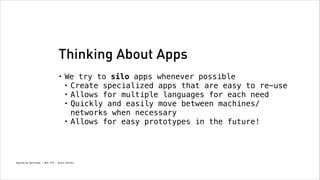

21. Thinking About Apps
•
We try to silo apps whenever possible
• Create specialized apps that are easy to re-use
• Allows for multiple languages for each need
• Quickly and easily move between machines/
networks when necessary
• Allows for easy prototypes in the future!
Spacebrew Workshop - NYU ITP - Brett Renfer

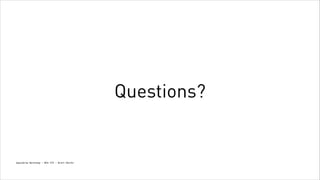

22. Questions?
Spacebrew Workshop - NYU ITP - Brett Renfer

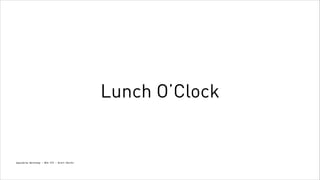

23. Lunch O’Clock
Spacebrew Workshop - NYU ITP - Brett Renfer

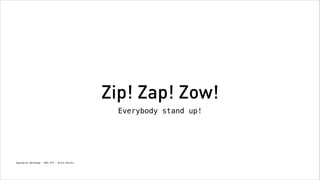

24. Zip! Zap! Zow!
Everybody stand up!
Spacebrew Workshop - NYU ITP - Brett Renfer

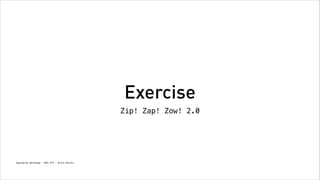

25. Exercise
Zip! Zap! Zow! 2.0
Spacebrew Workshop - NYU ITP - Brett Renfer

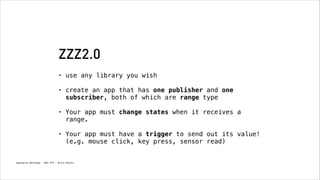

26. ZZZ2.0
•
use any library you wish
!
•
create an app that has one publisher and one
subscriber, both of which are range type
•
Your app must change states when it receives a
range.
•
Your app must have a trigger to send out its value!
(e.g. mouse click, key press, sensor read)
Spacebrew Workshop - NYU ITP - Brett Renfer

27. Custom Types
Spacebrew Workshop - NYU ITP - Brett Renfer

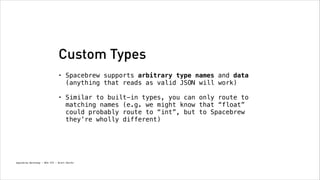

28. Custom Types
•
Spacebrew supports arbitrary type names and data
(anything that reads as valid JSON will work)
!
•
Similar to built-in types, you can only route to
matching names (e.g. we might know that “float”
could probably route to “int”, but to Spacebrew
they’re wholly different)
Spacebrew Workshop - NYU ITP - Brett Renfer

29. Spacebrew Workshop - NYU ITP - Brett Renfer

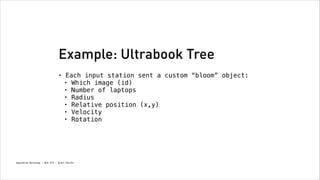

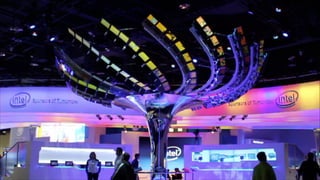

30. Example: Ultrabook Tree
•
Each input station sent a custom “bloom” object:
• Which image (id)
• Number of laptops
• Radius
• Relative position (x,y)
• Velocity
• Rotation
Spacebrew Workshop - NYU ITP - Brett Renfer

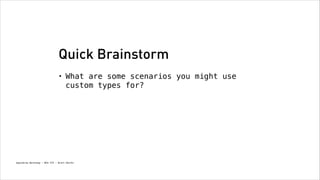

31. Quick Brainstorm
•
What are some scenarios you might use
custom types for?
Spacebrew Workshop - NYU ITP - Brett Renfer

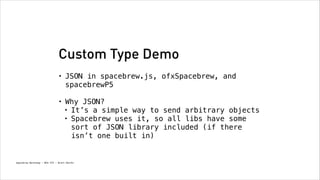

32. Custom Type Demo
•
JSON in spacebrew.js, ofxSpacebrew, and
spacebrewP5
!
•
Why JSON?
• It’s a simple way to send arbitrary objects
• Spacebrew uses it, so all libs have some
sort of JSON library included (if there
isn’t one built in)
Spacebrew Workshop - NYU ITP - Brett Renfer

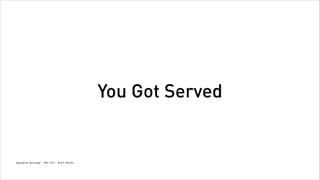

33. You Got Served
Spacebrew Workshop - NYU ITP - Brett Renfer

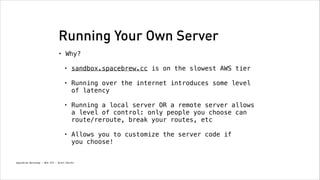

34. Running Your Own Server
•
Why?
•
sandbox.spacebrew.cc is on the slowest AWS tier
!
•
Running over the internet introduces some level
of latency
!
•
Running a local server OR a remote server allows
a level of control: only people you choose can
route/reroute, break your routes, etc
!
•
Allows you to customize the server code if
you choose!
Spacebrew Workshop - NYU ITP - Brett Renfer

35. Running Your Own Server
•
How?
!
•
Setup! Only needs to be done once
•
Download and install nodejs: www.nodejs.org
!
•
Install node dependencies:
!
•
•
Spacebrew Workshop - NYU ITP - Brett Renfer
npm install ws
npm install forever-monitor

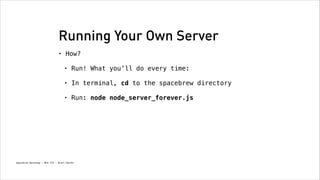

36. Running Your Own Server
•
How?
!
•
Run! What you’ll do every time:
•
In terminal, cd to the spacebrew directory
!
•
Run: node node_server_forever.js
Spacebrew Workshop - NYU ITP - Brett Renfer

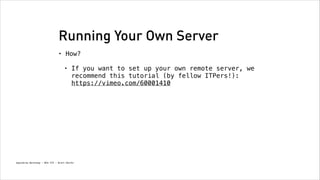

37. Running Your Own Server
•
How?
!
•
If you want to set up your own remote server, we
recommend this tutorial (by fellow ITPers!):
https://vimeo.com/60001410
Spacebrew Workshop - NYU ITP - Brett Renfer

38. Persistence
•
Another advantage of running your own server is you
can use the persistent admin
!
•
The persistent admin is a separate service that
lets you edit, save, load, and persist routes
!
•
It allows you to specify specific app routings:
coolApp -> coolPub to lameApp -> lameSub
!
•
It also allows for powerful wild card routings:
.* -> coolPub to .* -> lameSub
!
•
Spacebrew Workshop - NYU ITP - Brett Renfer
This routes any app that publishes “coolPub” to
any other app that subscribes to “lameSub”

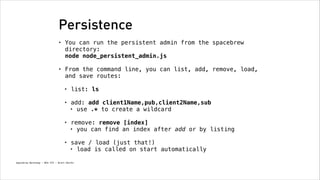

39. Persistence
•
You can run the persistent admin from the spacebrew
directory:
node node_persistent_admin.js
!
•
From the command line, you can list, add, remove, load,
and save routes:
!
•
list: ls
•
add: add client1Name,pub,client2Name,sub
• use .* to create a wildcard
•
remove: remove [index]
• you can find an index after add or by listing
•
save / load (just that!)
• load is called on start automatically
Spacebrew Workshop - NYU ITP - Brett Renfer

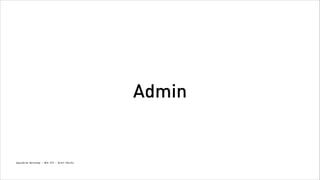

40. Admin
Spacebrew Workshop - NYU ITP - Brett Renfer

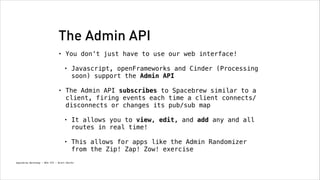

41. The Admin API
•
You don’t just have to use our web interface!
!
•
Javascript, openFrameworks and Cinder (Processing
soon) support the Admin API
!
•
The Admin API subscribes to Spacebrew similar to a
client, firing events each time a client connects/
disconnects or changes its pub/sub map
!
•
It allows you to view, edit, and add any and all
routes in real time!
!
•
This allows for apps like the Admin Randomizer
from the Zip! Zap! Zow! exercise
Spacebrew Workshop - NYU ITP - Brett Renfer

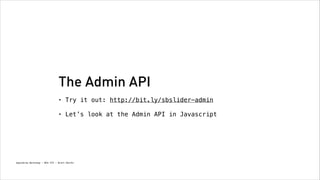

42. The Admin API
•
Try it out: http://bit.ly/sbslider-admin
•
Let’s look at the Admin API in Javascript
Spacebrew Workshop - NYU ITP - Brett Renfer

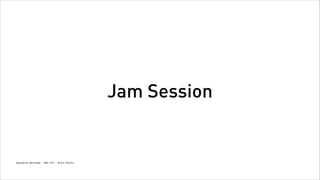

43. Jam Session
Spacebrew Workshop - NYU ITP - Brett Renfer

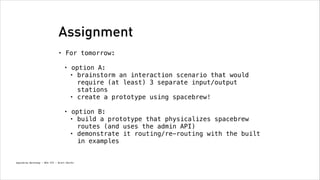

44. Assignment
•
For tomorrow:
•
option A:
• brainstorm an interaction scenario that would
require (at least) 3 separate input/output
stations
• create a prototype using spacebrew!
•
option B:
• build a prototype that physicalizes spacebrew
routes (and uses the admin API)
• demonstrate it routing/re-routing with the built
in examples
Spacebrew Workshop - NYU ITP - Brett Renfer
