1. IPv6 Deployment and Distribution
in the RIPE NCC Service Region
Marco Schmidt
IP Resource Analyst
Monday, 23 April 2012

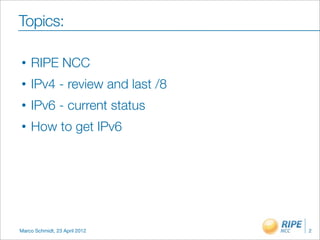

2. Topics:
• RIPE NCC
• IPv4 - review and last /8
• IPv6 - current status
• How to get IPv6
Marco Schmidt, 23 April 2012 2

3. RIPE NCC
Marco Schmidt, 23 April 2012 Text

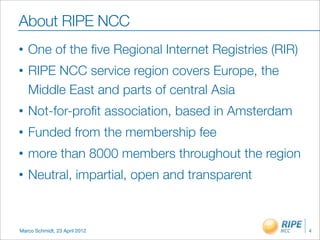

4. About RIPE NCC
• One of the five Regional Internet Registries (RIR)
• RIPE NCC service region covers Europe, the
Middle East and parts of central Asia
• Not-for-profit association, based in Amsterdam
• Funded from the membership fee
• more than 8000 members throughout the region
• Neutral, impartial, open and transparent
Marco Schmidt, 23 April 2012 4

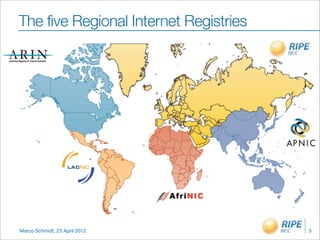

5. The five Regional Internet Registries
Marco Schmidt, 23 April 2012 5

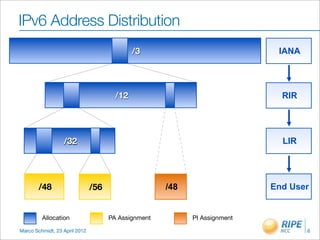

6. IPv6 Address Distribution
/3 IANA
/12 RIR
/32 LIR
/48 /56 /48 End User
Allocation PA Assignment PI Assignment
Marco Schmidt, 23 April 2012 6

7. IPv4 - review and last /8
Marco Schmidt, 23 April 2012 Text

8. RIPE NCC IPv4 Available Pool
Marco Schmidt, 23 April 2012 8

9. IPv4 Depletion Worldwide
IPv4 Pool in /8’s
6
5
4
3
2
1
0
RIPE NCC AfriNIC LACNIC ARIN APNIC
Marco Schmidt, 23 April 2012 9

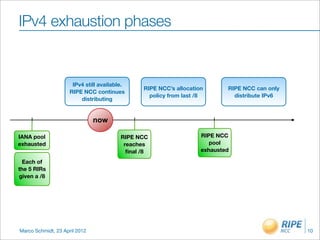

10. IPv4 exhaustion phases
IPv4 still available.
RIPE NCC’s allocation RIPE NCC can only
RIPE NCC continues
policy from last /8 distribute IPv6
distributing
now
IANA pool RIPE NCC RIPE NCC
exhausted reaches pool
final /8 exhausted
Each of
the 5 RIRs
given a /8
Marco Schmidt, 23 April 2012 10

11. RIPE NCC’s last /8
• We do things differently!
• Ensures IPv4 access for all members
– 16000+ /22s in a /8
– members can get one /22 (=1024 addresses)
– must already hold IPv6
– must qualify for allocation
• /16 set aside for unforeseen situations
– if unused, will be distributed
• No PI
Marco Schmidt, 23 April 2012 11

12. Transfer of IPv4 Allocations
• Policy 2007-08: Allocation Transfer Policy
– Don’t buy your IPv4 on eBay!
– Transfer unused allocations to another LIR
– Minimum allocation size /21
– Evaluated by RIPE NCC
– Update in RIPE Database
http://www.ripe.net/lir-services/resource-management/listing
Marco Schmidt, 23 April 2012 12

13. Wait and See?
13

14. IPv6 - current status
Marco Schmidt, 23 April 2012 Text

15. Number of addresses (rounded off)
• IPv4
– 4,000,000,000
• IPv6
– 300000000000000000000000000000000000000
– in /32 are 65,000 /48’s or 16,000,000 /56’s or
4,000,000,000 /64’s
– in /48 are 65,000 /64’s
– in /56 are 256 /64’s
Marco Schmidt, 23 April 2012 15

16. IPv6 Allocations and Announcements
9000
RIPE NCC Allocations
Total Worldwide Announcements
8000
7000
6000
5000
4000
3000
2000
1000
0
2005 2006 2007 2008 2009 2010 2011 2012
Marco Schmidt, 23 April 2012 16

17. IPv6 Ripeness
• Rating system:
– One star if the LIR has an IPv6 allocation
– Additional stars if:
- IPv6 Prefix is announced on router
- A route6 object is in the RIPE Database
- Reverse DNS is set up
–A list of all 4 star LIRs: http://ripeness.ripe.net/
Marco Schmidt, 23 April 2012 17

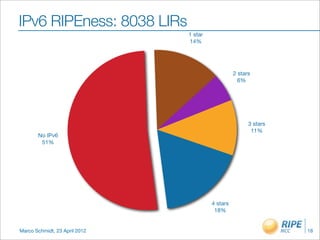

18. IPv6 RIPEness: 8038 LIRs
1 star
14%
2 stars
6%
3 stars
11%
No IPv6
51%
4 stars
18%
Marco Schmidt, 23 April 2012 18

19. IPv6 RIPEness: Palestine (18 LIRs)
1 star
17%
2 star
0%
6% 3 star
6% 4 star
No IPv6
72%
Marco Schmidt, 23 April 2012 19

20. Comparative IPv6 RIPEness - Absolute
1 star 2 stars 3 stars 4 stars No IPv6
70
52.5
42
35
24
25
2
17.5 5
5
13 6
1 3
2 2 9
1 7 7
1
3
0 0 0
PS (18) JO (35) IL (41) SA (64)
20

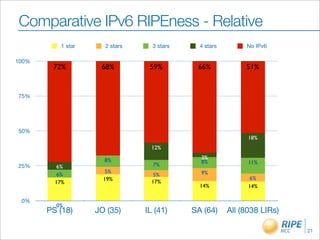

21. Comparative IPv6 RIPEness - Relative
1 star 2 stars 3 stars 4 stars No IPv6
100%
72% 68% 59% 66% 51%
75%
50%
18%
12%
8% 3%
7% 8% 11%
25% 6%
5% 9%
6% 5%
19% 6%
17% 17%
14% 14%
0%
0% 0%
PS (18) JO (35) IL (41) SA (64) All (8038 LIRs)
21

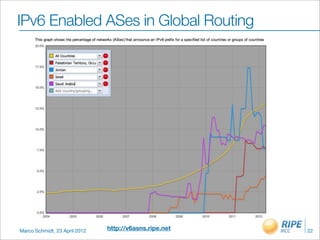

22. IPv6 Enabled ASes in Global Routing
Marco Schmidt, 23 April 2012 http://v6asns.ripe.net 22

23. Capacity Building
• Training for LIRs
• IPv6 hands-on workshops and roadshows
– Collaboration with industry and regional Network
Operators Groups (like MENOG)
• Presenting at various conferences and events
• Equipment Requirements document (ripe-501):
https://www.ripe.net/ripe/docs/ripe-501
• Labs articles: http://labs.ripe.net
– IPv6 statistics and measurements
Marco Schmidt, 23 April 2012 23

24. Capacity Building: Outreach
• World IPv6 Launch - 6 June 2012
– ISPs,vendors and web companies will permanently
enable IPv6 for their products and services
• IPv6 Act Now website: http://www.ipv6actnow.org/
• RIPEness
Marco Schmidt, 23 April 2012 24

25. Some real world examples
• xs4all
– Dutch Internet Service Provider (ISP)
– 270,000 customers
– Offering IPv6 as standard to home users
since August 2010
– 18.000 customers (7% of customer base) activated
IPv6 by April 2012
Marco Schmidt, 23 April 2012 25

26. Some real world examples
• Hetzner
– Major German Hosting Provider
– Offering IPv6 at no additional cost for servers
– Set-up extremely easy
– IPv6 connectivity production grade
Marco Schmidt, 23 April 2012 26

27. How to get IPv6
Marco Schmidt, 23 April 2012 Text

28. Getting an IPv6 allocation from the RIPE NCC
• To qualify, an organisation must:
- Be an LIR
- Have a plan for making assignments within two years
• Minimum allocation size /32
• Allocation size is based on customer numbers
and growth, not on transition technique!
Marco Schmidt, 23 April 2012 28

29. RIPE Policy Proposal 2011-04
• Extension of the Minimum Size for IPv6
Initial Allocation
- Proposes initial allocation up to a /29
- For example, for small LIRs to deploy IPv6 via 6RD
(RFC 5969)
• Proposal currently in Last Call
Marco Schmidt, 23 April 2012 29

30. What does an IPv6 allocation cost?
• /32 = 1 scoring unit
• /31 = 2 scoring units
• points = ∑(2012-1992)x(scoring unit) =20x1+...
Category Points Fee 2012
Extra Small 0 - 16 € 1300
Small - 109 € 1800
Medium - 1040 € 2550
Large - 7728 € 4100
Extra Large > 7728 € 5500
Marco Schmidt, 23 April 2012 30

31. Getting IPv6 PI address space
• To qualify, an organisation must:
- Meet the contractual requirements
for provider independent resources
- LIRs must demonstrate special routing requirements
• Minimum assignment size /48
• PI space can not be used for sub-assignments
Marco Schmidt, 23 April 2012 31

32. Best Scenario: Act Now, Phased Approach
• Change purchasing procedure (feature parity)
• Check your current hardware and software
• Plan every step and test
• One service at a time
- face first
- core
- customers
Marco Schmidt, 23 April 2012 32

33. Don'ts
• Don't separate IPv6 features from IPv4
• Don't do everything in one go
• Don't appoint an IPv6 specialist
- do you have an IPv4 specialist?
• Don't see IPv6 as a product
- the Internet is the product
Marco Schmidt, 23 April 2012 33

34. Business Case
• IPv4 is no longer equal to “the Internet”
• Avoiding the issue does not make it go away
• How much are you willing to spend now to save
money later?
• Only IPv6 allows continued IP networking growth
• Time for excuses is over
“IPv6, act now!”
Marco Schmidt, 23 April 2012 34

35. Questions?
