The MyPBX U100 is a 1U rack mount IP PBX that supports up to 100 users and 25 simultaneous calls. It has integrated ISDN, PSTN, GSM and VoIP connectivity. It provides enterprise-grade features for small and medium businesses at no additional cost, including automated attendant, call forwarding, call parking and call routing. The system can also integrate with firewalls and enable centralized VOIP across multiple sites with extension dialing between locations and mobile app integration for remote users.

2. IP PABX SYSTEM
My PBX U100
MyPBX U100 is a 1U rack mount model IP PBX for up to 100 users. Internally, it
supports network access to ISDN BRI, PSTN, GSM/CDMA/UMTS and VoIP. High
performance, stability and compatibility, combined with rich functionality make
MyPBX U100 perfectly suited for your business communication.
Robust All-in-one Features
MyPBX is a powerful all-in-one system that delivers enterprise-grade
functionalities and features to SMBs. On purchasing the unit, you will have all the
features at hand without extra cost.
 The network of lines within the PBX
 Support 100 users and 25 simultaneous calls
 Basic call handling features
 Advanced IP-PBX features
 No licensing fees for full capacity

3. BASIC TO ADVANCE FEATURES
IP PABX BASIC FEATURES IP PABX ADVANCE FEATURES
Automated Attendant (IVR) Direct Inward System Access (DISA)
Attended Transfer Distinctive Ringtone
Blind Transfer Dial by Name
Blacklist LDAP Server
Call Back Mobility Extension
Call Detail Records (CDR) One Touch Recording
Call Forward Phone Provisioning for Aastra,
Call Parking QoS (voice quality)
Call Pickup Route by Caller ID
Call Routing Spy functions (Normal Spy, Whisper Spy,
Barge)
Call Waiting tactic Route

4. IP PBX INTEGRATE WITH FIREWALL

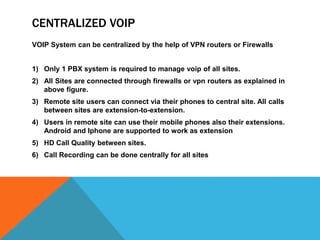

5. CENTRALIZED VOIP
VOIP System can be centralized by the help of VPN routers or Firewalls
1) Only 1 PBX system is required to manage voip of all sites.
2) All Sites are connected through firewalls or vpn routers as explained in
above figure.
3) Remote site users can connect via their phones to central site. All calls
between sites are extension-to-extension.
4) Users in remote site can use their mobile phones also their extensions.
Android and Iphone are supported to work as extension
5) HD Call Quality between sites.
6) Call Recording can be done centrally for all sites

6. 7) Call Logging can be done also centrally.
8) Telephone lines can be dedicated for special branch users so that their
outgoing number remains constant.
9) Central IVR can be added also. User can navigate through IVR and select
which branch user wants to talk to.
10) Centralized Voicemail is a big advantage.
11) Centralized automatic call transferring or forwarding can also be
achieved if some department is not working on special holidays e.g Eid
Holidays

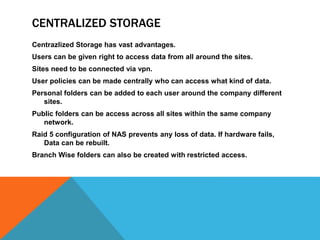

7. CENTRALIZED STORAGE
Centrazlized Storage has vast advantages.
Users can be given right to access data from all around the sites.
Sites need to be connected via vpn.
User policies can be made centrally who can access what kind of data.
Personal folders can be added to each user around the company different
sites.
Public folders can be access across all sites within the same company
network.
Raid 5 configuration of NAS prevents any loss of data. If hardware fails,
Data can be rebuilt.
Branch Wise folders can also be created with restricted access.
