1. Hot Updates using CodePush and Ionic 2
[hot push across the dev lifecycle]
1 / 65

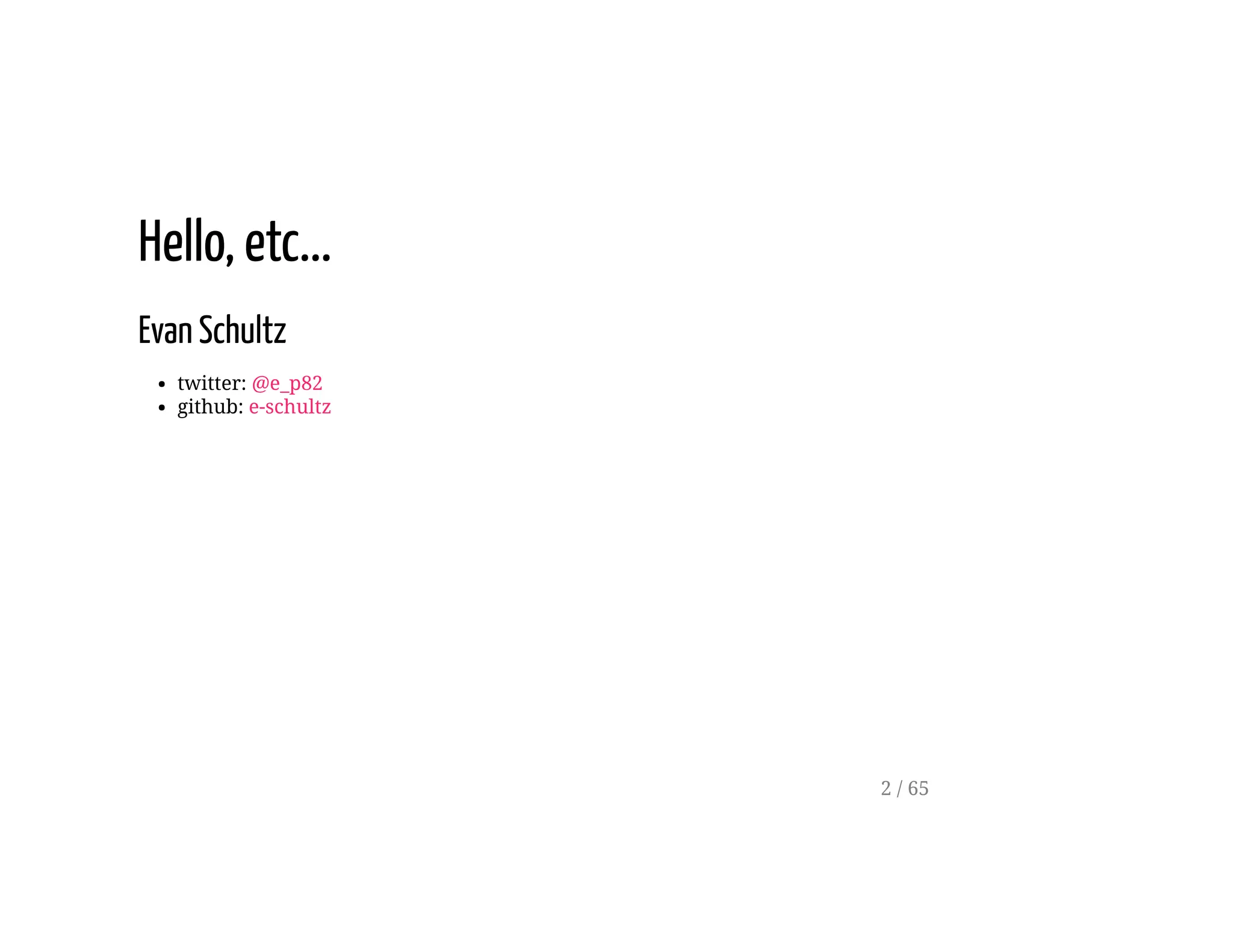

2. Evan Schultz
twitter: @e_p82
github: e-schultz
Hello, etc...
2 / 65

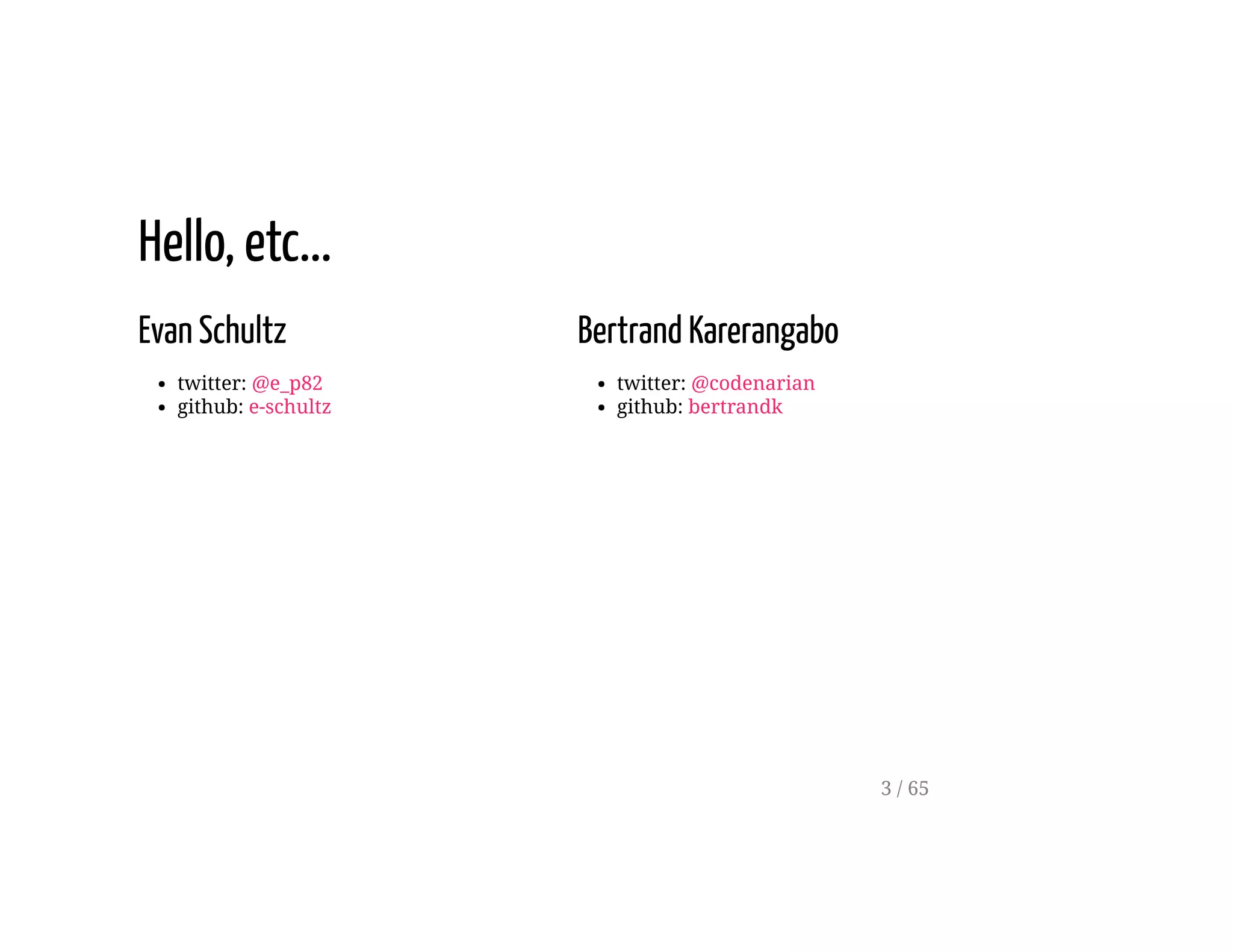

3. Evan Schultz
twitter: @e_p82
github: e-schultz
Bertrand Karerangabo
twitter: @codenarian
github: bertrandk
Hello, etc...
3 / 65

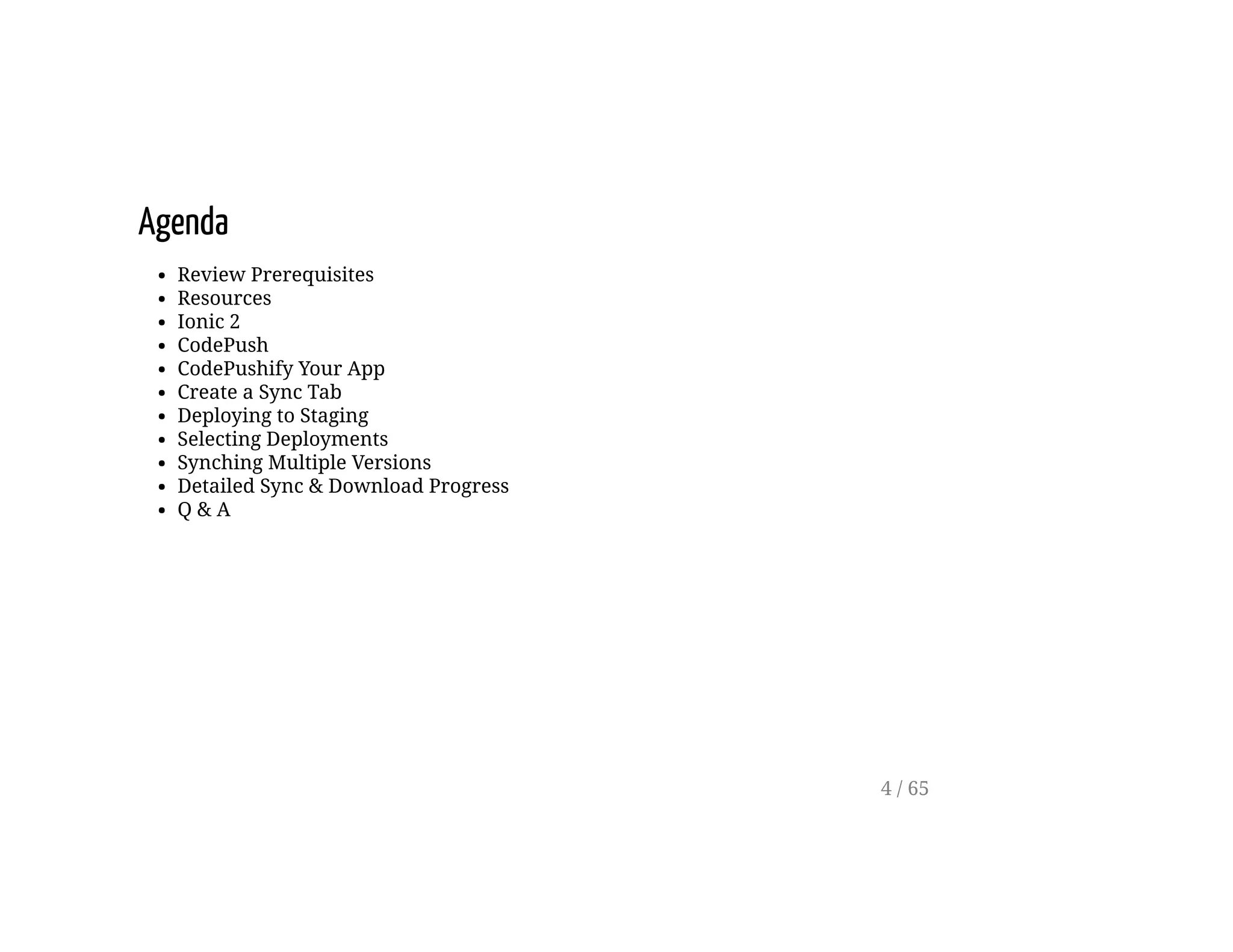

4. Agenda
Review Prerequisites
Resources
Ionic 2
CodePush
CodePushify Your App
Create a Sync Tab
Deploying to Staging
Selecting Deployments
Synching Multiple Versions
Detailed Sync & Download Progress
Q & A
4 / 65

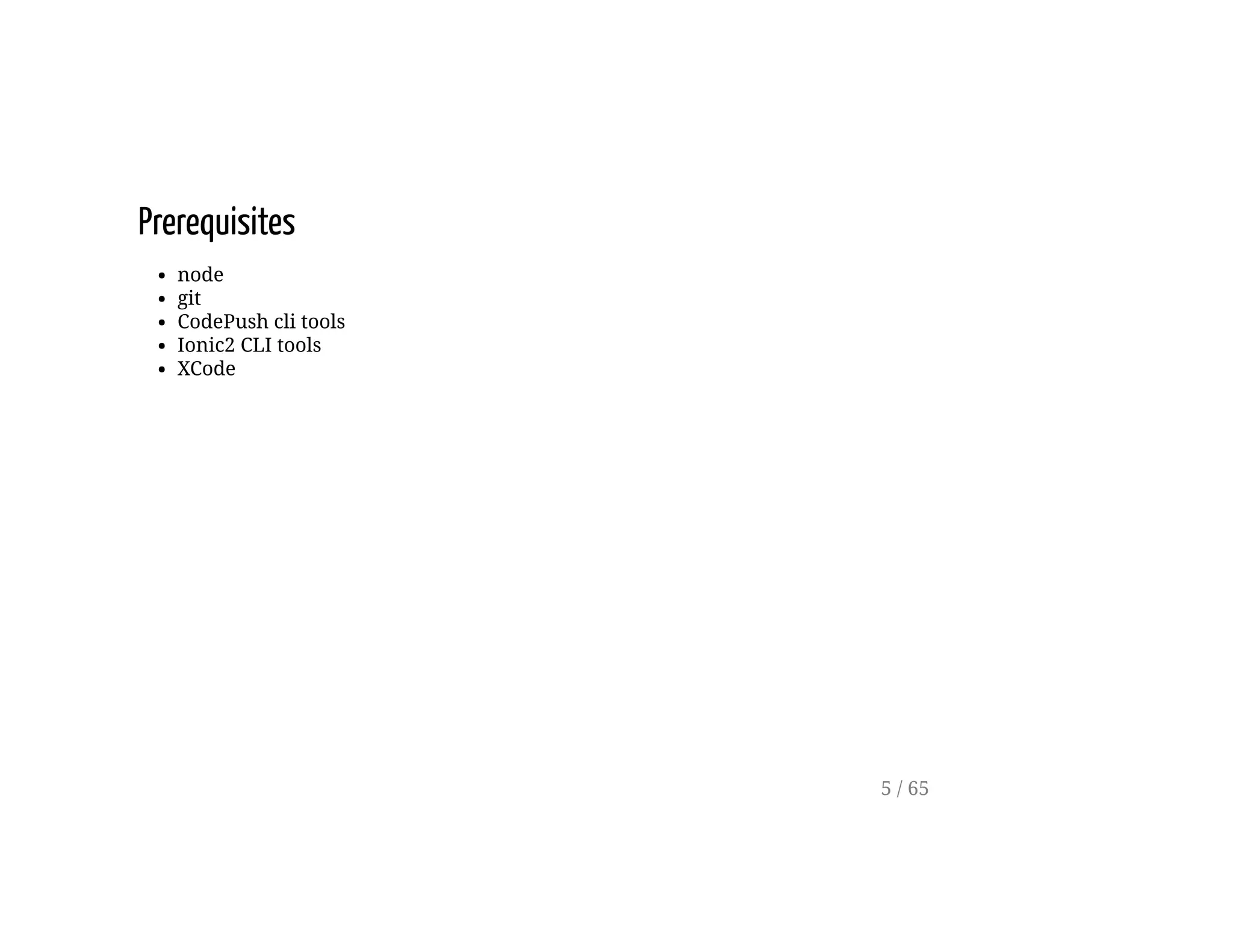

5. Prerequisites
node
git
CodePush cli tools
Ionic2 CLI tools
XCode
5 / 65

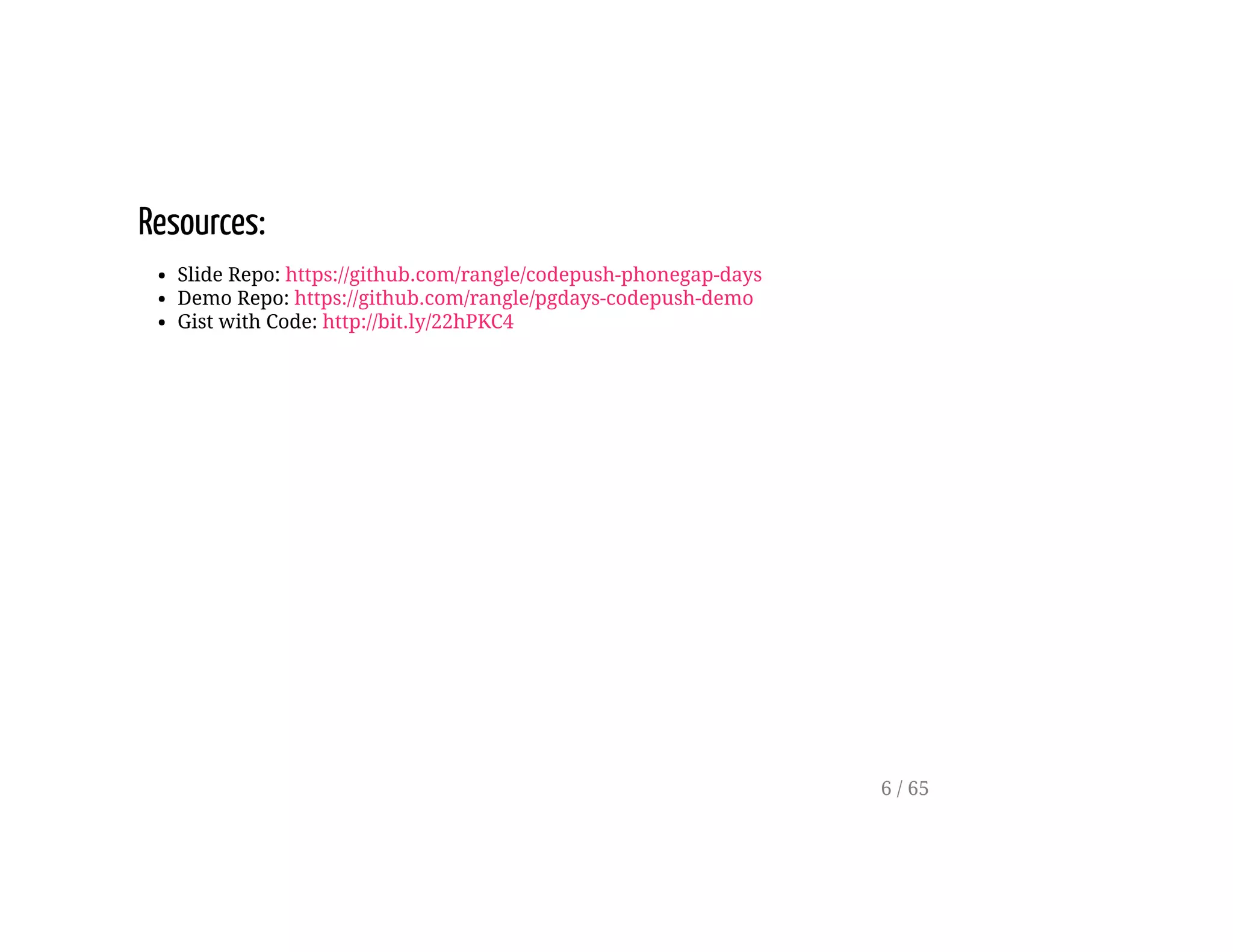

6. Resources:
Slide Repo: https://github.com/rangle/codepush-phonegap-days
Demo Repo: https://github.com/rangle/pgdays-codepush-demo
Gist with Code: http://bit.ly/22hPKC4
6 / 65

7. Ionic 2 Framework
7 / 65

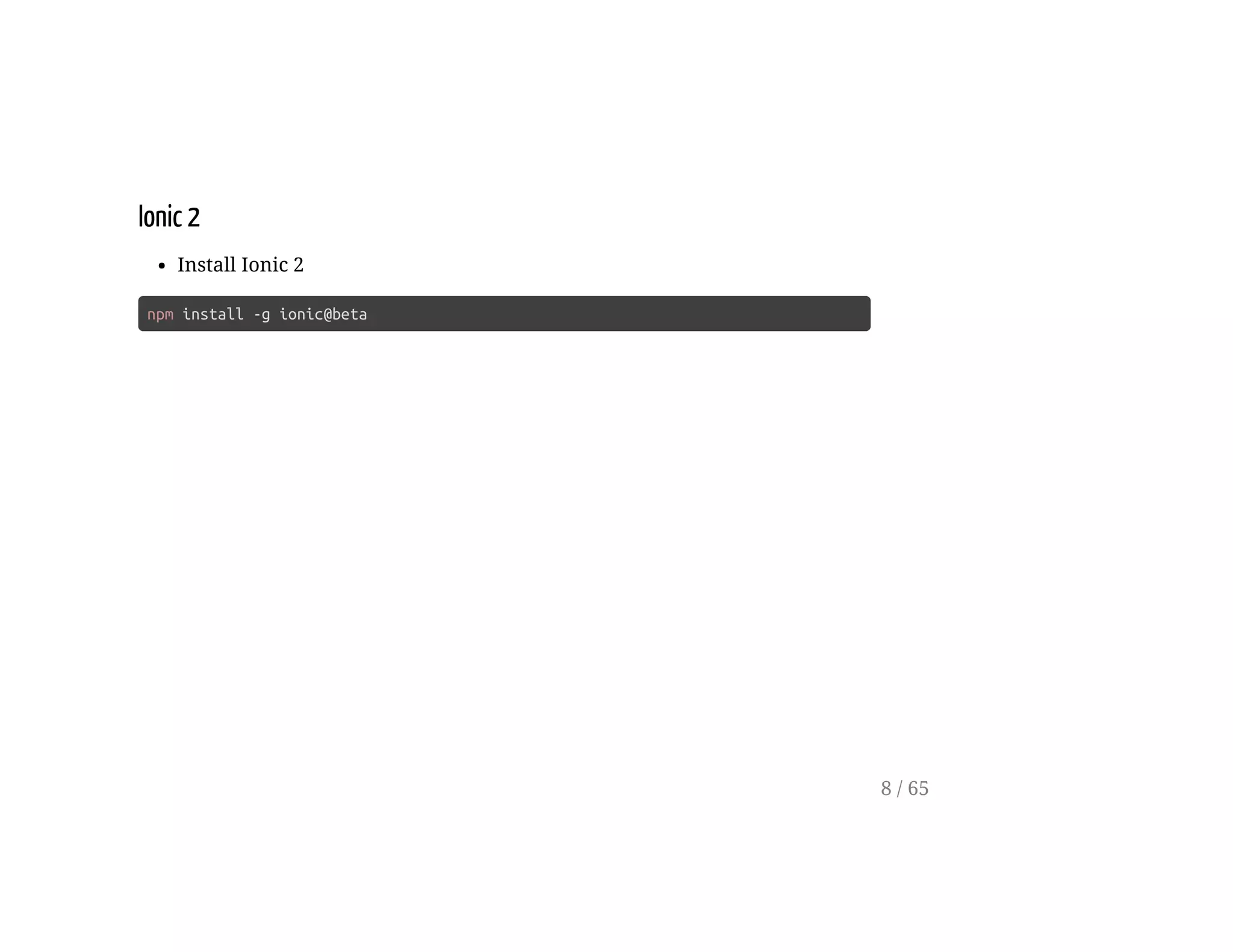

8. Ionic 2
Install Ionic 2
npm install -g ionic@beta
8 / 65

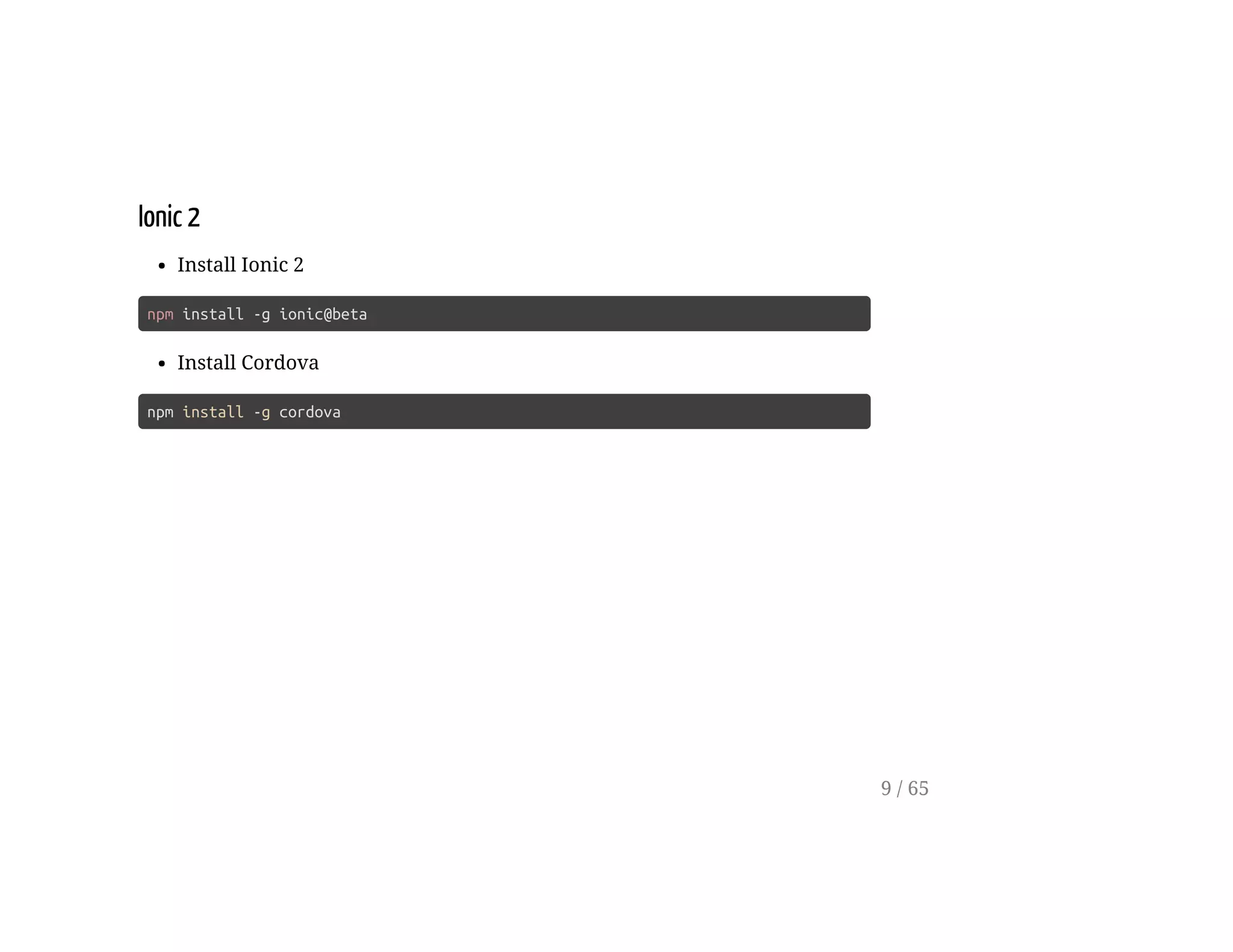

9. Ionic 2
Install Ionic 2
npm install -g ionic@beta
Install Cordova
npm install -g cordova
9 / 65

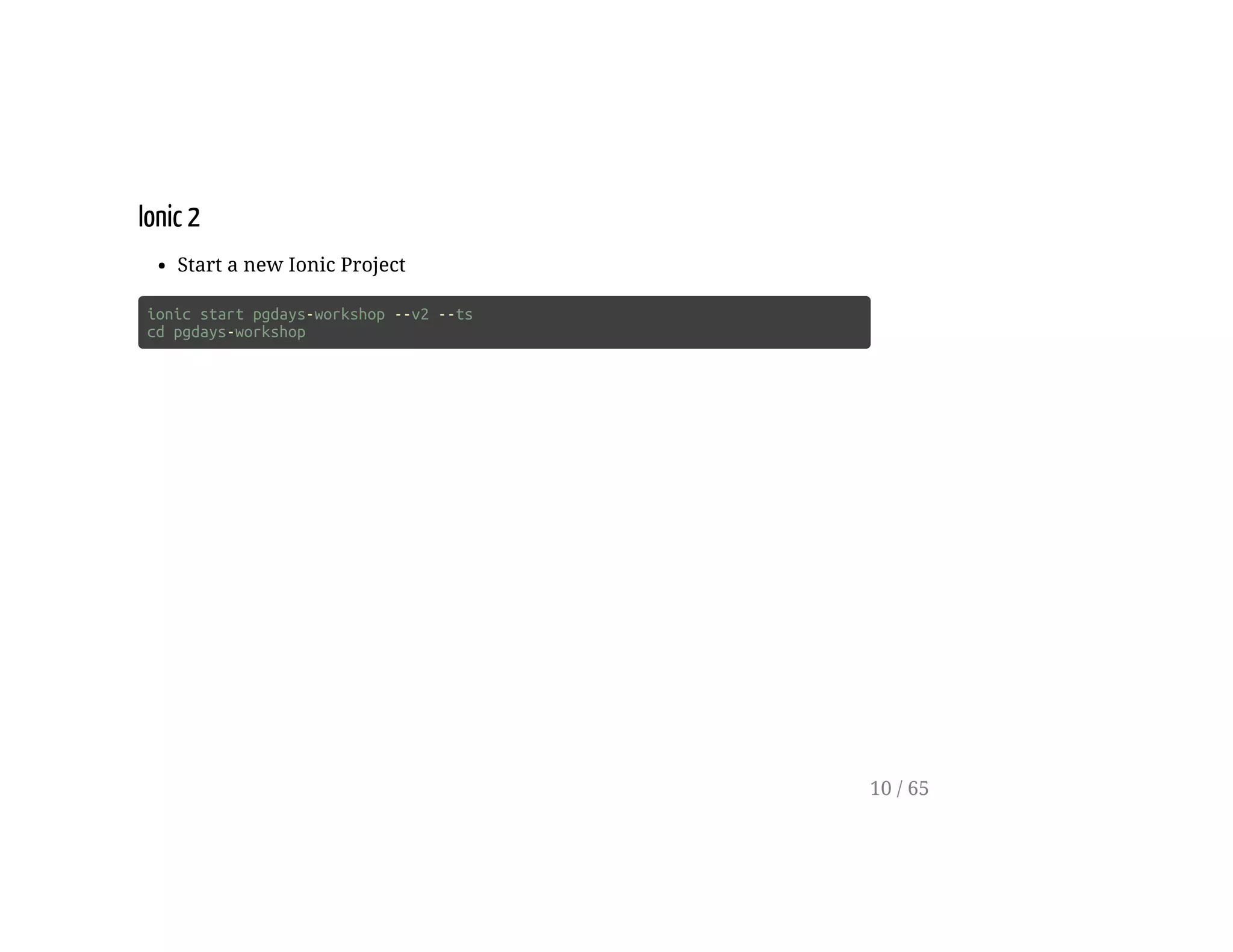

10. Ionic 2
Start a new Ionic Project
ionic start pgdays-workshop --v2 --ts
cd pgdays-workshop
10 / 65

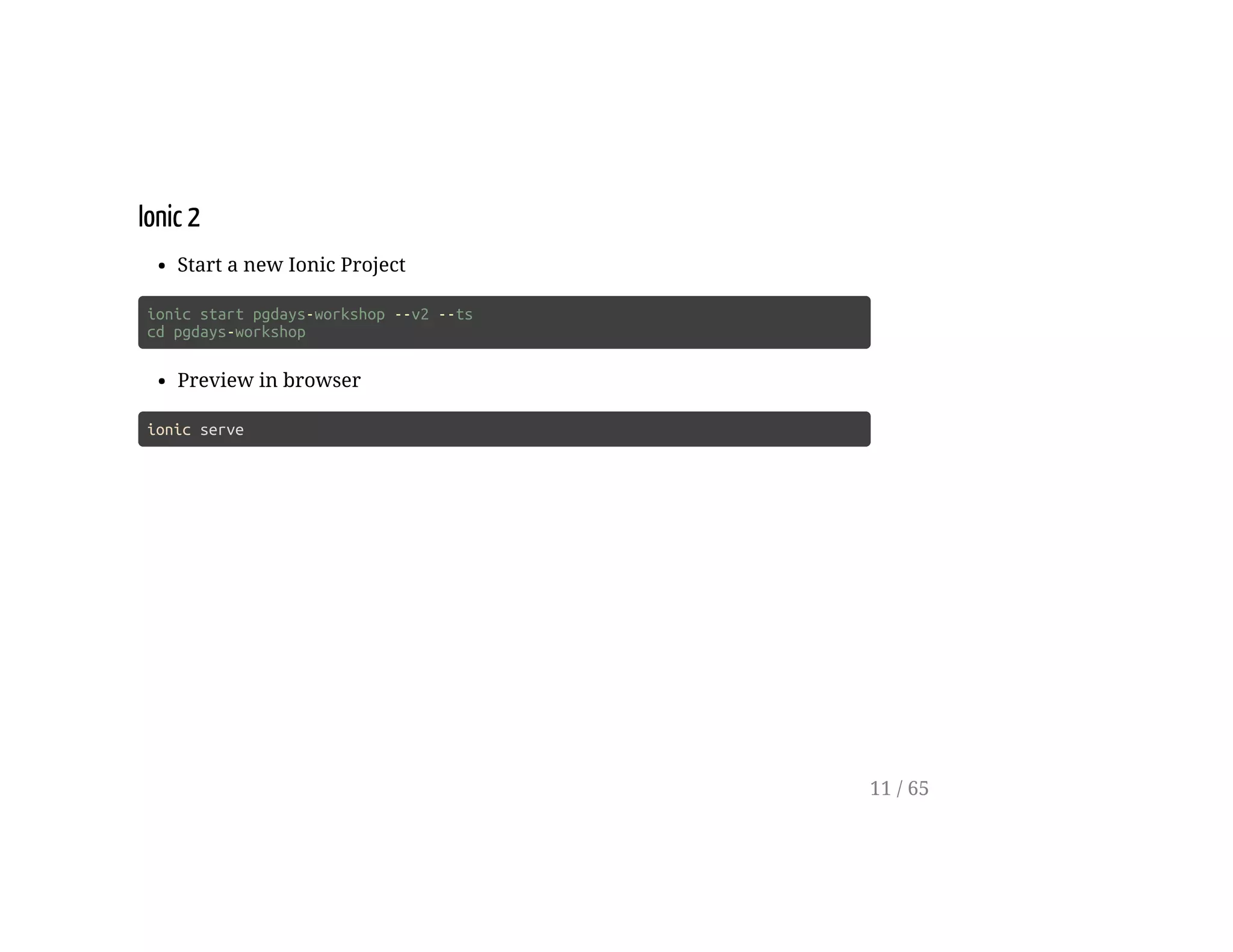

11. Ionic 2
Start a new Ionic Project
ionic start pgdays-workshop --v2 --ts
cd pgdays-workshop
Preview in browser
ionic serve
11 / 65

12. Code Push
Microsoft CodePush
12 / 65

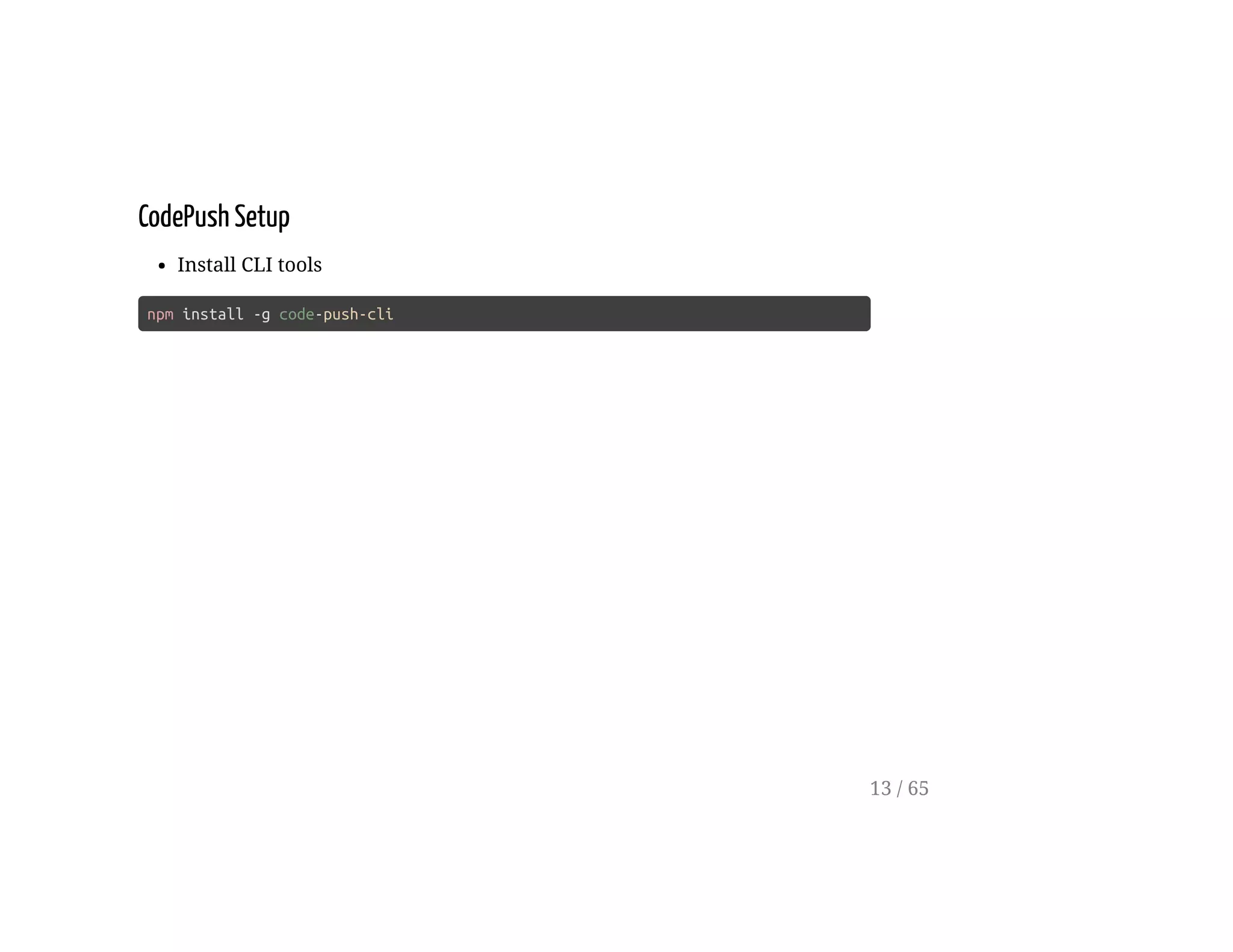

13. CodePush Setup
Install CLI tools
npm install -g code-push-cli
13 / 65

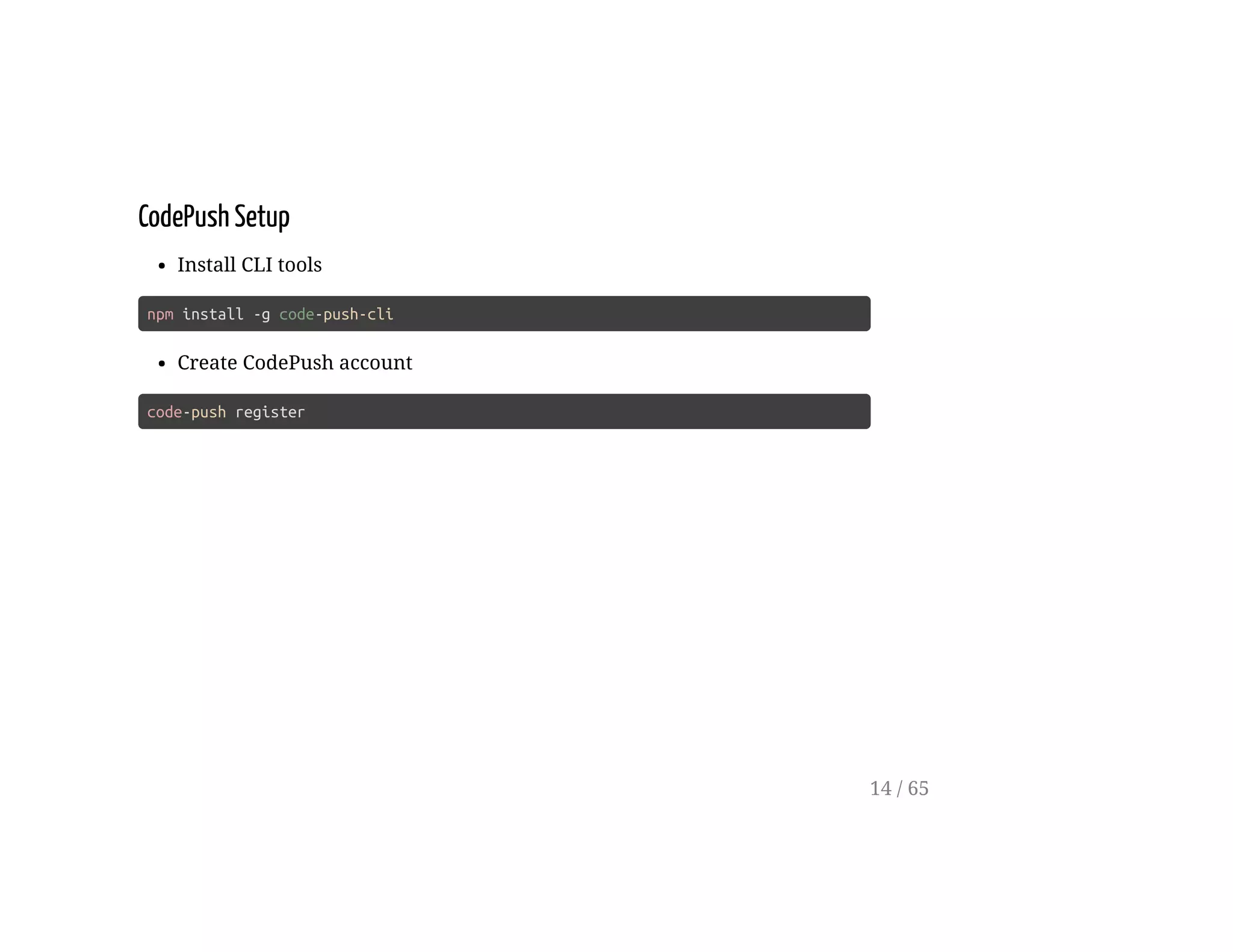

14. CodePush Setup
Install CLI tools
npm install -g code-push-cli
Create CodePush account
code-push register
14 / 65

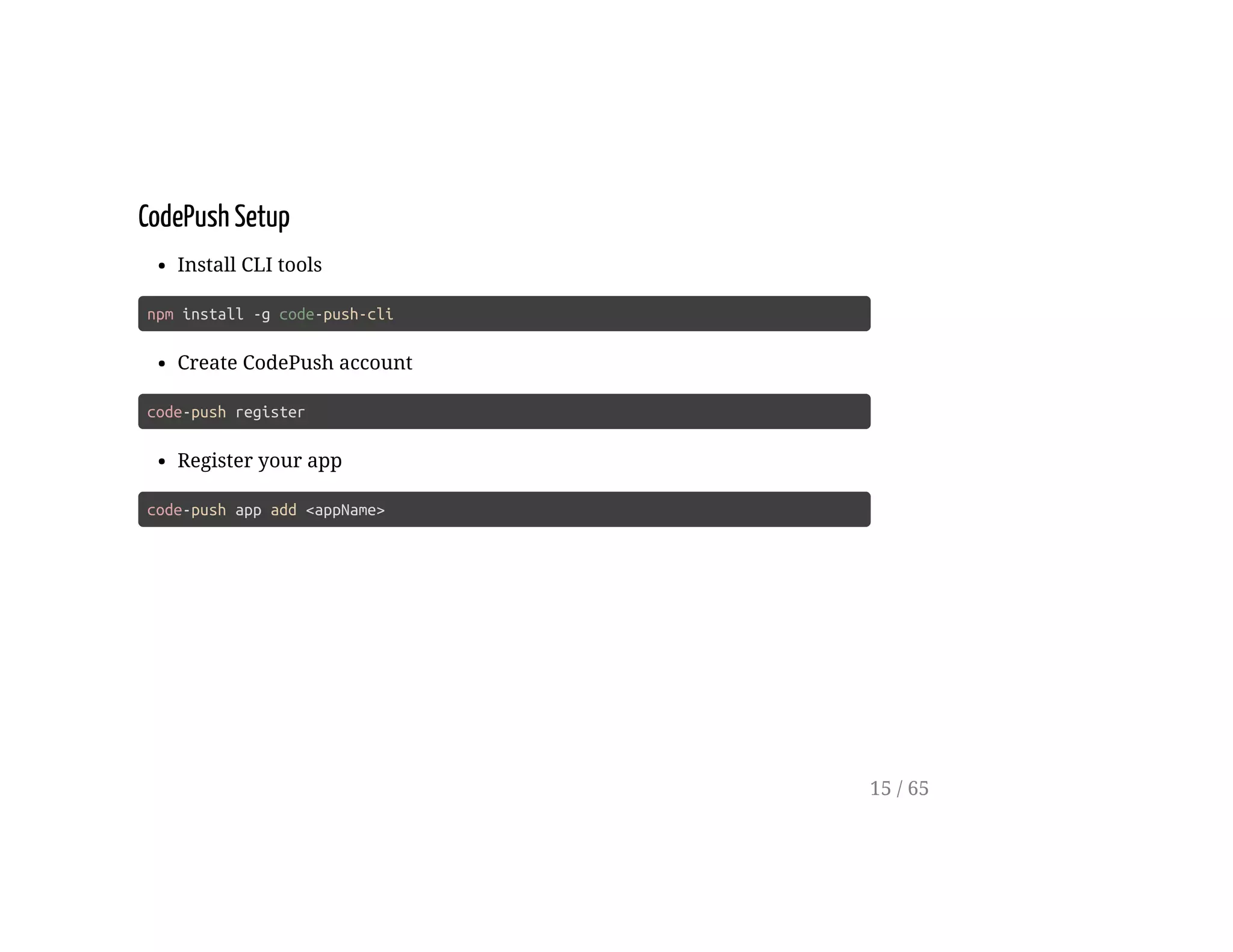

15. CodePush Setup
Install CLI tools
npm install -g code-push-cli
Create CodePush account
code-push register
Register your app
code-push app add <appName>
15 / 65

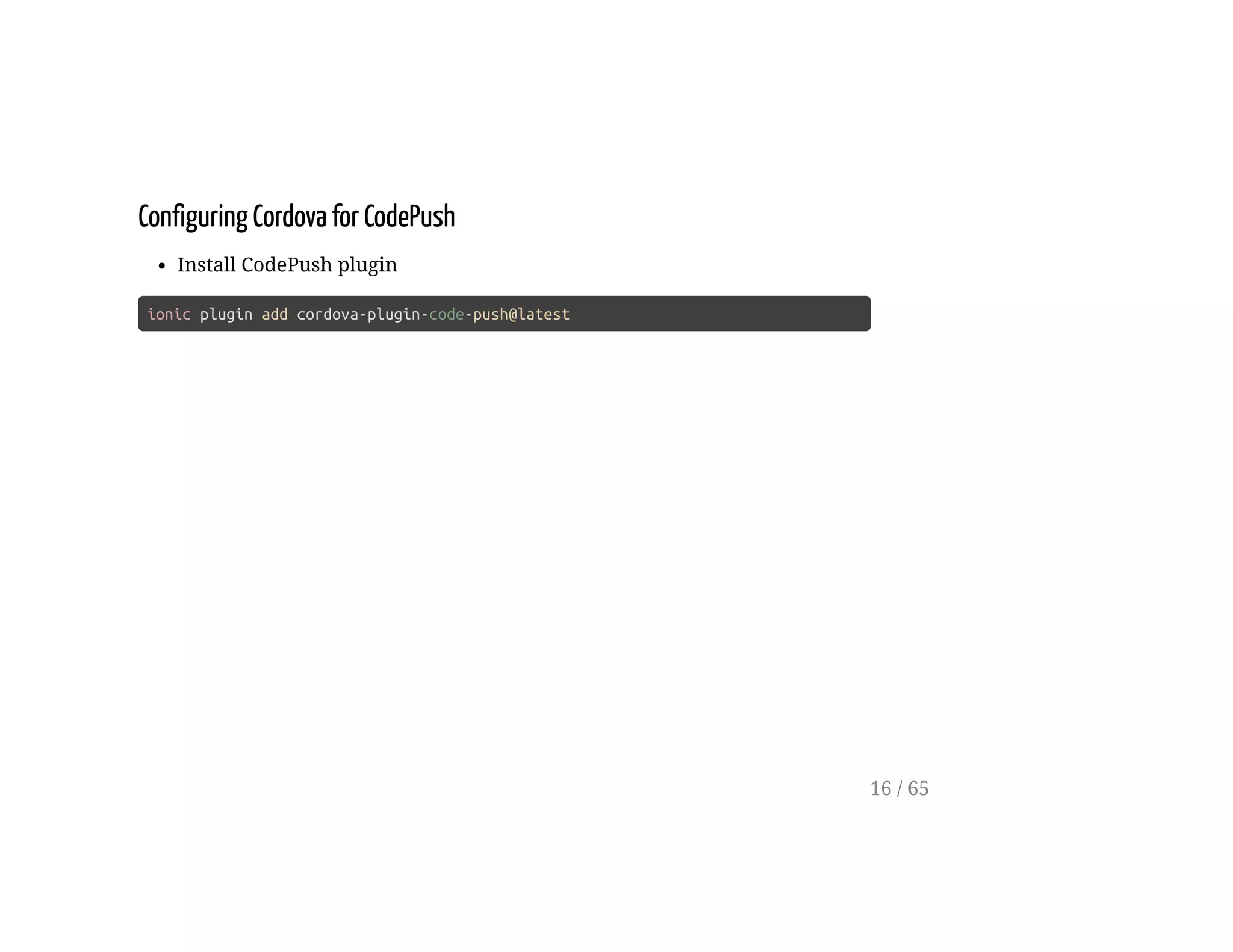

16. Configuring Cordova for CodePush
Install CodePush plugin
ionic plugin add cordova-plugin-code-push@latest
16 / 65

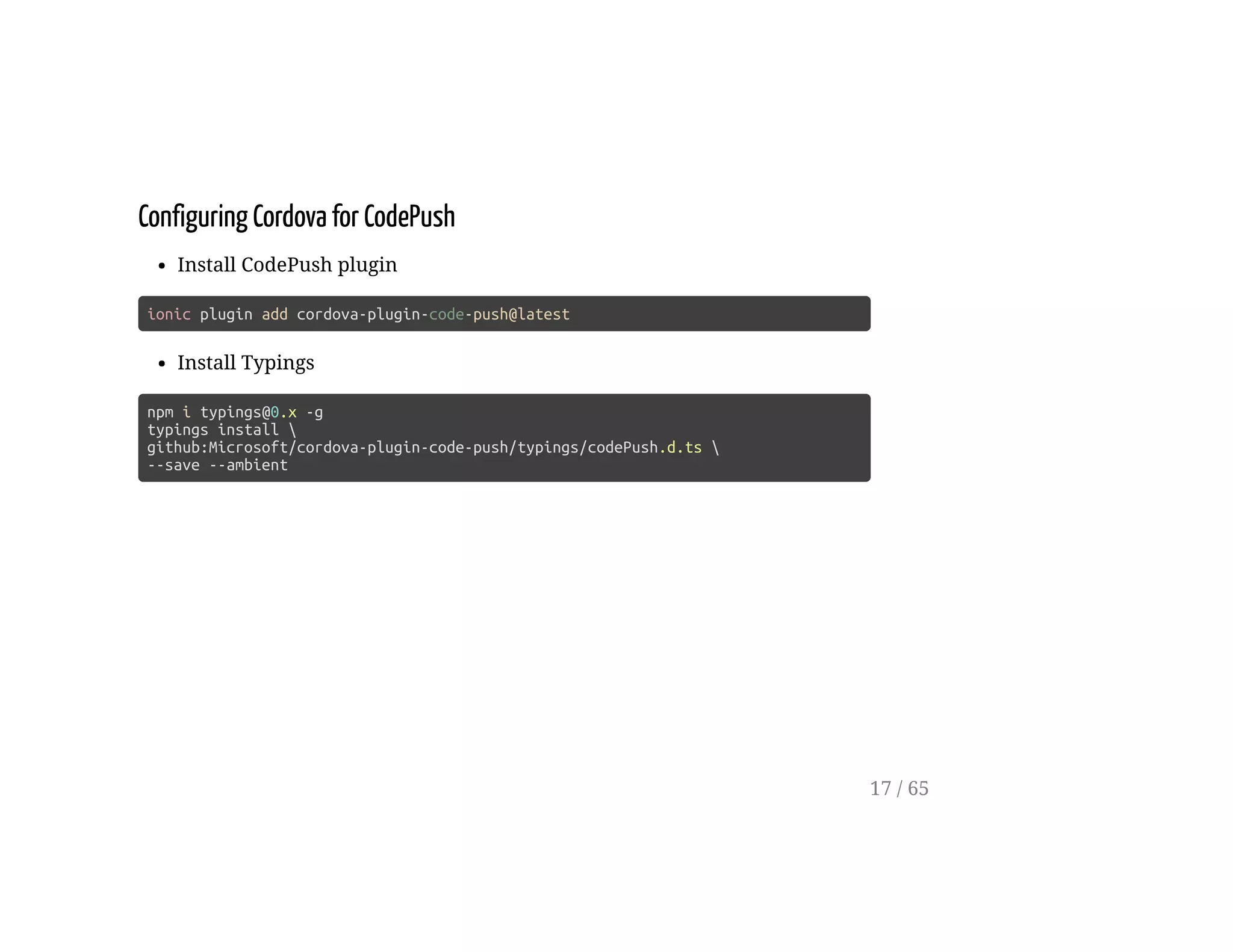

17. Configuring Cordova for CodePush
Install CodePush plugin
ionic plugin add cordova-plugin-code-push@latest
Install Typings
npm i typings@0.x -g
typings install
github:Microsoft/cordova-plugin-code-push/typings/codePush.d.ts
--save --ambient
17 / 65

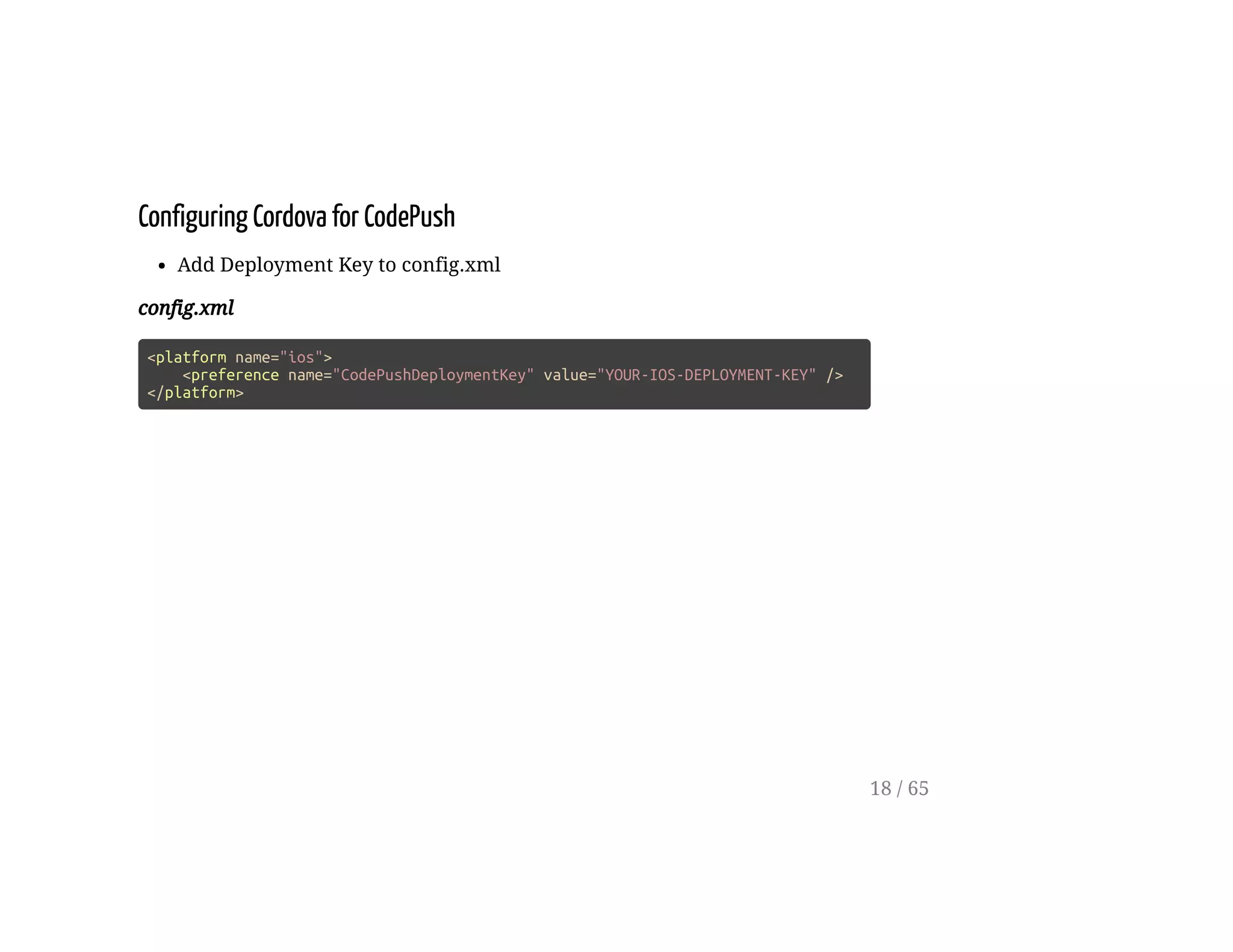

18. Configuring Cordova for CodePush
Add Deployment Key to config.xml
config.xml
<platform name="ios">
<preference name="CodePushDeploymentKey" value="YOUR-IOS-DEPLOYMENT-KEY" />
</platform>
18 / 65

19. Configuring Cordova for CodePush
Add Deployment Key to config.xml
config.xml
<platform name="ios">
<preference name="CodePushDeploymentKey" value="YOUR-IOS-DEPLOYMENT-KEY" />
</platform>
Forget your app or key? no problem
code-push app ls # list your registered apps
code-push deployment ls AppName -k
19 / 65

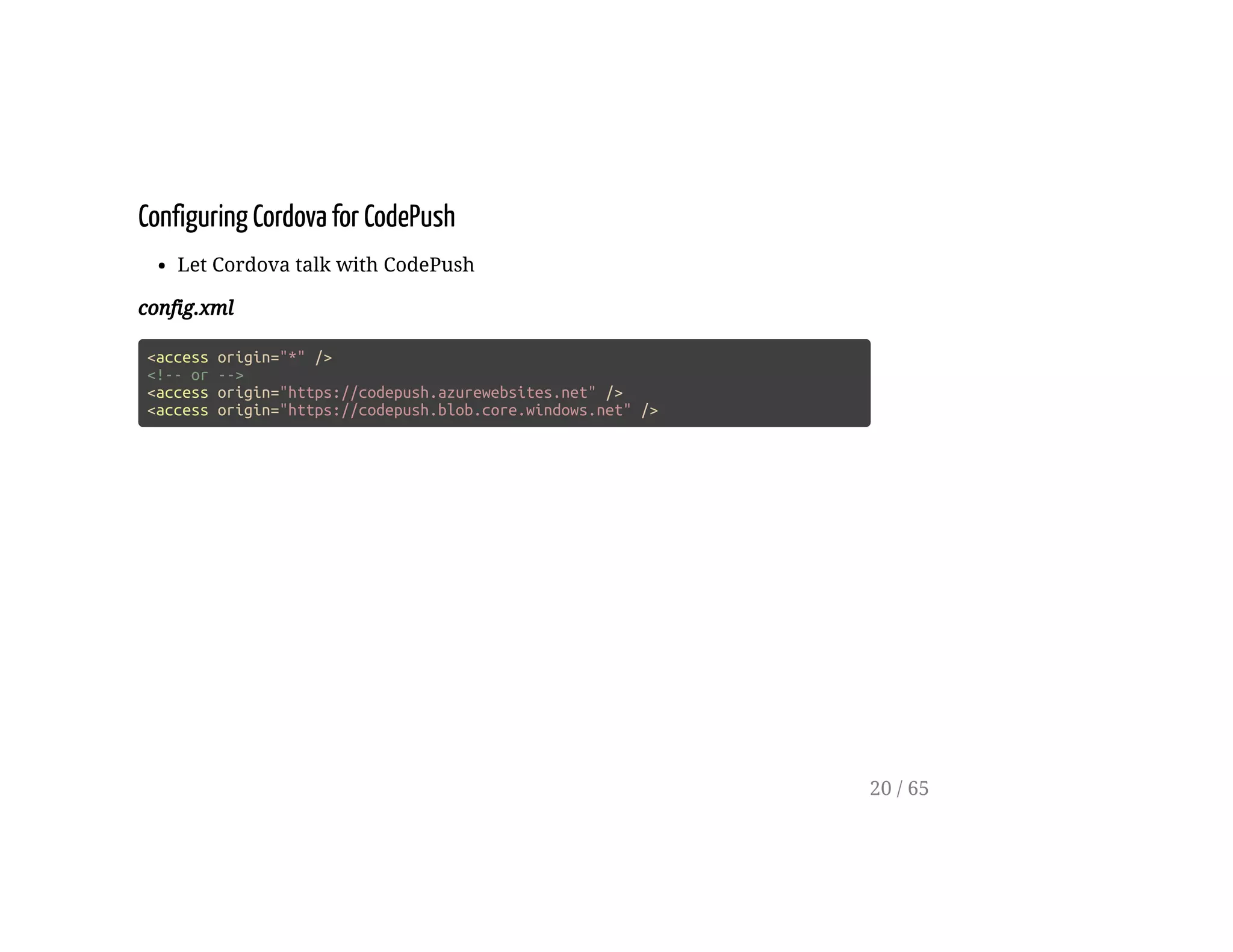

20. Configuring Cordova for CodePush
Let Cordova talk with CodePush
config.xml
<access origin="*" />
<!-- or -->
<access origin="https://codepush.azurewebsites.net" />
<access origin="https://codepush.blob.core.windows.net" />
20 / 65

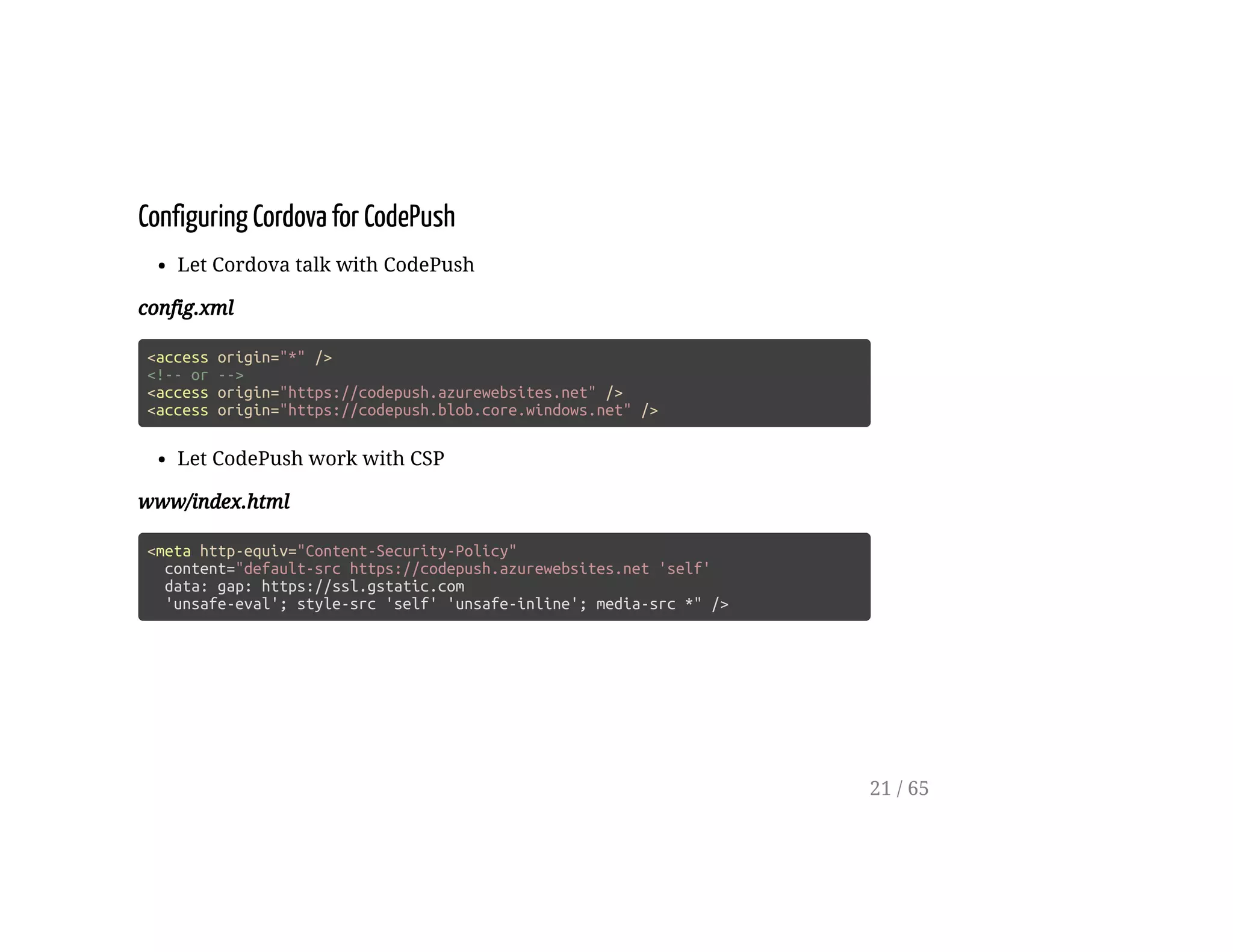

21. Configuring Cordova for CodePush
Let Cordova talk with CodePush
config.xml
<access origin="*" />
<!-- or -->
<access origin="https://codepush.azurewebsites.net" />
<access origin="https://codepush.blob.core.windows.net" />
Let CodePush work with CSP
www/index.html
<meta http-equiv="Content-Security-Policy"
content="default-src https://codepush.azurewebsites.net 'self'
data: gap: https://ssl.gstatic.com
'unsafe-eval'; style-src 'self' 'unsafe-inline'; media-src *" />
21 / 65

22. Settings Tab
22 / 65

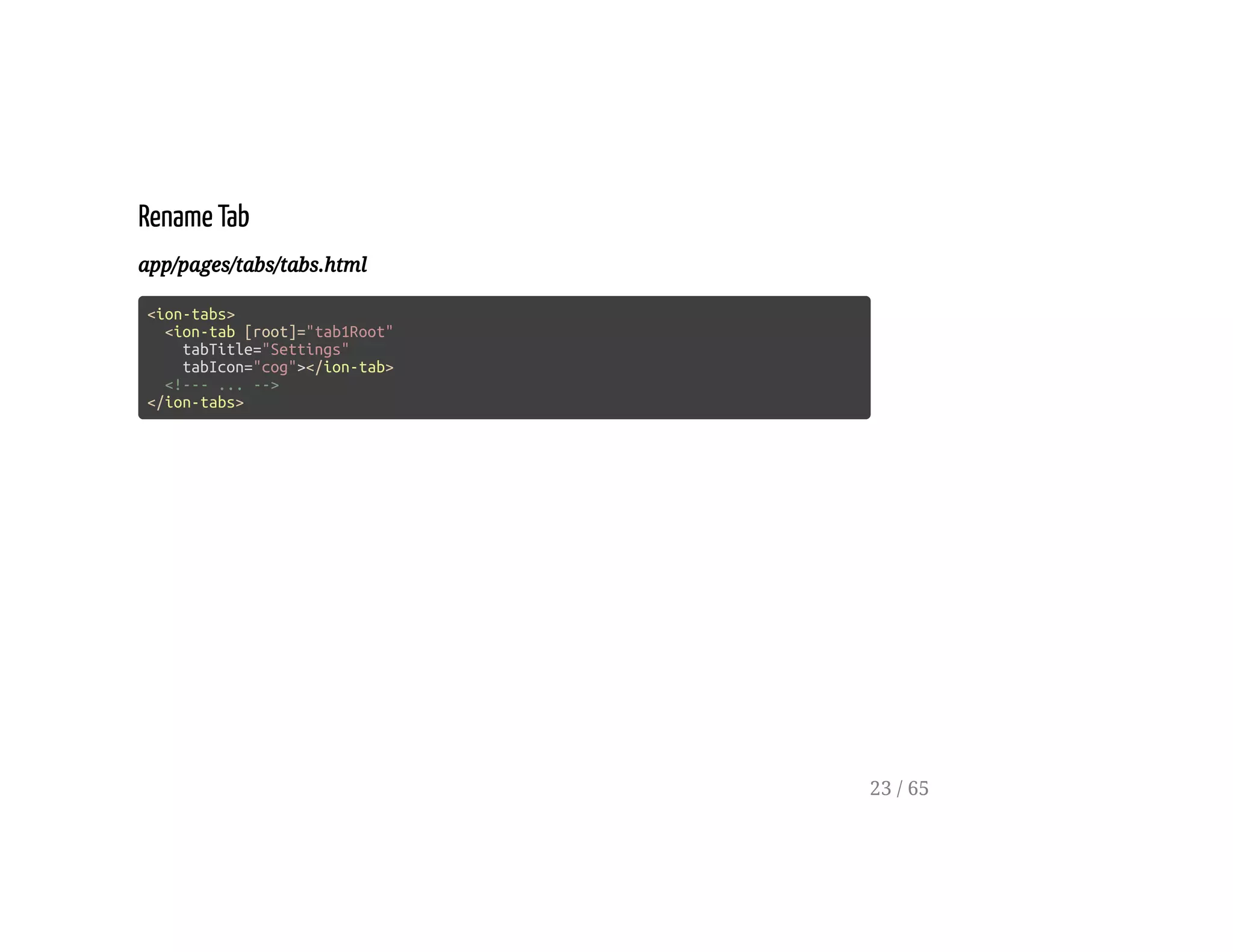

23. Rename Tab
app/pages/tabs/tabs.html
<ion-tabs>
<ion-tab [root]="tab1Root"
tabTitle="Settings"
tabIcon="cog"></ion-tab>
<!--- ... -->
</ion-tabs>
23 / 65

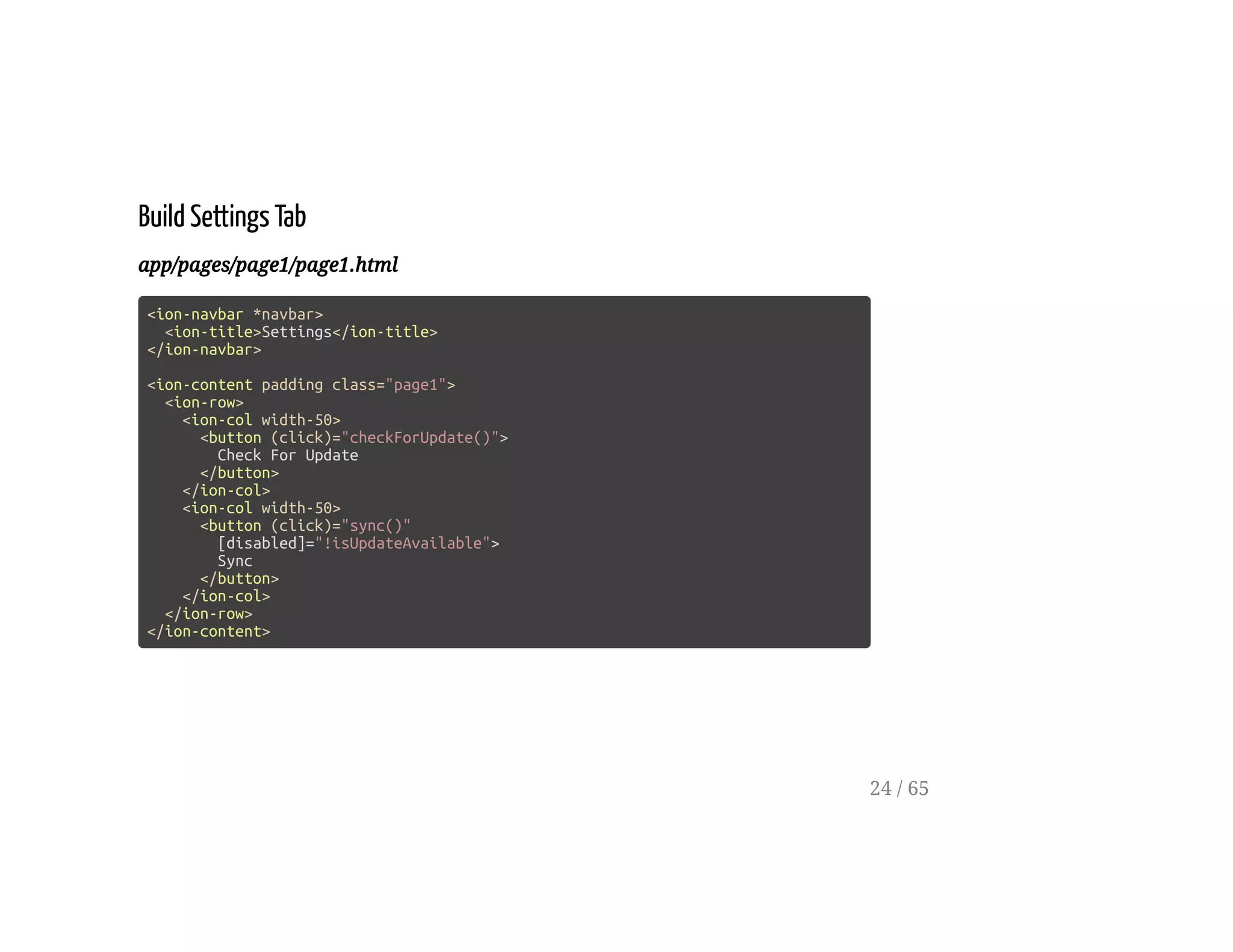

24. Build Settings Tab
app/pages/page1/page1.html
<ion-navbar *navbar>
<ion-title>Settings</ion-title>
</ion-navbar>
<ion-content padding class="page1">
<ion-row>
<ion-col width-50>
<button (click)="checkForUpdate()">
Check For Update
</button>
</ion-col>
<ion-col width-50>
<button (click)="sync()"
[disabled]="!isUpdateAvailable">
Sync
</button>
</ion-col>
</ion-row>
</ion-content>
24 / 65

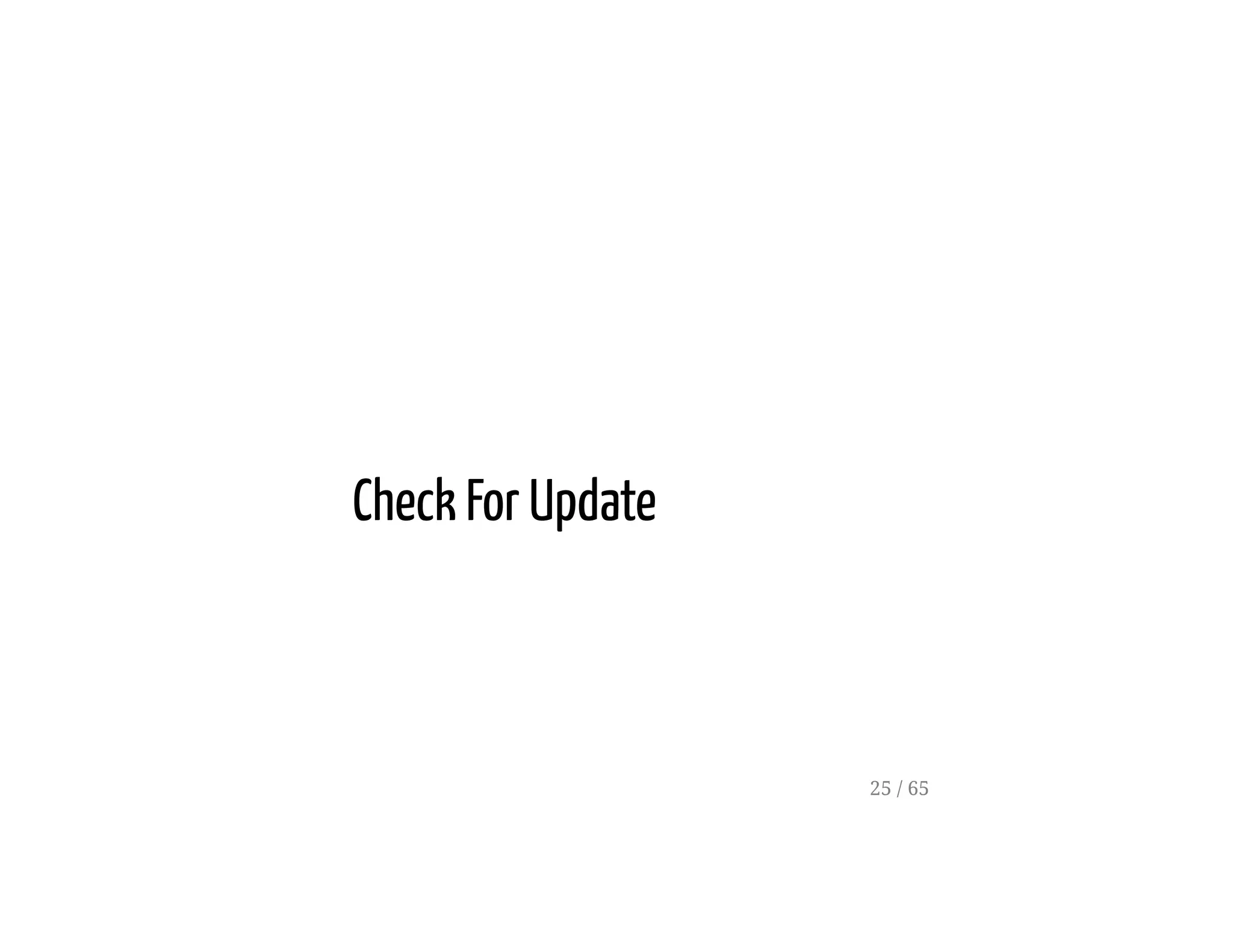

25. Check For Update
25 / 65

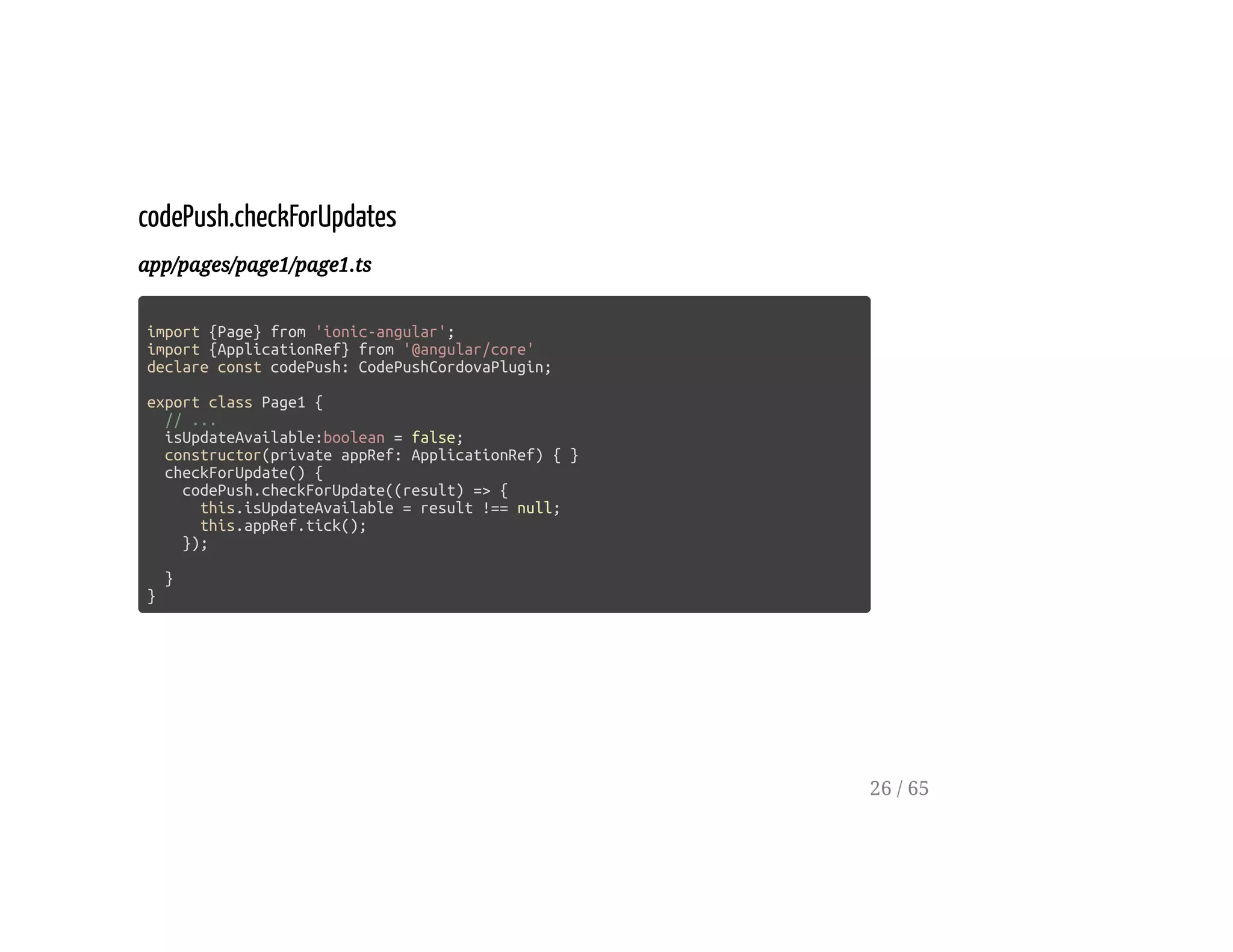

26. codePush.checkForUpdates
app/pages/page1/page1.ts
import {Page} from 'ionic-angular';
import {ApplicationRef} from '@angular/core'
declare const codePush: CodePushCordovaPlugin;
export class Page1 {
// ...
isUpdateAvailable:boolean = false;
constructor(private appRef: ApplicationRef) { }
checkForUpdate() {
codePush.checkForUpdate((result) => {
this.isUpdateAvailable = result !== null;
this.appRef.tick();
});
}
}
26 / 65

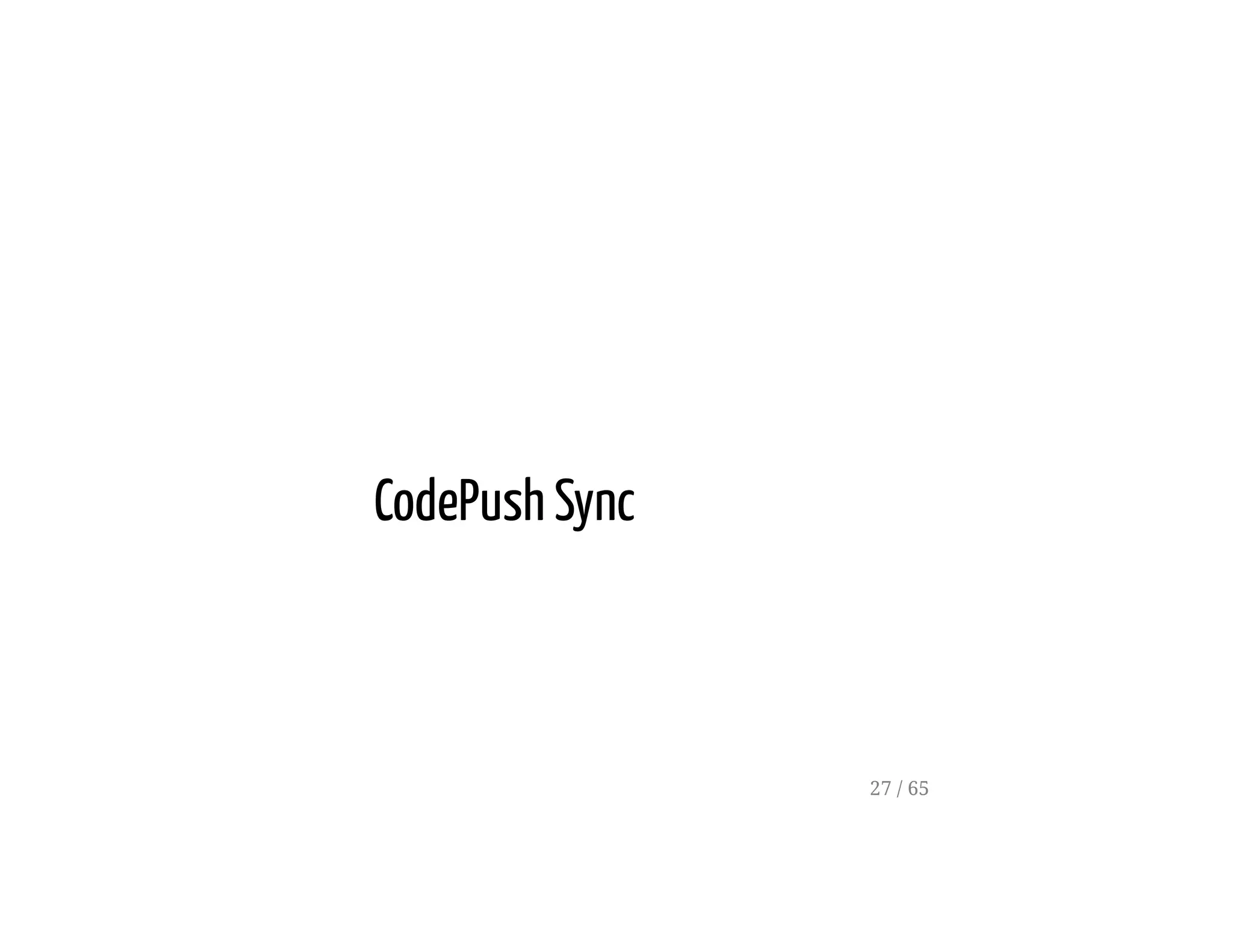

27. CodePush Sync
27 / 65

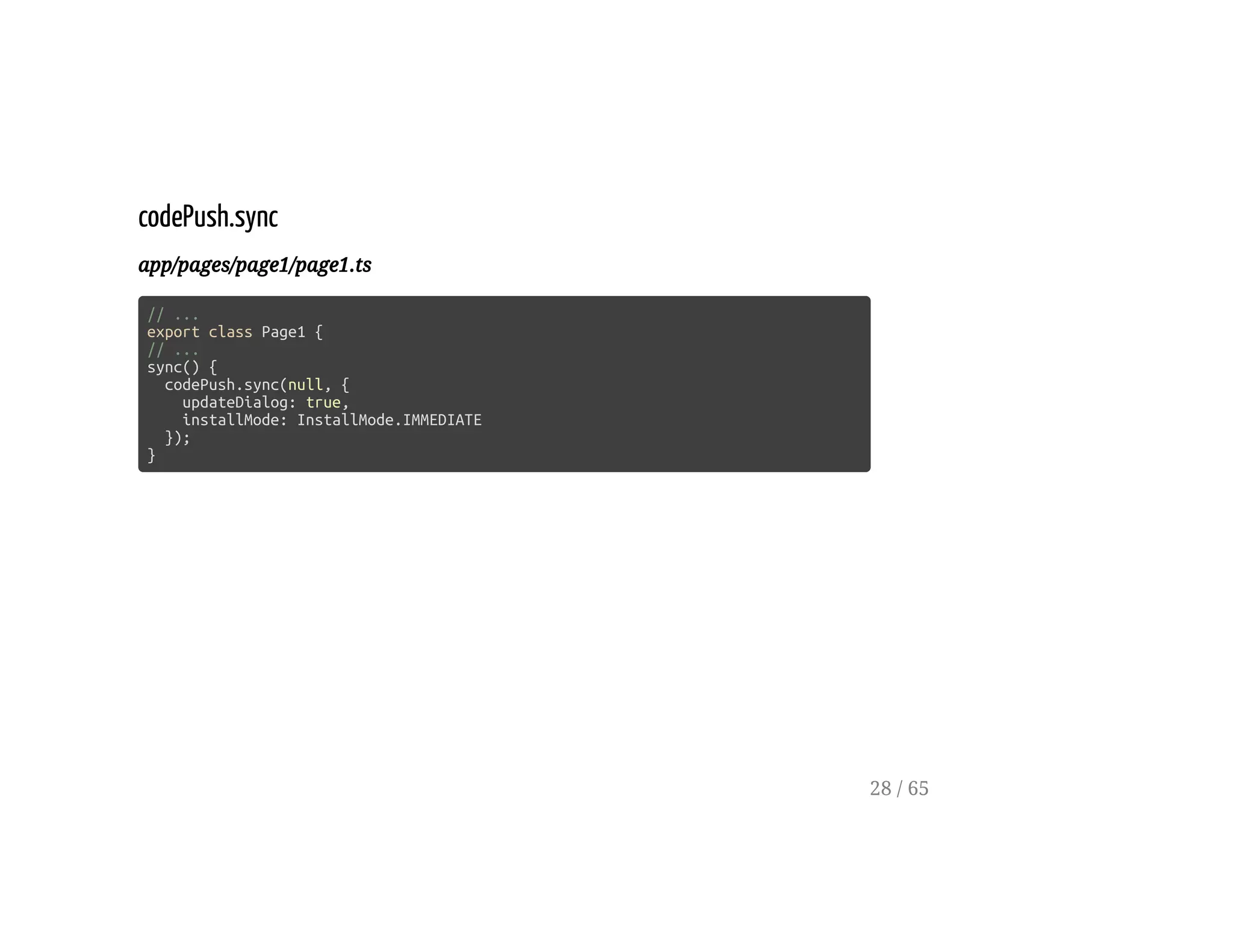

28. codePush.sync
app/pages/page1/page1.ts
// ...
export class Page1 {
// ...
sync() {
codePush.sync(null, {
updateDialog: true,
installMode: InstallMode.IMMEDIATE
});
}
28 / 65

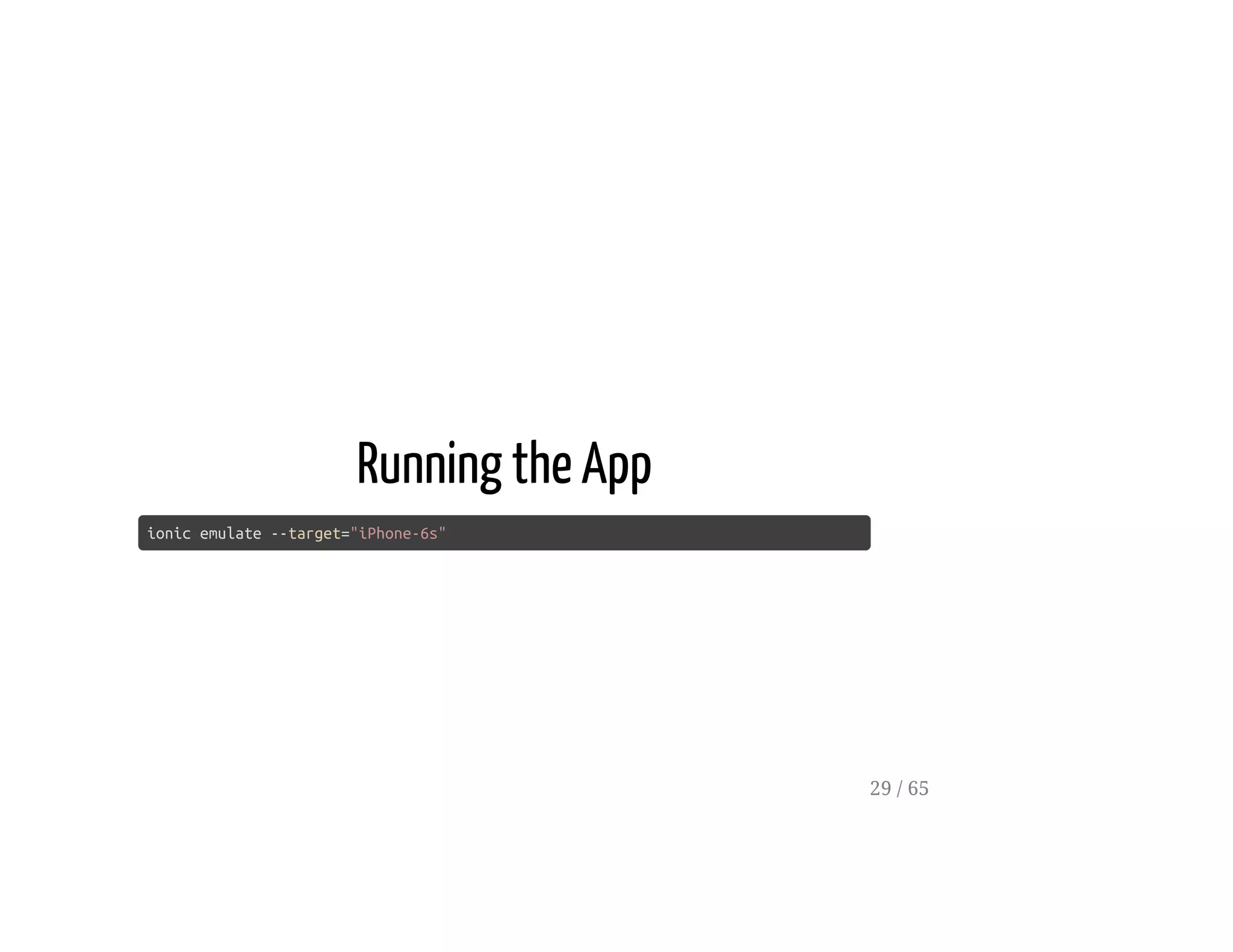

29. Running the App
ionic emulate --target="iPhone-6s"
29 / 65

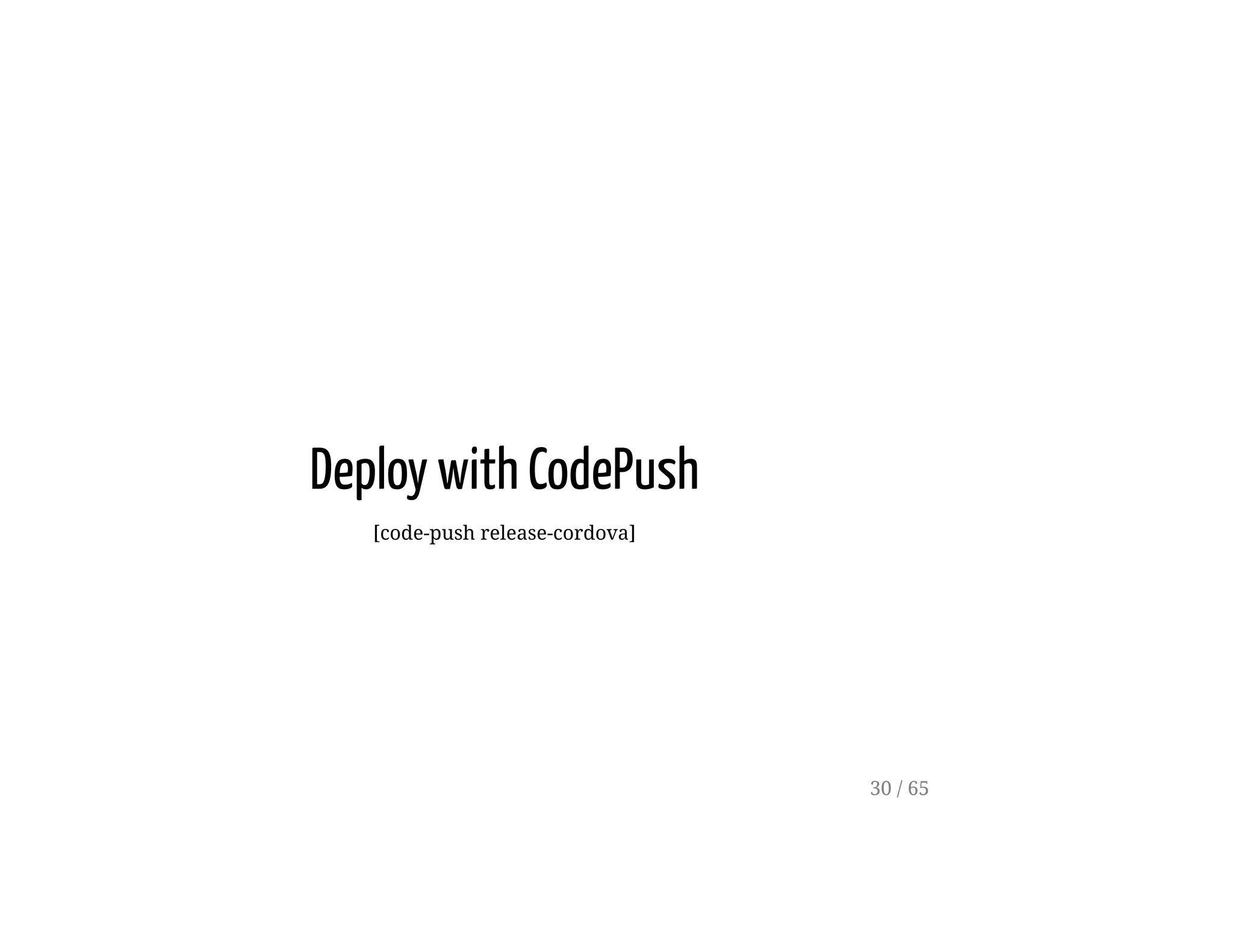

30. Deploy with CodePush
[code-push release-cordova]
30 / 65

31. Build & Deploy
Build
ionic build
31 / 65

32. Build & Deploy
Build
ionic build
Deploy
code-push release-cordova pgdays-demo ios
32 / 65

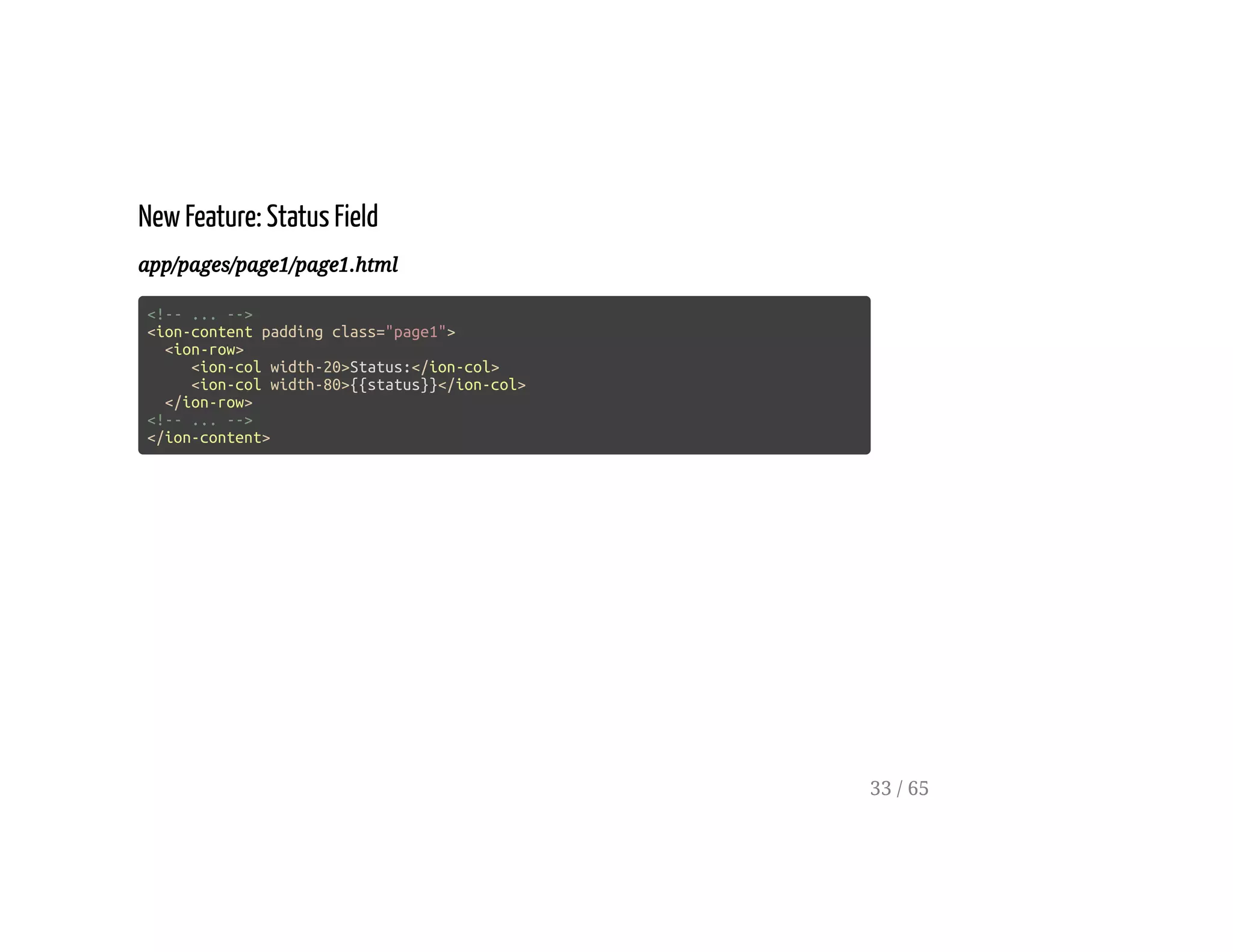

33. New Feature: Status Field
app/pages/page1/page1.html
<!-- ... -->
<ion-content padding class="page1">
<ion-row>
<ion-col width-20>Status:</ion-col>
<ion-col width-80>{{status}}</ion-col>
</ion-row>
<!-- ... -->
</ion-content>
33 / 65

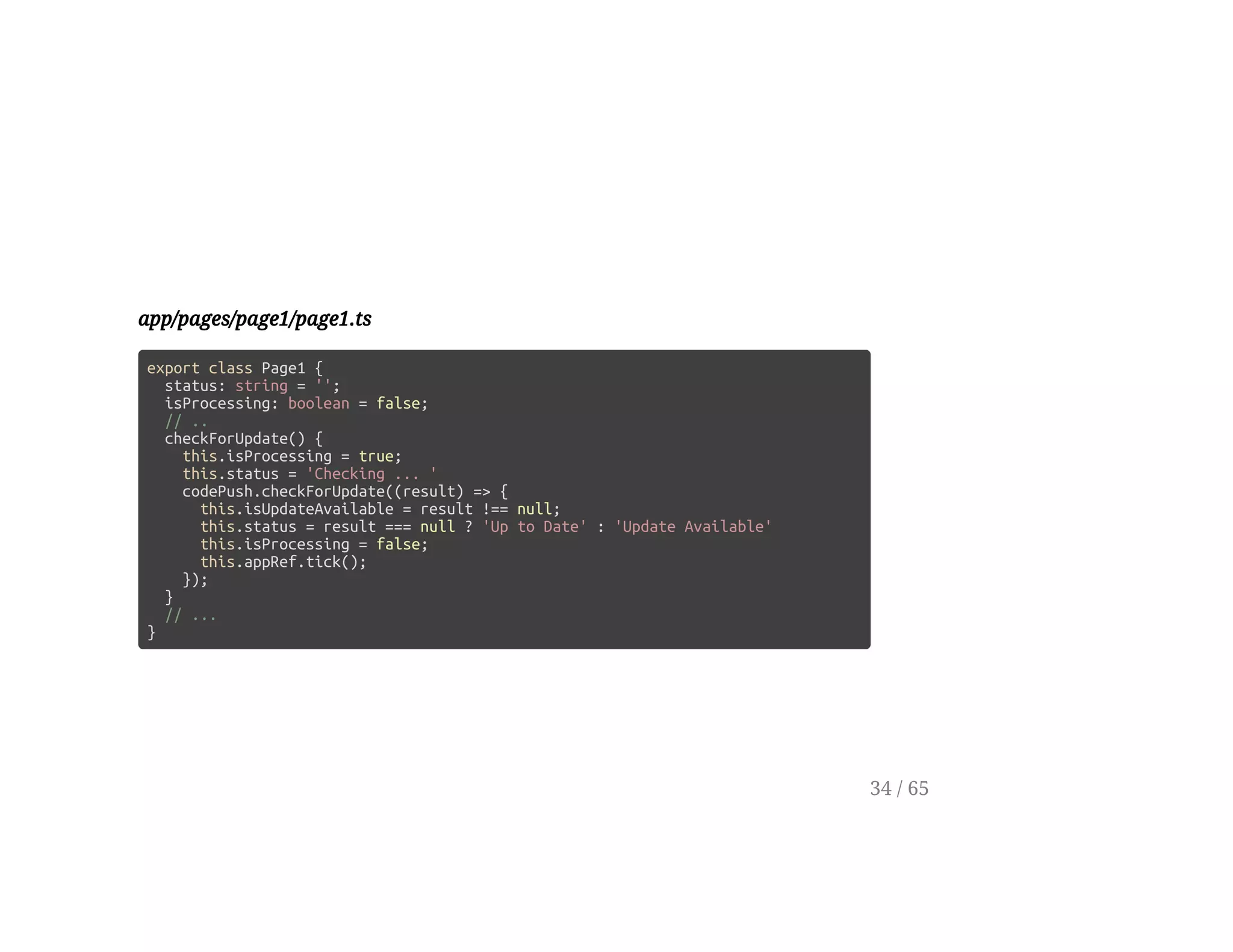

34. app/pages/page1/page1.ts
export class Page1 {
status: string = '';
isProcessing: boolean = false;
// ..
checkForUpdate() {
this.isProcessing = true;
this.status = 'Checking ... '
codePush.checkForUpdate((result) => {
this.isUpdateAvailable = result !== null;
this.status = result === null ? 'Up to Date' : 'Update Available'
this.isProcessing = false;
this.appRef.tick();
});
}
// ...
}
34 / 65

35. Sync the Update
Build & Release CodePush
ionic build
code-push release-cordova pgdays-demo ios
35 / 65

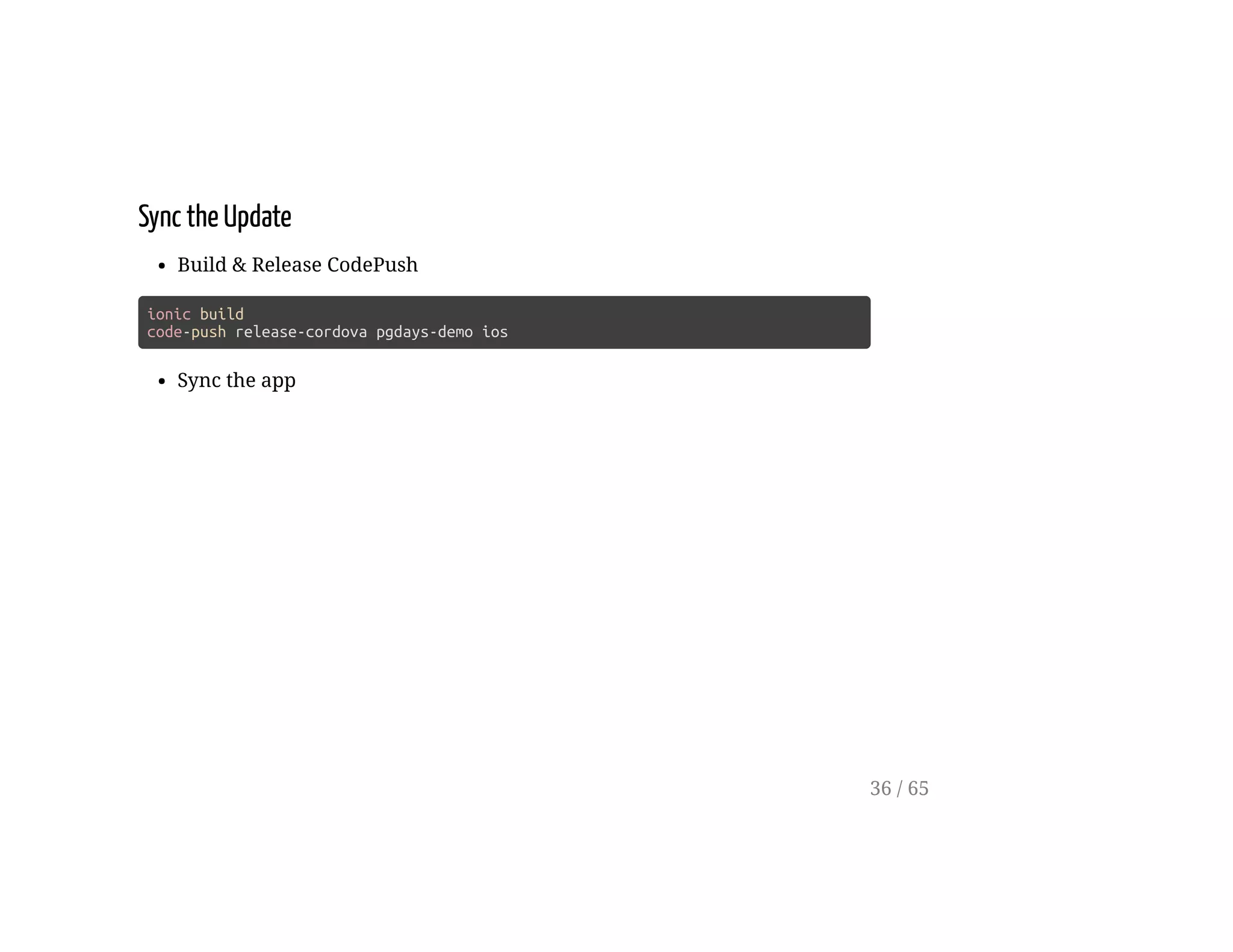

36. Sync the Update
Build & Release CodePush
ionic build
code-push release-cordova pgdays-demo ios
Sync the app
36 / 65

37. Deployments
37 / 65

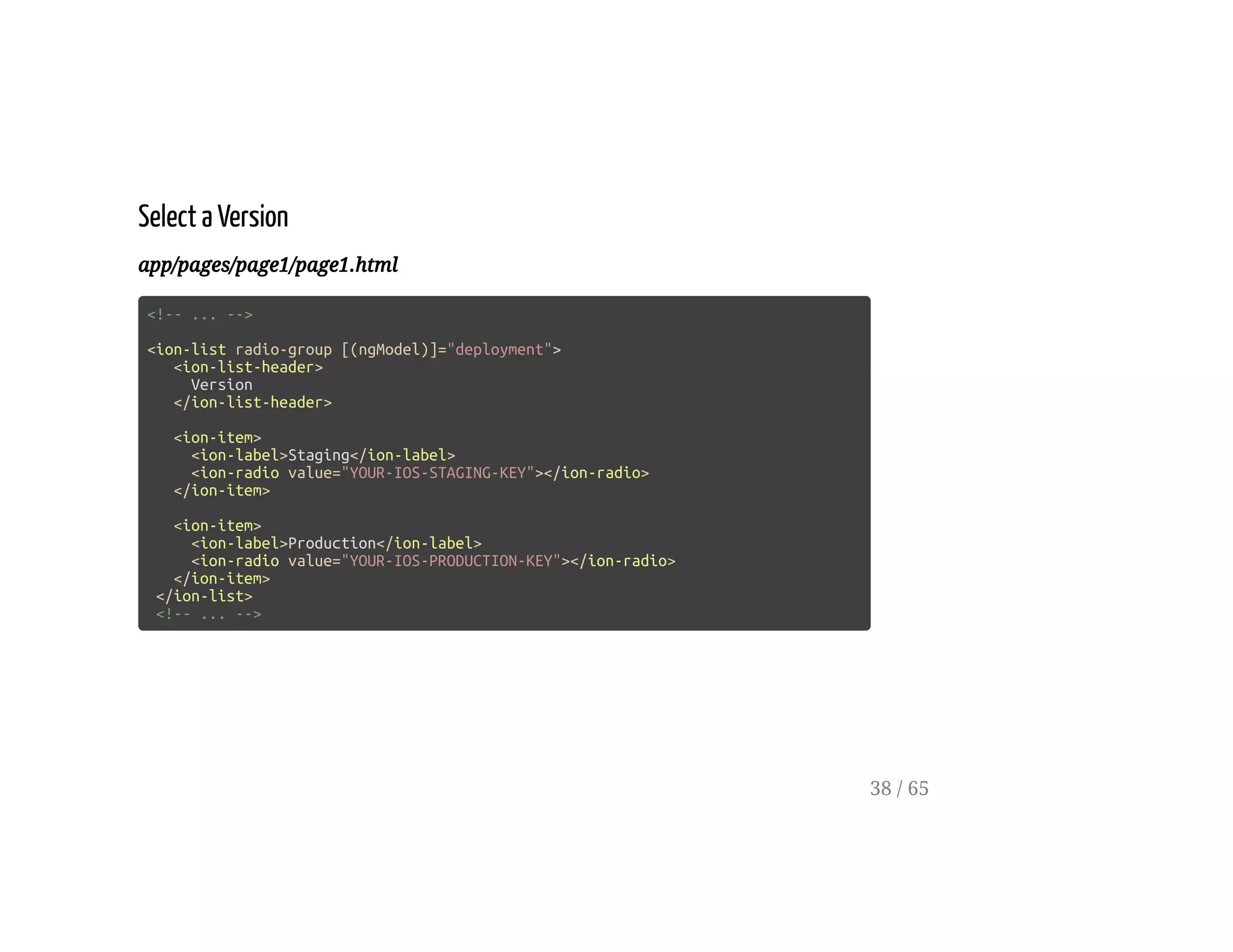

38. Select a Version
app/pages/page1/page1.html
<!-- ... -->
<ion-list radio-group [(ngModel)]="deployment">
<ion-list-header>
Version
</ion-list-header>
<ion-item>
<ion-label>Staging</ion-label>
<ion-radio value="YOUR-IOS-STAGING-KEY"></ion-radio>
</ion-item>
<ion-item>
<ion-label>Production</ion-label>
<ion-radio value="YOUR-IOS-PRODUCTION-KEY"></ion-radio>
</ion-item>
</ion-list>
<!-- ... -->
38 / 65

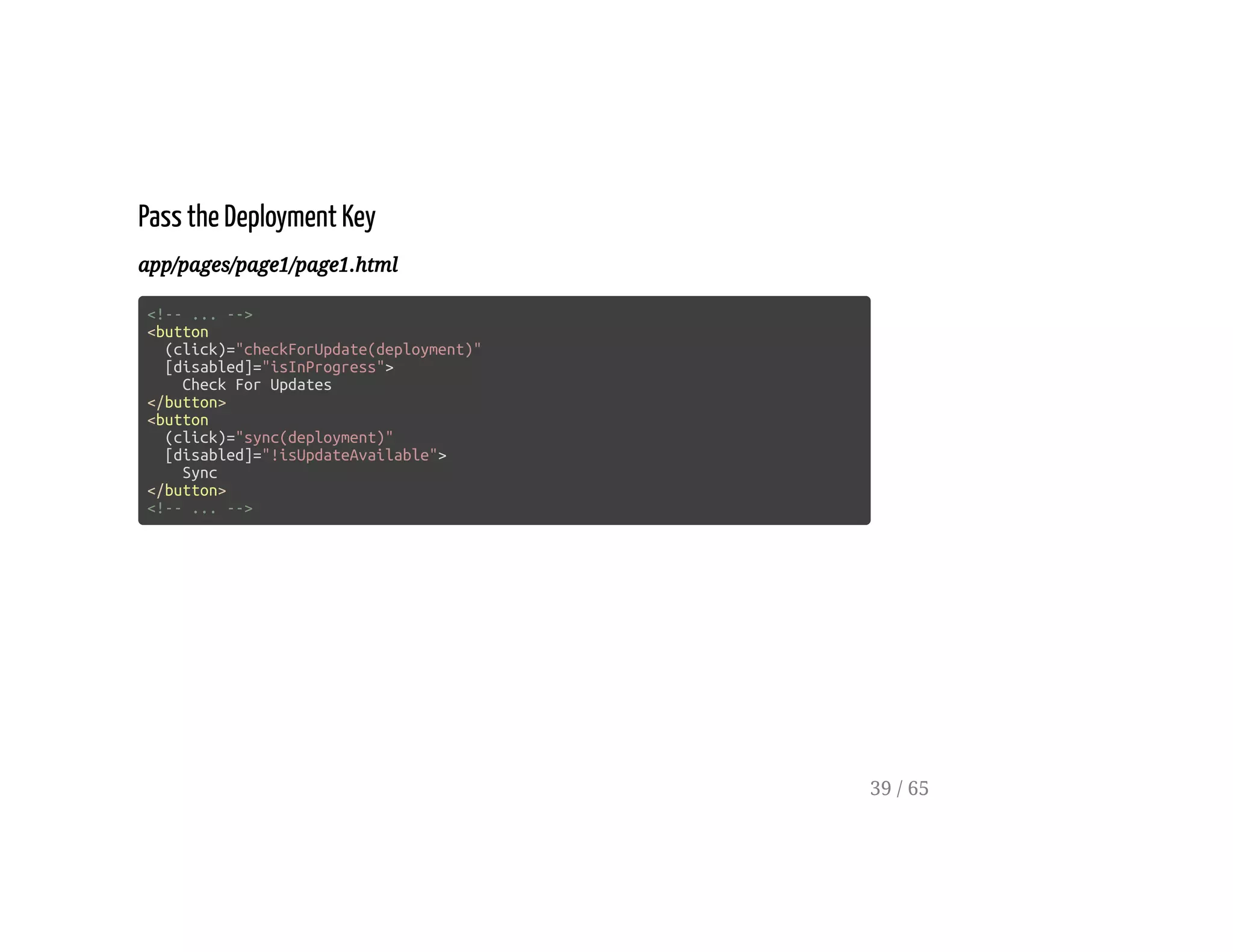

39. Pass the Deployment Key
app/pages/page1/page1.html
<!-- ... -->
<button
(click)="checkForUpdate(deployment)"
[disabled]="isInProgress">
Check For Updates
</button>
<button
(click)="sync(deployment)"
[disabled]="!isUpdateAvailable">
Sync
</button>
<!-- ... -->
39 / 65

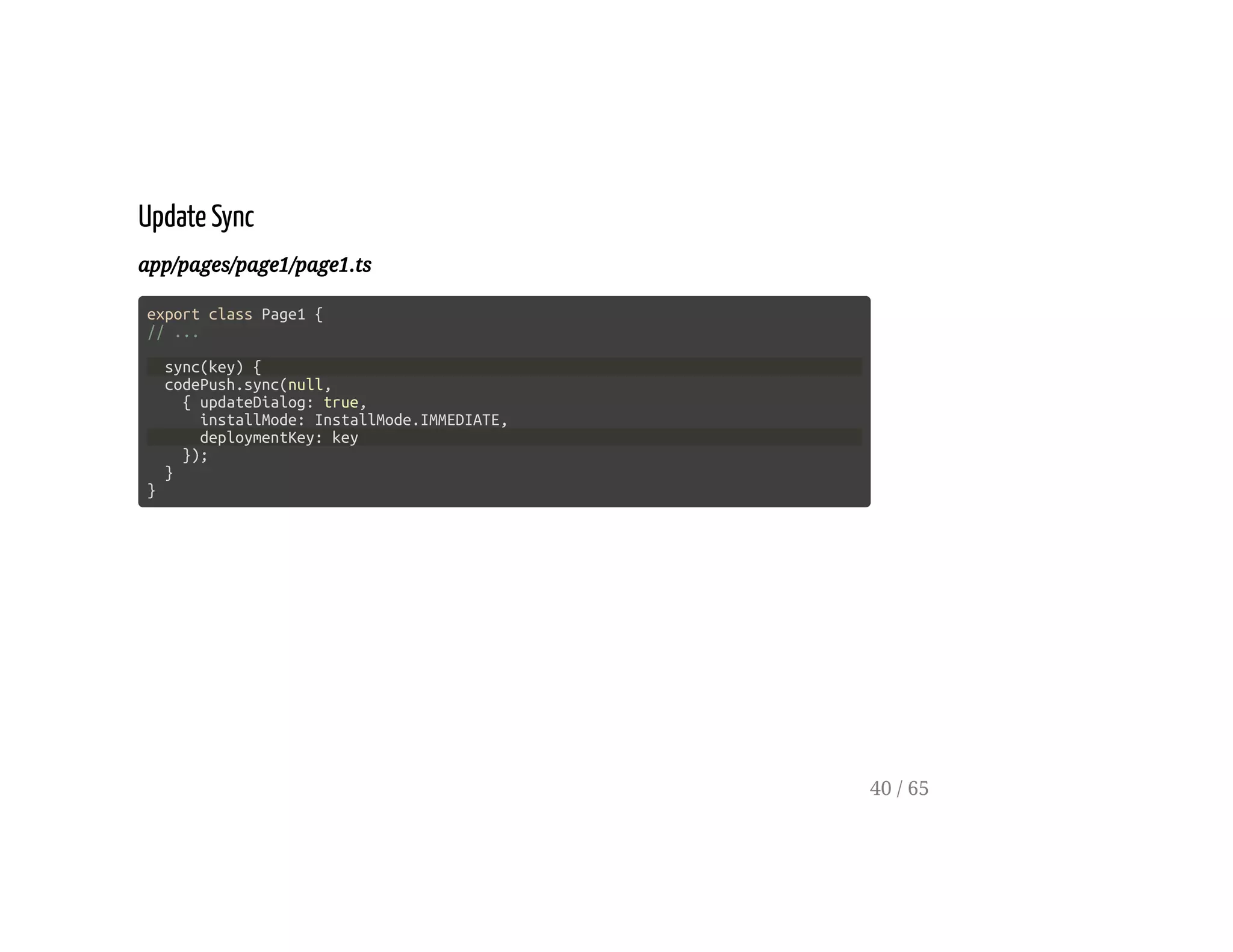

40. Update Sync
app/pages/page1/page1.ts
export class Page1 {
// ...
sync(key) {
codePush.sync(null,
{ updateDialog: true,
installMode: InstallMode.IMMEDIATE,
deploymentKey: key
});
}
}
40 / 65

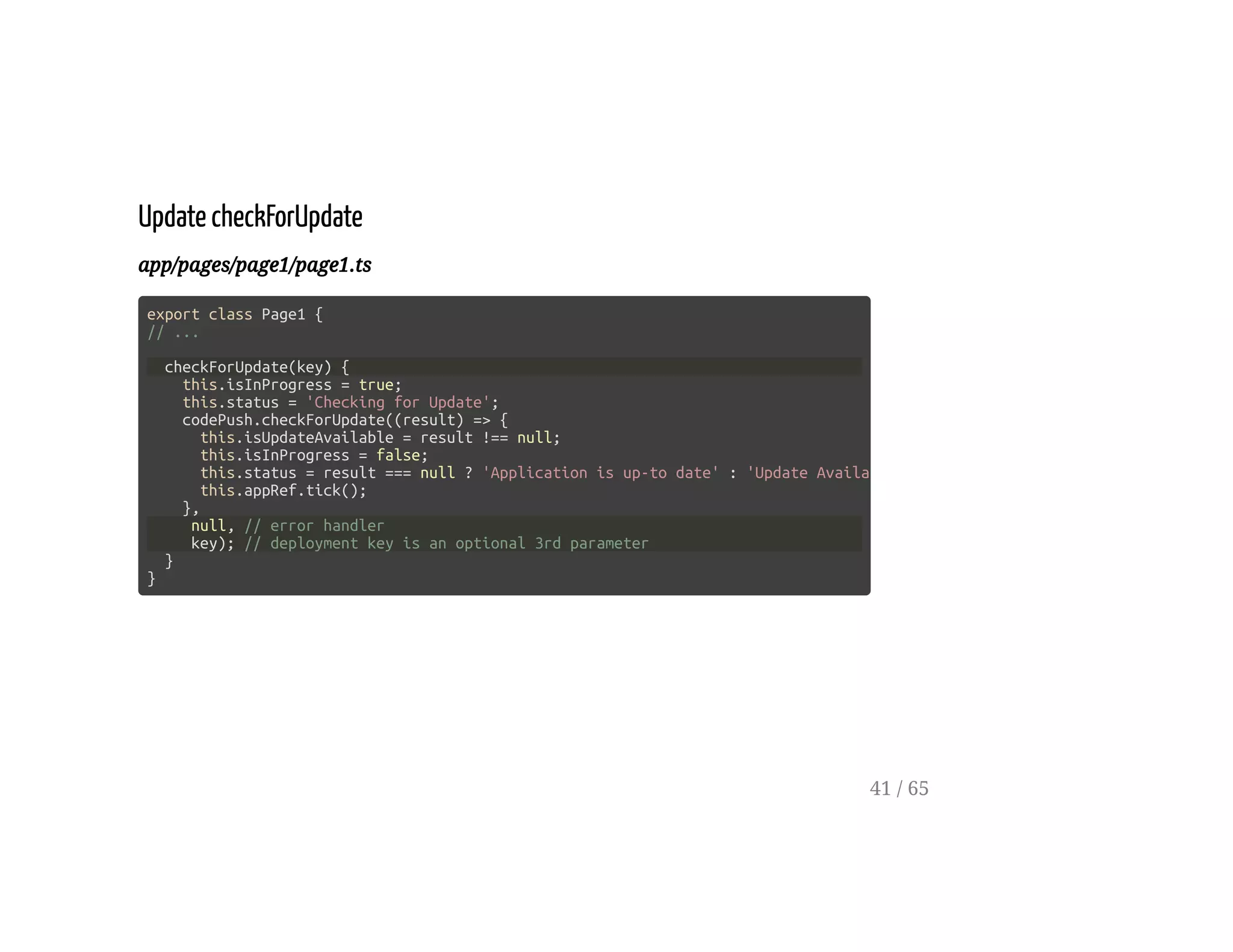

41. Update checkForUpdate
app/pages/page1/page1.ts
export class Page1 {
// ...
checkForUpdate(key) {
this.isInProgress = true;
this.status = 'Checking for Update';
codePush.checkForUpdate((result) => {
this.isUpdateAvailable = result !== null;
this.isInProgress = false;
this.status = result === null ? 'Application is up-to date' : 'Update Available'
this.appRef.tick();
},
null, // error handler
key); // deployment key is an optional 3rd parameter
}
}
41 / 65

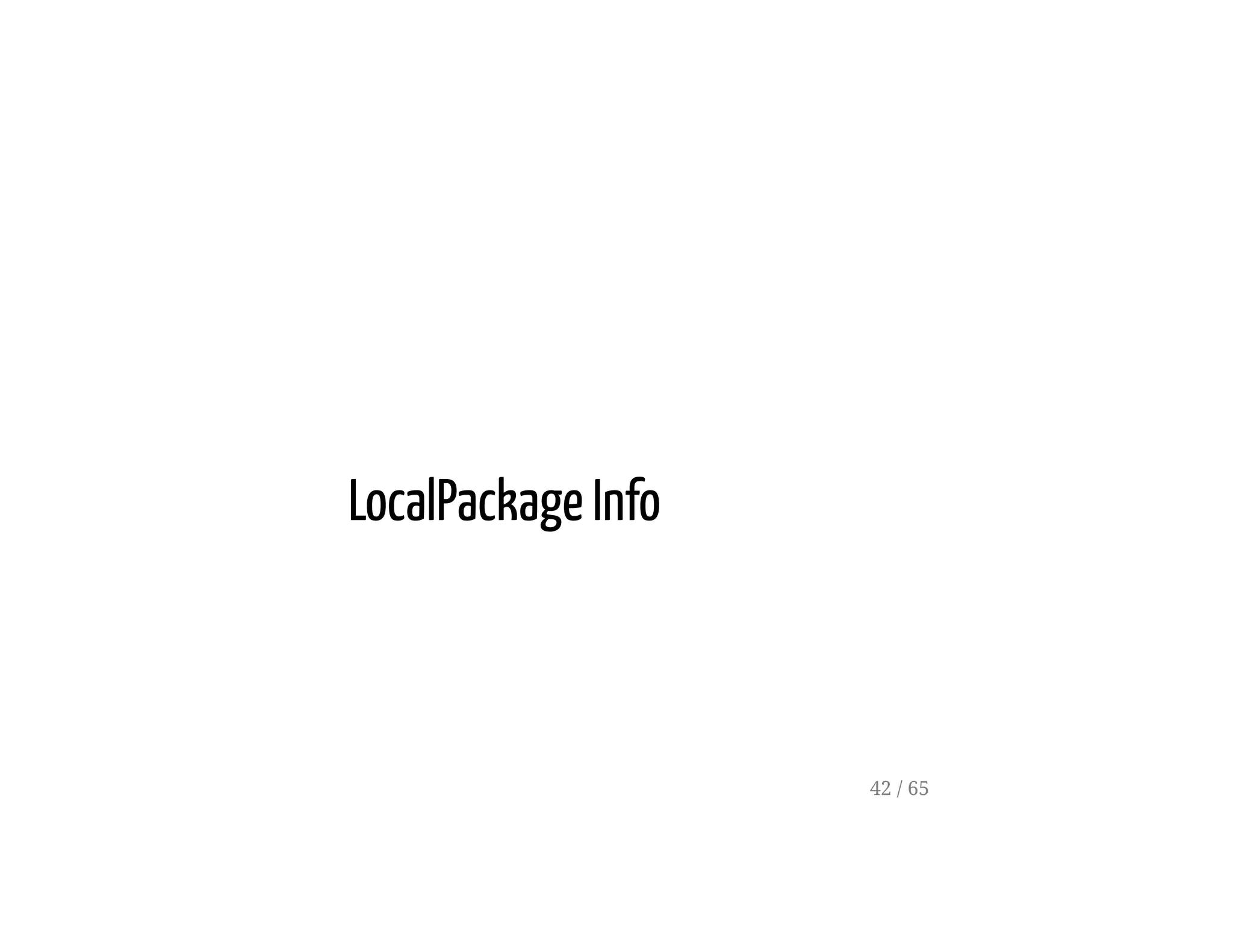

42. LocalPackage Info
42 / 65

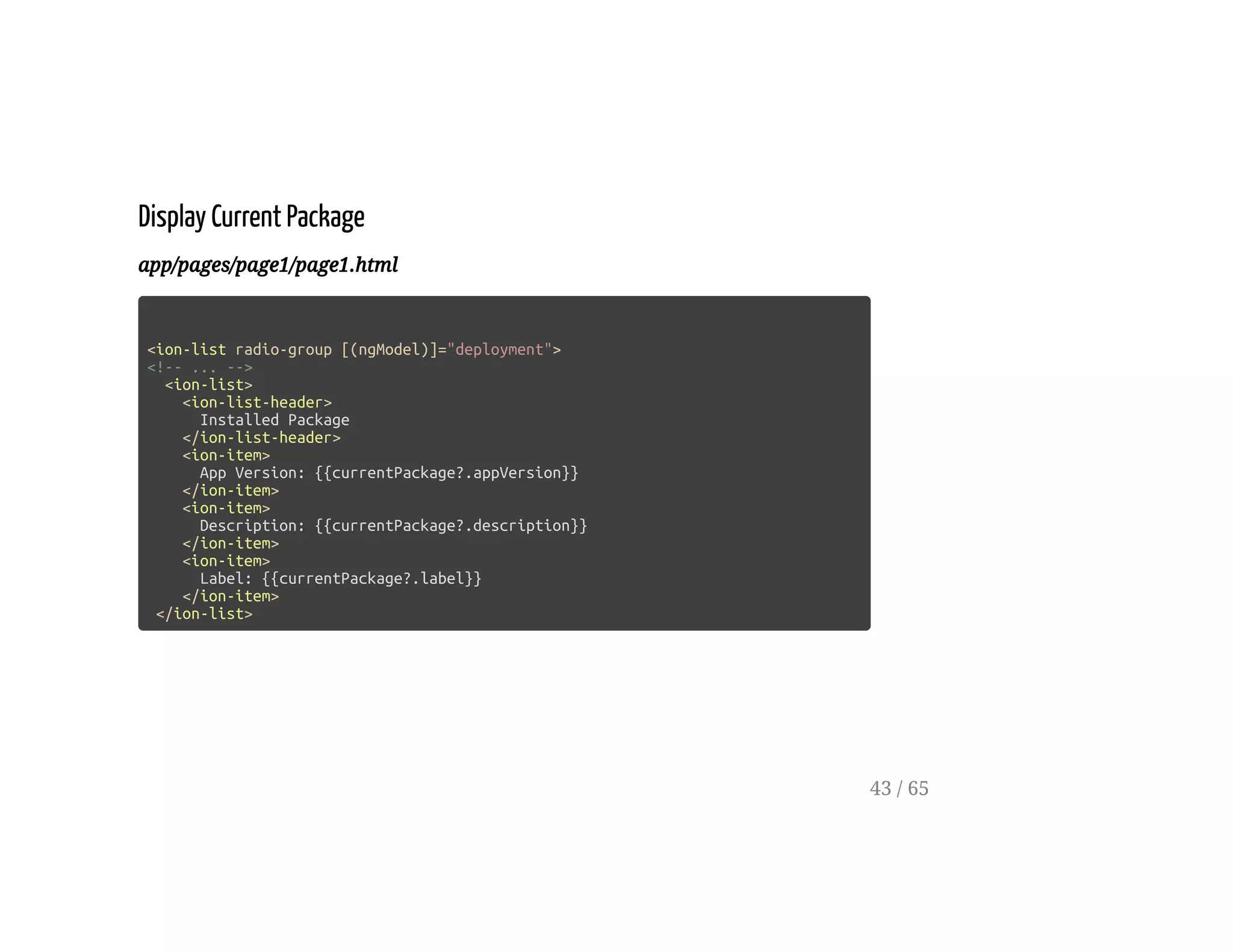

43. Display Current Package
app/pages/page1/page1.html
<ion-list radio-group [(ngModel)]="deployment">
<!-- ... -->
<ion-list>
<ion-list-header>
Installed Package
</ion-list-header>
<ion-item>
App Version: {{currentPackage?.appVersion}}
</ion-item>
<ion-item>
Description: {{currentPackage?.description}}
</ion-item>
<ion-item>
Label: {{currentPackage?.label}}
</ion-item>
</ion-list>
43 / 65

44. app/pages/page1/page1.ts
import {Page, Platform} from 'ionic-angular';
// ...
export class Page1 {
// ...
currentPackage: ILocalPackage;
constructor(private platform: Platform,
private appRef: ApplicationRef) { }
ngOnInit() {
this.platform
.ready()
.then( () => this.getCurrentPackage());
}
getCurrentPackage() {
codePush.getCurrentPackage((result: ILocalPackage) => {
this.currentPackage = result;
this.appRef.tick();
})
}
}
44 / 65

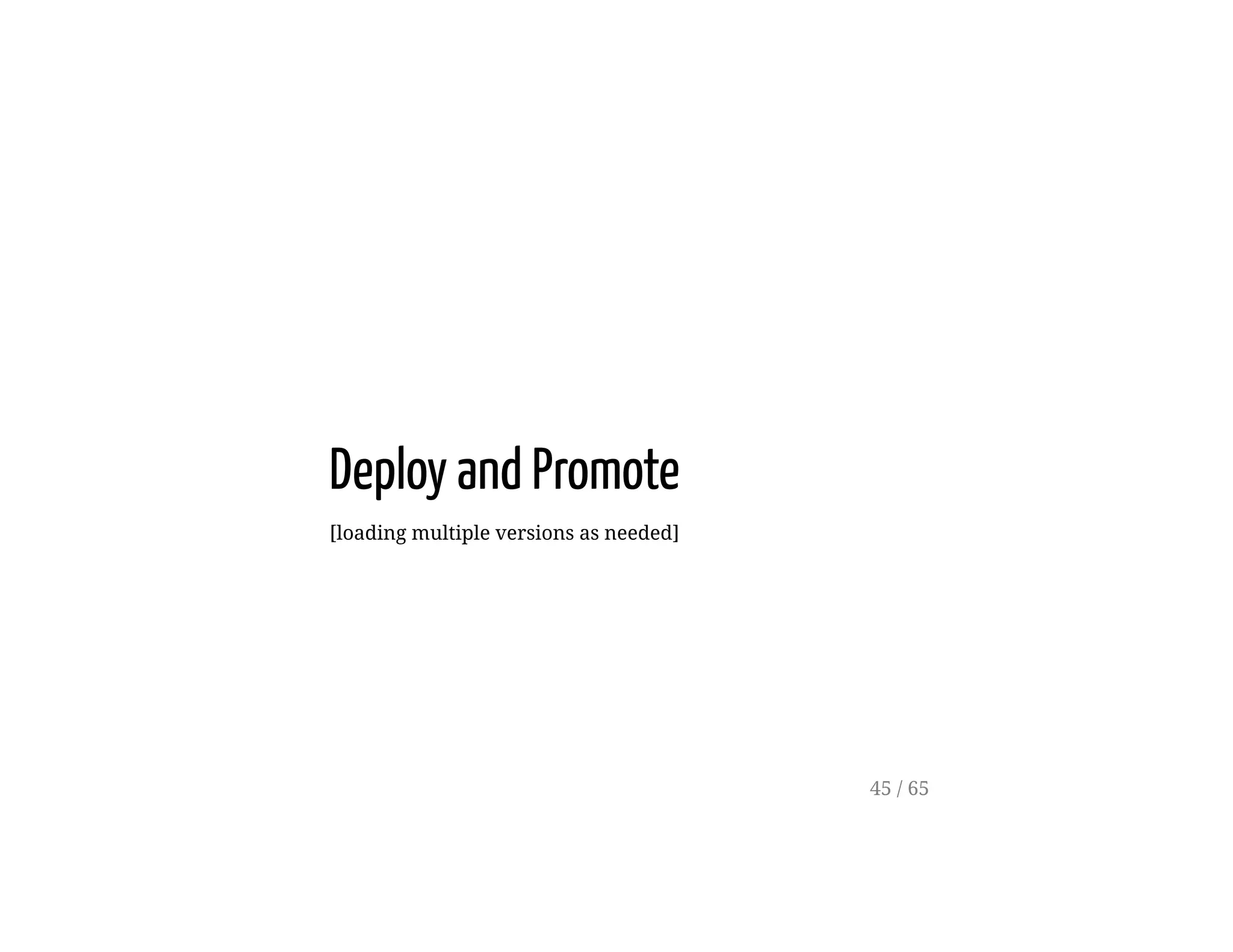

45. Deploy and Promote
[loading multiple versions as needed]
45 / 65

46. Deploy
ionic build
code-push release-cordova pgdays-demo ios
-d Staging
--description 'Deployment Select'
46 / 65

47. Deploy
ionic build
code-push release-cordova pgdays-demo ios
-d Staging
--description 'Deployment Select'
Promote
code-push promote pgdays-demo
Staging Production
--des 'Staging -> Production'
47 / 65

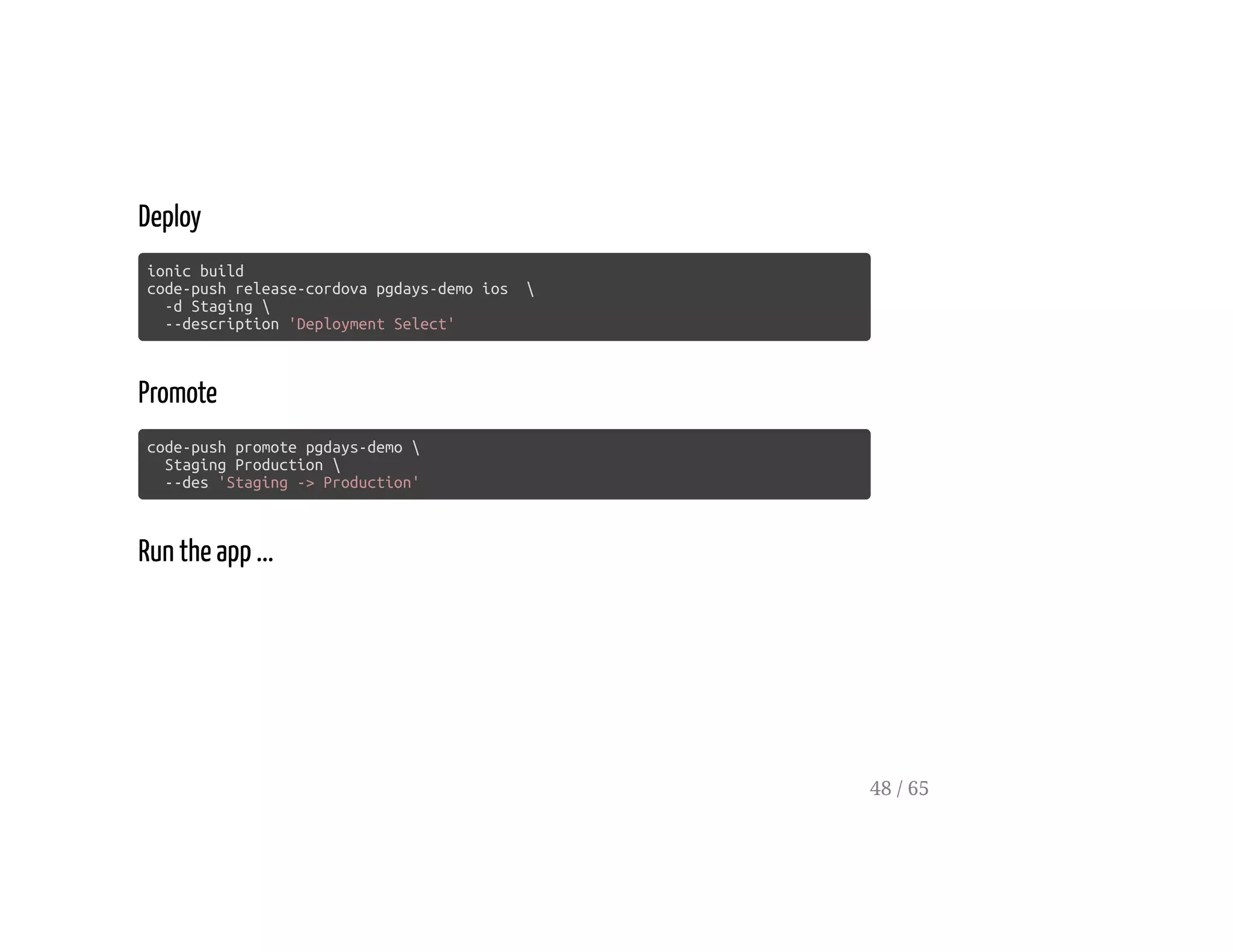

48. Deploy
ionic build
code-push release-cordova pgdays-demo ios
-d Staging
--description 'Deployment Select'
Promote
code-push promote pgdays-demo
Staging Production
--des 'Staging -> Production'
Run the app ...
48 / 65

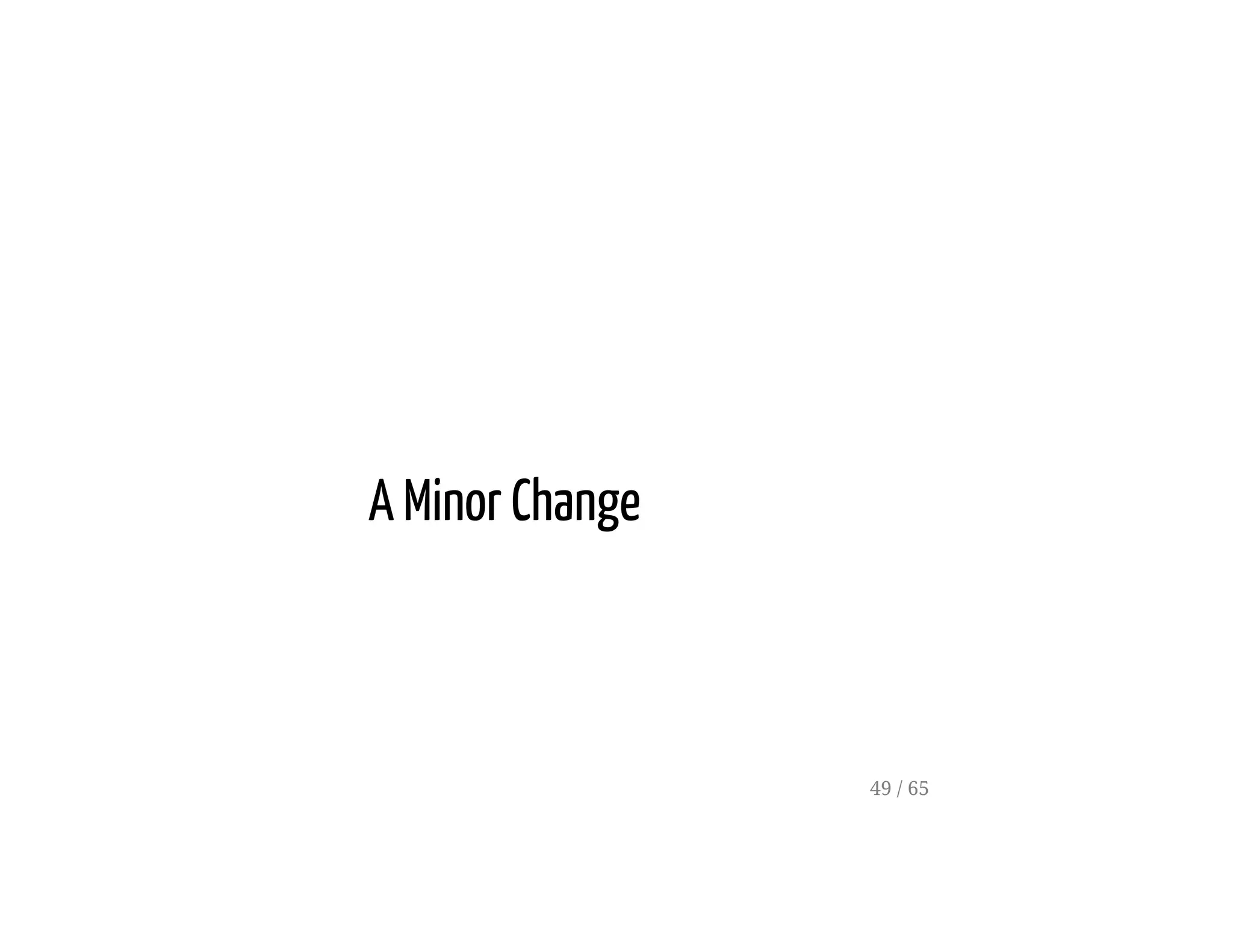

49. A Minor Change
49 / 65

50. Change the Sync button colour
app/pages/page1/page1.html
<button
(click)="sync(deployment)"
[disabled]="!isUpdateAvailable"
secondary> <!-- ionic will set this to be green -->
Sync
</button>
<!-- ... -->
50 / 65

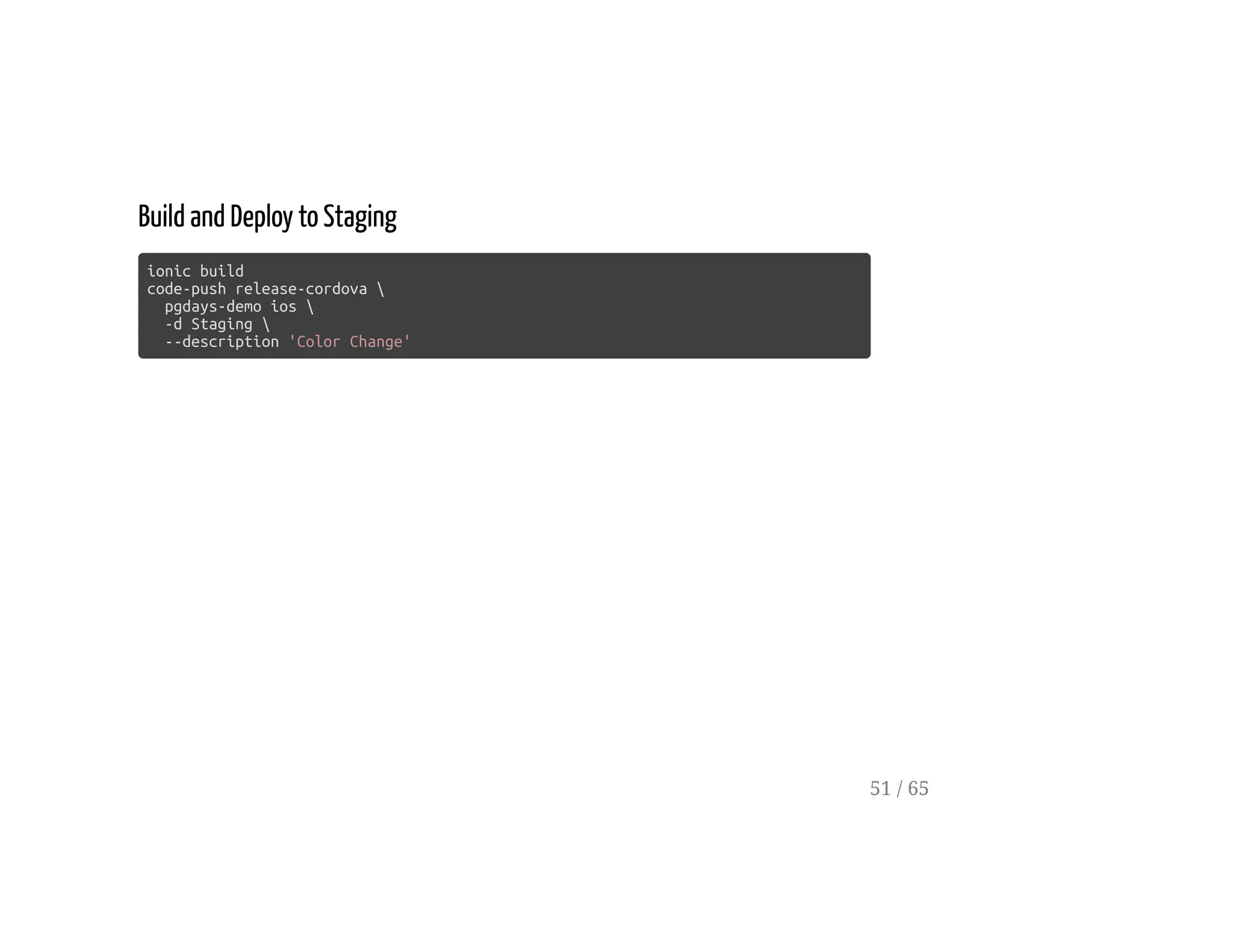

51. Build and Deploy to Staging
ionic build
code-push release-cordova
pgdays-demo ios
-d Staging
--description 'Color Change'
51 / 65

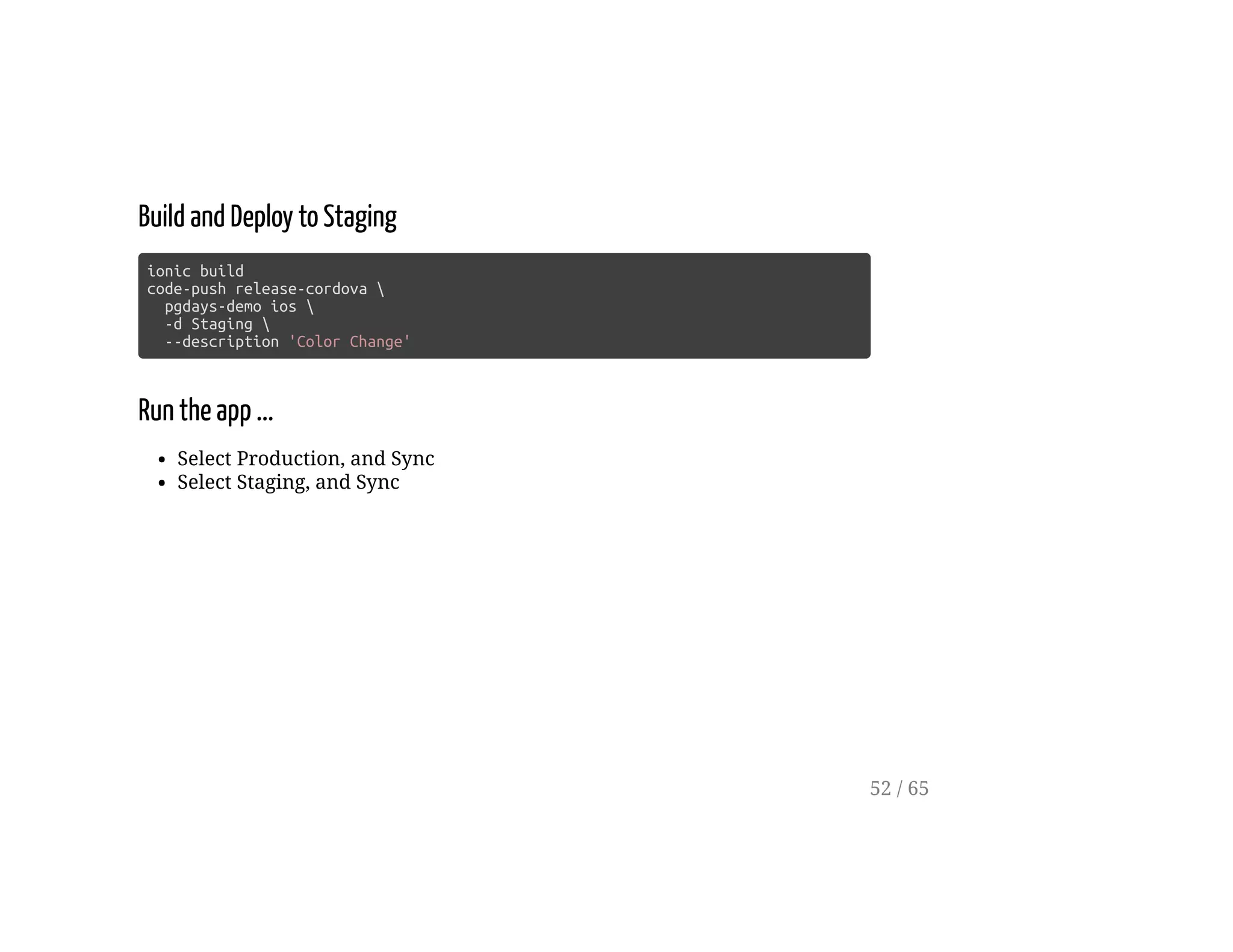

52. Build and Deploy to Staging
ionic build
code-push release-cordova
pgdays-demo ios
-d Staging
--description 'Color Change'
Run the app ...
Select Production, and Sync
Select Staging, and Sync
52 / 65

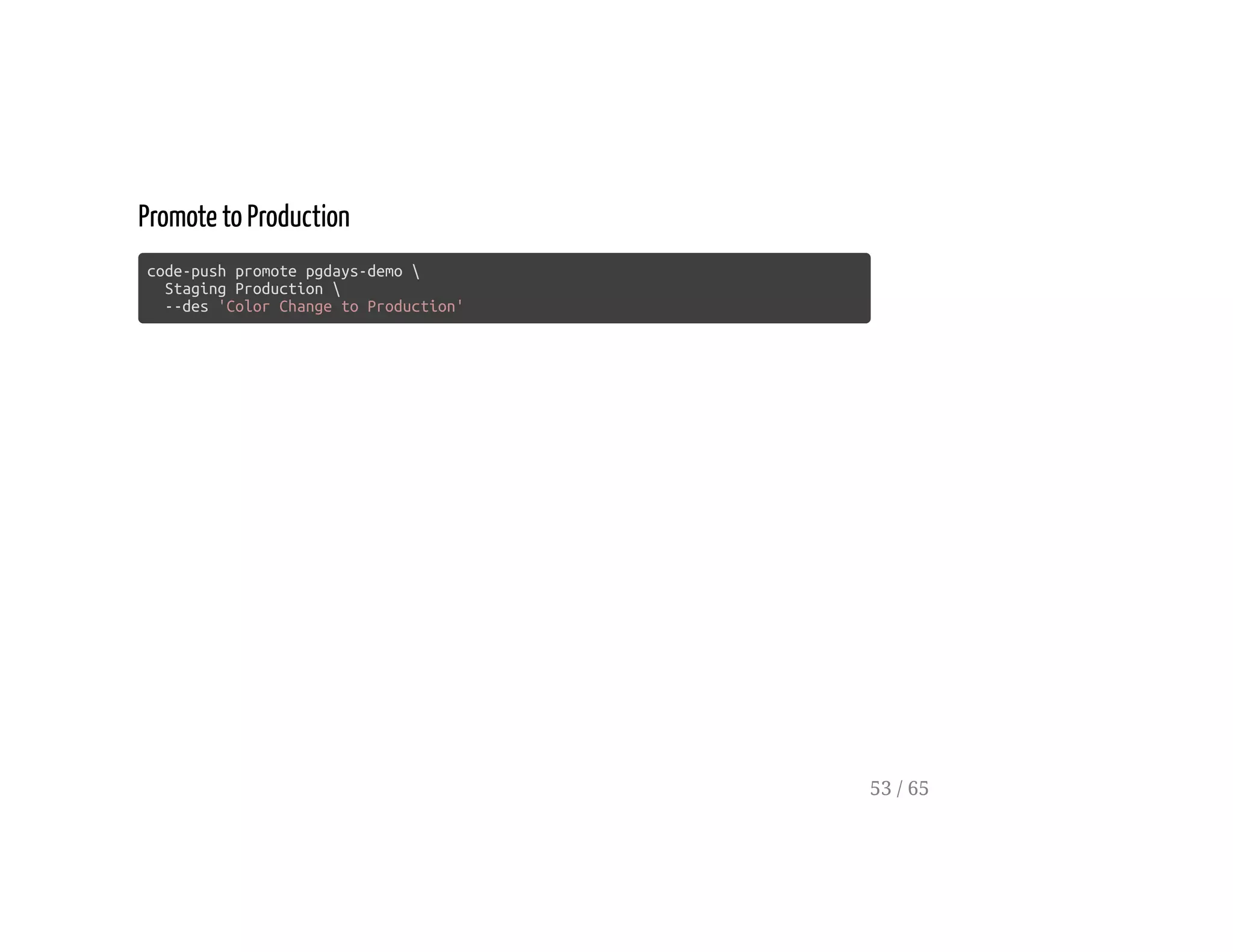

53. Promote to Production
code-push promote pgdays-demo
Staging Production
--des 'Color Change to Production'
53 / 65

54. Detailed Sync
54 / 65

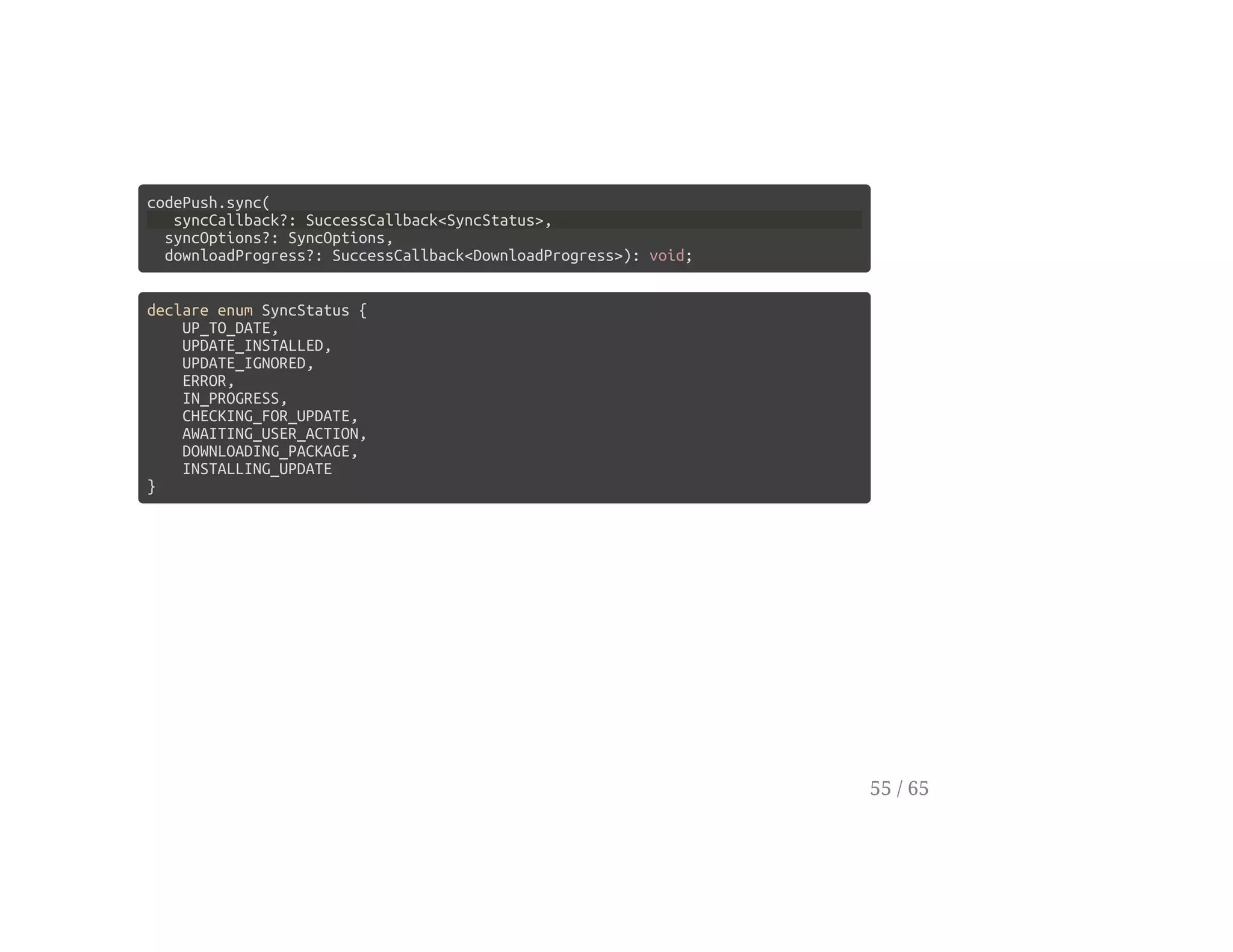

55. codePush.sync(
syncCallback?: SuccessCallback<SyncStatus>,
syncOptions?: SyncOptions,
downloadProgress?: SuccessCallback<DownloadProgress>): void;
declare enum SyncStatus {
UP_TO_DATE,
UPDATE_INSTALLED,
UPDATE_IGNORED,
ERROR,
IN_PROGRESS,
CHECKING_FOR_UPDATE,
AWAITING_USER_ACTION,
DOWNLOADING_PACKAGE,
INSTALLING_UPDATE
}
55 / 65

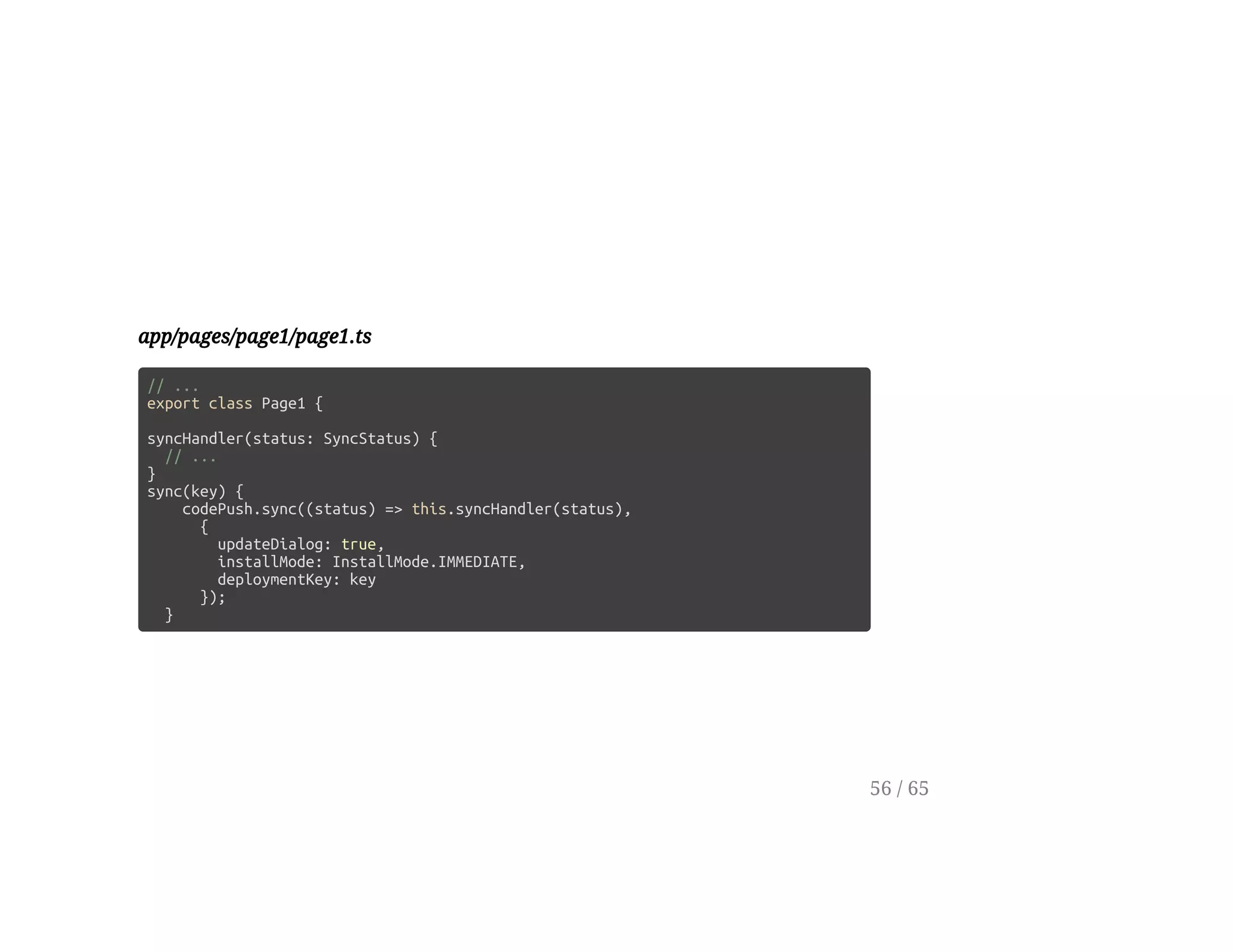

56. app/pages/page1/page1.ts
// ...
export class Page1 {
syncHandler(status: SyncStatus) {
// ...
}
sync(key) {
codePush.sync((status) => this.syncHandler(status),
{
updateDialog: true,
installMode: InstallMode.IMMEDIATE,
deploymentKey: key
});
}
56 / 65

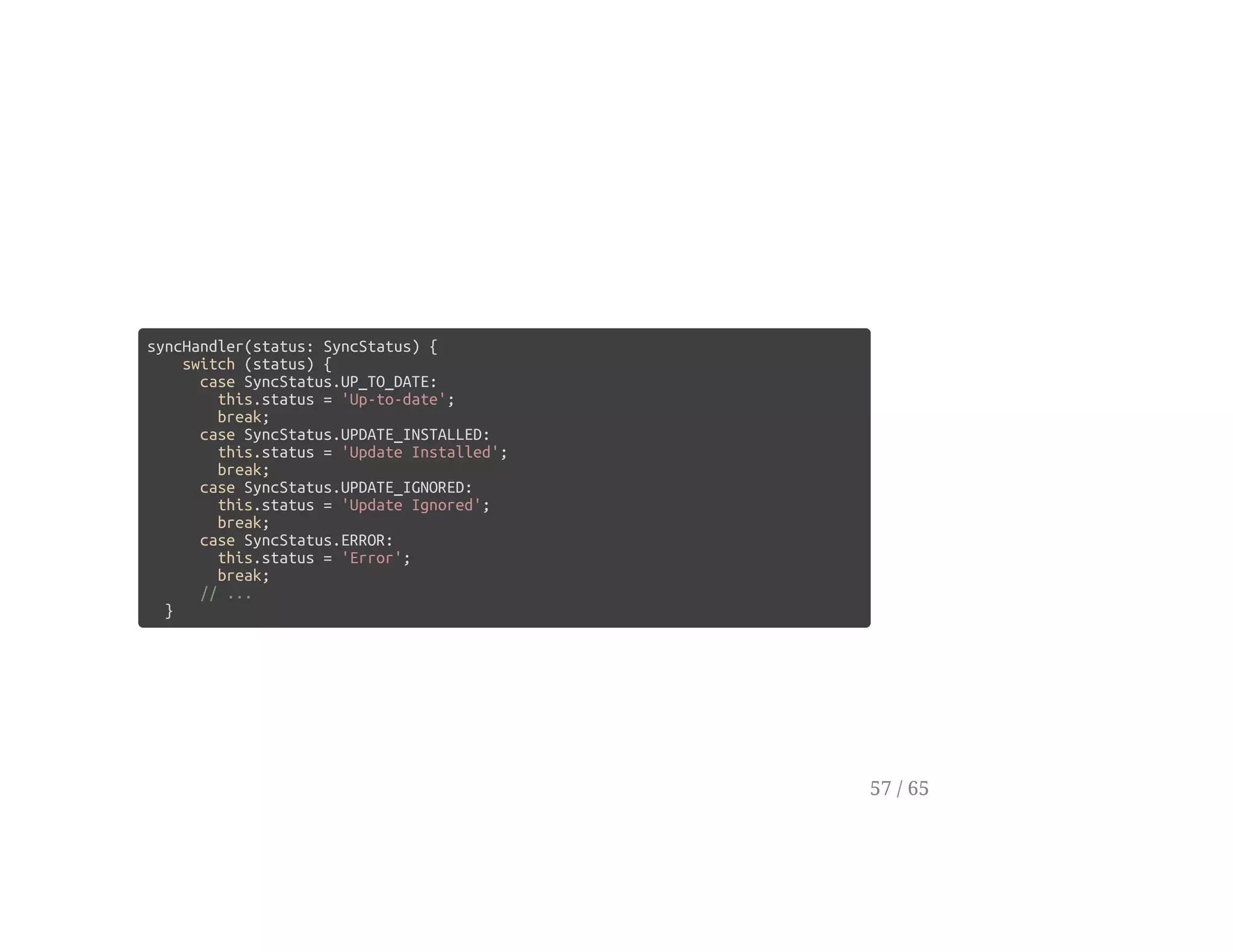

57. syncHandler(status: SyncStatus) {
switch (status) {
case SyncStatus.UP_TO_DATE:
this.status = 'Up-to-date';
break;
case SyncStatus.UPDATE_INSTALLED:
this.status = 'Update Installed';
break;
case SyncStatus.UPDATE_IGNORED:
this.status = 'Update Ignored';
break;
case SyncStatus.ERROR:
this.status = 'Error';
break;
// ...
}
57 / 65

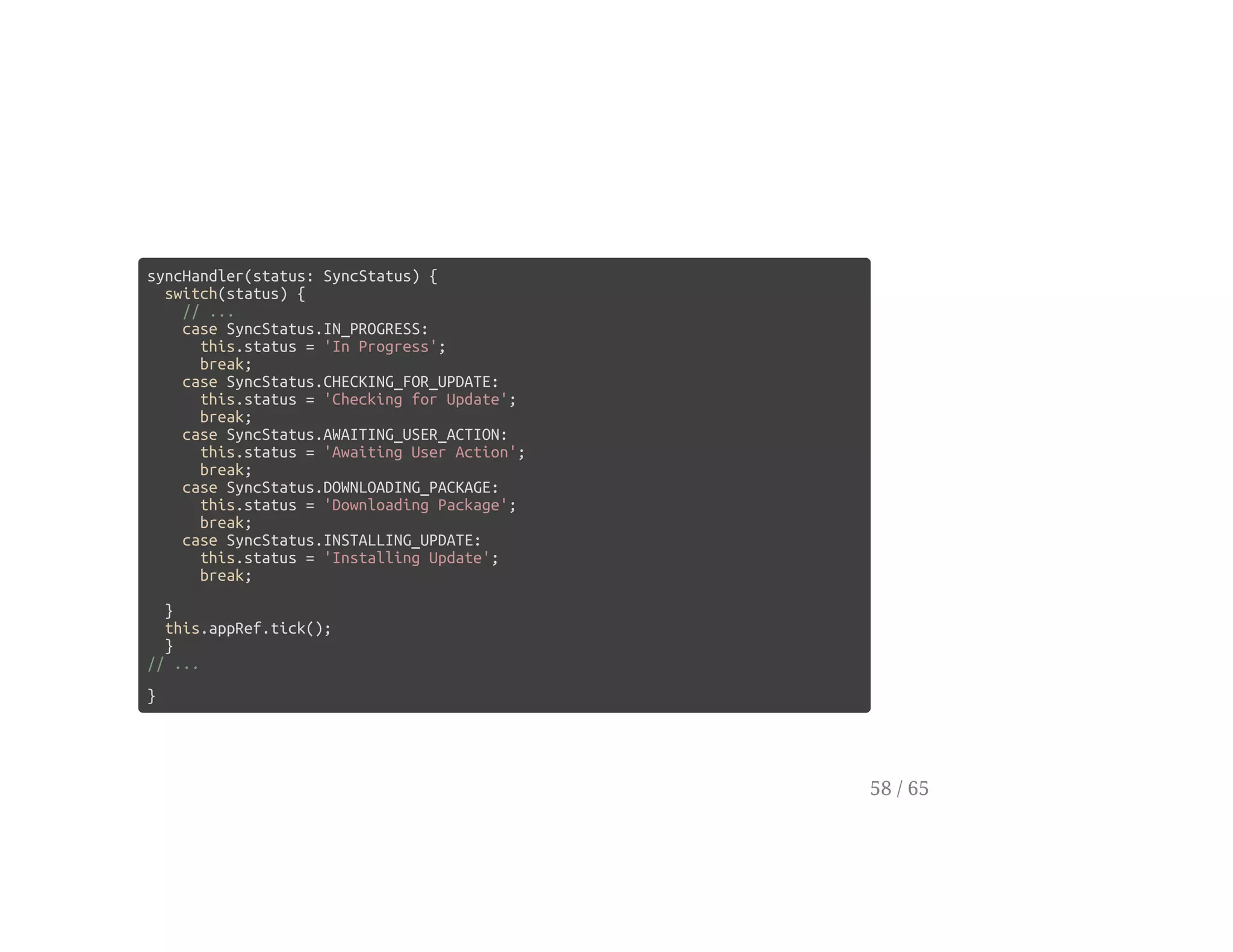

58. syncHandler(status: SyncStatus) {
switch(status) {
// ...
case SyncStatus.IN_PROGRESS:
this.status = 'In Progress';
break;
case SyncStatus.CHECKING_FOR_UPDATE:
this.status = 'Checking for Update';
break;
case SyncStatus.AWAITING_USER_ACTION:
this.status = 'Awaiting User Action';
break;
case SyncStatus.DOWNLOADING_PACKAGE:
this.status = 'Downloading Package';
break;
case SyncStatus.INSTALLING_UPDATE:
this.status = 'Installing Update';
break;
}
this.appRef.tick();
}
// ...
}
58 / 65

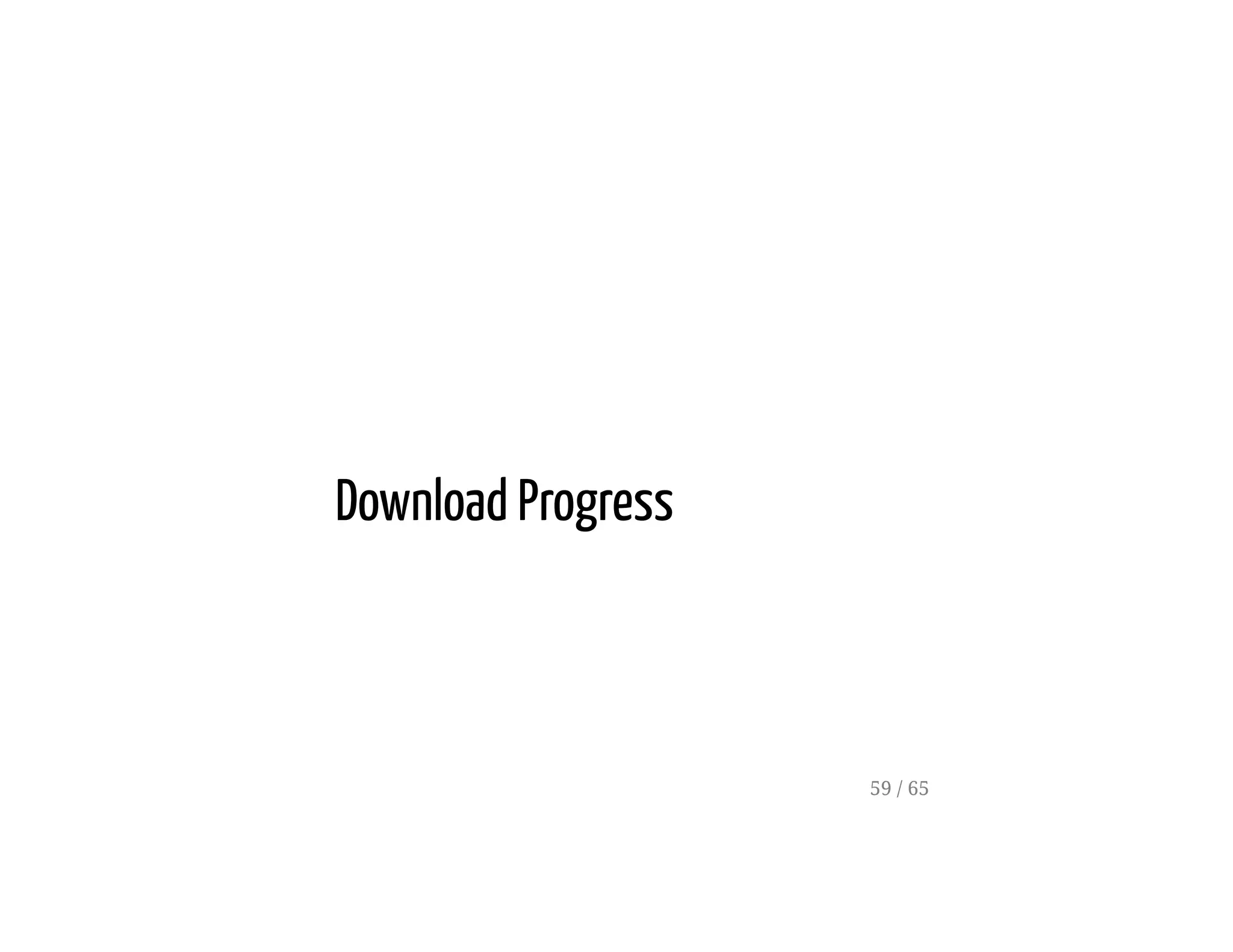

59. Download Progress
59 / 65

60. codePush.sync(
syncCallback?: SuccessCallback<SyncStatus>,
syncOptions?: SyncOptions,
downloadProgress?: SuccessCallback<DownloadProgress>): void;
60 / 65

61. codePush.sync(
syncCallback?: SuccessCallback<SyncStatus>,
syncOptions?: SyncOptions,
downloadProgress?: SuccessCallback<DownloadProgress>): void;
// Defines the format of the DownloadProgress object,
// used to send periodical update notifications on the progress
// of the update download.
interface DownloadProgress {
totalBytes: number;
receivedBytes: number;
}
61 / 65

62. // ...
export class Page1 {
downloadProgress: DownloadProgress
// ...
updateDownloadProgress(downloadProgress: DownloadProgress) {
this.downloadProgress = downloadProgress;
this.appRef.tick();
}
sync(key) {
codePush.sync((status) => this.syncHandler(status),
{
updateDialog: true,
installMode: InstallMode.IMMEDIATE,
deploymentKey: key
},
(progress) => this.updateDownloadProgress(progress));
}
}
62 / 65

63. <!-- .... after the sync buttons --->
<ion-row>
<ion-col width-25>Progress:</ion-col>
<ion-col width-75>
{{downloadProgress?.receivedBytes}} / {{downloadProgress?.totalBytes}}
</ion-col>
</ion-row>
63 / 65

64. Any Questions?
64 / 65

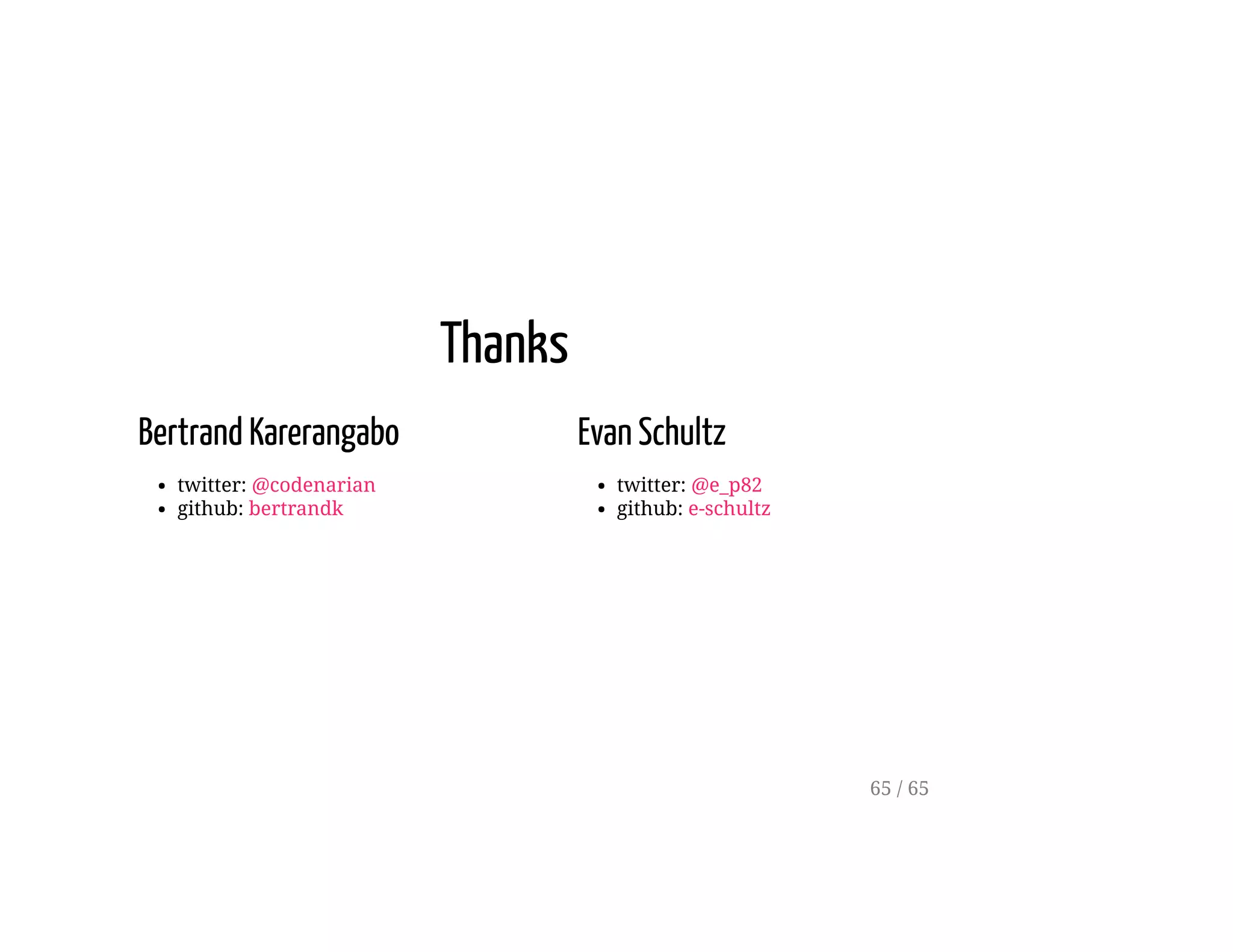

65. Bertrand Karerangabo
twitter: @codenarian
github: bertrandk
Evan Schultz
twitter: @e_p82
github: e-schultz
Thanks
65 / 65
