Robotics PPT presentation

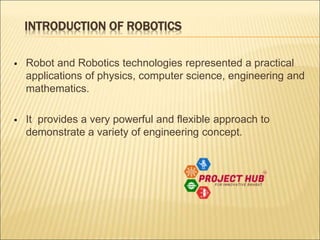

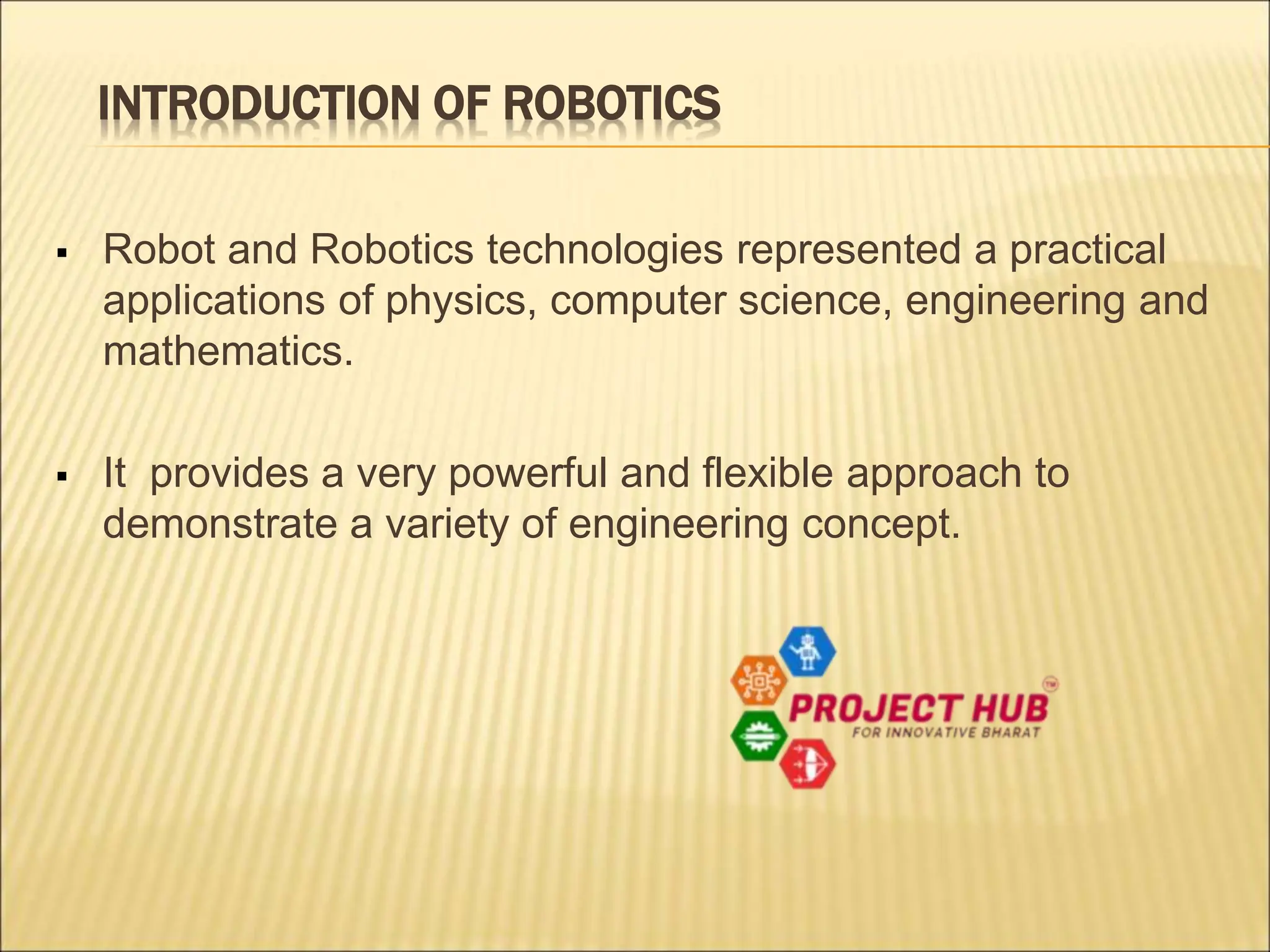

2. INTRODUCTION OF ROBOTICS
 Robot and Robotics technologies represented a practical
applications of physics, computer science, engineering and
mathematics.
 It provides a very powerful and flexible approach to
demonstrate a variety of engineering concept.

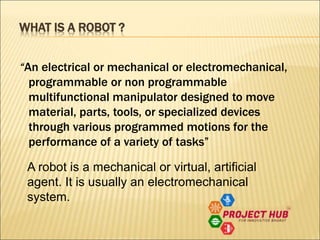

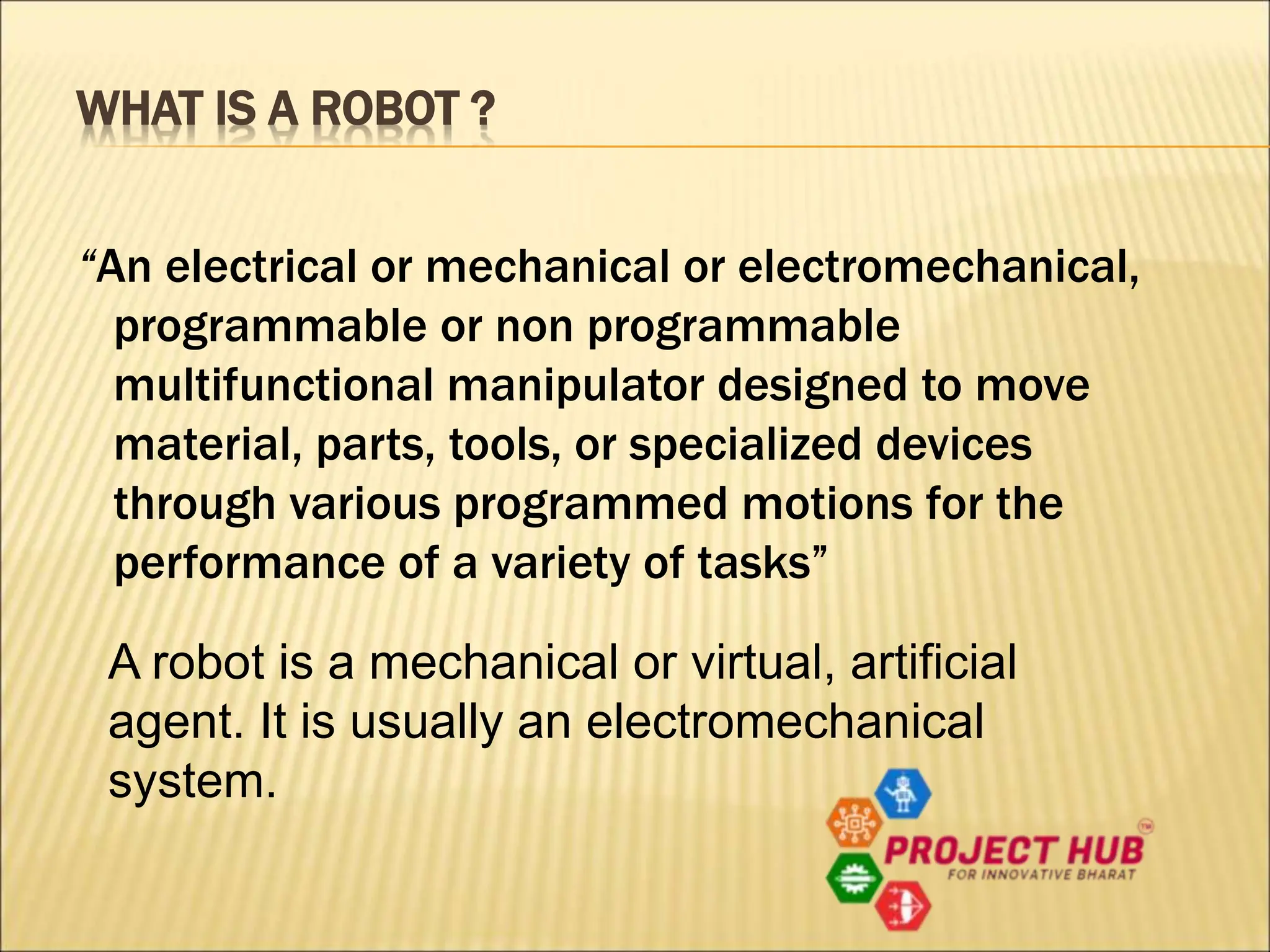

3. WHAT IS A ROBOT ?
“An electrical or mechanical or electromechanical,
programmable or non programmable
multifunctional manipulator designed to move
material, parts, tools, or specialized devices
through various programmed motions for the
performance of a variety of tasks”
A robot is a mechanical or virtual, artificial
agent. It is usually an electromechanical
system.

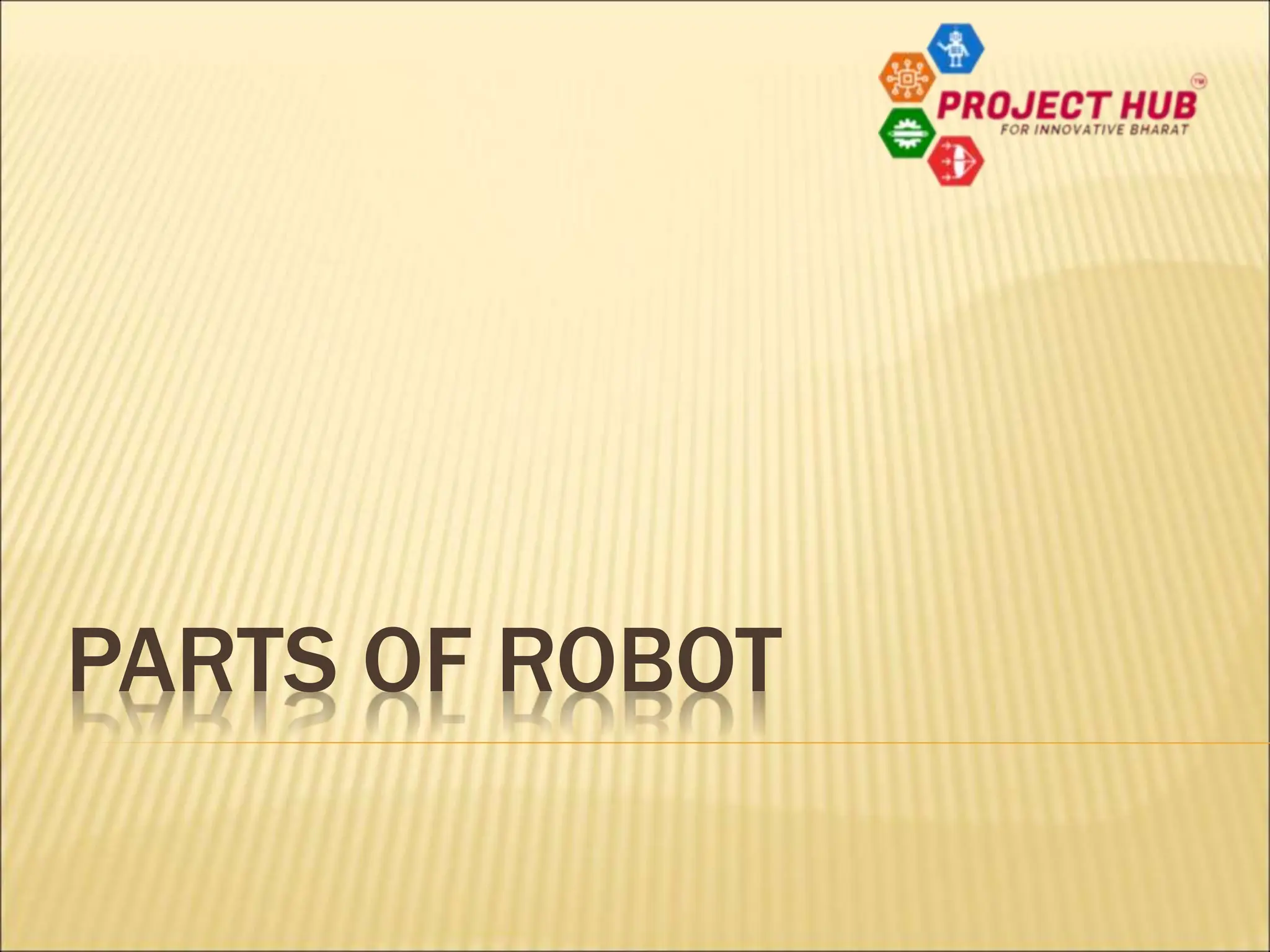

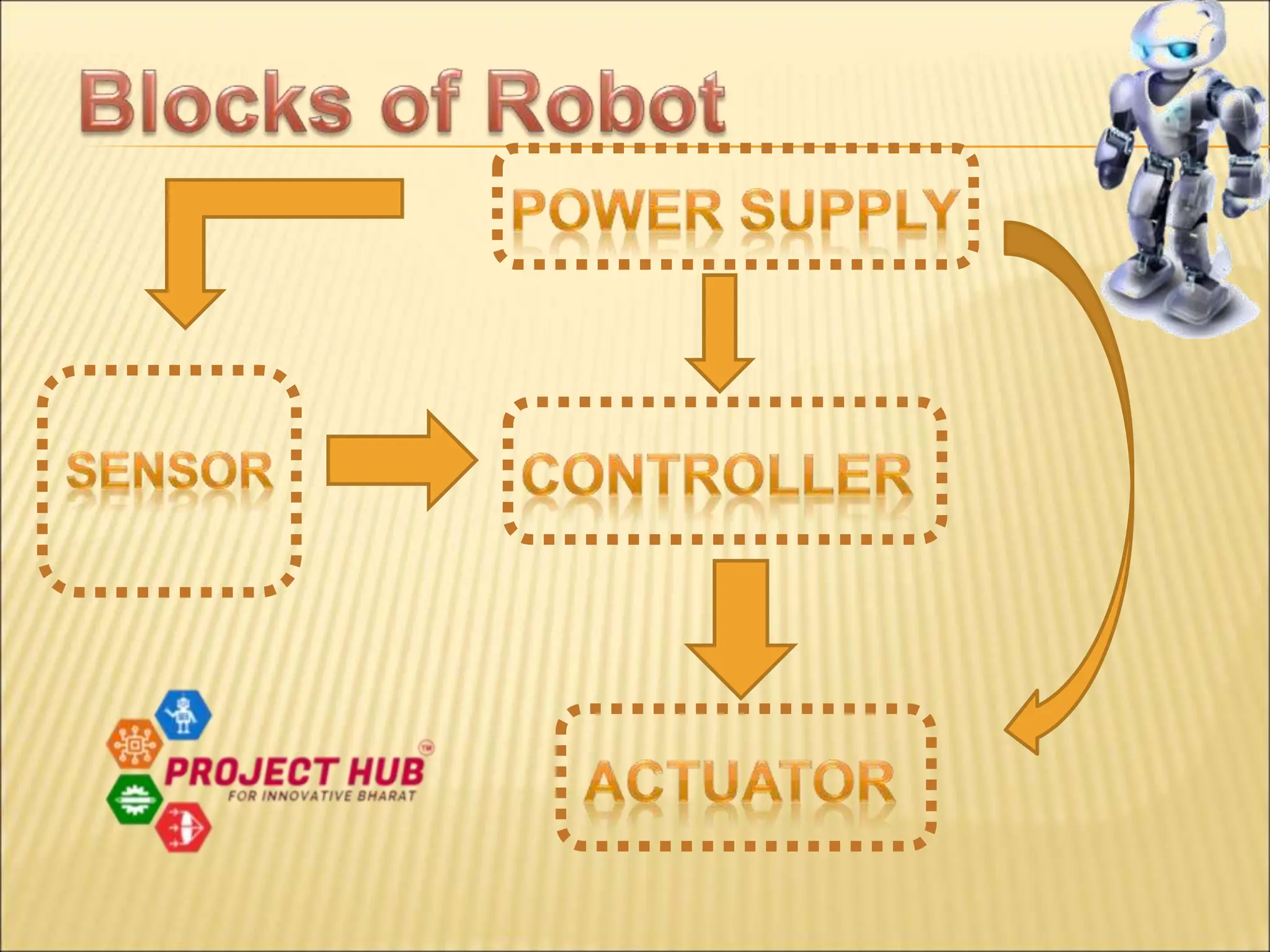

6. PARTS OF ROBOT

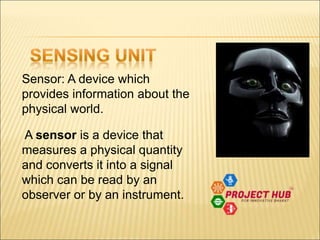

7. Sensor: A device which
provides information about the
physical world.
A sensor is a device that
measures a physical quantity
and converts it into a signal
which can be read by an
observer or by an instrument.

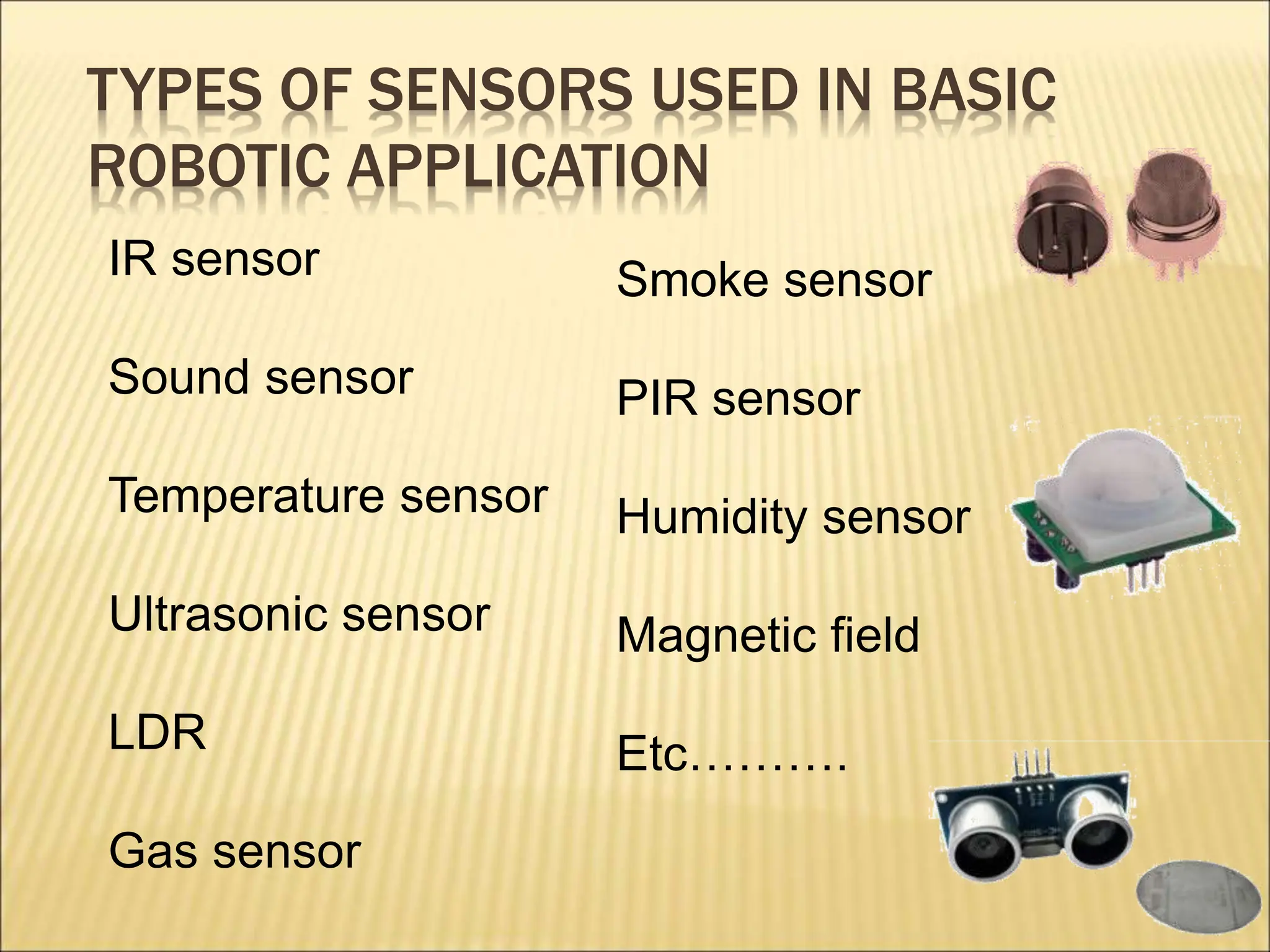

8. TYPES OF SENSORS USED IN BASIC
ROBOTIC APPLICATION
IR sensor
Sound sensor
Temperature sensor
Ultrasonic sensor
LDR
Gas sensor
Smoke sensor
PIR sensor
Humidity sensor
Magnetic field
Etc……….

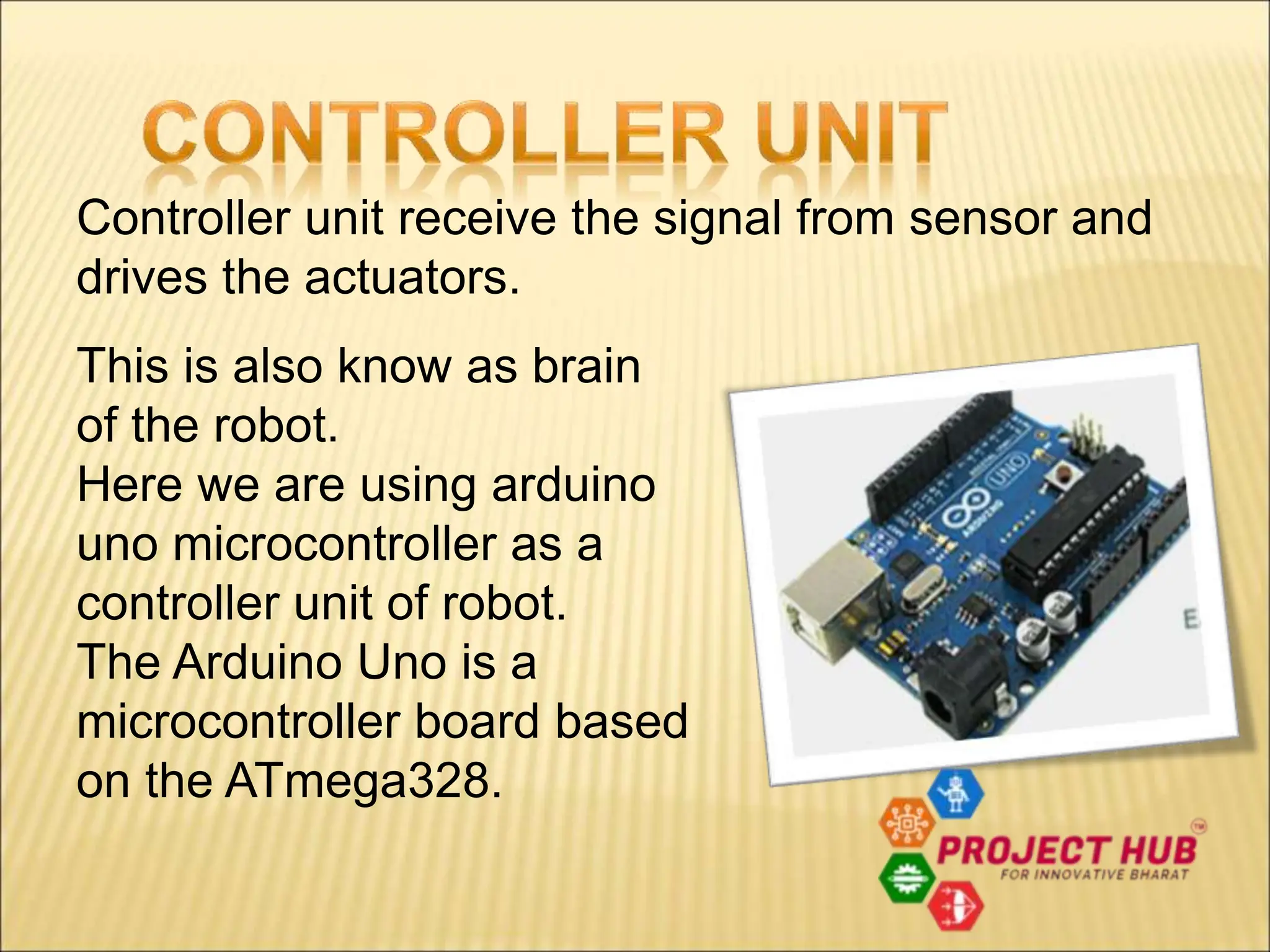

9. This is also know as brain
of the robot.
Here we are using arduino
uno microcontroller as a
controller unit of robot.
The Arduino Uno is a
microcontroller board based
on the ATmega328.
Controller unit receive the signal from sensor and
drives the actuators.

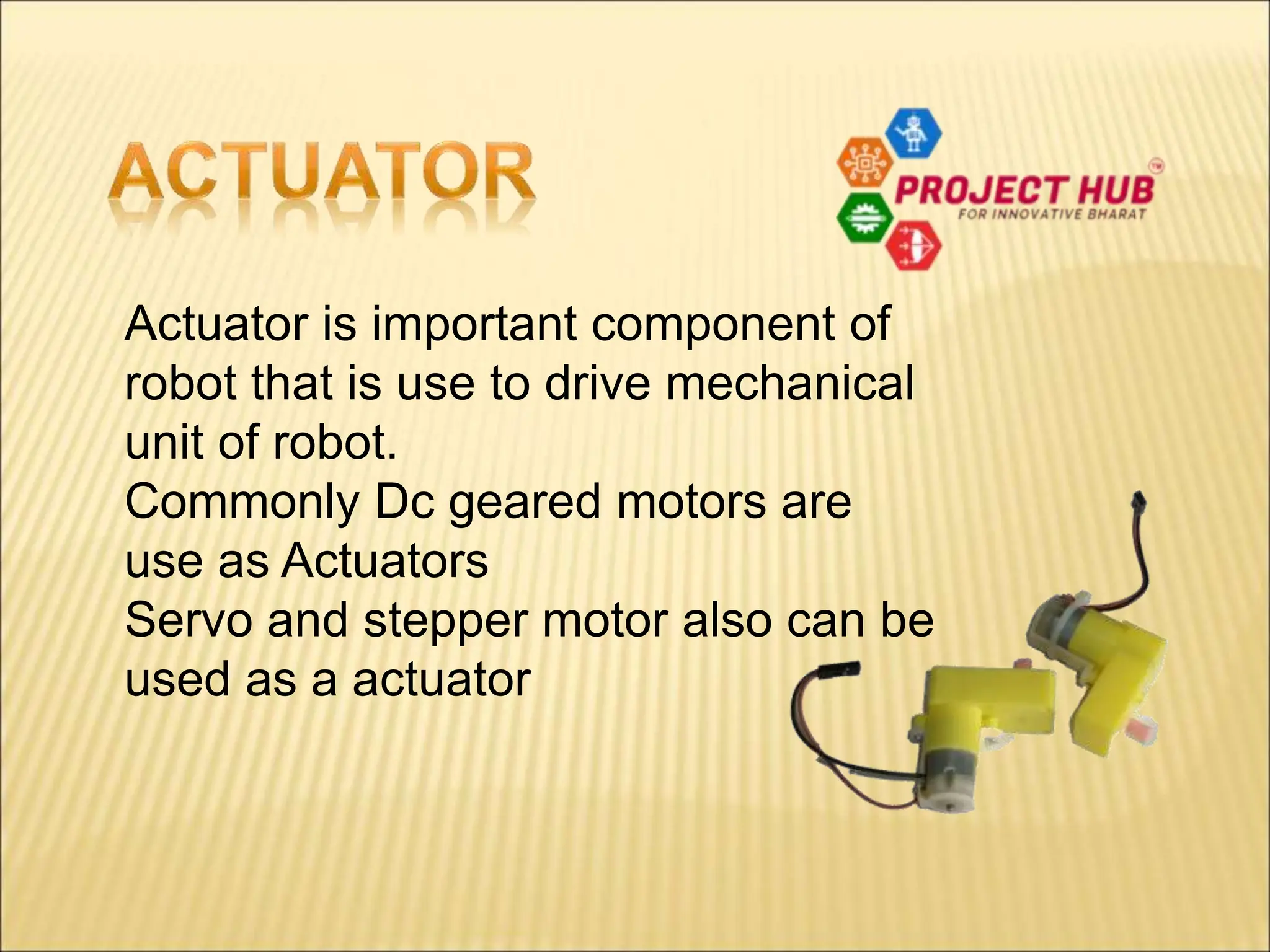

10. Actuator is important component of
robot that is use to drive mechanical
unit of robot.
Commonly Dc geared motors are
use as Actuators
Servo and stepper motor also can be
used as a actuator

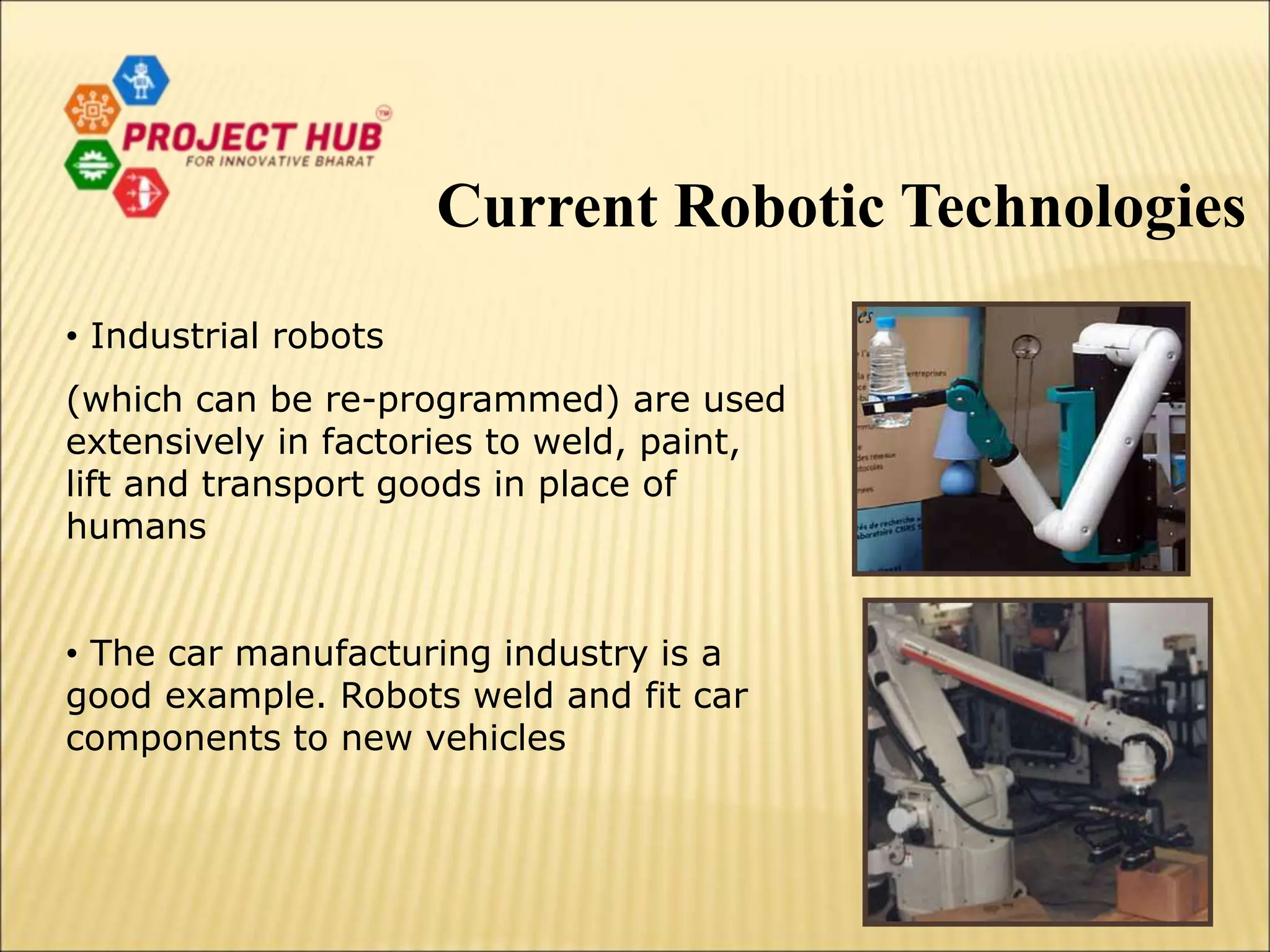

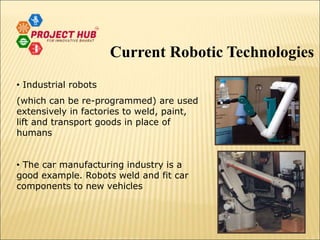

12. • Industrial robots
(which can be re-programmed) are used
extensively in factories to weld, paint,
lift and transport goods in place of
humans
• The car manufacturing industry is a
good example. Robots weld and fit car
components to new vehicles
Current Robotic Technologies

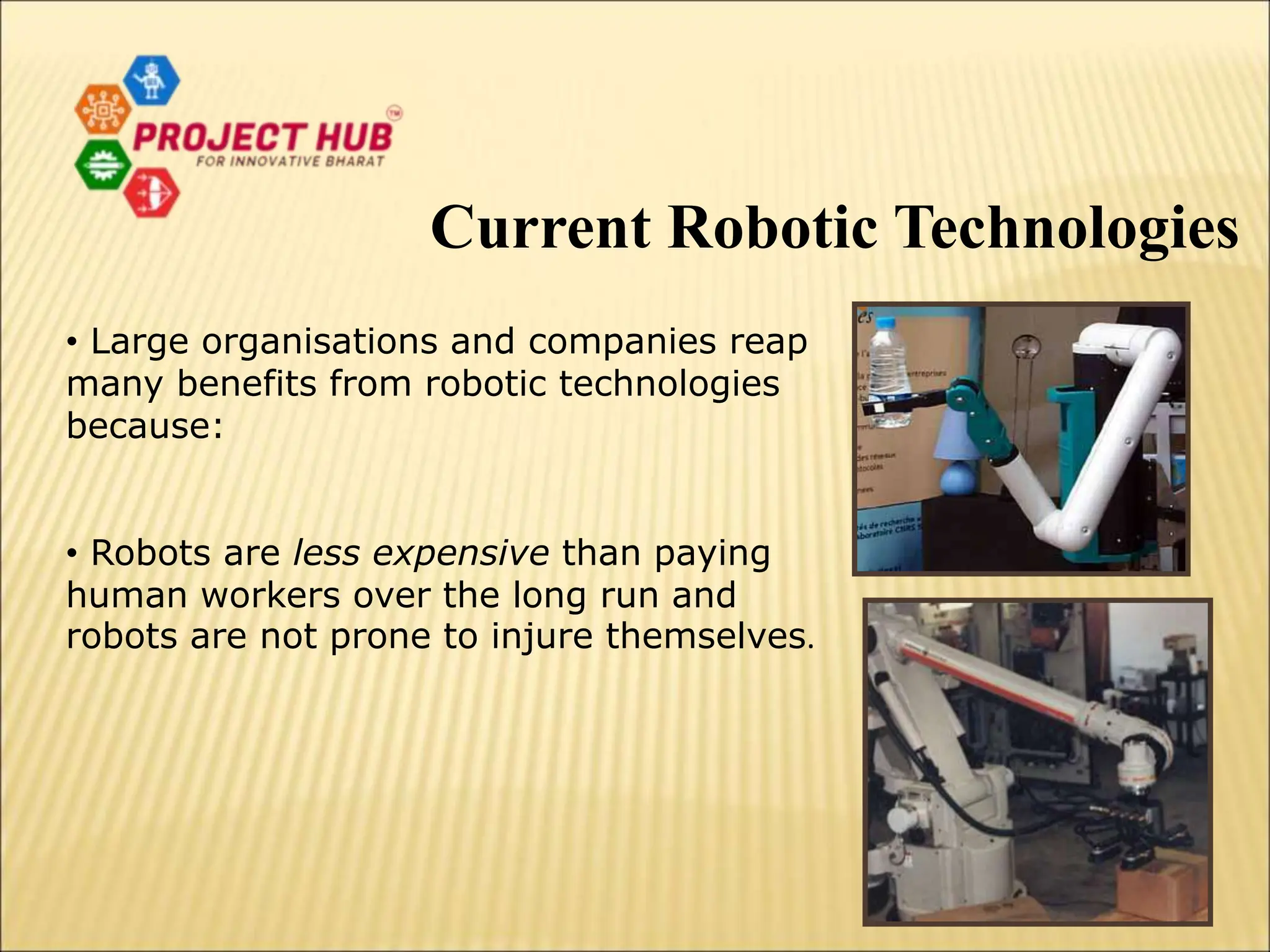

13. • Large organisations and companies reap
many benefits from robotic technologies
because:
• Robots are less expensive than paying
human workers over the long run and
robots are not prone to injure themselves.
Current Robotic Technologies

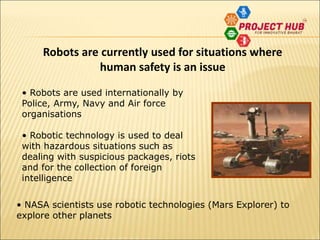

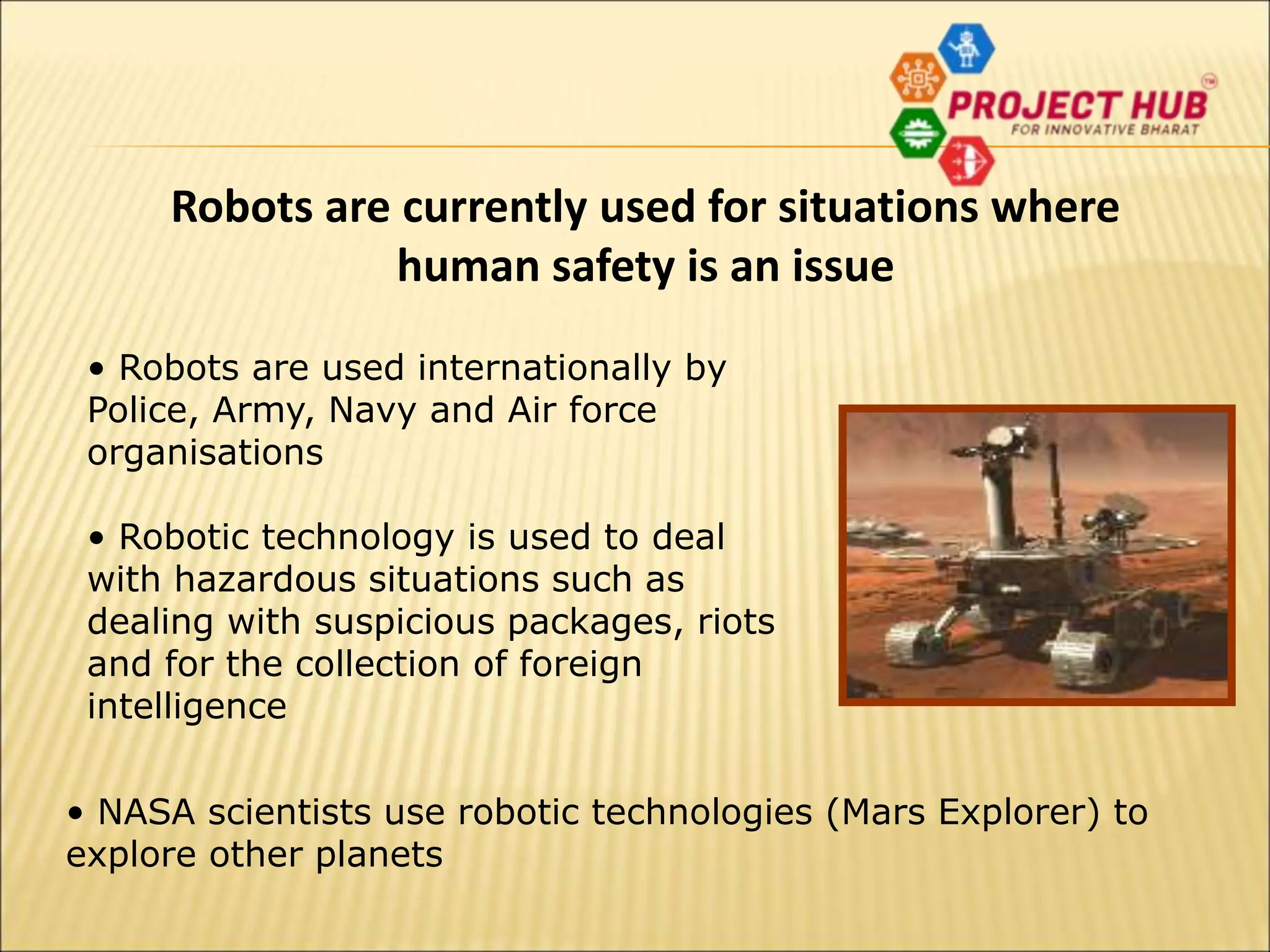

14. • Robots are used internationally by
Police, Army, Navy and Air force
organisations
• Robotic technology is used to deal
with hazardous situations such as
dealing with suspicious packages, riots
and for the collection of foreign
intelligence
• NASA scientists use robotic technologies (Mars Explorer) to
explore other planets
Robots are currently used for situations where
human safety is an issue

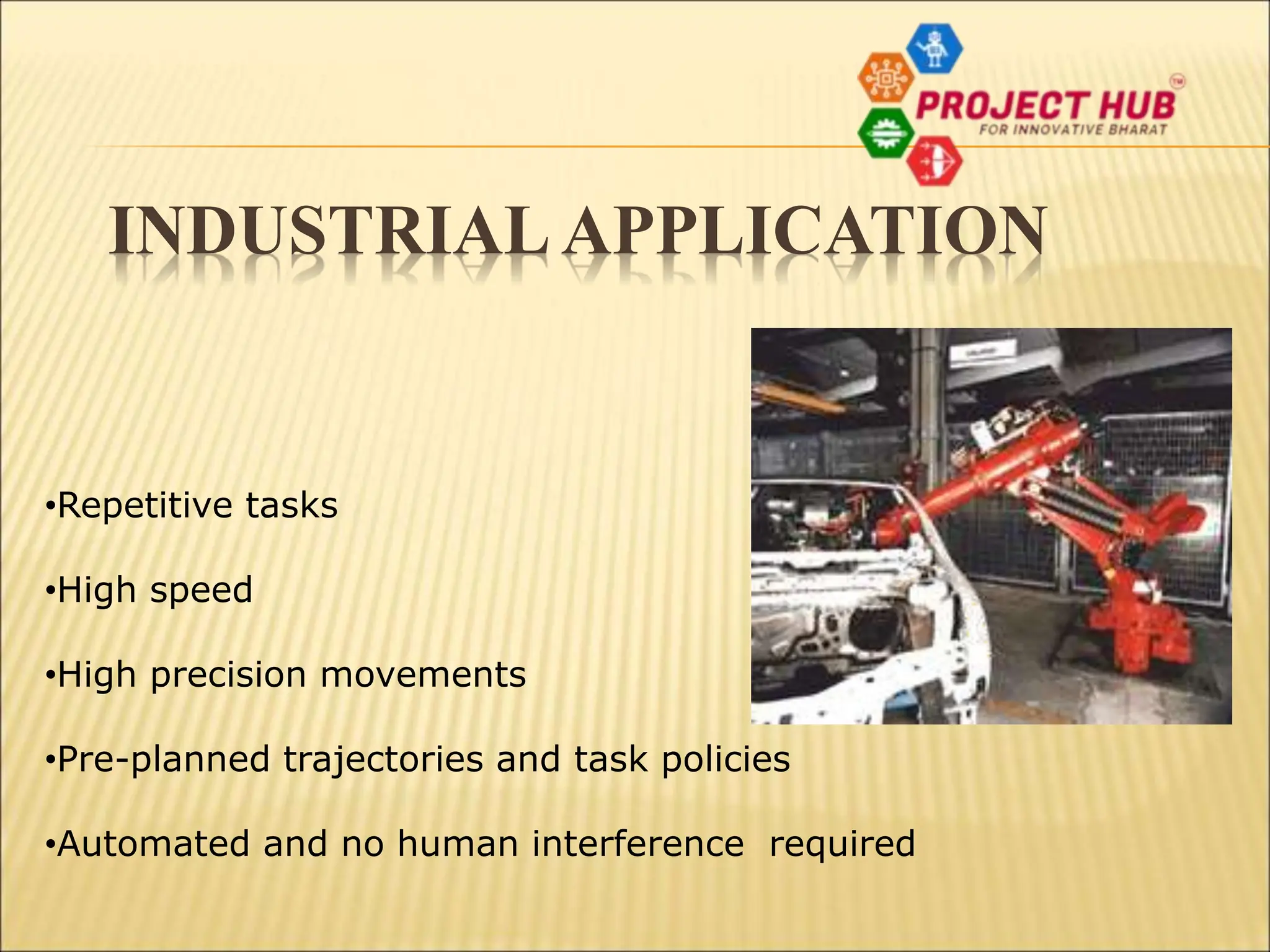

15. INDUSTRIALAPPLICATION
•Repetitive tasks
•High speed
•High precision movements
•Pre-planned trajectories and task policies
•Automated and no human interference required

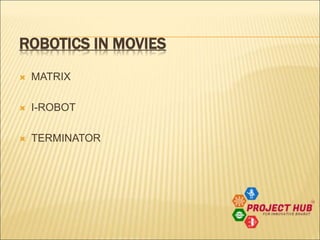

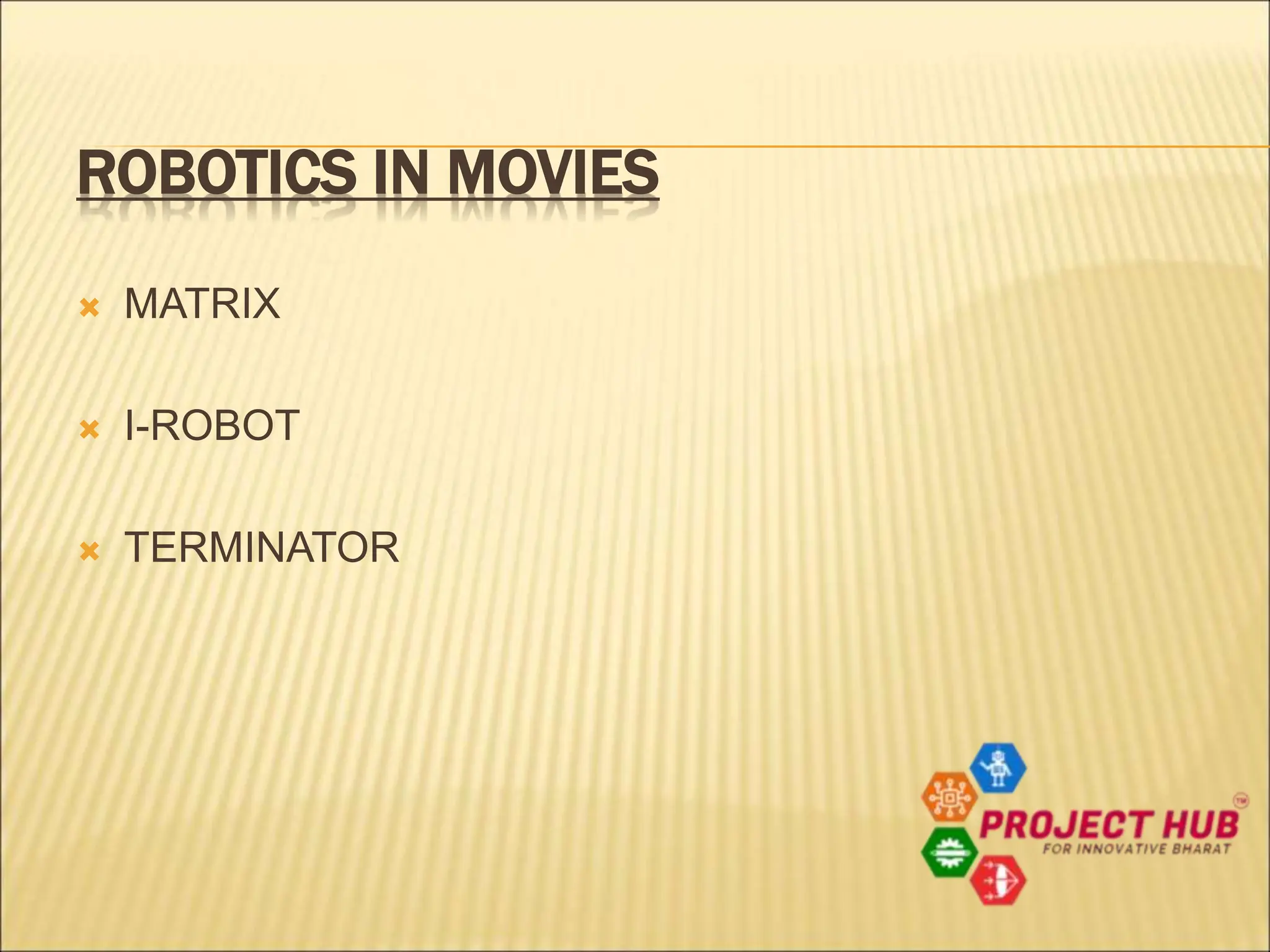

16. ROBOTICS IN MOVIES
 MATRIX
 I-ROBOT
 TERMINATOR

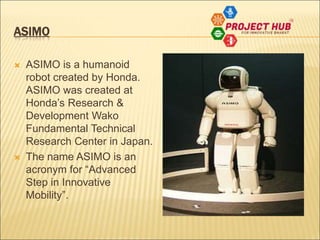

17. ASIMO
 ASIMO is a humanoid
robot created by Honda.
ASIMO was created at
Honda’s Research &
Development Wako
Fundamental Technical
Research Center in Japan.
 The name ASIMO is an
acronym for “Advanced
Step in Innovative
Mobility”.

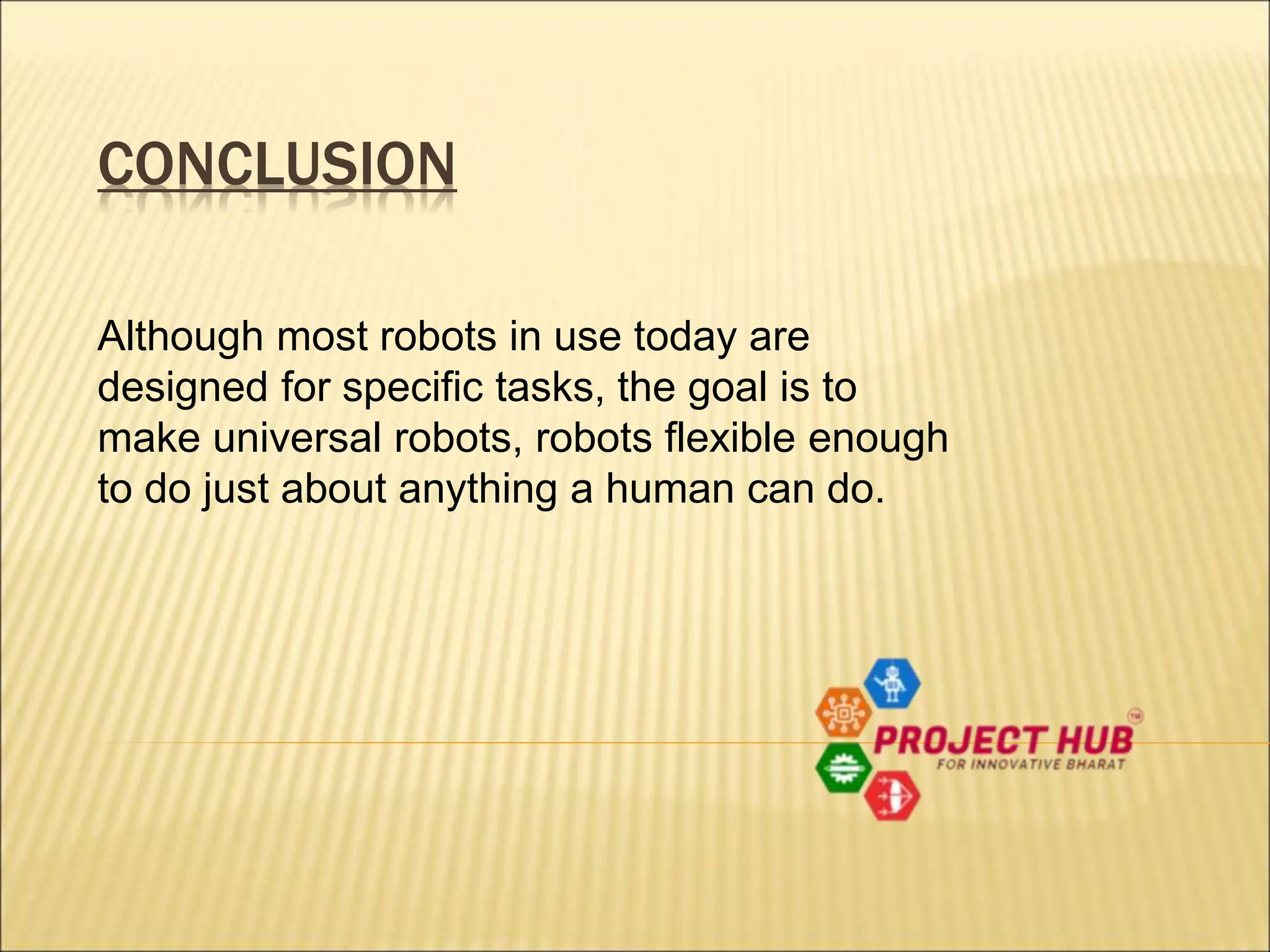

18. CONCLUSION
Although most robots in use today are
designed for specific tasks, the goal is to
make universal robots, robots flexible enough
to do just about anything a human can do.
