Introduction to Spark SQL training workshop
- 1. SPARK SQL Xinh Huynh Women in Big Data training workshop August, 2016

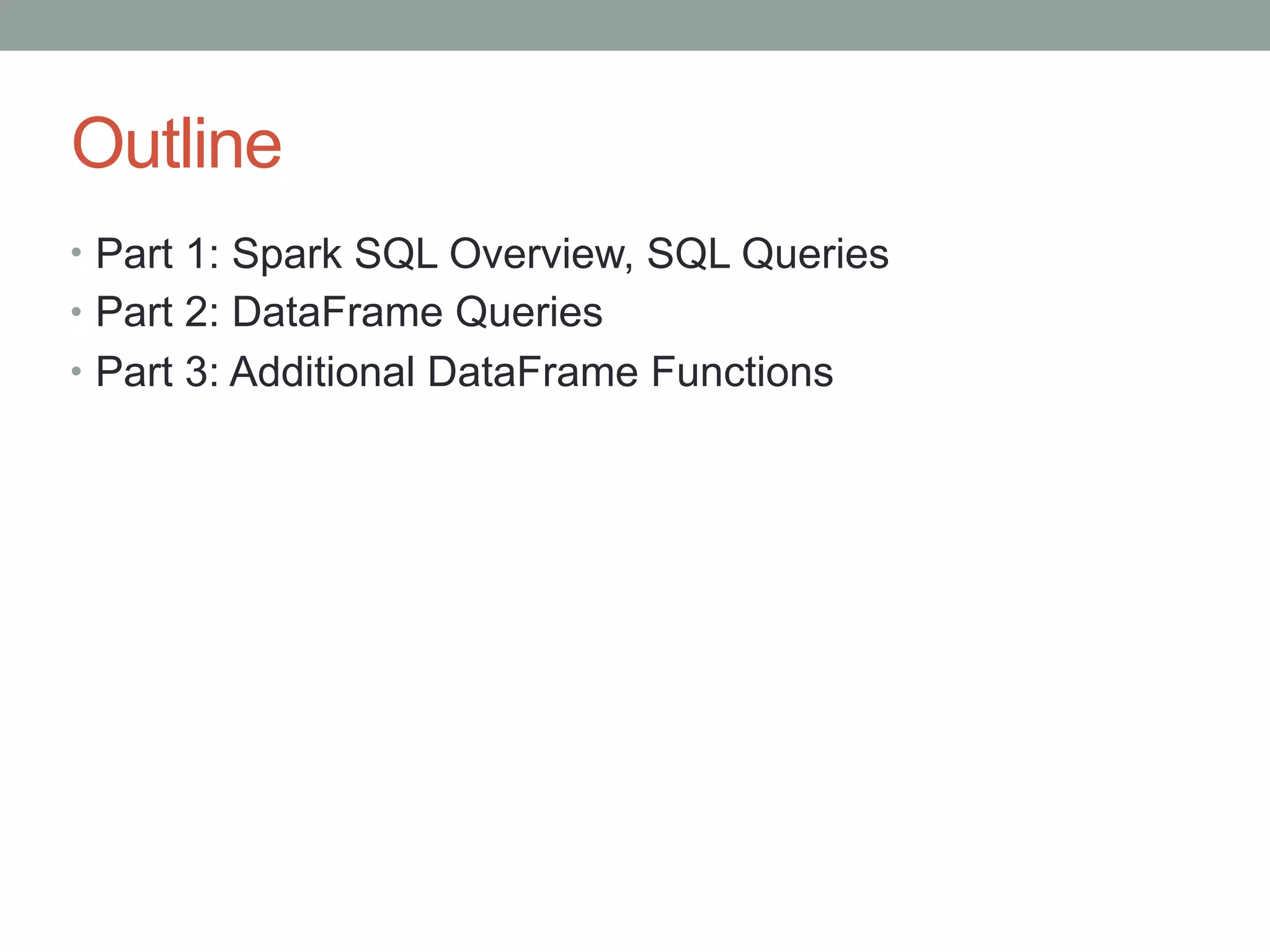

- 3. Outline • Part 1: Spark SQL Overview, SQL Queries • Part 2: DataFrame Queries • Part 3: Additional DataFrame Functions

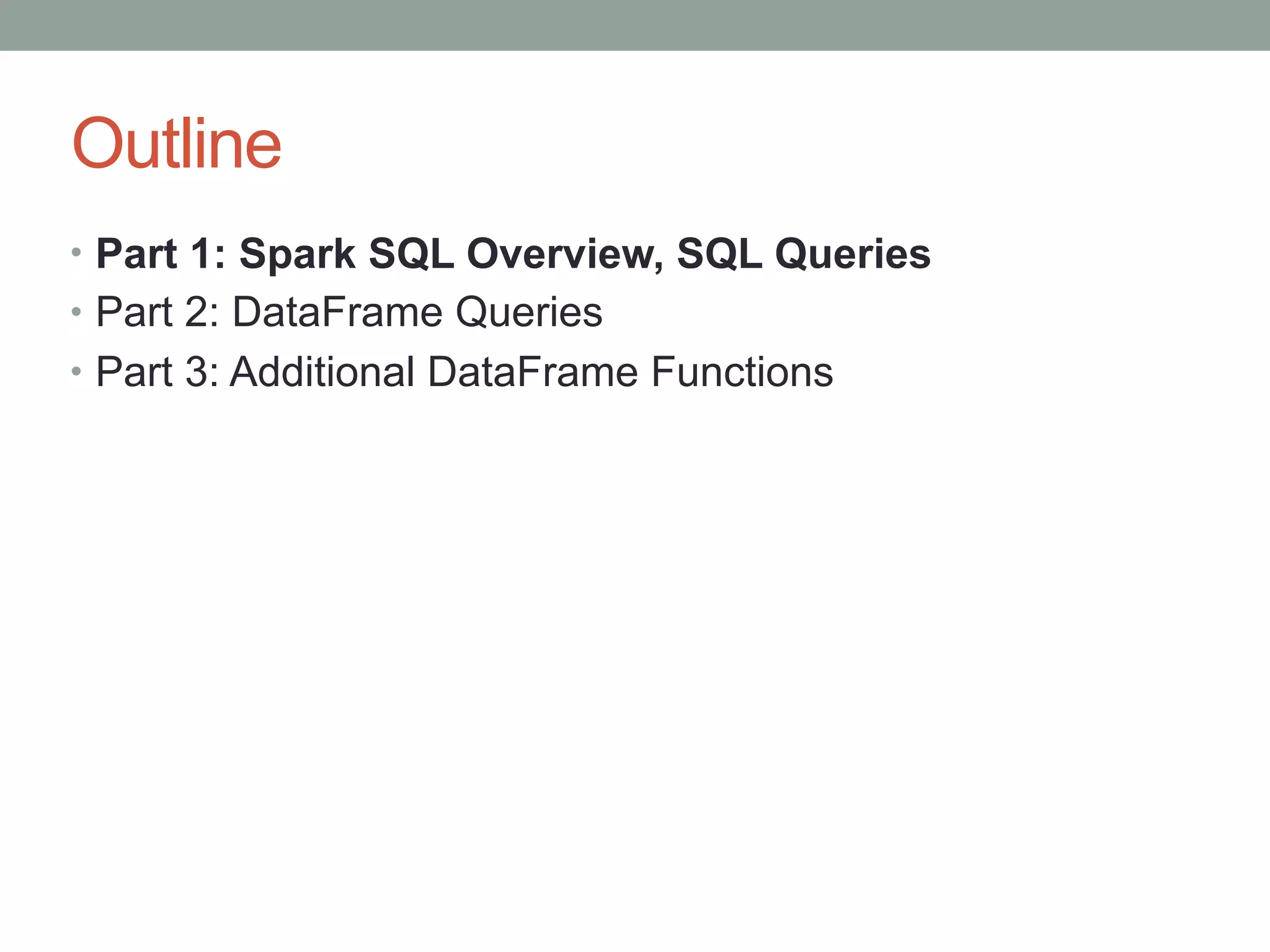

- 4. Outline • Part 1: Spark SQL Overview, SQL Queries • Part 2: DataFrame Queries • Part 3: Additional DataFrame Functions
- 5. Why learn Spark SQL? • Most popular component in Spark • Spark Survey 2015 • Use cases • ETL • Analytics • Feature Extraction for machine learning % of users 0 18 35 53 70 Spark SQL DataFrames MLlib, GraphX Streaming

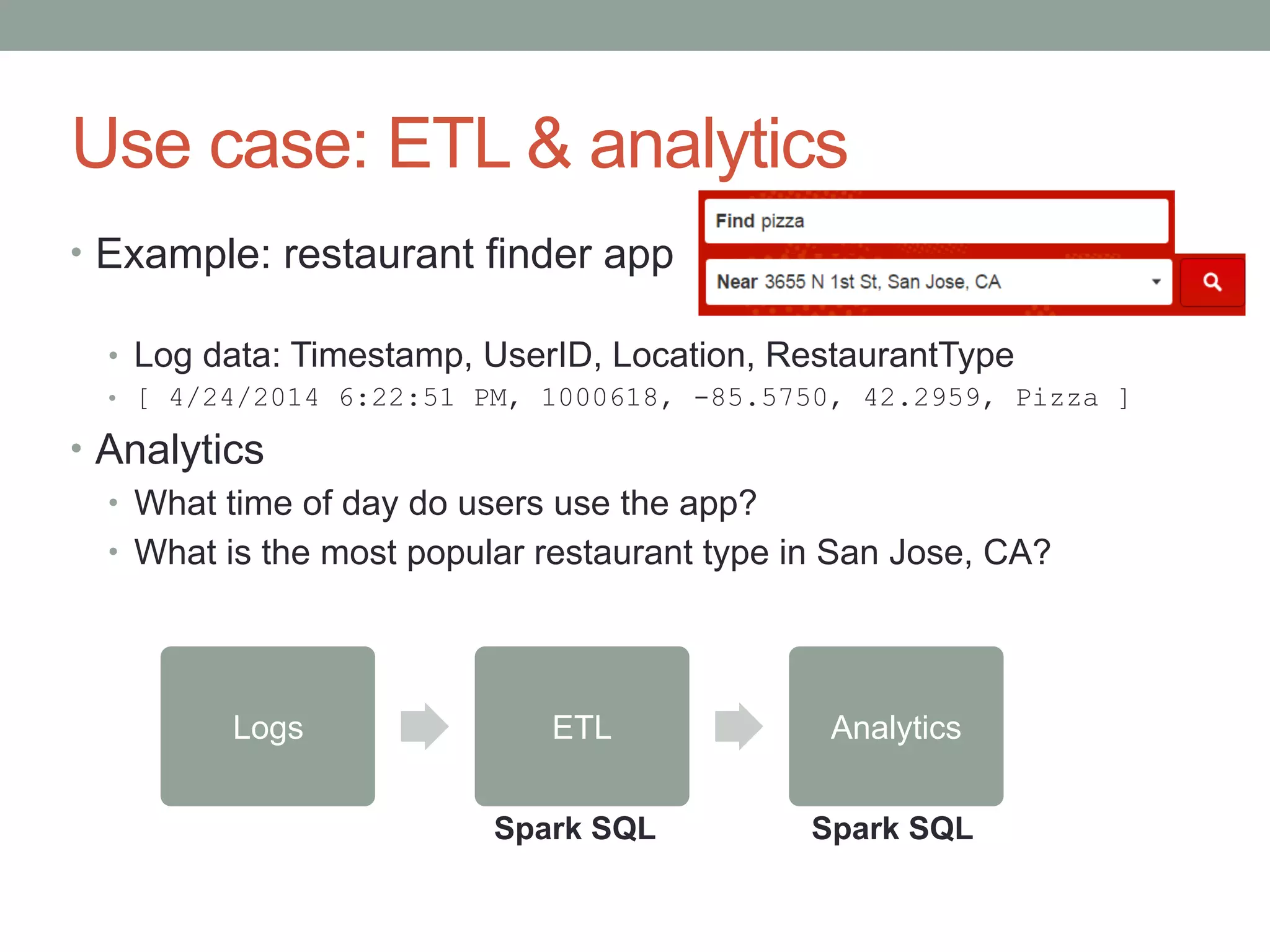

- 6. Use case: ETL & analytics • Example: restaurant finder app • Log data: Timestamp, UserID, Location, RestaurantType • [ 4/24/2014 6:22:51 PM, 1000618, -85.5750, 42.2959, Pizza ] • Analytics • What time of day do users use the app? • What is the most popular restaurant type in San Jose, CA? Logs ETL Analytics Spark SQL Spark SQL

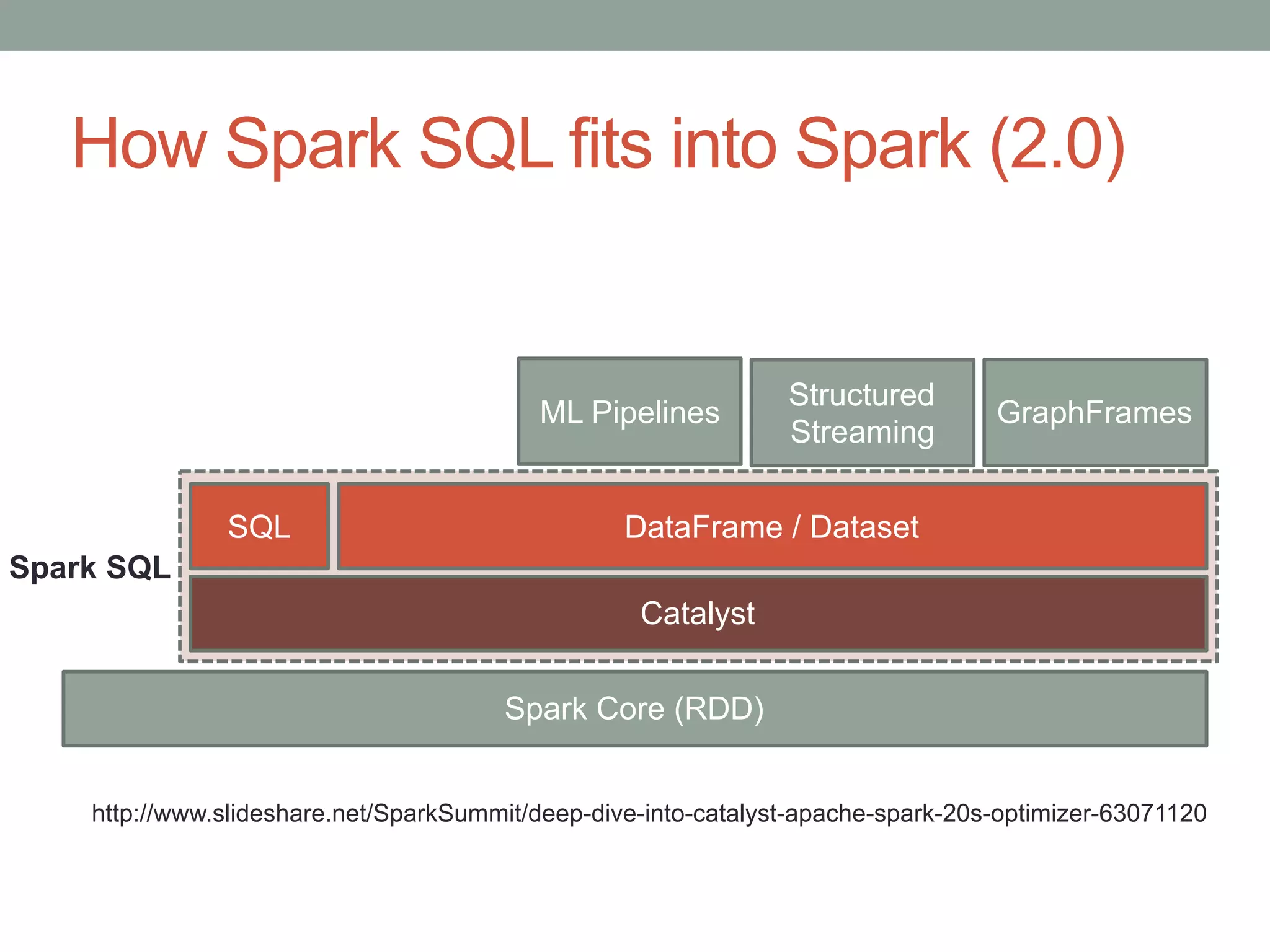

- 7. How Spark SQL fits into Spark (2.0) Spark Core (RDD) Catalyst SQL DataFrame / Dataset ML Pipelines Structured Streaming GraphFrames Spark SQL http://www.slideshare.net/SparkSummit/deep-dive-into-catalyst-apache-spark-20s-optimizer-63071120

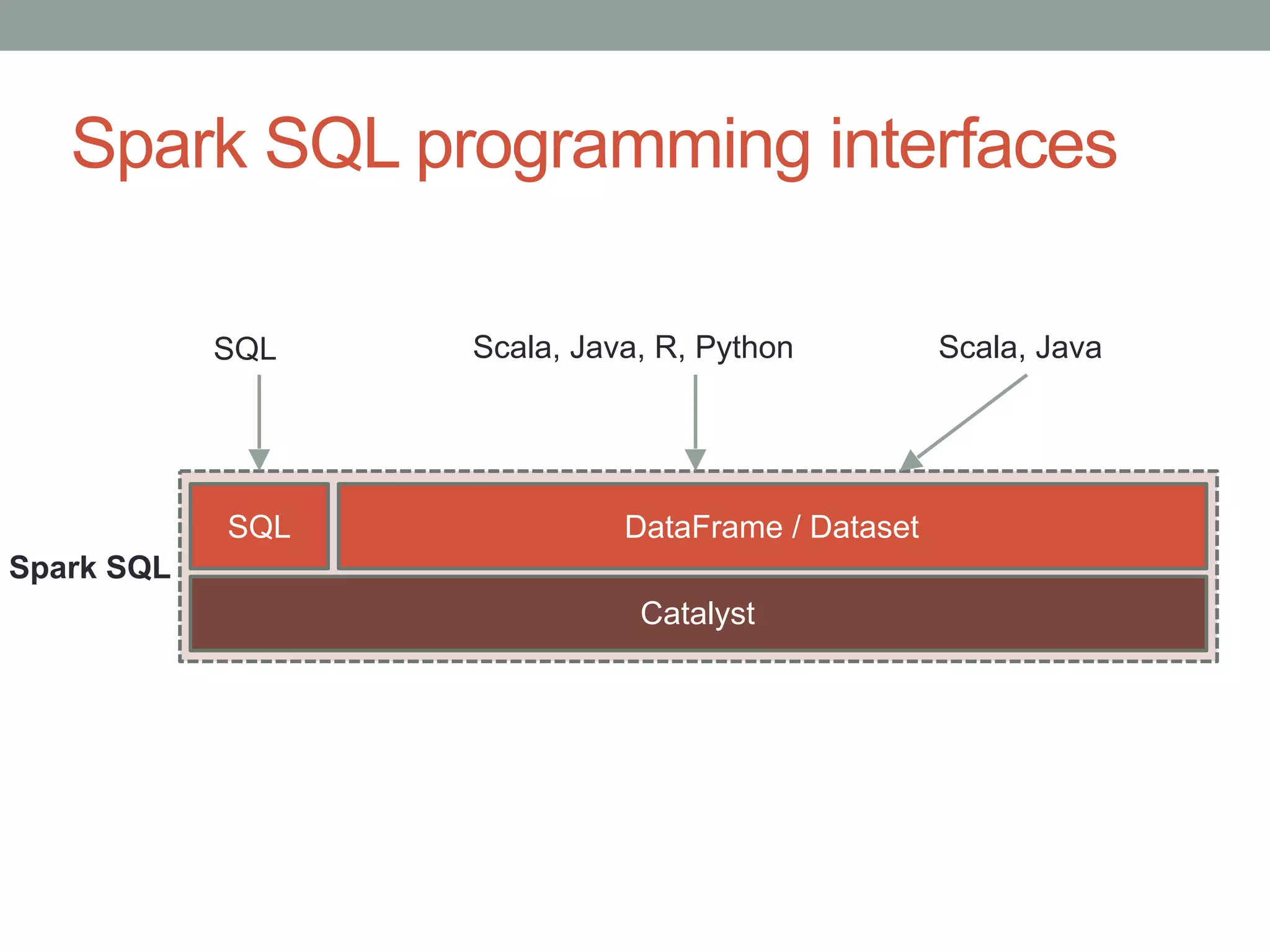

- 8. Spark SQL programming interfaces Catalyst SQL DataFrame / Dataset Spark SQL SQL Scala, Java, R, Python Scala, Java
- 9. SQL or DataFrame? • Use SQL if you are already familiar with SQL • Use DataFrame • To write queries in a general-purpose programming language (Scala, Python, …). • Use DataFrame to catch syntax errors earlier: SQL DataFrame Syntax Error Example “SELEECT id FROM table” df.seleect(“id”) Caught at Runtime Compile Time

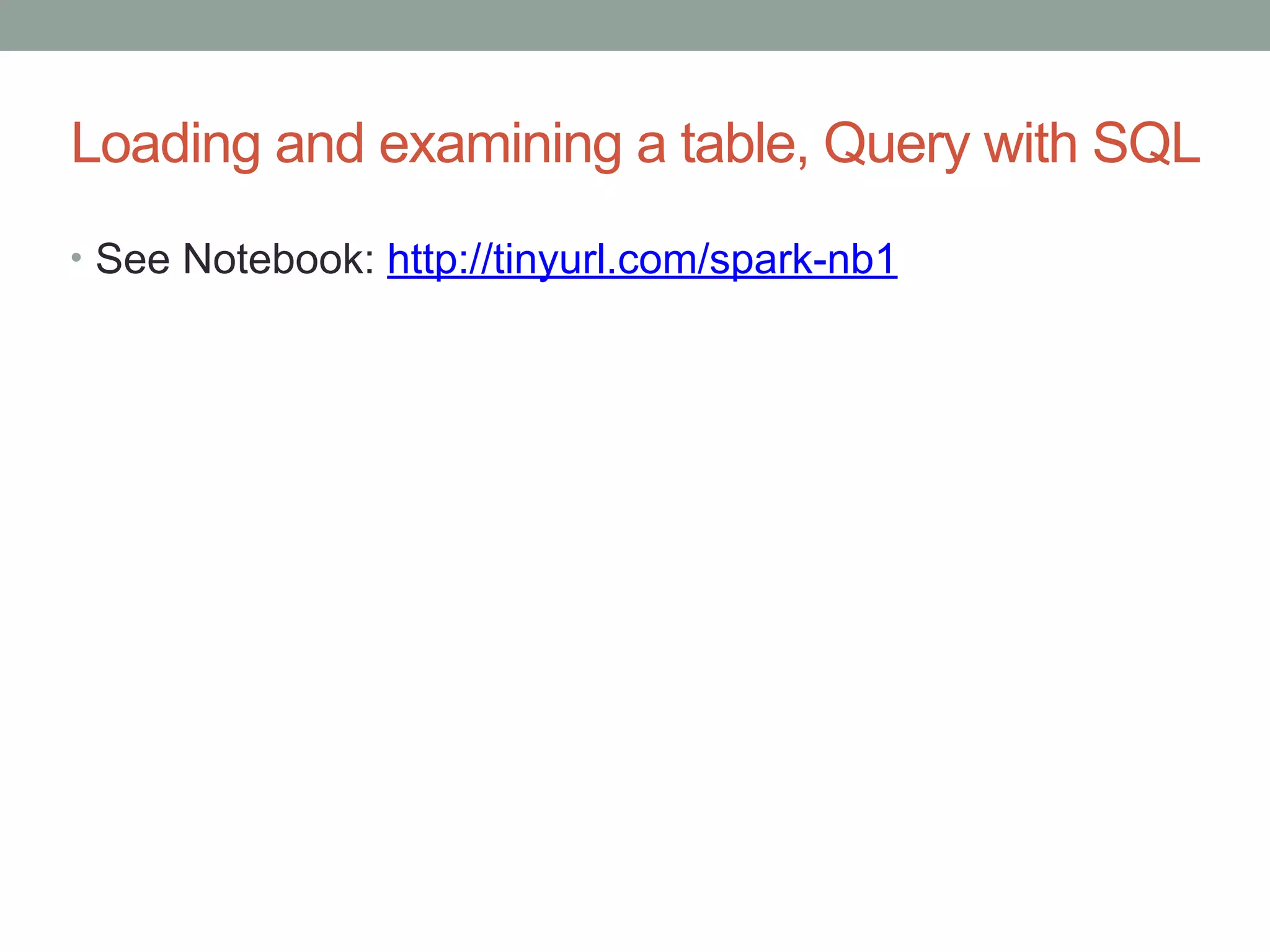

- 10. Loading and examining a table, Query with SQL • See Notebook: http://tinyurl.com/spark-nb1

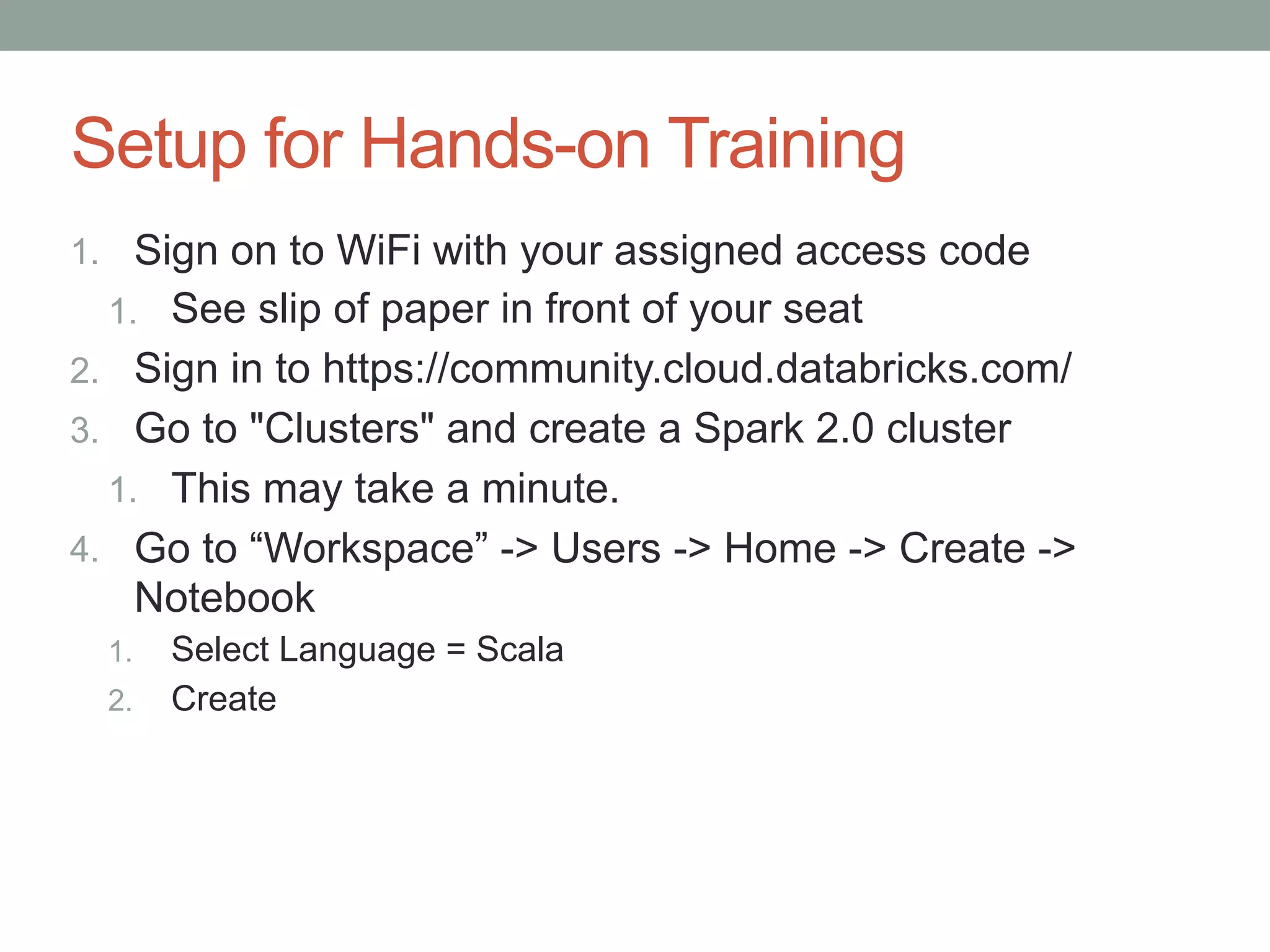

- 11. Setup for Hands-on Training 1. Sign on to WiFi with your assigned access code 1. See slip of paper in front of your seat 2. Sign in to https://community.cloud.databricks.com/ 3. Go to "Clusters" and create a Spark 2.0 cluster 1. This may take a minute. 4. Go to “Workspace” -> Users -> Home -> Create -> Notebook 1. Select Language = Scala 2. Create

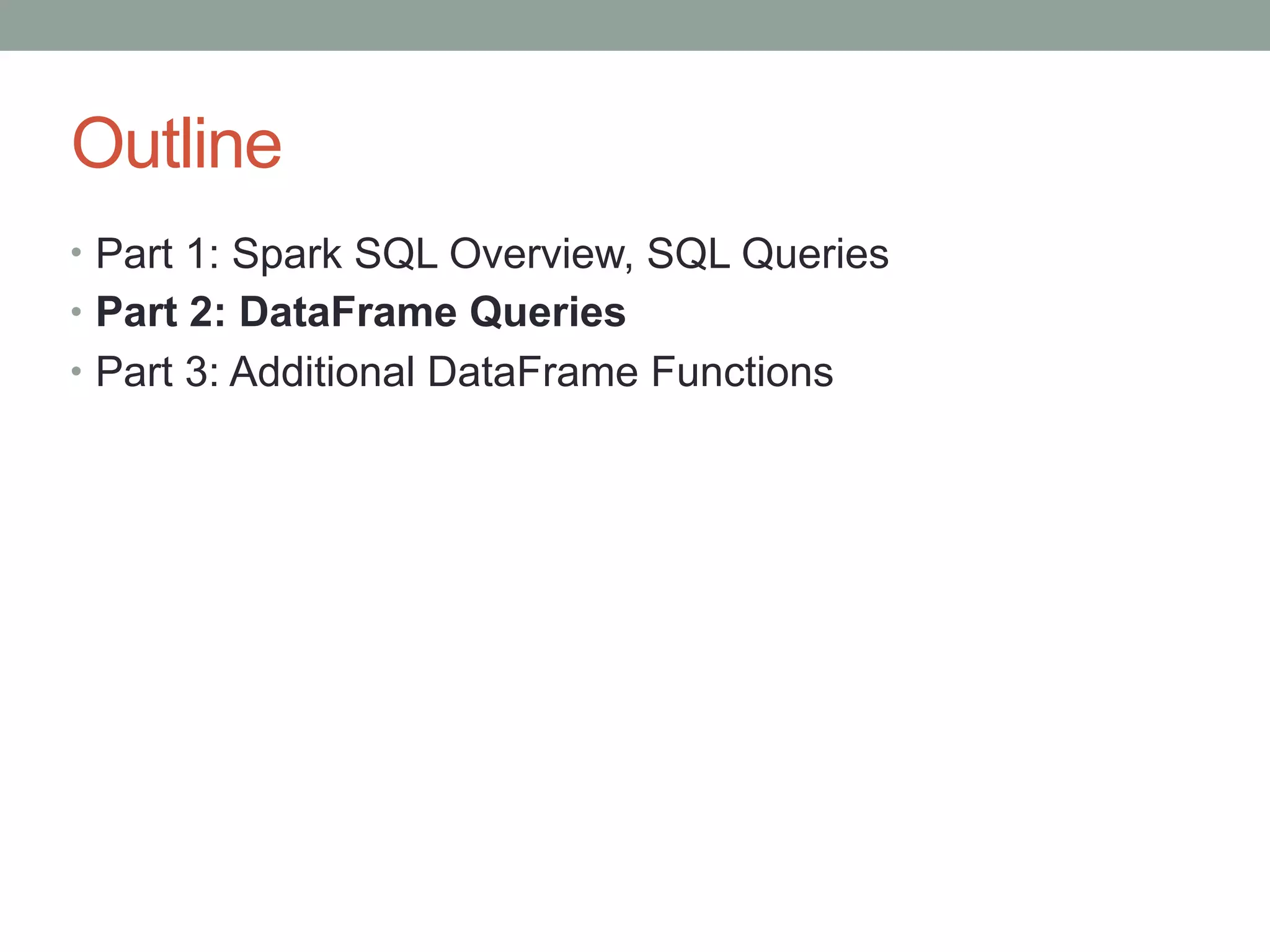

- 12. Outline • Part 1: Spark SQL Overview, SQL Queries • Part 2: DataFrame Queries • Part 3: Additional DataFrame Functions

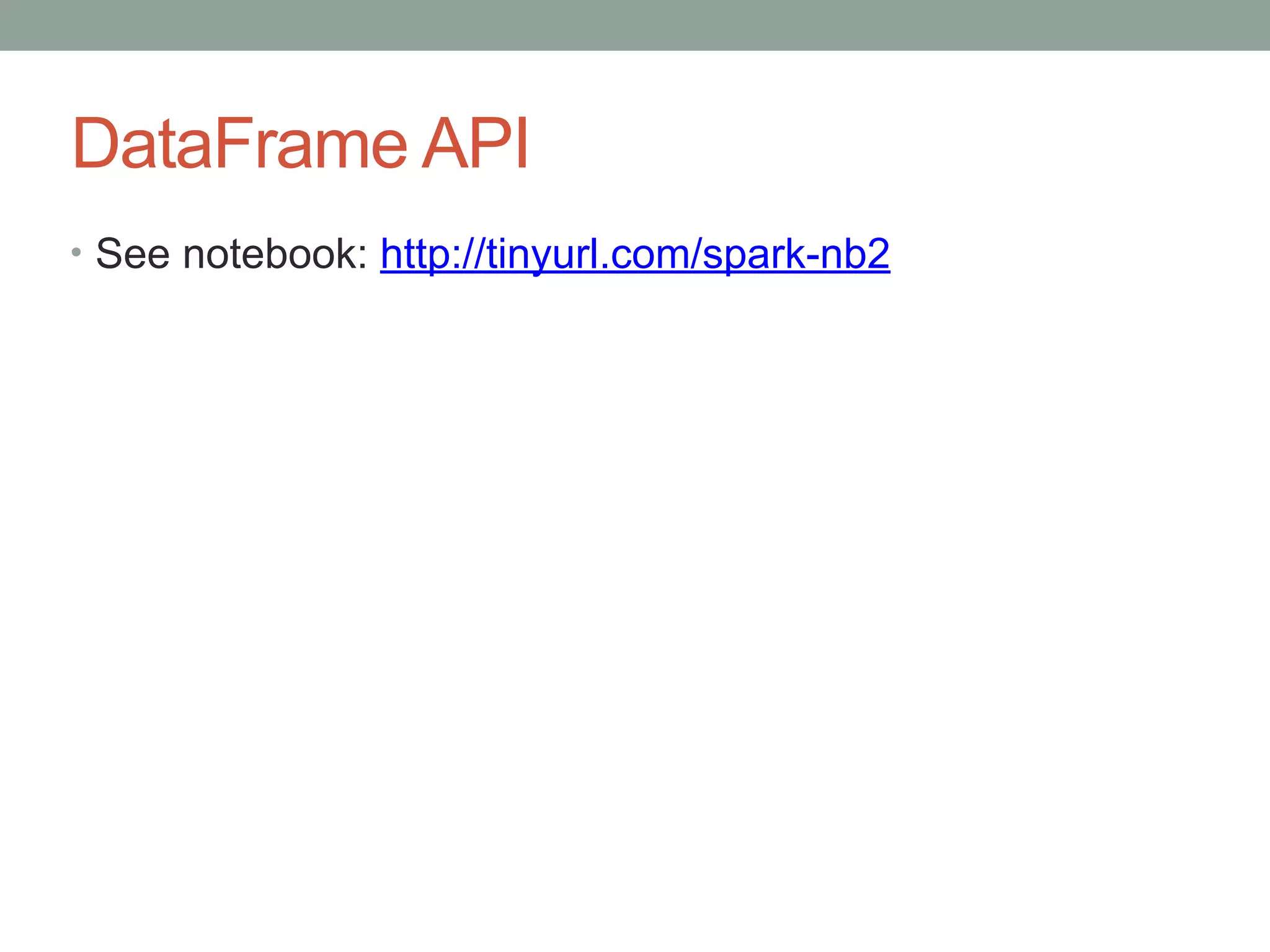

- 13. DataFrame API • See notebook: http://tinyurl.com/spark-nb2

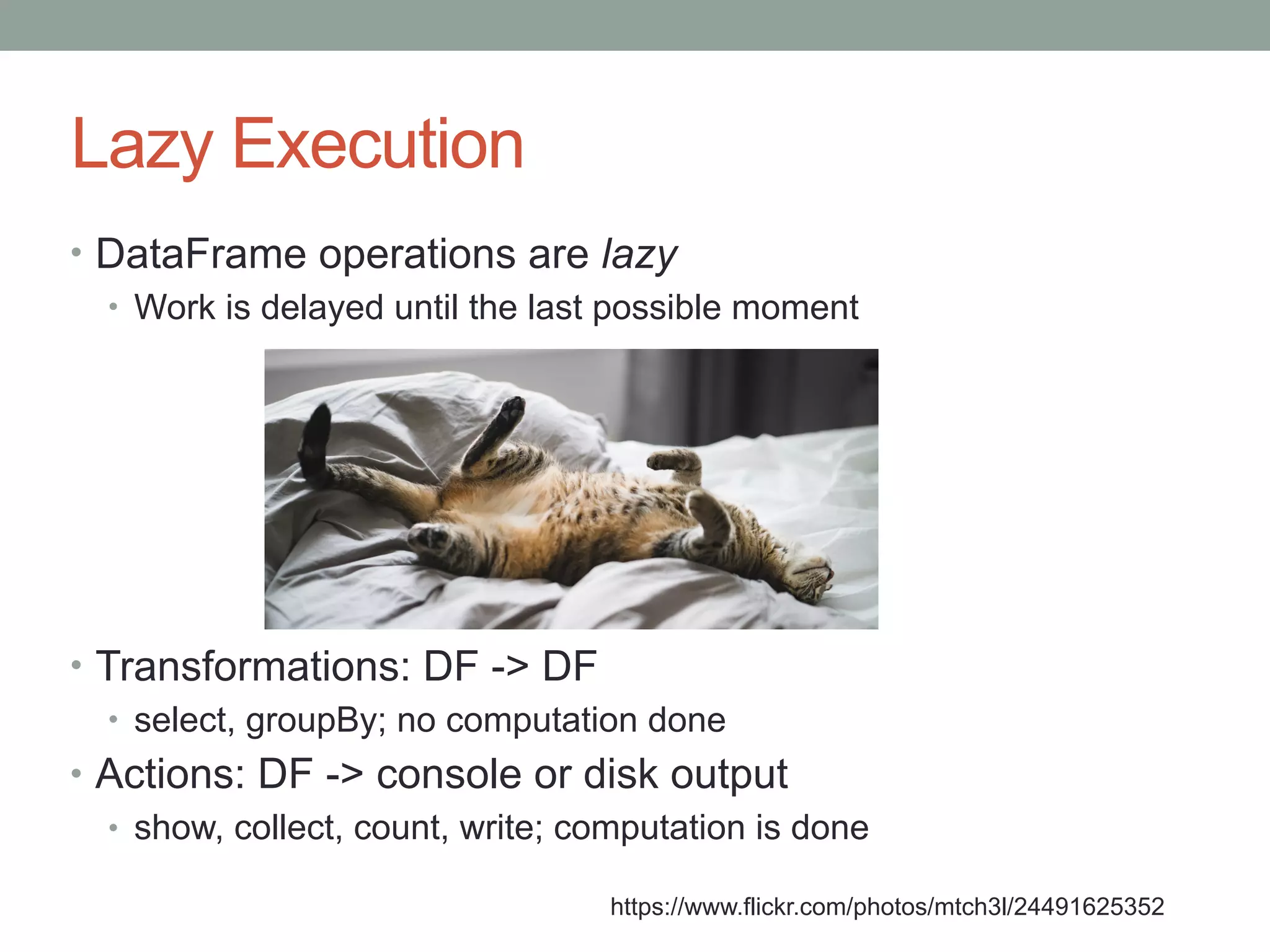

- 14. Lazy Execution • DataFrame operations are lazy • Work is delayed until the last possible moment • Transformations: DF -> DF • select, groupBy; no computation done • Actions: DF -> console or disk output • show, collect, count, write; computation is done https://www.flickr.com/photos/mtch3l/24491625352

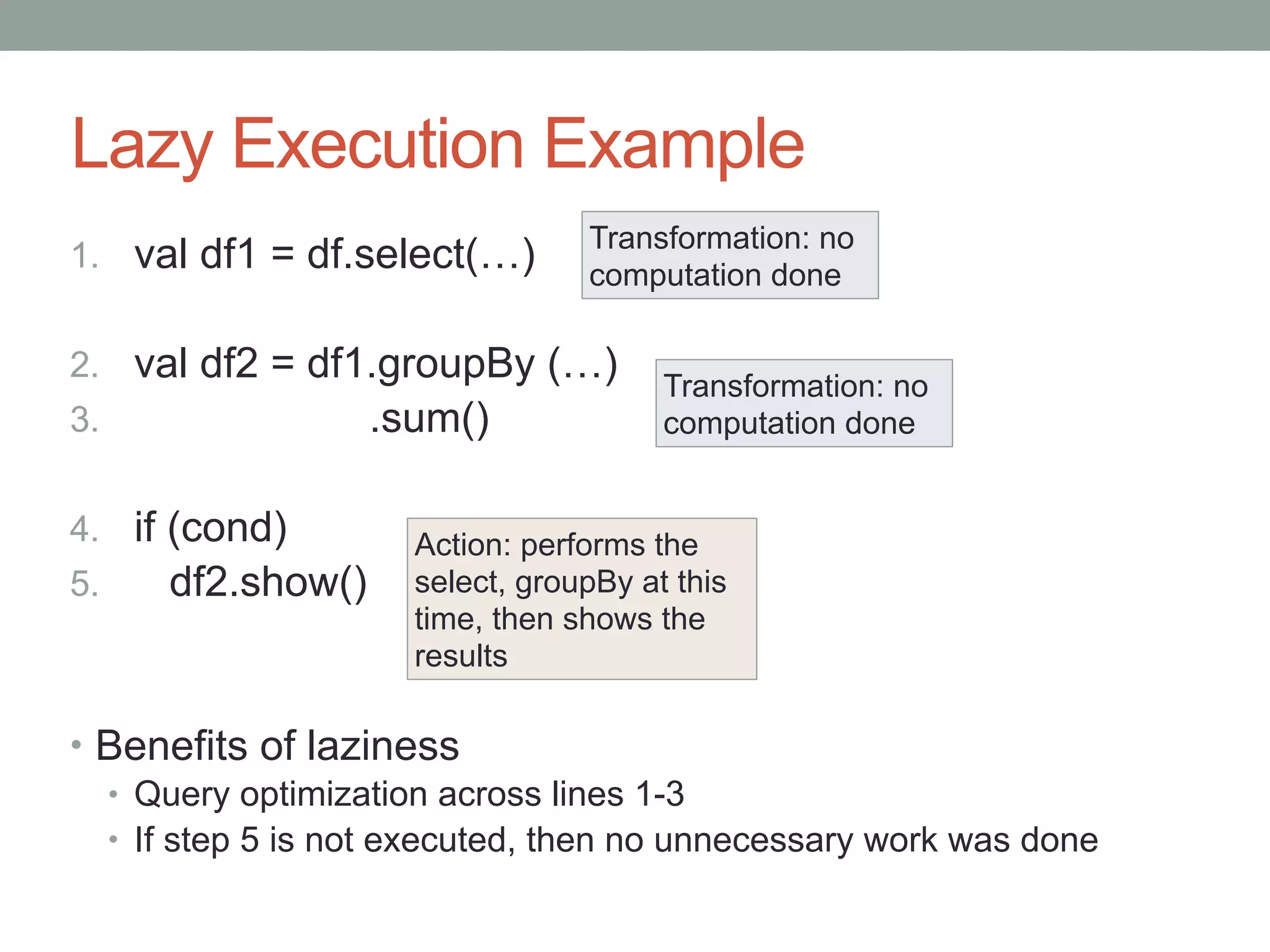

- 15. Lazy Execution Example 1. val df1 = df.select(…) 2. val df2 = df1.groupBy (…) 3. .sum() 4. if (cond) 5. df2.show() • Benefits of laziness • Query optimization across lines 1-3 • If step 5 is not executed, then no unnecessary work was done Transformation: no computation done Transformation: no computation done Action: performs the select, groupBy at this time, then shows the results

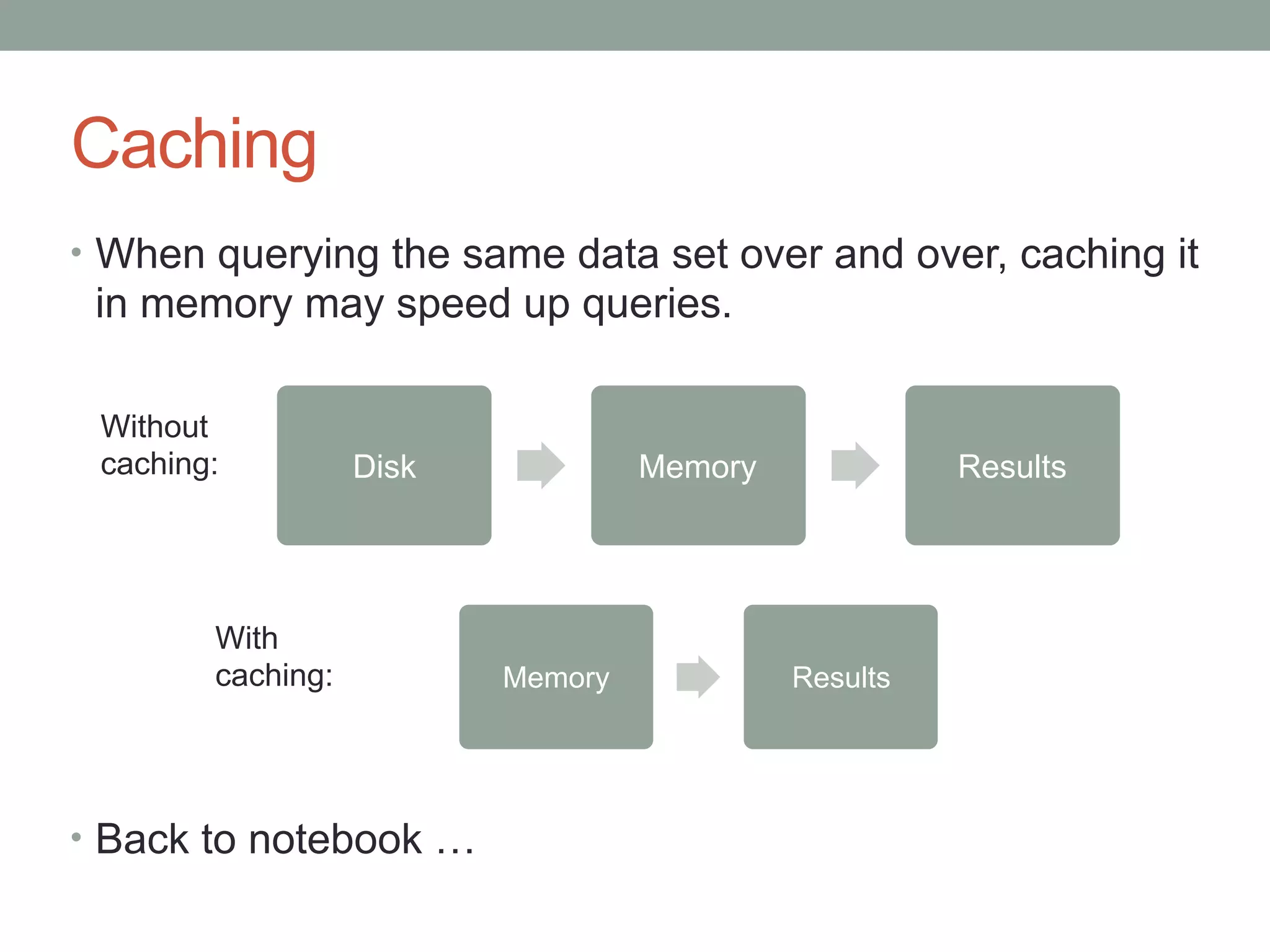

- 16. Caching • When querying the same data set over and over, caching it in memory may speed up queries. • Back to notebook … Disk Memory Results Memory Results Without caching: With caching:

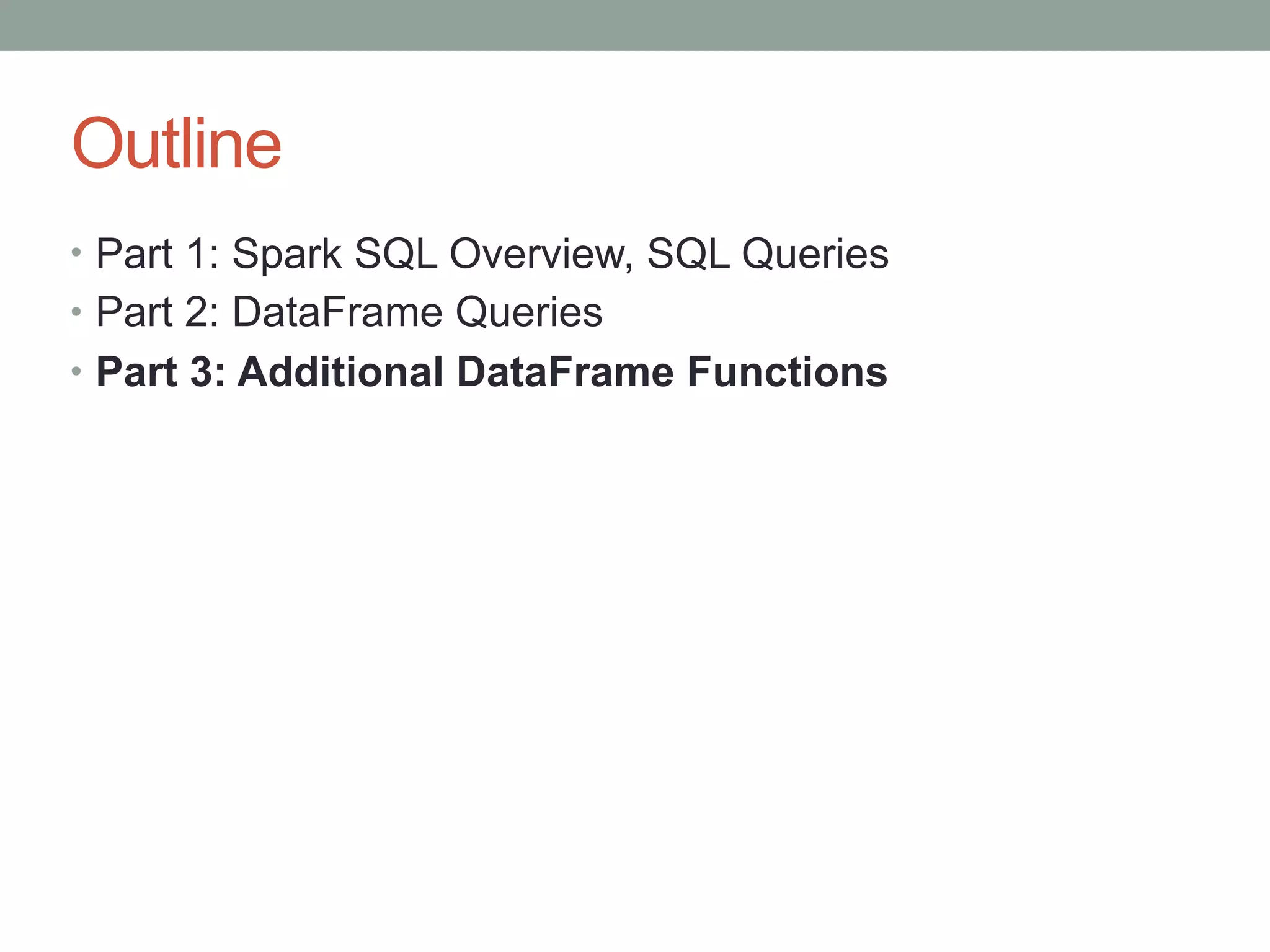

- 17. Outline • Part 1: Spark SQL Overview, SQL Queries • Part 2: DataFrame Queries • Part 3: Additional DataFrame Functions

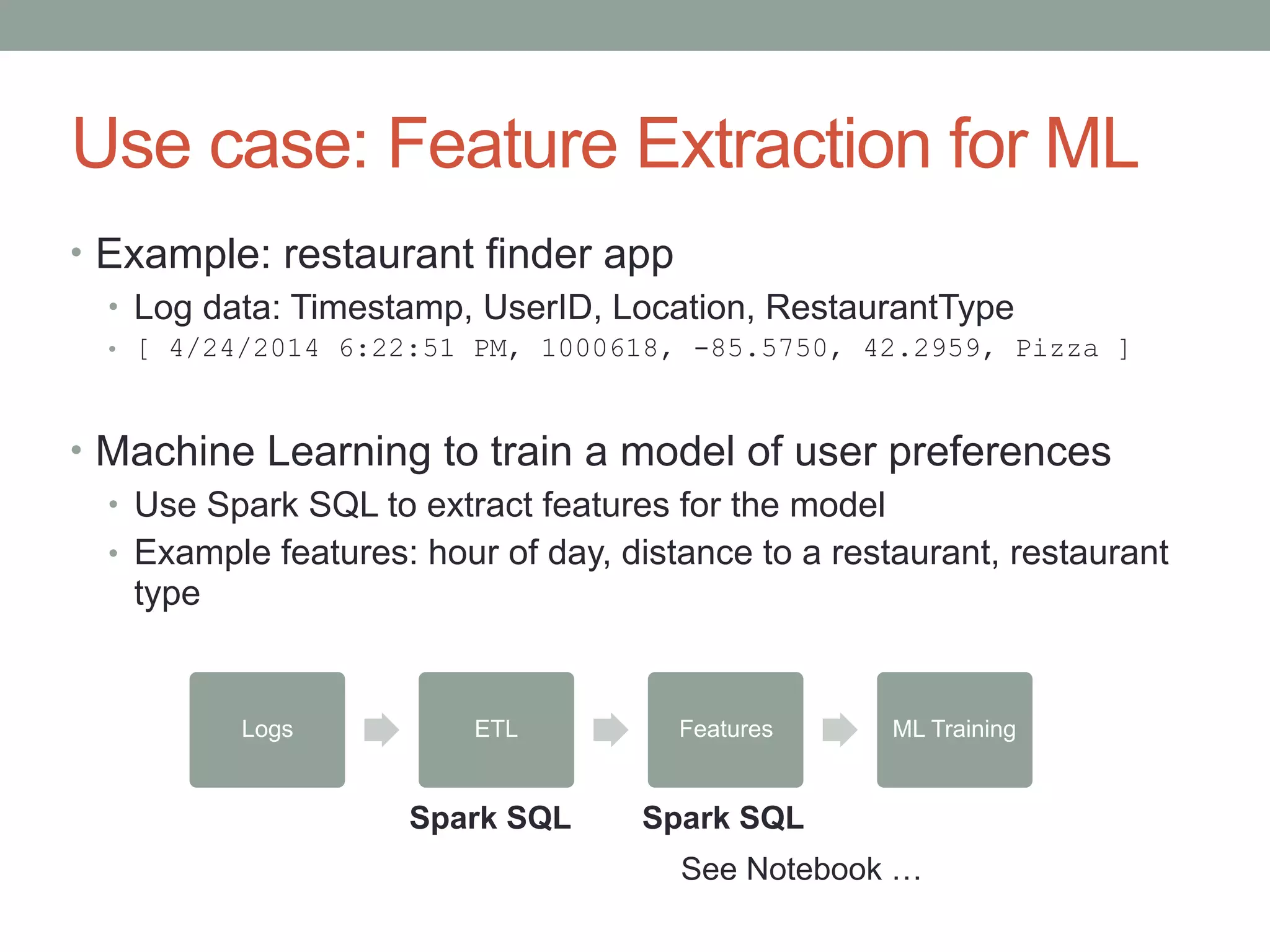

- 18. Use case: Feature Extraction for ML • Example: restaurant finder app • Log data: Timestamp, UserID, Location, RestaurantType • [ 4/24/2014 6:22:51 PM, 1000618, -85.5750, 42.2959, Pizza ] • Machine Learning to train a model of user preferences • Use Spark SQL to extract features for the model • Example features: hour of day, distance to a restaurant, restaurant type Logs ETL Features ML Training Spark SQL Spark SQL See Notebook …

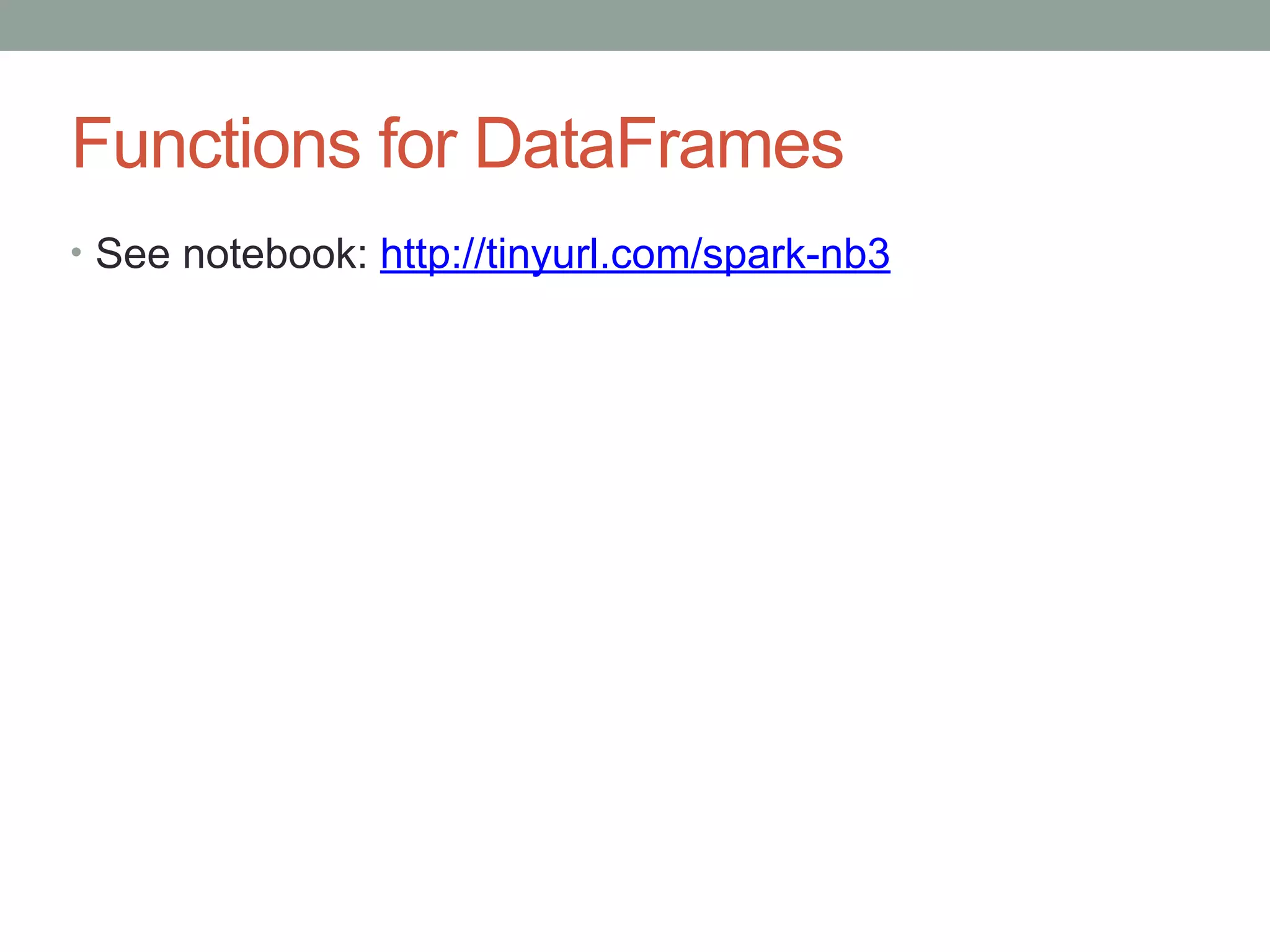

- 19. Functions for DataFrames • See notebook: http://tinyurl.com/spark-nb3

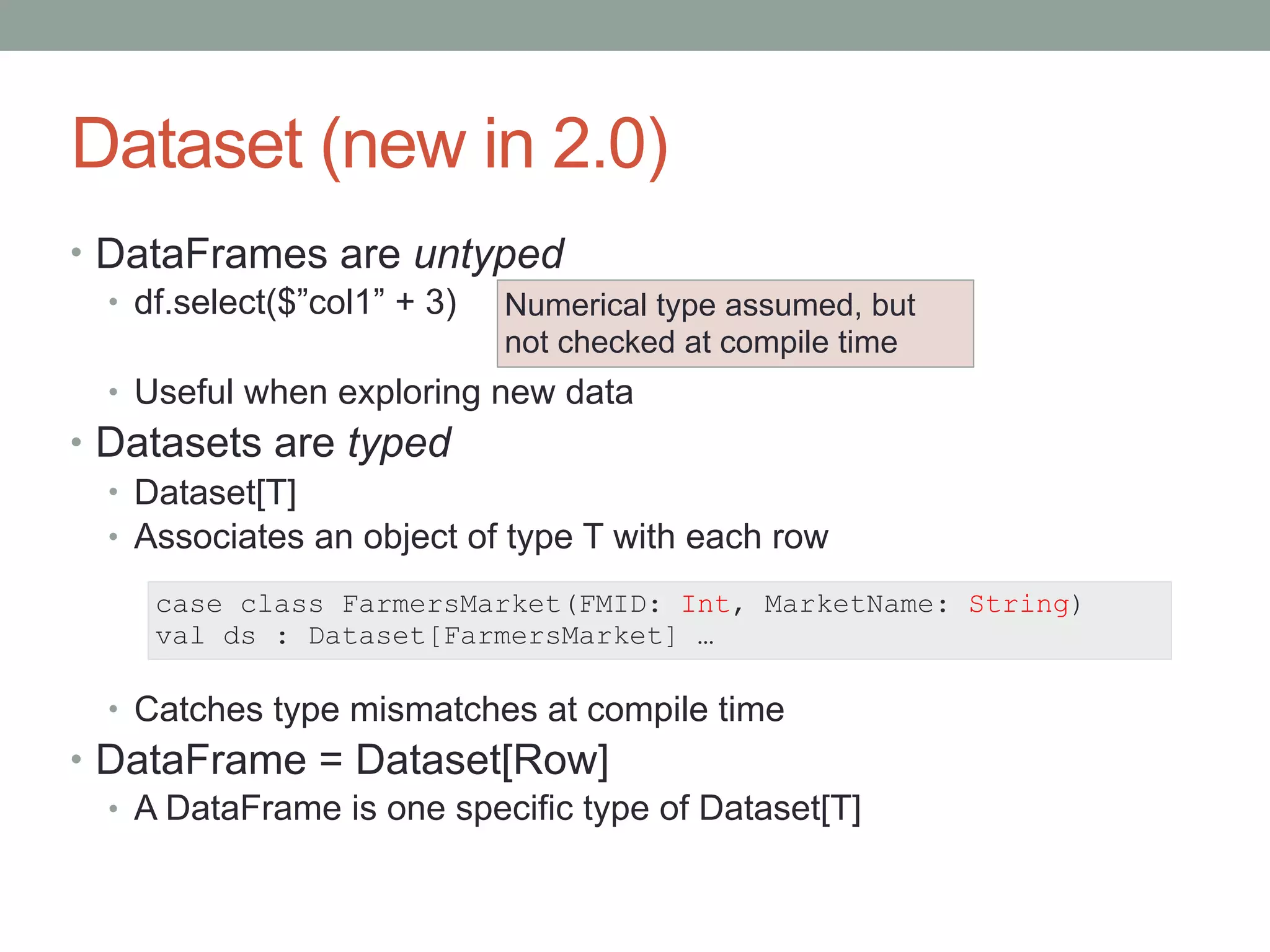

- 20. Dataset (new in 2.0) • DataFrames are untyped • df.select($”col1” + 3) • Useful when exploring new data • Datasets are typed • Dataset[T] • Associates an object of type T with each row • Catches type mismatches at compile time • DataFrame = Dataset[Row] • A DataFrame is one specific type of Dataset[T] case class FarmersMarket(FMID: Int, MarketName: String) val ds : Dataset[FarmersMarket] … Numerical type assumed, but not checked at compile time

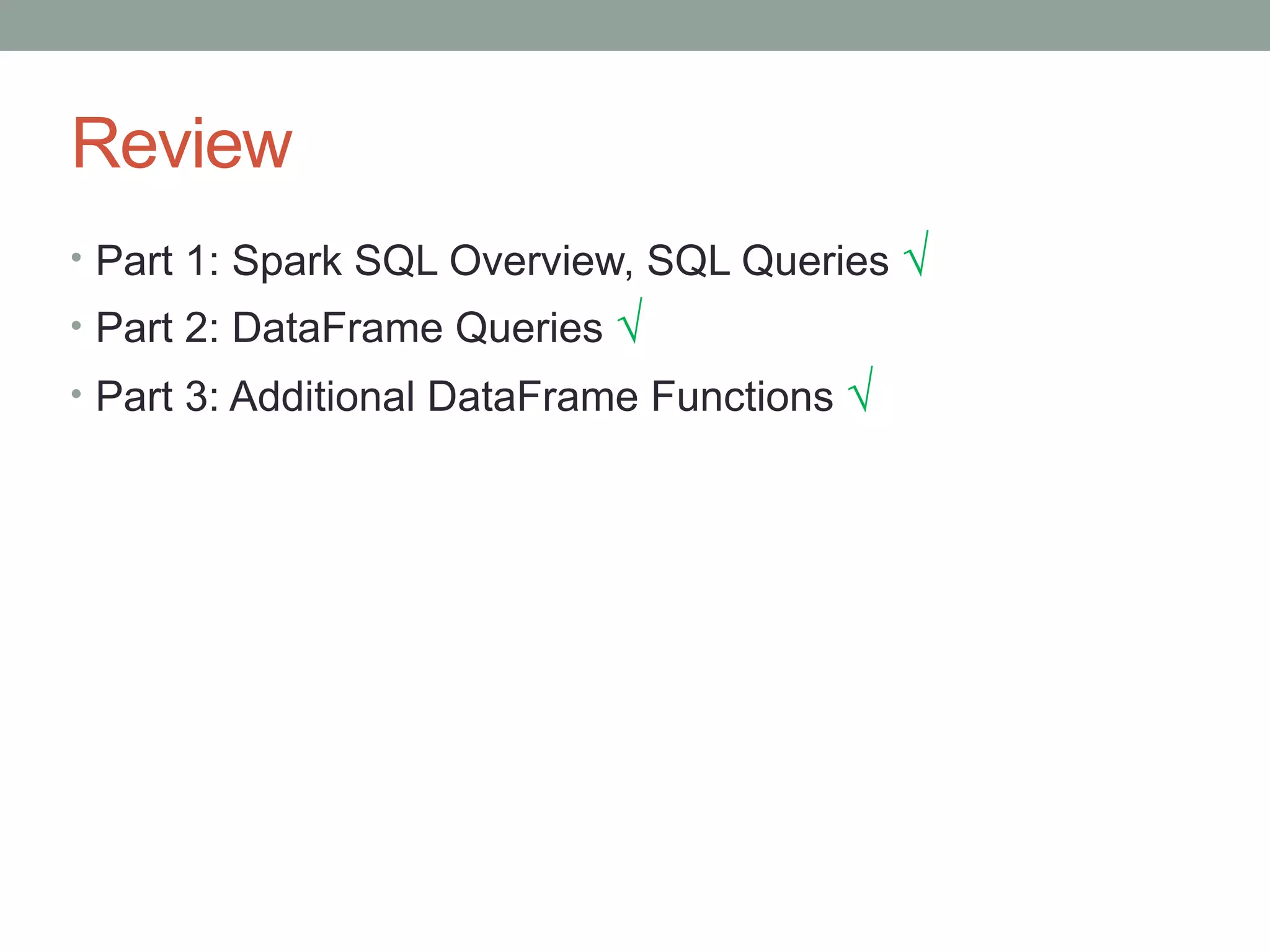

- 21. Review • Part 1: Spark SQL Overview, SQL Queries √ • Part 2: DataFrame Queries √ • Part 3: Additional DataFrame Functions √

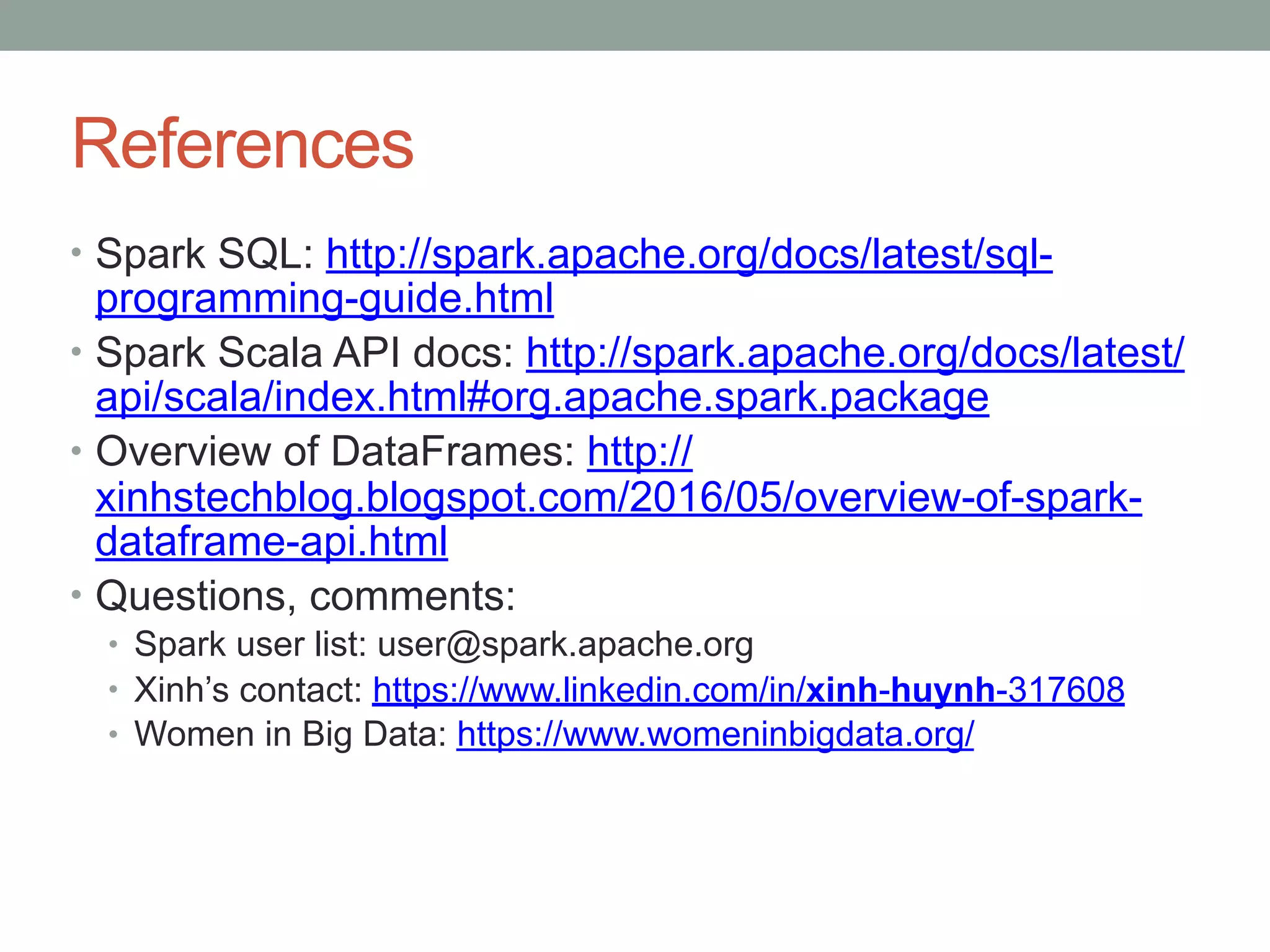

- 22. References • Spark SQL: http://spark.apache.org/docs/latest/sql- programming-guide.html • Spark Scala API docs: http://spark.apache.org/docs/latest/ api/scala/index.html#org.apache.spark.package • Overview of DataFrames: http:// xinhstechblog.blogspot.com/2016/05/overview-of-spark- dataframe-api.html • Questions, comments: • Spark user list: user@spark.apache.org • Xinh’s contact: https://www.linkedin.com/in/xinh-huynh-317608 • Women in Big Data: https://www.womeninbigdata.org/
