Machine Learning

1. Presenter: Muhammad Rizwan Khan
Usafzai
1

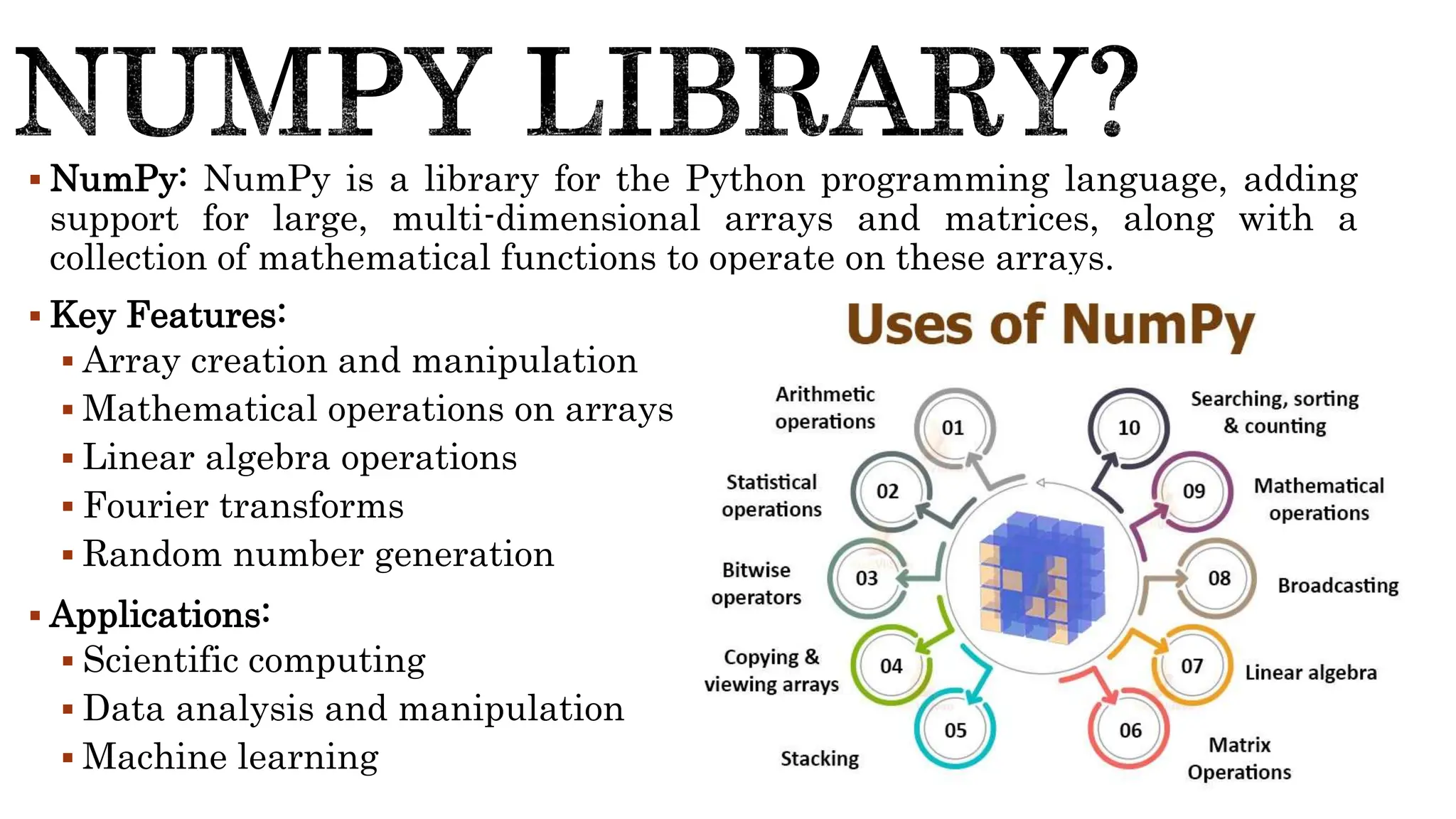

2.  NumPy: NumPy is a library for the Python programming language, adding
support for large, multi-dimensional arrays and matrices, along with a
collection of mathematical functions to operate on these arrays.
 Key Features:
 Array creation and manipulation
 Mathematical operations on arrays
 Linear algebra operations
 Fourier transforms
 Random number generation
 Applications:
 Scientific computing
 Data analysis and manipulation
 Machine learning 2

3. How to install NumPy on Jupyter?
Open the jupyter notebook and type the following code:
!pip install numpy
Import numpy as np
Solve the following code then:
n = np.array((1,2,3))
Print(n)
Type of object:
Print(type(n))
3

4.  OpenCV (Open Source Computer Vision Library):
 OpenCV is an open-source computer vision and machine learning software
library. It provides a wide range of functionalities for real-time computer vision,
including image and video processing, object detection, face recognition, and
more.
 Key Features:
 Image and video I/O
 Image processing algorithms
 Object detection and tracking
 Machine learning algorithms for computer vision tasks
 Applications:
 Robotics
 Augmented reality
 Surveillance systems
 Medical image analysis 4

5. How to install Open CV on Jupyter?
Open the jupyter notebook and type the following code:
!pip install opencv-python
import cv2
img = cv2.imread("img1.png")
cv2.imshow("MRK",img)
cv2.waitKey(10000)
cv2.destroyAllWindows()
5

6.  Matplotlib is a comprehensive library for creating static, animated, and
interactive visualizations in Python. It provides a MATLAB-like interface and
supports a wide variety of plots and graphs.
 Key Features:
 Line plots, scatter plots, and histograms
 2D and 3D plotting
 Customization of plots
 Integration with NumPy arrays
 Applications:
 Data visualization
 Scientific plotting
 Statistical analysis
6

7. How to install Matplotlib on Jupyter?
Open the jupyter notebook and type the following code:
!pip install matplotlib
Import matplotlib.pyplot as plt // as means alias (named)
import numpy as np
xpts = np.array([0,4])
ypts = np.array([0,6])
plt.plot(xpts,ypts)
plt.show()
7

8.  scikit-image, commonly abbreviated as skimage, is an open-source image
processing library for Python.
 It provides a collection of algorithms for image division, feature extraction,
image filtering, and other image processing tasks
 Image Processing
 Integration: It seamlessly integrates with other scientific Python libraries such
as NumPy, SciPy, and Matplotlib, allowing for efficient image manipulation and
analysis.
 User-Friendly API
 Community Support: Skimage benefits from an active community of developers
and users,
8

9. Installing scikit-image library:
Pip install scikit-image
Import skimage
from skimage import io
# Load an image from a file
image = io.imread('example_image.jpg')
# Display the image
io.imshow(image)
io.show()
9

10.  Pillow is a Python Imaging Library (PIL) fork, which adds extensive image processing
capabilities to Python. It provides support for opening, manipulating, and saving many
different image file formats.
 Image Manipulation: Pillow offers a wide range of image handling functionalities such
as resizing, cropping, rotating, filtering, and enhancing images.
 Image File Support: It supports various image file formats including JPEG, PNG, GIF,
etc. making it suitable for handling varied image data.
 Integration: Pillow seamlessly integrates with other Python libraries such as NumPy
and Matplotlib, enabling easy interoperability with scientific computing and data
visualization tools.
 Ease of Use: Pillow provides a simple and intuitive API for working with images,
making it accessible to users with varying levels of programming experience.
 Activeness: Pillow is actively maintained and updated, ensuring compatibility with the
latest Python versions and continued support for new features and improvements.
10

11.  Installing Pillow library:
 Pip install pillow
 from PIL import Image
 # Open an image file
 original_image =
Image.open("example.jpg")
 # Display basic information about
the image
 print("Original Image Format:",
original_image.format)
 print("Original Image Size:",
original_image.size)
 # Resize the image
 new_size = (original_image.size[0] //
2, original_image.size[1] // 2)
 # Reduce size by half
 resized_image =
original_image.resize(new_size)
11
# Display new size
print("Resized Image Size:", resized_image.size)
# Save the resized image with a new name
resized_image.save("resized_example.jpg")
# Close the original and resized images
original_image.close()
resized_image.close()
print("Resized image saved successfully!")

12.  Pandas is a powerful Python library for data manipulation and analysis. It
offers data structures and functions to efficiently work with structured data like
time series, tabular, and heterogeneous data.
 Data Structures: Pandas provides two main data structures: Series (1D labeled
array) and DataFrame (2D labeled data structure), which offer powerful data
manipulation capabilities.
 Data Handling: It offers functionalities for reading and writing data from
various formats like CSV, Excel, SQL databases etc.
 Data Analysis: Pandas supports data analysis tasks including data cleaning,
filtering, grouping, merging, and reshaping, making it indispensable for
exploratory data analysis.
 Integration: It seamlessly integrates with other Python libraries such as
NumPy, Matplotlib, and scikit-learn, enhancing its capabilities in scientific
computing and machine learning tasks.
12

13.  Installing Pandas library:
Pip install pandas
Some time it shows for pip upgrade
then use the following to upgrade
your pip:
Python.exe -m pip install --upgrade
pip
import pandas as pd
# Read a CSV file into a DataFrame
df = pd.read_csv("example.csv")
# Display the first few rows of the
DataFrame
print("First few rows of the
DataFrame:")
print(df.head()) 13
# Display summary information
about the DataFrame
print("nSummary
information:")
print(df.info())
# Display basic statistics of
numerical columns
print("nBasic statistics:")
print(df.describe())

14.  Definition: scikit-learn is a versatile machine learning library for Python. It offers
simple and efficient tools for data mining and data analysis, implementing a wide
range of machine learning algorithms.
 Machine Learning Algorithms: scikit-learn provides implementations for various
machine learning algorithms including classification, regression, clustering,
dimensionality reduction, and model selection.
 Model Evaluation: It offers tools for model evaluation, cross-validation, and
hyperparameter tuning, facilitating the development of robust and accurate machine
learning models.
 Integration: scikit-learn seamlessly integrates with other Python libraries such as
NumPy, SciPy, and Pandas, enabling easy preprocessing, training, and evaluation of
machine learning models.
 Scalability: It is designed to be scalable and efficient, making it suitable for working
with large datasets and complex models.
14

15.  Installing scikit-learn library:
 Pip install scikit-learn
 Import sklearn
 from sklearn.datasets import load_iris
 from sklearn.model_selection import
train_test_split
 from sklearn.ensemble import
RandomForestClassifier
 from sklearn.metrics import
accuracy_score, classification_report
 # Load the Iris dataset
 iris = load_iris()
 X = iris.data # Features
 y = iris.target # Target variable
 # Split the dataset into training and
testing sets
 X_train, X_test, y_train, y_test =
train_test_split(X, y, test_size=0.2,
random_state=42) 15
# Initialize the Random Forest classifier
rf_classifier =
RandomForestClassifier(n_estimators=100,
random_state=42)
# Train the classifier
rf_classifier.fit(X_train, y_train)
# Predict on the test set
y_pred = rf_classifier.predict(X_test)
# Evaluate the model
accuracy = accuracy_score(y_test, y_pred)
print("Accuracy:", accuracy)
# Display classification report
print("nClassification Report:")
print(classification_report(y_test, y_pred,
target_names=iris.target_names))

16. Seaborn is a Python library for creating attractive statistical graphics.
 Statistical Visualization: Seaborn excels in generating plots like scatter plots,
bar charts, and heatmaps for effective data exploration.
 Integration with Pandas: It seamlessly works with Pandas DataFrames,
making data visualization straightforward.
 Customization: Users can easily customize plot aesthetics to suit their
preferences.
 Statistical Analysis: Seaborn offers tools for visualizing relationships between
variables and conducting statistical analysis.
 Community and Documentation: Supported by an active community and
comprehensive documentation for easy learning.
16

17.  Installing seaborn library:
 Pip install seaborn
 import seaborn as sns
 import matplotlib.pyplot as plt
 from sklearn.datasets import load_iris
 # Load the Iris dataset
 iris = load_iris()
 iris_df = sns.load_dataset("iris") # Load Iris dataset as a DataFrame
 # Create a pairplot using Seaborn
 sns.pairplot(iris_df, hue='species', palette='Set1')
 # Add title
 plt.suptitle("Pairplot of Iris Dataset")
 # Show the plot
 plt.show()
17

18. Plotly is a Python library for creating interactive and publication-quality graphs.
 Interactive Visualization: Plotly allows users to interactively explore data
through zooming and hovering over data points.
 Online Platform: It offers an online platform for hosting and sharing interactive
plots.
 Chart Types: Supports a wide range of chart types including scatter plots, line
plots, and 3D surface plots.
 Integration: Easily integrates with other Python libraries for seamless data
manipulation and visualization.
 Customization: Provides extensive options for customizing plot appearance for
tailored visualizations.
18

19.  Installing plotly library:
 Pip install plotly
 import plotly.graph_objects as go
 # Sample data
 x_values = [1, 2, 3, 4, 5]
 y_values = [2, 3, 5, 7, 11]
 # Create a line plot
 fig = go.Figure(data=go.Scatter(x=x_values, y=y_values,
mode='lines'))
 # Add title and axis labels
 fig.update_layout(title='Simple Line Plot',
 xaxis_title='X-axis',
 yaxis_title='Y-axis')
 # Show the plot
 fig.show() 19

20. Data Pre Processing:
Data preprocessing is a critical step in machine learning pipelines.
It is define as the techniques and procedures used to prepare raw
data for analysis.
It involves several tasks such as importing and exporting data,
cleaning and formatting data, handling missing values, and feature
scaling.
20
Importing and Exporting Data:
•Importing data involves loading datasets into the machine learning
environment.
•This can be done using libraries like Pandas in Python or functions like
read_csv() for CSV files, read_excel() for Excel files, etc.
import pandas as pd
df=pd.read_csv(‘ML.csv’)
df.shape #show number of rows and columns
df.describe() #calculate the SD, mean etc.

21. Exporting the Data :
import pandas as pd
# Example DataFrame
data = {
'Name': ['John', 'Alice', 'Bob'],
'Age': [25, 30, 35],
'City': ['New York', 'Los Angeles', 'Chicago']
}
df = pd.DataFrame(data)
# Export DataFrame to CSV
df.to_csv('output.csv', index=False) 21

22.  Cleaning and Formatting Data:
 Cleaning data involves identifying and handling anomalies, inconsistencies,
and errors in the dataset.
 This may include removing duplicates, correcting data types, dealing with
outliers, etc.
 Formatting data involves ensuring that data is in the appropriate format for
analysis.
 For example, converting categorical variables into numerical representations,
standardizing date formats, etc.
22

23.  import pandas as pd
 # Load the dataset
 data = {
 'Name': ['John', 'Alice', 'Bob', 'Anna', 'Mike', 'Emily'],
 'Age': [25, 30, None, 35, 40, ''],
 'City': ['New York', 'Los Angeles', 'Chicago', 'San Francisco', '',
'Seattle'],
 'Gender': ['Male', 'Female', 'Male', '', 'Male', 'Female'],
 'Salary': ['$50000', '$60000', '$70000', '$80000', '90000', '$100000']
 }
 df = pd.DataFrame(data)
 # Display the original DataFrame
 print("Original DataFrame:")
 print(df)
 print()
 # Clean and format the data
 # 1. Convert Age to numeric and fill missing values with the median
age
 df['Age'] = pd.to_numeric(df['Age'], errors='coerce')
23
median_age = df['Age'].median() #
Calculate median age
df['Age'].fillna(median_age, inplace=True)
# Fill missing values with median
# 2. Remove rows with missing or empty
values in City and Gender columns
df = df[df['City'].notna() &
df['Gender'].notna() & (df['Gender'] != '')]
# 3. Convert Salary to numeric and remove
dollar signs
df['Salary'] = df['Salary'].replace('[$,]', '',
regex=True).astype(float)
# Display the cleaned and formatted
DataFrame
print("Cleaned and Formatted
DataFrame:")
print(df)

24.  Handling Missing Values:
 Missing values are common in datasets and can significantly affect the
performance of machine learning models if not handled properly.
 Techniques for handling missing values include:
 Imputation: Replacing missing values with a calculated or estimated value
(e.g., mean, median, mode).
 Deletion: Removing rows or columns with missing values.
 Advanced techniques like predictive modeling to estimate missing values
based on other features.
 The example is same as previous.
24

25.  Feature Scaling:
 Feature scaling is the process of standardizing or normalizing the range of
independent variables or features in the dataset.
 It is essential for algorithms that are sensitive to the scale of the input
features, such as gradient descent-based algorithms (e.g., linear regression,
logistic regression) or distance-based algorithms (e.g., k-nearest neighbors,
support vector machines).
 Common techniques for feature scaling include:
 Min-Max Scaling: Scaling features to a fixed range, usually [0, 1].
 Standardization (Z-score normalization): Scaling features so that they have
the properties of a standard normal distribution with a mean of 0 and a
standard deviation of 1.
 Robust Scaling: Scaling features using statistics that are robust to outliers,
such as the median and interquartile range.
25

26.  Feature Scaling:
 import numpy as np
 from sklearn.preprocessing import MinMaxScaler, StandardScaler
 # Sample dataset with two features
 data = np.array([[10, 0.5],
 [20, 0.7],
 [30, 0.9]])
 # Min-Max Scaling
 scaler_minmax = MinMaxScaler() # Initialize MinMaxScaler
 data_minmax = scaler_minmax.fit_transform(data) # Perform Min-Max Scaling
 print("Min-Max Scaled Data:")
 print(data_minmax)
 print()
 # Standardization (Z-score normalization)
 scaler_standard = StandardScaler() # Initialize StandardScaler
 data_standard = scaler_standard.fit_transform(data) # Perform Standardization
 print("Standardized Data:")
 print(data_standard) 26
