1. Company
LOGO
JUnit
Week 8, Session 3
Lecturer : ACB
- STQA IE 31315 -
Institut Teknologi Del
Jl. Sisingamangaraja
Sitoluama, Laguboti 22381
Toba – SUMUT
http://www.del.ac.id

2. Topics
 What is JUnit?
 Why JUnit framework?
 JUnit mechanics
 Fixtures
 Test suites
 Test runners
 JUnit classes
5/20/2014 STQA/Week09/JUnit 2

3. What is JUnit?
 An unit-testing tool for Java programs
 Supports Test-Driven-Development
 Agile Method
 Goal: Accelerate programming and
increase the quality of code.
 Not for testing GUI
5/20/2014 STQA/Week09/JUnit 3

4. JUnit (cont’d)
 Each method under test is treated
as a unit
 The automated testing scripts are
in the form of methods in another
Java source file
 The job of the software
developers/testers is then to
write the automated testing
scripts
5/20/2014 STQA/Week09/JUnit 4

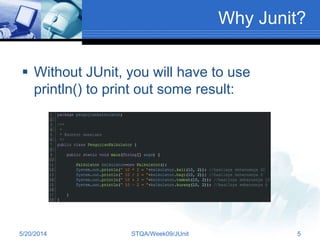

5. Why Junit?
 Without JUnit, you will have to use
println() to print out some result:
5/20/2014 STQA/Week09/JUnit 5

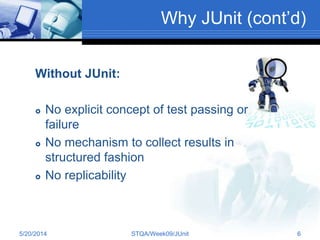

6. Why JUnit (cont’d)
Without JUnit:
 No explicit concept of test passing or
failure
 No mechanism to collect results in
structured fashion
 No replicability
5/20/2014 STQA/Week09/JUnit 6

7. Key Goals of JUnit
 Easy to use to create tests
 Create tests that retain their value over
time
 Leverage existing tests to write new
ones (reusable)
5/20/2014 STQA/Week09/JUnit 7

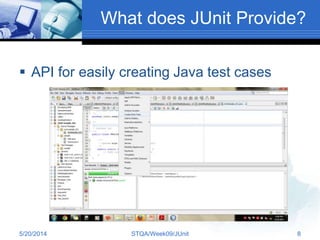

8. What does JUnit Provide?
 API for easily creating Java test cases
5/20/2014 STQA/Week09/JUnit 8

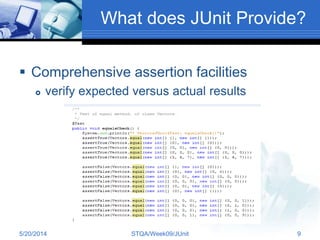

9. What does JUnit Provide?
 Comprehensive assertion facilities
 verify expected versus actual results
5/20/2014 STQA/Week09/JUnit 9

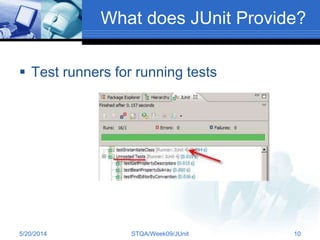

10. What does JUnit Provide?
 Test runners for running tests
5/20/2014 STQA/Week09/JUnit 10

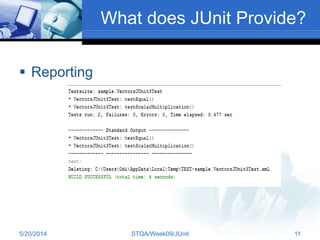

11. What does JUnit Provide?
 Reporting
5/20/2014 STQA/Week09/JUnit 11

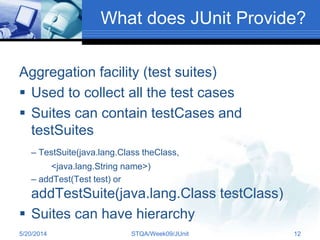

12. What does JUnit Provide?
Aggregation facility (test suites)
 Used to collect all the test cases
 Suites can contain testCases and
testSuites
– TestSuite(java.lang.Class theClass,
<java.lang.String name>)
– addTest(Test test) or
addTestSuite(java.lang.Class testClass)
 Suites can have hierarchy
5/20/2014 STQA/Week09/JUnit 12

13. How to write JUnit-based
testing code (Minimum)
 Include JUnit.jar in the classpath
 Define a subclass of TestCase class
 Define one or more public testXXX()
methods in the subclass
 Write assert methods inside the testXXX
methods()
 Optionally define main() to run the
TestCase in standalone mode
5/20/2014 STQA/Week09/JUnit 13

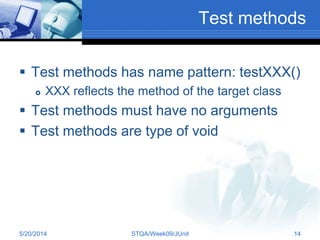

14. Test methods
 Test methods has name pattern: testXXX()
 XXX reflects the method of the target class
 Test methods must have no arguments
 Test methods are type of void
5/20/2014 STQA/Week09/JUnit 14

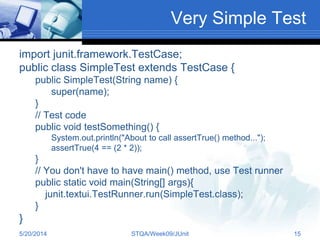

15. Very Simple Test
import junit.framework.TestCase;
public class SimpleTest extends TestCase {
public SimpleTest(String name) {
super(name);
}
// Test code
public void testSomething() {
System.out.println("About to call assertTrue() method...");
assertTrue(4 == (2 * 2));
}
// You don't have to have main() method, use Test runner
public static void main(String[] args){
junit.textui.TestRunner.run(SimpleTest.class);
}
}
5/20/2014 STQA/Week09/JUnit 15

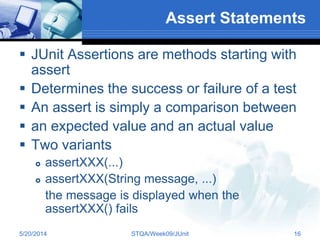

16. Assert Statements
 JUnit Assertions are methods starting with
assert
 Determines the success or failure of a test
 An assert is simply a comparison between
 an expected value and an actual value
 Two variants
 assertXXX(...)
 assertXXX(String message, ...)
the message is displayed when the
assertXXX() fails
5/20/2014 STQA/Week09/JUnit 16

17. Assert Statements
(cont’d)
 Asserts that a condition is true
– assertTrue(boolean condition)
– assertTrue(String message, boolean
condition)
 Asserts that a condition is false
– assertFalse(boolean condition)
– assertFalse(String message, boolean
condition)
5/20/2014 STQA/Week09/JUnit 17

18. Assert Statements
(cont’d)
 Asserts expected.equals(actual) behavior
– assertEquals(expected, actual)
– assertEquals(String message, expected,
actual)
 Asserts expected == actual behavior
– assertSame(Object expected, Object
actual)
– assertSame(String message, Object
expected, Object actual)
5/20/2014 STQA/Week09/JUnit 18

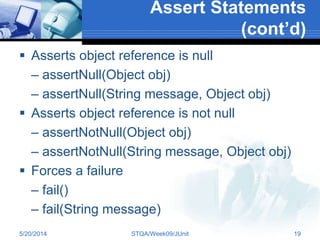

19. Assert Statements
(cont’d)
 Asserts object reference is null
– assertNull(Object obj)
– assertNull(String message, Object obj)
 Asserts object reference is not null
– assertNotNull(Object obj)
– assertNotNull(String message, Object obj)
 Forces a failure
– fail()
– fail(String message)
5/20/2014 STQA/Week09/JUnit 19

20. Fixtures
 setUp() and tearDown() used to initialize
and release common test data
 setUp() is run before every test invocation
 tearDown() is run after every test method
5/20/2014 STQA/Week09/JUnit 20

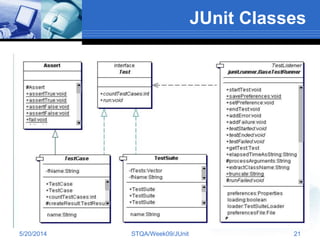

21. JUnit Classes
5/20/2014 STQA/Week09/JUnit 21

22. References
 www.junit.org
 http://www.javapassion.com/javase/javaju
nit.pdf
5/20/2014 STQA/Week09/JUnit 22
