Continous delivery at docker age
- 1. Continuous Delivery atDocker Age A DevOps story Adrien Blind DevOps coach @ Société Générale Docker Paris Meetup co-manager adrien.blind@sgcib.com @adrienblind

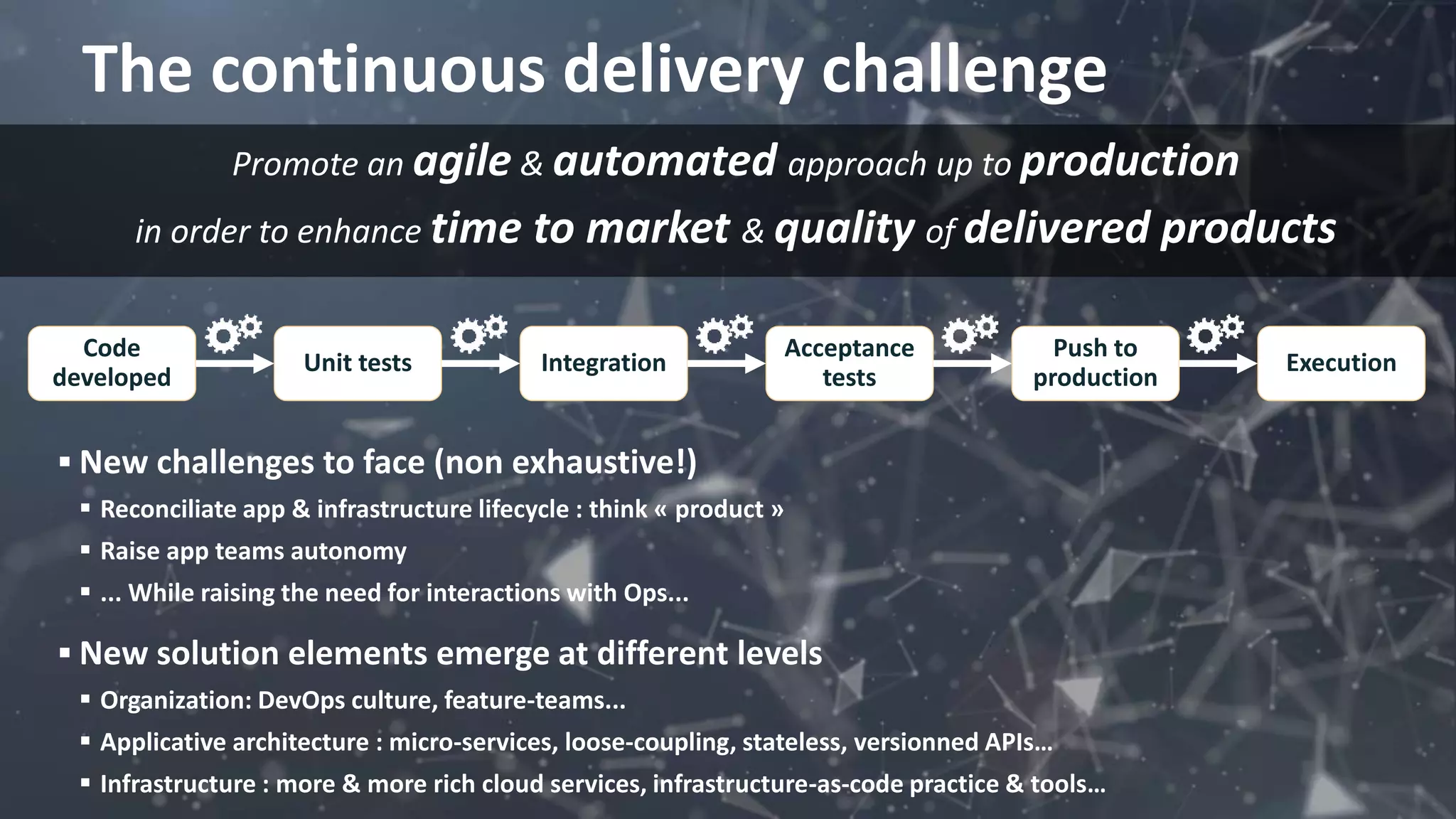

- 2. The continuous deliverychallenge Promote an agile & automated approach up to production in order to enhance time to market & quality of delivered products New challenges to face (non exhaustive!) Reconciliate app & infrastructure lifecycle : think « product » Raise app teams autonomy ... While raising the need for interactions with Ops... New solution elements emerge at different levels Organization: DevOps culture, feature-teams... Applicative architecture : micro-services, loose-coupling, stateless, versionned APIs… Infrastructure : more & more rich cloud services, infrastructure-as-code practice & tools… Code developed Unit tests Integration Acceptance tests Push to production Execution
- 3. Docker as auniversal product artifact @adrienblind
- 4. The container paradigm Docker provides both containers and an ecosystem enabling to handle them Immutable Versionned Light Portable Disposable Programmatic SocialIncremental « A universal, self-sufficient, standard artifact, embedding an app. module and its subsequent infrastructure configuration »

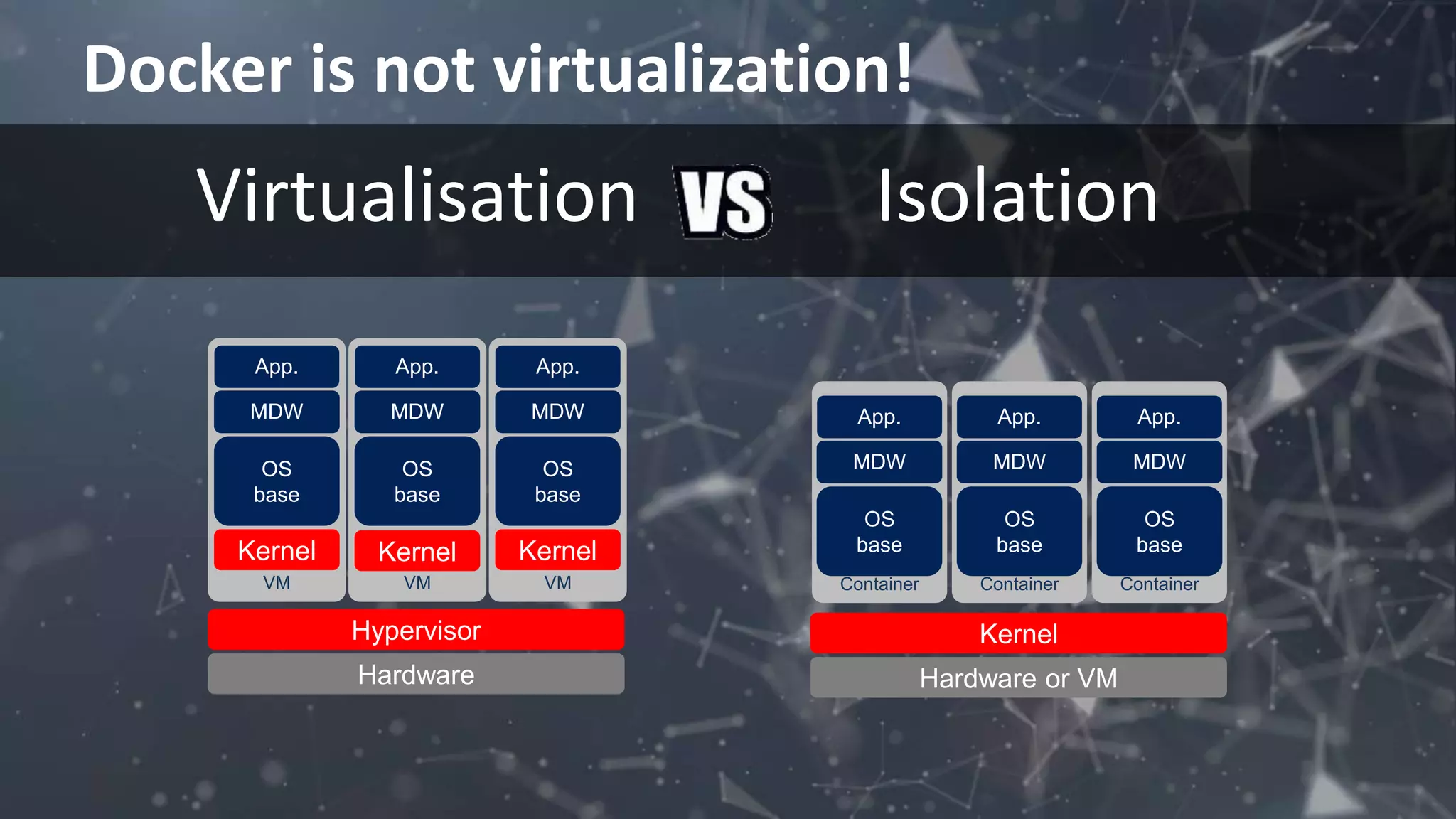

- 5. Docker is notvirtualization! IsolationVirtualisation VM VMVM Hypervisor Hardware App. MDW App. MDW App. MDW Kernel Kernel Kernel OS base OS base OS base Kernel Hardware or VM Container App. OS base MDW Container App. OS base MDW Container App. MDW OS base
- 6. Docker as aproduct artifact I hope you don’t deliver single class files on an app server, do you? Create immutable objects: Rebuild vs Upgrade

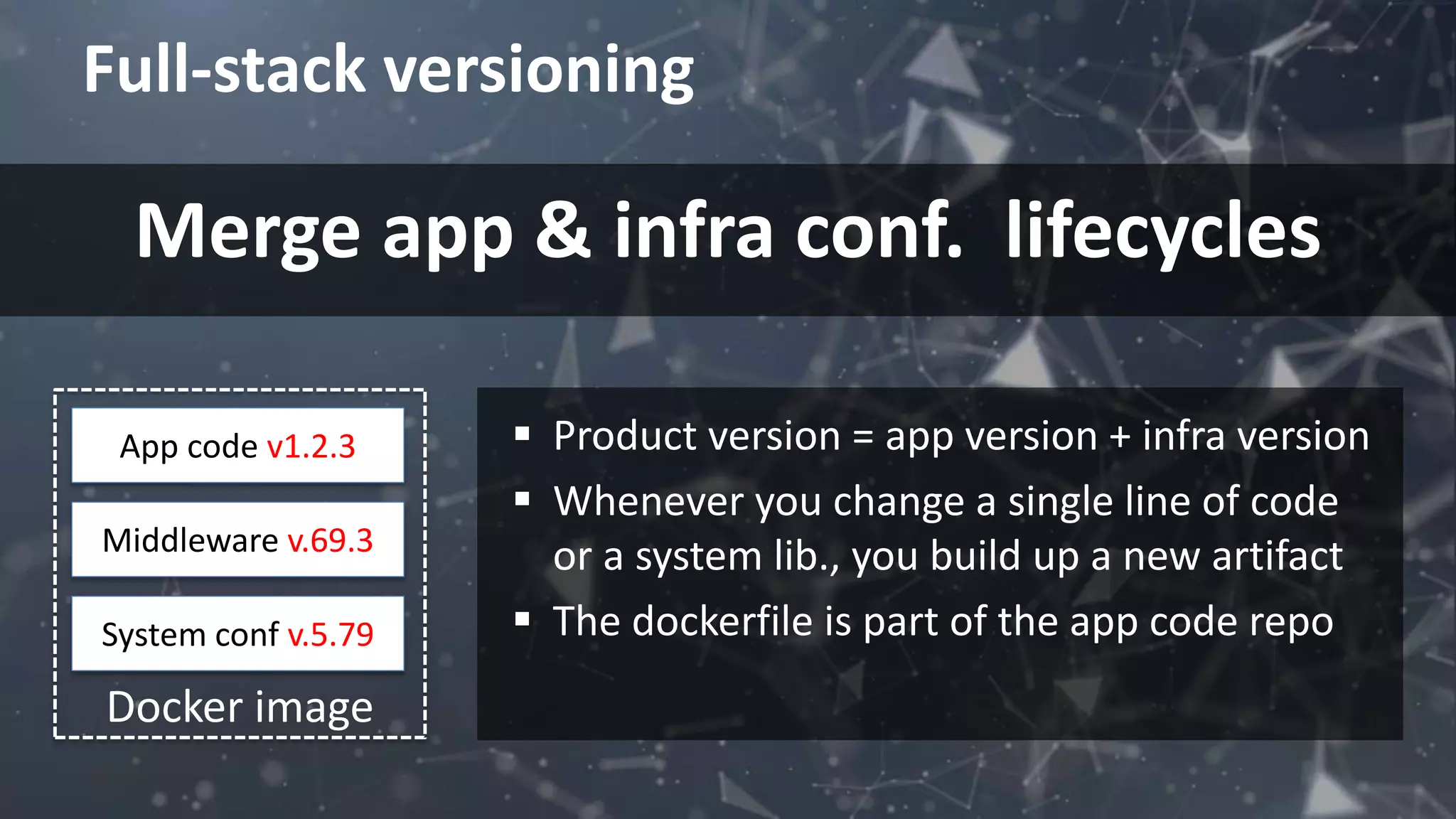

- 7. Full-stack versioning Merge app& infra conf. lifecycles System conf v.5.79 Middleware v.69.3 App code v1.2.3 Docker image Product version = app version + infra version Whenever you change a single line of code or a system lib., you build up a new artifact The dockerfile is part of the app code repo

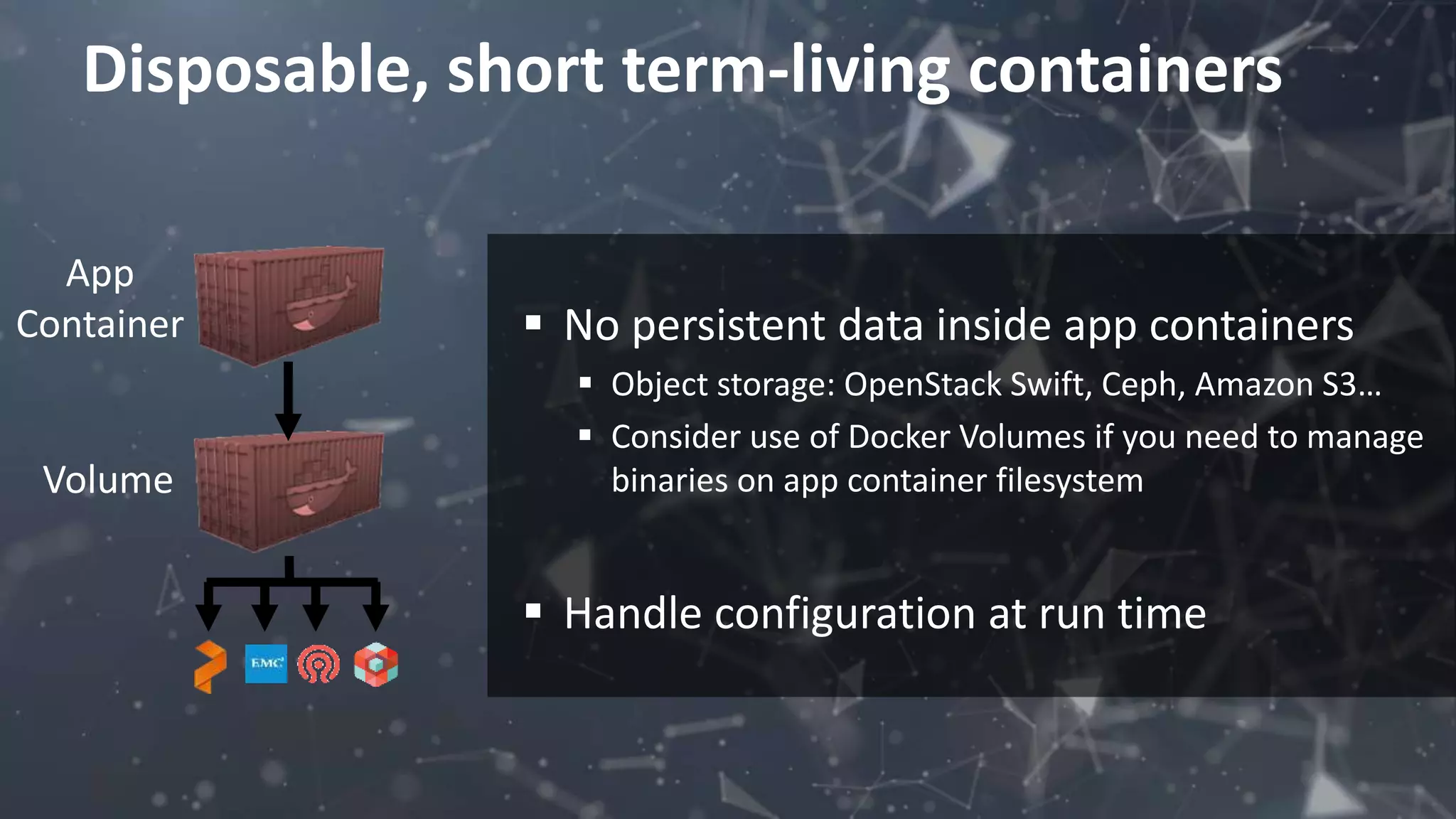

- 8. Disposable, short term-livingcontainers No persistent data inside app containers Object storage: OpenStack Swift, Ceph, Amazon S3… Consider use of Docker Volumes if you need to manage binaries on app container filesystem Handle configuration at run time App Container Volume
- 9.
- 10. Docker is notonly about technical stuff « Organizations which design systems... are constrained to produce designs which are copies of the communication structures of these organizations ». - M. Conway, 1968 « Organize your teams appropriatly to achieve continuous delivery »

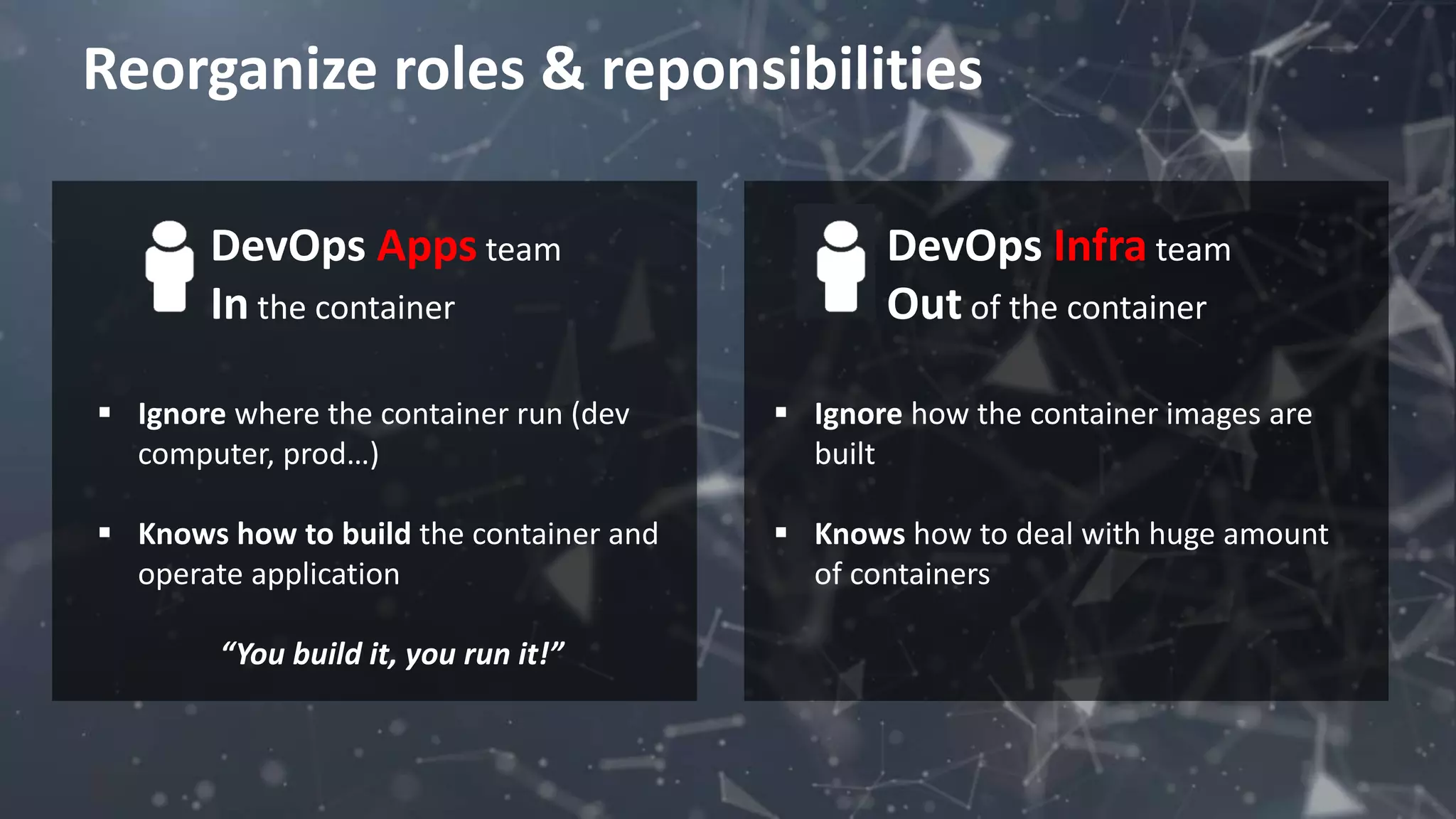

- 11. Reorganize roles &reponsibilities DevOps Apps team In the container Ignore where the container run (dev computer, prod…) Knows how to build the container and operate application “You build it, you run it!” DevOps Infra team Out of the container Ignore how the container images are built Knows how to deal with huge amount of containers

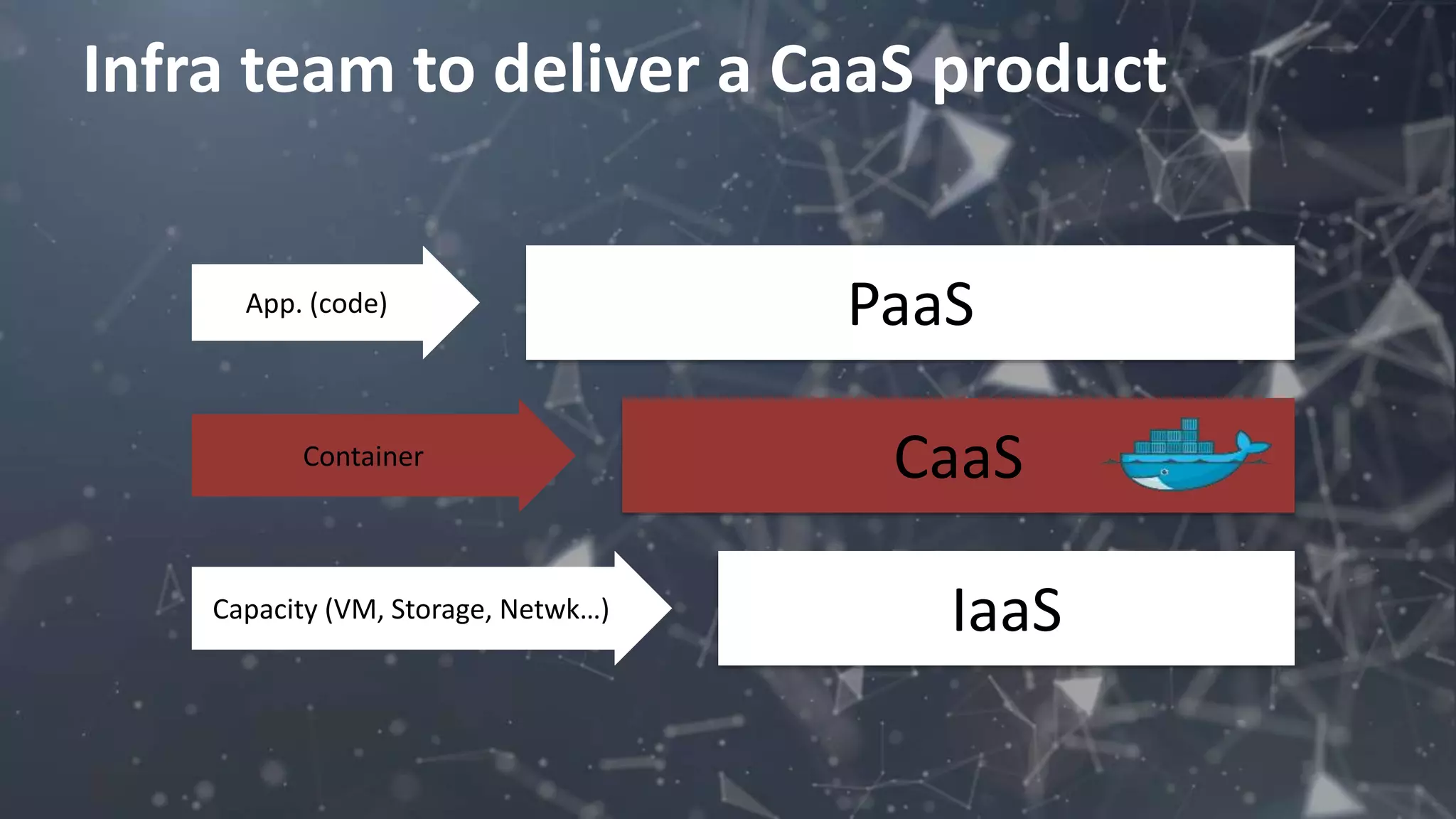

- 12. Infra team todeliver a CaaS product IaaSCapacity (VM, Storage, Netwk…) PaaSApp. (code) CaaSContainer

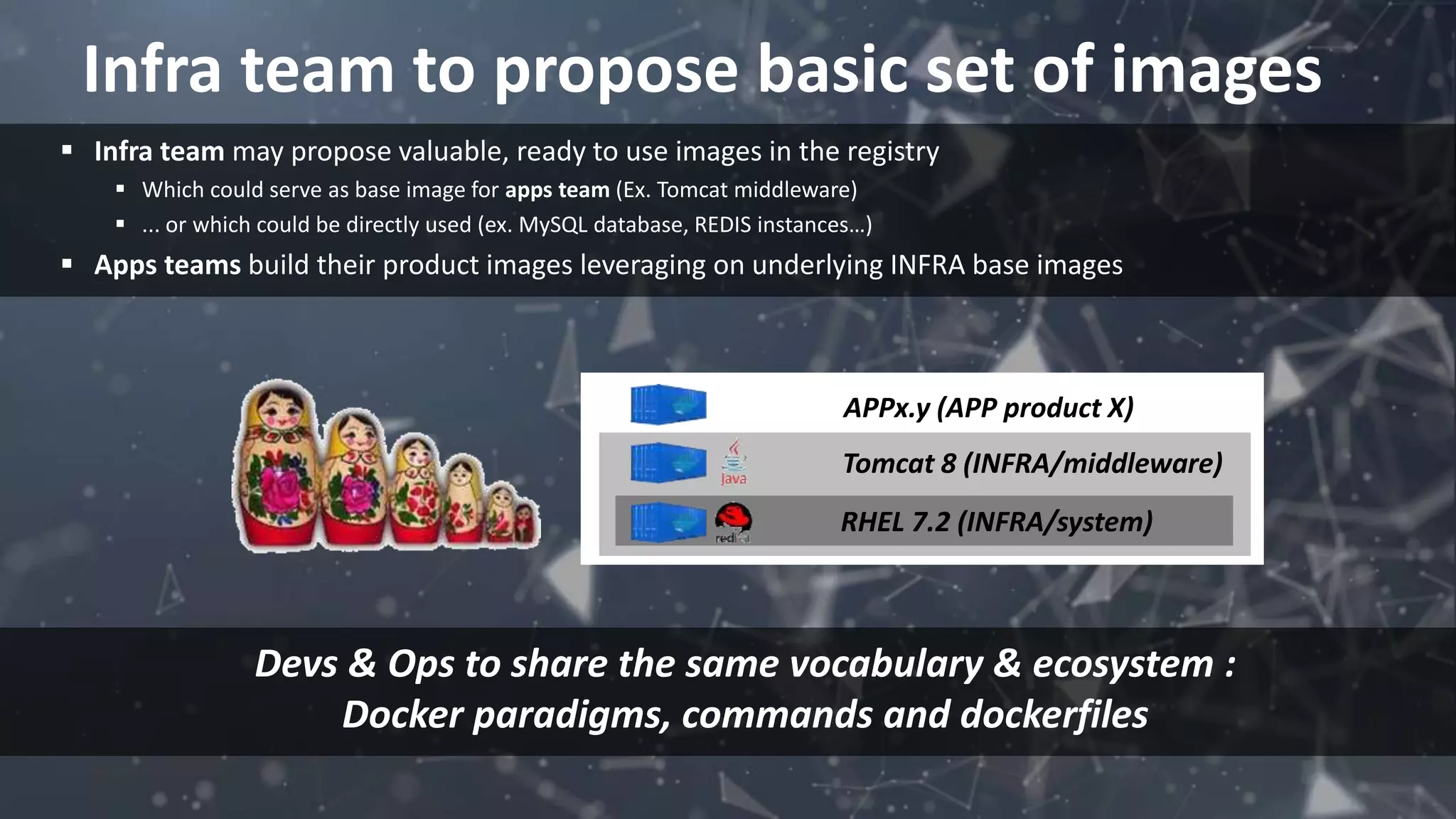

- 13. Infra team topropose basic set of images RHEL 7.2 (INFRA/system) Tomcat 8 (INFRA/middleware) APPx.y (APP product X) Infra team may propose valuable, ready to use images in the registry Which could serve as base image for apps team (Ex. Tomcat middleware) ... or which could be directly used (ex. MySQL database, REDIS instances…) Apps teams build their product images leveraging on underlying INFRA base images Devs & Ops to share the same vocabulary & ecosystem : Docker paradigms, commands and dockerfiles
- 14. Deliver continuously Dockerartifacts @adrienblind

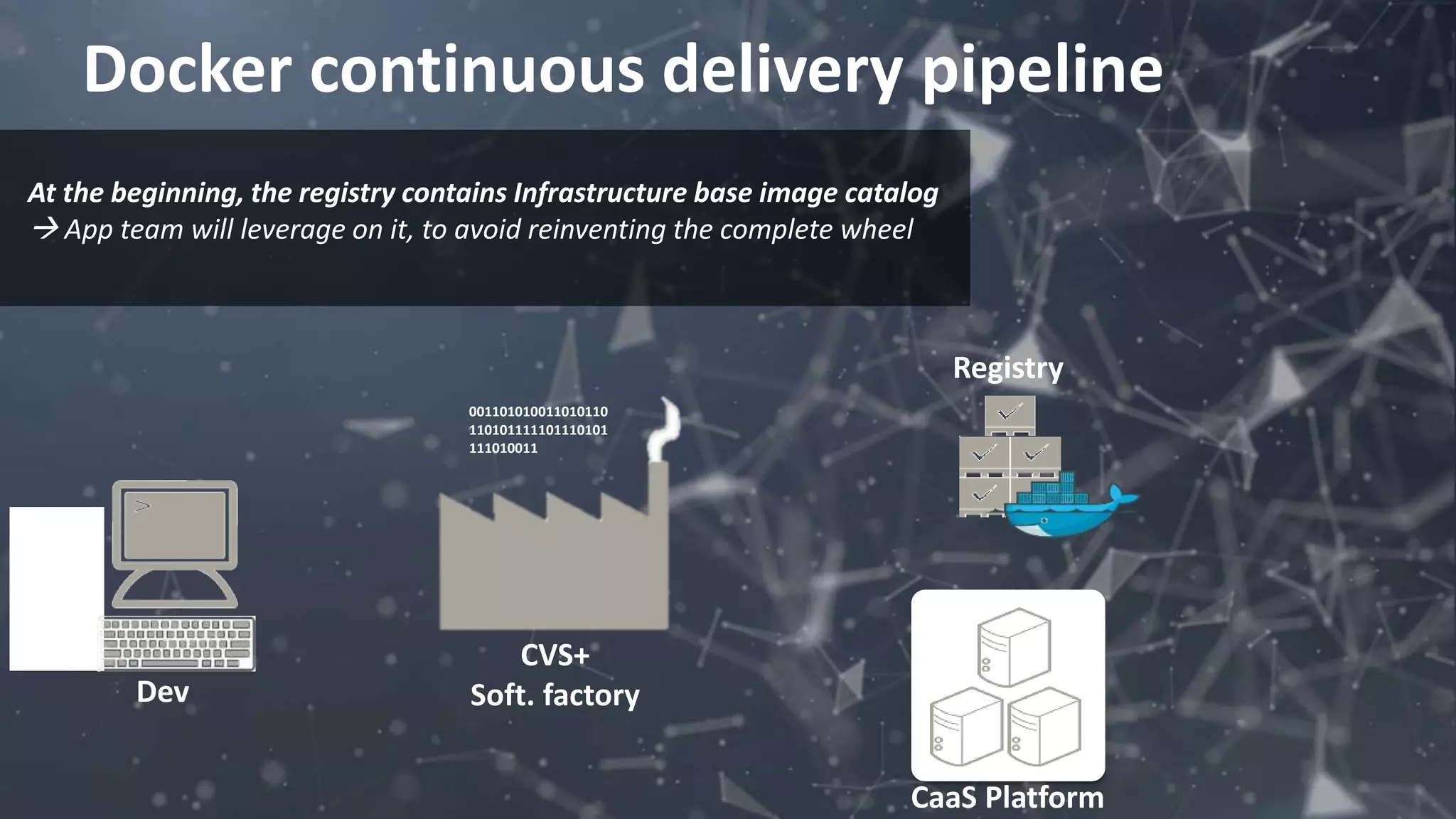

- 15. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev At the beginning, the registry contains Infrastructure base image catalog App team will leverage on it, to avoid reinventing the complete wheel CaaS Platform
- 16. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev Local use on developer workstation using Docker toolbox Reduced workstation setup time, more representative environment CaaS Platform

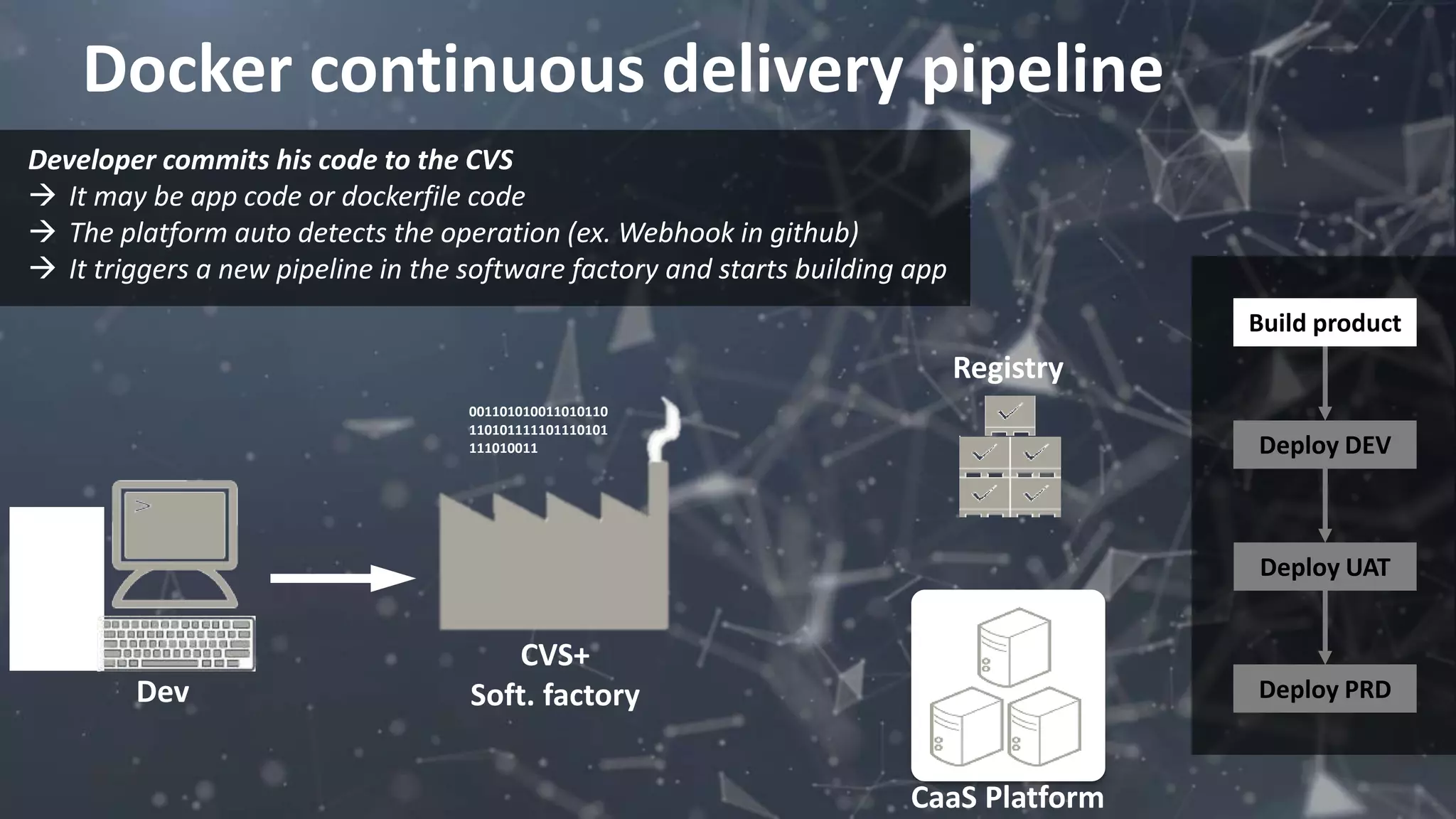

- 17. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev Developer commits his code to the CVS It may be app code or dockerfile code The platform auto detects the operation (ex. Webhook in github) It triggers a new pipeline in the software factory and starts building app CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD Build product Deploy DEV Deploy UAT Deploy PRD

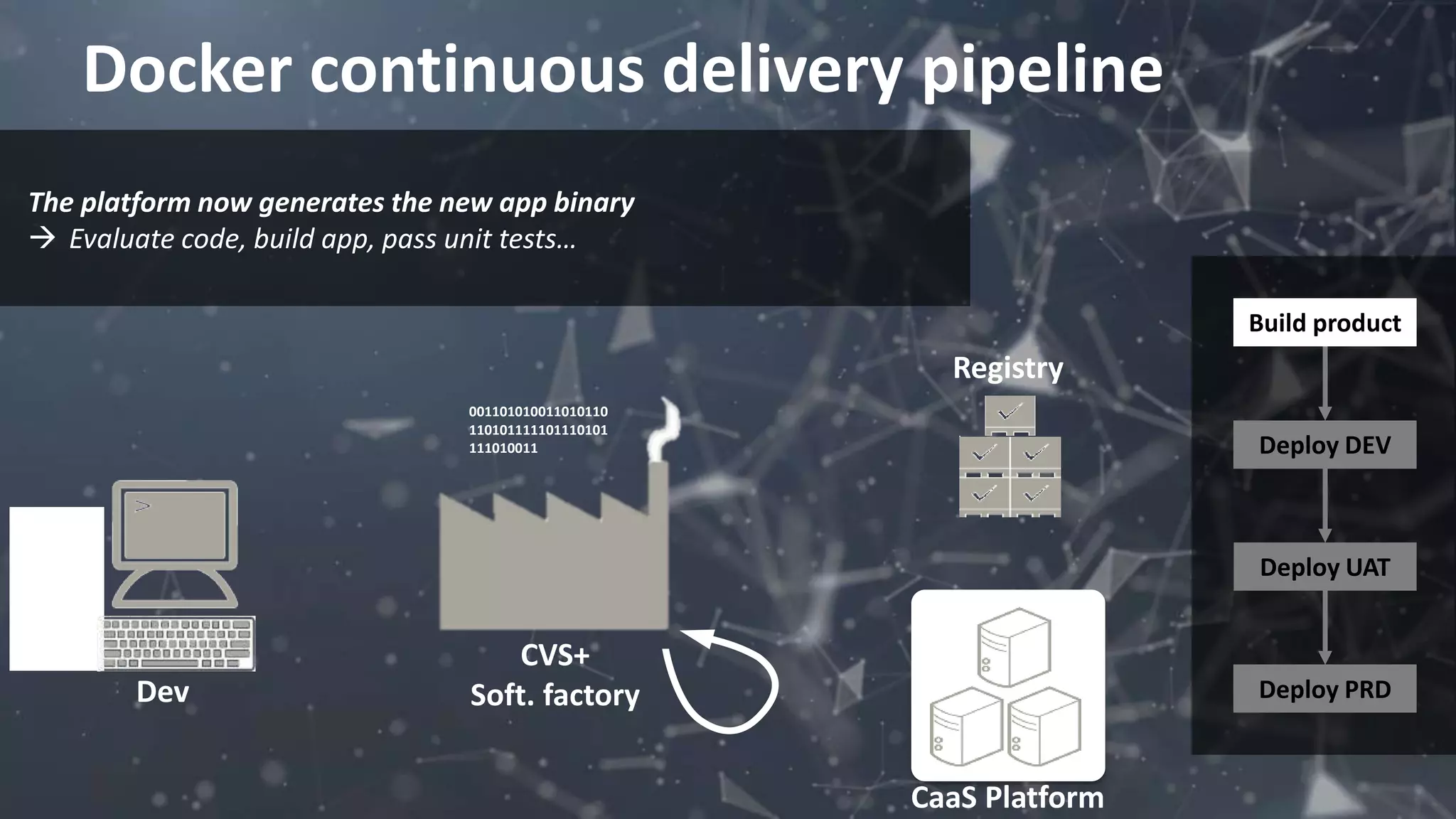

- 18. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev The platform now generates the new app binary Evaluate code, build app, pass unit tests… CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD Build product Deploy DEV Deploy UAT Deploy PRD

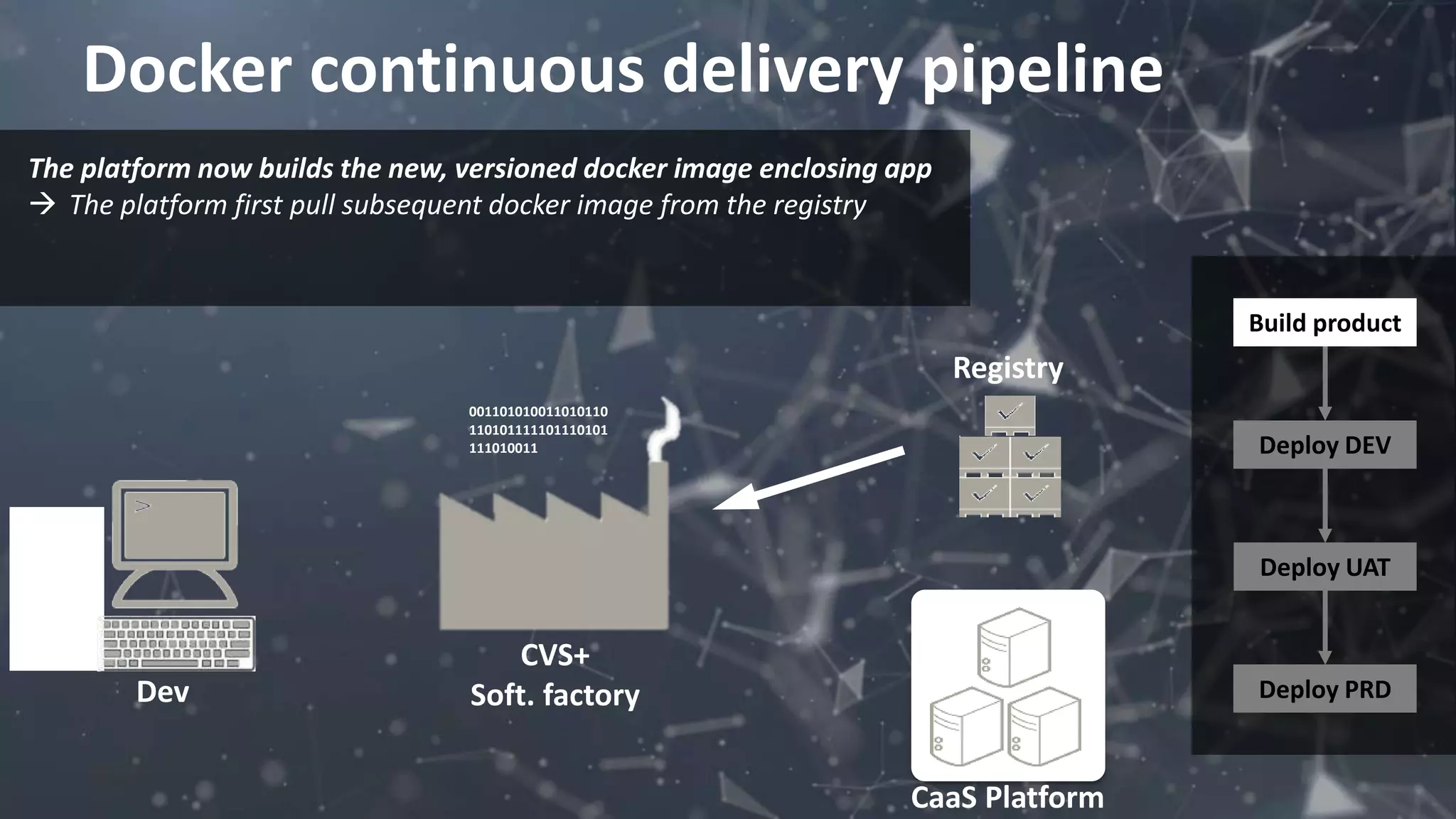

- 19. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev The platform now builds the new, versioned docker image enclosing app The platform first pull subsequent docker image from the registry CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD Build product Deploy DEV Deploy UAT Deploy PRD

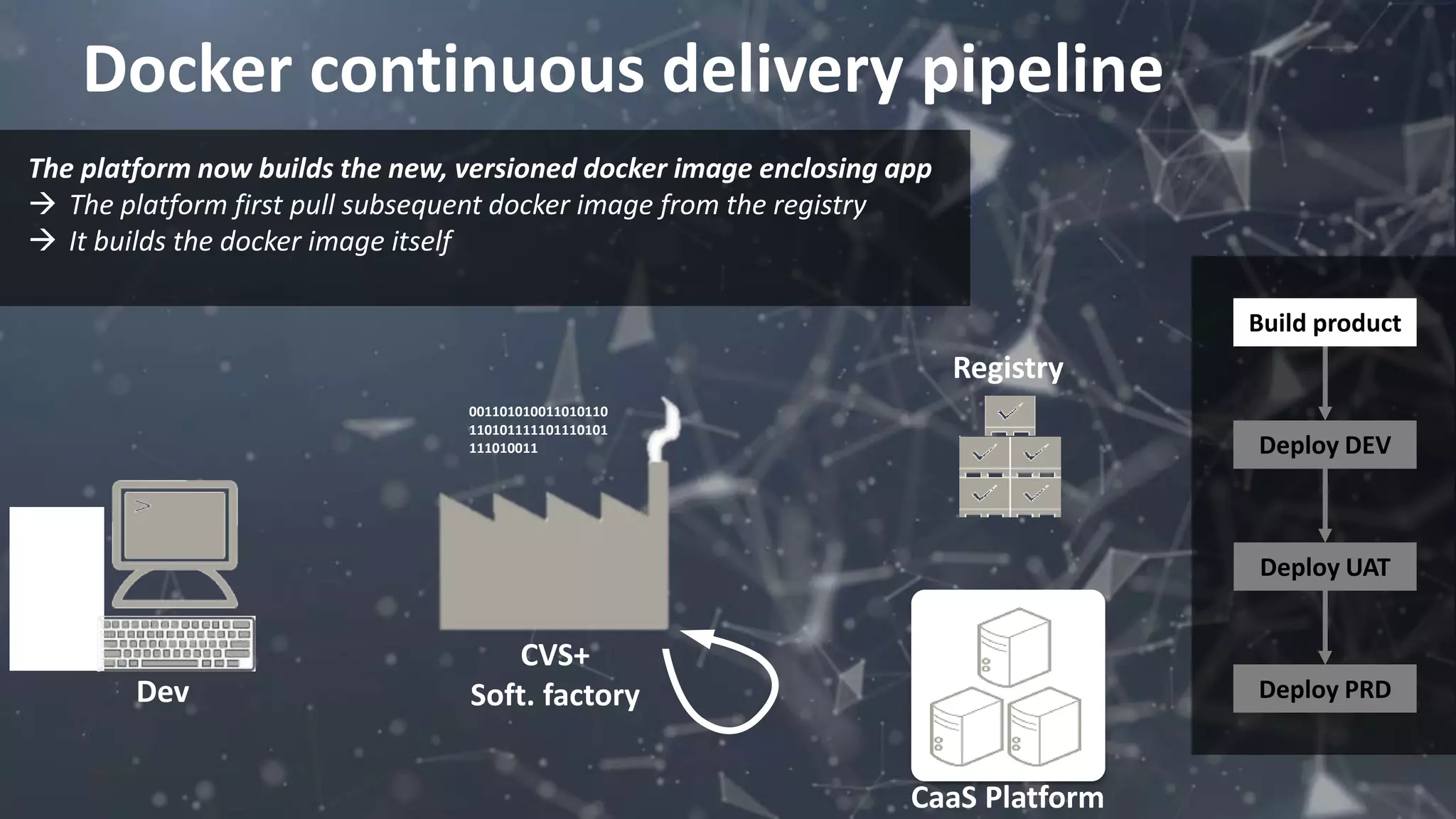

- 20. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev The platform now builds the new, versioned docker image enclosing app The platform first pull subsequent docker image from the registry It builds the docker image itself CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD Build product Deploy DEV Deploy UAT Deploy PRD
- 21. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryDev The platform now builds the new, versioned docker image enclosing app The platform first pull subsequent docker image from the registry It builds the docker image itself Push new version into registry, used as an app artifact repo (ie. Nexus) CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD Build product Deploy DEV Deploy UAT Deploy PRD

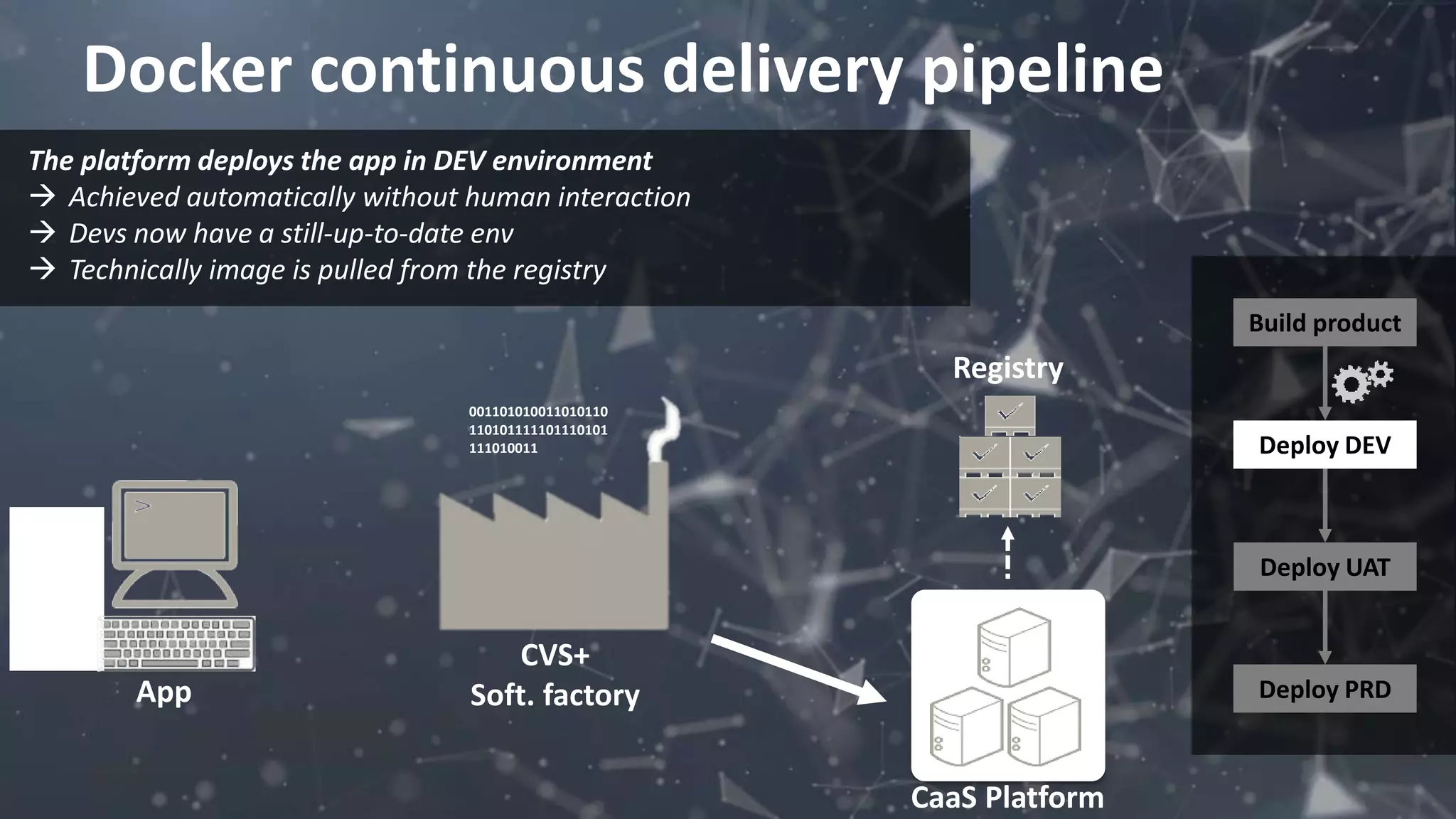

- 22. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryApp The platform deploys the app in DEV environment Achieved automatically without human interaction Devs now have a still-up-to-date env Technically image is pulled from the registry CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD

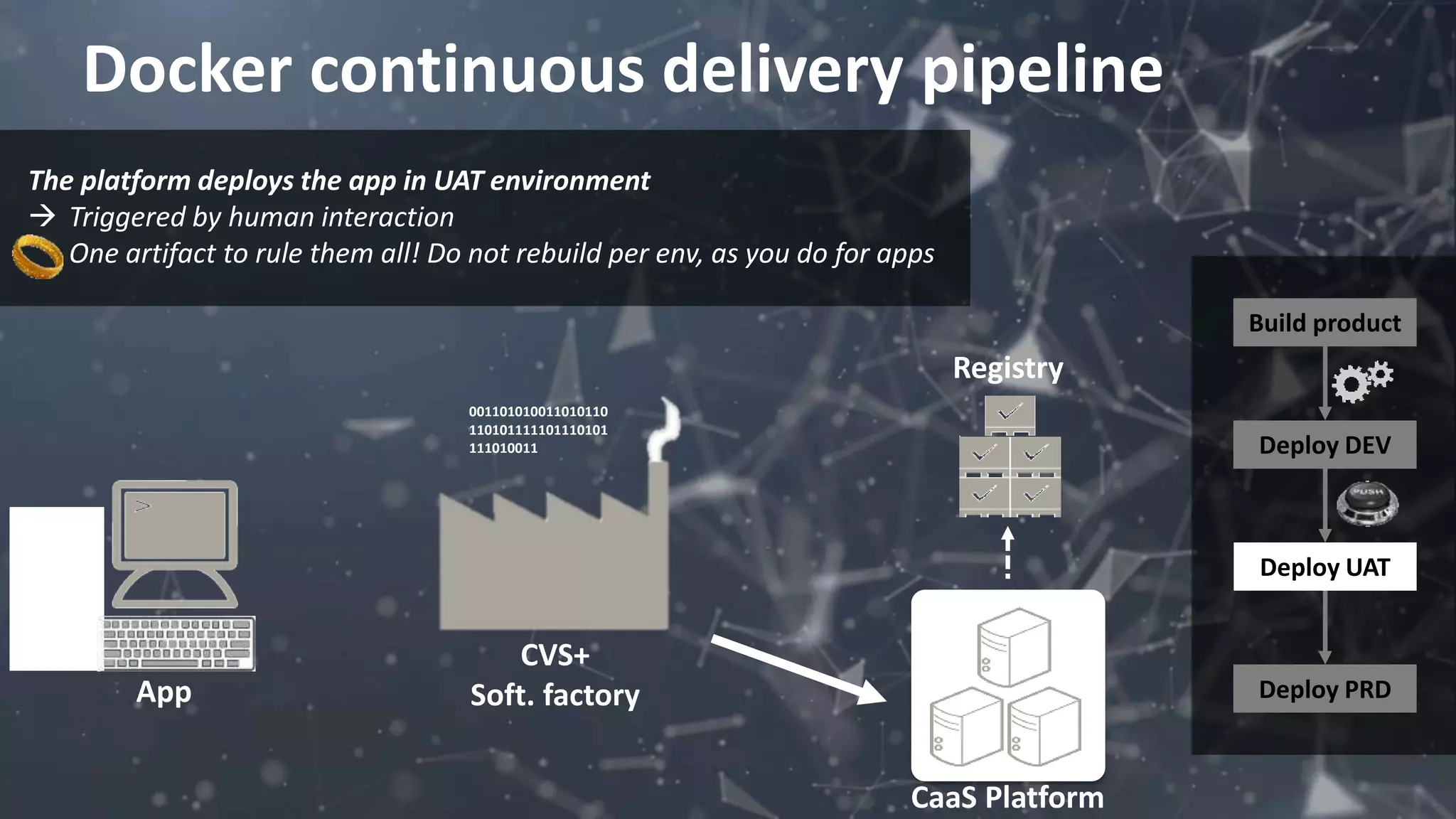

- 23. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryApp The platform deploys the app in UAT environment Triggered by human interaction One artifact to rule them all! Do not rebuild per env, as you do for apps CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD

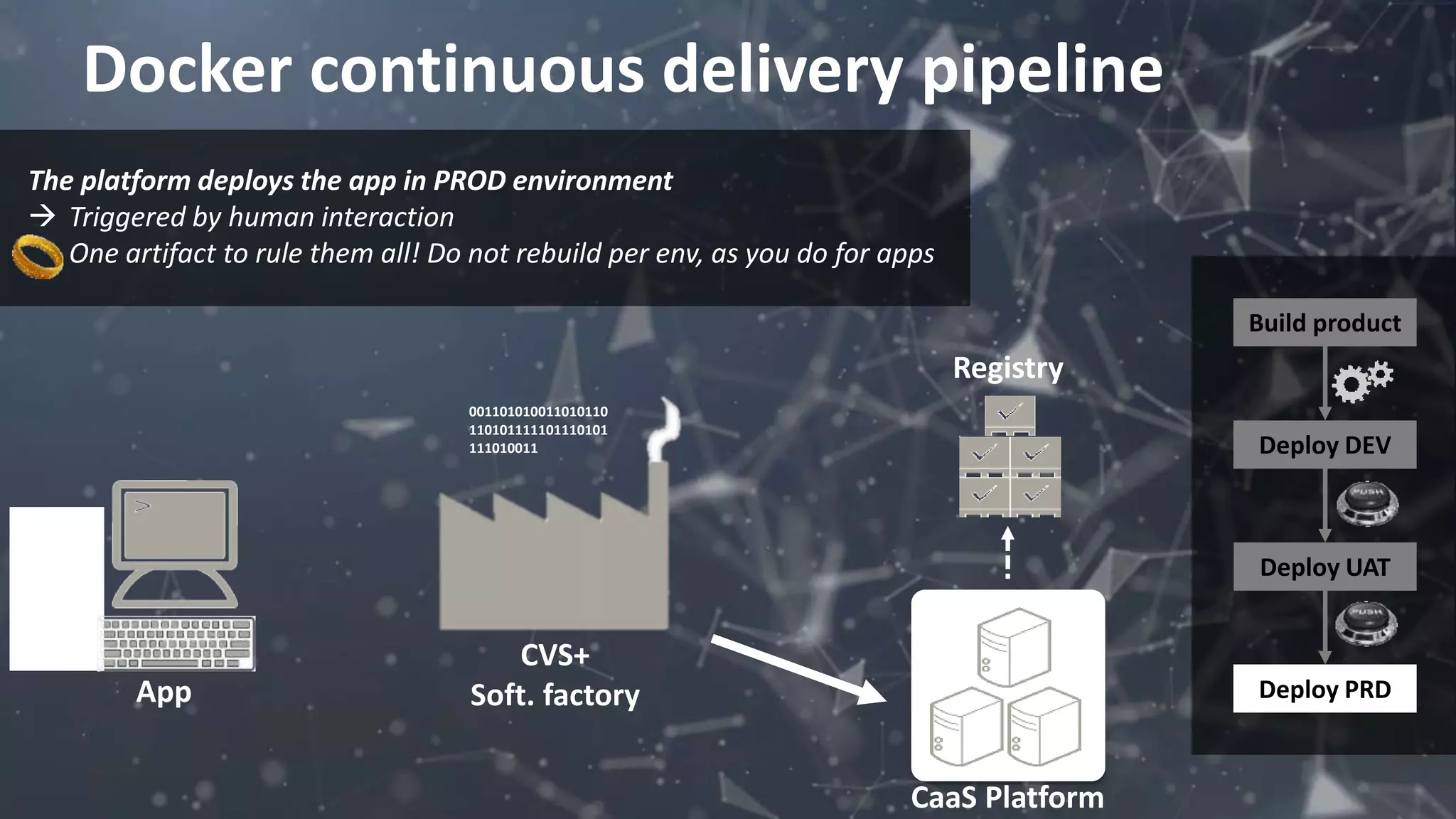

- 24. Docker continuous deliverypipeline 001101010011010110 110101111101110101 111010011 Registry CVS+ Soft. factoryApp The platform deploys the app in PROD environment Triggered by human interaction One artifact to rule them all! Do not rebuild per env, as you do for apps CaaS Platform Build product Deploy DEV Deploy UAT Deploy PRD

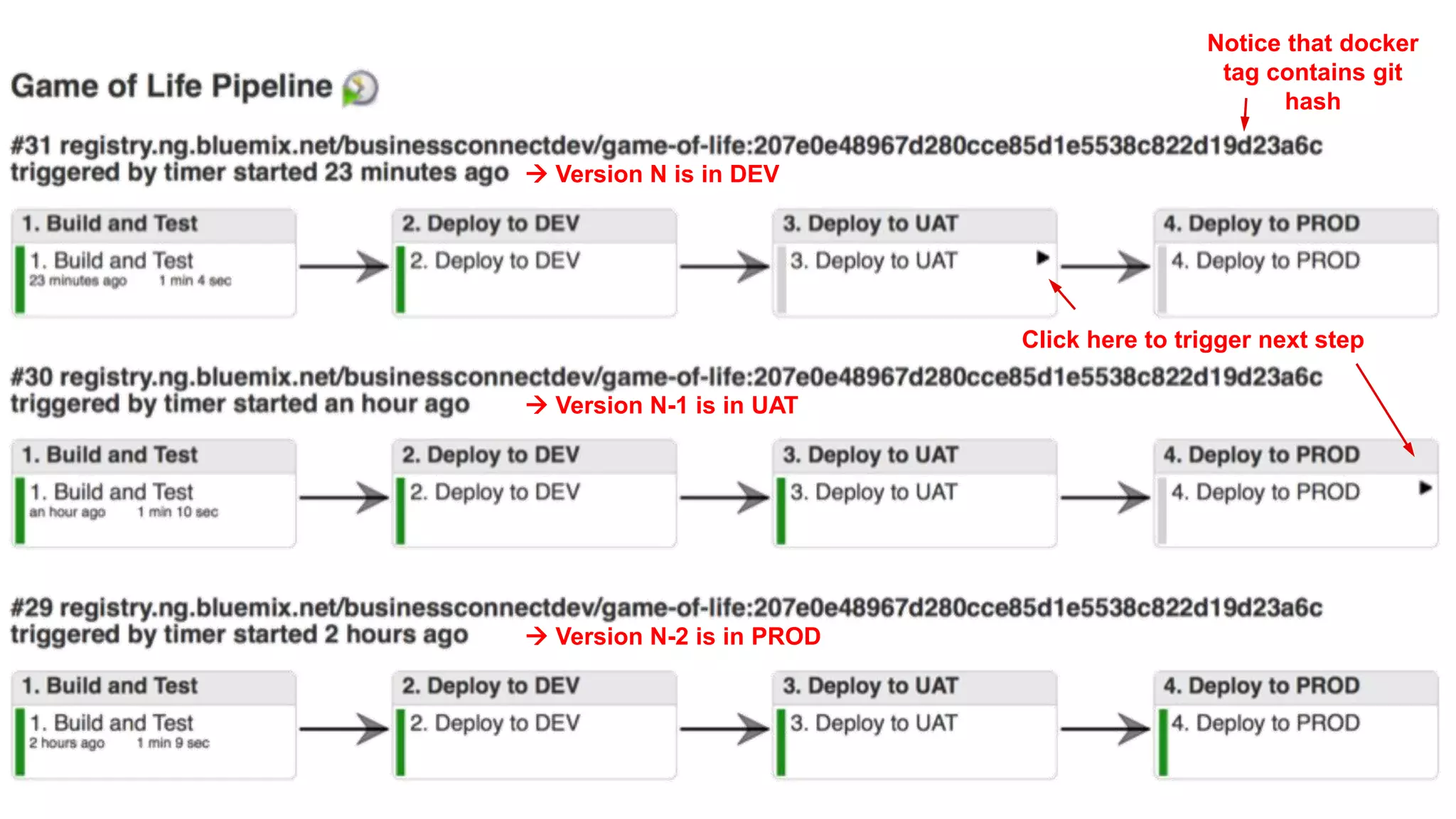

- 25. Click here totrigger next step Notice that docker tag contains git hash Version N is in DEV Version N-1 is in UAT Version N-2 is in PROD
- 26. Tools used forthe lab Docker toolbox, engine, registry Github for code repository Jenkins Delivery pipeline plugin Cloudbees plugin to drive Docker interactions Cloud to host containers (also used an alternate local swarm cluster)
- 27. From containers totopologies @adrienblind

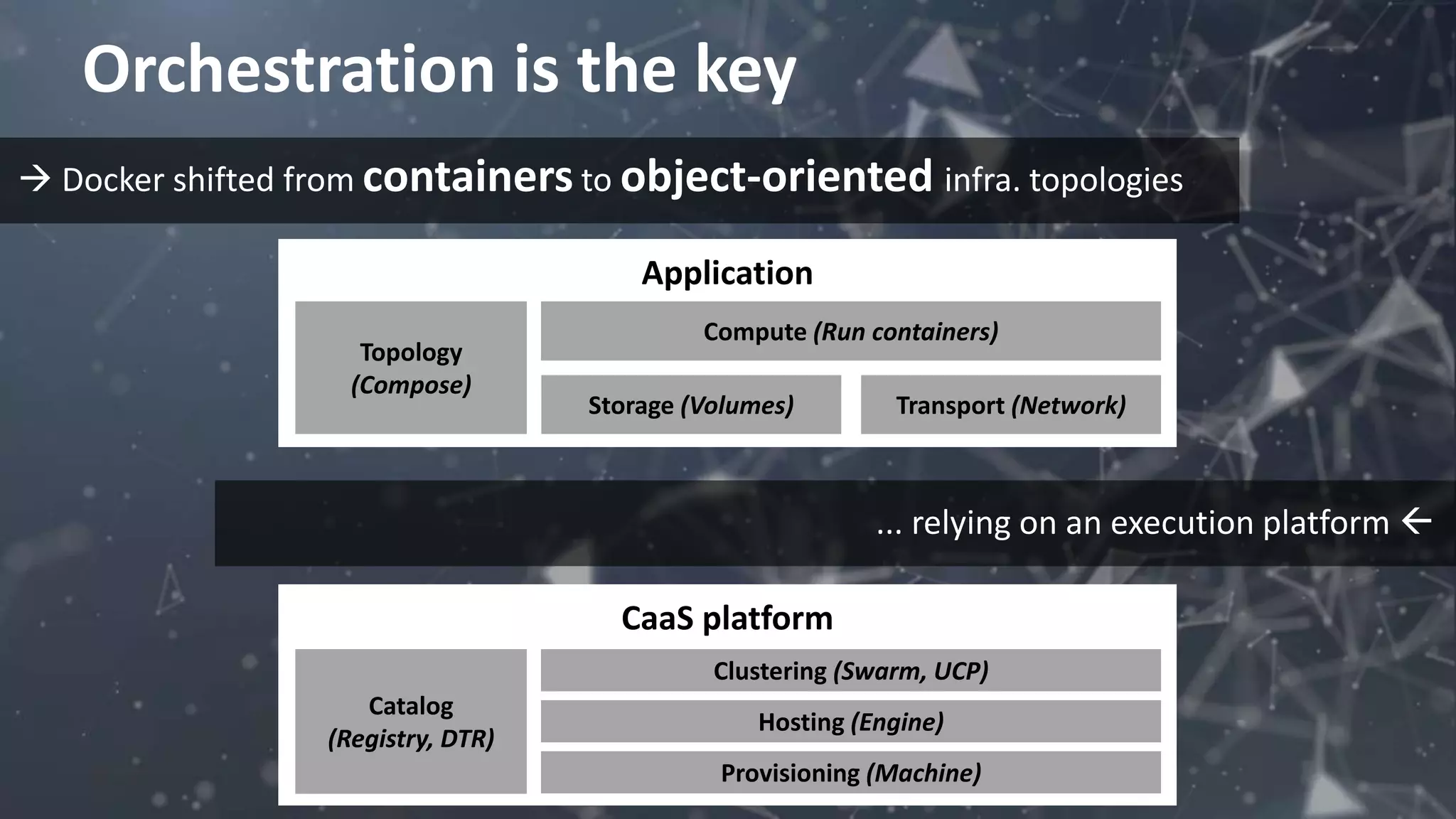

- 28. Orchestration is thekey Application Compute (Run containers) Storage (Volumes) Transport (Network) Topology (Compose) Docker shifted from containers to object-oriented infra. topologies CaaS platform Clustering (Swarm, UCP) Catalog (Registry, DTR) Hosting (Engine) Provisioning (Machine) ... relying on an execution platform
- 29.
- 30.
- 31. Thank you! Adrien Blind CoachDevOps @ Société Générale adrien.blind@sgcib.com @adrienblind
