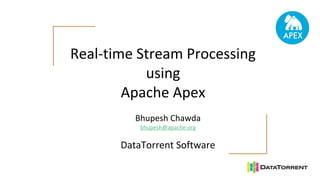

1. Real-time Stream Processing
using
Apache Apex
Bhupesh Chawda
bhupesh@apache.org
DataTorrent Software

2. Apache Apex - Stream Processing
● YARN - Native - Uses Hadoop YARN framework for resource negotiation
● Highly Scalable - Scales statically as well as dynamically
● Highly Performant - Can reach single digit millisecond end-to-end latency
● Fault Tolerant - Automatically recovers from failures - without manual intervention
● Stateful - Guarantees that no state will be lost
● Easily Operable - Exposes an easy API for developing Operators (part of an
application) and Applications

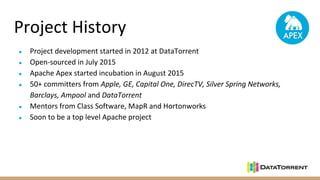

3. Project History
● Project development started in 2012 at DataTorrent
● Open-sourced in July 2015
● Apache Apex started incubation in August 2015
● 50+ committers from Apple, GE, Capital One, DirecTV, Silver Spring Networks,
Barclays, Ampool and DataTorrent
● Mentors from Class Software, MapR and Hortonworks
● Soon to be a top level Apache project

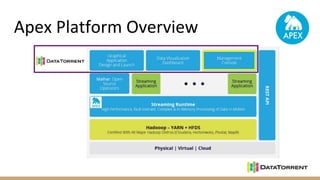

4. Apex Platform Overview

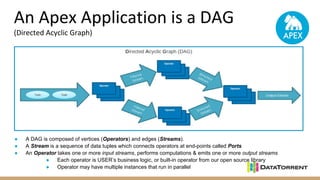

5. An Apex Application is a DAG
(Directed Acyclic Graph)
● A DAG is composed of vertices (Operators) and edges (Streams).
● A Stream is a sequence of data tuples which connects operators at end-points called Ports
● An Operator takes one or more input streams, performs computations & emits one or more output streams
● Each operator is USER’s business logic, or built-in operator from our open source library
● Operator may have multiple instances that run in parallel

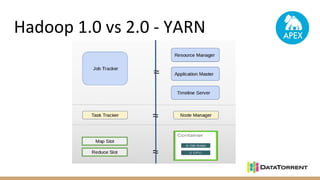

6. Hadoop 1.0 vs 2.0 - YARN

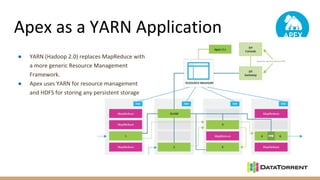

7. Apex as a YARN Application
● YARN (Hadoop 2.0) replaces MapReduce with
a more generic Resource Management
Framework.
● Apex uses YARN for resource management
and HDFS for storing any persistent storage

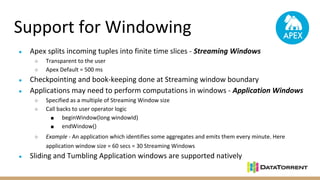

8. Support for Windowing
● Apex splits incoming tuples into finite time slices - Streaming Windows
○ Transparent to the user
○ Apex Default = 500 ms
● Checkpointing and book-keeping done at Streaming window boundary
● Applications may need to perform computations in windows - Application Windows
○ Specified as a multiple of Streaming Window size
○ Call backs to user operator logic
■ beginWindow(long windowId)
■ endWindow()
○ Example - An application which identifies some aggregates and emits them every minute. Here
application window size = 60 secs = 30 Streaming Windows
● Sliding and Tumbling Application windows are supported natively

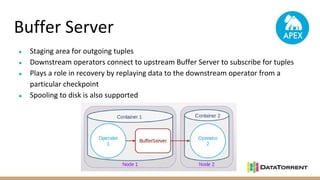

9. Buffer Server
● Staging area for outgoing tuples
● Downstream operators connect to upstream Buffer Server to subscribe for tuples
● Plays a role in recovery by replaying data to the downstream operator from a
particular checkpoint
● Spooling to disk is also supported

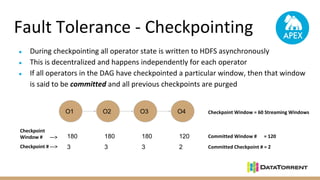

10. Fault Tolerance - Checkpointing
● During checkpointing all operator state is written to HDFS asynchronously
● This is decentralized and happens independently for each operator
● If all operators in the DAG have checkpointed a particular window, then that window
is said to be committed and all previous checkpoints are purged
O1 O2 O3 O4
3 3 3 2Checkpoint # --->
Committed Window # = 120180 180 180 120
Checkpoint
Window # --->
Committed Checkpoint # = 2
Checkpoint Window = 60 Streaming Windows

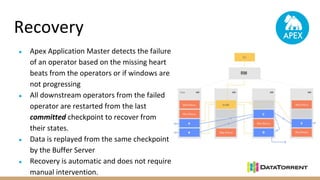

11. Recovery
● Apex Application Master detects the failure
of an operator based on the missing heart
beats from the operators or if windows are
not progressing
● All downstream operators from the failed
operator are restarted from the last
committed checkpoint to recover from
their states.
● Data is replayed from the same checkpoint
by the Buffer Server
● Recovery is automatic and does not require
manual intervention.

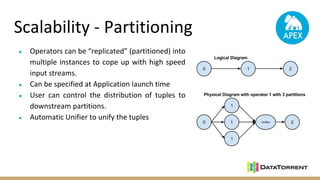

12. Scalability - Partitioning
● Operators can be “replicated” (partitioned) into
multiple instances to cope up with high speed
input streams.
● Can be specified at Application launch time
● User can control the distribution of tuples to
downstream partitions.
● Automatic Unifier to unify the tuples

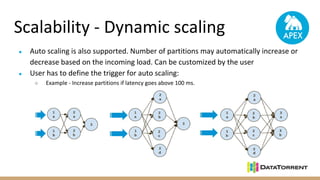

13. Scalability - Dynamic scaling
● Auto scaling is also supported. Number of partitions may automatically increase or
decrease based on the incoming load. Can be customized by the user
● User has to define the trigger for auto scaling:
○ Example - Increase partitions if latency goes above 100 ms.

14. Apex Processing Semantics
● AT_LEAST_ONCE (default): Windows are processed at least once
● AT_MOST_ONCE: Windows are processed at most once
○ During recovery, all downstream operators are fast-forwarded to the window of latest checkpoint
● EXACTLY_ONCE: Windows are processed exactly once
○ Checkpoint every window
○ Checkpointing becomes blocking

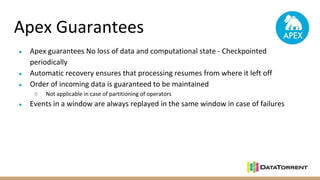

15. Apex Guarantees
● Apex guarantees No loss of data and computational state - Checkpointed
periodically
● Automatic recovery ensures that processing resumes from where it left off
● Order of incoming data is guaranteed to be maintained
○ Not applicable in case of partitioning of operators
● Events in a window are always replayed in the same window in case of failures

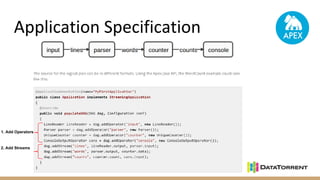

16. Application Specification
1. Add Operators
2. Add Streams

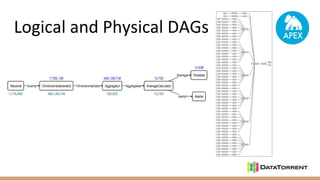

17. Logical and Physical DAGs

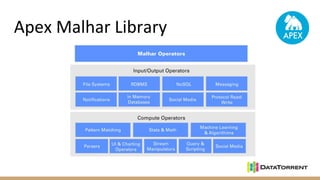

18. Apex Malhar Library

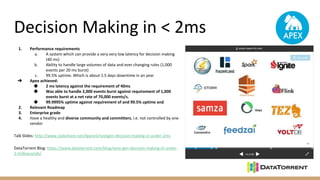

19. 1. Performance requirements
a. A system which can provide a very very low latency for decision making
(40 ms)
b. Ability to handle large volumes of data and ever changing rules (1,000
events per 20 ms burst)
c. 99.5% uptime. Which is about 1.5 days downtime in an year
➔ Apex achieved:
◆ 2 ms latency against the requirement of 40ms
◆ Was able to handle 2,000 events burst against requirement of 1,000
events burst at a net rate of 70,000 events/s.
◆ 99.9995% uptime against requirement of and 99.5% uptime and
2. Relevant Roadmap
3. Enterprise grade
4. Have a healthy and diverse community and committers, i.e. not controlled by one
vendor
Talk Slides: http://www.slideshare.net/ilganeli/nextgen-decision-making-in-under-2ms
DataTorrent Blog: https://www.datatorrent.com/blog/next-gen-decision-making-in-under-
2-milliseconds/
Decision Making in < 2ms

20. Decision making in < 2ms contd..
● Comparison finally boiled down to
○ Apache Storm
○ Apache Flink
○ Apache Apex
● Some problems in Storm and Flink among others
○ Nimbus is a single point of failure
○ Bolts / Spouts / Operators share a JVM. Hard to debug
○ No dynamic topologies
○ Restarting entire topologies in case of failures

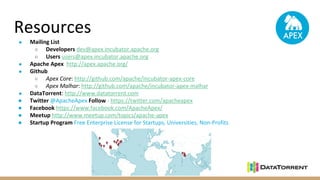

21. Resources
● Mailing List
○ Developers dev@apex.incubator.apache.org
○ Users users@apex.incubator.apache.org
● Apache Apex http://apex.apache.org/
● Github
○ Apex Core: http://github.com/apache/incubator-apex-core
○ Apex Malhar: http://github.com/apache/incubator-apex-malhar
● DataTorrent: http://www.datatorrent.com
● Twitter @ApacheApex Follow - https://twitter.com/apacheapex
● Facebook https://www.facebook.com/ApacheApex/
● Meetup http://www.meetup.com/topics/apache-apex
● Startup Program Free Enterprise License for Startups, Universities, Non-Profits

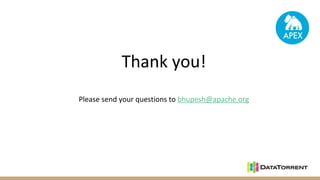

22. Thank you!
