1. Prediction IO
2016/06/01 (Wed.) @ Exma-Square Meeting
WeiYuan(@v123582)

2. Outline § the future of Picklete
§ Recommendation
§ PredcitonIO
§ how to start ?
§ how to use ?
2

3. the future of Picklete

4. 4
Picklete

5. 5
Picklete

6. Recommendation

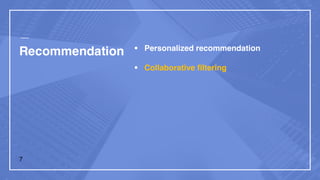

7. Recommendation § Personalized recommendation

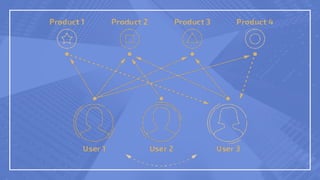

§ Collaborative filtering
7

9. PredcitonIO

10. ML as a
ServicesIntegrate everything of ML together nicely and
move from prototyping to production
10

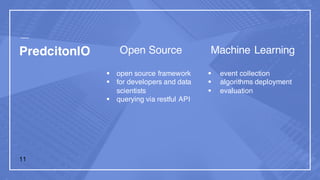

11. PredcitonIO Open Source
§ open source framework
§ for developers and data
scientists
§ querying via restful API
Machine Learning
§ event collection
§ algorithms deployment
§ evaluation
11

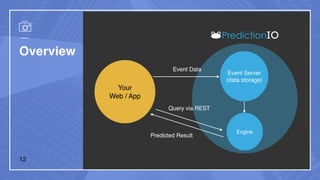

12. Overview
12

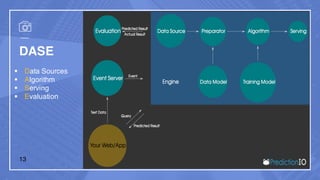

13. DASE
§ Data Sources
§ Algorithm
§ Serving
§ Evaluation
13

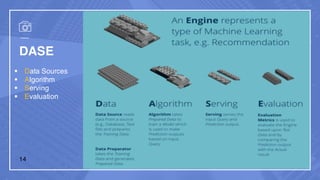

14. DASE
§ Data Sources
§ Algorithm
§ Serving
§ Evaluation
14

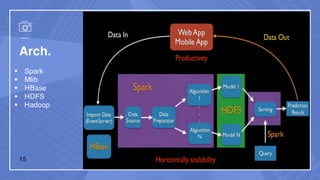

15. Arch.
§ Spark
§ Mlib
§ HBase
§ HDFS
§ Hadoop
15

16. how to start ?

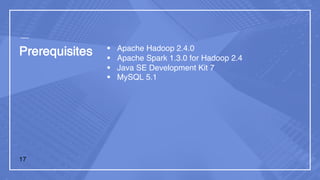

17. Prerequisites § Apache Hadoop 2.4.0
§ Apache Spark 1.3.0 for Hadoop 2.4
§ Java SE Development Kit 7
§ MySQL 5.1
17

18. Installation
§ Quick Install
§ status
1
2
$ bash -c "$(curl -s https://install.prediction.io/install.sh)"
$ PATH=$PATH:/home/yourname/PredictionIO/bin; export PATH
1
2
3
4
5
$ pio status
### Return:
…
[INFO] [Console$] Your system is all ready to go.18

19. how to use ?

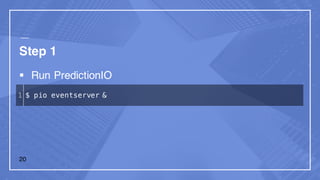

20. Step 1
§ Run PredictionIO
1 $ pio eventserver &
20

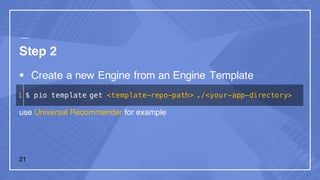

21. Step 2
§ Create a new Engine from an Engine Template
use Universal Recommender for example
1 $ pio template get <template-repo-path> ./<your-app-directory>
21

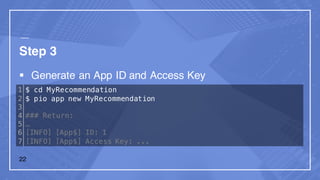

22. Step 3
§ Generate an App ID and Access Key
1
2
3
4
5
6
7
$ cd MyRecommendation
$ pio app new MyRecommendation
### Return:
…
[INFO] [App$] ID: 1
[INFO] [App$] Access Key: ...
22

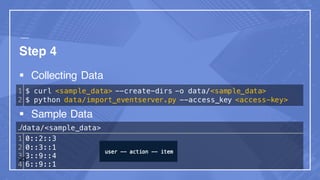

23. Step 4
§ Collecting Data
§ Sample Data
1
2
$ curl <sample_data> --create-dirs -o data/<sample_data>
$ python data/import_eventserver.py --access_key <access-key>
./data/<sample_data>
1
2
3
4
0::2::3
0::3::1
3::9::4
6::9::1
23

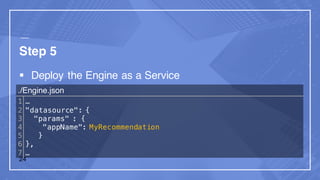

24. Step 5
§ Deploy the Engine as a Service
./Engine.json
1
2
3
4
5
6
7
…
"datasource": {
"params" : {
"appName": MyRecommendation
}
},
…
24

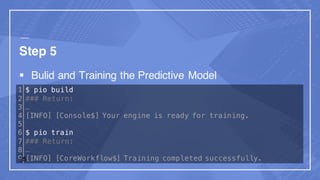

25. Step 5
§ Bulid and Training the Predictive Model
1
2
3
4
5
6
7
8
9
$ pio build
### Return:
…
[INFO] [Console$] Your engine is ready for training.
$ pio train
### Return:
…
[INFO] [CoreWorkflow$] Training completed successfully.25

26. Step 5
§ Bulid and Training the Predictive Model
1
2
3
4
5
$ pio deploy
### Return:
…
[INFO] [HttpListener] Bound to /0.0.0.0:8000 [INFO]
[MasterActor] Bind successful. Ready to serve.
26

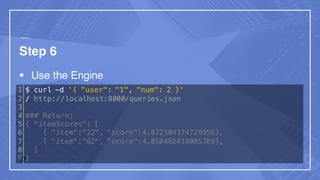

27. Step 6
§ Use the Engine
1
2
3
4
5
6
7
8
9
$ curl -d '{ "user": "1", "num": 2 }'
/ http://localhost:8000/queries.json
### Return:
{ "itemScores”: [
{ "item":"22", "score":4.072304374729956},
{ "item":"62", "score":4.058482414005789},
]
}27

28. Thanks for listening.
2016/06/01 (Wed.) @ Exma-Square
WeiYuan(@v123582)
v123582.github.io
