Optimizing PV Energy Yield
with Elasticsearch and
graphQL

2. hybriData

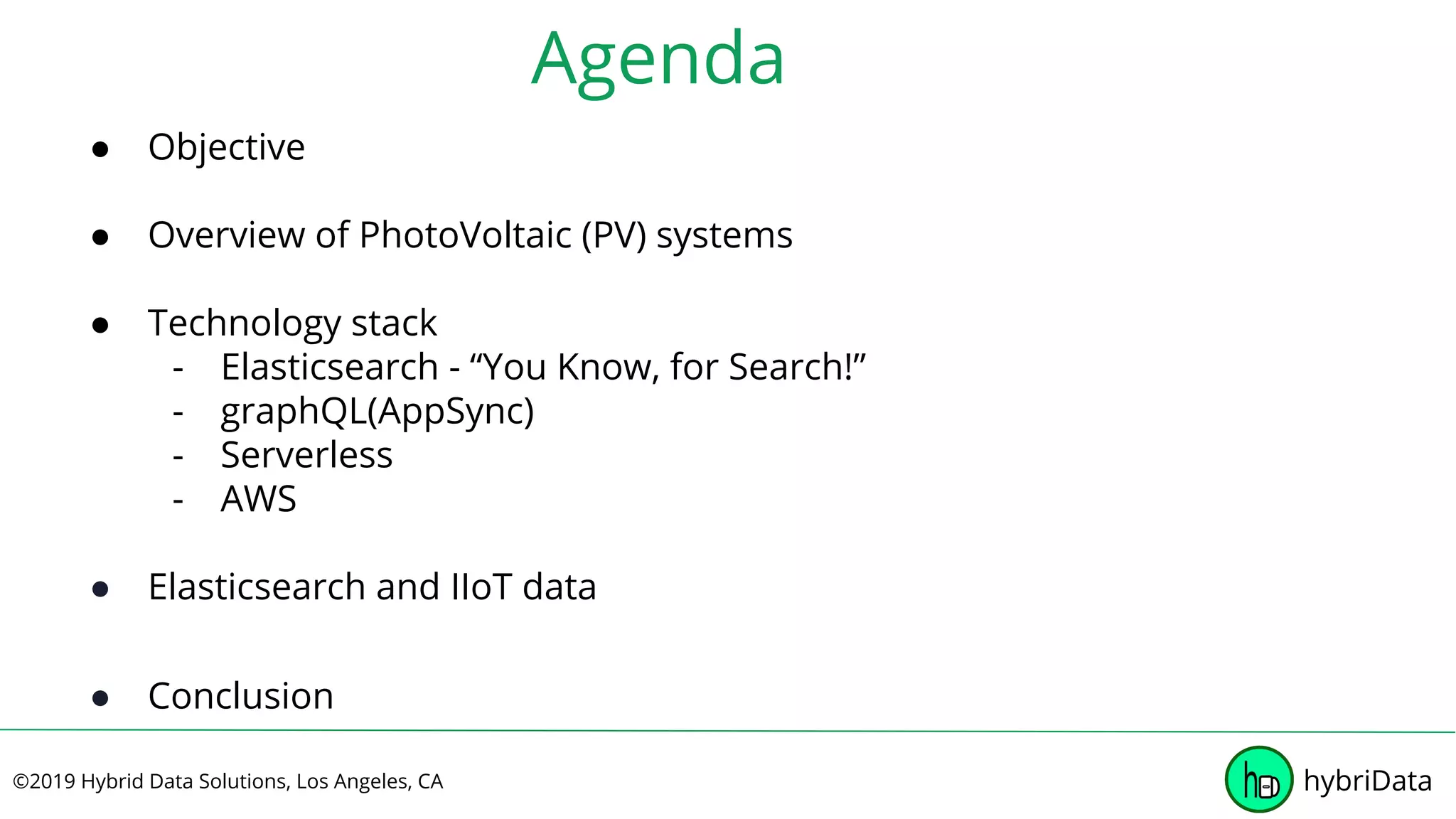

● Objective
● Overview of PhotoVoltaic (PV) systems
● Technology stack
- Elasticsearch - “You Know, for Search!”
- graphQL(AppSync)
- Serverless
- AWS
● Elasticsearch and IIoT data
● Conclusion
Agenda
©2019 Hybrid Data Solutions, Los Angeles, CA

3. hybriData
● How you can optimize PV energy yield from IIoT data leveraging
Elasticsearch and numerous open source tools
Objective
©2019 Hybrid Data Solutions, Los Angeles, CA

4. hybriData©2019HybridDataSolutions,LosAngeles,CA
Overview
Source:https://solarprofessional.com/articles/design-installation/deploying-solar-plus-storage-microgrids/page/0/3#.XMe3UJNKhZI
● PhotoVoltaic systems convert sunlight (Photo) into electrical power (Voltaic)

5. hybriData©2019HybridDataSolutions,LosAngeles,CA
Distributed Energy Resources
Overview

6. hybriData
● Use of 3rd party weather data
● Unreliable estimates of PV system Energy Performance Index
and PV Energy Yield
Challenges
©2019 Hybrid Data Solutions, Los Angeles, CA

7. hybriData
● Weather climate features: Cloud Coverage, dew point, wind speed,
station pressure, temperature, relative humidity
● Forecast using sensor data values of IIoT device at PV system
location
Solution
©2019 Hybrid Data Solutions, Los Angeles, CA

8. hybriData©2019HybridDataSolutions,LosAngeles,CA
AWS IoT
Core
Elasticsearch
Kinesis
S3
S3
Lambda
DynamoDB
AppSync
- graphQL
- Apache VTL
React Native
Technology Stack
DynamoDB
ReduxTemperature
Humidity
Gateway
Sensors

9. hybriData
Serverless Stack©2019HybridDataSolutions,LosAngeles,CA
● Infrastructure as Code - AWS CloudFormation yaml templates
● Deploy with command: serverless deploy -s dev -v

10. hybriData
Elasticsearch Stack©2019HybridDataSolutions,LosAngeles,CA

11. hybriData
● Schema
● Queries
● Mutations
● Subscriptions
● Resolvers
AWS Appsync - graphQL
©2019 Hybrid Data Solutions, Los Angeles, CA

12. hybriData©2019HybridDataSolutions,LosAngeles,CA
AWS Appsync - graphQL

13. hybriData
AWS Appsync - Apache VTL©2019HybridDataSolutions,LosAngeles,CA
[
#foreach($entry in $context.result.hits.hits)
#if( $velocityCount > 1 ) , #end
$utils.toJson($entry.get("_source"))
#end
]
{
"version":"2017-02-28",
"operation":"POST",
"path":"/sensor_data/_search",
"params":{
"body": $context.arguments.query
}
}
Query.search.request.vtl
Query.search.response.vtl

14. hybriData
serverless-appsync-plugin©2019HybridDataSolutions,LosAngeles,CA

15. hybriData
Kibana / Canvas©2019HybridDataSolutions,LosAngeles,CA

16. hybriData
● Proactive alerts
● Reliable Energy Performance Index
● Accurate PV Energy Yield
● Demand Response
● Planning and Commissioning
ES and IIoT data
©2019 Hybrid Data Solutions, Los Angeles, CA

17. hybriData
● IIoT environmental data would forecast PV energy
yield more accurately than 3rd party weather data
● Numerous variables impact the output of PV energy
yield:
- Power generation system components
- Other climate data
Conclusion
©2019 Hybrid Data Solutions, Los Angeles, CA

18. hybriData
Thank you!
©2019 Hybrid Data Solutions, Los Angeles, CA

19. hybriData
Questions?
email: cj@hybridata.us
©2019 Hybrid Data Solutions, Los Angeles, CA

20. hybriData
Back Up
©2019 Hybrid Data Solutions, Los Angeles, CA
