- 1. 1 MOTOTRBO™ CONNECT PLUS January 2014 AndrewTrickett Enterprise Account Manager Pennine Telecom 0161 763 2085 andy.trickett@pennninetelecom.com

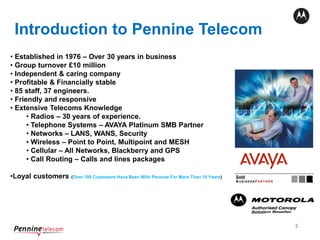

- 2. 2 Intro To PennineTelecom Introduction to Pennine Telecom • Established in 1976 – Over 30 years in business • Group turnover £10 million • Independent & caring company • Profitable & Financially stable • 85 staff, 37 engineers. • Friendly and responsive • Extensive Telecoms Knowledge • Radios – 30 years of experience. • Telephone Systems – AVAYA Platinum SMB Partner • Networks – LANS, WANS, Security • Wireless – Point to Point, Multipoint and MESH • Cellular – All Networks, Blackberry and GPS • Call Routing – Calls and lines packages •Loyal customers (Over 100 Customers Have Been With Pennine For More Than 10 Years)
- 3. 3 PTL Customer Profile Pennine’sCustomer Profile

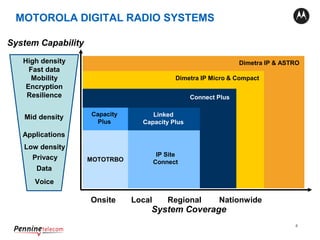

- 4. 4 Dimetra IP &ASTRO Dimetra IP Micro & Compact System Capability System Coverage Onsite Local Regional Nationwide Connect Plus Linked Capacity Plus IP Site Connect Capacity Plus MOTOTRBO Voice Data High density Fast data Mobility Encryption Resilience Privacy Applications Mid density Low density MOTOROLA DIGITAL RADIO SYSTEMS
- 5. 5 MOTOTRBO Connect Plusis: • Digital – 2 Talk / Data Paths per Repeater • Multisite – Up to 70 Sites • Trunking – Up to 29 Talk / Data Paths per Site • Dedicated Control Timeslot • Quick Roaming and Registration • Busy Queue • Automatic Call Back • 8 Priority Levels • Centralized Network Management • Peer Site Controller Advanced Architecture! Public Service | Transportation | Utilities | Petro-Chemical Mining | Manufacturing | Hospitality The MOTOTRBO™ Evolution Continues
- 6. 6 MOTOTRBO™ Digital TrunkingSystems KEY FEATURE COMPARISON • 1 Site • 16 trunked channels per site • Total 24 channels per site • Enhanced Privacy (40-bit encryption) • Optional AES 256-bit Encryption (voice and data) • Transmit Interrupt • Digital Telephone Patch • GPS data support LINKED CAPACITY PLUSCAPACITY PLUS CONNECT PLUS • 15 Sites • 12 trunked channels per site • 6 data revert channels per site • Enhanced Privacy (40-bit encryption) • Optional AES 256-bit Encryption (voice and data) • Transmit Interrupt • Digital Telephone Patch • GPS data support • Static selective site light-up • Site restriction • 70 Sites • 29 trunked channels per site • 1 control channel per site • Dedicated Control Timeslot • Quick Roaming and Registration • Site restriction • Subscriber Access Control • Connect Plus option board • Optional AES 256-bit Encryption (voice) • Message store-and-forward • Location Services for GPS • Busy call queuing • Priority call levels (8) • Dynamic site assignment
- 7. MOTOTRBO™ CONNECT PLUS SYSTEMCHARACTERISTICS • TDMA 2:1 technology • Available in UHF B1, UHF B2 and VHF frequency bands • Supports 3rd party IP dispatch console with XRT 9000 Gateway • Per site controller based architecture • Uses rotating control channel (repeater redundancy) • Back up controller (Optional) • 15 repeaters per trunking site (29 voice/data talk paths) • 70 RF trunking sites in a flexible system topology • IP (Internet Protocol) site connectivity • Supports DP4400, DP4401, DP4800, DP4801, SL4010, DP4801Ex, DM4400, DM4401, DM4600 and DM4601 radios, plus DP 3000 and DM 3000 Series • Location Services for GPS • Network Management application • Usage and Air-Time Logs CONNECT PLUS

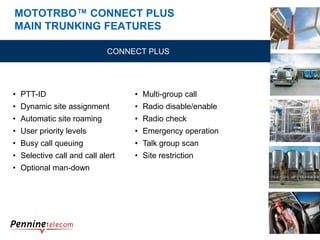

- 8. MOTOTRBO™ CONNECT PLUS MAINTRUNKING FEATURES • PTT-ID • Dynamic site assignment • Automatic site roaming • User priority levels • Busy call queuing • Selective call and call alert • Optional man-down • Multi-group call • Radio disable/enable • Radio check • Emergency operation • Talk group scan • Site restriction CONNECT PLUS

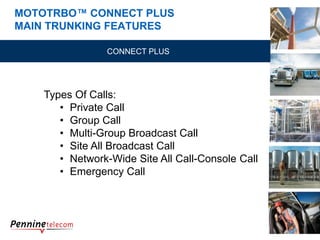

- 9. MOTOTRBO™ CONNECT PLUS MAINTRUNKING FEATURES CONNECT PLUS Types Of Calls: • Private Call • Group Call • Multi-Group Broadcast Call • Site All Broadcast Call • Network-Wide Site All Call-Console Call • Emergency Call
- 10. 10 MOTOTRBO™ CONNECT PLUS MAINCOMPONENTS • PORTABLES (with option board) DP4400, DP4401, DP4800, DP4801, SL4010, DP4801Ex DP 3000 Series • MOBILES (with option board) DM4400, DM4401, DM4600, DM4601 • REPEATERS DR 3000 and MTR3000 • ACCESSORIES • XRC9000 MULTISITE CONTROLLER • HP Procurve Switch (Recommended) • HP Multi-Service Router (Recommended) • APPLICATIONS (XRT9000 Gateway required) CONNECT PLUS

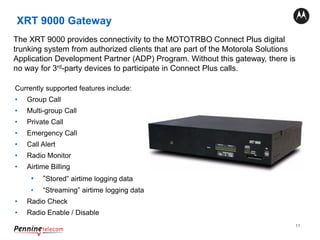

- 11. 11 XRT 9000 Gateway TheXRT 9000 provides connectivity to the MOTOTRBO Connect Plus digital trunking system from authorized clients that are part of the Motorola Solutions Application Development Partner (ADP) Program. Without this gateway, there is no way for 3rd-party devices to participate in Connect Plus calls. Currently supported features include: • Group Call • Multi-group Call • Private Call • Emergency Call • Call Alert • Radio Monitor • Airtime Billing • “Stored” airtime logging data • “Streaming” airtime logging data • Radio Check • Radio Enable / Disable
- 12. 12 ConnectPlus XRC 9000 ConnectPlus XRC 9000 ConnectPlus XRC9000 ConnectPlus XRC 9000 ConnectPlus XRC 9000 Private IP Network Microwave Link T1 Leased Line MOTOTRBO™ CONNECT PLUS BASIC ARCHITECTURE Console Applications

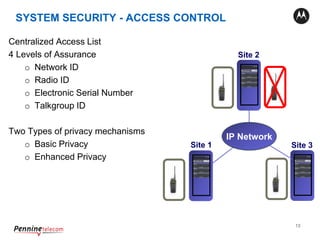

- 13. 13 Centralized Access List 4Levels of Assurance o Network ID o Radio ID o Electronic Serial Number o Talkgroup ID Two Types of privacy mechanisms o Basic Privacy o Enhanced Privacy Site 1 Site 2 Site 3 IP Network XRC 9000XRC 9000 XRC 9000 SYSTEM SECURITY - ACCESS CONTROL

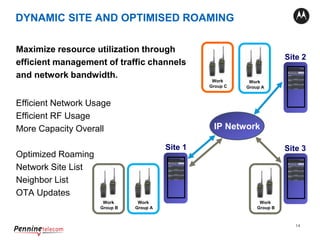

- 14. 14 Maximize resource utilizationthrough efficient management of traffic channels and network bandwidth. Efficient Network Usage Efficient RF Usage More Capacity Overall Optimized Roaming Network Site List Neighbor List OTA Updates Site 1 Site 2 Site 3 IP Network XRC 9000 XRC 9000 XRC 9000 Work Group A Work Group A Work Group C Work Group B Work Group B DYNAMIC SITE AND OPTIMISED ROAMING

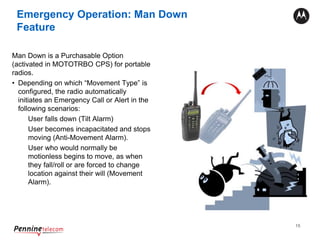

- 15. 15 Emergency Operation: ManDown Feature Man Down is a Purchasable Option (activated in MOTOTRBO CPS) for portable radios. • Depending on which “Movement Type” is configured, the radio automatically initiates an Emergency Call or Alert in the following scenarios: User falls down (Tilt Alarm) User becomes incapacitated and stops moving (Anti-Movement Alarm). User who would normally be motionless begins to move, as when they fall/roll or are forced to change location against their will (Movement Alarm).

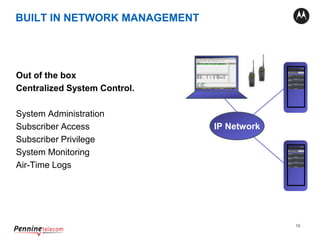

- 16. 16 Out of thebox Centralized System Control. System Administration Subscriber Access Subscriber Privilege System Monitoring Air-Time Logs XRC 9000 XRC 9000 IP Network BUILT IN NETWORK MANAGEMENT

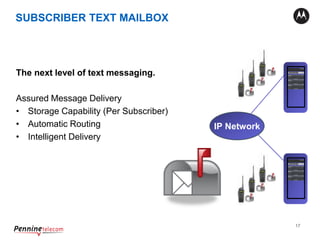

- 17. 17 The next levelof text messaging. Assured Message Delivery • Storage Capability (Per Subscriber) • Automatic Routing • Intelligent Delivery XRC 9000 XRC 9000 IP Network SUBSCRIBER TEXT MAILBOX

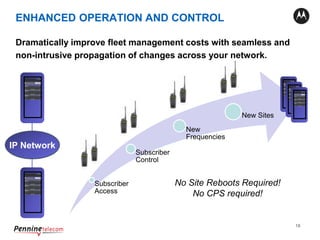

- 18. 18 Dramatically improve fleetmanagement costs with seamless and non-intrusive propagation of changes across your network. XRC 9000 IP Network Subscriber Access Subscriber Control New Frequencies New Sites XRC 9000 XRC 9000 XRC 9000 XRC 9000 No Site Reboots Required! No CPS required! ENHANCED OPERATION AND CONTROL

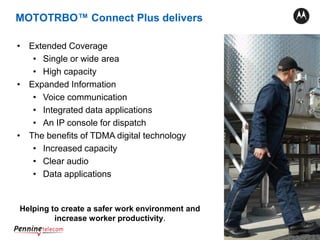

- 19. 19 • Extended Coverage •Single or wide area • High capacity • Expanded Information • Voice communication • Integrated data applications • An IP console for dispatch • The benefits of TDMA digital technology • Increased capacity • Clear audio • Data applications Helping to create a safer work environment and increase worker productivity. MOTOTRBO™ Connect Plus delivers
- 20. 20 • TDMA technologydelivers twice the calling capacity FDMA and analog radios for the price of one frequency license. • Infrastructure costs are half of FDMA-based digital systems because a second call doesn’t need a second repeater. • Text messaging, GPS-enabled applications and more are integrated to raise your communication to a new level. • Static and noise are rejected to make voice communication remarkably clear. • Motorola standards for durability and reliability. MOTOTRBO™ Connect Plus benefits

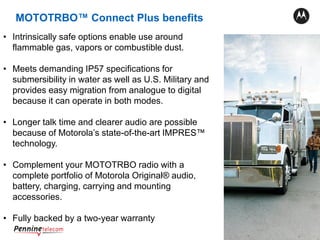

- 21. 21 • Intrinsically safeoptions enable use around flammable gas, vapors or combustible dust. • Meets demanding IP57 specifications for submersibility in water as well as U.S. Military and provides easy migration from analogue to digital because it can operate in both modes. • Longer talk time and clearer audio are possible because of Motorola’s state-of-the-art IMPRES™ technology. • Complement your MOTOTRBO radio with a complete portfolio of Motorola Original® audio, battery, charging, carrying and mounting accessories. • Fully backed by a two-year warranty MOTOTRBO™ Connect Plus benefits
- 22. 22 System Integration Centre(SIC) Berlin, Germany • Fully racked and integrated system, INCLUDING: – Standard FAT – Assigned project manager – Standard documentation – Racking and cabling – Programming* – Configuration of IP equipment SYSTEM INTEGRATION OPTIONS *This includes all system components but minimal programming of subscribers to aid FAT
- 23. 23 TRANSPORTATION FLEET DISPATCHSOLUTION • Wide Area Coverage Solution • One to Many Communications • Increase Productivity • Increased Safety • Talk – Text – GPS Connect Plus • >430 radios on the system and growing • 4 Sites – 13 repeaters • Fleet Transportation Vertical Target • System connectivity thru Milwaukee and Green Bay MOTOTRBOTM CONNECT PLUS IN ACTION
