Intro to Redis TimeSeries
Time series data records values indexed by time. RedisTimeSeries implements a time series database as a Redis module. It stores time-value samples and allows retrieving aggregate values within time ranges. Samples can be added with labels and retained for a set time. Values can be averaged, summed, or operated on within aggregation windows. RedisTimeSeries integrates with monitoring tools and caching to enable various use cases.
More Related Content
Similar to Intro to Redis TimeSeries
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
Intro to Redis TimeSeries
- 1. Intro to RedisTimeSeries KyleDavis Head of Developer Advocacy, Redis Labs
- 2. What is TimeSeries Data? 2
- 3. • Data thatsimply has time as an index • Each recorded time numeric value. • Time + Value = Sample • Analyze using time-bounded ranges –Separate into time units –Example: Averages in each hour Time Series data is… 3
- 4. Common Examples ofTime Series Data 4
- 5. Redis and TimeSeries 5
- 6. • Member +Sort Order –ZADD mySortedSet 1559938522 1000 • Get by ranges, not much else • Duplicate Member Problem –ZADD mySortedSet 1559938522 1000 –ZADD mySortedSet 1559938524 1000 <- Upsert instead of insert –Hacky solution: • ZADD mySortedSet 1559938522 1000:<random value> • ZADD mySortedSet 1559938524 1000:<random value> It all started with sorted sets… 6
- 7. • Designed tosolve similar problems –Unified log –Messaging • Allows for auto-generated IDs, no duplicates, and per-sample field/value pairs –XADD myStream * myValue 1000 –XADD myStream * myValue 1000 anotherField hello • Get by ranges, not much else Then came Redis Streams 7

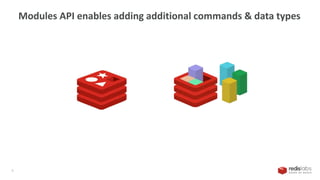

- 8. Modules API enablesadding additional commands & data types 8
- 9. RedisTimeSeries implements ana time series database as a module in Redis 9
- 10.
- 11. 00 00 0000 00 00 03 E800 00 00 00 5C FA C5 DD 11 PREVIOUSPOINTER NEXTPOINTER Timestamps Sample Values Timestamp: 1559938525 Value: 1000
- 12.
- 13. 13 Oldest Creating a TimeSeries Key TS.CREATE myTS

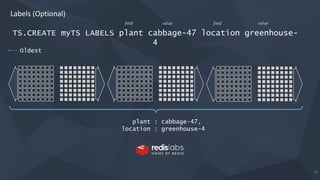

- 14. 14 Oldest Labels (Optional) TS.CREATE myTSLABELS plant cabbage-47 location greenhouse- 4 plant : cabbage-47, location : greenhouse-4 field value field value

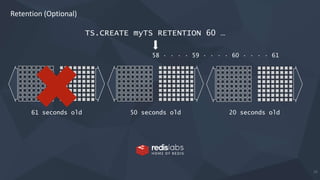

- 15. 15 Retention (Optional) TS.CREATE myTSRETENTION 60 … 61 seconds old 50 seconds old 20 seconds old 58 · · · · 59 · · · · 60 · · · · 61

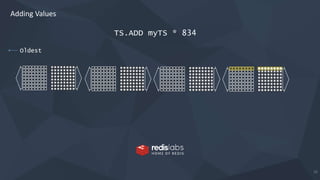

- 16.

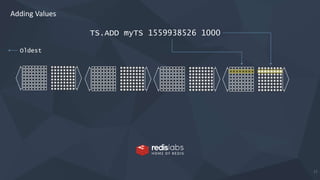

- 17. 17 Oldest Adding Values TS.ADD myTS1559938526 1000

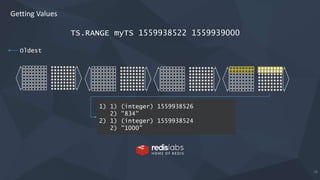

- 18. 18 Oldest Getting Values TS.RANGE myTS1559938522 1559939000 1) 1) (integer) 1559938526 2) "834" 2) 1) (integer) 1559938524 2) "1000"

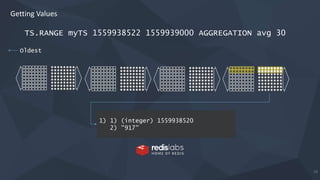

- 19. 19 Oldest Getting Values TS.RANGE myTS1559938522 1559939000 AGGREGATION avg 30 1) 1) (integer) 1559938520 2) "917"

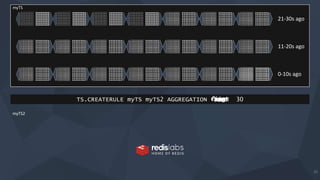

- 20. 20 0-10s ago 11-20s ago 21-30sago TS.CREATERULE myTS myTS2 AGGREGATION 30avgsumminmaxrangecountfirstlast myTS myTS2
- 21. What else canyou do with RedisTimeSeries? 21

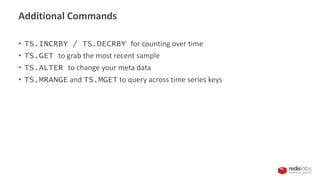

- 22. • TS.INCRBY /TS.DECRBY for counting over time • TS.GET to grab the most recent sample • TS.ALTER to change your meta data • TS.MRANGE and TS.MGET to query across time series keys Additional Commands

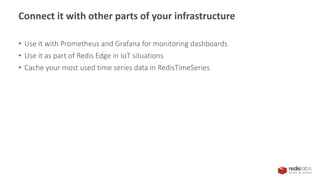

- 23. • Use itwith Prometheus and Grafana for monitoring dashboards • Use it as part of Redis Edge in IoT situations • Cache your most used time series data in RedisTimeSeries Connect it with other parts of your infrastructure
- 24. • Go tohttp://redistimeseries.io/ to explore –Launch it using Docker –Build it yourself –Look at the commands • Checkout the GitHub Org: https://github.com/RedisTimeSeries Next Steps
- 25.
