This document provides an overview of basic Android application components and concepts, including Activities, Context, Intents, Services, Broadcasts, BroadcastReceivers, and Storage options. It discusses what each component is used for and provides examples. It also describes a code demo that records and shares battery levels over time using some of these components and concepts.

2. CCNPO DevTeam

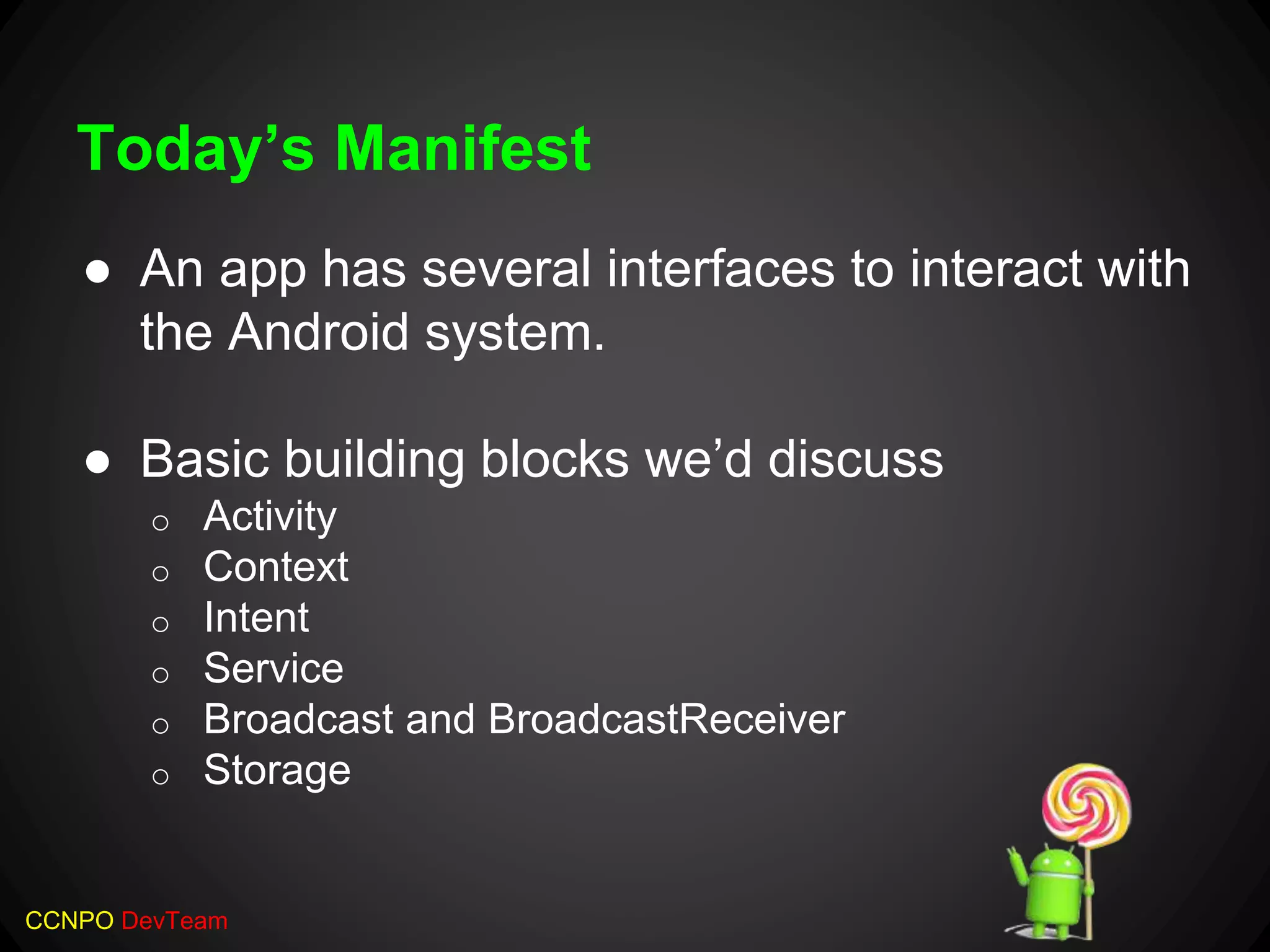

Today’s Manifest
● An app has several interfaces to interact with
the Android system.
● Basic building blocks we’d discuss
o Activity
o Context
o Intent
o Service
o Broadcast and BroadcastReceiver
o Storage

3. CCNPO DevTeam

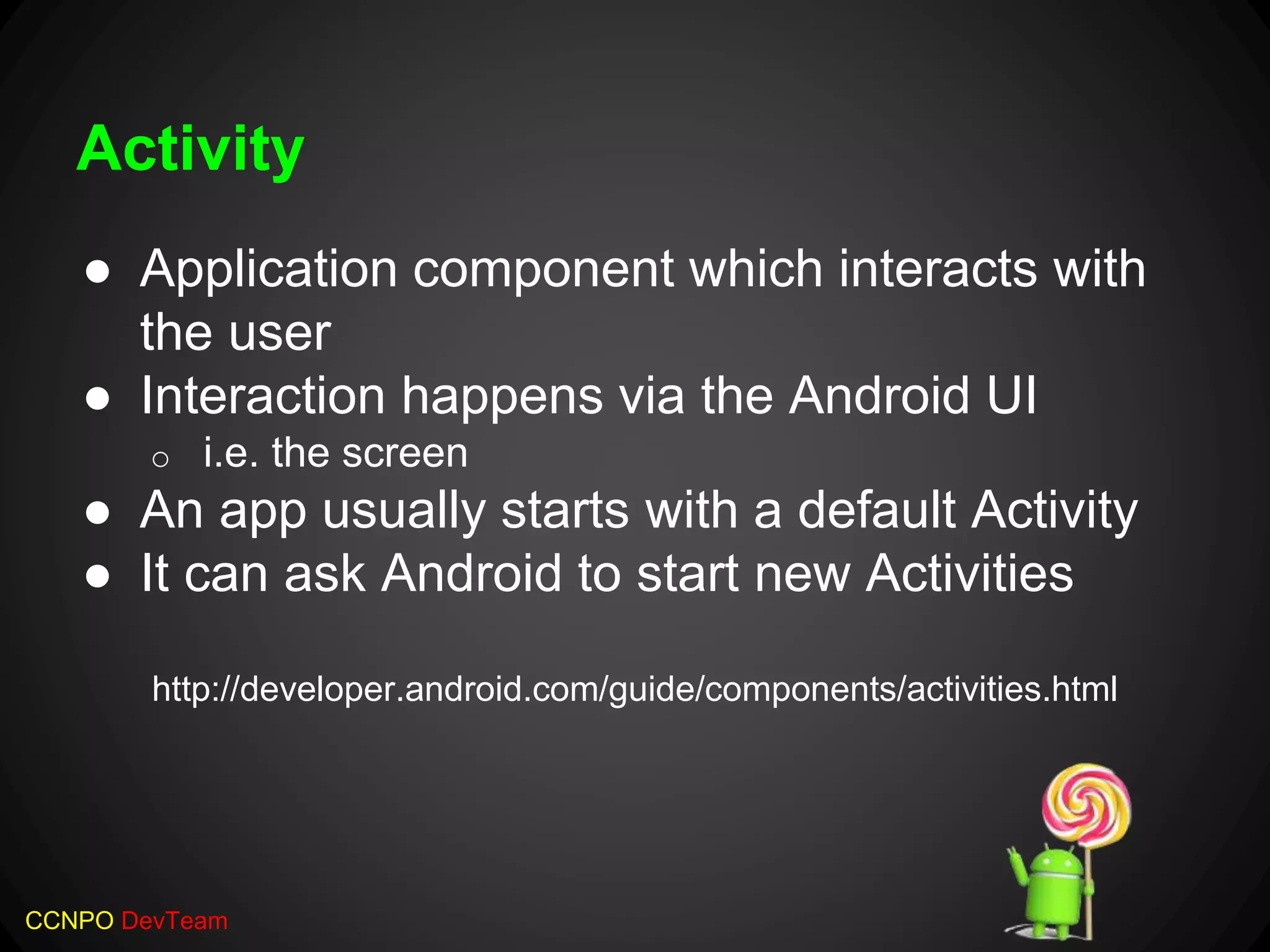

Activity
● Application component which interacts with
the user
● Interaction happens via the Android UI
o i.e. the screen
● An app usually starts with a default Activity
● It can ask Android to start new Activities
http://developer.android.com/guide/components/activities.html

4. CCNPO DevTeam

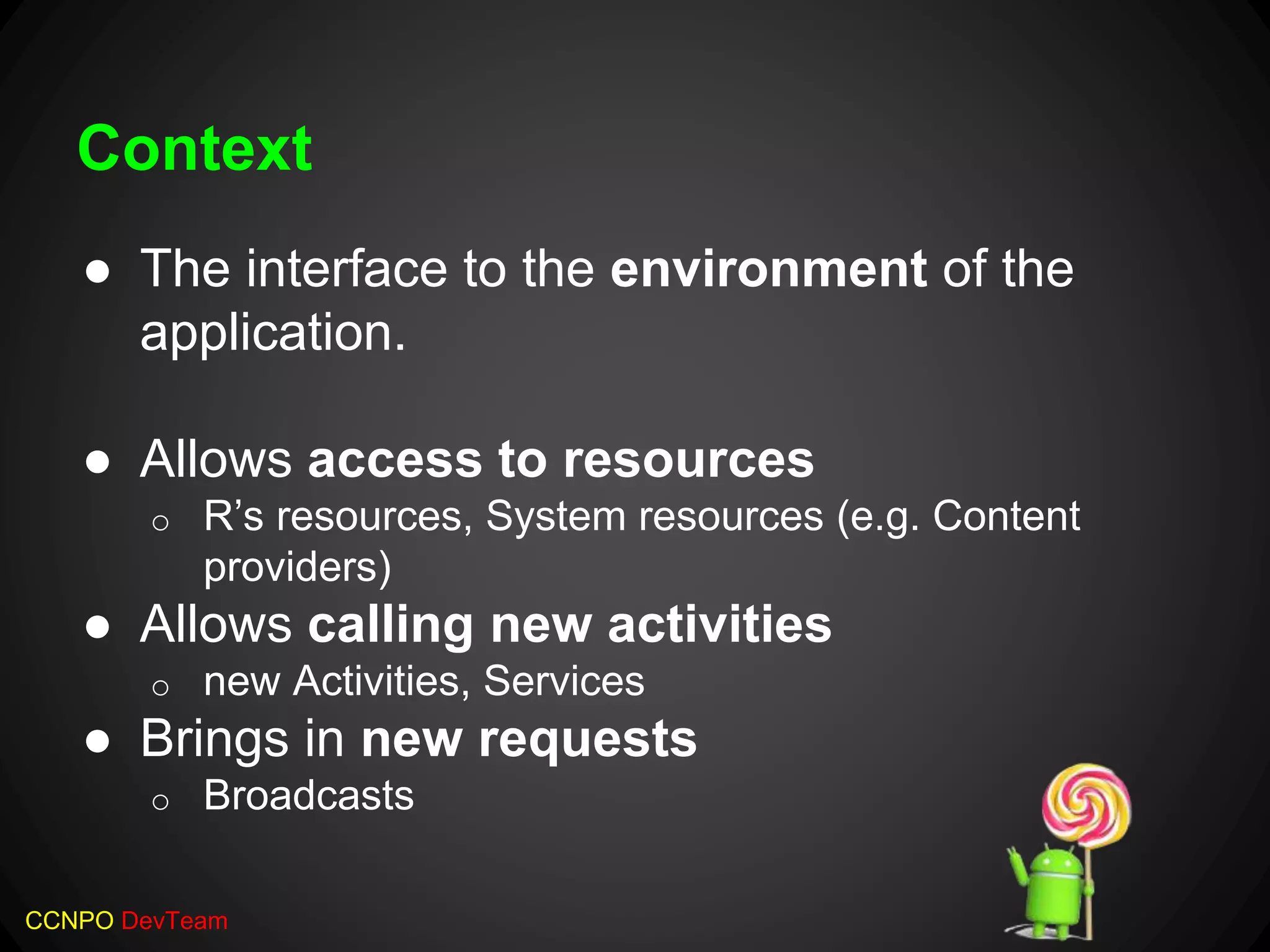

Context
● The interface to the environment of the
application.
● Allows access to resources
o R’s resources, System resources (e.g. Content
providers)
● Allows calling new activities
o new Activities, Services
● Brings in new requests
o Broadcasts

5. CCNPO DevTeam

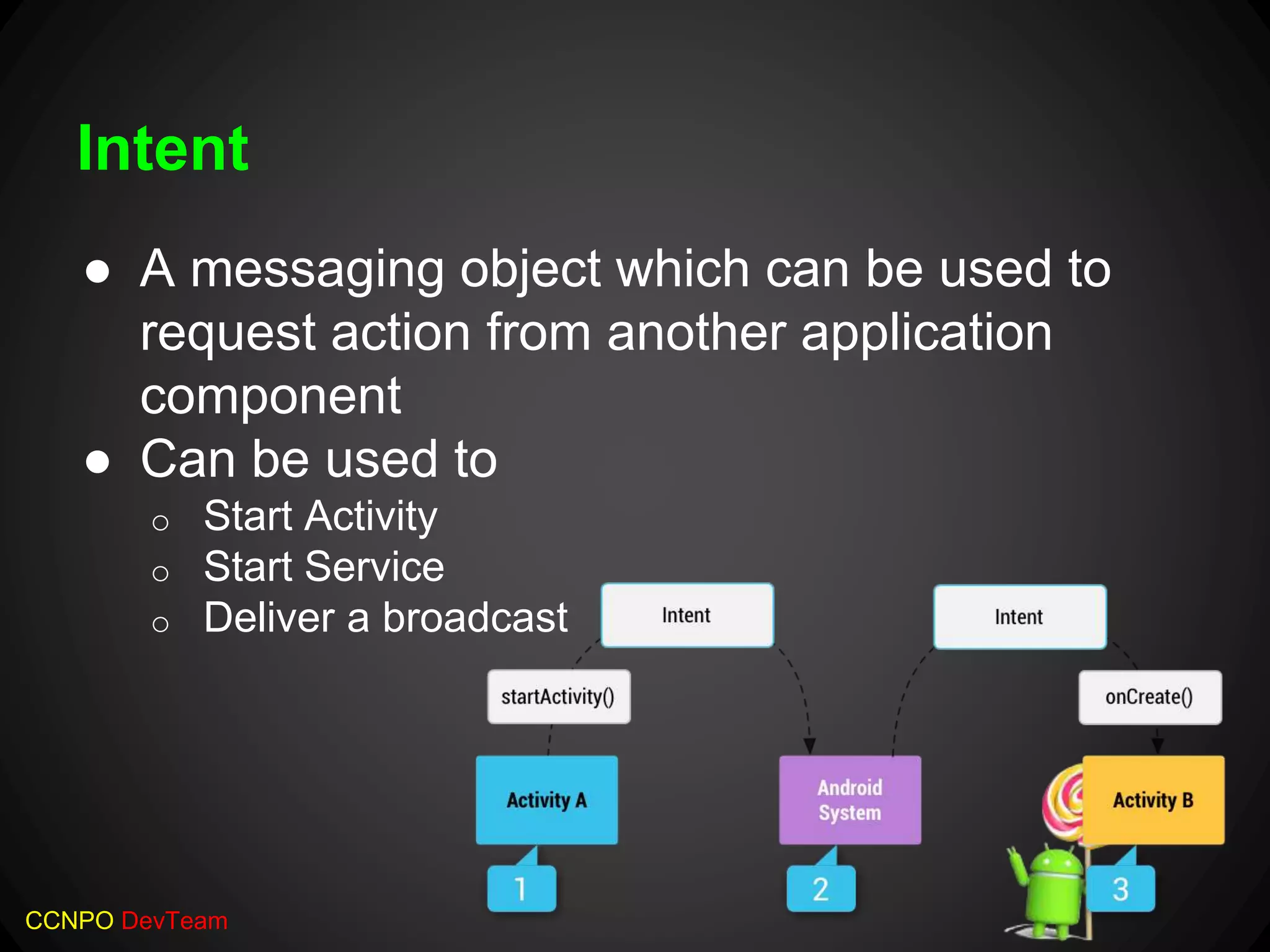

Intent
● A messaging object which can be used to
request action from another application
component
● Can be used to
o Start Activity
o Start Service
o Deliver a broadcast

6. CCNPO DevTeam

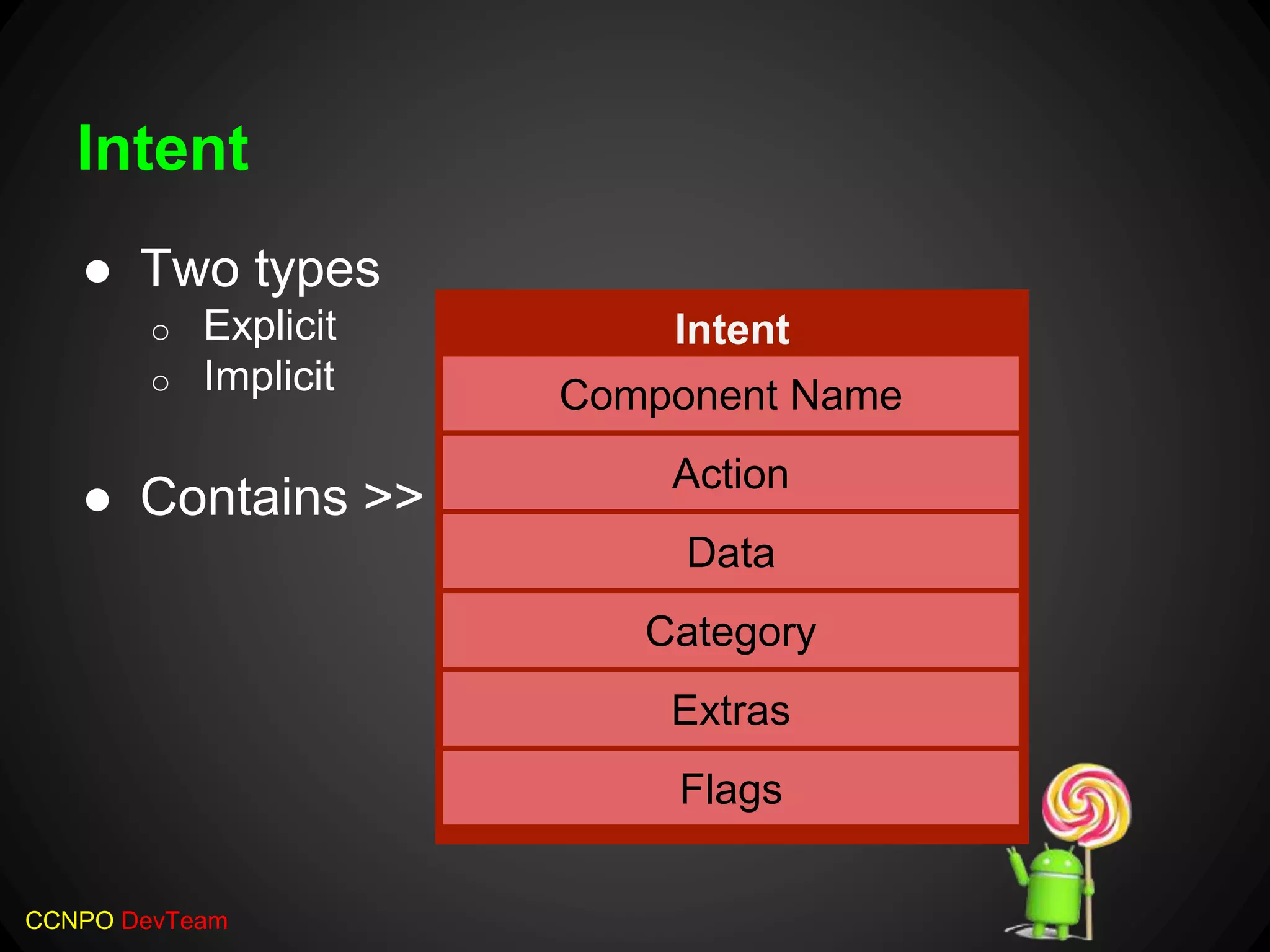

Intent
● Two types
o Explicit
o Implicit
● Contains >>
Intent
Component Name
Action
Data
Category
Extras
Flags

7. CCNPO DevTeam

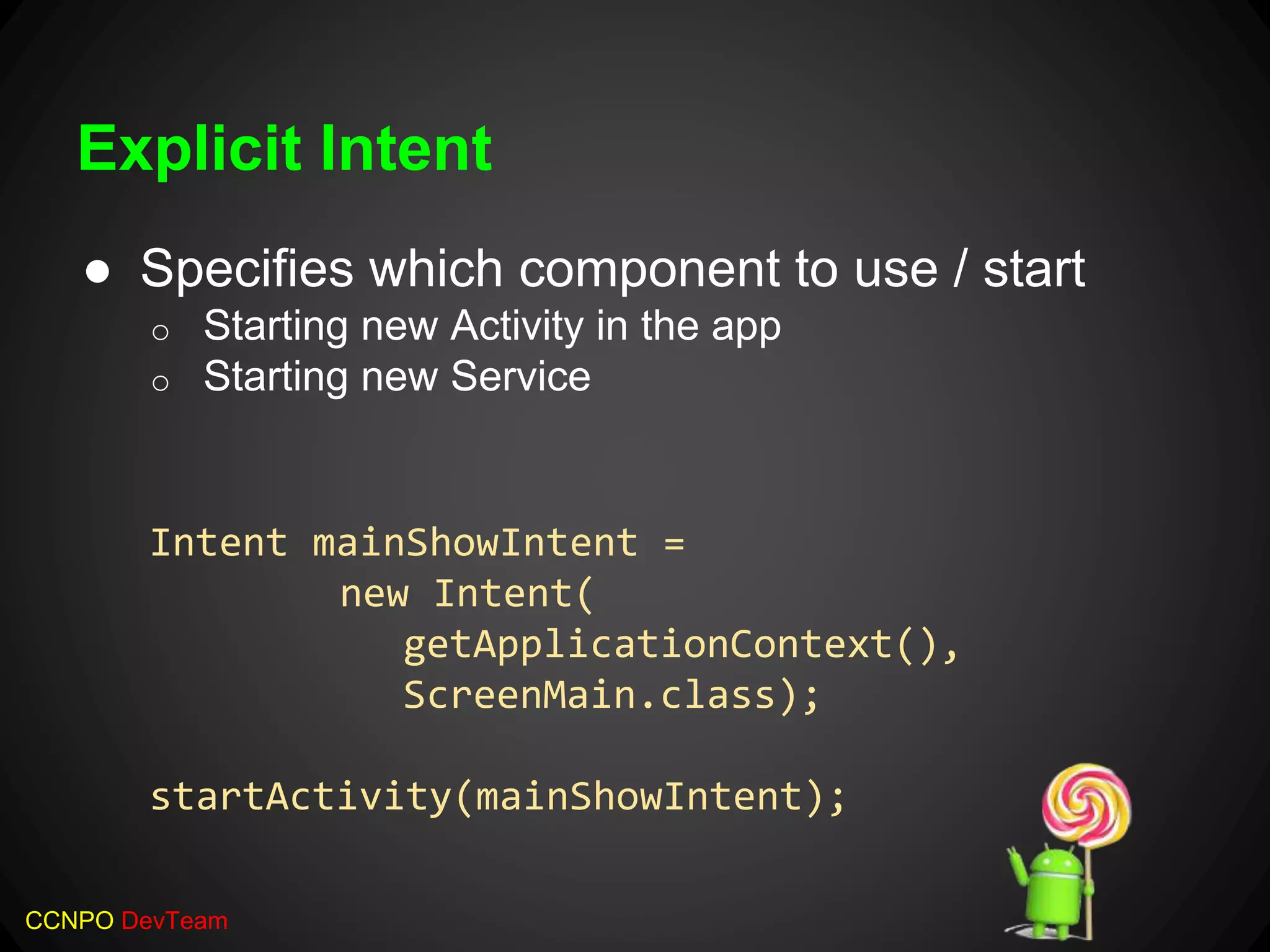

Explicit Intent
● Specifies which component to use / start
o Starting new Activity in the app
o Starting new Service
Intent mainShowIntent =
new Intent(
getApplicationContext(),
ScreenMain.class);
startActivity(mainShowIntent);

8. CCNPO DevTeam

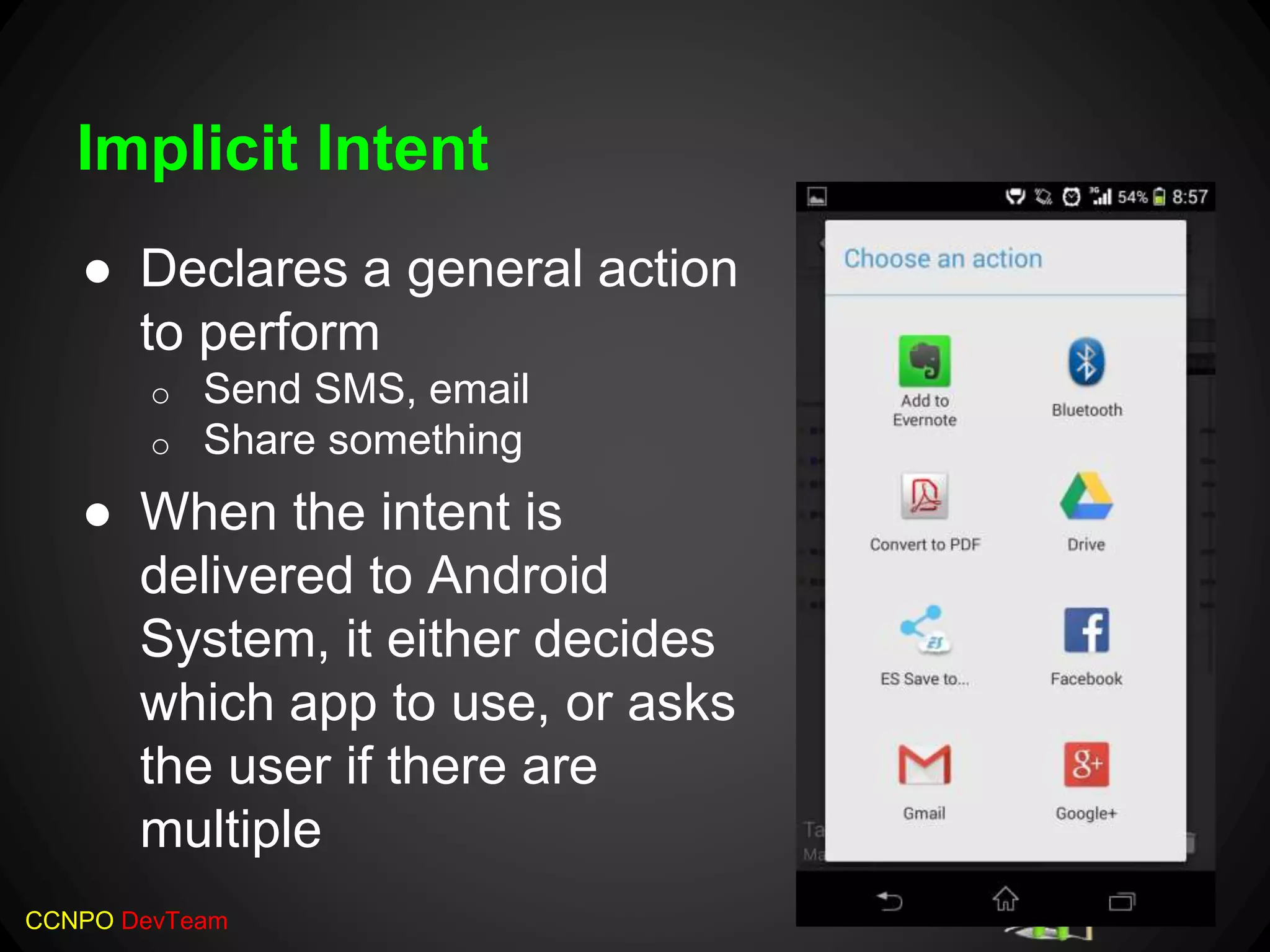

Implicit Intent
● Declares a general action
to perform
o Send SMS, email
o Share something
● When the intent is
delivered to Android
System, it either decides
which app to use, or asks
the user if there are
multiple

9. CCNPO DevTeam

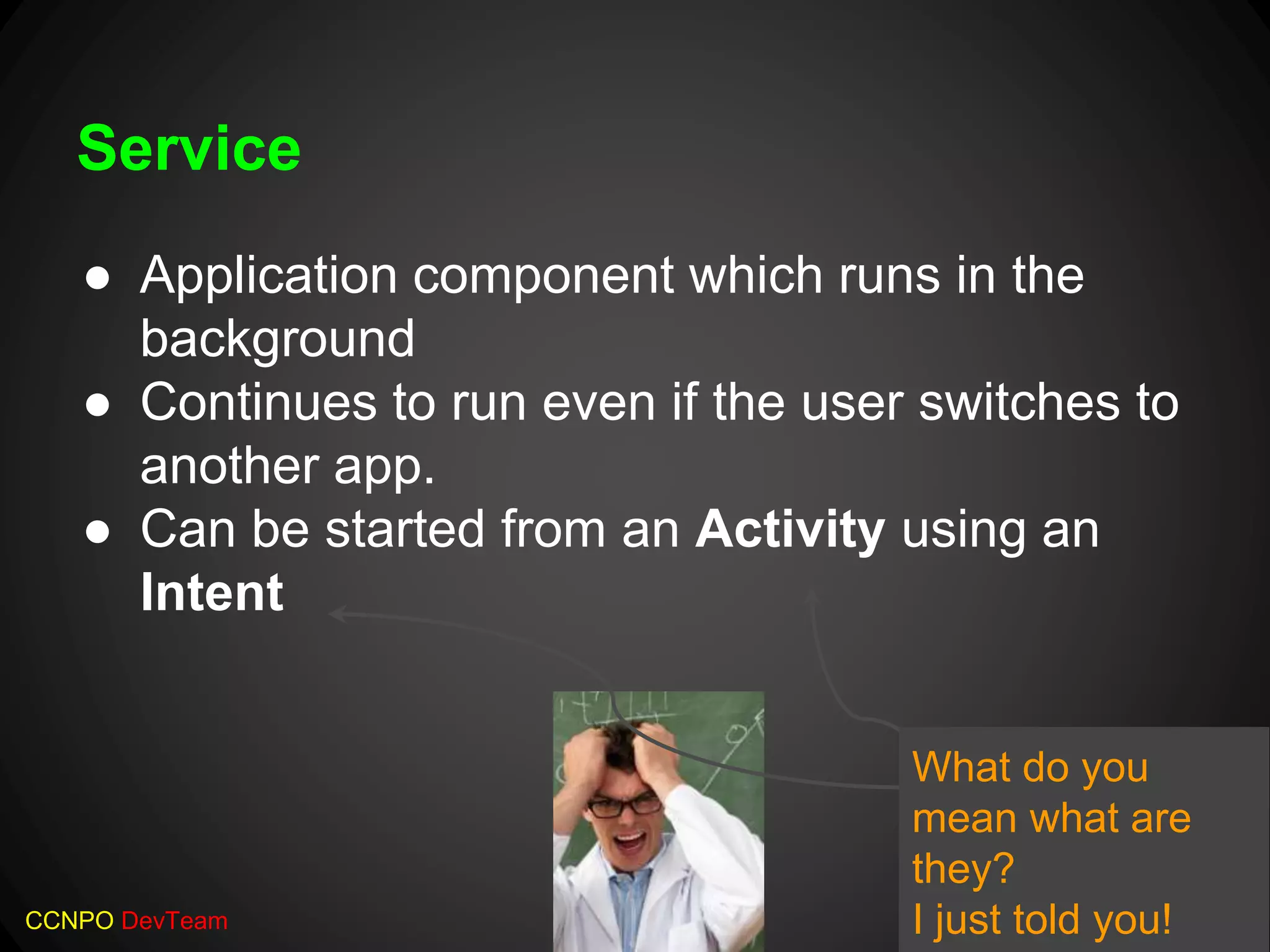

Service
● Application component which runs in the
background
● Continues to run even if the user switches to
another app.
● Can be started from an Activity using an
Intent
What do you
mean what are
they?
I just told you!

10. CCNPO DevTeam

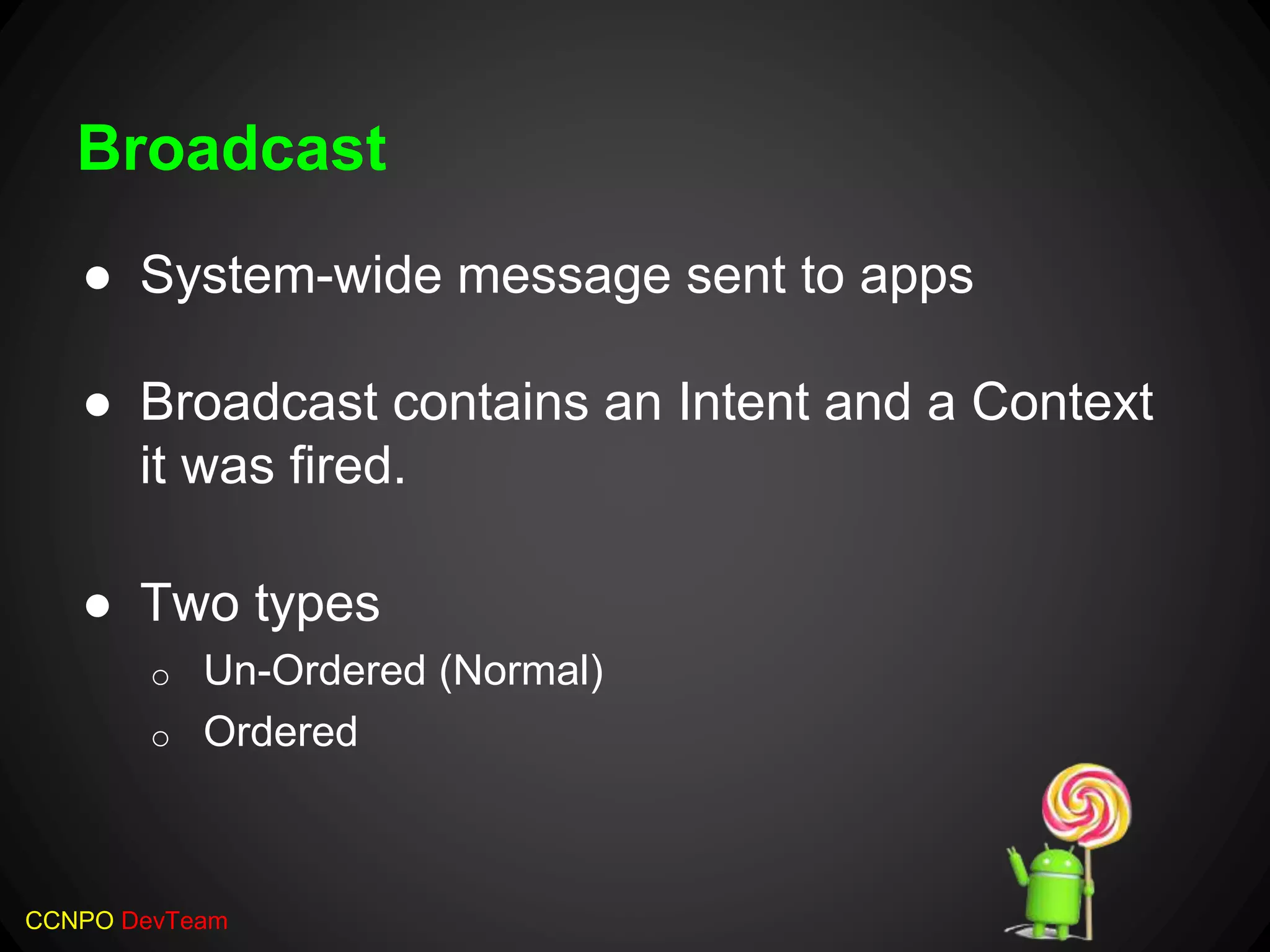

Broadcast
● System-wide message sent to apps
● Broadcast contains an Intent and a Context
it was fired.
● Two types
o Un-Ordered (Normal)
o Ordered

11. CCNPO DevTeam

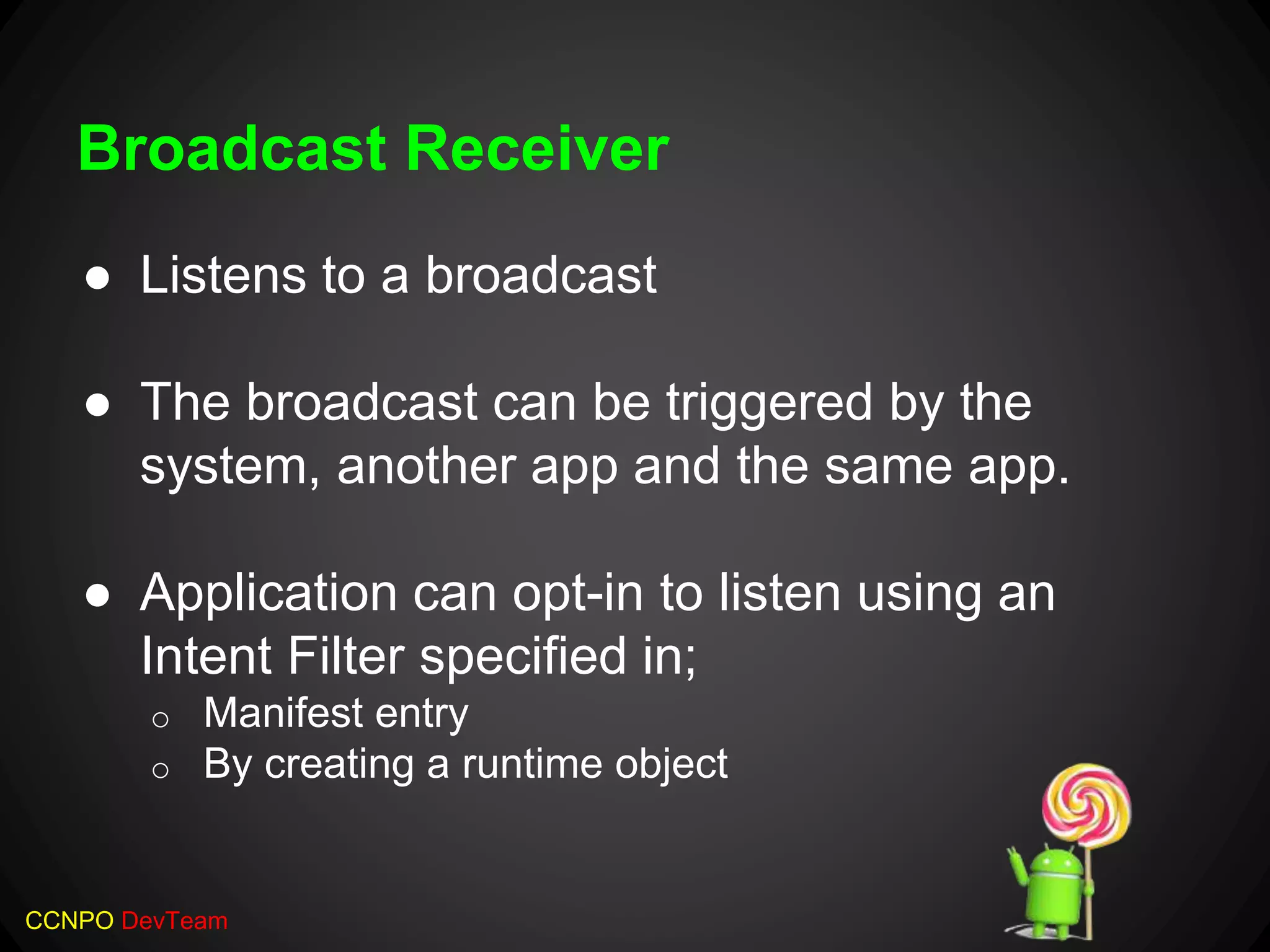

Broadcast Receiver
● Listens to a broadcast
● The broadcast can be triggered by the
system, another app and the same app.
● Application can opt-in to listen using an
Intent Filter specified in;
o Manifest entry
o By creating a runtime object

12. CCNPO DevTeam

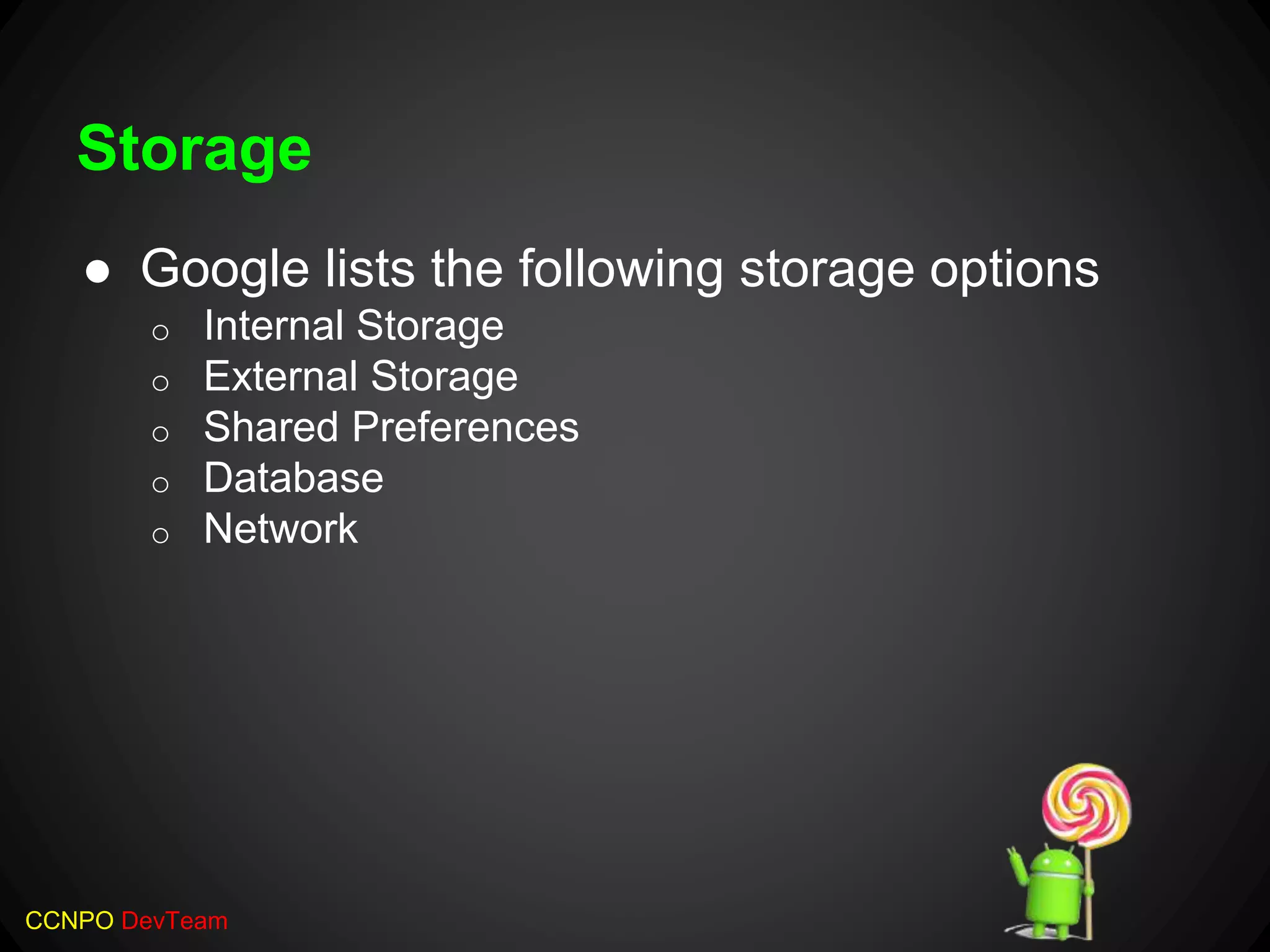

Storage
● Google lists the following storage options
o Internal Storage
o External Storage
o Shared Preferences
o Database
o Network

13. CCNPO DevTeam

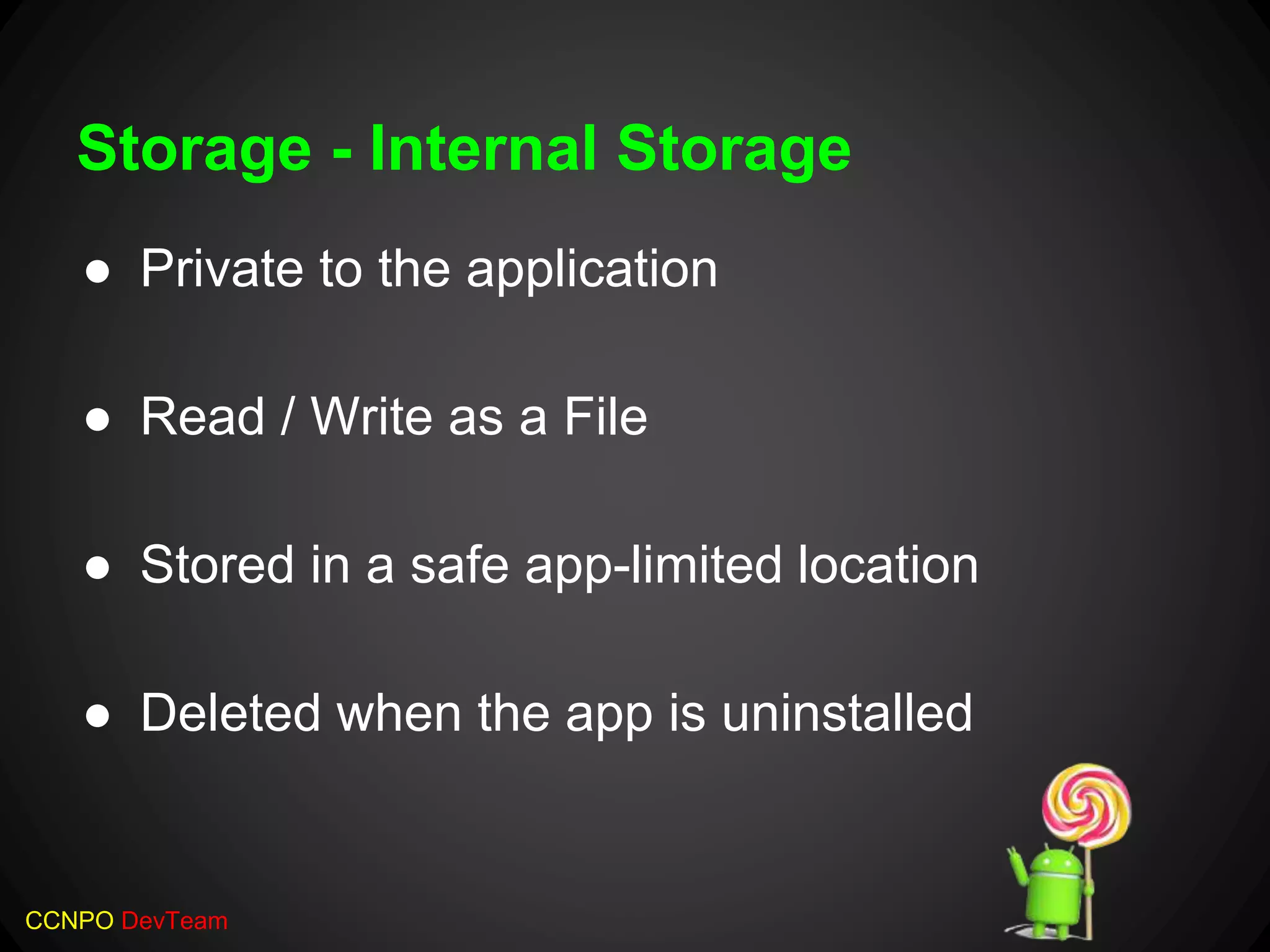

Storage - Internal Storage
● Private to the application
● Read / Write as a File
● Stored in a safe app-limited location
● Deleted when the app is uninstalled

14. CCNPO DevTeam

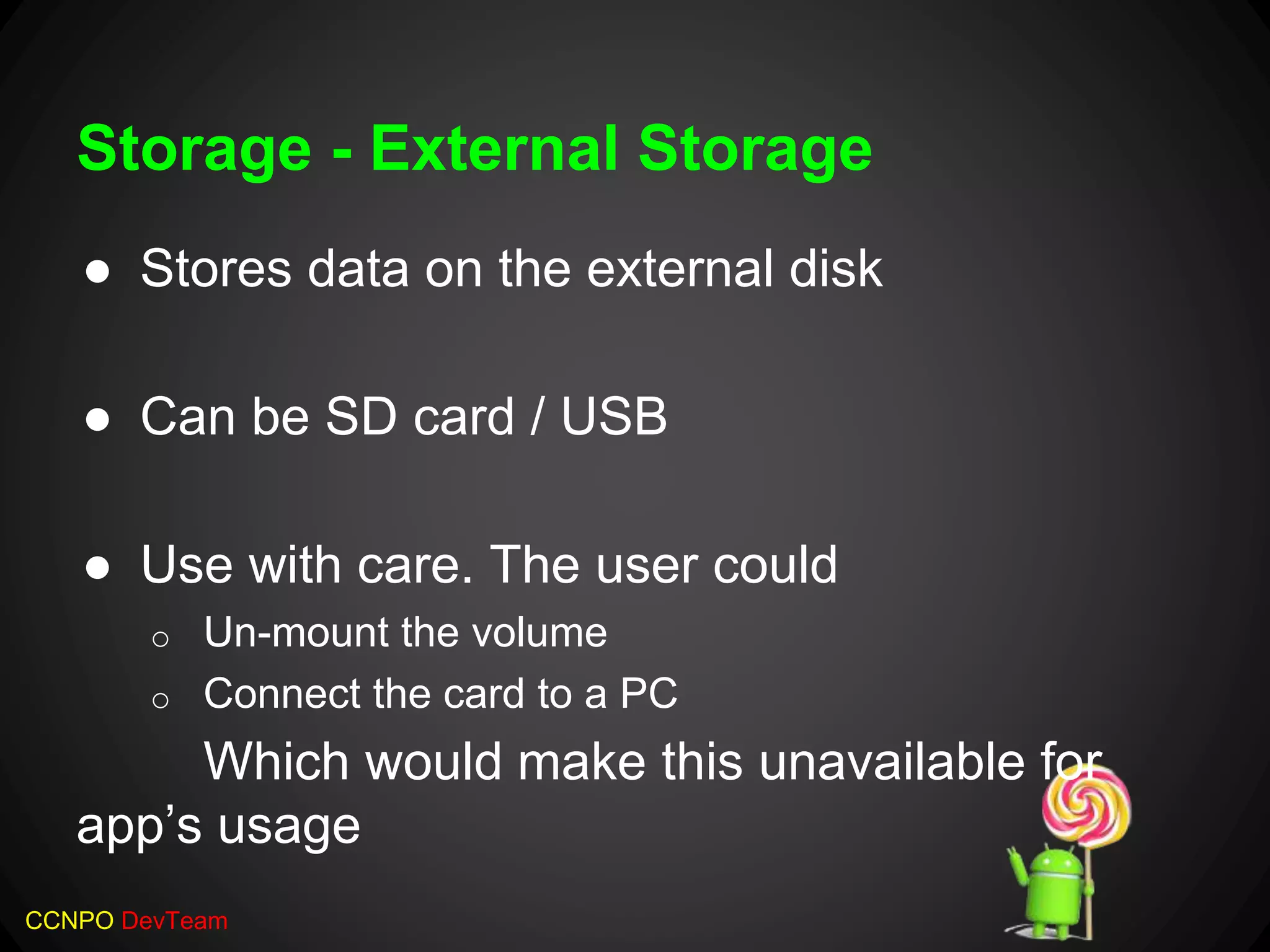

Storage - External Storage
● Stores data on the external disk
● Can be SD card / USB
● Use with care. The user could
o Un-mount the volume
o Connect the card to a PC
Which would make this unavailable for
app’s usage

15. CCNPO DevTeam

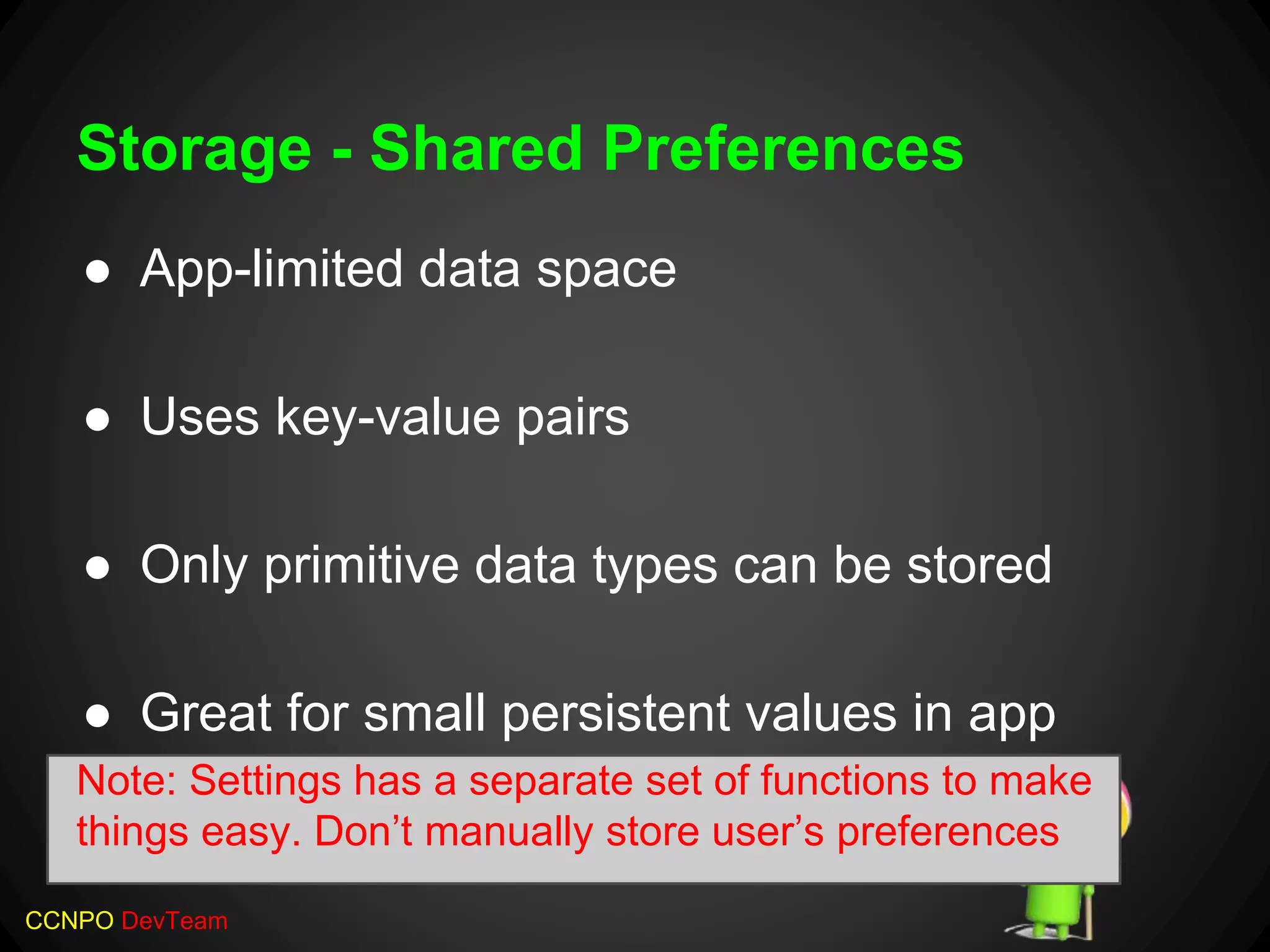

Storage - Shared Preferences
● App-limited data space
● Uses key-value pairs
● Only primitive data types can be stored
● Great for small persistent values in app
Note: Settings has a separate set of functions to make
things easy. Don’t manually store user’s preferences

16. CCNPO DevTeam

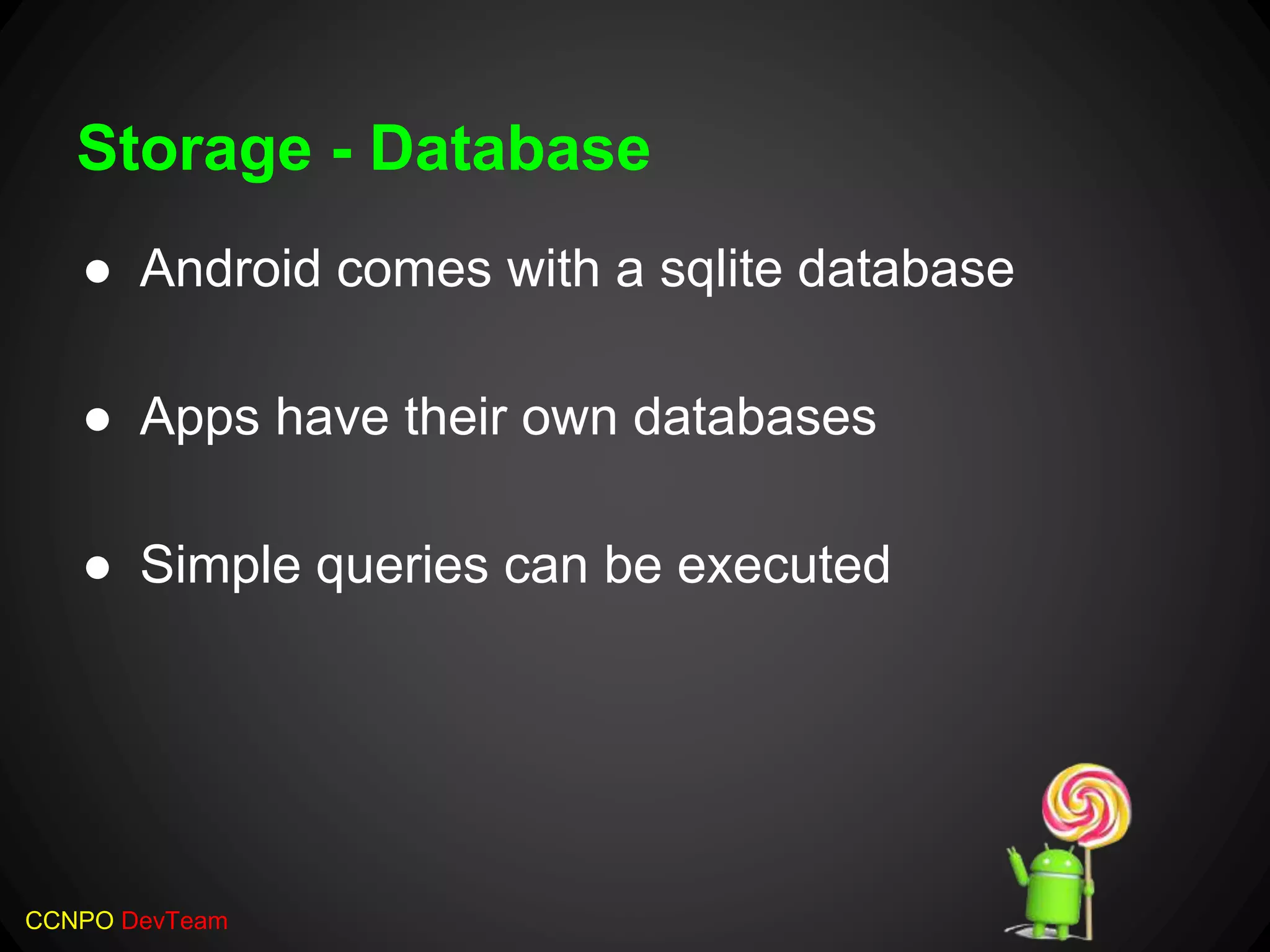

Storage - Database
● Android comes with a sqlite database
● Apps have their own databases
● Simple queries can be executed

17. CCNPO DevTeam

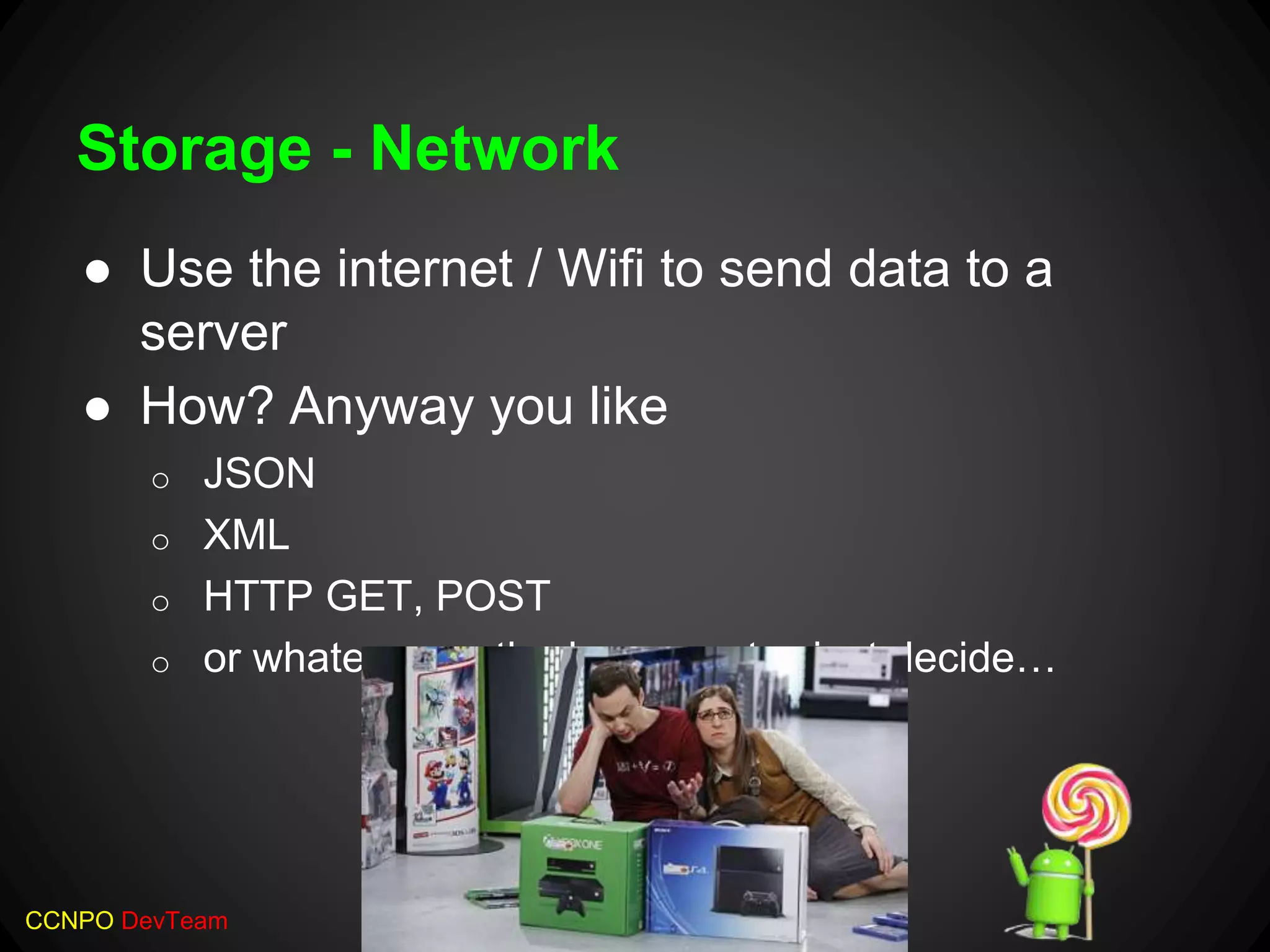

Storage - Network
● Use the internet / Wifi to send data to a
server
● How? Anyway you like
o JSON
o XML
o HTTP GET, POST
o or whatever method you want… just decide…

19. CCNPO DevTeam

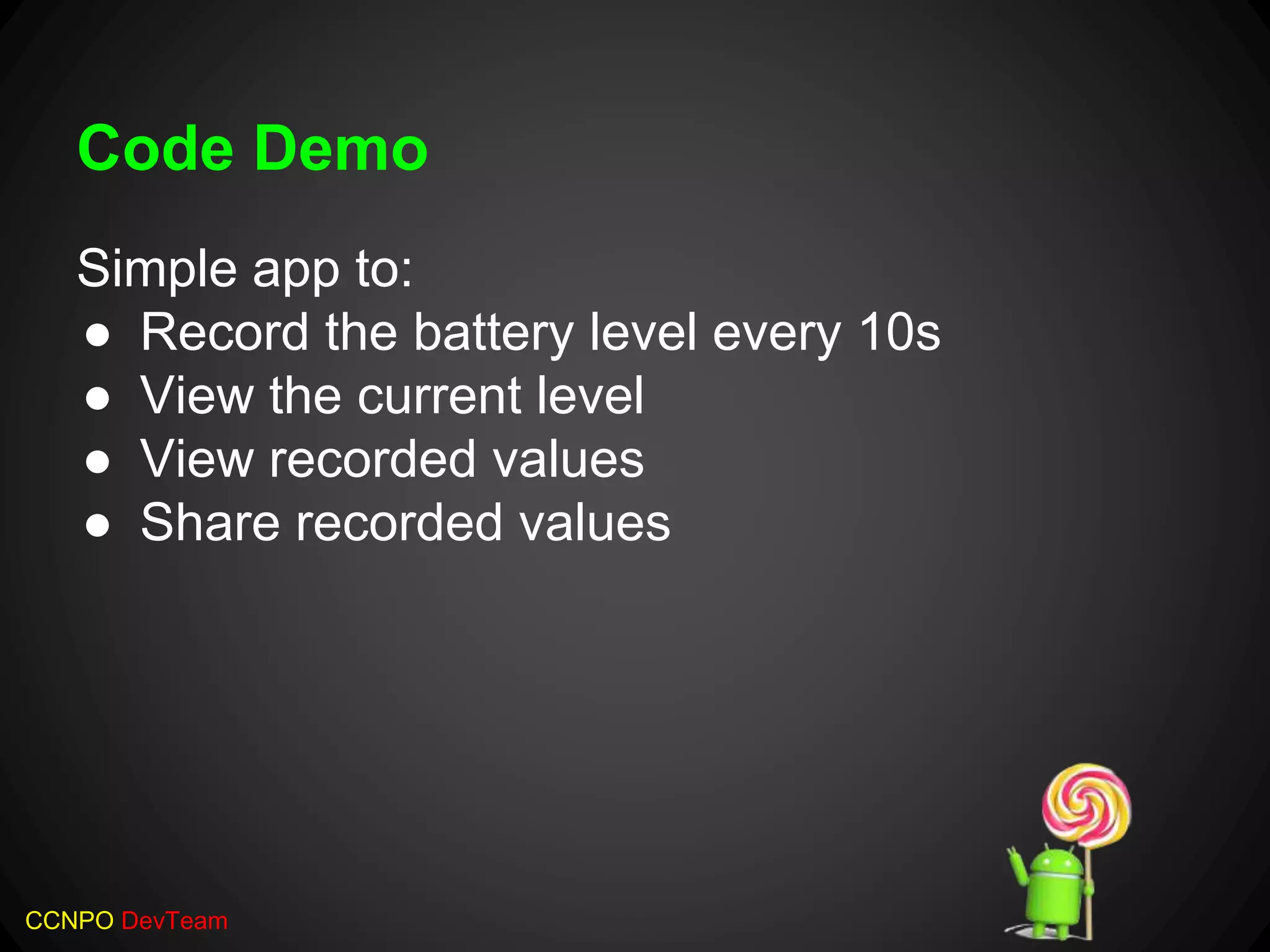

Code Demo
Simple app to:
● Record the battery level every 10s
● View the current level
● View recorded values
● Share recorded values

20. CCNPO DevTeam

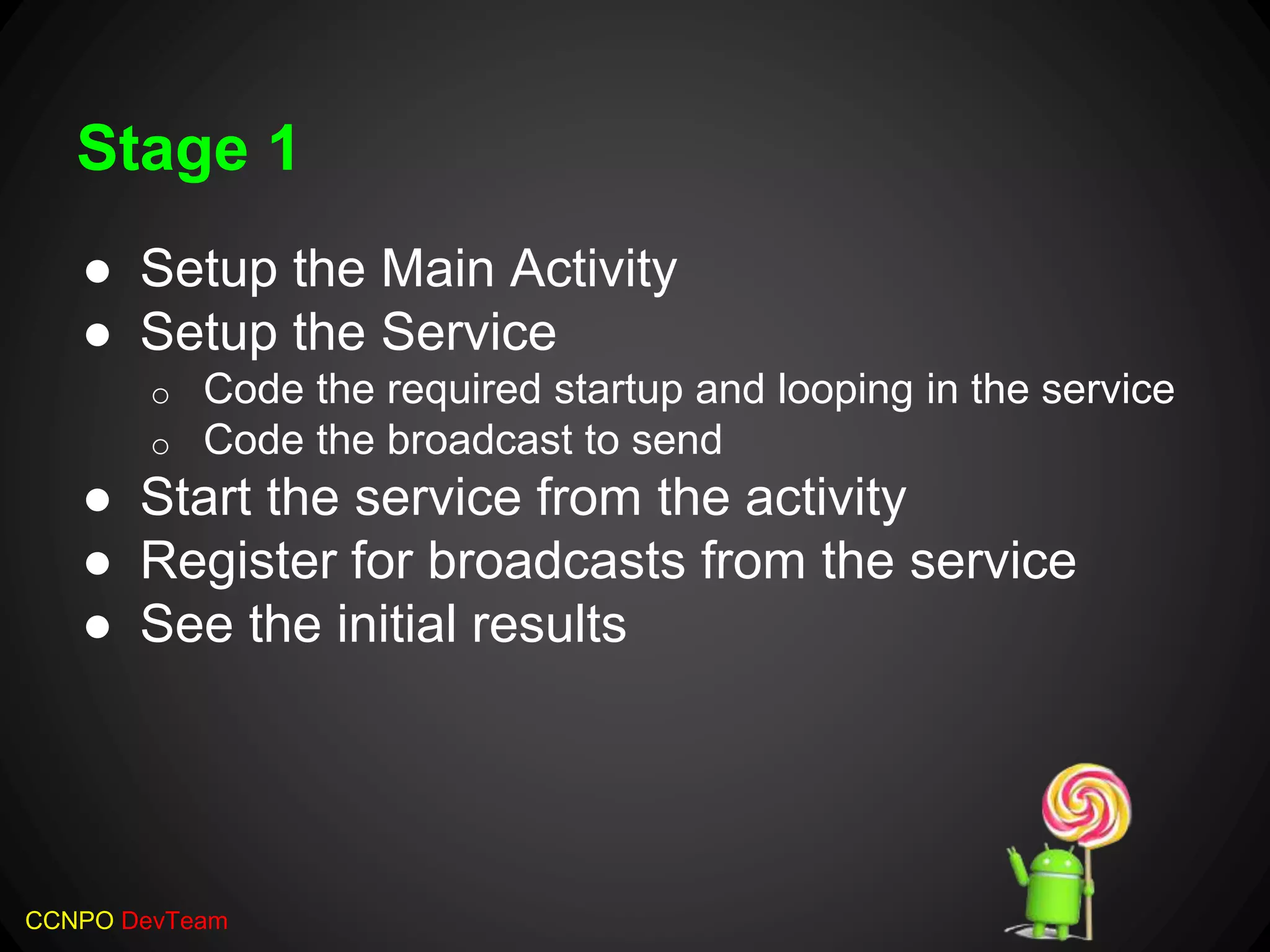

Stage 1
● Setup the Main Activity
● Setup the Service
o Code the required startup and looping in the service
o Code the broadcast to send
● Start the service from the activity
● Register for broadcasts from the service
● See the initial results

21. CCNPO DevTeam

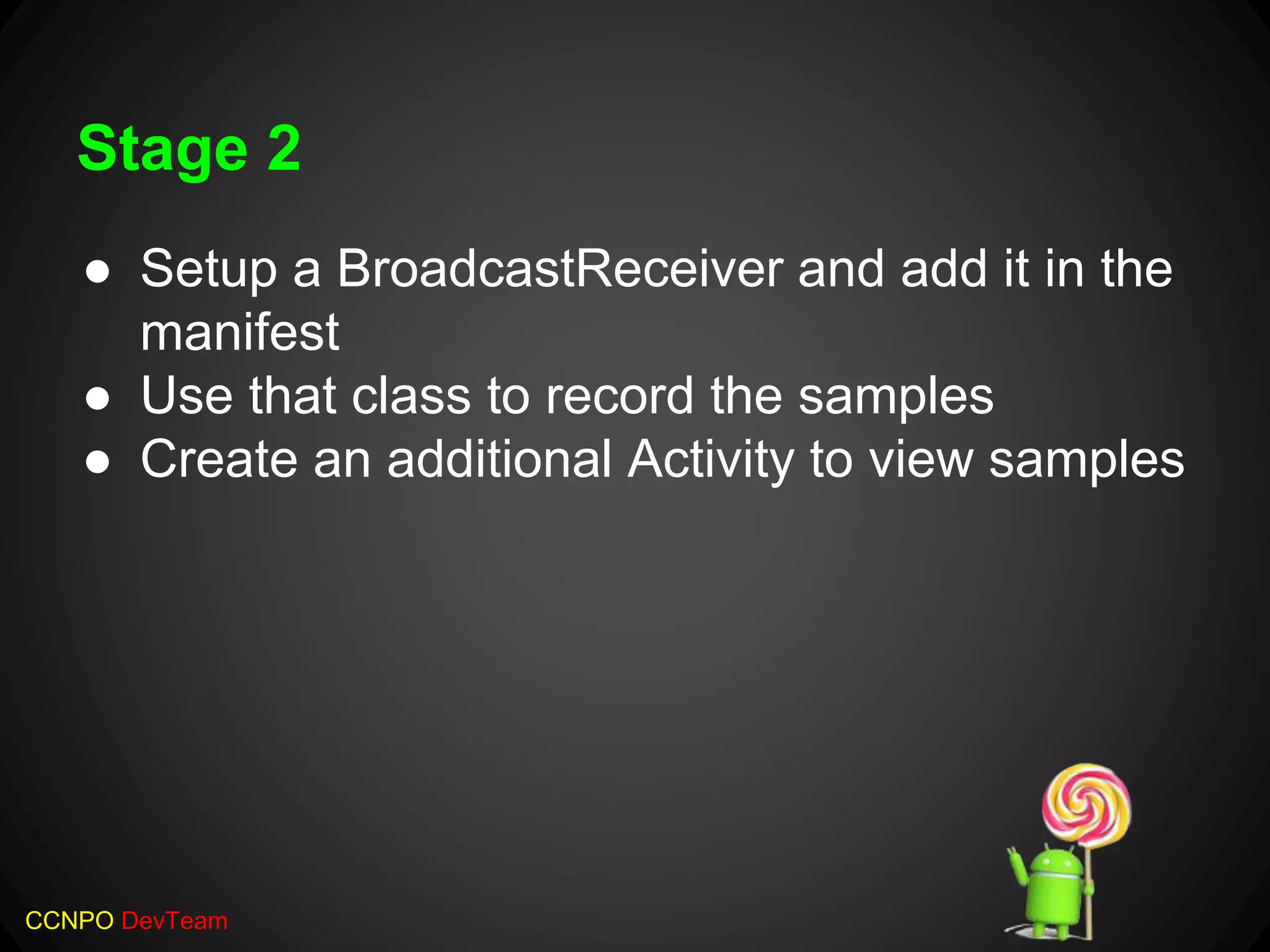

Stage 2
● Setup a BroadcastReceiver and add it in the
manifest
● Use that class to record the samples
● Create an additional Activity to view samples

22. CCNPO DevTeam

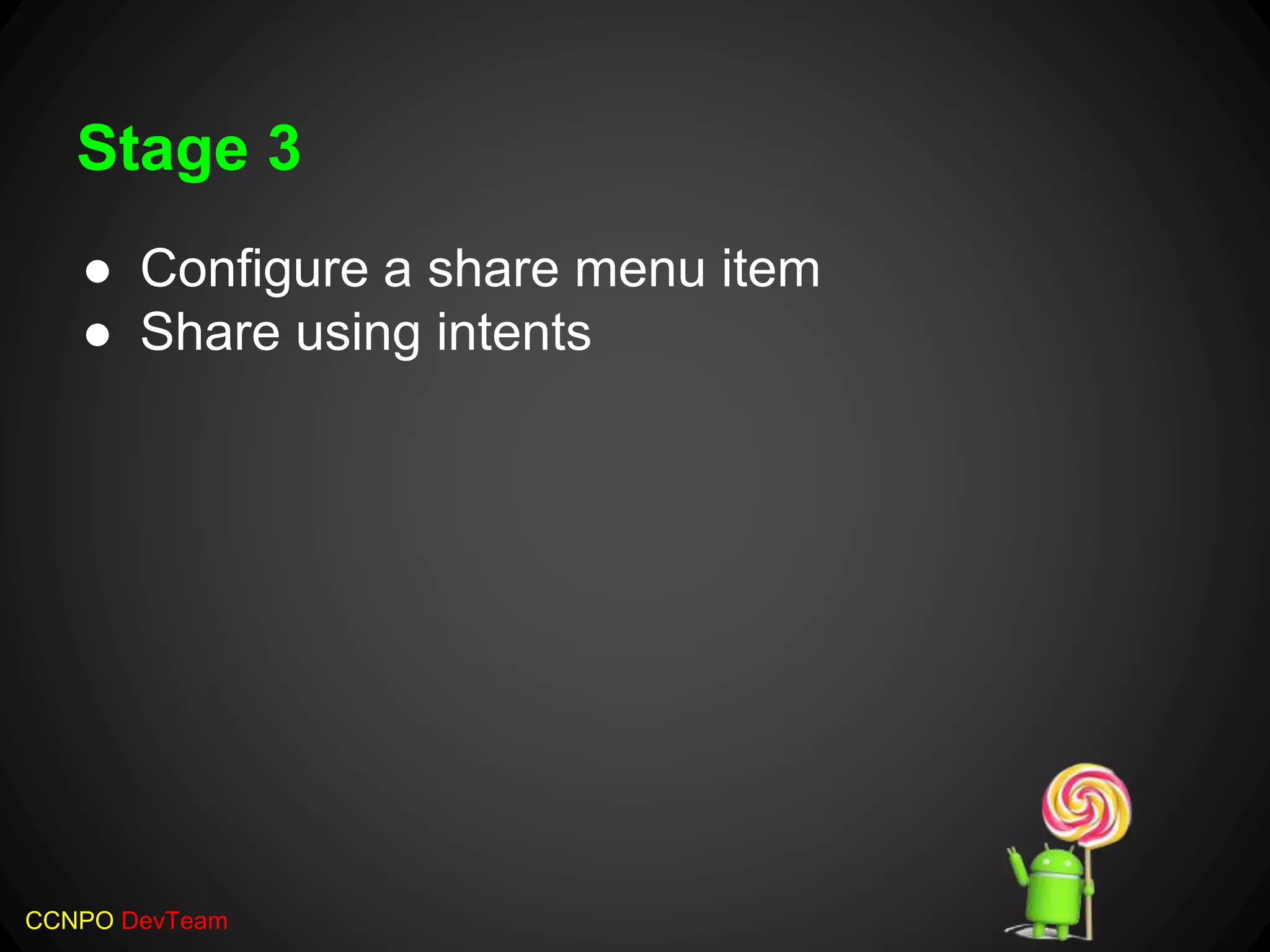

Stage 3
● Configure a share menu item
● Share using intents

23. CCNPO DevTeam

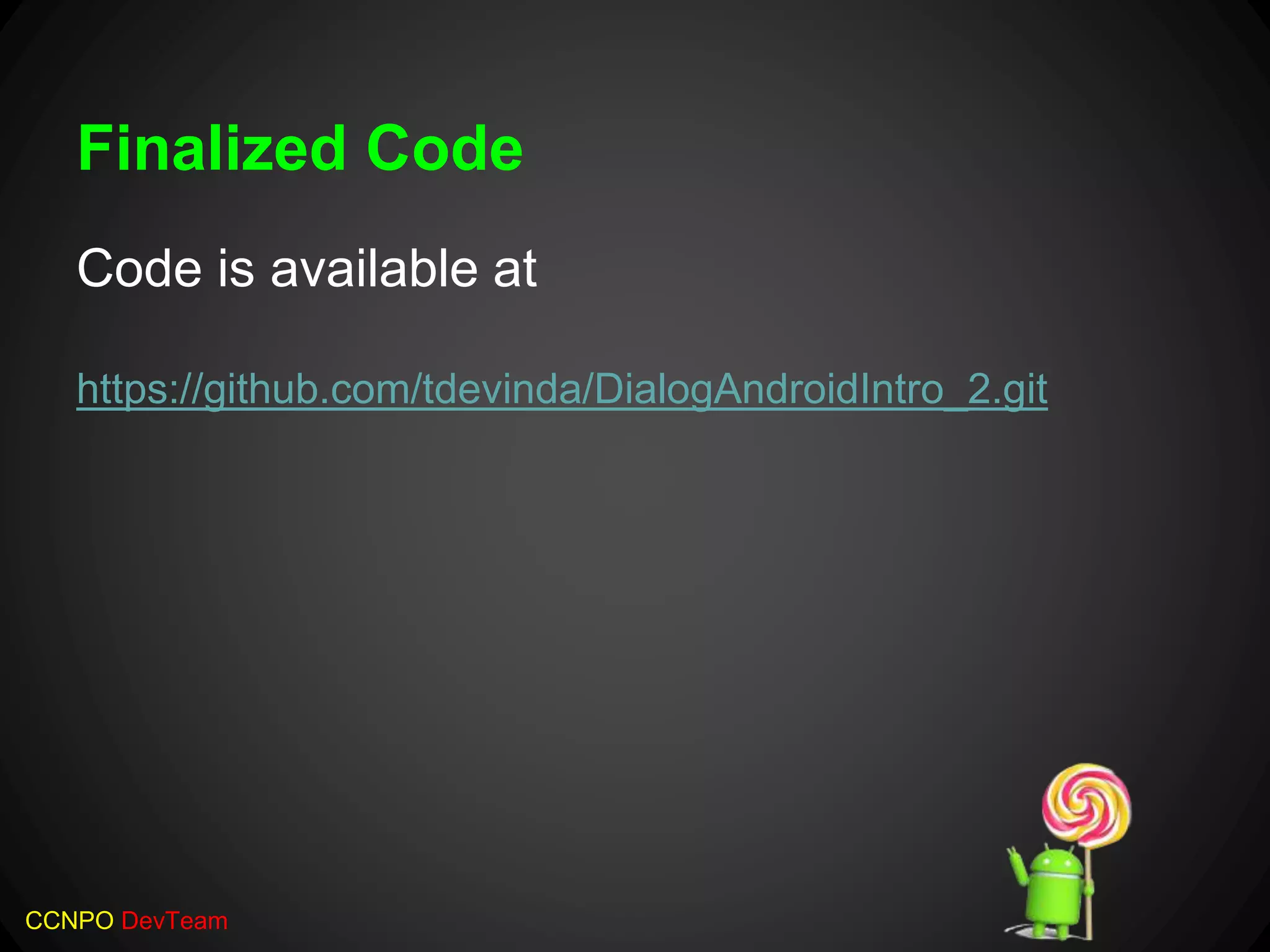

Finalized Code
Code is available at
https://github.com/tdevinda/DialogAndroidIntro_2.git

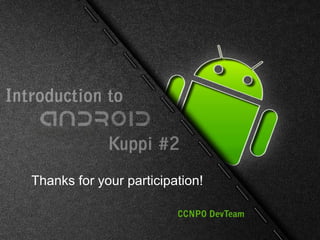

24. Thanks for your participation!
