The document discusses Android's thread model and the importance of concurrency in user interface operations to prevent unresponsiveness. It explains the use of AsyncTasks, handlers, and the limitations of AsyncTasks for long-running tasks, while noting issues that arise during screen rotations. The document culminates in a coding tutorial using fragments and handlers to effectively manage UI updates from background threads.

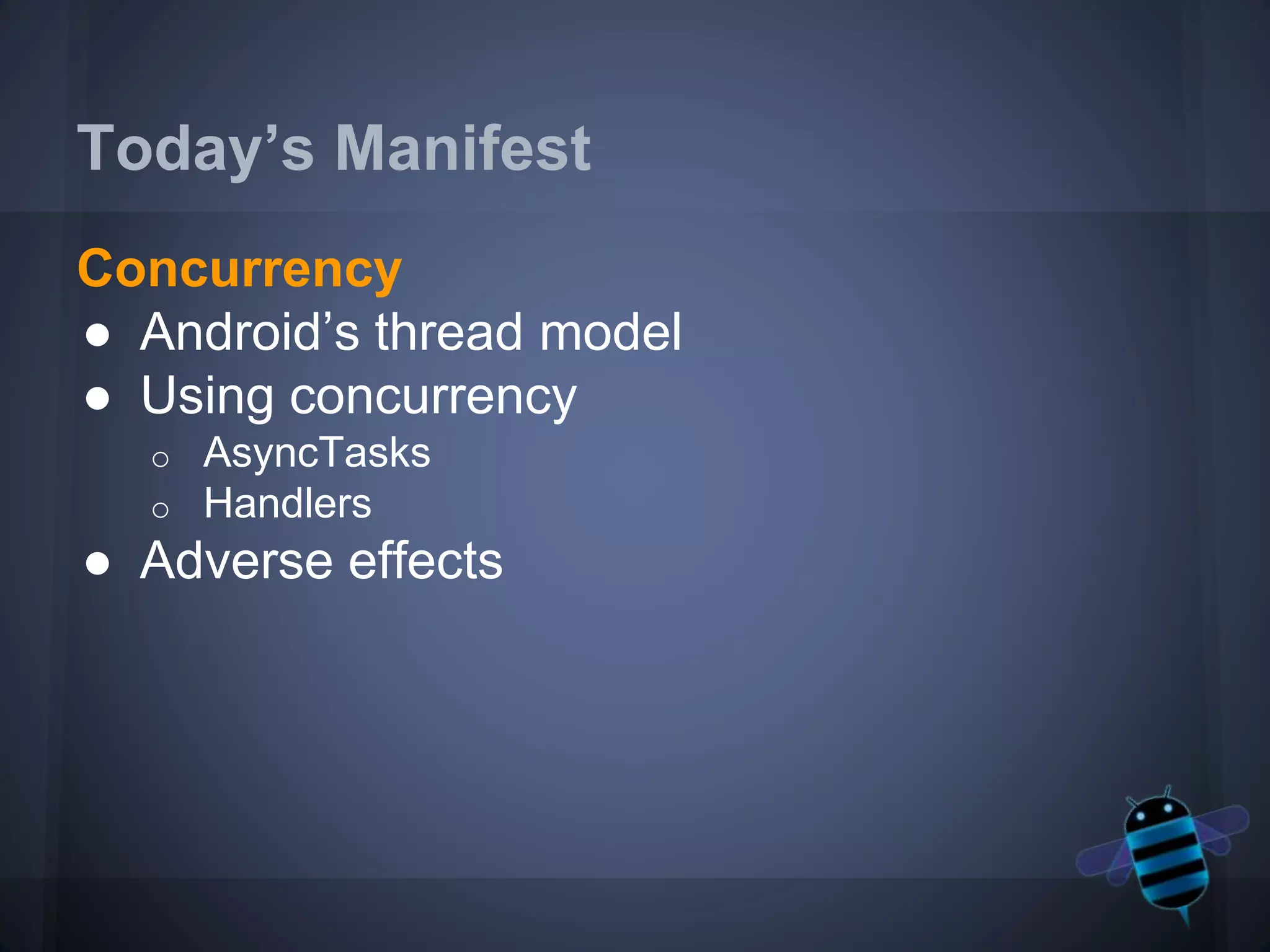

2. Today’s Manifest
Concurrency
● Android’s thread model
● Using concurrency
o AsyncTasks
o Handlers
● Adverse effects

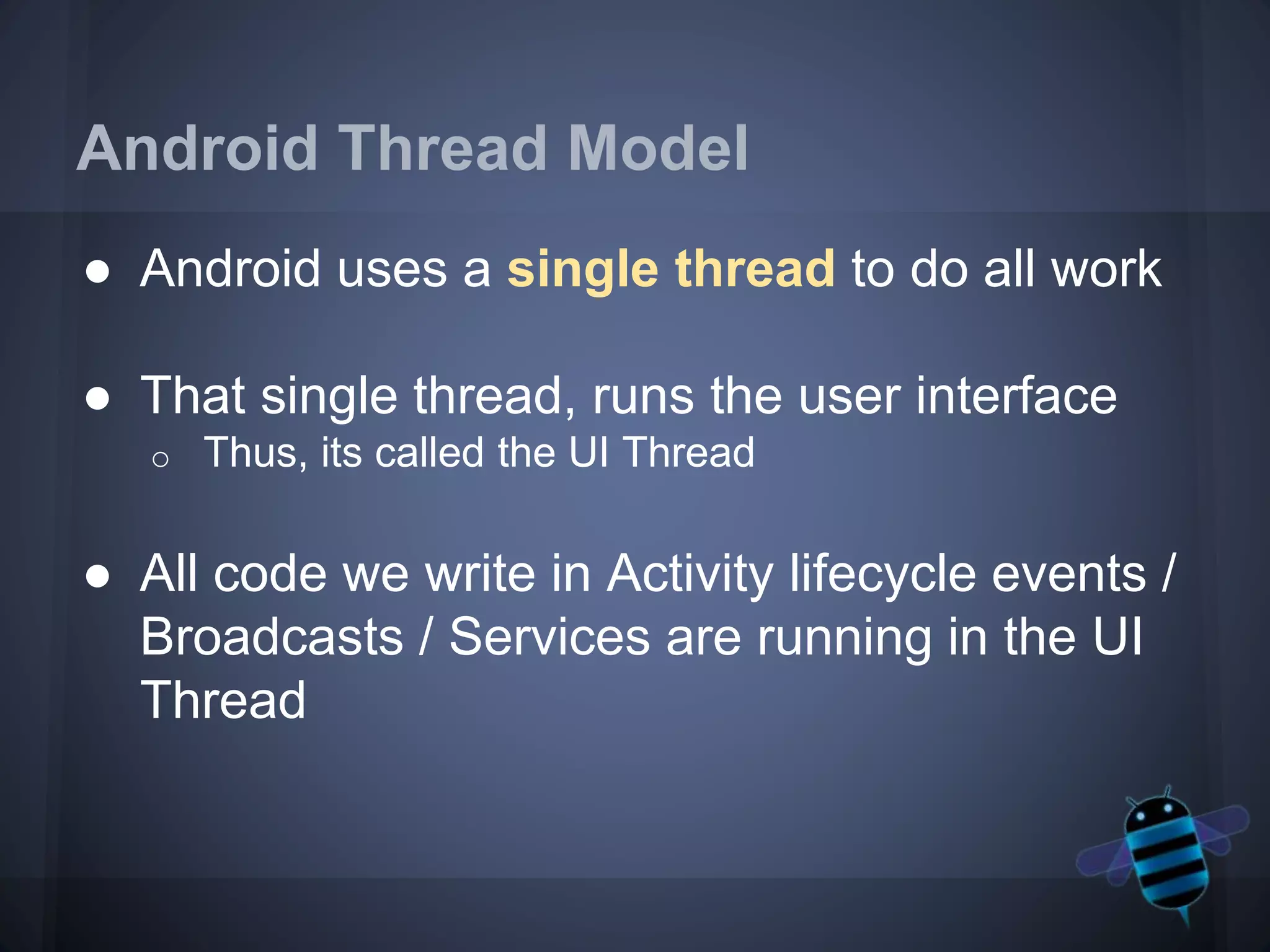

3. Android Thread Model
● Android uses a single thread to do all work
● That single thread, runs the user interface
o Thus, its called the UI Thread
● All code we write in Activity lifecycle events /
Broadcasts / Services are running in the UI
Thread

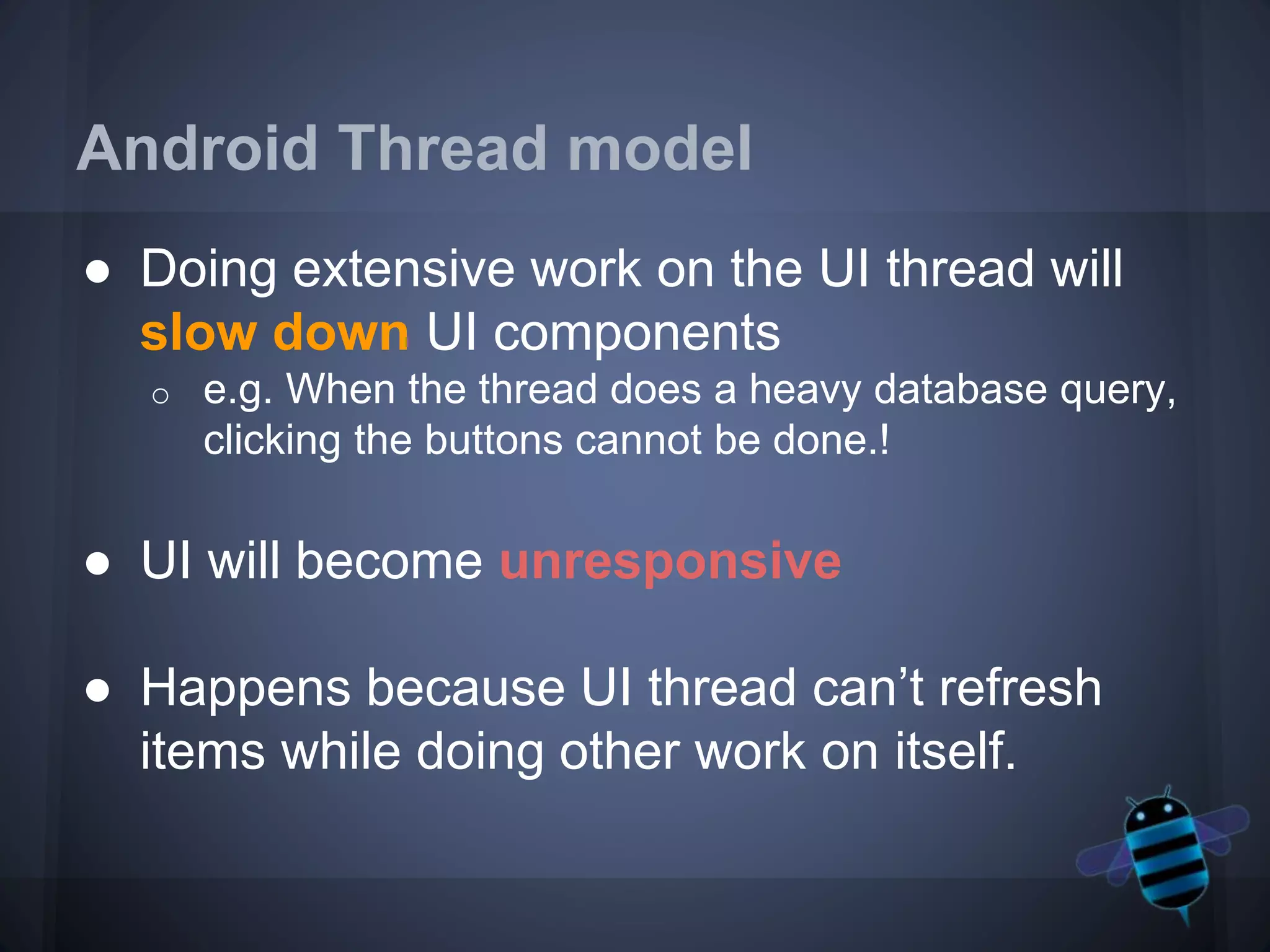

4. Android Thread model
● Doing extensive work on the UI thread will
slow down UI components
o e.g. When the thread does a heavy database query,
clicking the buttons cannot be done.!
● UI will become unresponsive
● Happens because UI thread can’t refresh
items while doing other work on itself.

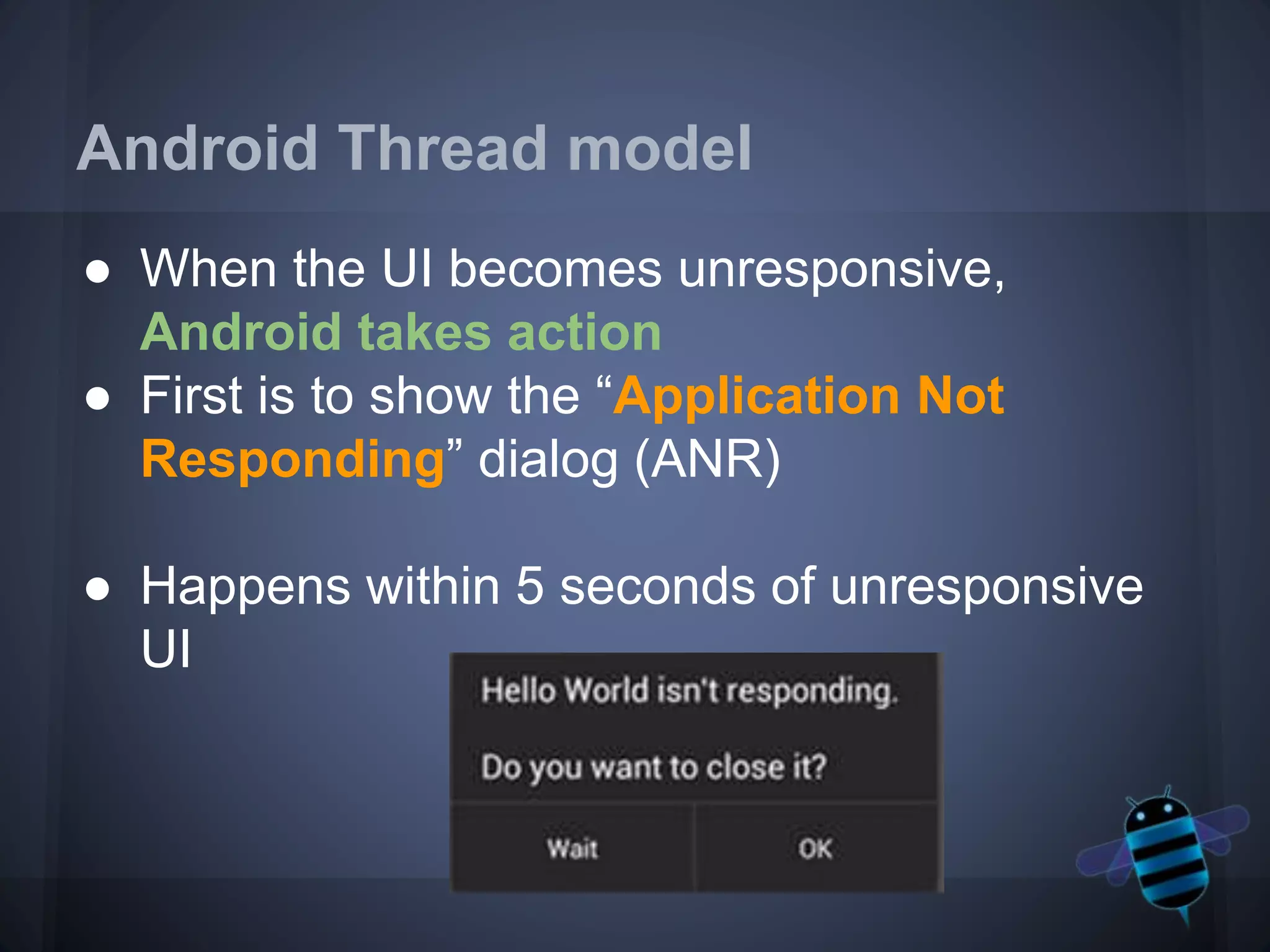

5. Android Thread model
● When the UI becomes unresponsive,
Android takes action
● First is to show the “Application Not
Responding” dialog (ANR)
● Happens within 5 seconds of unresponsive
UI

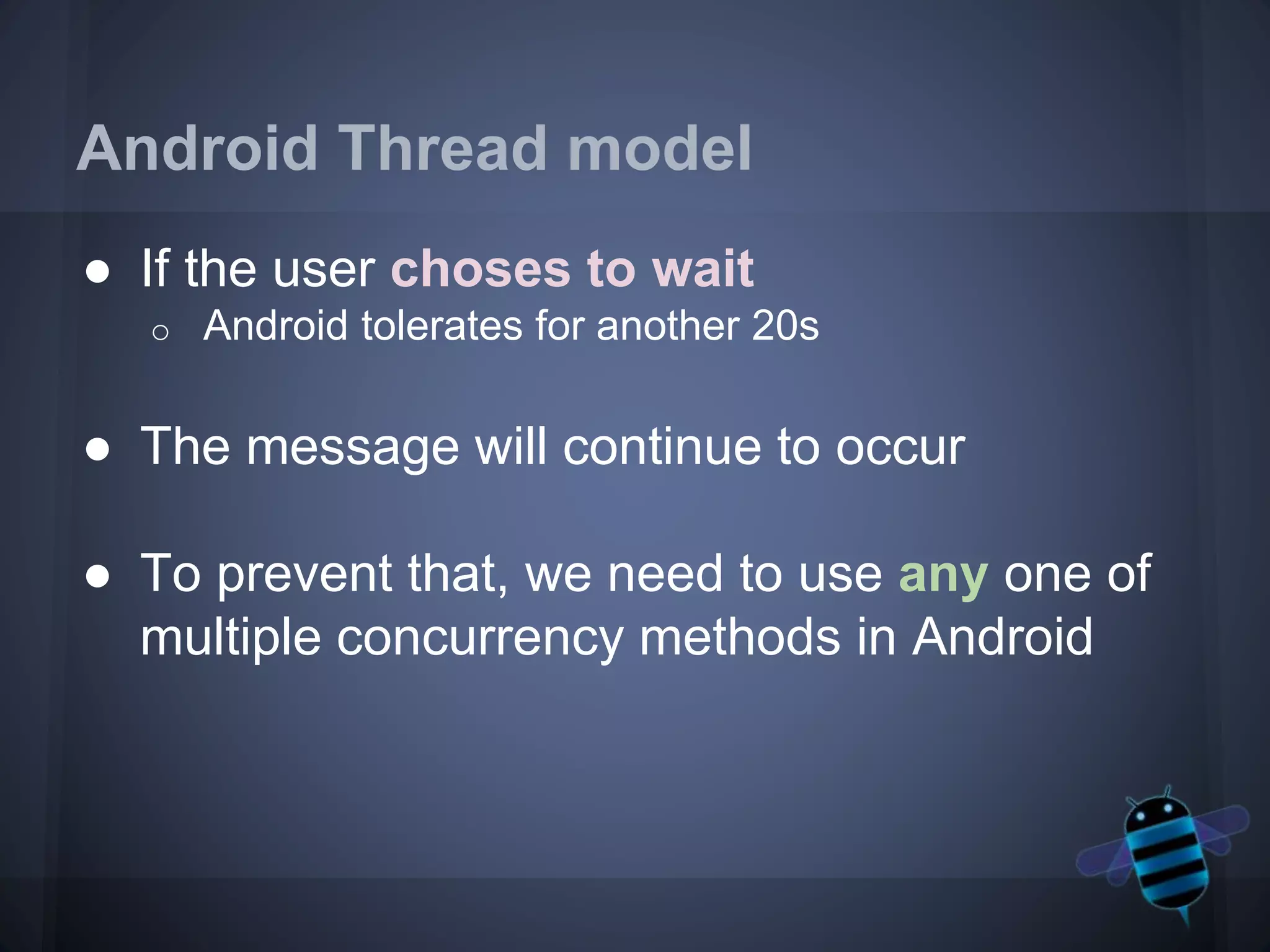

6. Android Thread model
● If the user choses to wait
o Android tolerates for another 20s
● The message will continue to occur
● To prevent that, we need to use any one of
multiple concurrency methods in Android

7. Lets start coding

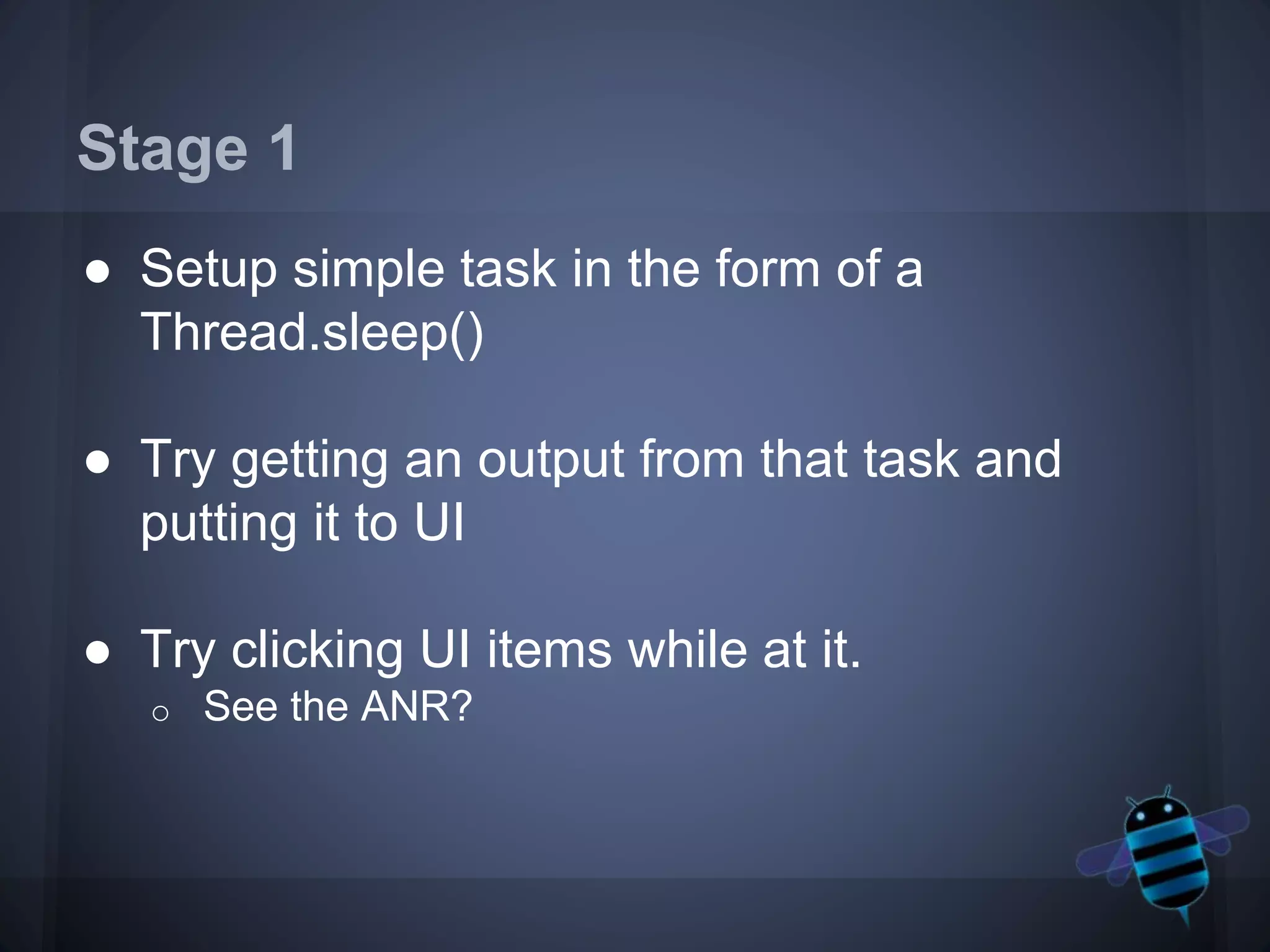

8. Stage 1
● Setup simple task in the form of a
Thread.sleep()
● Try getting an output from that task and
putting it to UI
● Try clicking UI items while at it.
o See the ANR?

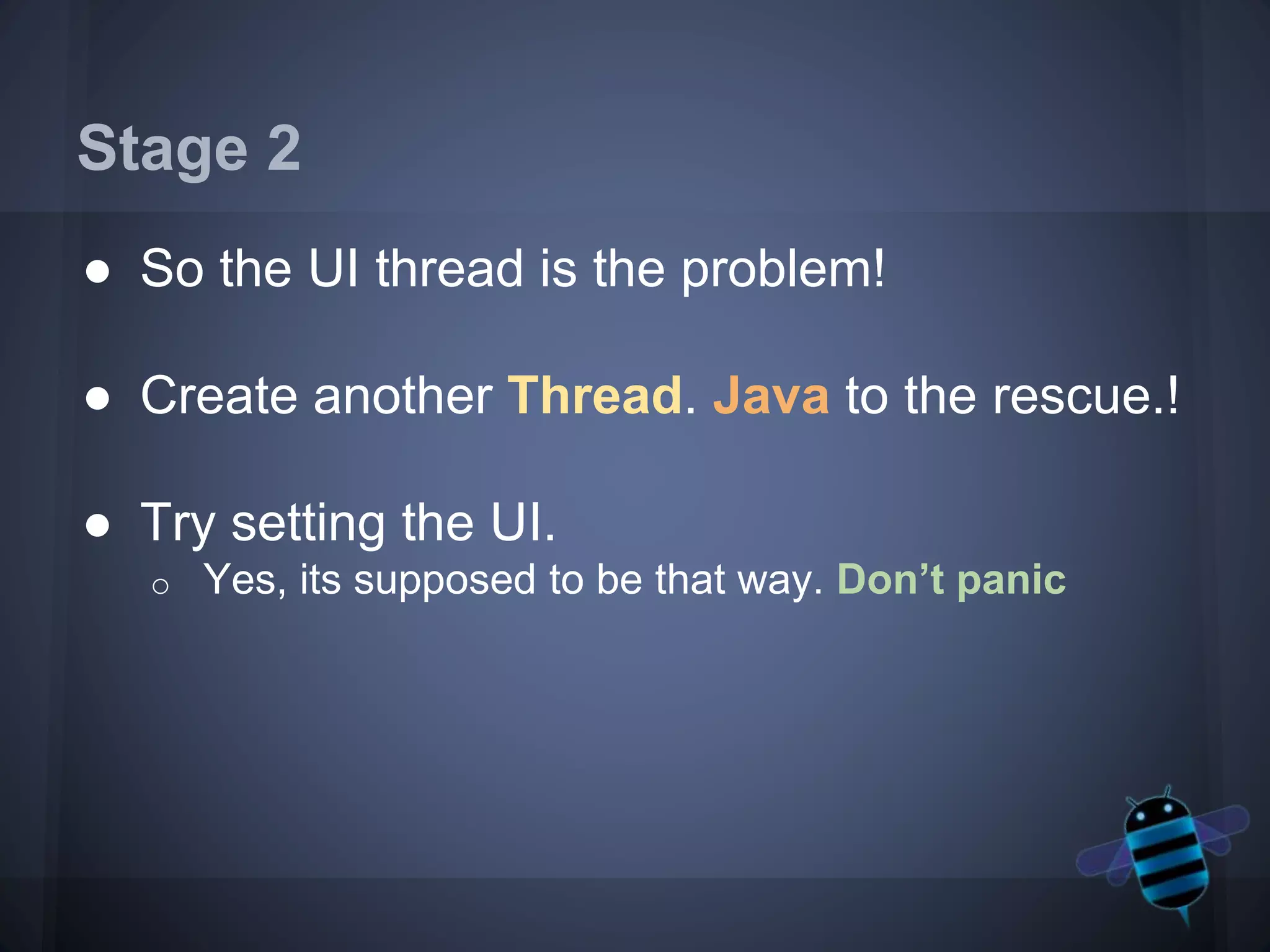

9. Stage 2
● So the UI thread is the problem!
● Create another Thread. Java to the rescue.!
● Try setting the UI.
o Yes, its supposed to be that way. Don’t panic

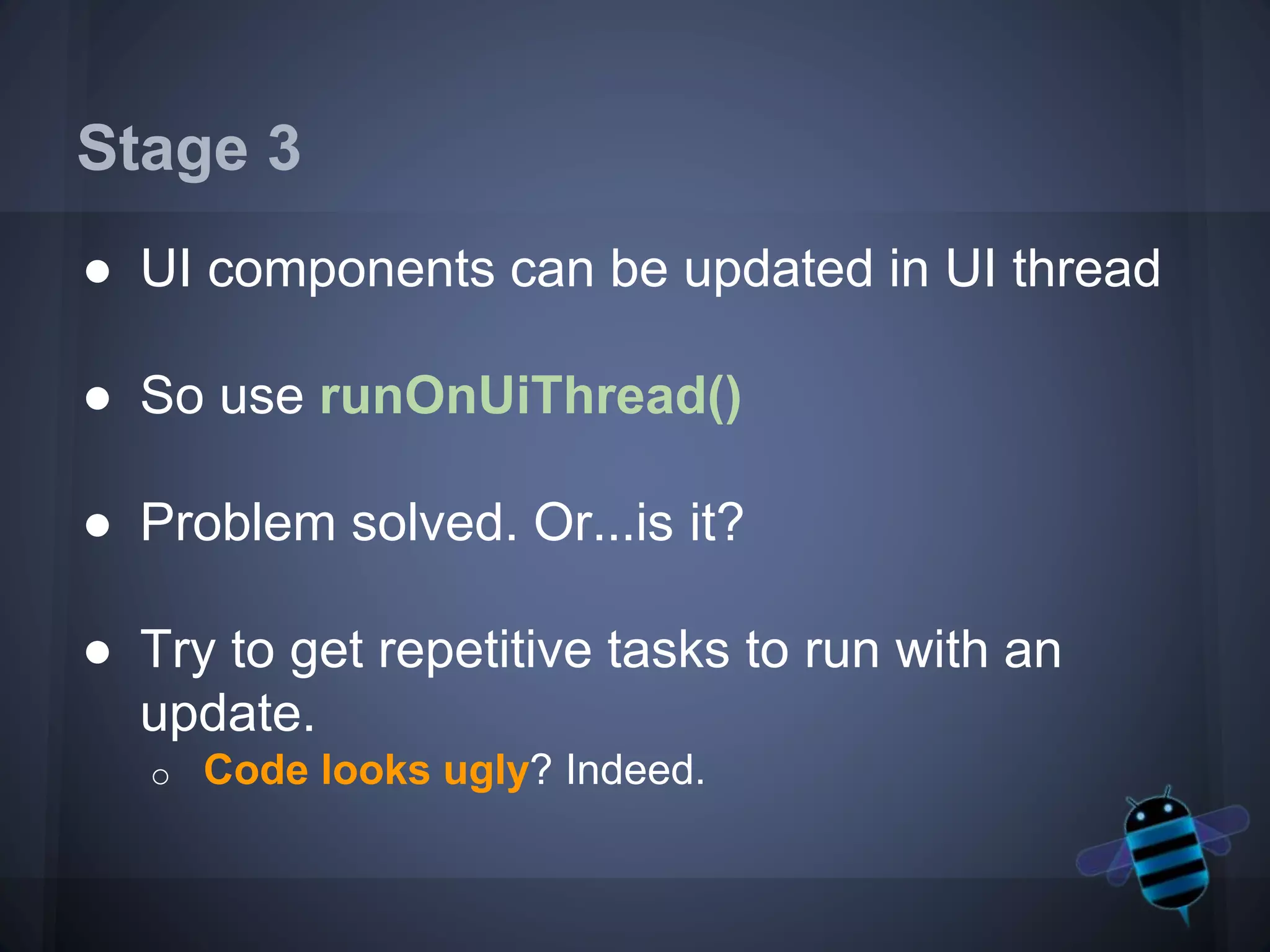

10. Stage 3
● UI components can be updated in UI thread
● So use runOnUiThread()
● Problem solved. Or...is it?
● Try to get repetitive tasks to run with an
update.
o Code looks ugly? Indeed.

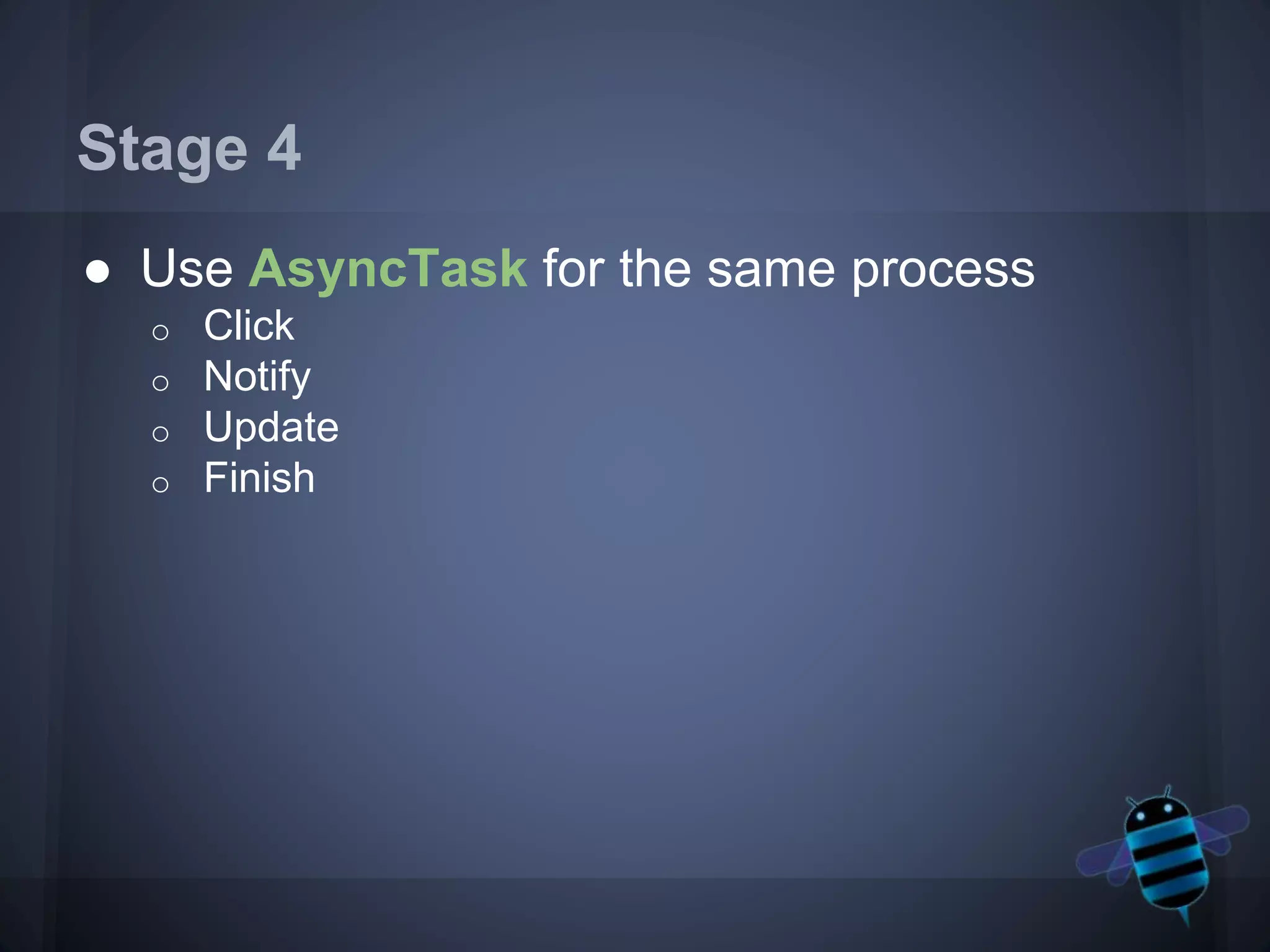

11. Stage 4
● Use AsyncTask for the same process
o Click
o Notify
o Update
o Finish

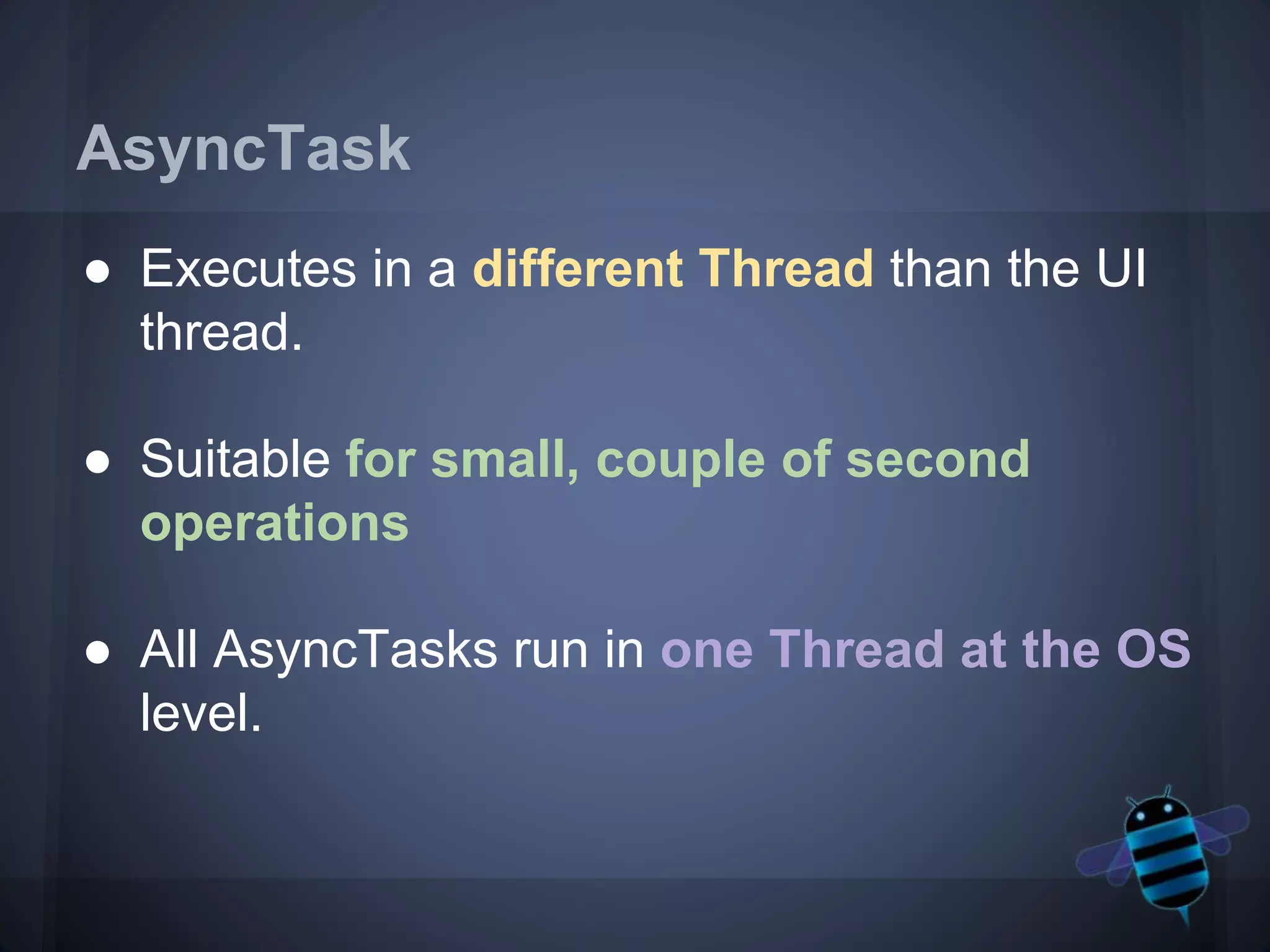

12. AsyncTask
● Executes in a different Thread than the UI
thread.
● Suitable for small, couple of second
operations
● All AsyncTasks run in one Thread at the OS
level.

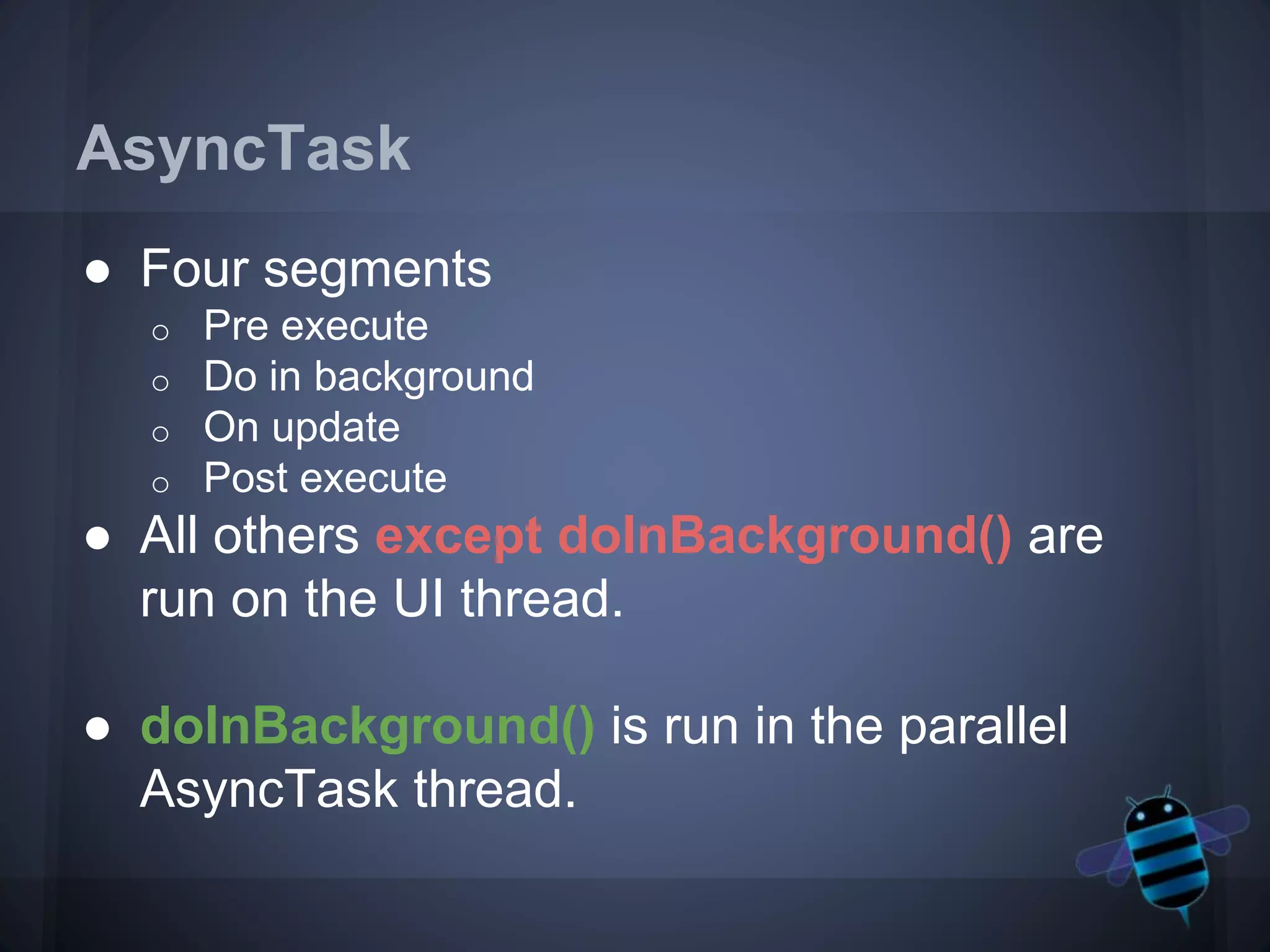

13. AsyncTask
● Four segments
o Pre execute
o Do in background
o On update
o Post execute
● All others except doInBackground() are
run on the UI thread.
● doInBackground() is run in the parallel
AsyncTask thread.

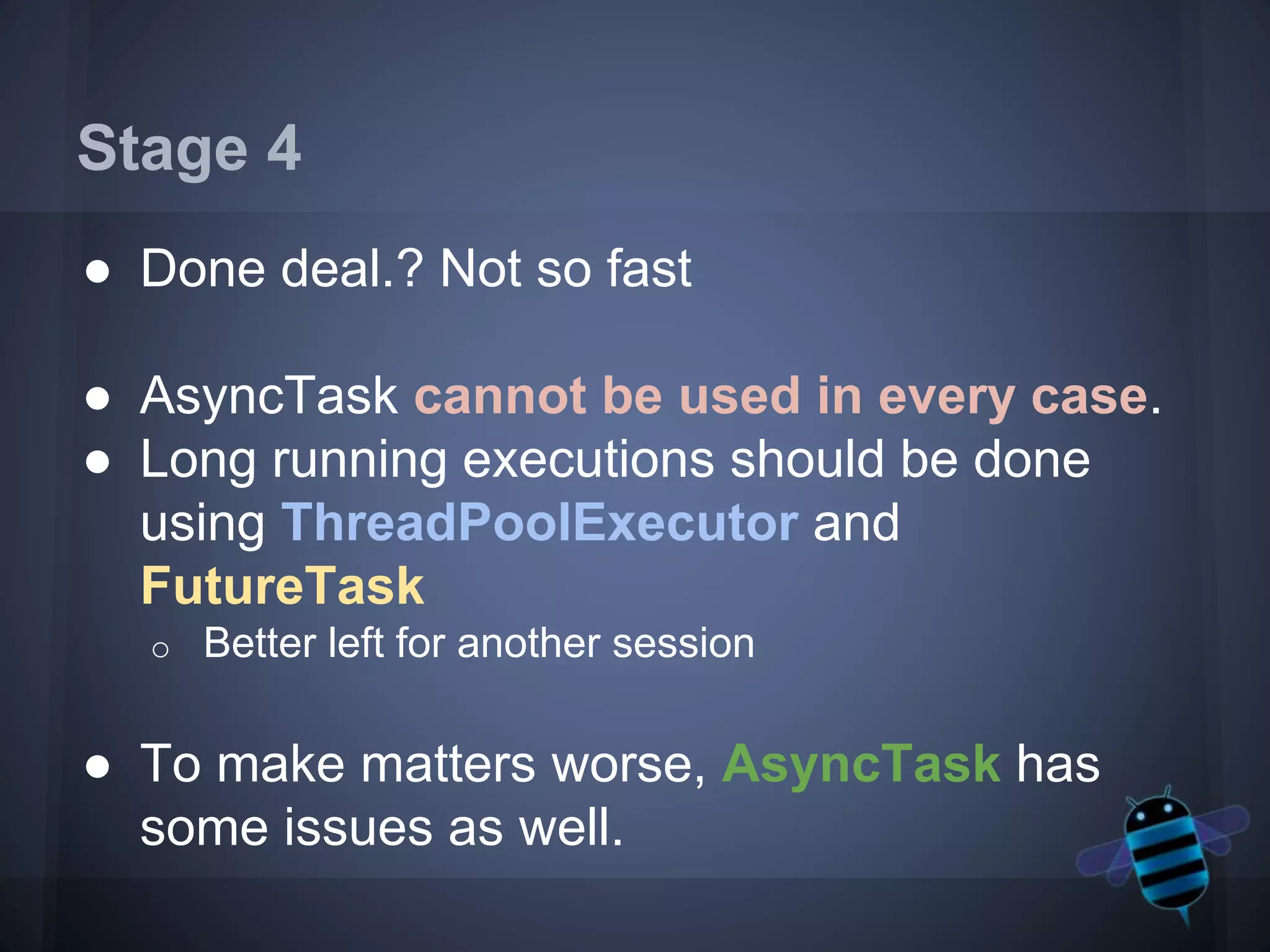

14. Stage 4
● Done deal.? Not so fast
● AsyncTask cannot be used in every case.
● Long running executions should be done
using ThreadPoolExecutor and
FutureTask
o Better left for another session
● To make matters worse, AsyncTask has
some issues as well.

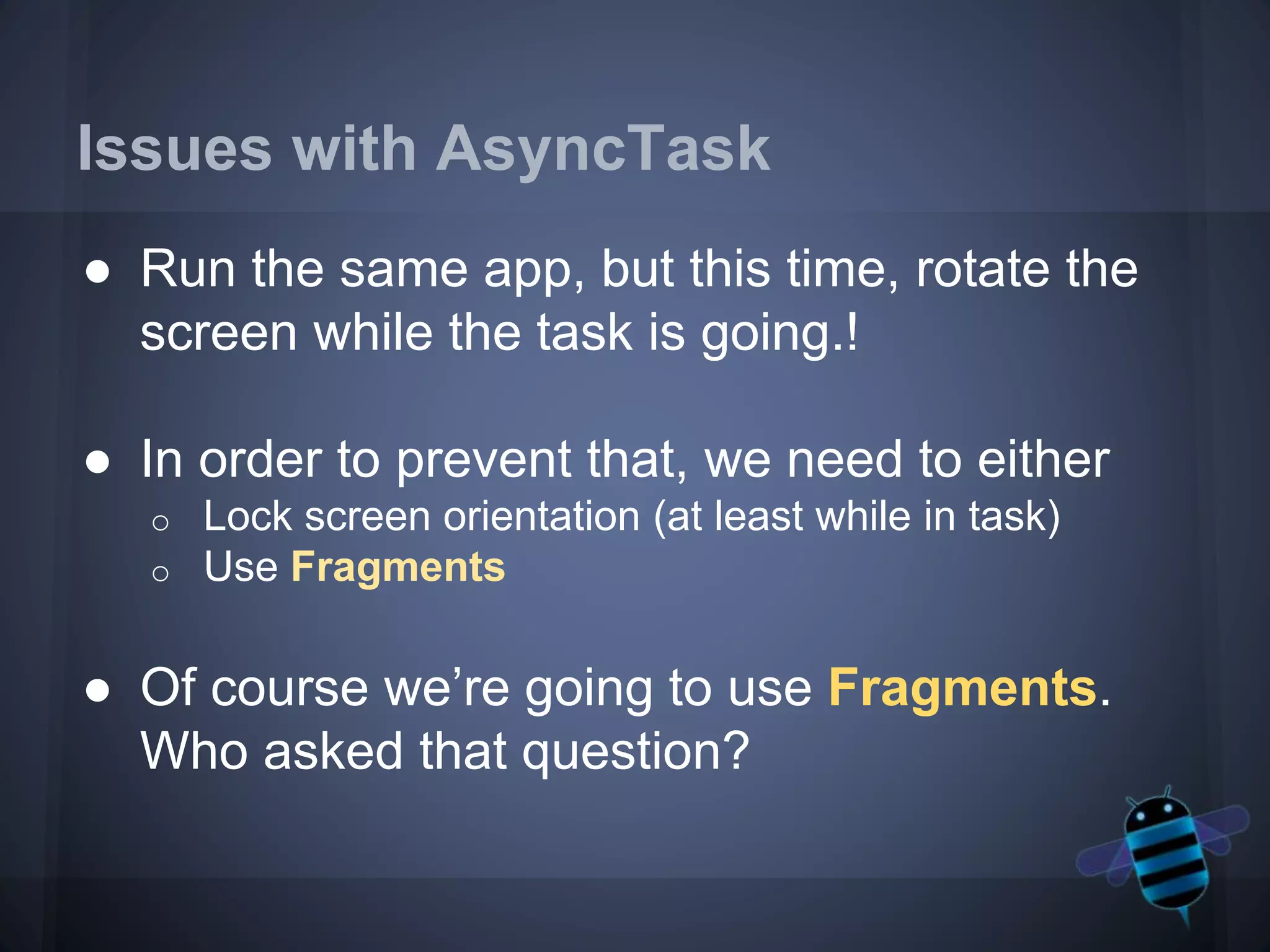

15. Issues with AsyncTask
● Run the same app, but this time, rotate the
screen while the task is going.!
● In order to prevent that, we need to either
o Lock screen orientation (at least while in task)
o Use Fragments
● Of course we’re going to use Fragments.
Who asked that question?

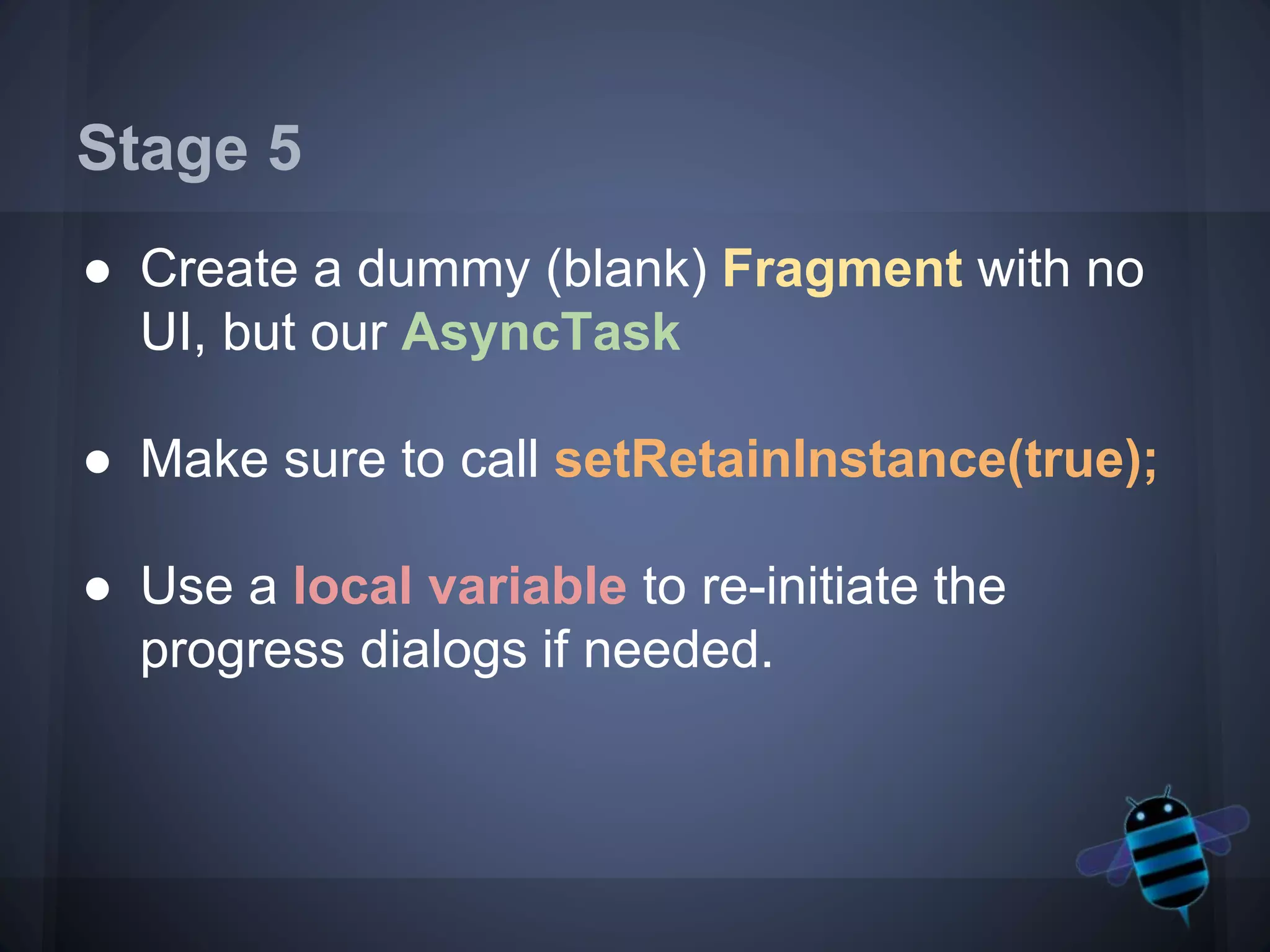

16. Stage 5
● Create a dummy (blank) Fragment with no
UI, but our AsyncTask
● Make sure to call setRetainInstance(true);
● Use a local variable to re-initiate the
progress dialogs if needed.

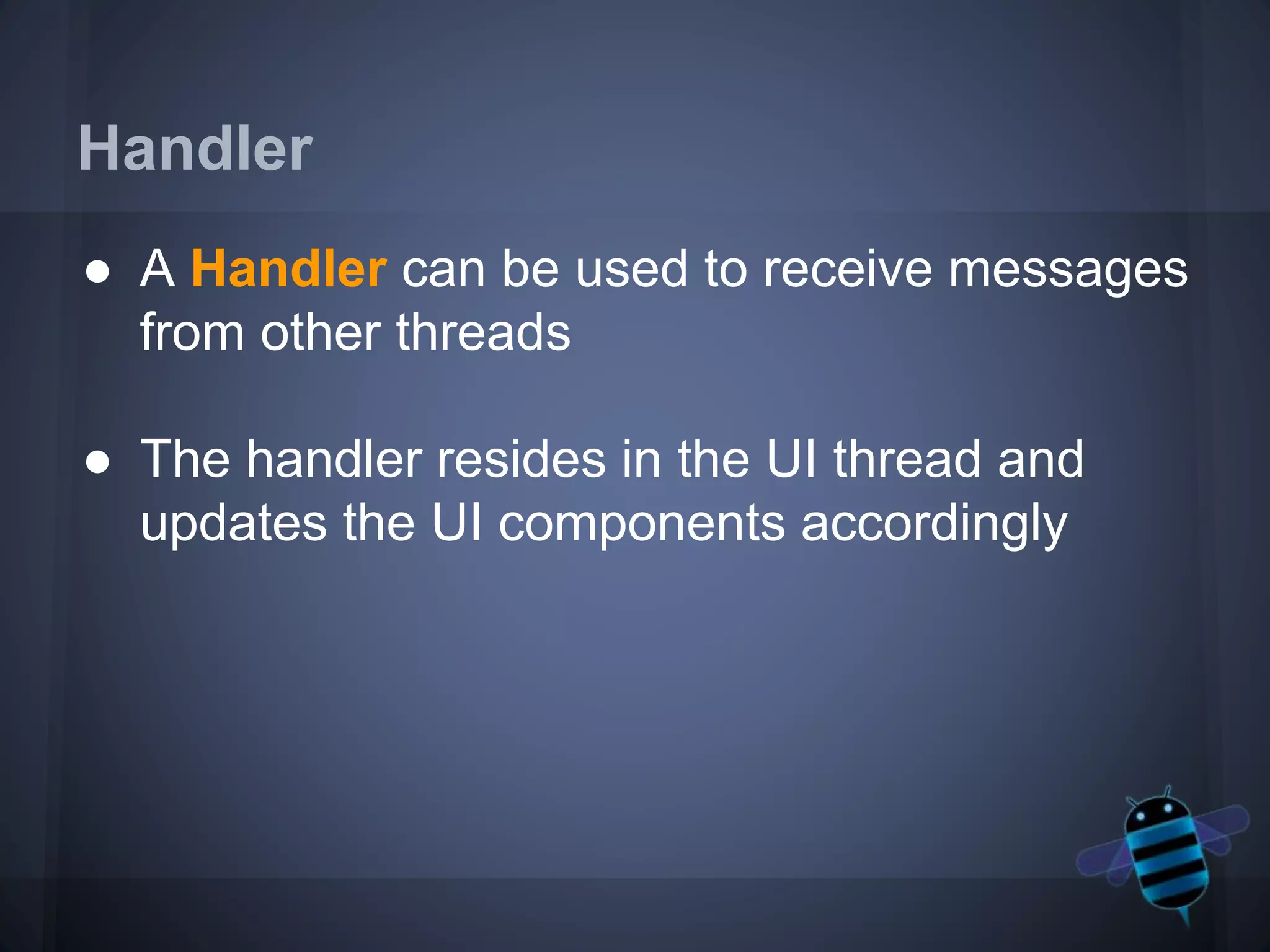

17. Handler
● A Handler can be used to receive messages
from other threads
● The handler resides in the UI thread and
updates the UI components accordingly

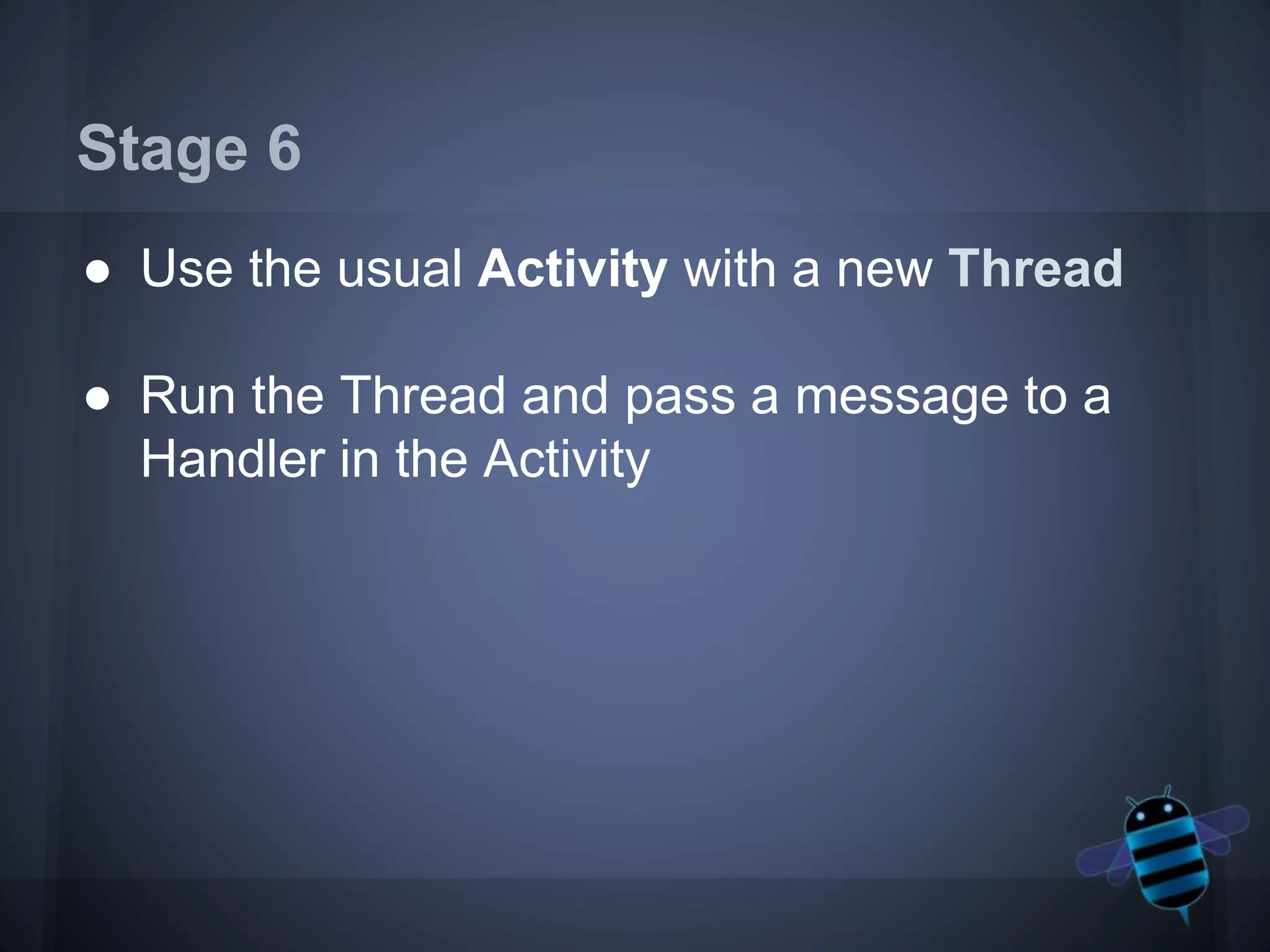

18. Stage 6
● Use the usual Activity with a new Thread
● Run the Thread and pass a message to a
Handler in the Activity

19. Confused?
you should be….!

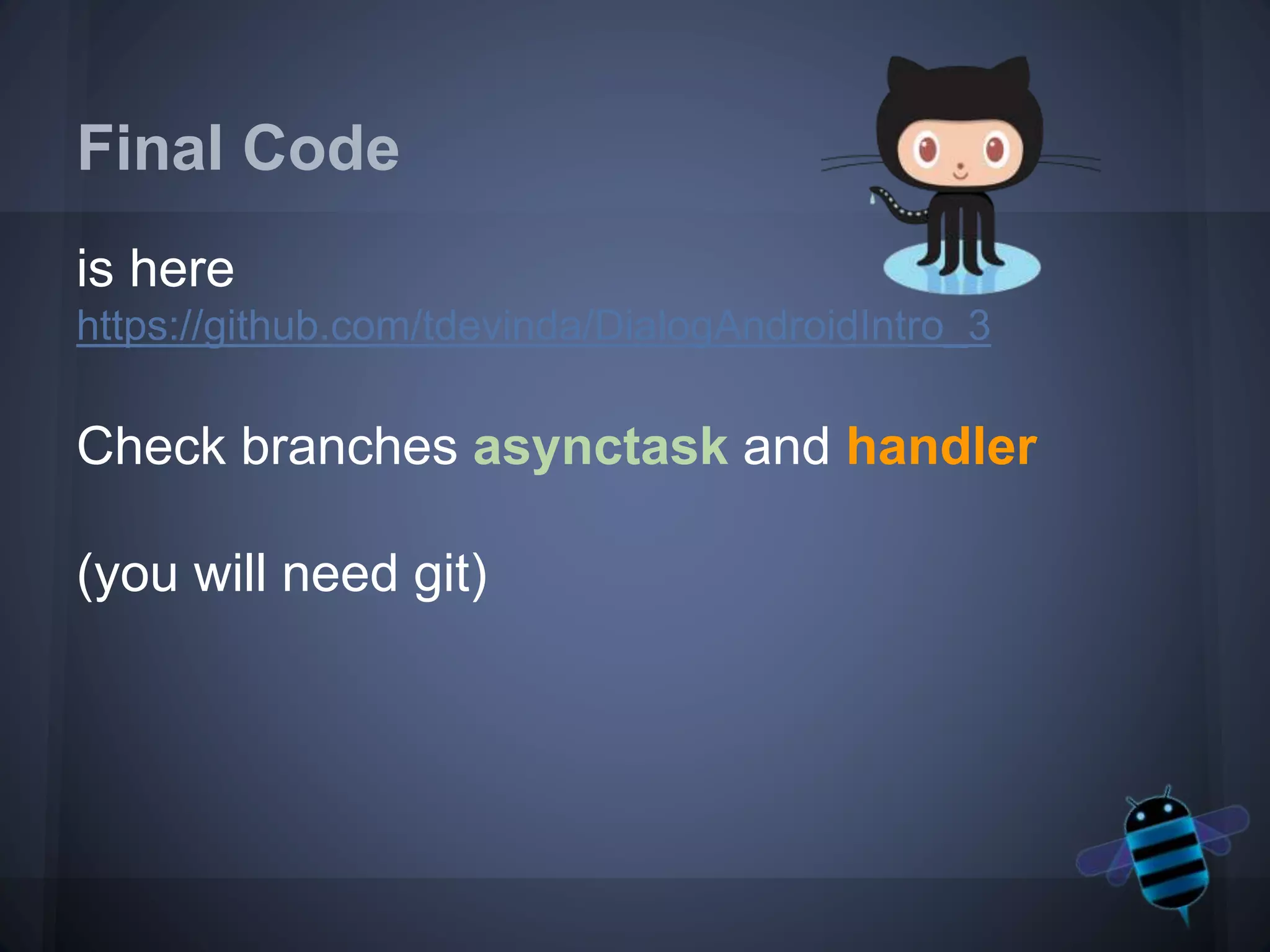

20. is here
https://github.com/tdevinda/DialogAndroidIntro_3
Check branches asynctask and handler
(you will need git)
Final Code
