eBPF
Trace from Kernel to Userspace
Gary Lin
SUSE Labs
Software Engineer
Technology
Sharing Day
2016

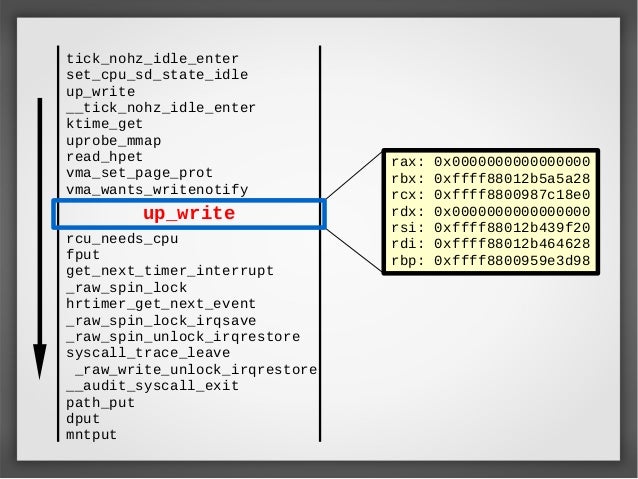

Tracer
tick_nohz_idle_enter
set_cpu_sd_state_idle
up_write
__tick_nohz_idle_enter
ktime_get
uprobe_mmap
read_hpet
vma_set_page_pr...
kprobe
Kernel
Userspace
uprobe
/sys/kernel/debug/tracing/kprobe_events
/sys/kernel/debug/tracing/uprobe_events
eBPF
BPF?

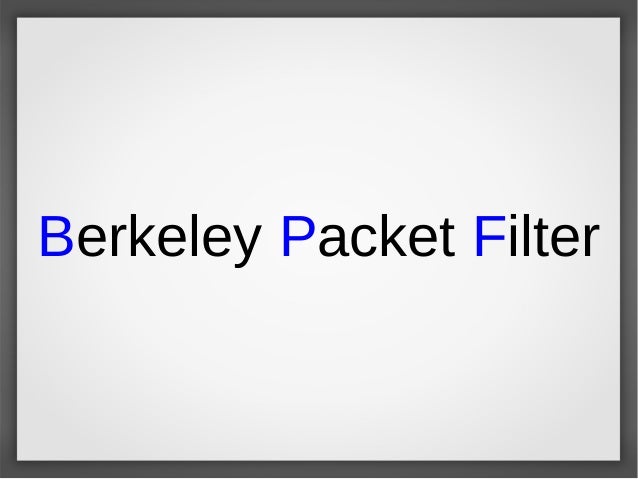

Berkeley Packet Filter

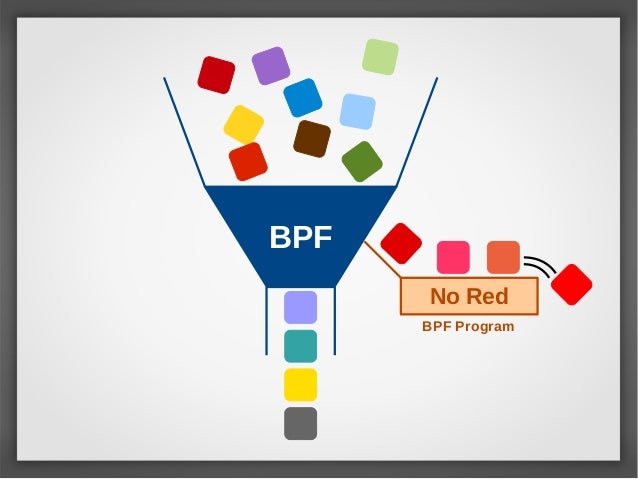

BPF
No Red
BPF Program

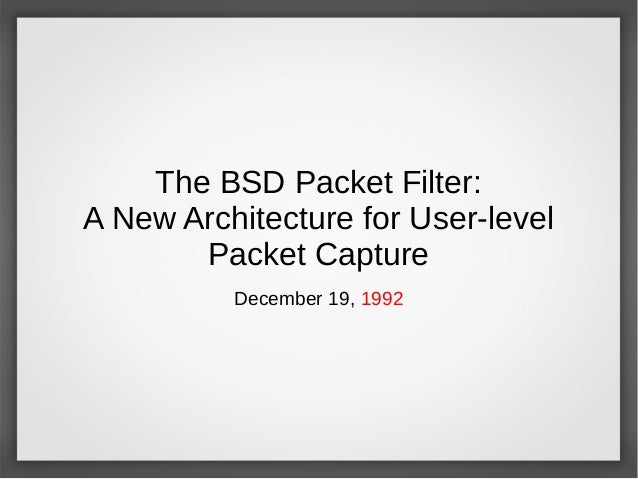

The BSD Packet Filter:
A New Architecture for User-level
Packet Capture
December 19, 1992

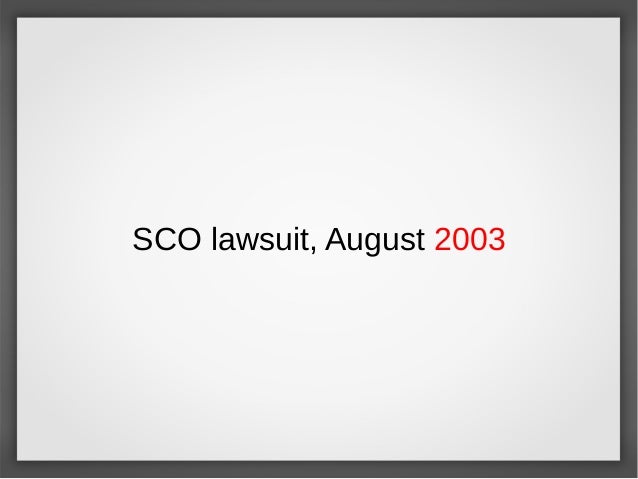

SCO lawsuit, August 2003

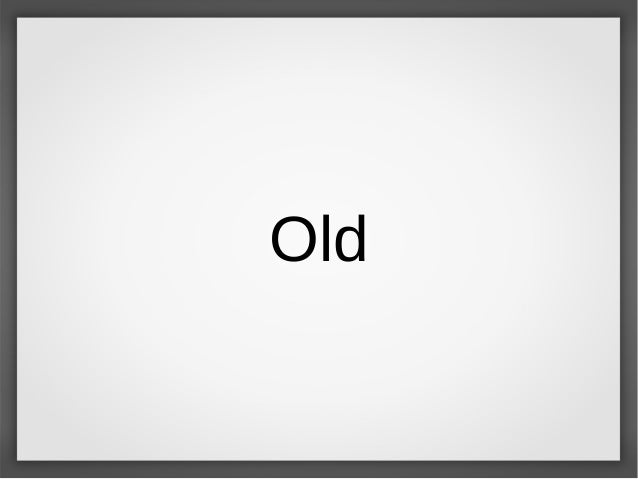

Old
Stable
BPF ASM
ldh [12]
jne #0x800, drop
ldb [23]
jneq #1, drop
# get a random uint32 number
ld rand
mod #4
jneq #1, drop
ret #-1...

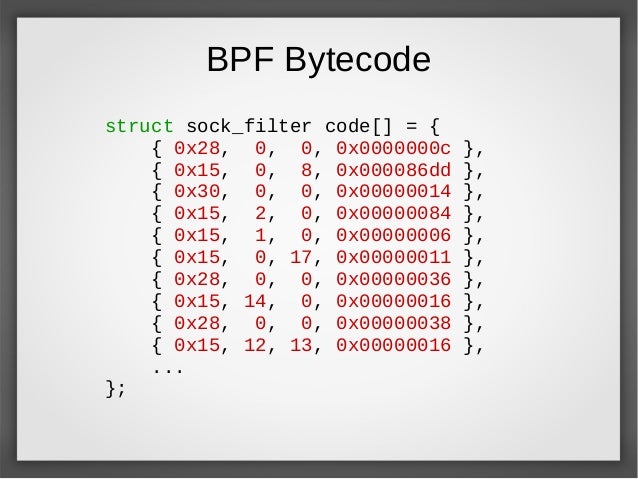

BPF Bytecode
struct sock_filter code[] = {
{ 0x28, 0, 0, 0x0000000c },
{ 0x15, 0, 8, 0x000086dd },
{ 0x30, 0, 0, 0x0000001...

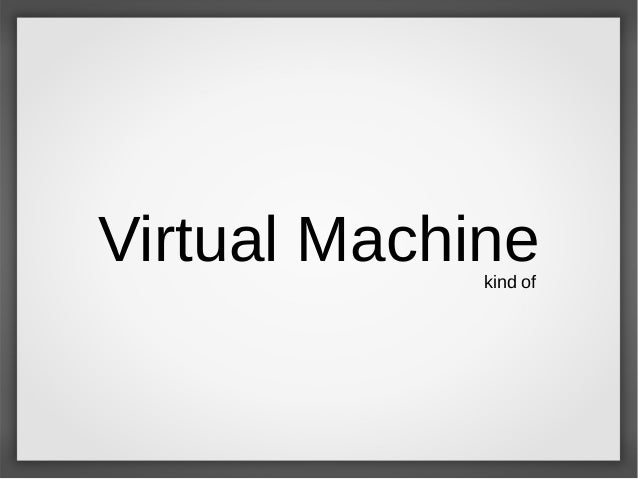

Virtual Machinekind of

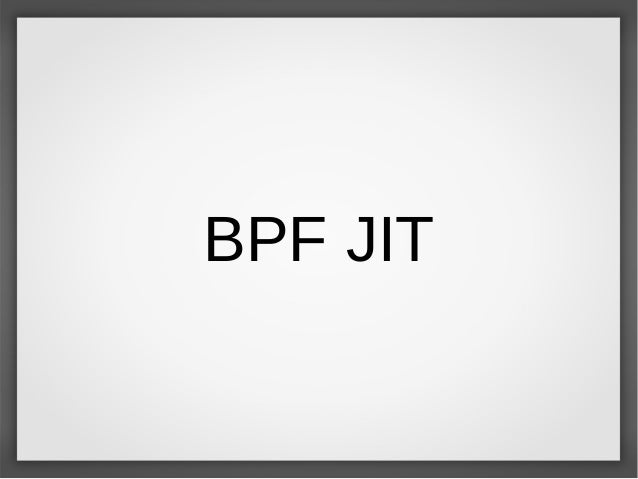

BPF JIT

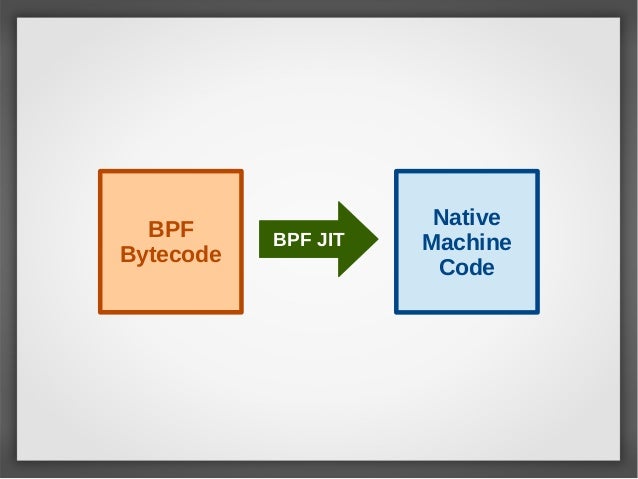

BPF
Bytecode
Native
Machine
Code
BPF JIT

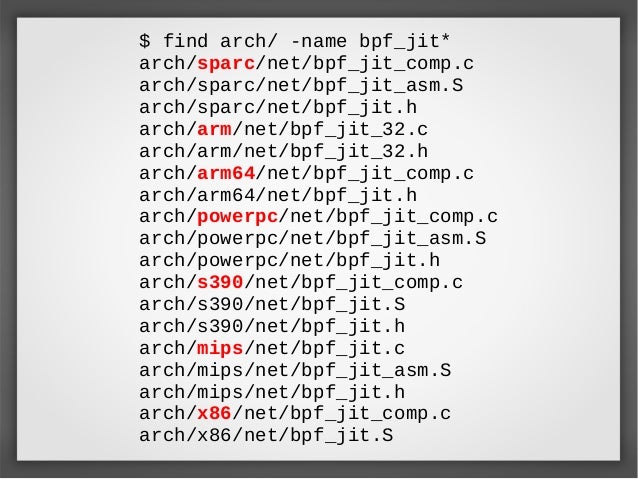

$ find arch/ -name bpf_jit*
arch/sparc/net/bpf_jit_comp.c
arch/sparc/net/bpf_jit_asm.S
arch/sparc/net/bpf_jit.h
arch/arm/n...
Stable and Efficient
eBPF
Extended BPF

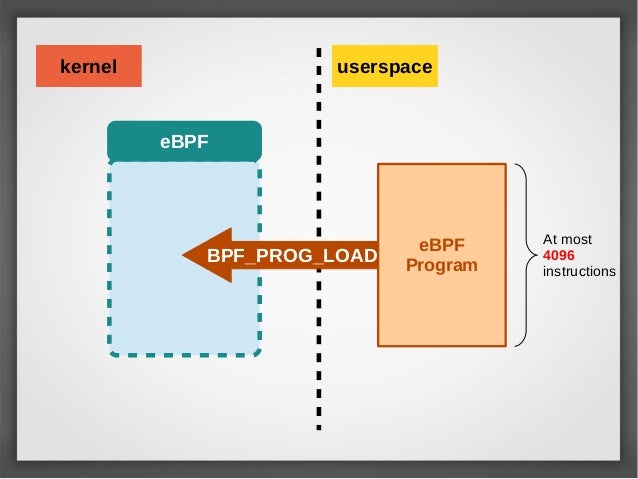

eBPF
userspacekernel
eBPF
Program
BPF_PROG_LOAD
At most
4096
instructions
Extended Registers
eBPF Verifier
eBPF Map
Probe Event
Extended Registers
eBPF Verifier
eBPF Map
Probe Event

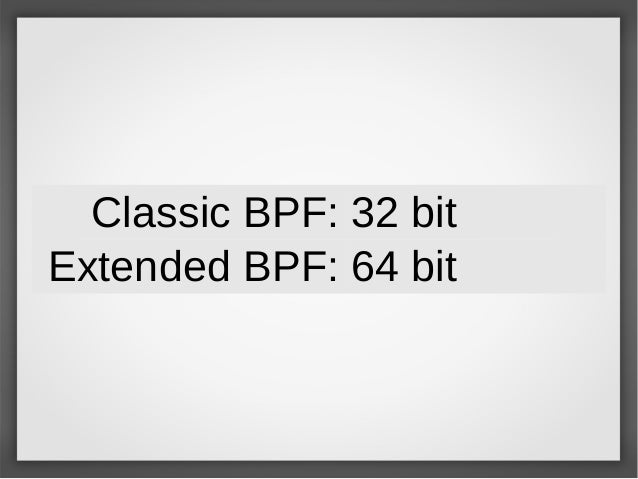

Classic BPF: 32 bit
Extended BPF: 64 bit

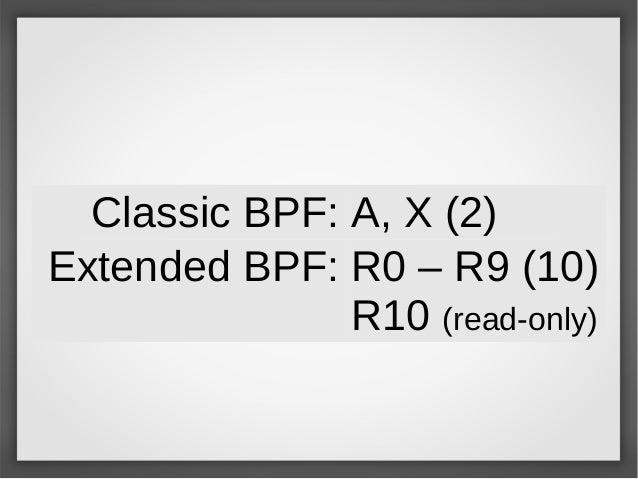

Classic BPF: A, X (2)
Extended BPF: R0 – R9 (10)
R10 (read-only)

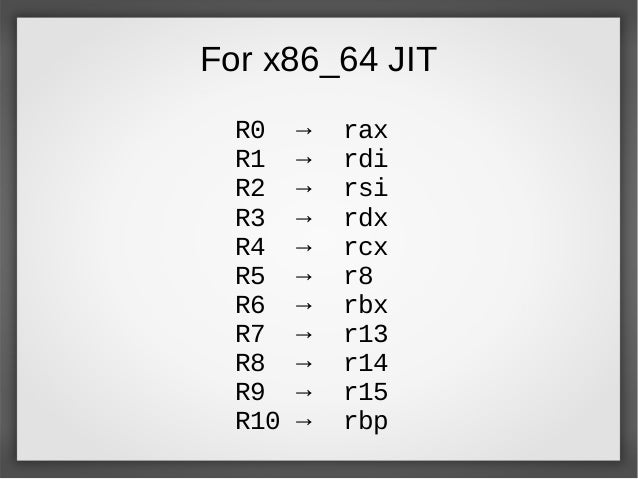

For x86_64 JIT
R0 → rax
R1 → rdi
R2 → rsi
R3 → rdx
R4 → rcx
R5 → r8
R6 → rbx
R7 → r13
R8 → r14
R9 → r15
R10 → rbp
BPF Calling Convention
● R0
Return value from in-kernel function, and exit value for
eBPF program
● R1 – R5
Arguments from...
Extended Registers
eBPF Verifier
eBPF Map
Probe Event
Two-Step Verification

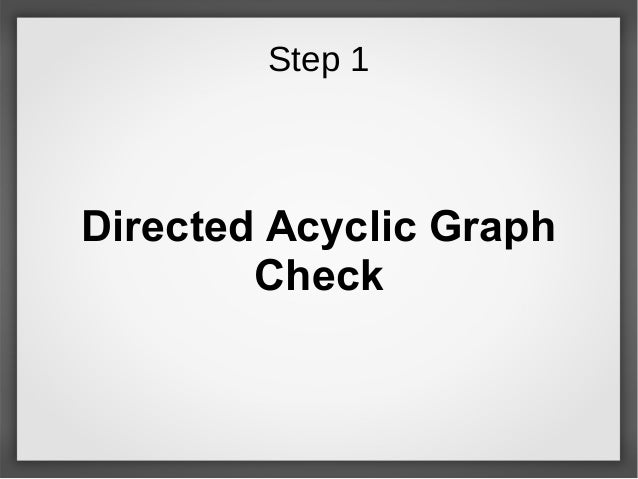

Step 1
Directed Acyclic Graph
Check
Loops
Unreachable Instructions

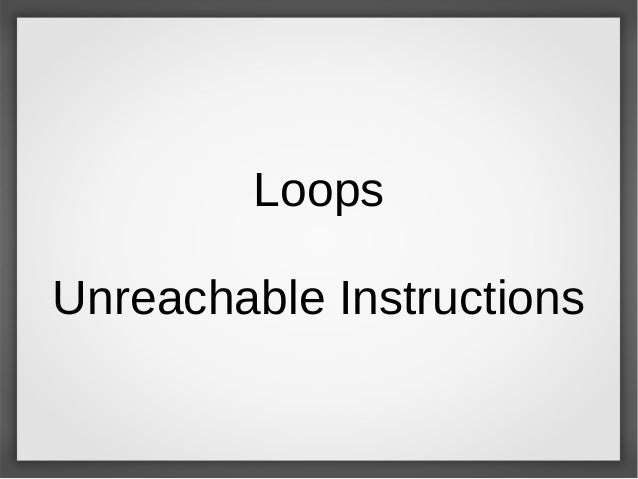

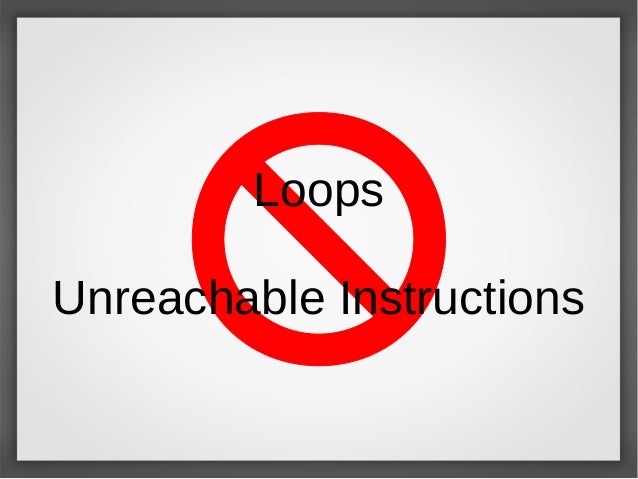

Loops
Unreachable Instructions
Step 2
Simulate the Execution
Read a never-written register
Do arithmetic of two valid pointer
Load/store registers of invalid types
Read stack before w...
Read a never-written register
Do arithmetic of two valid pointer
Load/store registers of invalid types
Read stack before w...
Extended Registers
eBPF Verifier
eBPF Map
Probe Event
eBPF
userspacekernel
User
Program
Map BPF_MAP_*

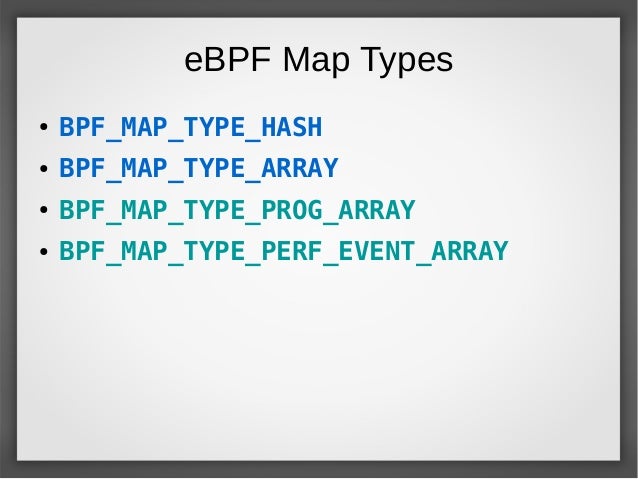

eBPF Map Types
● BPF_MAP_TYPE_HASH
● BPF_MAP_TYPE_ARRAY
● BPF_MAP_TYPE_PROG_ARRAY
● BPF_MAP_TYPE_PERF_EVENT_ARRAY

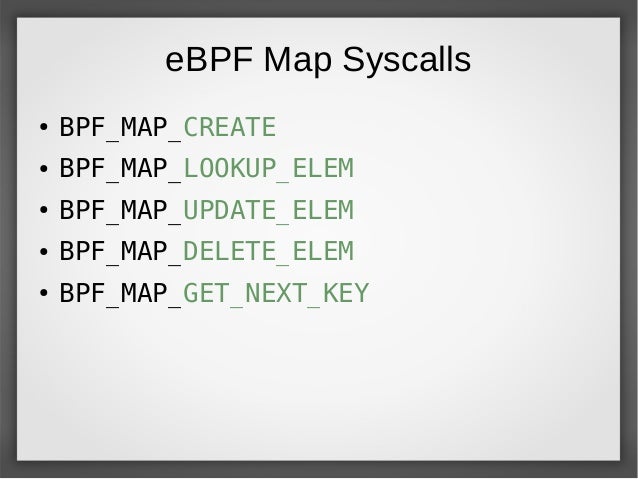

eBPF Map Syscalls
● BPF_MAP_CREATE
● BPF_MAP_LOOKUP_ELEM
● BPF_MAP_UPDATE_ELEM
● BPF_MAP_DELETE_ELEM
● BPF_MAP_GET_NEXT_KEY
Extended Registers
eBPF Verifier
eBPF Map
Probe Event

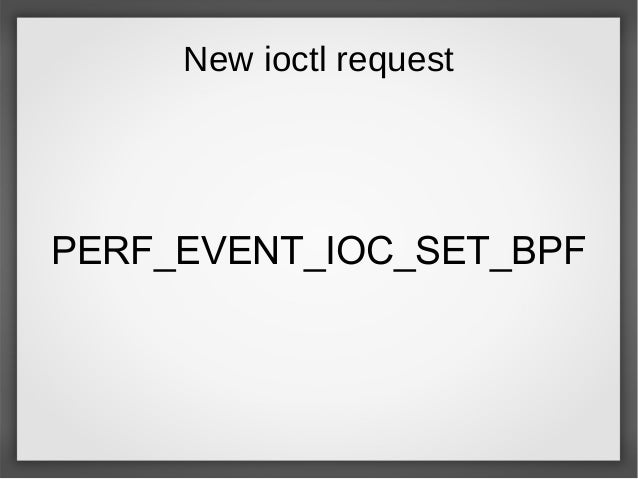

New ioctl request
PERF_EVENT_IOC_SET_BPF

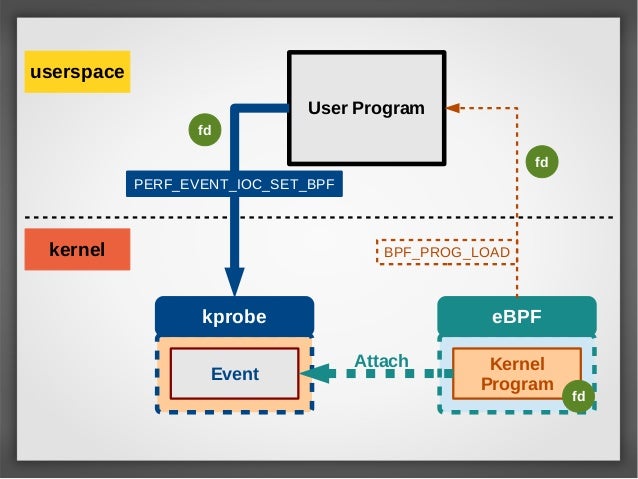

Kprobe
BPF_PROG_LOAD
User Program
eBPF
userspace
kernel
Kernel
Program
kprobe
Event
fd
fd
PERF_EVENT_IOC_SET_BPF
fd
Attach

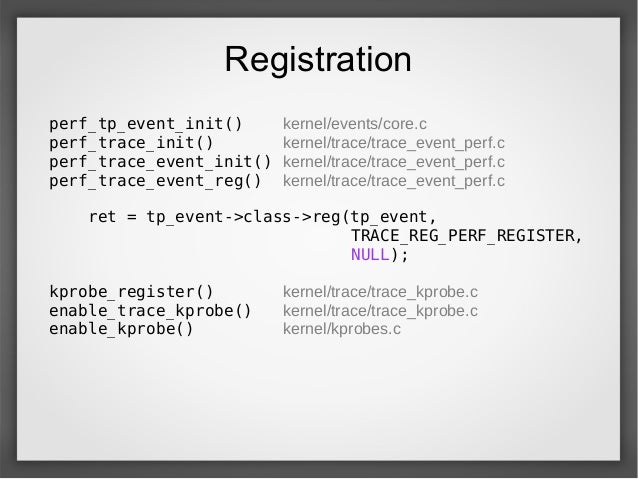

Registration
perf_tp_event_init() kernel/events/core.c
perf_trace_init() kernel/trace/trace_event_perf.c
perf_trace_event_...
Attach
perf_ioctl() kernel/events/core.c
_perf_ioctl() kernel/events/core.c
case PERF_EVENT_IOC_SET_BPF:
return perf_event...

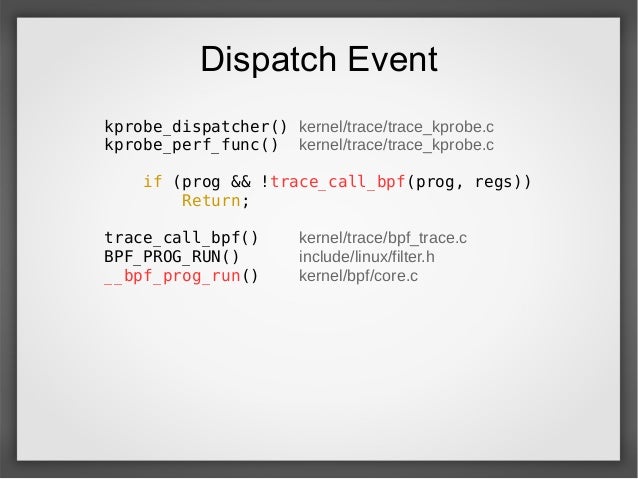

Dispatch Event
kprobe_dispatcher() kernel/trace/trace_kprobe.c
kprobe_perf_func() kernel/trace/trace_kprobe.c
if (prog && ...
kfree_skb(struct sk_buff *skb)
{
if (unlikely(!skb))
return;
….
}
kprobe
eBPF
BPF bytecode Read Map
BPF bytecode Map
BPF_P...

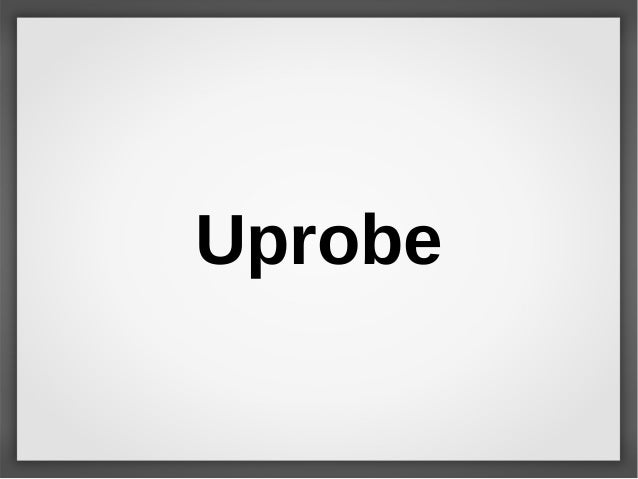

Uprobe
BPF_PROG_LOAD
User Program
eBPF
userspace
kernel
Kernel
Program
uprobe
Event
fd
fd
PERF_EVENT_IOC_SET_BPF
fd
Attach
__libc_malloc(size_t *bytes)
{
arena_lookup(ar_ptr);
arena_lock(ar_ptr, bytes);
….
}
uprobe
eBPF
BPF bytecode
BPF bytecode...

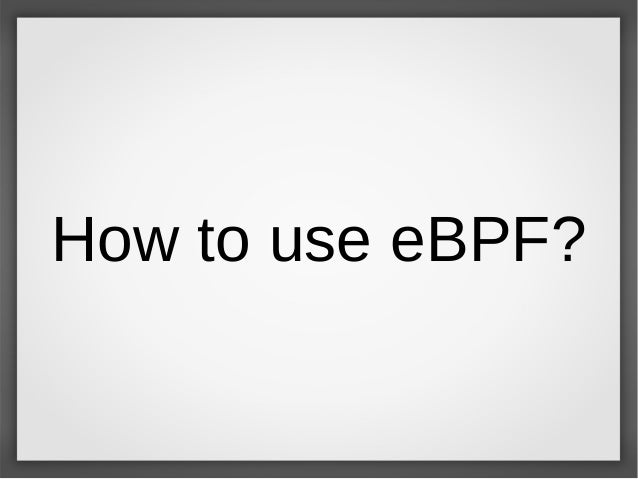

How to use eBPF?

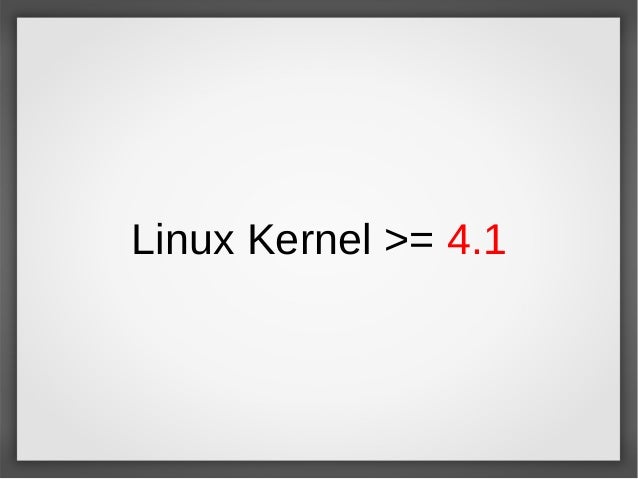

Linux Kernel >= 4.1

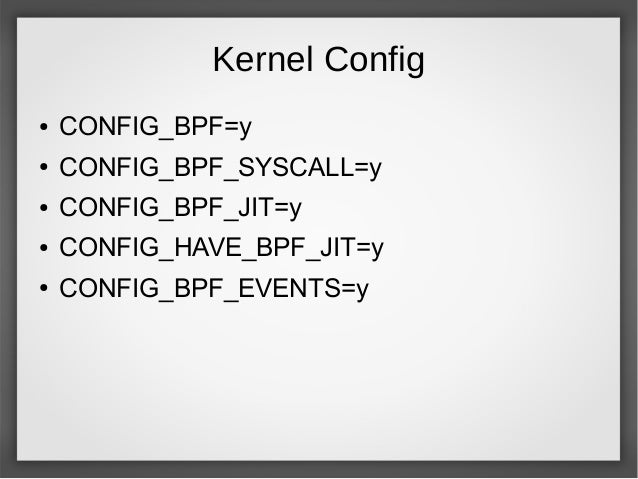

Kernel Config
● CONFIG_BPF=y
● CONFIG_BPF_SYSCALL=y
● CONFIG_BPF_JIT=y
● CONFIG_HAVE_BPF_JIT=y
● CONFIG_BPF_EVENTS=y
BPF ASM

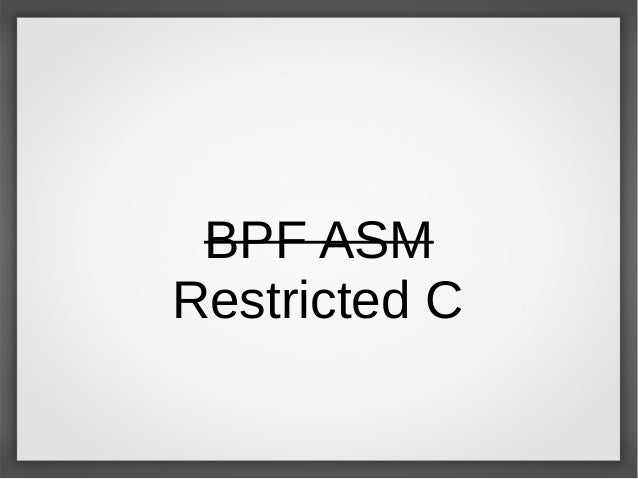

BPF ASM
Restricted C
LLVM >= 3.7
clang:
llc:
--emit-llvm
--march=bpf

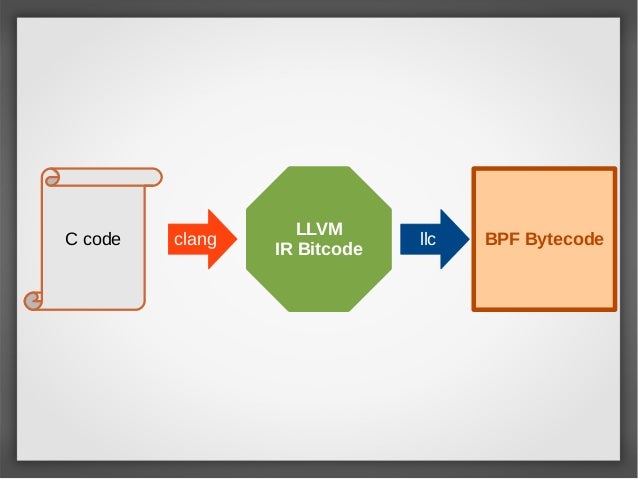

C code
LLVM
IR Bitcode
BPF Bytecodeclang llc
User Program
eBPF
userspace
kernel
eBPF MAP
Kernel
Program
As simple
as possible
Whatever you want

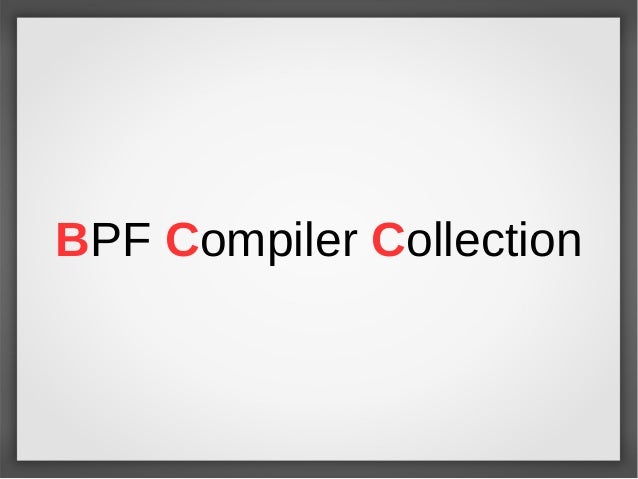

BPF Compiler Collection

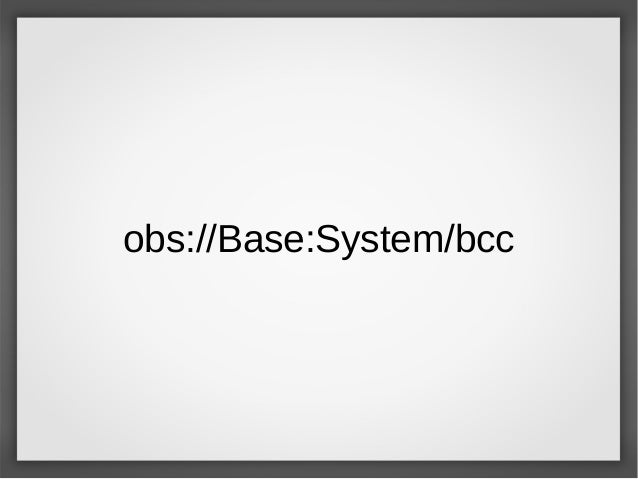

obs://Base:System/bcc
C & Python Library
Built-in BPF compiler

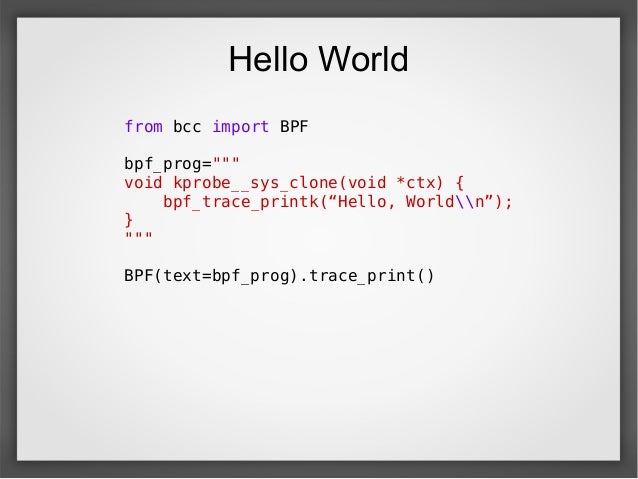

Hello World
from bcc import BPF
bpf_prog="""
void kprobe__sys_clone(void *ctx) {
bpf_trace_printk(“Hello, Worldn”);
}
"""
...

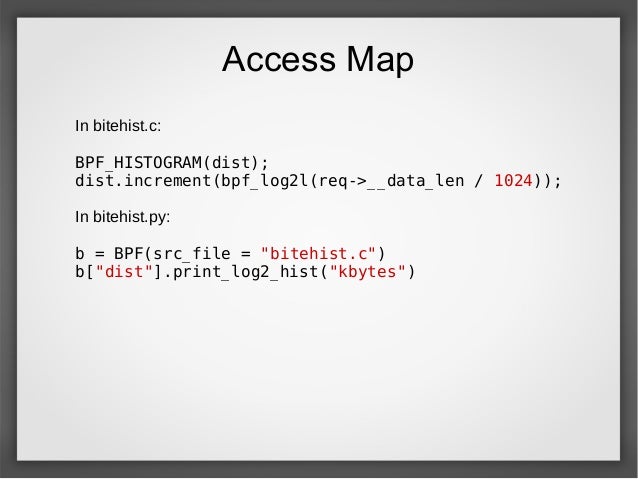

Access Map
In bitehist.c:
BPF_HISTOGRAM(dist);
dist.increment(bpf_log2l(req->__data_len / 1024));
In bitehist.py:
b = BPF(...
Access Map (Cont’)
# ./bitehist.py
Tracing... Hit Ctrl-C to end.
^C
kbytes : count distribution
0 -> 1 : 8 |****** |
2 -> ...

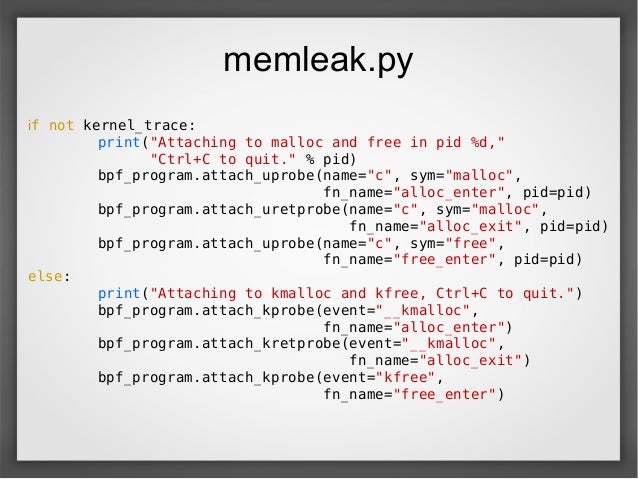

memleak.py
if not kernel_trace:
print("Attaching to malloc and free in pid %d,"
"Ctrl+C to quit." % pid)
bpf_program.attac...

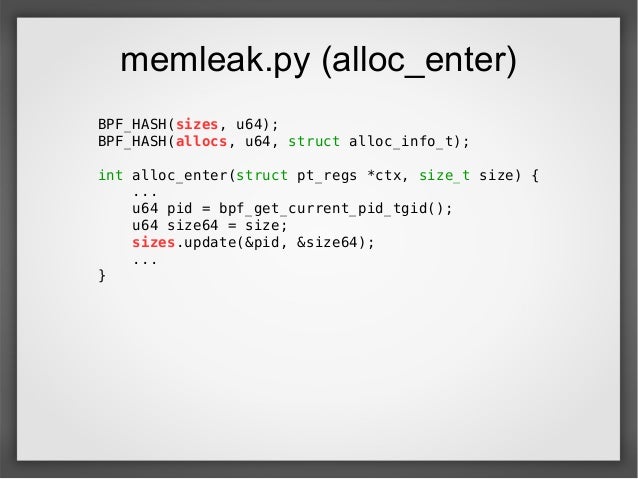

memleak.py (alloc_enter)
BPF_HASH(sizes, u64);
BPF_HASH(allocs, u64, struct alloc_info_t);
int alloc_enter(struct pt_regs ...

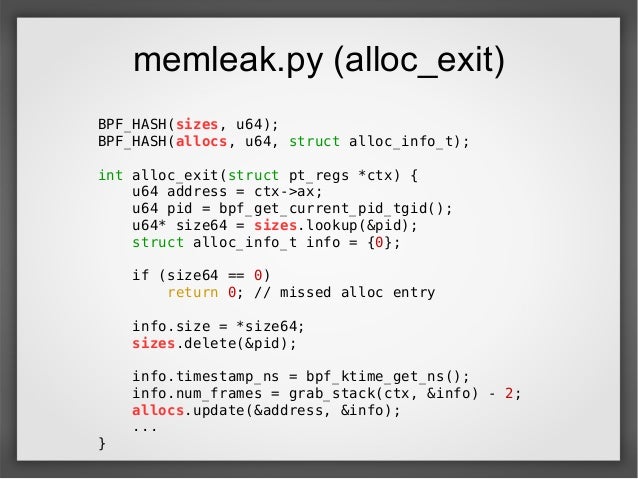

memleak.py (alloc_exit)
BPF_HASH(sizes, u64);
BPF_HASH(allocs, u64, struct alloc_info_t);
int alloc_exit(struct pt_regs *c...
memleak.py (free)
BPF_HASH(sizes, u64);
BPF_HASH(allocs, u64, struct alloc_info_t);
int free_enter(struct pt_regs *ctx, vo...
Demo
Question?
Thank
You
References
● Documentation/networking/filter.txt
● http://www.brendangregg.com/blog/2015-05-15/ebpf-one-small-s
tep.html
●...
