1. Integrating WordPress
With Web APIs
Randy Hoyt

2. About Me
Randy Hoyt randyhoyt.com
@randyhoyt
Presentation randyhoyt.com/wcmia
#wcmia @randyhoyt

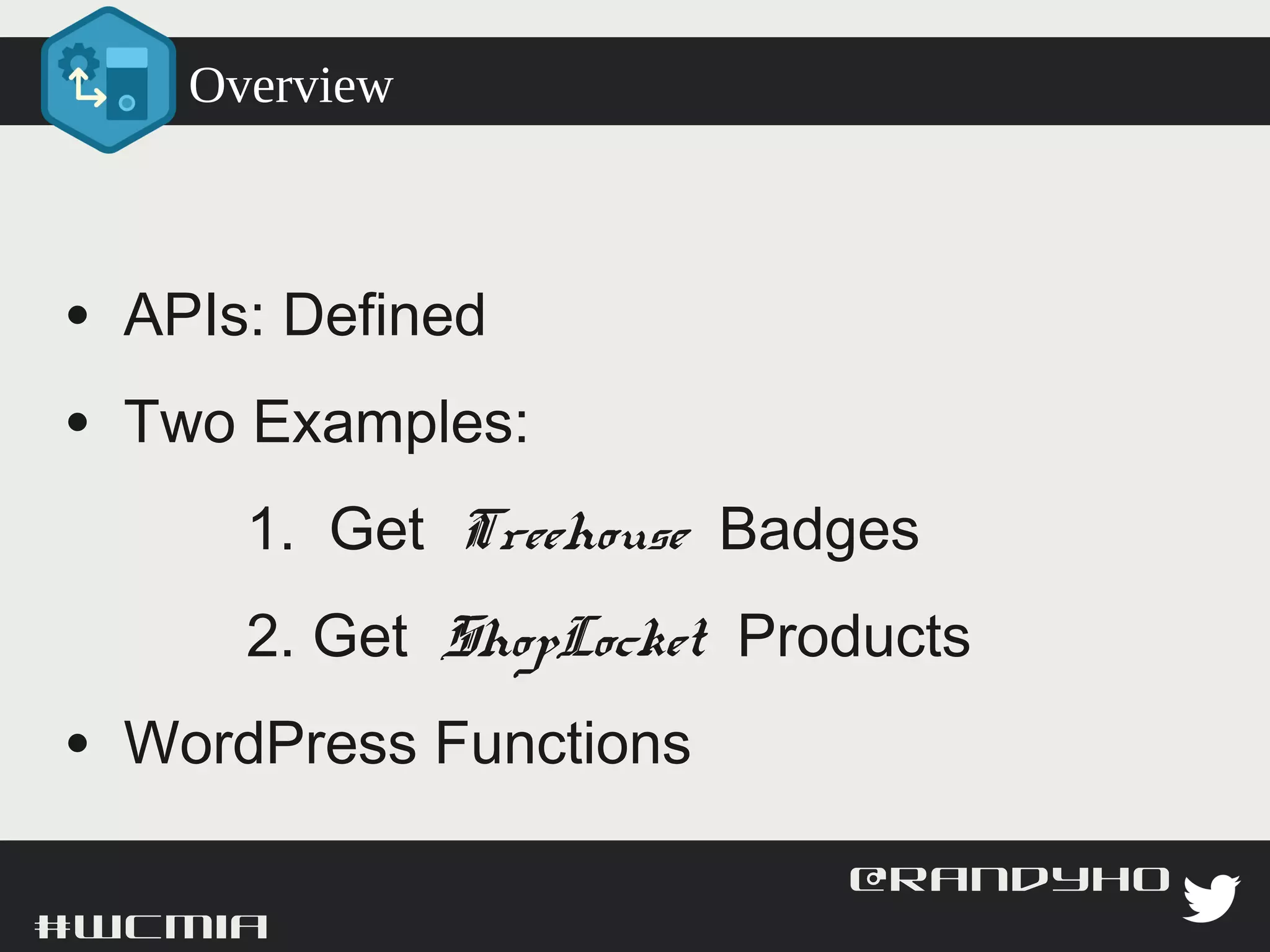

3. Overview
• APIs: Defined
• Two Examples:
1. Get Treehouse Badges
2. Get ShopLocket Products
• WordPress Functions
#wcmia @randyhoyt

4. API

5. Application Programming Interface

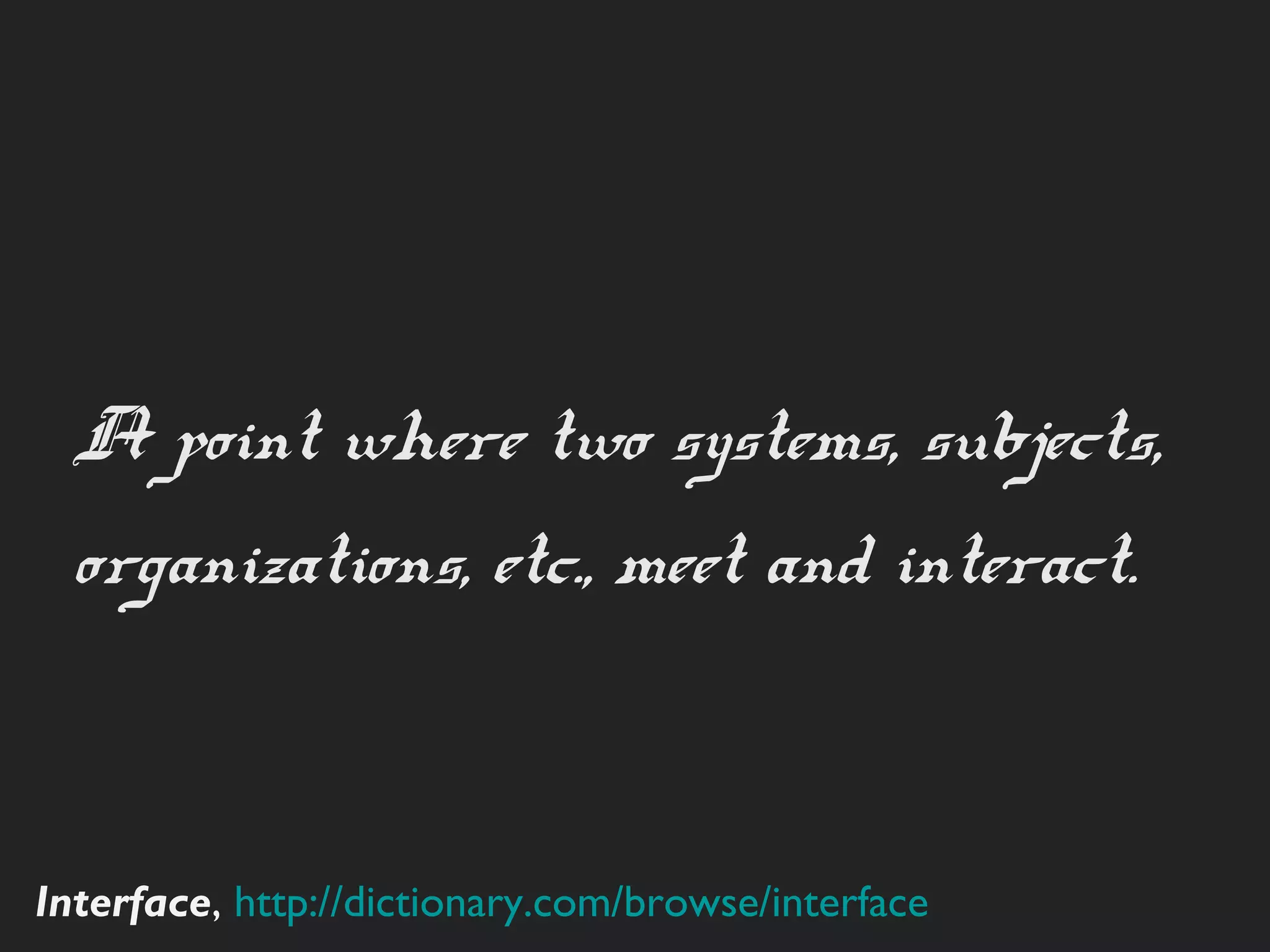

6. A point where two systems,
subjects, organizations, etc.,
meet and interact.
Interface, http://dictionary.com/browse/interface

7. [Keyboard]

8. [Lock and Key]

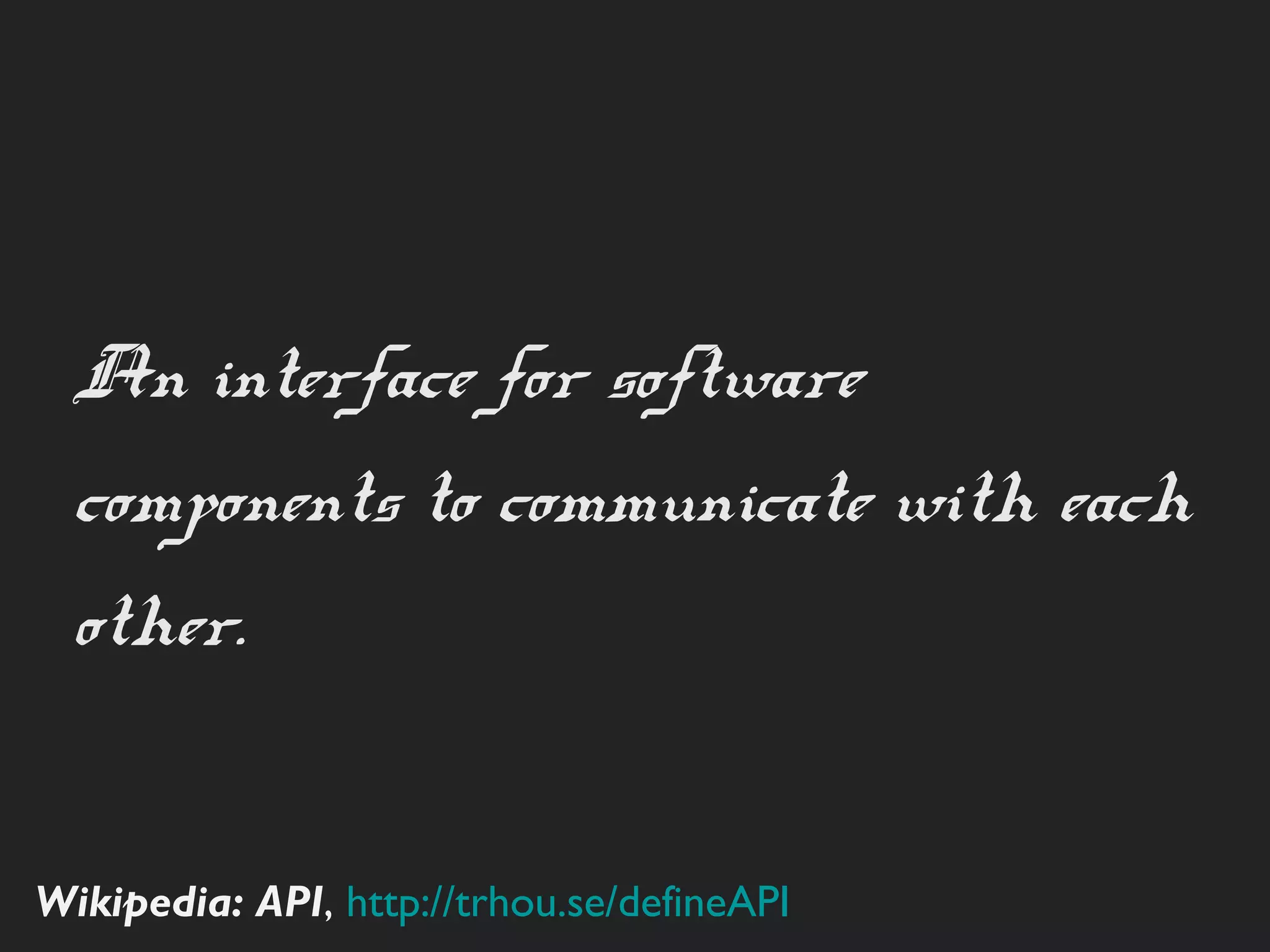

9. An interface for software
components to communicate
with each other.
Wikipedia: API, http://trhou.se/defineAPI

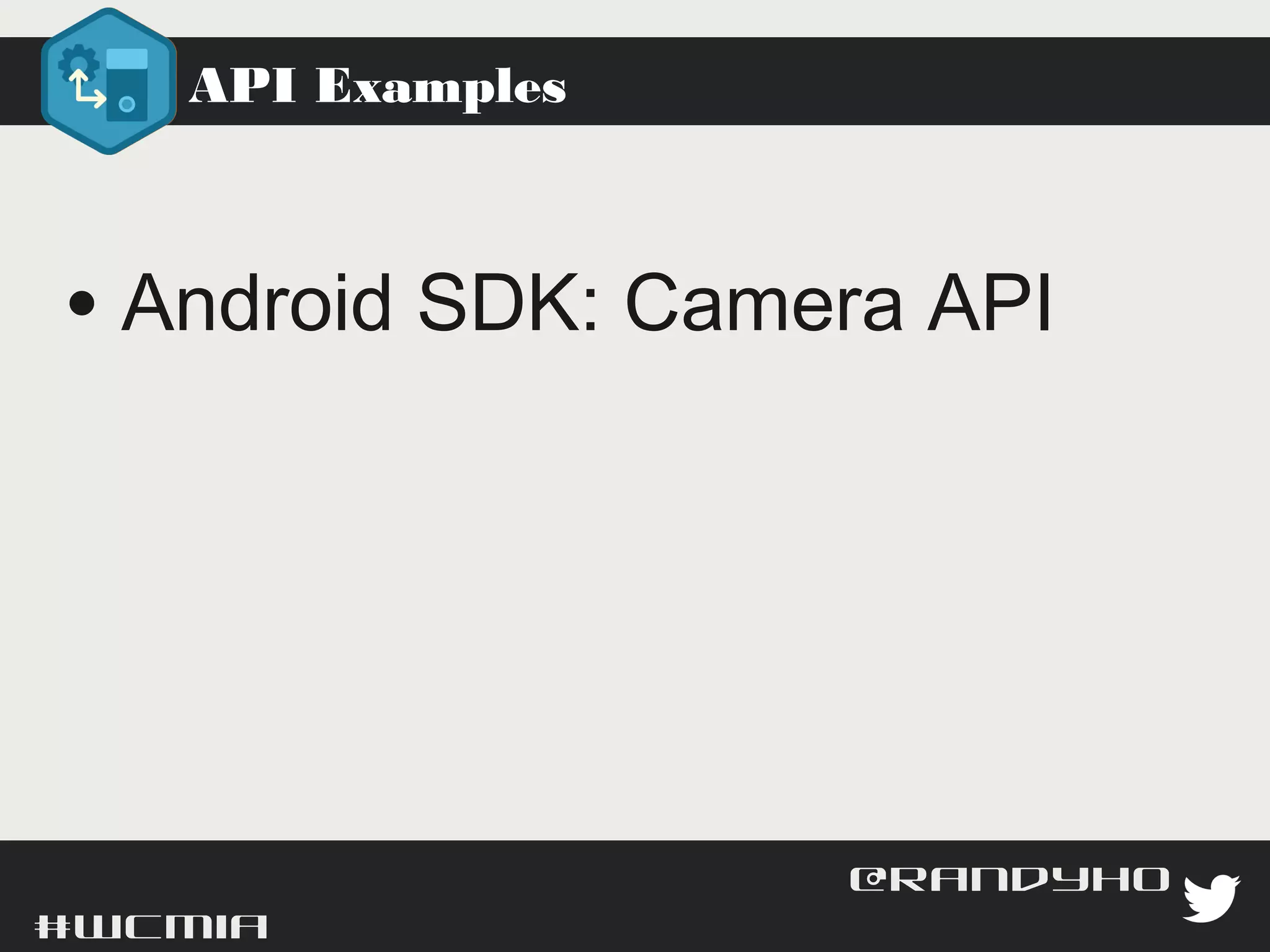

10. API Examples
• Android SDK: Camera API
#wcmia @randyhoyt

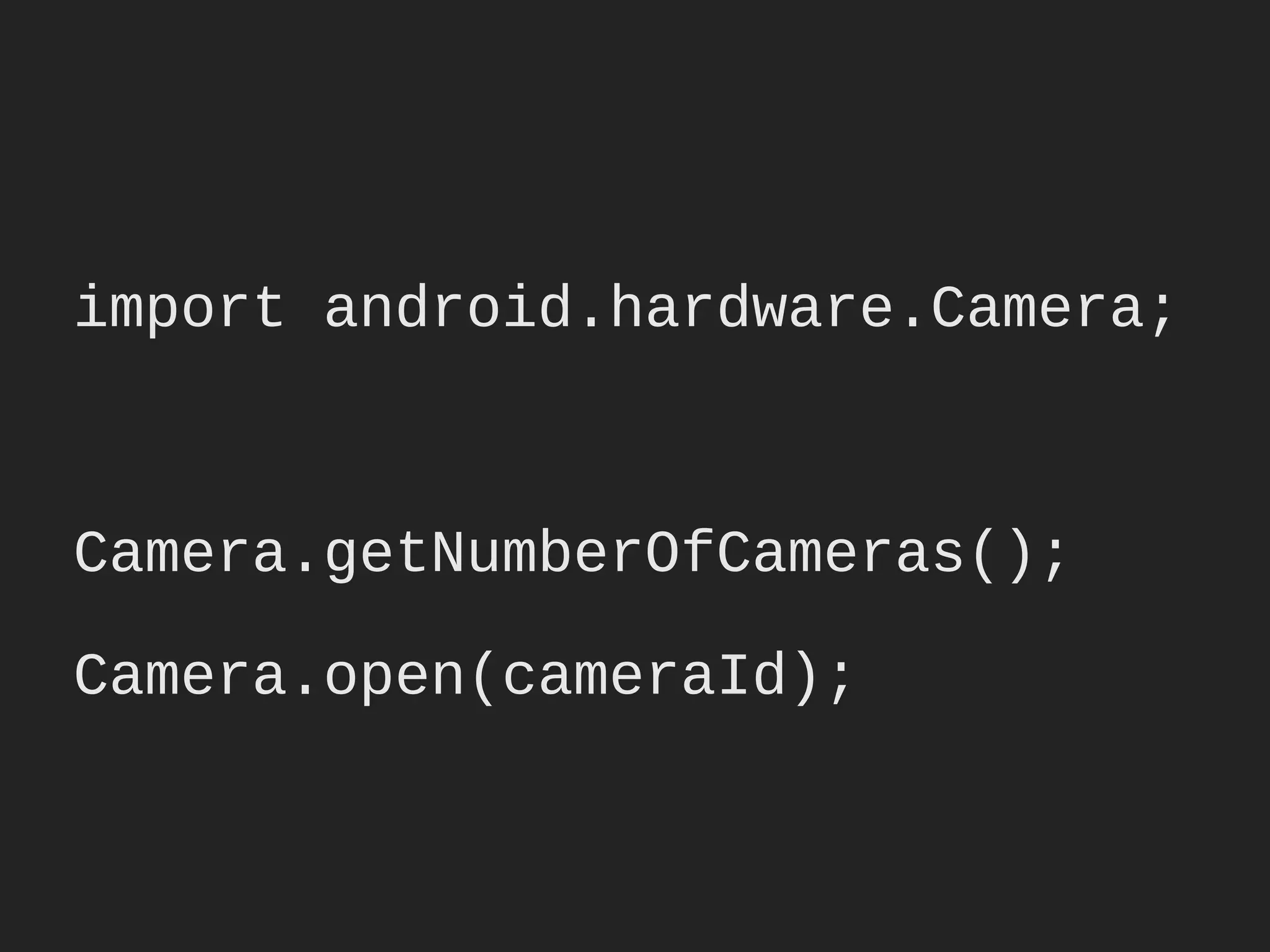

11. import android.hardware.Camera;
Camera.getNumberOfCameras();
Camera.open(cameraId);

12. API Examples
• Android SDK: Camera API
• WordPress: Plugin API
#wcmia @randyhoyt

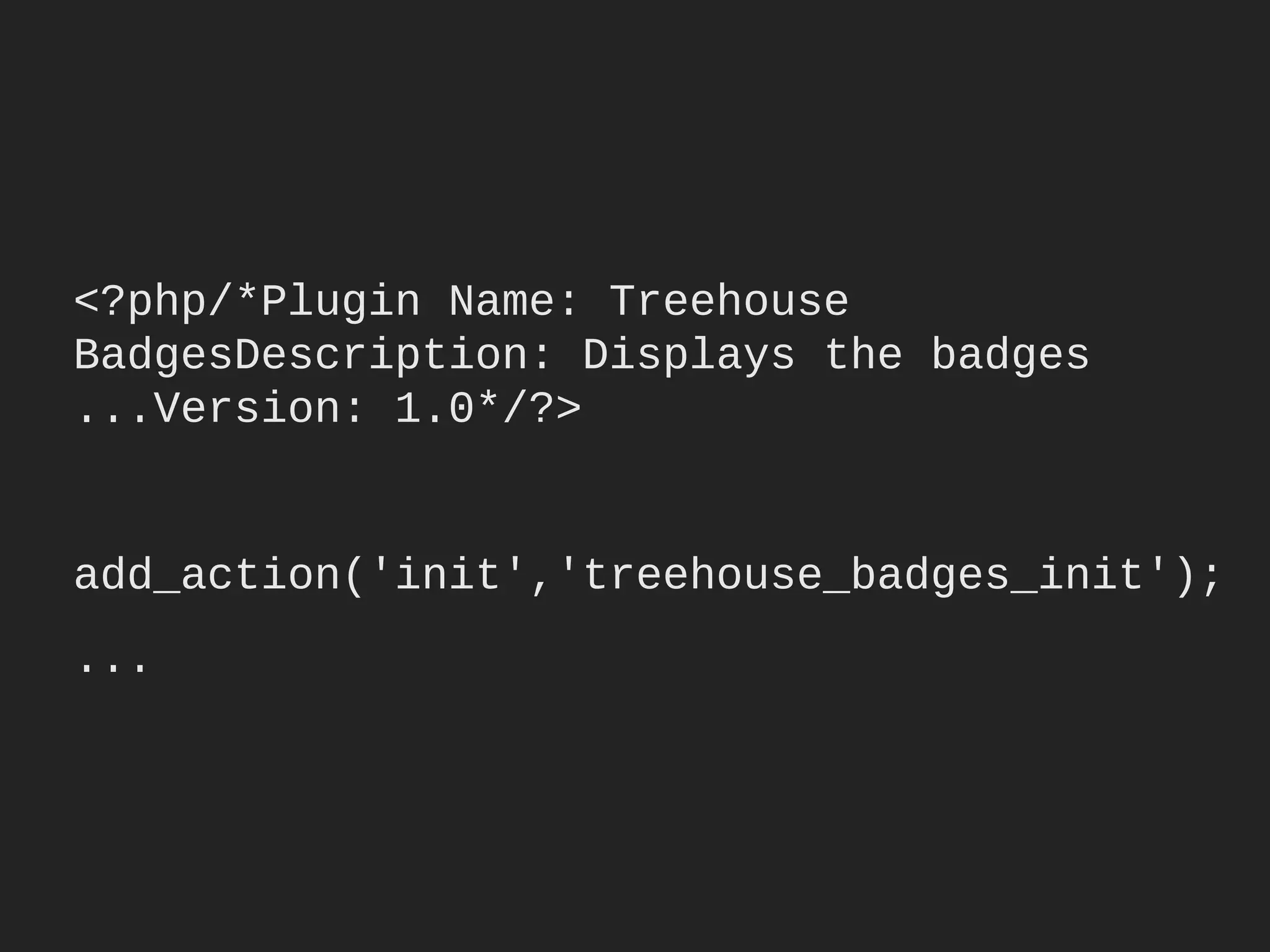

13. <?php
/*
Plugin Name: Treehouse Badges
Description: Displays the badges ...
Version: 1.0
*/
?>
add_action('init','treehouse_badges_init');
...

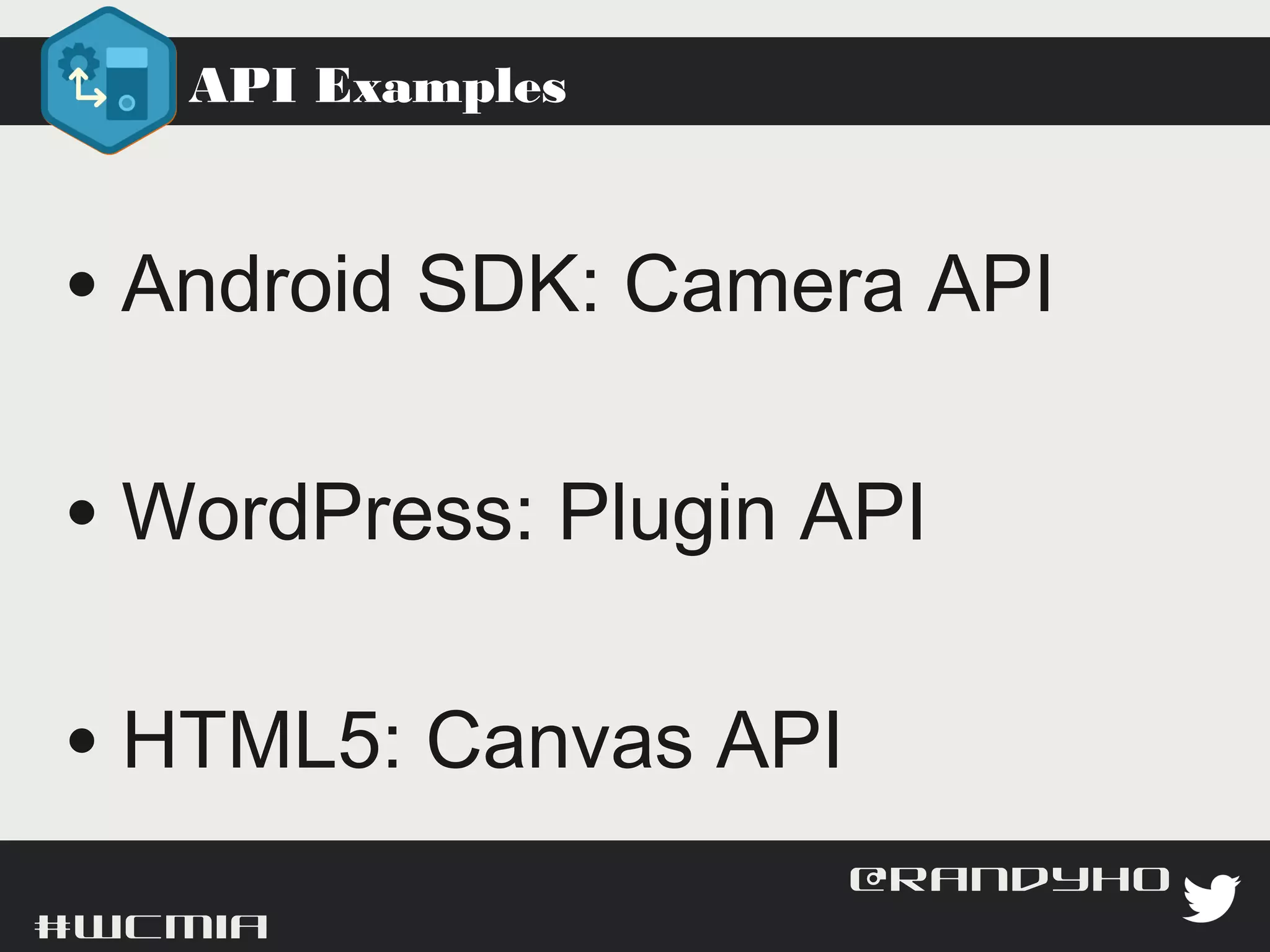

14. API Examples
• Android SDK: Camera API
• WordPress: Plugin API
• HTML5: Canvas API
#wcmia @randyhoyt

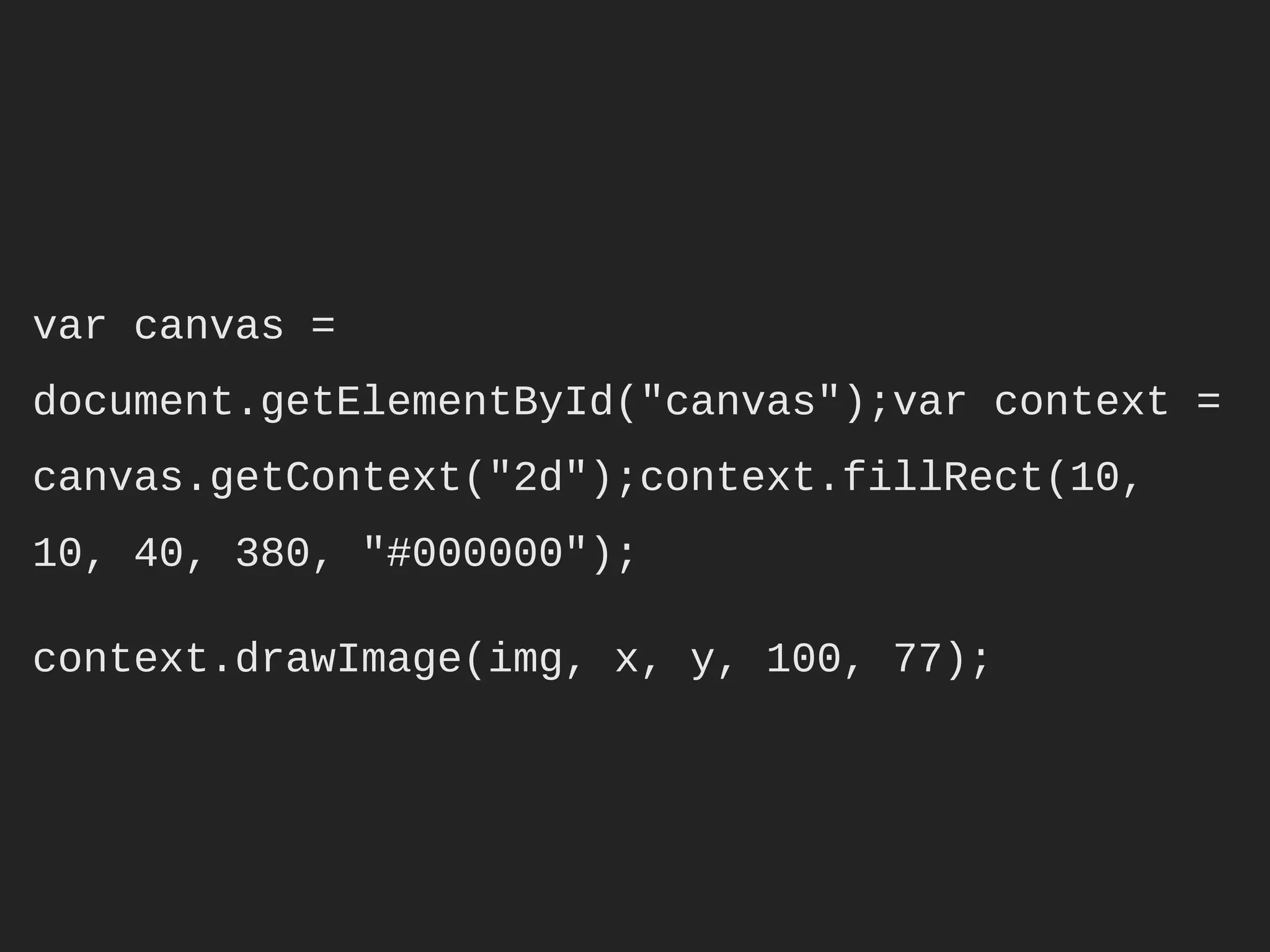

15. var canvas = document.getElementById("canvas");
var context = canvas.getContext("2d");
context.fillRect(10, 10, 40, 380, "#000000");
context.drawImage(img, x, y, 100, 77);

16. Web APIs

17. REST

18. Representational State Transfer

19. RESTful API

20. Example #1: Treehouse

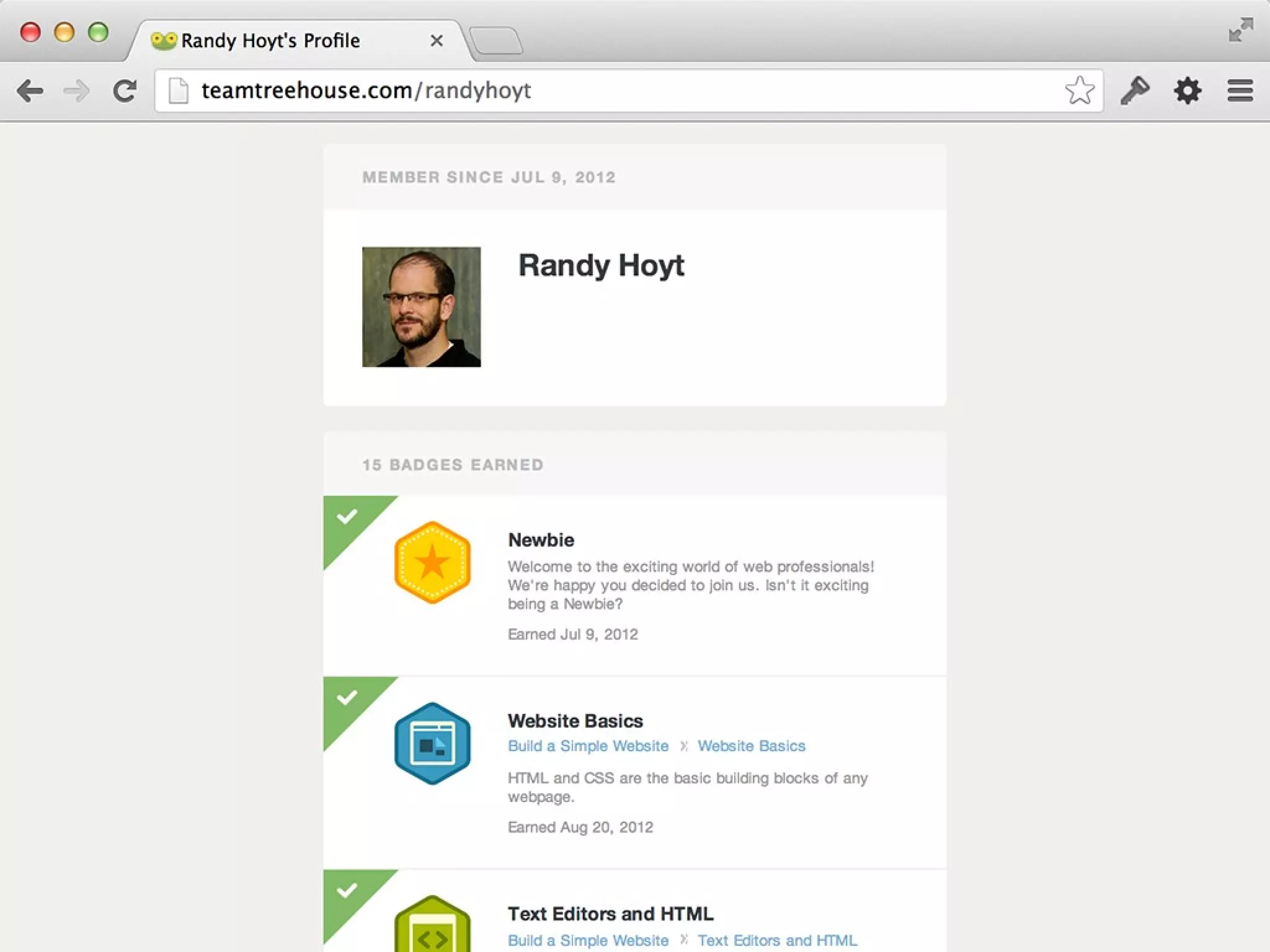

21. [Treehouse screenshot]

22. JavaScript Object Notation:
Text-based open standard
designed for human-readable
data interchange.
Wikipedia: JSON, http://trhou.se/defineJSON

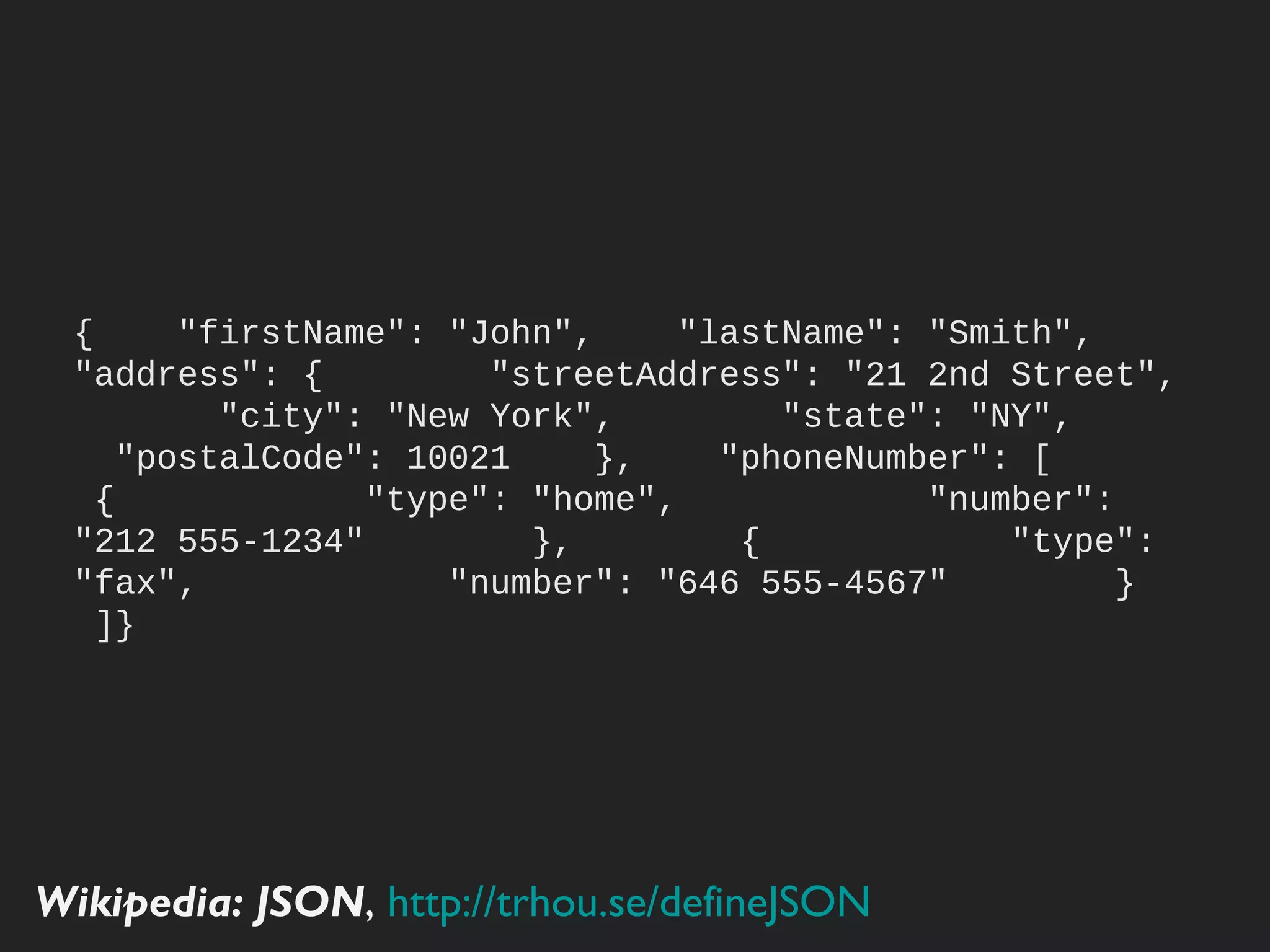

23. {
"firstName": "John",
"lastName": "Smith",
"address": {
"streetAddress": "21 2nd Street",
"city": "New York",
"state": "NY",
"postalCode": 10021
},
"phoneNumber": [
{
"type": "home",
"number": "212 555-1234"
},
{
"type": "fax",
"number": "646 555-4567"
}
]
}
Wikipedia: JSON, http://trhou.se/defineJSON

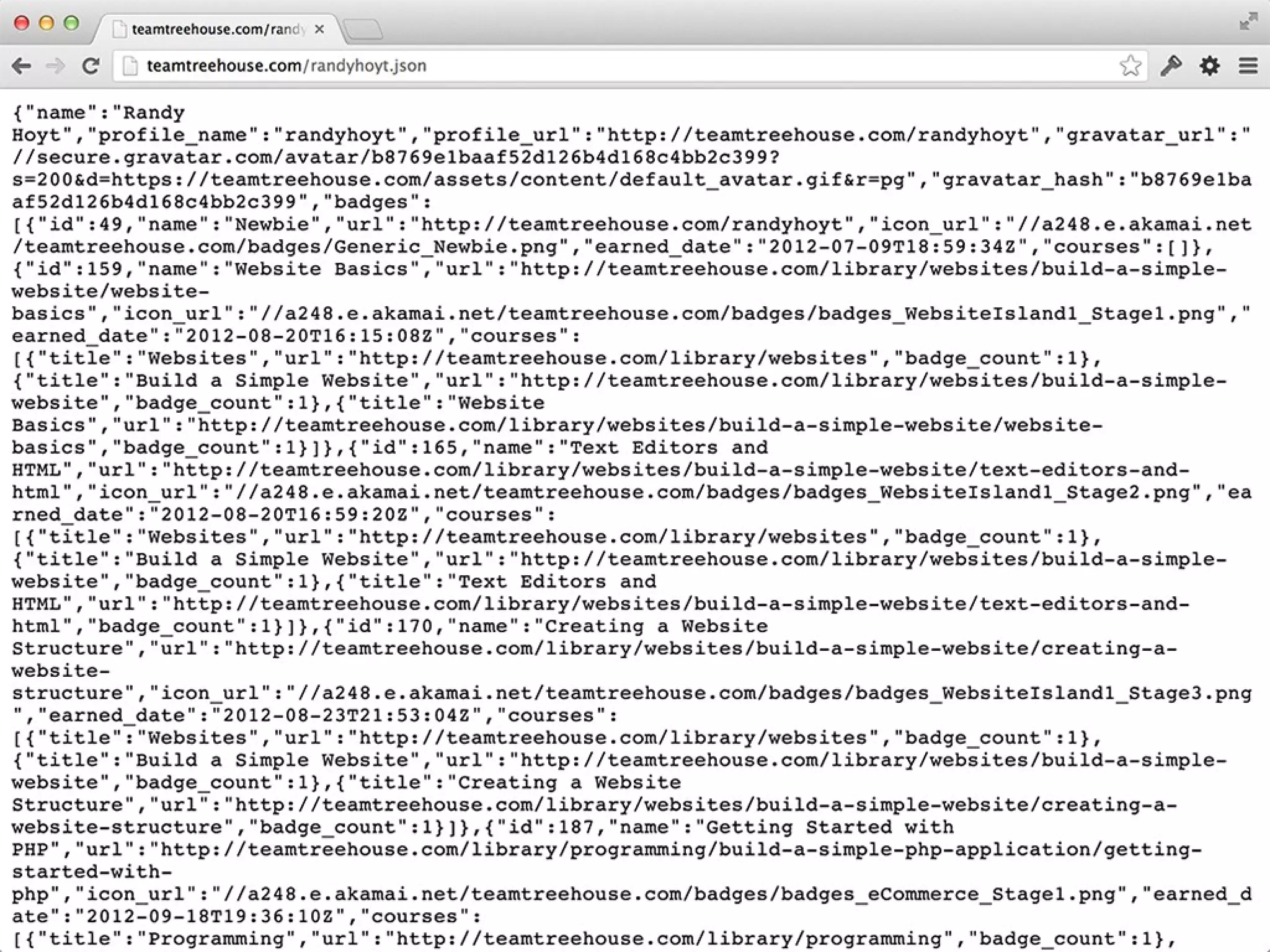

24. [Treehouse JSON]

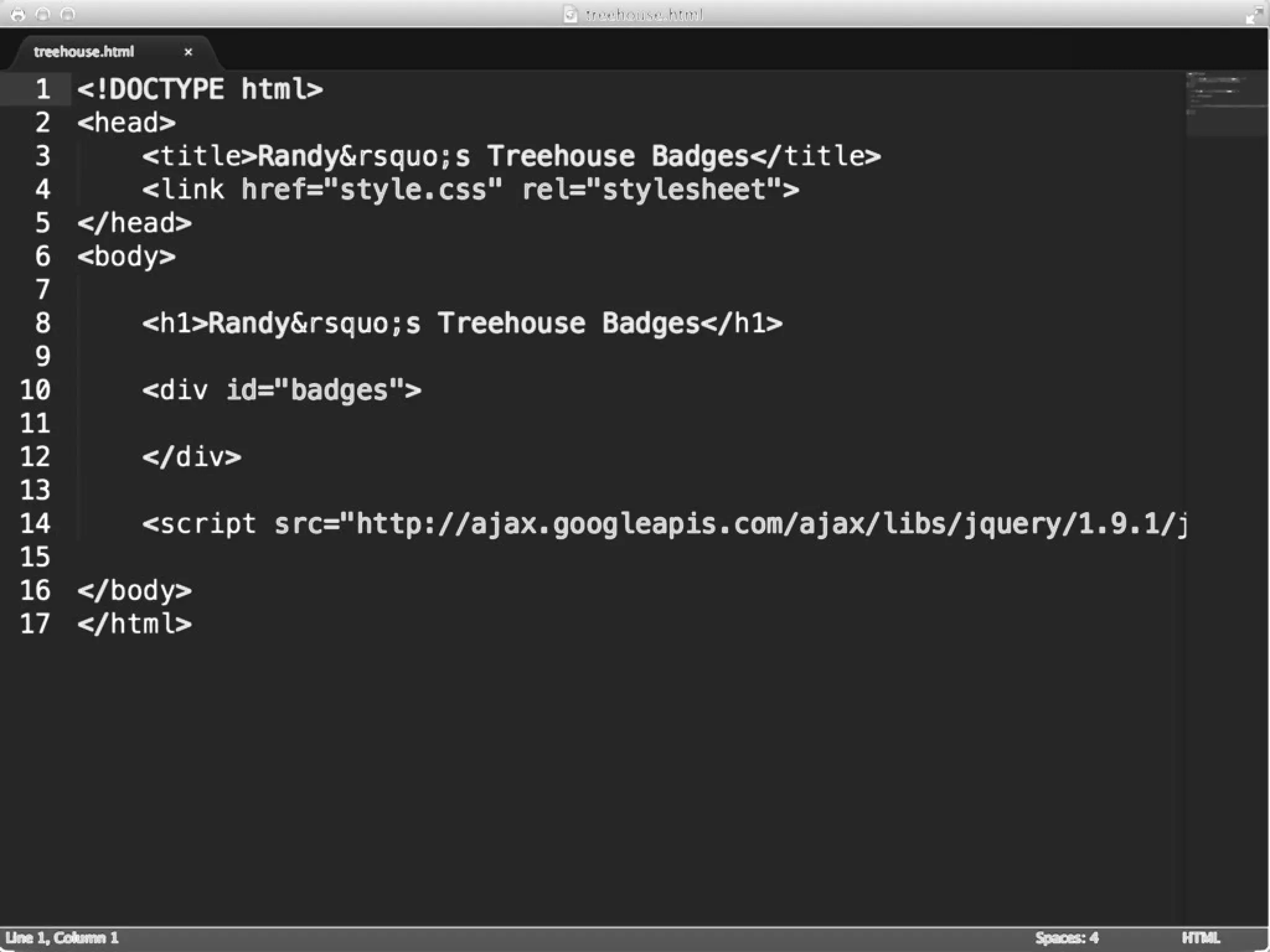

25. [HTML]

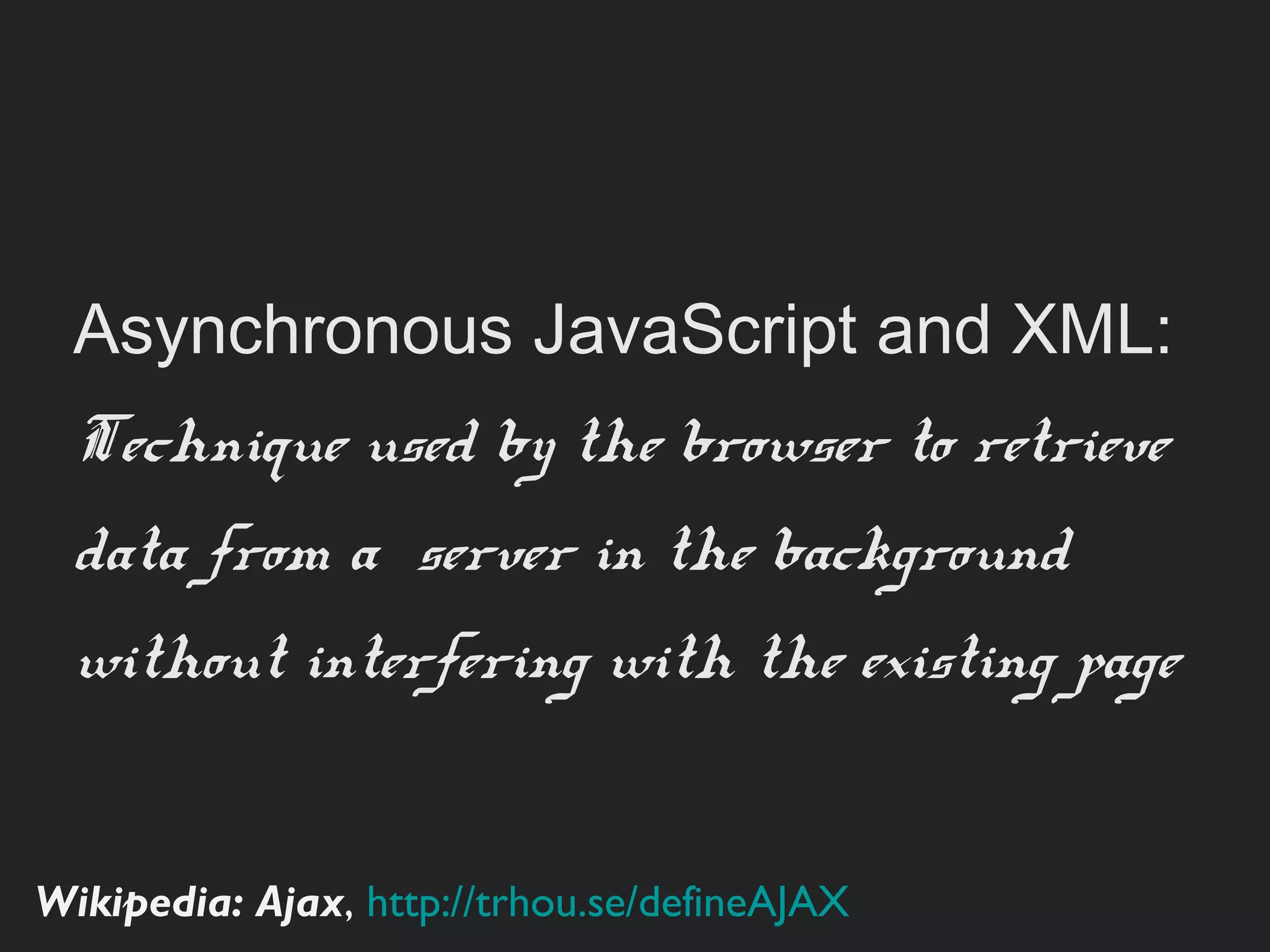

26. Asynchronous JavaScript and XML:
Technique used by the browser to
retrieve data from a server in the
background without interfering with
the existing page
Wikipedia: Ajax, http://trhou.se/defineAJAX

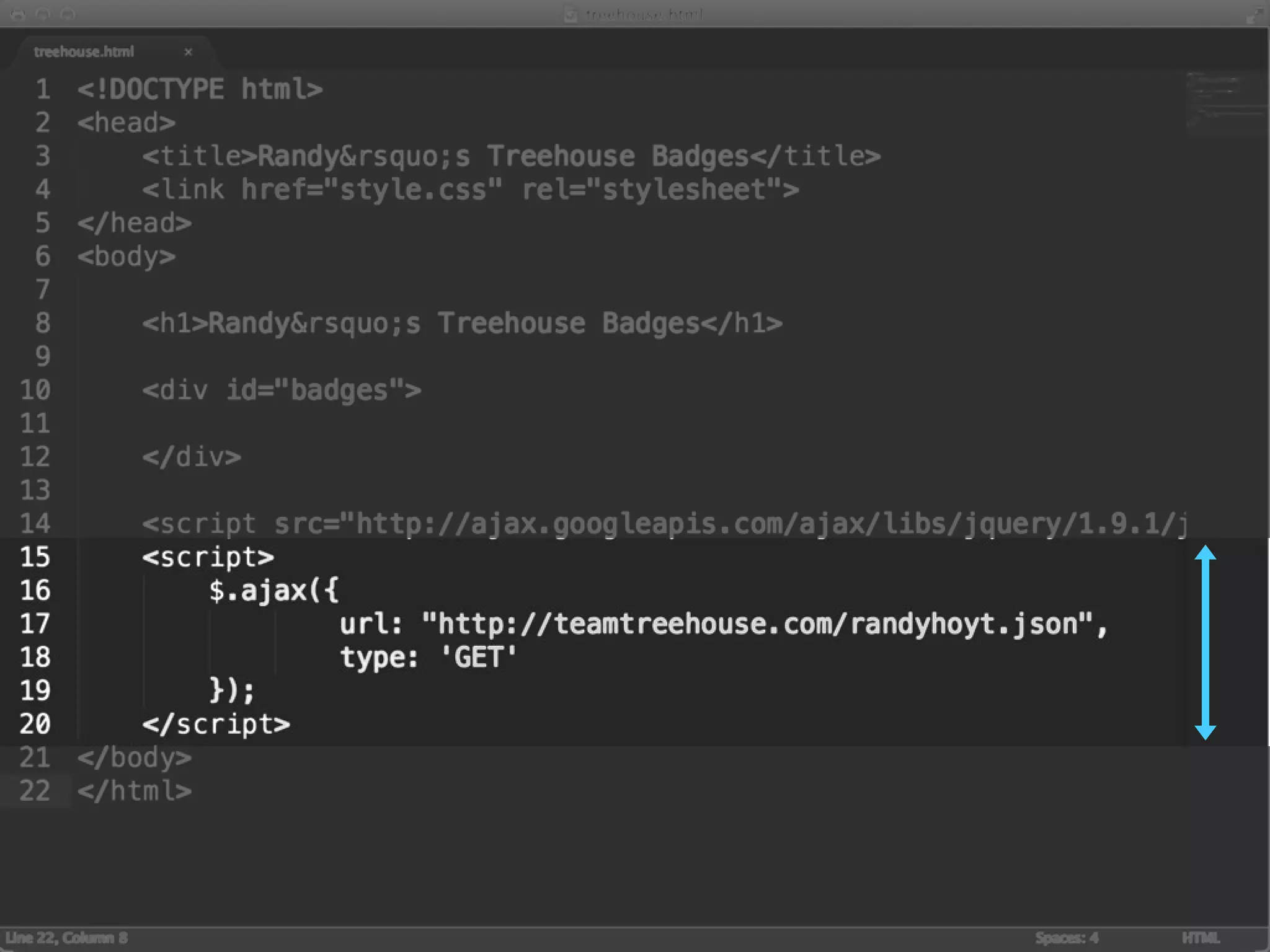

27. [AJAX Request Code]

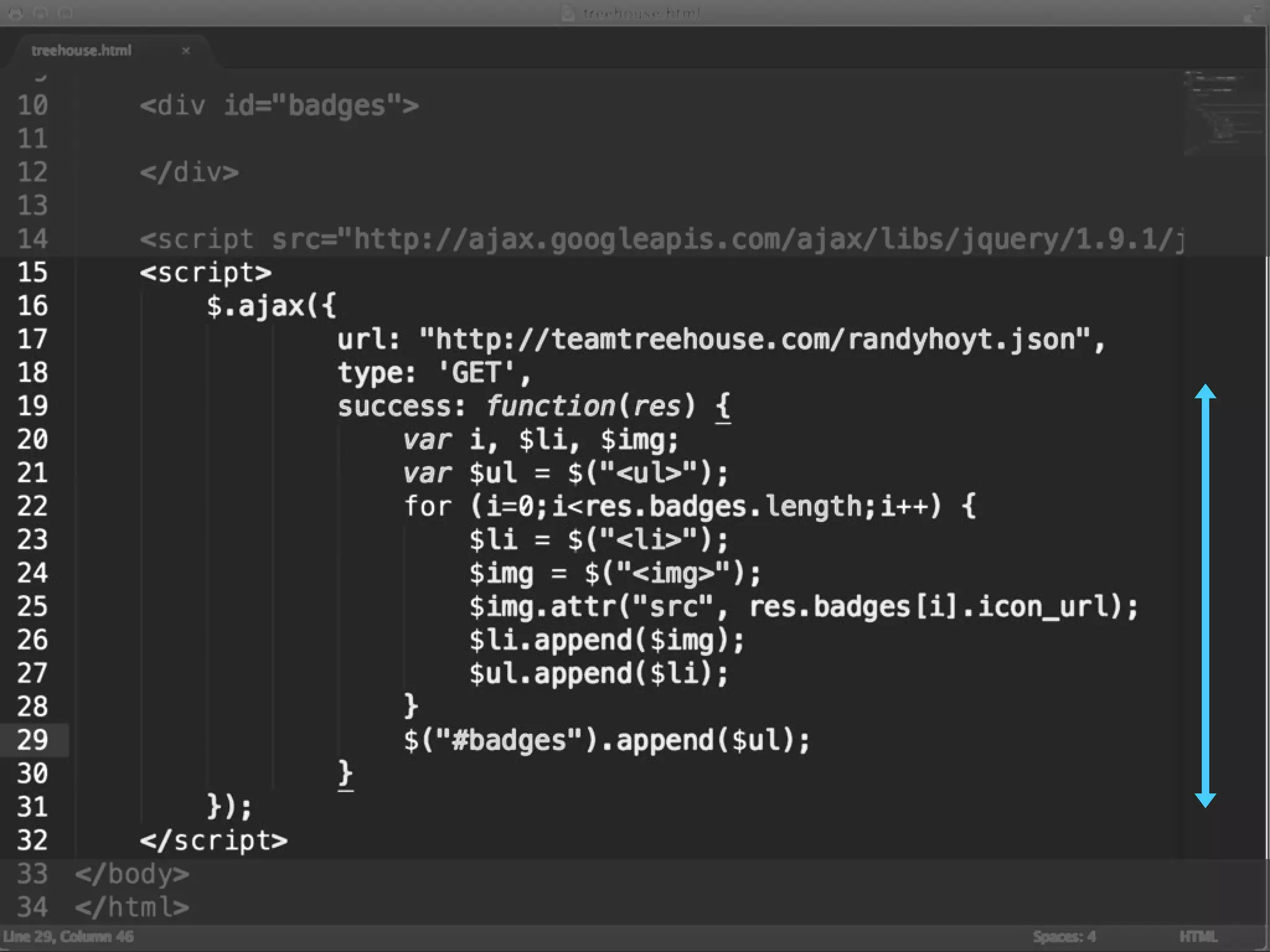

28. [Badge Code]

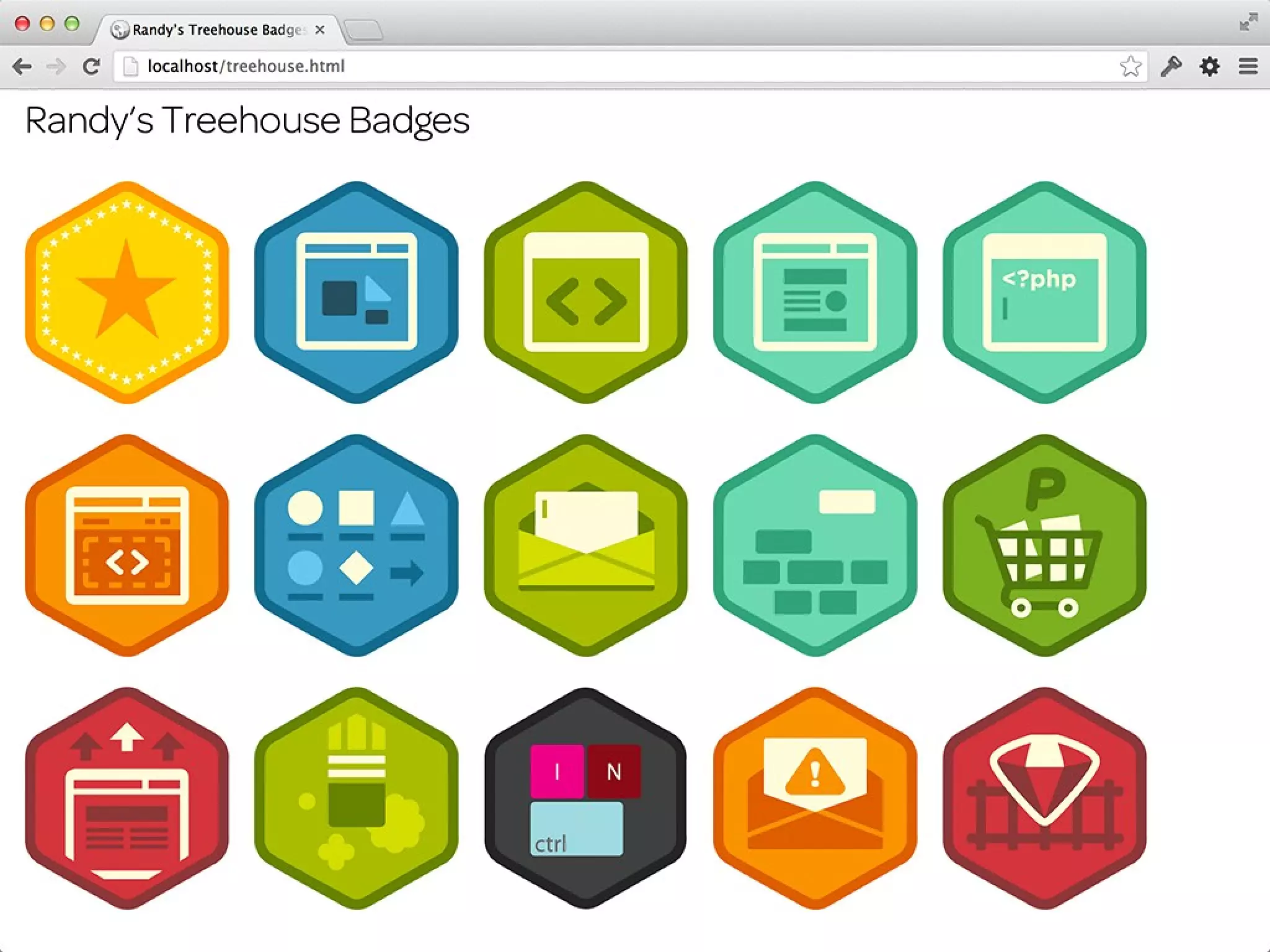

29. [Badge Display]

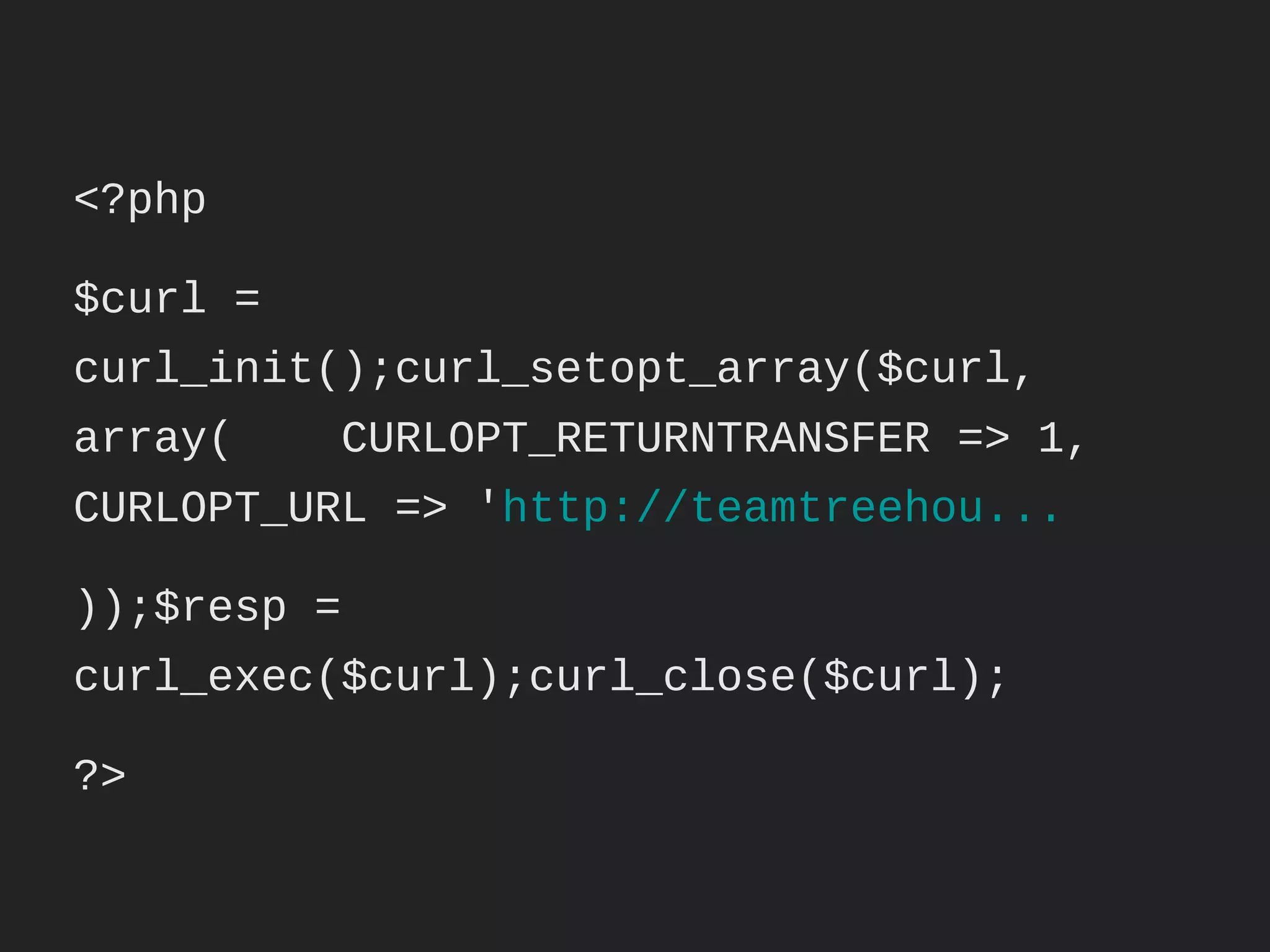

38. <?php
$curl = curl_init();
curl_setopt_array($curl, array(
CURLOPT_RETURNTRANSFER => 1,
CURLOPT_URL => 'http://teamtreehou...
));
$resp = curl_exec($curl);
curl_close($curl);
?>

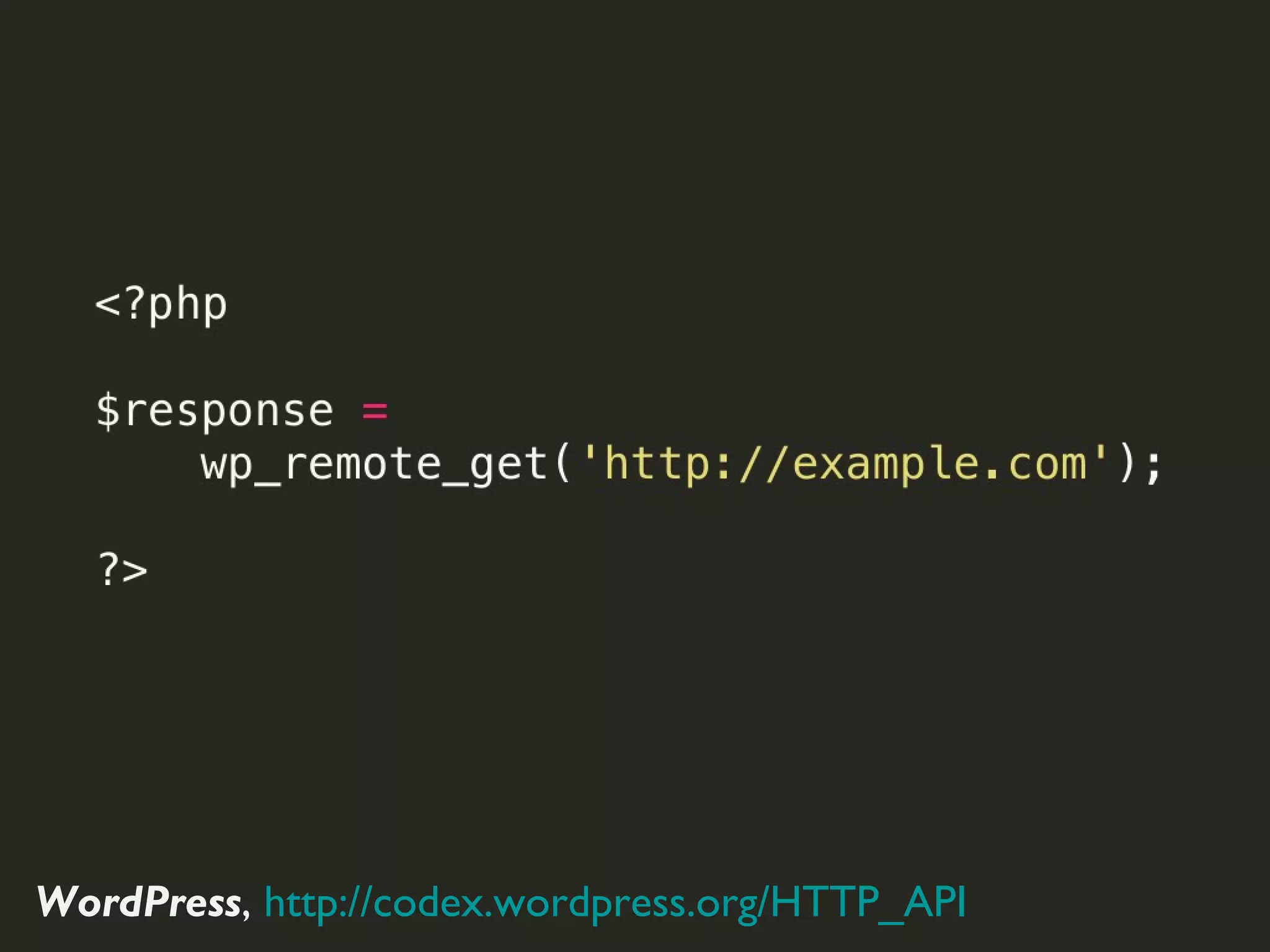

39. GET
Request
with
WordPress
HTTP
API
WordPress, http://codex.wordpress.org/HTTP_API

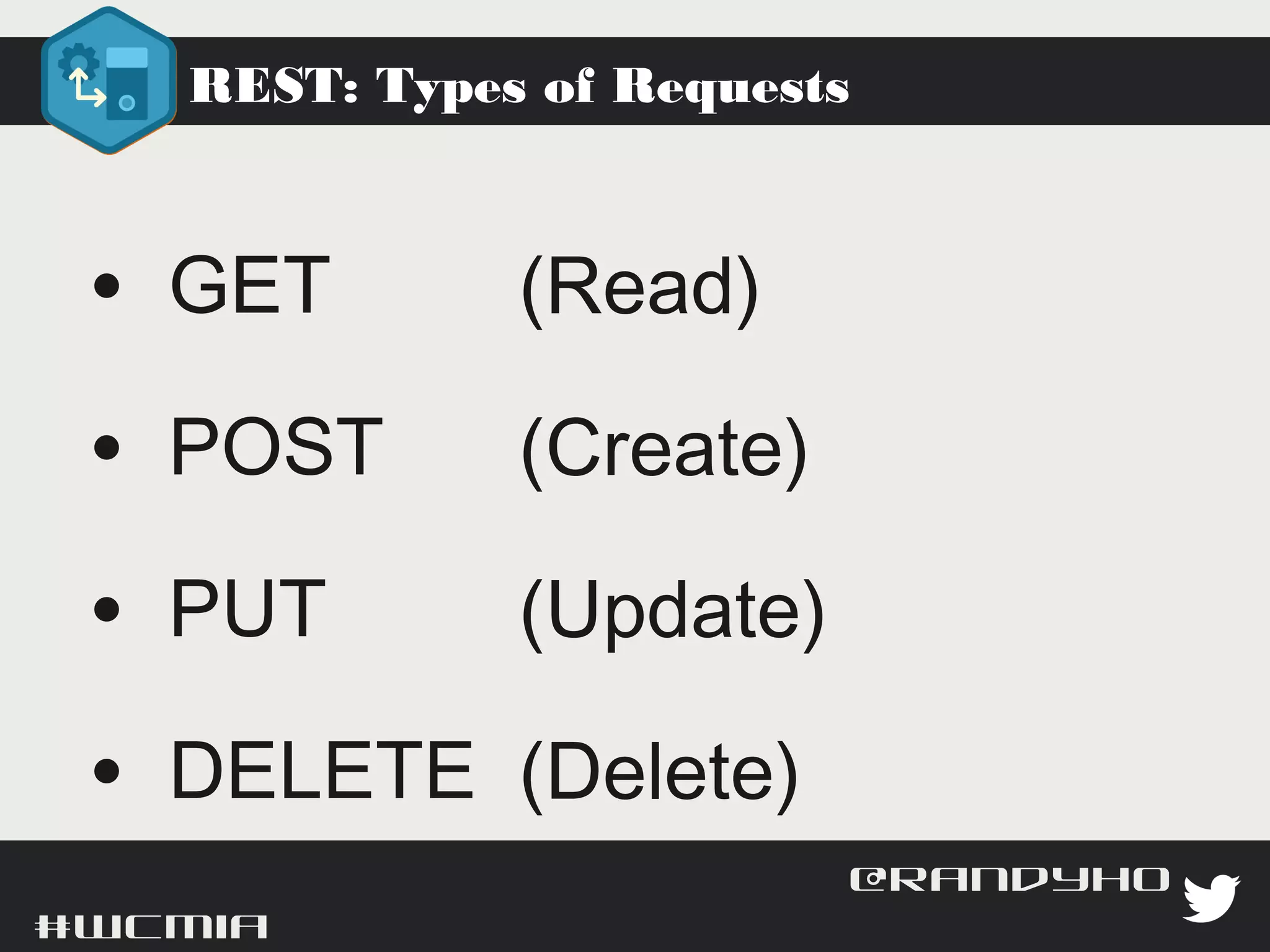

40. REST: Types of Requests
• GET (Read)
• POST (Create)
• PUT (Update)
• DELETE (Delete)
#wcmia @randyhoyt

46. API Questions
• Does it have to
be real time?
• What if something
goes wrong?
#wcmia @randyhoyt

47. Example #2: ShopLocket

48. [Screenshot of WP]

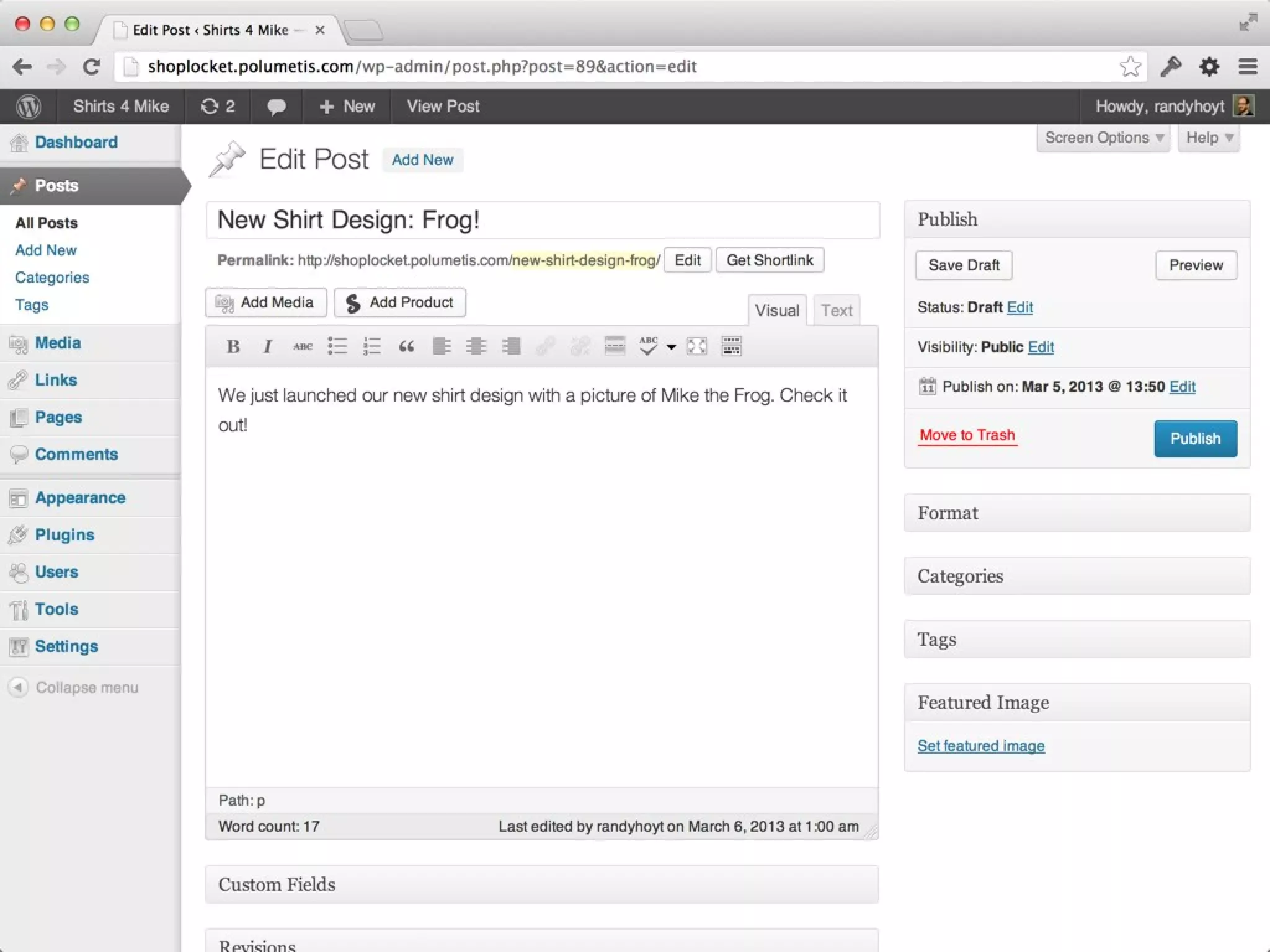

49. [Screenshot of WordPress]

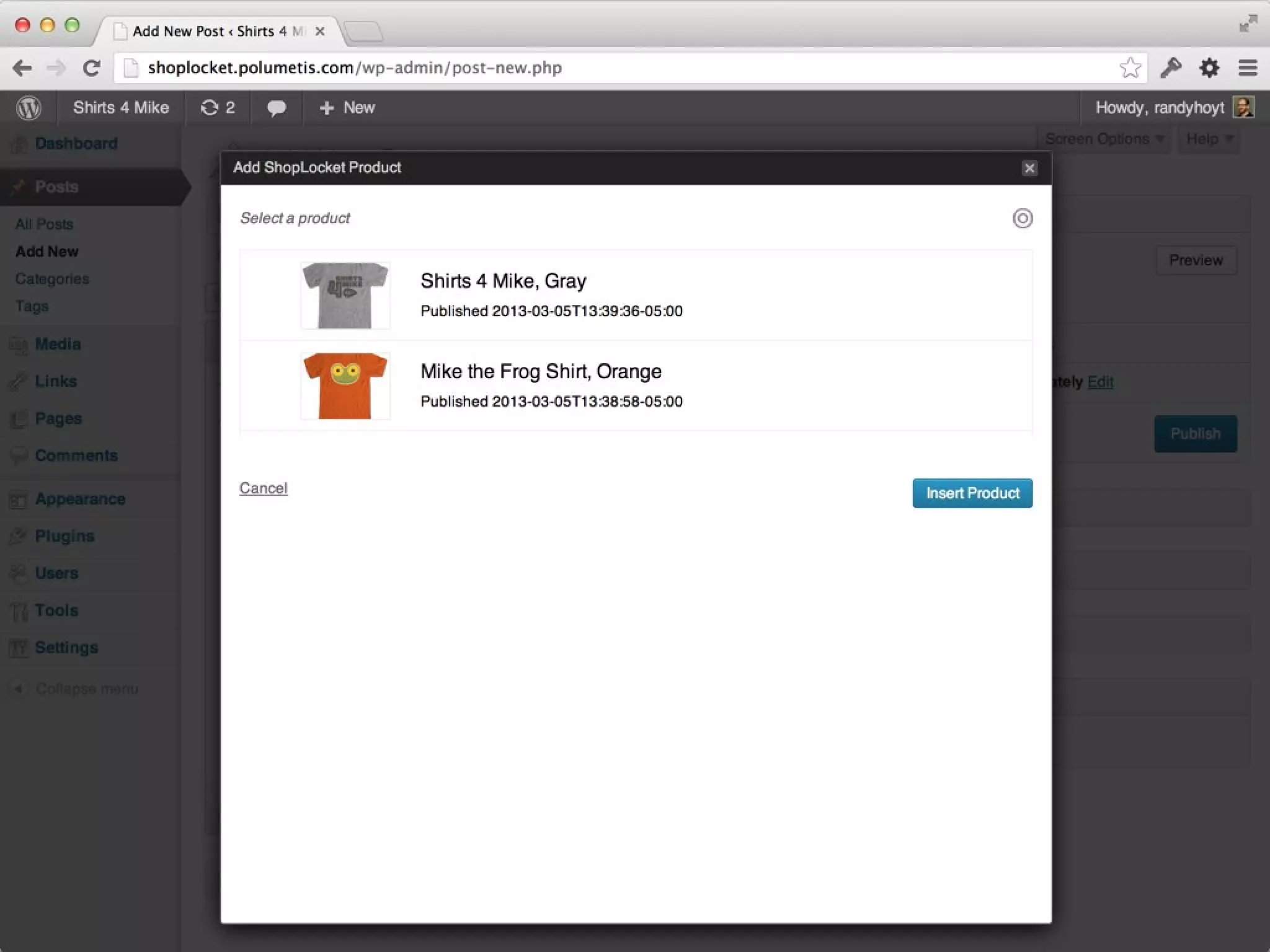

50. [Screenshot of Product Picker]

51. [Screenshot of Product Picker]

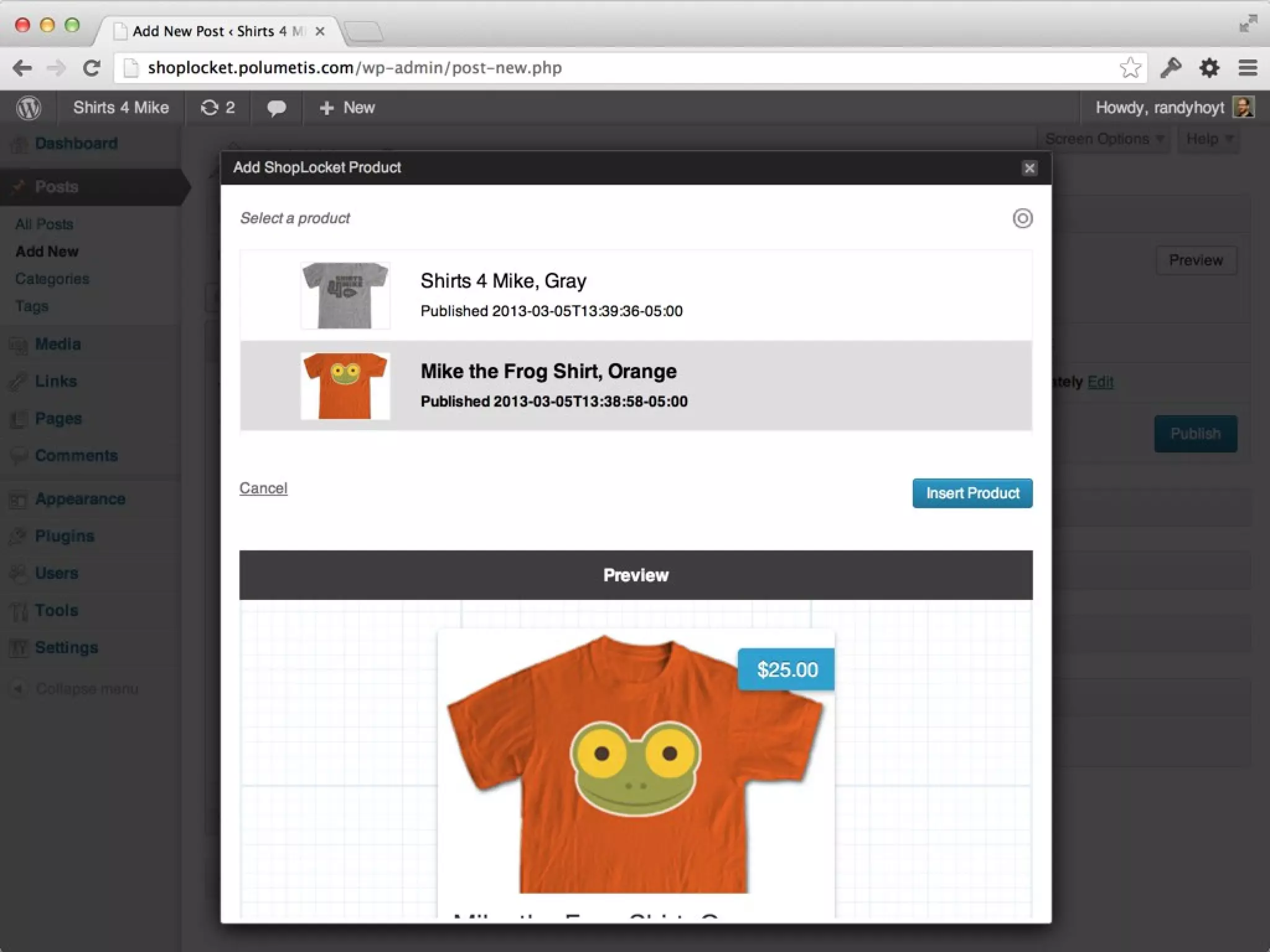

52. [Screenshot of Shortcode]

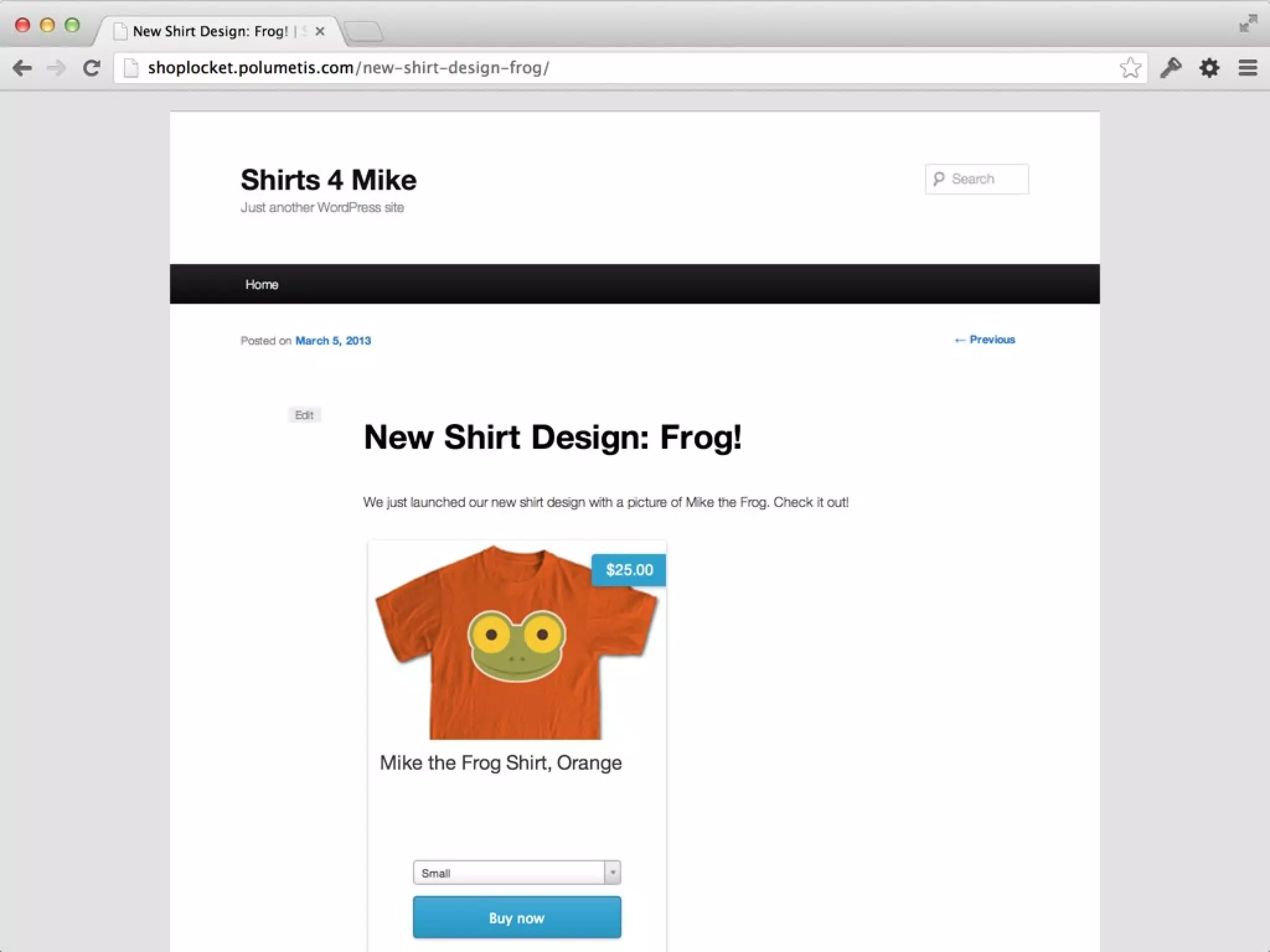

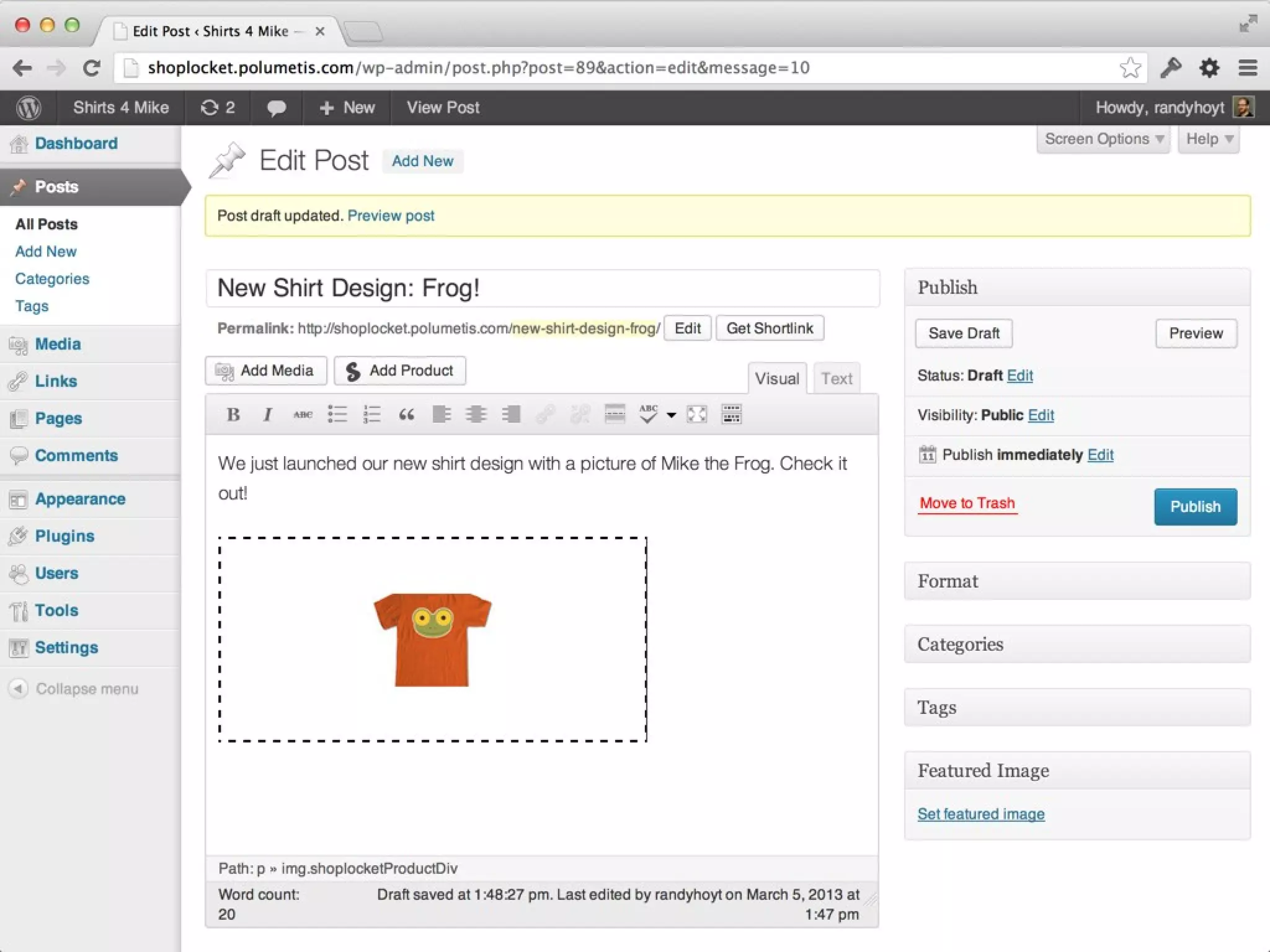

53. [Screenshot of Website]

54. Authentication

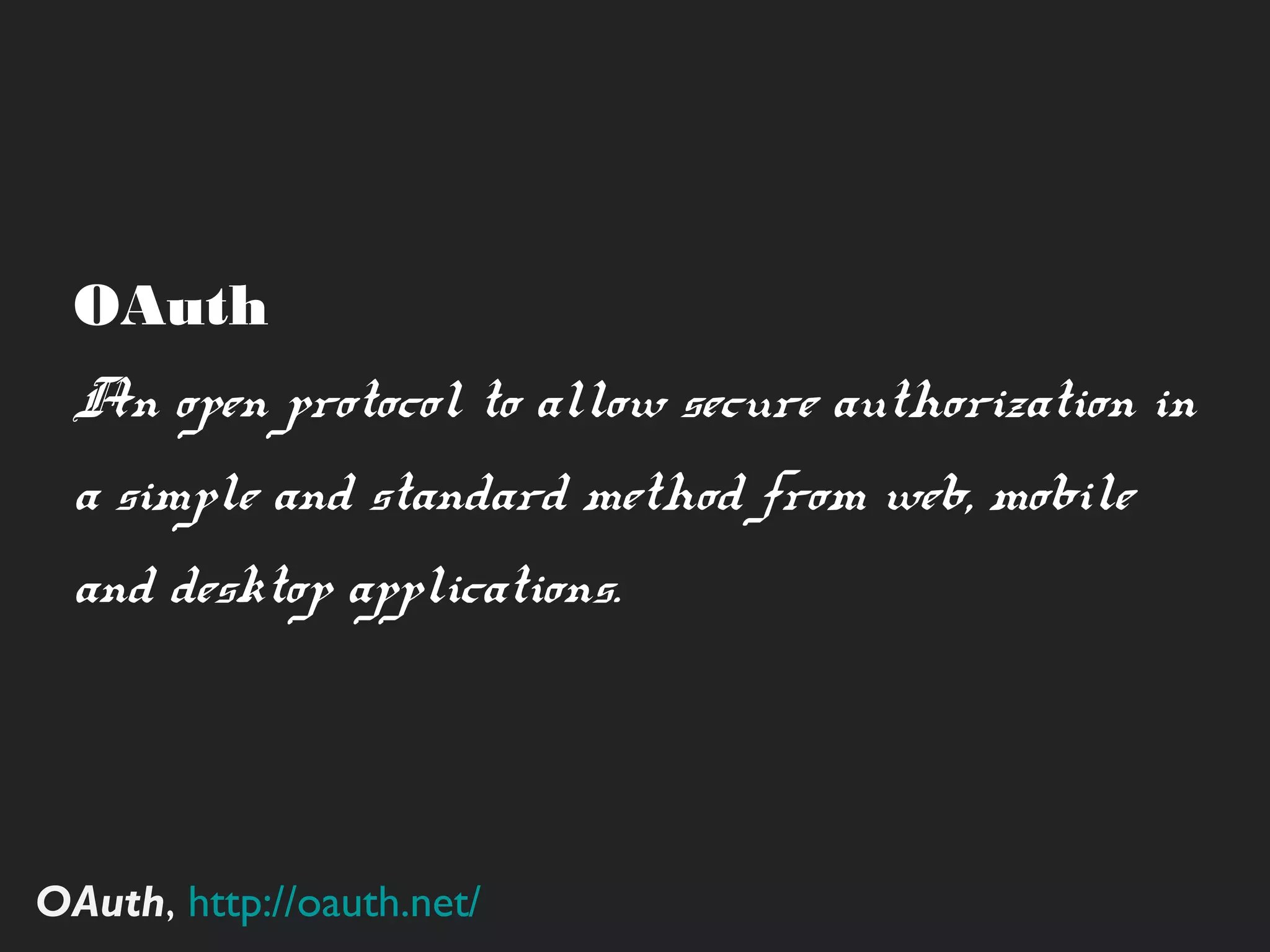

55. OAuth
An open protocol to allow secure
authorization in a simple and standard
method from web, mobile and desktop
applications.
OAuth, http://oauth.net/

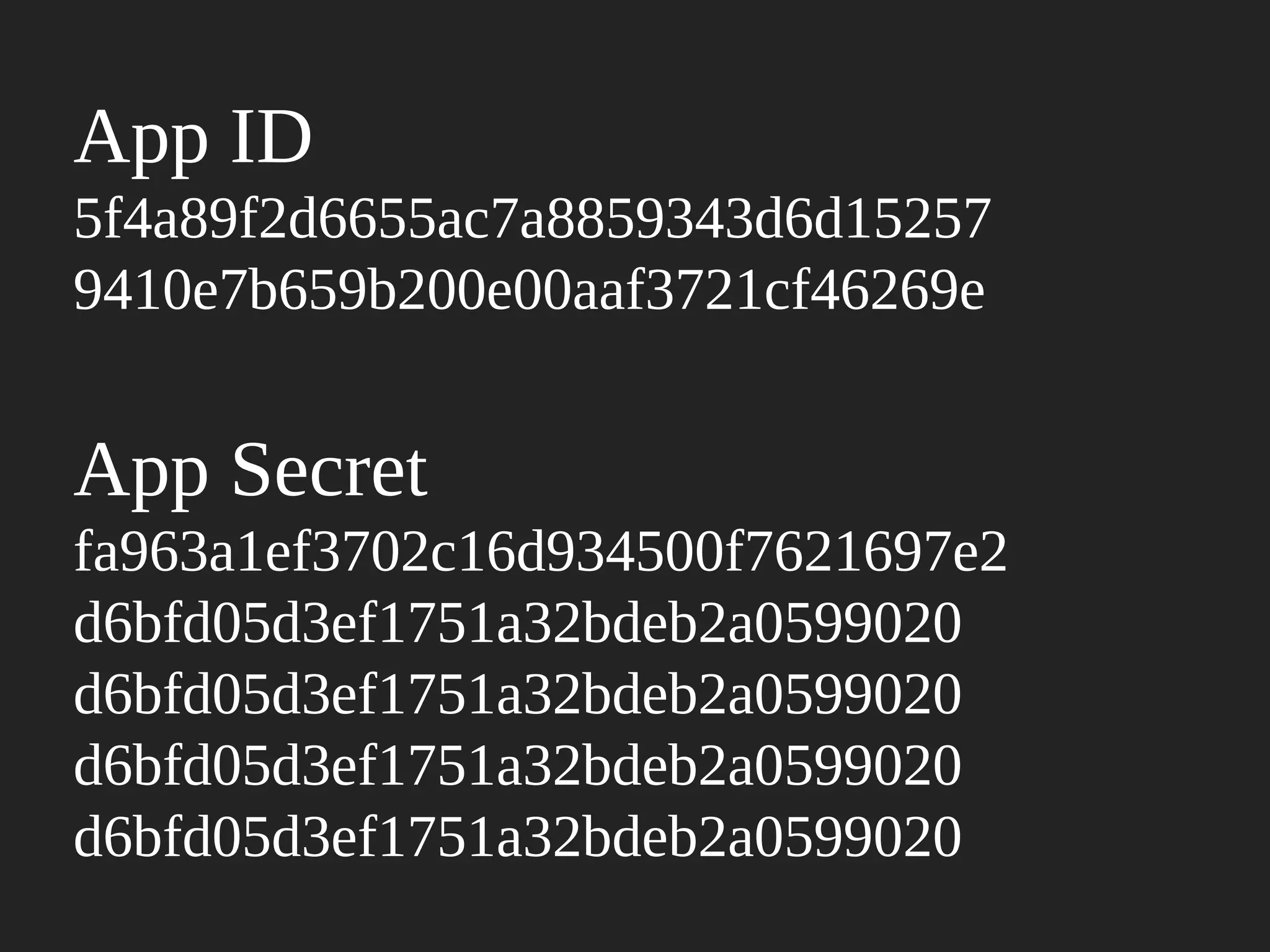

56. App ID
5f4a89f2d6655ac7a8859343d6d15257
9410e7b659b200e00aaf3721cf46269e
App Secret
fa963a1ef3702c16d934500f7621697e2
d6bfd05d3ef1751a32bdeb2a0599020

57. [ShopLocket]

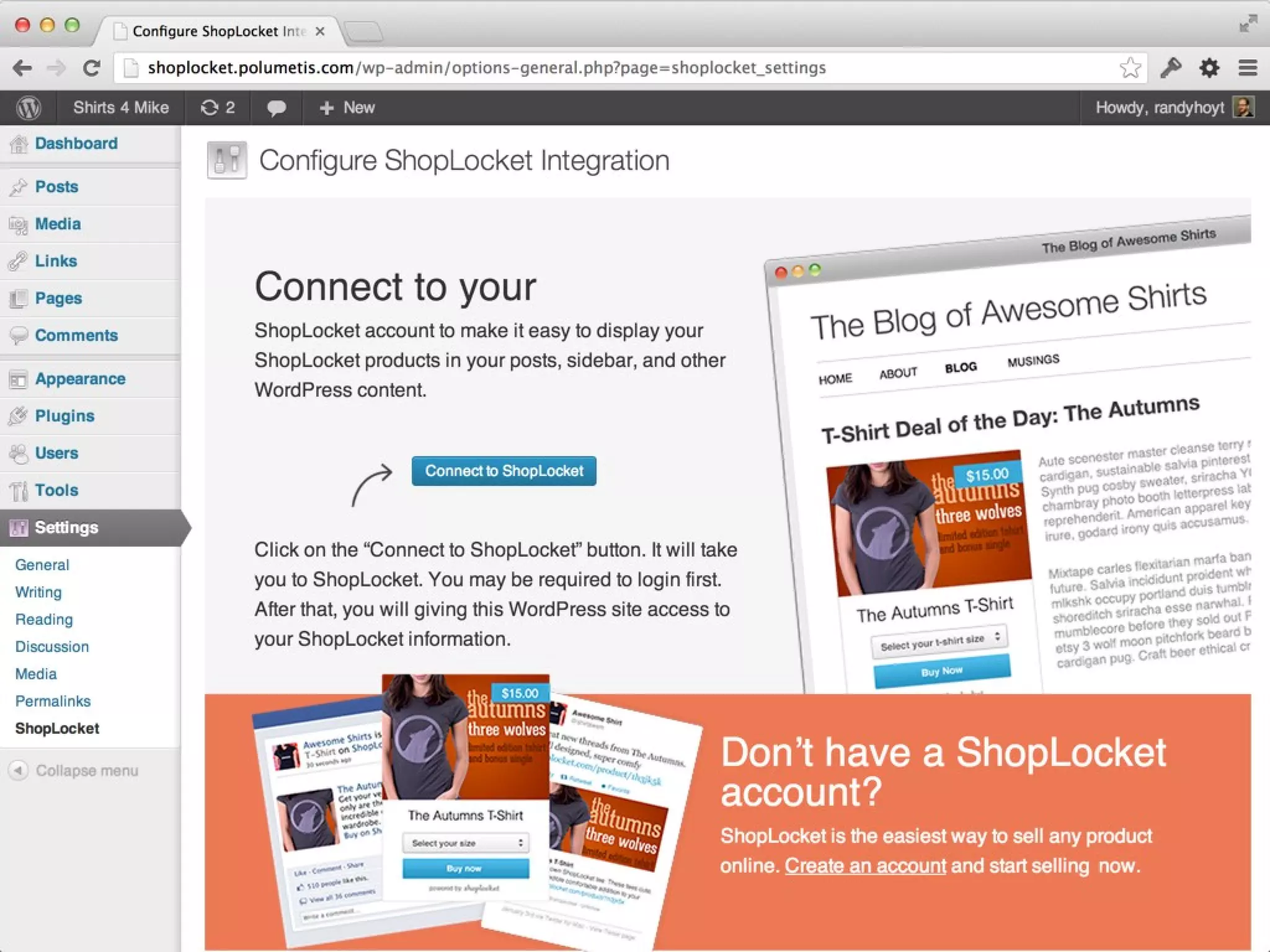

58. [ShopLocket Login]

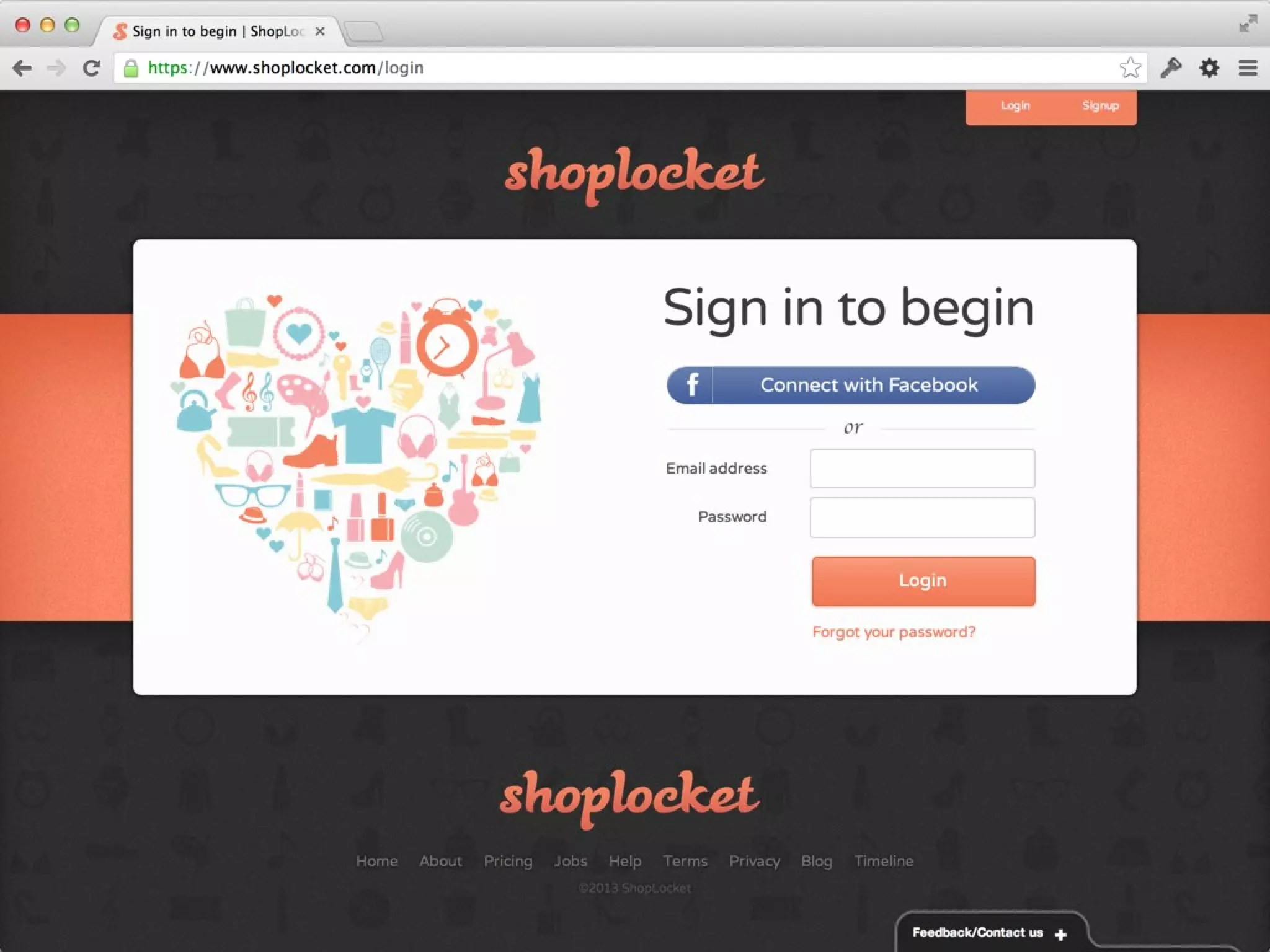

59. [ShopLocket]

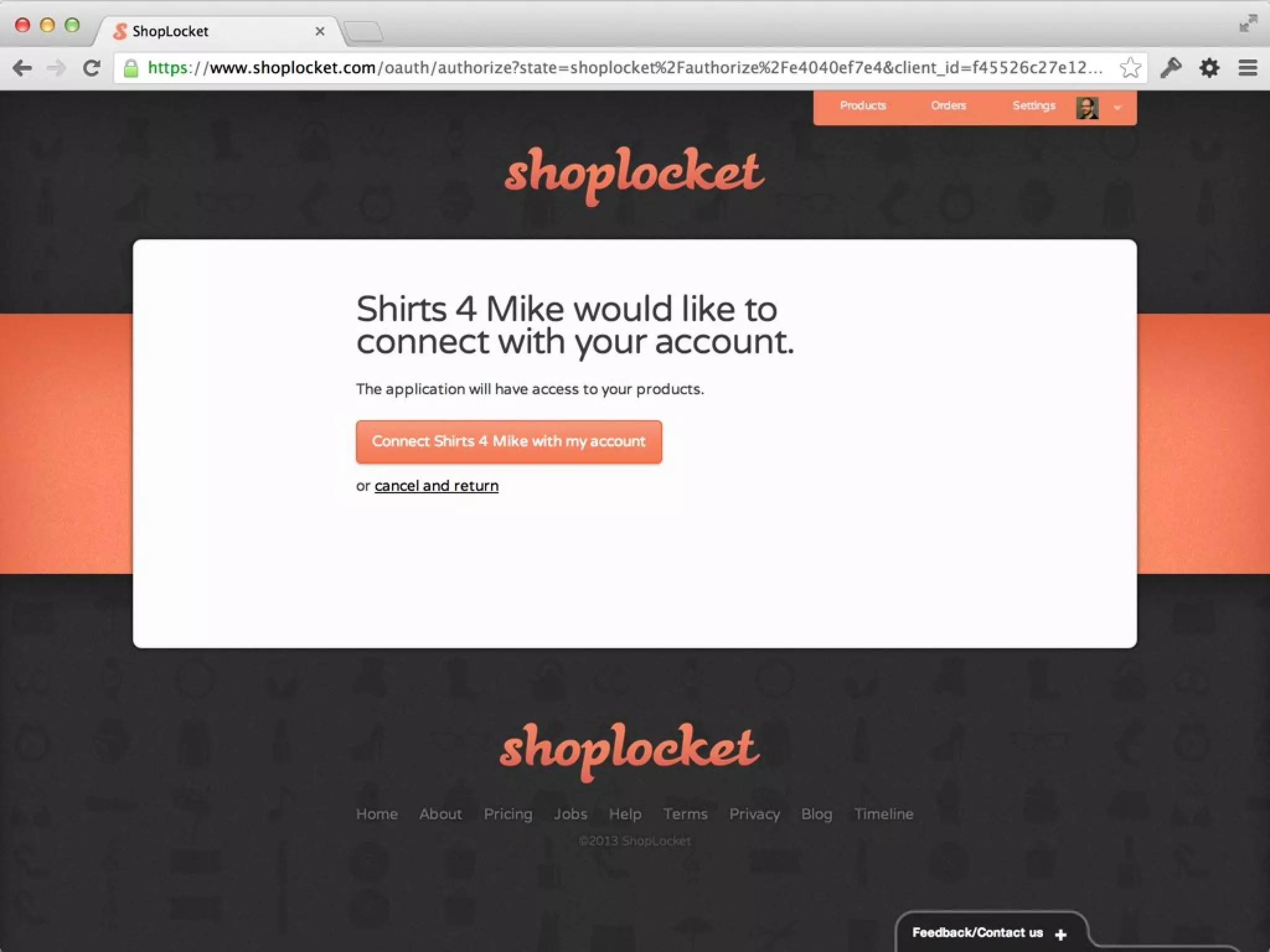

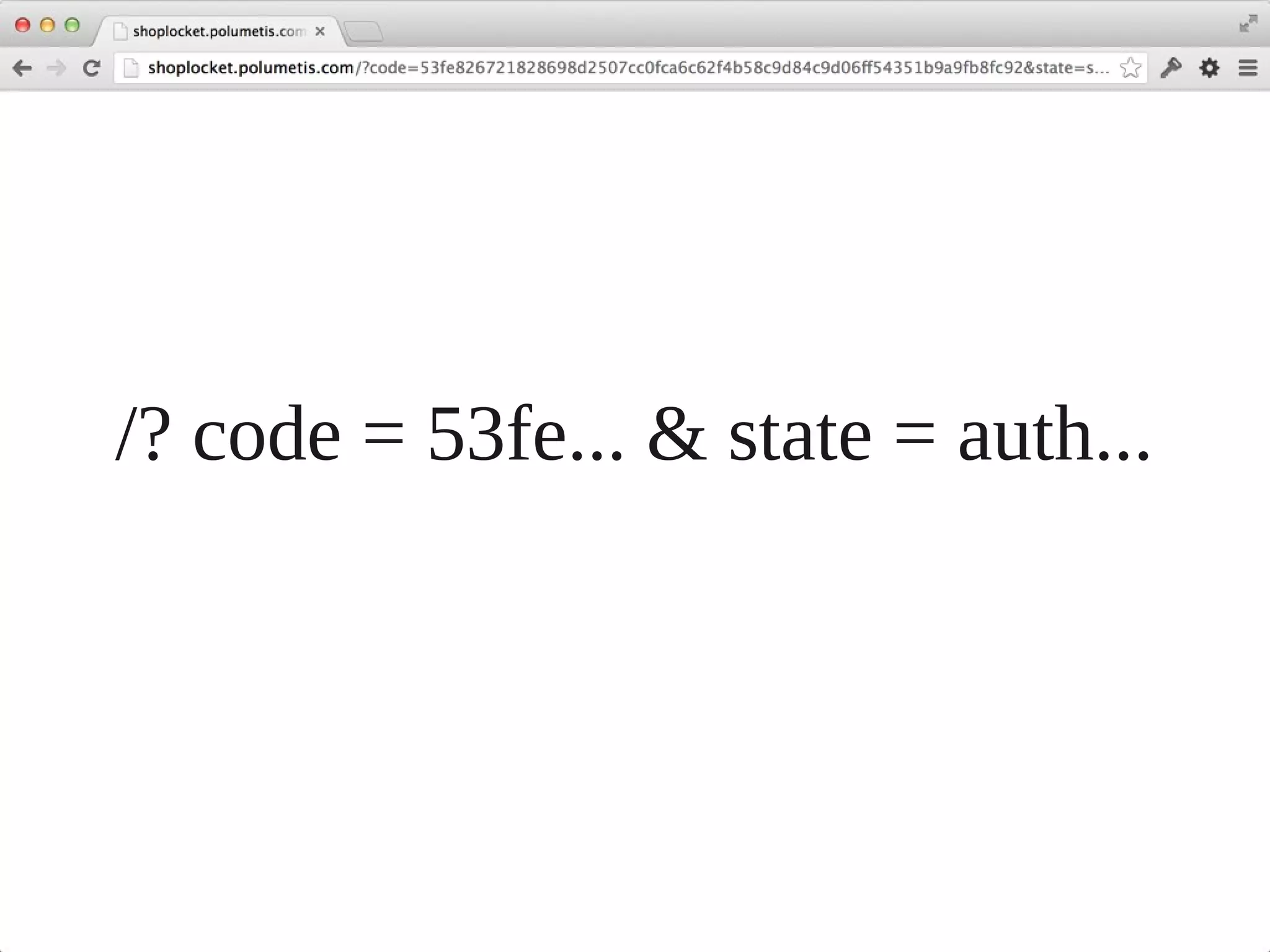

60. /? code = 53fe... & state = auth...

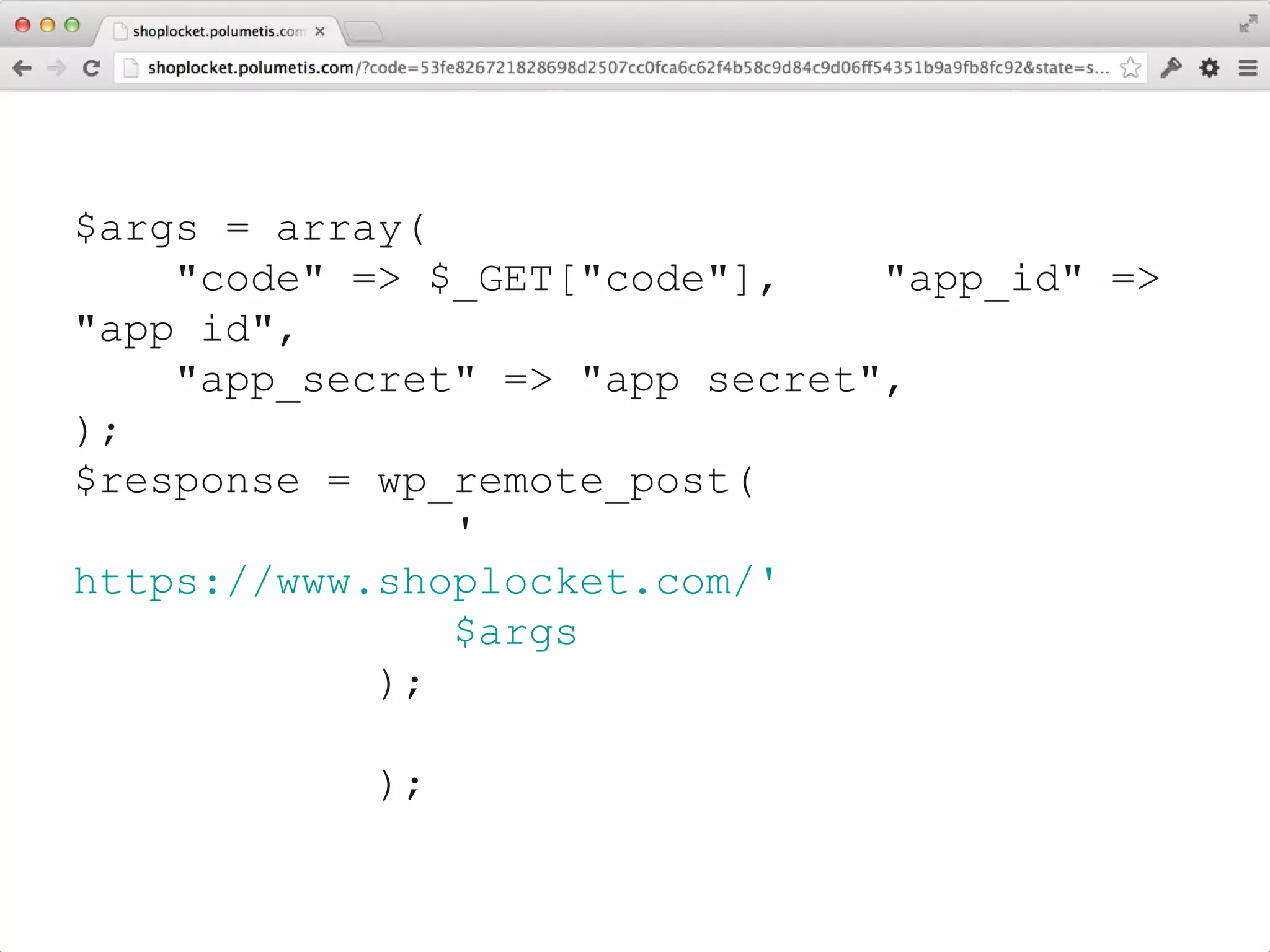

61. $args = array(
"code" => $_GET["code"],
"app_id" => "app id",
"app_secret" => "app secret",
);
[GET Request]
$response = wp_remote_post(
'https://www.shoplocket.com/'
. 'oauth/token',
$args
);

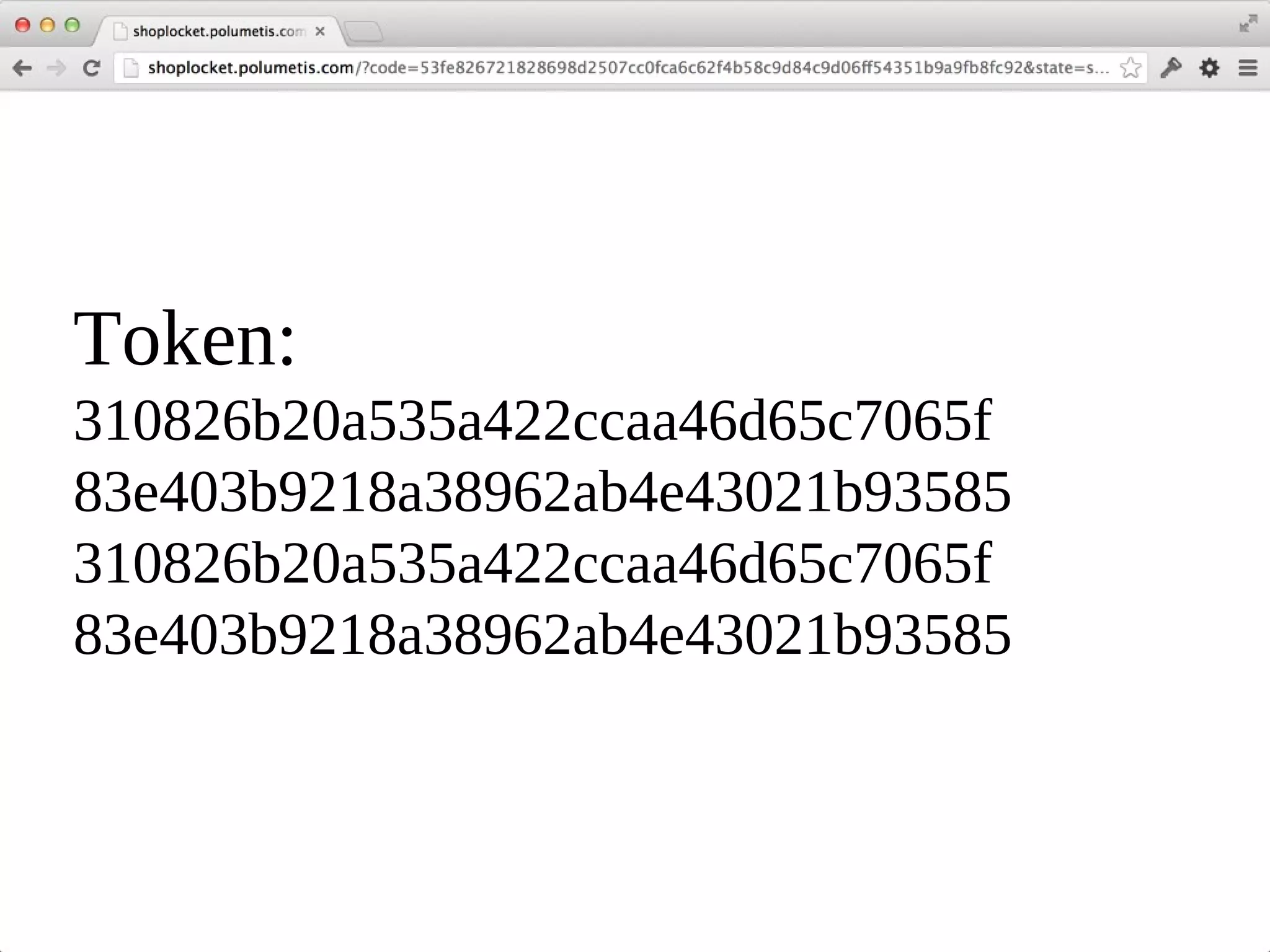

62. Token:
310826b20a535a422ccaa46d65c7065f
83e403b9218a38962ab4e43021b93585

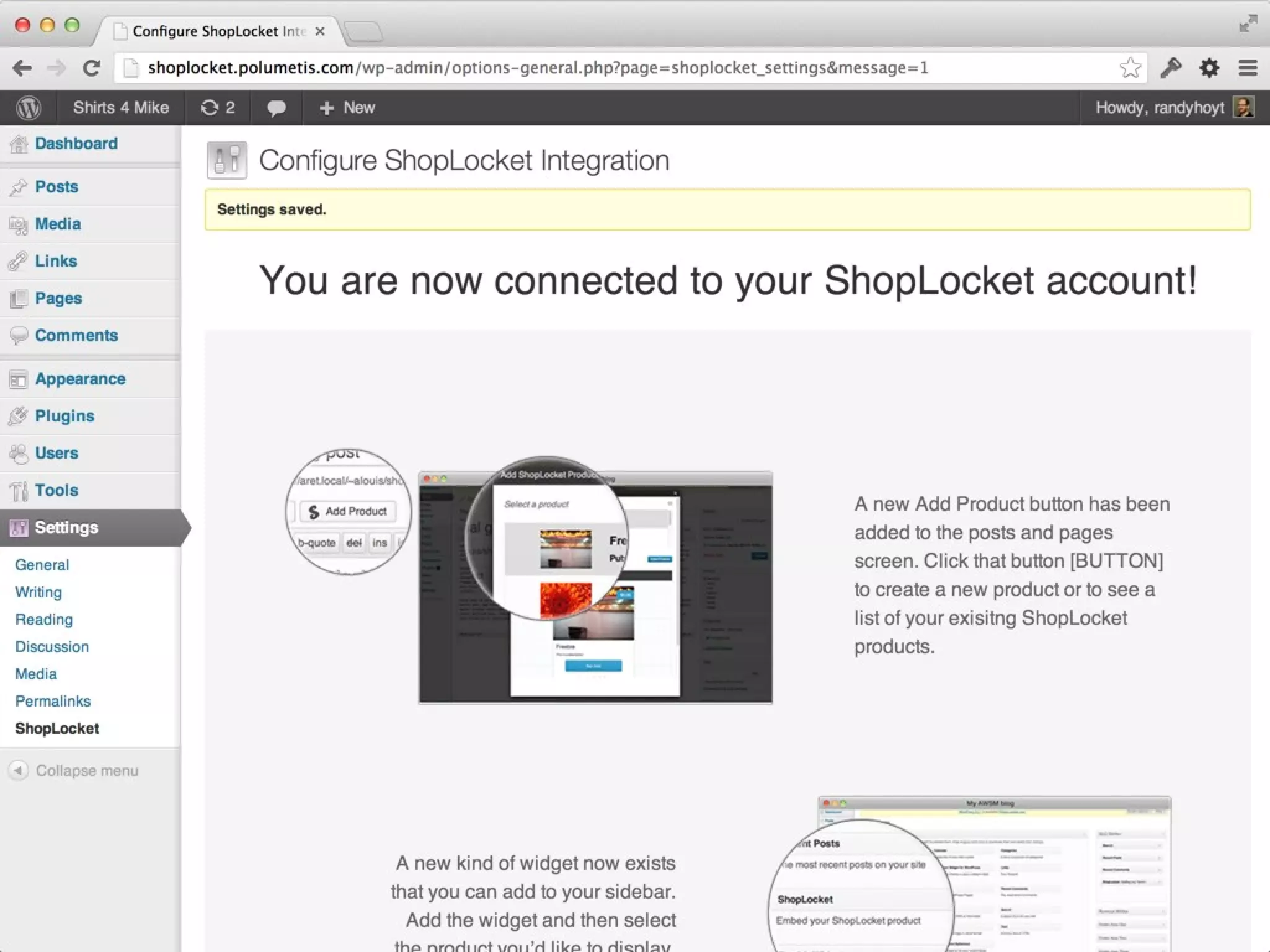

63. [Token]

64. API Questions
• Does it have to
be real time?
• What if something
goes wrong?
#wcmia @randyhoyt

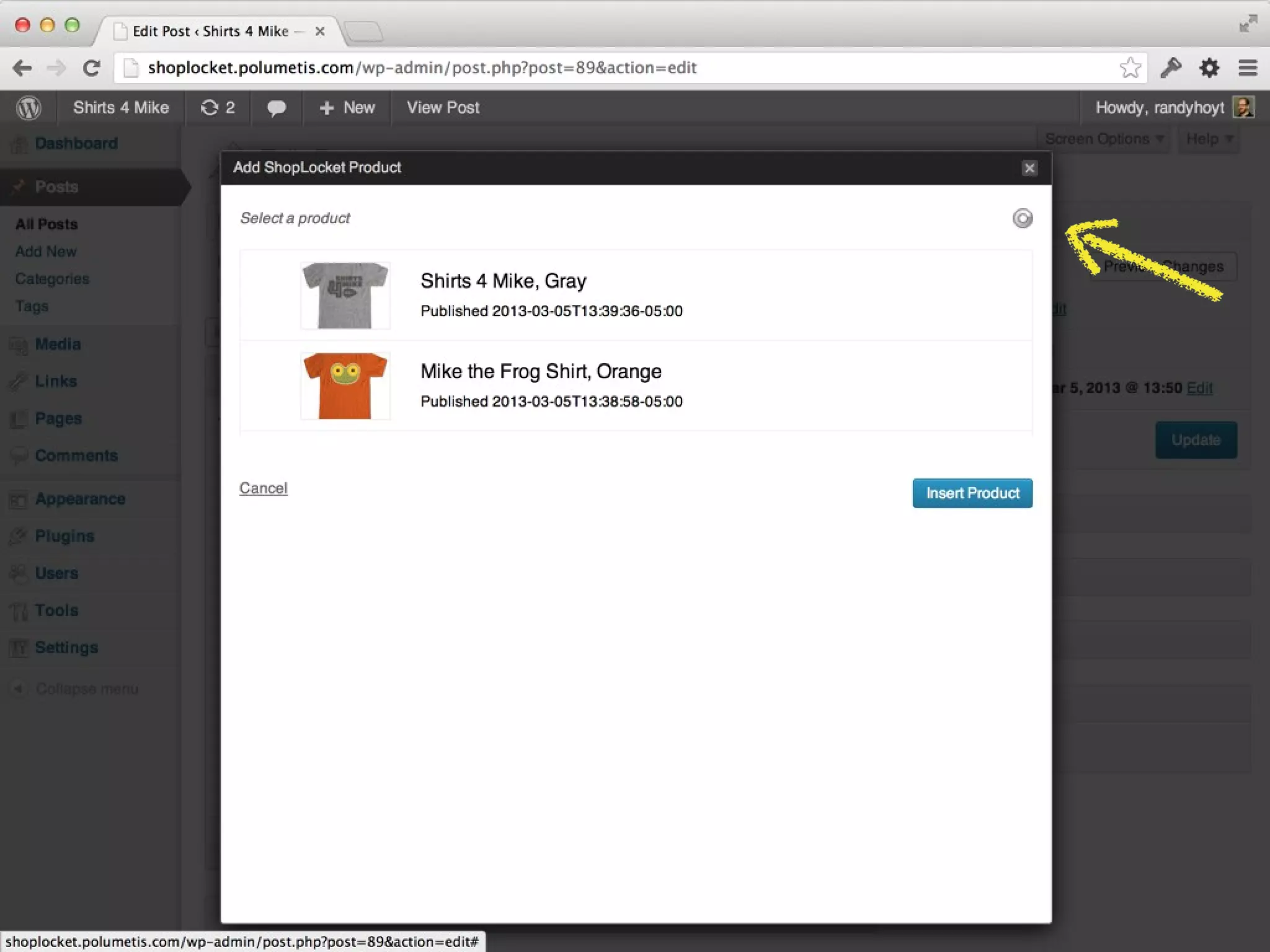

73. [Refresh Button]

75. WordPress Functions

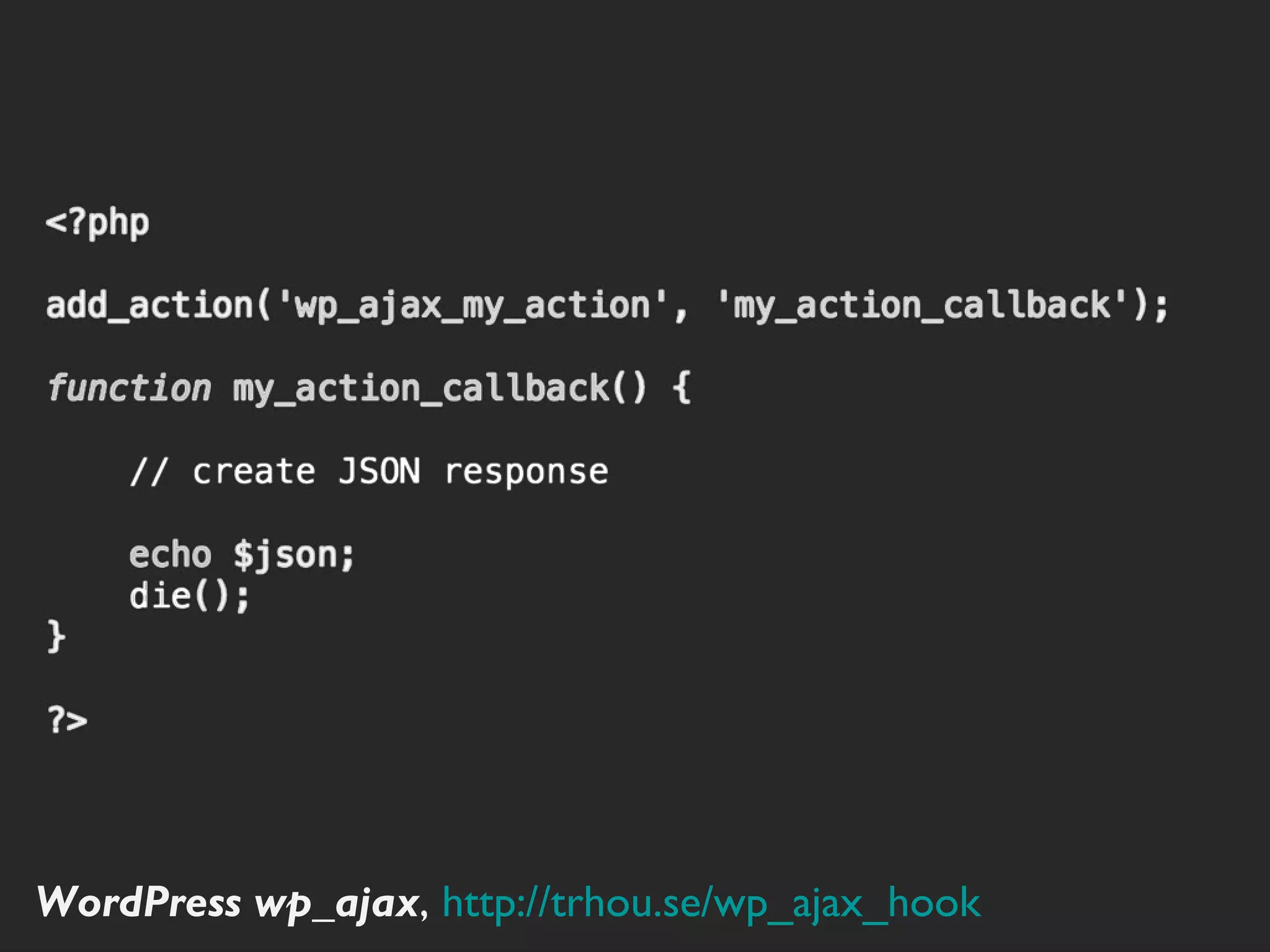

78. WordPress wp_ajax, http://trhou.se/wp_ajax_hook

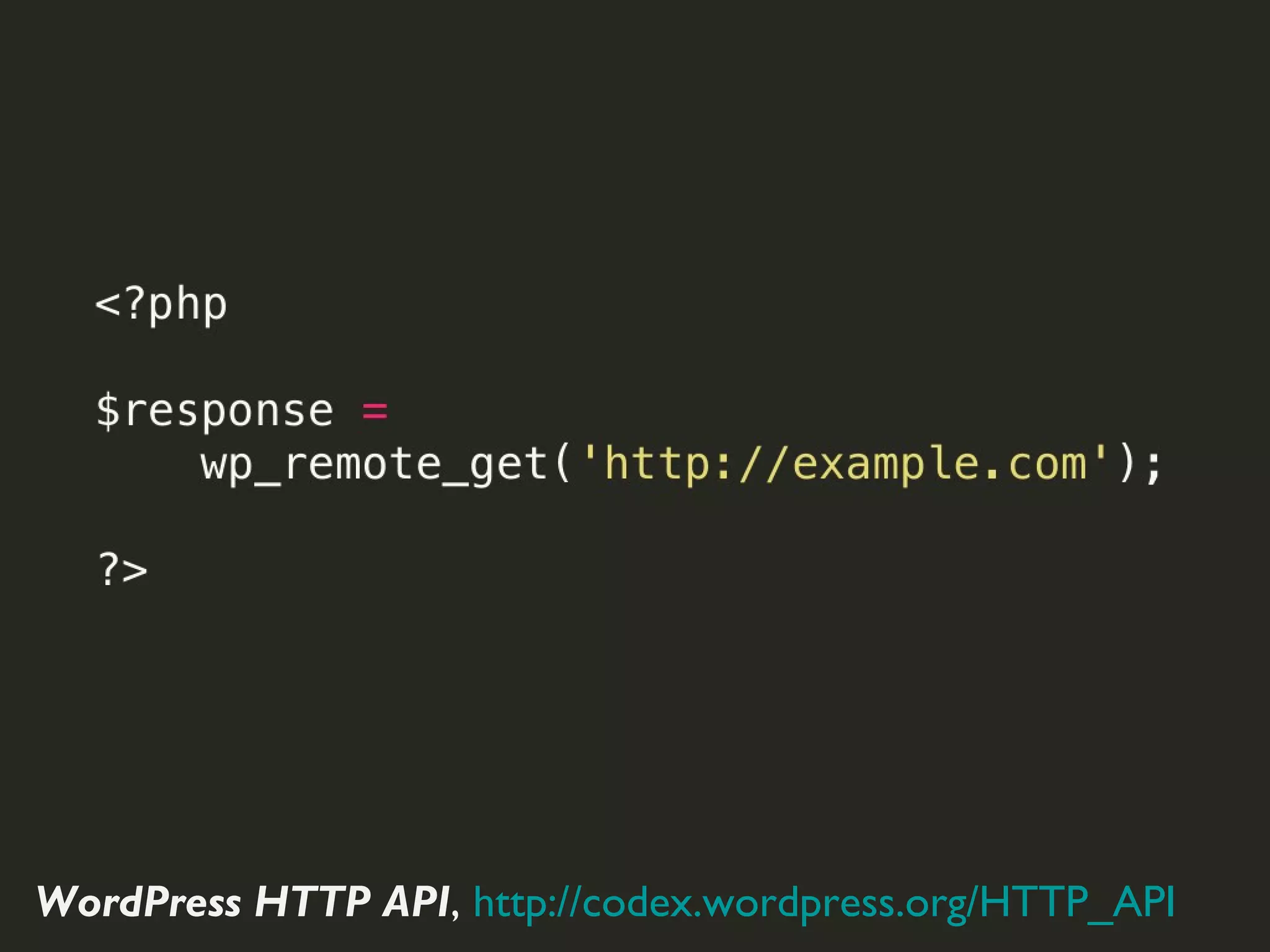

80. GET
Request
with
WordPress
HTTP
API
WordPress HTTP API, http://codex.wordpress.org/HTTP_API

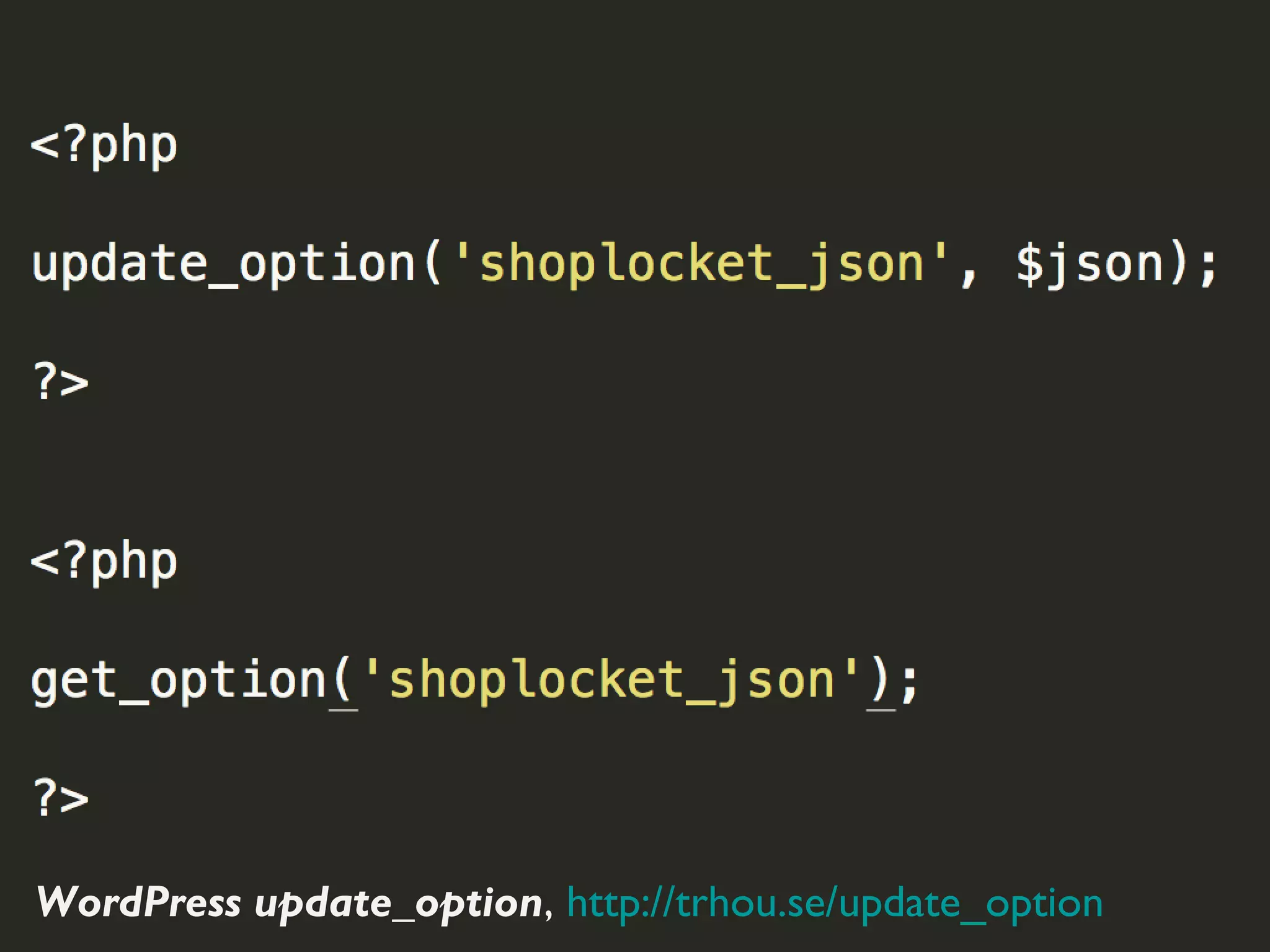

82. WordPress update_option, http://trhou.se/update_option

83. Transients?
WordPress, http://codex.wordpress.org/Transients_API

84. Integrating WordPress
With Web APIs
Randy Hoyt randyhoyt.com
@randyhoyt
Presentation randyhoyt.com/wcmia
