1. Technical Brief
In-Memory Compute Grid
GridGain Systems, November 2012
Introduction
To build truly scalable applications with real-time capabilities that are using large
amounts of data, the integration of in-memory storage (IMDG) with in-memory
processing (IMCG) is crucial. This is one of the main ideas in distributed high-
performance systems dealing with large datasets.
Yet the im-memory compute grid and its implementations are seen less frequently
than the storage aspect. This has mainly to do with historical reasons: to this day
most vendors concentrate first on storage technology, typically of the IMDG,
NoSQL or NewSQL variety. Once the storage product is built, adding any type of
non-rudimentary im-memory processing capability on top becomes increasingly
difficult, if not impossible. Because the IMCG capabilities are generally more
fundamental to the overall product, they have to be built first or tightly integrated
to be used at the core of the storage side.
GridGain and Hadoop are the only products on the market that have successfully
combined both storage and processing in one product, although they have done
this very differently.

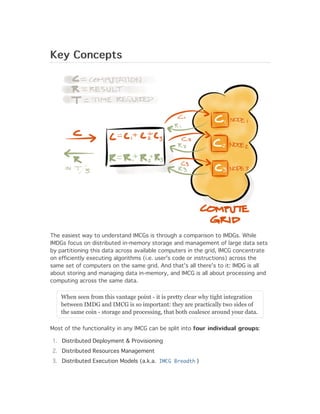

2. Key Concepts
The easiest way to understand IMCGs is through a comparison to IMDGs. While
IMDGs focus on distributed in-memory storage and management of large data sets
by partitioning this data across available computers in the grid, IMCG concentrate
on efficiently executing algorithms (i.e. user's code or instructions) across the
same set of computers on the same grid. And that's all there's to it: IMDG is all
about storing and managing data in-memory, and IMCG is all about processing and
computing across the same data.
When seen from this vantage point - it is pretty clear why tight integration
between IMDG and IMCG is so important: they are practically two sides of
the same coin - storage and processing, that both coalesce around your data.
Most of the functionality in any IMCG can be split into four individual groups
groups:
1. Distributed Deployment & Provisioning
2. Distributed Resources Management
3. Distributed Execution Models (a.k.a. IMCG Breadth )

3. 4. Distributed Execution Services (a.k.a. IMCG Depth )
1. Distributed Deployment & Provisioning
Historically deployment and provisioning of the user's code onto the grid for
execution was one of the core reasons why grid computing in general was
considered awkward and cumbersome at best, and downright unusable at worst.
From the early products like Globus, Grid Engine, DataSynapse, Platform
Computing, and such, to today's Hadoop and most of the NoSQL projects -
deploying and re-deploying your changes is a manual step that involves rebuilding
all of your libraries, copying them everywhere, and restarting your services. Some
systems will do copying & restarting for you (Hadoop) and some will require you to
do it manually via some UI-based crutch.
This problem is naturally exacerbated by the fact that IMCGs are a distributed
technology to begin with and are routinely used on topologies consisting of dozens
if not hundreds of computers. Stopping services, redeploying libraries and re-
starting services during developing, CI testing and staging in such topologies
becomes a major issue.
GridGain is the first IMCG that simplifies this issue by providing "zero deployment"
capabilities. With "zero depoloyment" all necessary JVM classes and resources are
loaded on demand. Further, GridGain provides three different modes of peer-to-
peer deployment supporting the most complex deployment environments like
custom class loaders, WAR/EAR files, etc.
Zero deployment technology enables users to simply bring default GridGain nodes
online with these nodes then immediately becoming part of the data and compute
grid topology that can store any user objects or perform any user tasks without
any need for explicit deployment of user’s classes or resources.
2. Distributed Resources Management
Resource management in distributed systems usually refers to the ability to
manage physical devices such as computers, networks, and storage as well as
software components like JVM, runtimes and OSes. Specifics of that obviously
differ based on whether or not the IMCG is deployed on some kind of managed
infrastructure like AWS, how it is DevOps managed, etc.
One of the most important resource management functions of any IMCG is
automatic discovery and maintaining consistent topology (i.e. the set of compute
nodes). Automatic discovery allows the user to add and remove compute nodes
from the IMCG topology at runtime while maintaining zero downtime for the tasks
running on the IMCG. Consistent topology ensures that any topology changes
(nodes failing and leaving, or new nodes joining) viewed by all compute nodes in

4. the same order and consistently.
GridGain provides the most sophisticated discovery system among any IMCG.
Pluggable and user-defined Discovery SPI is at the core of GridGain's ability to
provide fully automatic and consistent discovery functionality for GridGain nodes.
GridGain is shipped with several out-of-the-box implementations including IP-
multicast- and TCP/IP-based implementations with direct support for AWS S3 and
Zookeeper.
3. Distributed Execution Models (a.k.a IMCG Breadth )
Support for different distributed execution models is what makes IMCG a compute
framework. For clarity let's draw a clear distinction between an execution model
(such as MapReduce) and the particular algorithms that can be implemented using
this model (i.e. Distributed Search): there is a finite set of execution models but
practically an infinite set of possible algorithms.
Generally, the goal of any IMCG (as well as of any compute framework in general) is
to support as many different execution models as possible, providing the end-user
with the widest set of options on how a particular algorithm can be implemented
and ultimately executed in the distributed environment. That's why we often
call it IMCG Breadth .
GridGain's IMCG, for a example, provides direct support for the following execution
models:
MapReduce Processing
GridGain provides general distributed fork-join type of processing optimized
for in-memory. More specifically, MapReduce type processing defines the
method of splitting original compute task into multiple sub-tasks, executing
these sub-tasks in parallel on any managed infrastructure and aggregating
(a.k.a. reducing) results back to one final result.
GridGain's MapReduce is essentially a distributed computing paradigm that
allows you to map your task into smaller jobs based on some key, execute
these jobs on Grid nodes, and reduce multiple job results into one task result.
This is essentially what GridGain’s MapReduce does. However, the difference
of GridGain MapReduce from other MapReduce frameworks, like Hadoop for
example, is that GridGain MapReduce is geared towards streaming low-latency
in-memory processing.
If Hadoop MapReduce task takes input from disk, produces intermediate
results on disk and outputs result onto disk, GridGain does everything Hadoop
does in memory – it takes input from memory via direct API calls, produces
intermediate results in memory and then creates result in-memory as well. Full

5. in-memory processing allows GridGain provide results in sub-seconds whereas
other MapReduce frameworks would take minutes.
Streaming Processing & CEP
Streaming processing and corresponding Complex Event Processing (CEP) is a
type of processing where input data is not static but rather constantly
"streaming" into the system. Unlike other MapReduce frameworks which
spawn different external executable processes which work with data from disk
files and produce output onto disk files (even when working in streaming
mode), GridGain Streaming MapReduce seamlessly works on streaming data
directly in-memory.
As the data comes in into the system, user can keep spawning MapReduce
tasks and distribute them to any set of remote nodes on which the data is
processed in parallel and result is returned back to the caller. The main
advantage is that all MapReduce tasks execute directly in-memory and can
take input and store results utilizing GridGain in-memory caching, thus
providing very low latencies.
MPP/RPC Processing
GridGain also provides native support for classic MPP (massively parallel
processing) and RPC (Remote Procedure Call) type of processing including
direct remote closure execution, unicast/broadcast/reduce execution
semantic, shared distribution sessions and many other features.
MPI
MPI-style Processing
GridGain's high performance distributed messaging provides MPI-style (i.e.
message passing based distribution) processing capabilities. Built on
proprietary asynchronous IO and world's fastest marshaling algorithm GridGain
provides synchronous and asynchronous semantic, distributed events and
pub-sub messaging in a distributed environment.
AOP/OOP/FP/SQL Integrated Processing
GridGain is the only platform that integrates compute grid capabilities into
existing programming paradigms such as AOP, OOP, FP and SQL:
You can use AOP to annotate your Java or Scala code for automatic
MapReduce or MPP execution on the grid.
You can use both OOP and pure FP APIs for MapReduce/MPP/RPC
execution of your code.
GridGain allows to inject executable closures into SQL execution plan

6. allowing you to inject your own filters, local and remote reducers right
into the ANSI SQL.
3. Distributed Execution Services (a.k.a IMCG Depth )
In many respects the distributed execution services is the "meat" around
proverbial execution models' "bones". Execution services refer to many dozens of
deep IMCG features that support various execution strategies and models including
services such as distributed failover, load balancing, collision resolution, etc. -
hence the moniker of IMCG Depths .
Many such features are shared between different IMCGs and general compute
frameworks - but some are unique to a particular product. Here is a short list of
some of the key execution services provided by GridGain's IMCG:
Pluggable Failover
Failover management and resulting fault tolerance is a key property of any
grid computing infrastructure. Based on its SPI-based architecture GridGain
provides totally pluggable failover logic with several popular implementations
available out-of-the-box. Unlike other grid computing frameworks GridGain
allows to failover the logic and not only the data.
With grid task being the atomic unit of execution on the grid the fully
customizable and pluggable failover logic enables developer to choose specific
policy much the same way as one would choose concurrency policy in RDBMS
transactions.
Moreover, GridGain allows to customize the failover logic for all tasks, for
group of tasks or even for every individual task. Using meta-programming
techniques the developer can even customize the failover logic for each task
execution.
This allows to fine tune how grid task reacts to the failure, for example:
Fail entire task immediately upon failure of any of its jobs (fail-fast
approach)
Failover failed job to other nodes until topology is exhausted (fail-slow
approach)
Pluggable Topology Resolution
GridGain provides the ability to either directly or automatically select a subset
of grid nodes (i.e. a topology) on which MapReduce tasks will be executed.
This ability gives tremendous flexibility to the developer in deciding where its
task will be executed. The decision can be based on any arbitrary user or

7. system information. For example, time of the day or day of the week, type of
task, available resources on the grid, current or average stats from a given
node or aggregate from a subset of nodes, network latencies, predefined
SLAs, etc.
Pluggable Resource Matching
For cases when some grid nodes are more powerful or have more resources
than others you can run into scenarios where nodes are not fully utilizes or
over-utilized. Under-utilization and over-utilization are both equally bad for a
grid – ideally all grid nodes in the grid should be equally utilized. GridGain
provides several ways to achieve equal utilization across the grid including, for
example:
Weighted Load Balancing
If you know in advance that some nodes are, say, 2 times more powerful than
others, you can attach proportional weights to the nodes. For examples, part
of your grid nodes would get weight of 1 and the other part would get weight
of 2. In this case job distribution will be proportional to node weights and
nodes with heavier weight will proportionally get more jobs assigned to them
than nodes with lower weights. So nodes with weight 2 will get 2 times more
jobs than nodes with weight 1.
Adaptive Load Balancing
For cases when nodes are not equal and you don’t know exactly how different
they are, GridGain will automatically adapt to differences in load and
processing power and will send more jobs to more powerful nodes and less
jobs to weaker nodes. GridGain achieves that by listening to various metrics
on various nodes and constantly adapting its load balancing policy to the
differences in load.
Pluggable Collision Resolution
Collision resolution allows to regulate how grid jobs get executed when they
arrive on a destination node for execution. Its functionality is similar to tasks
management via customizable GCD (Great Central Dispatch) on Mac OS X as it
allows developer to provide custom job dispatching on a single node. In
general a grid node will have multiple jobs arriving to it for execution and
potentially multiple jobs that are already executing or waiting for execution on
it. There are multiple possible strategies dealing with this situation, like all
jobs can proceed in parallel, or jobs can be serialized i.e., or only one job can
execute in any given point of time, or only certain number or types of grid
jobs can proceed in parallel, etc...
Pluggable Early and Late Load Balancing

8. GridGain provides both early and late load balancing for our Compute Grid that
is defined by load balancing and collision resolution SPIs – effectively enabling
full customization of the entire load balancing process. Early and late load
balancing allows adapting the grid task execution to non-deterministic nature
of execution on the grid.
Early load balancing is supported via mapping operation of MapReduce
process. The mapping – the process of mapping jobs to nodes in the resolved
topology – happens right at the beginning of task execution and therefore it
is considered to be an early load balancing
Once jobs are scheduled and have arrived on the remote node for execution
they get queued up on the remote node. How long this job will stay in the
queue and when it’s going to get executed is controlled by the collision SPI –
that effectively defines the late load balancing stage.
One implementation of the load balancing orchestrations provided out-of-the-
box is a job stealing algorithm. This detects imbalances at a late stage and
sends jobs from busy nodes to the nodes that are considered free right
before the actual execution.
Grid and cloud environments are often heterogeneous and non-static, tasks
can change their complexity profiles dynamically at runtime and external
resources can affect execution of the task at any point. All these factors
underscore the need for proactive load balancing during initial mapping
operation as well as on destination nodes where jobs can be in waiting
queues.
Distributed Task Session
A distributed task session is created for every task execution and allows for
sharing state between different jobs within the task. Jobs can add, get, and
wait for various attributes to be set, which allows grid jobs and tasks to
remain connected in order to synchronize their execution with each other and
opens a solution to a whole new range of problems.
Imagine for example that you need to compress a very large file (let’s say
terabytes in size). To do that in a grid environment you would split such file
into multiple sections and assign every section to a remote job for execution.
Every job would have to scan its section to look for repetition patterns. Once
this scan is done by all jobs in parallel, jobs would need to synchronize their
results with their siblings so compression would happen consistently across
the whole file. This can be achieved by setting repetition patterns discovered
by every job into the session.

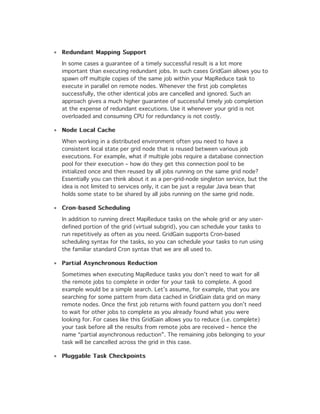

9. Redundant Mapping Support
In some cases a guarantee of a timely successful result is a lot more
important than executing redundant jobs. In such cases GridGain allows you to
spawn off multiple copies of the same job within your MapReduce task to
execute in parallel on remote nodes. Whenever the first job completes
successfully, the other identical jobs are cancelled and ignored. Such an
approach gives a much higher guarantee of successful timely job completion
at the expense of redundant executions. Use it whenever your grid is not
overloaded and consuming CPU for redundancy is not costly.
Node Local Cache
When working in a distributed environment often you need to have a
consistent local state per grid node that is reused between various job
executions. For example, what if multiple jobs require a database connection
pool for their execution – how do they get this connection pool to be
initialized once and then reused by all jobs running on the same grid node?
Essentially you can think about it as a per-grid-node singleton service, but the
idea is not limited to services only, it can be just a regular Java bean that
holds some state to be shared by all jobs running on the same grid node.
Cron-based Scheduling
In addition to running direct MapReduce tasks on the whole grid or any user-
defined portion of the grid (virtual subgrid), you can schedule your tasks to
run repetitively as often as you need. GridGain supports Cron-based
scheduling syntax for the tasks, so you can schedule your tasks to run using
the familiar standard Cron syntax that we are all used to.
Partial Asynchronous Reduction
Sometimes when executing MapReduce tasks you don’t need to wait for all
the remote jobs to complete in order for your task to complete. A good
example would be a simple search. Let’s assume, for example, that you are
searching for some pattern from data cached in GridGain data grid on many
remote nodes. Once the first job returns with found pattern you don’t need
to wait for other jobs to complete as you already found what you were
looking for. For cases like this GridGain allows you to reduce (i.e. complete)
your task before all the results from remote jobs are received – hence the
name “partial asynchronous reduction”. The remaining jobs belonging to your
task will be cancelled across the grid in this case.
Pluggable Task Checkpoints

10. Checkpointing a job provides the ability to periodically save its state. This
becomes especially useful in combination with fail-over functionality. Imagine
a job that may take 5 minute to execute, but after the 4th minute the node
on which it was running crashed. The job will be failed over to another node,
but it would usually have to be restarted from scratch and would take another
5 minutes. However, if the job was checkpointed every minute, then the most
amount of work that could be lost is the last minute of execution and upon
failover the job would restart from the last saved checkpoint. GridGain allows
you to easily checkpoint jobs to better control overall execution time of your
jobs and tasks.
Distributed Continuations
Continuations are useful for cases when jobs need to be suspended and their
resources need to be released. For example, if you spawn a new task from
within a job, it would be wrong to wait for that task completion synchronously
because the job thread will remain occupied while waiting, and therefore your
grid may run out of threads. The proper approach is to suspend the job so it
can be continued later, for example, whenever the newly spawned task
completes.
This is where GridGain continuations become really helpful. GridGain allows
users to suspend and restart thier jobs at any point. So in our example, where
a remote job needs to spawn another task and wait for the result, our job
would spawn the task execution and then suspend itself. Then, whenever the
new task completes, our job would wake up and resume its execution. Such
approach allows for easy task nesting and recursive task execution. It also
allows you to have a lot more cross-dependent jobs and tasks in the system
than there are available threads.
Integration with IMDG
Integration with IMDG based on affinity routing is one of the key concepts
behind Compute and Data Grid technologies (whether they are in-memory or
disk based). In general, affinity routing allows to co-locate a job and the data
set this job needs to process.
The idea is pretty simple: if jobs and data are not co-located, then jobs will
arrive on some remote node and will have to fetch the necessary data from
yet another node where the data is stored. Once processed this data most
likely will have to be discarded (since it’s already stored and backed up
elsewhere). This process induces an expensive network trip plus all associated
marshaling and demarshalling. At scale – this behavior can bring almost any
system to a halt.

11. Affinity co-location solves this problem by co-locating the job with its
necessary data set. We say that there is an affinity between processing (i.e.
the job) and the data that this processing requires – and therefore we can
route the job based on this affinity to a node where data is stored to avoid
unnecessary network trips and extra marshaling and demarshaling. GridGain
provides advanced capabilities for affinity co-location: from a simple single-
method call to sophisticated APIs supporting complex affinity keys and non-
trivial topologies.
Example
The following examples demonstrate a typical stateless computation task of Pi-
number calculation on the grid (written in Scala - but can be easily done in Java or
Groovy or Clojure as well). This example shows how tremendously simple the
implementation can be with GridGain - literally just a dozen lines of code.
Note that this is a full source code - copy'n'paste it, compile it and run it. Note
also that it works on one node – and just as well on a thousand nodes in the
grid or cloud with no code change - just linearly faster. What is even more
interesting is that this application automatically includes all these execution
services:
Auto topology discovery
Auto load balancing
Distributed failover
Collision resolution
Zero code deployment & provisioning
Pluggable marshaling & communication
Scala code
code:
import org.gridgain.scalar._
import scalar._
import scala.math._
object ScalarPiCalculationExample {
private val N = 10000
def main(args: Array[String]) {
scalar {

12. println("Pi estimate: " +
grid$.spreadReduce(for (i <- 0 until grid$.size())
yield () => calcPi(i * N))(_.sum))
}
}
def calcPi(start: Int): Double =
// Nilakantha algorithm.
((max(start, 1) until (start + N)) map
(i => 4.0 * (2 * (i % 2) - 1) / (2 * i) / (2 * i + 1) / (2
* i + 2)))
.sum + (if (start == 0) 3 else 0)
}
