1. Infrastructure = Code
1 year later
Christian Ortner
FINDOLOGIC GmbH

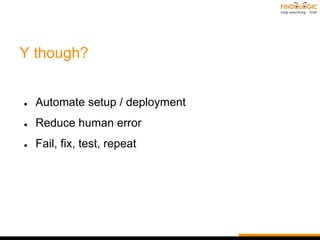

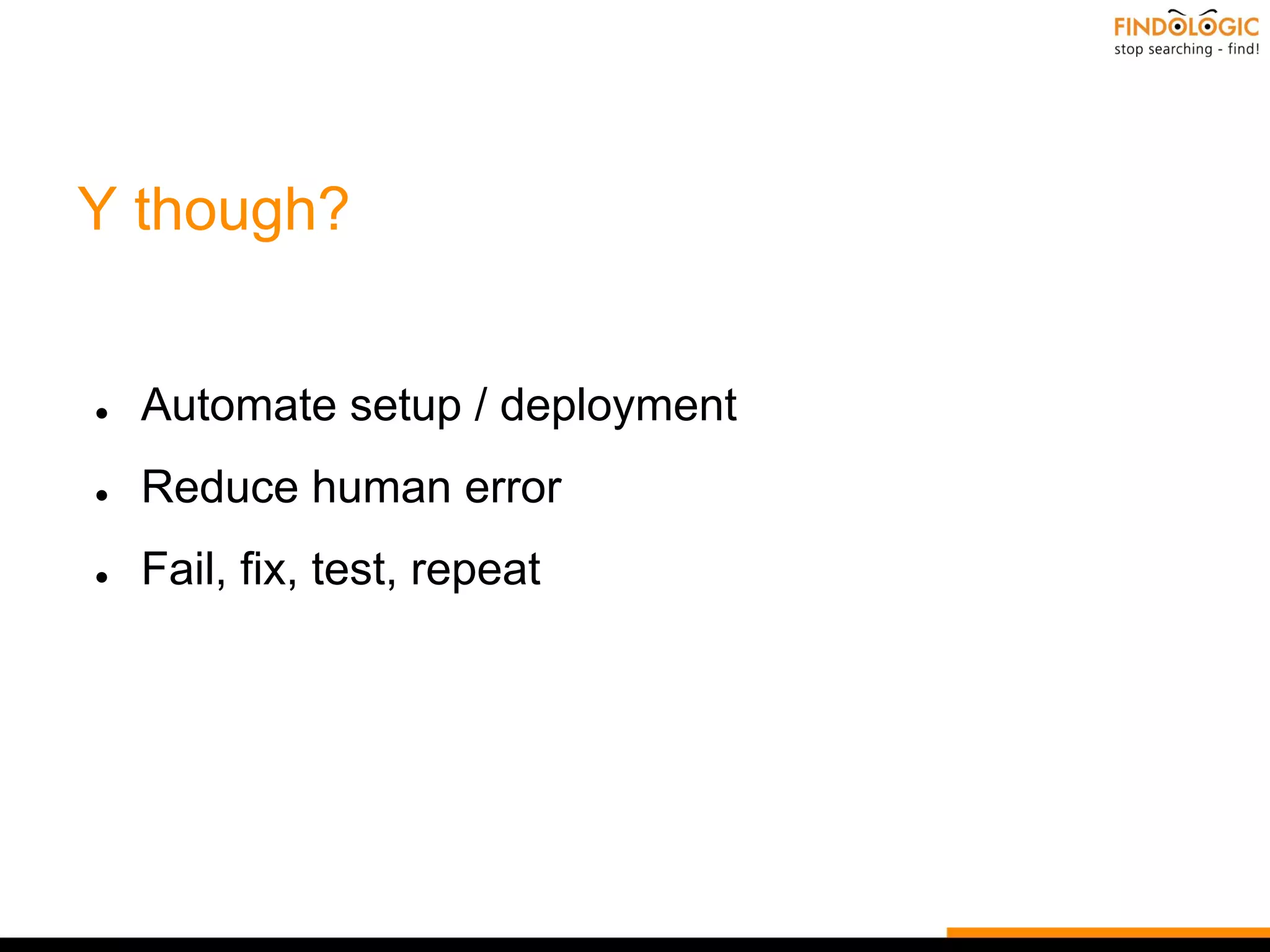

2. Y though?
● Automate setup / deployment
● Reduce human error
● Fail, fix, test, repeat

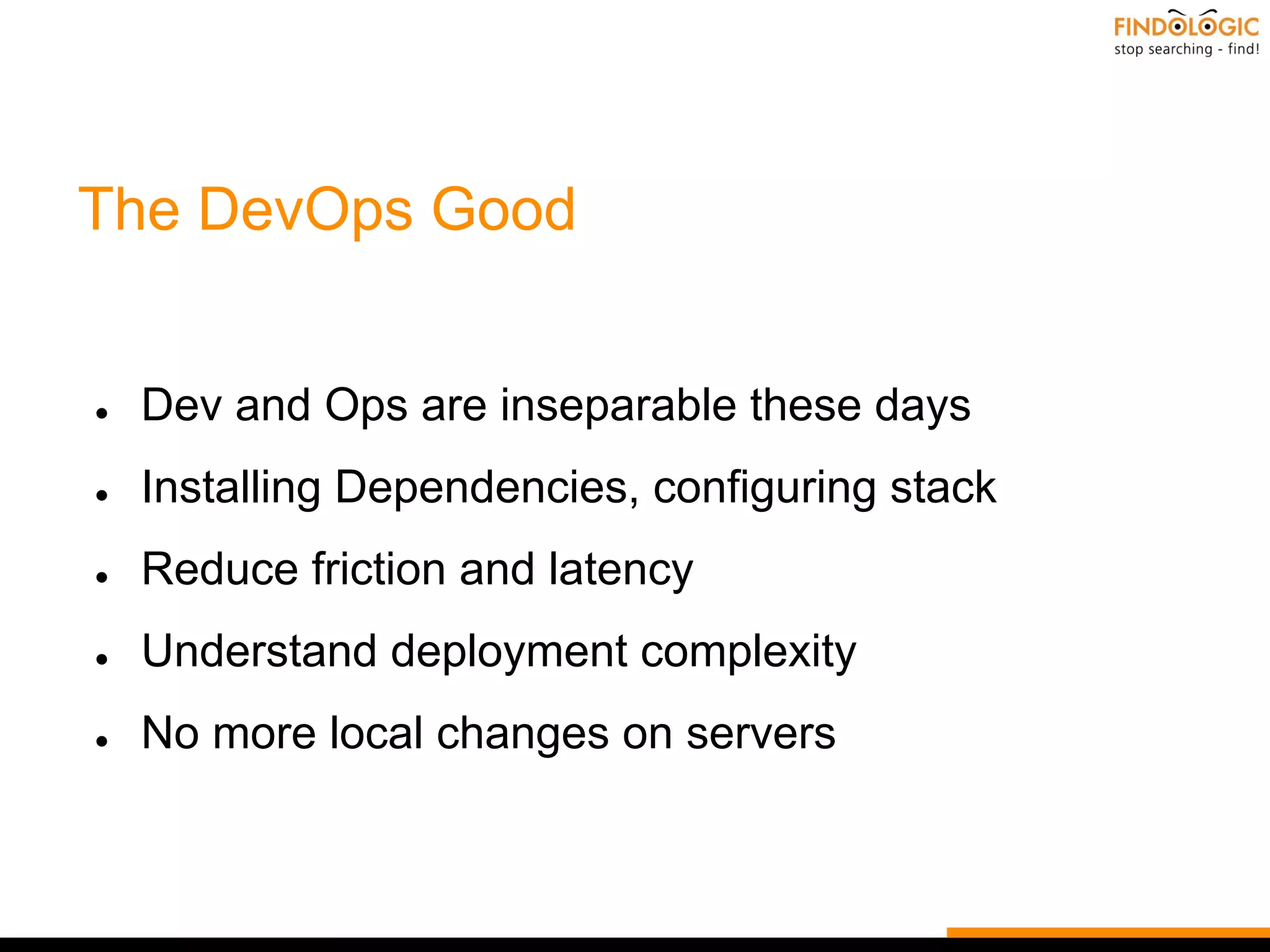

3. The DevOps Good
● Dev and Ops are inseparable these days
● Installing Dependencies, configuring stack
● Reduce friction and latency
● Understand deployment complexity
● No more local changes on servers

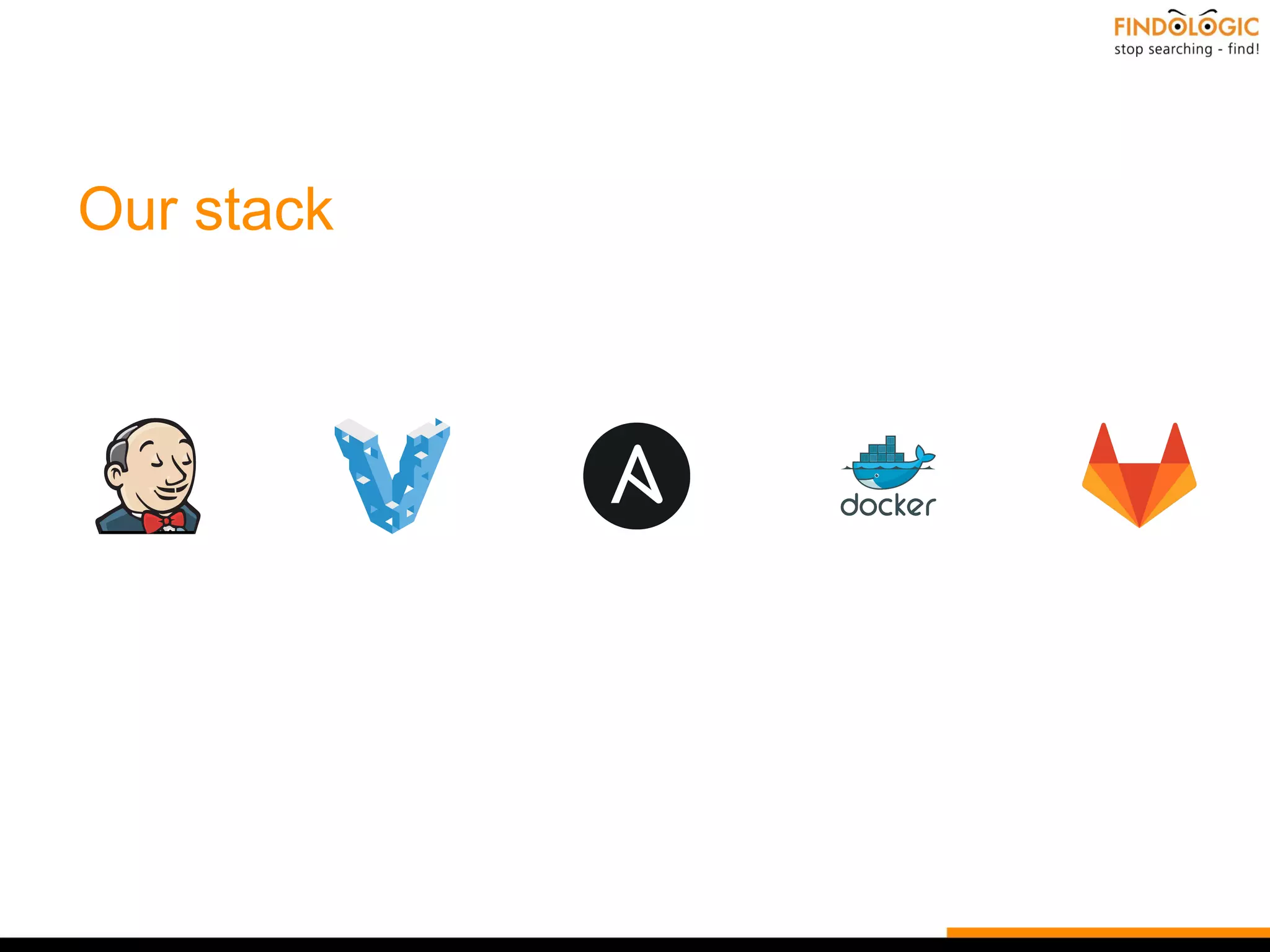

4. Our stack

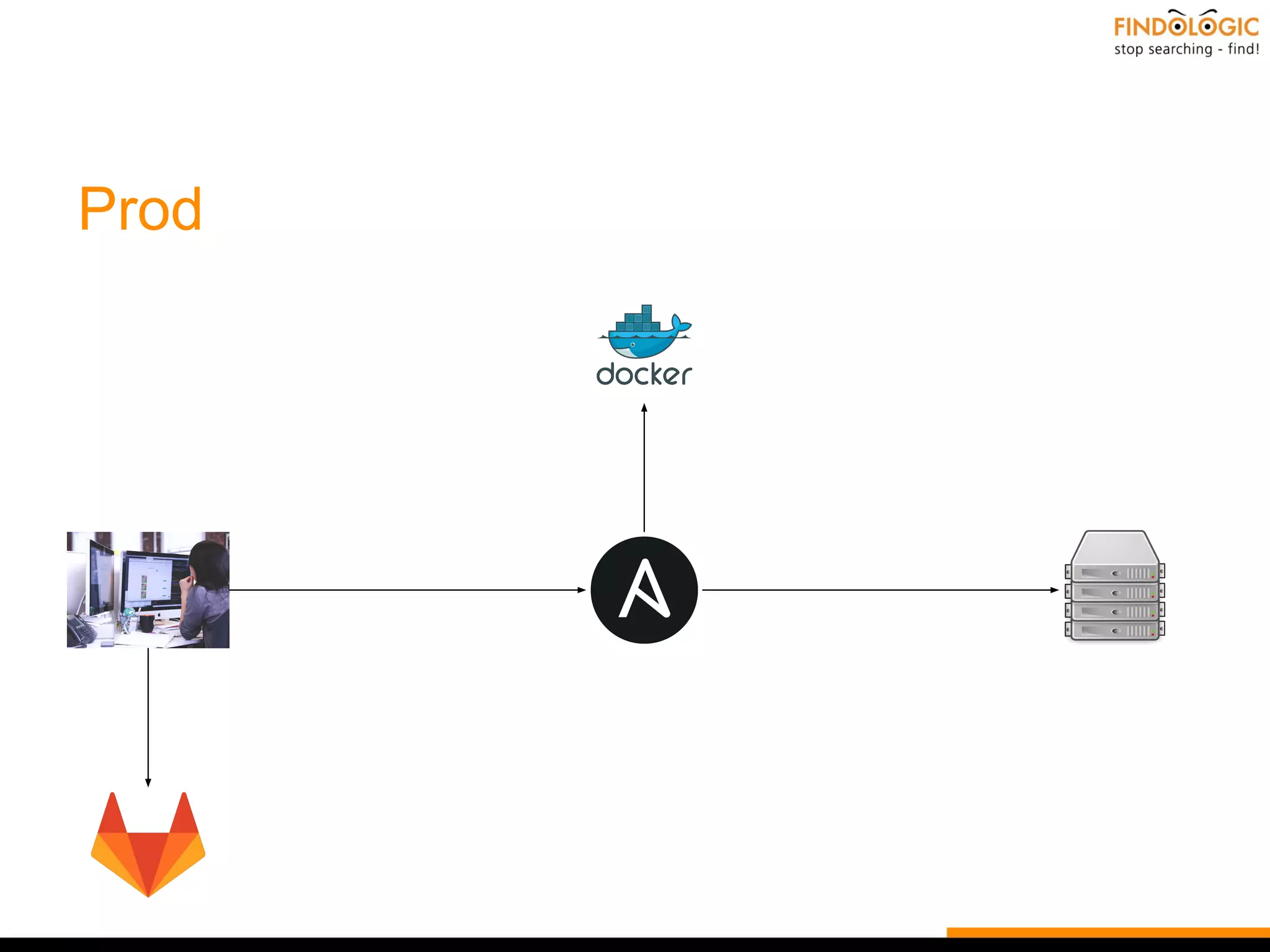

5. Prod

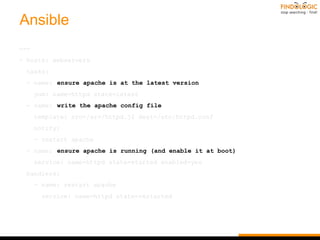

6. Ansible
---
- hosts: webservers
tasks:
- name: ensure apache is at the latest version
yum: name=httpd state=latest
- name: write the apache config file
template: src=/srv/httpd.j2 dest=/etc/httpd.conf
notify:
- restart apache
- name: ensure apache is running (and enable it at boot)
service: name=httpd state=started enabled=yes
handlers:
- name: restart apache
service: name=httpd state=restarted

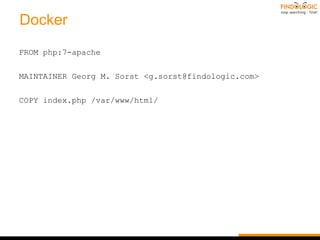

7. Docker
FROM php:7-apache
MAINTAINER Georg M. Sorst <g.sorst@findologic.com>
COPY index.php /var/www/html/

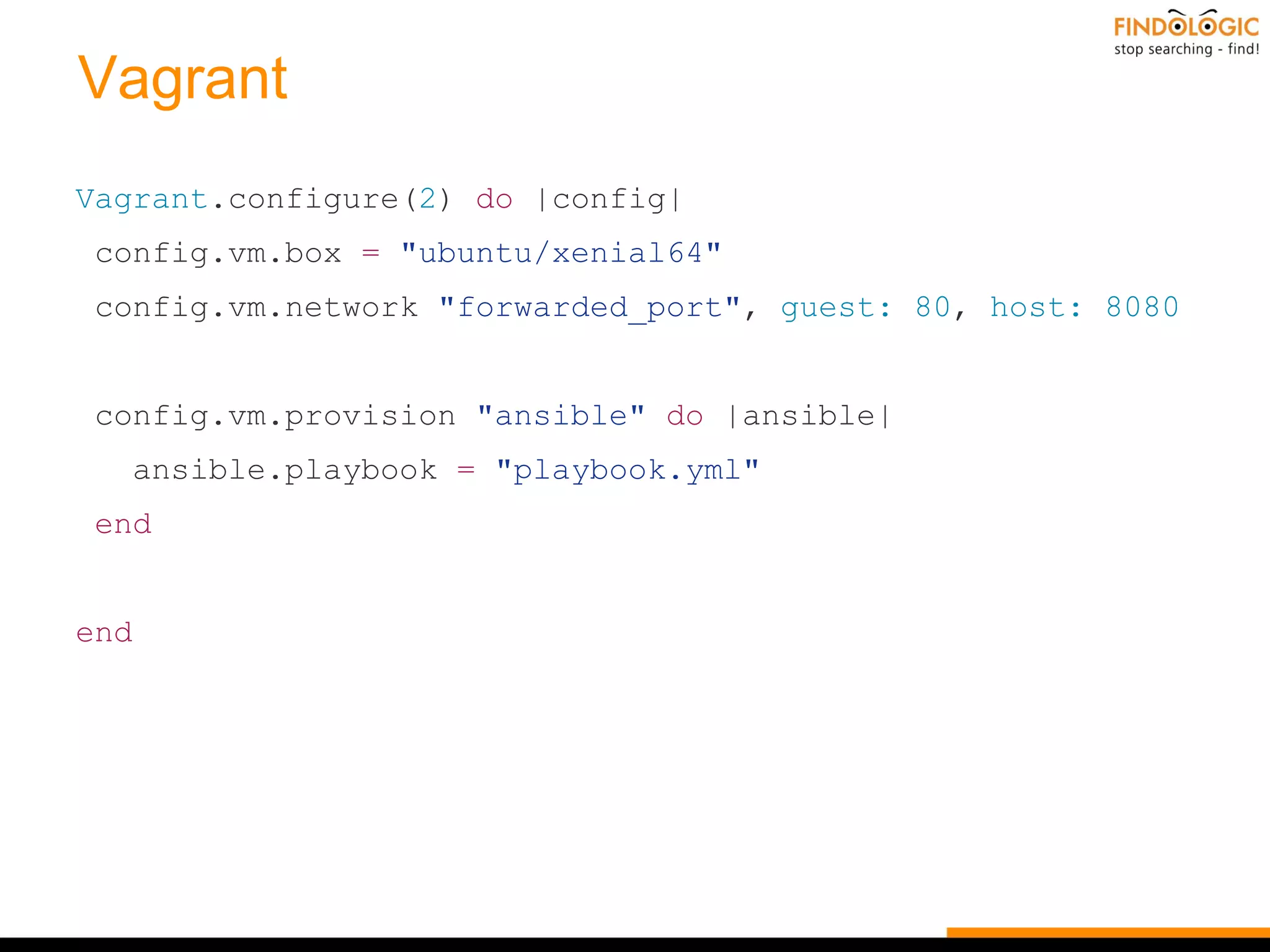

8. Vagrant
Vagrant.configure(2) do |config|
config.vm.box = "ubuntu/xenial64"
config.vm.network "forwarded_port", guest: 80, host: 8080
config.vm.provision "ansible" do |ansible|
ansible.playbook = "playbook.yml"
end
end

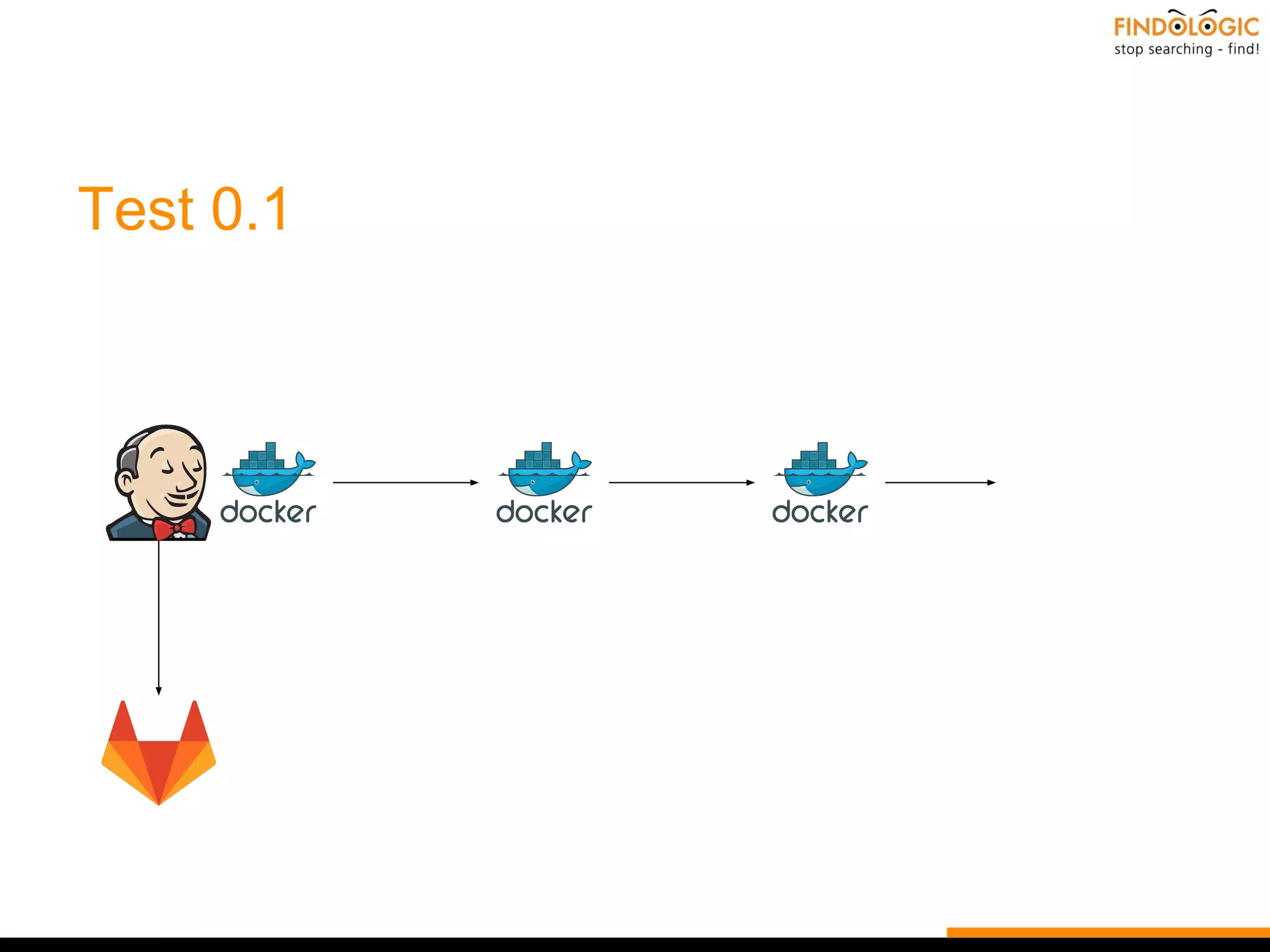

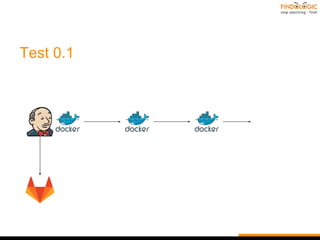

9. Test 0.1

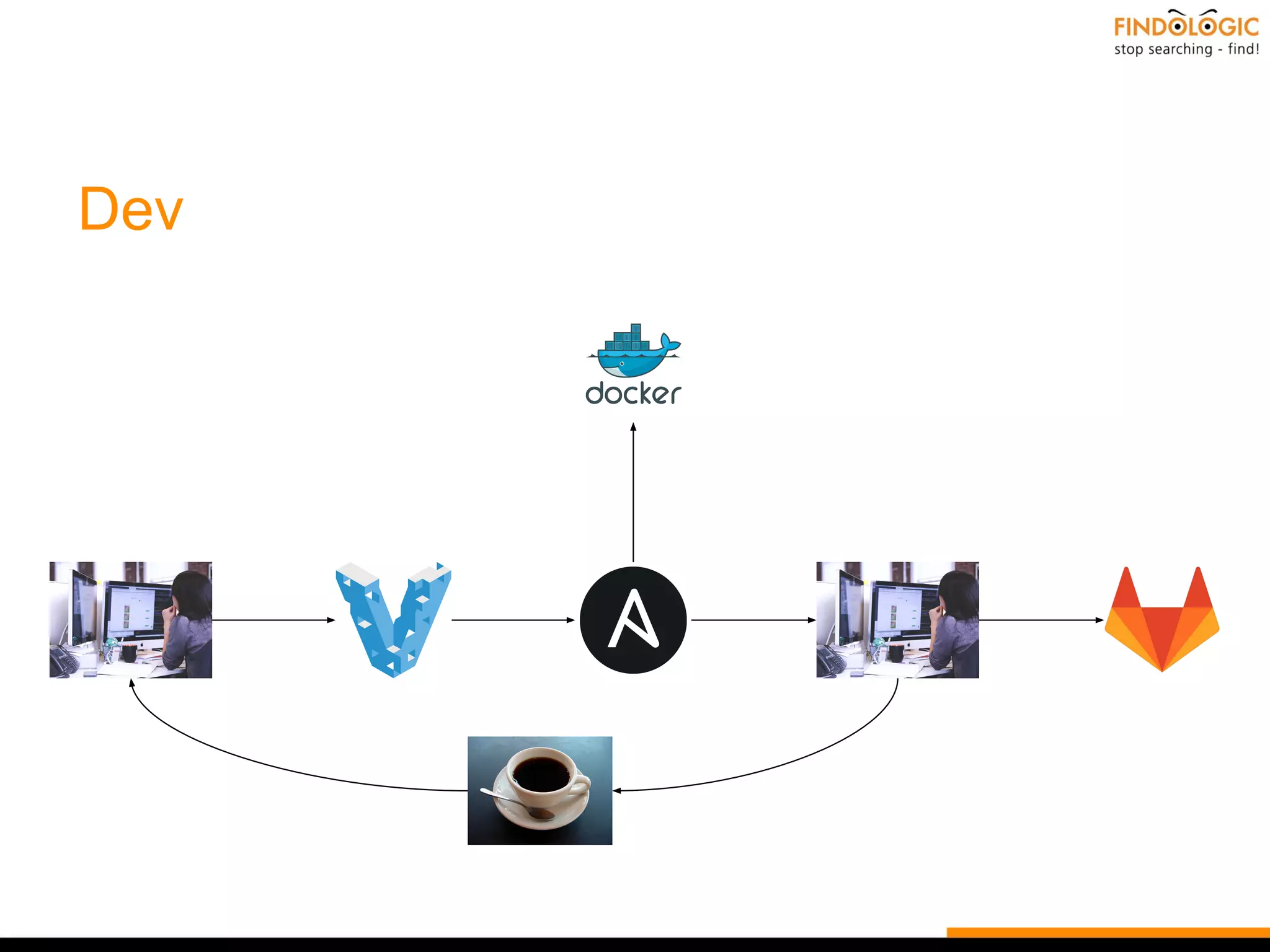

10. Dev

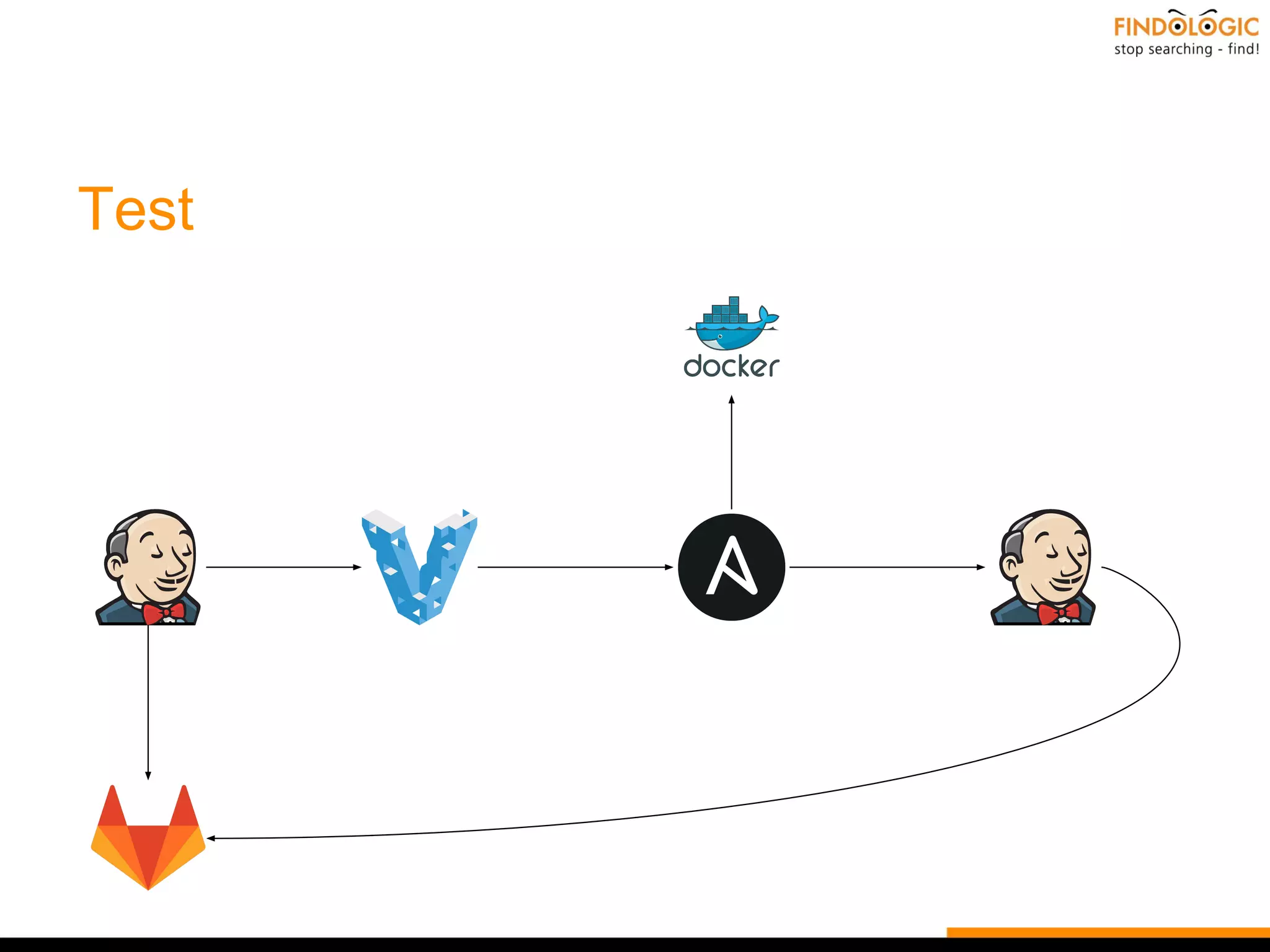

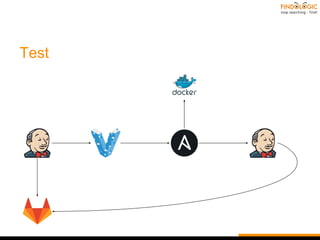

11. Test

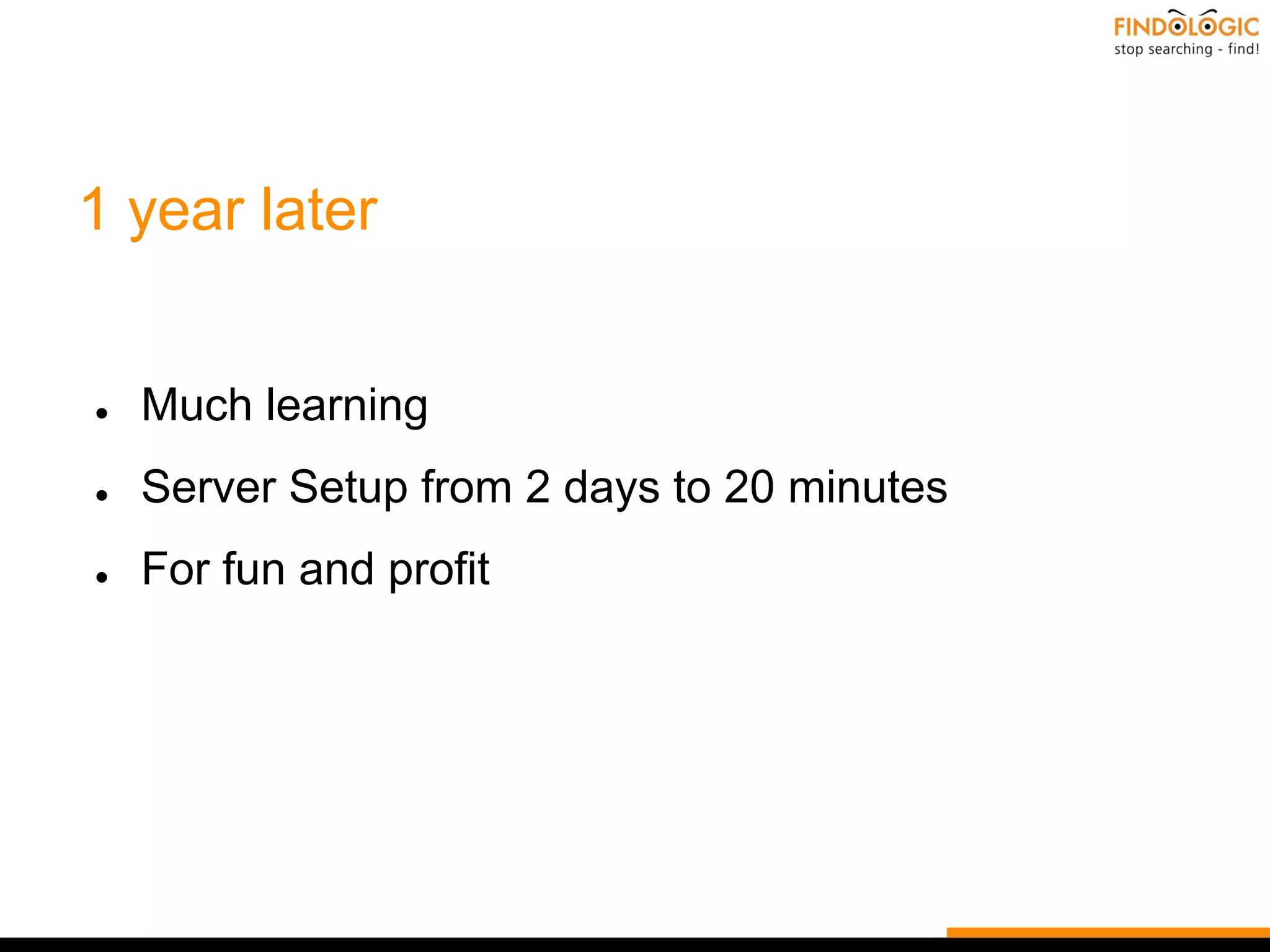

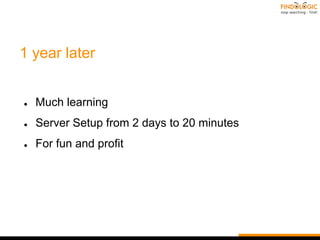

12. 1 year later
● Much learning
● Server Setup from 2 days to 20 minutes
● For fun and profit

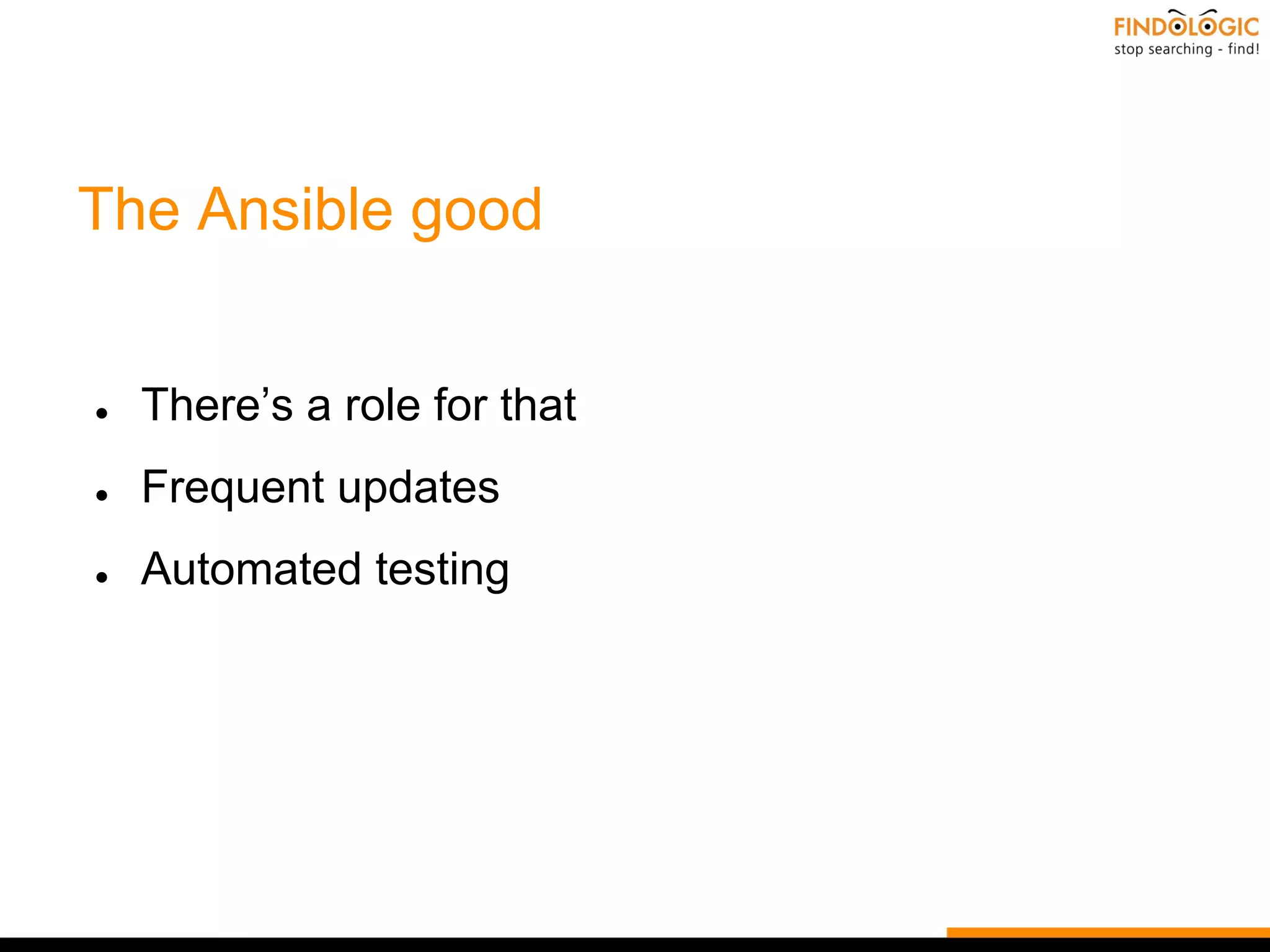

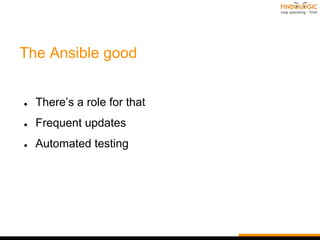

13. The Ansible good
● There’s a role for that
● Frequent updates
● Automated testing

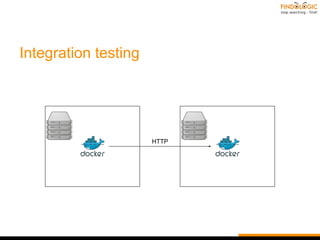

14. Integration testing
HTTP

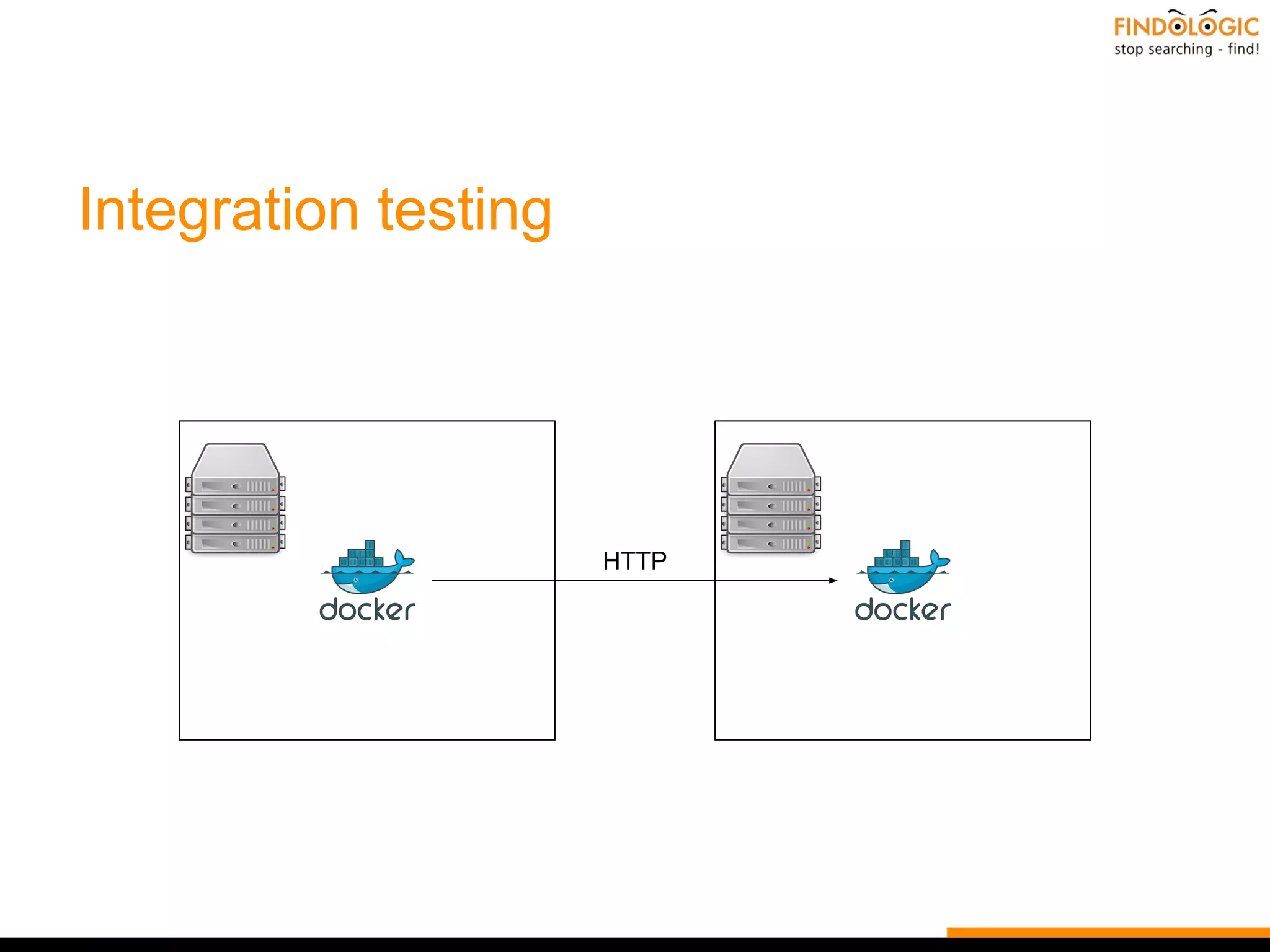

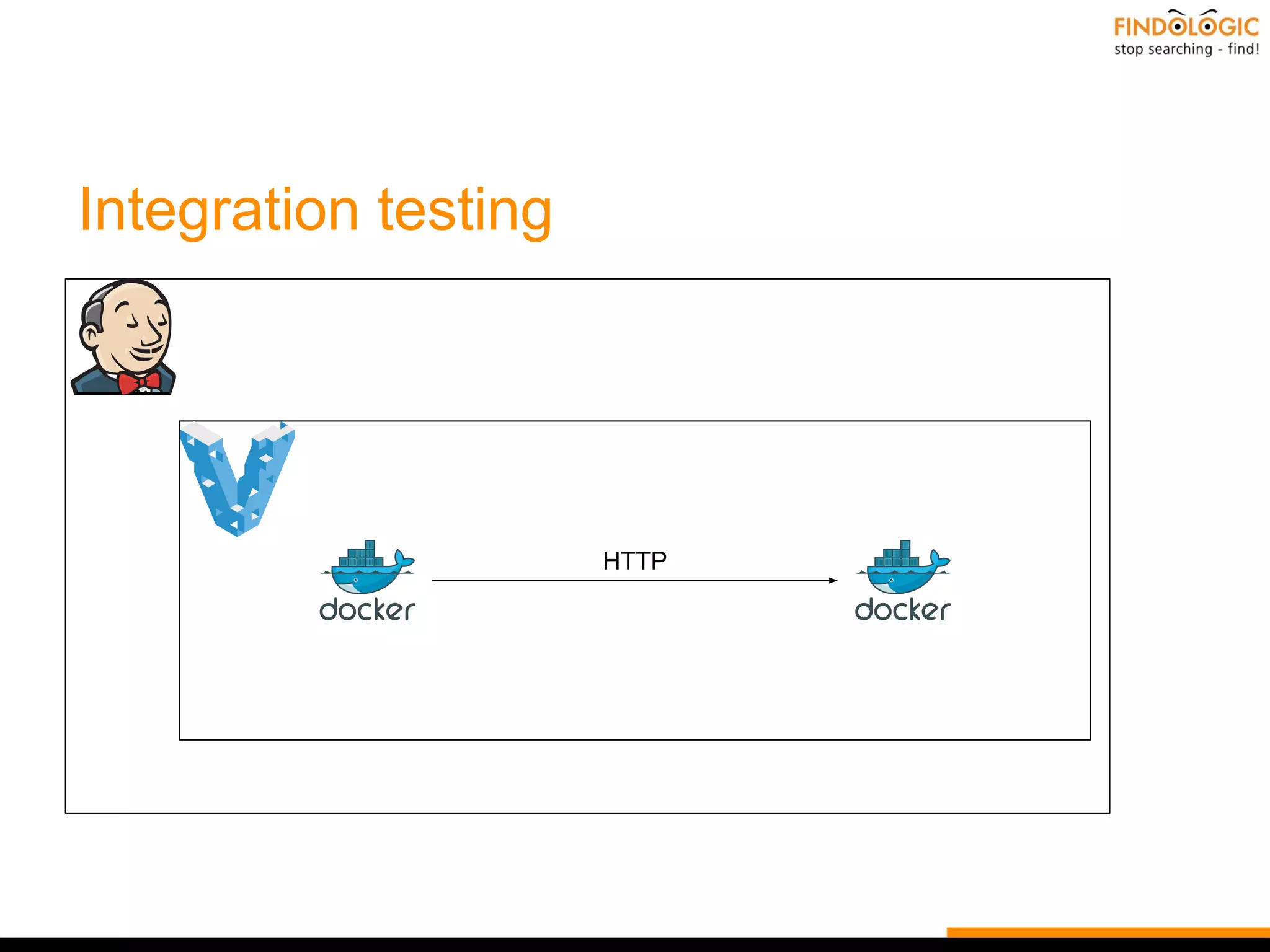

15. Integration testing
HTTP

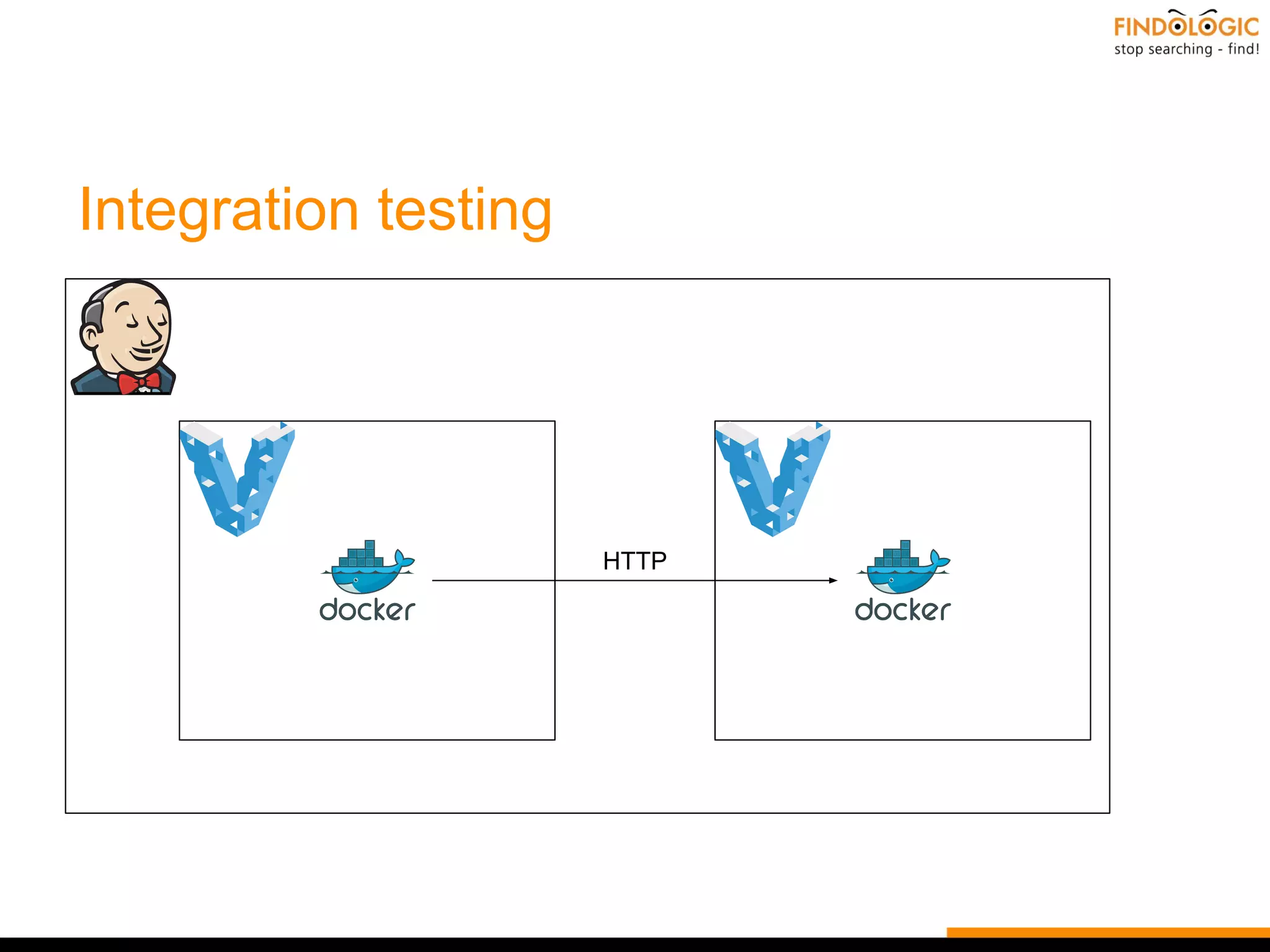

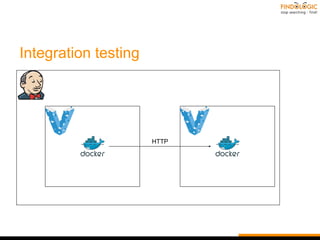

16. Integration testing
HTTP

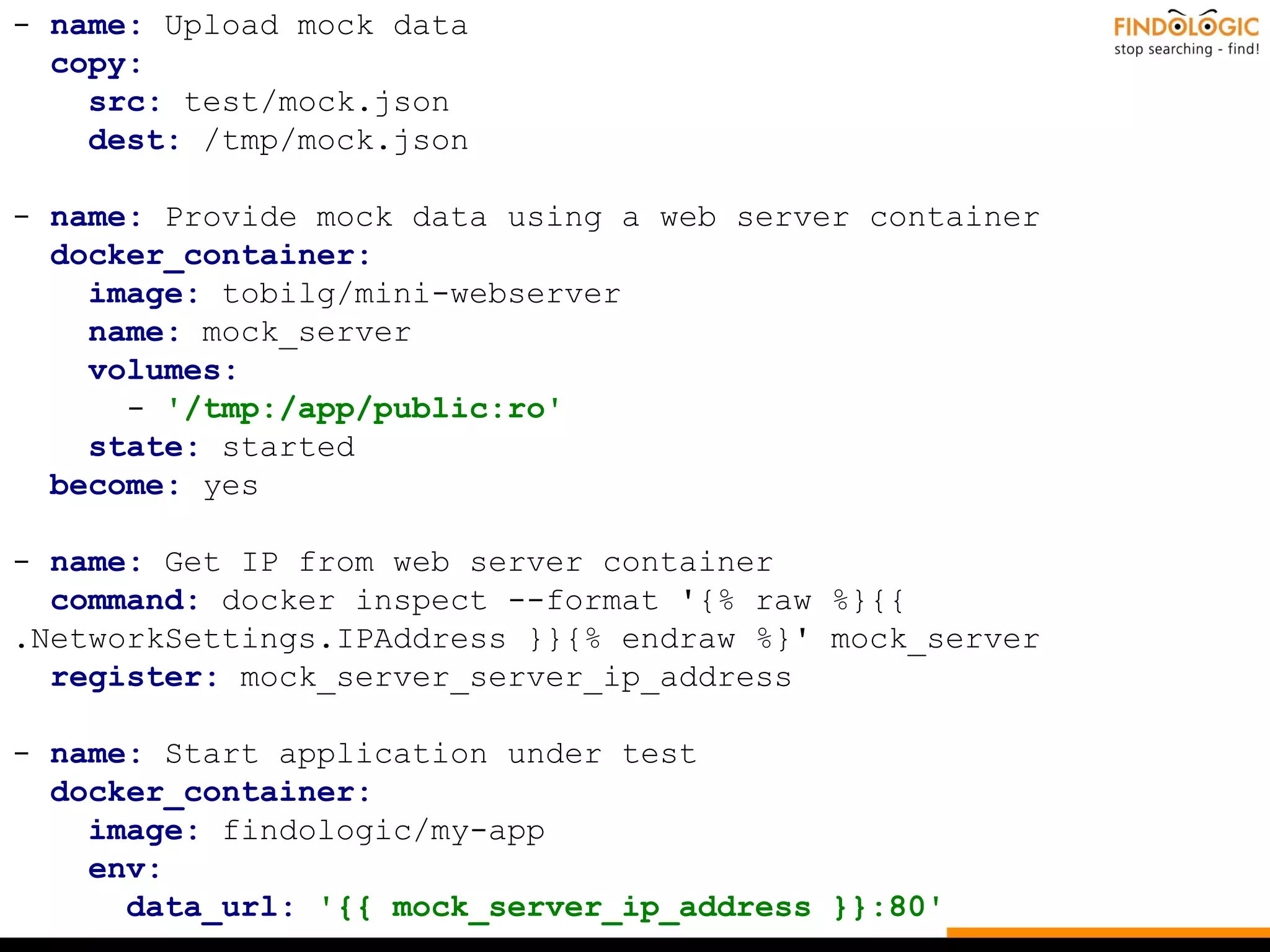

17. - name: Upload mock data
copy:
src: test/mock.json
dest: /tmp/mock.json
- name: Provide mock data using a web server container
docker_container:
image: tobilg/mini-webserver
name: mock_server
volumes:
- '/tmp:/app/public:ro'
state: started
become: yes
- name: Get IP from web server container
command: docker inspect --format '{% raw %}{{
.NetworkSettings.IPAddress }}{% endraw %}' mock_server
register: mock_server_server_ip_address
- name: Start application under test
docker_container:
image: findologic/my-app
env:
data_url: '{{ mock_server_ip_address }}:80'

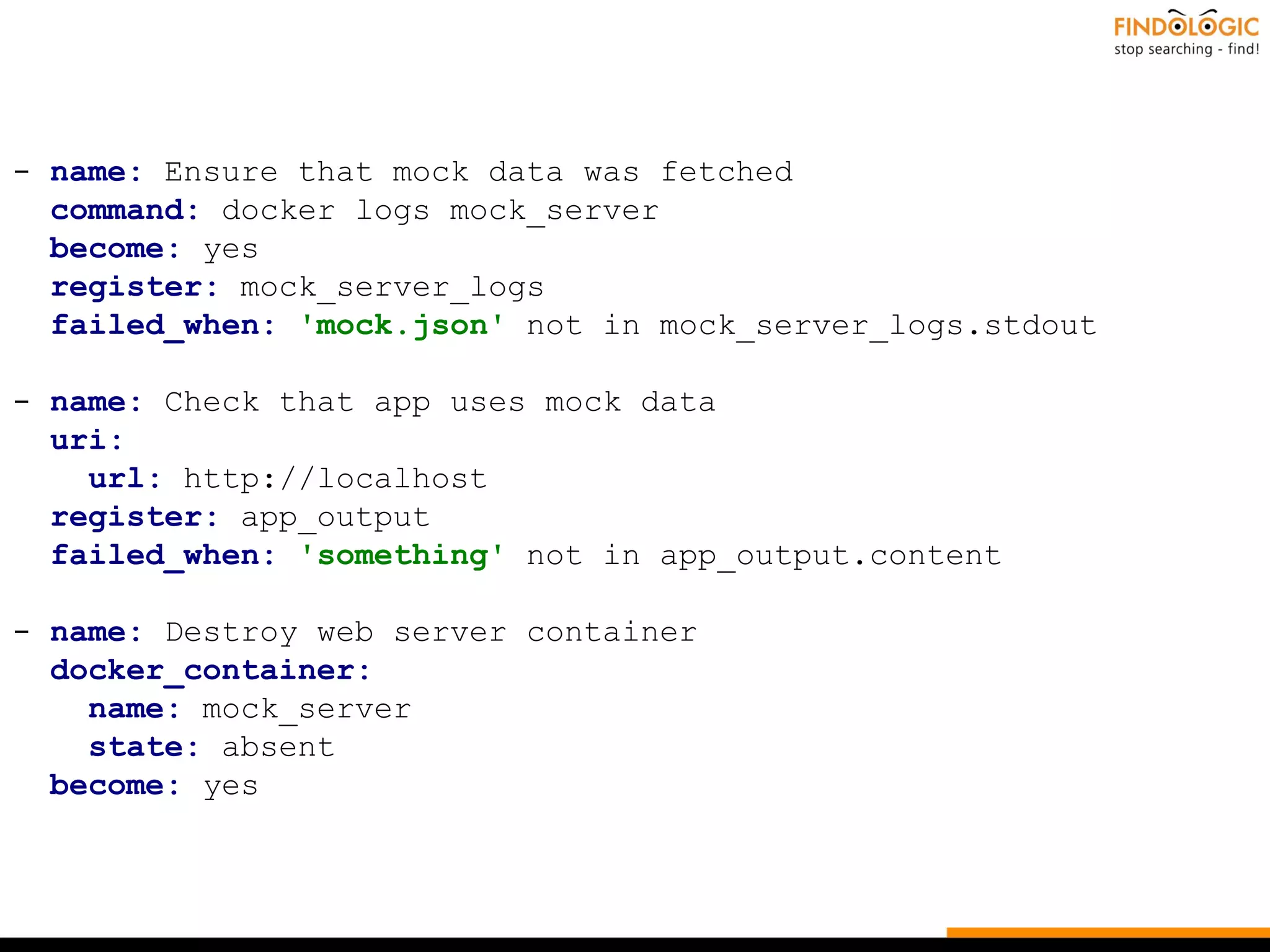

18. - name: Ensure that mock data was fetched
command: docker logs mock_server
become: yes
register: mock_server_logs
failed_when: 'mock.json' not in mock_server_logs.stdout
- name: Check that app uses mock data
uri:
url: http://localhost
register: app_output
failed_when: 'something' not in app_output.content
- name: Destroy web server container
docker_container:
name: mock_server
state: absent
become: yes

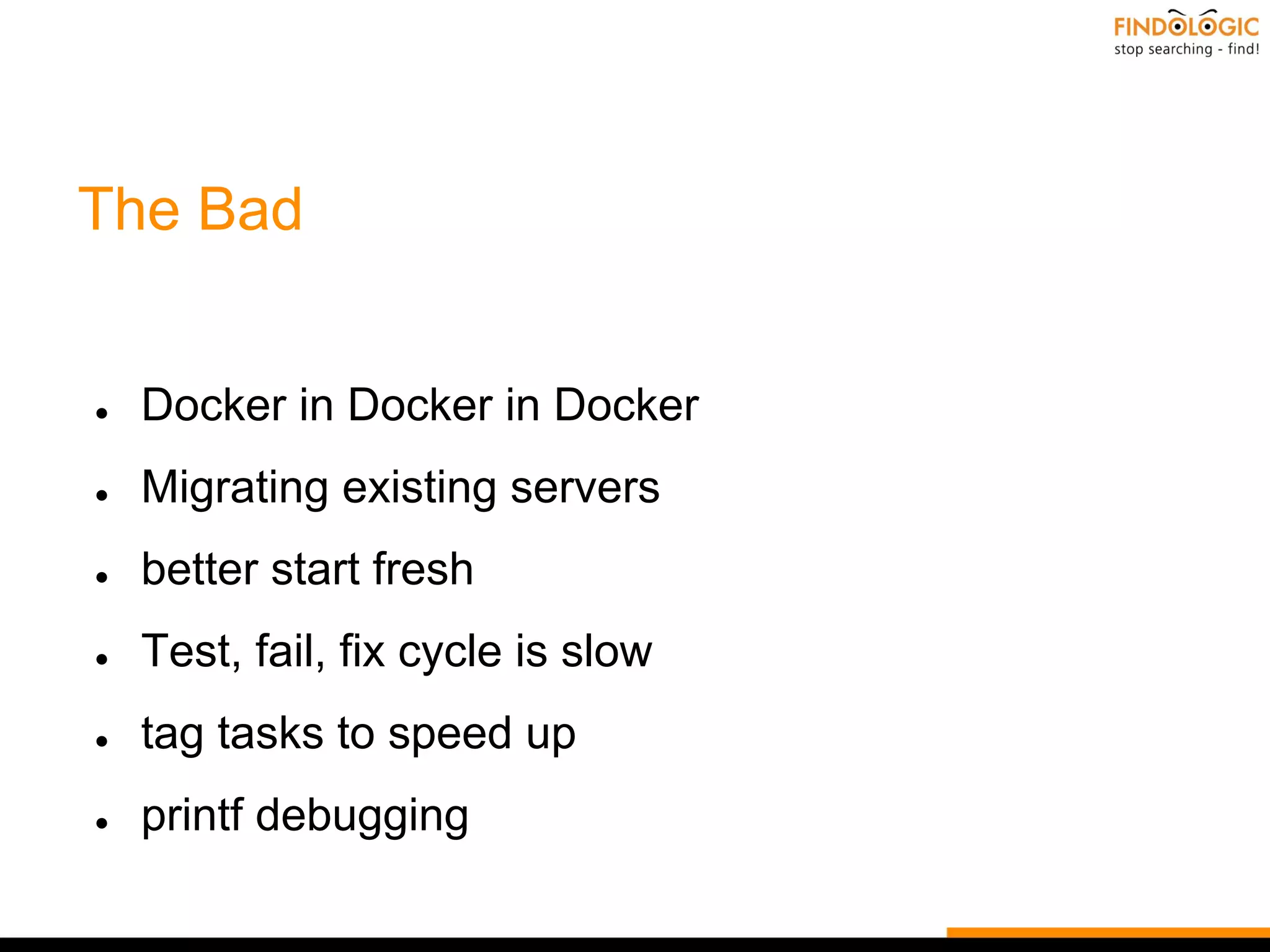

19. The Bad
● Docker in Docker in Docker
● Migrating existing servers
● better start fresh
● Test, fail, fix cycle is slow
● tag tasks to speed up
● printf debugging

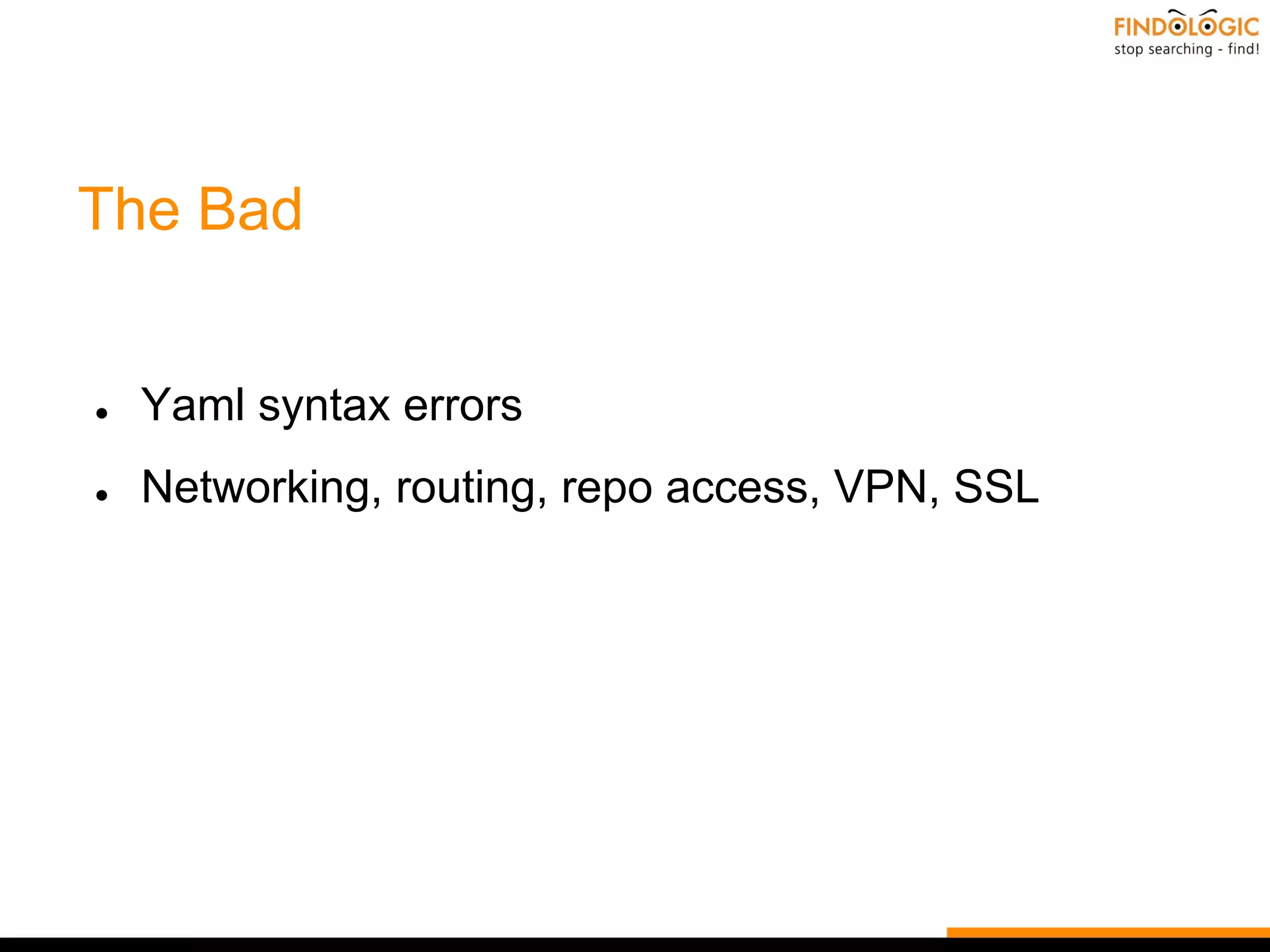

20. The Bad
● Yaml syntax errors
● Networking, routing, repo access, VPN, SSL

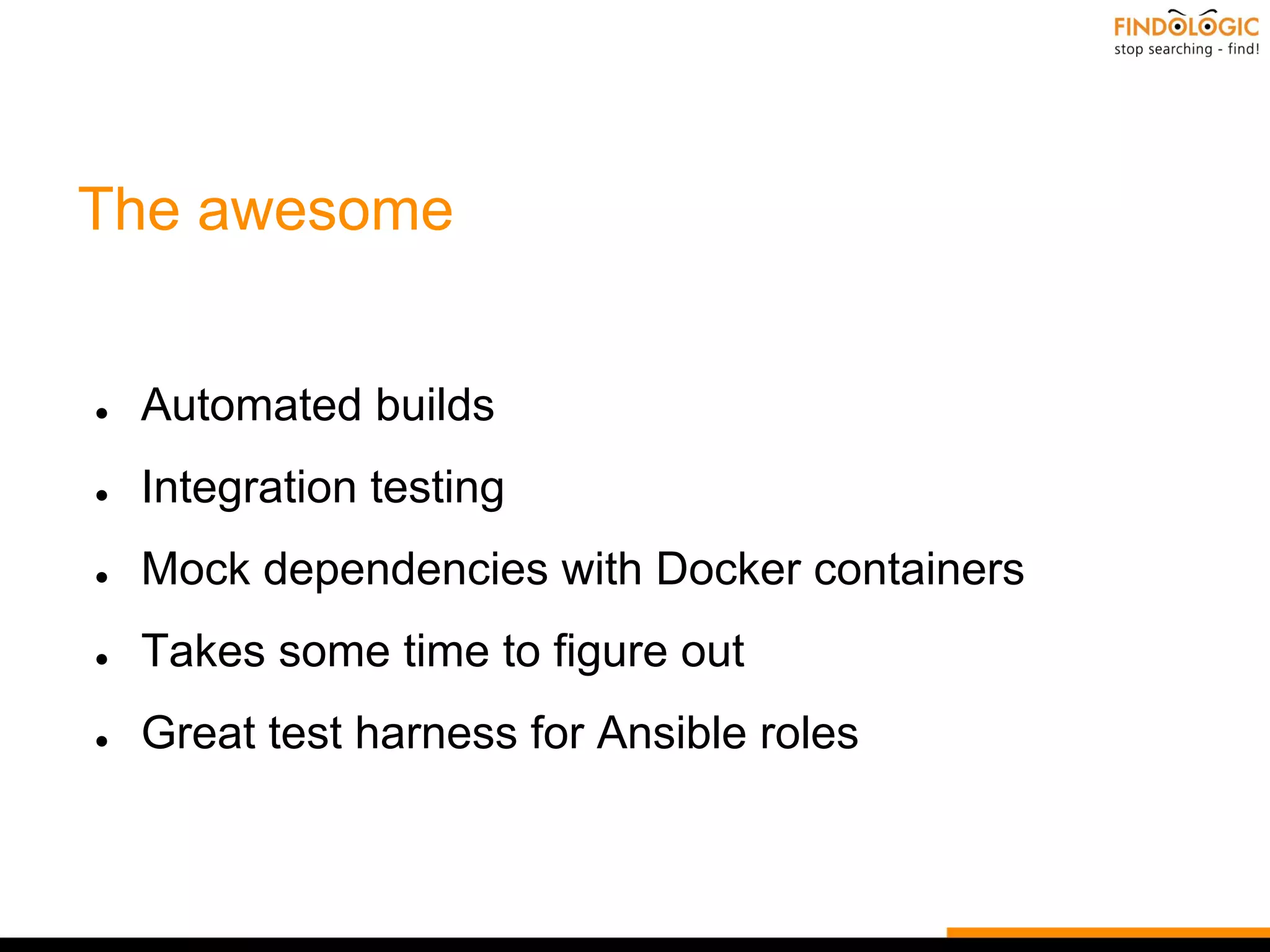

21. The awesome
● Automated builds
● Integration testing
● Mock dependencies with Docker containers
● Takes some time to figure out
● Great test harness for Ansible roles

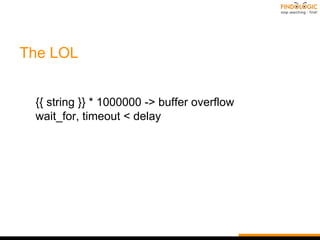

22. The LOL
{{ string }} * 1000000 -> buffer overflow
wait_for, timeout < delay

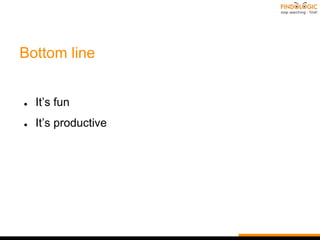

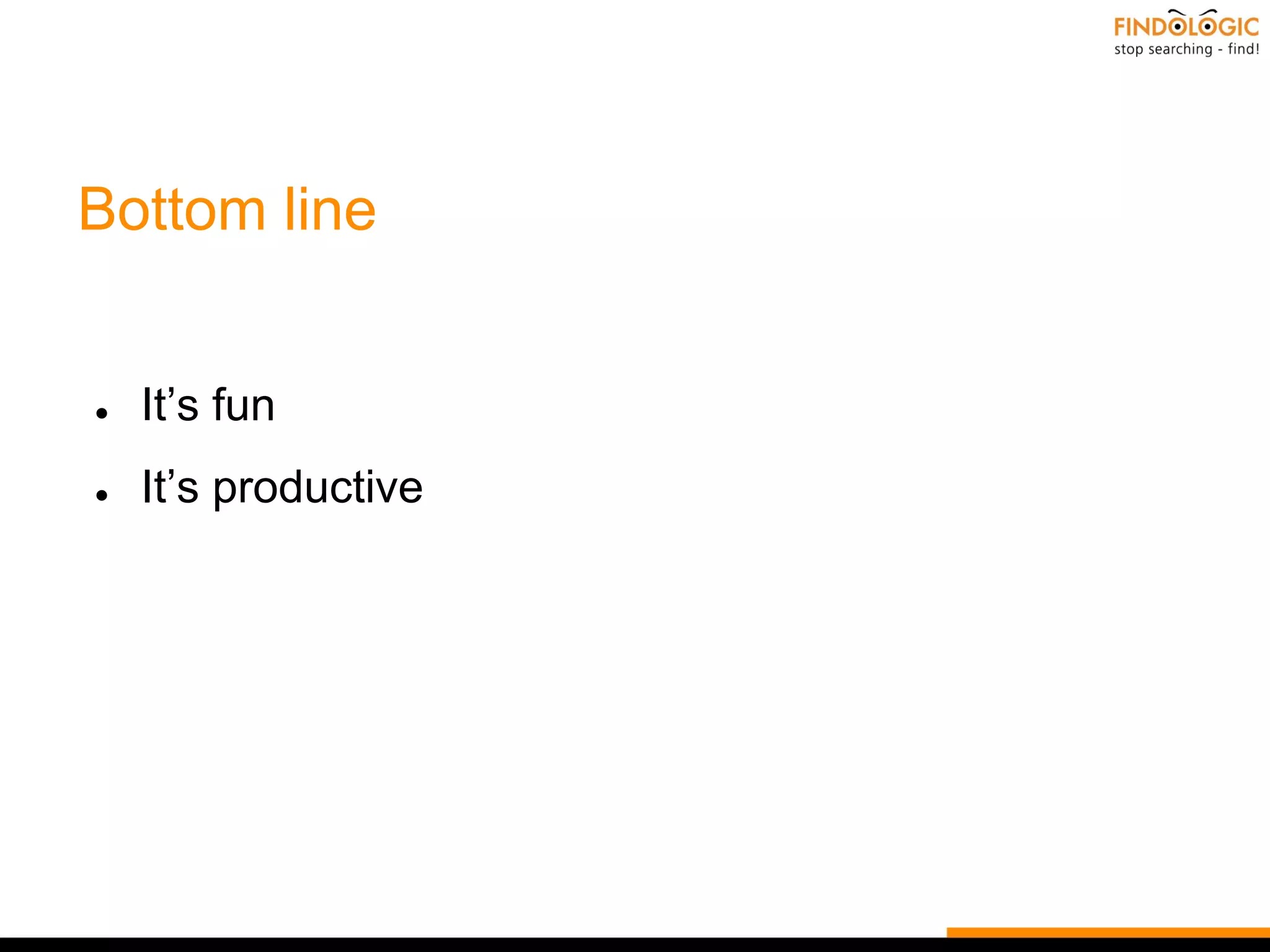

23. Bottom line
● It’s fun
● It’s productive
