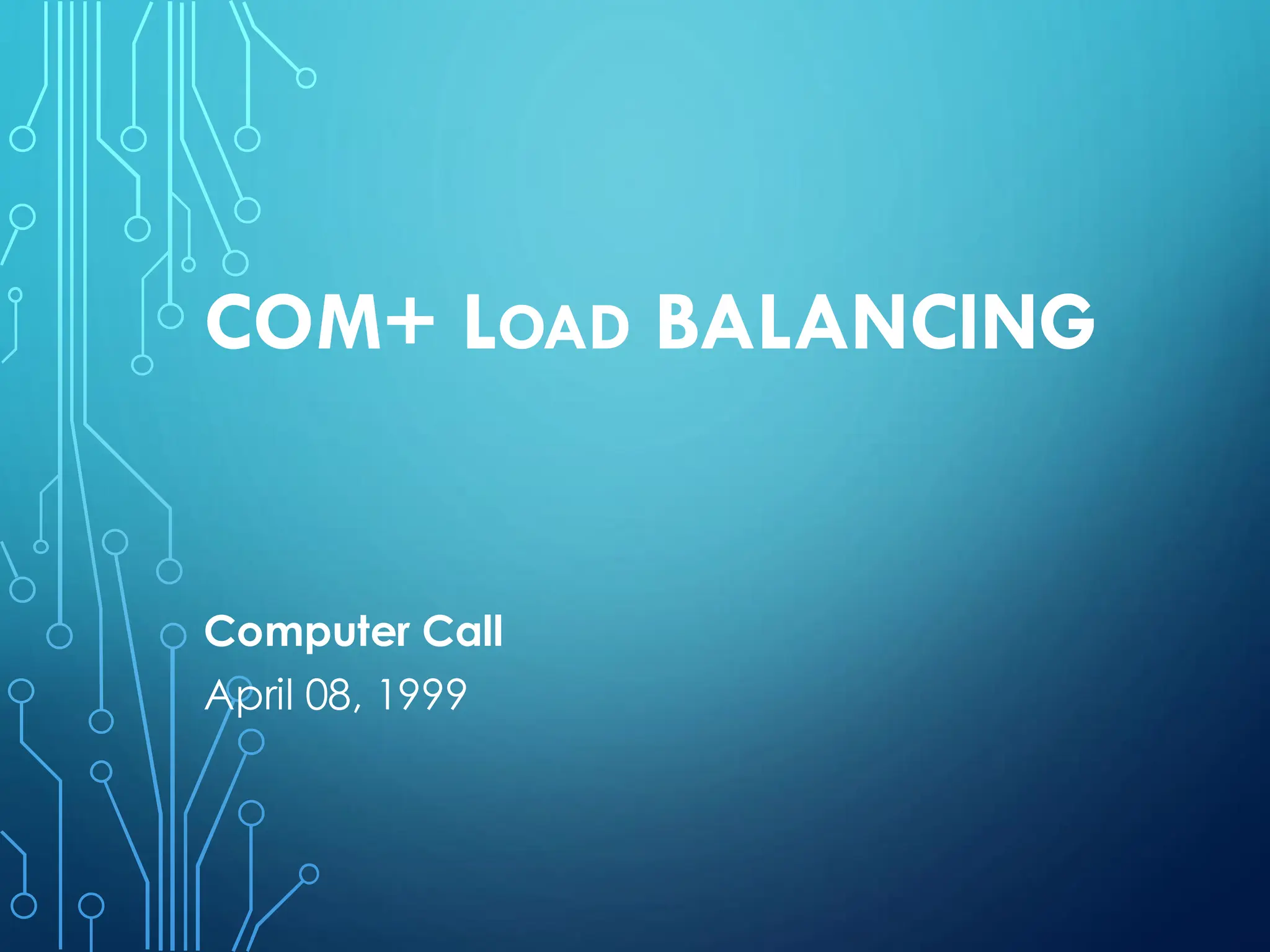

1. COM+ LOAD BALANCING
Computer Call
April 08, 1999

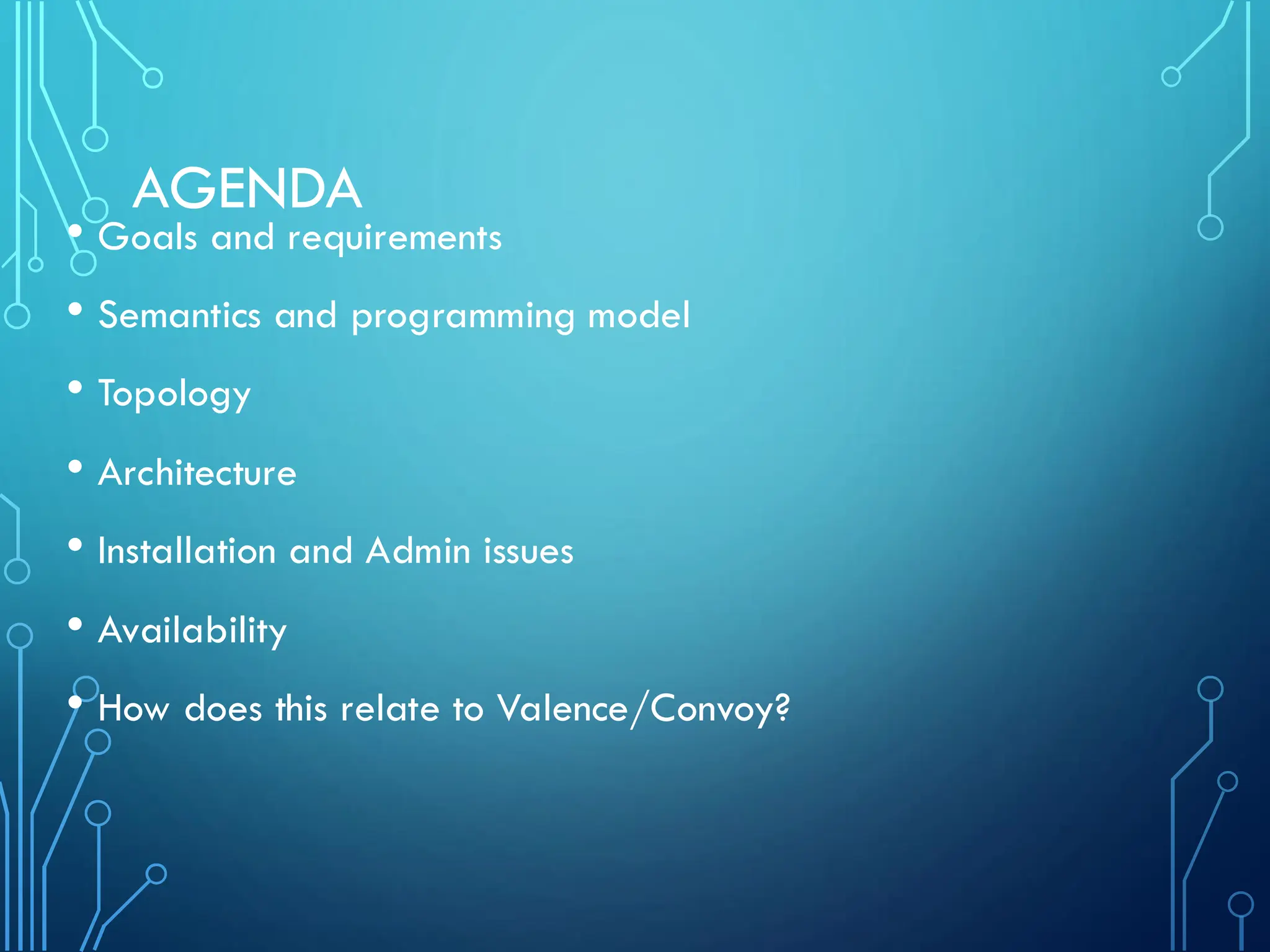

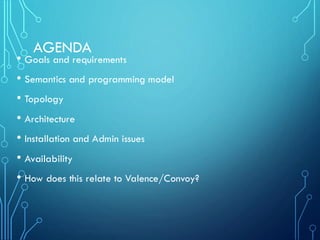

2. AGENDA
• Goals and requirements
• Semantics and programming model
• Topology
• Architecture
• Installation and Admin issues
• Availability
• How does this relate to Valence/Convoy?

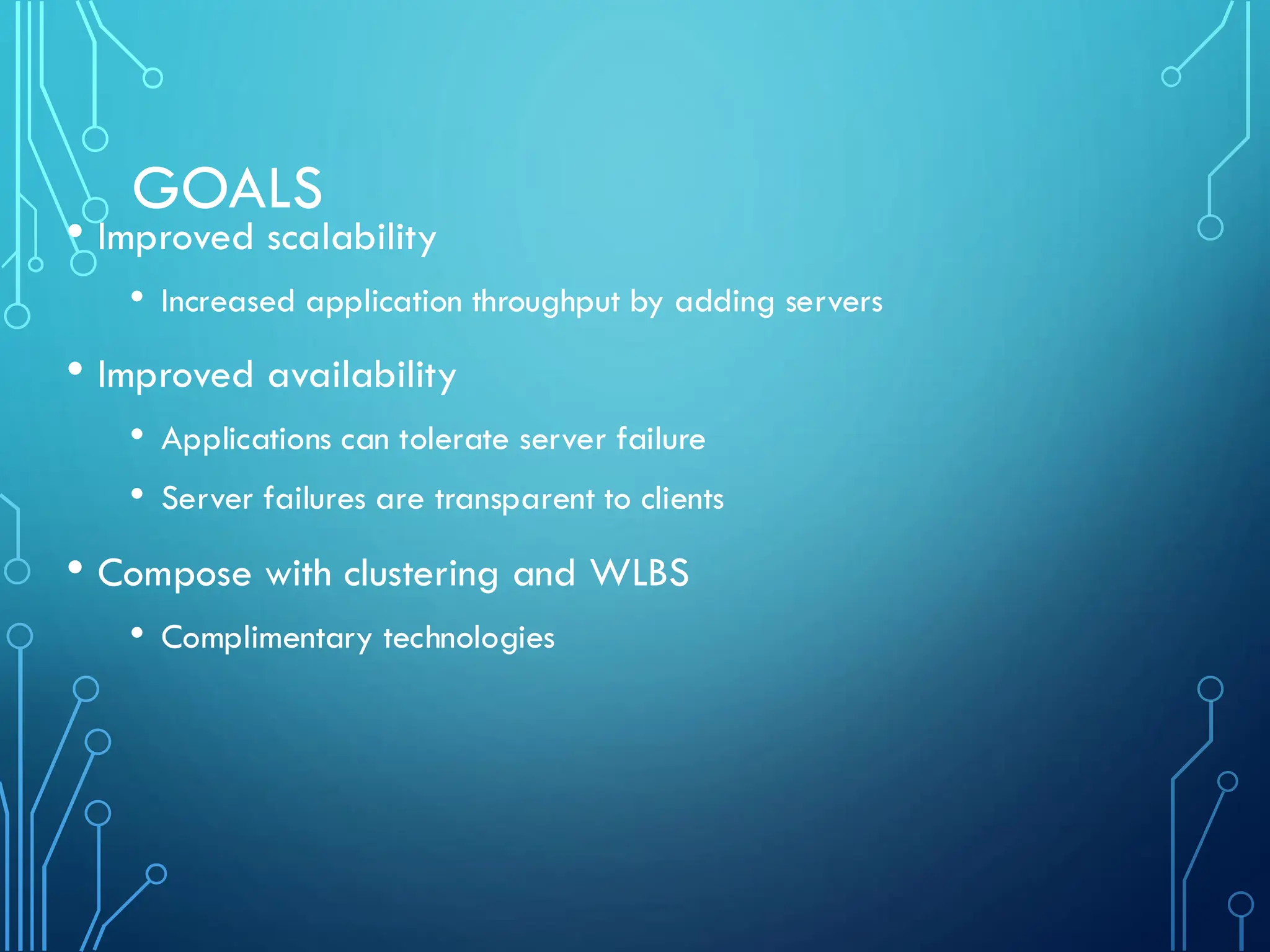

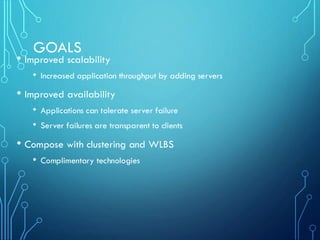

3. GOALS
• Improved scalability
• Increased application throughput by adding servers
• Improved availability
• Applications can tolerate server failure
• Server failures are transparent to clients
• Compose with clustering and WLBS
• Complimentary technologies

4. Client
Server
Router Server
Server
Response Time
Tracker
Application
Cluster

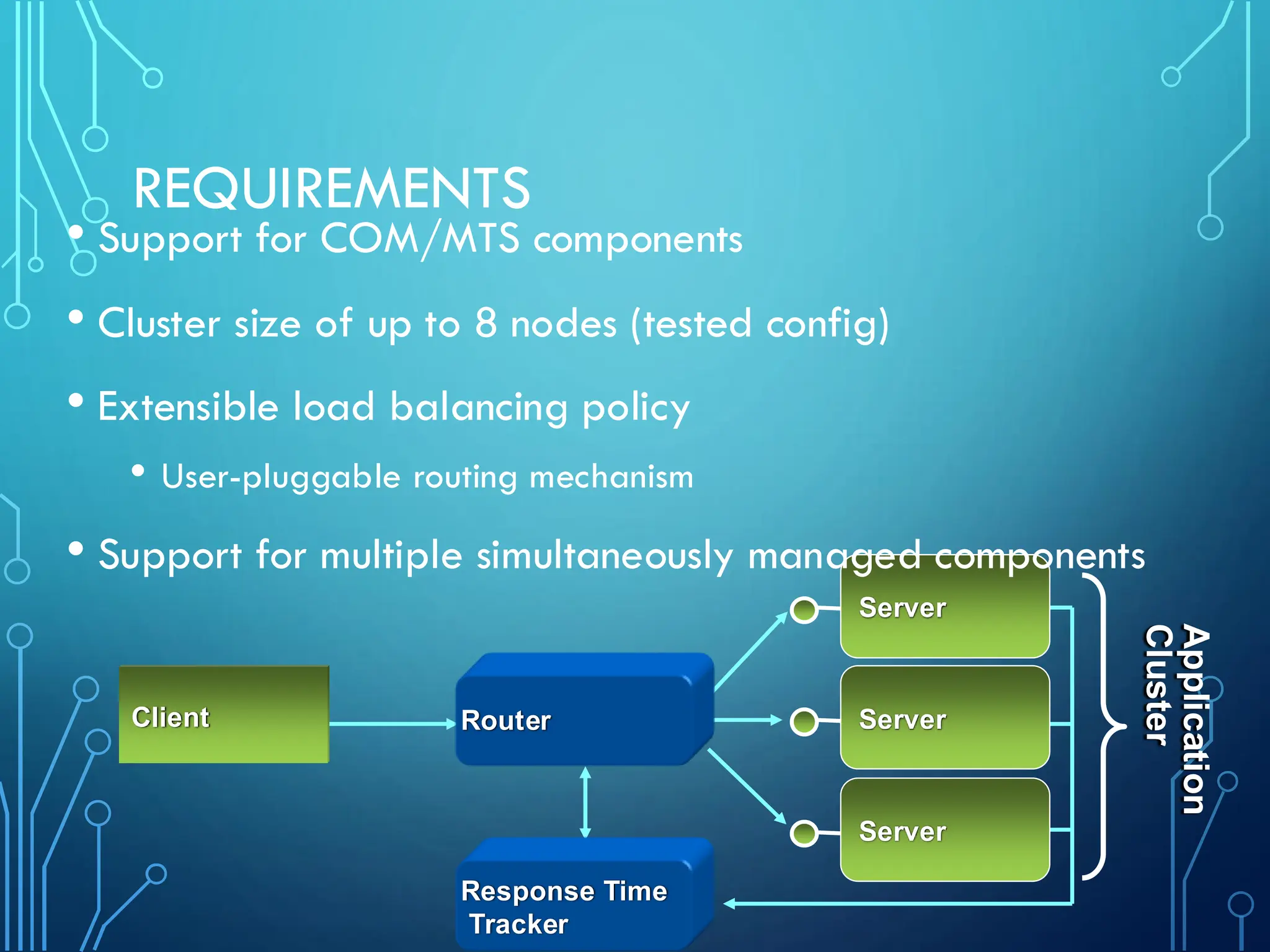

REQUIREMENTS
• Support for COM/MTS components
• Cluster size of up to 8 nodes (tested config)
• Extensible load balancing policy
• User-pluggable routing mechanism
• Support for multiple simultaneously managed components

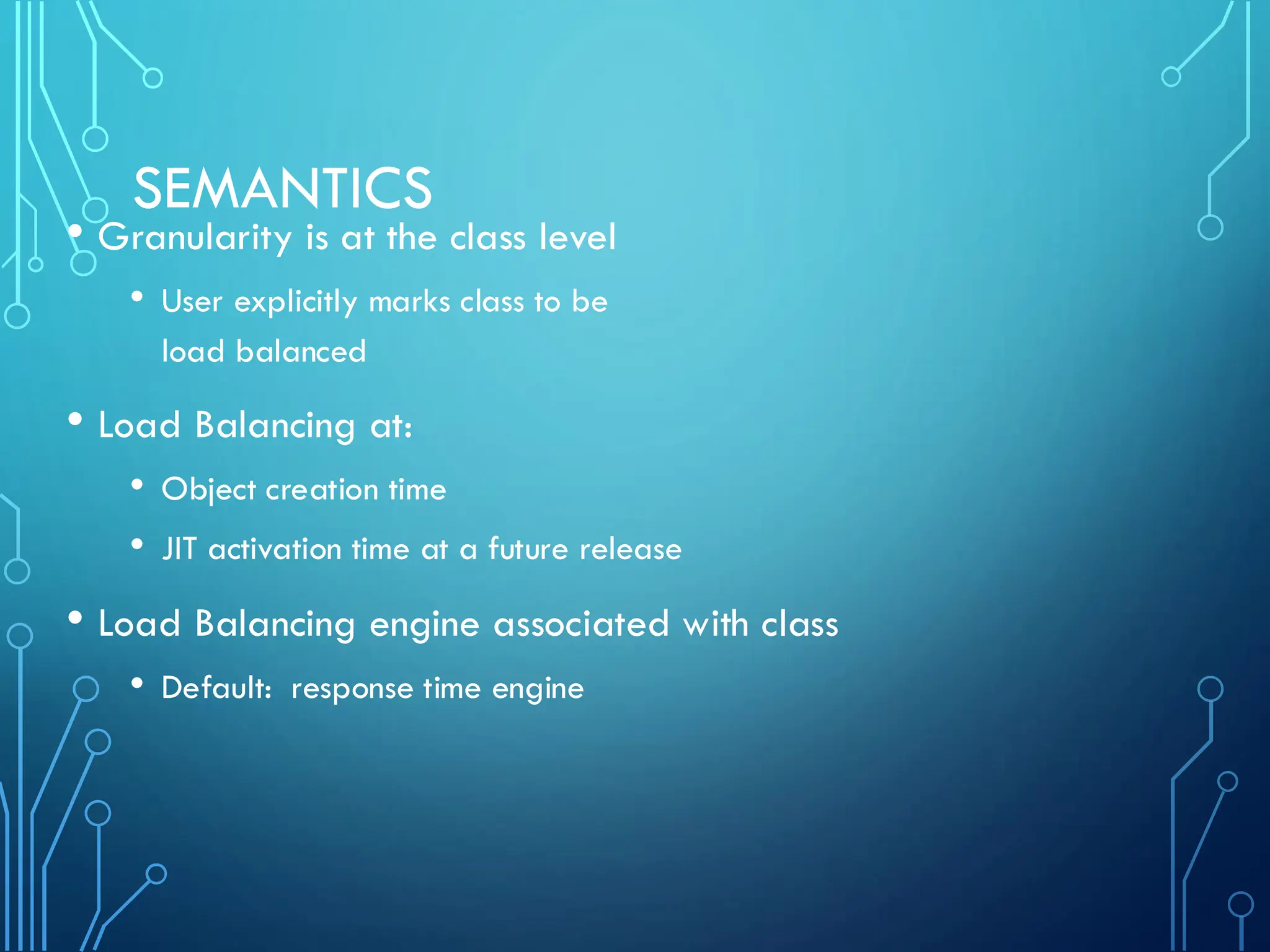

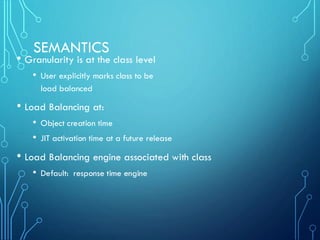

5. SEMANTICS
• Granularity is at the class level
• User explicitly marks class to be
load balanced
• Load Balancing at:
• Object creation time
• JIT activation time at a future release
• Load Balancing engine associated with class
• Default: response time engine

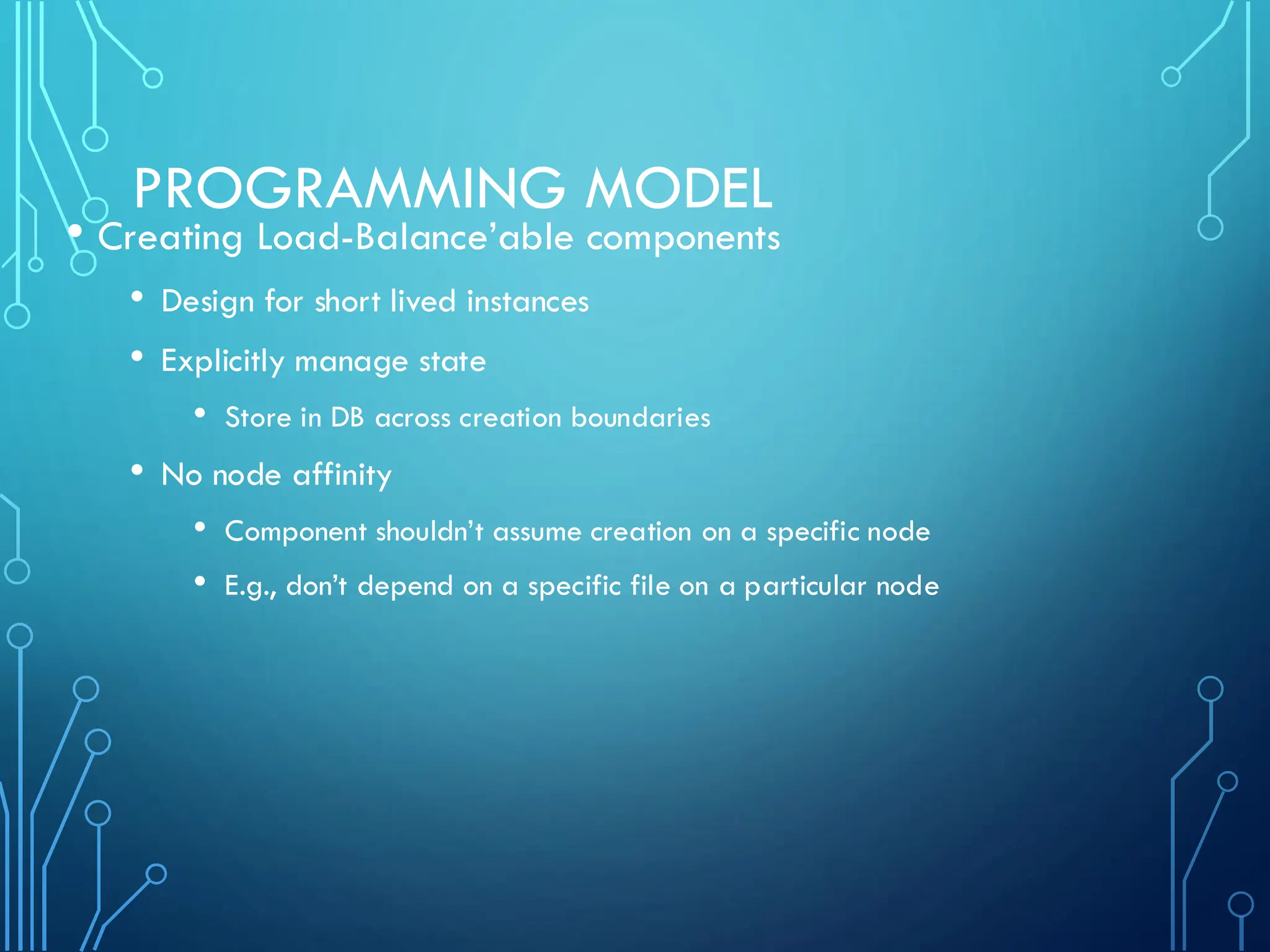

6. PROGRAMMING MODEL
• Creating Load-Balance’able components
• Design for short lived instances
• Explicitly manage state
• Store in DB across creation boundaries
• No node affinity
• Component shouldn’t assume creation on a specific node
• E.g., don’t depend on a specific file on a particular node

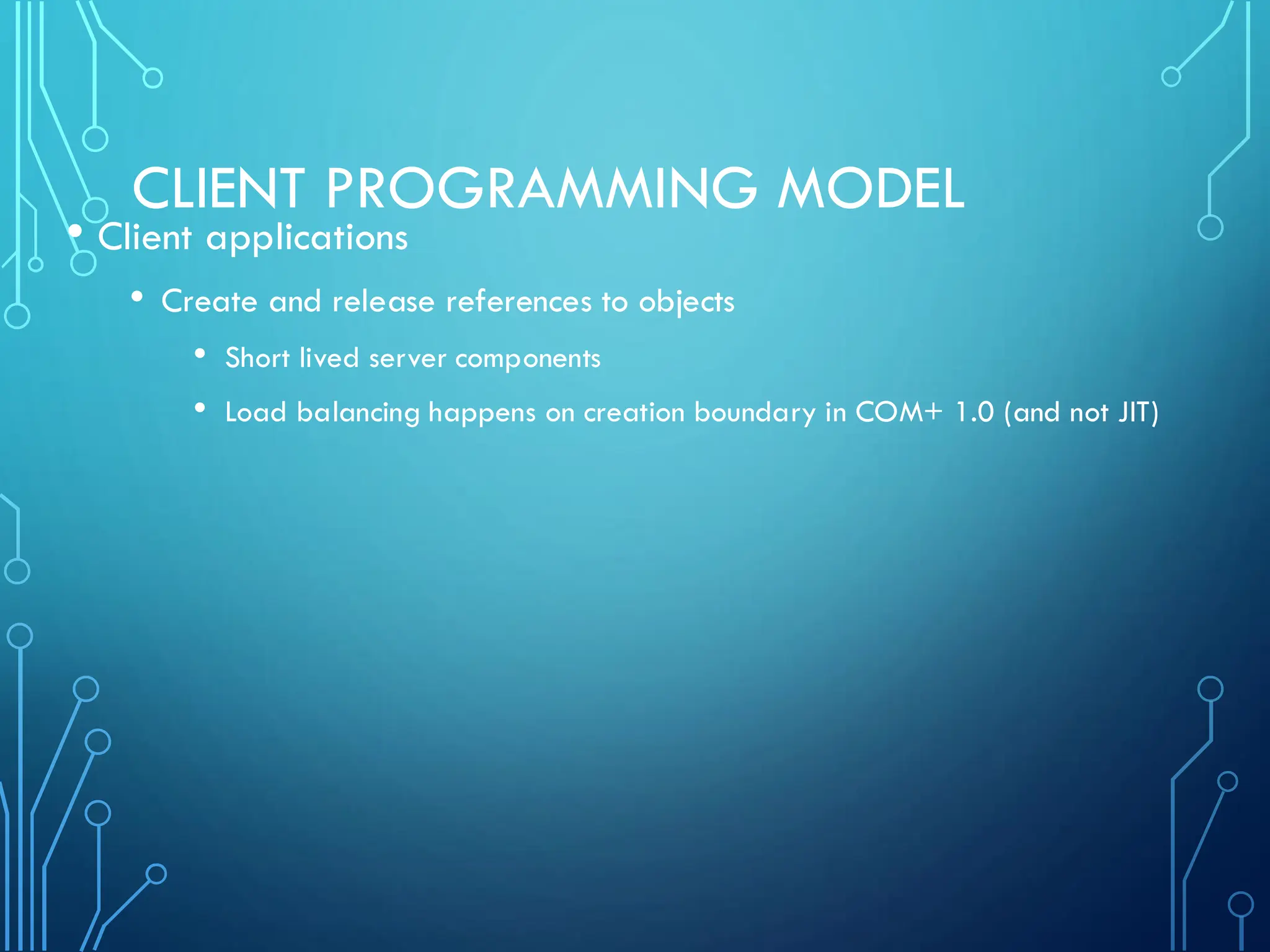

7. CLIENT PROGRAMMING MODEL
• Client applications
• Create and release references to objects
• Short lived server components
• Load balancing happens on creation boundary in COM+ 1.0 (and not JIT)

8. Clients
Load Balancing
Routers
Application
Servers Configuration
One Application
Cluster

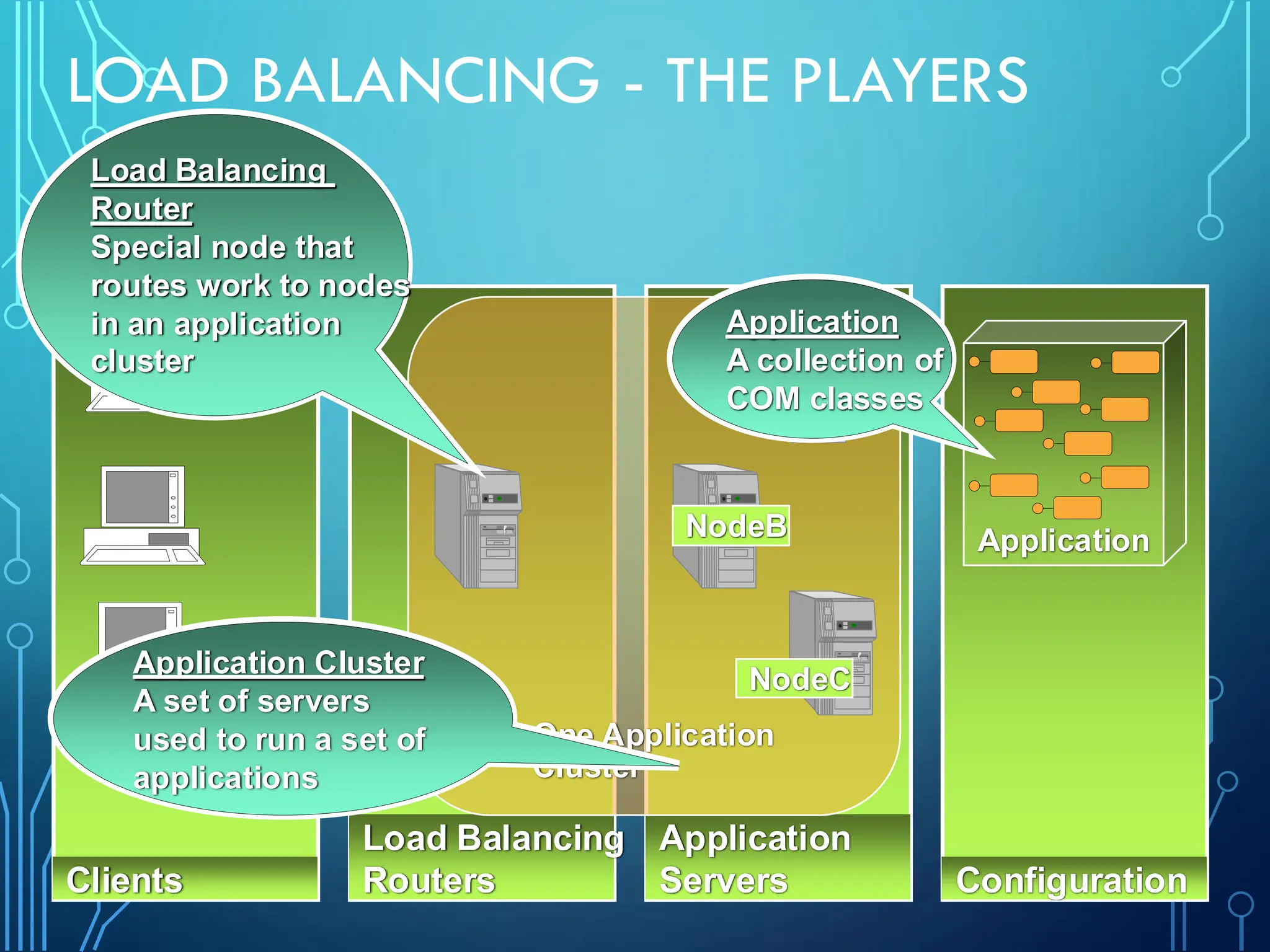

LOAD BALANCING - THE PLAYERS
NodeB
NodeA
NodeC
Application
Application Cluster
A set of servers
used to run a set of
applications
Application Cluster
A set of servers
used to run a set of
applications
Application
A collection of
COM classes
Application
A collection of
COM classes
Load Balancing
Router
Special node that
routes work to nodes
in an application
cluster
Load Balancing
Router
Special node that
routes work to nodes
in an application
cluster

9. Clients
Load Balancing
Routers
Application
Servers Configuration
One Application
Cluster
NodeB
NodeA
NodeC
The
load balancing router
is associated with the
application cluster
The
load balancing router
is associated with the
application cluster
Application
The application is
installed into the
application cluster
The application is
installed into the
application cluster
Client uses router as
remote server name
Client uses router as
remote server name

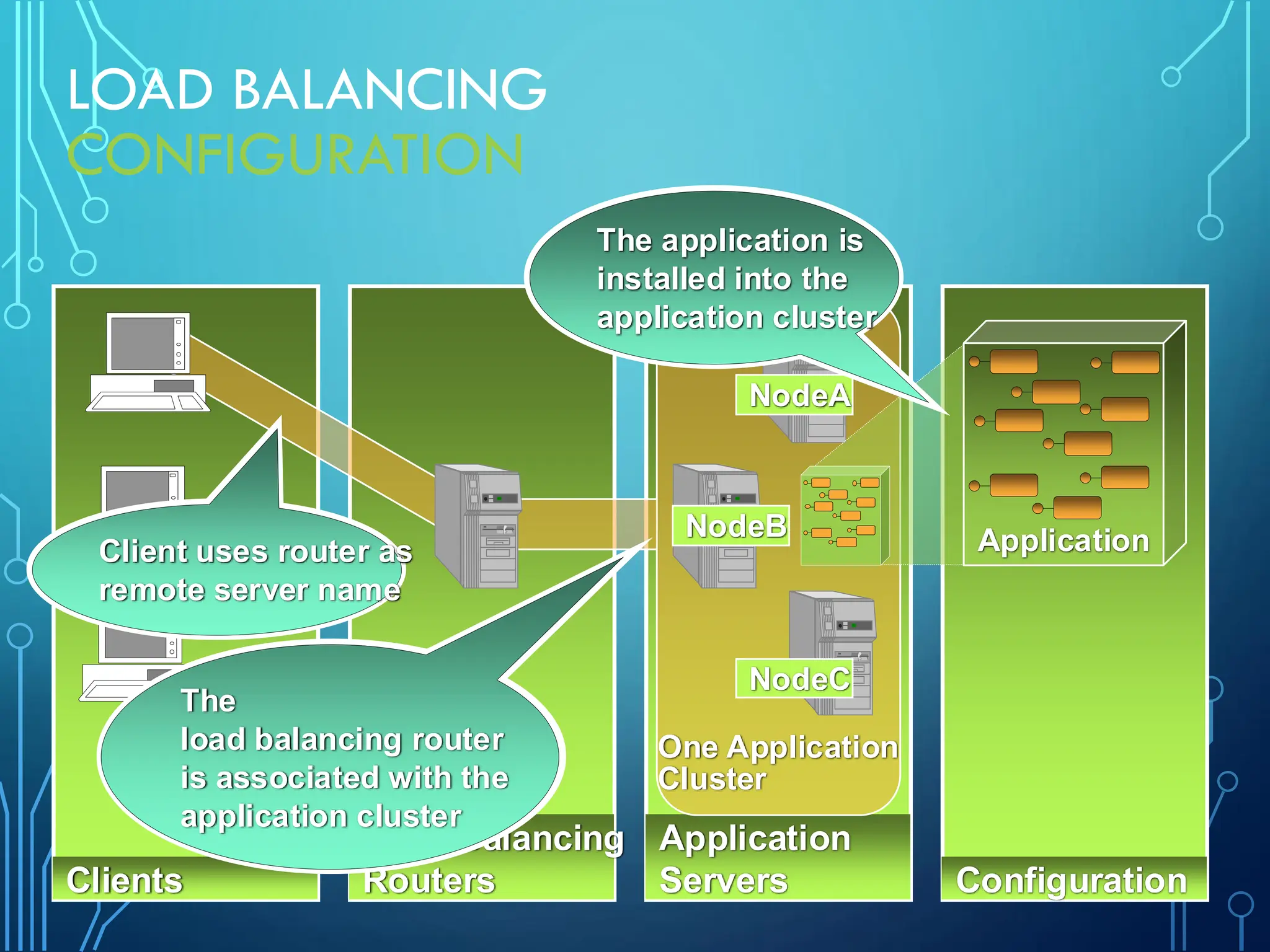

LOAD BALANCING
CONFIGURATION

10. Clients
Load Balancing
Routers
Application
Servers Configuration
One Application
Cluster

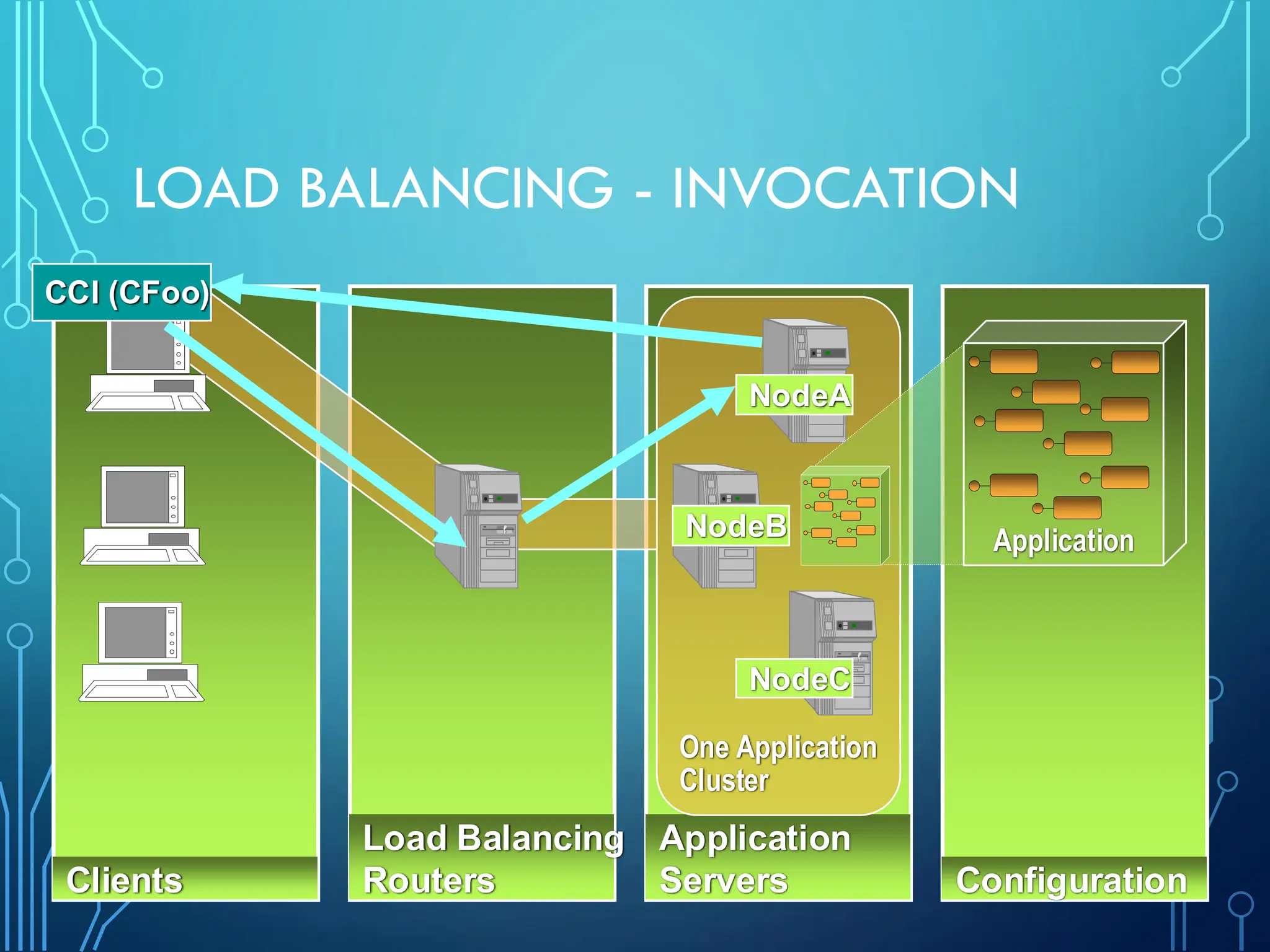

LOAD BALANCING - INVOCATION
NodeB
NodeA
NodeC
Application
CCI (CFoo)

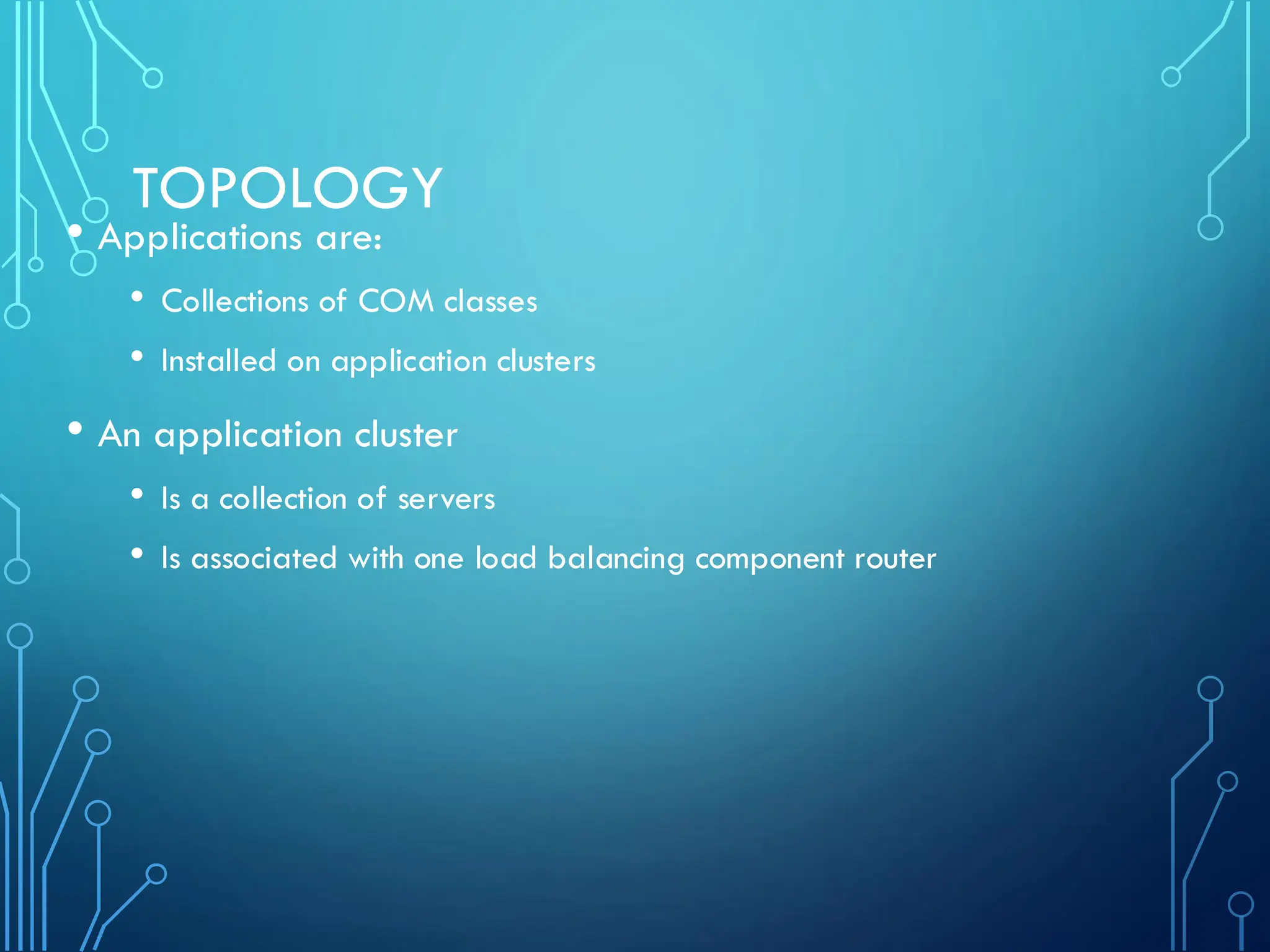

11. TOPOLOGY
• Applications are:
• Collections of COM classes
• Installed on application clusters
• An application cluster
• Is a collection of servers
• Is associated with one load balancing component router

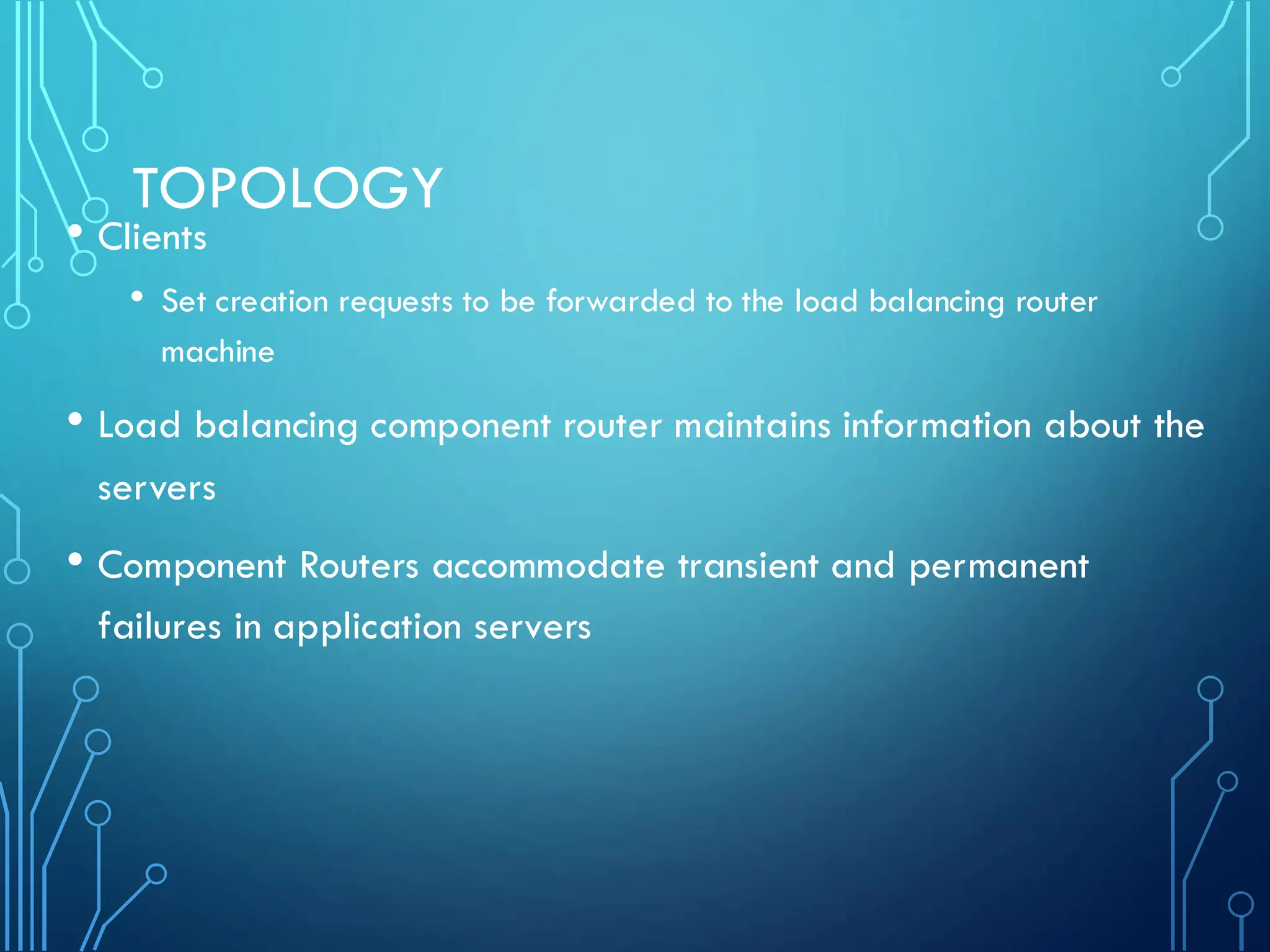

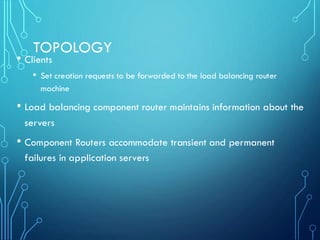

12. TOPOLOGY
• Clients
• Set creation requests to be forwarded to the load balancing router
machine
• Load balancing component router maintains information about the
servers
• Component Routers accommodate transient and permanent
failures in application servers

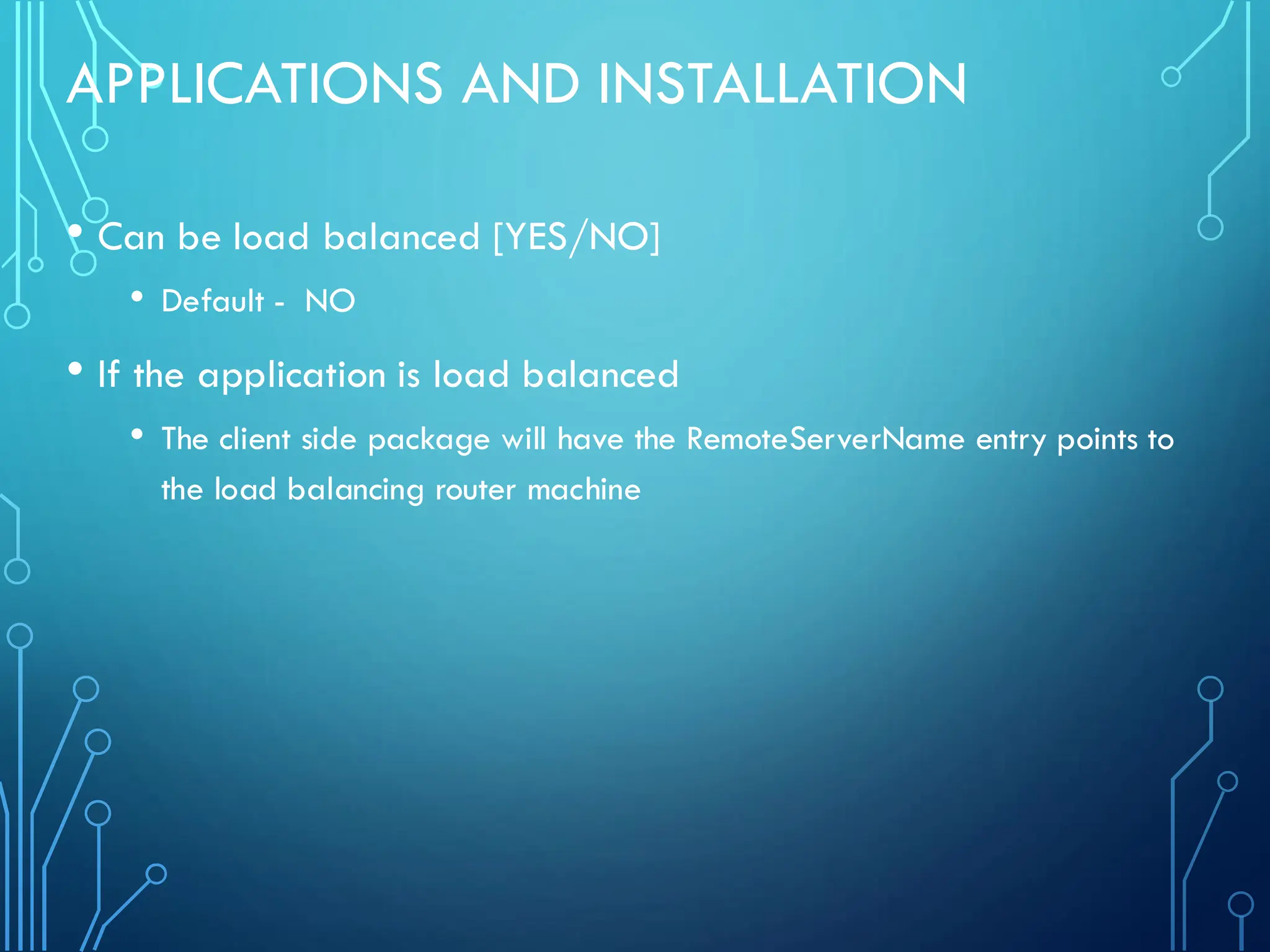

13. APPLICATIONS AND INSTALLATION
• Can be load balanced [YES/NO]
• Default - NO
• If the application is load balanced
• The client side package will have the RemoteServerName entry points to
the load balancing router machine

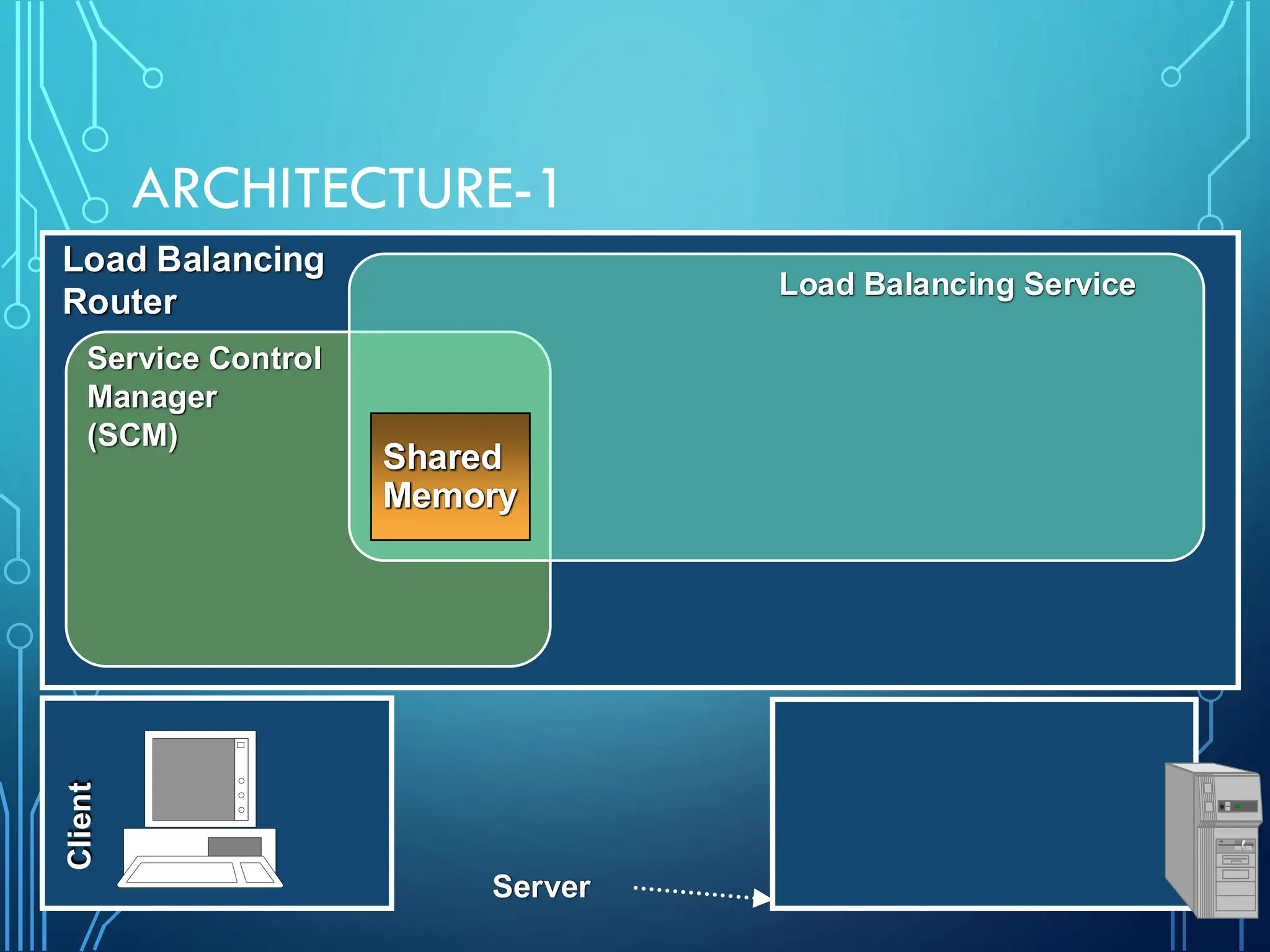

14. Client
Server
Load Balancing
Router
Load Balancing Service
Service Control
Manager
(SCM)
Shared
Memory
Shared
Memory
ARCHITECTURE-1

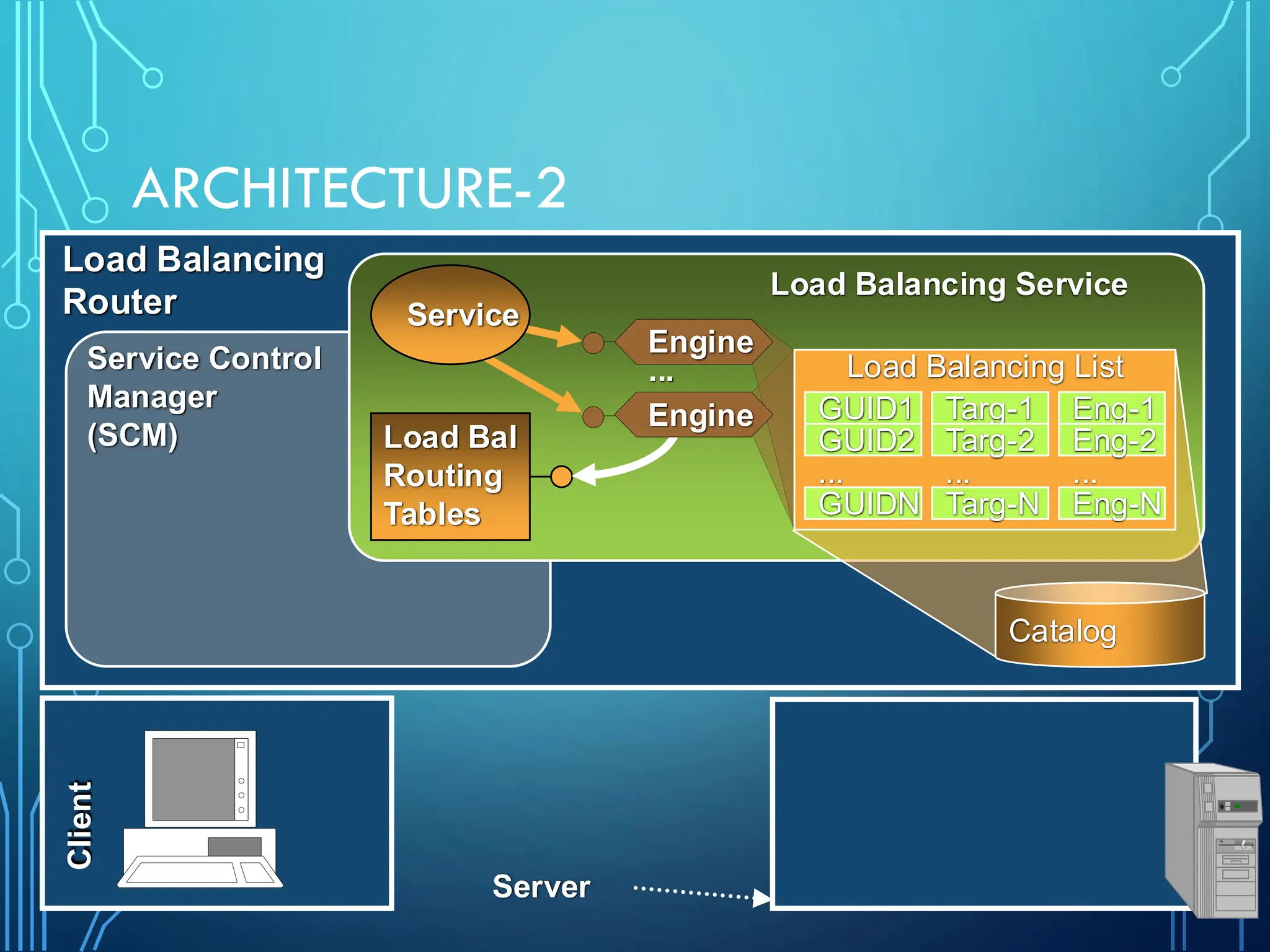

15. ARCHITECTURE-2
Client
Server
Load Balancing
Router
Service Control
Manager
(SCM)
Load Balancing Service
Catalog
...
Load Bal
Routing
Tables
Service
Load Balancing List
... ...
GUID1
GUID2
GUIDN
Targ-1
Targ-2
Targ-N
Eng-1
Eng-2
Eng-N
...
Engine
Engine

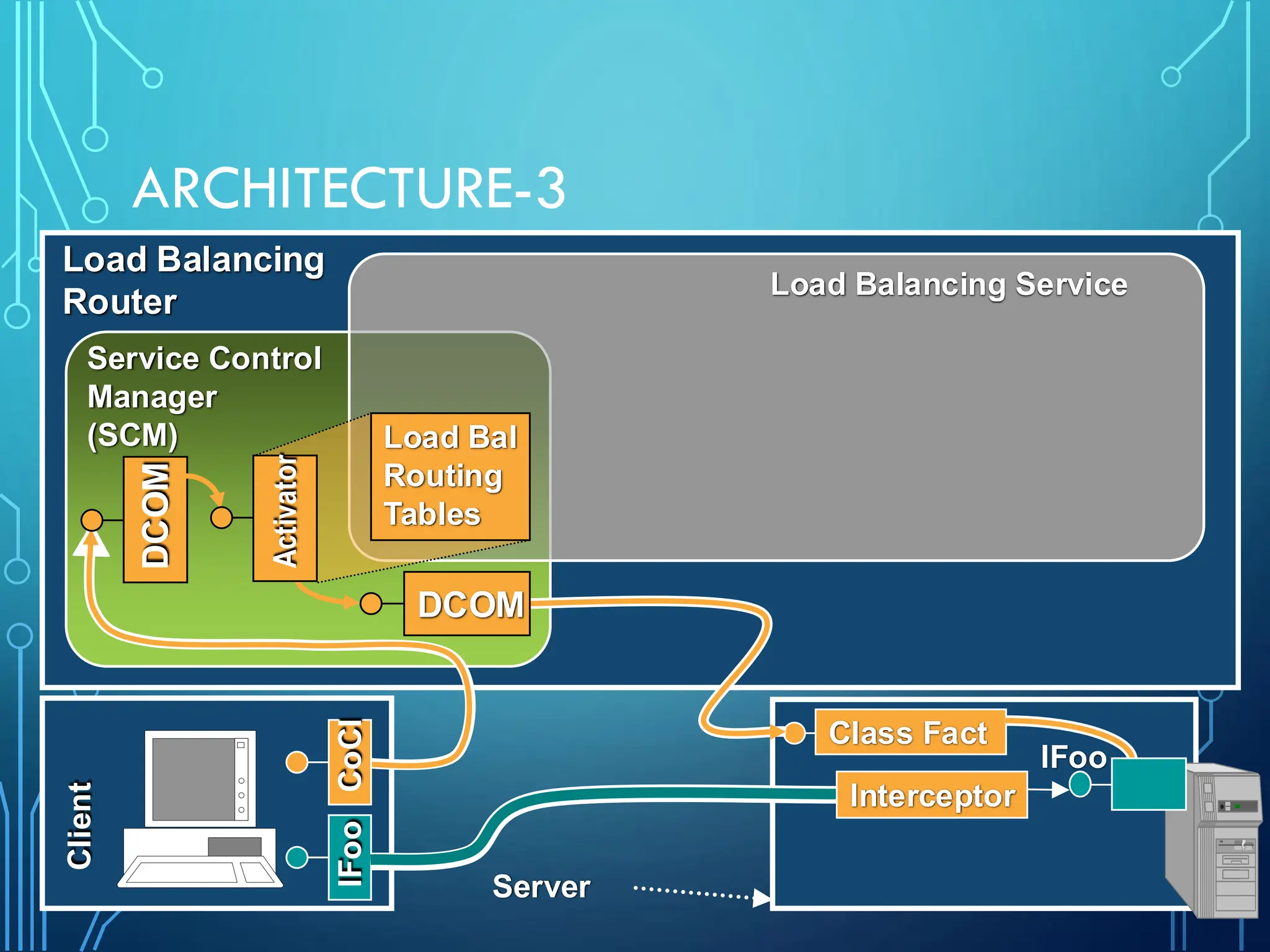

16. ARCHITECTURE-3
IFoo
Class Fact
DCOM
CoCI
Client
Server
Load Balancing
Router
Service Control
Manager
(SCM)
Load Balancing Service
Activator
Load Bal
Routing
Tables
DCOM
Interceptor
IFoo

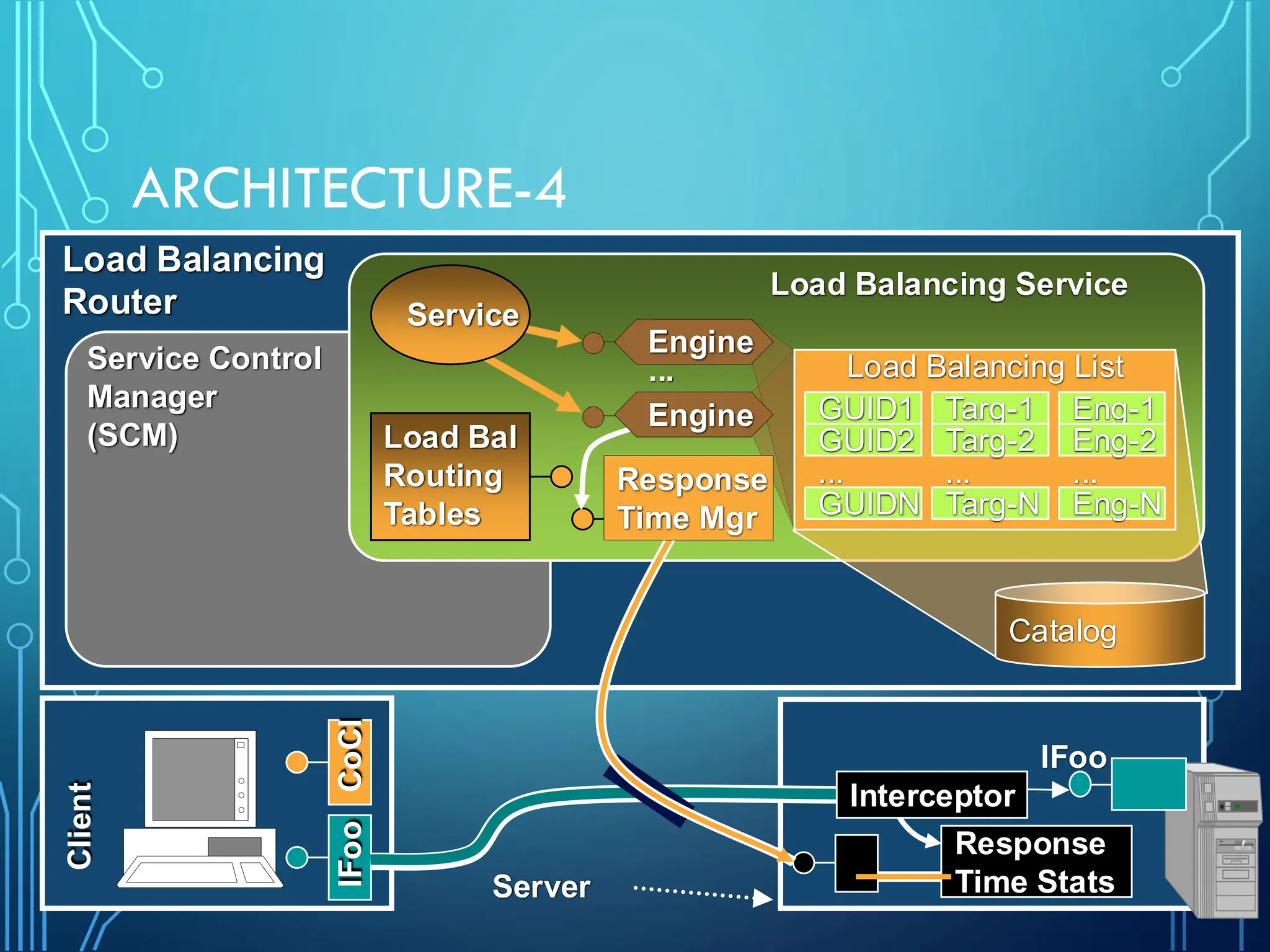

17. ARCHITECTURE-4
Load Balancing Service
Catalog
...
Load Bal
Routing
Tables
Service
Load Balancing List
... ...
GUID1
GUID2
GUIDN
Targ-1
Targ-2
Targ-N
Eng-1
Eng-2
Eng-N
...
Engine
IFoo
CoCI
Client
Server
Load Balancing
Router
Service Control
Manager
(SCM) Load Bal
Routing
Tables
IFoo
Interceptor
Response
Time Stats
Response
Time Mgr
Engine

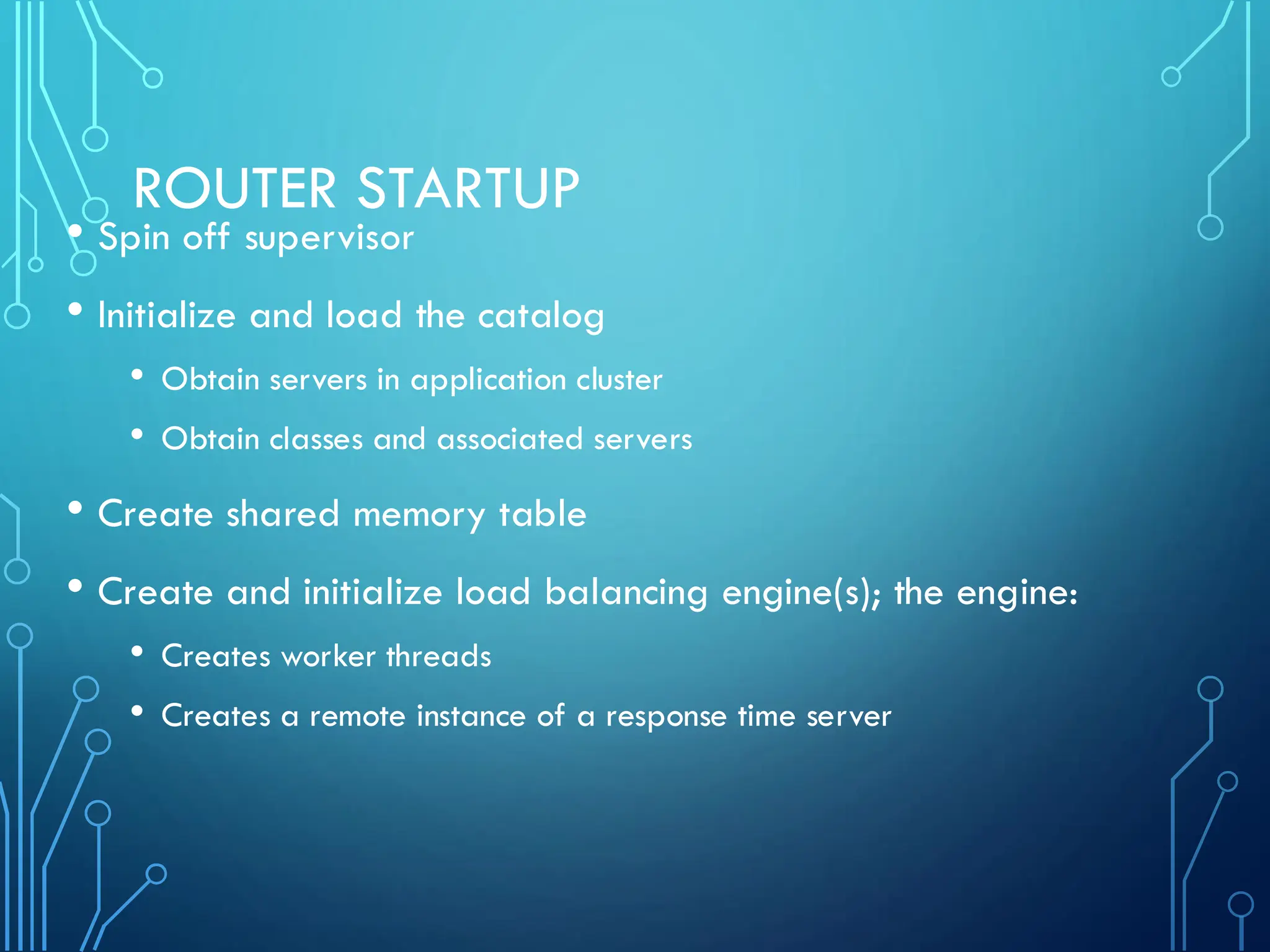

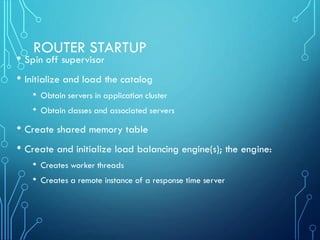

18. ROUTER STARTUP
• Spin off supervisor
• Initialize and load the catalog
• Obtain servers in application cluster
• Obtain classes and associated servers
• Create shared memory table
• Create and initialize load balancing engine(s); the engine:
• Creates worker threads
• Creates a remote instance of a response time server

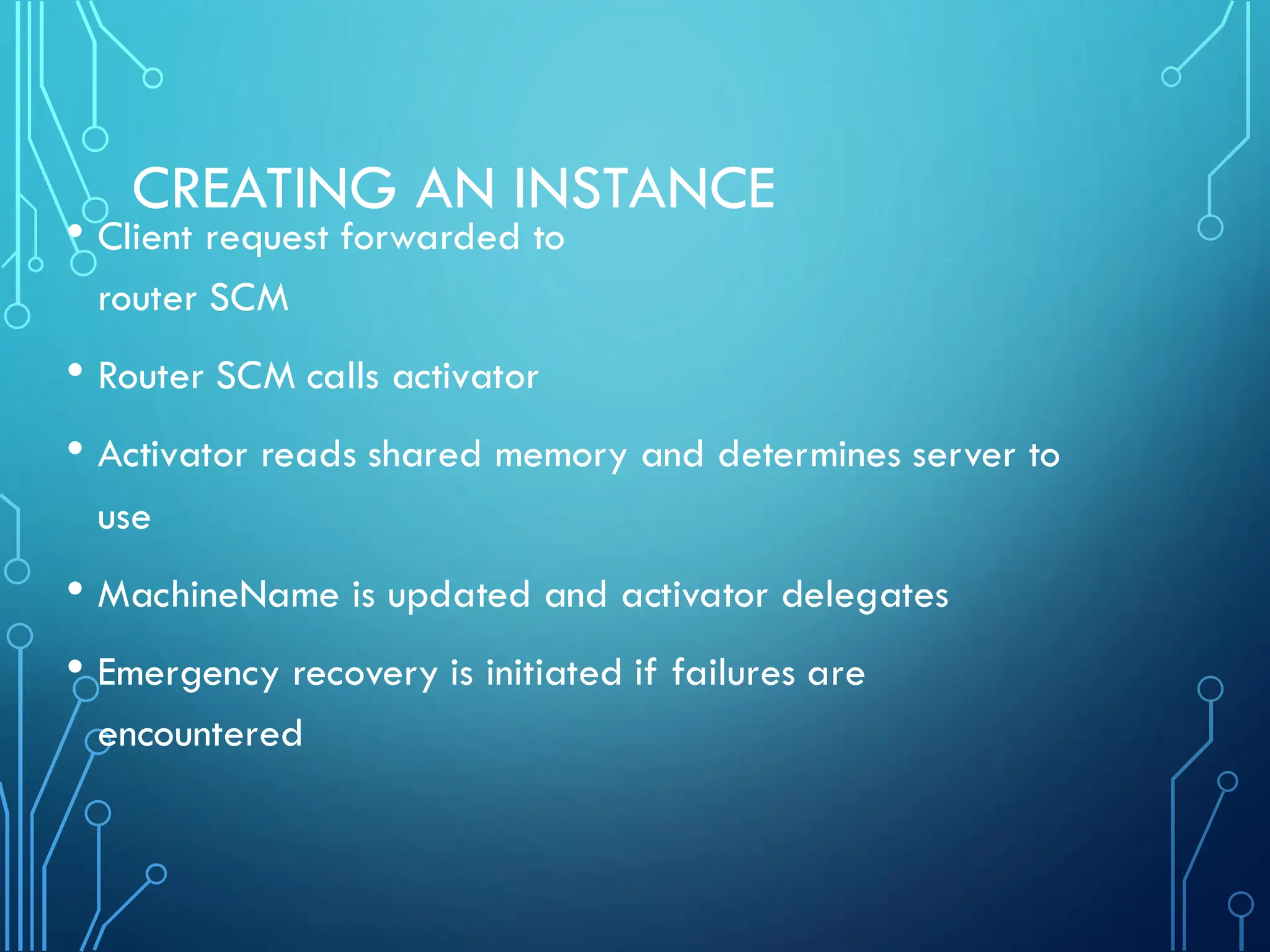

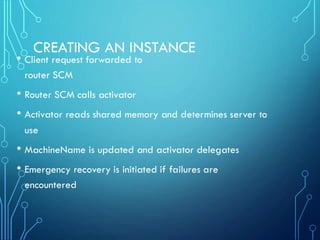

19. CREATING AN INSTANCE
• Client request forwarded to
router SCM
• Router SCM calls activator
• Activator reads shared memory and determines server to
use
• MachineName is updated and activator delegates
• Emergency recovery is initiated if failures are
encountered

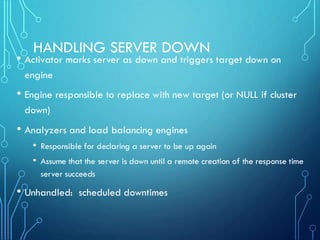

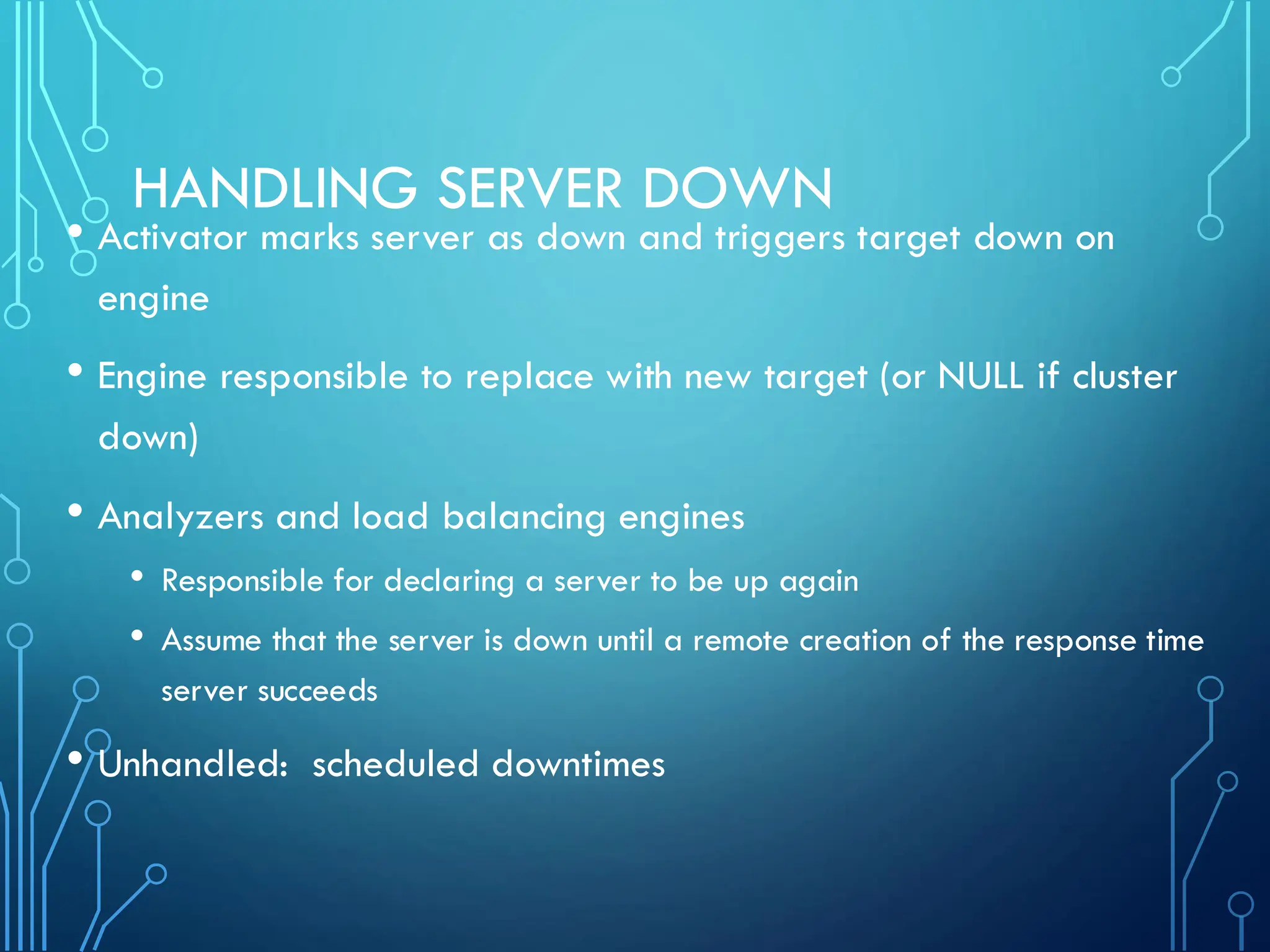

20. HANDLING SERVER DOWN
• Activator marks server as down and triggers target down on
engine
• Engine responsible to replace with new target (or NULL if cluster
down)
• Analyzers and load balancing engines
• Responsible for declaring a server to be up again
• Assume that the server is down until a remote creation of the response time
server succeeds
• Unhandled: scheduled downtimes

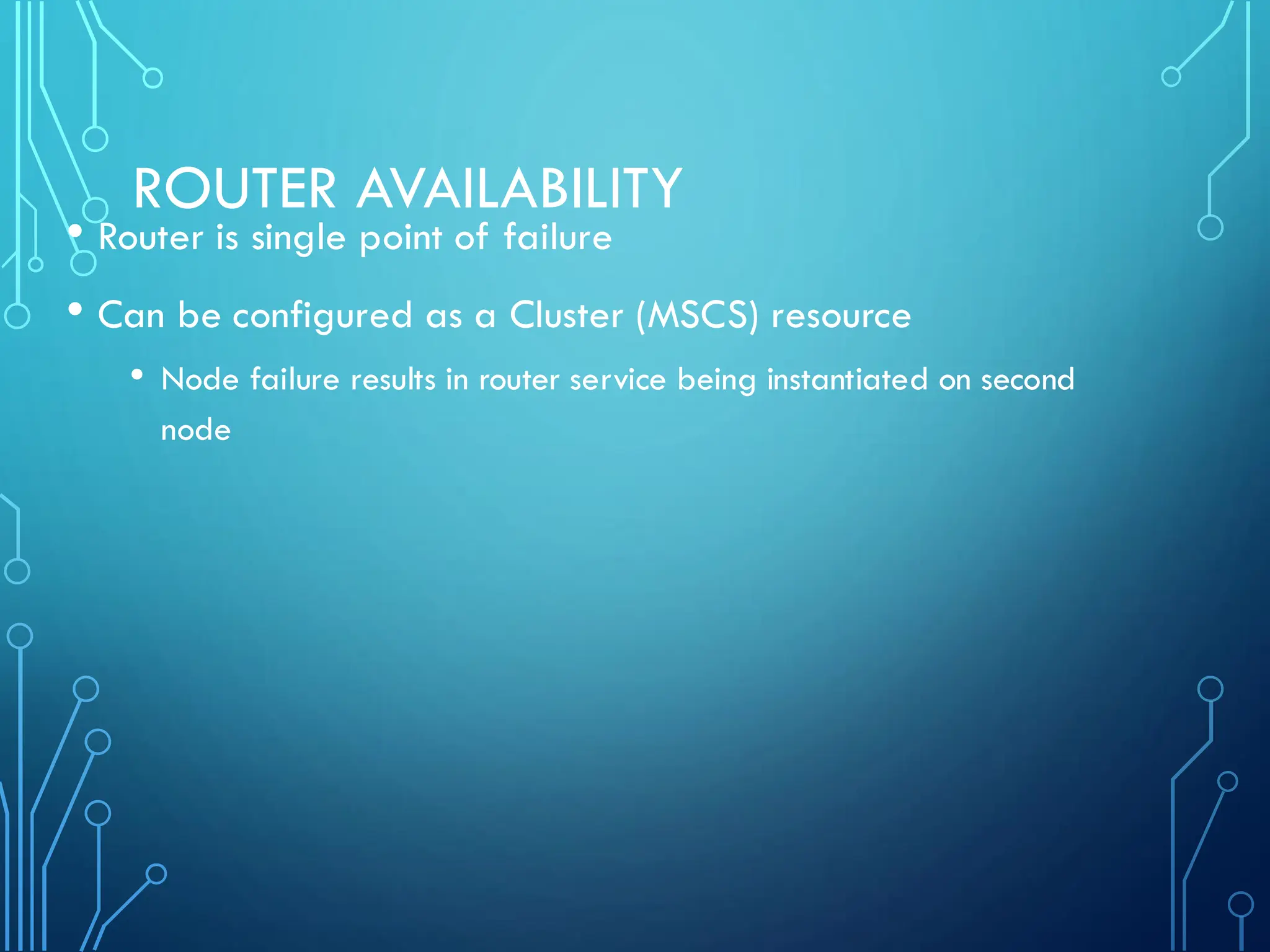

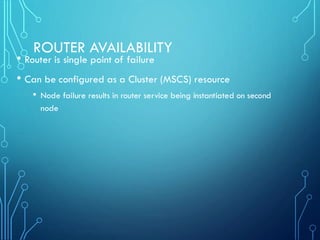

21. ROUTER AVAILABILITY
• Router is single point of failure
• Can be configured as a Cluster (MSCS) resource
• Node failure results in router service being instantiated on second
node

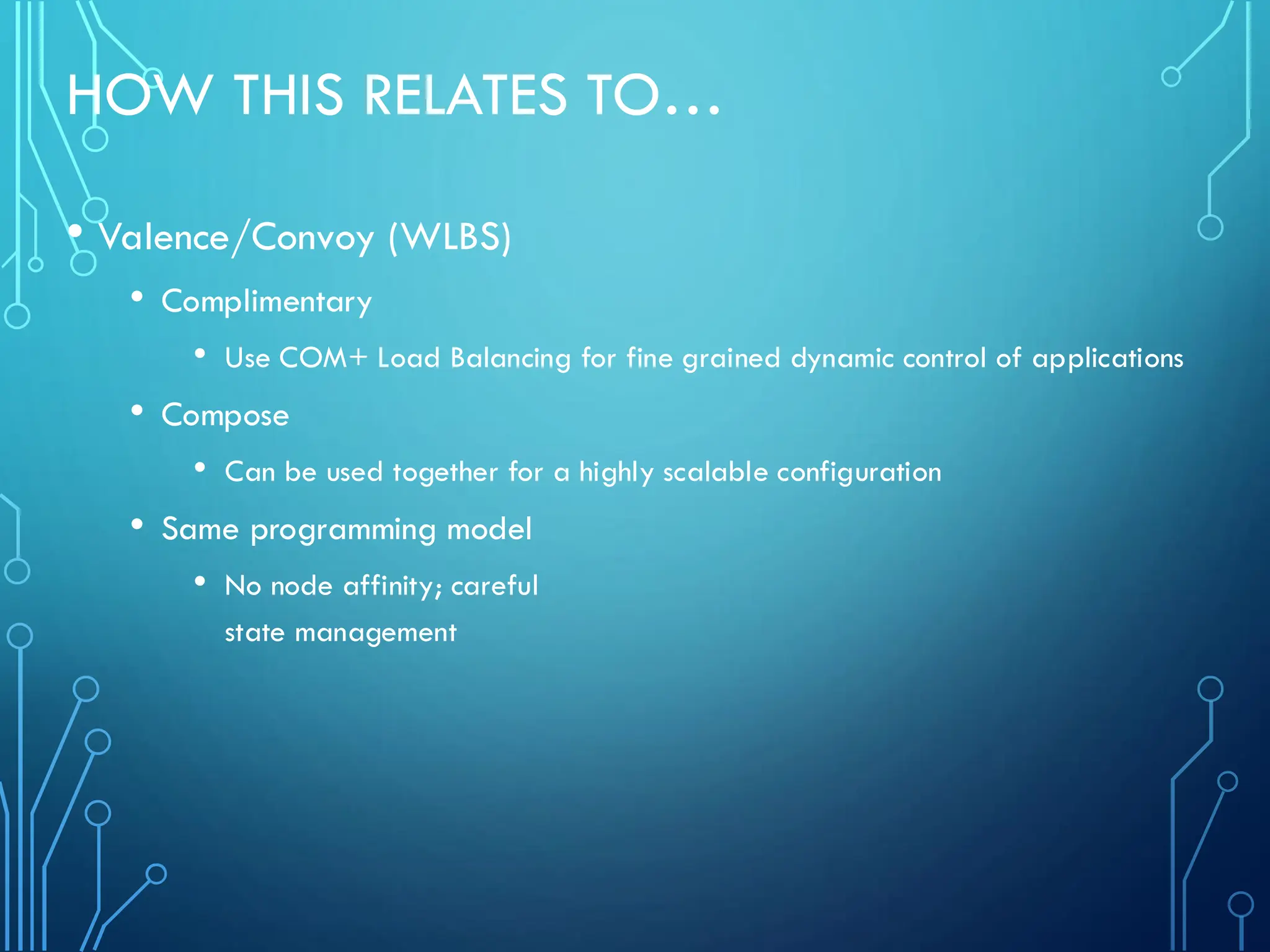

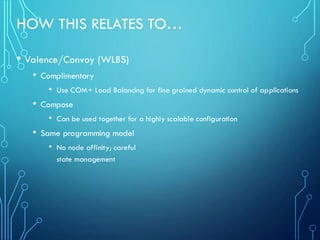

22. HOW THIS RELATES TO…
• Valence/Convoy (WLBS)
• Complimentary
• Use COM+ Load Balancing for fine grained dynamic control of applications
• Compose
• Can be used together for a highly scalable configuration
• Same programming model
• No node affinity; careful
state management

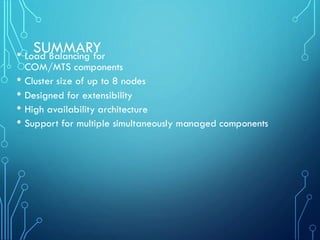

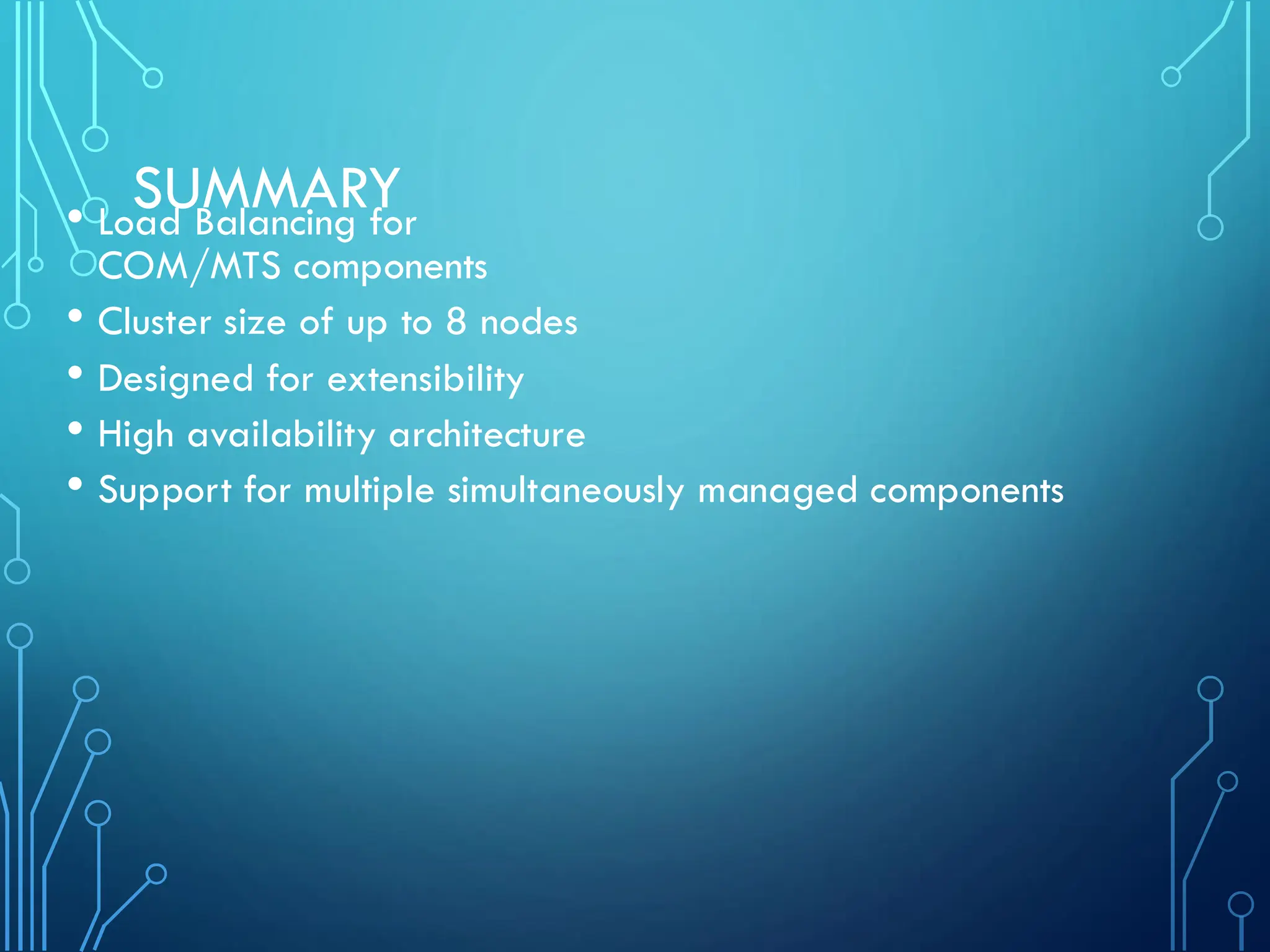

23. SUMMARY
• Load Balancing for
COM/MTS components
• Cluster size of up to 8 nodes
• Designed for extensibility
• High availability architecture
• Support for multiple simultaneously managed components

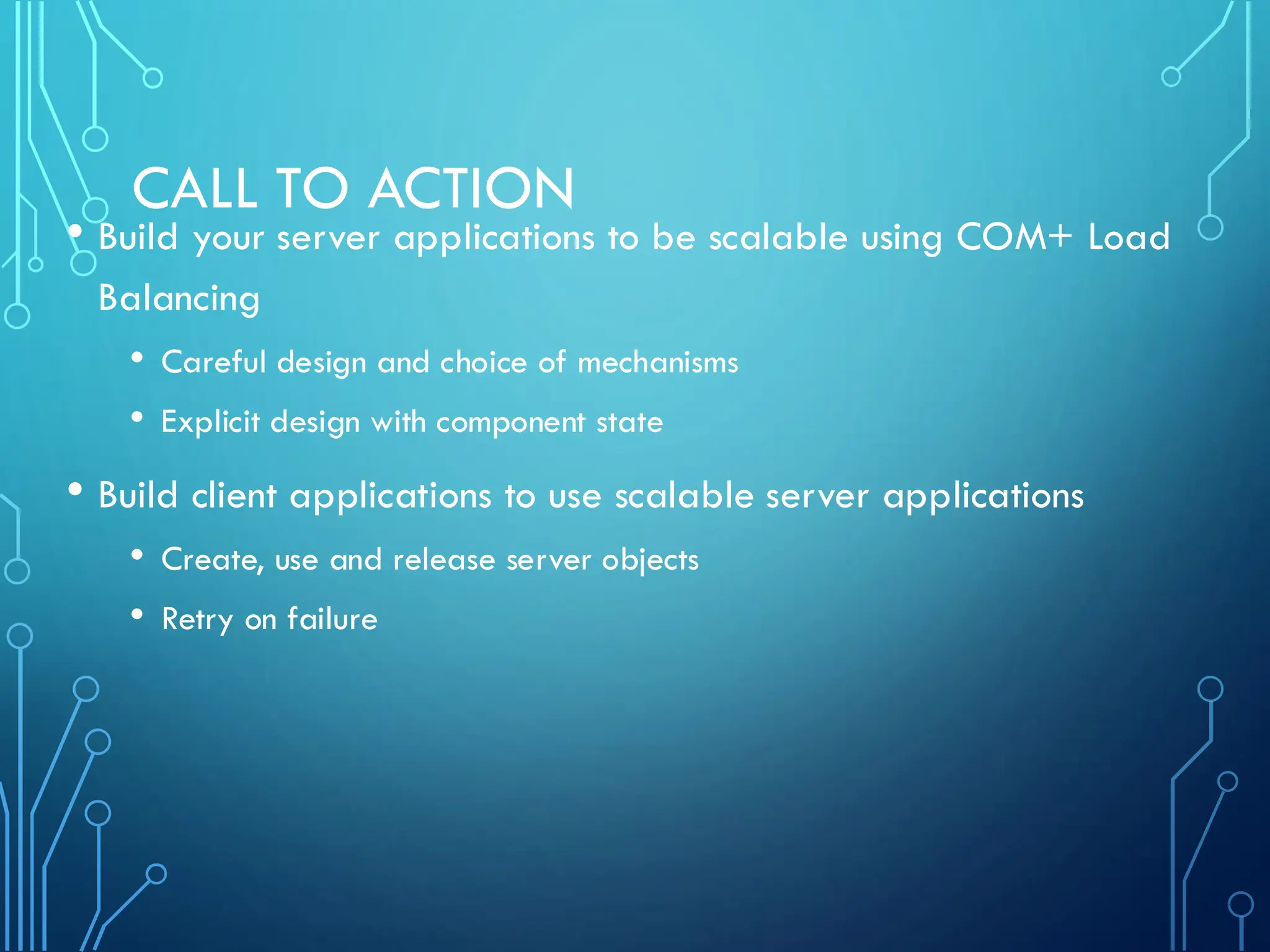

24. CALL TO ACTION
• Build your server applications to be scalable using COM+ Load
Balancing
• Careful design and choice of mechanisms
• Explicit design with component state
• Build client applications to use scalable server applications
• Create, use and release server objects
• Retry on failure

25. QUESTIONS?
