OLE DB Provider Development - Encapsulating a Service Provider
"OLE DB provider development" refers to the process of creating a software component, called an OLE DB provider, which enables applications to access data from a specific data source by implementing the OLE DB standard interfaces
More Related Content
Similar to OLE DB Provider Development - Encapsulating a Service Provider
OLE DB Provider Development - Encapsulating a Service Provider
- 1. OLE DB PROVIDER DEVELOPMENT ArunSeetharaman Computer Call January 20, 1999

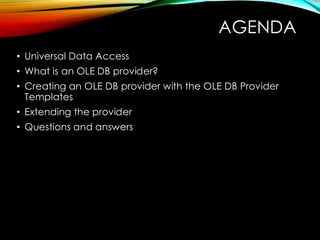

- 2. AGENDA • Universal DataAccess • What is an OLE DB provider? • Creating an OLE DB provider with the OLE DB Provider Templates • Extending the provider • Questions and answers

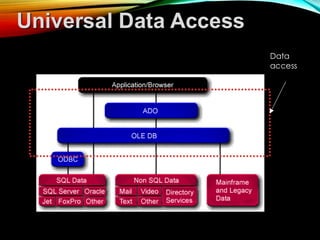

- 3.
- 4. WHAT IS ANOLE DB DATA PROVIDER? • Implements core OLE DB interfaces • Common interfaces to native functionality • Does not require data to look like a relational database • Implements extended OLE DB interfaces to expose native extended functionality

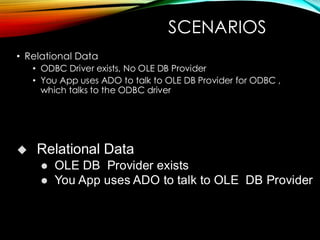

- 5. SCENARIOS • Relational Data •ODBC Driver exists, No OLE DB Provider • You App uses ADO to talk to OLE DB Provider for ODBC , which talks to the ODBC driver ◆ Relational Data ⚫ OLE DB Provider exists ⚫ You App uses ADO to talk to OLE DB Provider

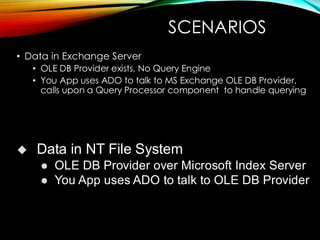

- 6. SCENARIOS • Data inExchange Server • OLE DB Provider exists, No Query Engine • You App uses ADO to talk to MS Exchange OLE DB Provider, calls upon a Query Processor component to handle querying ◆ Data in NT File System ⚫ OLE DB Provider over Microsoft Index Server ⚫ You App uses ADO to talk to OLE DB Provider

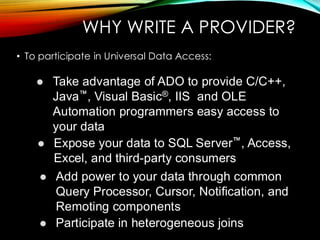

- 7. WHY WRITE APROVIDER? • To participate in Universal Data Access: ⚫ Take advantage of ADO to provide C/C++, Java , Visual Basic®, IIS and OLE Automation programmers easy access to your data ⚫ Expose your data to SQL Server , Access, Excel, and third-party consumers ⚫ Add power to your data through common Query Processor, Cursor, Notification, and Remoting components ⚫ Participate in heterogeneous joins

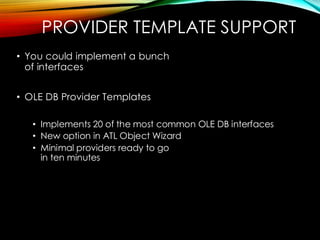

- 8. PROVIDER TEMPLATE SUPPORT •You could implement a bunch of interfaces • OLE DB Provider Templates • Implements 20 of the most common OLE DB interfaces • New option in ATL Object Wizard • Minimal providers ready to go in ten minutes

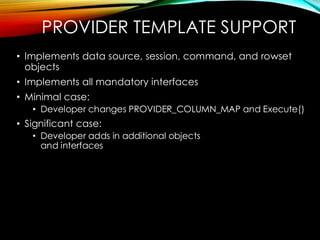

- 9. PROVIDER TEMPLATE SUPPORT •Implements data source, session, command, and rowset objects • Implements all mandatory interfaces • Minimal case: • Developer changes PROVIDER_COLUMN_MAP and Execute() • Significant case: • Developer adds in additional objects and interfaces

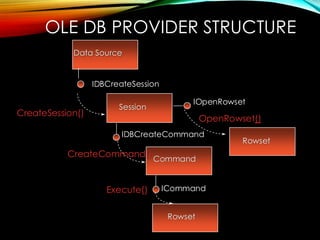

- 10. CreateSession() Session IDBCreateCommand IOpenRowset Execute() Rowset Rowset OpenRowset() Command ICommand CreateCommand() OLE DB PROVIDERSTRUCTURE Data Source IDBCreateSession

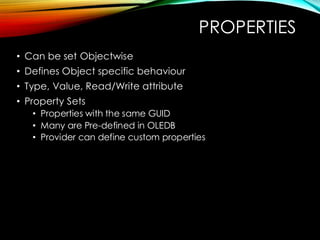

- 11. PROPERTIES • Can beset Objectwise • Defines Object specific behaviour • Type, Value, Read/Write attribute • Property Sets • Properties with the same GUID • Many are Pre-defined in OLEDB • Provider can define custom properties

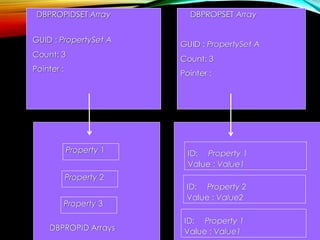

- 12. GUID : PropertySetA Count: 3 Pointer : DBPROPSET Array ID: Property 1 Value : Value1 ID: Property 2 Value : Value2 ID: Property 1 Value : Value1 GUID : PropertySet A Count: 3 Pointer : DBPROPIDSET Array Property 1 Property 2 Property 3 DBPROPID Arrays
- 13. DATA SOURCE INTERFACES •IDBProperties • Sets properties used in initialization • Returns information about provider's capabilities • Data Source Properties Data Source Name, Version, Threading Model • Initialization Properties User ID, Password, Locale ID, Timeout

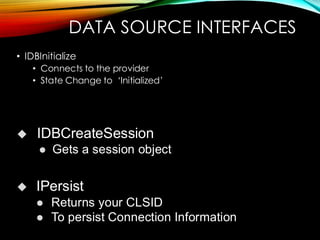

- 14. DATA SOURCE INTERFACES •IDBInitialize • Connects to the provider • State Change to ‘Initialized’ ◆ IDBCreateSession ⚫ Gets a session object ◆ IPersist ⚫ Returns your CLSID ⚫ To persist Connection Information
- 15. SESSION INTERFACES • IGetDataSource •Returns parent datasource • ISessionProperties • Sets properties on session Transaction Isolation Levels Supported in Auto-Commit Mode

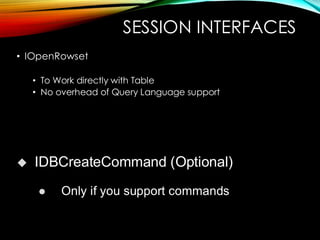

- 16. SESSION INTERFACES • IOpenRowset •To Work directly with Table • No overhead of Query Language support ◆ IDBCreateCommand (Optional) ⚫ Only if you support commands

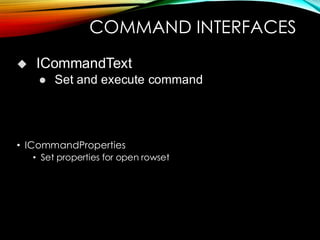

- 17. COMMAND INTERFACES • ICommandProperties •Set properties for open rowset ◆ ICommandText ⚫ Set and execute command

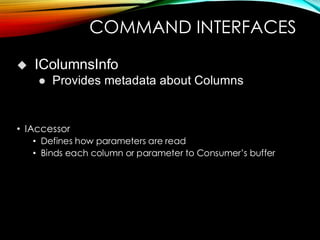

- 18. COMMAND INTERFACES • IAccessor •Defines how parameters are read • Binds each column or parameter to Consumer’s buffer ◆ IColumnsInfo ⚫ Provides metadata about Columns

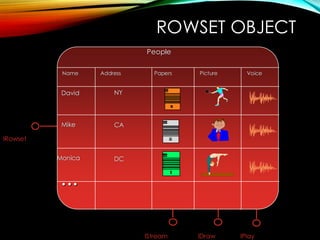

- 19. ROWSET OBJECT People Name AddressPapers Picture Voice David Mike Monica NY CA DC ... IStream IRowset IDraw IPlay

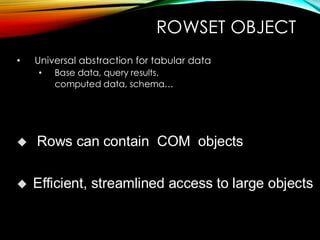

- 20. ROWSET OBJECT • Universalabstraction for tabular data • Base data, query results, computed data, schema… ◆ Rows can contain COM objects ◆ Efficient, streamlined access to large objects

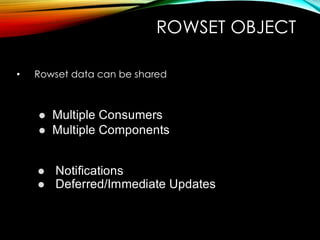

- 21. ROWSET OBJECT • Rowsetdata can be shared ⚫ Multiple Consumers ⚫ Multiple Components ⚫ Notifications ⚫ Deferred/Immediate Updates

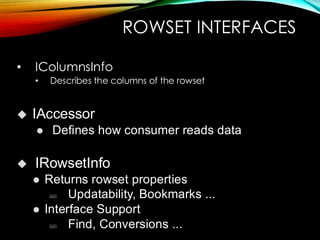

- 22. ROWSET INTERFACES • IColumnsInfo •Describes the columns of the rowset ◆ IAccessor ⚫ Defines how consumer reads data ◆ IRowsetInfo ⚫ Returns rowset properties Updatability, Bookmarks ... ⚫ Interface Support Find, Conversions ...

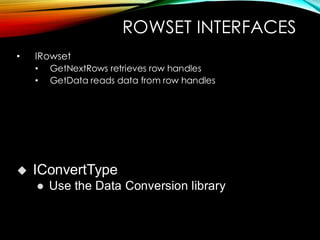

- 23. ROWSET INTERFACES • IRowset •GetNextRows retrieves row handles • GetData reads data from row handles ◆ IConvertType ⚫ Use the Data Conversion library

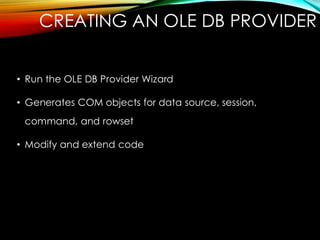

- 24. CREATING AN OLEDB PROVIDER • Run the OLE DB Provider Wizard • Generates COM objects for data source, session, command, and rowset • Modify and extend code
- 25. class CAgentMan { public: TCHAR szCommand[256]; TCHARszText[256]; BEGIN_PROVIDER_COLUMN_MAP(CAgentMan) PROVIDER_COLUMN_ENTRY(“Field1”, 1, szCommand) PROVIDER_COLUMN_ENTRY(“Field2”, 2, szText) END_PROVIDER_COLUMN_MAP() }; MODIFY DATA STRUCTURE • Represents one row of data • Contains data members and meta-data

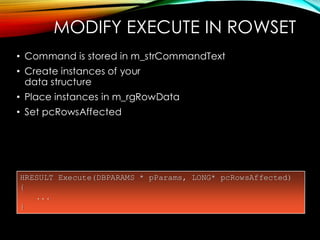

- 26. HRESULT Execute(DBPARAMS *pParams, LONG* pcRowsAffected) { ... } MODIFY EXECUTE IN ROWSET • Command is stored in m_strCommandText • Create instances of your data structure • Place instances in m_rgRowData • Set pcRowsAffected

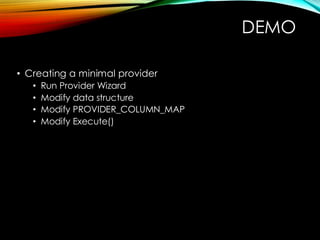

- 27. DEMO • Creating aminimal provider • Run Provider Wizard • Modify data structure • Modify PROVIDER_COLUMN_MAP • Modify Execute()

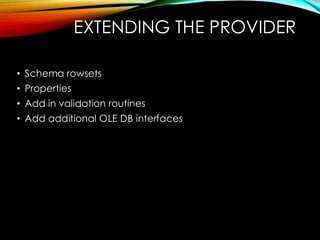

- 28. EXTENDING THE PROVIDER •Schema rowsets • Properties • Add in validation routines • Add additional OLE DB interfaces

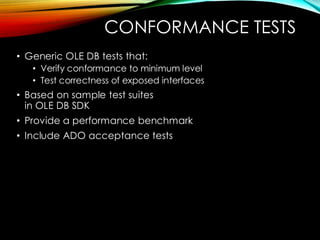

- 29. CONFORMANCE TESTS • GenericOLE DB tests that: • Verify conformance to minimum level • Test correctness of exposed interfaces • Based on sample test suites in OLE DB SDK • Provide a performance benchmark • Include ADO acceptance tests

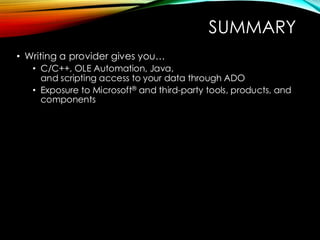

- 30. SUMMARY • Writing aprovider gives you… • C/C++, OLE Automation, Java, and scripting access to your data through ADO • Exposure to Microsoft® and third-party tools, products, and components
