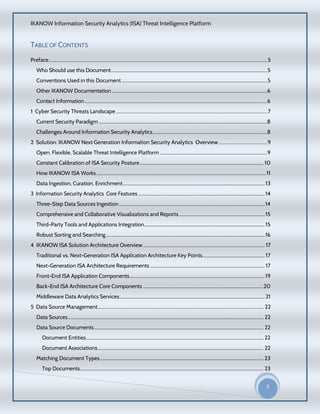

TABLE OF CONTENTS
Preface......................................................................................................................................................................5
Who Should use this Document...................................................................................................................................5
Conventions Used in this Document..........................................................................................................................5
Other IKANOW Documentation ..................................................................................................................................6
Contact Information.........................................................................................................................................................6
1 Cyber Security Threats Landscape ...................................................................................................................7
Current Security Paradigm .............................................................................................................................................8
Challenges Around Information Security Analytics................................................................................................8
2 Solution: IKANOW Next Generation Information Security Analytics Overview .....................................9
Open, Flexible, Scalable Threat Intelligence Platform ..........................................................................................9
Constant Calibration of ISA Security Posture........................................................................................................ 10
How IKANOW ISA Works..............................................................................................................................................11
Data Ingestion, Curation, Enrichment.......................................................................................................................13
3 Information Security Analytics Core Features ................................................................................................14
Three-Step Data Sources Ingestion ..........................................................................................................................14
Comprehensive and Collaborative Visualizations and Reports........................................................................15
Third-Party Tools and Applications Integration.....................................................................................................15
Robust Sorting and Searching.....................................................................................................................................16
4 IKANOW ISA Solution Architecture Overview ............................................................................................ 17
Traditional vs. Next-Generation ISA Application Architecture Key Points.................................................... 17
Next-Generation ISA Architecture Requirements ................................................................................................ 17
Front-End ISA Application Components.................................................................................................................19
Back-End ISA Architecture Core Components .....................................................................................................20
Middleware Data Analytics Services.......................................................................................................................... 21
5 Data Source Management.............................................................................................................................. 22
Data Sources.................................................................................................................................................................... 22
Data Source Documents.............................................................................................................................................. 22
Document Entities..................................................................................................................................................... 22
Document Associations........................................................................................................................................... 22
Matching Document Types......................................................................................................................................... 23
Top Documents.......................................................................................................................................................... 23

3
20
15

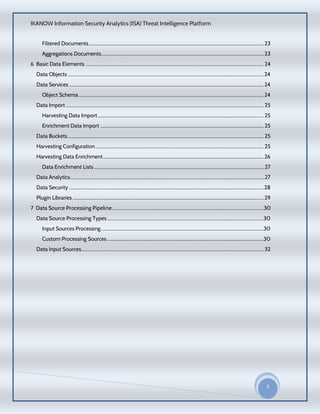

Filtered Documents .................................................................................................................................................. 23
Aggregations Documents........................................................................................................................................ 23
6 Basic Data Elements ....................................................................................................................................... 24
Data Objects .................................................................................................................................................................... 24
Data Services ................................................................................................................................................................... 24
Object Schema........................................................................................................................................................... 24
Data Import...................................................................................................................................................................... 25
Harvesting Data Import........................................................................................................................................... 25
Enrichment Data Import ......................................................................................................................................... 25
Data Buckets.................................................................................................................................................................... 25
Harvesting Configuration............................................................................................................................................. 25
Harvesting Data Enrichment....................................................................................................................................... 26
Data Enrichment Lists ...............................................................................................................................................27
Data Analytics...................................................................................................................................................................27
Data Security ...................................................................................................................................................................28
Plugin Libraries ................................................................................................................................................................ 29
7 Data Source Processing Pipeline...................................................................................................................30
Data Source Processing Types...................................................................................................................................30
Input Sources Processing ........................................................................................................................................30
Custom Processing Sources ...................................................................................................................................30

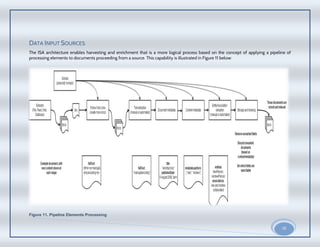

Data Input Sources......................................................................................................................................................... 32

4
20
15
IMPORTANT NOTICE
The information contained in the document is believed to be reliable, but IKANOW makes no
warranties as to its accuracy or completeness. IKANOW does not warrant or represent that any
license, either express or implied, is granted under any IKANOW patent right, copyright, or other
IKANOW intellectual property right relating to any combination or process in which IKANOW
products or services are used. Information published by IKANOW regarding third-party products
or services does not constitute a license from IKANOW to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third
party under the patents or other intellectual property of the third party, or a license from IKANOW
under the patents or other intellectual property of IKANOW.
IKANOW Threat Analytics Platform TM
is trademark of IKANOW, Inc.
Copyright © 2015, IKANOW Inc. All rights reserved.

5
20
15
PREFACE
The Information Security Analytics (ISA) Threat Intelligence Platform System Architecture Guide
describes the product’s core features, architecture, design requirements, different components of
the product, and the role each component provides for the IKANOW Threat Intelligence Platform
solution.
WHO SHOULD USE THIS DOCUMENT
The following are the intended audience for this guide:
 Cyber Security Analyst
 Special Operations Engineer
 Tier 1, 2, 3 Cyber Analyst
 Social Media Analyst
 IT Security Engineer
 Chief Information Security Officer (CISO)
 Sales Engineers
 System Architects and Designers
CONVENTIONS USED IN THIS DOCUMENT
Table 1 describes the typographic conventions used in this guide.
Table 1. Typographic Conventions
Convention Meaning Example
courier font Names of commands, files,
on-screen computer output.
Edit your .login file.
Use ls -a to list all files.
machine_name% test.doc.
italics Document titles, new terms, words to be
emphasized.
Variables that you replace with a real name or
value .
Read Chapter 6 in User's
Guide.
These are called class options.
You must be root to do this.
Type rm filename to delete a
file.
boldface
Consolas font
What you type. machine_name% su
Password:

6
20
15

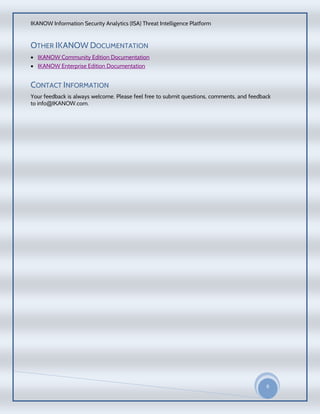

OTHER IKANOW DOCUMENTATION
 IKANOW Community Edition Documentation
 IKANOW Enterprise Edition Documentation
CONTACT INFORMATION
Your feedback is always welcome. Please feel free to submit questions, comments, and feedback
to info@IKANOW.com.

7
20
15
CYBER SECURITY THREATS LANDSCAPE
“Today’s cyber security threats are dynamic and asymmetric,” says Chris Morgan, President of
IKANOW.” Organizations need to change their approach to tackle these new threats effectively.”
Companies, governments, and non-governmental organization (NGOs) alike need to understand
and defend themselves against advanced persistent threats. Cyber attacks are in the headlines
nearly every day, indicating that virtually every enterprise has been breached. In July 2015, major
data breaches against Trump Hotel Collection, AshleyMadison, UCLA Health System, Service System
Associates, and St. Francis Health have all stolen headlines.

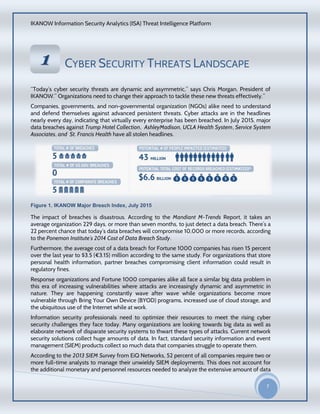

Figure 1. IKANOW Major Breach Index, July 2015
The impact of breaches is disastrous. According to the Mandiant M-Trends Report, it takes an
average organization 229 days, or more than seven months, to just detect a data breach. There’s a
22 percent chance that today’s data breaches will compromise 10,000 or more records, according
to the Ponemon Institute’s 2014 Cost of Data Breach Study.
Furthermore, the average cost of a data breach for Fortune 1000 companies has risen 15 percent
over the last year to $3.5 (€3.15) million according to the same study. For organizations that store
personal health information, partner breaches compromising client information could result in
regulatory fines.
Response organizations and Fortune 1000 companies alike all face a similar big data problem in
this era of increasing vulnerabilities where attacks are increasingly dynamic and asymmetric in
nature. They are happening constantly wave after wave while organizations become more
vulnerable through Bring Your Own Device (BYOD) programs, increased use of cloud storage, and
the ubiquitous use of the Internet while at work.
Information security professionals need to optimize their resources to meet the rising cyber
security challenges they face today. Many organizations are looking towards big data as well as
elaborate network of disparate security systems to thwart these types of attacks. Current network
security solutions collect huge amounts of data. In fact, standard security information and event
management (SIEM) products collect so much data that companies struggle to operate them.
According to the 2013 SIEM Survey from EiQ Networks, 52 percent of all companies require two or
more full-time analysts to manage their unwieldy SIEM deployments. This does not account for
the additional monetary and personnel resources needed to analyze the extensive amount of data
11
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

8
20
15
many organizations collect from external threat intelligence feeds, such as FireEye’s
DTI, Symantec DeepInsights, and iSight Partners.
The problem, according to Mark Nicolett, a managing VP at Gartner, is not that
organizations do not have enough security data. “We are not suffering from a lack of data,”
Nicolett told Dark Reading. “We are suffering from a lack of intelligence in analyzing it.” In other
words, collecting more data will be of no help if you cannot find the story within the data.
By taking these disparate sets of data out of their storage areas, and then analyzing and visualizing
it, organizations can create action on the small data that counts and ultimately improve their
security posture.
CURRENT SECURITY PARADIGM
The current security paradigm is based on a big data approach. An immense amount of data is
collected and stored from various sources such as log data, external threat intelligence feeds, and
open source intelligence (OSINT) data.
Since this data lives in separate places, there is no efficient way for even the best cyber analysts to
bring this information together, to find correlation relevance, or to take action on that data.
An advanced data analytics platform can discover the relevant, small data to conquer the big data
problem. An effective threat analytics platform can ingest external threat intelligence information
and enterprise security data to map known and previously mitigated attacks, along with current
security data to detect attacks already underway.
CHALLENGES AROUND INFORMATION SECURITY ANALYTICS
Bringing all of that big data together into one central place in a logical way, while automating
critical security tasks, allows organizations to increase productivity and streamlining the use of
resources required to understand current threats, bolster defenses and detect threats.
Analyzing and visually representing the full spectrum of internal, external, structured,
semi-structured, and unstructured data together allows organizations to find the small
data that is meaningful and actionable. Only then can IT professionals effectively deploy limited
resources and establish effective protocols for thwarting and addressing breaches.
When you understand the current threats and vulnerabilities faced by your organization, you can
effectively deploy defensive resources to protect the most valuable and most vulnerable assets.
In some cases, it might be against internal systems that can be disabled using distributed denial of
service (DDoS) attacks. In many cases, cyber attacks target proprietary or customer information.
Some intrusions leave a backdoor that becomes a foothold for future attacks.
Big data alone is not enough to defend against the ever changing and ever-increasing specters of
cyber threats. By rethinking the way security and threat intelligence data is collected, analyzed and
reported, security stakeholders can visualize the full threat landscape. This will enable them to find
the small data that really matters, allowing them to respond to threats and develop anticipatory
security strategies.

9
20
15

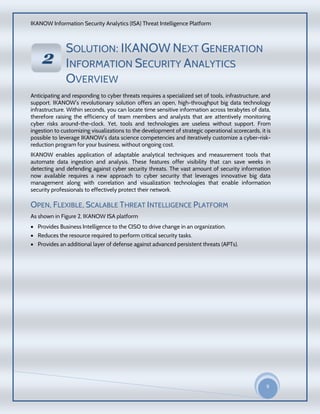

SOLUTION: IKANOW NEXT GENERATION
INFORMATION SECURITY ANALYTICS
OVERVIEW
Anticipating and responding to cyber threats requires a specialized set of tools, infrastructure, and
support. IKANOW’s revolutionary solution offers an open, high-throughput big data technology
infrastructure. Within seconds, you can locate time sensitive information across terabytes of data,
therefore raising the efficiency of team members and analysts that are attentively monitoring
cyber risks around-the-clock. Yet, tools and technologies are useless without support. From
ingestion to customizing visualizations to the development of strategic operational scorecards, it is
possible to leverage IKANOW’s data science competencies and iteratively customize a cyber-risk-
reduction program for your business, without ongoing cost.
IKANOW enables application of adaptable analytical techniques and measurement tools that
automate data ingestion and analysis. These features offer visibility that can save weeks in
detecting and defending against cyber security threats. The vast amount of security information
now available requires a new approach to cyber security that leverages innovative big data
management along with correlation and visualization technologies that enable information
security professionals to effectively protect their network.
OPEN, FLEXIBLE, SCALABLE THREAT INTELLIGENCE PLATFORM
As shown in Figure 2, IKANOW ISA platform
 Provides Business Intelligence to the CISO to drive change in an organization.
 Reduces the resource required to perform critical security tasks.
 Provides an additional layer of defense against advanced persistent threats (APTs).
22
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

10
20
15
Figure 2. IKANOW ISA Security-in-Layers Platform
CONSTANT CALIBRATION OF ISA SECURITY POSTURE
IKANOW ISA platform delivers accelerated decision throughput by recalibrating the security
posture of the information security analytics for your overall security plan. The security posture is
the approach your business takes to security, from planning to implementation. It is comprised of
technical and non-technical policies, procedures and controls that protect you from both internal
and external threats. IKANOW ISA is
 A platform to integrate threat intelligence with enterprise data and then to ingest, enrich,
analyze and visualize the results and thereby determine the risk level and security posture.
 A framework for assessing and improving the security posture of industrial control systems
(ICS).
This platform combines the right feed for your organization by enhancing the feeds with an
analytics platform that can dramatically improve an organization’s security posture.

11
20
15

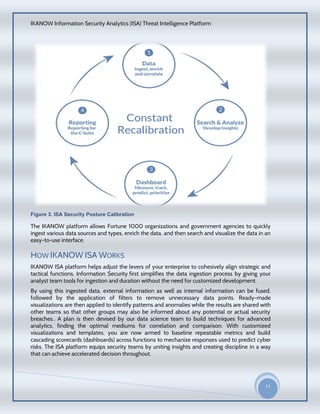

Figure 3. ISA Security Posture Calibration
The IKANOW platform allows Fortune 1000 organizations and government agencies to quickly
ingest various data sources and types, enrich the data, and then search and visualize the data in an
easy-to-use interface.
HOW IKANOW ISA WORKS
IKANOW ISA platform helps adjust the levers of your enterprise to cohesively align strategic and
tactical functions. Information Security first simplifies the data ingestion process by giving your
analyst team tools for ingestion and duration without the need for customized development.
By using this ingested data, external information as well as internal information can be fused,
followed by the application of filters to remove unnecessary data points. Ready-made
visualizations are then applied to identify patterns and anomalies while the results are shared with
other teams so that other groups may also be informed about any potential or actual security
breaches.. A plan is then devised by our data science team to build techniques for advanced
analytics, finding the optimal mediums for correlation and comparison. With customized
visualizations and templates, you are now armed to baseline repeatable metrics and build
cascading scorecards (dashboards) across functions to mechanize responses used to predict cyber
risks. The ISA platform equips security teams by uniting insights and creating discipline in a way
that can achieve accelerated decision throughout.

12
20
15
Figure 4 – IKANOW Threat Analytics High-Level View

13
20
15
DATA INGESTION, CURATION, ENRICHMENT
IANOW correlates data from multiple data feeds, social networks, as well as corporate security
information and event management (SIEM) data. The output can be as specific as identifying IP
addresses that have been affected by malware. Results of the analytics are presented in reports
and a dashboard which allow threats to be easily communicated, discussed, prioritized, and
resolved. This is shown in Figure 5.
Figure 5. DATA Integration, and Enrichment
ISA helps organizations constantly maintain an optimal security posture by aligning the strategic,
tactical, and operational aspects of the business. It does this with a set of core features which make
it very easy to ingest, curate and enrich data. Data sources are constantly entered into the
IKANOW Threat Analytics Platform and are continually visualized and reported on using cascading
scorecards, enabling each enterprise stakeholder to obtain timely results and drive the need for
change in security posture accordingly.

14
20
15
INFORMATION SECURITY ANALYTICS
CORE FEATURES
IKANOW ISA enables one to actively recalibrate your security posture by applying adaptable
analytical techniques and measurement tools that automate analysis and decision-making
processes. The following are the IKANOW ISA platform key features:
 Three-Step Data Sources Ingestion
 Comprehensive and Collaborative Visualizations and Reports
 Third-Party Tools and Applications Integration
 Robust Sorting and Searching
These capabilities provide users with the information required to effectively use the platform from
source creation and management through data visualization and reporting.

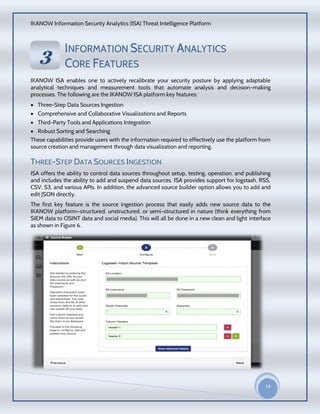

THREE-STEP DATA SOURCES INGESTION
ISA offers the ability to control data sources throughout setup, testing, operation, and publishing
and includes the ability to add and suspend data sources. ISA provides support for logstash, RSS,
CSV, S3, and various APIs. In addition, the advanced source builder option allows you to add and
edit JSON directly.
The first key feature is the source ingestion process that easily adds new source data to the
IKANOW platform—structured, unstructured, or semi-structured in nature (think everything from
SIEM data to OSINT data and social media). This will all be done in a new clean and light interface
as shown in Figure 6.
33
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

15
20
15
Figure 6. Three-Step Data Ingestion
This will eliminate having to wait for IT to add critical data sources to the platform. This allows one
to quickly analyze and search across a comprehensive set of threat data, therefore allowing your
organization to detect and prioritize your defense against potential threats in a timely manner..
COMPREHENSIVE AND COLLABORATIVE VISUALIZATIONS AND REPORTS
ISA includes a series of reporting tools that enables one to compare threats and vulnerabilities by
assigning risk levels and tracking cost information—all to help you to determine your optimal
security strategy.
ISA also offers a threat feed tool to aid your team in determining the ongoing value of threat feeds
over time. Additional visualizations are provided to help in identifying patterns across data and to
identify indicators of compromise most relevant to your team. This means you can create
comprehensive visualizations across all of your InfoSec analytics data. These visualizations can be
shared with team members throughout the analytical process and across levels of your
organization. Enterprises can then create the necessary structures to perform self learning in order
to develop accurate pictures of results.
Figure 7. Visualizations and Reports
THIRD-PARTY TOOLS AND APPLICATIONS INTEGRATION
ISA supports the use of multiple third-party tools and applications. ISA facilitates cleansing of data
with many of these tools and applications to enable ease of sharing.. ISA is also directly integrated
with a growing number of third-party applications, including Kibana, which can be accessed
directly within ISA for direct comparability of log information.
ISA enables the use of Logstash to integrate Kibana and other third-party data analysis tools. This
allows users to read and process data through Logstash and analyze it through Kibana, or another
tool, at scale. This includes structured and unstructured threat intelligence data in a format
customized to match your SIEM log data or any other format.

16
20
15
Figure 8. Tools and Applications Integration
Using adaptable analytical techniques and measurements that automate the analysis process,
including IKANOW’s visualization and collaboration functionality, can help constantly optimize
your security posture by staying ahead of threats and reducing enterprise risk.
ROBUST SORTING AND SEARCHING
ISA provides data filtering and organization tools that enable you quickly identify relevant data.
Search options range from verb categories to a selection of entity options that include the ability
to tag and save past searches. Once search queries are executed, further filtering options offer
additional focus across multiple predefined options, such as recent, oldest, and relevance.
You can search a combined set of data from disparate sources and formats to help uncover
relationships between internal and external data, hastening the ability to see potential threats and
their impact across the network.
Using this powerful search capability, organizations no longer need to hire a developer or contact
their vendors to perform these tasks: The InfoSec team can do this on your own their schedule,
quickly and easily.

17
20
15
IKANOW ISA SOLUTION ARCHITECTURE
OVERVIEW
This chapter describes the next-generation system architecture for solutions like ISA that uses the
developer-level APIs, while showing distinct differences between ISA and core components.
TRADITIONAL VS. NEXT-GENERATION ISA APPLICATION ARCHITECTURE
KEY POINTS
While traditional ISA design is to interact with by using the RESTful APIs that incorporate various
Java plugins added as the platform for applications, the next-generation ISA supports application-
specific API plugins that are added as an standard operation.
NEXT-GENERATION ISA ARCHITECTURE REQUIREMENTS
The following is a list of requirements that had to be met to qualify IKANOW’s next-generation
ISA architecture:
 Write and deploy external harvesters.
 Write stand-alone streaming enrichment engines.
 Develop records-based threads by using the application-specific API plugins.
 View each datum as an "object" with a set of attributes that defines where it is stored and how
it can be processed instead of categorizing them as "document," "record," or "custom."
 Set the schema at import time and subsequently modify it.
 Plug in different NoSQL technologies based on their capabilities (mapped to the schema), so
that the processing will access the layer that is most sensible.
 Store the original data in HDFS, thus enabling repeatability.
 Assign roles by users to each node in the cluster through a centralized management User
Interface powered by Salt.
 Decouple the user interface and applications more than in the original platform.
 Build an Open Source platform from the start with a test infrastructure that enables partners
and the community to contribute.
 Write in the modern JVM-based language Scala for increased concurrency and reliability.
 Keep the document-based threads.
 Keep the analytics-based threads.
 Provide elasticsearch data service with both read and write capabilities.
 Provide access context for tomcat.
 Provide most of the management DB, including bucket CRUD, library (plugin) CRUD, share
replacement CRUD, and access to the data services.
The next step is to map the ISA functional requirements onto the ISA application model
architecture as illustrated in Figure 9.
44
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

18
20
15
Figure 9 illustrates the front-end, back-end, and middleware of the ISA application architecture.
Figure 9. ISA Application Architecture Components
Figure 9 illustrates the front-end, back-end, and the middleware of the ISA application
architecture as described in Table 2.
Table 2. ISA Components
ISA Architecture
Components
Meaning
Blue Show the components of the ISA application layer as
described in Section Front-End ISA Application Components.
Light Blue Indicates the core components of the ISA architecture as
explained in Section
Back-End ISA Architecture Core Components.
Very Light Blue Lists out the middleware services as described in Section
Middleware Data Analytics Services.
ISA Front-End Components
ISA Middleware Components
ISA Back-End
Components

19
20
15

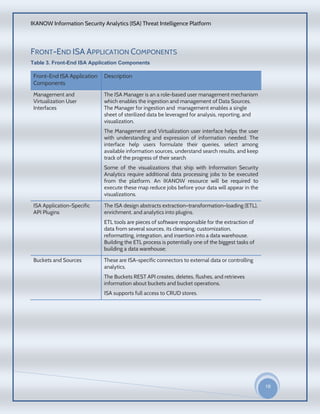

FRONT-END ISA APPLICATION COMPONENTS
Table 3. Front-End ISA Application Components
Front-End ISA Application
Components
Description
Management and
Virtualization User
Interfaces
The ISA Manager is an a role-based user management mechanism
which enables the ingestion and management of Data Sources.
The Manager for ingestion and management enables a single
sheet of sterilized data be leveraged for analysis, reporting, and
visualization.
The Management and Virtualization user interface helps the user
with understanding and expression of information needed. The
interface help users formulate their queries, select among
available information sources, understand search results, and keep
track of the progress of their search
Some of the visualizations that ship with Information Security
Analytics require additional data processing jobs to be executed
from the platform. An IKANOW resource will be required to
execute these map reduce jobs before your data will appear in the
visualizations.
ISA Application-Specific
API Plugins
The ISA design abstracts extraction–transformation–loading (ETL),
enrichment, and analytics into plugins.
ETL tools are pieces of software responsible for the extraction of
data from several sources, its cleansing, customization,
reformatting, integration, and insertion into a data warehouse.
Building the ETL process is potentially one of the biggest tasks of
building a data warehouse;
Buckets and Sources These are ISA-specific connectors to external data or controlling
analytics.
The Buckets REST API creates, deletes, flushes, and retrieves
information about buckets and bucket operations.
ISA supports full access to CRUD stores.

20
20
15
BACK-END ISA ARCHITECTURE CORE COMPONENTS
Table 4. Back-End ISA Core Components
Back-End ISA Core
Components
Descriptions
Traditional API Plugins Plugin interfaces are through data harvest, enrichment, analytics,
as well as access context, which results in granting access to the
management DB. This enables direct access to CRUDs, the
bucket CRUD, and the binary plugin CRUD. Additionally, plugin
interfaces enable direct access to the data services at different
locations where data objects can be stored, including HDFS,
elasticsearch, MongoDB for documents, and Titan for entities
and associations.
Although document-based threads are available through these
additional APIs, analytics-based threads a accessible through
both the traditional as well as ISA application-specific APIs.
Supported analytic technologies:
- Hadoop with MongoDB
- HDFS
- Elasticsearch input/output
- Harvest Technologies
- Enrichments
Management Database
Access Context
MongoDB
Unstructured analytics using Elasticsearch and MongoDB
Data Query Services Elastic search
Traditional Source APIs,
Buckets APIs
External data ISA connectors
ISA-specific connectors to external data or controlling analytics.
Including harvest, enrichment, analytics context

21
20
15

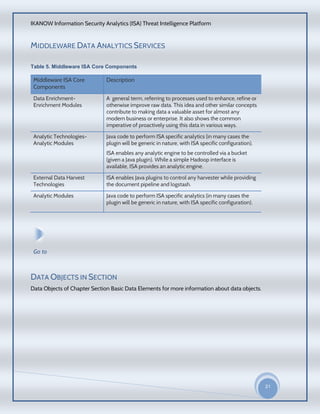

MIDDLEWARE DATA ANALYTICS SERVICES
Table 5. Middleware ISA Core Components
Middleware ISA Core
Components
Description
Data Enrichment-
Enrichment Modules
A general term, referring to processes used to enhance, refine or
otherwise improve raw data. This idea and other similar concepts
contribute to making data a valuable asset for almost any
modern business or enterprise. It also shows the common
imperative of proactively using this data in various ways.
Analytic Technologies-
Analytic Modules
Java code to perform ISA specific analytics (in many cases the
plugin will be generic in nature, with ISA specific configuration).
ISA enables any analytic engine to be controlled via a bucket
(given a Java plugin). While a simple Hadoop interface is
available, ISA provides an analytic engine.
External Data Harvest
Technologies
ISA enables Java plugins to control any harvester while providing
the document pipeline and logstash.
Analytic Modules Java code to perform ISA specific analytics (in many cases the
plugin will be generic in nature, with ISA specific configuration).
Go to
DATA OBJECTS IN SECTION
Data Objects of Chapter Section Basic Data Elements for more information about data objects.

22
20
15
DATA SOURCE MANAGEMENT
Data sources or connectors extract data and then use visualization widgets to attain deeper
knowledge or a clearer perception of the data gathered.
Source data in the platform is stored in a JSON format as a document, where the document
format contains elements such as metadata, entities, and associations. Sources are made up of
documents that are harvested over time.
DATA SOURCES
Sources are data connectors that pull data from databases, RSS feeds, or file shares such as
directories, and single files, such as PDF, comma-separated values (CSV), XML, or ZIP. Each data
source is assigned a Title (such as Fox News RSS), Tags (for example, News, Politics, Conservative,
Republican, US) and a Type (like News).
DATA SOURCE DOCUMENTS
Each record or piece of data ingested by a source becomes a JSON document, regardless of the
format or size of the data. A document can be any of the following:
 Article from an RSS feed
 40-character Tweet
 Row from a CSV file
 40-page medical journal
Each JSON document contains
 Series of metadata fields , including title, description, source ID, date, and time
 Entities, such as person, IP-internal
 Associations, for example hard (subject, verb, object) vs. soft
Document Entities
Document entities are who, what, and where that are extracted from a document.
 Who—Person, Company, Organization
 What—Industry Term, Product, Facility
 Where— City, Province or State, Country
Document Associations
An association is an activity or relationship between entities. It can be a subject, verb, object, at
location, or over time. These subjects and objects can be free text, while pointing to entities within
a document.
55
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

23
20
15

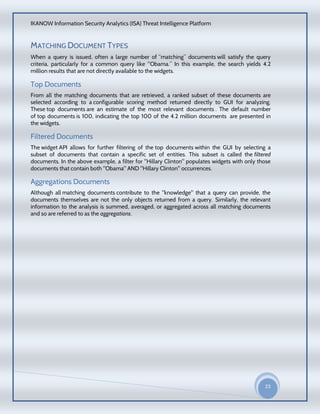

MATCHING DOCUMENT TYPES
When a query is issued, often a large number of “matching” documents will satisfy the query
criteria, particularly for a common query like "Obama.” In this example, the search yields 4.2
million results that are not directly available to the widgets.
Top Documents
From all the matching documents that are retrieved, a ranked subset of these documents are
selected according to a configurable scoring method returned directly to GUI for analyzing.
These top documents are an estimate of the most relevant documents . The default number
of top documents is 100, indicating the top 100 of the 4.2 million documents are presented in
the widgets.
Filtered Documents
The widget API allows for further filtering of the top documents within the GUI by selecting a
subset of documents that contain a specific set of entities. This subset is called the filtered
documents. In the above example, a filter for "Hillary Clinton" populates widgets with only those
documents that contain both "Obama" AND "Hillary Clinton" occurrences.
Aggregations Documents
Although all matching documents contribute to the "knowledge" that a query can provide, the
documents themselves are not the only objects returned from a query. Similarly, the relevant
information to the analysis is summed, averaged, or aggregated across all matching documents
and so are referred to as the aggregations.

24
20
15

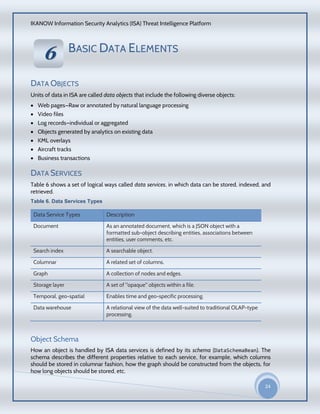

BASIC DATA ELEMENTS
DATA OBJECTS
Units of data in ISA are called data objects that include the following diverse objects:
 Web pages—Raw or annotated by natural language processing
 Video files
 Log records—individual or aggregated
 Objects generated by analytics on existing data
 KML overlays
 Aircraft tracks
 Business transactions
DATA SERVICES
Table 6 shows a set of logical ways called data services, in which data can be stored, indexed, and
retrieved.
Table 6. Data Services Types
Data Service Types Description
Document As an annotated document, which is a JSON object with a
formatted sub-object describing entities, associations between
entities, user comments, etc.
Search index A searchable object.
Columnar A related set of columns.
Graph A collection of nodes and edges.
Storage layer A set of "opaque" objects within a file.
Temporal, geo-spatial Enables time and geo-specific processing.
Data warehouse A relational view of the data well-suited to traditional OLAP-type
processing.
Object Schema
How an object is handled by ISA data services is defined by its schema (DataSchemaBean). The
schema describes the different properties relative to each service, for example, which columns
should be stored in columnar fashion, how the graph should be constructed from the objects, for
how long objects should be stored, etc.
66
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

25
20
15
DATA IMPORT
Data is imported into ISA by means of buckets (DataBucketBean), which has two properties:
harvesting and enrichment data import.
Harvesting Data Import
Taking data from any transport layer and, in turn returning a set of JSON objects.
Enrichment Data Import
Taking data from the harvest, filtering unwanted objects, formatting or creating the desired fields,
applying internal or external functionalities such as geo-location, natural processing, lookups via
other buckets, arbitrary business logic, and so on.
DATA BUCKETS
The data schema to be applied to all objects in this bucket. Data buckets also have standard
metadata shown in Table 7.
Table 7. Data Bucket Metadata
Data Bucket Metadata Description
Access Rights A set of access rights, as described in Data Security below.
Metadata Grouping Grouping metadata, while they can be grouped in a number of
different ways:
Multi-Bucket A specific multi-bucket that is a collection of other buckets.
Multiple buckets can be referenced by parent folders.
Bucket File system Each bucket has a file system hierarchy that physically maps
onto where data is stored in the storage service or HDFS.
Multiple Buckets Alias Each bucket can also be assigned a common alias name that can
refer to multiple buckets.
HARVESTING CONFIGURATION
Harvesting configuration consists of three different parts:
Table 8. Harvesting Configuration Types
Harvesting Configuration
Types
Description
Harvest Technology A JVM JAR implementation (IHarvestTechologyModule)
whose callbacks are invoked whenever pre-defined actions occur
on a bucket at the time it is created.
The Harvester is then free to do processing, typically launching or

26
20
15

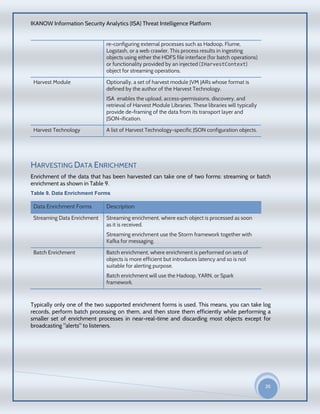

re-configuring external processes such as Hadoop, Flume,
Logstash, or a web crawler. This process results in ingesting
objects using either the HDFS file interface (for batch operations)
or functionality provided by an injected (IHarvestContext)
object for streaming operations.
Harvest Module Optionally, a set of harvest module JVM JARs whose format is
defined by the author of the Harvest Technology.
ISA enables the upload, access-permissions, discovery, and
retrieval of Harvest Module Libraries. These libraries will typically
provide de-framing of the data from its transport layer and
JSON-ification.
Harvest Technology A list of Harvest Technology-specific JSON configuration objects.
HARVESTING DATA ENRICHMENT
Enrichment of the data that has been harvested can take one of two forms: streaming or batch
enrichment as shown in Table 9.
Table 9. Data Enrichment Forms
Data Enrichment Forms Description
Streaming Data Enrichment Streaming enrichment, where each object is processed as soon
as it is received.
Streaming enrichment use the Storm framework together with
Kafka for messaging.
Batch Enrichment Batch enrichment, where enrichment is performed on sets of
objects is more efficient but introduces latency and so is not
suitable for alerting purpose.
Batch enrichment will use the Hadoop, YARN, or Spark
framework.
Typically only one of the two supported enrichment forms is used. This means, you can take log
records, perform batch processing on them, and then store them efficiently while performing a
smaller set of enrichment processes in near-real-time and discarding most objects except for
broadcasting "alerts" to listeners.

27
20
15

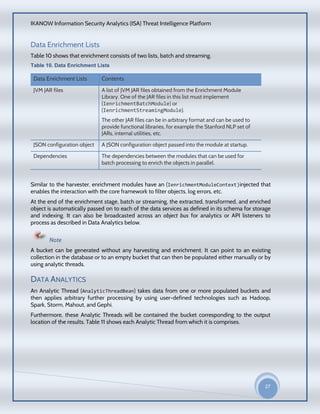

Data Enrichment Lists
Table 10 shows that enrichment consists of two lists, batch and streaming.
Table 10. Data Enrichment Lists
Data Enrichment Lists Contents
JVM JAR files A list of JVM JAR files obtained from the Enrichment Module
Library. One of the JAR files in this list must implement
(IenrichmentBatchModule) or
(IenrichmentStreamingModule).
The other JAR files can be in arbitrary format and can be used to
provide functional libraries, for example the Stanford NLP set of
JARs, internal utilities, etc.
JSON configuration object A JSON configuration object passed into the module at startup.
Dependencies The dependencies between the modules that can be used for
batch processing to enrich the objects in parallel.
Similar to the harvester, enrichment modules have an (IenrichmentModuleContext)injected that
enables the interaction with the core framework to filter objects, log errors, etc.
At the end of the enrichment stage, batch or streaming, the extracted, transformed, and enriched
object is automatically passed on to each of the data services as defined in its schema for storage
and indexing. It can also be broadcasted across an object bus for analytics or API listeners to
process as described in Data Analytics below.
Note
A bucket can be generated without any harvesting and enrichment. It can point to an existing
collection in the database or to an empty bucket that can then be populated either manually or by
using analytic threads.
DATA ANALYTICS
An Analytic Thread (AnalyticThreadBean) takes data from one or more populated buckets and
then applies arbitrary further processing by using user-defined technologies such as Hadoop,
Spark, Storm, Mahout, and Gephi.
Furthermore, these Analytic Threads will be contained the bucket corresponding to the output
location of the results. Table 11 shows each Analytic Thread from which it is comprises.

28
20
15
Table 11. Data Analytics Components
Data Analytics
Components
Contents
Analytic Technology The name of an Analytic Technology, JVM JAR file implementing
IAnalyticsTechologyModule whose callbacks are invoked
whenever a pre-defined action occurs, such as user interactions,
another analytic thread completes, a bucket obtaining more data,
on a regular schedule. The analytic technology will be responsible
for queuing the desired analytics as defined by the remaining items
on this list.
Data Query Services A set of inputs together with associated queries in the "language"
of whichever "Data Service" is being used. For example, this could
be "search term" queries, temporal queries, geo-spatial queries,
"graph" queries, etc.
Analytic Modules A list of Analytic Modules, JVM JARs managed by the ISA Library
whose format is defined by the corresponding Analytic
Technology.
A configuration object describing the details of the analytics input,
output, etc.
A set of dependencies within the analytic thread such as run
module1, then module2, etc.
Analytic Thread The Analytic Thread run over the specified data and dump the
output into one of more buckets with the appropriate data
schemas.
The output can treat existing data in the output buckets in one of
the following ways:
- Wipe and start again each time
- Add data incrementally
- Merge with existing data
Instead of taking the data At Rest from a bucket, objects can be streamed In Flight for real-time or
near-real time analytics and alerting. The analytic thread in this case registers a bucket name and
the pipeline stage before enrichment, after enrichment, or in the middle of enrichment (after the
named enrichment module).
DATA SECURITY
Security in ISA is delegated to a separate service, typically invoking an existing security scheme
such as Kerberos and IKANOW ISA.
More on this topic, including the security architecture is described in the IKANOW Security
Architecture Guide (TBD).

29
20
15

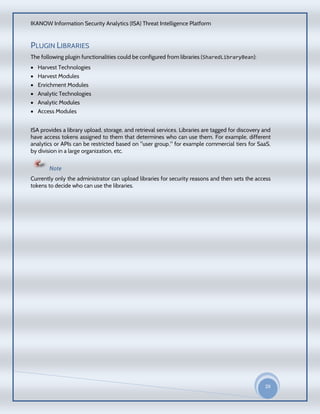

PLUGIN LIBRARIES
The following plugin functionalities could be configured from libraries (SharedLibraryBean):
 Harvest Technologies
 Harvest Modules
 Enrichment Modules
 Analytic Technologies
 Analytic Modules
 Access Modules
ISA provides a library upload, storage, and retrieval services. Libraries are tagged for discovery and
have access tokens assigned to them that determines who can use them. For example, different
analytics or APIs can be restricted based on "user group," for example commercial tiers for SaaS,
by division in a large organization, etc.
Note
Currently only the administrator can upload libraries for security reasons and then sets the access
tokens to decide who can use the libraries.

30
20
15

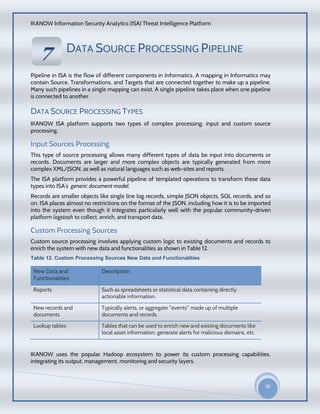

DATA SOURCE PROCESSING PIPELINE
Pipeline in ISA is the flow of different components in Informatics. A mapping in Informatics may
contain Source, Transformations, and Targets that are connected together to make up a pipeline.
Many such pipelines in a single mapping can exist. A single pipeline takes place when one pipeline
is connected to another.
DATA SOURCE PROCESSING TYPES
IKANOW ISA platform supports two types of complex processing: input and custom source
processing.
Input Sources Processing
This type of source processing allows many different types of data be input into documents or
records. Documents are larger and more complex objects are typically generated from more
complex XML/JSON, as well as natural languages such as web-sites and reports.
The ISA platform provides a powerful pipeline of templated operations to transform these data
types into ISA’s generic document model.
Records are smaller objects like single line log records, simple JSON objects, SQL records, and so
on. ISA places almost no restrictions on the format of the JSON, including how it is to be imported
into the system even though it integrates particularly well with the popular community-driven
platform logstash to collect, enrich, and transport data.
Custom Processing Sources
Custom source processing involves applying custom logic to existing documents and records to
enrich the system with new data and functionalities as shown in Table 12.
Table 12. Custom Processing Sources New Data and Functionalities
New Data and
Functionalities
Description
Reports Such as spreadsheets or statistical data containing directly
actionable information.
New records and
documents
Typically alerts, or aggregate "events" made up of multiple
documents and records.
Lookup tables Tables that can be used to enrich new and existing documents like
local asset information, generate alerts for malicious domains, etc.
IKANOW uses the popular Hadoop ecosystem to power its custom processing capabilities,
integrating its output, management, monitoring and security layers.
77
VVEERRVVII
EEWW
OOFF
IIKKAA
NNOO
WW
HHAADD
OOOOPP
DDAATTAA
AACCCCEE
SSSS
SSEECCUU
RRIITTYY
PPRROODD
UUCCTT

31
20
15
Figure 10 shows how these two different activities, input and custom source processing are
related.
Figure 10. Input and Custom Source Processing Relationships
The same JSON-based configuration language along with associated user interface can be used to
build and maintain both types of pipelines. Typically, the elements do not mix. That is, a pipeline
consists entirely of elements from either the "standard" set or the "custom" set even though there
are some exceptions described below.

32
2015
DATA INPUT SOURCES
The ISA architecture enables harvesting and enrichment that is a more logical process based on the concept of applying a pipeline of
processing elements to documents proceeding from a source. This capability is illustrated in Figure 11 below:
Figure 11. Pipeline Elements Processing

33
20
15

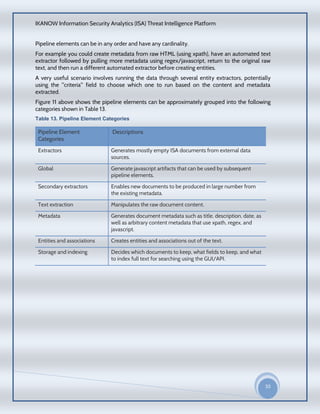

Pipeline elements can be in any order and have any cardinality.
For example you could create metadata from raw HTML (using xpath), have an automated text
extractor followed by pulling more metadata using regex/javascript, return to the original raw
text, and then run a different automated extractor before creating entities.
A very useful scenario involves running the data through several entity extractors, potentially
using the "criteria" field to choose which one to run based on the content and metadata
extracted.
Figure 11 above shows the pipeline elements can be approximately grouped into the following
categories shown in Table 13.
Table 13. Pipeline Element Categories
Pipeline Element
Categories
Descriptions
Extractors Generates mostly empty ISA documents from external data
sources.
Global Generate javascript artifacts that can be used by subsequent
pipeline elements.
Secondary extractors Enables new documents to be produced in large number from
the existing metadata.
Text extraction Manipulates the raw document content.
Metadata Generates document metadata such as title, description, date, as
well as arbitrary content metadata that use xpath, regex, and
javascript.
Entities and associations Creates entities and associations out of the text.
Storage and indexing Decides which documents to keep, what fields to keep, and what
to index full text for searching using the GUI/API.

IKANOW System Architecture Guide

More Related Content

What's hot

Viewers also liked

Similar to IKANOW System Architecture Guide

More from Sholeh Gregory

IKANOW System Architecture Guide
