IIMB presentation

Speed @ Scale with
NoSQL
Aveekshith Bushan
Regional Sales and SA Director - APAC
aveek@aerospike.com
Twitter: @aveekshith

2Proprietary & Confidential | © 2015 Aerospike Inc. All rights reserved.[ ]
Then and now!

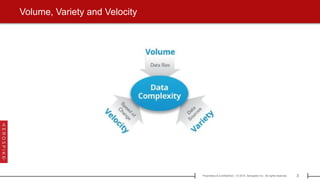

Volume, Variety and Velocity

Scale - Closer to Home
1956
IBM 350 Hard
Disk
5MB of storage
System Cost:
160K$
1980
IBM 3380
1GB of storage
Cost: 50K$
2015
Multiple
Options
1TB of storage
Cost: 0.8K$

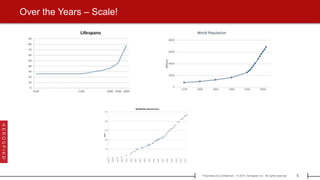

Over the Years – Scale!

Scale Changes Everything!
Source: The Black Swan by Nassim Nocholas Taleb

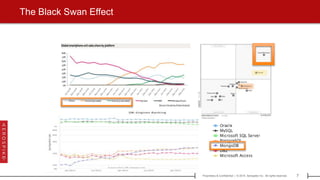

The Black Swan Effect

“Known” and “Unknown” Unknowns!
Known Unknowns
• Can be Planned For
• Through BCP, Risk Matrix etc
Unknown Unknowns
• Difficult to Model and Foresee
• Impact can be reduced by
Diversification Across Investments,
Business, Markets and Product Types

What Does it Mean – IT Perspective
Positive Black Swans
• Explosion in Data
• Exposure to Different
Types of Data
• Agility in IT Infrastructure
• Ex: Successful New
Product or Market Launch
Negative Black Swans
• Globally Distributed IT
Infrastructure
• No Vendor Lock-In
• Easy Deployment Models
• Ex: Natural or Man-made
Disasters, Market Changes
Gaussian World
• Structured Data
• Predictable Growth in
Data Volume
• Lower Cost of Overall
Operation
• Ex: Traditional
Applications

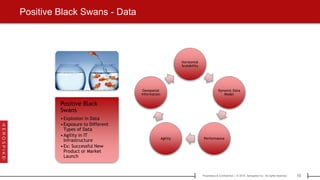

Positive Black Swans - Data
Positive Black
Swans
•Explosion in Data
•Exposure to Different
Types of Data
•Agility in IT
Infrastructure
•Ex: Successful New
Product or Market
Launch
Horizontal
Scalability
Dynamic Data
Model
PerformanceAgility
Geospatial
Information

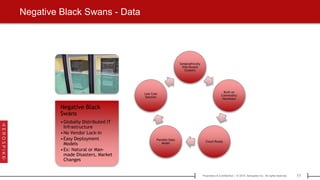

Negative Black Swans - Data
Negative Black
Swans
•Globally Distributed IT
Infrastructure
•No Vendor Lock-In
•Easy Deployment
Models
•Ex: Natural or Man-
made Disasters, Market
Changes
Geographically
Distributed
Clusters
Built on
Commodity
Hardware
Cloud-Ready
Flexible Data
Model
Low Cost
Solution

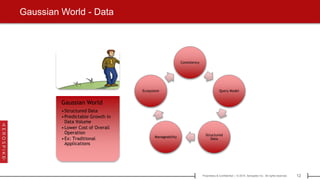

Gaussian World - Data
Gaussian World
•Structured Data
•Predictable Growth in
Data Volume
•Lower Cost of Overall
Operation
•Ex: Traditional
Applications
Consistency
Query Model
Structured
Data
Manageability
Ecosystem

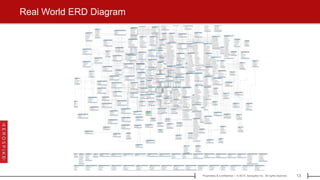

Real World ERD Diagram

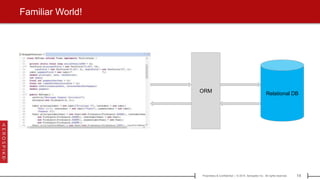

Familiar World!
ORM Relational DB

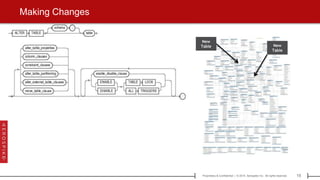

Making Changes
New
Table New
Table

What you don’t get with Relational Databases!
•Unstructured
Data
•Semi-structured
Data
Data Types
•Speed at Scale
•Petabytes Scale
Volume
•Quick Time to
Market
•Agile
Development
Agility
•Cloud Ready
•Scale-out and
Scale-up
Deployment
Models

NoSQL Types
• Key Value Stores
• Document Stores
• Columnar Stores
• Graph Stores
• Other Stores
– Time-Series
– New SQL
– SSD Optimized DBs
– In-Memory Stores

SSD
Key Value Store
Relational Key Value Store
F_Na
me
L_Nam
e
Dept Location Skill_Details
John Marsh E11 [45.123
,47.232
]
{
Skill_Name:
‘Java’,
Version:
‘1.8’,
Level:3, …
},
{Skill_Name:
‘Go’,
Version:
‘1.7’,
Level:2, … }
0 Memory
Ex: Aerospike, Redis
Emp_ID F_Name L_Name Dept City
1 John Marsh E11 New York
2 Satish Rao E12 Bengaluru
3 Alok Jain E12 New Delhi
4 Raghu G E11 Bengaluru
Skill_ID Skill_Name Version
1 Java 1.8
2 Go 1.7
3 Python 3.5
ID Emp_ID Skill_ID Level
100 1 1 3
101 1 2 2
102 2 2 3
103 3 1 4
104 4 3 1

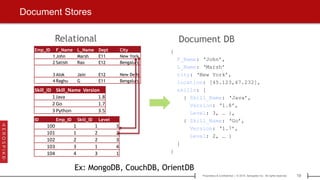

Document Stores
Document DB
{
F_Name: ‘John’,
L_Name: ‘Marsh’
city: ‘New York’,
location: [45.123,47.232],
skills: [
{ Skill_Name: ‘Java’,
Version: ‘1.8’,
Level: 3, … },
{ Skill_Name: ‘Go’,
Version: ‘1.7’,
Level: 2, … }
]
}
Ex: MongoDB, CouchDB, OrientDB
Relational
Emp_ID F_Name L_Name Dept City
1 John Marsh E11 New York
2 Satish Rao E12 Bengaluru
3 Alok Jain E12 New Delhi
4 Raghu G E11 Bengaluru
Skill_ID Skill_Name Version
1 Java 1.8
2 Go 1.7
3 Python 3.5
ID Emp_ID Skill_ID Level
100 1 1 3
101 1 2 2
102 2 2 3
103 3 1 4
104 4 3 1

Hadoop and NoSQL
• Hadoop is a Map/Reduce Framework
• Used to partition computation on large datasets
• Used where you need to analyse most of the data
• E.g.
– Count all the links on all the web pages in India
– Analyse the recommendations based on yesterdays
purchases
• Use a connector to Push and Pull Data from Hadoop
in to NoSQL

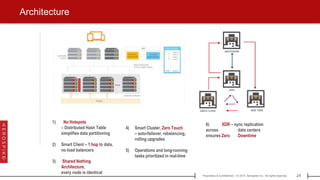

Architecture

Architecture
1) No Hotspots
– Distributed Hash Table
simplifies data partitioning
2) Smart Client – 1 hop to data,
no load balancers
3) Shared Nothing
Architecture,
every node is identical
6) XDR – sync replication
across data centers
ensures Zero Downtime
4) Smart Cluster, Zero Touch
– auto-failover, rebalancing,
rolling upgrades
5) Operations and long-running
tasks prioritized in real-time

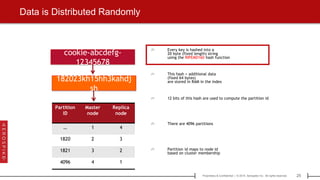

Data is Distributed Randomly
Every key is hashed into a
20 byte (fixed length) string
using the RIPEMD160 hash function
This hash + additional data
(fixed 64 bytes)
are stored in RAM in the index
12 bits of this hash are used to compute the partition id
There are 4096 partitions
Partition id maps to node id
based on cluster membership
cookie-abcdefg-
12345678
182023kh15hh3kahdj
sh
Partition
ID
Master
node
Replica
node
… 1 4
1820 2 3
1821 3 2
4096 4 1

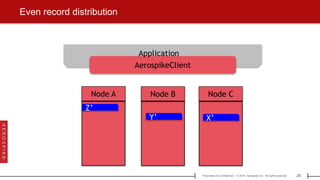

Even record distribution
Node A Node B Node C
Z
Z’
Y
Y’
X
X’
AerospikeClient
Application

Thank You!
Aveek
aveek@aerospike.com
