- The authors developed iFL, an interactive environment to help understand feature implementations in source code using feature location techniques. - iFL aims to reduce the costs of program understanding by allowing users to provide feedback to iteratively improve feature location results. - An evaluation with 7 maintenance tasks on two systems found that iFL reduced understanding costs in 6 cases and had small computational overheads.

1. Shinpei Hayashi, Katsuyuki Sekine,
and Motoshi Saeki
Department of Computer Science,
Tokyo Institute of Technology, Japan
iFL: An Interactive
Environment for Understanding
Feature Implementations
ICSM 2010 ERA
14 Sep., 2010 TOKYO INSTITUTE OF TECHNOLOGY
DEPARTMENT OF COMPUTER SCIENCE

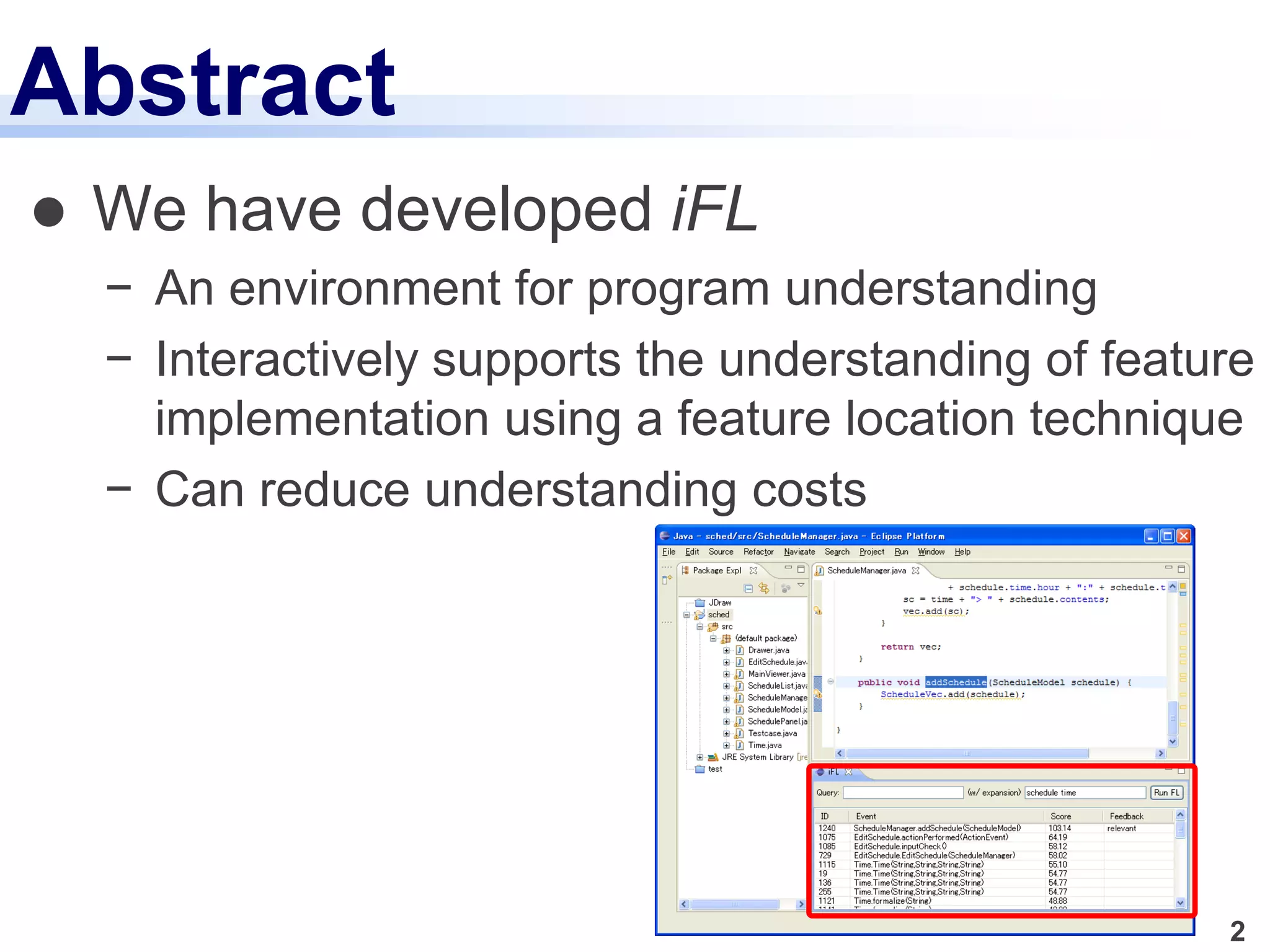

2.  We have developed iFL
− An environment for program understanding
− Interactively supports the understanding of feature
implementation using a feature location technique
− Can reduce understanding costs
Abstract
2

3.  Program understanding is costly
− Extending/fixing existing features
Understanding the implementation of target
feature is necessary
− Dominant of maintenance costs [Vestdam 04]
 Our focus: feature/concept location (FL)
− Locating/extracting code fragments which
implement the given feature/concept
Background
[Vestdam 04]: “Maintaining Program Understanding – Issues, Tools, and Future Directions”,
Nordic Journal of Computing, 2004.
3

4. FL Example (Search-based)
……
public Time(String hour, …) {
......
}
…
public void createSchedule() {
......
}
public void updateSchedule(…) {
……
scheduler
Source Code
schedule time Search
Feature Location
(Search-based approach)
FL
I want to understand
the feature
converting input time
strings to schedule
objects…
Reading these methods
for understanding 4
A new
maintainer

5.  Constructing appropriate queries
requires rich knowledge for the
implementation
− Times: time, date, hour/minute/second
− Images: image, picture, figure
 Developers in practice use several
keywords for FL through trial and error
Problem 1:
How to Find Appropriate Queries?
Search
FL How??
5

6.  Complete (Optimum) FL results are rare
− Accuracy of used FL techniques
− Individual difference in appropriate code
Problem 2:
How to Fix FL Results?
schedule time Search
FL
An FL result
(code fragments)
Optimum result
(Code fragments that should be understood)
Unnecessary code
(false positives)
Necessary code
(false negatives)
6

7. Selection and
understanding of
code fragments
Query Input
Feature location
(calculating scores)
schedule Search
1st: ScheduleManager.addSchedule()
2nd: EditSchedule.inputCheck()
…
Updating
queries
Relevance
feedback
(addition of hints)
 Added two feedback processes
Our Solution: Feedbacks
Finish if the user judges that he/she
has read all the necessary code fragments 7

8.  Wide query for initial FL
− By expanding queries to its synonyms
 Narrow query for subsequent FLs
− By using concrete identifies in source code
Query Expansion
Expand
• schedule
• agenda
• plan
schedule* date* Search
1st FL
public void createSchedule() {
…
String hour = …
Time time = new Time(hour, …);
…
}
schedule time Search
2nd FL
• list
• time
• date
A code fragment in a FL result
Thesaurus
8

9. Dependency
Code fragment
with its score
 Improving FL results by users feedback
− Adding a hint when the selected code fragments
is relevant or irrelevant to the feature
− Feedbacks are propagated into other fragments
using dependencies
Relevance Feedback
i th result of FL
1 2 9 6
: relevant
1 8 11 6
(i+1) th result of FL
propagation
by dependencies
9

10. Supporting Tool: iFL
 Implemented as an Eclipse plug-in
− For static analysis: Eclipse JDT
− For dynamic analysis: Reticella [Noda 09]
− For a thesaurus: WordNet
JDT
Reticella iFL-
core
Eclipse
Word
Net
Exec. Traces /
dependencies
Syntactic
information
Synonym
Info.
Implemented!
10

11. Supporting Tool: iFL
11

12. How iFL Works
Inputting
Query
12

13. How iFL Works
Calculating
scoresEvaluated code fragments
with their scores
13

14. How iFL Works
Associated method will be shown
in the code editor
when user selects a code fragment
14

15. How iFL Works
Calculating
scores again
15
Adding
hints

16. How iFL Works
Scores
updated
16

17. How iFL Works
Code
reading
FL
17

18.  A user (familiar with Java and iFL) actually
understood feature implementations
Preliminary Evaluation
# Correct
Events
# FL
execution
Interactive
costs
Non-
interactive
costs
Δ Costs Overheads
# Query
updating
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
5 change requirements and related features
from Sched
(home-grown, small-sized)
2 change requirements and related features
from JDraw
(open-source, medium-sized)
18

19. Evaluation Criteria
# Correct
Events
# FL
execution
Interactive
costs
Non-
interactive
costs
Δ Costs Overheads
# Query
updating
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
# selected, but unnecessary code fragments
Reduced ratio of overheads
between interactive and non-interactive approaches
19

20. # Correct
Events
# FL
execution
Interactive
costs
Non-
interactive
costs
Δ Costs Overheads
# Query
updating
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
 Reduced costs for 6 out of 7 cases
− Especially, reduced 90% of costs for 4 cases
Evaluation Results
20

21. # Correct
Events
# FL
execution
Interactive
costs
Non-
interactive
costs
Δ Costs Overheads
# Query
updating
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
 Small overheads
− Sched: 1.2, JDraw: 12 in average
Evaluation Results
21

22. # Correct
Events
# FL
execution
Interactive
costs
Non-
interactive
costs
Δ Costs Overheads
# Query
updating
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
 No effect in S3
− Because non-interactive approach is sufficient for understanding
− Not because of the fault in interactive approach
Evaluation Results
22

23.  Summary
− We developed iFL: interactively supporting the
understanding of feature implementation using FL
− iFL can reduce understanding costs in 6 out of 7
cases
 Future Work
− Evaluation++: on larger-scale projects
− Feedback++: for more efficient relevance feedback
• Observing code browsing activities on IDE
Conclusion
23

24. additional slides

25. Source
code
Execution trace
/ dependencies
Dynamic analysis
Methods with
their scores
Static analysis
Evaluating
eventsTest
case
Query
schedule
 Based on search-based FL
 Use of static + dynamic analyses
The FL Approach
Events with
their scores
(FL result)
Hints
 
25

26. Static Analysis: eval. methods
 Matching queries to identifiers
public void createSchedule() {
…
String hour = …
Time time = new Time(hour, …);
…
}
20 for method names
1 for local variables
• schedule
• agenda
• time
• date
Schedule time Search
Thesaurus
The basic score (BS) of
createSchedule: 21
Expand
Expanded queries
26

27. Dynamic Analysis
 Extracting execution traces and their
dependencies by executing source code with
a test case
e1: loadSchedule()
e2: initWindow()
e3: createSchedule()
e4: Time()
e5: ScheduleModel()
e6: updateList()
e1
e3 e6e2
e4
e5
Dependencies
(Method invocation relations)Execution trace
27

28. Evaluating Methods
 Highly scored events are:
− executing methods having high basic scores
− Close to highly scored events
Events Methods BS Score
e1 loadSchedule() 20 52.2
e2 initWindow() 0 18.7
e3 createSchedule() 21 38.7
e4 Time() 20 66.0
e5 ScheduleModel() 31 42.6
e6 updateList() 2 19.0
e1
e3 e6e2
e4
e5
52.2
(20)
18.7
(0)
19.0
(2)
42.6
(31)
66.0
(20)
38.7
(21)
28

29. Selection and Understanding
 Selecting highly ranked events
− Extracting associated code fragment (method
body) and reading it to understand
public Time(String hour, …) {
…
String hour = …
String minute = … …
}
Events Methods Scores Rank
e1 loadSchedule() 52.2 2
e2 initWindow() 18.7 6
e3 createSchedule() 38.7 4
e4 Time() 66.0 1
e5 ScheduleModel() 42.6 3
e6 updateList() 19.0 5
Extracted code fragments
29

30. Relevance Feedback
 User reads the selected code
fragments, and adds hints
− Relevant (): maximum basic score
− Irrelevant to the feature (): score becomes 0
Events Methods Hints
Basic
scores
Scores Ranks
e1 loadSchedule() 20 52.2 77.6 2
e2 initWindow() 0 18.7 6
e3 createSchedule() 21 38.7 96.4 4 1
e4 Time()  20 46.5 66.0 70.2 1 3
e5 ScheduleModel() 31 42.6 51.0 3 4
e6 updateList() 2 19.0 5
30
