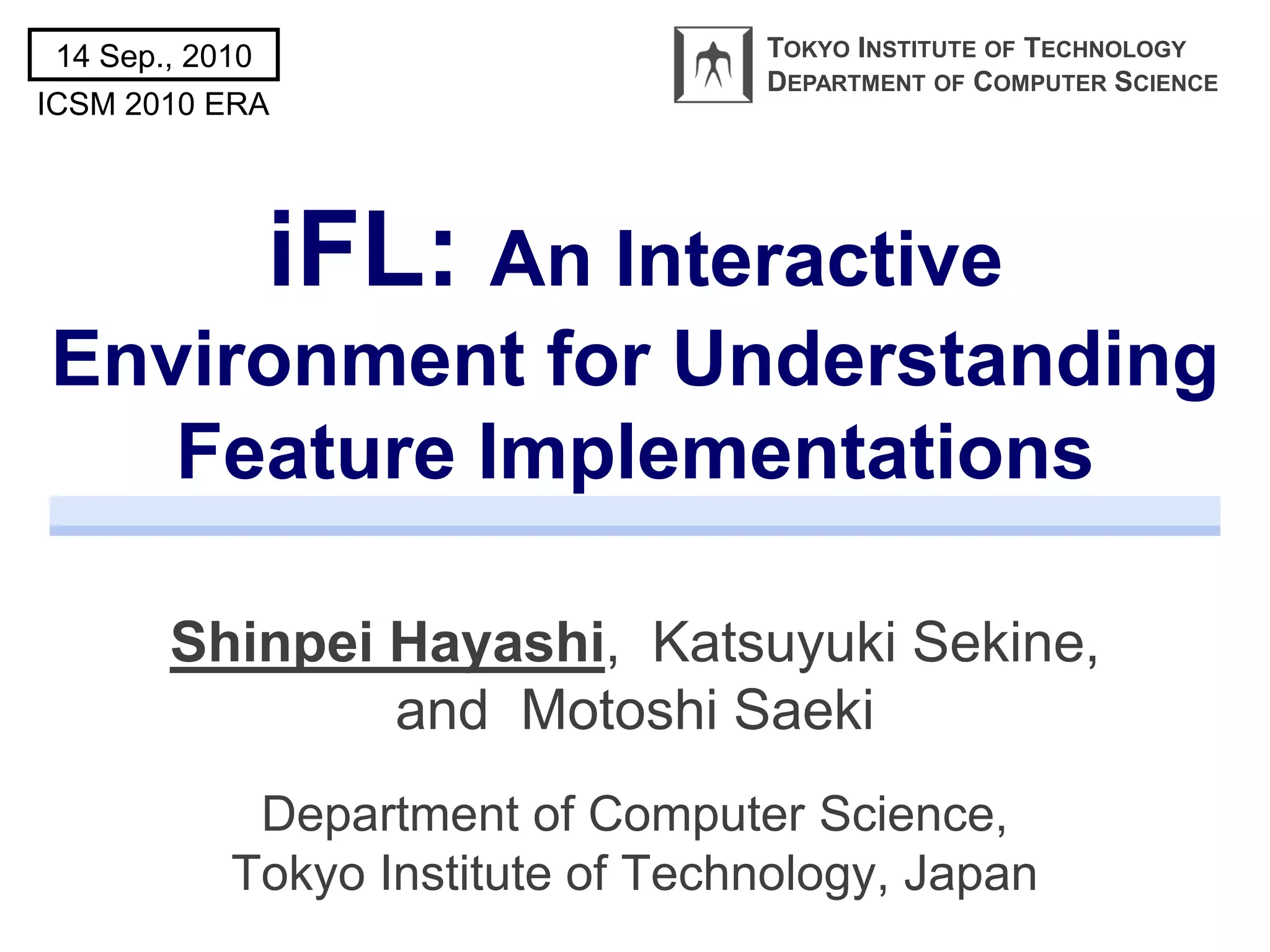

Presented at ICSM 2010 http://dx.doi.org/10.1109/ICSM.2010.5609669

1. 14 Sep., 2010 TOKYO INSTITUTE OF TECHNOLOGY
DEPARTMENT OF COMPUTER SCIENCE
ICSM 2010 ERA
iFL: An Interactive
Environment for Understanding
Feature Implementations
Shinpei Hayashi, Katsuyuki Sekine,
and Motoshi Saeki
Department of Computer Science,
Tokyo Institute of Technology, Japan

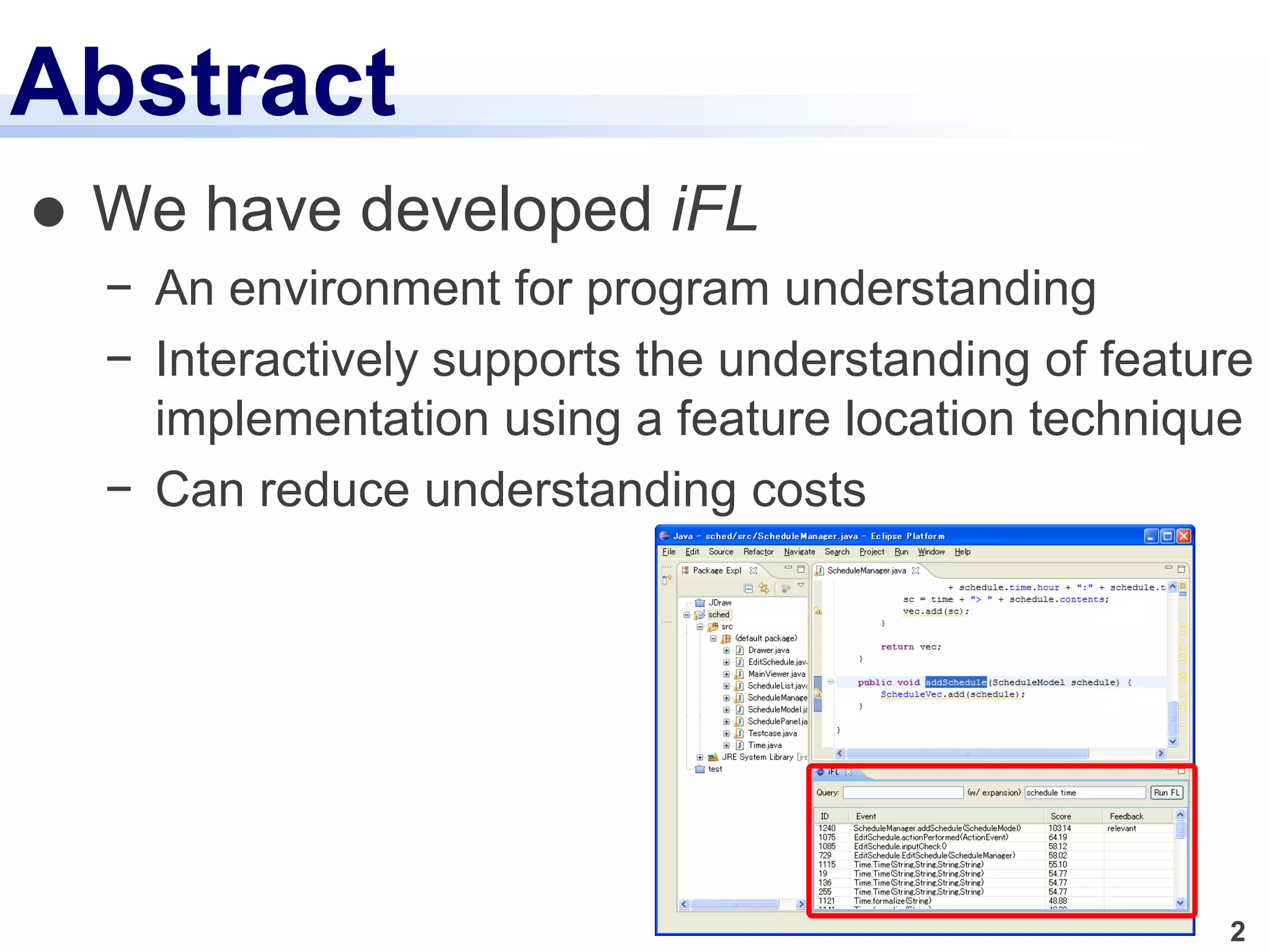

2. Abstract
 We have developed iFL
− An environment for program understanding
− Interactively supports the understanding of feature
implementation using a feature location technique
− Can reduce understanding costs
2

3. Background
 Program understanding is costly
− Extending/fixing existing features
Understanding the implementation of target
feature is necessary
− Dominant of maintenance costs [Vestdam 04]
 Our focus: feature/concept location (FL)
− Locating/extracting code fragments which
implement the given feature/concept
[Vestdam 04]: “Maintaining Program Understanding – Issues, Tools, and Future Directions”,
Nordic Journal of Computing, 2004.
3

4. FL Example (Search-based)
I want to understand scheduler
the feature
converting input time
strings to schedule
objects…
Source Code
……
public Time(String hour, …) {
A new ......
maintainer }
…
FL public void createSchedule() {
......
schedule time Search }
public void updateSchedule(…) {
……
Feature Location
(Search-based approach) Reading these methods
for understanding 4

5. Problem 1:
How to Find Appropriate Queries?
FL How??
Search
 Constructing appropriate queries
requires rich knowledge for the
implementation
− Times: time, date, hour/minute/second
− Images: image, picture, figure
 Developers in practice use several
keywords for FL through trial and error
5

6. Problem 2:
How to Fix FL Results?
 Complete (Optimum) FL results are rare
− Accuracy of used FL techniques
− Individual difference in appropriate code
An FL result Necessary code
(code fragments) (false negatives)
Unnecessary code
(false positives)
FL
schedule time Search
Optimum result
(Code fragments that should be understood) 6

7. Our Solution: Feedbacks
 Added two feedback processes
Query Input
schedule Search
Feature location
(calculating scores)
Updating 1st: ScheduleManager.addSchedule() Relevance
queries 2nd: EditSchedule.inputCheck()
… feedback
(addition of hints)
Selection and
understanding of
code fragments
Finish if the user judges that he/she
has read all the necessary code fragments 7

8. Query Expansion
 Wide query for initial FL
− By expanding queries to its synonyms
 Narrow query for subsequent FLs
− By using concrete identifies in source code
1st FL 2nd FL
schedule* date* Search schedule time Search
Thesaurus Expand
A code fragment in a FL result
public void createSchedule() {
…
• schedule • list String hour = …
• agenda • time Time time = new Time(hour, …);
• plan • date …
} 8

9. Relevance Feedback
 Improving FL results by users feedback
− Adding a hint when the selected code fragments
is relevant or irrelevant to the feature
− Feedbacks are propagated into other fragments
using dependencies
Dependency
i th result of FL (i+1) th result of FL
1 2 9 6 1 8 11 6
Code fragment : relevant propagation
with its score by dependencies
9

10. Supporting Tool: iFL
 Implemented as an Eclipse plug-in
− For static analysis: Eclipse JDT
− For dynamic analysis: Reticella [Noda 09]
− For a thesaurus: WordNet
Exec. Traces /
Synonym
Reticella
dependencies iFL- Info.
core Word
Syntactic Net
information
JDT
Implemented!
Eclipse
10

11. Supporting Tool: iFL
11

12. How iFL Works
Inputting
Query
12

13. How iFL Works
Calculating
Evaluated code fragments scores
with their scores
13

14. How iFL Works
Associated method will be shown
in the code editor
when user selects a code fragment
14

15. How iFL Works
Calculating
scores again
Adding
hints
15

16. How iFL Works
Scores
updated
16

17. How iFL Works
Code
reading
FL
17

18. Preliminary Evaluation
 A user (familiar with Java and iFL) actually
understood feature implementations
Non-
# Correct # FL Interactive # Query
interactive Δ Costs Overheads
Events execution costs updating
costs
S1 19 5 20 31 0.92 1 2
S2 7 5 change requirements and0.67 features
5 8 10 related 1 1
S3 1 from 2
Sched 2 2 0.00 1 0
S4 10 (home-grown, small-sized) 1.00
6 10 13 0 2
S5 3 6 6 15 0.75 3 2
2 change requirements and related features
J1 10 from 4
JDraw 20 156 0.93 10 2
J2 4 (open-source, medium-sized)0.92 14
6 18 173 3
18

19. Evaluation Criteria
# selected, but unnecessary code fragments
Reduced ratio of overheads
between interactive and non-interactive approaches
Non-
# Correct # FL Interactive # Query
interactive Δ Costs Overheads
Events execution costs updating
costs
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
19

20. Evaluation Results
 Reduced costs for 6 out of 7 cases
− Especially, reduced 90% of costs for 4 cases
Non-
# Correct # FL Interactive # Query
interactive Δ Costs Overheads
Events execution costs updating
costs
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
20

21. Evaluation Results
 Small overheads
− Sched: 1.2, JDraw: 12 in average
Non-
# Correct # FL Interactive # Query
interactive Δ Costs Overheads
Events execution costs updating
costs
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
21

22. Evaluation Results
 No effect in S3
− Because non-interactive approach is sufficient for understanding
− Not because of the fault in interactive approach
Non-
# Correct # FL Interactive # Query
interactive Δ Costs Overheads
Events execution costs updating
costs
S1 19 5 20 31 0.92 1 2
S2 7 5 8 10 0.67 1 1
S3 1 2 2 2 0.00 1 0
S4 10 6 10 13 1.00 0 2
S5 3 6 6 15 0.75 3 2
J1 10 4 20 156 0.93 10 2
J2 4 6 18 173 0.92 14 3
22

23. Conclusion
 Summary
− We developed iFL: interactively supporting the
understanding of feature implementation using FL
− iFL can reduce understanding costs in 6 out of 7
cases
 Future Work
− Evaluation++: on larger-scale projects
− Feedback++: for more efficient relevance feedback
• Observing code browsing activities on IDE
23

24. additional slides

25. The FL Approach
 Based on search-based FL
 Use of static + dynamic analyses
Static analysis
Query Methods with Hints
 
schedule
their scores
Source
code
Execution trace Evaluating
Test events Events with
case / dependencies
their scores
(FL result)
Dynamic analysis
25

26. Static Analysis: eval. methods
 Matching queries to identifiers
Schedule time Search
Expand
The basic score (BS) of
createSchedule: 21
Thesaurus
public void createSchedule() {
• schedule … 20 for method names
• agenda String hour = …
• time Time time = new Time(hour, …);
• date …
1 for local variables
}
Expanded queries
26

27. Dynamic Analysis
 Extracting execution traces and their
dependencies by executing source code with
a test case
Dependencies
Execution trace (Method invocation relations)
e1
e1: loadSchedule()
e2: initWindow() e2 e3 e6
e3: createSchedule()
e4: Time()
e5: ScheduleModel() e4
e6: updateList()
e5
27

28. Evaluating Methods
 Highly scored events are:
− executing methods having high basic scores
− Close to highly scored events
52.2
Events Methods BS Score e1 (20)
e1 loadSchedule() 20 52.2
e2 initWindow() 0 18.7
e3 createSchedule() 21 38.7 e2 e3 e6
38.7 19.0
e4 Time() 20 66.0 18.7 (21)
(0) (2)
e5 ScheduleModel() 31 42.6 e4 66.0
e6 updateList() 2 19.0 (20)
e5 42.6
(31) 28

29. Selection and Understanding
 Selecting highly ranked events
− Extracting associated code fragment (method
body) and reading it to understand
Events Methods Scores Rank
e1 loadSchedule() 52.2 2 Extracted code fragments
e2 initWindow() 18.7 6 public Time(String hour, …) {
e3 createSchedule() 38.7 4 …
String hour = …
e4 Time() 66.0 1 String minute = … …
e5 ScheduleModel() 42.6 3 }
e6 updateList() 19.0 5
29

30. Relevance Feedback
 User reads the selected code
fragments, and adds hints
− Relevant (): maximum basic score
− Irrelevant to the feature (): score becomes 0
Basic
Events Methods Hints Scores Ranks
scores
e1 loadSchedule() 20 52.2 77.6 2
e2 initWindow() 0 18.7 6
e3 createSchedule() 21 38.7 96.4 4 1
e4 Time()  20 46.5 66.0 70.2 1 3
e5 ScheduleModel() 31 42.6 51.0 3 4
e6 updateList() 2 19.0 5
30
