1. Beware of the Interactions of Variability Layers
when Reasoning about the Evolution of MongoDB
Luc Lesoil, Mathieu Acher, Arnaud Blouin & jean-marc Jézéquel
2022/04/12
Beijing, China
Data Challenge

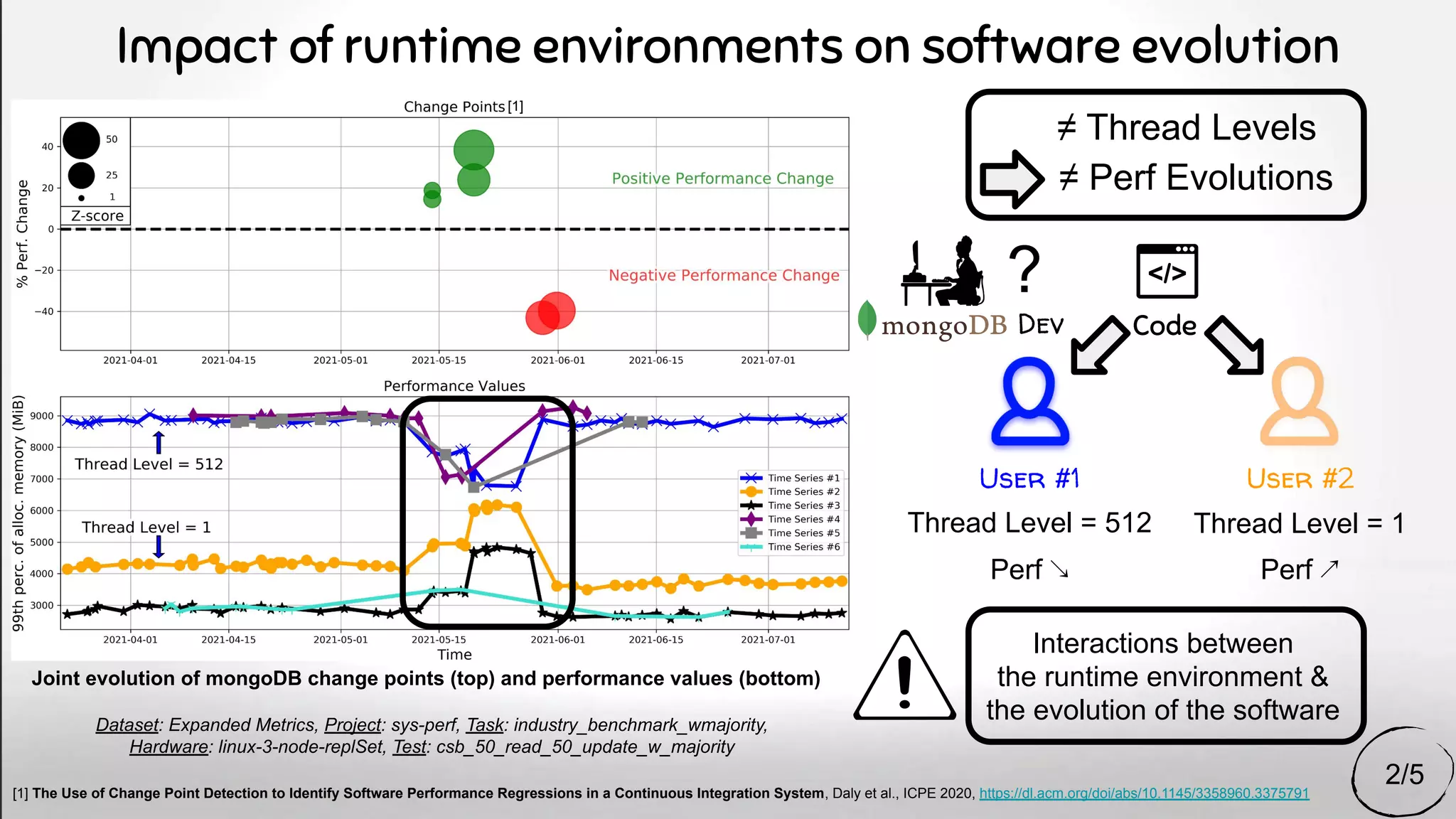

2. ≠ Thread Levels
≠ Perf Evolutions
Joint evolution of mongoDB change points (top) and performance values (bottom)
Code
User #1 User #2
Thread Level = 512
Perf ↘ Perf ↗
Dataset: Expanded Metrics, Project: sys-perf, Task: industry_benchmark_wmajority,
Hardware: linux-3-node-replSet, Test: csb_50_read_50_update_w_majority
Thread Level = 1
Dev
?
Impact of runtime environments on software evolution
2/5
Interactions between
the runtime environment &
the evolution of the software
[1] The Use of Change Point Detection to Identify Software Performance Regressions in a Continuous Integration System, Daly et al., ICPE 2020, https://dl.acm.org/doi/abs/10.1145/3358960.3375791
[1]

3. Experiment - Compute the DTW
for all combinations of hardware platforms
Impact of hardware platforms on software evolution
Heatmap of DTW between times series
related to different variants of hardware
ⓑ DTW = 0.38
ⓓ DTW = 5.39
What is the Dynamic Time Warping?
Similar
Different
Result - Identify hardware platforms
having similar evolutions
to reduce the cost of benchmarking 3/5

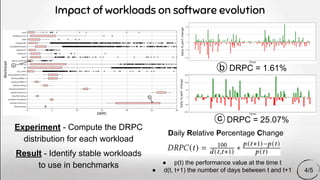

4. ⓑ DRPC = 1.61%
ⓒ DRPC = 25.07%
Impact of workloads on software evolution
Experiment - Compute the DRPC
distribution for each workload
Result - Identify stable workloads
to use in benchmarks
Daily Relative Percentage Change
● p(t) the performance value at the time t
● d(t, t+1) the number of days between t and t+1 4/5

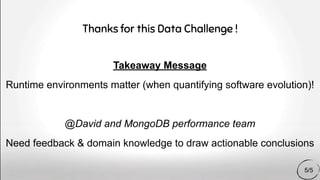

5. Takeaway Message
Runtime environments matter (when quantifying software evolution)!
@David and MongoDB performance team
Need feedback & domain knowledge to draw actionable conclusions
Thanks for this Data Challenge !
5/5

6. Back-Up Slides

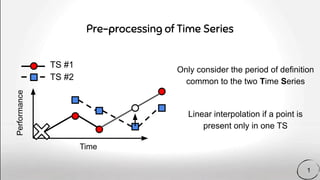

7. Pre-processing of Time Series
Only consider the period of definition
common to the two Time Series
Linear interpolation if a point is
present only in one TS
1
Time
Performance
TS #1
TS #2

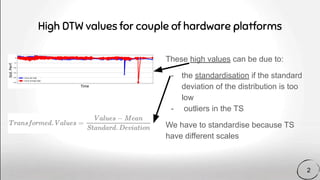

8. These high values can be due to:
- the standardisation if the standard
deviation of the distribution is too
low
- outliers in the TS
We have to standardise because TS
have different scales
High DTW values for couple of hardware platforms
2
