This document presents Trustrace, an approach that uses software repository links to improve the trust in automatically recovered traceability links. Trustrace calculates trust values for traceability links based on their similarity scores from information retrieval techniques as well as evidence from other sources like version control commit logs. An empirical study on two systems found that Trustrace improved precision and recall over vector space models and reduced an expert's effort to validate links by up to 50%. The results also tended to improve when using larger version control commit logs.

1. Trust-based Requirements Traceability
ICPC 2011, Kingston
Nasir Ali, Yann-Gaël Guéhéneuc, and Giuliano Antoniol

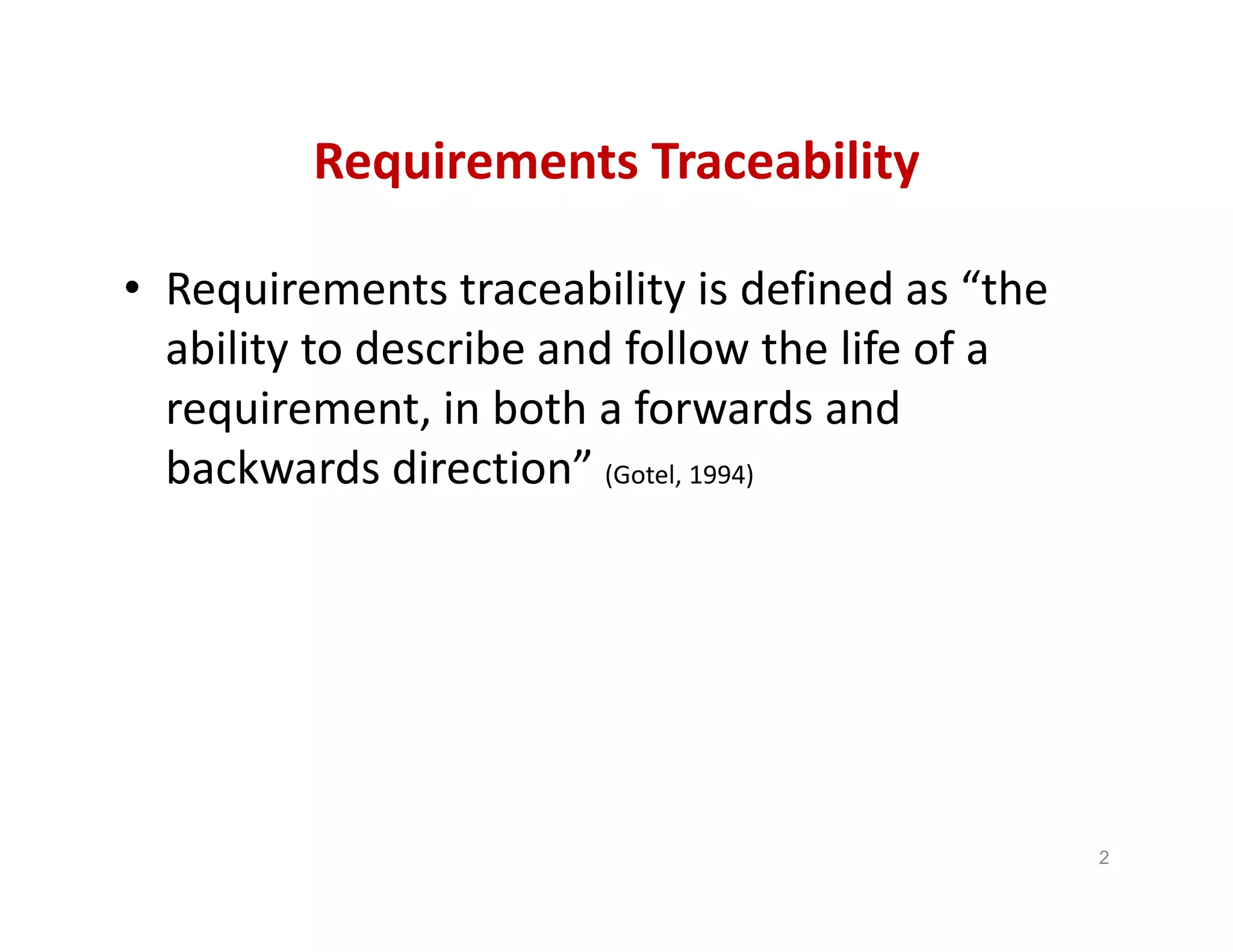

2. Requirements Traceability
• Requirements traceability is defined as “the
ability to describe and follow the life of a
requirement, in both a forwards and
backwards direction” (Gotel, 1994)
2

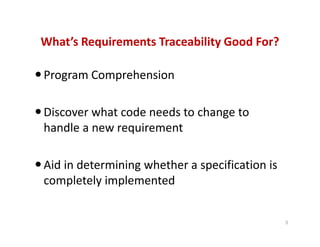

3. What’s Requirements Traceability Good For?
Program Comprehension
Discover what code needs to change to
handle a new requirement
Aid in determining whether a specification is
completely implemented
3

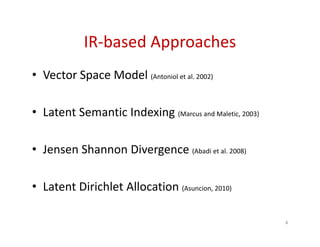

4. IR-based Approaches
• Vector Space Model (Antoniol et al. 2002)
• Latent Semantic Indexing (Marcus and Maletic, 2003)
• Jensen Shannon Divergence (Abadi et al. 2008)
• Latent Dirichlet Allocation (Asuncion, 2010)
4

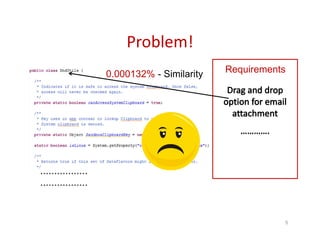

5. Problem!
5
Requirements0.000132% - Similarity

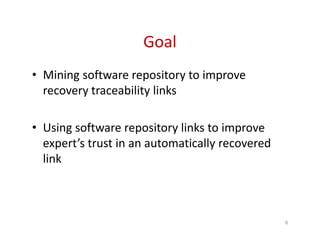

6. Goal
• Mining software repository to improve
recovery traceability links
• Using software repository links to improve
expert’s trust in an automatically recovered
link
6

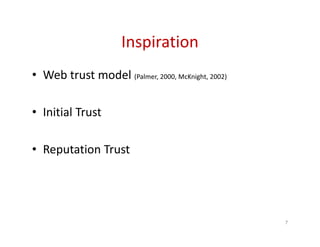

7. Inspiration
• Web trust model (Palmer, 2000, McKnight, 2002)
• Initial Trust
• Reputation Trust
7

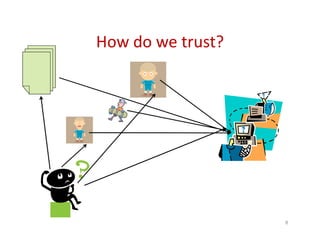

8. How do we trust?
8

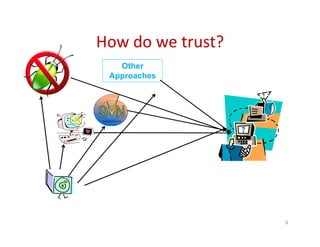

9. How do we trust?
9
Other
Approaches

10. Trustrace
10

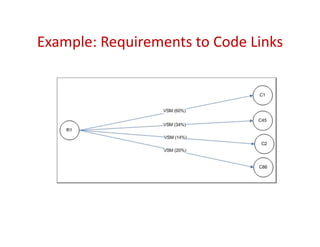

11. Example: Requirements to Code Links

12. Example: Requirements to SVN Links (1)

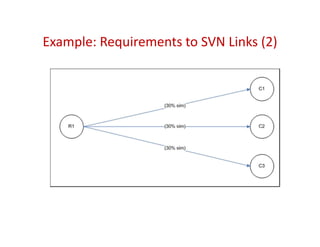

13. Example: Requirements to SVN Links (2)

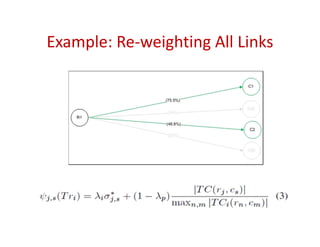

14. Example: Re-weighting All Links

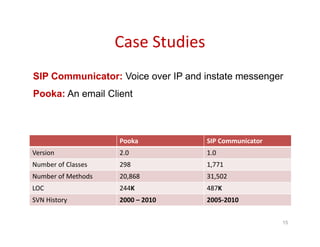

15. Case Studies
15
Pooka SIP Communicator
Version 2.0 1.0
Number of Classes 298 1,771
Number of Methods 20,868 31,502
LOC 244K 487K
SVN History 2000 – 2010 2005-2010
SIP Communicator: Voice over IP and instate messenger
Pooka: An email Client

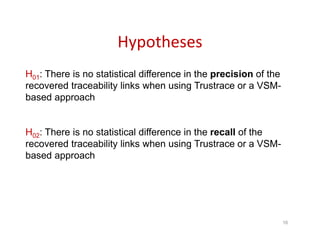

16. Hypotheses
16
H01: There is no statistical difference in the precision of the
recovered traceability links when using Trustrace or a VSM-
based approach
H02: There is no statistical difference in the recall of the
recovered traceability links when using Trustrace or a VSM-
based approach

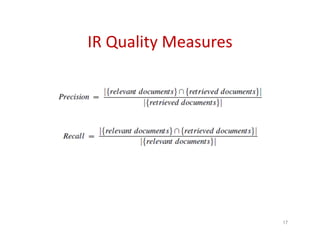

17. IR Quality Measures
17

18. Identifiers / Commit Messages Extraction
18
Extraction
• Class Name
• Method Names
• Variable Names
• Comments
• SVN Commit Messages
• SVN Commit File Names

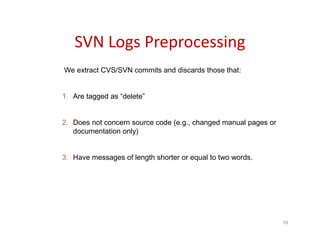

19. SVN Logs Preprocessing
19
We extract CVS/SVN commits and discards those that:
1. Are tagged as “delete”
2. Does not concern source code (e.g., changed manual pages or
documentation only)
3. Have messages of length shorter or equal to two words.

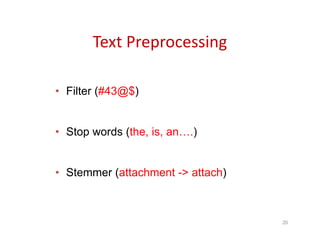

20. Text Preprocessing
20
• Filter (#43@$)
• Stop words (the, is, an….)
• Stemmer (attachment -> attach)

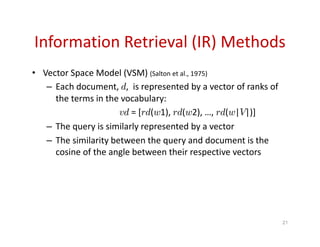

21. Information Retrieval (IR) Methods
• Vector Space Model (VSM) (Salton et al., 1975)
– Each document, d, is represented by a vector of ranks of
the terms in the vocabulary:
vd = [rd(w1), rd(w2), …, rd(w|V|)]
– The query is similarly represented by a vector
– The similarity between the query and document is the
cosine of the angle between their respective vectors
21

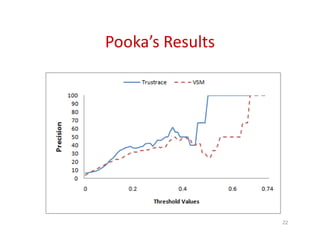

22. Pooka’s Results
22

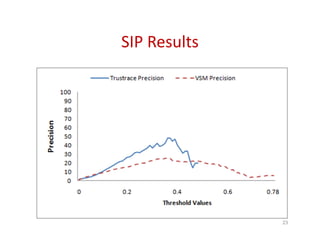

23. SIP Results
23

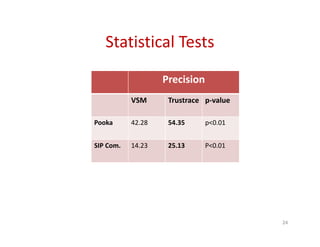

24. Statistical Tests
24
Precision
VSM Trustrace p-value
Pooka 42.28 54.35 p<0.01
SIP Com. 14.23 25.13 P<0.01

25. Pooka Results
25

26. SIP Results
26

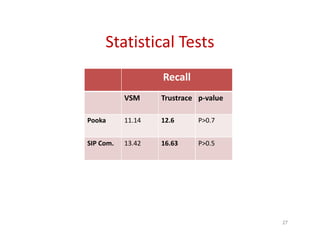

27. Statistical Tests
27
Recall
VSM Trustrace p-value
Pooka 11.14 12.6 P>0.7
SIP Com. 13.42 16.63 P>0.5

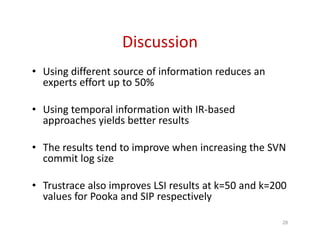

28. Discussion
• Using different source of information reduces an
experts effort up to 50%
• Using temporal information with IR-based
approaches yields better results
• The results tend to improve when increasing the SVN
commit log size
• Trustrace also improves LSI results at k=50 and k=200
values for Pooka and SIP respectively
28

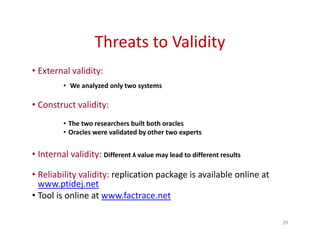

29. Threats to Validity
• External validity:
• We analyzed only two systems
• Construct validity:
• The two researchers built both oracles
• Oracles were validated by other two experts
• Internal validity: Different ʎ value may lead to different results
• Reliability validity: replication package is available online at
www.ptidej.net
• Tool is online at www.factrace.net
29

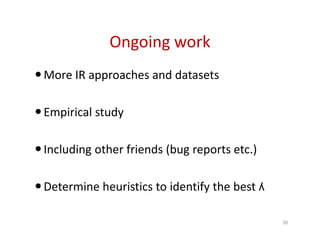

30. Ongoing work
More IR approaches and datasets
Empirical study
Including other friends (bug reports etc.)
Determine heuristics to identify the best ʎ
30

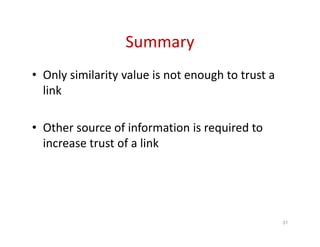

31. Summary
• Only similarity value is not enough to trust a
link
• Other source of information is required to
increase trust of a link
31
