1. Useful Business Analytics SQL
operators and more
Ajaykumar Gupte
IBM
1

2. 4/9/15 2

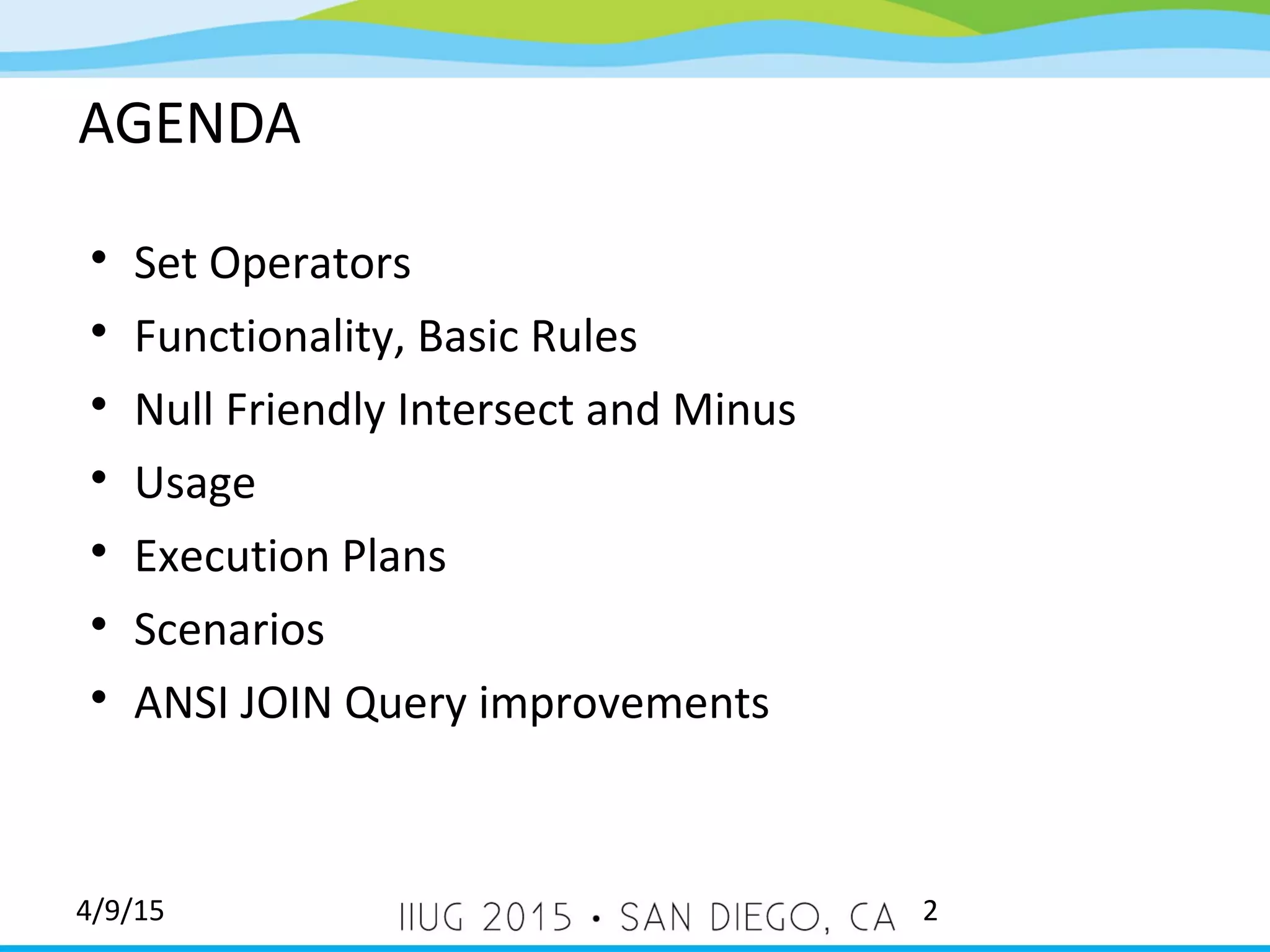

AGENDA

Set Operators

Functionality, Basic Rules

Null Friendly Intersect and Minus

Usage

Execution Plans

Scenarios

ANSI JOIN Query improvements

3. 4/9/15 3

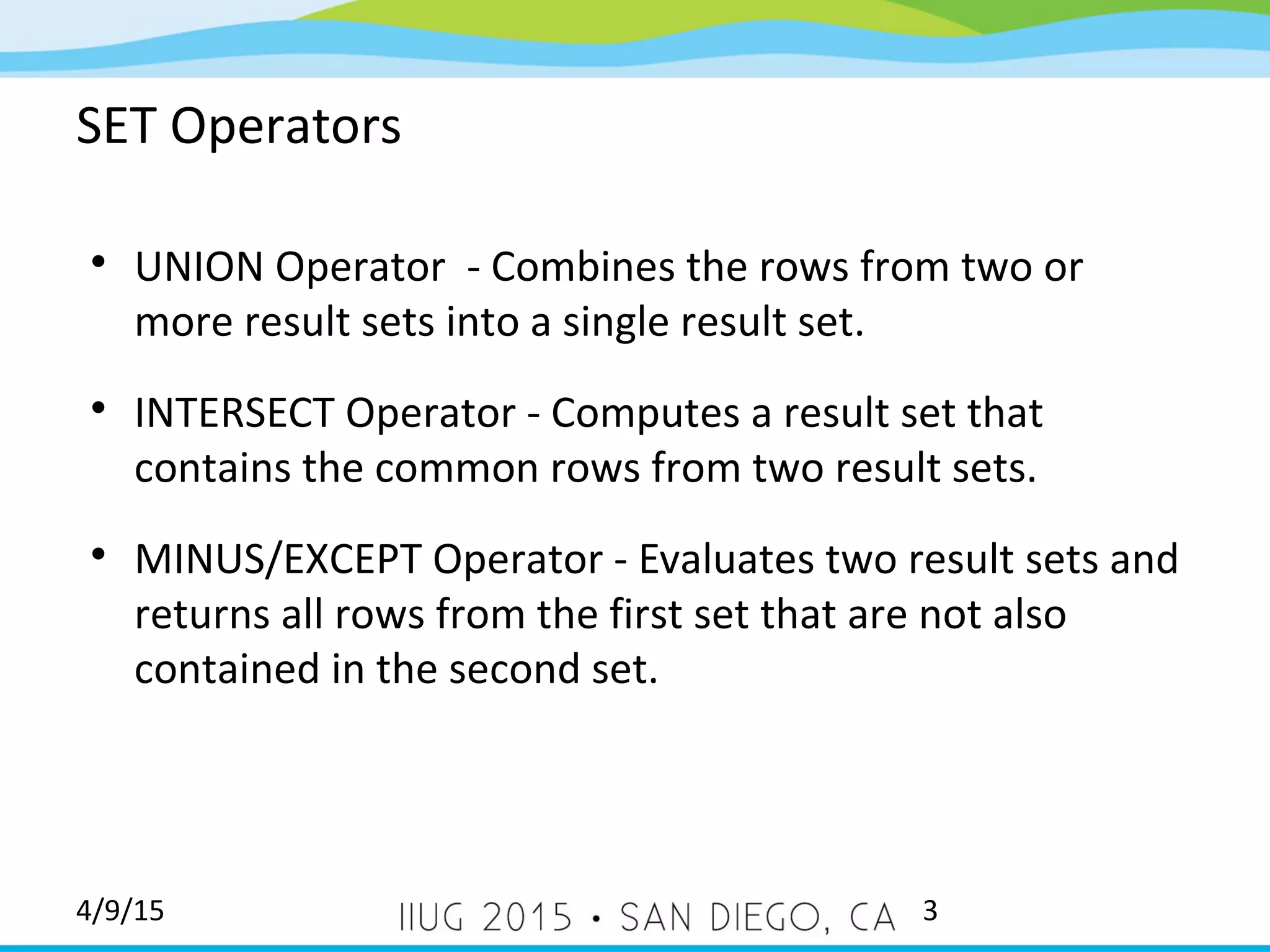

SET Operators

UNION Operator - Combines the rows from two or
more result sets into a single result set.

INTERSECT Operator - Computes a result set that
contains the common rows from two result sets.

MINUS/EXCEPT Operator - Evaluates two result sets and
returns all rows from the first set that are not also
contained in the second set.

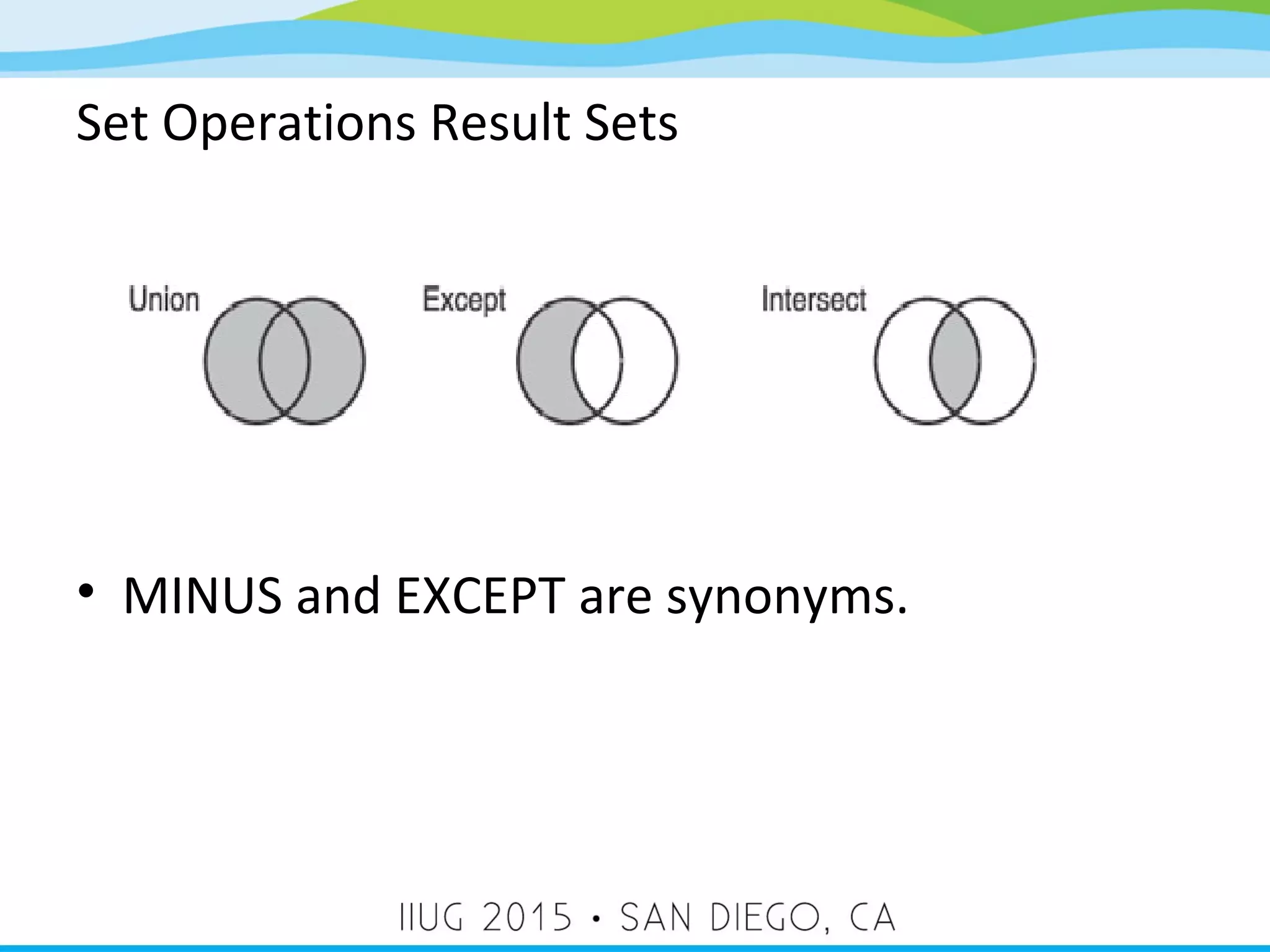

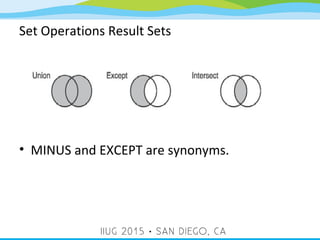

4. Set Operations Result Sets
• MINUS and EXCEPT are synonyms.

5. 4/9/15 5
Functionality Of Intersect and Minus

Extension to the existing UNION/UNION ALL
SET operation

Results are always distinct or unique rows
(eliminate duplicate rows)

Same rules of UNION also applies e.g
- Both query blocks should have exact same number of
columns
- Projection clause should have comparable data types
- Projection clause can not have BYTE or TEXT

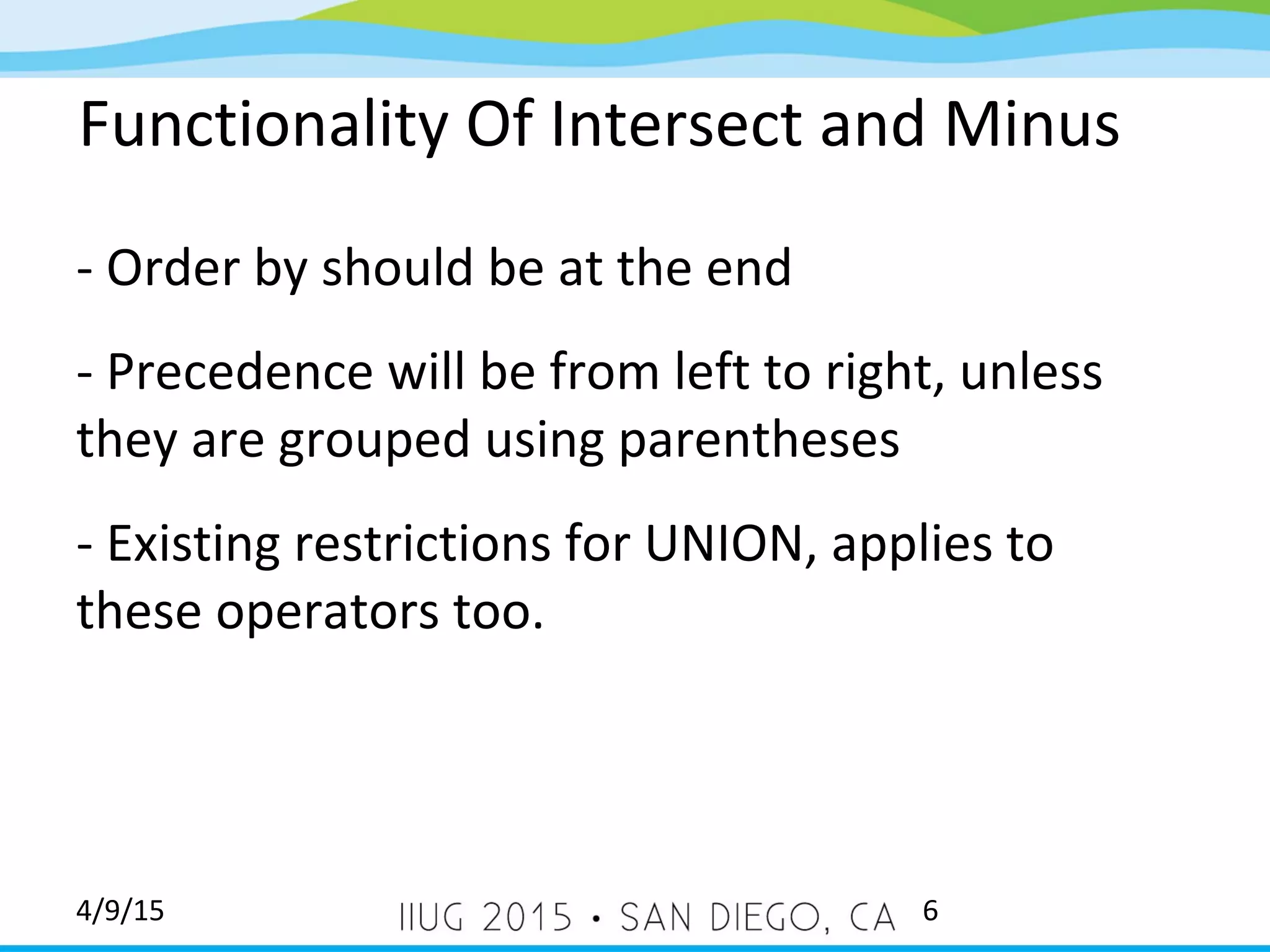

6. 4/9/15 6

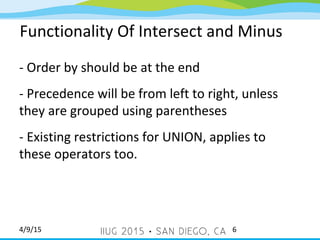

Functionality Of Intersect and Minus
- Order by should be at the end
- Precedence will be from left to right, unless
they are grouped using parentheses
- Existing restrictions for UNION, applies to
these operators too.

7. 4/9/15 7

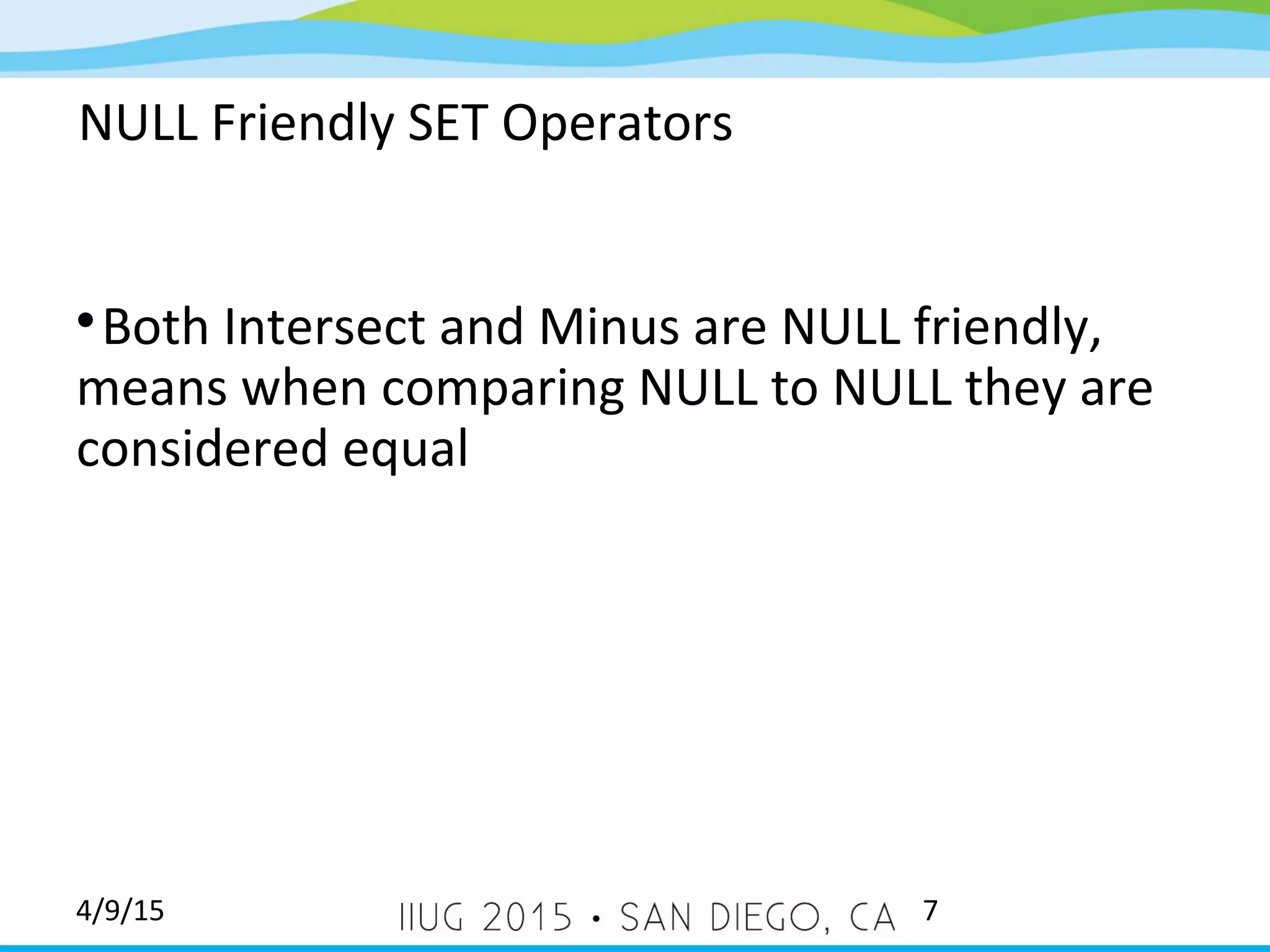

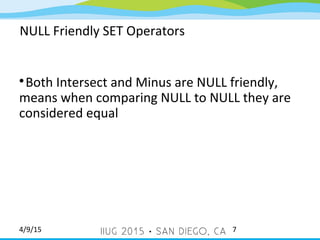

NULL Friendly SET Operators

Both Intersect and Minus are NULL friendly,
means when comparing NULL to NULL they are
considered equal

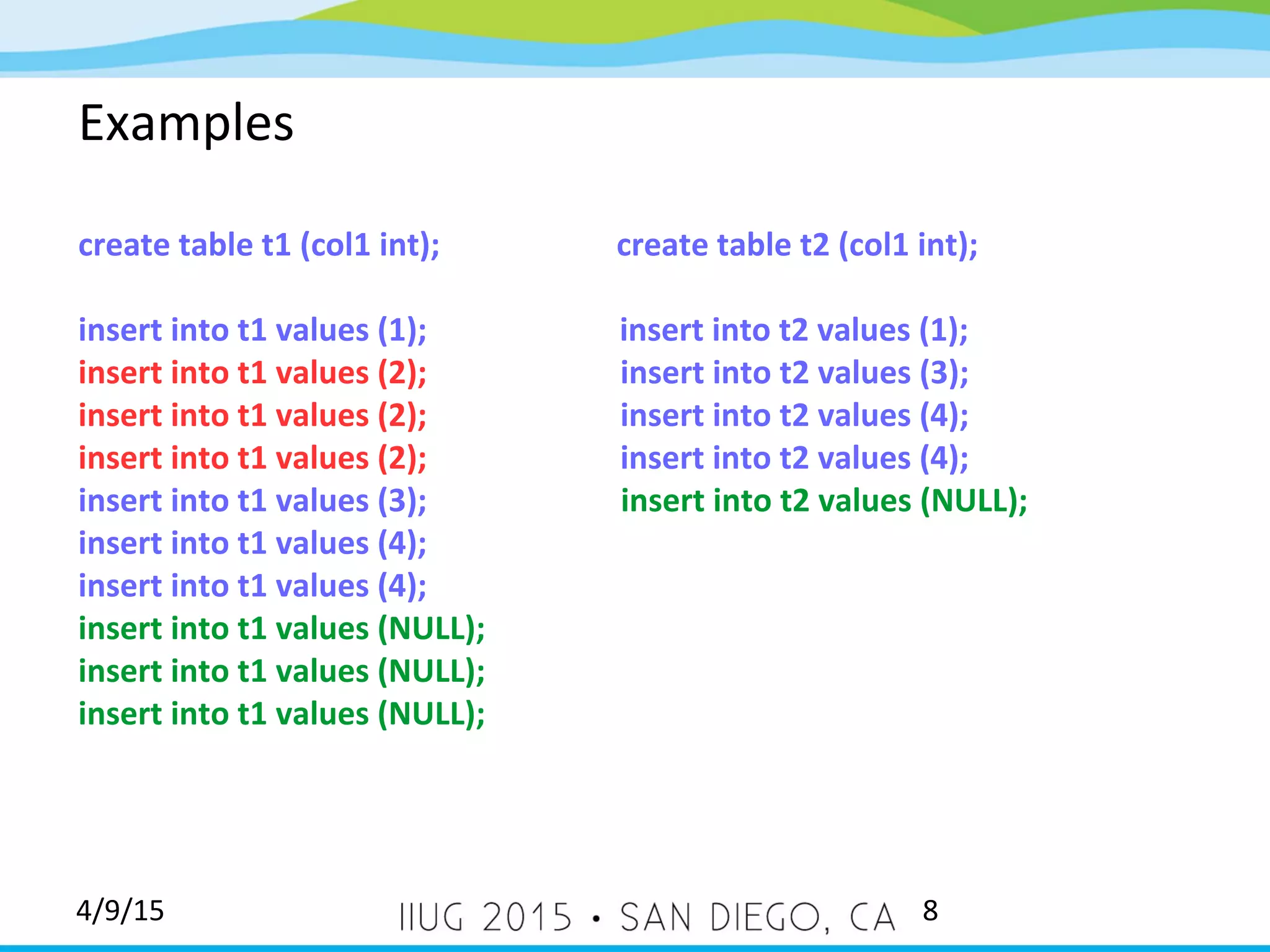

8. 4/9/15 8

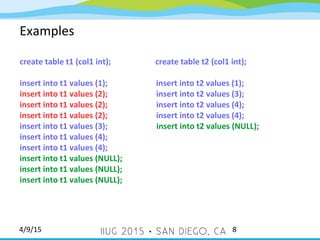

Examples
create table t1 (col1 int); create table t2 (col1 int);
insert into t1 values (1); insert into t2 values (1);
insert into t1 values (2); insert into t2 values (3);
insert into t1 values (2); insert into t2 values (4);
insert into t1 values (2); insert into t2 values (4);
insert into t1 values (3); insert into t2 values (NULL);
insert into t1 values (4);
insert into t1 values (4);
insert into t1 values (NULL);
insert into t1 values (NULL);
insert into t1 values (NULL);

9. 4/9/15 9

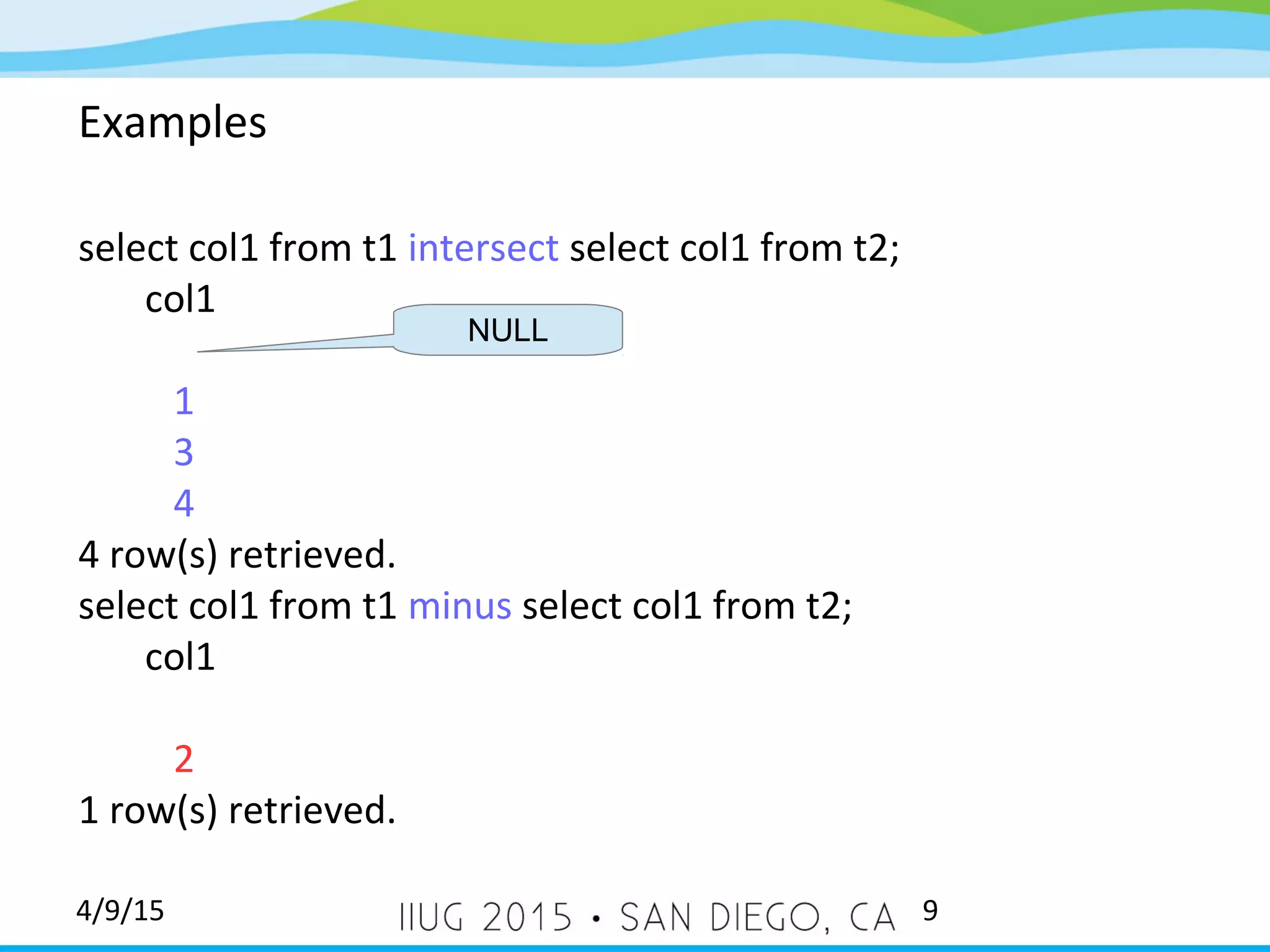

Examples
select col1 from t1 intersect select col1 from t2;
col1
1
3
4
4 row(s) retrieved.
select col1 from t1 minus select col1 from t2;
col1
2
1 row(s) retrieved.
NULL

10. 4/9/15 10

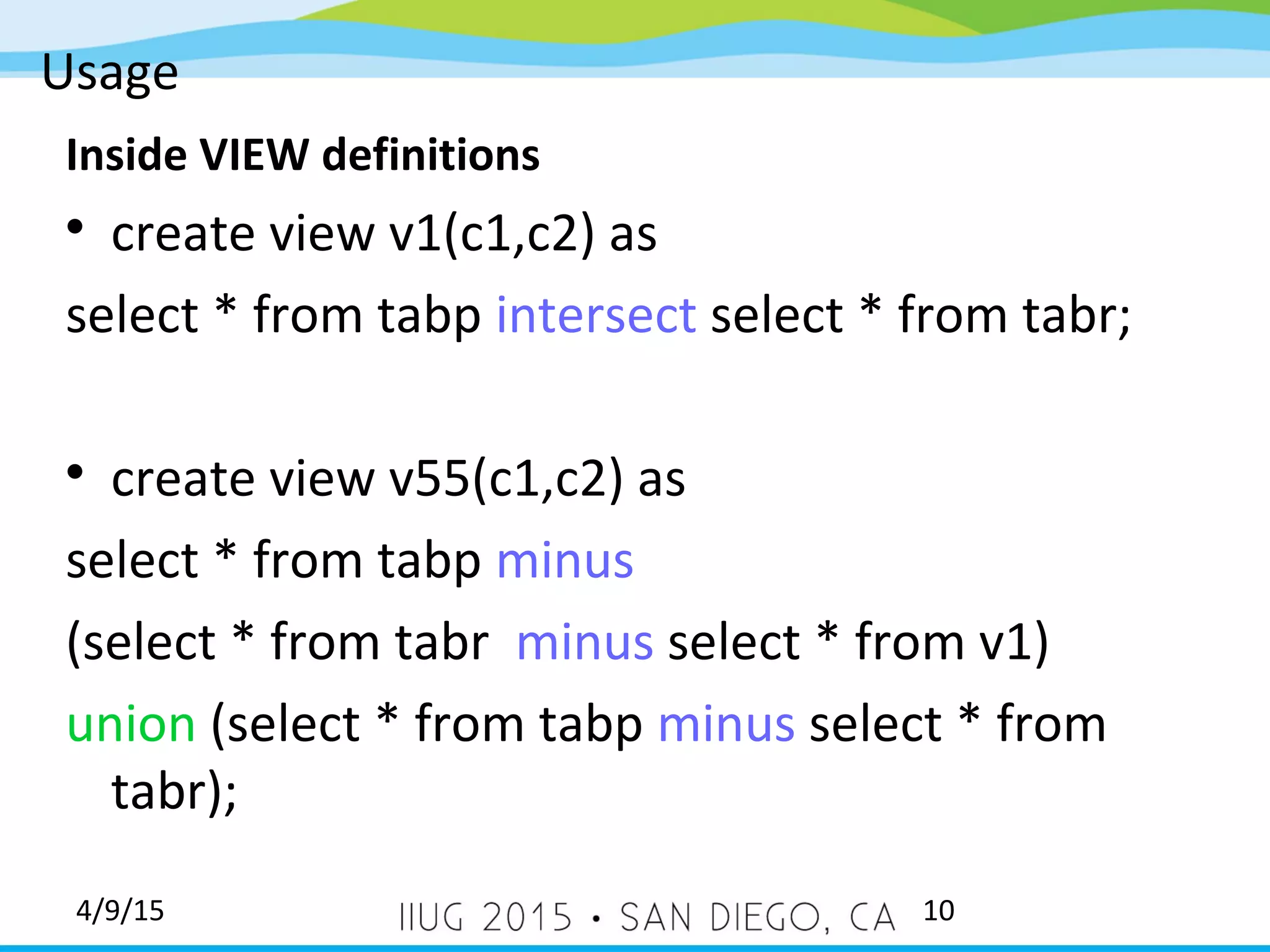

Usage
Inside VIEW definitions

create view v1(c1,c2) as
select * from tabp intersect select * from tabr;

create view v55(c1,c2) as
select * from tabp minus
(select * from tabr minus select * from v1)
union (select * from tabp minus select * from
tabr);

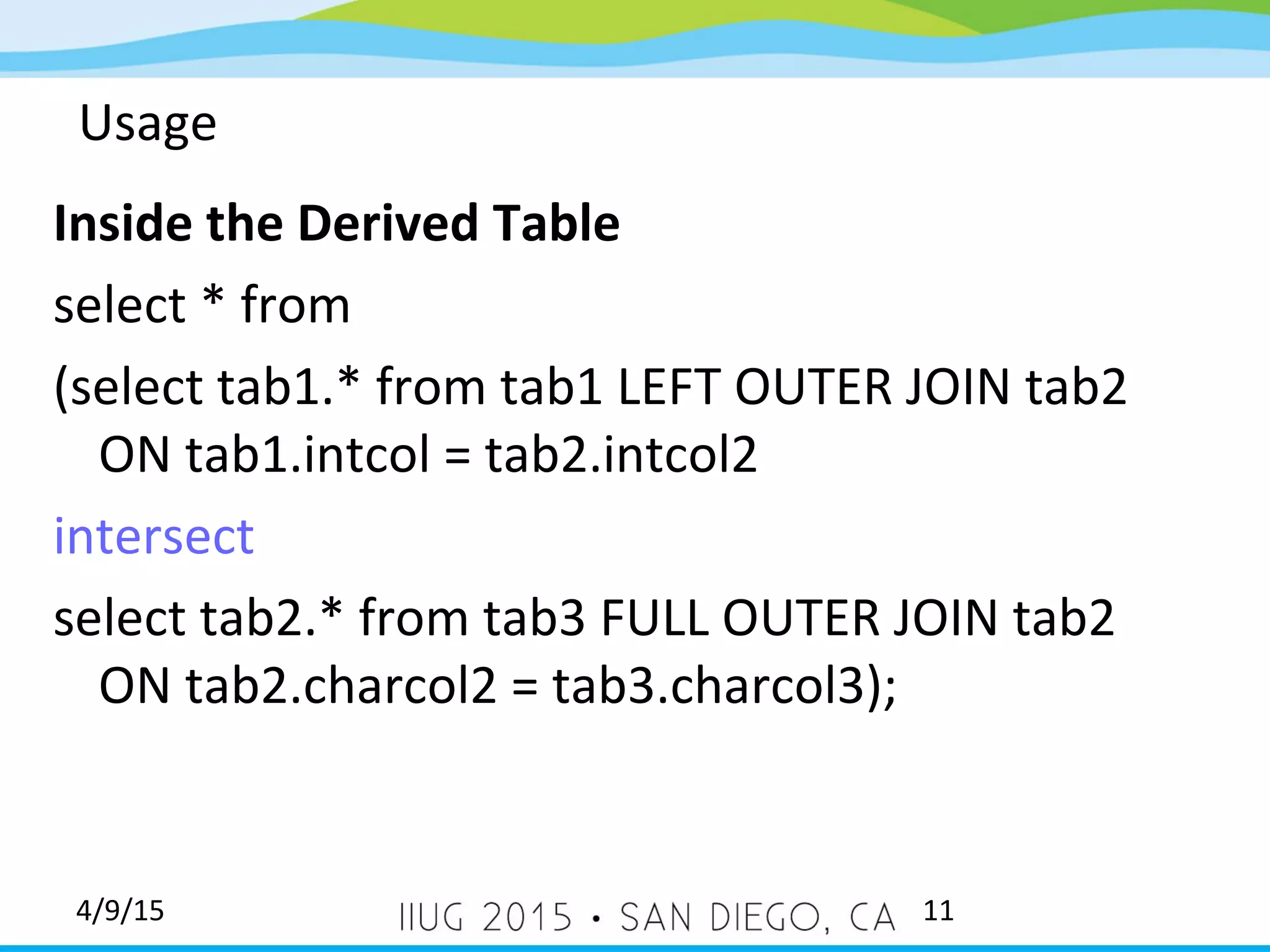

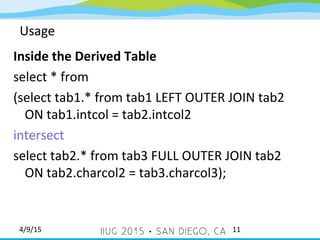

11. 4/9/15 11
Usage
Inside the Derived Table
select * from
(select tab1.* from tab1 LEFT OUTER JOIN tab2
ON tab1.intcol = tab2.intcol2
intersect
select tab2.* from tab3 FULL OUTER JOIN tab2
ON tab2.charcol2 = tab3.charcol3);

12. 4/9/15 12

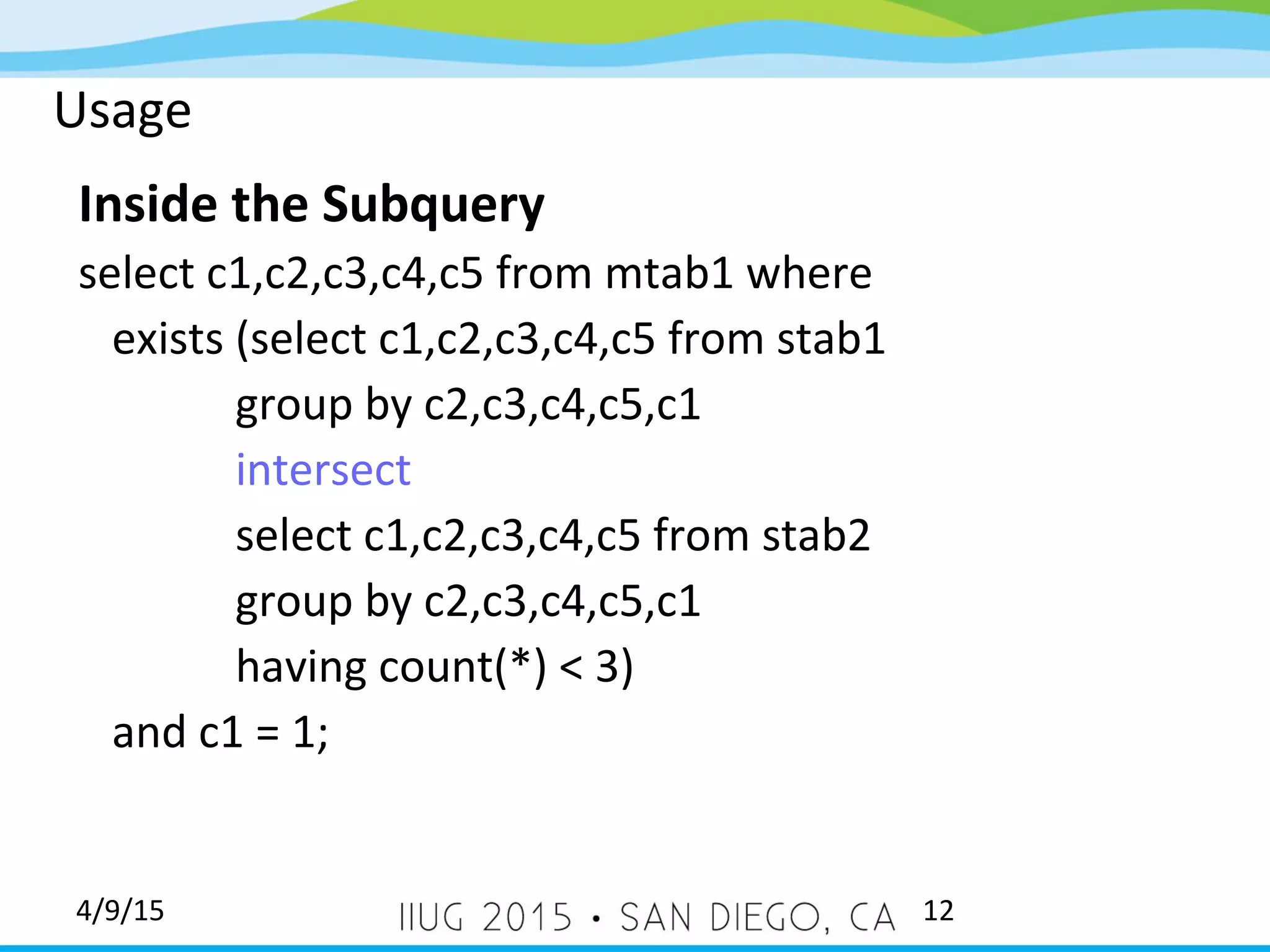

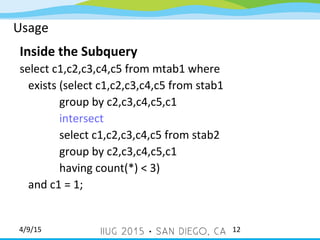

Usage
Inside the Subquery
select c1,c2,c3,c4,c5 from mtab1 where
exists (select c1,c2,c3,c4,c5 from stab1
group by c2,c3,c4,c5,c1
intersect
select c1,c2,c3,c4,c5 from stab2
group by c2,c3,c4,c5,c1
having count(*) < 3)
and c1 = 1;

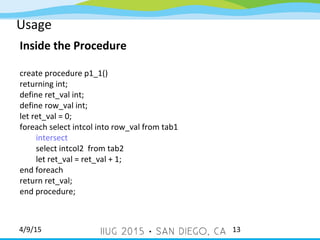

13. 4/9/15 13

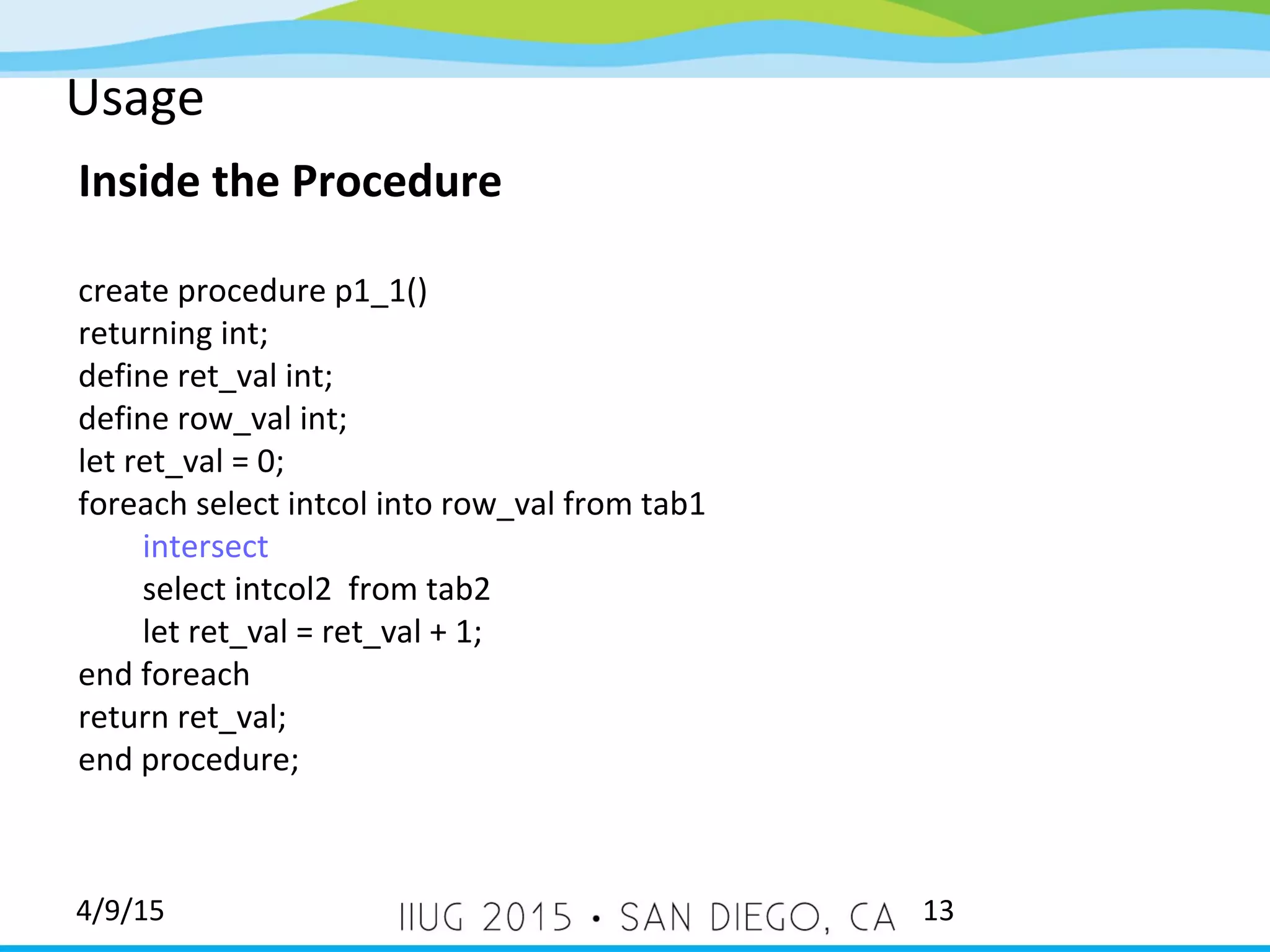

Usage
Inside the Procedure
create procedure p1_1()
returning int;
define ret_val int;
define row_val int;
let ret_val = 0;
foreach select intcol into row_val from tab1
intersect
select intcol2 from tab2
let ret_val = ret_val + 1;
end foreach
return ret_val;
end procedure;

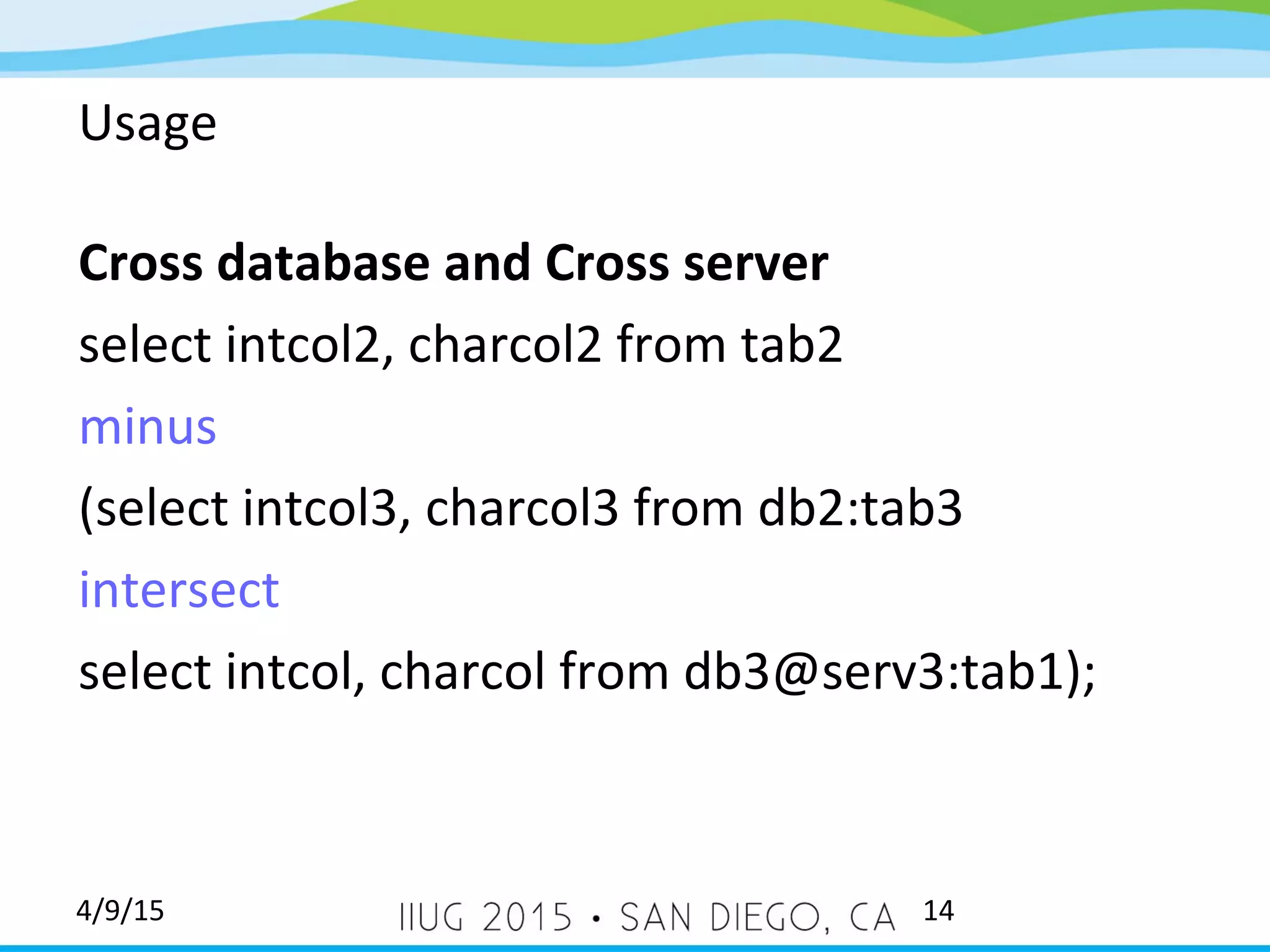

14. 4/9/15 14
Usage
Cross database and Cross server
select intcol2, charcol2 from tab2
minus
(select intcol3, charcol3 from db2:tab3
intersect
select intcol, charcol from db3@serv3:tab1);

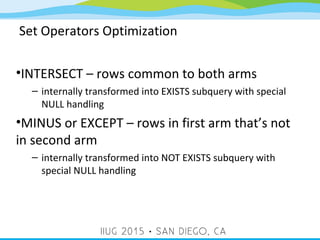

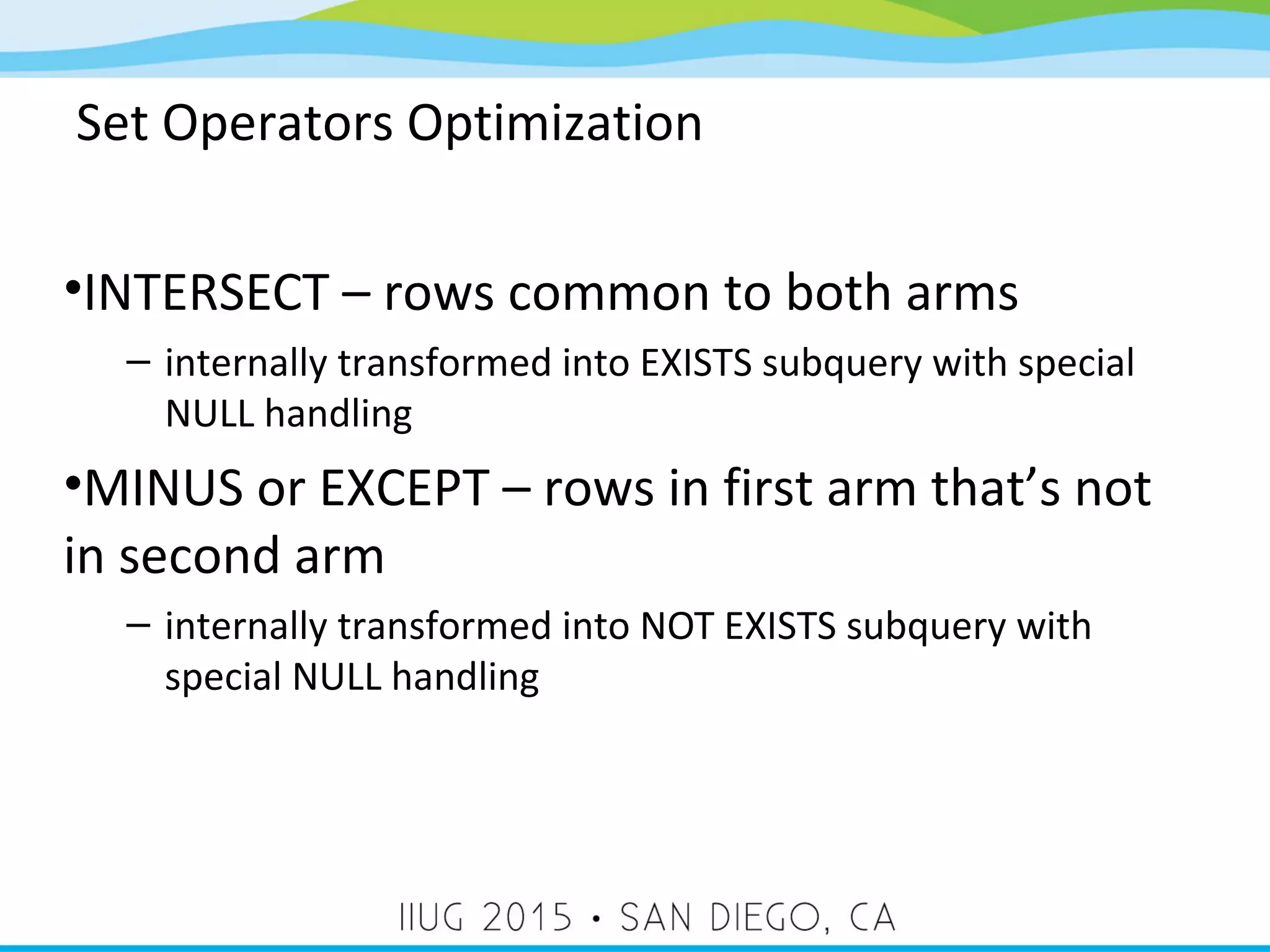

15. Set Operators Optimization
•INTERSECT – rows common to both arms
– internally transformed into EXISTS subquery with special
NULL handling
•MINUS or EXCEPT – rows in first arm that’s not
in second arm
– internally transformed into NOT EXISTS subquery with
special NULL handling

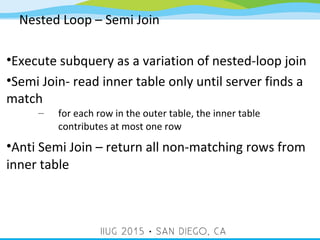

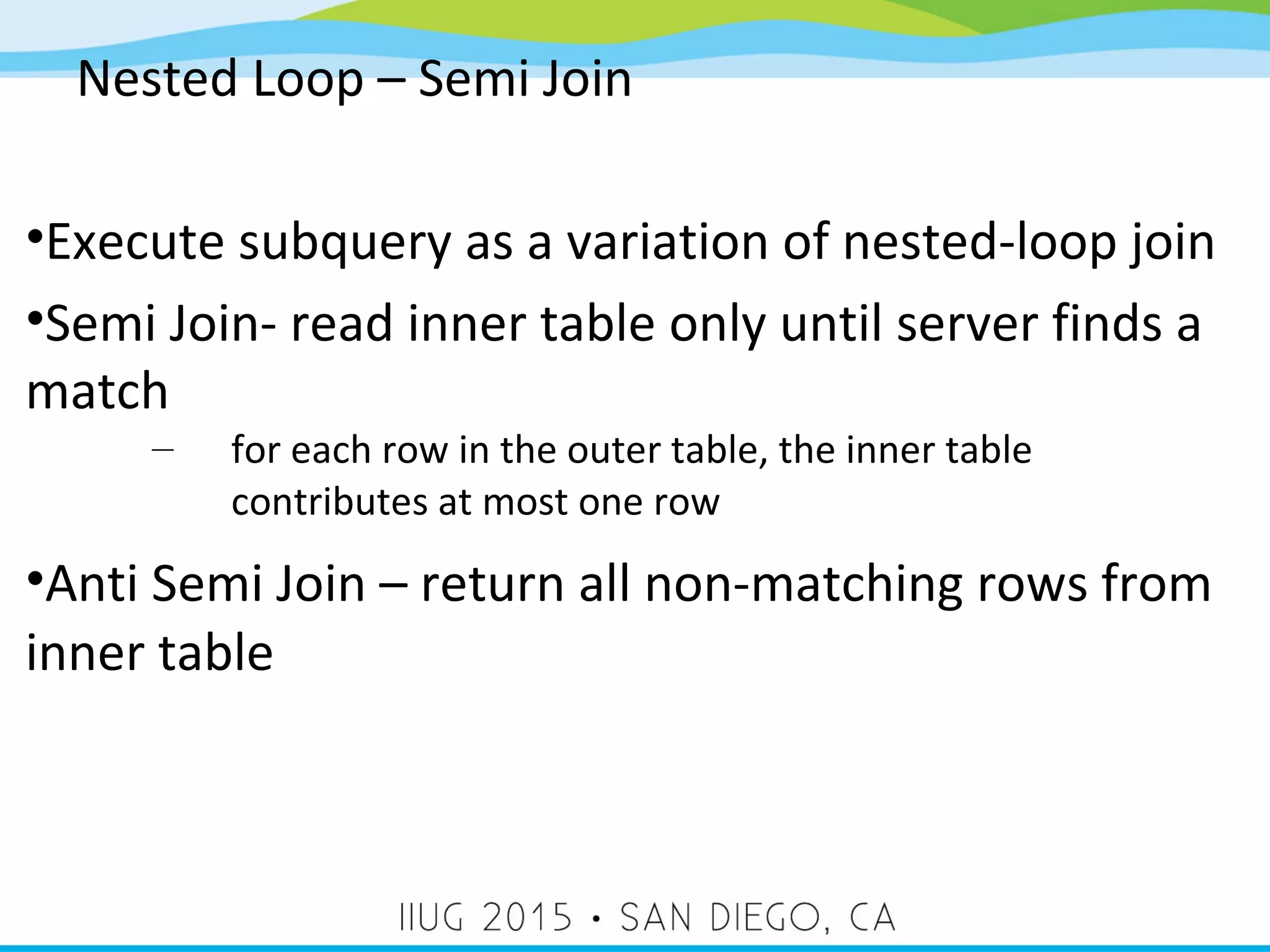

16. Nested Loop – Semi Join
•Execute subquery as a variation of nested-loop join
•Semi Join- read inner table only until server finds a
match
– for each row in the outer table, the inner table
contributes at most one row
•Anti Semi Join – return all non-matching rows from
inner table

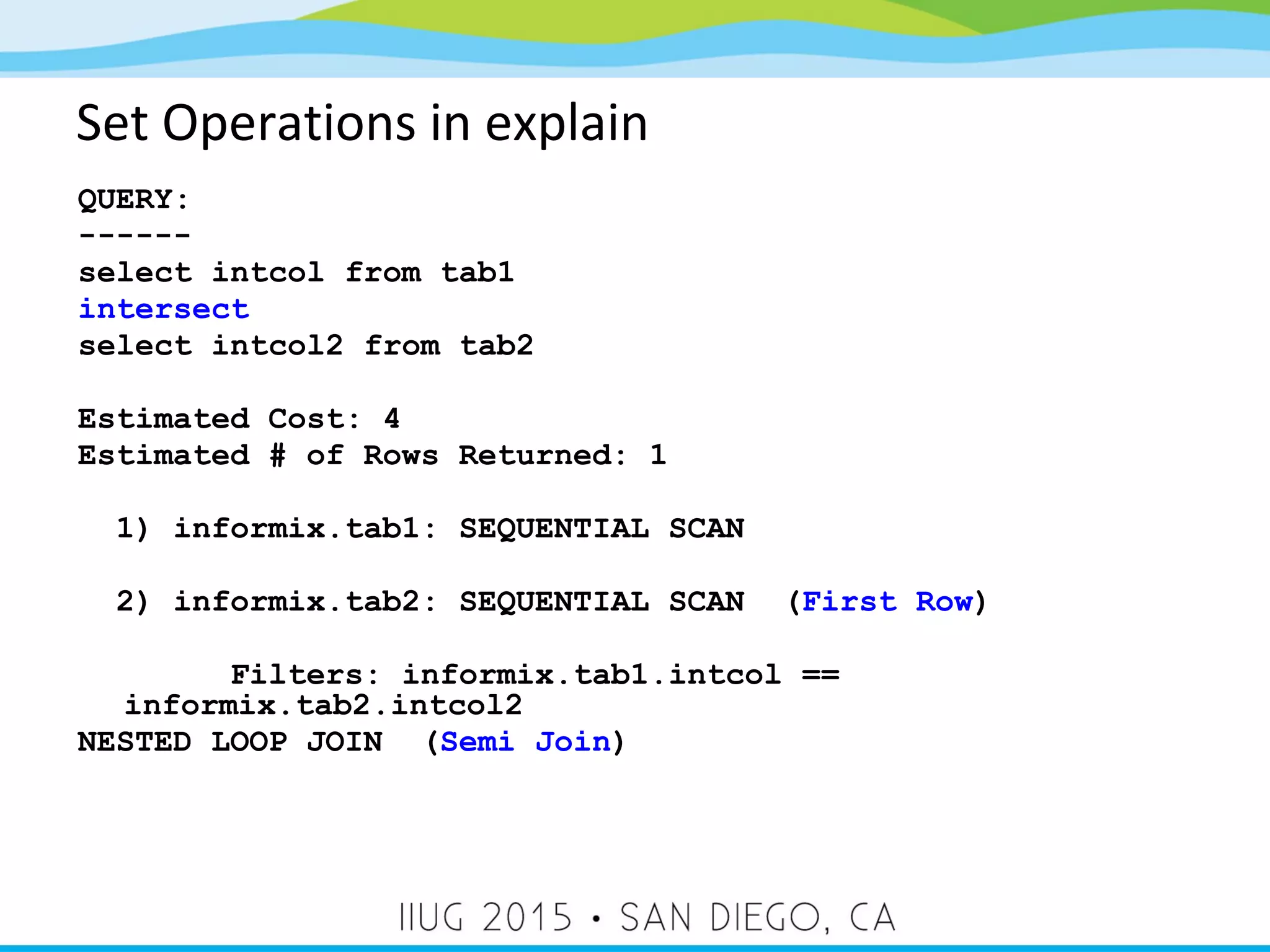

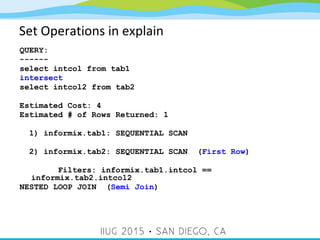

17. Set Operations in explain
QUERY:
------
select intcol from tab1
intersect
select intcol2 from tab2
Estimated Cost: 4
Estimated # of Rows Returned: 1
1) informix.tab1: SEQUENTIAL SCAN
2) informix.tab2: SEQUENTIAL SCAN (First Row)
Filters: informix.tab1.intcol ==
informix.tab2.intcol2
NESTED LOOP JOIN (Semi Join)

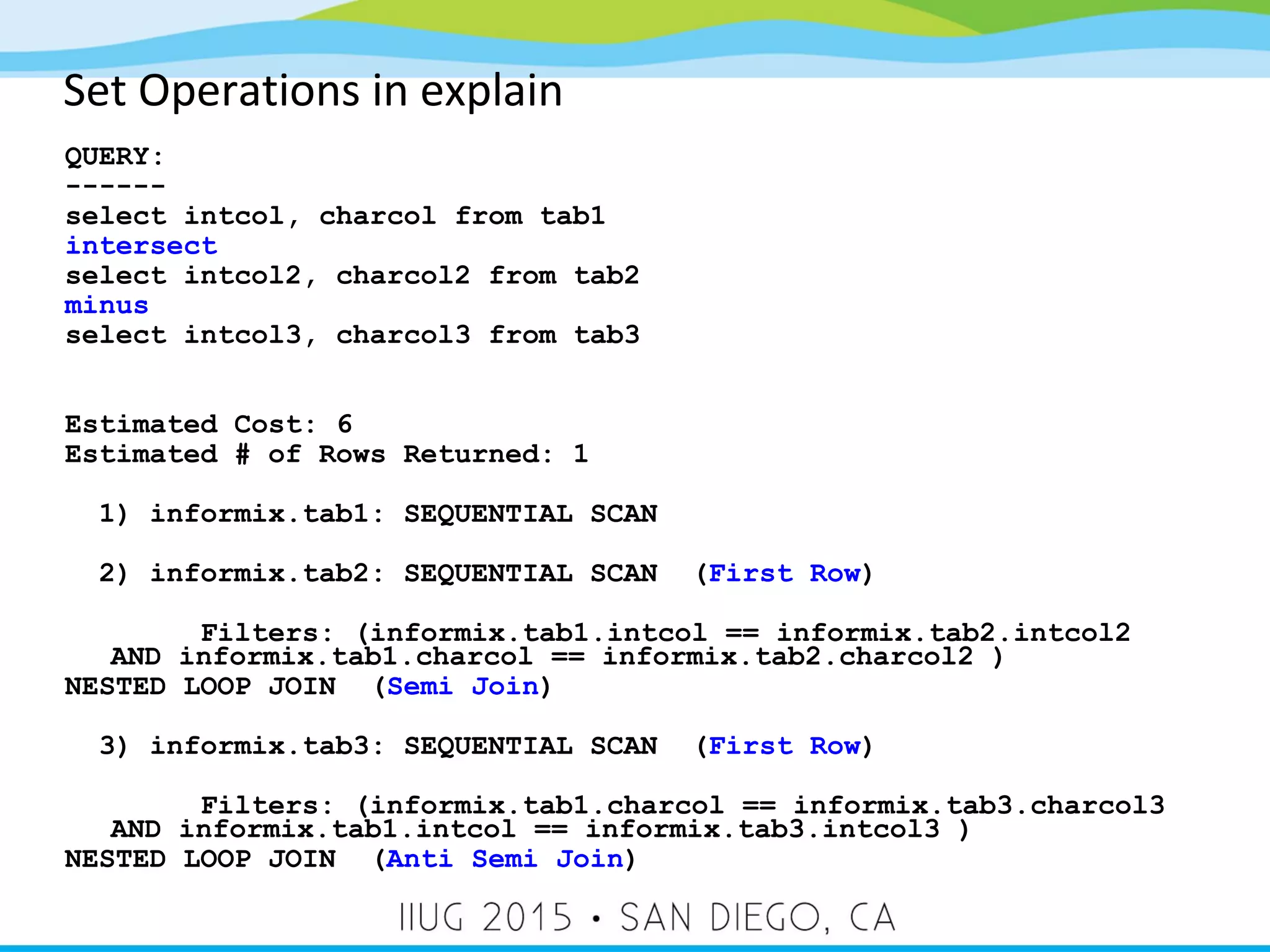

18. Set Operations in explain
QUERY:
------
select intcol, charcol from tab1
intersect
select intcol2, charcol2 from tab2
minus
select intcol3, charcol3 from tab3
Estimated Cost: 6
Estimated # of Rows Returned: 1
1) informix.tab1: SEQUENTIAL SCAN
2) informix.tab2: SEQUENTIAL SCAN (First Row)
Filters: (informix.tab1.intcol == informix.tab2.intcol2
AND informix.tab1.charcol == informix.tab2.charcol2 )
NESTED LOOP JOIN (Semi Join)
3) informix.tab3: SEQUENTIAL SCAN (First Row)
Filters: (informix.tab1.charcol == informix.tab3.charcol3
AND informix.tab1.intcol == informix.tab3.intcol3 )
NESTED LOOP JOIN (Anti Semi Join)

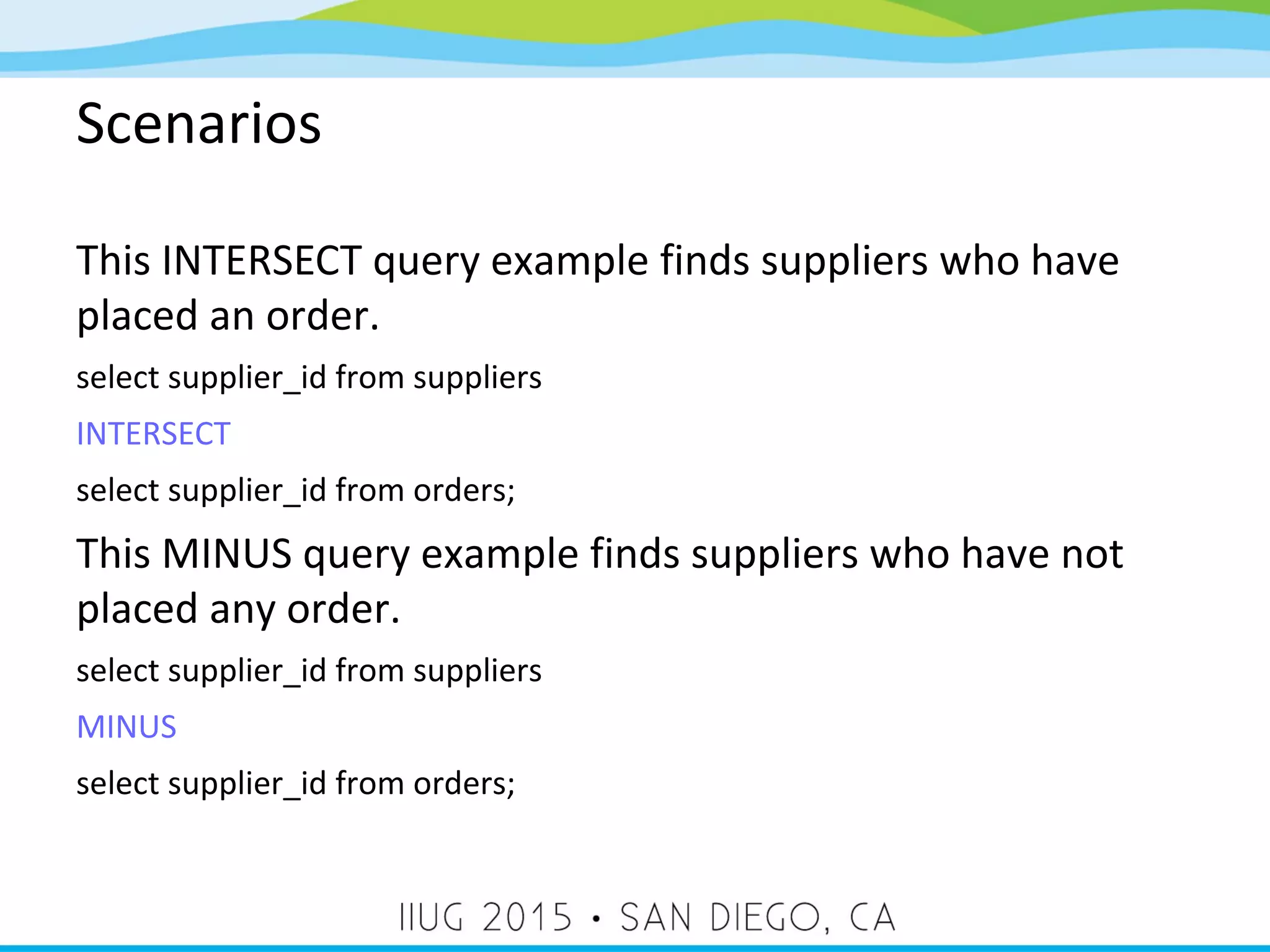

19. Scenarios
This INTERSECT query example finds suppliers who have
placed an order.
select supplier_id from suppliers
INTERSECT
select supplier_id from orders;
This MINUS query example finds suppliers who have not
placed any order.
select supplier_id from suppliers
MINUS
select supplier_id from orders;

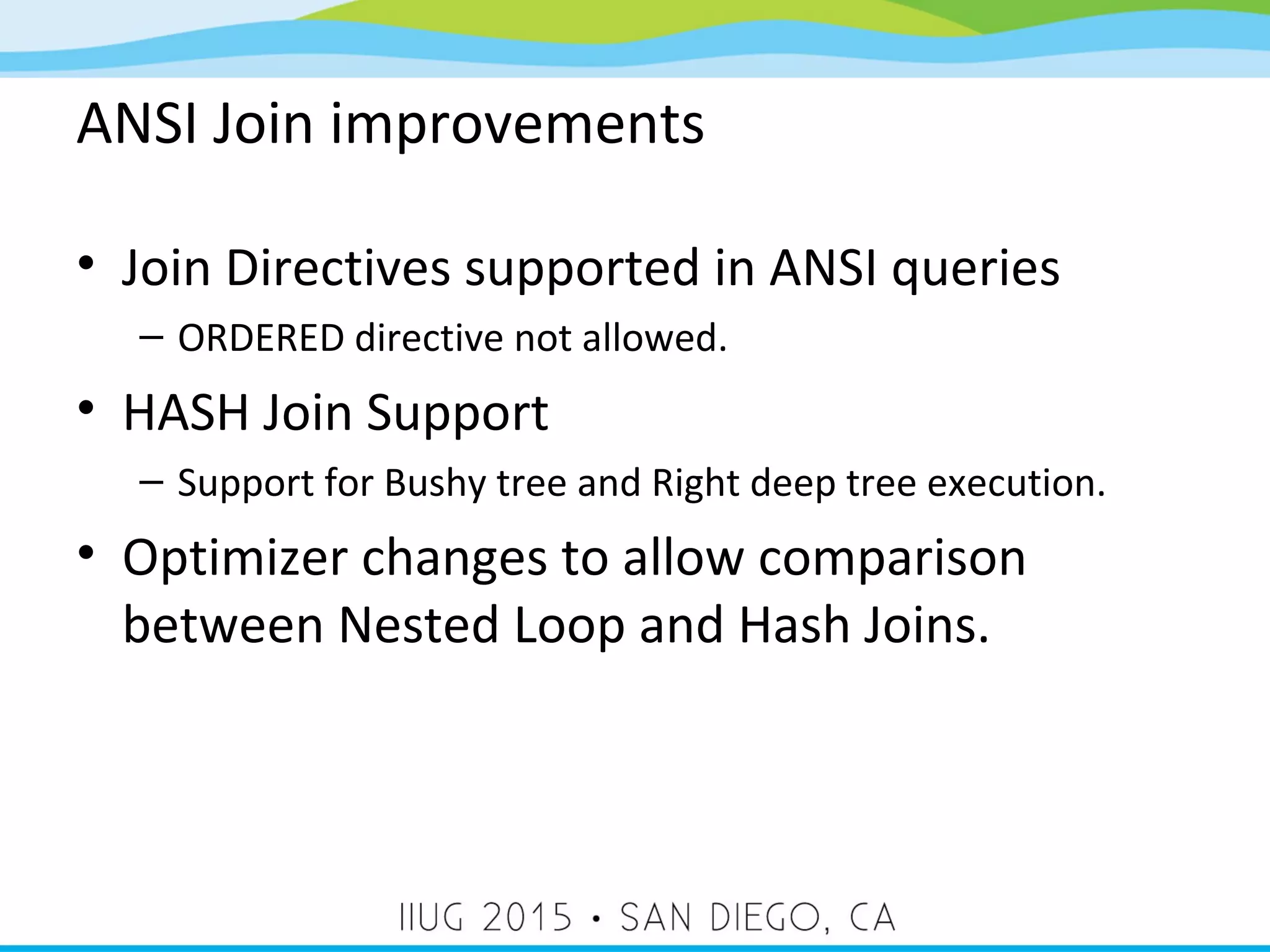

20. ANSI Join improvements
• Join Directives supported in ANSI queries
– ORDERED directive not allowed.
• HASH Join Support
– Support for Bushy tree and Right deep tree execution.
• Optimizer changes to allow comparison
between Nested Loop and Hash Joins.

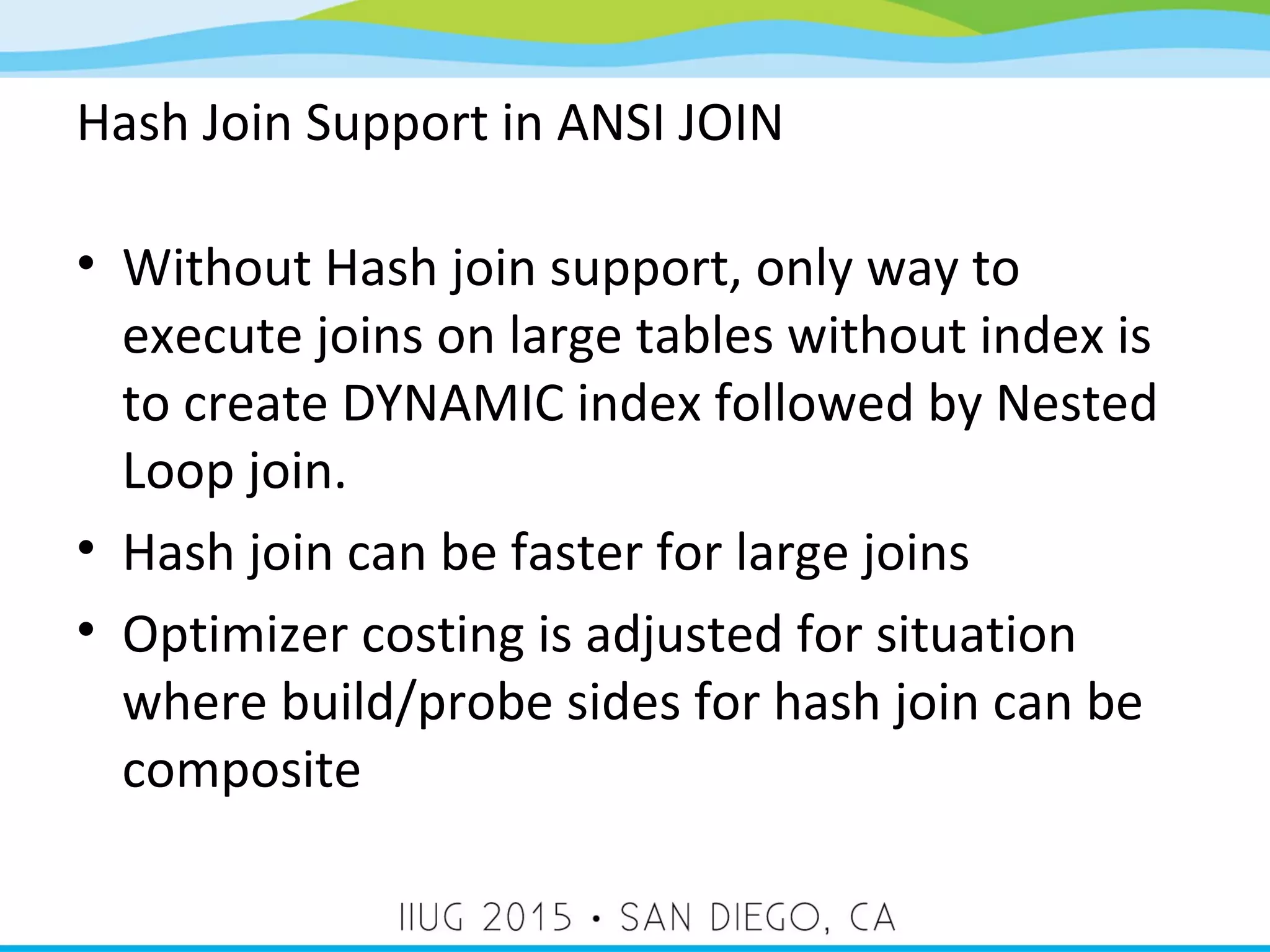

21. Hash Join Support in ANSI JOIN
• Without Hash join support, only way to
execute joins on large tables without index is
to create DYNAMIC index followed by Nested
Loop join.
• Hash join can be faster for large joins
• Optimizer costing is adjusted for situation
where build/probe sides for hash join can be
composite

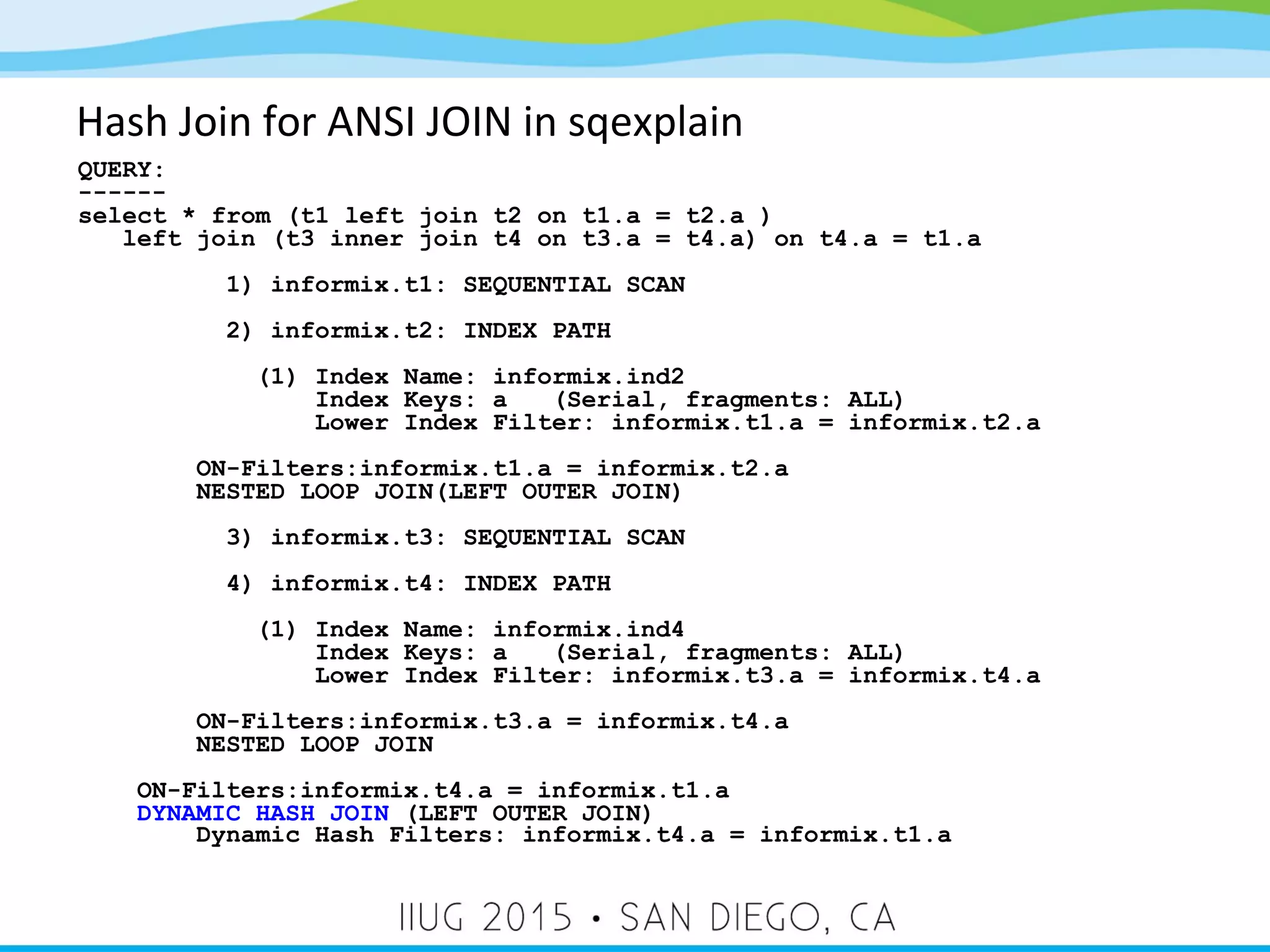

22. Hash Join for ANSI JOIN in sqexplain
QUERY:
------
select * from (t1 left join t2 on t1.a = t2.a )
left join (t3 inner join t4 on t3.a = t4.a) on t4.a = t1.a
1) informix.t1: SEQUENTIAL SCAN
2) informix.t2: INDEX PATH
(1) Index Name: informix.ind2
Index Keys: a (Serial, fragments: ALL)
Lower Index Filter: informix.t1.a = informix.t2.a
ON-Filters:informix.t1.a = informix.t2.a
NESTED LOOP JOIN(LEFT OUTER JOIN)
3) informix.t3: SEQUENTIAL SCAN
4) informix.t4: INDEX PATH
(1) Index Name: informix.ind4
Index Keys: a (Serial, fragments: ALL)
Lower Index Filter: informix.t3.a = informix.t4.a
ON-Filters:informix.t3.a = informix.t4.a
NESTED LOOP JOIN
ON-Filters:informix.t4.a = informix.t1.a
DYNAMIC HASH JOIN (LEFT OUTER JOIN)
Dynamic Hash Filters: informix.t4.a = informix.t1.a

23. Questions?
23
