1. APPLIED PROJECT
ME8103 - ADVANCED HUMAN FACTORS - W-2017
RYERSON UNIVERISTY
1

2. INTRODUCTION
Ergonomics
• Work Physiology
• Biomechanics
• Workstation Design
Human Factors
• Experimental Physiology
• Human Performance
• System Design
 Roots:
Due to the introduction of computers into the workplace, human
factors and ergonomics are coming closer
 Development over the last 50 years:
Military Ergonomics
(1950s)
Industrial Ergonomics
(1960s)
Consumer Product
Ergonomics
(1970s)
Human Computer
Ergonomics
(1980s)
Cognitive &
Organization
Ergonomics
(1990s)
Internet
(2000s)
2

3. INTRODUCTION
Common Goals
• Safety
• Operator Satisfaction
• Productivity
 Ergonomics is rarely a GOAL:
Ergonomics is a design methodology that is used to arrive at safety,
productivity, and satisfaction
This discipline promotes a holistic, human-centred approach, that
considers physical, cognitive, social, organizational, environmental and
other design-relevant factors.
3

4. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics
 Brampton YMCA:
4
• Family-Friendly Centre
• Health and Fitness Services
• Child Care
• Camps
• Community-Building Programs
 Membership Desk:
• Focal Point
• Poorly Designed
• Least Ergonomic
• Could be a Health Issue Factor

5. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
5
B. YMCA Membership Desk
Registration
Services
Employs
Two – Staff
Individuals
Focal Point
Emergency
Services &
Procedures
4-8 Hours of
Working
Shift
Support,
Update and
Integrate

6. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
6
 B. YMCA Membership Desk: Problem and Flaws
A = 112 cm
The Problem:
• Height of the Desk
• 112cm (44inches/3.67feet)
• Why is it a problem?
Flaw Reason #1:
• Sitting or Standing-Sitting?
• 92cm vs 112cm

7. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
7
 B. YMCA Membership Desk: Problem and Flaws

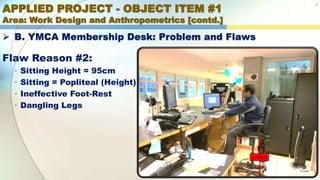

Flaw Reason #2:
• Sitting Height = 95cm
• Sitting = Popliteal (Height)
• Ineffective Foot-Rest
• Dangling Legs
B = 95cm

8. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
8
 B. YMCA Membership Desk: Problem and Flaws
Flaw Reason #3:
• Why is sitting height is Too High?
• Compressed Thighs
• Arms support
• Leaning on
• Inhibits Movements
• Joint Pains
• Absence of Floor-Foot Contact

9. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
9

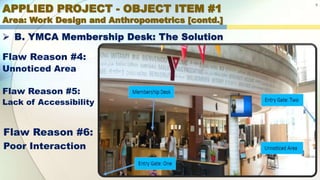

 B. YMCA Membership Desk: The Solution
Flaw Reason #4:
Unnoticed Area
Flaw Reason #5:
Lack of Accessibility
Flaw Reason #6:
Poor Interaction

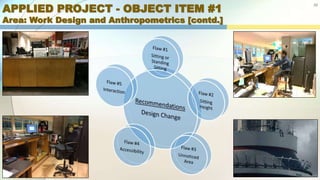

10. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
10

11. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
11

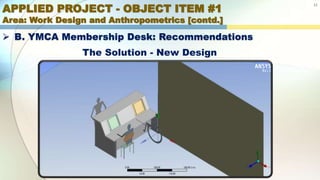

 B. YMCA Membership Desk: Recommendations
The Solution - New Design

12. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
12

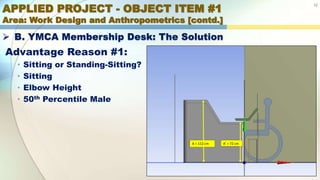

 B. YMCA Membership Desk: The Solution
Advantage Reason #1:
• Sitting or Standing-Sitting?
• Sitting
• Elbow Height
• 50th Percentile Male
A = 112 cm A’ = 72 cm

13. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
13

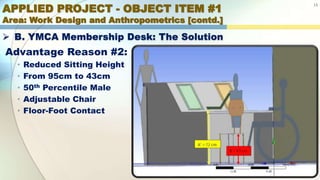

 B. YMCA Membership Desk: The Solution
Advantage Reason #2:
• Reduced Sitting Height
• From 95cm to 43cm
• 50th Percentile Male
• Adjustable Chair
• Floor-Foot Contact

14. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
14
 B. YMCA Membership Desk: The Solution

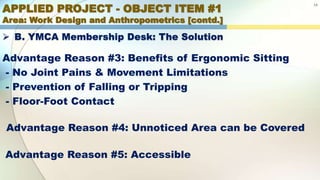

Advantage Reason #3: Benefits of Ergonomic Sitting
- No Joint Pains & Movement Limitations
- Prevention of Falling or Tripping
- Floor-Foot Contact
Advantage Reason #4: Unnoticed Area can be Covered
Advantage Reason #5: Accessible

15. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
15

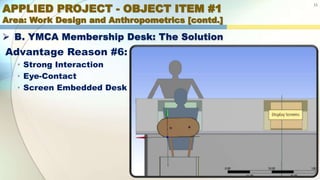

 B. YMCA Membership Desk: The Solution
Advantage Reason #6:
• Strong Interaction
• Eye-Contact
• Screen Embedded Desk

16. APPLIED PROJECT - OBJECT ITEM #1
Area: Work Design and Anthropometrics [contd.]
16
B. YMCA Membership Desk:
Further Improvement & Conclusion
More
Accessibility
Choice
LED Display

17. EMERGENCY SIGN LABELS
THE DOOR HANDLE
THE LAYOUT
APPLIED PROJECT - OBJECT ITEM #2
Area: Design of Controls, Displays & Symbols
PUSH OR TOUCH
17

18. APPLIED PROJECT - OBJECT ITEM #2
Area: Design of Controls, Displays & Symbols
PUSH OR TOUCH: Not Synonyms
18
 Brampton Transit Buses
• Requesting a Stop
• Yellow Strip
 Design Flaw
• Coding by Labeling
• Coding by Mode of Operation
• False Sign
 Correction
• Replace Touch by Push

19. APPLIED PROJECT - OBJECT ITEM #2
Area: Design of Controls, Displays & Symbols

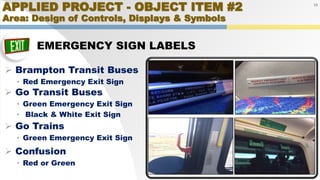

EMERGENCY SIGN LABELS
19
 Brampton Transit Buses
• Red Emergency Exit Sign
 Go Transit Buses
• Green Emergency Exit Sign
• Black & White Exit Sign
 Confusion
• Red or Green
 Go Trains
• Green Emergency Exit Sign

20. APPLIED PROJECT - OBJECT ITEM #2
Area: Design of Controls, Displays & Symbols

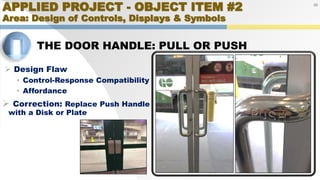

THE DOOR HANDLE: PULL OR PUSH
20
 Design Flaw
• Control-Response Compatibility
• Affordance
 Correction: Replace Push Handle
with a Disk or Plate

21. APPLIED PROJECT - OBJECT ITEM #2
Area: Design of Controls, Displays & Symbols

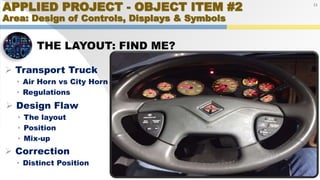

THE LAYOUT: FIND ME?
21
 Transport Truck
• Air Horn vs City Horn
• Regulations
 Design Flaw
• The layout
• Position
• Mix-up
 Correction
• Distinct Position

22. 22

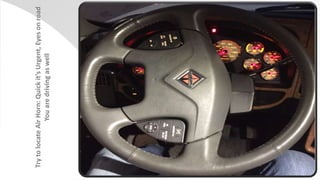

TrytolocateAirHorn:Quickit’sUrgent,Eyesonroad
Youaredrivingaswell

23. 23
“Safety is a Cheap and Effective Insurance Policy”
“Thank You”
