Interaction Design

1. Interaction design
0612-CSE-4420
Human Computer Interaction

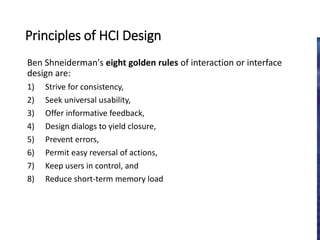

2. Principles of HCI Design
Ben Shneiderman's eight golden rules of interaction or interface
design are:
1) Strive for consistency,
2) Seek universal usability,
3) Offer informative feedback,
4) Design dialogs to yield closure,
5) Prevent errors,
6) Permit easy reversal of actions,
7) Keep users in control, and
8) Reduce short-term memory load

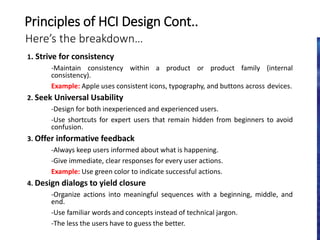

3. Here’s the breakdown…
1. Strive for consistency
-Maintain consistency within a product or product family (internal
consistency).
Example: Apple uses consistent icons, typography, and buttons across devices.
2. Seek Universal Usability
-Design for both inexperienced and experienced users.
-Use shortcuts for expert users that remain hidden from beginners to avoid
confusion.
3. Offer informative feedback
-Always keep users informed about what is happening.
-Give immediate, clear responses for every user actions.
Example: Use green color to indicate successful actions.
4. Design dialogs to yield closure
-Organize actions into meaningful sequences with a beginning, middle, and
end.
-Use familiar words and concepts instead of technical jargon.
-The less the users have to guess the better.

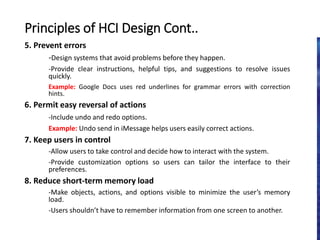

Principles of HCI Design Cont..

4. 5. Prevent errors
-Design systems that avoid problems before they happen.
-Provide clear instructions, helpful tips, and suggestions to resolve issues
quickly.
Example: Google Docs uses red underlines for grammar errors with correction
hints.
6. Permit easy reversal of actions
-Include undo and redo options.
Example: Undo send in iMessage helps users easily correct actions.
7. Keep users in control
-Allow users to take control and decide how to interact with the system.
-Provide customization options so users can tailor the interface to their
preferences.
8. Reduce short-term memory load
-Make objects, actions, and options visible to minimize the user’s memory
load.
-Users shouldn’t have to remember information from one screen to another.
Principles of HCI Design Cont..

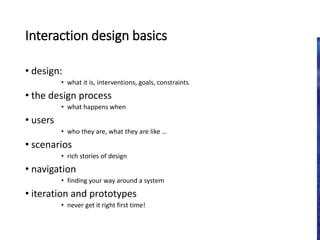

5. Interaction design basics
• design:
• what it is, interventions, goals, constraints
• the design process
• what happens when
• users
• who they are, what they are like …
• scenarios
• rich stories of design
• navigation
• finding your way around a system
• iteration and prototypes
• never get it right first time!

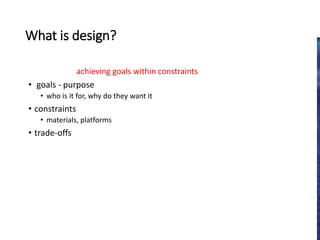

6. What is design?
achieving goals within constraints
• goals - purpose
• who is it for, why do they want it
• constraints
• materials, platforms
• trade-offs

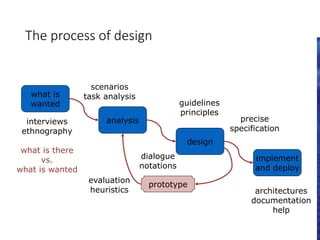

7. The process of design
what is
wanted
analysis
design
implement
and deploy
prototype
interviews
ethnography
what is there
vs.
what is wanted
guidelines
principles
dialogue
notations
precise
specification
architectures
documentation
help
evaluation
heuristics
scenarios
task analysis

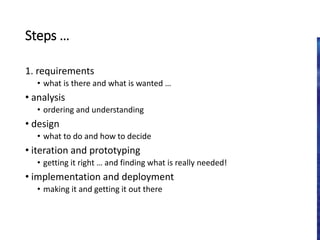

8. Steps …
1. requirements
• what is there and what is wanted …
• analysis
• ordering and understanding
• design
• what to do and how to decide
• iteration and prototyping
• getting it right … and finding what is really needed!
• implementation and deployment
• making it and getting it out there

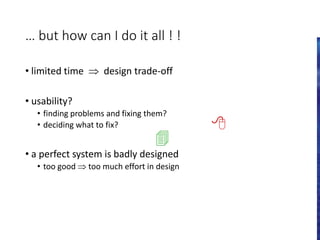

9. … but how can I do it all ! !
• limited time  design trade-off
• usability?
• finding problems and fixing them?
• deciding what to fix?
• a perfect system is badly designed
• too good  too much effort in design



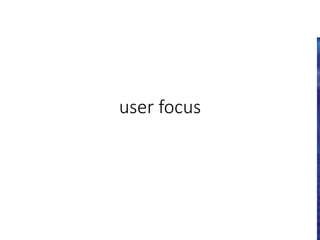

10. user focus

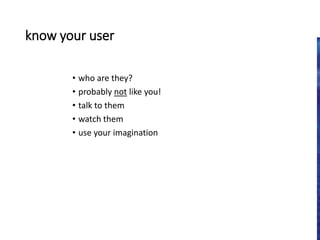

11. know your user
• who are they?
• probably not like you!
• talk to them
• watch them
• use your imagination

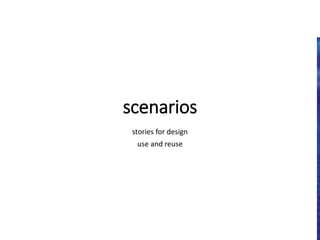

12. scenarios
stories for design
use and reuse

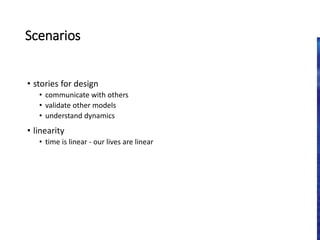

13. Scenarios
• stories for design
• communicate with others
• validate other models
• understand dynamics
• linearity
• time is linear - our lives are linear

14. Scenarios …
• what will users want to do?
• step-by-step walkthrough
• what can they see (sketches, screen shots)
• what do they do (keyboard, mouse etc.)
• what are they thinking?
• use and reuse throughout design

15. … explore the depths
• explore interaction
• what happens when
• explore cognition
• what are the users thinking
• explore architecture
• what is happening inside

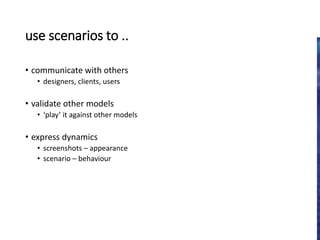

16. use scenarios to ..
• communicate with others
• designers, clients, users
• validate other models
• ‘play’ it against other models
• express dynamics
• screenshots – appearance
• scenario – behaviour

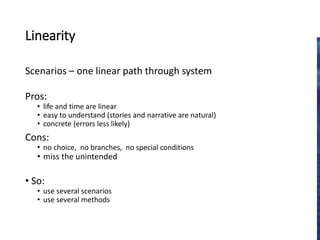

17. Linearity
Scenarios – one linear path through system
Pros:
• life and time are linear
• easy to understand (stories and narrative are natural)
• concrete (errors less likely)
Cons:
• no choice, no branches, no special conditions
• miss the unintended
• So:
• use several scenarios
• use several methods

18. navigation design
local structure – single screen
global structure – whole site
start
the systems
info and help management messages
add user remove user
main
screen
remove
user
confirm
add user

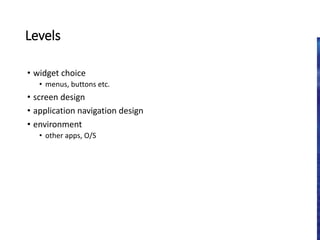

19. Levels
• widget choice
• menus, buttons etc.
• screen design
• application navigation design
• environment
• other apps, O/S

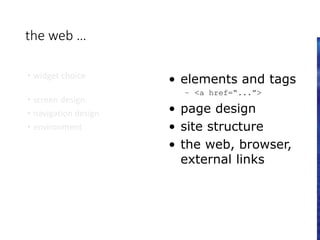

20. the web …
• widget choice
• screen design
• navigation design
• environment
• elements and tags
– <a href=“...”>
• page design
• site structure
• the web, browser,
external links

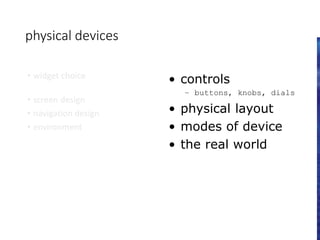

21. physical devices
• widget choice
• screen design
• navigation design
• environment
• controls
– buttons, knobs, dials
• physical layout
• modes of device
• the real world

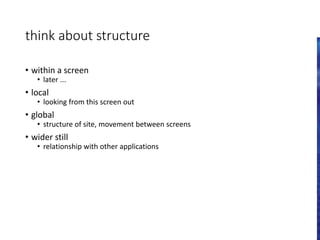

22. think about structure
• within a screen
• later ...
• local
• looking from this screen out
• global
• structure of site, movement between screens
• wider still
• relationship with other applications

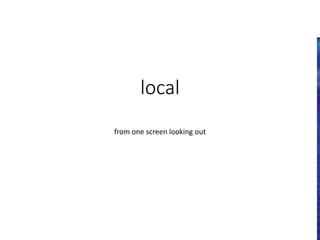

23. local
from one screen looking out

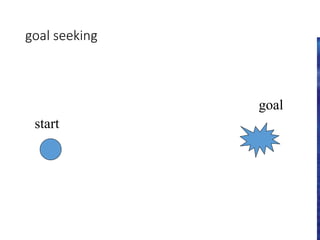

24. goal seeking
goal
start

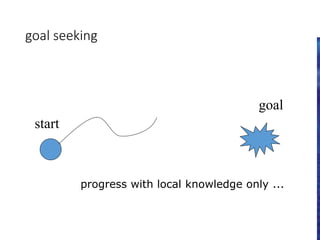

25. goal seeking
start
goal
progress with local knowledge only ...

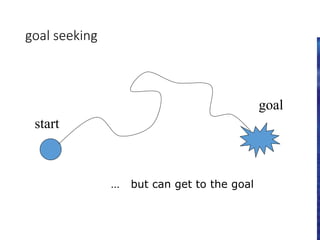

26. goal seeking
goal
start
… but can get to the goal

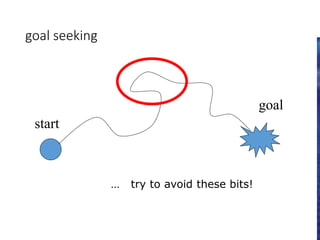

27. goal seeking
… try to avoid these bits!
goal
start

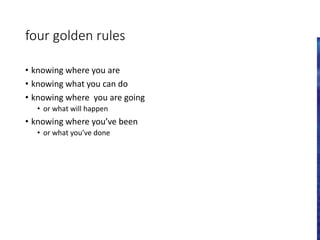

28. four golden rules
• knowing where you are
• knowing what you can do
• knowing where you are going
• or what will happen
• knowing where you’ve been
• or what you’ve done
