HTML5 Form Inputs in Matrix

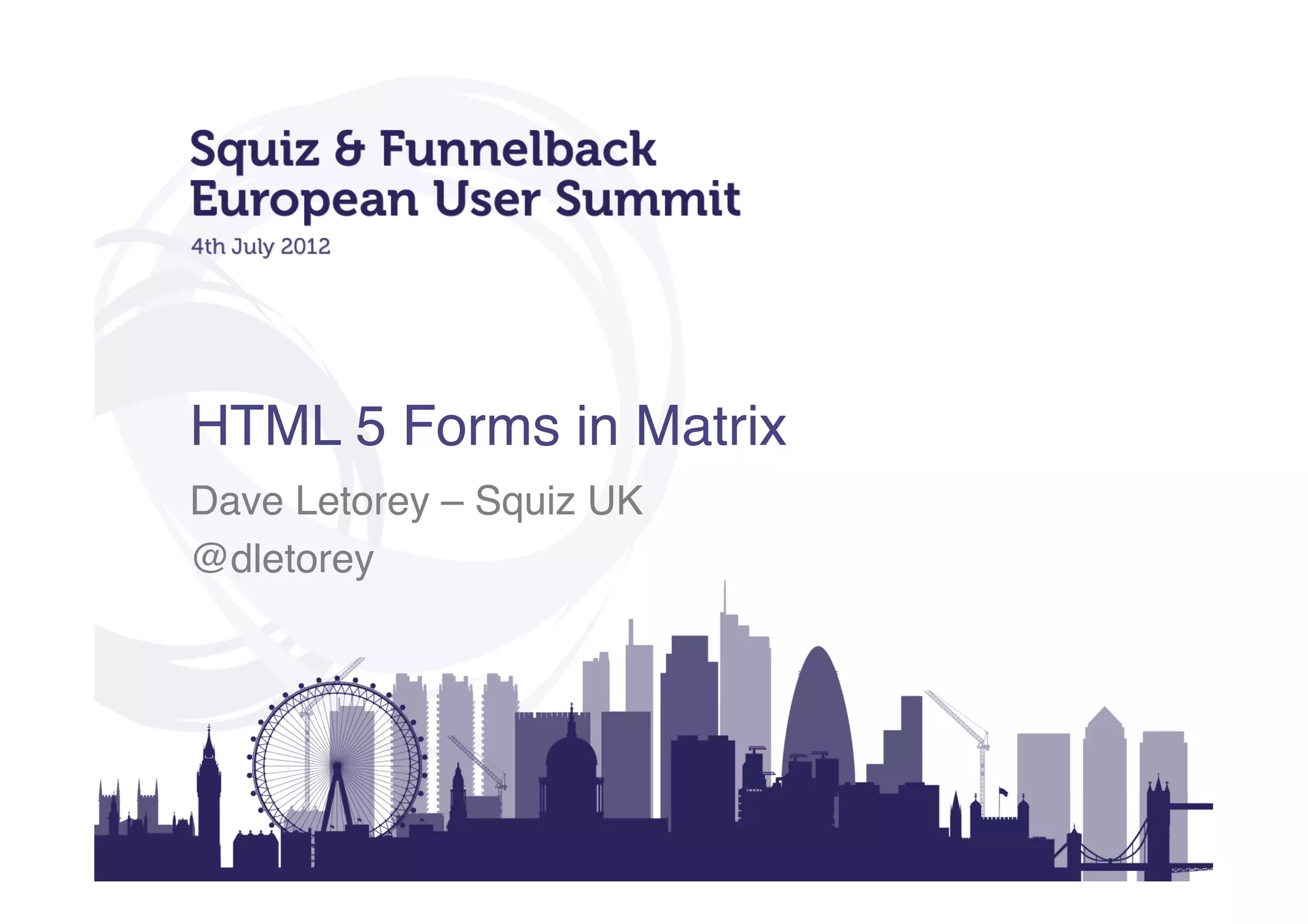

1. HTML 5 Forms in Matrix!
Dave Letorey – Squiz UK!
@dletorey!

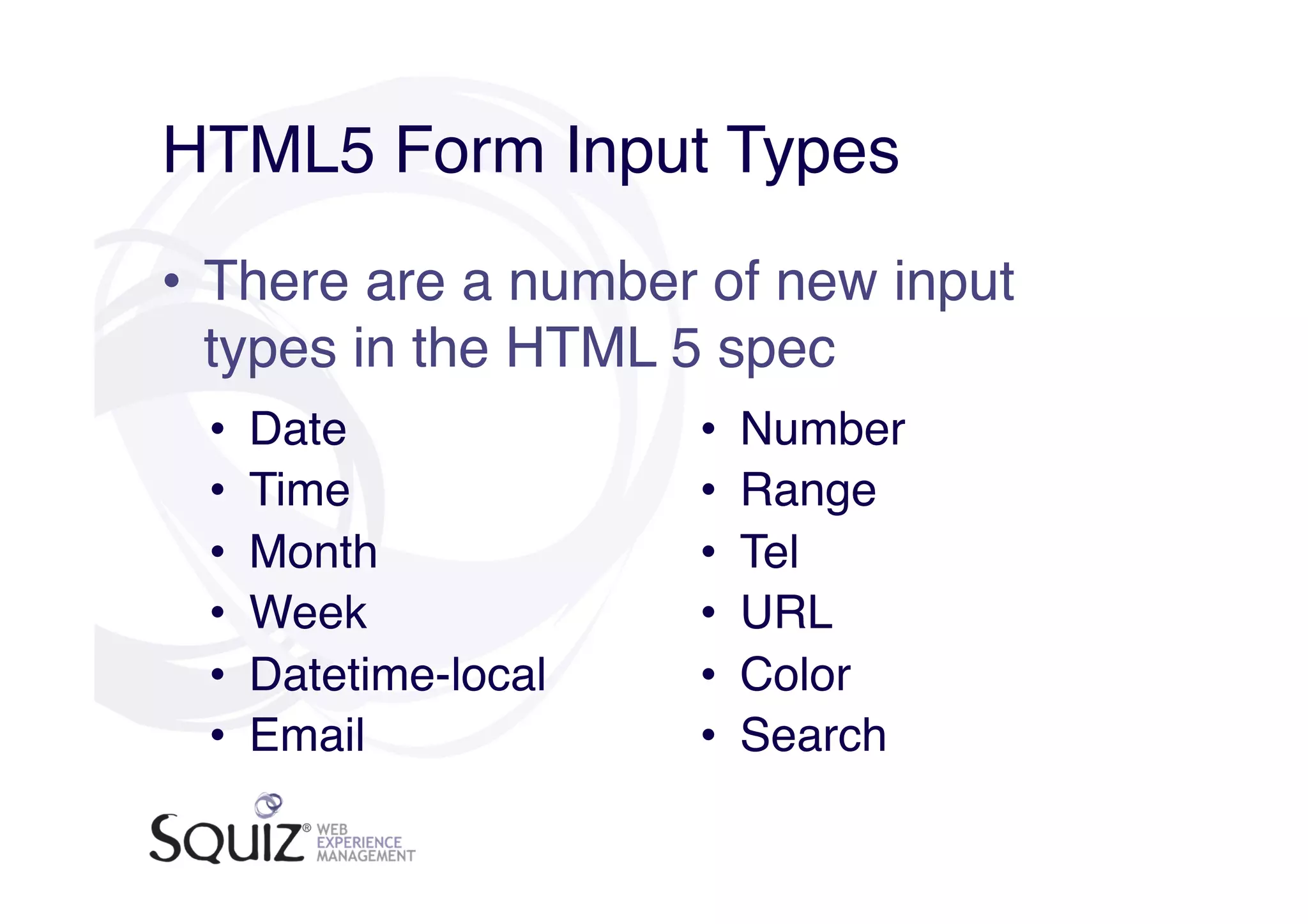

2. HTML5 Form Input Types!
• There are a number of new input
types in the HTML 5 spec!
• Date! • Number!
• Time! • Range!
• Month! • Tel!
• Week! • URL!
• Datetime-local! • Color!
• Email! • Search!
3. HTML5 Input Types!
• All of these new input types, if not
supported by the users browser, will
fallback to Text input fields!
4. Creating an HTML 5 form in
Matrix!
• As these new input types are not in
Matrix, these all need to be added as
Text field type!
• This is good as the fallback type is a
text type!
5. Changing the Default Output!
• This is Achieved using Page Contents
& Thank You bodycopies!
6. Page Contents code!
<input name="qxxx:qy" id="xxx:qy"type="zzz" />!
Where: !
• xxx is the assetid for the form/section!
• y is the question number!
• zzz is the input type e.g. email, text, tel,
date, time, etc.!
7. Thank you code!
zzz: %response_xxx_qy%!
Where: !
• xxx is the assetid for the form/
section!
• y is the question number!
• zzz is the name of your question.!
8. Required attribute!
• HTML5 form inputs have a required
attribute!
• The browser will then add a message
if it is not filled in!
11. Placeholder attribute!
The placeholder attribute is used to
populate text that gives the user a hint
as to what to do. !
The text is removed when the field has
focus!
13. Pattern attribute!
The input types: email, number, url, etc
are really baked-in regular expression!
Using the pattern attribute you can add
regular expressions to any input type!
Syntax:!
<input type="text"
pattern="[reg-exp]" />!
14. Min Max attribute!!
A Min & Max can be set on Date, Time,
Number, Range, etc input types!
Syntax:!
<input type="date"
min="1969-08-26"
max="2012-07-4" />!
!
15. Step attribute!
For input types that involve numbers,
e.g. you can make them step in
increments!
Syntax:!
<input type="range" min="0"
max="100" step="5" />!
!
16. Styling Input fields with CSS!
CSS3 introduced 2 new pseudo classes for
form inputs!
input:valid {!
!background-color: green;!
}!
input:invalid {!
!background-color: red;!
}!
!
17. Why should I care about this?!
• It makes it easier for users to fill in
your forms!
• It makes forms much more accessible!
24. Modernizr + Polyfills!
• Modernizr is a JavaScript file that
detects if a browser supports the new
features!
• http://modernizr.com/!
• Polyfills can be used to add these
new input fields and attributes into
browser that do not support them!
