The document discusses software configuration management (SCM) processes including configuration identification, control, status accounting, and auditing. The key aspects of SCM are to identify, control, maintain, and verify different versions of software items. An effective SCM plan should include processes for change management, status reporting, audits, release management, and using approved tools.

1. Process Vision

2. Black Book description:
 “… a discipline that governs the identification, control,
status accounting, and auditing of a given entity, such as a
software program or system, and the components that
makeup that entity.” (Berlack, H., “Software Configuration
Management”, ©1992)
The main goal of SCM is to identify, control, maintain,
and verify the versions of software configuration items.
Configuration Configuration
Management Audits
Configuration Configuration Configuration
Identification Control Accounting

3. Policy and procedures the Company is implementing
are taken from Industry “Best Practices” along with
recommendations
 Auditing
 Branching Strategy
 Rebasing Projects
 Build process for traceability, completeness,
repeatability, reliability
 Environment
Build machine

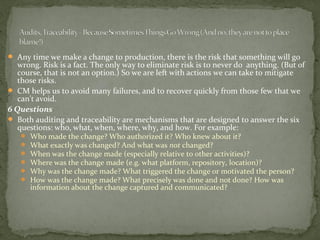

4.  Any time we make a change to production, there is the risk that something will go
wrong. Risk is a fact. The only way to eliminate risk is to never do anything. (But of
course, that is not an option.) So we are left with actions we can take to mitigate
those risks.
 CM helps us to avoid many failures, and to recover quickly from those few that we
can't avoid.
6 Questions
 Both auditing and traceability are mechanisms that are designed to answer the six
questions: who, what, when, where, why, and how. For example:
 Who made the change? Who authorized it? Who knew about it?
 What exactly was changed? And what was not changed?
 When was the change made (especially relative to other activities)?
 Where was the change made (e.g. what platform, repository, location)?
 Why was the change made? What triggered the change or motivated the person?
 How was the change made? What precisely was done and not done? How was
information about the change captured and communicated?

5.  Who?
 The "who" of change primarily revolves around the availability of
pertinent information. Were the "right" people involved?
 Did the person who made the change have the information that
was necessary to make an informed choice about doing it?
 The same question can be asked about the person who approved
the change.
 What?
 The "what" of change points us to issues of completeness.
 Were changes made to all of the things that should have been
changed?
 What things were missed, and why were they missed?

6.  When?
 The "when" of change deals with synchronization.
 Were there activities that should have been completed before the
change was made?
 Were there activities that should not have been done before the
change?
 Did this change affect other changes?
 Where?
 The "where" of a change leads us to distribution issues.
 Was the change made in all of the places that it should have been
made?
 Was it distributed to all of the people who should have received
it?
 And was it timely installed in each place?

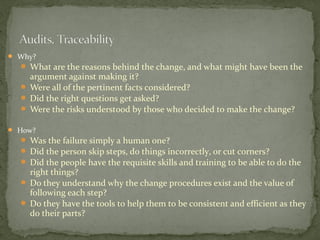

7.  Why?
 What are the reasons behind the change, and what might have been the
argument against making it?
 Were all of the pertinent facts considered?
 Did the right questions get asked?
 Were the risks understood by those who decided to make the change?
 How?
 Was the failure simply a human one?
 Did the person skip steps, do things incorrectly, or cut corners?
 Did the people have the requisite skills and training to be able to do the
right things?
 Do they understand why the change procedures exist and the value of
following each step?
 Do they have the tools to help them to be consistent and efficient as they
do their parts?

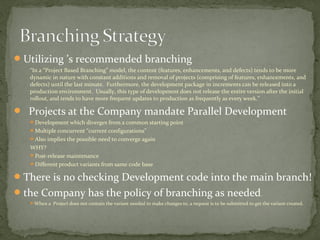

8.  Utilizing ’s recommended branching
“In a “Project Based Branching” model, the content (features, enhancements, and defects) tends to be more
dynamic in nature with constant additions and removal of projects (comprising of features, enhancements, and
defects) until the last minute. Furthermore, the development package in increments can be released into a
production environment. Usually, this type of development does not release the entire version after the initial
rollout, and tends to have more frequent updates to production as frequently as every week.”
 Projects at the Company mandate Parallel Development
Development which diverges from a common starting point
Multiple concurrent “current configurations”
Also implies the possible need to converge again
WHY?
Post-release maintenance
Different product variants from same code base
 There is no checking Development code into the main branch!
 the Company has the policy of branching as needed.
When a Project does not contain the variant needed to make changes to, a request is to be submitted to get the variant created.

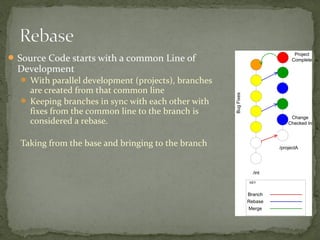

9.  Source Code starts with a common Line of
Development
 With parallel development (projects), branches
are created from that common line
 Keeping branches in sync with each other with
fixes from the common line to the branch is
considered a rebase.
Taking from the base and bringing to the branch

10.  The build process is more than just a compilation of the code that is
done on a developer's workstation
 A build process for an application would build the installer,
documentation, licenses etc. for the entire product.
Update the build numbers in code and
Build the documentation.
documentation.
Generate release notes
Get the latest sources from source
control. Build the installers.
Tag the code in source control. Copy the artifacts to a folder for archiving
or to the machine that is used for
Build the code.
archiving the builds. Make sure that
Run automated unit tests. the folder are named appropriately.
Run automated functional tests. Deploy the product to a test server.
Run automated regression tests Send out build status email.
Clean up and temp files and folders.

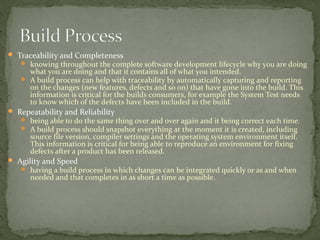

11.  Traceability and Completeness
 knowing throughout the complete software development lifecycle why you are doing
what you are doing and that it contains all of what you intended.
 A build process can help with traceability by automatically capturing and reporting
on the changes (new features, defects and so on) that have gone into the build. This
information is critical for the builds consumers, for example the System Test needs
to know which of the defects have been included in the build.
 Repeatability and Reliability
 being able to do the same thing over and over again and it being correct each time.
 A build process should snapshot everything at the moment it is created, including
source file version, compiler settings and the operating system environment itself.
This information is critical for being able to reproduce an environment for fixing
defects after a product has been released.
 Agility and Speed
 having a build process in which changes can be integrated quickly or as and when
needed and that completes in as short a time as possible.

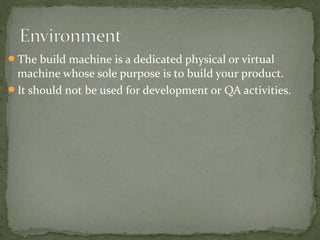

12. The build machine is a dedicated physical or virtual
machine whose sole purpose is to build your product.
It should not be used for development or QA activities.

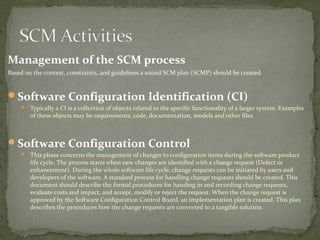

13. Management of the SCM process
Based on the context, constraints, and guidelines a sound SCM plan (SCMP) should be created.
Software Configuration Identification (CI)
 Typically a CI is a collection of objects related to the specific functionality of a larger system. Examples
of these objects may be requirements, code, documentation, models and other files.
Software Configuration Control
 This phase concerns the management of changes to configuration items during the software product
life cycle. The process starts when new changes are identified with a change request (Defect or
enhancement). During the whole software life cycle, change requests can be initiated by users and
developers of the software. A standard process for handling change requests should be created. This
document should describe the formal procedures for handing in and recording change requests,
evaluate costs and impact, and accept, modify or reject the request. When the change request is
approved by the Software Configuration Control Board, an implementation plan is created. This plan
describes the procedures how the change requests are converted to a tangible solution.

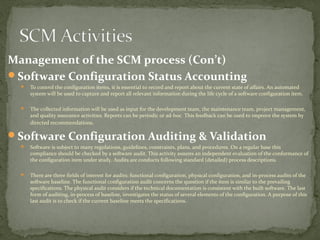

14. Management of the SCM process (Con’t)
Software Configuration Status Accounting
 To control the configuration items, it is essential to record and report about the current state of affairs. An automated
system will be used to capture and report all relevant information during the life cycle of a software configuration item.
 The collected information will be used as input for the development team, the maintenance team, project management,
and quality assurance activities. Reports can be periodic or ad-hoc. This feedback can be used to improve the system by
directed recommendations.
Software Configuration Auditing & Validation
 Software is subject to many regulations, guidelines, constraints, plans, and procedures. On a regular base this
compliance should be checked by a software audit. This activity assures an independent evaluation of the conformance of
the configuration item under study. Audits are conducts following standard (detailed) process descriptions.
 There are three fields of interest for audits: functional configuration, physical configuration, and in-process audits of the
software baseline. The functional configuration audit concerns the question if the item is similar to the prevailing
specifications. The physical audit considers if the technical documentation is consistent with the built software. The last
form of auditing, in-process of baseline, investigates the status of several elements of the configuration. A purpose of this
last audit is to check if the current baseline meets the specifications.

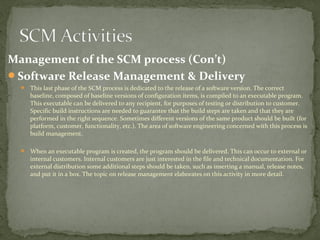

15. Management of the SCM process (Con’t)
Software Release Management & Delivery
 This last phase of the SCM process is dedicated to the release of a software version. The correct
baseline, composed of baseline versions of configuration items, is compiled to an executable program.
This executable can be delivered to any recipient, for purposes of testing or distribution to customer.
Specific build instructions are needed to guarantee that the build steps are taken and that they are
performed in the right sequence. Sometimes different versions of the same product should be built (for
platform, customer, functionality, etc.). The area of software engineering concerned with this process is
build management.
 When an executable program is created, the program should be delivered. This can occur to external or
internal customers. Internal customers are just interested in the file and technical documentation. For
external distribution some additional steps should be taken, such as inserting a manual, release notes,
and put it in a box. The topic on release management elaborates on this activity in more detail.

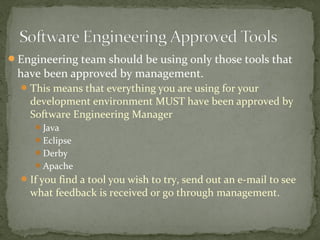

16. Engineering team should be using only those tools that
have been approved by management.
 This means that everything you are using for your
development environment MUST have been approved by
Software Engineering Manager
Java
Eclipse
Derby
Apache
 If you find a tool you wish to try, send out an e-mail to see
what feedback is received or go through management.
